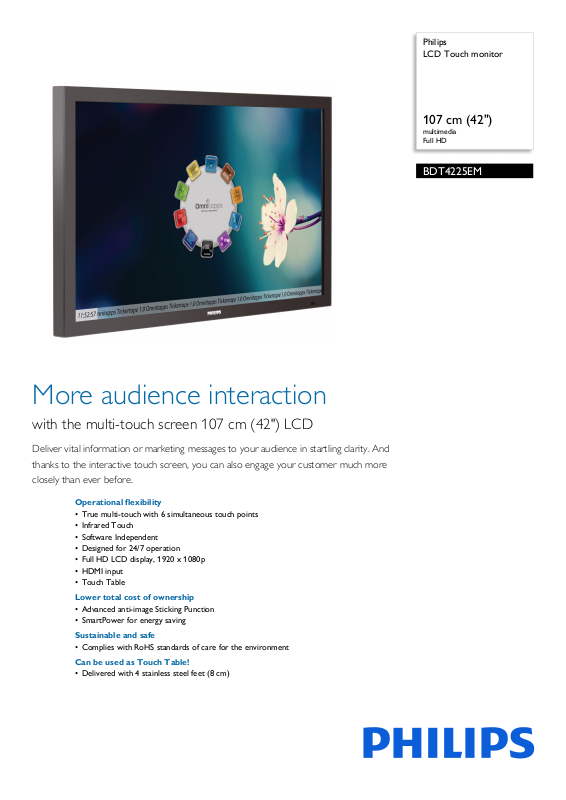

Philips BDT4225EM/06 leaflet

Philips
LCD Touch monitor

107 cm (42")

multimedia
Full HD

BDT4225EM

More audience interaction

with the multi-touch screen 107 cm (42") LCD

Deliver vital information or marketing messages to your audience in startling clarity. And
thanks to the interactive touch screen, you can also engage your customer much more
closely than ever before.

Operational flexibility

• True multi-touch with 6 simultaneous touch points

• Infrared Touch

• Software Independent

• Designed for 24/7 operation

• Full HD LCD display, 1920 x 1080p

• HDMI input

• Touch Table

Lower total cost of ownership

• Advanced anti-image Sticking Punction

• SmartPower for energy saving

Sustainable and safe

• Complies with RoHS standards of care for the environment

Can be used as Touch Table!

• Delivered with 4 stainless steel feet (8 cm)

BDT4225EM/06

LCD Touch monitor

107 cm (42") multimedia, Full HD

Highlights

Infrared Touch

With an invisible infrared grid on the top of the
s

creen, you can enjoy amazing accuracy and
fast response times, even when the screen is
touched by a finger, glove or stylus. And no
"ghost points".

6 simultaneous touch points

Enjoy a more interactive experience with up to
6

touch points at the same time. Ideal for when
you have more than one user interacting with
your application simultaneously, the 6 touch
points offer an extremely cost-effective
solution.

Advanced anti-image sticking

Advanced anti-image Sticking Punction

Designed for 24/7 operation

Designed for 24/7 operation

HDMI input

HDMI makes an uncompressed digital RGB
conne

ction from the source to the screen. By
eliminating conversion to an analogue signal, it
delivers an unblemished image. The non­degraded signal reduces flicker and leads to a
clearer picture. HDMI intelligently
communicates the highest output resolution
with the source device. The HDMI input is fully
backwards-compatible with DVI sources but
includes digital audio. HDMI uses HDCP copy
protection.

SmartPower

The backlight intensity can be controlled and
pre-se

t by the system to reduce the power

consumption by up to 50%, which saves
substantially on energy costs.

Software Independent

Our touch screens are software independent
an

d work with most touch-screen software
commercially available, including Windows XP/
7 and Mac OS, Omnitapps – BMT1909/00.
Connect via USB to a PC or laptop.

Touch Table

This Multi-user Touch Screen can
horizontal position. It is delivered with four 8­cm high stainless steel feet, which can be
screwed in at the back corners of the monitor.
With this feature you can turn this monitor
into a Touch Table.

be used in a

BDT4225EM/06

LCD Touch monitor

107 cm (42") multimedia, Full HD

Specifications

Picture/Display

• Diagonal screen size: 42 inch / 107 cm

• Panel resolution: 1920 x 1080p

• Optimum resolution: 1920 x 1080 @ 60 Hz

• Brightness: 500 cd/m²

• Contrast ratio (typical): 1400:1

• Response time (typical): 5 ms

• Aspect ratio: 16:9

• Viewing angle: 178º (H)/178º (V)

• Pixel pitch: 0.485 x 0.485

• Display colours: 1.06 Billion colours

• Picture enhancement: 3/2 - 2/2 motion pull down,
mbfi

3D Co
Progressive scan, 3D MA deinterlacing, Dynamic
contrast enhancement

lter, Motion compens. deinterlacing,

Supported Display Resolution

• Computer formats

Resolution Refresh rate
640 x 480 60, 67, 72, 75 Hz
800 x 600 56, 60, 72, 75 Hz
1024 x 768 60 Hz
1280 x 768 60 Hz
1280 x 800 60 Hz
1280 x 1024 60 Hz
1360 x 768 60 Hz
1366 x 768 60 Hz
1440 x 900 60 Hz
1600 x 1200 60 Hz
1920 x 1080 60 Hz
1920 x 1200 60 Hz

• Vi

deo formats

Resolution Refresh rate
480i 60 Hz
480p 60 Hz
576i 50 Hz
576p 50 Hz
720p 50, 60 Hz
1080i 50, 60 Hz
1080p 50, 60 Hz

Connectivity

• PC: VGA-in D-Sub 15HD, VGA-out D-Sub 15HD,
DVI-D x 1, RS232 D-Sub9, RS232 D-sub9 output,

3.5 mm PC audio input x 1

• AV input: HDMI x 1, Component (BNC) x 1,

mp

osite (RCA) x 1, Composite (BNC) x 1, S-

Co
video x 1,

• AV output: Composite (BNC) x 1, Audio (L/R) x 1

• Touch Screen: USB

Audio (L/R) x 2

Convenience

• Placement: Portrait, Landscape, Horizontal (table)

• Picture in picture: PBP, PIP, POP

• Screen-saving functions: Pixel Shift, Low Brightness

• Keyboard control: Hidden, Lockable

• Remote control signal: Lockable

• Energy-saving functions: Smart Power

• Picture performance: Advanced colour control

Dimensions

• Set dimensions (W x H x D): 1024 x 617 x

140.79 mm

• Bezel thickness: 46 mm horizontal, 44.5 mm
ical

vert

• Product weight: 38 kg

• Packaging dimensions (WxHxD): 1175 x 840 x

0

mm

31

•

VESA Mount: 400 x 400 mm

Operating conditions

• Temperature range (operation): 0 - 40 °C

• Relative humidity: 5 - 90 %

• MTBF: 50,000 hour(s)

Sound

• Built-in speakers: 2 x 7 W (8 ohm)

Accessories

• Included accessories: Remote Control, Batteries

for remote control, AC Power Cord, VGA cable,
User manual on CD-ROM, Owner's Manual, 4
stainless steel feet, Touch Driver on USB

• Optional accessories: Fixed wall mount, Flexible

unt, C

wall mo
BMT1851/00, Multi User Touch SW, Software
Omnitapps BMT1909/00

eiling mount, Electric Stand

Miscellaneous

• Bezel: black, RAL 9005F13

• On-Screen Display Languages: English, French,

erman, Italian, Polish, Turkish, Russian, Simplified

G
Chinese

• Regulatory approvals: CCC, CE, FCC, Class B,

HS, U

L/cUL

Ro

Packaging Data

• Tare weight: 25 kg

• Number of products included: 1

Interactivity

• Multi-touch technology: 6 Touch points

simultaneously, Infrared touch, USB connection, 4­mm safety glass

•

Issue date 2019-05-09

Version: 1.0.1

12 NC: 8670 000 86524
EAN: 87 12581 63224 3

© 2019 Koninklijke Philips N.V.
All Rights reserved.

Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.

www.philips.com
