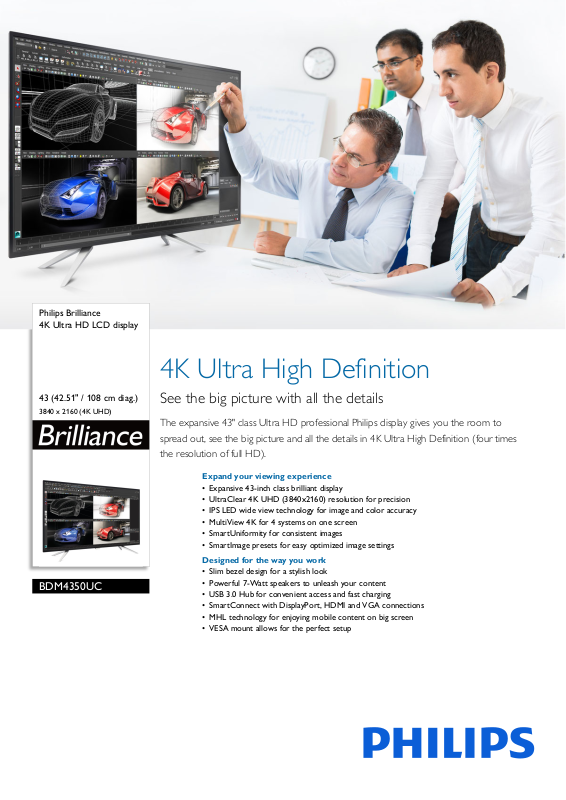

Philips Brilliance
4K Ultra HD LCD display
4K Ultra High Definition
43 (42.51" / 108 cm diag.)
3840 x 2160 (4K UHD)
BDM4350UC
See the big picture with all the details
The expansive 43" class Ultra HD professional Philips display gives you the room to
spread out, see the big picture and all the details in 4K Ultra High Definition (four times
the resolution of full HD).
Expand your viewing experience
• Expansive 43-inch class brilliant display
• UltraClear 4K UHD (3840x2160) resolution for precision
• IPS LED wide view technology for image and color accuracy
• MultiView 4K for 4 systems on one screen
• SmartUniformity for consistent images
• SmartImage presets for easy optimized image settings
Designed for the way you work
• Slim bezel design for a stylish look
• Powerful 7-Watt speakers to unleash your content
• USB 3.0 Hub for convenient access and fast charging
• SmartConnect with DisplayPort, HDMI and VGA connections
• MHL technology for enjoying mobile content on big screen
• VESA mount allows for the perfect setup
Page 2
BDM4350UC/94
4K Ultra HD LCD display
43 (42.51" / 108 cm diag.) 3840 x 2160 (4K UHD)
Highlights
UltraClear 4K UHD Resolution
These Philips displays utilize high performance
panels to deliver UltraClear, 4K UHD (3840 x
2160) resolution images. Whether you are
demanding professional requiring extremely
detailed images for CAD solutions, using 3D
graphics applications or a financial wizard
working on huge spreadsheets, Philips displays
will make your images and graphics come alive.
IPS technology
IPS displays use an advanced technology which
gives you extra wide viewing angles of 178/178
degree, making it possible to view the display
from almost any angle. Unlike standard TN
panels, IPS displays gives you remarkably crisp
images with vivid colors, making it ideal not
only for Photos, movies and web browsing, but
also for professional applications which
demand color accuracy and consistent
brightness at all times.
systems each shown in Full HD on one screen.
You can use the Picture-by-Picture (PbP) for
monitoring four systems on one screen for
control rooms or security. Or for multiple
devices like two notebooks side-by-side
simultaneously, making collaboration more
productive. Or Picture-in-Picture mode (PiP)
watching a live football feed from your set-top
box, while working on your PC.
SmartUniformity
Fluctuations in brightness and color on LCD
screens are a common phenomenon. Philips
SmartUniformity mode delivers accurate
images in terms of brightness; which is crucial
for photography, design, and printing. With a
color metric to assess color accuracy, this
mode is calibrated to meet average luminance
uniformity is greater than 95%. Selecting this
mode will produce uniform and accurate
images.
SmartImage
performance. The Economy mode option
offers you major power savings. All in real time
with the press of a single button!
7-Watt Speakers
A pair of high quality stereo speakers built into
a displa
y device. It can be visible front firing, or
invisible down firing, top firing, rear firing, etc
depending on model and design.
USB 3.0 Hub with FastCharge
Super Speed USB 3.0 deploys 5.0 gbit/s transfer
rate,
which is about 10 times faster than USB
2.0 standard significantly reducing data transfer
time saving you time and money. With more
bandwidth, super speed transfer rates, better
power management and superior overall
performance, USB 3.0 sets the latest global
standard allowing you to use the large capacity
storage devices. Now you don't have to wait
so long for devices to charge. New FastCharge
enables quick charging to charge and go. USB
3.0 is also backward compatible with USB 2.0
devices.
SmartConnect for 4K
These Philips displays come equipped with the
m
ost advanced multi connections like VGA,
Display Port, universal HDMI connector,
enabling you to enjoy high resolution
uncompressed video and audio content. New
DisplayPort and HDMI 2.0 connection now
enables full 4K resolution at 60Hz for smooth
visuals. USB connections ensures that you can
have super speed data transfers while having
global connectivity. Regardless of what source
you use, you can rest assured that this Philips
display will ensure your investment is not made
obsolete any time soon!
MultiView technology for 4K
Philips MultiView feature on this expansive 4K
UHD display enables you to have up to four
SmartImage is an exclusive leading edge Philips
technology that analyzes the content displayed
on your screen and gives you optimized display
performance. This user friendly interface
allows you to select various modes like Office,
Photo, Movie, Game, Economy etc., to fit the
application in use. Based on the selection,
SmartImage dynamically optimizes the
contrast, color saturation and sharpness of
images and videos for ultimate display
Page 3
BDM4350UC/94
4K Ultra HD LCD display
43 (42.51" / 108 cm diag.) 3840 x 2160 (4K UHD)
Specifications
Picture/Display
• LCD panel type: IPS LCD
• Backlight type: W-LED system
• Panel Size: 42.51 inch (108 cm)
• Effective viewing area: 941.2 (H) x 529.4 (V)
• Display Screen Coating: Anti-Glare, 3H, Haze 1%
• Aspect ratio: 16:9
• Optimum resolution: 3840 x 2160 @ 60Hz
• Response time (typical): 5 ms (Gray to Gray)*
• Brightness: 300 cd/m²
• Contrast ratio (typical): 1200:1
• SmartContrast:
50,000,000:1
• Pixel pitch: 0.2451 x 0.2451mm
• Viewing angle: 178º (H) / 178º (V), @ C/R > 20
• Picture enhancement: SmartImage
• Flicker-free
• Display colors: Color support 1.07 billion colors
its)
(10 b
• Scanning Frequency: VGA/HDMI: 30 - 99 kHz ; DP:
- 160 kHz (H) / VGA: 56 - 80 Hz ; HDMI/DP: 23
30
- 80 Hz (V)
• MHL: 1080P @ 60Hz
•sRGB
• Brightness uniformity: 96~105%
•Delta E: <3
Connectivity
• USB: USB 3.0x4 (1 w/fast charging)*
• Signal Input: VGA (Analog ), Dis
(2.0) - MHL x 2
• Sync Input: Separate Sync, Sync on Green
• Audio (In/Out): PC audio-in, Headphone out
playPort x 2, HDMI
Convenience
• Built-in Speakers: 7 W x 2
• MultiView: PIP (2x devices), PBP (4x devices)
• User convenience: SmartImage, Mul
Menu, Power On/Off
• Control software: SmartControl
• OSD Languages: Brazil Portuguese, Czech, Dutch,
glish, Finnish, French, German, Greek,
En
Hungarian, Italian, Japanese, Korean, Polish,
Portuguese, Russian, Simplified Chinese, Spanish,
Swedish, Traditional Chinese, Turkish, Ukranian
• Other convenience: Kensington lock, VESA mount
x200mm)
(200
• Plug & Play Compatibility: DDC/CI, Mac OS X,
GB, Windows 10 / 8.1 / 8 / 7
sR
tiview, User,
Power
• ECO mode: 46.5 W (typ.)
• On mode: 63.1 W (typ.) (EnergyStar 6.0 test
hod)
met
• Standby mode: <0.5 W (typ.)
• Off mode: Zero watts with AC switch
• Power LED indicator: Operation - White, Standby
mode- White (blinking)
• Power supply: Built-in, 100-240VAC, 50-60Hz
Dimensions
• Product with stand(max height): 968 x 630 x
259 mm
• Product without stand (mm): 968 x 562 x 82 mm
• Packaging in mm (WxHxD): 1070 x 680 x 160 mm
Weight
• Product with stand (kg): 9.72 kg
• Product without stand (kg): 9.40 kg
• Product with packaging (kg): 14.29 kg
Operating conditions
• Temperature range (operation): 0°C to 40°C °C
• Temperature range (storage): -20°C to 60°C °C
• Relative humidity: 20%-80 %
• Altitude: Operation: +12,000ft (3,658m), Non-
eration: +40,000ft (12,192m)
op
• MTBF: 70,000 hrs (excluded backlight) hour(s)
Sustainability
• Environmental and energy: EnergyStar 6.0, RoHS
• Recyclable packaging material: 100 %
• Specific Substances: PVC / BFR free housing,
ry free
Mercu
Compliance and standards
• Regulatory Approvals: CECP, WEEE, KCC, PSE,
VCCI, J-MOSS, EPA, BSMI, SEMKO, RCM, CE
Mark, FCC Class B, EAC, cETLus, TUV/ISO9241307, PSB, E-standby, SASO, CB, China RoHS,
UKRAINIAN, Kuwait, KUCAS, ICES-003, BIS
Cabinet
• Front bezel: Black
• Rear cover: Black
•Foot: Silver
• Finish: Glossy (Front bezel) / Texture (Foot / Rear
ver)
co
•
Issue date 2022-04-21
Version: 3.0.1
12 NC: 8670 001 57287
EAN: 87 12581 75571 3
© 2022 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
* This Philips display is MHL certified. However, in case your MHL
device does not connect or work correctly, check with your MHL
device FAQ or vendor directly for direction. The policy of your
device manufacturer may require you to purchase their brand
specific MHL cable or adapter in order to work
* Requires optional MHL certified mobile device and MHL cable. (not
included) Please check with your MHL device vendor for
compatibility.
* Standby/Off energy saving of ErP is not applicable for the MHL
charging functionality
* For complete list of MHL-enabled products refer to
www.mhlconsortiun.org
* Fast charging complies with USB BC 1.2 standard
* Response time value equal to SmartResponse
* Four inputs required for 4 systems on one screen.
