Philips BDM4065UC/69 Leaflet

Download

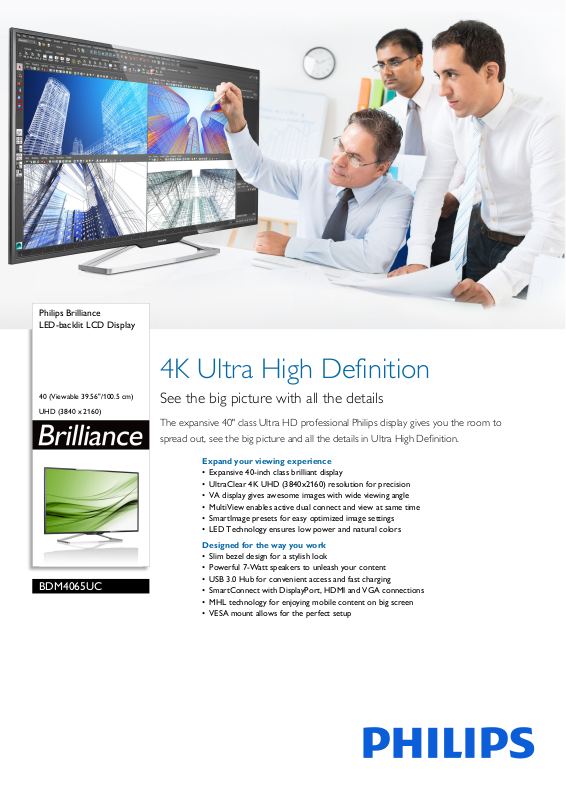

Page 1

Philips Brilliance LED-backlit LCD Display

4K Ultra High Definition

40 (Viewable 39.56"/100.5 cm)

UHD (3840 x 2160)

BDM4065UC

See the big picture with all the details

The expansive 40" class Ultra HD professional Philips display gives you the room to spread out, see the big picture and all the details in Ultra High Definition.

Expand your viewing experience

• Expansive 40-inch class brilliant display

• UltraClear 4K UHD (3840x2160) resolution for precision

• VA display gives awesome images with wide viewing angle

• MultiView enables active dual connect and view at same time

• SmartImage presets for easy optimized image settings

• LED Technology ensures low power and natural colors

Designed for the way you work

• Slim bezel design for a stylish look

• Powerful 7-Watt speakers to unleash your content

• USB 3.0 Hub for convenient access and fast charging

• SmartConnect with DisplayPort, HDMI and VGA connections

• MHL technology for enjoying mobile content on big screen

• VESA mount allows for the perfect setup

Page 2

BDM4065UC/69

LED-backlit LCD Display

40 (Viewable 39.56"/100.5 cm) UHD (3840 x 2160)

Highlights

UltraClear 4K UHD Resolution

These latest Philips displays utilize high performance panels to deliver UltraClear, 4K UHD (3840 x 2160) resolution images. Whether you are demanding professional requiring extremely detailed images for CAD solutions, using 3D graphics applications or a financial wizard working on huge spreadsheets, Philips displays will make your images and graphics come alive.

VA display

feed with audio in the small window, while working on your latest blog.

SmartImage

SmartImage is an exclusive leading edge Philips technology that analyzes the content displayed on your screen and gives you optimized display performance. This user friendly interface allows you to select various modes like Office, Photo, Movie, Game, Economy etc., to fit the application in use. Based on the selection, SmartImage dynamically optimizes the contrast, color saturation and sharpness of images and videos for ultimate display performance. The Economy mode option offers you major power savings. All in real time with the press of a single button!

standard allowing you to use the large capacity storage devices. Now you don't have to wait so long for devices to charge. New FastCharge enables quick charging to charge and go. USB

3.0 is also backward compatible with USB 2.0 devices.

SmartConnect

With a plethora of connectivity, these Philips displays come eq like VGA, Display Port, universal HDMI connector, enabling you to enjoy high resolution uncompressed video and audio content. USB connections ensures that you can have super speed data transfers while having global connectivity. Regardless of what source you use, you can rest assured that this Philips display will ensure your investment is not made obsolete any time soon!

MHL technology

uipped with multi connections

Philips VA LED display uses an advanced vertical alignment technology which gives you super-high static contrast ratios for extra vivid and bright images. While standard office applications are handled with ease, it is especially suitable for photos, web-browsing, movies, gaming, and demanding graphical applications. It's optimized pixel management technology gives you 176/176 degree extra wide viewing angle, resulting in crisp images.

MultiView technology

With the ultra high resolution Philips Mul

tiView display you can now experience a world of connectivity in a comfortable way whether at office or at home. MultiView enables active dual connect and view so that you can work with multiple devices like PC and Notebook side-by-side simultaneously, making complex multi-tasking work a breeze. Watching live football feed from your set-top box on right side, while browsing the Internet from your notebook on the left is now easy. You may want to keep an eye on the live news

LED Technology

White LED's are solid state devices which light up

to full, consistent brightness faster saving startup time. LED's are free from mercury content which allows for eco-friendly recycling and disposal process. LED's allow for better dimming control of LCD backlight, resulting in super high contrast ratio. It also gives superior color reproduction thanks to consistent brightness across the screen.

7-Watt Speakers

A pair of high quality stereo speakers built into a display invisible down firing, top firing, rear firing, etc depending on model and design.

USB 3.0 Hub with FastCharge

Super Speed USB 3.0 deploys 5.0 gbit/s transfer rate,

2.0 standard significantly reducing data transfer time saving you time and money. With more bandwidth, super speed transfer rates, better power management and superior overall performance, USB 3.0 sets the latest global

device. It can be visible front firing, or

which is about 10 times faster than USB

Mobile High Definition Link (MHL) is a mobile audio/video interface for directly connecting mobile phones and other portable devices to high-definition displays. An optional MHL cable allows you to simply connect your MHL capable mobile device to this large Philips MHL display, and watch your HD videos come to life with full digital sound. Now not only you can enjoy your mobile games, photos, movies, or other apps on its big screen, you can simultaneously charge your mobile device so you never run out of power half way.

Zero power consumption

At the flick of the 0 watt hard switch which is convenient completely cut-off your monitor from AC power. This results in zero power consumption reducing your carbon footprint even further

ly located at the back, you can

Page 3

BDM4065UC/69

LED-backlit LCD Display

40 (Viewable 39.56"/100.5 cm) UHD (3840 x 2160)

Specifications

Picture/Display

• LCD panel type: VA LCD

• Backlight type: W-LED system

• Panel Size: 39.56 inch / 100.5 cm

• Effective viewing area: 878.11 (H) x 485.35 (V)

• Aspect ratio: 16:9

• Optimum resolution: 3840 x 2160 @ 60Hz

• Response time (typical): 3 ms (Gray to Gray)*

• Brightness: 300 cd/m²

• Contrast ratio (typical): 5,000:1

• SmartContrast:

50,000,000:1

• Viewing angle: 176º (H) / 176º (V), @ C/R > 20

• Picture enhancement: SmartImage

• Display colors: Color support 1.07 billion colors

• Scanning Frequency: VGA/HDMI: 30 - 99 kHz ; DP:

- 160 kHz (H) / VGA: 56 - 80 Hz ; HDMI/DP: 23

- 80 Hz (V)

• MHL: 1080P @ 60Hz

•sRGB

• Brightness uniformity: 96% ~ 105%

• Delta E: <3 (sRGB mode)

Connectivity

• USB: USB 3.0x4 (1 w/fast charging)*

• Signal Input: VGA (Analog ), DisplayPort, mini playPort, HDMI (digital, HDCP), MHL-HDMI

Dis (digital, HDCP)

• Sync Input: Separate Sync, Sync on Green

• Audio (In/Out): PC audio-in, Headphone out

•RS232

Convenience

• Built-in Speakers: 7 W x 2

• MultiView: PIP (2x devices), PBP (4x devices)

• User convenience: SmartImage, Mul

Menu, Power On/Off

• Control software: SmartControl Premium

• OSD Languages: Brazil Portuguese, Czech, Dutch,

glish, Finnish, French, German, Greek,

En Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, Turkish, Ukranian

• Other convenience: Kensington lock, VESA mount

x200)

(200

• Plug & Play Compatibility: DDC/CI, Mac OS X,

GB, Windows 8.1 / 8 / 7

tiview, User,

Power

• ECO mode: 40.4 W (typ.)

• On mode: 62.17 W (typ.) (EnergyStar 6.0 test hod)

met

• Standby mode: <0.5 W (typ.)

• Off mode: <0.3 W (typ.)

• Power LED indicator: Operation - White, Standby

mode- White (blinking)

• Power supply: Built-in, 100-240VAC, 50-60Hz

Dimensions

• Product with stand(max height): 904 x 589 x

213 mm

• Product without stand (mm): 904 x 512 x 88 mm

• Packaging in mm (WxHxD): 1050 x 650 x 194 mm

Weight

• Product with stand (kg): 9.70 kg

• Product without stand (kg): 8.50 kg

• Product with packaging (kg): 13.51 kg

Operating conditions

• Temperature range (operation): 0°C to 40°C °C

• Temperature range (storage): -20°C to 60°C °C

• Relative humidity: 20%-80 %

• Altitude: Operation: +12,000ft (3,658m), Non-

eration: +40,000ft (12,192m)

• MTBF: 30,000 hour(s)

Sustainability

• Environmental and energy: EnergyStar 6.0, RoHS

• Recyclable packaging material: 100 %

• Post consumer recycled plastic: 25%

• Specific Substances: PVC / BFR free housing,

ry free, Lead free

Mercu

Compliance and standards

• Regulatory Approvals: CCC, CE Mark, cETLus,

FCC Class B, SEMKO, TUV/ISO9241-307, WEEE, CECP, CU-EAC, EPA, KC, PSB, PSE

Cabinet

• Front bezel: Black

• Rear cover: Black

•Foot: Silver

• Finish: Glossy (Front bezel) / Texture (Foot / Rear

ver)

•

Issue date 2016-07-22

Version: 6.0.1

12 NC: 8670 001 19106 EAN: 87 12581 72756 7

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips N.V. or their respective owners.

www.philips.com

* This Philips display is MHL certified. However, in case your MHL

device does not connect or work correctly, check with your MHL device FAQ or vendor directly for direction. The policy of your device manufacturer may require you to purchase their brand specific MHL cable or adapter in order to work

* Requires optional MHL certified mobile device and MHL cable. (not

included)

Please check with your MHL device vendor for

compatibility.

* Standby/Off energy saving of ErP is not applicable for the MHL

charging functionality

* For complete list of MHL-enabled products refer to

www.mhlconsortiun.org

* Response time value equal to SmartResponse
