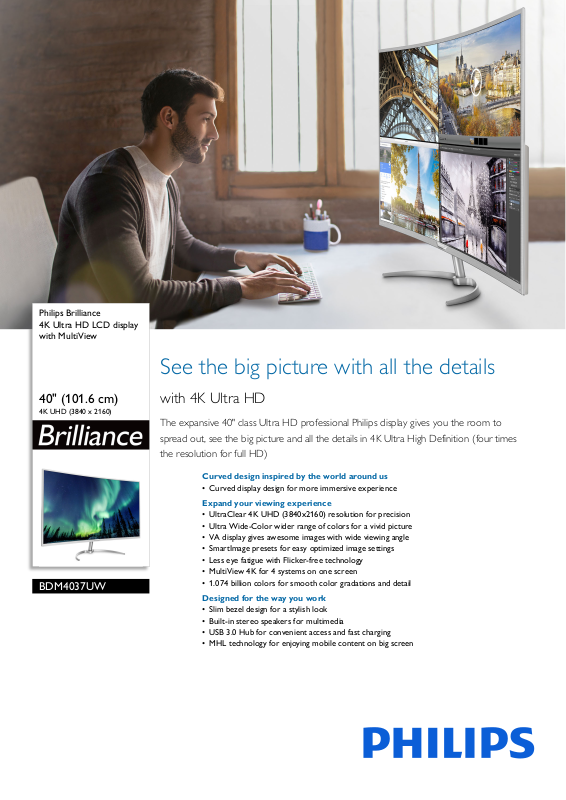

Page 1
Philips Brilliance
4K Ultra HD LCD display
with MultiView
See the big picture with all the details
40" (101.6 cm)
4K UHD (3840 x 2160)
BDM4037UW
with 4K Ultra HD
The expansive 40" class Ultra HD professional Philips display gives you the room to
spread out, see the big picture and all the details in 4K Ultra High Definition (four times
the resolution for full HD)
Curved design inspired by the world around us
• Curved display design for more immersive experience
Expand your viewing experience
• UltraClear 4K UHD (3840x2160) resolution for precision
• Ultra Wide-Color wider range of colors for a vivid picture
• VA display gives awesome images with wide viewing angle
• SmartImage presets for easy optimized image settings
• Less eye fatigue with Flicker-free technology
• MultiView 4K for 4 systems on one screen
• 1.074 billion colors for smooth color gradations and detail
Designed for the way you work
• Slim bezel design for a stylish look
• Built-in stereo speakers for multimedia
• USB 3.0 Hub for convenient access and fast charging
• MHL technology for enjoying mobile content on big screen
Page 2
BDM4037UW/73
4K Ultra HD LCD display with MultiView
40" (101.6 cm) 4K UHD (3840 x 2160)
Highlights
Curved display design
Desktop monitors offer a personal user
experience, which suits a curve design very
well. The curved screen provides a pleasant yet
subtle immersion effect, which focuses on you
at the center of your desk.
UltraClear 4K UHD Resolution
These latest Philips displays utilize high
performance panels to deliver UltraClear, 4K
UHD (3840 x 2160) resolution images.
Whether you are demanding professional
requiring extremely detailed images for CAD
solutions, using 3D graphics applications or a
financial wizard working on huge spreadsheets,
Philips displays will make your images and
graphics come alive.
reds and deeper blues. Bring, media
entertainment, images, and even productivity
more alive and vivid colors from Ultra WideColor Technology.
VA display
Philips VA LED display uses an advanced multidomain vertical alignment technology which
gives you super-high static contrast ratios for
extra vivid and bright images. While standard
office applications are handled with ease, it is
especially suitable for photos, web-browsing,
movies, gaming, and demanding graphical
applications. It's optimized pixel management
technology gives you 178/178 degree extra
wide viewing angle, resulting in crisp images.
MultiView technology for 4K
SmartImage
SmartImage is an exclusive leading edge Philips
technology that analyzes the content displayed
on your screen and gives you optimized display
performance. This user friendly interface
allows you to select various modes like Office,
Photo, Movie, Game, Economy etc., to fit the
application in use. Based on the selection,
SmartImage dynamically optimizes the
contrast, color saturation and sharpness of
images and videos for ultimate display
performance. The Economy mode option
offers you major power savings. All in real time
with the press of a single button!
Flicker-free technology
Ultra Wide-Color Technology
Ultra Wide-Color Technology delivers a wider
spectrum of colors for a more brilliant picture.
Ultra Wide-Color wider "color gamut"
produces more natural-looking greens, vivid
Philips MultiView feature on this expansive 4K
UHD display enables you to have up to four
systems each shown in Full HD on one screen.
You can use the Picture-by-Picture (PbP) for
monitoring four systems on one screen for
control rooms or security. Or for multiple
devices like two notebooks side-by-side
simultaneously, making collaboration more
productive. Or Picture-in-Picture mode (PiP)
watching a live football feed from your set-top
box, while working on your PC.
Due to the way brightness is controlled on
LED-backlit screens, some users experience
flicker on their screen which causes eye
fatigue. Philips Flicker-free Technology applies
a new solution to regulate brightness and
reduce flicker for more comfortable viewing.
Built-in stereo speakers
A pair of high quality stereo speakers built into
a displa
y device. It can be visible front firing, or
invisible down firing, top firing, rear firing, etc
depending on model and design.
Page 3
BDM4037UW/73
4K Ultra HD LCD display with MultiView
40" (101.6 cm) 4K UHD (3840 x 2160)
Specifications
Picture/Display
• LCD panel type: VA LCD
• Backlight type: W-LED system
• Panel Size: 40 inch / 101.6 cm
• Effective viewing area: 884.74 (H) x 497.66 (V) - at
00R curvature*
a 30
• Aspect ratio: 16:9
• Optimum resolution: 3840 x 2160 @ 60Hz
• Response time (typical): 4 ms (Gray to Gray)*
• Brightness: 300 cd/m²
• Contrast ratio (typical): 4,000:1
• SmartContrast:
20,000,000:1
• Pixel pitch: 0.230 x 0.230 mm
• Pixel Density: 110 PPI
• Viewing angle: 178º (H) / 178º (V), @ C/R > 10
• Picture enhancement: SmartImage
• Flicker-free
• Color gamut (typical): NTSC 100% (CIE1976)*
• Display colors: Color support 1.07 billion colors
ithered 10 bits)
(D
• Scanning Frequency: 30 - 99 kHz (H) - VGA/HDMI,
- 160 kHz (H) - DisplayPort / 56 - 80 Hz (V) -
30
VGA, 23 - 80 Hz (V) - HDMI/DisplayPort
• MHL: 1080P @ 60Hz
•sRGB
Connectivity
• Signal Input: VGA (Analog ), DisplayPort x 2, HDMI
(1.4) - MHL x 1, HDMI (2.0) - MHL x 1
• USB: USB 3.0x4 (1 w/fast charging)*
• Sync Input: Separate Sync, Sync on Green
• Audio (In/Out): PC audio-in, Headphone out
Convenience
• Built-in Speakers: 5 W x 2
• MultiView: PBP (4x devices), PIP (2x devices)
• User convenience: SmartImage, Mul
Menu, Power On/Off
• Control software: SmartControl
• OSD Languages: Dutch, English, Finnish, French,
man, Greek, Hungarian, Italian, Japanese,
Ger
Korean, Polish, Portuguese, Russian, Simplified
Chinese, Spanish, Swedish, Traditional Chinese,
Turkish, Ukranian, Brazil Portuguese, Czech
• Other convenience: Kensington lock, VESA mount
x100mm)
(100
• Plug & Play Compatibility: DDC/CI, Mac OS X,
GB, Windows 10 / 8.1 / 8 / 7
sR
tiview, User,
Power
• ECO mode: 32.61 W
• On mode: 43.74 W (typ.) (EnergyStar 7.0 test
hod)
met
• Standby mode: 0.5 W (typ.)
• Off mode: 0.3 W (typ.)
• Power LED indicator: Operation - White, Standby
mode- White (blinking)
• Power supply: Built-in, 100-240VAC, 50-60Hz
Dimensions
• Product with stand(max height): 909 x 643 x
247 mm
• Product without stand (mm): 909 x 532 x 72 mm
• Packaging in mm (WxHxD): 1043 x 731 x 304 mm
Weight
• Product with stand (kg): 11.6 kg
• Product without stand (kg): 11.3 kg
• Product with packaging (kg): 16.42 kg
Operating conditions
• Temperature range (operation): 0°C to 40°C °C
• Temperature range (storage): -20°C to 60°C °C
• Relative humidity: 20%-80 %
• Altitude: Operation: +12,000ft (3,658m), Non-
eration: +40,000ft (12,192m)
op
• MTBF: 70,000 hrs (excluded backlight) hour(s)
Sustainability
• Environmental and energy: EnergyStar 7.0, RoHS
• Recyclable packaging material: 100 %
• Specific Substances: Mercury free, Lead free
Compliance and standards
• Regulatory Approvals: WEEE, CECP, PSE, VCCI,
BSMI, CE Mark, cETLus, CU-EAC, EPA, FCC Class
B, ICES-003, J-MOSS, KUCAS, PSB, RCM, SASO,
SEMKO, TUV Ergo, TUV/GS, UKRAINIAN, MEPS
Cabinet
• Front bezel: Silver
• Rear cover: White
•Foot: Silver
•Finish: Glossy
Stand
• Tilt: -5/10 degree
•
Issue date 2018-03-30
Version: 4.0.1
12 NC: 8670 001 40877
EAN: 87 12581 74171 6
© 2018 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
* This Philips display is MHL certified. However, in case your MHL
device does not connect or work correctly, check with your MHL
device FAQ or vendor directly for direction. The policy of your
device manufacturer may require you to purchase their brand
specific MHL cable or adapter in order to work
* Requires optional MHL certified mobile device and MHL cable. (not
included) Please check with your MHL device vendor for
compatibility.
* Standby/Off energy saving of ErP is not applicable for the MHL
charging functionality
* For complete list of MHL-enabled products refer to
www.mhlconsortiun.org
* Radius of the arc of the display curvature in mm
* Fast charging complies with USB BC 1.2 standard
* Response time value equal to SmartResponse
* Four inputs required for 4 systems on one screen.
* NTSC 85% (CIE1931), sRGB: 123%
