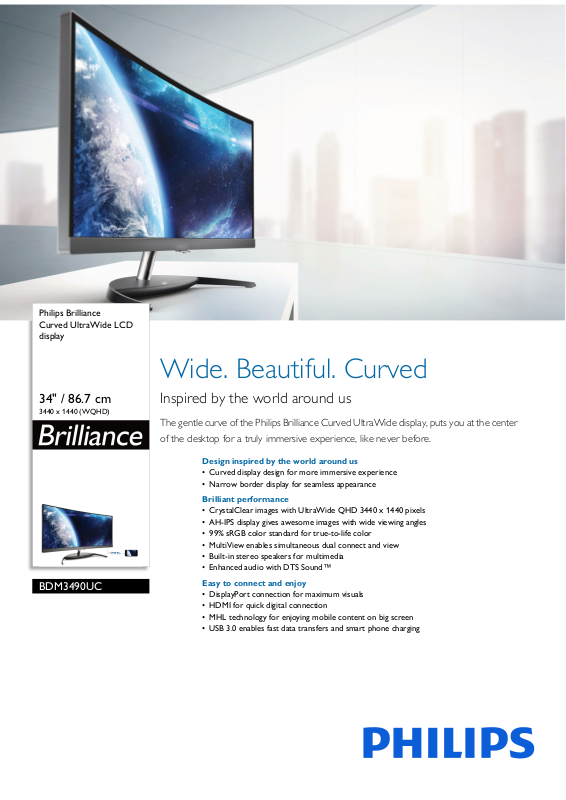

Page 1
Philips Brilliance
Curved UltraWide LCD
display
Wide. Beautiful. Curved
34" / 86.7 cm
3440 x 1440 (WQHD)
BDM3490UC
Inspired by the world around us
The gentle curve of the Philips Brilliance Curved UltraWide display, puts you at the center
of the desktop for a truly immersive experience, like never before.
Design inspired by the world around us
• Curved display design for more immersive experience
• Narrow border display for seamless appearance
Brilliant performance
• CrystalClear images with UltraWide QHD 3440 x 1440 pixels
• AH-IPS display gives awesome images with wide viewing angles
• 99% sRGB color standard for true-to-life color
• MultiView enables simultaneous dual connect and view
• Built-in stereo speakers for multimedia
• Enhanced audio with DTS Sound™
Easy to connect and enjoy
• DisplayPort connection for maximum visuals
• HDMI for quick digital connection
• MHL technology for enjoying mobile content on big screen
• USB 3.0 enables fast data transfers and smart phone charging
Page 2
BDM3490UC/71
Curved UltraWide LCD display
34" / 86.7 cm 3440 x 1440 (WQHD)
Highlights
Curved display design
Desktop monitors offer a personal user
experience, which suits a curve design very
well. The curved screen provides a pleasant yet
subtle immersion effect, which focuses on you
at the center of your desk.
UltraNarrow Border
The new Philips displays feature ultra-narrow
borders which allow for minimal distractions
and maximum viewing size. Especially suited
for multi-display or tiling setup like gaming,
graphic design and professional applications,
the ultra-narrow border display gives you the
feeling of using one large display.
productivity with more room for side-by-side
comparisons and more viewable spreadsheet
columns. Whether you are demanding
professional requiring extremely detailed
information for CAD-CAM solutions, or a
financial wizard working on huge spreadsheets,
Philips displays delivers CrystalClear images.
AH-IPS technology
IPS displays use an advanced technology which
gives you extra wide viewing angles of 172/178
degree, making it possible to view the display
from almost any angle. Unlike standard TN
panels, IPS displays gives you remarkably crisp
images with vivid colors, making it ideal not
only for Photos, movies and web browsing, but
also for professional applications which
demand color accuracy and consistent
brightness at all times.
Full 99% sRGB Color
DTS Sound™
DTS Sound is an audio processing solution
d
esigned to optimize the playback of music,
movies, streaming and games on the PC
regardless of form factors. DTS Sound enables
an immersive virtual surround sound
experience, complete with rich bass and dialog
enhancement and maximized volume levels
free of any clipping or distortion.
HDMI ready
Enjoy crisp colorful images and audio with
simple one-cable connection. An HDMI-ready
device has all the required hardware to accept
High-Definition Multimedia Interface (HDMI)
input. An HDMI cable enables high-quality
smooth digital video (up to 4K/UHD
resolution at 60 Hz) and audio all transmitted
over a single cable from a PC or any number of
AV sources (including set-top boxes, DVD
players, A/V receivers and video cameras).
MHL technology
UltraWide CrystalClear images
These Philips screens deliver CrystalClear,
UltraWide Quad HD 3440 x 1440 pixel
images. Utilizing high performance panels with
high-density pixel count, 178/178 wide viewing
angles, these new displays will make your
images and graphics come alive. The
UltraWide 21:9 format enables more
Experience vivid, and true-to-life colors. With
over 99% coverage of sRGB color standard,
you can have confidence the colors you see on
the display are accurate and true-to-life.
MultiView technology
With the ultra-high resolution Philips
Mul
tiView display you can now experience a
world of connectivity. MultiView enables active
dual connect and view so that you can work
with multiple devices like a PC and notebook
simultaneously, for complex multi-tasking.
Mobile High Definition Link (MHL) is a mobile
audio/video interface for directly connecting
mobile phones and other portable devices to
high-definition displays. An optional MHL cable
allows you to simply connect your MHL
capable mobile device to this large Philips MHL
display, and watch your HD videos come to life
with full digital sound. Now not only you can
enjoy your mobile games, photos, movies, or
other apps on its big screen, you can
simultaneously charge your mobile device so
you never run out of power half way.
Page 3
BDM3490UC/71
Curved UltraWide LCD display
34" / 86.7 cm 3440 x 1440 (WQHD)
Specifications
Picture/Display
• LCD panel type: AH-IPS LCD
• Backlight type: W-LED system
• Panel Size: 34.1 inch / 86.7 cm
• Effective viewing area: 798.2 (H) x 334.8 (V) - at a
00R curvature*
38
• Aspect ratio: 21:9
• Optimum resolution: 3440 x 1440 @ 60Hz
• Response time (typical): 5 ms (Gray to Gray)*
• Brightness: 300 cd/m²
• Contrast ratio (typical): 1,000:1
• SmartContrast:
50,000,000:1
• Pixel pitch: 0.232 x 0.232 mm
• Viewing angle: 172° (H) / 178° (V), @ C/R > 10
• Picture enhancement: SmartImage
• Display colors: Color support 1.07 billion colors (8
s + FRC)
bit
• Scanning Frequency: 30 - 99 kHz (H) / 30 - 80 Hz
(V) - HDMI,
30 - 160 Hz (V) - DisplayPort
• MHL: 1080P @ 60Hz
•sRGB
Connectivity
• USB: USB 3.0x4 (1 w/fast charging)*
• Signal Input: DisplayPort 1.2, HDMI 2.0 x 1, HDMI
MHL) x 1, HDMI 1.4 x 1
1.4 (w/
• Sync Input: Separate Sync, Sync on Green
• Audio (In/Out): PC audio-in, Headphone out
Convenience
• Built-in Speakers: 7W x 2 with DTS sound
• MultiView: PIP/PBP mode, 2x devices
• User convenience: SmartImage, Mul
tiview, User,
Menu, Power On/Off
• OSD Languages: Dutch, English, Finnish, French,
man, Greek, Hungarian, Italian, Japanese,
Ger
Korean, Polish, Portuguese, Russian, Simplified
Chinese, Spanish, Swedish, Traditional Chinese,
Turkish, Ukranian, Brazil Portuguese, Czech
• Other convenience: Kensington lock
• Plug & Play Compatibility: DDC/CI, Mac OS X,
GB, Windows 8.1 / 8 / 7
sR
Stand
• Tilt: -5/20 degree
Power
• On mode: 41 W (typ.) (EnergyStar 6.0 test
method)
• Standby mode: < 0.5 W (typ.)
• Off mode: < 0.3 W (typ.)
• Power LED indicator: Operation - White, Standby
mode- White (blinking)
• Power supply: 100-240VAC, 50-60Hz, External
Dimensions
• Product with stand(max height): 826 x 479 x
220 mm
• Product without stand (mm): 826 x 383 x 88 mm
• Packaging in mm (WxHxD): 962 x 601 x 292 mm
Weight
• Product with stand (kg): 10.28 kg
• Product without stand (kg): 7.77 kg
• Product with packaging (kg): 12.24 kg
Operating conditions
• Temperature range (operation): 0°C to 40°C °C
• Temperature range (storage): -20°C to 60°C °C
• Relative humidity: 20%-80 %
• Altitude: Operation: +12,000ft (3,658m), Non-
eration: +40,000ft (12,192m)
op
• MTBF (demonstrated): 70,000 hrs (excluded
klight)
bac
Sustainability
• Environmental and energy: EnergyStar 6.0, TCO
Certified Edge, RoHS
• Recyclable packaging material: 100 %
• Specific Substances: PVC / BFR free housing,
ry free, Lead free
Mercu
Compliance and standards
• Regulatory Approvals: CE Mark, FCC Class B,
SEMKO, cETLus, CU, TCO Certified, EPA, WEEE,
RCM, UKRAINIAN, CECP, ICES-003, E-standby,
TUV/ISO9241-307, SASO, KUCAS
Cabinet
• Front bezel: Black/Gray
• Rear cover: White
• Foot: Black/Gray
•Finish: Glossy/Texture
•
Issue date 2020-04-19
Version: 6.0.1
12 NC: 8670 001 36796
EAN: 87 12581 73915 7
© 2020 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
* Radius of the arc of the display curvature in mm
* This Philips display is MHL certified. However, in case your MHL
does not connect or work correctly, check with your MHL
device
device FAQ or vendor directly for direction. The policy of your
device manufacturer may require you to purchase their brand
specific MHL cable or adapter in order to work
* Requires optional MHL certified mobile device and MHL cable. (not
included)
Please check with your MHL device vendor for
compatibility.
* Standby/Off energy saving of ErP is not applicable for the MHL
charging functionality
* For complete list of MHL-enabled products refer to
www.mhlconsortiun.org
* Response time value equal to SmartResponse
