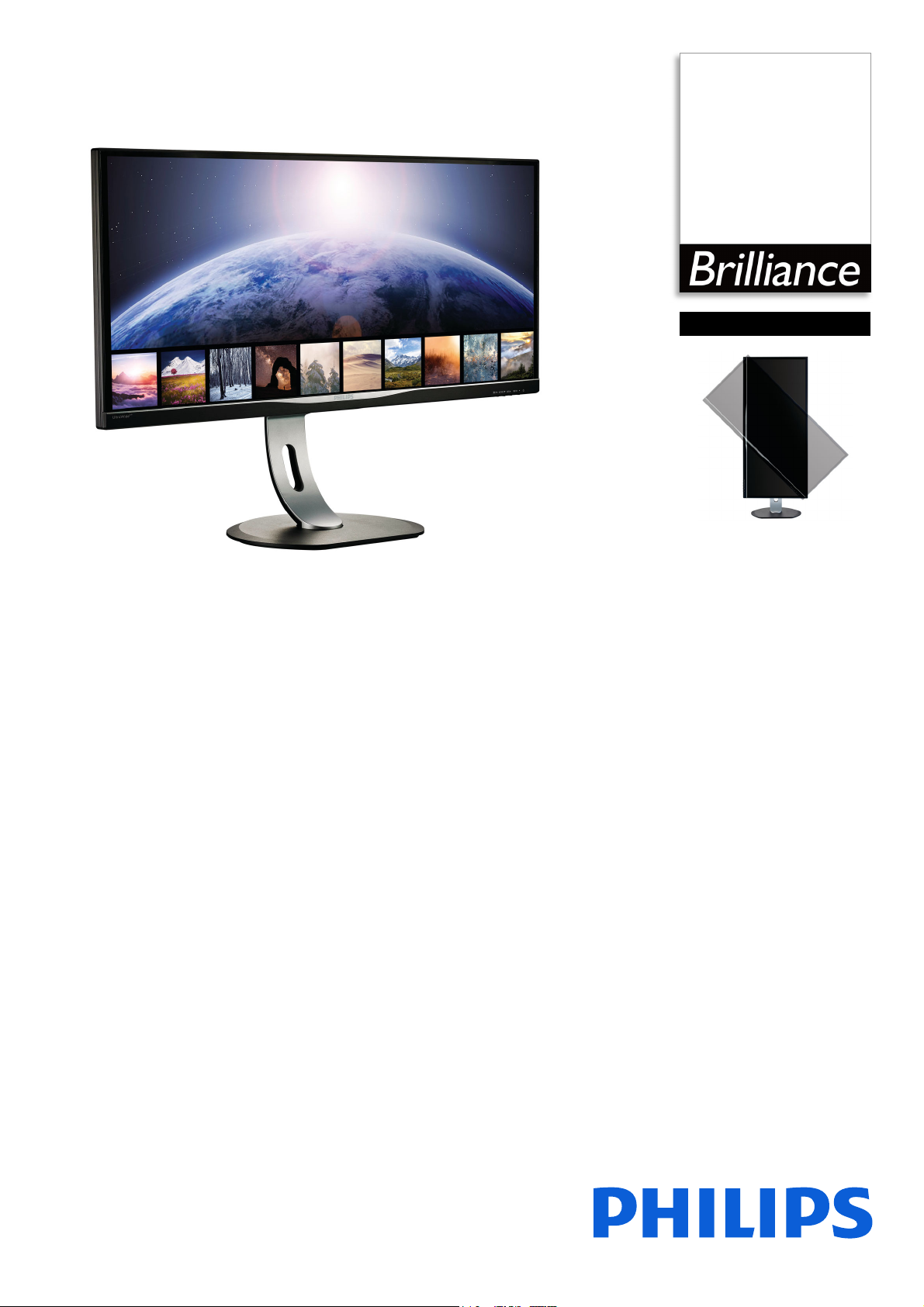

Page 1
Philips Brilliance
UltraWide LCD Display
with MultiView
34" (86.6 cm)
uwFHD (2560 x 1080)
BDM3470FP
Wide enough for your
biggest ideas
Expand your experience with this 34" ultrawide display. The Wide Full HD resolution
offers clear images. With the ultrawide display it's like having two displays side-by-side
without the border so you can multi-task like never before.
Brilliant performance
• AH-IPS display for brilliant images with vivid colors
• Wide images with with UltraWide Full HD 2560x1080 resolution
• MultiView enables active dual connect and view at same time
• SmartImage presets for easy optimized image settings
• Less eye fatigue with Flicker-free technology
Designed for people
• Ultra narrow bezel for maximum view and minimum distraction
• SmartErgoBase enables people-friendly ergonomic adjustments
• Low bezel-to-table height for maximum reading comfort
Easy to connect and enjoy
• MHL technology for enjoying mobile content on big screen
• HDMI for quick digital connection
Page 2
BDM3470FP/01
UltraWide LCD Display with MultiView
34" (86.6 cm) uwFHD (2560 x 1080)
Highlights
AH-IPS technology
This latest Philips display uses advanced AHIPS panels resulting in superior color
reproduction, response time and power
consumption. Unlike standard TN panels, AHIPS panels show consistent color even at 178
degrees wide angles and in pivot mode. With
remarkable performance, AH-IPS is best suited
for applications demanding color accuracy and
consistent brightness at all times like photo
retouching, graphics applications and web
browsing.
UltraWide Full HD
With 21:9 UltraWide format, you can spread
o
ut and see multiple applications side-by-side
on the same screen. The 21:9 UltraWide
format also makes movies and games more
immersive than ever. Full HD resolution makes
everything look crisp and clear.
You may want to keep an eye on the live news
feed with audio in the small window, while
working on your latest blog.
SmartImage
SmartImage is an exclusive leading edge Philips
technology that analyzes the content displayed
on your screen and gives you optimized display
performance. This user friendly interface
allows you to select various modes like Office,
Photo, Movie, Game, Economy etc., to fit the
application in use. Based on the selection,
SmartImage dynamically optimizes the
contrast, color saturation and sharpness of
images and videos for ultimate display
performance. The Economy mode option
offers you major power savings. All in real time
with the press of a single button!
Flicker-free technology
a new solution to regulate brightness and
reduce flicker for more comfortable viewing.
Ultra Narrow Bezel
Utilizing latest technology panels, the new
Philips displays are designed with minimalistic
approach by limiting the outer bezel thickness
to about 2.5mm. Combined with in-panel black
matrix strip of around 9mm, the overall bezel
dimensions are reduced significantly allowing
for minimal distractions and maximum viewing
size. Especially suited for multi-display or tiling
setup like gaming, graphics design and
professional applications, the Ultra narrow
bezel display gives you the feeling of using one
large display.
SmartErgoBase
MultiView technology
With the ultra high resolution Philips
Mul
tiView display you can now experience a
world of connectivity in a comfortable way
whether at office or at home. MultiView
enables active dual connect and view so that
you can work with multiple devices like PC and
Notebook side-by-side simultaneously, making
complex multi-tasking work a breeze.
Watching live football feed from your set-top
box on right side, while browsing the Internet
from your notebook on the left is now easy.
Due to the way brightness is controlled on
LED-backlit screens, some users experience
flicker on their screen which causes eye
fatigue. Philips Flicker-free Technology applies
The SmartErgoBase is a monitor base that
delivers ergonomic display comfort and
provides cable management. The base's
people-friendly height, swivel, tilt and rotation
angle adjustments position the monitor for
maximum comfort that can ease the physical
strains of a long workday; cable management
reduces cable clutter and keeps the workspace
neat and professional.
Page 3
BDM3470FP/01
UltraWide LCD Display with MultiView
34" (86.6 cm) uwFHD (2560 x 1080)
Specifications
Picture/Display
• LCD panel type: AH-IPS LCD
• Backlight type: W-LED system
• Panel Size: 34 inch / 86.6 cm
• Effective viewing area: 799.8 (H) x 334.8 (V)
• Aspect ratio: 21:9
• Optimum resolution: 2560 x 1080 @ 60Hz
• Response time (typical): 5 ms (Gray to Gray)*
• Brightness: 300 cd/m²
• Contrast ratio (typical): 1,000:1
• SmartContrast:
50,000,000:1
• Pixel pitch: 0.312 x 0.310 mm
• Viewing angle: 178º (H) / 178º (V), @ C/R > 10
• Picture enhancement: SmartImage
• Display colors: 8 bits
• Scanning Frequency: 30 - 83 kHz (H) / 56 - 76 Hz
(V)
• MHL: 1080P @ 60Hz
•sRGB
Connectivity
• Signal Input: VGA (Analog ), DVI-Dual Link (digital,
HDCP), MHL-HDMI (digital, HDCP)
• Sync Input: Separate Sync, Sync on Green
• Audio (In/Out): Headphone out
Convenience
• MultiView: PIP/PBP mode, 2x devices
• User convenience: SmartImage, Mul
Menu, Power On/Off
• Control software: SmartControl
• OSD Languages: Dutch, English, Finnish, French,
man, Greek, Hungarian, Italian, Japanese,
Ger
Korean, Polish, Portuguese, Russian, Simplified
Chinese, Spanish, Swedish, Traditional Chinese,
Turkish, Ukranian, Brazil Portuguese, Czech
• Other convenience: Kensington lock, VESA mount
x100mm)
(100
• Plug & Play Compatibility: DDC/CI, Mac OS X,
GB, Windows 10 / 8.1 / 8 / 7
sR
tiview, User,
Stand
• Height adjustment: 180 mm
• Pivot: 90 degree
•Swivel: -170/+170 degree
• Tilt: -5/20 degree
Power
• ECO mode: 20.9 W (typ.)
• On mode: 30.8 W (typ.) (EnergyStar 7.0 test
hod)
met
• Standby mode: <0.5 W (typ)
• Off mode: Zero watts with AC switch
• Power LED indicator: Operation - White, Standby
mode- White (blinking)
• Power supply: Built-in, 100-240VAC, 50-60Hz
Dimensions
• Product with stand(max height): 828 x 627 x
270 mm
• Product without stand (mm): 828 x 378 x 58 mm
• Packaging in mm (WxHxD): 934 x 594 x 224 mm
Weight
• Product with stand (kg): 8.90 kg
• Product without stand (kg): 5.9 kg
• Product with packaging (kg): 13.52 kg
Operating conditions
• Temperature range (operation): 0°C to 40°C °C
• Temperature range (storage): -20°C to 60°C °C
• Relative humidity: 20%-80 %
• Altitude: Operation: +12,000ft (3,658m), Non-
eration: +40,000ft (12,192m)
op
• MTBF: 70,000 hrs (excluded backlight) hour(s)
Sustainability
• Environmental and energy: EnergyStar 7.0, EPEAT
Gold*, RoHS
• Recyclable packaging material: 100 %
• Specific Substances: PVC / BFR free housing,
ry free, Lead free
Mercu
Compliance and standards
• Regulatory Approvals: CCC, WEEE, CE Mark,
cETLus, TCO certified
Cabinet
• Front bezel: Black
• Rear cover: Black
•Foot: Black
• Finish: Texture
What's in the box?
• Monitor with stand
•Cables: Power cable
•User Documentation
•
Issue date 2022-04-21
Version: 2.0.1
12 NC: 8670 001 44332
EAN: 87 12581 74566 0
© 2022 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
* This Philips display is MHL certified. However, in case your MHL
device does not connect or work correctly, check with your MHL
device FAQ or vendor directly for direction. The policy of your
device manufacturer may require you to purchase their brand
specific MHL cable or adapter in order to work
* Requires optional MHL certified mobile device and MHL cable. (not
included)
Please check with your MHL device vendor for
compatibility.
* Standby/Off energy saving of ErP is not applicable for the MHL
charging functionality
* For complete list of MHL-enabled products refer to
www.mhlconsortiun.org
* Response time value equal to SmartResponse
