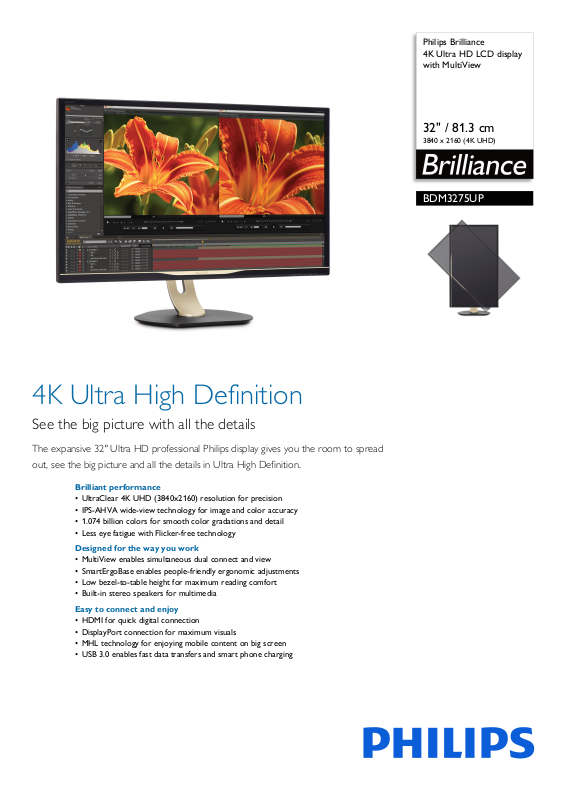

Page 1
Philips Brilliance
4K Ultra HD LCD display
with MultiView
32" / 81.3 cm
3840 x 2160 (4K UHD)
BDM3275UP
4K Ultra High Definition
See the big picture with all the details
The expansive 32" Ultra HD professional Philips display gives you the room to spread
out, see the big picture and all the details in Ultra High Definition.
Brilliant performance
• UltraClear 4K UHD (3840x2160) resolution for precision
• IPS-AHVA wide-view technology for image and color accuracy
• 1.074 billion colors for smooth color gradations and detail
• Less eye fatigue with Flicker-free technology
Designed for the way you work
• MultiView enables simultaneous dual connect and view
• SmartErgoBase enables people-friendly ergonomic adjustments
• Low bezel-to-table height for maximum reading comfort
• Built-in stereo speakers for multimedia
Easy to connect and enjoy
• HDMI for quick digital connection
• DisplayPort connection for maximum visuals
• MHL technology for enjoying mobile content on big screen
• USB 3.0 enables fast data transfers and smart phone charging
Page 2
BDM3275UP/69
4K Ultra HD LCD display with MultiView
32" / 81.3 cm 3840 x 2160 (4K UHD)
Highlights
UltraClear 4K UHD Resolution
These Philips displays utilize high performance
panels to deliver UltraClear, 4K UHD (3840 x
2160) resolution images. Whether you are
demanding professional requiring extremely
detailed images for CAD solutions, using 3D
graphics applications or a financial wizard
working on huge spreadsheets, Philips displays
will make your images and graphics come alive.
IPS-AHVA display
processing for re-creating smooth, natural
colors without gradations and color banding.
Flicker-free technology
Due to the way brightness is controlled on
LED-backlit screens, some users experience
flicker on their screen which causes eye
fatigue. Philips Flicker-free Technology applies
a new solution to regulate brightness and
reduce flicker for more comfortable viewing.
HDMI ready
SmartErgoBase
The SmartErgoBase is a monitor base that
delivers ergonomic display comfort and
provides cable management. The base's
people-friendly height, swivel, tilt and rotation
angle adjustments position the monitor for
maximum comfort that can ease the physical
strains of a long workday; cable management
reduces cable clutter and keeps the workspace
neat and professional.
Low bezel-to-table height
IPS-AHVA displays use an advanced technology
which gives you extra wide viewing angles of
178/178 degree, making it possible to view the
display from almost any angle. Unlike standard
TN panels, IPS-AHVA displays give you
remarkably crisp images with vivid colors,
making it ideal not only for Photos, movies and
web browsing, but also for professional
applications which demand color accuracy and
consistent brightness at all times.
10-bit colors
The 10-bit display delivers rich color depth
with 1.074 billion colors and 12-bit internal
Enjoy crisp colorful images and audio with
simple one-cable connection. An HDMI-ready
device has all the required hardware to accept
High-Definition Multimedia Interface (HDMI)
input. An HDMI cable enables high-quality
smooth digital video (up to 4K/UHD
resolution at 60 Hz) and audio all transmitted
over a single cable from a PC or any number of
AV sources (including set-top boxes, DVD
players, A/V receivers and video cameras).
MultiView technology
With the ultra-high resolution Philips
Mul
tiView display you can now experience a
world of connectivity. MultiView enables active
dual connect and view so that you can work
with multiple devices like a PC and notebook
simultaneously, for complex multi-tasking.
The Philips monitor, thanks to its advanced
SmartErgoBase, can be lowered down almost
to desk level for a comfortable viewing angle.
Low bezel-to-table height is the perfect
solution if you use bifocals, trifocals or
progressive lens glasses for your computing
work. Additionally, it allows for users with
greatly different heights to use the monitor in
their preferred angle and height settings,
helping them reduce fatigue and strain.
Built-in stereo speakers
A pair of high quality stereo speakers built into
a displa
y device. It can be visible front firing, or
invisible down firing, top firing, rear firing, etc
depending on model and design.
Page 3
BDM3275UP/69
4K Ultra HD LCD display with MultiView
32" / 81.3 cm 3840 x 2160 (4K UHD)
Specifications
Picture/Display
• LCD panel type: IPS-AHVA LCD
• Backlight type: W-LED system
• Panel Size: 32 inch / 81.3 cm
• Effective viewing area: 708.48 (H) x 398.52 (V)
• Aspect ratio: 16:9
• Optimum resolution: 3840 x 2160 @ 60Hz
• Response time (typical): 4 ms (Gray to Gray)*
• Brightness: 350 cd/m²
• Contrast ratio (typical): 1,000:1
• SmartContrast:
50,000,000:1
• Pixel pitch: 0.1845 x 0.1845 mm
• Viewing angle: 178º (H) / 178º (V), @ C/R > 10
• Picture enhancement: SmartImage
• Display colors: Color support 1.07 billion colors
• Scanning Frequency: 30 - 83 kHz (H) / 56 - 76 Hz
(V)
• MHL: 1080P @ 60Hz
•sRGB
• Brightness uniformity: 93 ~ 105%
Connectivity
• USB: USB 3.0 x 4 with B.C.1.2
• Signal Input: VGA (Analog ), DVI-Dual Link (digital,
P), DisplayPort x 1, HDMI (2.0) - MHL x 1
HDC
• Sync Input: Separate Sync, Sync on Green
• Audio (In/Out): PC audio-in, Headphone out
Convenience
• Built-in Speakers: 3 W x 2
• MultiView: PIP/PBP mode, 2x devices
• User convenience: SmartImage, Mul
tiview, User,
Menu, Power On/Off
• Control software: SmartControl Premium
• OSD Languages: Brazil Portuguese, Czech, Dutch,
glish, Finnish, French, German, Greek,
En
Hungarian, Italian, Japanese, Korean, Polish,
Portuguese, Russian, Simplified Chinese, Spanish,
Swedish, Traditional Chinese, Turkish, Ukranian
• Other convenience: Kensington lock, VESA mount
x100mm)
(100
• Plug & Play Compatibility: DDC/CI, Mac OS X,
GB, Windows 8.1 / 8 / 7
sR
Stand
• Height adjustment: 180 mm
• Pivot: 90 degree
•Swivel: -170/+170 degree
• Tilt: -5/20 degree
Power
• ECO mode: 33.3 W (typ.)
• On mode: 41.1 W (typ.) (EnergyStar 7.0 test
hod)
met
• Standby mode: < 0.5 W (typ.)
• Off mode: Zero watts with Zero switch
• Power LED indicator: Operation - White, Standby
mode- White (blinking)
• Power supply: Built-in, 100-240VAC, 50-60Hz
Dimensions
• Product with stand(max height): 742 x 657 x
270 mm
• Product without stand (mm): 742 x 438 x 61 mm
• Packaging in mm (WxHxD): 970 x 526 x 224 mm
Weight
• Product with stand (kg): 10.90 kg
• Product without stand (kg): 7.94 kg
• Product with packaging (kg): 15.20 kg
Operating conditions
• Temperature range (operation): 0°C to 40°C °C
• Temperature range (storage): -20°C to 60°C °C
• Relative humidity: 20%-80 %
• Altitude: Operation: +12,000ft (3,658m), Non-
eration: +40,000ft (12,192m)
op
• MTBF (demonstrated): 70,000 hrs (excluded
klight)
bac
Sustainability
• Environmental and energy: EnergyStar 7.0, TCO
Certified Edge, RoHS
• Recyclable packaging material: 100 %
• Post consumer recycled plastic: 65%
• Specific Substances: PVC / BFR free housing,
ry free
Mercu
Compliance and standards
• Regulatory Approvals: CE Mark, FCC Class B,
BSMI, KCC, E-standby, ICES-003, KC, J-MOSS,
cETLus, EPA, TUV/GS, TUV Ergo, PSB, CU-EAC,
SEMKO, SASO, KUCAS, UKRAINIAN, PSE,
CECP, WEEE, TCO Certified Edge
Cabinet
• Front bezel: Black
• Rear cover: Black
•Foot: Black
• Finish: Texture
•
Issue date 2021-02-26
Version: 6.0.1
12 NC: 8670 001 24468
EAN: 87 12581 73134 2
© 2021 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
* This Philips display is MHL certified. However, in case your MHL
device does not connect or work correctly, check with your MHL
device FAQ or vendor directly for direction. The policy of your
device manufacturer may require you to purchase their brand
specific MHL cable or adapter in order to work
* Requires optional MHL certified mobile device and MHL cable. (not
included) Please check with your MHL device vendor for
compatibility.
* Standby/Off energy saving of ErP is not applicable for the MHL
charging functionality
* For complete list of MHL-enabled products refer to
www.mhlconsortiun.org
* "IPS" word mark / trademark and related patents on technologies
belong to their respective owners.
* EPEAT rating is valid only where Philips registers the product. Please
visit https://www.epeat.net/ for registration status in your country.
* Response time value equal to SmartResponse
