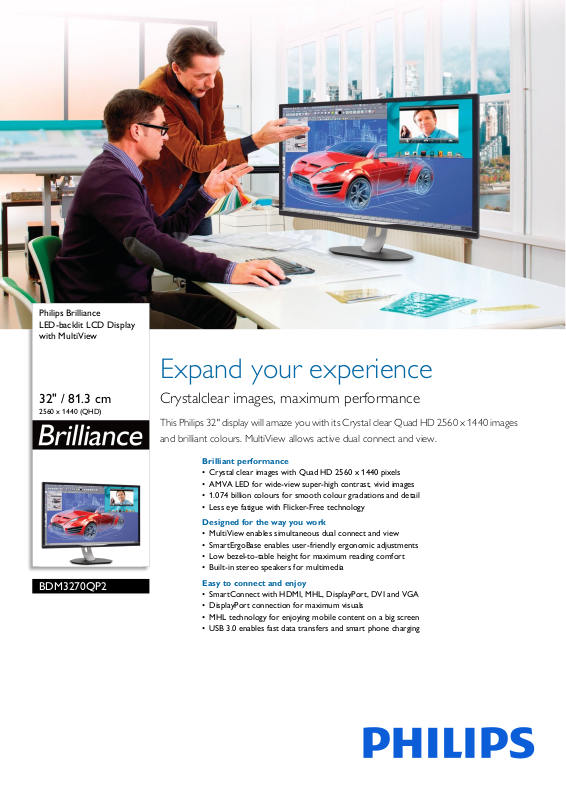

Page 1
Philips Brilliance
LED-backlit LCD Display
with MultiView
Expand your experience
32" / 81.3 cm
2560 x 1440 (QHD)
BDM3270QP2
Crystalclear images, maximum performance
This Philips 32" display will amaze you with its Crystal clear Quad HD 2560 x 1440 images
and brilliant colours. MultiView allows active dual connect and view.
Brilliant performance
• Crystal clear images with Quad HD 2560 x 1440 pixels
• AMVA LED for wide-view super-high contrast, vivid images
• 1.074 billion colours for smooth colour gradations and detail
• Less eye fatigue with Flicker-Free technology
Designed for the way you work
• MultiView enables simultaneous dual connect and view
• SmartErgoBase enables user-friendly ergonomic adjustments
• Low bezel-to-table height for maximum reading comfort
• Built-in stereo speakers for multimedia
Easy to connect and enjoy
• SmartConnect with HDMI, MHL, DisplayPort, DVI and VGA
• DisplayPort connection for maximum visuals
• MHL technology for enjoying mobile content on a big screen
• USB 3.0 enables fast data transfers and smart phone charging
Page 2
BDM3270QP2/00
LED-backlit LCD Display with MultiView
32" / 81.3 cm 2560 x 1440 (QHD)
Highlights
CrystalClear images
These Philips screens deliver Crystal Clear,
Quad HD 2560
images. Utilising high-performance panels with
high-density pixel count, enabled by highbandwidth sources like Displayport, HDMI and
Dual link DVI, these new displays will make
your images and graphics come alive. Whether
you are a demanding professional requiring
extremely detailed information for CAD-CAM
solutions, a user of 3D graphic applications or
a financial wizard working on huge
spreadsheets, Philips displays will give you
Crystal Clear images.
AMVA LED display
Philips AMVA LED display uses an advanced
multi-domain vertical alignment technology
which gives you super-high static contrast
ratios for extra vivid and bright images. While
standard office applications are handled with
ease, it is especially suitable for photos, webbrowsing, films, gaming and demanding
graphical applications. Its optimised pixel
management technology gives you 178/178
degree extra wide viewing angle, resulting in
crisp images even in 90 degree pivot mode
10-bit colours
The 10-bit display delivers rich colour depth
with 1.074 billion colours and 12-bit internal
processing for recre
colours without gradations and colour
banding.
x 1440 or 2560 x 1080 pixel
ating smooth, natural
Flicker-Free technology
Due to the way brightness is controlled on
LED-backlit screens, some users experience
flicker on their screen which causes eye
fatigue. Philips Flicker-Free technology applies
a new solution to regulate brightness and
reduce flicker for more comfortable viewing.
MultiView technology
With the ultra-high resolution Philips
Mul
tiView display, you can now experience a
world of connectivity. MultiView enables active
dual connect and view so that you can work
with multiple devices like a PC and notebook
simultaneously, for complex multitasking.
SmartErgoBase
The SmartErgoBase is a monitor base that
delivers ergonomic display comfort and
provides cable management. The user-friendly
height, swivel, tilt and rotation angle
adjustments of the base allow the monitor to
be positioned for maximum comfort to help
ease the physical strains of a long workday. In
addition, cable management reduces cable
clutter and keeps the workspace neat and
professional.
Built-in stereo speakers
A pair of high-quality stereo speakers built into
a
display device. They may be visible front
firing, or invisible down firing, top firing, rear
firing etc. depending on model and design.
USB 3.0 super speed
Super Speed USB 3.0 deploys a 5.0 Gbit/s
t
ransfer rate, which is about 10 times faster
than USB 2.0 standard, significantly reducing
data transfer time and saving you time and
money. With more bandwidth, super-speed
transfer rates, better power management and
superior overall performance, USB 3.0 sets the
global standard, allowing you to use largecapacity storage devices. Sync-N-Go
technology ensures that you no longer have to
wait for bandwidth to be freed up. Your
investment in USB 2.0 devices is protected as
it is backwards compatible.
SmartConnect
With a plethora of connectivity, these Philips
dis
plays come equipped with multiple
connections like VGA, Display Port, universal
HDMI connector and MHL, enabling you to
enjoy high-resolution uncompressed video and
audio content. USB connections ensure that
you can have super-speed data transfers while
having global connectivity. Regardless of what
source you use, you can rest assured that this
Philips display will ensure your investment is
not made obsolete any time soon!
DisplayPort connection
DisplayPort is a digital link from PC to monitor
without any conversion. With higher
capabilities than DVI standard, it is fully capable
to support up to 15 metre cables and 10.8
Gbps/sec data transfer. With this high
performance and zero latency, you get the
fastest imaging and refresh rates — making
DisplayPort the best choice for not only
general office or home use, but also for the
more demanding gaming and films, video
editing and more. It also keeps interoperability
in mind via the use of various adapters.
Page 3
BDM3270QP2/00
LED-backlit LCD Display with MultiView
32" / 81.3 cm 2560 x 1440 (QHD)
Specifications
Picture/Display
• LCD panel type: AMVA LCD
• Backlight type: W-LED system
•Panel Size: 32 inch / 81.3 cm
• Effective viewing area: 708.48 (H) x 398.52 (V)
• Aspect ratio: 16:9
• Optimum resolution: 2560 x 1440 @ 60Hz
• Brightness: 250 cd/m²
• Response time (typical): 4 ms (Grey to Grey)*
• Contrast ratio (typical): 3000:1
• SmartContrast:
50,000,000:1
• Pixel pitch: 0.277 x 0.277 mm
• Viewing angle: 178º (H)/178º (V),
@ C/R > 10
• Picture enhancement: SmartImage
• Display colours: Colour support 1.07 billion
lours
co
• Scanning Frequency: 15 - 99 kHz (H) / 23 - 76 Hz
(V) *
• MHL: 1080P @ 60 Hz
•sRGB
• Brightness uniformity: 93% ~ 105%
• Delta E: 3 (typ) for 6500K
Connectivity
• USB: USB 3.0 x 2 (1 w/fast charging)*, USB 2.0 x 2
• Signal Input: VGA (Analogue), DVI-Dual Link
al, HDCP), DisplayPort x 1, MHL-HDMI
(digit
(digital, HDCP)
• Sync Input: Separate Sync, Sync on Green
• Audio (In/Out): PC audio-in, Headphone out
Convenience
• Built-in Speakers: 3 W x 2
• MultiView: PIP/PBP mode, 2 x devices
• User convenience: SmartImage, Mul
Menu, Power On/Off
• Control software: SmartControl
• OSD Languages: Dutch, English, Finnish, French,
man, Greek, Hungarian, Italian, Japanese,
Ger
Korean, Polish, Portuguese, Russian, Simplified
Chinese, Spanish, Swedish, Traditional Chinese,
Turkish, Ukrainian, Brazil Portuguese, Czech
• Other convenience: Kensington lock, VESA mount
(100 x 100 mm)
• Plug and Play Compatibility: DDC/CI, Mac OS X,
GB, Windows 10 / 8.1 / 8 / 7
sR
ti-view, User,
Power
• ECO mode: 31.5 W (typ.)
• On mode: 62.3 W (typ.)
• Standby mode: <0.5 W (typ.)
• Off mode: Zero watts with AC switch
• Power LED indicator: Operation - White, Standby
mode - White (f
lashing)
• Power supply: Built-in, 100–240 VAC, 50–60 Hz
Dimensions
• Product with stand (max height): 742 x 657 x
270 mm
• Product without stand (mm): 742 x 438 x 61 mm
• Packaging in mm (W x H x D): 970 x 526 x 224 mm
Weight
• Product with stand (kg): 10.76 kg
• Product without stand (kg): 7.80 kg
• Product with packaging (kg): 14.98 kg
Operating conditions
• Temperature range (operation): 0°C to 40°C °C
• Temperature range (storage): -20°C to 60°C °C
• Relative humidity: 20–80% %
• Altitude: Operation: +12,000 ft (3658 m), Non-
eration: +40,000 ft (12,192 m)
op
• MTBF (demonstrated): 70,000 hrs (excluded
backlight)
Sustainability
• Environmental and energy: RoHS
• Recyclable packaging material: 100 %
• Post-consumer recycled plastic: 65%
• Specific Substances: PVC/BFR free housing,
ry free, Lead free
Mercu
Compliance and standards
• Regulatory Approvals: CE Mark, FCC Class B,
SEMKO, cETLus, CU-EAC, PSB, WEEE, CECP,
PSE, KC, BSMI, VCCI
Cabinet
• Front bezel: Black
• Rear cover: Black
•Foot: Black
• Finish: Texture
Stand
• Height adjustment: 180 mm
• Pivot: 90 degree
•Swivel: -170/+170 degree
• Tilt: -5/20 degree
Issue date 2020-04-24
Version: 3.0.1
12 NC: 8670 001 39614
EAN: 87 12581 74102 0
What's in the box?
• Monitor with stand
• Cables: D-Sub cable, DVI-D cable, DP cable, HDMI
ble, Audio cable, Power cable
ca
•User Documentation
•
© 2020 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
* This Philips display is MHL-certified. However, if your MHL device
does not connect or work correctly, check with your MHL device
FAQ or vendor directly for instructions. The policy of your device
manufacturer may require you to purchase its brand-specific MHL
cable or adapter in order for it to work
* Requires optional MHL-certified mobile device and MHL cable (not
. Please check with your MHL device vendor for
included)
compatibility.
* Standby/Off energy saving of ErP is not applicable for the MHL
char
ging functionality
* For a complete list of MHL-enabled products, refer to
www.mhlconsortium.org
* "AMVA" word mark/trademark and related patents on technologies
belong to their respective owners.
* The scanning frequency value listed covers a wide range and varies
for all types of I/O. For details, please refer to user manual.
* Fast charging complies with USB BC 1.2 standard
* Response time value equal to SmartResponse
