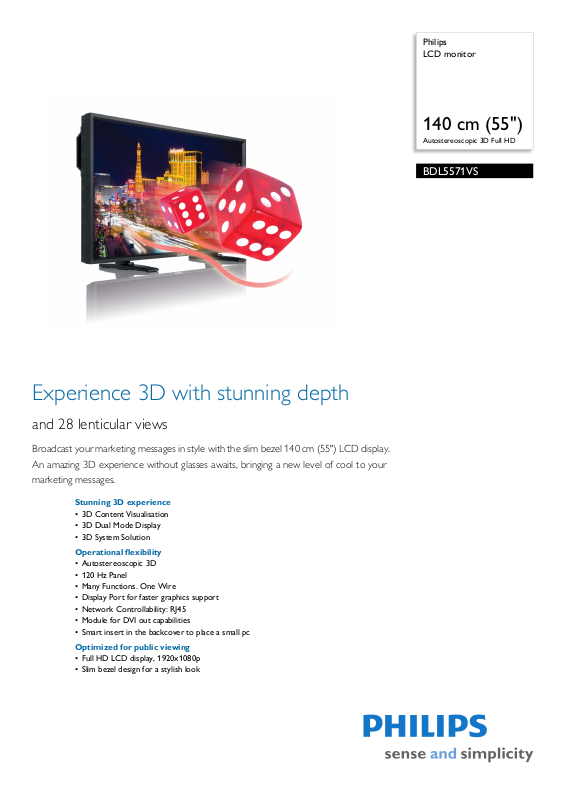

Philips
LCD monitor

140 cm (55")

Autostereoscopic 3D Full HD

BDL5571VS

Experience 3D with stunning depth

and 28 lenticular views

Broadcast your marketing messages in style with the slim bezel 140 cm (55") LCD display.
An amazing 3D experience without glasses awaits, bringing a new level of cool to your
marketing messages.

Stunning 3D experience

• 3D Content Visualisation

• 3D Dual Mode Display

•3D System Solution

Operational flexibility

• Autostereoscopic 3D

• 120 Hz Panel

•Many Functions. One Wire

• Display Port for faster graphics support

• Network Controllability: RJ45

• Module for DVI out capabilities

• Smart insert in the backcover to place a small pc

Optimized for public viewing

• Full HD LCD display, 1920x1080p

• Slim bezel design for a stylish look

LCD monitor

Slim Bezel

140 cm (55") Autostereoscopic 3D Full HD

Highlights

BDL5571VS/00

Autostereoscopic 3D

Enjoy a stunning 3D experience with no need
for special glasses thanks to the
autostereoscopic 3D effect. Using lenticular
technology, it gives excellent clarity and depth,
making your 3D experience even more lifelike
and enjoyable.

3D Content Visualisation

The 2D-plus-Depth format is compatible with
e

xisting compression tools, as the additional
bandwidth of the depth is small. Software tools
are provided with the 3D display to play-out
3D content and control the 3D and 2D
visualization parameters. The actual 3D
content can be created via plug-ins available for
popular 3D animation software packages.
Existing 2D or stereo content can be
converted into 2D-plus-Depth format. Tools
are available to support real-time extraction
and usage of the depth information from
Direct3D or OpenGL applications, and thus
real-time visualisation on the 3D display.

3D Dual Mode Display

Our displays offer autostereoscopic 3D for
professional
today’s best 3D viewing experiences by using
unique technology. Slanted multi-view
lenticular lens technology affords full
brightness and contrast, and allows multiple
users to view 3D content at the same time.
The display is based on a high resolution panel
and thus enables great picture quality and true
color representation in 2D and 3D mode. The

applications, that brings you

integrated rendering core offers content
creators and end-users full control over the
quality and depth-effect characteristics of the
picture.

3D System Solution

The display can be applied in a broad range of
app

lications, since it can be operated in both
2D and 3D mode. The system solution is
designed for maximum reuse of content/
concepts from the 2D world. The key enabler
for this is the flexible 2D-plus-Depth format
that allows decoupling of content creation and
content visualization. This allows applications
where different 3D display screen sizes and
designs can be applied in the same system. The
rendering core integrated in the
autostereoscopic 3D displays supports the
unique Declipse image format which enables a
true look-around 3D effect.

Optional DVI Module

Create a digital video wall of up to 9 displays in
a 3

x 3 configuration with the optional DVI
module. Simply slide the module in to the open
slot on the side of the display, then connect the
DVI out port to a DVI in of another display to
create the most stunning video wall experience
around.

120 Hz Panel

Enjoy stunningly clear video images thanks to
th

e 120 Hz panel. Even fast moving action
scenes can be seen with no blur, enhancing
your viewing experience.

Smart insert

Professional PC's are part of most public
s

ignage installations. Quite often they increase
the overall depth to the display and cause a lot
of cable clutter. So we have designed this
display with Smart insert in the
backcoverwhich is ideal for the integration of a

professional small form factor PC. On top of
that, the cable management system offers a
great solution to keep your cables neat and
professional looking.

One Wire

Take full control of your display by running all
o

perational commands as well as your video
signal through just one single HDMI cable. This
unique feature makes it so much easier and
more convenient to ensure the smooth
running and maintenance of your display.
Consumer Electronics Control (CEC)
commands make finding out vital information
about your display absolute childsplay.

RJ45

Simple management of your display is available
t

hanks to the introduction of a LAN (RJ45)
port. You can configure each display or find
out the status of each device quickly and
conveniently via an RJ45 connection.

Slim bezel

A slim bezel design adds a stylish look to a
p

ublic display to nicely blend in just about any
environment. Furthermore this design makes
the display ideal for tiled matrix video walls.

Full HD LCD display 1920x1080p

This display has a resolution that is referred to
as

Full HD. The state-of-the-art LCD screen
technology has the full high-definition
widescreen resolution of 1080 progressive
lines, each with 1920 pixels. This allows the
best possible picture quality for HD input
signals with up to 1080 lines. It produces
brilliant flicker-free progressive scan pictures
with optimum brightness and superb colors.
This vibrant and sharp image will provide you
with an enhanced viewing experience.
