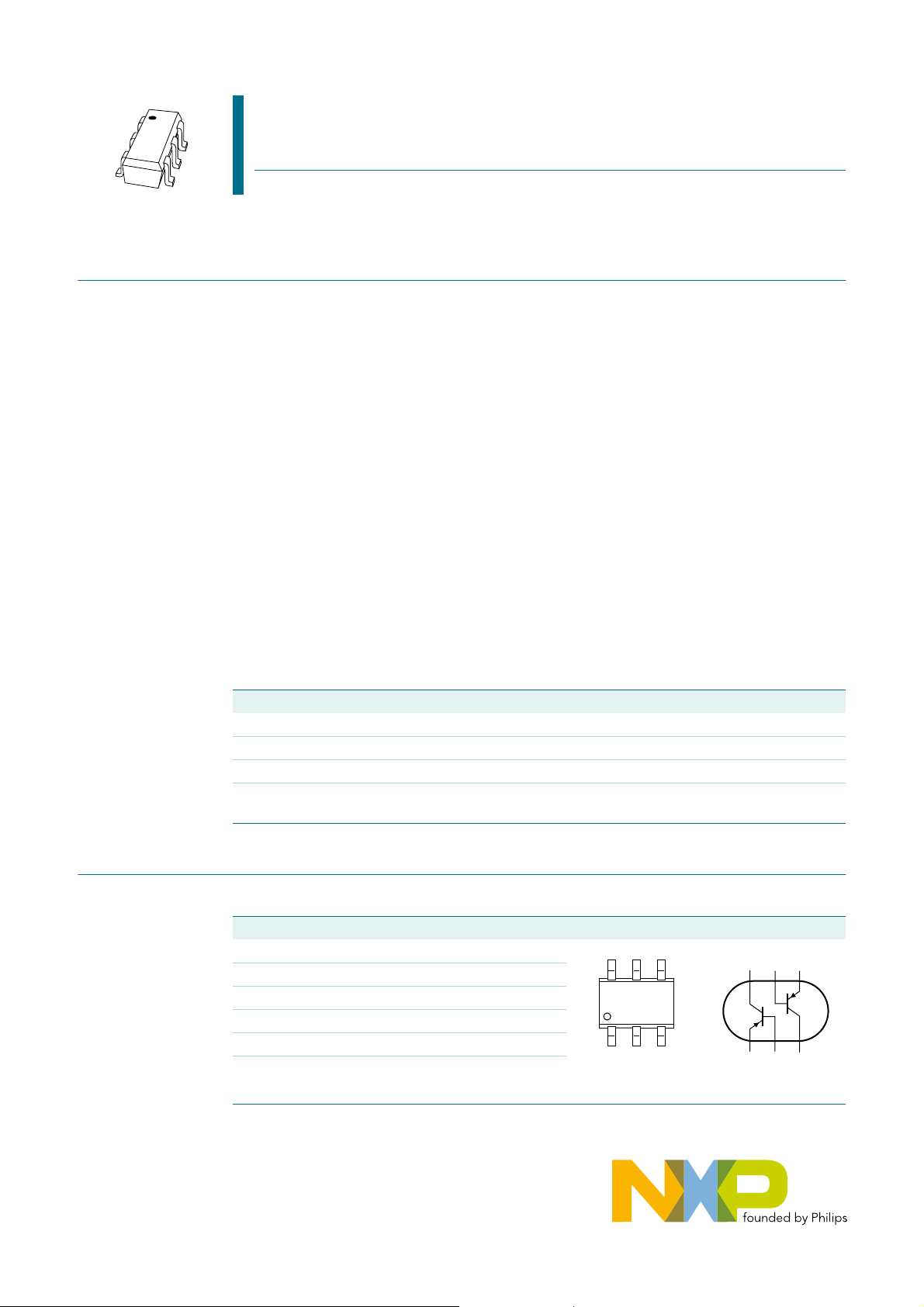

BC856S
65 V, 100 mA PNP/PNP general-purpose transistor
Rev. 02 — 19 February 2009 Product data sheet
1. Product profile

1.1 General description

PNP/PNP general-purpose transistor pair in a very small SOT363 (SC-88) Surface-Mounted Device (SMD) plastic package.

1.2 Features

n Low collector capacitance n Low collector-emitter saturation voltage n Closely matched current gain n Reduces number of components and board space n No mutual interference between the transistors

1.3 Applications

n General-purpose switching and amplification

1.4 Quick reference data

Table 1. Quick reference data
Symbol Parameter Conditions Min Typ Max Unit
Per transistor
V I h
CEO
C
FE
collector-emitter voltage open base - - −65 V collector current - - −100 mA DC current gain VCE= −5V;

2. Pinning information

Table 2. Pinning
Pin Description Simplified outline Graphic symbol
1 emitter TR1 2 base TR1 3 collector TR2 4 emitter TR2 5 base TR2 6 collector TR1
I
= −2mA
C
110 - -
56
4
132
TR1
6
1
sym018
5
4
TR2
2
3
Page 2
NXP Semiconductors

3. Ordering information

Table 3. Ordering information
Type number Package
BC856S SC-88 plastic surface-mounted package; 6 leads SOT363

4. Marking

Table 4. Marking codes
Type number Marking code
BC856S 5F*
[1] * = -: made in Hong Kong
* = p: made in Hong Kong * = t: made in Malaysia * = W: made in China
BC856S
65 V, 100 mA PNP/PNP general-purpose transistor
Name Description Version
[1]

5. Limiting values

Table 5. Limiting values
In accordance with the Absolute Maximum Rating System (IEC 60134).
Symbol Parameter Conditions Min Max Unit
Per transistor
V
CBO
V
CEO
V
EBO
I
C
P
tot
Per device
P
tot
T
j
T
amb
T
stg
[1] Device mounted on an FR4 Printed-Circuit Board (PCB), single-sided copper, tin-plated and standard
footprint.
[2] Device mounted on an FR4 PCB, single-sided copper, tin-plated, mounting pad for collector 1cm2.
collector-base voltage open emitter - −80 V collector-emitter voltage open base - −65 V emitter-base voltage open collector - −5V collector current - −100 mA total power dissipation T
total power dissipation T
amb
amb
≤ 25 °C
≤ 25 °C
[1]
- 220 mW
[2]
- 250 mW
[1]
- 300 mW
[2]
- 400 mW junction temperature - 150 °C ambient temperature −65 +150 °C storage temperature −65 +150 °C
BC856S_2 © NXP B.V. 2009. All rights reserved.
Product data sheet Rev. 02 — 19 February 2009 2 of 12
Page 3
NXP Semiconductors
BC856S
65 V, 100 mA PNP/PNP general-purpose transistor

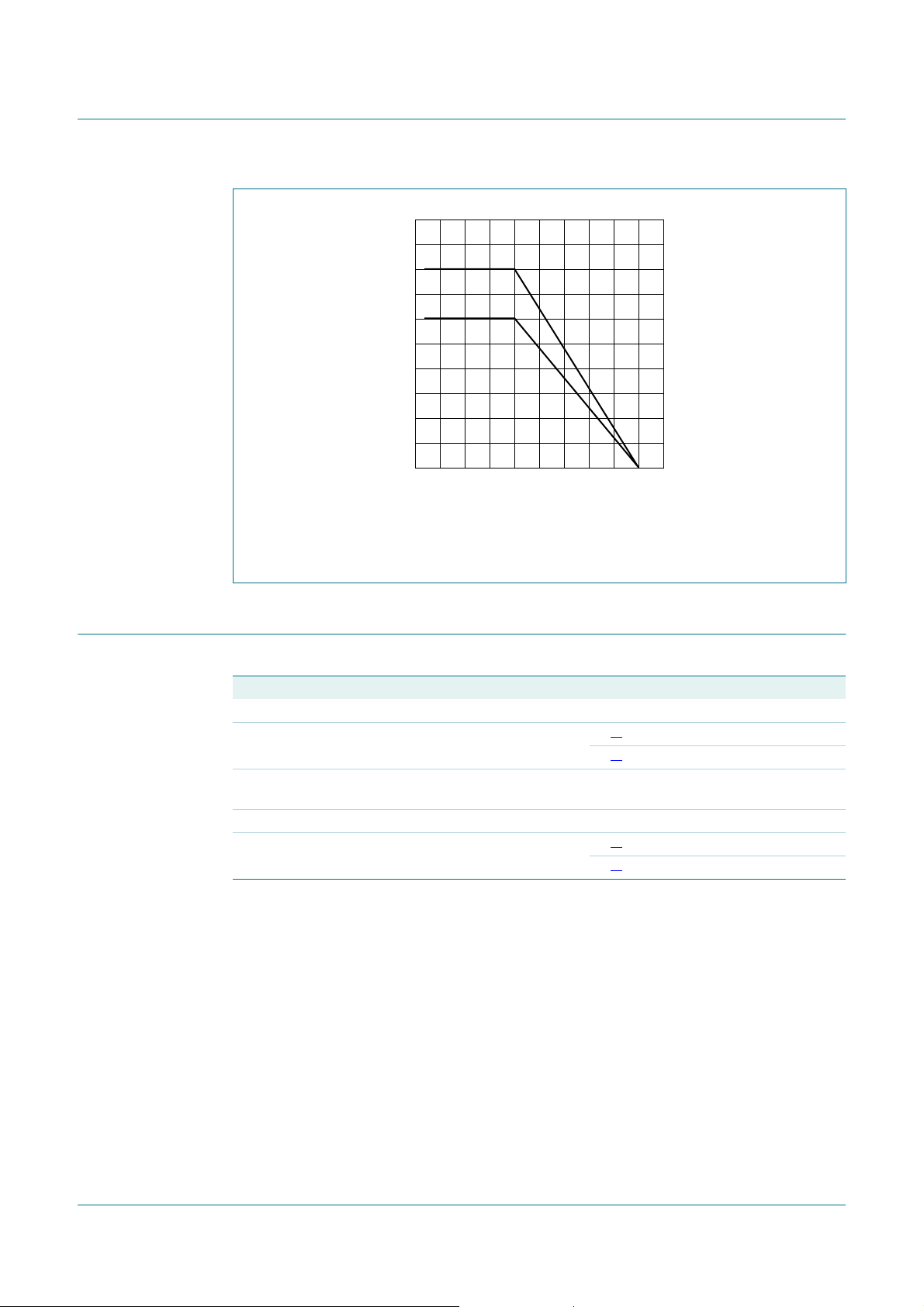

(1) FR4 PCB, mounting pad for collector 1 cm (2) FR4 PCB, standard footprint
Fig 1. Per device: Power derating curves SOT363 (SC-88)

6. Thermal characteristics

500
P
tot
(mW)
400
300
200
100
0
−75 17512525 75−25
006aab419
(1)
(2)
T
(°C)
amb
2
Table 6. Thermal characteristics
Symbol Parameter Conditions Min Typ Max Unit
Per transistor
R
th(j-a)
R
th(j-sp)
thermal resistance from junction to ambient
thermal resistance from
in free air
[1]
- - 568 K/W
[2]
- - 500 K/W
- - 230 K/W
junction to solder point
Per device
R
th(j-a)
thermal resistance from
in free air
junction to ambient
[1] Device mounted on an FR4 PCB, single-sided copper, tin-plated and standard footprint. [2] Device mounted on an FR4 PCB, single-sided copper, tin-plated, mounting pad for collector 1cm2.
[1]
- - 416 K/W
[2]
- - 313 K/W
BC856S_2 © NXP B.V. 2009. All rights reserved.
Product data sheet Rev. 02 — 19 February 2009 3 of 12
Page 4
NXP Semiconductors
BC856S
65 V, 100 mA PNP/PNP general-purpose transistor
006aab420
2
10
tp (s)
3
10
Z
th(j-a)
(K/W)
3
10
δ = 1
0.75
0.50
0.20
0.05
0.01 0
0.33
0.10
0.02
−4
10
−3
10
−2
−1
10
1
1010
2
10
10
1
−5
10
FR4 PCB, standard footprint

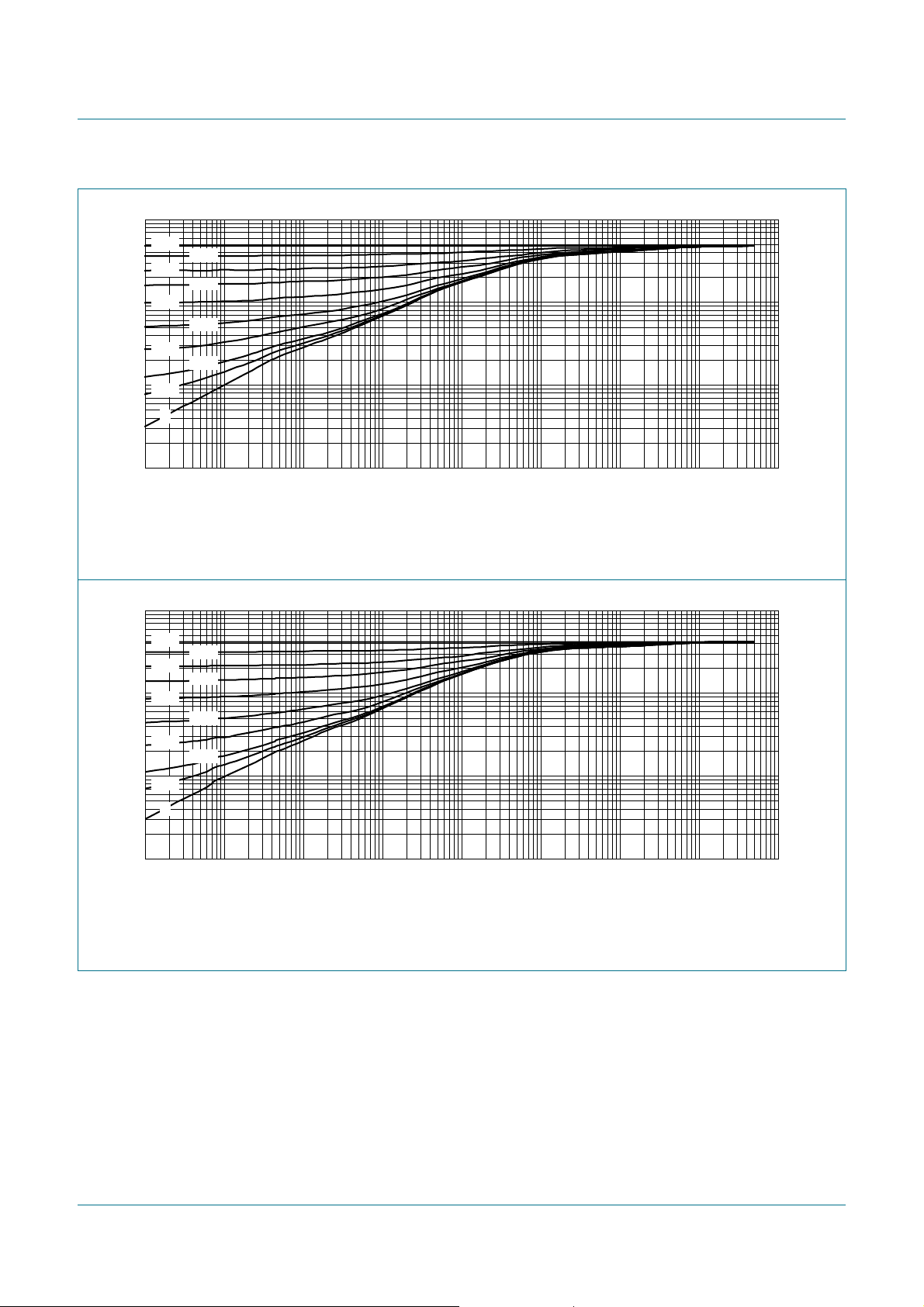

Fig 2. Per transistor: Transient thermal impedance from junction to ambient as a function of pulse duration;
typical values
006aab421
Z
th(j-a)
(K/W)
3
10
δ = 1
0.75
0.50
2
10
10
0.33
0.20
0.10
0.05
0.02
0.01 0
1
−5
10
−4
10
−3
10
FR4 PCB, mounting pad for collector 1 cm
−2
2
−1
10
1
1010
2
10
tp (s)
3
10
Fig 3. Per transistor: Transient thermal impedance from junction to ambient as a function of pulse duration;
typical values
BC856S_2 © NXP B.V. 2009. All rights reserved.
Product data sheet Rev. 02 — 19 February 2009 4 of 12
Page 5
NXP Semiconductors

7. Characteristics

Table 7. Characteristics
T
amb
Symbol Parameter Conditions Min Typ Max Unit
Per transistor
I
CBO
I
EBO
h
FE
V
CEsat
V
BEsat
V
BE
C
c
f
T
BC856S
65 V, 100 mA PNP/PNP general-purpose transistor
=25°C unless otherwise specified.
collector-basecut-off current
emitter-base cut-off current
DC current gain VCE= −5 V; IC= −2 mA 110 - ­collector-emitter
saturation voltage
base-emitter saturation voltage
base-emitter voltage IC= −2 mA; VCE= −5V −600 −650 −750 mV
collector capacitance IE=ie=0A;VCB= −10 V;
transition frequency IC= −10 mA; VCE= −5V;
VCB= −30 V; IE=0A - - −15 nA
= −30 V; IE=0A;
V
CB
T
= 150 °C
j
--−5 µA
VEB= −5 V; IC=0A - - −100 nA
IC= −10 mA; I
= −0.5 mA
B
= −100 mA; IB= −5mA
I
C
IC= −10 mA; I
= −0.5 mA
B
= −10 mA; VCE= −5V - - −820 mV
I
C
--−100 mV
[1]
--−300 mV
- 700 - mV
- - 2.5 pF
f=1MHz
100 - - MHz
f = 100 MHz
[1] Pulse test: tp≤ 300 µs; δ≤0.02.
BC856S_2 © NXP B.V. 2009. All rights reserved.
Product data sheet Rev. 02 — 19 February 2009 5 of 12
Page 6
NXP Semiconductors
BC856S
65 V, 100 mA PNP/PNP general-purpose transistor
−10
006aab429
2
I
(mA)
C
−10
3
500
h
FE
400
(1)
300
200
100
0
−10
−1
(2)
(3)
−1 −10
VCE= −5V (1) T (2) T (3) T
amb amb amb
= 150 °C =25°C = −55 °C

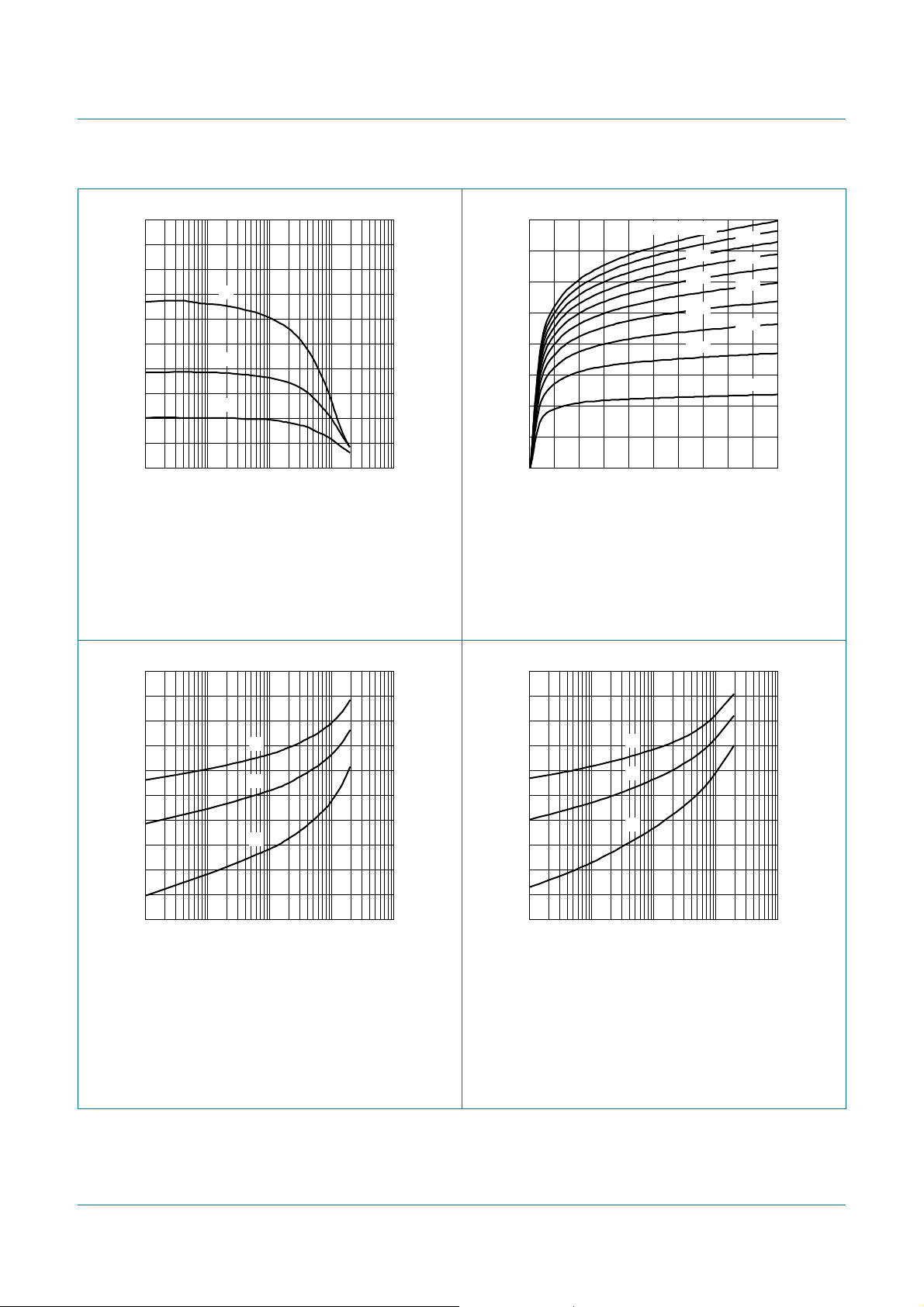

Fig 4. Per transistor: DC current gain as a function of
collector current; typical values
−4.0
−3.0
−2.0
−1.0
006aab430
−4.5
−3.5
−2.5
−1.5
−0.5
VCE (V)
−0.20 I
C
(A)
−0.15
−0.10
−0.05
0
0 −5−4−2 −3−1
T
amb
IB (mA) = −5.0
=25°C
Fig 5. Per transistor: Collector current as a function
of collector-emitter voltage; typical values
−10
006aab431
2
I
(mA)
C
−10
V
(V)
−1.2
BE
−1.0
−0.8
−0.6
−0.4
−0.2
−10
(1)
(2)
(3)
−1
−1 −10
VCE= −5V (1) T (2) T (3) T
amb amb amb
= −55 °C =25°C = 150 °C
Fig 6. Per transistor: Base-emitter voltage as a
function of collector current; typical values
−10
006aab432
2
I
(mA)
C
−10
3
−1.2
V
BEsat
(V)
−1.0
(1)
−0.8
−0.6
−0.4
3
−0.2
−10
−1
(2)
(3)
−1 −10
IC/IB=20 (1) T (2) T (3) T
amb amb amb
= −55 °C =25°C = 150 °C
Fig 7. Per transistor: Base-emitter saturation voltage
as a function of collector current; typical
values
BC856S_2 © NXP B.V. 2009. All rights reserved.
Product data sheet Rev. 02 — 19 February 2009 6 of 12
Page 7
NXP Semiconductors
BC856S
65 V, 100 mA PNP/PNP general-purpose transistor
−10
006aab433
2
IC (mA)
−10
3
V
CEsat
(V)
−10
−10
−1
−1
−2
−10
(1)
(2)
(3)
−1
−1 −10
IC/IB=20 (1) T (2) T (3) T
amb amb amb
= 150 °C =25°C = −55 °C

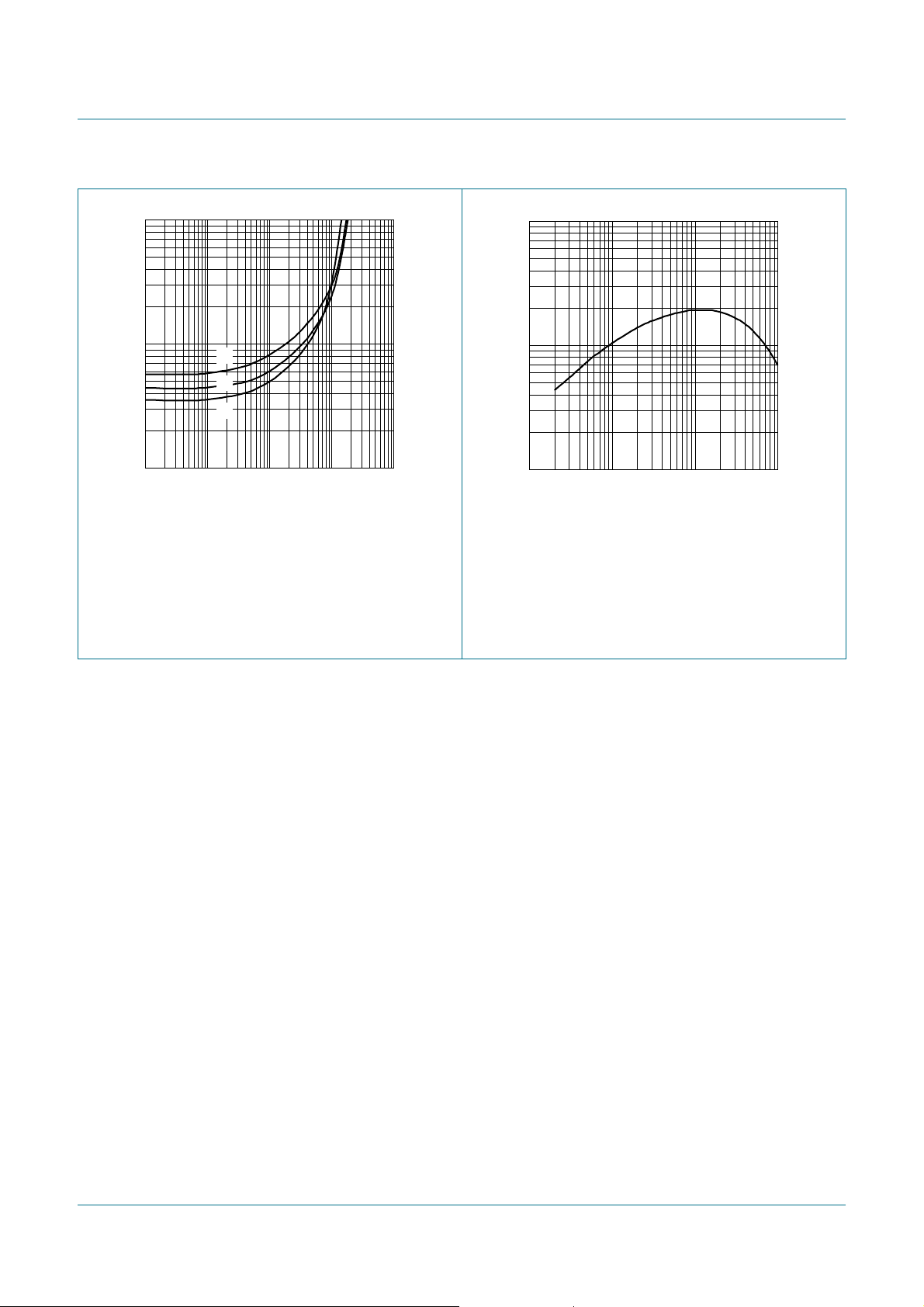

Fig 8. Per transistor: Collector-emitter saturation
voltage as a function of collector current;
typical values
9
10
f
T
(Hz)
8
10
7
10
−1
−10
VCE= −5 V; f = 1 MHz; T
amb
=25°C
006aab434
−10−1 IC (mA)
−10
Fig 9. Per transistor: Transition frequency as a
function of collector current; typical values
2
BC856S_2 © NXP B.V. 2009. All rights reserved.
Product data sheet Rev. 02 — 19 February 2009 7 of 12
Page 8
NXP Semiconductors

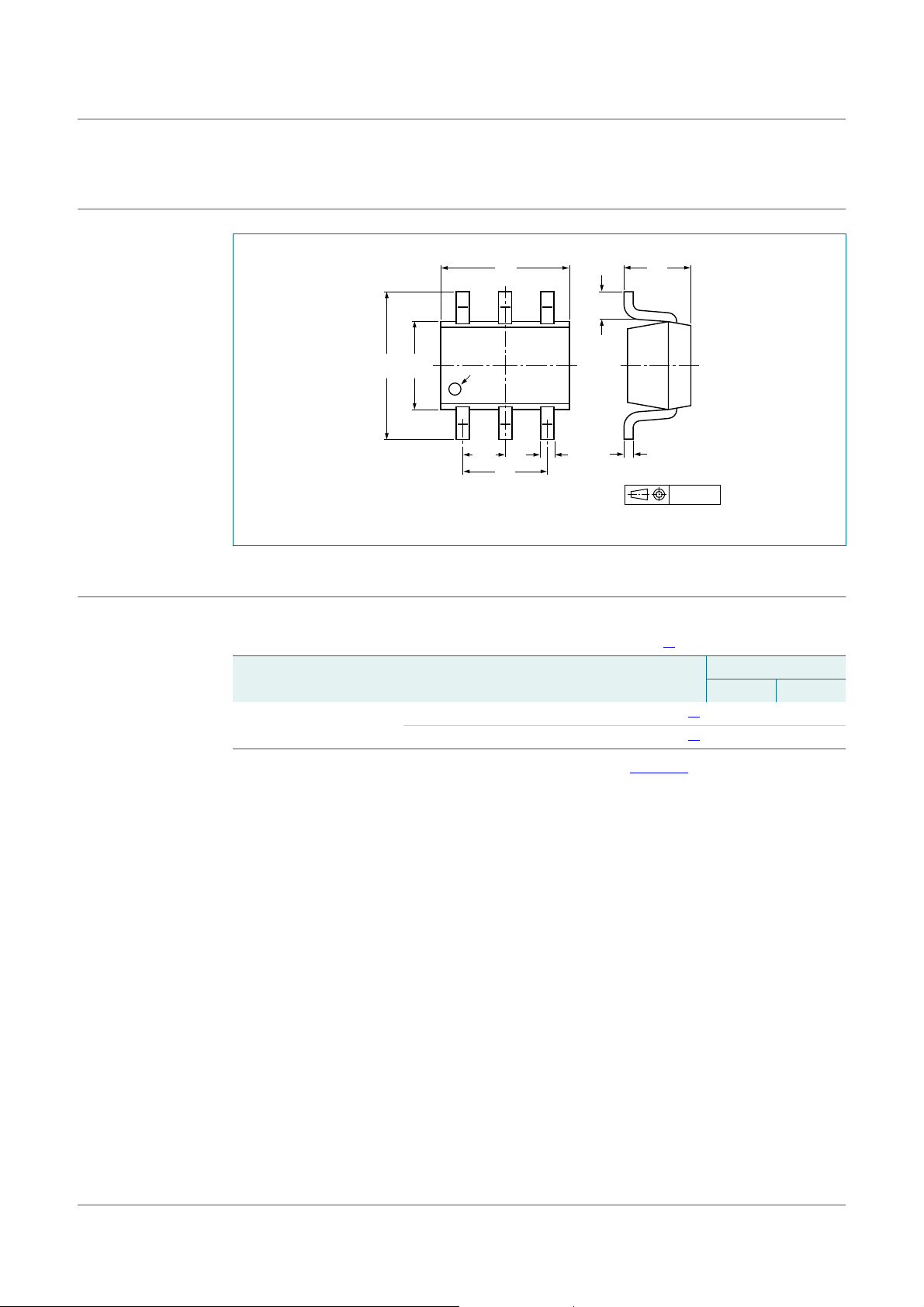

8. Package outline

BC856S
65 V, 100 mA PNP/PNP general-purpose transistor
Fig 10. Package outline SOT363 (SC-88)

9. Packing information

Table 8. Packing methods
The indicated -xxx are the last three digits of the 12NC ordering code.
Type number Package Description Packing quantity
BC856S SOT363 4 mm pitch, 8 mm tape and reel; T1
2.2
1.8
2.2
1.35
2.0
1.15
pin 1 index
132
0.65
1.3
4 mm pitch, 8 mm tape and reel; T2
1.1
0.8
0.45
465
0.15
0.3
0.2
0.25
0.10
06-03-16Dimensions in mm
[1]
3000 10000
[2]
-115 -135
[3]
-125 -165
[1] For further information and the availability of packing methods, seeSection 13. [2] T1: normal taping [3] T2: reverse taping
BC856S_2 © NXP B.V. 2009. All rights reserved.
Product data sheet Rev. 02 — 19 February 2009 8 of 12
Page 9
NXP Semiconductors

10. Soldering

2.35
1.5
0.6
(4×)
0.5
(4×)
BC856S
65 V, 100 mA PNP/PNP general-purpose transistor
2.65
solder lands
0.4 (2×) solder resist
solder paste
0.5
(4×)
0.6
(4×)
0.6
(2×)
1.8

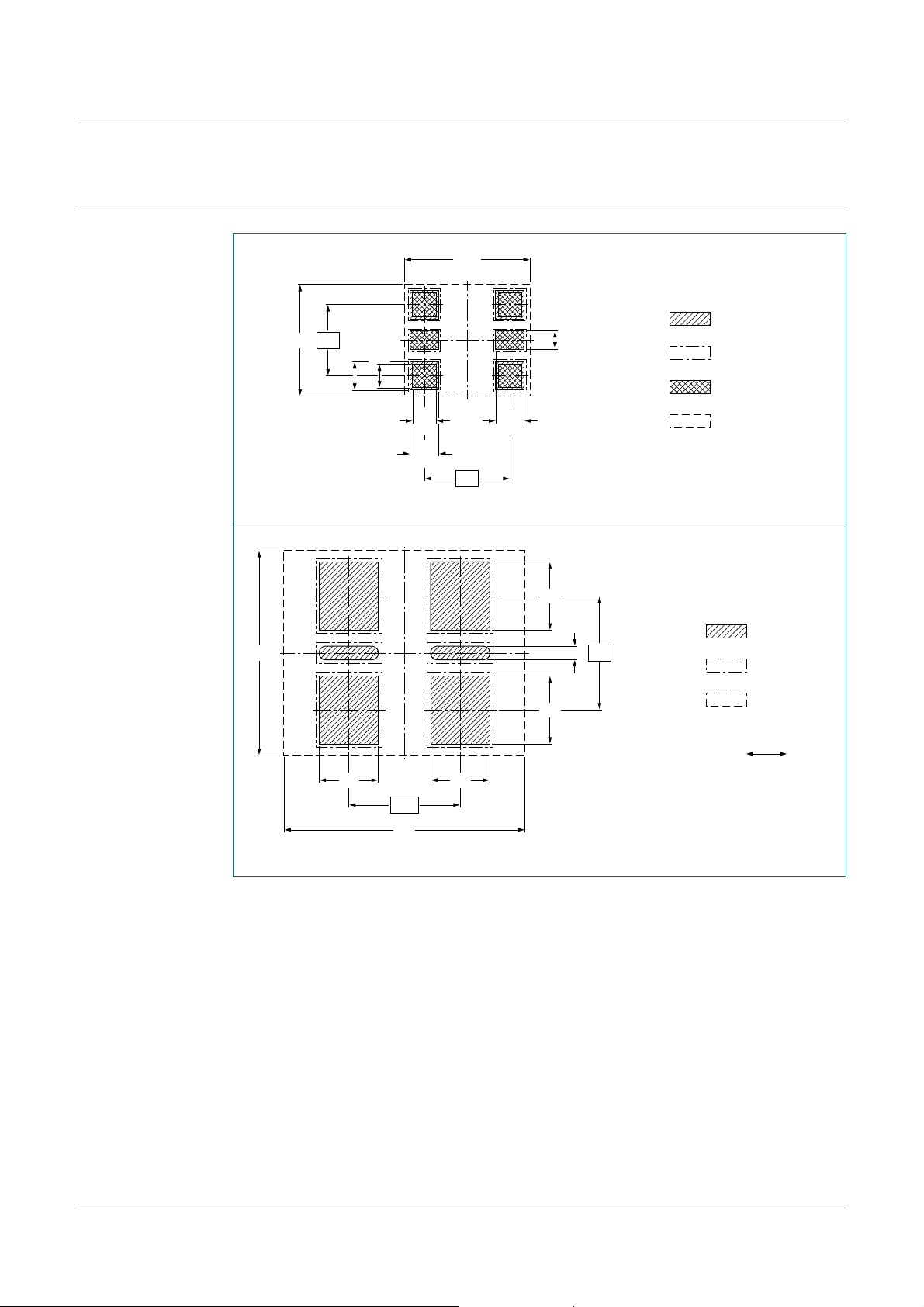

Fig 11. Reflow soldering footprint SOT363 (SC-88)
1.5
4.5
1.5
1.3 1.3
2.45
5.3
Fig 12. Wave soldering footprint SOT363 (SC-88)
0.3
occupied area
Dimensions in mm
sot363_fr
solder lands
2.5 solder resist
occupied area
Dimensions in mm
preferred transport
direction during soldering
sot363_fw
BC856S_2 © NXP B.V. 2009. All rights reserved.
Product data sheet Rev. 02 — 19 February 2009 9 of 12
Page 10
NXP Semiconductors
65 V, 100 mA PNP/PNP general-purpose transistor
BC856S

11. Revision history

Table 9. Revision history
Document ID Release date Data sheet status Change notice Supersedes
BC856S_2 20090219 Product data sheet - BC856S_1 Modifications:
BC856S_1 19990824 Product specification - -
• The format of this data sheet has been redesigned to comply with the new identity guidelines
of NXP Semiconductors.
• Legal texts have been adapted to the new company name where appropriate.
• Section 1.2 “Features”: adapted
• Section 4 “Marking”: updated
• Section 7 “Characteristics”: enhanced
• Section 9 “Packing information”: added
• Section 10 “Soldering”: added
• Section 12 “Legal information”: updated
BC856S_2 © NXP B.V. 2009. All rights reserved.
Product data sheet Rev. 02 — 19 February 2009 10 of 12
Page 11
NXP Semiconductors

12. Legal information

12.1 Data sheet status

BC856S
65 V, 100 mA PNP/PNP general-purpose transistor
Document status
Objective [short] data sheet Development This document contains data from the objective specification for product development. Preliminary [short] data sheet Qualification This document contains data from the preliminary specification. Product [short] data sheet Production This document contains the product specification.
[1] Please consult the most recently issued document before initiating or completing a design. [2] The term ‘short data sheet’ is explained in section “Definitions”. [3] The product statusof device(s) described in this document mayhave changedsince this document was published and may differ incase of multiple devices. The latest product status
information is available on the Internet at URL
[1][2]
Product status
12.2 Definitions
Draft — The document is a draft version only. The content is still under
internal review and subject to formal approval, which may result in modifications or additions. NXP Semiconductors does not give any representations or warranties as to the accuracy or completeness of information included hereinand shall have no liabilityfor the consequences of use of such information.
Short data sheet — A short data sheet is an extract from a full data sheet with the sameproduct type number(s) and title.A short datasheetis intended for quickreference only and should not be relied upon to contain detailed and full information. For detailed and full information see the relevant full data sheet, which is available on request via the local NXP Semiconductors sales office. In case of any inconsistency or conflict with the short data sheet, the full data sheet shall prevail.

12.3 Disclaimers

General — Information in this document is believed to be accurate and
reliable. However,NXP Semiconductors does not give any representations or warranties, expressedor implied, as to the accuracy or completeness of such information and shall have no liability for the consequences of use of such information.
Right to make changes — NXP Semiconductors reserves the right to make changes to information published in this document, including without limitation specifications and product descriptions, at any time and without notice. This document supersedes and replaces all information supplied prior to the publication hereof.
Suitability for use — NXP Semiconductors products are not designed, authorized or warranted to be suitable for use in medical, military, aircraft, space or life support equipment, nor in applications where failure or malfunction of an NXP Semiconductors product can reasonably be expected to result in personal injury, death or severe property or environmental
[3]
http://www.nxp.com.
Definition
damage. NXP Semiconductors accepts no liability for inclusion and/or use of NXP Semiconductors products in such equipment or applications and therefore such inclusion and/or use is at the customer’s own risk.
Applications — Applications that are described herein for any of these products are for illustrative purposes only. NXP Semiconductors makes no representation or warranty that such applications will be suitable for the specified use without further testing or modification.
Limiting values — Stress above one or more limiting values (as defined in the Absolute Maximum Ratings System ofIEC 60134) may cause permanent damage to the device.Limiting values are stress ratings onlyand operation of the device at these or any other conditions above those given in the Characteristics sections of this document is not implied. Exposure to limiting values for extended periods may affect device reliability.
Terms and conditions of sale — NXP Semiconductors products are sold subject to the general terms and conditions of commercial sale, as published at
http://www.nxp.com/profile/terms, including those pertaining to warranty,
intellectual property rights infringement and limitation of liability, unless explicitly otherwise agreed to in writing by NXP Semiconductors. In case of any inconsistency or conflict between information in this document and such terms and conditions, the latter will prevail.
No offer to sell or license — Nothing in this document may be interpreted or construed as an offer to sell products that is open for acceptance or the grant, conveyance or implication of any license under any copyrights, patents or other industrial or intellectual property rights.
Quick reference data — The Quick reference data is an extract of the product data given in the Limiting values and Characteristics sections of this document, and as such is not complete, exhaustive or legally binding.

12.4 Trademarks

Notice: Allreferenced brands, product names,service names and trademarks are the property of their respective owners.

13. Contact information

For more information, please visit: http://www.nxp.com For sales office addresses, please send an email to: [email protected]
BC856S_2 © NXP B.V. 2009. All rights reserved.
Product data sheet Rev. 02 — 19 February 2009 11 of 12
Page 12
NXP Semiconductors

14. Contents

1 Product profile . . . . . . . . . . . . . . . . . . . . . . . . . . 1
1.1 General description. . . . . . . . . . . . . . . . . . . . . . 1
1.2 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
1.3 Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
1.4 Quick reference data. . . . . . . . . . . . . . . . . . . . . 1
2 Pinning information. . . . . . . . . . . . . . . . . . . . . . 1
3 Ordering information. . . . . . . . . . . . . . . . . . . . . 2
4 Marking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
5 Limiting values. . . . . . . . . . . . . . . . . . . . . . . . . . 2
6 Thermal characteristics. . . . . . . . . . . . . . . . . . . 3
7 Characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . 5
8 Package outline . . . . . . . . . . . . . . . . . . . . . . . . . 8
9 Packing information. . . . . . . . . . . . . . . . . . . . . . 8
10 Soldering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
11 Revision history. . . . . . . . . . . . . . . . . . . . . . . . 10
12 Legal information. . . . . . . . . . . . . . . . . . . . . . . 11
12.1 Data sheet status . . . . . . . . . . . . . . . . . . . . . . 11
12.2 Definitions. . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
12.3 Disclaimers. . . . . . . . . . . . . . . . . . . . . . . . . . . 11
12.4 Trademarks. . . . . . . . . . . . . . . . . . . . . . . . . . . 11
13 Contact information. . . . . . . . . . . . . . . . . . . . . 11
14 Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

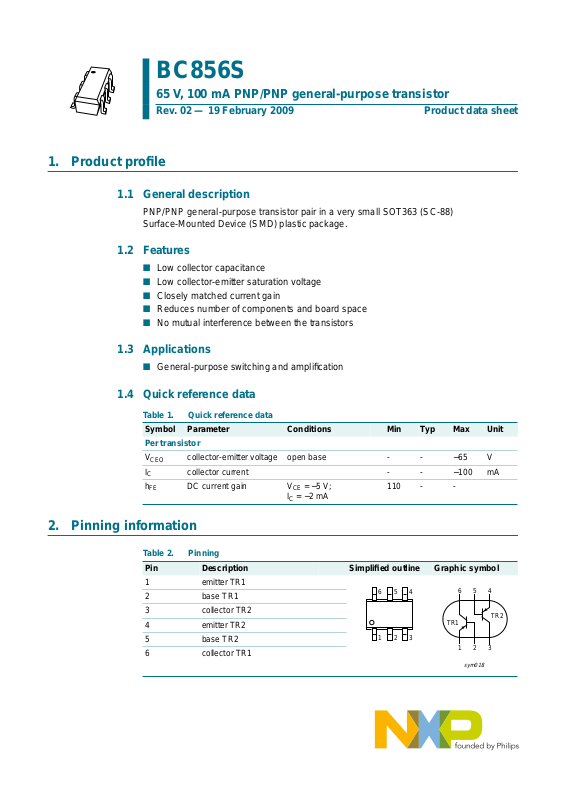

BC856S
65 V, 100 mA PNP/PNP general-purpose transistor
Please be aware that important notices concerning this document and the product(s) described herein, have been included in section ‘Legal information’.
© NXP B.V. 2009. All rights reserved.
For more information, please visit: http://www.nxp.com For sales office addresses, please send an email to: [email protected]
Date of release: 19 February 2009
Document identifier: BC856S_2
Loading...
