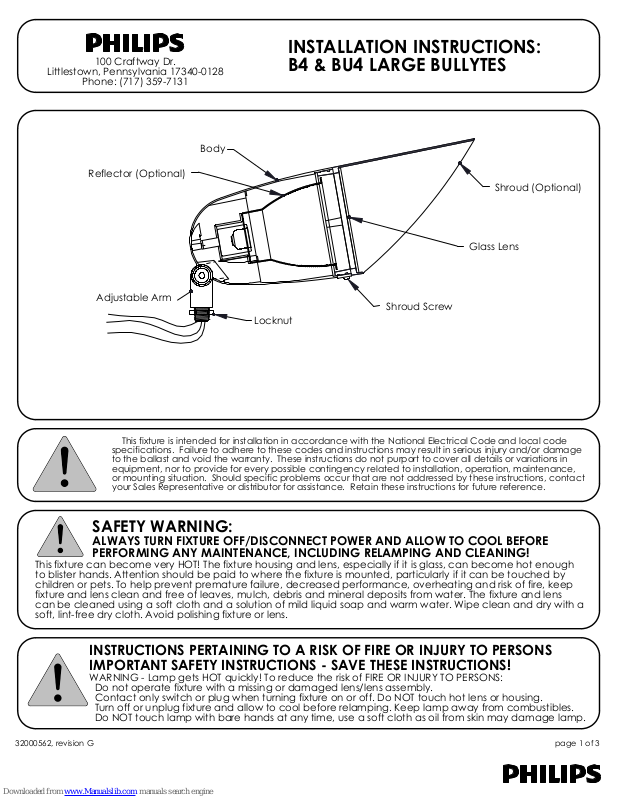

Philips B4, BU4 Instalation Instructions

100 Craftway Dr.

Littlestown, Pennsylvania 17340-0128

Phone: [phone]

Body

Reflector (Optional)

INSTALLATION INSTRUCTIONS:
B4 & BU4 LARGE BULLYTES

Shroud (Optional)

Glass Lens

Adjustable Arm

Locknut

This fixture is intended for installation in accordance with the National Electrical Code and local code
specifications. Failure to adhere to these codes and instructions may result in serious injury and/or damage
to the ballast and void the warranty. These instructions do not purport to cover all details or variations in
equipment, nor to provide for every possible contingency related to installation, operation, maintenance,
or mounting situation. Should specific problems occur that are not addressed by these instructions, contact
your Sales Representative or distributor for assistance. Retain these instructions for future reference.

Shroud Screw

SAFETY WARNING:

ALWAYS TURN FIXTURE OFF/DISCONNECT POWER AND ALLOW TO COOL BEFORE
PERFORMING ANY MAINTENANCE, INCLUDING RELAMPING AND CLEANING!

This fixture can become very HOT! The fixture housing and lens, especially if it is glass, can become hot enough
to blister hands. Attention should be paid to where the fixture is mounted, particularly if it can be touched by
children or pets. To help prevent premature failure, decreased performance, overheating and risk of fire, keep
fixture and lens clean and free of leaves, mulch, debris and mineral deposits from water. The fixture and lens
can be cleaned using a soft cloth and a solution of mild liquid soap and warm water. Wipe clean and dry with a
soft, lint-free dry cloth. Avoid polishing fixture or lens.

INSTRUCTIONS PERTAINING TO A RISK OF FIRE OR INJURY TO PERSONS
IMPORTANT SAFETY INSTRUCTIONS - SAVE THESE INSTRUCTIONS!

WARNING - Lamp gets HOT quickly! To reduce the risk of FIRE OR INJURY TO PERSONS:
Do not operate fixture with a missing or damaged lens/lens assembly.
Contact only switch or plug when turning fixture on or off. Do NOT touch hot lens or housing.
Turn off or unplug fixture and allow to cool before relamping. Keep lamp away from combustibles.
Do NOT touch lamp with bare hands at any time, use a soft cloth as oil from skin may damage lamp.

32000562, revision G

page 1 of 3

Possible lamps to be used are...

Aluminum/Brass Fixtures:

Wattage
250W MAX
300W MAX

150W MAX
150W MAX

Composite Fixtures:

Wattage
175W MAX
150W MAX

100W MAX

100W MAX

* AN OPEN RATED LAMP MUST BE USED WHEN NOT USING SHROUD.

INSTALLATION INSTRUCTIONS

1. Make sure power is OFF before installing or servicing this fiixture.

2. The fixture must be mounted to a U.L. listed junction box or mounting stake. Stake #S3 & S35
may be used, or boxes #M0029, BI1, BI2, BI3, BI4, CB1, TM2H, TMC2H, or any IBH/WBH ballast boxes.

3. Thread wires through hole in stake cap, or junction box lid. Screw arm of fixture onto lid.
Lock into desired position by tightening arm locknut.

4. Connect white supply wire to white fixture wire, black supply wire to black fixture wire, and supply
ground wire to fixture ground wire. Use wire connectors (not supplied) to secure connections.

5. Attach cap/lid to stake/box, making sure not to pinch wires.

6. If fixture includes a shroud, loosen the shroud screw and remove the shroud.

7. Install specified lamp according to lamp label on fixture and/or the chart above.

8.

If using a Metal Halide lamp, fill in the lamp wattage and ANSI Code on the lamp label. The lamp and

ballast ANSI codes must match (see below chart of Hadco ballasts and ANSI Codes).

9. If shroud was included, or purchased separately, put shroud on fixture and tighten shroud screw.

Lamping
PAR38 INCANDESCENT
R40 INCANDESCENT

PAR38 MH
E17 MH

Lamping
PAR38 INCANDESCENT
R40 INCANDESCENT

PAR38 MH
E17 MH

Reflector
NO
NO

NO
YES

Reflector
NO
NO

NO
YES

Shroud
OPTIONAL
REQUIRED

REQUIRED

INCLUDED

Shroud

OPTIONAL
REQUIRED

REQUIRED
INCLUDED

HADCO BALLAST TABLE (INFO TO BE USED TO COMPLETE HID LAMP LABEL)

Model Number

ABH/IBH/WBH

ABH/IBH/WBH

ABH/IBH/WBH

ABH/IBH/WBH

ABH/IBH

32000562, revision G

Wattage

35

50

70

100

150

ANSI Code

M130

M110

M98/M143

M90/M140

M102/M142

page 2 of 3
