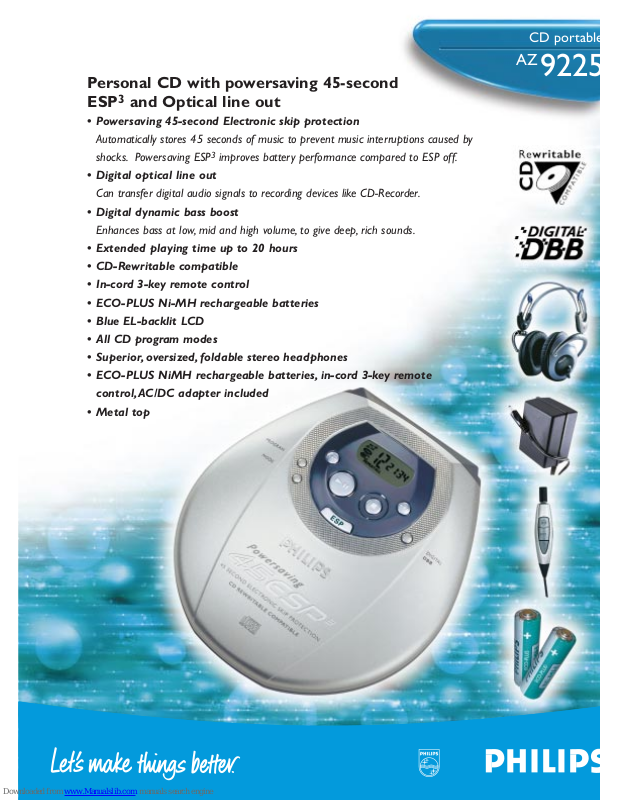

Philips AZ9225, AZ9225/17, AZ9225/00, AZ9225/05 Specifications
CD portable
9225
Personal CD with powersaving 45-second
ESP3and Optical line out
• Powersaving 45-second Electronic skip protection
Automatically stores 45 seconds of music to prevent music interruptions caused by
shocks. Powersaving ESP3improves battery performance compared to ESP off.
• Digital optical line out
Can transfer digital audio signals to recording devices like CD-Recorder.
• Digital dynamic bass boost
Enhances bass at low, mid and high volume, to give deep, rich sounds.
• Extended playing time up to 20 hours
• CD-Rewritable compatible
• In-cord 3-key remote control
• ECO-PLUS Ni-MH rechargeable batteries
• Blue EL-backlit LCD
• All CD program modes
• Superior, oversized, foldable stereo headphones
• ECO-PLUS NiMH rechargeable batteries, in-cord 3-key remote
control,AC/DC adapter included
• Metal top
AZ
CD portable
Printed in Hong Kong 1999-09-01
Specifications subject to modification without notice
© 1999 Koninklijke Philips Electronics N.V.
All Rights Reserved
http://www.philipsusa.com
Amplifier/ system
• 1-Bit D/A convertor for pure sound reproduction
• Digital dynamic bass boost
• Rotary volume control
• S/N ratio (A weighted) : >100 dB
• Frequency response : 20 Hz - 20 kHz
• Acoustic feedback
CD player
• 99-Track programmable, shuffle, repeat 1/ all and introscan
• Search forward/ backward with sound
• Resume and hold
ESP - Electronic skip protection
• Electronic skip protection with 45 second memory
LCD display
• Indications for track, time, DBB, CD functions, ESP and battery status
• Blue EL backlit
Connections
• Headphone/ line out : stereo, .14”
• DC in : 16”, 4.5V, center ‘+’
• Optical out : analog/ digital optical, 14”
Power supply
• Batteries : 2 x 1.5V, type AA cell
• Battery playing time : 20 hours (Alkaline)/ 7.5 hours (Ni-MH)
• Built-in battery recharge function for NiMH batteries
• Automatic switch off
General
• Material : High temperature resistant plastic
• Weight : .5 lbs (excluding batteries)
• Product dimensions : 5.04” W x 1.1” H x 5.44” D
• Quantity/ mastercarton : 3
Accessories
• Stereo headphone
• AC/DC adapter
• In-cord 3-key remote control
• ECO-PLUS Ni-MH rechargeable batteries
Optional accessories (contact your dealer or
service center)
• AY3501 Car cassette adapter
• AY3545 4.5V Car cigarette lighter DC/DC adapter
Power supply adapter
• 110V/60Hz to 4.5V
UPC: 0 37849 89114 8
Master pack UPC: 1 37849 89114 5
Product highlights
• Compact disc audio player
Compact Disc technology that provides uncompressed superb digital sound
quality.
• Ni-MH rechargeable battery
Durable and environmental friendly rechargeable battery type which is quick
and easy to charge.
• Heat resistant body
Unique composite material enables the CD player to withstand very high
temperatures for in-car use.
• 1-Bit D/A converter
Advanced digital conversion technology ensures crystal-clear sound.
• Hold
Locks all buttons electronically to prevent interruption of play or change of
program settings.
• Resume
Ensures the CD starts precisely from the point it was stopped.
• Automatic power off
Automatically switches off the CD player at the end of a compact disc.
• CD next/ previous
Plays the next or previous track at the touch of a button
• CD music search
Searches the CD at high speed while still producing low-volume sound so you
know exactly when to stop
• Repeat one/ all
Repeat the current track or the total CD
• Shuffle
Plays disc selection randomly, giving you each time a new sequence of tracks
• 99-track programmable
Stores up to 99 of your favorite tracks for playing back in your order of
preference
• Acoustic feedback
Confirms any key-push with friendly beep to acknowledges that a command has
been given.
• In-cord 3-key remote control
• Car cassette adaptor
Enable play in cassette deck of car.
• Power cigarette lighter adaptor
To save on batteries.
• Superior, oversized, foldable stereo headphones
• Powersaving 45-second Electronic Skip Protection
Automatically stores 45 seconds of music to prevent music interruptions caused
by shocks. Powersaving ESP3improves battery performance compared to
ESP off.
• Digital dynamic bass boost
Enhances bass at low, mid and high volume, to give deep, rich sounds.
• CD-Rewritable compatible
Ensures that both CD-Recordable and CD-Rewritable disks, made by any
CD-Recorder, can be played.
9225
