Philips AZ391, AZ392 User Manual

www.philips.com/support

User manual

Always there to help you

Register your product and get support at

AZ391

AZ392

Question?

Contact

Philips

1

Contents

1 Important 2

2 Your CD Soundmachine 3

Introduction 3
What's in the box 3
Overview of the main unit 4

3 Get started 6

Connect power 6
Turn on 7
Turn off 7

4 Play 8

Play disc 8
Play from USB device 8
Play from an external device 8
Listen to FM or AM (MW) radio 9
Adjust volume 9

5 Play options 10

Repeat or shufe play 10
Program tracks 10

6 Product information 11

Specications 11

Maintenance 11
USB playability information 12

7 Troubleshooting 13

8 Notice 14

EN

2 EN

1 Important

• Read these instructions.

• Follow all instructions.

• Do not block any ventilation openings.
Install in accordance with the
manufacturer's instructions.

• Do not install near any heat sources such
as radiators, heat registers, stoves, or

other apparatus (including ampliers) that

produce heat.

• Protect the power cord from being
walked on or pinched, particularly at plugs,
convenience receptacles, and the point
where they exit from the unit.

• Only use attachments/accessories specied
by the manufacturer.

• Unplug this unit during lightning storms or
when unused for long periods of time.

• Refer all servicing to qualied ser vice
personnel. Servicing is required when the
unit has been damaged in any way, such
as power-supply cord or plug is damaged,
liquid has been spilled or objects have
fallen into the apparatus, the unit has been
exposed to rain or moisture, does not
operate normally, or has been dropped.

• Battery usage CAUTION – To prevent
battery leakage which may result in bodily
injury, property damage, or damage to the
unit:

• Install all batteries correctly, + and - as

marked on the unit.

• Do not mix batteries (old and new or

carbon and alkaline, etc.).

• Remove batteries when the unit is not

used for a long time.

• Batteries (battery pack or batteries
installed) shall not be exposed to excessive

heat such as sunshine, re or the like.

• The unit shall not be exposed to dripping
or splashing.

• Do not place any sources of danger on

the unit (e.g. liquid lled objects, lighted

candles).

• Where the MAINS plug or an appliance
coupler is used as the disconnect device,
the disconnect device shall remain readily
operable.

This 'bolt of lightning' indicates uninsulated
material within your unit may cause an electrical
shock. For the safety of everyone in your
household, please do not remove product
covering.
The 'exclamation point' calls attention to
features for which you should read the enclosed
literature closely to prevent operating and
maintenance problems.

WARNING: To reduce the risk of re or electric

shock, this apparatus should not be exposed to

rain or moisture and objects lled with liquids,

such as vases, should not be placed on this
apparatus.
CAUTION: To prevent electric shock, match
wide blade of plug to wide slot, fully insert.

Warning

•

Never remove the casing of this apparatus.

• Never place this apparatus on other electrical

equipment.

• Ensure that you always have easy access to the power

cord, plug or adaptor to disconnect the apparatus from
the power.

Caution

•

Use of controls or adjustments or performance of
procedures other than herein may result in hazardous
radiation exposure or other unsafe operation.

3EN

2 Your CD

Soundmachine

Introduction

With this unit, you can:

• enjoy audio from discs, USB devices, and
other external devices;

• listen to FM or AM (MW) radio

What's in the box

Check and identify the contents of the package:

• Main unit

• AC power cord

• Short User Manual

4 EN

Overview of the main unit

a Source selector

• Select a source: CD, USB, or RADIO.

• Turn the CD sound machine off.

b - VOLUME +

• Adjust volume.

c MODE

• Select repeat or shufe mode.

d PROG

• Program tracks.

e

/

• Skip to the previous/next album.

• Select a preset radio station.

f Disc compartment
g

• Connect a USB device.

TUNING

FM

MW

MHz

57 60

KHz

88

FM / MW

NI OIDUA

VOLUME

OFF

CD

USB

RADIO

ab cdefg

hij

k

lm n

o

p

h Display panel
i

/

• Skip to the previous or next track.

• Search within a track.

j

• Stop play.

• Erase a program.

k

• Start or pause play.

l TUNING

• Tune to radio stations.

m FM/MW

• Select FM or AM (MW) tuner.

5EN

n AUDIO IN

• Connect an external audio device.

o AC ~

• Connect AC power.

p Antenna

• Improve radio reception.

6 EN

3 Get started

Always follow the instructions in this chapter in
sequence.
If you contact Philips, you will be asked for the
model and serial number of this apparatus. The
model number and serial number are on the
bottom of the apparatus. Write the numbers
here:
Model No. __________________________
Serial No. ___________________________

Connect power

You can use either AC power or battery as
power supply of this unit.

AC power

Warning

•

Risk of product damage! Make sure that the power
supply voltage corresponds to the voltage printed on
the back or the underside of the unit.

• Risk of electric shock! When you disconnect the AC

power, always pull the plug or adaptor from the socket.
Never pull the cord.

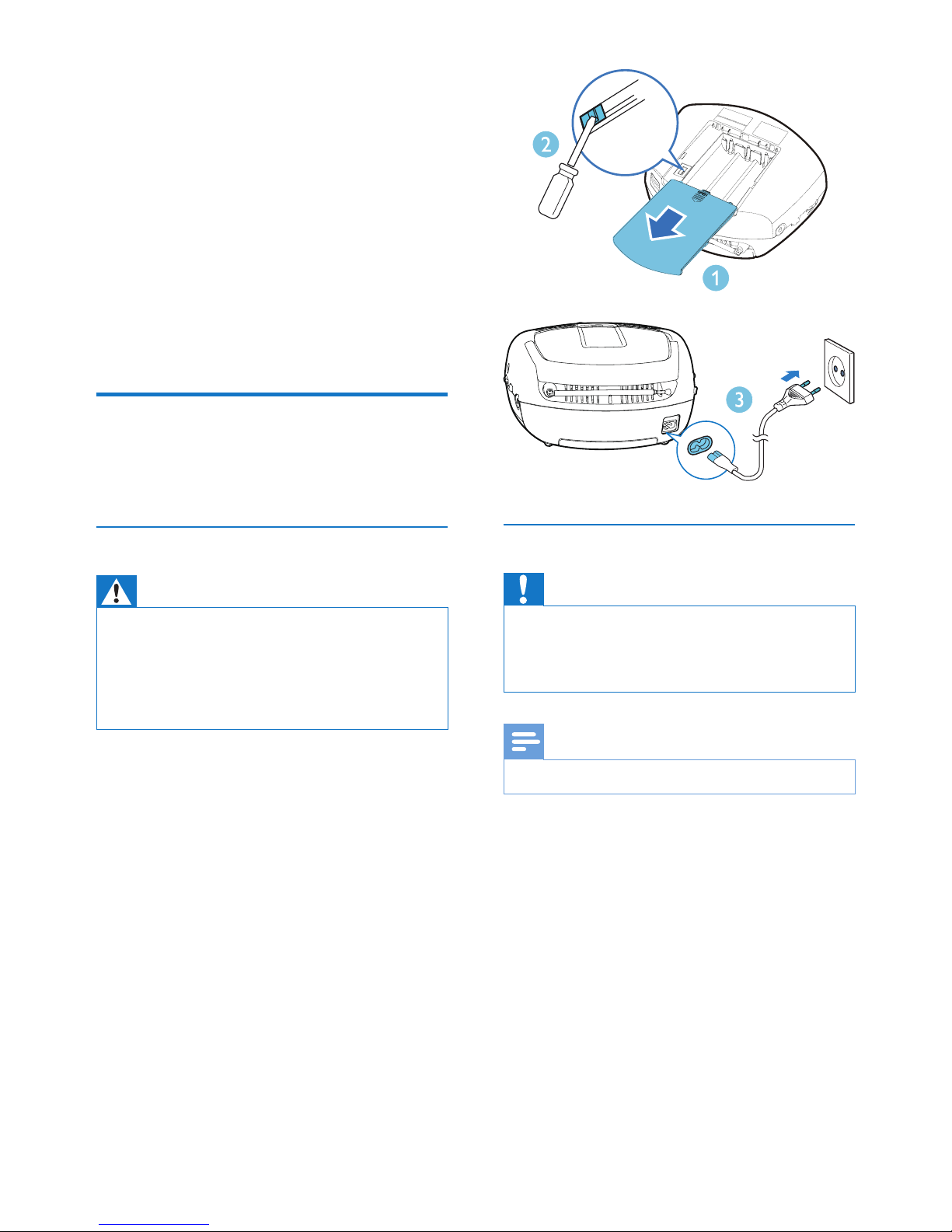

1 Adjust the voltage selector at the bottom

of the unit to correspond to the local
power voltage.

2 Connect the AC power cord to:

• the AC ~ socket on the unit.

• the wall outlet.

Battery power

Caution

•

Risk of explosion! Keep batteries away from heat,

sunshine or re. Never discard batteries in re.

• Batteries contain chemical substances, so they should

be disposed of properly.

Note

•

Batteries are not supplied with the accessories.

-

1

10

1

2

7

V

22

0

-

2

4

0

V

7EN

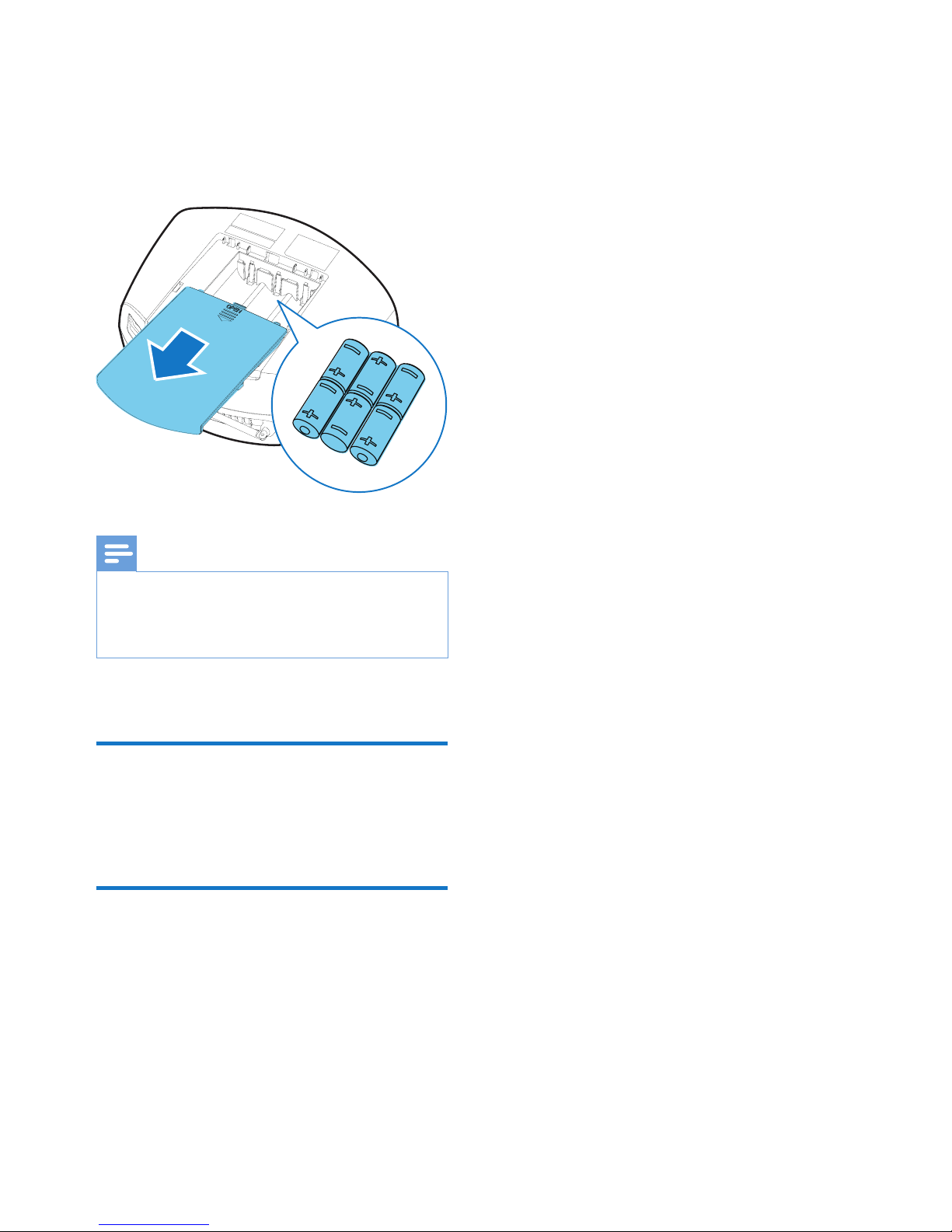

1 Open the battery compartment.
2 Insert 6 batteries (type: R14/ UM2/ C

CELL) with correct polarity (+/-) as
indicated.

3 Close the battery compartment.

Note

•

Position the antenna as far as possible from TV, VCR or
other radiation source.

• For better reception, fully extend and adjust the

position of the antenna.

Turn on

Switch the source selector to CD, USB, or
RADIO.

Turn off

Switch the source selector to OFF.

8 EN

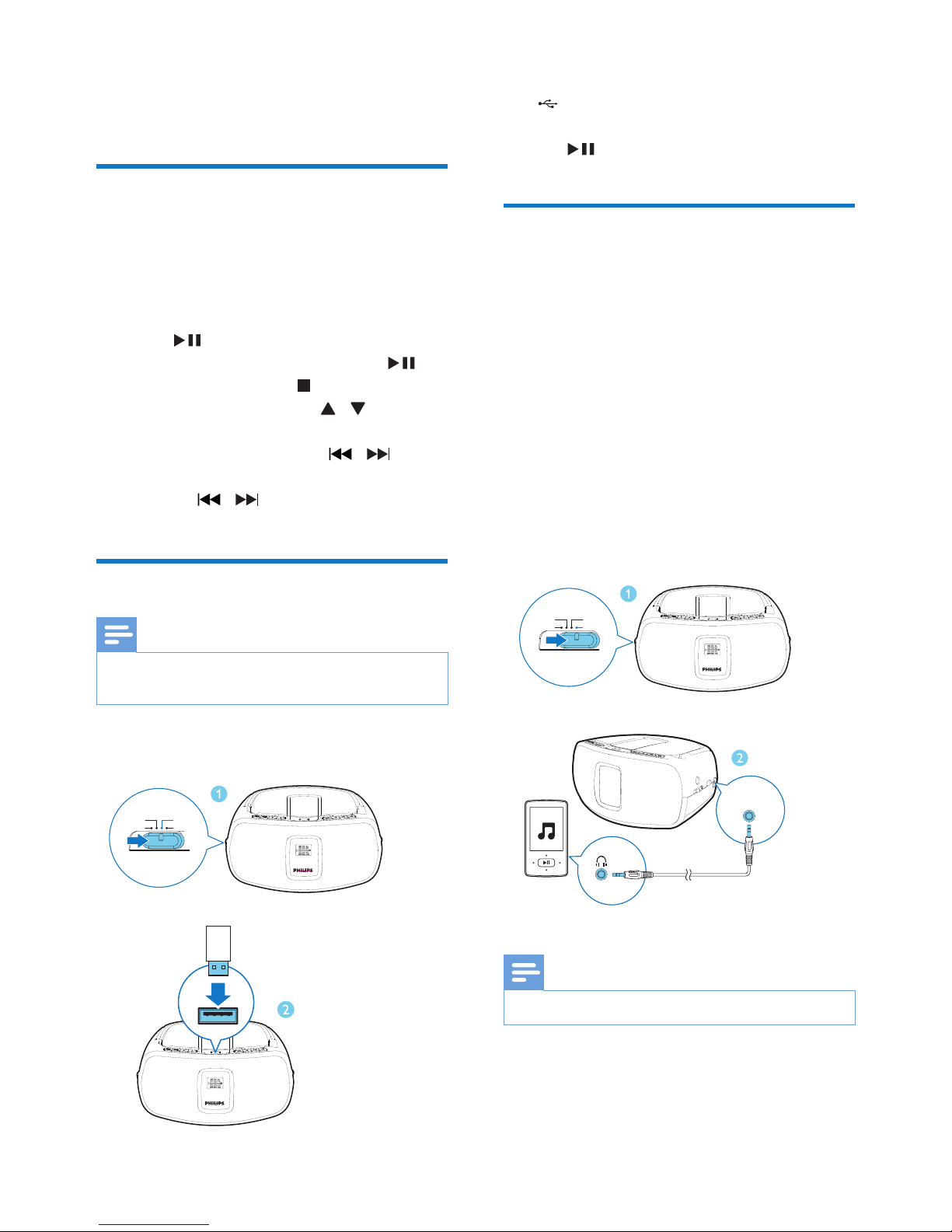

4 Play

Play disc

1

Switch the source selector to CD.

2 Lift to open the disc compartment.
3 Insert a disc with the printed side facing up,

then close the disc compartment.

4 Press to star t play.

• To pause or resume play, press

.

• To stop play, press

.

• For MP3 tracks, press

/ to select

an album.

• To select a track, press

/ .

• To search within a track, press and

hold

/ , then release to resume

normal play.

Play from USB device

Note

•

Make sure that the USB device contains playable audio
content.

1 Switch the source selector to USB.

OFF

CD

USBRADIO

2 Insert the USB device into the
3 socket.

» Play starts automatically. If not, press

.

Play from an external device

With this unit, you can also listen to an external
audio device such as an MP3 player.

1 Switch the source selector to CD, USB, or

RADIO.

2 Connect the audio in cable (not supplied)

to:

• the AUDIO IN socket on the CD
sound machine.

• the headphone socket on an external
device.

3 Play the external device (see the device's

user manual).

Note

•

The AUDIO IN socket is not for headphones.

AUDIO IN

OFF

CD

USBRADIO

9EN

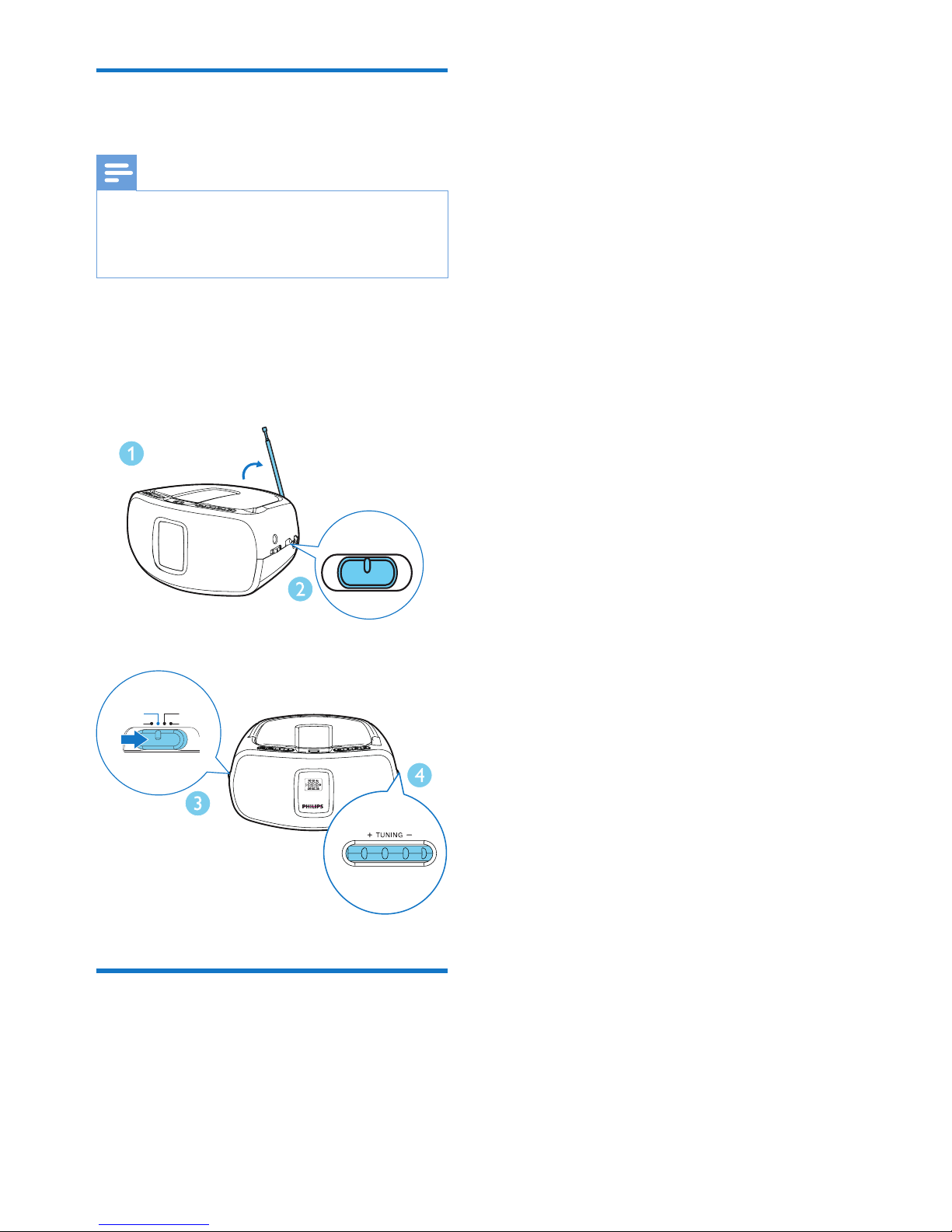

Listen to FM or AM (MW)
radio

Note

•

Position the antenna as far as possible from TV, VCR or
other radiation source.

• For better reception, fully extend and adjust the

position of the antenna.

1 Switch the source selector to RADIO.
2 Adjust the FM/MW slider to select FM or

AM (MW) tuner.

3 Rotate TUNING to tune to a radio station.

Adjust volume

During play, rotate - VOLUME + to adjust
volume.

OFF

CD

USBRADIO

FM/MW

10 EN

5 Play options

Repeat or shufe play

Repeat play

1 During play, press MODE repeatedly to

select:

•

: play the current track repeatedly.

•

: play all tracks repeatedly.

•

: Play all tracks in the album.

2 To resume normal play, press MODE

repeatedly until the repeat icons disappear.

Shufe play

1 During play, press MODE repeatedly until

the icon

is displayed.

» All tracks are played randomly.

2 To resume normal play, press MODE again.

Program tracks

You can program a maximum of 20 tracks.

1 Press to stop playback.
2 Press PROG to activate the programming

mode.

» [P01] is displayed.

3 For MP3 tracks, press / to select an

album.

4 Press / to select a track, and then

press PROG to conrm.

5 Repeat steps 3 to 4 to program more

tracks.

6 Press to play the programmed tracks.

» During play, [P] (program) and the

preset number are displayed.

• To erase the program, when playback
is stopped, press

.

11EN

6 Product

information

Note

•

Product information is subject to change without prior
notice.

Specications

Amplier

Rated Output Power 2 x 1W RMS
Frequency Response 63 Hz - 20 kHz,

±3 dB
Signal to Noise Ratio >62 dBA
Total Harmonic Distortion <1 %
Audio In 650 mV

Disc

Laser type Semiconductor
Disc diameter 8/12 cm
Support discs CD-DA, CD-R, CD-RW,

MP3-CD
Audio DAC 24 Bits, 44.1 kHz
Total Harmonic

Distortion

<1 %

Frequency Response 63Hz -20kHz, ±3 dB
S/N Ratio >62 dBA

Tuner

Tuning Range FM: 87.5 - 108 MHz

AM (MW):

530-1700 kHz

Sensitivity

- FM(26dB S/N Ratio)

- AM(26dB S/N Ratio)

<22dBf

<3250uV/m

Total Harmonic
Distortion

<3%

Signal to Noise Ratio FM: >55dB

AM(MW): >40dB

General

Power supply

- AC Power

- Battery

110-127 V ~,
220-240 V ~,
50/60 Hz

6 x 1.5 V R14/UM2/
C Cell

Operation Power
Consumption

10 W

Dimensions

- Main Unit
(W x H x D)

243 x 124 x 199 mm

Weight

- Main Unit

- With Packing

1.3 kg

1.8 kg

Maintenance

Clean the cabinet

• Use a soft cloth slightly moistened with
a mild detergent solution. Do not use a
solution containing alcohol, spirits, ammonia
or abrasives.

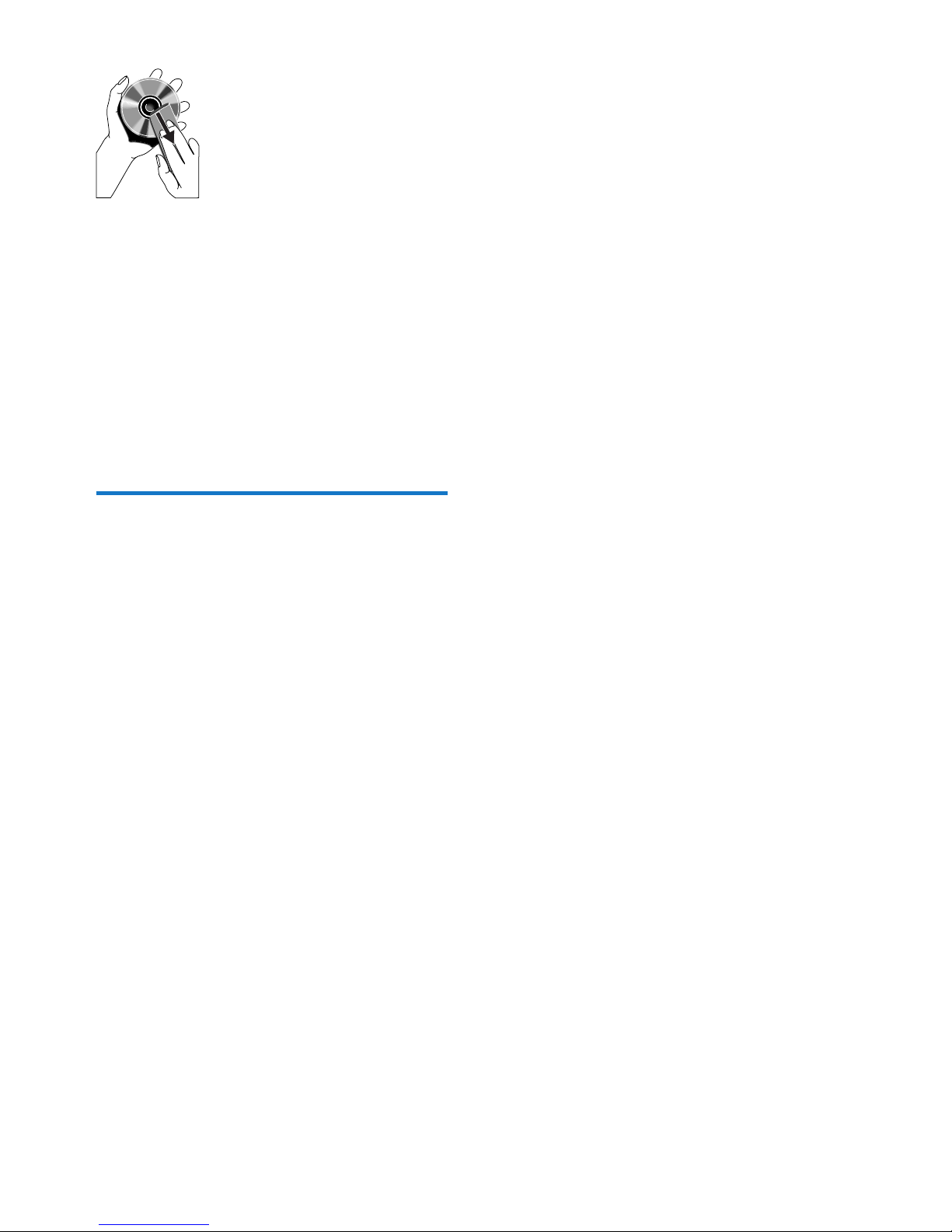

Clean discs

• When a disc becomes dirty, clean it with
a cleaning cloth. Wipe the disc from the
centre out.

12 EN

• Do not use solvents such as benzene,
thinner, commercially available cleaners,
or antistatic spray intended for analogue
records.

Clean the disc lens

• After prolonged use, dirt or dust may
accumulate at the disc lens. To ensure good
play quality, clean the disc lens with Philips
CD lens cleaner or any commercially
available cleaner. Follow the instructions
supplied with cleaner.

USB playability information

Compatible USB devices:

• USB ash memory (USB1.1)

• USB ash players (USB1.1)

• memory cards (requires an additional

card reader to work with this unit)

Supported formats:

• USB or memory le format: FAT12,

FAT16, FAT32 (sector size: 512 bytes)

• MP3 bit rate (data rate): 32-320 Kbps

and variable bit rate

• Directory nesting up to a maximum of

8 levels

• Number of albums/ folders: maximum

99

• Number of tracks/titles: maximum 999

• ID3 tag v2.0 or later

• File name in Unicode UTF8 (maximum

length: 16 bytes)

Unsupported formats:

• Empty albums: an empty album is an

album that does not contain MP3 les,

and is not be shown in the display.

• Unsupported le formats are skipped.

For example, Word documents (.doc)

or MP3 les with extension .dlf are

ignored and not played.

• AAC, WAV, PCM audio les

• DRM protected WMA les (.wav, .m4a,
.m4p, .mp4, .aac)

• WMA les

13EN

7 Troubleshooting

Warning

•

Never remove the casing of this device.

To keep the warranty valid, never try to repair
the system yourself.
If you encounter problems when using this
device, check the following points before
requesting service. If the problem remains
unsolved, go to the Philips Web page (www.
philips.com/support). When you contact Philips,
make sure that the device is nearby and the
model number and serial number are available.

No power

• Ensure that the AC power plug of the unit
is connected properly.

• Ensure that there is power at the AC
outlet.

• Insert the batteries with their polarities
(+/– signs) aligned as indicated.

• Replace the battery.

No sound

• Adjust the volume.

No response from the unit

• Take out the batteries and turn on the unit
again.

• Disconnect and reconnect the AC power
plug, then turn on the unit again.

No disc detected

• Insert a disc.

• Check if the disc is inserted upside down.

• Wait until the moisture condensation at
the lens has cleared.

• Replace or clean the disc.

• Use a nalized CD or correct format disc.

Poor radio reception

• Increase the distance between the unit and
your TV or VCR.

• Fully extend the FM antenna.

Cannot display some les in USB device

• The number of folders or les in the USB
device has exceeded a certain limit. This
phenomenon is not a malfunction.

• The formats of these les are not
supported.

USB device not supported

• The USB device is incompatible with the
unit. Try another one.

14 EN

8 Notice

Any changes or modications made to this

device that are not expressly approved by
Gibson Innovations may void the user’s
authority to operate the equipment.

Disposal of your old product

Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
Do not throw away the product with the
normal household waste at the end of its life,

but hand it in at an ofcial collection point or

recycling. By doing this, you help to preserve the
environment.

Environmental information

All unnecessary packaging has been omitted.
We have tried to make the packaging easy to
separate into three materials: cardboard (box),
paper pulp (buffer) and polyethylene (bags,
protective foam sheet.)
Your system consists of materials which can
be recycled and reused if disassembled by
a specialized company. Please observe the
local regulations regarding the disposal of
packaging materials, exhausted batteries and old
equipment.

This apparatus includes these labels:

Class II equipment symbol

This symbol indicates that the apparatus has a
double insulation system.

Note

•

The type plate is located on the bottom of the
apparatus.

15EN

2015 © Gibson Innovations Limited. All rights reserved.
This product has been manufactured by, and is sold under the responsibility of Gibson
Innovations Ltd., and Gibson Innovations Ltd. is the warrantor in relation to this product.

Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. and
are used under license from Koninklijke Philips N.V.

AZ391_AZ392_78_UM_V2.0
