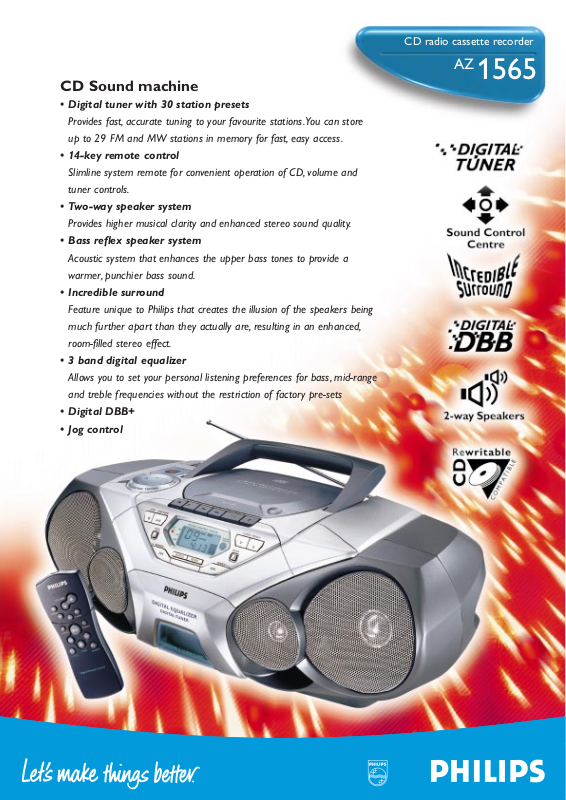

Philips AZ1565-17 User Manual

CD radio cassette recorder

CD Sound machine

• Digital tuner with 30 station presets

Provides fast, accurate tuning to your favourite stations.You can store

up to 29 FM and MW stations in memory for fast, easy access.

• 14-key remote control

Slimline system remote for convenient operation of CD, volume and

tuner controls.

• Two-way speaker system

Provides higher musical clarity and enhanced stereo sound quality.

• Bass reflex speaker system

Acoustic system that enhances the upper bass tones to provide a

warmer, punchier bass sound.

• Incredible surround

Feature unique to Philips that creates the illusion of the speakers being

much further apart than they actually are, resulting in an enhanced,

room-filled stereo effect.

• 3 band digital equalizer

Allows you to set your personal listening preferences for bass, mid-range

and treble frequencies without the restriction of factory pre-sets

• Digital DBB+

• Jog control

1565

CD radio cassette recorder

Standard product information

http://www.philips.com

1999-12-15 Printed in Hong Kong Subject to modification without notice

Product highlights

• Compact disc digital audio player

Compact Disc technology that combines superb digital sound quality with the convenience of random track access and CD functions like CD programme, Shuffle Play and Repeat.

• 20-track programmable

Stores up to 20 of your favourite CD tracks for playing back in your order of preference.

• Shuffle play

Plays disc selection randomly, giving you a new sequence of tracks each time.

• Repeat one/ all

Repeats the current track, the total CD, or your pre-selected programme.

• CD rewritable compatible

Capable of playing all music CD’s, including CD-Recordable and CDRewritable discs.

• Stereo cassette deck

Play back recorded tapes on this full-functional stereo cassette deck, and record from the built-in CD player or tuner.

• Woofers

Speakers optimised for low frequencies

• Tweeters

Speakers optimised for high frequencies

• Sound control center

• Stereo headphone socket

Enables stereo headphones to be used for private listening pleasure. Automatically switches off speakers when used.

Compact disc player

• Top loader

• 20 Track CD programme

• Shuffle and repeat function

• CD next/ previous track search

• CD music search

• CD synchro start recording

Cassette deck

• Single stereo cassette deck

• Normal tape type

• Full auto stop

• Automatic recording level control

Tuner

• Digital tuning

• 30 Station presets

• Wavebands /00, /05 : FM stereo/MW/LW /17 : FM stereo/AM /01, /11, /13, /10 : FM stereo/MW /14 : FM1/FM2/MW/LW

• Frequency ranges : FM 87.5 - 108 Mhz

: FM 65.8 - 74/87.5 - 108 Mhz (/14) : AM 530 - 1710 kHz (/17) : MW 525 - 1607 kHz : LW 148.5 - 284 kHz

• Telescopic aerial for FM reception

• Ferroceptor for AM reception

Display

• 6-Digit LCD display

Sound system

• Output power : 2 x 1.6 W RMS

• Digital DBB+

• Incredible surround

• Sound control center

• 3 band digital equalizer

• Jog control for volume and equalizer

• Two way speakers

• 2 x 4” Speakers

• Dome tweeters

• Bass reflex speaker system

• Metal speaker grilles

Power supply

• AC/DC Operation

• Batteries : 6 x 1.5V, R20 cells

Connections

• Stereo headphones : 3.5 mm

Remote control

• 14-Key remote control

General

• Dimensions product : 505 mm W x 163 mm H x 245 mm D

• Packaging dimensions : 559 mm W x 313 mm H x 199 mm D

• Weight of product : 4.8 kg

• Weight including packaging : 5.7 kg

Power supplies

/00, /05, /14, /13 : 230V, 50Hz /17 : 120 V, 60 Hz /01, /11 : 120/230 V, 50 Hz /10 : 240 V, 50 Hz

1565
