Philips AZ1560/17, AZ1560/13 User Manual

Download

Page 1

CD Radio Cassette Recorder

STOP

PLAY•PAUSE

TUNER

PRESET

PROG

SHUFFLE

REPEAT

DIGITAL EQUALIZER

DIGITAL TUNER

INCREDIBLE SURROUND

BAND

SOUND CONTROL CENTER

BAT LOW

PROG

SHUFFLE

•

VOL

AZ 1560

CD RADIO CASSETTE RECORDER

AZ 1560

CD RADIO CASSETTE RECORDER

CD REWRITABLE COMPATIBLE

CD SYNCRO STRAT RECORDING

CD REWRITABLE COMPATIBLE

CD SYNCRO STRAT RECORDING

AZ 1560

Page 2

CD REWRITABLE COMPATIBLE

CD SYNCRO STRAT RECORDING

AZ 1560

CD RADIO CASSETTE RECORDER

STOP

PLAY•PAUSE

TUNER

PRESET

PROG

SHUFFLE

REPEAT

BAND

SOUND CONTROL CENTER

BAT LOW

PROG

SHUFFLE

•

VOL

DIGITAL EQUALIZER

DIGITAL TUNER

INCREDIBLE SURROUND

)

(

MAINS ~

2345

890

@!#$ %

Page 3

CONTROLS

English

TOP AND FRONT PANELS

1 DIGITAL EQUALIZER – selects volume or the

various frequencies for adjustment: volume, bass, mid and high frequencies

2 VOLUME/SOUND CONTROL CENTER –

adjusts the volume level and digital equalizer settings

3 DIGITAL DBB (Dynamic Bass Boost) –

enhances the bass

4 INCREDIBLE SURROUND – creates a super-

enhanced stereo effect

5 POWER slider – selects the sound source for

CD/ TUNER/ TAPE and also switches the set off

6 CASSETTE RECORDER keys:

RECORD 0 – starts recording

PLAY 1 – starts playback SEARCH 5, 6 – fast winds/rewinds the tape OPEN•STOP /9 – opens the cassette

compartment

– stops the tape;

PAUSE ; – interrupts recording or playback

7 OPEN•CLOSE – opens/ closes the CD door 8 STOP 9 – stops CD playback or erase a CD

programme

9 PLAY•PAUSE 2; – starts or interrupts CD

playback

0 BATT LOW – indicates when battery power is

running low

! PROG – CD: programmes tracks and reviews

the programme; Tuner: programmes preset tuner stations

@ SHUFFLE – plays CD tracks in random order # SEARCH ∞, §

Tuner: - (down, up) tunes to radio stations; CD: - searches back and forward within a

track;

- skips to the beginning of a current track/ previous/ subsequent track

$ REPEAT – repeats a track / CD programme /

entire CD

% Display – shows the status of the set ^ BAND – selects waveband & TUNER PRESET 4, 3 – selects a preset tuner

station (down, up)

BACK PANEL

* p – 3.5 mm headphone socket ( Telescopic aerial – improves FM reception ) AC MAINS – inlet for mains cord ¡ Battery door

Environmental information

All unnecessary packaging material has been omitted. We have done our utmost to make the packaging easy to separate into three mono-materials: cardboard (box), expandable polystyrene (buffer), polyethylene (bags, protective foam).

Your set consists of materials which can be recycled if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packing materials, exhausted batteries and old equipment.

Page 4

Whenever convenient, use the power supply if you want to

6 x D-cells - R20 - UM4

conserve battery life. Make sure you remove the plug from the set and wall socket before inserting batteries.

BATTERIES (OPTIONAL)

Open the battery compartment and insert six batteries, type R-20, UM-4 or D-cells, (preferably alkaline) with the correct polarity as indicated by the "+" and "-" symbols inside the compartment.

Replace the compartment door, making sure the batteries are firmly and correctly in place. The set is now ready to operate.

–

If BATT LOW lights up, battery power is running low.

– The BATT LOW indicator eventually goes out if the

batteries are too weak.

– Incorrect use of batteries can cause electrolyte leakage and

will corrode the compartment or cause the batteries to burst. Therefore:

–

Do not mix battery types

Only use batteries of the same type for the set.

– When inserting new batteries, do not try to mix old

batteries with the new ones.

– Remove the batteries if the set is not to be used for a long

time.

–

Batteries contain chemical substances, so they

, e.g. alkaline with carbon zinc.

should be disposed of properly

POWER SUPPLY

English

For users in the U.K.: please follow the instructions on page 2.

USING AC POWER

Check if the mains voltage

located on the bottom of the set

power supply. If it does not, consult your dealer or service centre.

If your set is equipped with a voltage selector, adjust the selector so that it matches with the local mains.

Connect the mains lead to the wall socket and the set is now ready for use.

To disconnect the set from the mains completely, remove the plug from the wall socket.

as shown on the type plate

, corresponds to your local

MAINS

Page 5

BASIC FUNCTIONS DIGITAL TUNER

CD RE

CD SY

AZ 1560

CD RADIO CASSETTE RECORDER

STOP

PLAY•PAUSE

SOUNDCON

BAT

–

•

English

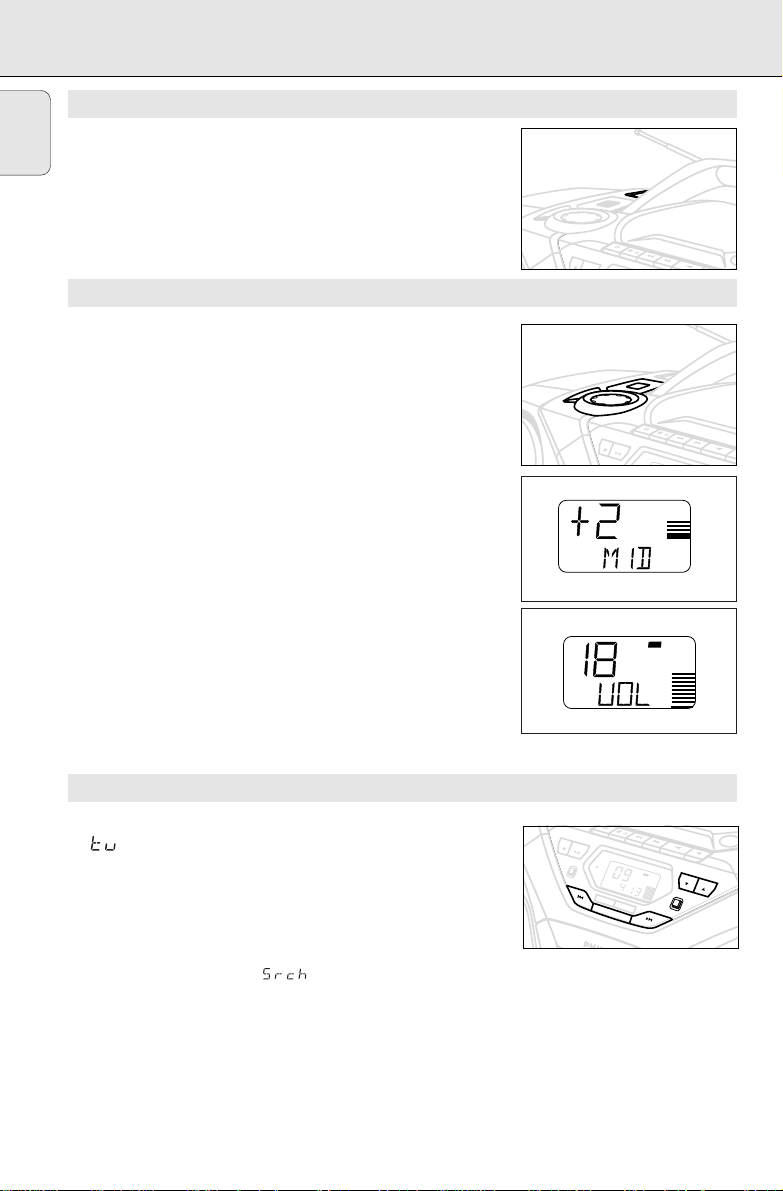

SWITCHING ON AND OFF

• Adjust the POWER slider to the desired sound source: CD, TUNER or TAPE.

• The set is switched off when the POWER slider is in the TAPE/OFF position and the keys on the tape deck are released.

– The volume, sound settings and tuner presets will be retained

in the set's memory.

ADJUSTING VOLUME AND SOUND

Turn the VOLUME/ SOUND CONTROL CENTER control clockwise to increase or anti-clockwise to decrease volume on the set.

™ Display shows the volume level indication, VOL and a number

from 0-32.

To adjust the bass, mid and high frequency levels, press DIGITAL EQUALIZER once or more until the desired option is displayed. While the option is shown, turn the VOLUME/ SOUND CONTROL CENTER control to increase or decrease (- 5 to + 5 steps maximum) the desired tone.

™ VOLUME can also be adjusted in this way with a level range

from 0-32.

Press DIGITAL DBB to switch dynamic bass boost on or off.

™ If on, the DIGITAL DBB light goes on.

Press INCREDIBLE SURROUND to switch the surround sound effect on or off.

™ If on, the INCREDIBLE SURROUND light goes on.

Note: The effect of INCREDIBLE SURROUND may vary with

different types of music.

STOP

PLAY•PAUSE

CD RADIO CASSETTE RECORDER



VOL

AZ 1560

CD REWRITABL

CD SYNCRO STRA

TUNING TO RADIO STATIONS

Select TUNER source.

™ is displayed briefly and then the radio station

frequency is shown.

Press BAND once or more to select your waveband.

Press SEARCH ∞ or § and release when the frequency in the display starts running.

™ The TUNER automatically tunes to a station of sufficient

reception. Display shows during automatic tuning.

™ If an FM station is received in stereo,

Repeat step 3if necessary until you find the desired station.

STEREO is shown.

• To tune to a weak station, press SEARCH ∞ or § briefly and repeatedly until you have found optimal reception.

CD RADIO CASSETTE RECORDER

SHUFFLE

SOUND CONTROL CENTER

REPEAT

AZ 1560

PROG

STEREO

VOL

SHUFFLE

•

STOP

PLAY•PAUSE

BAT

PROG

LOW

TUNER

PRESET

BAND

Page 6

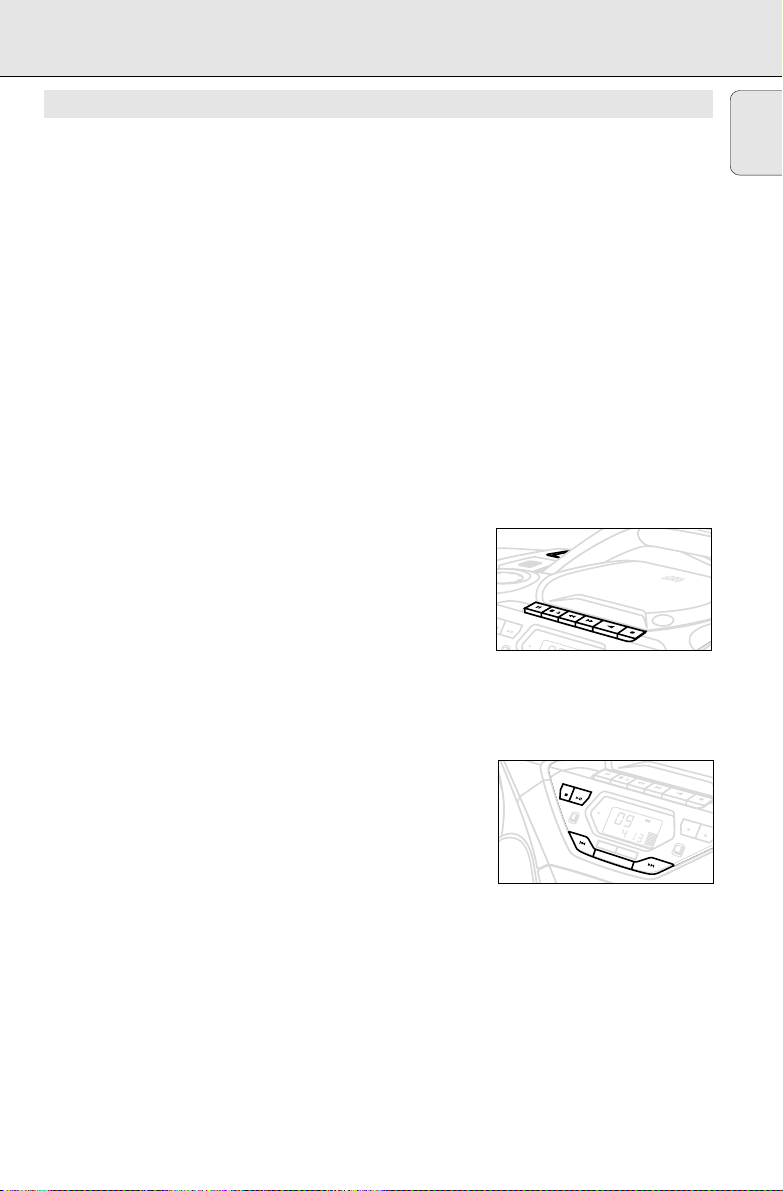

To improve radio reception:

• For FM, pull out the telescopic aerial. Incline and turn the aerial. Reduce its length if the signal is too strong (very close to a transmitter).

• For

MW (AM), LW

the telescopic aerial is not needed. Direct the aerial by turning the whole set.

, the set is provided with a built-in aerial so

DIGITAL TUNER

English

Programming tuner stations

You can store up to a total of 30 tuner stations in the memory.

Tune to your desired station (see Tuning to radio stations).

Press PROG to activate programming.

™ Display:

PROG flashes.

Press PRESET 3 or 4 once or more to allocate a number from 1 to 30 to this station.

Press PROG again to confirm the setting.

™ Display:

PROG disappears, the preset number and the frequency

of the preset station are shown.

Repeat the above four steps to store other stations.

• You can overwrite a preset station by storing another frequency in its place.

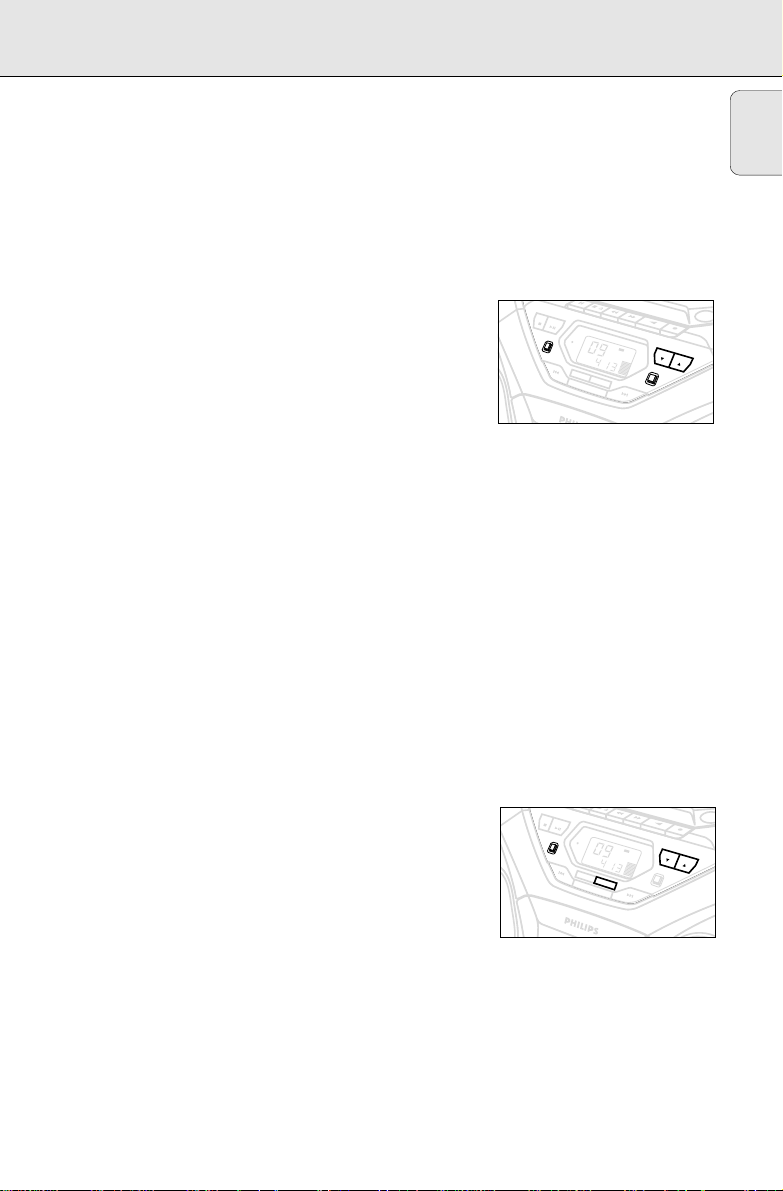

Tuning to preset stations

Press TUNER PRESET 4 or 3 until the desired preset station is displayed.

Changing tuning grid

In North and South America the frequency step between adjacent channels in the AM and FM band are 10 KHz and 100 KHz respectively. In the rest of the world this step is 9 KHz and 50 KHz. Usually the frequency step has been preset in the factory for your area.

Check that the set is in the TAPE/OFF position and switched off.

2. To select 9KHz:

Switch the set on to TUNER and then release the controls.

•

To select 10KHz:

simultaneously, press PROG and TUNING § on the set.

™ When you tune to radio stations, the display shows tuning in

either steps of 9 or 10.

™ All preset stations will be affected and you may need to

reprogramme the preset stations.

(some versions only)

Simultaneously, press PROG and REPEAT

Repeat steps

1-3

but in step 2,

CD RADIO CASSETTE RECORDER

BAT LOW

SHUFFLE

SOUND CONTROL CENTER

•

REPEAT

SOUND CONTROL CENTER

REPEAT

AZ 1560

PROG

VOL

SHUFFLE

SSETTE RECORDER

PROG

VOL

SHUFFLE

•

STOP

PLAY•PAUSE

BAT

PROG

LOW

SHUFFLE

STOP

PLAY•PAUSE

PROG

TUNER

PRESET

BAND

TUNER

PRESET

BAND

Page 7

CD PLAYER

AZ 1560

CD RADIO CASSETTE RECORDER

STOP

PLAY•PAUSE

TUNER

PRESET

PROG

SHUFFLE

REPEAT

BAND

SOUND CONTROL CENTER

BAT

LOW

PROG

SHUFFLE

•

VOL

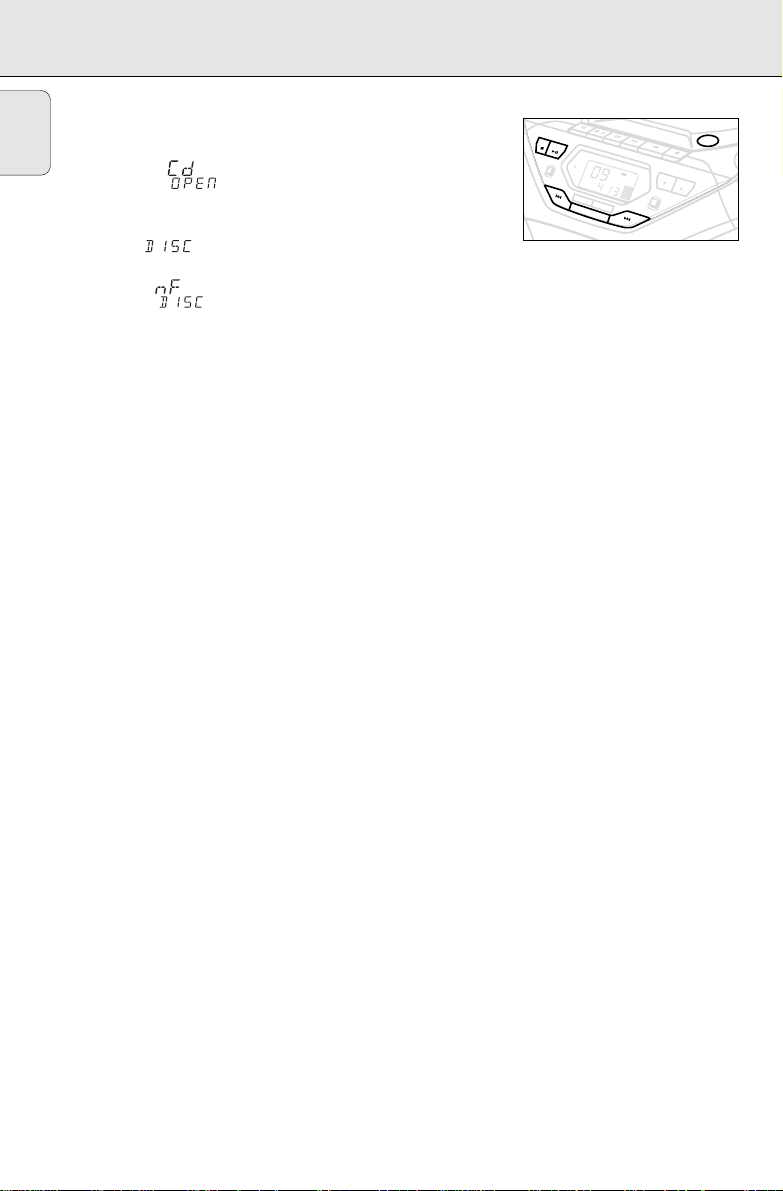

Playing a CD

English

Select CD source.

Press OPEN•CLOSE to open the CD door.

™ Display: when you open the CD door.

Insert a CD or CD-R(W) with the printed side facing up and press OPEN•CLOSE to close the CD door.

™ Display: as the CD player scans the contents of a CD.

The total number of tracks and playing time are then shown.

™ Display: is shown if the CD R(W) is not finalised.

Press PLAY•PAUSE 2; to start playback.

™ Display: Current track number and elapsed playing time of the

track during CD playback.

To interrupt playback press PLAY•PAUSE 2;. Press PLAY•PAUSE 2; again to resume play.

™ The display freezes and the elapsed playing time flashes when

playback is paused.

To stop CD playback, press STOP 9.

Note: CD play will also stop when:

– the CD door is opened; – the CD has reached the end (unless you have selected

REPEAT ALL);

– you select another source: TAPE / TUNER.

Selecting a different track

• Press SEARCH ∞ or § once or repeatedly until the desired

track number appears in the display.

• If you have selected a track number shortly after loading a CD or in the PAUSE position, you will need to press

PLAY•PAUSE 2; to start playback.

Finding a passage within a track

Press and hold down on SEARCH ∞ or §.

– The CD is played at high speed and low volume.

When you recognize the passage you want, release SEARCH ∞ or §.

– Normal playback continues.

Note: During a CD programme or if SHUFFLE/ REPEAT active,

searching is only possible within a track.

Page 8

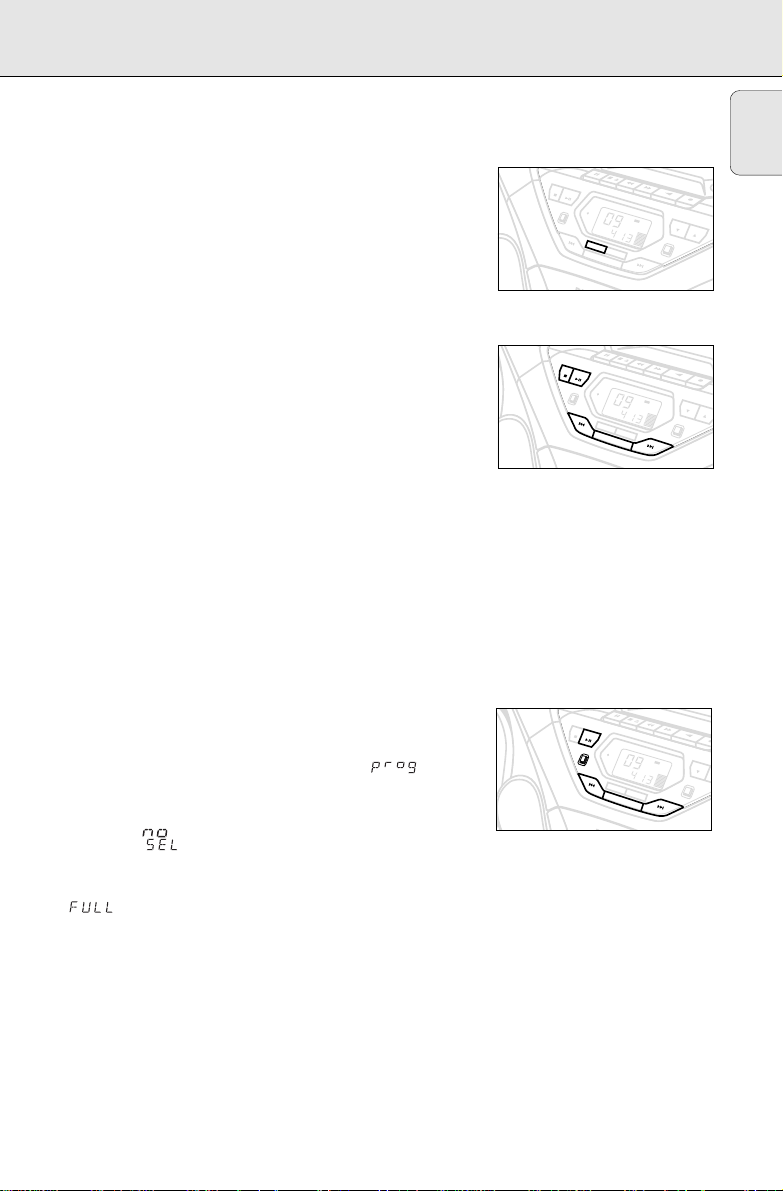

Different play modes: SHUFFLE and REPEAT

You can select and change the various play modes before or during playback. The play modes can also be combined with PROGRAM. SHUFFLE - tracks of the entire CD/ programme are played in

random order

SHUFFLE and REPEAT ALL - to repeat the entire CD/ programme

continuously in random order

REPEAT ALL - to repeat the entire CD/ programme REPEAT and SHUFFLE REPEAT - plays the current (random) track

continuously

To select your play mode, press the SHUFFLE or REPEAT button before or during playback until the display shows the desired function.

Press PLAY•PAUSE 2; to start playback if in the STOP position.

• Playback starts immediately if you have selected a SHUFFLE mode.

To return to normal playback, press the respective SHUFFLE or REPEAT button until the various SHUFFLE / REPEAT modes are

no longer displayed.

– You can also press

STOP 9

to cancel your play mode.

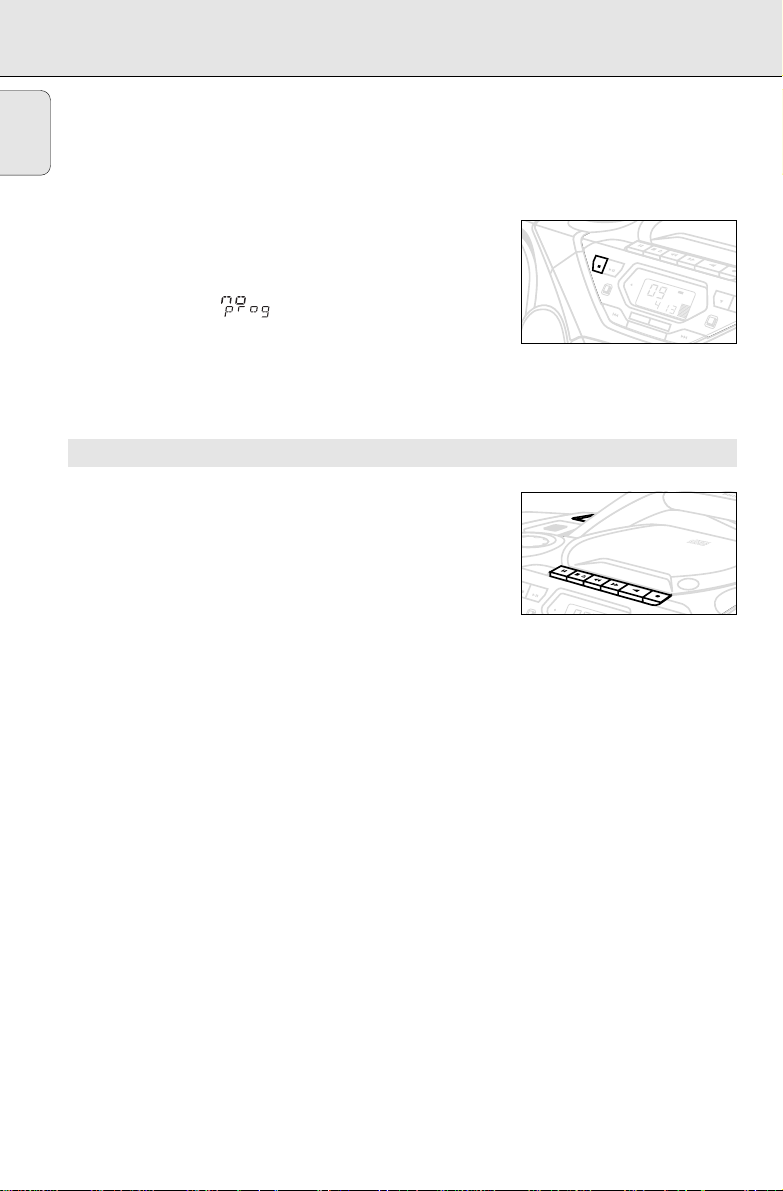

Programming track numbers

Programme in the STOP position to select and store your CD tracks in the desired sequence. If you like, store any track more than once. Up to 20 tracks can be stored in the memory.

Press SEARCH ∞ or § once or more to select your desired track number.

Press PROG.

™ Display:

™ If you attempt to programme without first selecting a track

™ is displayed if you attempt to programme more than

Note: if you have selected the tracks during CD playback, first

PROG and the selected track number. appears

briefly.

number, is shown. Press PROG to confirm the track number to be stored.

Repeat steps

1-2

to select and store all desired tracks.

20 tracks. To start playback of your CD programme, press PLAY•PAUSE 2;.

press

STOP 9

then

PLAY•PAUSE 2;.

CD PLAYER

STOP

PLAY•PAUSE

PROG

STOP

PROG

CD RADIO CASSETTE RECORDER

SOUND CONTROL CENTER

BAT

LOW

PROG

VOL

SHUFFLE

•

SHUFFLE

REPEAT

PLAY•PAUSE

SOUND CONTROL CENTER

BAT LOW

PROG

SHUFFLE

•

SHUFFLE

REPEAT

STOP

PLAY•PAUSE

SOUND CONTROL CENTER

BAT

PROG

LOW

•

SHUFFLE

REPEAT

AZ 1560

BAND

CD RADIO CASSETTE RECORDER

AZ 1560

VOL

CD RADIO CASSETTE RECORDER

PROG

VOL

SHUFFLE

AZ 1560

English

TUNER

PRESET

TUNER

PRESE

BAND

TUNER

BAND

Page 9

CD PLAYER CASSETTE RECORDER

SYNC

AZ 1560

CD RADIO CASSETTE RECORDER

STOP

PLAY•PAUSE

TUNER

PROG

SHUFFLE

REPEAT

BAND

SOUND CONTROL CENTER

BAT LOW

PROG

SHUFFLE

•

VOL

Reviewing the programme

English

In the stop position or during playback, press and hold down PROG for a while until the display shows all your stored track numbers in sequence.

Erasing a programme

You can erase the programme by: – pressing STOP 9 once in the STOP position; – pressing STOP 9 twice during playback;

• The display shows briefly and

The programme is also erased by: – pressing the CD door open; – selecting another source: TAPE/ TUNER.

CASSETTE PLAYBACK

Select TAPE source.

™ The display shows

Press OPEN•STOP /9 to open the cassette door.

Insert a recorded cassette and close the cassette door.

Press PLAY 1 to start playback.

To interrupt playback press PAUSE ;. To resume, press this

TAPE throughout tape operation.

key again.

By pressing SEARCH 5 or 6 on the set fast winding of the tape is possible in both directions.

To stop the tape, press OPEN•STOP /9.

•

The keys are automatically released at the end of the tape, except if

PAUSE ;

has been activated.

Note: The sound source cannot be changed while playing a

cassette.

PROG disappears.

STOP

PLAY•PAUSE

PROG

CD RADIO CASSETTE RECORDER

AZ 1560

SOUND CONTROL CENT

BAT

LOW

CD REWRITABLE COMPATIBLE

CD SYNCRO STRAT RECORDING

Page 10

CD PLAYER CASSETTE RECORDER

GENERAL INFORMATION ON RECORDING

• Recording is permissible insofar as copyright or other rights of third parties are not infringed.

• This deck is not suited for recording on CHROME (IEC II) or

METAL (IEC IV) type cassettes. For recording, use only NORMAL type cassettes (IEC I) on which the tabs have not been broken.

• The best recording level is set automatically. Altering the VOLUME, INCREDIBLE SURROUND, DIGITAL EQUALIZER or DBB controls will not affect the recording in progress.

• At the very beginning and end of the tape, no recording will take place during the 7 seconds, when the leader tape passes the recorder heads.

• To protect a tape from accidental erasure, have the tape in front of you and break out the left tab. Recording on this side is no longer possible. To record over this side again, cover the tabs with a piece of adhesive tape.

Synchro Start CD recording

Select CD source.

Insert a CD and if desired, programme track numbers.

Press OPEN•STOP /9 to open the cassette door.

Insert a suitable tape into the cassette deck and close the cassette door.

Press RECORD 0 to start recording.

– Playing of the CD programme starts automatically from the

beginning of the programme. It is not necessary to start the CD player separately.

To select and record a particular passage within a track

• Press and hold down on SEARCH ∞ or §.

• When you recognize the passage you want, release SEARCH ∞ or §.

• To interrupt CD playback press PLAY•PAUSE 2;.

• Recording will begin from this exact point in the track when you press RECORD 0.

For brief interruptions during recording, press PAUSE ;. To resume recording, press PAUSE ; again.

To stop recording, press OPEN•STOP /9.

STOP

PLAY•PAUSE

SOUND CONTROL CENT

BAT

PROG

LOW

CD RADIO CASSETTE RECORDER

STOP

PLAY•PAUSE

PROG

CD REWRITABLE COMPATIBLE

CD SYNCRO STRAT RECORDING

AZ 1560

SOUND CONTROL CENTER

BAT

LOW

SHUFFLE

REPEAT

•

CD RADIO CASSETTE RECORDER

PROG

VOL

SHUFFLE

AZ 1560

TUNER

BAND

English

PRES

Page 11

RECORDING GENERAL INFORMATION

CD REWRITABLE COMPATIBLE

CD SYNCRO STRAT RECORDING

AZ 1560

CD RADIO CASSETTE RECORDER

STOP

PLAY•PAUSE

PROG

SOUND CONTROL CENTER

BAT

LOW

Recording from the tuner

English

Tune to the desired radio station (see Tuning to radio stations).

Press OPEN•STOP /9 to open the cassette door.

Insert a suitable tape into the cassette deck and close the cassette door.

Press RECORD 0 to start recording.

For brief interruptions, press PAUSE ; To resume recording, press PAUSE ; again.

To stop recording, press OPEN•STOP /9.

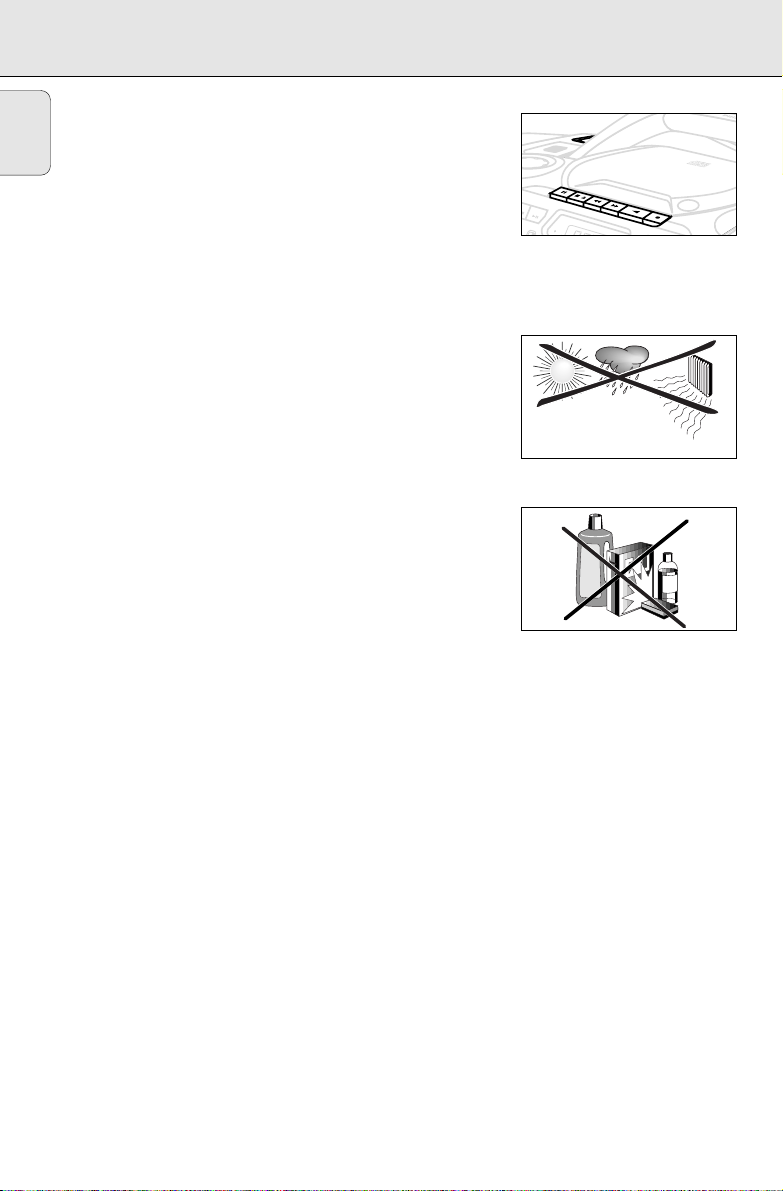

General maintenance

• Do not expose the set, batteries, CDs or cassettes to humidity, rain, sand or excessive heat caused by heating equipment or direct sunlight.

• To clean the set, use a soft, slightly dampened chamois leather. Do not use any cleaning agents containing alcohol, ammonia, benzene or abrasives as these may harm the housing.

Safety information

• Place the set on a hard and flat surface so that the system does not tilt. Make sure there is adequate ventilation to prevent the system from overheating.

• The mechanical parts of the set contain self-lubricating bearings and must not be oiled or lubricated.

Page 12

GENERAL INFORMATION

A AB

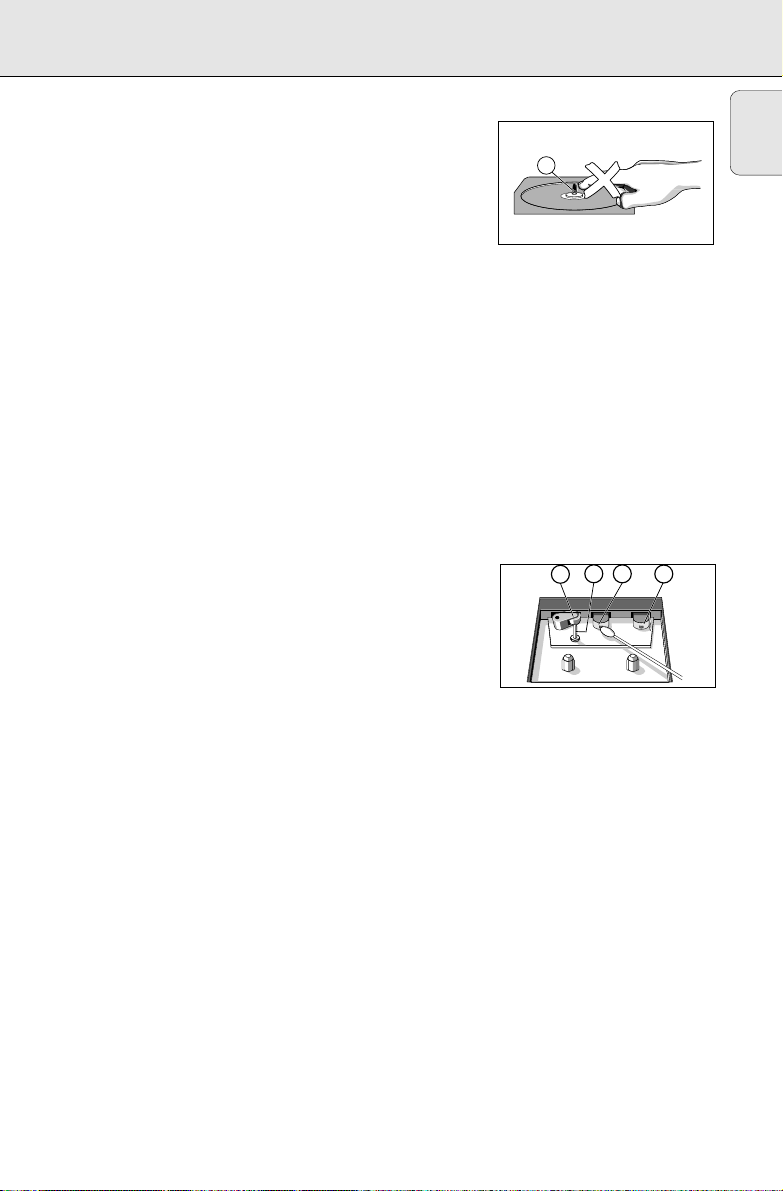

CD player and CD handling

• If the CD player cannot read CDs correctly, use a commonly available cleaning CD to clean the lens before taking the set to repair. Other cleaning methods may destroy the lens.

• The lens of the CD player should never be touched!

• Sudden changes in the surrounding temperature can cause condensation to cloud over on the lens of your CD player. Playing a CD is then not possible. Do not attempt to clean the lens but leave the set in a warm environment until the moisture evaporates.

• Always keep the CD compartment closed to avoid dust on the lens.

• To take a CD out of its box, press the centre spindle while lifting the CD. Always pick up the CD by the edge and return the CD to its box after use to avoid scratching and dust.

• To clean the CD, wipe in a straight line from the centre towards the edge using a soft, lint-free cloth. Do not use cleaning agents as they may damage the disc.

•

Never

write on a CD or attach any stickers to it.

Tape deck maintenance

To ensure quality recording and playback of the tape deck, clean parts A, B and C shown in the diagram below, after approx. 50 hours of operation, or on average once a month. Use a cotton bud slightly moistened with alcohol or a special head cleaning fluid to clean both decks.

Open the cassette holder by pressing OPEN•STOP /9.

Press PLAY 1 and clean the rubber pressure rollers C.

Press PAUSE ; and clean the magnetic heads A and also the capstan B.

After cleaning, press OPEN•STOP /9.

Note: Cleaning of the heads can also be done by playing a

cleaning cassette through once.

English

Page 13

TROUBLESHOOTING

If a fault occurs, first check the points listed below before taking the set for repair.

English

If you are unable to remedy a problem by following these hints, consult your dealer or service centre.

WARNING:

PROBLEM

– POSSIBLE CAUSE

• REMEDY

No sound/power

– VOLUME not adjusted

• Adjust the VOLUME

– Headphones connected

• Disconnect headphones

– Mains lead not securely connected

• Connect AC mains lead properly

Severe radio hum or noise

–

Electrical interference: set too close to TV, VCR or computer

• Increase the distance

Poor radio reception

–

Weak radio signal

• FM: Direct the FM telescopic aerial for optimum reception

–

CD badly scratched or dirty

• Replace/ clean CD, see Maintenance

–

Laser lens steamed up

• Wait until lens has cleared

Do not open the set as there is a risk of electric shock. Under no circumstances should you try to repair the set yourself, as this will invalidate the guarantee.

The CD skips tracks

–

CD damaged or dirty

• Replace or clean CD –

SHUFFLE or PROGRAM is active

• Switch off SHUFFLE / PROGRAM

Poor cassette sound quality

–

Dust and dirt on the heads, etc.

• Clean deck parts, see Maintenance –

Use of incompatible cassette types (METAL or CHROME)

• Only use NORMAL (IEC I) for recording

Recording does not work

–

Cassette tab(s) may be broken

• Apply a piece of adhesive tape over the missing tab space.

indication

–

CD-R(W) is blank or the disc is not finalised

• Use a finalised CD-R(W)

indication

This product complies with the radio interference requirements of the European Union.

The type plate is located on the bottom of the set.
