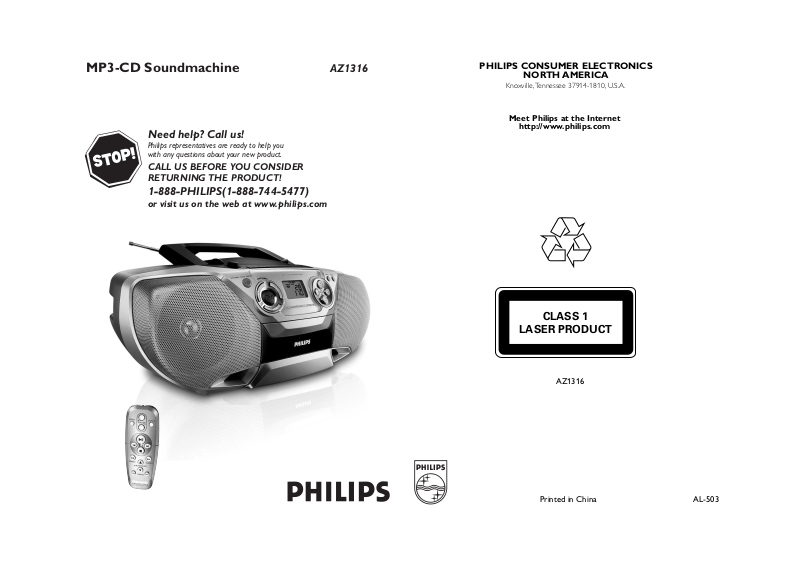

Philips AZ1316-37B User Manual

W

PHILIPS CONSUMER ELECTRONICS

NORTH AMERICA

Knoxville,Tennessee 37914-1810, U.S.A.

Meet Philips at the Internet

http://www.philips.com

MP3-CD Soundmachine

Printed in China AL-503

AZ1316

Need help? Call us!

Philips representatives are ready to help you
with any questions about your new product.

CALL US BEFORE YOU CONSIDER
RETURNING THE PRODUCT!

1-888-PHILIPS(1-888-744-5477)

or visit us on the web at www.philips.com

AZ1316

CLASS 1

LASER PRODUCT

Return your Product Registration Card today

to get the very most from your purchase.

Registering your model with PHILIPS makes you eligible for all of the valuable benefits listed below, so
don't miss out. Complete and return your Product Registration Card at once to ensure:

IMPORTANT SAFETY INSTRUCTIONS

*Proof of
Purchase

Returning the enclosed card

guarantees that your date of

purchase will be on file, so no

additional paperwork will be

required from you to obtain

warranty service.

*Product Safety
Notification

By registering your product, you'll

receive notification - directly from

the manufacturer - in the rare

case of a product recall or safety

defect.

Know these

safetysymbols

CAUTION

RISK OF ELECTRIC SHOCK

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT

REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS

INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

shock. For the safety of everyone in your
household, please do not remove
product covering.

DO NOT OPEN

This “bolt of lightning” indicates
uninsulated material within your
unit may cause an electrical

*Additional
Benefits of
Product
Ownership

Registering your product

guarantees that you'll receive

all of the privileges to which

you're entitled, including special

money-saving offers.

For Customer Use

Enter below the Serial No. which is
located on the rear of the cabinet.
Retain this information for future
reference.

Model No. ______________________

Serial No.

WARNING: To reduce the risk of fire
or electric shock, this apparatus should
not be exposed to rain or moisture, and
objects filled with liquids, such as vases,
should not be placed on this apparatus.

______________________

Clean only with a piece of dry cloth.

materials

The “exclamation point” calls
attention to features for which

you should read the enclosed
literature closely to prevent operating
and maintenance problems.

CAUTION: To prevent electric shock,
match wide blade of plug to wide slot,
fully insert.

Class II equipment symbol

This symbol indicates that the unit has

a double insulation system

A

C

M

A

I

N

S

~

1

2
3
4

5

7

8

9

6

0

!
@

See A

VOLUM

E

SEARCH

ALBUM

/PRESET

TUNING

REPEAT

SHUFFLE

SEARCH

1

9

8

6

7

2

4

3

5

+

-

1

PRESET

MHz

FM

TUNER

2

CD

TRK ALB

MP3

3

CD

REP

PROG

ALL

TRK

MP3

CD

SHUF

TRK

CD

PROG

TRK ALB

MP3

6

CD

PROG

TRK ALB

MP3

7

8

A AB

C

9

X

A

4

5

English CONTROLS/POWER SUPPLY

Using AC Mains
1 Check if the power supply, as shown on the type

plate located on the bottom of the set, corre-

sponds to your local power supply. If it does not,
consult your dealer or service centre.

2 Connect the power cord to the wall socket.
3 To disconnect the power supply, unplug the set from

the wall socket.

The type plate is located on the bottom of the set.
Helpful hints:

– To avoid unnecessary energy consumption, always

adjust the source selector to TAPE/OFF after
using the set. Also check that the tape deck keys
are released.

BASIC FUNCTIONS

Switching on and off and selecting function
1 To switch on, adjust the source selector to

CD/MP3, AM, FM or TAPE/OFF as desired.

2 To switch off, adjust the source selector to

TAPE/OFF and check the cassette keys are

released.

Helpful hints:

–To change from TAPE to FM, AM or

CD/MP3

func­tion, or when you are switching off the set: first,
make sure you press the tape

0 9

key to end play-

back and all the cassette keys are released.

– The tone, sound settings, tuner presets and the vol-

ume level (up to a maximum volume level of 20)
will be retained in the set’s memory.

Adjusting volume and sound

1. Adjust the volume with the

VOL 3, 4controls. (or

VOLUME +, – on the remote control)

™ Display shows and the volume level in

number from 00-32.

2. Press DBB once or more to select dynamic bass

boost on or off.
™ Display: shows when activated.

DIGITAL TUNER

Tuning to radio stations

1 Push the source selector to AM or FM.

– is displayed briefly and then the radio sta-

tion frequency, waveband and, if programmed, a
preset number are shown. (See 2)

2 Press and hold ∞ or § until the frequency in the

display starts running.
™ The radio automatically tunes to a station of suf-

ficient reception. Display shows during
automatic tuning.

3 Repeat step 2 if necessary until you find the desired

station.

•To tune to a weak station, press ∞ or § briefly
and repeatedly until you have found optimal recep­tion.

To improve radio reception:

• For FM, extend, incline and turn the telescopic aeri­al. Reduce its length if the signal is too strong.

• For AM, the set uses a built-in aerial. Direct this
aerial by turning the whole set.

Programming radio stations

You can store up to a total of 20 radio stations in the
memory (10 FM and 10AM), manually or automatically
(Autostore).

Manual programming
1 Tune to your desired station (see Tuning to radio

stations).

2 Press PROG to activate programming.

™ Display: PROG flashes.

3 Press

-, +

(on the remote control 3,4) once or more

to allocate a number from 1 to 10.

4 Press PROG to confirm.
5 Repeat steps 1-4 to store other stations.
Helpful hints: You can erase a preset station by

storing another frequency in its place.

Autostore

Autostore automatically starts programming radio sta­tions from preset 1. Any previous presets e.g. manually
programmed will be erased.

1 Select AM or FM.
2 Press PROG until flashes.

™ Available stations are programmed (AM or FM).

After all stations are stored, the first autostore

preset station will then automatically play.

To listen to a preset or autostore station
Press the ALBUM/PRESET

-, +

(on the remote control
3,4) buttons once or more until the desired preset
station is displayed.

SUPPLIED ACCESSORIES

– AC power cord
– remote control

TOP AND FRONT PANELS (See 1)

1 PUSH TO OPEN - press to open/close CD door
2 PROG -

CD/MP3:

programs tracks and reviews the
program

AM/FM:

programs preset radio stations

3 MODE - selects different play modes: e.g. REP or

SHUF (random order)

4 VOL 3 , 4 - adjusts volume level

ALBUM/PRESET + ,- (up, down) -

MP3 only: selects albums
AM/FM: selects a preset radio station

5 Display - shows the status of the set
6 2; - starts or pauses CD playback.

9 - stops CD playback;

- erases a CD program

∞ , § TUNING DOWN, TUNING UP -
CD/MP3: - searches backward and forward within a

track;

- skips to the beginning of a current track/
previous/ later track

AM/FM: -

tunes to radio stations

7 DBB (DYNAMIC BASS BOOST) -tu

rns the bass

enhancement on / off

8 CASSETTE RECORDER keys:

RECORD 0 - starts recording
PLAY 1 - starts playback
SEARCH 5 / 6 - fast winds/ rewinds tape.
STOP•OPEN 0 9 - stops the tape;

- open the cassette
compartment

PAUSE ; - pauses playback or recording

9

Source selector:

CD/MP3,

AM, FM

, TAPE/OFF

–

selects CD/MP3-CD, radio or tape source of
sound;

–

switches off the set

BACK PANEL

0 Telescopic aerial - improves FM reception
! Battery compartment - for 6 batteries, type

R-14, UM2 or C-cells

@ AC MAINS - inlet for power cord

REMOTE CONTROL

1 VOLUME

+, – – adjusts volume level (up, down)

2 SHUFFLE – plays all CD tracks in random order
3 2; – starts/ pauses CD playback
4 SEARCH 5, 6 – searches backwards/ forwards

within a track

5

ALBUM/

PRESET 3,4

MP3 only: selects albums
AM/FM:

selects a preset radio station (up, down)

6 TUNING ∞, § – tunes to tuner stations
7 9 – stops CD playback;

– erases a CD programme

8 ¡, ™ – skips to the beginning of a current track

previous/ subsequent track

9 REPEAT –selects repeat modes

CAUTION
Use of controls or adjustments or performance of
procedures other than herein may result in haz­ardous radiation exposure or other unsafe opera­tion.

POWER SUPPLY

Whenever convenient, use the AC power supply to
conserve battery life. Make sure you remove the power
plug from the set and wall socket before inserting
batteries.

Batteries (not included)
Main set (See 1)

• Insert 6 batteries, type R-14, UM2 or C-cells,
(preferably alkaline) with the correct polarity.

Remote control (See A)

• Insert 2 batteries, type AAA, R03 or UM4 (prefer-
ably alkaline).

Incorrect use of batteries can cause electrolyte leak­age and will corrode the compartment or cause the
batteries to burst.

• Do not mix battery types: e.g. alkaline with carbon
zinc. Only use batteries of the same type for the set.

• When inserting new batteries, do not try to mix old
batteries with the new ones.

• Batteries contain chemical substances, so
they should be disposed of properly.

POWER SUPPLY/BASIC FUNCTIONS DIGITAL TUNER

CD PLAYER

About MP3

The music compression technology MP3 (MPEG1 Audio
Layer 3) significantly reduce the digital data of an
audio CD while maintaining CD quality sound.

• Getting MP3 files: you can either download legal

music files from the internet to your computer hard
disc, or create such files by converting audio CD
files in your computer through appropriate encoder
software. (128kbps bit rate or higher is recommend­ed for MP3 files.)

• Creating a MP3 CD: burn the music files from

your computer hard disc on a CDR or CDRW using
your CD burner.

Helpful hints:

– Make sure that the file names of the MP3 files end

with .mp3.

– Total number of music files and albums: around 350

(with a typical file name length of 20 characters)

– The length of file names affects the number of tracks

for playback. With shorter file names, more files can
be burned on a disc.

Playing a CD

This player plays Audio Discs including CD-R/ CD-RW,
and MP3 CD. Do not try to play a CD-ROM, CD-I, CDV,
VCD, DVD or computer CD.

IMPORTANT!

• CDs encoded with copyright protection

technologies by some record companies may be

unplayable by this product.

• For a disc with CD Audio tracks and MP3

files, the MP3 files may be unplayable,
depending on the encoding software.

• Total number of albums + tracks: Max. 500 (for

MP3)

1 Push the source selector to CD/MP3.
2 Insert a CD with the printed side facing up and

close the CD door.
™ is displayed as the CD player scans the
contents of a disc and then
Audio CD: total playing time and total number of
tracks appear.
MP3: total number of tracks/albums appear. (See

3)

3 Press 2; to start playback.
4 To pause playback press 2;. Press 2; again to

resume play.

5 To stop CD playback, press 9.

Helpful hints: CD play will also stop when:

– the CD door is opened
– the CD has reached the end
– you select tuner or tape source.

Selecting a different track

•Press ∞ or § (on the remote control ¡ or ™) once
or repeatedly until the desired track number appears
in the display.

For MP3-CD: first press ALBUM/PRESET

-, +

(on
the remote control 3,4) once or more to find your
album.

• In the pause/stop position, press 2; to start play­back.

Finding a passage within a track

1 During playback, press and hold ∞ or § (or

SEARCH 5, 6 on the remote control).

™ The CD is played at high speed and low volume.

2 When you recognize the passage you want, release

∞ or § to resume normal playback.

Different play modes: SHUFFLE and REPEAT (See

4, 5)
You can select and change the various play modes
before or during playback, and combine REP ALL and

REP with PROG.

SHUF – tracks of the entire CD are played in ran-

dom order

REP ALL – repeats the entire CD/program
REP – plays the current track continuously

For MP3 only:

REP ALB – all tracks of current album play repeat-

edly.

1 To select play mode, press MODE (SHUFFLE or

REPEAT on the remote control) once or more.

2 Press 2; to start playback if in the stop position.
3 To select normal playback, press MODE repeatedly

until the various modes are no longer displayed.
– You can also press 9 to cancel your play mode.

Helpful hints: In shuffle mode, press ∞ ( ¡ on the

remote control) to go to the beginning of current

track

Programming track numbers

You may store up to 20 tracks (for MP3-CD: 10 tracks)
in the desired sequence. If you like, store any track
more than once.

1 In the stop position, press ∞ or § (on the remote

control ¡ or ™) to select your desired track number.

For MP3-CD: first press ALBUM/PRESET

-, +

(on
the remote control 3,4) once or more to find your
album.

2 Press PROG.
➜Display first shows the number of program location

and then, track/album number stored here. (See 6,

7)

• If you attempt to program without first selecting a

track number, is shown.

3 Repeat steps 1-2 to select and store all desired

tracks.

• Display: if you try to program more than

20 tracks (for MP3-CD: 10 tracks).

Helpful hints:

–

When the

PROG

or

SHUF

mode is active, use of

the - , +keys (or

3,4 on the remote control)

are

void.

Reviewing the programme

In the stop position, press PROG repeatedly to see
your stored track numbers.
➜Display first shows the number of program location
and then, track/album number stored here.

Erasing a programme

You can erase the contents of the memory by:

• opening the CD door;

• selecting AM, FM or TAPE sound sources;

•pressing

9

twice during playback or once in the

stop position.

™ PROG disappears.

CASSETTE RECORDER

Cassette playback

1 Push the source selector to TAPE..
2 Insert a cassette and close the door.
3 Press PLAY 1 to start playback.

Display: shows throughout tape operation.

4 To pause, press PAUSE ;. Press again to resume.
5 To stop the tape, press STOP/OPEN 9/.

Fast forwarding/rewinding

1 Press SEARCH 5 or 6 until you reach your

desired passage.

2 Press

9

/ to stop fast forwarding/rewinding.

Helpful hints:

– During playback, the keys are automatically

release at the end of a tape, and the set is
switched off (except if

;

has been activated).

– During fast winding/rewinding, the keys will not

be released at the end of a tape. To switch off the
set, make sure the cassette keys are also
released.

GENERAL INFORMATION ON RECORDING

• Recording is permissible insofar as copyright or.
other rights of third parties are not infringed.

• For recording, use only NORMAL type cassettes (IEC
type I) on which the tabs have not yet been broken.
This deck is not suited for recording on CHROME
(IEC II) or METAL (IEC IV) type cassettes.

• The best recording level is set automatically.
Altering the VOL or DBB controls will not affect
the recording.

•To protect a tape from accidental erasure, break out
the tabs. If you wish to record again, cover the tabs
with a piece of adhesive tape.

TAPE

DIGITAL TUNER CD/MP3 PLAYER

CD/MP3 PLAYER CASSETTE RECORDER

CD Synchro Start recording

1 Select CD/MP3 function.
2 Insert a CD and if desired, programme track num-

bers.

3 Open the cassette door.
4 Insert a suitable tape into the cassette deck and

close the door.

5 Press RECORD 0 to start recording.

™ Playing of the CD/program starts automatically

from the beginning. You don’t need to start the
CD player separately.

™ Display: shows briefly.

6 To pause recording, press PAUSE ;.

Press PAUSE ; again to resume recording.

7 To stop recording, press STOP/OPEN 9/.

Recording from the Radio

1 Tune to the desired radio station (see Tuning to

radio stations).

2 Follow steps 3-7, under CD Synchro Start recording.

Maintenance & Safety (See 8, 9)

CD player and CD handling

• If the CD player cannot read CDs correctly, use a
cleaning CD to clean the lens before taking the set
to repair.

• The lens of the CD player should never be touched!

• Sudden changes in the surrounding temperature can
cause condensation on the lens of your CD player.
Playing a CD is then not possible. Do not attempt to
clean the lens but leave the set in a warm environ­ment until the moisture evaporates.

• Always close the CD door to avoid dust on the lens.

•To clean the CD, wipe in a straight line from the
centre towards the edge using a soft, lint-free cloth.
Do not use cleaning agents as they may damage the
disc.

• Never write on a CD or attach any stickers to it.

Safety Information

• Place the set on a hard, flat and stable surface so
that the system does not tilt.

• Do not expose the set, batteries, CDs to humidity,
rain, sand or excessive heat caused by heating
equipment or direct sunlight.

• The apparatus shall not be exposed to
dripping or splashing.

• Adequate ventilation with a minimum gap of 15
cm between the ventilation holes and surrounding
surfaces is necessary to prevent heat build-up.

• The ventilation should not be impeded by covering
the ventilation openings with items, such as news­papers, table-cloths, curtains, etc..

• No objects filled with liquids, such as vases, shall
be placed on the apparatus.

• No naked flame sources, such as lighted candles,
should be placed on the apparatus.

• The mechanical parts of the set contain
self-lubricating bearings and must not be oiled or
lubricated.

•To clean the set, use a dry cloth. Do not use any
cleaning agents containing alcohol,
ammonia, benzene or abrasives as these may
harm the housing.

Tape deck maintenance

To ensure quality recording and playback of the tape
deck, clean parts A, B and C as shown, once a
month. Use a cotton bud slightly moistened with alco­hol or a special head cleaning fluid to clean the deck.

1 Open the cassette door.
2 Press PLAY 1 and clean the roller C.
3 Press PAUSE ; and clean the heads A, and the

capstan B.

4 After cleaning, press STOP/OPEN 9/.

Remote control does not function properly

– Batteries exhausted/ incorrectly inserted

• Insert (fresh) batteries correctly

– Distance/ angle between the set too large

• Reduce the distance/ angle

No sound /power

–Volume not adjusted

• Adjust the VOLUME

– Power cord not securely connected

• Connect the AC power cord properly

– Batteries dead/ incorrectly inserted

• Insert (fresh) batteries correctly

Severe radio hum or noise

– Electrical interference: set too close to TV, VCR or

computer

• Increase the distance

Poor radio reception

–Weak radio signal

• FM: Adjust the FM telescopic aerial

indication

– CD badly scratched or dirty

• Replace/ clean CD, see Maintenance

– Laser lens steamed up

•Wait until lens has cleared

– CD-R/CD-RW is blank/ not finalized

• Use a finalized CD-R(W)

– CD-ROM disc inserted/

CD contains non-audio files

• Use CD Audio discs/MP3-CD only

Note:
Make sure the CD is not encoded with Copyright
protection technologies, as some do not conform
to the Compact Disc standard.

The disc skips tracks

– Disc damaged or dirty

• Replace or clean disc
–

SHUF

or

PROG

is active

• Switch off

SHUF/PROG

Note:
For a disc with CD Audio tracks and MP3 files,
the MP3 files may be unplayable, depending on
the encoding software.

Sound skips during MP3 playback

–MP3 file made at compression level exceeding

320kbps

• Use a lower compression level to record CD tracks
into MP3 format

– Disc damaged or dirty

• Replace or clean disc

Poor cassette sound quality

– Dust and dirt on the heads, etc.

• Clean deck parts, see Maintenance

– Use of incompatible cassette types

(METAL or CHROME)

• Only use NORMAL (IEC I) for recording

Recording does not work

– Cassette tab(s) may be broken

• Apply adhesive tape over the missing tab space

WARNING

Do not open the set as there is a risk of electric shock! Under no circumstances should you try to
repair the set yourself, as this will invalidate the guarantee.

If a fault occurs, first check the points listed below before taking the set for repair.
If you are unable to remedy a problem by following these hints, consult your dealer or service centre.

CASSETTE RECORDER MAINTENANCE & SAFETY

TROUBLESHOOTING

This product complies with the FCC-Rules, Part 15 and with 21 CFR 1040.10. Operation is subject to
the following two conditions:

1. This device may not cause harmful interference, and

2. this device must accept any interference received, including interference that may cause unde­sired operation.

Canada

English:

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as
set out in the Radio Interference Regulations of the Canadian Department of Communications.

Français :

Cet appareil numérique n'émet pas de bruits radioélectriques dépassant les limites applicables aux appareils
numériques de Classe B prescrites dans le Règlement sur le Brouillage Radioélectrique édicté par le Ministère
des Communications du Canada.

Environmental information

We have done our best to reduce the packaging and make it easy to separate into 3
materials:cardboard, expandable polystyrene, polyethylene.
Your set consists of materials which can be recycled if disassembled by a specialized company.
Please observe the local regulations regarding the disposal of packaging, exhausted batteries
and old equipment.

PHILIPS LIMITED WARRANTY

One (1) Year Free Product Exchange

PHILIPS CONSUMER ELECTRONICS warrants this

product against defect in material or workmanship, subject to
any conditions set forth as follows:

PROOF OF PURCHASE:

You must have proof of the date of purchase to exchange the
product.A sales receipt or other document showing the prod­uct, the date that you purchased the product, as well as the
authorized retailer included, is considered such proof.

COVERAGE:

Warranty coverage begins the day you buy your product. For a
period of one (1) year from the date of purchase, if the product
is determined to be defective, Philips will exchange the defective
product with a new or renewed product, at its option, at no
charge.The replacement product is covered only for the war­ranty period of the original product.When the warranty on the
original product expires, the warranty on all replaced products
also expires.When it is necessary for you to ship the product
to Philips for exchange, you will pay the shipping cost for ship­ment to Philips. Philips will pay the shipping costs when return­ing a product to you.

Note:The exchange model supplied will be the most compara­ble one in Philips current inventory. Shipping of your product to
Philips implies intent to follow the specified requirements of the
warranty and exchange program. Product received by Philips
cannot be returned. Replacement product can only be sent if all
warranty requirements are met. Failure to follow all require­ments can result in delay of exchange process.

EXCLUDED FROM WARRANTY COVERAGE

Your warranty does not cover:

• Shipping charges to return defective product.

• Labor charges for installation or setup of the product, adjust­ment of customer controls on the product, and installation
or repair of antenna systems outside of the product.

•Product repair and/or part replacement because of improper
installation, connections to improper voltage supply, abuse,
neglect, misuse, accident, unauthorized repair or other cause
not within the control of Philips.

• Damage occurring to product during shipping when improp­erly packaged or cost associated with packaging.

•A product that requires modification or adaptation to enable
it to operate in any country other than the country for
which it was designed, manufactured, approved and/or autho­rized, or repair of products damaged by these modifications.

•A product used for commercial or institutional purposes
(including but not limited to rental purposes).

•Products lost in shipment and no signature verification of
receipt can be provided.

•Products sold AS IS or RENEWED.

WHERE WARRANTY EXCHANGE IS AVAILABLE:

Exchange is available in all countries where Philips officially dis­tributes the product. In countries where Philips does not dis­tribute the product, the local Philips organization will attempt to
exchange the product, although there may be a delay if the
appropriate product is not readily available, or special customs
processes are implied.

FOR EXCHANGE IN THE U.S.A., PUERTO RICO, OR
U.S.VIRGIN ISLANDS…

Contact Philips Customer Care Center at:

1-888-PHILIPS (1-888-744-5477)

FOR EXCHANGE IN CANADA…

1-800-661-6162 (French Speaking)
1-888-PHILIPS (1-888-744-5477) - (English or Spanish
Speaking)

REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS
THE EXCLUSIVE REMEDY OF THE CONSUMER. PHILIPS
SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSE­QUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR
IMPLIED WARRANTY ON THIS PRODUCT. EXCEPT TO THE
EXTENT PROHIBITED BY APPLICABLE LAW,ANY IMPLIED
WARRANTY OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED IN
DURATION TO THE DURATION OF THIS WARRANTY.

Some states do not allow the exclusions or limitation of inci­dental or consequential damages, or allow limitations on how
long an implied warranty lasts, so the above limitations or exclu­sions may not apply to you. In addition, if you enter into a ser­vice contract agreement with the PHILIPS partnership within
ninety (90) days of the date of sale, the limitation on how long
an implied warranty lasts does not apply.

This warranty gives you specific legal rights. You may have other rights which vary from state/province to state/province.

Philips, P.O. Box 671539,Marietta, GA. 30006-0026

(Warranty:4835 710 27325)
