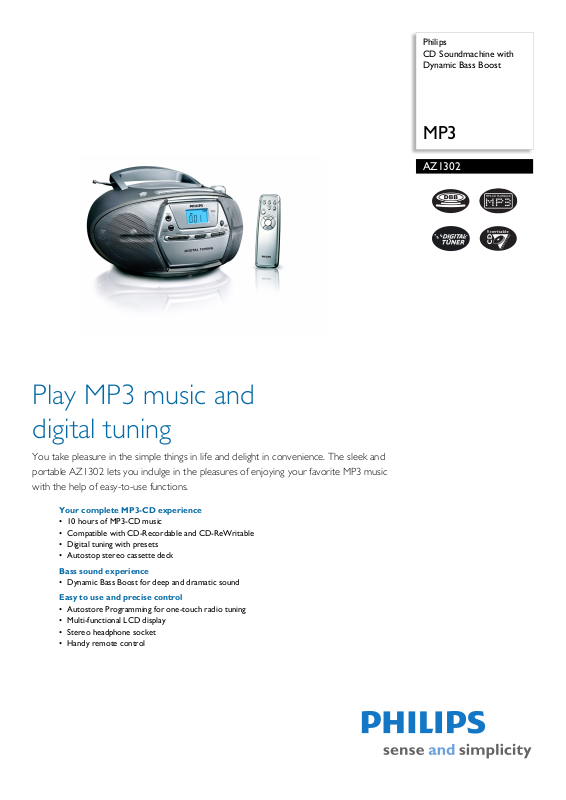

Philips AZ1302 User Manual

Philips
CD Soundmachine with
Dynamic Bass Boost

MP3

AZ1302

Play MP3 music and
digital tuning

You take pleasure in the simple things in life and delight in convenience. The sleek and
portable AZ1302 lets you indulge in the pleasures of enjoying your favorite MP3 music
with the help of easy-to-use functions.

Your complete MP3-CD experience

• 10 hours of MP3-CD music

• Compatible with CD-Recordable and CD-ReWritable

• Digital tuning with presets

• Autostop stereo cassette deck

Bass sound experience

• Dynamic Bass Boost for deep and dramatic sound

Easy to use and precise control

• Autostore Programming for one-touch radio tuning

• Multi-functional LCD display

• Stereo headphone socket

• Handy remote control

CD Soundmachine with Dynamic Bass Boost

MP3

AZ1302/98

Specifications Product highlights

Audio Playback

• Loader Type: Top

• Playback Media: CD, CD-R, CD-RW, MP3-CD

• Programmable Tracks: 20

• Disc Playback Modes: Fast Forward/Backward,
Next/Previous Track Search, Repeat Play, Shuffle
Play

• Number of decks: 1

• Cassette Deck Technology: Mechanical

Audio Recording

• Tape Recording Enhancement: CD Synchro Start
Recording

• Recording Media: Tape

Tuner/Reception/Transmission

• Tuner Bands: FM, MW

• Station presets: 20

• Auto digital tuning

• Antenna: FM Antenna

Sound

• Output power (RMS): 2x1W

• Sound Enhancement: Dynamic Bass Boost

• Volume Control: rotary

• Sound System: Stereo

• Speaker diameter: 3"

Loudspeakers

• Built-in speakers: 2

• Finishing: Metal

• Loudspeaker types: Loudspeakers

Connectivity

• Headphone: 3.5 mm

Convenience

• Remote control: 8 keys

• Backlight

• Backlight color: Blue

• Display Digits: 5

• Display Type: LCD

Accessories

• Included Accessories: AC Power Cord, User
Manual, Warranty certificate

• Remote control: 1

Dimensions

• Packaging dimensions (W x H x D):
332

x 197 x 280 mm

• Product dimensions (W x H x D):
290

x 151 x 233 mm

• Weight: 2.1 kg

• Weight incl. Packaging: 2.5 kg

Power

• Battery type: LR14

• Battery voltage: 1.5 V

•Mains power

• Number of batteries: 8

•

10 hours of MP3-CD music

MP3 stands for "MPEG 1 Audio layer-3".MP3 is a
revolutionary compression technology by which large
digital music files can be made up to 10 times smaller
without radically degrading their audio quality. MP3 has
become the standard audio compression format used on
the world wide web, allowing quick and easy audio file
transfer.

CD-R/RW Compatible

CD-Rewritable Compatible means that your audio set can
play both CD-Recordable (CD-R) and CD-Rewritable
(CD-RW) discs. CD-R discs are recordable once and can
be pl ayed on any audio CD player while CD-RW dis cs ca n
be recorded and rewritten multiple t ime s an d ca n on ly b e
played back on compatible audio CD players. The laser
pick-up and CD decoder circuitry of CD-RW compatible
players are specially designed to read the special audio
CD-RW phase-change recording layer, ensuring you can
always play your home-recorded discs on your audio CD
system.

Digital tuning with presets

Dynamic Bass Boost

Dynamic Bass Boost maximizes your music enjoyment by
emphasizing the bass content of the music throughout
the range of volume settings - from low to high – at the
touch of a button! Bottom-end bass frequencies usually
get lost when the volume is set at a low level. To
counteract this, Dynamic Bass Boost can be switched on
to boost bass levels, so you can enjoy consistent sound
even when you turn down the volume.

Autostore programming

Autostore Programming is a convenient feature that
allows you to tune in to your favorite stations and set
station presets by simply pressing a button. Autostore
Programming does away with the hassle of manual radio
station tuning and setting of presets. A built-in electrical
circuit automatically scans local radio station frequencies,
locks on to the strongest radio station signals, and assigns
them to specific presets.

Stereo headphone socket

Handy remote control

Issue date 2008-07-02

Version: 1.0.4

12 NC: 9073 101 02641
EAN: 87 10895 96623 8

© 2008 Koninklijke Philips Electronics N.V.
All Rights reserved.

Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
