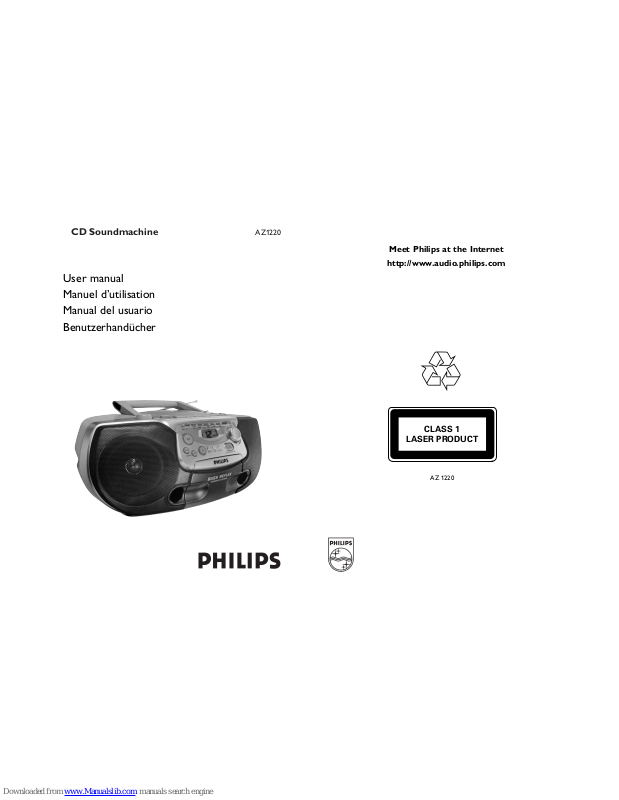

Philips AZ1220/01, AZ1220/14, AZ1220/P00, AZ1220/00C, AZ1220/11T User Manual
AZ1220CD Soundmachine
User manual
Manuel d’utilisation
Manual del usuario
Benutzerhandücher
Meet Philips at the Internet
http://www.audio.philips.com
W
CLASS 1
LASER PRODUCT
AZ 1220
%
F
M
1
4
7
^
6
5
2
3
#
$
@
0
9
8
!
&
*
(
1
A AB
C
X
2
7
3
4
5
SHUFFLE
6
Supplied accessories
AC power cord
Top and front panels (See 1)
1
TUNING
– tunes to radio stations
2
Band selector: LW, MW, FM
–
selects wavebands.
3 Cassette recorder keys:
;–pauses playback or recording
9
/
–
stops playback or recording.
–
opens the cassette holder.
5 or 6–fast winds/rewinds the tape
1–starts playback
0–starts recording
4 2; - star ts or pauses CD playback.
5 SEARCH ∞§–
CD: skips or searches a
passage/track backward or forward.
69–
stops CD playback;
–
erases a program;
7 Cassette door
8 SHUFFLE – plays all CD tracks in random
order.
9 PROG – progr ams tracks and reviews the
program
0
REPEAT – repeats a track/program/the
entire CD.
!
DBB (Dynamic Bass Boost)
–
turns the bass enhancement on/off.
@
VOLUME– adjusts volume level
#
CD Display– shows CD functions
$
Source selector : CD, RADIO,
TAPE/OFF
–
selects CD, radio or tape source of sound
–
switches off the set
% LIFT TO OPEN – opens/closes the CD
door
Back panel
^ Te lescopic antenna - improves FM
reception.
& Headphone - 3.5mm stereo headphone
jack
* Batter y door - open to insert 6 x 1.5V
R-14/ UM2/ C-cells.
( AC MAINS - inlet for power cord.
CAUTION
Use of controls or adjustments or
performance of procedures other
than herein may result in hazardous
radiation exposure or other unsafe
operation.
This set complies with the radio
interference requirements of the
European Community.
English Controls
Power Supply
Whenever convenient, use the power supply
cord if you want to conserve battery life .
Make sure you remove the plug from the set
and wall outlet before inserting batteries.
Batteries (not included)
1 Open the battery compar tment and insert
six batteries, type R-14, UM-2 or C-cells,
(preferably alkaline) with the correct polarity
as indicated by the "+" and "–" symbols inside
the compartment.
2 Replace the compartment door, making sure
the batteries are firmly and correctly in place.
The set is now ready to operate.
Batteries contain chemical substances, so
they should be disposed of properly.
• Incorrect use of batteries can cause
electrolyte leakage and will corrode the
compartment or cause the batteries to bur st:
• Do not mix battery types: e.g. alkaline with
carbon zinc. Only use batteries of the same
type for the set.
• When inserting new batter ies, do not try to
mix old batteries with the new ones.
• Remove the batteries if the set is not to be
used for a long time.
Using AC power
1 Check if the power/mains voltage, as shown
on the type plate located on the
bottom of the set, corresponds to your
local power supply. If it does not, consult your
dealer or service center.
2 Connect the power cord to the AC
POWER/MAINS inlet and the wall socket.The
set is now ready for use.
3 To switch the set off completely, withdraw the
power cord from the wall socket.
•Disconnect the power cord from the wall
socket to protect your set during heavy
thunderstorms.
The type plate is located on the bottom
of the set.
For users in the U.K., please follow the
boxed instructions ‘Important notes...’ on
next page.
Helpful hints:
–To avoid unnecessary energy consumption,
always adjust the source selector to
TAPE/OFF after using the set. Also check
that the tape deck keys are released.
Power Supply
