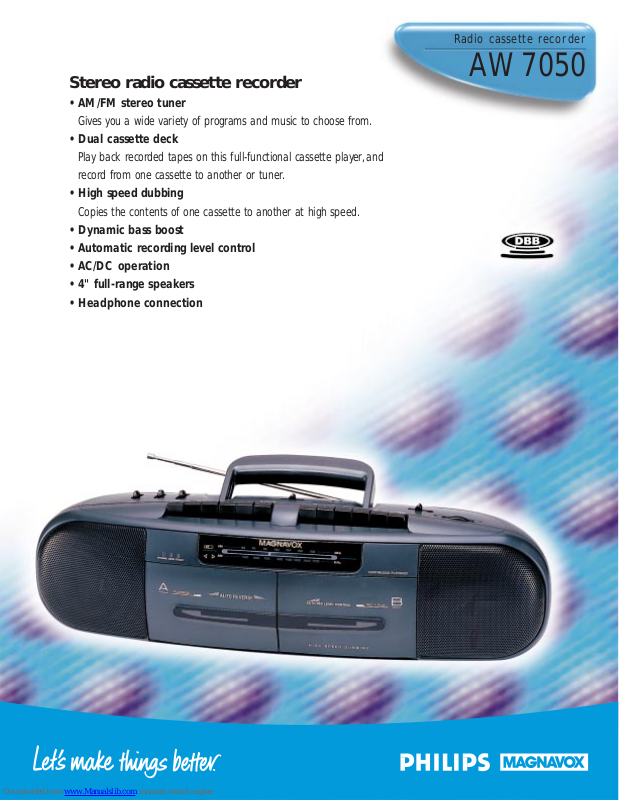

Page 1
Radio cassette recorder
AW7050
Stereo radio cassette recorder
• AM/FM stereo tuner
Gives you a wide variety of programs and music to choose from.
• Dual cassette deck
Play back recorded tapes on this full-functional cassette player,and
record from one cassette to another or tuner.
• High speed dubbing
Copies the contents of one cassette to another at high speed.
• Dynamic bass boost
• Automatic recording level control
• AC/DC operation
• 4" full-range speakers
• Headphone connection
Page 2
Radio cassette recorder
AW7050
Printed in Hong Kong 1998-09-17
Specifications subject to modification without notice
© 1998 Koninklijke Philips Electronics N.V.
All Rights Reserved
http://www.philipsmagnavox.com
UPC: 037849814284
Master pack UPC: 237849814288
Cassette deck
• Two cassette decks
• High speed dubbing
• Continuous play
• One touch recording
• Automatic recording level control
• Continuous monitoring
• Electronic speed control and automatic stop
• Normal (type 1) cassette
• Signal-to-noise ratio 40 dB
Tuner
• Wavebands : FM stereo/AM
• Frequency ranges : FM 87.5 - 108 MHz
: AM 526.5 - 1606.5 MHz
• Signal dependent FM stereo
• Automatic frequency control on FM
• FM stereo LED
Amplifier
• Dynamic bass boost
Sound system
• Two wide frequency loudspeakers
Connections
• Headphone socket : 3.5 mm
Power supply
• AC mains : 120 V ,60Hz
• Batteries : 6 x 1.5V batteries R20
General
• Material : Polystyrene,metal grill
• Product dimensions : 19.7"W x 5.9"H x 5.9"D
• Product weight : 5.73 lbs
• Package dimensions : 20.75"W x 7.09"H x 7.28"D
• Package weight : 6.4 lbs
• Master pack dimensions : 21.5"W x 15.12"H x 15.12"D
• Master pack weight : 26 lbs
• Quantity/mastercarton : 4
Product highlights
• Dynamic bass boost
Enhances bass tone frequencies to give deep,rich sounds.
• Automatic recording level control
Electronic circuit that constantly monitors the input signal to ensure accurate,
distortion-free recording.
• AC/DC operation
Operates either on batteries or mains supply,using the detachable AC power
cord.
• 4" full-range speakers
For excellent sound performance across the entire audio frequency spectrum.
• Headphone connection
Enables headphones to be used for private listening pleasure, without disturbing
others.
