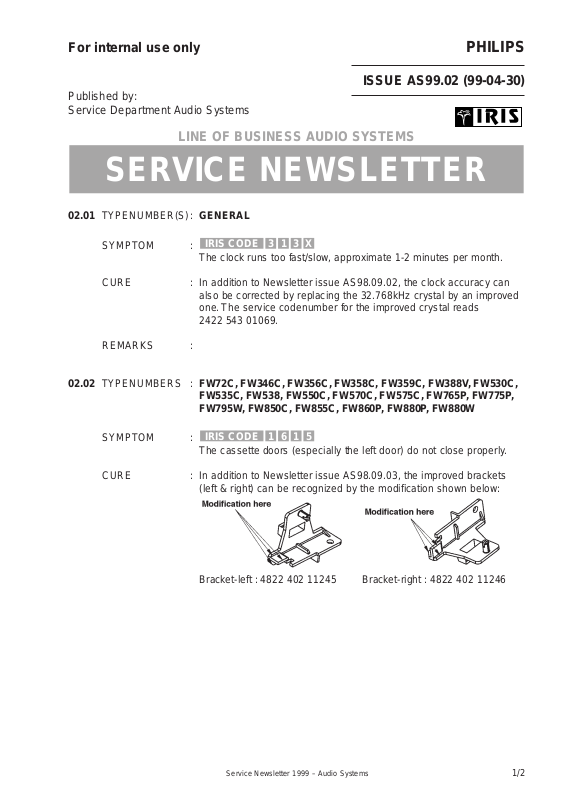

For internal use only PHILIPS
ISSUE AS99.02 (99-04-30)
Published by:
Service Depar tment Audio Systems
LINE OF BUSINESS AUDIO SYSTEMS
02.01 TYPENUMBER(S): GENERAL
SYMPTOM :
The clock runs too fast/slow, approximate 1-2 minutes per month.
CURE : In addition to Newsletter issue AS98.09.02, the clock accuracy can
also be corrected by replacing the 32.768kHz crystal by an improved
one.The service codenumber for the improved crystal reads
2422 543 01069.
REMARKS :
02.02 TYPENUMBERS : FW72C, FW346C, FW356C, FW358C, FW359C, FW388V, FW530C,
FW535C, FW538, FW550C, FW570C, FW575C, FW765P, FW775P,
FW795W, FW850C, FW855C, FW860P, FW880P, FW880W
SYMPTOM :
The cassette doors (especially the left door) do not close properly.
CURE : In addition to Newsletter issue AS98.09.03, the improved brackets
(left & right) can be recognized by the modification shown below:
Bracket-left :4822 402 11245 Bracket-right : 4822 402 11246
5161IRIS CODE
X313IRIS CODE
SERVICE NEWSLETTER
Service Newsletter 1999 – Audio Systems 1/2
Page 2
Sets with old brackets can be adapted by either
i) adding a metal bracket (4822 402 11331) to press onto the
back of the bracket left or right as shown below, or
ii) replacing the old bracket by the modified one.
REMARKS :
02.03 TYPENUMBER(S): FW388V
SYMPTOM :
Tuner preset stations cannot be selected via the numeric key-pad
(0..9) of the remote control.
CURE : This feature is not available on the set.
It is an error in the IFU which is corrected with an addendum sheet
from wk904 onwards.
REMARKS :
02.04 TYPENUMBER(S): FW850C, FW855C, FW860P, FW880P, FW880W
SYMPTOM :
Mic-mixing cannot be recorded when the selected source is TAPE 1.
CURE : Recording of mic-mixing with TAPE 1 source is not supported
because the set will switch automatically into dubbing mode.
The IFU (section “Recording the mixed sound”) causes some
confusion but will not be updated as production will end in April 1999.
REMARKS :
165CIRIS CODE
1511IRIS CODE
Service Newsletter 1999 – Audio Systems 2/2
