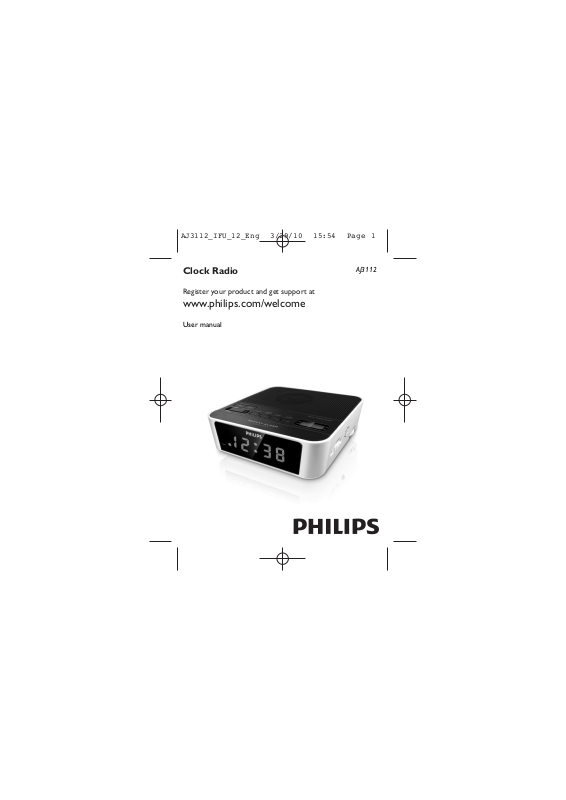

AJ3112-12
C
lock Radio
Register your product and get support at
w
ww.philips.com/welcome
User manual
AJ3112
AJ3112_IFU_12_Eng 3/29/10 15:54 Page 1
3
4
1
#%^ $
5
9
0
678
2
!
@
1
AJ3112_IFU_12_Eng 3/29/10 15:54 Page 2
English
CONTROLS (see fig. 1 )
1 DISPLAY - shows the clock/ alarm time and status of the set
2 ALARM indicator -
lights up when alarm is activated
3 Frequency indicator - shows the radio frequency of your selected waveband
4 REPEAT ALARM / SLEEP OFF
- switches off the active alarm for a 8-9 minute period
- switches off the sleep function
5 CLOCK - sets the clock time
6 SLEEP
- activates the radio for sleep function
- adjusts the sleep period
7 ALARM RESET - stops the active alarm for 24 hours
8 ALARM - sets the alarm function
9 RADIO / ALARM
RADIO ON: switches on the radio
RADIO OFF: switches off the radio/alarm
ALARM - RADIO: activates the radio for alarm
ALARM - BUZ: activates the buzzer for alarm
0 SET TIME HR / MIN
- adjusts the hours / minutes for clock / alarm / sleep time
! Power cord -
connects to wall outlet
@ Pigtail - improve FM reception
# VOLUME - adjusts the sound level
$ Battery door - opens to store a 9 volts 6F22 battery (not included) for clock
memory backup.
% FM/MW - selects FM/MW waveband
^ TUNING - tunes to radio stations
Congratulations on your purchase and welcome to Philips!
To fully benefit from the support that Philips offers, register your
product at www.philips.com/welcome.
AJ3112_IFU_12_Eng 3/29/10 15:54 Page 3
INSTALLATION
POWER SUPPLY
1
Check if the power supply, as shown on the type plate located on the bot-
tom of the set, corresponds to your local power supply. If it does not, consult
your dealer or service center.
2
Connect the plug to the wall outlet.
3
To disconnect the set from the power supply completely, remove the
plug from the wall outlet.
CLOCK MEMORY BACKUP
The clock memory backup allows your alarm and clock time settings to be stored
for up to a day when there is a power interruption e.g. power failure. The com-
plete clock radio and display illumination will be switched off. As soon as the
power supply returns, the display will indicate the correct time.
1
Remove the battery door to insert a 9 volts 6F22 type battery (not included)
for backup.
2
Replace the battery door.
NOTE:
If no backup battery is installed or the power interruption is prolonged,
you will need to set the clock and alarm times again.
Batteries contain chemical substances so they should be disposed of
properly.
AJ3112_IFU_12_Eng 3/29/10 15:54 Page 4
