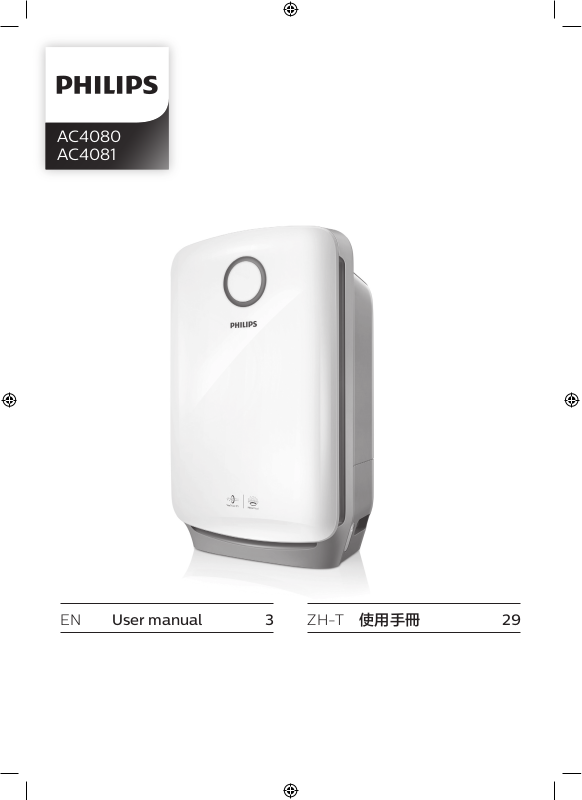

AC4080 AC4081
EN User manual 3 ZH-T
使用手冊
29
English
English
Contents
1 Important 4
Safety 4
2 Your combi air purier and
humidier 8
3 Getting started 9
Install lters 9 Prepare for humidication 10
4 Using the appliance 11
Understand the air quality light 11 Switch on and o the appliance 11 Change the working mode 12 Change the fan speed 13 Set the timer 15 Set the humidity level 15 Set the child lock 16 Water level 16
5 Cleaning 17
Cleaning schedule 17 Clean the body of the appliance 17 Clean the air quality sensor 17 Clean the water tank and
humidication lter 18
Clean the pre-lter and descale
the humidication lter 19
9 Guarantee and service 26
Order parts or accessories 26
10 Notices 26
Electromagnetic elds (EMF) 26 Recycling 26
6 Replacing the lters 21
Understand the healthy air
protect lock 21 Replace lter 2 21 Replace the humidication lter 22
7 Resetting the lter lifetime
counter 23
8 Troubleshooting 24
3
1 Important
Safety
Read this user manual carefully before you use the appliance, and save it for future reference.
Danger
Do not let water or any
other liquid or flammable detergent enter the appliance to avoid electric shock and/or a fire hazard.
Do not clean the
appliance with water, any other liquid, or a (flammable) detergent to avoid electric shock and/ or a fire hazard.
Do not spray any
flammable materials such as insecticides or fragrance around the appliance.
The water in the water
tank is not suitable for drinking. Do not drink this water and do not use it to feed animals or to water plants. When you empty the water tank, pour the water down the drain.
Warning
Check if the voltage
indicated on the bottom indicated at the rear of the appliance corresponds to the local power voltage before you connect the appliance.
If the power cord is
damaged, you must have it replaced by Philips, a service center authorized by Philips, or similarly qualified persons in order to avoid a hazard.
Do not use the appliance
if the plug, the power cord, or the appliance itself is damaged.
This appliance can be
used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experiences and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and
4
English
English
user maintenance shall not be made by children without supervision.
Do not block the air inlet
and outlet, e.g. by placing items on the air outlet or in front of the air inlet.
Caution
This appliance is not
a substitute for proper ventilation, regular vacuum cleaning, or use of an extractor hood or fan while cooking.
If the power socket used
to power the appliance has poor connections, the plug of the appliance becomes hot. Make sure that you plug the appliance into a properly connected power socket.
Always place and use the
appliance on a dry, stable, level, and horizontal surface.
Leave at least 20cm free
space behind and on both sides of the appliance and leave at least 30cm free space above the appliance.
Do not place anything
on top of the appliance and do not sit on the appliance.
Do not place the
appliance directly below an air conditioner to prevent condensation from dripping onto the appliance.
Make sure all filters
are properly installed before you switch on the appliance.
Only use the original
Philips filters specially intended for this appliance. Do not use any other filters.
Avoid knocking against
the appliance (the air inlet and outlet in particular) with hard objects.
Always lift or move
the appliance by both handles at the sides of the appliance.
Do not insert your fingers
or objects into the air outlet or the air inlet to prevent physical injury or malfunctioning of the appliance.
5
Do not use this appliance
when you have used indoor smoke-type insect repellents or in places with oily residues, burning incense, or chemical fumes.
Do not use the appliance
near gas appliances, heating devices or fireplaces.
Always unplug the
appliance after use and before filling water, cleaning, or carrying out other maintenance.
Do not use the appliance
in a room with major temperature changes, as this may cause condensation inside the appliance.
To prevent interference,
place the appliance at least 2m away from electrical appliances that use airborne radio waves such as TVs, radios, and radio-controlled clocks.
When the appliance is
not used for a long time, bacteria may grow on the filters. Check the filters after a long period of
disuse. If the filters are very dirty, replace them (see the chapter ‘Replace the filters’).
The appliance is only
intended for household use under normal operating conditions.
Do not use the appliance
in wet surroundings or in surroundings with high ambient temperatures, such as the bathroom, toilet, or kitchen.
The appliance does
not remove carbon monoxide (CO) or radon (Rn). It cannot be used a safety device in case of accidents with combustion processes and hazardous chemicals.
Clean the water tank
every day to keep it clean.
Only fill the water tank
with cold tap water. Do not use ground water or hot water.
Do not put any substance
other than water in the water tank. Do not put fragrance in the water tank.
6
English
English
If you do not use the
humidification function for a long time, clean the water tank and humidification filter tray. Dry the humidification filter.
If you need to move the
appliance, disconnect the appliance from the power supply first. Then empty the water tank. Carry the appliance horizontally by both handles on the sides of the appliance.
Unplug the appliance
during filling and cleaning.
7
2 Your combi air purifier and humidifier
2
2
Congratulations on your purchase, and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome. Philips VitaShield IPS technology and NanoCloud technology ensures you "Healthy air always". VitaShield IPS technology effectively remove pollutants (ultrafine particles, allergens, bacteria and viruses) with size >0.02 micron including bacteria and virus*. NanoCloud technology, using a special humidification filter adds H2O molecules to the dry air, and produces healthy humid air without formation of water mist. Its humidification filter retains bacteria, calcium and other particles from the water. *According to 2008 Microbiological Risk Assessment Report of the World Health Organization (WHO), the avian influenza, human influenza viruses, Legionella, Hepatitus viruses and SARS coronavirus are larger than 0.02 micron. Read this user manual carefully before you use the appliance, and save it for future reference.
Air quality sensor
Filter 1: Pre-filter
Filter 2: 2-in-1 HEPA & Active
carbon filter AC4158 (for AC4080)
Filter 3: Humidification filter AC4155
Water tank
Filter 2: Integrated Multi-care filter AC4168 (for AC4081)
8
English
English
3 Getting started
Install filters
The appliance comes with all filters fitted inside. Remove the packaging of the filters before you can use the appliance. Remove all filters, unpack them, and place them back into the appliance described as follows:
2 To remove the pre-filter, press the
two clips down and pull the filter towards you.
Tip
• When you remove or insert filters, place
the appliance against a wall for more stability.
Note
• Insert the filters in the correct position.
• Make sure that you place filter 2 in the
appliance first and then the pre-filter.
• Make sure that the side with the tag is
pointing towards you.
1 Unlock the bottom of the front
panel from the appliance, then gently pull the top part of the front panel towards you.
2
1
3 Remove filter 2 from the appliance.
2
AC4080 AC4081
2
4 Remove the packaging materials of
filter 2.
9
5 Put the unpacked filter 2 back into
2
2
1
2
2
1
the appliance.
2
AC4080 AC4081
2
6 Put the pre-filter back into the
appliance.
AC4080 AC4081
Note
Prepare for humidification
1 Remove all packaging materials of
the humidification filter.
2 Pull out the water tank from the
side of the appliance.
• Make sure that the side with the two
clips is pointing towards you, and that all hooks of the pre-filter are properly attached to the purifier.
3 Fill the water tank with cold tap
water.
7 To reattach the front panel, mount
the panel onto the top of the appliance first (1). Then, gently place the panel against the body of the appliance (2).
1
10
2
English
English
Note
• When pouring water into the water tank,
make sure not to exceed the MAX water level indication.
4 Put the humidification filter into the
water tank.
4 Using the
appliance
Understand the air quality light
5 Push the water tank back into the
appliance.
Color of the air quality light
Blue Good Purple Fair Red Bad
The air quality light automatically goes on when the appliance is switched on, and shows all colors repeatedly. In a short while the air quality light selects the color that corresponds to the ambient air quality.
Note
• The built-in air quality sensor measures
the air quality and automatically selects the appropriate color of the air quality light. When the air is clean, the color of the air quality light is in blue. When the air quality deteriorates, the color of the air quality light changes to purple or red.
Air quality level
Switch on and off the appliance
The appliance operates under air purification combined with humidification by default.
1 Put the plug into the wall socket.
» All lights go on once and then go
out again.
11
2 Press to switch on the appliance.
» The PURIFY and HUMIDIFY lights
are on.
» After measuring the air quality
for a short while, the air quality sensor automatically selects the appropriate color of the air quality light.
» The appliance enters AUTO mode,
and the target humidity level is
50% by default.
Note
• After the appliance is switched off by the
on/off button , if the plug is still in the power socket, the appliance will resume working based on the last settings when it is switched on again.
Change the working mode
Besides operating under air purification combined with humidification, the appliance can also work under air purification only mode.
1 After the appliance is switched on,
press once.
» The HUMIDIFY and humidity
level indicators go out.
» The humidification function is
deactivated. The appliance works under air purification only mode.
3 Press for 2 seconds to switch off
the appliance.
2”
12
2 Press again to activate the
humidification function.
Note
• In air purification only mode, the
humidification button does not respond.
• The appliance cannot work under
humidification only mode.
English
English
Set the sensitivity of the air quality sensor
This appliance allows you to adjust the sensitivity of the air quality sensor. There are three sensitivity levels:
standard (default setting)
sensitive
extra sensitive
You can adjust the sensitivity of the air quality sensor in the following way:
Note
• When the appliance is set to a higher
sensitivity, the purifier becomes more allergic to the pollutants in the air. When the purifier is in AUTO mode, it is more likely to choose a higher fan speed than the standard mode. The air quality sensor selects the appropriate color of the air quality light in accordance with the higher sensitivity.
Fan speed light Sensitivity level
+ standard
sensitive extra sensitive
4 Press the fan speed button to
adjust the sensitivity level of the air quality sensor.
5 Press and hold for 2 seconds to
save the setting and switch off the appliance.
1 Unplug the appliance. 2 After a short while, put the plug in the
wall socket again.
3 Press and hold the fan speed
button and humidifier button simultaneously for 3 seconds.
» One or more fan speed lights
flash to show the current sensitivity level of the air quality sensor.
3”
Note
• When you are changing the sensitivity
level, if you do not change any settings, or if you do not press for 2 seconds after you have changed any settings, the appliance will resume normal work without saving any changes.
• After the sensitivity is changed and
saved, the appliance automatically starts operating at the preset sensitivity level whenever you switch on the appliance.
Change the fan speed
AUTO
In AUTO mode, the appliance selects the appropriate fan speed in accordance with the ambient air quality.
Press the fan speed button to select AUTO mode.
13
AUTO and one of the fan speed indicators ( , or ) light up.
Note
• In AUTO mode, when the air quality
reaches the target (air purification only mode), or when the air quality and humidity reach the target simultaneously (combi mode), the appliance will work with a lower fan speed, and the fan speed indicator ( , or ) goes out.
Manual
You can mannually select the desired fan speed.
Press the fan speed button once or more times to select the desired fan speed ( , or ).
Note
• Fan speed is available for AC4081
only.
• In Manual mode, when the air quality
reaches the target (air purification only mode), or when the air quality and humidity reach the target simultaneously (combi mode), the appliance will continue to work with the selected fan speed.
Tip
• If the air quality light is in blue color, this
means the air quality is good, and you can select a lower fan speed.
• On the other hand, if the air quality light
is in red or purple color, this means the air quality is bad or fair. You can select a higher fan speed to clean the air quickly.
Sleep mode
In sleep mode, the appliance operates very quietly.
Press the fan speed button to select the sleep mode.
» The sleep indicator lights up.
To change to another fan speed, press the fan speed button .
Note
• When the appliance switches to sleep
mode, the indicators goes out after 1 minute, and the appliance keeps working.
14
English
English
Set the timer
Set the humidity level
With the timer function, you can let the appliance operate for a set number of hours. When the set time has elapsed, the appliance automatically switches off.
1 Press the timer button to activate
the timer.
» The timer light ( , or ) goes
on.
2 Press the timer button repeatedly
to choose the number of hours you want the appliance to operate. The
corresponding timer light goes on. To deactivate the timer function, press the timer button repeatedly until the
timer light ( , or ) goes out.
Note
Make sure that the water tank is filled
with water when you want to use the humidification function (see the chapter "Get started", section "Prepare for humidification").
Press the humidity button once or more times to set the desired air humidity to 40%, 50% or 60%.
» The corresponding humidity light
(40%, 50% or 60%) starts to flash.
» When the appliance reaches
the target humidity level, the humidity level indicator remains on.
Note
• If you want to increase the humidity
level in shorter time, you can select a higher fan speed.
15
Set the child lock
Water level
Note
Child lock is only applicable for AC4081.
Press and hold the fan speed
button and timer button simultaneously for 3 seconds to activate child lock.
3”
» When the child lock is on, all
buttons are not responsive.
Press and hold the fan speed button and timer button simultaneously for 3 seconds again to deactivate child lock.
The water level in the water tank is visible through the water level window on the side of the appliance. When there is not enough water in the water tank, flashes to indicate that you have to refill the water tank.
3”
Note
• When the child lock is on, the appliance
will not respond when you press any button.
16
Note
• When there is no water in the water tank,
the refill water light remains on, and the humidification indicator flashes to remind users the humidification function is not working. When the water tank is refilled with water, the humidification function will be resumed.
• The refill water light does not light up
under air purification only mode.
Loading...
+ 36 hidden pages
