Register your product and get support at
www.philips.com/welcome
AC4064,AC4062,AC4054,AC4052
2
3 |
1 |
4
English 6
14
AC4064,AC4062,AC4054,AC4052
6English
Introduction
Congratulations on your purchase and welcome to Philips!To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.
With this new living room air purifier (AC4064/AC4062) or bedroom air purifier (AC4054/ AC4052) you breathe cleaner air. For the best results, place the living room air purifier (AC4064/ AC4062) or bedroom air purifier (AC4054/AC4052) in a room where you spend most of your time, e.g. the living room or bedroom.
Wherever there are people, plants or pets, there are airborne particles that can affect your well-being, especially if you suffer from allergies. Because of these particles, the air inside a room may be more polluted than the air in a large city.
Normally, particles are invisible and odourless. Nevertheless they can affect your health.The living room air purifier (AC4064/AC4062) or bedroom air purifier (AC4054/AC4052) reduces the amount of viruses, bacteria, animal dander and industrial pollutants in the air, which improves the air quality.
Filtration in several stages
The living room air purifier (AC4064/AC4062) or bedroom air purifier (AC4054/AC4052) has a unique multi-stage filtration system that ensures the best air quality:
-- Stage 1:The pre-filter catches big particles.
-- Stage 2:The corona particle charger charges finer particles.
-- Stage 3:The ESP particle filter traps charged ultra-fine particles. -- Stage 4:Active oxygen sterilises trapped bacteria and viruses.
-- Stage 5:The zeolite gas filter traps a wide range of harmful gases and odours.
-- Stage 6: Active oxygen reacts with the zeolite gas filter to clean out the trapped gases and odours, so that the filter rejuvenates.
General description (Fig. 1)
A Air inlet
B Air outlet
C Control panel AC4064/AC4054
1Standby light
2Smart air control light 3 Boost power light
4 Speed lights for low, medium and high speed
5 Air quality indicator
6 Function selection button
7 Timer lights (1, 4 or 8 hours)
8 Timer button
D Control panel AC4062/AC4052 1 On/off button
2Speed lights for low, medium and high speed 3 Speed selection slide
E Front panel
F ESP particle filter G Pre-filter
H Zeolite gas filter I Brush
J Corona particle charger K Recess
L Body of the appliance M Handle
English 7
Important
Read this user manual carefully before you use the appliance and save it for future reference.
Danger
-- Do not let water or any other liquid or flammable detergent enter the appliance to avoid electric shock and/or a fire hazard.
-- Do not clean the appliance with water or any other liquid or a (flammable) detergent to avoid electric shock and/or a fire hazard.
Warning
-- Check if the voltage indicated on the bottom of the appliance corresponds to the local mains voltage before you connect the appliance.
-- If the mains cord is damaged, you must have it replaced by Philips, a service centre authorised by Philips or similarly qualified persons in order to avoid a hazard.
-- Do not use the appliance if the plug, the mains cord or the appliance itself is damaged.
-- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
-- Children should be supervised to ensure that they do not play with the appliance.
-- Do not block the air inlet and outlet, e.g. by placing items on the air outlet or in front of the air inlet.
Caution
-- This appliance is not a substitute for proper ventilation, regular vacuum cleaning or use of an extractor hood or fan while cooking.
-- If the wall socket used to power the appliance has poor connections, the plug of the appliance becomes hot. Make sure you plug the appliance into a properly connected wall socket.
-- Always place and use the appliance on a dry, stable, level and horizontal surface. -- Leave at least 10cm free space behind and on both sides of the appliance.
-- Avoid knocking against the appliance (the air inlet and outlet in particular) with hard objects. -- Always lift or move the appliance by the handle at the back or the handgrips on both sides. -- Do not insert your fingers or objects into the air outlet or the air inlet.
-- Do not use this appliance when you have used indoor smoke-type insect repellents or in places with oily residues, burning incense or chemical fumes.
-- Do not use the appliance near gas appliances, heating devices or fireplaces. -- Always unplug the appliance after use and before you clean it.
-- Do not use the appliance in a room with major temperature changes, as this may cause condensation inside the appliance.
-- Do not use the appliance in a room that is larger or smaller than the recommended size.The recommended room size is 6m² up to 20m² for AC4054/AC4052 and 6m² up to 40m² for AC4064/AC4062.
-- The appliance is equipped with a safety device. If you have not placed the ESP particle filter, the zeolite gas filter and the front panel properly, you cannot switch on the appliance.
-- If the indoor air quality is poor (e.g. due to smoking or cooking or after renovation), we strongly advise you to open windows when you use the appliance to improve the air circulation.
-- The appliance is only intended for household use under normal operating conditions. -- Do not use the appliance in wet surroundings or in surroundings with high ambient
temperatures, such as the bathroom, toilet or kitchen. -- The appliance does not remove carbon monoxide (CO).
8English
Electromagnetic fields (EMF)
This Philips appliance complies with all standards regarding electromagnetic fields (EMF). If handled properly and according to the instructions in this user manual, the appliance is safe to use based on scientific evidence available today.
Before first use
Placing the zeolite gas filter
The appliance comes with all filters, except the zeolite gas filter, fitted inside.
Tip:Place the appliance against a wall for more stability when you remove or insert filters. Note:Make sure you insert the filters in the correct position (with the arrow facing upwards).
Note:The appliance is equipped with a safety device.If you have not placed the ESP particle filter,the zeolite gas filter and the front panel properly,you cannot switch on the appliance.

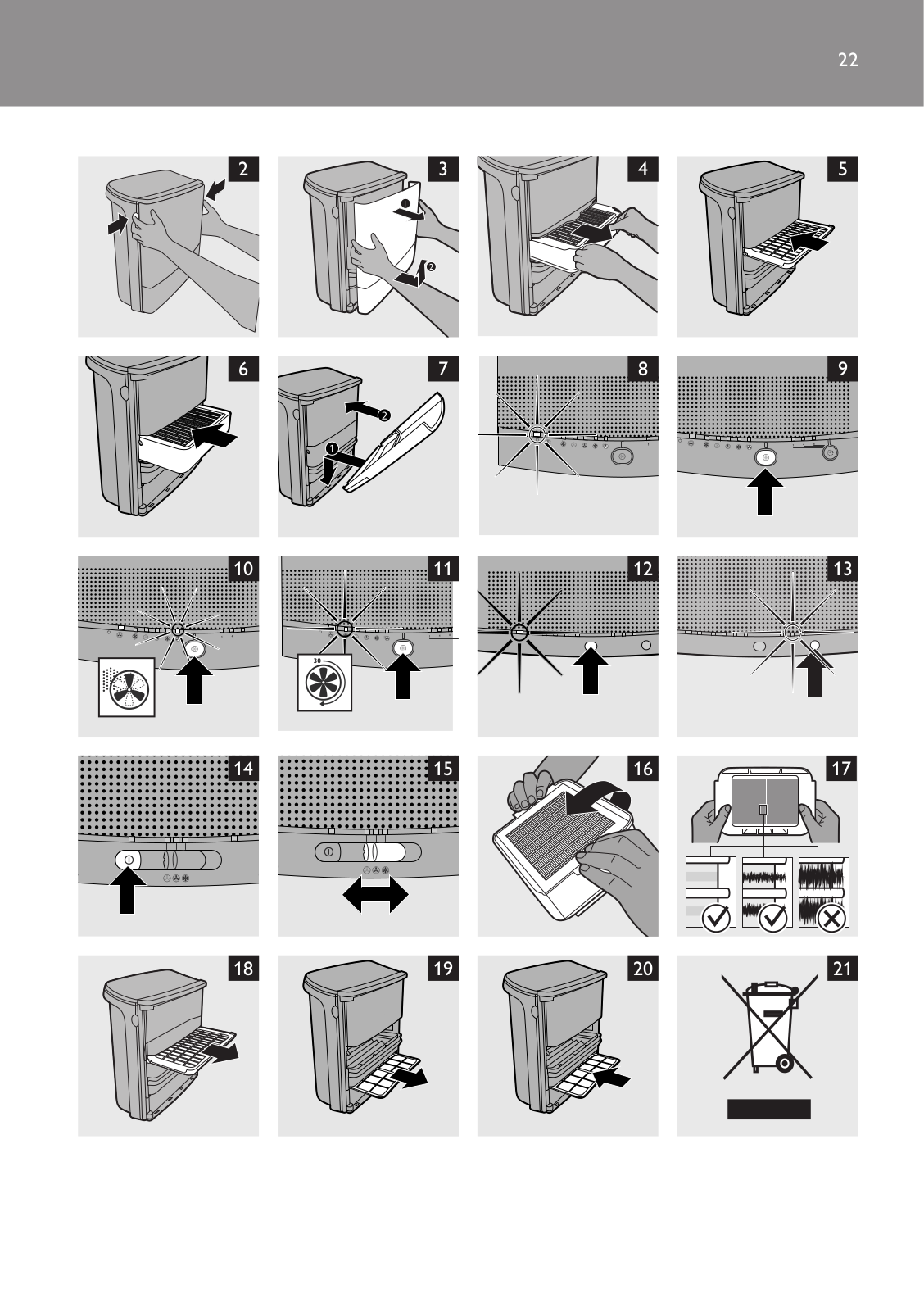

1 Place your fingers in the recesses of the side panels. (Fig. 2)
2Gently pull the top part of the front panel off the appliance (1) and then lift the panel upwards to remove it (2) (Fig. 3).
3To remove the ESP particle filter, grab the filter handles on both sides and gently slide the filter out of the appliance. (Fig. 4)
4Remove all packaging material from the zeolite gas filter and slide the filter into the appliance. (Fig. 5)
,, You can only insert the zeolite gas filter after you have removed the particle filter. 5 To insert the ESP particle filter,slide it into the appliance (‘click’) (Fig. 6).
6To reattach the front panel,insert the bottom edge first (1) and then press the top part home (2) (Fig. 7).
Using the appliance
AC4064/AC4054
1 Put the plug in the wall socket ,, The standby light goes on (Fig. 8).
2 Press the function selection button one or more times to select the required function and setting (Fig. 9).
The corresponding light goes on and the standby light goes out.
,, Smart air control:the built-in air sensor determines the ambient air quality and automatically selects the most appropriate speed.In the first few minutes after you select the Smart air control function, the air quality indicator flashes red to indicate that the air quality sensor is measuring the ambient air quality.After approximately 5 minutes,the air quality indicator lights up green if the air quality is good or lights up red if the air quality is poor (Fig. 10).
,, Boost power:the appliance operates at high speed for 30 minutes (Boost power light is on) and then automatically switches to Smart air control (Boost power light goes out and Smart air control light goes on) (Fig. 11).
,, Speed:the appliance operates at the speed you select.
-- ê = low speed
-- ë = medium speed -- í = high speed
3To stop the appliance from operating,press the function selection button until the standby light goes on (Fig. 12).
