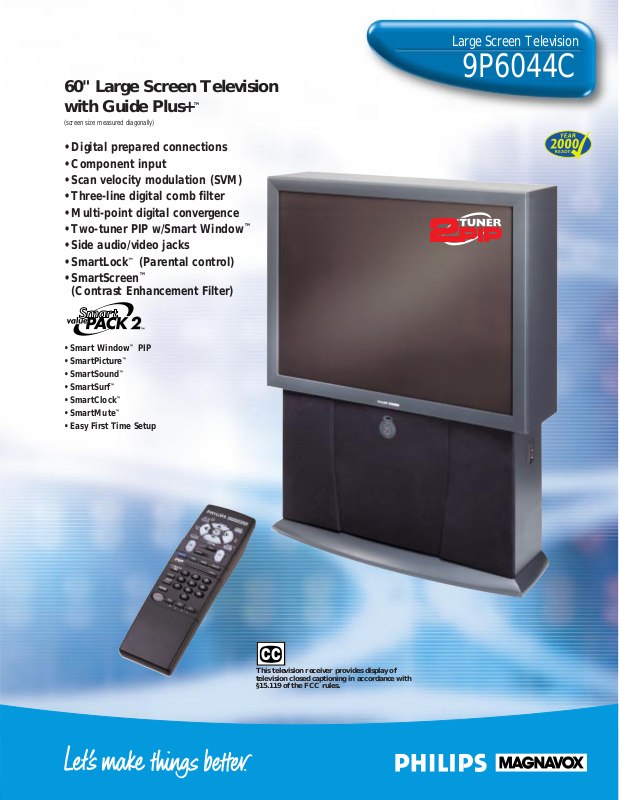

Philips 9P 6044C User Manual

60" Large Screen Television with Guide Plus+

™

(screen size measured diagonally)

• Digital prepared connections

• Component input

• Scan velocity modulation (SVM)

• Three-line digital comb filter

• Multi-point digital convergence

• Two-tuner PIP w/Smart Window

™

• Side audio/video jacks

• SmartLock

™

(Parental control)

• SmartScreen

™

(Contrast Enhancement Filter)

• Smart Window™PIP

• SmartPicture

™

• SmartSound

™

• SmartSurf

™

• SmartClock

™

• SmartMute

™

• Easy First Time Setup

Large Screen Television

9P6044C

This television receiver provides display of television closed captioning in accordance with

§15.119 of the FCC rules.


Digital Prepared Connections

Supports virtually any digital device on the market through a range of connectors including Component Video, S-Video, and video inputs.

Scan Velocity Modulation (SVM)

Proven beam control technology provides clean transitions from light to dark portions of the picture. The result is sharper edges on all images for outstanding clarity and detail.

MagnaBrite™ Lenses Incredible Picture™ Wideband Video Amplifier Multipoint Convergence 3-Line Digital Comb Filter Black Stretch SmartScreen

™

(Contrast Enhancement Filter) Dynamic Blue Stretch

Remote Control

Backlit LED Remote Control

No more fumbling with tiny buttons; just press the button and the 4-way cursor, volume ¶Ä , channel ¶Ä , menu, and surf buttons light up.

Universal TV/VCR/DVD/DBS/Cable Remote

Controls all features and functions of this monitor/receiver with direct menu access plus activates Smart Window™PIP with Action Freeze, Position and Swap; and exclusive SmartSound™and SmartPicture

™

options. This remote also controls all important operating features and functions of virtually all infrared VCRs, DVDs, Digital Broadcast Systems, and on/off and channel up/down on most cable converter/decoders. (Remote # Y149GEAA01)

Convenience

SmartLock

™

Protect young children from harmful programming with V-chip technology based on the Motion Picture Association of America (MPAA) and the network television rating systems.

Guide Plus+™Programming

Hi-tech software that captures and automatically downloads advanced programming information for all television program listings, plot descriptions, ratings, artist names, and program length. The featured channel window displays the current channel or locks in a select channel. Other features include one-touch record, one-touch scheduling, direct-tune, and sort-by-theme.

Two-Tuner PIP

Enjoy all the benefits of Smart Window™ PIP without a VCR! You can tune to your favorite show with tuner one, for example, while scanning other channels with tuner two in the PIP window. The A/V inputs are also available as PIP sources so all functions of standard PIP are still accessible.

Side A/V Jacks PIP Audio SmartPicture™w/Personal Preference Component Input Channel Label Advanced Help Menu SmartSurf

™

SmartClock

™

SmartMute

™

Easy First Time Setup Trilingual Onscreen Display Auto Programming Closed Caption Channel Reminder Display Channel Edit Onscreen Clock with Sleep Timer and Alarm Timer

Sound

25-Watt dbx®Hi-Fi Stereo Sound System

Experience all the benefits of live entertainment with none of the hassle. Built-in MTS/SAP decoder, bass boost, and individual bass, treble, and balance controls for personal listening preference. dbx®noise reduction eliminates hiss and high-frequency interference (12.

5 Watts RMS per

channel into 8Ω, from 50Hz to 20kHz, with no more than 0.5% Total Harmonic Distortion).

SmartSound

™

Incredible Stereo

™

True Surround Sound Onscreen Volume Bar Onscreen Tone Controls Subwoofer Output

with Bass Boost

Audio/Video Jack Panel JP9526

Additional Features Include:

• 160° wide-angle screen

• 550 foot lamberts peak brightness

• 7" liquid-cooled, liquid-coupled tubes

• 181-total channel capability

• Clearview video noise reduction

• Random channel access

• Programmable scan tuning

• 120-minute sleep timer

• Total remote menu-format tuning with multicolor onscreen graphics

• 4-way cursor directional control

• One-button picture reset

• Status recall

• Mono/stereo/SAP select

• Cable/normal select

• Two 5", full-range round speakers

SUBWOOFER

PIP

ANT B/CABLE 75Ω UHF/VHF

INPUTS

AUDIO OUT

VIDEO OUT

SIDE PANEL

BACK PANEL

REAR SURROUND SPEAKERS

ANT A/CABLE 75Ω UHF/VHF

PIP

VAR

VIDEO

S-VIDEO

AUX 2AUX 1

AUDIO

FIXED

IR BLASTER

Large Screen Television

9P6044C

Specifications subject to change without notice.

dbx® is a registered trademark of dbx, Inc., Sunnyvale, CA. GUIDE Plus+ is a trademark of Gemstar Development Corp. Magnabrite, Incredible Picture, SmartClock, Smart Window, SmartSound, SmartPicture, SmartMute, SmartSurf,

Incredible Stereo, SmartScreen, and SmartLock are trademarks of Philips Consumer Electronics Company.

UPC: 0 37849 87908 5 Product dimensions: 52.44"W x 64.0"H x 29.12"D Product weight: 215 lbs. Carton dimensions: 56.44"W x 65.56"H x 33.88"D Carton weight: 250 lbs. Master pack: 1

Carton Contains: 60" Large Screen TV, Backlit Universal TV/VCR/DVD/DBS/CBL Remote Control/w Batteries, Guide Plus IR Shooter, Operating Instructions, Warranty Information
