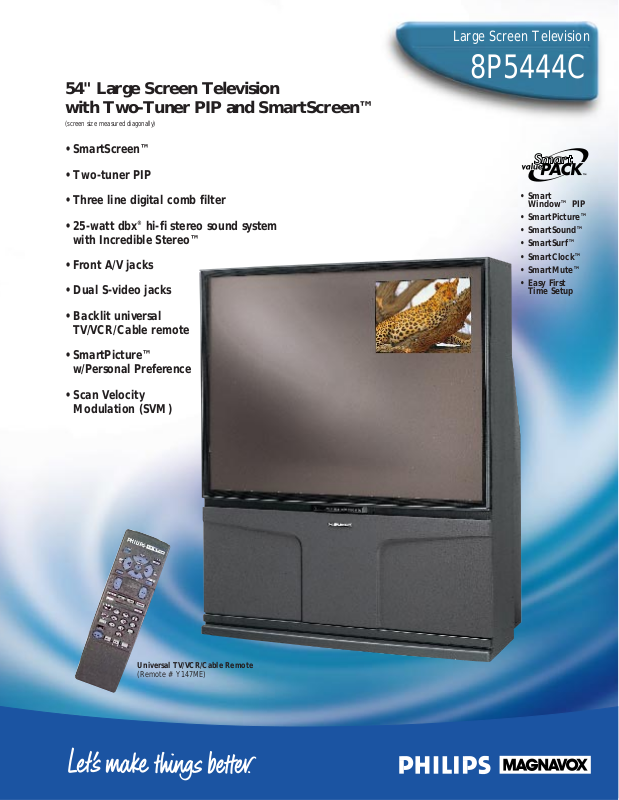

Philips 8P5444C User Manual

54" Large Screen Television with Two-Tuner PIP and SmartScreen™

(screen size measured diagonally)

• SmartScreen™

• Two-tuner PIP

• Three line digital comb filter

• 25-watt dbx

hi-fi stereo sound system

with Incredible Stereo™

• Front A/V jacks

• Dual S-video jacks

• Backlit universal TV/VCR/Cable remote

• SmartPicture™ w/Personal Preference

• Scan Velocity Modulation (SVM)

Large Screen Television

8P5444C

• Smart Window™ PIP

• SmartPicture™

• SmartSound™

• SmartSurf™

• SmartClock™

• SmartMute™

• Easy First Time Setup

Universal TV/VCR/Cable Remote

(Remote # Y147ME)

Large Screen Television

8P5444C


SmartScreen™ (Contrast Enhancement Filter)

In addition to providing substantial increase in visual contrast, this SmartScreen™ lends a “direct-view look” to a large screen television and prevents serious accidental damage to the delicate front lenticular screen. It’s almost like having a full-time body guard watching over your investment.

MagnaBrite™ Lenses

By moving the red, green, and blue guns closer to the view screen, more consistent edge-to-edge brightness and contrast become a reality. Add the advantage of Delta 77/78 optics and the focal length of the guns is dramatically reduced–producing crisp, well-defined large screen images and slim cabinet design.

Three-Line Digital Comb Filter

Improved chroma/luminance separation over standard two-line glass comb filters for a difference you can really see, with 730 lines of horizontal resolution

and no diagonal resolution degradation on monochrome signals. Offering vertical edge enhancement and virtually no “dot crawl,” it easily supports the demands of DVD Video players, Web browsers, and other advanced, high-resolution video media (through A/V inputs).

Scan Velocity Modulation (SVM) Wideband Video Amplifier Digital Convergence Luminance Transience Improvement (LTI™) Dynamic Blue Stretch Black Stretch

Remote Control

Backlit LED Remote Control

Makes it easy to use all remote TV functions even in low light conditions. No more fumbling with tiny buttons; just press the glow-in-the-dark STATUS button and all major function buttons light up.

Universal TV/VCR/Cable Remote

Controls all features and functions of this monitor/receiver with direct menu access plus activates Smart Window™ PIP with Action Freeze, Position and Swap; and exclusive SmartSound™ and SmartPicture™ options. This remote also controls all important operating features and functions of virtually all infrared VCRs, and on/off and CHANNEL ▲▼ on most cable converter/decoders. (Remote # Y147ME)

Convenience

Two-Tuner PIP

Now you can enjoy all the benefits of Smart Window™ PIP without a VCR! With two separate tuners (and two separate tuner inputs) you can tune to your favorite show with tuner one, for example, while scanning other channels with tuner two in the PIP window. The A/V inputs are also available as PIP sources so all functions of standard PIP are still accessible. You can swap the main and secondary pictures, position secondary pictures in any screen corner, even freeze the main picture information and put it into the inset picture. In all cases, the main picture is provided with its corresponding audio. A size select menu function allows you to reduce the size of the inset picture by approximately 50%.

PIP Audio

Allows you to enjoy the audio portion of the telecast selected for the Smart Window™ inset along with the audio portion of the main picture telecast or in place of it.

SmartPicture™ with Personal Preference

A touch of the SMART button on the remote control provides the option of selecting one of 5 preset positions, VIDEO GAME, SPORTS, MOVIES, CUSTOM, or WEAK SIGNAL, to enhance enjoyment. Select the desired option and all important picture elements are instantly adjusted to optimize viewing pleasure while input selection, PIP functions, and other performance specifications are customized for your viewing convenience.

Sound

25-Watt dbx®Hi-Fi Stereo Sound System

Experience all the benefits of live entertainment with none of the hassle. Its built-in MTS/SAP decoder permits reception and reproduction of broadcast stereo television programs as well as Second Audio Program transmissions (where available). It also features bass boost for enhanced low frequency reproduction and individual bass, treble, and balance controls for personal listening preference. dbx®noise reduction eliminates hiss and high-frequency interference (12.5 Watts RMS per channel into 8Ω, from 50Hz to

20kHz, with no more than 0.5% Total Harmonic Distortion). SmartSound™

True Surround Sound Incredible Stereo™ Bass Boost Onscreen Volume Bar

Audio/Video Jack Panel

Audio/Video Jack Panel (GR7D-23)

The A/V jack panel on the back of this set includes 2 standard 75Ω antenna inputs, multiple audio/video inputs at both the front and rear panels for connection of a VCR, DVD Video player, Web browser, or other accessory equipment; fixed audio outputs and variable surround sound audio outputs that let sound from the TV or accessories be routed through a home audio system; 2 S-Video inputs for connection of high-resolution video accessories, L/R PIP audio outputs, L/R (+/-) speaker jacks, and a menu-selectable speaker switch for choosing internal or external sound systems.

Surround Sound Jacks Second S-Video Jack

Additional Features Include:

UPC: 037849871508 Product dimensions: 45.9"W x 56.8"H x 26.3"D Product weight: 250 lbs. Carton dimensions: 51.0"W x 59.0"H x 31.0"D Carton weight: 267 lbs. Master pack: 1

Carton Contains: 54" Large Screen TV, Backlit Universal TV/VCR/CBL Remote Control w/Batteries, Operating Instructions, Warranty Information

Lines per picture width. 550 based on EIA measurement procedures.

Subject to modification without notice.

* dbx

is a registered trademark of dbx, Inc., Sunnyvale, CA. Smart Window, SmartSound, SmartPicture, SmartMute, SmartSurf, and Incredible Stereo are trademarks of Philips Consumer Electronics Co.

• 160° wide-angle screen/ 550 foot lamberts peak brightness

• Delta 77/78 lenses with curved faceplate

• 7" liquid-cooled, liquid-coupled tubes

• 181-total channel capability

• Clearview video noise reduction

• Random channel access

• Programmable scan tuning

• Total remote menu-format tuning with multicolor onscreen graphics

• 4-way cursor directional control

• One-button picture reset

• Status recall

• Mono/stereo/SAP select

• Cable/normal select

• Two 5" round speakers

SmartSurf™ Front A/V Jacks Channel Label Advanced Help Menu SmartClock™ SmartMute™ Easy First Time Setup Onscreen Clock with Sleep Timer

Trilingual Onscreen Display Auto Programming Closed Caption Channel Reminder Channel Display Channel Edit Parental Control
