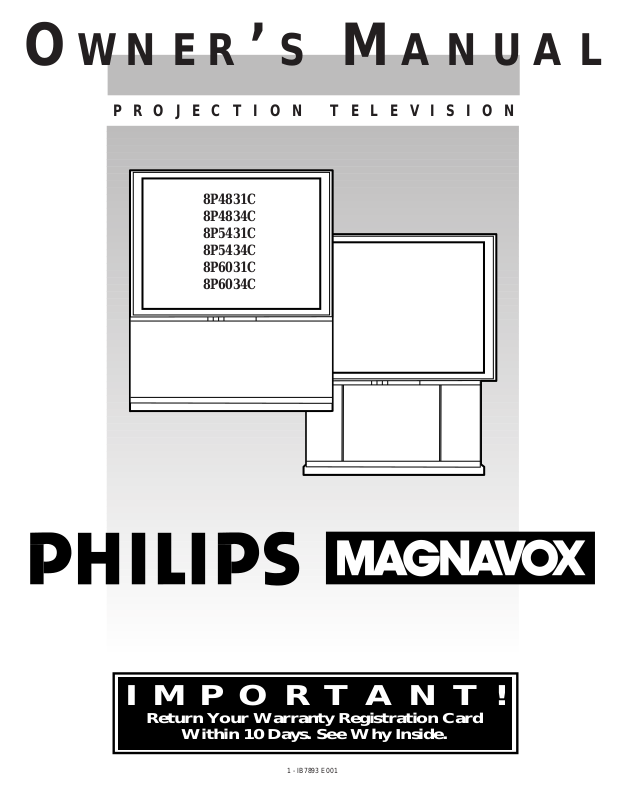

Philips 8P5431C, 8P6034C User Manual

Page 1
IMPORTANT!
Return Your Warranty Registration Card
Within 10 Days. See Why Inside.
O WNERS MANUAL
PROJECTION TELEVISION
1 - IB7893 E001
Page 2
Once your PHILIPS MAGNAVOX purchase is registered, you’re eligible to receive all the privileges of
owning a PHILIPS MAGNAVOX product. So complete and return the Warranty Registration Card
enclosed with your purchase at once. And take advantage of these important benefits.
Return your Warranty Registration card today to ensure you receive
all the benefits you’re entitled to.
Congratulations
on your
purchase,
and welcome to the
“family!”
Dear PHILIPS MAGNAVOX product owner:
Thank you for your confidence in PHILIPS MAGNAVOX. You’ve selected one of the best-built, best­backed products available today . And we’ll do everything in our power to keep you happy with your purchase formany years to come.
As a member of the PHILIPS MAGNAVOX “family,” you’re entitled to protection by one of the most comprehensive warranties and outstanding service networks in the industry.
What’s more, your purchase guarantees you’ll receive all the information and special offers for which you qualify, plus easy access to accessories from our convenient home shopping network.
And most importantly you can count on our uncompromising commitment to your total satisfaction. All of this is our way of saying welcome–and thanks for investing in a PHILIPS MAGNAVOX product.
Sincerely ,
Robert Minkhorst President and Chief Executive Officer
Know these
safety
symbols
t This “bolt of lightning” indicates uninsulated material within your unit which may cause an
electrical shock. For the safety of everyone in your household, please do not remove the product covering.
s The “exclamation point” calls attention to features for which you should read the enclosed lit-
erature closely to prevent operating and maintenance problems. WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS EQUIPMENT
TO RAIN OR MOISTURE. CAUTION: To prevent electric shock, match wide blade of plug to wide slot, and fully insert. ATTENTION: Pour éviter les chocs électriques, introduire la lame la plus large de la fiche dans la
borne correspondante de la prise et pousser jusqu’au fond.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
Warranty
Verification
Registering your product within 10 days confirms your right to max­imum protection under the terms and conditions of your PHILIPS MAGNAVOX warranty.
Owner
Confirmation
Your completed Warranty Registration Card serves as verification of ownership in the event of product theft or loss.
Model
Registration
Returning your Warranty Registration Card right away guar­antees you’ll receive all the infor­mation and special offers which you qualify for as the owner of your model.
P.S. Remember, to get the most from your PHILIPS
MAGNAVOX product, you must return your Warranty Registration Card within 10 days. So please mail it to us right now!
R
E
G
I
S
T
R
A
T
I
O
N
N
E
E
D
E
D
W
I
T
H
I
N
1
0
D
A
Y
S
Hurry!
Visit our World Wide Web Site at http://www.philipsmagnavox.com
2
Page 3
SAFETY INSTRUCTIONS - Read before operating equipment
This product was designed and manufactured to meet strict quality and safety standards. There are, however, some installation and operation precautions which you should be particularly aware of.
1. Read Instructions - All the safety and operating instructions should be read before the appliance is operated.
2. Retain Instructions - The safety and operating instructions should be retained for future reference.
3. Heed Warnings - All warnings on the appliance and in the operating instructions should be adhered to.
4. Follow Instructions - All operating and use instructions should be followed.
5. Water and Moisture - The appliance should not be used near water
- for example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement or near a swimming pool, etc.
6. Carts and Stands - The appliance should be used only with a cart or stand that is recommended by the manufacturer.
6A. An appliance and cart combination should be moved
with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.
7. Wall or Ceiling Mounting - The appliance should be mounted to a wall or ceiling only as recommended by the manufacturer.
8. Ventilation - The appliance should be situated so that its location or position does not interfere with its proper ventilation. For example, the appliance should not be situated on a bed, sofa, rug, or similar surface that may block the ventilation openings; or, placed in a built-in installation, such as a bookcase or cabinet that may impede the flow of air through the ventilation openings.
9. Heat - The appliance should be situated away from heat sources such as radiators, heat registers, stoves, or other appliances (including amplifiers) that produce heat.
10. Power Sources - The appliance should be connected to a power supply only of the type described in the operating instructions or as marked on the appliance.
11. Power-Cord Protection - Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords and plugs, convenience receptacles, and the point where they exit from the appliance.
12. Cleaning - The appliance should be cleaned only as recommended by the manufacturer.
13. Power Lines - An outdoor antenna should be located away from power lines.
14. Outdoor Antenna Grounding - If an outside antenna is connected to the receiver, be sure the antenna system is grounded so as to pro­vide some protection against voltage surges and built up static charges.
Section 810 of the National Electric Code, ANSI/NFPA No. 70-1984, provides information with respect to proper grounding of the mats and supporting structure grounding of the lead-in wire to an anten­na discharge unit, size of grounding connectors, location of anten­na-discharge unit, connection to grounding electrodes and require­ments for the grounding electrode. See Fig. below.
15. Non-use Periods - The power cord of the appliance should be unplugged from the outlet when left unused for a long period of time.
16. Object and Liquid Entry - Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through open­ings.
17. Damage Requiring Service - The appliance should be serviced by qualified service personnel when:
A. The power supply cord or the plug has been damaged; or B. Objects have fallen, or liquid has been spilled into the appli-
ance; or
C. The appliance has been exposed to rain; or D. The appliance does not appear to operate normally or exhibits
a marked change in performance; or
E. The appliance has been dropped, or the enclosure damaged.
18. Servicing - The user should not attempt to service the appliance
beyond that described in the operating instructions. All other servic­ing should be referred to qualified service personnel.
Note to the CATV system installer: This reminder is provided to call the CATV system installer's attention to Article 820-40 of the NEC that pro­vides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.
ANTENNA LEAD IN WIRE
ANTENNA DISCHARGE UNIT
(NEC SECTION 810-20)
GROUNDING CONDUCTORS (NEC SECTION 810-21)
GROUND CLAMPS
POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250, PART H)
GROUND CLAMP
ELECTRIC SERVICE EQUIPMENT
EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE (NEC)
Example of Antenna Grounding as per NEC - National Electric Code
3
Page 4
TABLE OF CONTENTS
Getting Started
Welcome/Product Registration ...................2
Safety/Precautions .....................................................3
Table of Contents.......................................................4
Features and Model Information................................5
On-Screen Features
PICTURE MENU
Adjusting Color, Brightness, Sharpness,
Tint, and Picture Controls...................................6
Using the Clearview Control...............................7
Using the Flesh Correction Control ....................7
Adjusting the TV's Convergence Control ...........8
FEATURES MENU
Selecting a Picture Source ..................................9
Setting the TV for Closed Captioning...............10
Setting the TV for Cable or Antenna Signals....11
Adding Channels in Memory (Automatically) .12
Adding Channels in Memory (Manually).........13
Setting the TV Clock.........................................14
Turn-On Timer..................................................15
Using the Sleep Timer Control .........................15
Using the Time/Channel Reminder Control......16
Using the Parental Control...........................17-18
Adjusting the Channel Display Control............19
Using the Language Control .............................19
SOUND MENU
Adjusting Bass, Treble, and Balance Sound
Controls.............................................................20
Setting the Bass Boost Control ........................20
Setting the TV for Stereo and SAP Programs ..21
Using the Sound Image Control........................22
Using the Volume Display Control...................22
Using the TV Speaker On/Off Control with
the Audio Output jacks .....................................23
Surround Sound Speaker Connections and
Variable Audio Output Control ........................24
Using the TV's Audio/Video Input and
Output Jacks ...............................................25-27
Remote Control Operation
Using the Smart Picture Control.................28
Using the Smart Sound Control...............................28
Using the Smart Surf Control and the Surf button...29
Setting the Remote to Work VCRs ....................30-31
Setting the Remote to Work
Cable TV Converters..........................................32-33
Setting the Remote to Work VCRs or Cable
Converters - "Search Method".................................34
Using the Remote's VCR buttons ............................35
Picture-In-Picture (PIP)
How to Use PIP (Connections)...........................36-37
How to Use PIP with the TV Remote......................38
Selecting the Picture Source for PIP........................39
Adjusting Picture-in-Picture Color and Tint............40
More PIP Connections (Cable Converter)...............41
General Information
Tips if Something Isn’t Working.............................42
TV Help Menu.........................................................43
Glossary of TV Terms .............................................44
Index ........................................................................45
Factory Service Locations..................................46-47
Warranty ..................................................................48
Copyright © 1998 Philips Consumer Electronics Company. All rights reserved.
12
1
2
3
4
5
6
7
8
9
10
11
Use the simple Set-Up Guide (supplied with your TV information packet) for details on:
• Antenna Hook-ups
• First Time Set-Up (Automatic Settings)
• Basic TV and Remote Control Operation
• On-Screen Menu Use
SET-UP AND QUICK USE GUIDE
SET-U
P ANDQUICKUSEGUIDE
TABLEOF CONTENTS
Getting Started
Warning/Precautions..................................1
Hooking Up Your TV................................1
How to Use the First Time Set-Up Control ..............2
Basic TVand Remote Control Operation.................3
How to Use the On-Screen Menu Controls...............4
1
2 1
2 3
4 5 6
7
8
9
1
0
1
1
• For details on product registration, warranty, and service refer to the other literature included
with your TVinformation packet. Please retain all these materials and keep them handy for future reference.
1
75V UHF/VHF
ANT/CABLE
REAR SURROUND EXT. SPEAKERS
VCR/AUX IN VIDEOAUDIO
RL
R
L 8V
+
-
R
L
VIDEO OUT
VAR AUDIO OUT SUR AUDIO OUT
75V UHF/VHF
ANT/CABLE
REAR SURROUND EXT. SPEAKERS
VCR/AUX IN
VIDEO AUDIO
RL
R
L 8V
+
-
R
L
VIDEO OUT
VAR AUDIO OUT SUR AUDIO OUT
2
A
combination (outdoor
or indoor) antenna receives normal broadcast channels 2-13 (VHF) and 14-69 (UHF). Your con­nection to such an antenna is easy since there is only one antenna plug (75­ohm) on the back of your TV- and that’s where the antenna goes.
ANTENNA
OUTDOOR/INDOOR
Remember, be sure to set the TVfor the type sig­nal you've connect­ed (see "SETUP" on page 2 of this Guide.)
To order any optional accessory contact your dealer or call the toll-free accessory ordering number (1-800-292-
6066):
SMART HELP
If yourantenna has a
round cable(75 ohm) on the
end, then you're ready to con­nect it to the TV.
If yourantenna has flat twin­lead wire (300 ohm), you first
need to attach the antenna wires to the screws on a 300 to 75 ohm adapter.
Push the round endof the
adapter (or antenna) onto the ANTENNAplug on the rear of the TV. If the round end of the antenna wire is threaded, screw it down tight.
2
STOP
300 to 75
Adapter
(483521827003)
Twin Lead
Wire
Back of TV
BEGIN
1
WARNING: TO PREVENTFIRE OR SHOCK HAZARD DO NOTEXPOSE THIS UNITTO RAIN OR EXCESSIVE MOISTURE.
Note: For homes with separate UHF and VHF anten­nas you will need an optional combiner to connect to the TV.
U/VCombiner
75-300 Ohm Adapter
Round Cable
75Ohm
Combination VHF/UHF Antenna
(Outdoor or Indoor)
Back of TV
Projection Television and Remote Control
4
NOTE: This owner's manual is used with several differ­ent television models. Not all features (and drawings) discussed in this manual will necessarily match those found with your television set. This is normal and does not require you contacting your dealer or requesting ser­vice.
Because of continuous product improvements, the informa­tion mentioned in the documents accompanying your product are subject to change without notice.
R
S
ma
rt.Verysmart.
UHF
300
V
V
H
F
V H F
ANT/CABLE REAR SURROUND 75V UHF/VHF EXT. SPEAKERS
R
VIDEO
VAR AUDIO OUT
VCR/AUX IN
SUR AUDIO OUT
VIDEOAUDIO
OUT
L
L
+
-
R
RL
8V
OR
R E T P A D
0 A 5-30 7
Page 5
First Time Set Up - automatically sets the TV for local channels and the correct picture signal (antenna or cable). It even helps you make the necessary con­nections for the Picture-In-Picture (PIP) feature. See your Set-up and Quick Use Guide for details.
Infrared Remote Control - operates your TV set and a variety of wireless remote control VCRs and Cable TV Converters.
Standard TV broadcast (VHF/UHF) or Cable TV (CATV) channel capability.
Closed Captioning - allows the viewer to read TV
program dialogue or voice conversations as on-screen text.
Automatic Programming of channels - for quick and easy selection of favorite stations available in your area.
Picture-In-Picture (PIP) - can show a TV program and the direct video output from an accessory (VCR, etc.) onto the TV screen at the same time.
Stereo TV - with a built-in audio amplifier and a twin speaker system, reception of TV programs in both broadcast stereo sound or (SAP) bilingual broad­cast are available.
On-Screen Features - display helpful information for the setting of TV controls (such as help messages, operating tips and glossary).
Parental Controls - for “censoring” or blocking out channels to keep children from watching undesirable programming.
Audio/Video Jacks - for direct connections with VCRs (and other accessories) for quality TV picture and sound playback.
Surround Sound - external audio speaker connec­tions.
Sleep-Timer - automatically turns the TV OFF at preset time intervals.
Smart Button - for the control of TV Sound and Picture levels. Use the Smart Button on the remote to quickly adjust Smart Sound (to set TV Volume levels during program changes or commercial breaks); Smart Picture (for programmed video level adjust­ments on a variety of program sources); and Smart Surf (for quick one button channel selection of up to 10 of your favorite channels).
FEATURES
As you unpack your TV please note that the fol­lowing items have been included with your set:
• Owner's Manual
- Safety Tip Information
- Factory Service Center Locations
• Warranty Registration Card
• Remote Control Transmitter
• Batteries for Remote Control Use
Please take a few minutes to complete your regis­tration card. The serial number for the TV is on the back of the set.
Refer to the back of this manual for instructions on the cleaning and care of the TV.
12
1
2
3
4
5
6
7
8
9
10
11
5
End-of-Life disposal
Your new projection television and its packaging contain materials that can be recycled and reused. Specialized companies can recycle your product to increase the amount of reusable materials and minimize the amounts which need to be properly disposed.
Your product also uses batteries which should not be thrown away when depleted, but should be handed in and disposed of as small chemical waste.
Please find out about the local regulations on how to dispose of your old television, batteries, and packaging materials whenever you replace exist­ing equipment.
Page 6
PICTURE MENU CONTROL ADJUSTMENTS
MAIN MENU
FEATURES
SOUND
HELP
EXIT
PICTURE MENU
SHARP
CLEARVIEW
EXIT
1 OF 2
COLOR TINT
MORE...
BRIGHT
HELP
EXIT
NEXT...
MIN
MAX
COLOR
STOP
REW
§§
FF
©©
PLAY
©
REC
STATUS
VOL
CH
1
2
3
4
5
6
7
8
9
0
ON/OFF
TV /VCR
VCR
CBL
TV
SWAP
FREEZE
POS
SIZE
ENTER
M
E
N
U
M
CLEAR
~
!
SURF
MUTE
PAUSE II
SLEEP
SMART
100+
POWER
M
ODE
1
1
2
3
COLOR, BRIGHTNESS,
SHARPNESS, TINT, PICTURE
STOP
T
o adjust your TV color and
picture controls, select a TV channel and follow the steps shown below:
Select BRIGHTNESS, PIC-
TURE, COLOR, TINT, or
SHARPNESS picture control.
With the PICTURE MENU on screen, move the RED highlight with the MENU buttons. Then
press the MENU (M) button.
Press the (+) or (-) buttons to
adjust the selected control.
Press the STATUS button to
clear the screen.
1
2
3
SMART HELP
Remember. When the bar
scale is centered, control set­tings are at normal mid-range lev­els.
BRIGHTNESS Press (-) or (+) until dark parts of the picture show good detail.
PICTURE Press (-) or (+) until whitest parts of the picture are as bright as you prefer.
COLOR Press (-) or (+) to add or eliminate color.
TINT Press (-) or (+) to obtain natu­ral skin tones. (Also see Flesh Correction on page 9 for more infor­mation).
SHARPNESS Press (-) or (+) to improve detail in the picture.
BEGIN
Select and then press MENU (M) button to view an explanation of the selected feature.
Select and then press MENU (M) button to view additional controls grouped under same feature heading. For Example: Tint, Brightness, Picture, etc.
~!
S
T
O
P
M
Press MENU (M)§©
to move from Side-to-
Side within the Menu.
HOW TO SELECT FEATURES
(WITH BUTTONS ON THE REMOTE)
Press MENU (M) ▲ ▼ to move Up and Down within the Menu.
Press MENU (M) to select RED high­lighted feature.
6
Page 7
PICTURE MENU CONTROLS (CONTINUED)
MAIN MENU
FEATURES
SOUND
HELP
EXIT
SHARP
EXIT
1 OF 2
COLOR TINT
MORE...
BRIGHT
CLEARVIEW
PICTURE MENU
CLEARVIEW
EXIT
NEXT...
NORMAL
ENHANCED
HELP
STOP
REW
§§
FF
©©
PLAY
©
REC
STATUS
VOL
CH
1
2
3
4
5
6
7
8
9
0
ON/OFF
TV /VCR
VCR
CBL
TV
SWAP
FREEZE
POS
SIZE
ENTER
M
E
N
U
M
CLEAR
~
!
SURF
MUTE
PAUSE II
SLEEP
SMART
100+
POWER
M
ODE
1
1
3
2
2
C
learview is a sharpness feature
which smoothes out back­ground snow (or picture noise) without losing picture image detail or crispness.
Select CLEARVIEW control.
With the PICTURE MENU on screen, move the RED highlight with the MENU buttons. Then
press the MENU (M) button.
Press the MENU ▲▼ buttons
to move the RED highlight. Press the MENU button to select (U) the ENHANCED mode.
Press the STATUS button to
clear the screen.
CLEARVIEW
STOP
1
2
3
BEGIN
7
MAIN MENU
FEATURES
SOUND
HELP
EXIT
PICTURE MENU
FLESH CORRECTION
EXIT
2 OF 2
PIP COLOR PIP TINT
MORE...
CONVERGENCE
PICTURE MENU
SHARP
CLEARVIEW
EXIT
1 OF 2
COLOR TINT
MORE...
BRIGHT
FLESH CORRECTION
HELP
EXIT
ON
OFF
STOP
REW
§§
FF
©©
PLAY
©
REC
STATUS
VOL
CH
1
2
3
4
5
6
7
8
9
0
ON/OFF
TV /VCR
VCR
CBL
TV
SWAP
FREEZE
POS
SIZE
ENTER
M
E
N
U
M
CLEAR
~
!
SURF
MUTE
PAUSE II
SLEEP
SMART
100+
POWER
M
ODE
1
1
3
2
2
U
se the Flesh Correction con-
trol to keep skin tone hues (or facial tint) from varying from TV channel to TV channel.
Select FLESH CORREC-
TION control.
With PICTURE MENU (2 of 2) on screen, move the RED highlight with the MENU buttons. Then
press the MENU (M) button.
Press the MENU ▲▼ buttons
to move the RED highlight. Press the MENU button to turn (U) the FLESH CORRECTION control ON.
Press the STATUS button to
clear the screen.
FLESH CORRECTION
STOP
1
2
3
BEGIN
Page 8
PICTURE MENU CONTROLS (CONTINUED)
MAIN MENU
FEATURES
SOUND
HELP
EXIT
PICTURE MENU
FLESH CORRECTION
EXIT
2 OF 2
PIP COLOR PIP TINT
MORE...
CONVERGENCE
PICTURE MENU
SHARP
CLEARVIEW
EXIT
1 OF 2
COLOR TINT
MORE...
BRIGHT
Use the keys to merge the
RED fringe into the WHITE
cross. Press "M" to Continue.
Press "M" to Continue
- or -
Press " " to Return
If there is RED or BLUE
fringe on the WHITE cross,
use this adjustment to
improve the picture.
2
3
STOP
REW
§§
FF
©©
PLAY
©
REC
STATUS
VOL
CH
1
2
3
4
5
6
7
8
9
0
ON/OFF
TV /VCR
VCR
CBL
TV
SWAP
FREEZE
POS
SIZE
ENTER
M
E
N
U
M
CLEAR
~
!
SURF
MUTE
PAUSE II
SLEEP
SMART
100+
POWER
M
ODE
1
1
4
2
3
RED/BLUE CONVERGENCE
C
onvergence is the correct lin­ing up of the red and blue
light paths on the TV screen. NOTE: If no color fringing (see Smart Help) shows, then no Convergence adjustments are nec­essary for your TV.
Select CONVERGENCE con-
trol.
With PICTURE MENU (2 of 2) on screen, move the RED highlight with the MENU buttons. Then
press the MENU (M) button.
If there is RED or BLUE color
fringing on the White cross, press the MENU button to continue.
Press the MENU buttons
to move the red or blue cross directly over the white cross on the TV screen.
The red or blue cross is properly adjusted when it is completely merged with the white cross. (No color appears around the edge of the white cross).
Press the STATUS button to
clear the screen when convergence adjustments are complete.
1
2
3
STOP
SMART HELP
Remember. Convergence
has been set at the factory for
best viewing, but if one or more of the (red or blue) colors appear around the edges of objects (color fringing) follow the steps given in this section.
BEGIN
4
8
Page 9
MAIN MENU
FEATURES
SOUND
HELP
EXIT
EXIT
1 OF 3
PICTURE SOURCE
MORE...
CLOSED
CAPTIONS
FEATURE MENU
CHANNEL
MEMORY
CABLE
TUNING
PICTURE SOURCE SELECT
HELP
EXIT
ANTENNA VCR/AUX 1
STOP
REW
§§
FF
©©
PLAY
©
REC
STATUS
VOL
CH
1
2
3
4
5
6
7
8
9
0
ON/OFF
TV /VCR
VCR
CBL
TV
SWAP
FREEZE
POS
SIZE
ENTER
M
E
N
U
M
CLEAR
~
!
SURF
MUTE
PAUSE II
SLEEP
SMART
100+
POWER
M
ODE
1
1
3
2
2
FEATURE MENU CONTROL ADJUSTMENTS
PICTURE SOURCE
T
he picture for the TV can come
through either the ANTENNA plug or the AUDIO/VIDEO INput jacks (on the rear of the TV). The Picture Source control simply tells the TV which one of these picture sources it is to show on the TV screen.
Select PICTURE SOURCE
SELECT control.
With the FEATURES MENU on screen, move the RED highlight with the MENU buttons. Then press the MENU (M) button.
Press the MENU ▲▼ buttons
to move the RED highlight. Press the MENU button to turn the desired PICTURE SOURCE control ON (U).
ANTENNA- for a picture signal
coming from the ANTENNA plug on the TV.
VCR/AUX- for a picture signal
coming from the Video Input jack on the rear of the TV.
Press the STATUS button to
clear the screen.
STOP
1
2
3
BEGIN
9
SMART HELP
Remember. The
VCR/AUX TV screen will be blank unless a signal source is connected to the Video Input jack on the rear of the TV. (See page 26 for details).
Page 10
CLOSE CAPTION PROGRAMS ON WXYZ
ALL ITEMS ARE EASTERN STANDARD TIME (EST)
CHECK LOCAL LISTINGS
FOR TIMES IN YOUR AREA
6:00
12:00
6:00
10:00
9:00
1:30
MAIN MENU
FEATURES
SOUND
HELP
EXIT
EXIT
1 OF 3
PICTURE SOURCE
MORE...
CLOSED
CAPTIONS
FEATURE MENU
CHANNEL
MEMORY
CABLE
TUNING
CLOSED CAPTION
HELP
EXIT
ALWAYS ON ALWAYS OFF ON DURING MUTE ONLY
CAPTION 1 CAPTION 2 CAPTION 3 CAPTION 4
TEXT 1 TEXT 2 TEXT 3 TEXT 4
STOP
REW
§§
FF
©©
PLAY
©
REC
LIGHT
STATUS
VOL
CH
1
2
3
4
5
6
7
8
9
0
ON/OFF
TV /VCR
VCR
CBL
TV
SWAP
FREEZE
POS
SIZE
ENTER
M
E
N
U
M
CLEAR
~
!
SURF
MUTE
PAUSE II
SLEEP
SMART
100+
POWER
M
ODE
1
1
3
2
2
JOHN: WHY DID THEY MOVE THE MEETING UP TO THIS WEEK? MARSHA: I DON'T KNOW, BUT THEY ARE PUSHING TO CLOSE THE DEAL.
12:00
CC
C
losed Captioning (CC) allows
you to read the voice content of television programs on the TV screen. Designed to help the hearing impaired this feature uses on-screen "text boxes" to show dialogue and conversations while the TV program is in progress.
Select CLOSED CAPTIONING
control.
With the FEATURES MENU on screen, move the RED highlight with the MENU buttons. Then
press the MENU (M) button.
Press the MENU ▲▼ buttons
to move the RED highlight. Press the MENU button to select (U) the desired Closed Caption mode - For Example: "ALWAYS ON" and "CAPTION 1".
CAPTION 1, 2, 3, 4:
dialogue (and descriptions)
for the action on the captioned
TV program shows on-screen.
(See Important Note on this
page.) TEXT 1, 2, 3, 4:
often used for channel guide,
schedules, or bulletin board
information for CC programs.
After making your Caption mode
selection, press the STATUS button to clear the TV screen. The selected Closed Caption mode will be active.
To cancel, set the Closed Captioned feature to OFF when finished view­ing.
1
2
STOP
FEATURE MENU CONTROLS (CONTINUED)
NOTE: Not all TV programs and product commercials are made for broadcast
with Closed Caption (CC) information included. Neither are all Closed Caption modes (CAPTION 1-4; or TEXT 1-4) necessarily being used by a broadcast station during the transmission of a closed caption program. Usually "CAPTION 1" is the most used mode to view captioned material. Refer to your area's TV program list­ings for the stations and times of Closed Caption shows.
3
CAPTION 1 mode
Example Screen Display
FULL SCREEN TEXT
will block TV screen from viewing
Closed Caption information will usually appear in black and white (although some broadcasters or networks may occasionally use color to high­light or draw attention to certain areas.)
CLOSED CAPTION
NOTE: The ON DURING MUTE ONLY control can
be used to set the TV to turn the Closed Caption mode "ON" whenever the MUTE button on the remote is pressed.
SMART HELP
Remember. Broadcast
stations will often use spelling abbreviations, symbols, dropouts and other grammatical shortcuts in order to keep pace with the on-screen action. These type factors vary upon the source of the captioned text material and do not indicate a need for service on the part of the TV.
BEGIN
This symbol will appear on channels that con­tain Closed Captioning material whenever the status display is shown.
10
Page 11
FEATURE MENU CONTROLS (CONTINUED)
MAIN MENU
FEATURES
SOUND
HELP
EXIT
EXIT
1 OF 3
PICTURE SOURCE
MORE...
CLOSED
CAPTIONS
FEATURE MENU
CHANNEL
MEMORY
CABLE
TUNING
CABLE TUNING
HELP
EXIT
CABLE
NORMAL
STOP
REW
§§
FF
©©
PLAY
©
REC
STATUS
VOL
CH
1
2
3
4
5
6
7
8
9
0
ON/OFF
TV /VCR
VCR
CBL
TV
SWAP
FREEZE
POS
SIZE
ENTER
M
E
N
U
M
CLEAR
~
!
SURF
MUTE
PAUSE II
SLEEP
SMART
100+
POWER
M
ODE
2
1
1
3
2
N
OTE: If you went through
First Time Setup (in your Quick Use Guide), this task has already been completed for you.
You need to make sure the TV is set to pick up either Cable TV or Antenna signals. In other words, the TV needs to know if you con­nected a Cable TV signal or a nor­mal antenna to its ANTENNA plug.
Select CABLE CHANNEL
TUNING control.
With the FEATURES MENU on screen, move the RED highlight with the MENU buttons.
Then press the MENU (M) button.
Press the MENU ▲▼ buttons
to move the RED highlight. Press the MENU button to select (U) the desired mode - For Example: CABLE.
CABLE- If you DO have
Cable TV connected
to the TV. Channels 1-125 are available.
NORMAL- If you have an
Antenna connected
to the TV. Channels 2-69 are available.
Press the STATUS button to
clear the screen.
CABLE TUNING
STOP
1
2
3
BEGIN
11
Page 12
Press "M" to
Stop Auto-Program
EXIT
1 OF 3
SOURCE
MORE...
CLOSED
CAPTIONS
FEATURE MENU
CHANNEL
MEMORY
CABLE
TUNING
AUTO-PROGRAMMING
CHANNEL MEMORY
1 2 3 4 5 6 7 8 9 1O 11 12
13 14 15 16 17 18 19 20 21 22 23 24
MAIN MENU
FEATURES
SOUND
HELP
EXIT
EXIT
ADD/DELETE CHANNELS
START AUTO-PROGRAMMING
CHANNEL MEMORY
HELP
STOP
REW
§§
FF
©©
PLAY
©
REC
STATUS
VOL
CH
1
2
3
4
5
6
7
8
9
0
ON/OFF
TV /VCR
VCR
CBL
TV
SWAP
FREEZE
POS
SIZE
ENTER
M
E
N
U
M
CLEAR
~
!
SURF
MUTE
PAUSE II
SLEEP
SMART
100+
POWER
M
ODE
1
1
3
2
N
OTE: If you went through First
Time Setup (in your Quick Use Guide), this task has already been completed for you.
Your TV can automatically set itself for local area (or Cable TV) chan­nels. This makes it easy for you to select only the TV stations in your area when the CHANNEL
▲▼
but-
tons are pressed.
Select CHANNEL MEMORY
(START AUTO-PROGRAM-
MING) control.
With the FEATURES MENU on screen, move the RED highlight with the MENU buttons. Then press
the MENU (M) button.
Press the MENU button to turn
AUTO-PROGRAMMING ON .
The TV shows which channel num­bers are "SAVED" (U) as they are added into memory.
"Auto-programming CHANNEL MEMORY is finished" shows when the TV is through adding channels.
Press the STATUS or Menu (M)
button to clear the screen.
CHANNEL MEMORY
AUTO-PROGRAMMING
STOP
1
2
3
FEATURE MENU CONTROLS (CONTINUED)
U Channel Numbers are Saved in Memory
BEGIN
SMART HELP
Try it out. Press the
CHANNEL▲▼ buttons and
see which channels you can select. Remember. An Antenna or Cable TV
signal must first be connected to your TV so that channels can be saved.
If you want to delete any unwanted channels from the TV's memory, see "ADD/DELETE CHANNELS" on page 14.
12
Page 13
EXIT
1 OF 3
SOURCE
MORE...
CLOSED
CAPTIONS
FEATURE MENU
CHANNEL
MEMORY
CABLE
TUNING
MAIN MENU
FEATURES
SOUND
HELP
EXIT
EXIT
ADD/DELETE CHANNELS
START AUTO-PROGRAMMING
CHANNEL MEMORY
HELP
ADD/DELETE CHANNEL
Channel 19 Added
to DELETE CHANNEL
when FINISHED
SELECT CHANNEL
M
STOP
REW
§§
FF
©©
PLAY
©
REC
STATUS
VOL
CH
1
2
3
4
5
6
7
8
9
0
ON/OFF
TV /VCR
VCR
CBL
TV
SWAP
FREEZE
POS
SIZE
ENTER
M
E
N
U
M
CLEAR
~
!
SURF
MUTE
PAUSE II
SLEEP
SMART
100+
POWER
M
ODE
1
1
4
2
3
FEATURE MENU CONTROLS (CONTINUED)
A
uto-Programming (see page 13)
adds all the channels it can find (on your Antenna or Cable TV sys­tem) into the TV's memory. Add/Delete Channels makes it easy for you to add other channels, or drop unwanted channels, from the list of channels in the TV's memory.
Select CHANNEL MEMORY
(ADD/DELETE CHANNELS)
control. With the FEATURES MENU on
screen, move the RED highlight with the MENU buttons. Then
press the MENU (M) button.
Press the CHANNEL ▲▼ or
number buttons
to select the chan-
nel you want to add or delete.
Press the MENU © button to
ADD the channel into the TV's memory.
Press the MENU
§ button to
DELETE the channel from memory. Repeat steps 2 and 3 for each chan-
nel you wish to add or delete.
Press the STATUS or MENU
button to clear the screen.
ADD/DELETE CHANNELS
STOP
1
2
3
4
SMART HELP
Remember. You can also
add the VCR/AUX mode
just like a channel. Then by pressing the CHANNEL ▲▼
buttons the VCR/AUX mode can quickly be selected to use the Input jacks on the rear of the TV (see page 26).
Note: "VCR/AUX" mode is located between the lowest and highest channel numbers within the ADD/DELETE CHANNEL control screen.
BEGIN
13
Page 14
MAIN MENU
FEATURES
SOUND
HELP
EXIT
EXIT
1 OF 3
PICTURE SOURCE
MORE...
CLOSED
CAPTIONS
FEATURE MENU
EXIT
2 OF 3
MORE...
HALF HOUR
REMINDER
FEATURE MENU
CHANNEL
MEMORY
CABLE
TUNING
CHANNEL
DISPLAY
SLEEP TIMER
EXIT
SET ON TIMER
SET CLOCK
SET CLOCK & ON TIMER
SET CLOCK
& ON TIMER
9 : 19 AM
SET CLOCK
PLEASE ENTER THE
CURRENT HOUR
STOP
REW
§§
FF
©©
PLAY
©
REC
STATUS
VOL
CH
1
2
3
4
5
6
7
8
9
0
ON/OFF
TV /VCR
VCR
CBL
TV
SWAP
FREEZE
POS
SIZE
ENTER
M
E
N
U
M
CLEAR
~
!
SURF
MUTE
PAUSE II
SLEEP
SMART
100+
POWER
M
ODE
1
1
3
2
SET CLOCK
N
OTE: If you went through First Time Setup (in your
Quick Use Guide), this task has already been completed for you.
Your TV comes with an on-screen clock. During normal operation the clock appears on the screen with every channel change (and when the STATUS button is pressed).
Select SET CLOCK control.
With FEATURES MENU (2 of 3) on screen, move the RED highlight with the MENU buttons. Then
press the MENU (M) button.
Press the remote's number
buttons to set the time clock.
Press the STATUS button to
set the clock in operation and clear
the screen.
STOP
1
2
3
BEGIN
Remember, be sure to
press "0" first and then the hour number for single digit entries.
The remote's MENU buttons can also be used to set the hours, minutes and AM/PM portions of the clock.
TV Clock settings may be lost when the TV is unplugged (or AC power to the set is interrupted.)
You can also set the TV Clock automatically if you follow the First Time Set-up procedure for the Smart Clock feature.
SMART HELP
FEATURE MENU CONTROLS (CONTINUED)
14
Page 15
FEATURE MENU CONTROLS (CONTINUED)
MAIN MENU
FEATURES
SOUND
HELP
EXIT
EXIT
1 OF 3
SOURCE
MORE...
CLOSED
CAPTIONS
FEATURE MENU
CHANNEL MEMORY
CABLE
TUNING
EXIT
2 OF 3
MORE...
HALF HOUR
REMINDER
FEATURE MENU
CHANNEL
DISPLAY
SLEEP TIMER
SET CLOCK
& ON TIMER
7 : 30 AM
SET ON TIME
PLEASE ENTER THE HOUR TO TURN ON
EXIT
SET CLOCK
SET CLOCK & ON TIMER
SET ON TIMER
HELP
EXIT
ON OFF
SET ON TIME
SET ON TIMER
STOP
REW
§§
FF
©©
PLAY
©
REC
STATUS
VOL
CH
1
2
3
4
5
6
7
8
9
0
ON/OFF
TV/VCR
VCR
CBL
TV
SWAP
FREEZE
POS
SIZE
ENTER
M
E
N
U
M
CLEAR
~
!
SURF
MUTE
PAUSE II
SLEEP
SMART
100+
POWER
M
ODE
1
1
5
4
2
2
J
ust like an alarm clock you can set the TV to turn itself on at the
same time everyday.
Select SET ON TIMER con-
trol. With FEATURES MENU (2 of 3)
on screen, move the RED highlight with the MENU buttons. Then
press the MENU (M) button.
Press the MENU ▲▼ and
MENU (M) buttons to highlight
and select "ON" (U).
Press the MENU ▲▼ and
then the MENU (M) buttons to
select "SET ON TIME".
Press the remote's number
buttons to set the "TURN ON"
time for the TV. (Press MENU ▲ ▼ for AM or PM.)
Press the STATUS button to
set the "ON TIME" and clear the screen.
SET ON TIMER
STOP
1
2
3
BEGIN
4
5
MAIN MENU
FEATURES
SOUND
HELP
EXIT
EXIT
1 OF 3
PICTURE SOURCE
MORE...
CLOSED
CAPTIONS
FEATURE MENU
CHANNEL
MEMORY
CABLE
TUNING
EXIT
2 OF 3
MORE...
HALF HOUR
REMINDER
FEATURE MENU
CHANNEL
DISPLAY
SLEEP TIMER
SET CLOCK
& ON TIMER
1 : 15
SET SLEEP TIMER
to CHANGE
when FINISHED
M
or
STOP
REW
§§
FF
©©
PLAY
©
REC
STATUS
VOL
CH
1
2
3
4
5
6
7
8
9
0
ON/OFF
TV/VCR
VCR
CBL
TV
SWAP
FREEZE
POS
SIZE
ENTER
M
E
N
U
M
CLEAR
~
!
SURF
MUTE
PAUSE II
SLEEP
SMART
100+
POWER
M
ODE
1
1
3
2
H
ave you ever fallen asleep in
front of the TV only to have it wake you up at two in the morning with a test pattern screeching in your ears? Well, your TV can save you all that trouble by automatical­ly turning itself off.
Select SLEEP TIMER control.
With FEATURES MENU (2 of 3) on screen, move the RED highlight with the MENU buttons. Then
press the MENU (M) button.
Press the MENU § ©buttons
to pick the amount of time (15 min­utes to 2 hours ahead) before the TV will turn itself off.
Press the STATUS or MENU
(M) button to clear the screen after
you have set the time for the TV to turn off.
1
2
3
STOP
Remember, to see how many minutes are left before the TV shuts itself off, reselect the SLEEP TIMER control screen.
To stop a SLEEP TIMER setting, reset the timer back to OFF. (Turning the TV off and on, or pressing a button during the last minute of a timer setting, will also cancel a setting.)
A few seconds before the TV is to shut off a message will come on the screen telling you
GOOD NIGHT.
SMART
HELP
BEGIN
SLEEP TIMER
15
Page 16
HALF HOUR REMINDER
HELP
EXIT
OFF
EVERY HALF HOUR
MAIN MENU
FEATURES
SOUND
HELP
EXIT
EXIT
1 OF 3
SOURCE
MORE...
CLOSED
CAPTIONS
FEATURE MENU
CHANNEL
MEMORY
CABLE
TUNING
EXIT
2 OF 3
MORE...
HALF HOUR
REMINDER
FEATURE MENU
CHANNEL
DISPLAY
SLEEP TIMER
SET CLOCK
& ON TIMER
STOP
REW
§§
FF
©©
PLAY
©
REC
STATUS
VOL
CH
1
2
3
4
5
6
7
8
9
0
ON/OFF
TV /VCR
VCR
CBL
TV
SWAP
FREEZE
POS
SIZE
ENTER
M
E
N
U
M
CLEAR
~
!
SURF
MUTE
PAUSE II
SLEEP
SMART
100+
POWER
M
ODE
1
1
3
2
2
W
ith the Half Hour Reminder
control the TV automatically shows you the current time and channel every thirty minutes.
Select HALF HOUR
REMINDER control.
With FEATURES MENU (2 of 3) on screen, move the RED high­light with the MENU buttons.
Then press the MENU (M) button.
Press the MENU ▲▼ and
MENU (M) buttons to highlight
and select (U) the EVERY HALF HOUR item.
Press the STATUS button to
clear the screen.
HALF HOUR REMINDER
STOP
1
2
3
BEGIN
Remember, the Time
and Channel Reminders will show on the hour and the half-hour for several seconds.
SMART HELP
FEATURE MENU CONTROLS (CONTINUED)
16
Page 17
FEATURE MENU CONTROLS (CONTINUED)
EXIT
3 OF 3
PIP
SOURCE
FEATURE MENU
LANGUAGE SELECTION
MAIN MENU
FEATURES
SOUND
HELP
EXIT
EXIT
1 OF 3
PICTURE SOURCE
MORE...
CLOSED
CAPTIONS
FEATURE MENU
CHANNEL MEMORY
CABLE
TUNING
EXIT
2 OF 3
MORE...
HALF HOUR
REMINDER
FEATURE MENU
CHANNEL
DISPLAY
SLEEP TIMER
SET CLOCK
& ON TIMER
PARENTAL
CONTROL
MORE...
PARENTAL CONTROL
HELP
EXIT
SETUP
CODE
BLOCK
CHANNELS
ACCESS CODE SETUP
X X X X
to EXIT
First Enter Your Current Access Code.
M
ACCESS CODE SETUP
to EXIT
TRY AGAIN. See Owner's Manual if You've Forgotten Your Access Code.
M
X X X X
INCORRECT ACCESS CODE
ACCESS CODE SETUP
to EXIT
Access Code Changed.
M
X X X X
to Block or Un-Block Channels
ACCESS CODE SETUP
to EXIT
Next Enter Your New Access Code.
M
X X X X
STOP
REW
§§
FF
©©
PLAY
©
REC
STATUS
VOL
CH
1
2
3
4
5
6
7
8
9
0
ON/OFF
TV /VCR
VCR
CBL
TV
SWAP
FREEZE
POS
SIZE
ENTER
M
E
N
U
M
CLEAR
~
!
SURF
MUTE
PAUSE II
SLEEP
SMART
100+
POWER
M
ODE
1
2
1
2
5
3
4
PARENTAL CONTROL
P
arental Control allows parents
to block out, or "censor", any channels they think children should not watch. A channel placed under Parental Control cannot be viewed until a correct access code is used to unlock the channel for viewing.
First let's set your Parental Code:
Select the PARENTAL CON-
TROL.
With FEATURES MENU (3 of 3) on screen, move the RED highlight with the MENU buttons. Then
press the MENU (M) button. "BLOCK CHANNELS" and
"SETUP CODE" show on screen.
Press the MENU ▲▼ and
MENU (M) buttons to highlight
and select the SETUP CODE item.
Press 0, 7, 1, 1 on the remote.
"XXXX" shows on the ACCESS
CODE SETUP screen as you press the number buttons.
"INCORRECT ACCESS CODE ­TRY AGAIN" will also show on the screen.
Press 0, 7, 1, 1 on the remote
again.
"Next Enter Your New Access Code" shows on the screen.
Enter a new four digit number
code using the remote.
"Access Code Changed" shows on
the screen to let you know the new code has been set.
Continue to the next page to find out how to "block" channels from viewing.
1
2
3
4
5
BEGIN
• Press MENU © to go on and start
to "block" channels
• Press MENU to return to the
Parental Control Menu screen.
• Press STATUS to clear the screen.
SMART HELP
Parents - it isn't possible
to unlock or defeat your Censor Code without changing to a new code number. So if your Code number changes, and you didn't change it yourself, then you will know that someone has altered the code and the blanked out channel has been viewed.
NOTE:Your TV left the factory with the Parental Code set to "0000". If you are using your TV and the Parental Control for the first time, and don't want to SETUP a new Access code number, you can use the "0000" number to block channels - see next page. The "0711" Parental Code (shown on this page) is given as a default or way to reset the Code when the current Access number is not known.
17
Page 18
FEATURE MENU CONTROLS (CONTINUED)
MAIN MENU
FEATURES
SOUND
HELP
EXIT
STOP
REW
§§
FF
©©
PLAY
©
REC
STATUS
VOL
CH
1
2
3
4
5
6
7
8
9
0
ON/OFF
TV /VCR
VCR
CBL
TV
SWAP
FREEZE
POS
SIZE
ENTER
M
E
N
U
M
CLEAR
~
!
SURF
MUTE
PAUSE II
SLEEP
SMART
100+
POWER
M
ODE
EXIT
3 OF 3
PIP
SOURCE
FEATURE MENU
LANGUAGE SELECTION
EXIT
1 OF 3
SOURCE
MORE...
CLOSED
CAPTIONS
FEATURE MENU
CHANNEL
MEMORY
CABLE
TUNING
EXIT
2 OF 3
MORE...
HALF HOUR
REMINDER
FEATURE MENU
CHANNEL
DISPLAY
SLEEP TIMER
SET CLOCK
& ON TIMER
1
2
1
2
PARENTAL
CONTROL
MORE...
PARENTAL CONTROL
HELP
EXIT
SETUP
CODE
BLOCK
CHANNELS
Please enter Access Code
-OR­Select another Channel for viewing.
CHANNEL 19 BLOCKED BY PARENTAL CONTROL
X X X X
3
4
5
CHANNEL BLOCKING MEMORY
X X X X
to EXIT
To Block or Un-Block channels First Enter your Access Code.
M
CHANNEL BLOCKING MEMORY
Channel 19 blocked
to EXIT
SELECT CHANNEL
M
to ALLOW VIEWING
PARENTAL CONTROL
A
fter your personal Parental
Code number has been set (see previous page), you are now ready to select the channels you want to block out or censor.
Select the BLOCK CHAN-
NELS control.
With FEATURES MENU (3 of 3) on screen, move the RED highlight with the MENU buttons. Then
press the MENU (M) button.
Press the MENU ▲▼ and
MENU (M) buttons to highlight
and select the BLOCK CHAN­NELS item.
Enter the correct Parental
Code number.
Press Channel ▲▼ or Channel
Number buttons to select the chan­nel you want to block.
Press the MENU © button to
"BLOCK VIEWING" on the selected channel. Press the MENU § button to "ALLOW VIEWING" on a blocked channel.
Repeat steps 3 and 4 for any other channels you wish to block out.
STOP
1
2
3
4
BEGIN
5
SMART HELP
Remember, to make TV
viewing easier all channels (and Audio/Video Input jacks) will be unblocked, once the cor­rect Parental Code number has been entered. When the TV is turned OFF and then back ON again, Parental Control is back in place for all channels.
Note: You can also block out the use of the Audio/Video Input jacks on the TV. This stops the viewing of VCR programs which can be shown through the A/V IN jacks. Just select VCR/AUX 1 (located between the lowest and highest channel numbers) on the Channel Blocking screen, and select "blocked".
BLOCKED CHANNEL SCREEN MESSAGE (Appears when an attempt to select a blocked channel is made and Parental Control is ON.)
18
Page 19
FEATURE MENU CONTROLS (CONTINUED)
MAIN MENU
FEATURES
SOUND
HELP
EXIT
EXIT
1 OF 3
PICTURE SOURCE
MORE...
CLOSED
CAPTION
FEATURE MENU
CHANNEL MEMORY
CABLE
TUNING
EXIT
2 OF 3
MORE...
HALF HOUR
REMINDER
FEATURE MENU
CHANNEL
DISPLAY
SLEEP TIMER
SET CLOCK
& ON TIMER
CHANNEL DISPLAY
HELP
EXIT
LARGE
SMALL - Channel/Label
STOP
REW
§§
FF
©©
PLAY
©
REC
STATUS
VOL
CH
1
2
3
4
5
6
7
8
9
0
ON/OFF
TV/VCR
VCR
CBL
TV
SWAP
FREEZE
POS
SIZE
ENTER
M
E
N
U
M
CLEAR
~
!
SURF
MUTE
PAUSE II
SLEEP
SMART
100+
POWER
M
ODE
1
1
3
2
2
CHANNEL DISPLAY OPTIONS
W
ith the Channel Display con-
trol you can change the size and location of the on screen channel and clock information.
Select CHANNEL DISPLAY
control.
With FEATURES MENU (2 of 3) on screen, move the RED high­light with the MENU buttons. Then press the MENU (M) button.
Press the MENU ▲▼ and
MENU (M) buttons to highlight
and select (U) the LARGE or SMALL display control.
Press the STATUS button to
clear the screen.
CHANNEL DISPLAY
1
2
3
STOP
Try it out. Press the CHAN­NEL ▲▼ buttons
and you should see the Display Size you selected.
Remember. The SMALL SIZE dis­play shows only the channel number, not the time (or clock).
SMART
HELP
BEGIN
MAIN MENU
FEATURES
SOUND
HELP
EXIT
EXIT
1 OF 3
PICTURE SOURCE
MORE...
CLOSED
CAPTIONS
FEATURE MENU
CHANNEL
MEMORY
CABLE TUNING
EXIT
2 OF 3
MORE...
HALF HOUR REMINDER
FEATURE MENU
CHANNEL
DISPLAY
SLEEP TIMER
SET CLOCK
& ON TIMER
LANGUAGE SELECTION
HELP
EXIT
ENGLISH SPANISH FRENCH
STOP
REW
§§
FF
©©
PLAY
©
REC
STATUS
VOL
CH
1
2
3
4
5
6
7
8
9
0
ON/OFF
TV/VCR
VCR
CBL
TV
SWAP
FREEZE
POS
SIZE
ENTER
M
E
N
U
M
CLEAR
~
!
SURF
MUTE
PAUSE II
SLEEP
SMART
100+
POWER
M
ODE
1
1
3
2
2
EXIT
3 OF 3
FEATURE MENU
LANGUAGE SELECTION
MORE...
MORE...
PARENTAL
CONTROL
PIP SOURCE
SELELCION IDIOMAS
AYUD
SALI
Inglés Español Francés
CHOISIR LANGUE
AIDE
QUIT
Anglais Espagnol Francais
LANGUAGE DISPLAY OPTIONS
N
ote: If you went through First Time Setup, This task has
already been completed for you. For our Spanish and French
speaking TV owners an on-screen LANGUAGE option is present. With the LANGUAGE control you can set the TV’s on-screen fea­tures to be shown in either English, Spanish or French.
Select the LANGUAGE DIS-
PLAY control.
With FEATURES MENU (3 of 3) on screen, move the RED high­light with the MENU buttons. Then press the MENU (M) button.
Press the MENU ▲▼ and
MENU (M) buttons to highlight
and select (U) English, Spanish (ESPANOL), or French (FRAN­CAIS) on the display control.
Text for the on-screen Menu will change to the selected language.
Press the STATUS button to
clear the screen.
LANGUAGE
1
2
3
STOP
Remember, the Language con­trol only makes the TV’s on-screen (MENU) items appear in English, Spanish, or French text. It does not change the other on­screen text features such as Closed Captioned (CC) TV shows.
SMART
HELP
BEGIN
19
Page 20
MAIN MENU
FEATURES
SOUND
HELP
EXIT
SOUND MENU
STEREO
BASS BOOST
SOUND IMAGE
EXIT
1 OF 3
BASS TREBLE
MORE...
BALANCE
BASS BOOST
HELP
EXIT
NEXT...
ON
OFF
STOP
REW
§§
FF
©©
PLAY
©
REC
STATUS
VOL
CH
1
2
3
4
5
6
7
8
9
0
ON/OFF
TV /VCR
VCR
CBL
TV
SWAP
FREEZE
POS
SIZE
ENTER
M
E
N
U
M
CLEAR
~
!
SURF
MUTE
PAUSE II
SLEEP
SMART
100+
POWER
M
ODE
1
1
3
2
2
T
he BASS BOOST control
increases the low frequency audio range of the TV. This creates a deeper, fuller playback sound which can be heard through the TV's speakers.
Select BASS BOOST sound
control.
With the SOUND MENU on the screen, move the RED highlight with the MENU buttons. Then
press the MENU (M) button.
Press the MENU ▲▼ and
MENU (M) buttons to highlight
and turn ON (U) the BASS BOOST control.
Press the STATUS button to
clear the screen.
BASS BOOST
1
2
3
STOP
MAIN MENU
FEATURES
SOUND
HELP
EXIT
SOUND MENU
STEREO
BASS BOOST
SOUND IMAGE
EXIT
1 OF 3
BASS TREBLE
MORE...
BALANCE
HELP
EXIT
NEXT...
MIN
MAX
BASS
STOP
REW
§§
FF
©©
PLAY
©
REC
STATUS
VOL
CH
1
2
3
4
5
6
7
8
9
0
ON/OFF
TV /VCR
VCR
CBL
TV
SWAP
FREEZE
POS
SIZE
ENTER
M
E
N
U
M
CLEAR
~
!
SURF
MUTE
PAUSE II
SLEEP
SMART
100+
POWER
M
ODE
1
1
2
3
Y
our TV also has individual
sound adjustment controls. The BASS (low frequency), TREBLE (high frequency) , and Speaker BALANCE may all be used to adjust the sound playback of TV programs.
Select BASS, or TREBLE, or
BALANCE sound control.
With the SOUND MENU on the screen, move the RED highlight with the MENU buttons. Then
press the MENU (M) button.
Press the (+) or (-) buttons to
adjust the sound control to levels you prefer.
Press the STATUS button to
clear the screen.
BASS, TREBLE, BALANCE
1
2
3
STOP
BEGIN
BEGIN
Select and then press MENU (M) button to view additional controls grouped under same feature heading. For Example: Treble, Balance, Bass Boost, Stereo, etc.
SOUND MENU CONTROL ADJUSTMENTS
20
Page 21
MAIN MENU
FEATURES
SOUND
HELP
EXIT
SOUND MENU
STEREO
BASS BOOST
SOUND IMAGE
EXIT
1 OF 3
BASS TREBLE
MORE...
BALANCE
STEREO
HELP
EXIT
NEXT...
MONO AT ALL TIMES
STEREO IF AVAILABLE
STOP
REW
§§
FF
©©
PLAY
©
REC
STATUS
VOL
CH
1
2
3
4
5
6
7
8
9
0
ON/OFF
TV /VCR
VCR
CBL
TV
SWAP
FREEZE
POS
SIZE
ENTER
M
E
N
U
M
CLEAR
~
!
SURF
MUTE
PAUSE II
SLEEP
SMART
100+
POWER
M
ODE
1
1
3
2
2
STEREO
Y
our TV is able to receive
broadcast stereo TV programs. The TV is equipped with an ampli­fier and twin speaker system through which the stereo sound can be heard.
A RED stereo light (on the front of the TV) will come on when a stereo broadcast is received.
Select STEREO sound control.
With the SOUND MENU on the screen, move the RED highlight with the MENU buttons. Then
press the MENU (M) button.
Press the MENU ▲▼ and
MENU (M) buttons to highlight
and turn ON (U) the STEREO mode.
Press the STATUS button to
clear the screen.
STOP
t
o
d
a
y
'
s
a
n
d
f
o
r
n
e
w
s
a
n
d
t
o
d
a
y
'
s
a
n
d
f
o
r
n
e
w
s
a
n
d
SECOND AUDIO PROGRAM
HELP
EXIT
NEXT...
NORMAL SOUND
SECOND PROGRAM SOUND
SOUND MENU
SECOND AUDIO PROGRAM
EXIT
2 OF 3
TV SPEAKERS
MORE...
DISPLAY VOLUME
SOUND MENU
STEREO
BASS BOOST
SOUND IMAGE
EXIT
1 OF 3
BASS TREBLE
MORE...
BALANCE
SECOND PROGRAM SOUND CAN ONLY BE SELECTED (
U) WHEN SAP INFORMATION IS PRESENT ON CURRENT CHANNEL.
1
2
3
SOUND MENU CONTROL (CONTINUED)
Remember. If a stereo signal is not available and the TV is placed in the STEREO mode, sound coming from the TV will remain monaural (mono).
SMART
HELP
BEGIN
Second Audio Program (SAP) is part of the stereo broadcast sys­tem. Sent as a third audio chan­nel SAP can be heard apart from the current TV program sound. TV stations are free to use SAP for any number of purposes, but many experts believe it will be used for foreign language transla­tions of TV shows (or for weath­er and news bulletins.)
NOTE: If a SAP signal is not pre­sent with a selected program, the SAP option can not be selected. "This program does not contain SAP information" will show on the TV screen.
SECOND AUDIO PROGRAM
21
Page 22
SOUND MENU CONTROLS (CONTINUED)
MAIN MENU
FEATURES
SOUND
HELP
EXIT
SOUND MENU
STEREO
BASS BOOST
SOUND IMAGE
EXIT
1 OF 3
BASS TREBLE
MORE...
BALANCE
SOUND IMAGE
HELP
EXIT
NEXT...
MINIMUM
MAXIMUM
NO EXPANSION
STOP
REW
§§
FF
©©
PLAY
©
REC
STATUS
VOL
CH
1
2
3
4
5
6
7
8
9
0
ON/OFF
TV/VCR
VCR
CBL
TV
SWAP
FREEZE
POS
SIZE
ENTER
M
E
N
U
M
CLEAR
~
!
SURF
MUTE
PAUSE II
SLEEP
SMART
100+
POWER
M
ODE
1
1
3
2
2
T
he Sound Image control can be
used to add greater depth and dimension to both monaural (MONO) and STEREO TV sound.
Select SOUND IMAGE con-
trol.
With the SOUND MENU on the screen, move the RED highlight with the MENU buttons. Then
press the MENU (M) button.
Press the MENU ▲▼ and
MENU (M) buttons to highlight
and select (U) the desired SOUND IMAGE mode.
For Example: "MAXIMUM" spreads the Sound Image effect as wide as possible.
Press the STATUS button to
clear the screen.
SOUND IMAGE
1
2
3
STOP
MAIN MENU
FEATURES
SOUND
HELP
EXIT
SOUND MENU
STEREO
BASS BOOST
SOUND IMAGE
EXIT
1 OF 3
BASS TREBLE
MORE...
BALANCE
SOUND MENU
SECOND AUDIO PROGRAM
EXIT
2 OF 3
TV SPEAKERS
MORE...
DISPLAY VOLUME
DISPLAY VOLUME
HELP
EXIT
NEVER
DURING ADJUSTMENT
STOP
REW
§§
FF
©©
PLAY
©
REC
STATUS
VOL
CH
1
2
3
4
5
6
7
8
9
0
ON/OFF
TV/VCR
VCR
CBL
TV
SWAP
FREEZE
POS
SIZE
ENTER
M
E
N
U
M
CLEAR
~
!
SURF
MUTE
PAUSE II
SLEEP
SMART
100+
POWER
M
ODE
1
1
3
2
2
U
se the DISPLAY VOLUME
control to see the TV's volume level settings on the TV screen. Once set the Volume Display will be seen each time the VOLUME buttons (on the TV or remote) are pressed.
Select DISPLAY VOLUME
control. With SOUND MENU (2 of 3) on
screen, move the RED highlight with the MENU buttons. Then
press the MENU (M) button.
Press the MENU ▲▼ and
MENU (M) buttons to highlight
and turn ON (U) the DISPLAY VOLUME control.
Press the STATUS button to
clear the screen.
DISPLAY VOLUME
1
2
3
STOP
BEGIN
BEGIN
Remember, "DURING ADJUSTMENT" means the volume level will be on screen whenever the Volume buttons are pressed.
SMART
HELP
Remember, with the Sound Image control turned ON even monaural (mono) audio source materi­al can be heard through rear Surround Sound speaker connections (see page 25). Note: The monaural version of Surround Sound may be loud­er at the rear set of speakers than what is normally heard with true stereo sig­nal Surround Sound, but this is normal.
SMART
HELP
22
Page 23
75V UHF/VHF
ANT/CABLE
REAR SURROUND
EXT. SPEAKERS
VCR/AUX IN
VIDEO AUDIO
RL
R
L
8V
+
-
R
L
VIDEO
OUT
VAR AUDIO OUT SUR AUDIO OUT
SOUND MENU
SECOND AUDIO PROGRAM
EXIT
2 OF 3
TV SPEAKERS
MORE...
DISPLAY VOLUME
TV SPEAKERS
HELP
EXIT
NORMAL
TV SPEAKERS OFF
1
AUX/TV INPUT
PHONO INPUT
R
L
2
STOP
REW
§§
FF
©©
PLAY
©
REC
STATUS
VOL
CH
1
2
3
4
5
6
7
8
9
0
ON/OFF
TV /VCR
VCR
CBL
TV
SWAP
FREEZE
POS
SIZE
ENTER
M
E
N
U
M
CLEAR
~
!
SURF
MUTE
PAUSE II
SLEEP
SMART
100+
POWER
M
ODE
4
3
5
4
3
S-VIDEO-1
TV SPEAKERS
W
ould you like to hear TV pro-
grams through your audio hi­fi system? The TV's Variable Audio Output jacks and TV Speaker On/Off control work together to offer you this TV sound option.
Connect the R(ight) and L(eft)
VARIABLE AUDIO OUT jacks
on the TV to the R and L Audio Input jacks on your amplifier or sound system.
Set the audio system's volume to normal listening level.
Turn the TV and audio system
ON. You can now adjust the sound level coming from the audio sys­tem with the Volume ▲▼ buttons
on the TV or remote.
To hear the TV sound from only
the audio system speakers, select TV SPEAKERS control.
With SOUND MENU (2 of 3) on screen, move the RED highlight with the MENU buttons. Then
press the MENU (M) button.
Press the MENU ▲▼ and
MENU (M) buttons to highlight
and turn OFF (U) the TV SPEAK­ERS control.
You should now only hear TV sound coming from the audio sys­tem speakers.
Press the STATUS button to
clear the screen.
STOP
1
2
3
4
5
BACK OF TV
AUDIO SYSTEM
AUDIO IN
(RED/WHITE)
SOUND MENU CONTROLS (CONTINUED)
BEGIN
VARIABLE
AUDIO
OUTPUT JACKS
SMART HELP
Remember, the audio sys-
tem may have to be in
AUX(iliary) mode to play sound from the TV (Outputs).
Note: When the TV SPEAKER control is set to "NORMAL" (for TV speaker operation) make sure the VARIABLE AUDIO OUTPUT control (see next page) is also set to "STEREO" in order for the TV's AUDIO OUTPUT jacks to work properly.
23
Page 24
SOUND MENU CONTROLS (CONTINUED)
+
-
+-
75V UHF/VHF
ANT/CABLE
REAR SURROUND
EXT. SPEAKERS
VCR/AUX IN
VIDEO AUDIO
RL
R
L
8V
+
-
R
L
VIDEO OUT
VAR AUDIO OUT SUR AUDIO OUT
75V UHF/VHF
ANT/CABLE
REAR SURROUND
EXT. SPEAKERS
VCR/AUX IN
VIDEO AUDIO
RL
R
L
8V
+
-
R
L
VIDEO
OUT
VAR AUDIO OUT SUR AUDIO OUT
1
S-VIDEO-1
SURROUND SOUND
B
y adding optional external
speakers to the TV's sound sys­tem, you can create the feeling of reflected sound that surrounds you at a movie theater or concert hall.
Connect both external speak-
ers to the speaker wire terminals
on the TV. Recommended speakers: 8ohm, 15
watt minimum. Be sure the (+) and (-) speaker wires are connected to the correct R(ight) and L(eft) speaker terminals on the TV.
Place the speakers so the view-
ing area is between the TV and the rear surround speakers. (See over­head view drawing.)
Turn TV ON and place the
STEREO control to the "STEREO IF AVAILABLE" (U) position.
After setup whenever a stereo sig­nal is received the audio will be heard in Surround Sound.
STOP
1
2
3
BACK OF TV
REAR SURROUND SOUND SPEAKERS
Note: The rear Surround Sound speakers will not be heard at the same volume level as the front TV speakers. It is intended for the rear speakers to give a background noise effect which requires a lower volume level than the TV's front speakers.
2
PRIMARY VIEWING AREA
TV
REAR SPEAKER
REAR SPEAKER
BEGIN
VARIABLE AUDIO OUTPUT
T
he TV's Variable Audio Output
jacks can also be used for Surround Sound. Once they are connected an external hi-fi system its speakers can be used for the playback of Surround Sound.
Connect the R(ight) and L(eft)
VARIABLE AUDIO OUT jacks
on the TV to the R and L Audio Input jacks on your amplifier or sound system.
Turn TV ON and place the
VARIABLE AUDIO OUTPUT on screen control to the SURROUND (U) position. (Select the Main Menu Sound option, screen 3 of 3).
STOP
1
2
BEGIN
75V UHF/VHF
ANT/CABLE
REAR SURROUND
EXT. SPEAKERS
VCR/AUX IN
VIDEO AUDIO
RL
R
L
8V
+
-
R
L
VIDEO
OUT
VAR AUDIO OUT SUR AUDIO OUT
SOUND MENU
EXIT
3 OF 3
VARIABLE AUDIO OUTPUT
MORE...
1
AUX/TV INPUT
PHONO INPUT
R
L
VARIABLE AUDIO OUTPUT
HELP
EXIT
STEREO
SURROUND
STOP
REW
§§
FF
©©
PLAY
©
REC
STATUS
VOL
CH
1
2
3
4
5
6
7
8
9
0
ON/OFF
TV/VCR
VCR
CBL
TV
SWAP
FREEZE
POS
SIZE
ENTER
M
E
N
U
M
CLEAR
~
!
SURF
MUTE
PAUSE II
SLEEP
SMART
100+
POWER
M
ODE
2
2
3
S-VIDEO-1
AUDIO SYSTEM SPEAKERS USED AS REAR
SURROUND SOUND SPEAKERS
BACK OF TV
REAR SURROUND SOUND
SPEAKER TERMINALS
VARIABLE AUDIO
OUTPUT JACKS
AUDIO
INPUT JACKS
Remember, Surround Sound will not work with only one speaker connected; or with monaural audio material (unless the Sound Image con­trol is turned ON ­see page 23.)
SMART
HELP
24
Page 25
USING THE AUDIO/VIDEO INPUT JACKS
75V UHF/VHF
ANT/CABLE
REAR SURROUND
EXT. SPEAKERS
VCR/AUX IN
VIDEO AUDIO
RL
R
L
8V
+
-
R
L
VIDEO
OUT
VAR AUDIO OUT SUR AUDIO OUT
ANTENNA
OUT
IN
OUT
IN
AUDIO
R
L
VIDEO
IN
OUT
EXIT
1 OF 3
PICTURE SOURCE
MORE...
CLOSED
CAPTIONS
FEATURE MENU
CHANNEL
MEMORY
CABLE
TUNING
1
2
5
STOP
REW
§§
FF
©©
PLAY
©
REC
STATUS
VOL
CH
1
2
3
4
5
6
7
8
9
0
ON/OFF
TV /VCR
VCR
CBL
TV
SWAP
FREEZE
POS
SIZE
ENTER
M
E
N
U
M
CLEAR
~
!
SURF
MUTE
PAUSE II
SLEEP
SMART
100+
POWER
M
ODE
4
3
3
4
HELP
EXIT
ANTENNA VCR/AUX
PICTURE SOURCE SELECT
S-VIDEO-1
T
he TV's Audio/Video Input
jacks are for direct picture and sound connections between the TV and a VCR (or Video Disc Player, etc.) that has Audio/Video Output jacks.
To view the playback of a VCR tape by using the Audio/Video Input jacks on the TV:
Connect the VIDEO OUT jack
from the VCR to the VCR/AUX
VIDEO IN jack on the TV.
Connect the AUDIO OUT
jacks R(ight) and L(eft) from the VCR to the VCR/AUX AUDIO IN jacks on the TV.
Select the "VCR/AUX" PIC-
TURE SOURCE SELECT con-
trol on the TV.
With the FEATURES MENU on screen, move the RED highlight with the MENU buttons.
Then press the MENU (M) button.
Press the MENU ▲▼ and
MENU (M) buttons to highlight
and select (U) the VCR/AUX mode.
Turn the VCR ON and press
PLAY to view the tape on the TV.
VCR/AUX INPUTS
1
2
3
4
STOP
BACK OF TV
VIDEO IN
(YELLOW)
AUDIO IN
(RED/WHITE)
If you have a single (monaural) Audio Output VCR, "Y" connectors are available to complete your connection. Contact your dealer, or our Parts Information Center (1-800-292-6066) to order any optional accessories.
VCR
PICTURE AND SOUND FROM PLAY-
BACK OF VCR TAPE
BEGIN
SMART HELP
Remember, an easy way
to select VCR/AUX mode is to press the VCR button on the front of the TV. (Channels 3 and 4 can also be selected in this way.)
Or if you have added VCR/AUX to the TV's channel memory (see page 14), just press the CHAN­NEL ▲▼ buttons to select the
VCR/AUX mode.
5
AUDIO/VIDEO
OUTPUT JACKS
ON VCR
25
Page 26
75V UHF/VHF
ANT/CABLE
REAR SURROUND
EXT. SPEAKERS
VCR/AUX IN
VIDEO AUDIO
RL
R
L
8V
+
-
R
L
VIDEO
OUT
VAR AUDIO OUT SUR AUDIO OUT
S-VIDEO-1
STOP
REW
§§
FF
©©
PLAY
©
REC
STATUS
VOL
CH
1
2
3
4
5
6
7
8
9
0
ON/OFF
TV /VCR
VCR
CBL
TV
SWAP
FREEZE
POS
SIZE
ENTER
M
E
N
U
M
CLEAR
~
!
SURF
MUTE
PAUSE II
SLEEP
SMART
100+
POWER
M
ODE
ANTENNA
OUT
IN
OUT
IN
AUDIO
R
L
VIDEO
IN
OUT
EXIT
1 OF 3
PICTURE SOURCE
MORE...
CLOSED
CAPTIONS
FEATURE MENU
CHANNEL
MEMORY
CABLE
TUNING
S-VIDEO
OUT
4
1
2
3
3
1 OF 3
MORE...
CHANNEL
MEMORY
HELP
EXIT
ANTENNA
S-VIDEO
PICTURE SOURCE SELECT
T
he S(uper)-Video connection on
the rear of the TV can give you better picture detail and clarity, for the playback of S-VHS VCR tapes or Video Discs, than the normal anten­na picture connections.
Note: The VCR (or Video Disc Player) must have a S-VIDEO OUT(put) jack in order for you to complete the connections shown on this page.
Connect the S-VIDEO (S-
VHS) OUT jack from the VCR to
the S-VIDEO 1 jack on the TV. The S-VIDEO connecting cable
will be supplied with the S-VHS VCR (or Video Disc Player).
Connect the AUDIO OUT
jacks R(ight) and L(eft) from the VCR to the AUDIO VCR/AUX IN jacks on the TV.
Select the "S-VIDEO" PIC-
TURE SOURCE control.
With the FEATURES MENU on screen, move the RED highlight with the MENU (M) buttons.
Then press the MENU button. The "S VIDEO" picture source
option appears when a S-VIDEO cable has been connected to the TV.
Turn the VCR ON and place it
in the S-VIDEO (or S-VHS) play­back mode. Insert S-VHS cassette tape and playback in a normal man­ner.
S-VIDEO INPUT
STOP
1
2
3
4
S-VHS VCR
AUDIO OUT
(RED/WHITE)
S-VIDEO OUT
BACK OF TV
PICTURE AND SOUND FROM PLAYBACK
OF S-VHS VCR TAPE PLAYBACK
BEGIN
SMART HELP
Remember, after it is
connected an easy way to select the S-VIDEO mode is to press the VCR button on the front of the TV (or the TV/VCR button on the remote.)
If you have added AUX 1 to the TV's channel memory, just press the CHANNEL ▲▼ buttons to
select the S-VIDEO mode.
S-VIDEO
CABLE
NOTE: A CD-i (Compact Disc Interactive) player, Video Game, or other S-VIDEO acces­sory can be hooked up to the TV using this type of connection. Please be aware that such video sources, which show a constant non­moving pattern on the TV screen, can cause picture tube damage. When not in use turn your video accessories OFF. Also, regularly alternate the use of video sources with normal TV viewing.
USING THE AUDIO/VIDEO INPUT JACKS (CONTINUED)
26
Page 27
USING THE AUDIO/VIDEO OUTPUT JACKS
75V UHF/VHF
ANT/CABLE
REAR SURROUND
EXT. SPEAKERS
VCR/AUX IN
VIDEO AUDIO
RL
R
L
8V
+
-
R
L
VIDEO
OUT
VAR AUDIO OUT SUR AUDIO OUT
EXIT
1 OF 3
PICTURE SOURCE
CLOSED
CAPTIONS
FEATURE MENU
CHANNEL
MEMORY
CABLE TUNING
ANTENNA
OUT
IN
OUT
IN
AUDIO
R
L
VIDEO
IN
OUT
1
2
4
STOP
REW
§§
FF
©©
PLAY
©
REC
STATUS
VOL
CH
1
2
3
4
5
6
7
8
9
0
ON/OFF
TV /VCR
VCR
CBL
TV
SWAP
FREEZE
POS
SIZE
ENTER
M
E
N
U
M
CLEAR
~
!
SURF
MUTE
PAUSE II
SLEEP
SMART
100+
POWER
M
ODE
3
3
PICTURE SOURCE SELECT
HELP
EXIT
ANTENNA
VCR/AUX 1
AUDIO/VIDEO OUTPUTS
T
he Audio/Video Output jacks
on the TV can be used to record TV programs on VCRs which have Audio/Video Input jacks.
To record TV programs by using the Audio/Video jacks on the TV:
Connect the VIDEO OUT jack
from the TV to the VIDEO IN jack on the VCR.
Connect the AUDIO OUT
jacks R(ight) and L(eft) from the TV to the AUDIO IN jacks on the VCR.
Select the "ANTENNA" PIC-
TURE SOURCE control on the TV.
With the FEATURES MENU on screen, move the RED highlight with the MENU buttons.
Then press the MENU (M) button.
Select the channel on the TV that you want to record.
Turn the VCR ON. Put a cas-
sette tape in the unit and place the
VCR in the RECORD mode.
STOP
1
2
3
4
BACK OF TV
VIDEO OUT
(YELLOW)
VCR
PICTURE AND SOUND BEING
RECORDED ON VCR.
AUDIO/VIDEO INPUT
JACKS ON VCR
AUDIO
OUT
(RED/
WHITE)
SMART HELP
Remember, if the VCR
has an INPUT SELECTOR switch, place it in the LINE or CAMERA position.
Unattended Timer Recordings with a VCR are possible, but not recommended with this connec­tion since the TV must be left ON for the VCR to record.
BEGIN
27
Page 28
REMOTE CONTROL OPERATION
A
re you tired of the sound of
commercials following you throughout the house? Smart Sound allows you to preset a desired vol­ume level that the TV sound will not go above. This makes for an even, more consistent sound by reducing the “peaks” and “valleys” that can occur during commercials.
Press the Smart button on the
remote.
With the SMART Menu on
screen, move the RED highlight with the Menu buttons. Then press the MENU (M) button to select the highlighted Smart Sound control.
Press the Menu ▲ or and
then the Menu (M) button to turn the Smart Sound control ON (or OFF.)
Press the STATUS button to
clear the screen when completed.
STOP
1
2
3
Remember, Smart Sound works for sound levels coming from either the Antenna/Cable input on the rear of the TV (RF audio); or the Auxiliary (VCR/AUX IN) audio inputs. When using a Cable Converter Box with the Smart Sound Control ON, the TV’s volume level may take up to ten seconds to gradually increase to normal listening levels (when the TV’s first turned on). This is considered NOR­MAL with various Cable Converter Box use.
SMART
HELP
BEGIN
R
egardless of what type of pro-
gram your watching, your TV has automatic video control settings matched for your current program source or content. The Smart Picture feature quickly resets your TV's video controls for a number of different types of programs and viewing condi­tions you may have in your home.
Press the Smart button on the
remote.
Press the Menu (M) button to
select the Smart Picture feature (high-
lighted in red).
Press the Menu (M) or but-
tons to choose any of the preset view­ing categories (Example: Cartoons, Movies, etc.). Then press the Menu (M) button to select the highlighted control.
Press STATUS button on the
remote control to clear the screen.
1
2
STOP
3
Remember, with the Smart Picture “ CUSTOM” mode selected you can set a number of video controls to your own preference. Use the remote’s SMART button to reselect these person­ally adjusted Custom settings contained within the Smart Picture feature.
The video control settings for the Smart Picture cate­gories (except CUS­TOM) are memo­rized into the TV at the factory and can only be reset by field and service technicians.
SMART
HELP
BEGIN
SMART SOUND
SMART PICTURE
4
4
28
Page 29
REMOTE CONTROL OPERATION
STOP
REW
§§
FF
©©
PLAY
©
REC
STATUS
VOL
CH
1
2
3
4
5
6
7
8
9
0
ON/OFF
TV/VCR
VCR
CBL
TV
SWAP
FREEZE
POS
SIZE
ENTER
M
E
N
U
M
CLEAR
~
!
SURF
MUTE
PAUSE II
SLEEP
SMART
100+
POWER
M
ODE
1
SURF
3
4
3
8 10 14 18
6
M to DELETE
6 to List
SURF
3
8 10 14 18
M to ADD
6 to List
SURF
3
8 10 14 18
6
M to DELETE
3 to List
SURF
3
8
10 14 18
6
M to DELETE
6 to List
SURF
3
8
10
14 18
6
M to DELETE
10 to List
2
A
“list” or series of previously
viewed channels can be selected with the SURF button on your remote control. With this feature you can easily switch between different TV programs that currently interest you. The Smart Surf control allows you to set up to 10 channels in its quick viewing “list”.
Press the Smart button on the
remote.
With the SMART Menu on
screen, move the RED highlight with the Menu (M) buttons. Press the MENU button to select the highlight­ed Smart Surf control.
Press the Menu ▲ or , then the
Menu (M) button to select either Smart Surf or 2-Channel Surf. (See explanation of Surf options with the illustration on this page.)
Press STATUS button on the
remote control to clear the screen.
1
2
3
BEGIN
2-CHANNEL SURF/SMART SURF
STOP
2 CHANNEL SURF- Current and one previous channel in the ring.
SMART SURF - Current and up to nine additional channels available in the ring. Note: The Channel Surf ring can be used with fewer than ten channels. In this way, the number of Surf channels can match or fit your present viewing interests.
4
With the Smart Surf control ON (see above), select a desired channel for viewing. You can use
the number buttons on the remote (or the Channel ▲▼ buttons).
Press the SURF button on the
remote. (Some channel numbers may already appear within the Surf channel list.)
Press the Menu button to "ADD"
the selected channel to the Surf list. Select the next desired channel and
repeat steps 2 and 3. Continue until all desired channels are on the Surf list.
Press the SURF button on the
remote to quickly review current action on channels contained within the Surf list.
To Use 2-Channel Surf:
With the 2-Channel Surf control ON, select the two desired channels
for viewing with the number but­tons on the remote control.
Press the SURF but­ton on the remote to "toggle" between the two selected channels.
SMART
HELP
HOW TO USE SMART SURF
1
2
3
BEGIN
STOP
4
Note: To Delete a channel from the Surf list just press the SURF button to select the desired chan­nel. Then press the Menu button and the channel will be immedi­ately dropped from the on screen Surf list.
29
Page 30
VCR REMOTE BRAND CODE NO.
Akai . . . . . . . . . . . . . . .24, 25, 36
Capehart . . . . . . . . . . . . . . . . .33
Conoid . . . . . . . . . . . . . . . . . . .13
Curtis Mathes . . . . . . . . . . . . .42
Daewoo . . . . . . . . . . . . . . . . . .33
Emerson . . . . . . . .20, 31, 34, 40
Fisher . . . . . . . . . . . . . . . .06, 07
Goldstar . . . . . . . . . . . . . . . . . .23
Go Video . . . . . . . . . . . . . .45, 46
Hitachi . . . . . . . . . . . . . . . .03, 51
JVC . . . . . . . . . . . . . . .14, 47, 48
Magnavox . . . . . . . . . . . . .00, 05
Matsushita . . . . . . . . . . . . .01, 02
Mitsubishi . . . .16, 17, 38, 39, 50
Multitech . . . . . . . . . . . . . .27, 28
NEC . . . . . . . . . . . . . . . . . . . .21
VCR REMOTE BRAND CODE NO.
Panasonic . . . . . . . . . .01, 02, 52
Philips . . . . . . . . . . . . . . . .00, 05
Philips Video CD . . . . . . . . . .37
RCA . . . . . . . .04, 32, 42, 43, 44
Samsung . . . . . . . . . . . . . .22, 30
Sansui . . . . . . . . . . . . . . . . . . .49
Sanyo . . . . . . . . . . . . . . . . . . .13
Sears . . . . . . . . . . . . . . . . . . . .08
Sharp . . . . . . . . . . . . . . . . .11, 12
Shintom . . . . . . . . . . . . . . . . . .35
Sony . . . . . . . . . . . . . .09, 10, 41
Teknika . . . . . . . . . . . . . . . . . .26
Toshiba . . . . . . . . . . . . . . .18, 19
Video Concepts . . . . . . . . . . . .29
Zenith . . . . . . . . . . . . . . . . . . .15
7
8
9
0
TV/VCR
VCR
CBL
TV
POWER
1
CLEAR
CH
FF
©©
©
STOP
POWER
ENTER
STATUS
REW
§§
PLAY
MENU
1
2
3
4
5
6
7
8
9 0
100+
TV/VCR
SLEEP
SMART
POWER
VCR
CBL
TV
SIZE
FREEZE
SWAP
POS
ON/OFF
VOL
REC
MUTE
SURF
PAUSE II
M
~
!
M
O
D
E
2
SMART
SETTING THE REMOTE TO WORK VCRS
Y
our remote control is set to
work your TV and many infrared remote (IR) control VCRs. However, an easy one­time step may be necessary before the remote will work your VCR.
Try this initial check to see if going on to the following section is necessary.
Press the VCR System but-
ton on the remote.
Point remote toward VCR
and press the POWER button.
Does the remote turn the VCR
ON? IF YES, and try the other VCR buttons on the remote. If they also work the VCR, then the remote is ready and no fur­ther steps are needed. If NO, continue...
1
2
3
First look up a TWO-DIGIT
remote code number for your
brand VCR before going through the simple "1,2,3" steps (on the following page).
continue to next page
1
STOP
VCR
SMART HELP
Remember, if more than
one number is listed, you may have to try more than the first two-digit code given in order to locate your VCR's remote code.
BEGIN
30
Page 31
CLEAR
CH
FF
©©
©
STOP
POWER
ENTER
STATUS
REW
§§
PLAY
MENU
1
2
3
4
5
6
7
8
9
0
100+
TV/VCR
SLEEP
SMART
POWER
VCR
CBL
TV
SIZE
FREEZE
SWAP
POS
ON/OFF
VOL
REC
MUTE
SURF
PAUSE II
M
~
!
M
O
D
E
4
STOP
REW
§§
FF
©©
PLAY
©
REC
STATUS
VOL
CH
1
2
3
4
5
6
7
8
9
0
ON/OFF
TV /VCR
VCR
CBL
TV
SWAP
FREEZE
POS
SIZE
ENTER
M
E
N
U
M
CLEAR
~
!
SURF
MUTE
PAUSE II
SLEEP
SMART
100+
POWER
M
ODE
3
2
1
N
ow that you have looked up
the two-digit Remote Code Number for your brand of VCR (on previous page), you are ready to follow the four simple steps below.
Please read through steps 1-4 before beginning.
Press and release the REC
(RECORD) button.
Within thirty seconds after
releasing the REC button, press
and release the VCR System
button.
Within thirty seconds after
releasing the VCR System but­ton, ENTER THE TWO DIGIT CODE NUMBER for the desired VCR. The remote is now ready to send commands to the VCR.
Point the remote at the VCR.
Press the POWER button on the remote to turn the VCR ON.
1
2
3
4
STOP
VCR
SMART HELP
Try it out. The Channel
and VCR buttons on the remote should now operate the VCR.
Remember, if this doesn't work the first time, repeat steps using the same remote code number.
If after a second try the remote does not operate your VCR, and there are more code numbers list­ed for your brand VCR, use the next listed code number.
If after repeated attempts the code number method does not work your VCR, try the "VCR SEARCH" method on page 34.
BEGIN
31
Page 32
7
8
9
0
VCR
CBL
TV
POWER
1
FF
©©
©
M
~
!
STATUS
REW
§§
PLAY
REC
PAUSE
II
VOL
CH
A/CH
MUTE
ON/ OFF
SWAP
FREEZE
SIZE
POS
7
8
9
1
2
3
5
4
6
0
TV/ VCR
TV
CBL
VCR
POWER
Smart Sound
Smart Picture
ENTER
STOP
2
TV/VCR
SMART
SETTING THE REMOTE TO WORK CABLE TV CONVERTERS
Y
our remote control is set to
work your TV and many infrared remote (IR) control Cable Converters. However, an easy one-time step may be neces­sary before the remote will work your Converter.
Try this initial check to see if going on to the following section is necessary.
Press the CBL System button
on the remote.
Point remote toward Cable
Converter and press the POWER button.
Does the remote turn the
Converter ON?
IF YES, and try the CH ▲ ▼ and CH number buttons on the
remote. If they also work the Converter then the remote is ready and no further steps are needed. If NO, continue...
1
2
3
First look up a TWO-DIGIT
remote code number for your
brand Converter before going through the simple "1,2,3" steps (on the following page).
continue to next page
1
STOP
Cable Converter
CONVERTER REMOTE BRAND CODE NO.
Archer . . . . . . . . . . . . . . . . .28
Diamond . . . . . . . . . . . . . . .23
Drake . . . . . . . . . . . . . . . . . .37
Gemini . . . . . . . . . . . . . . . . .45
Hamlin . . . . . . . . . . . . . .14, 15
Hitachi . . . . . . . . . . . . . . . . .25
Jerrold .
00,01,02,03,04,05,46,55
Macom . . . . . . . . . . . . .29, 38
Magnavox . . . . . . . . . . .17, 31
NSC . . . . . . . . . . . . . . . . . . .49
Oak . . . . . . . . . . . . .06, 27, 39
Panasonic . . . . . . . . . . .18, 35
Philips . . . . .19, 20, 21, 24, 26
Pioneer . . . . . . . . . . . . .09, 32
Regency . . . . . . . . . . . . .10, 11
CONVERTER REMOTE BRAND CODE NO.
Rembrant . . . . . . . . . . . . . . .33
Salora . . . . . . . . . . . . . . . . . .52
Scientific Atlanta . . .08, 22, 47
Sheritech . . . . . . . . . . . . . . .34
Starcom . . . . . . . . . . . . . . . .30
Sylvania . . . . . . . . . . . . . . . .16
Texscan . . . . . . . . . . . . . . . .48
Tocom . . . . . . . . . . . .12,13, 53
Toshiba . . . . . . . . . . . . . . . .43
Uniden Satellite . . . . . . . . . .44
Unika . . . . . . . . . . . . . . . . . .50
United Satellite . . . . . . . . . .54
Universal . . . . . . . . . . . . . . .36
Video Tech . . . . . . . . . . . . . .40
Video Way . . . . . . . . . . . . . .51
Zenith . . . . . . . . . . . .07, 41, 42
SMART HELP
Remember, if more than
one number is listed, you may have to try more than the first two-digit code given in order to locate your Converter's remote code.
BEGIN
32
Page 33
CLEAR
CH
FF
©©
©
STOP
POWER
ENTER
STATUS
REW
§§
PLAY
MENU
1
2
3
4
5
6
7
8
9
0
100+
TV/VCR
SLEEP
SMART
POWER
VCR
CBL
TV
SIZE
FREEZE
SWAP
POS
ON/OFF
VOL
REC
MUTE
SURF
PAUSE II
M
~
!
M
O
D
E
4
STOP
REW
§§
FF
©©
PLAY
©
REC
STATUS
VOL
CH
1
2
3
4
5
6
7
8
9
0
ON/OFF
TV /VCR
VCR
CBL
TV
SWAP
FREEZE
POS
SIZE
ENTER
M
E
N
U
M
CLEAR
~
!
SURF
MUTE
PAUSE II
SLEEP
SMART
100+
POWER
M
ODE
3
2
1
N
ow that you have looked up
the two-digit Remote Code Number for your brand of Cable Converter (on previous page), you are ready to follow the four simple steps below.
Please read through steps 1-4 before beginning.
Press and release the REC
(RECORD) button.
Within thirty seconds after
releasing the REC button, press
and release the CBL System
button.
Within thirty seconds after
releasing the CBL System but­ton, ENTER THE TWO DIGIT CODE NUMBER for the desired Converter. The remote is now ready to send commands to the Converter.
Point the remote at the
Converter. Press the POWER button on the remote to turn the Converter ON.
1
2
3
4
STOP
Cable Converter
SMART HELP
Try it out. The Channel
and POWER buttons on the
remote should now operate the Converter.
Remember, if this doesn't work the first time, repeat steps using the same remote code number.
If after a second try the remote does not operate your Converter, and there are more code numbers listed for your brand Converter, use the next listed code number.
If after repeated attempts the code number method does not work your Converter, try the "CON­VERTER SEARCH" method on page 34.
BEGIN
33
Page 34
06
07
08
09
06
07
08
09
1
3
STOP
REW
§§
FF
©©
PLAY
©
REC
STATUS
VOL
CH
1
2
3
4
5
6
7
8
9
0
ON/OFF
TV /VCR
VCR
CBL
TV
SWAP
FREEZE
POS
SIZE
ENTER
M
E
N
U
M
CLEAR
~
!
SURF
MUTE
PAUSE II
SLEEP
SMART
100+
POWER
M
ODE
4
2
4
2
SETTING YOUR REMOTE TO WORK VCRS, CONVERTERS - SEARCH
Y
our TV remote can be set to
work your VCR or Cable Converter by what is called the SEARCH method.
If the "REMOTE CODE" number method shown in the previous sec­tion did not set your remote to work your VCR or Converter, then follow the easy steps listed below.
Please read through steps 1-4 before beginning.
Press the POWER button on
the VCR or Converter to turn the unit ON.
Stand at least six feet away from the front of the VCR or Converter.
Point the remote toward the unit. HOLD DOWN the SURF and the desired System (VCR or CBL-Converter) buttons at the
same time. KEEP HOLDING BUTTONS DOWN.
Watch the Channel Indicator
on the unit. Channel Numbers will SCAN UP when the unit has been identified. This may take up to two minutes.
Release the SURF and System
(VCR or CBL) buttons as soon
as channel numbers start to scan up. The code has been identified and the remote is ready to operate with the VCR or Converter.
STOP
1
2
3
4
VCR
Don't let the VCR or Converter scan up more than five channels (in Search mode).
Six Feet
(minimum)
SMART HELP
Remember, a minute or
two can seem very long, but the code should be located within two minutes.
Don't let the VCR scan up more than five channels. If you do the remote may pass up the right code and another two minute search cycle will have to be repeated.
If no channel change happens within two minutes, repeat steps 1-4. Should a channel change still not occur, the remote will not work with the desired unit.
BEGIN
CABLE CONVERTER
34
Page 35
USING THE REMOTE'S VCR BUTTONS
W
hen using the TV remote
with a VCR, first make cer­tain it is set to control your VCR (by the REMOTE CODE or SEARCH method - see earlier section).
Press the VCR System but-
ton on the remote.
Point the top of the remote
toward the front of the VCR (remote sensor window) when pressing buttons.
1
2
STOP
REW
§§
FF
©©
PLAY
©
REC
STATUS
VOL
CH
1
2
3
4
5
6
7
8
9
0
ON/OFF
TV /VCR
VCR
CBL
TV
SWAP
FREEZE
POS
SIZE
ENTER
M
E
N
U
M
CLEAR
~
!
SURF
MUTE
PAUSE II
SLEEP
SMART
100+
POWER
M
ODE
Play Button
Press to playback a tape. Hold down after pressing the RECORD button to start a recording.
Stop Button
Press to stop the tape.
Fast Forward Button
Press to rapidly advance the tape. For some VCRs you may need to press STOP first then FF. In Playback mode hold button down to view the picture moving rapidly in the forward direction.
Channel Scan Buttons
Press to scan up or down through VCR channel numbers.
Number Buttons
Press buttons for direct VCR channel selections .
VCR System Button
Press to send remote commands to the VCR.
Power Button
Press to turn the VCR ON and OFF.
Record Button
Hold the RECORD button down, and then press the PLAY button to begin a VCR recording.
Rewind Button
Press to rewind tapes. For some VCRs you may need to press STOP button first then REWIND. In play­back mode. hold button down to view picture moving rapidly in reverse.
Pause Button
Press to temporarily stop the tape dur­ing a playback or recording. Press again to release Pause.
TV-VCR Button
Press to the VCR position ("VCR" indicator on the VCR will light) to view the playback of a tape. Press again to place in the TV position ("VCR" indicator on the VCR will go OFF) to view one program while recording another program. When used with the TV the TV/VCR button works as a source button. Each press cycles the TV between chan­nels 3 and 4; or the VCR/AUX Input mode. It is a quick one-button way to select these channels and modes (without directly entering the TV's Menu system.)
SMART HELP
Remember, the VCR but-
tons on the remote will not operate your VCR if those fea­tures are not already found on your VCR remote control.
Note: All VCR functions (particu­larly Search, Rewind, Fast Forward, etc.) will operate the same as with the original VCR remote control provided with the VCR.
BEGIN
STOP
35
Page 36
75V UHF/VHF
ANT/CABLE
REAR SURROUND
EXT. SPEAKERS
VCR/AUX IN
VIDEO AUDIO
RL
R
L
8V
+
-
R
L
VIDEO
OUT
VAR AUDIO OUT SUR AUDIO OUT
ANTENNA
OUT
IN
OUT
IN
AUDIO
R
L
VIDEO
IN
OUT
1
OR
S-VIDEO-1
HOW TO USE THE PICTURE-IN-PICTURE (PIP) FEATURE
P
icture in Picture (PIP) is the
showing of two pictures on the TV screen at the same time. (One main screen picture and one small inset picture - or PIP).
Note: The PIP picture must be supplied by a VCR (or other
accessory equipped with a VIDEO OUTPUT jack). If you already went through FIRST TIME SETUP (in the Quick-Use Guide), then the connections for PIP have been completed.
To see how channels selected on a VCR can be shown as PIP:
Connect the VIDEO OUT
jack on the VCR to the
VCR/AUX VIDEO IN jack (yel­low) on the TV.
Also connect the AUDIO OUT (R and L) jacks from the VCR to the VCR/AUX AUDIO IN jacks (red and white) on the TV.
Also be sure the normal antenna connection between the VCR and TV are in place.
Move to the next page after
the VCR to TV PIP connections are completed.
2
1
PIP
MAIN
SCREEN
BACK OF TV
VIDEO OUT
(YELLOW)
ANT OUT
AUDIO OUT
(RED/WHITE)
OUTDOOR UHF/VHF
ANTENNA
ANT IN
CABLE TV
SIGNAL
VCR
AUDIO/VIDEO
CABLES SUP-
PLIED
SMART HELP
For other possible PIP
connections see page 41 for the "More PIP Connections" sec­tion.
If you have a single (monaural) Audio Output VCR, "Y" connec­tors are available to complete your connection. Contact your dealer, or our Parts Information Center (1-800-292-6066), for details.
BEGIN
36
Page 37
CH
12:34
8
06
12:00
AM
VCR
06
12:00
AM
19
12:00
AM
4
PIP SOURCE SELECT
HELP
EXIT
ANTENNA VCR/AUX
3
STOP
REW
§§
FF
©©
PLAY
©
REC
STATUS
VOL
CH
1
2
3
4
5
6
7
8
9
0
ON/OFF
TV /VCR
VCR
CBL
TV
SWAP
FREEZE
POS
SIZE
ENTER
M
E
N
U
M
CLEAR
~
!
SURF
MUTE
PAUSE II
SLEEP
SMART
100+
POWER
M
ODE
5
3
N
ow that you have completed
the required connections on the previous page you are ready to follow the simple steps shown below.
Turn the VCR and TV ON.
Place the VCR in the TV mode -
Use the TV/VCR button on the VCR (or on the TV remote if it has been set to work with your VCR - see page 30.)
Place the TV's PIP SOURCE SELECT control to "VCR/AUX"-
With FEATURES MENU (3 of 3) on screen, move the RED highlight with the MENU (M)
buttons. Then press the
MENU button.
Press the MENU ▲▼ and MENU (M) buttons to
highlight and select the "VCR/AUX" (U) item.
Select the channel on the VCR
to view in the PIP window. Select the channel on the TV to
view on the main screen.
Press the PIP ON/OFF button
on the remote. The PIP window should show in
one of the corners of the TV screen.
3
4
5
VCR IN “TV MODE”
(VCR Indicator Light will go out)
VCR - FOR PIP CHANNEL
TV - FOR MAIN SCREEN CHANNEL
TV
SELECTED
CHANNEL
VCR
SELECTED
CHANNEL
PIP INPUT CONTROL SET TO "VCR/AUX"
STOP
Be sure to point the remote at the front of the VCR when pressing VCR function buttons.
SMART HELP
Remember, if you see the
same picture on the main
screen and in the PIP window, you need to be sure the TV's PIP Picture Source control (page 39) is set to "VCR/AUX".
No sound will be heard with the PIP picture. See page 38 on how to "SWAP" the PIP picture with the main screen picture so that sound can be heard.
Also see the following page on how to operate other PIP features with the remote controls.
37
Page 38
STOP
REW
§§
FF
©©
PLAY
©
REC
STATUS
VOL
CH
1
2
3
4
5
6
7
8
9
0
ON/OFF
TV /VCR
VCR
CBL
TV
SWAP
FREEZE
POS
SIZE
ENTER
M
E
N
U
M
CLEAR
~
!
SURF
MUTE
PAUSE II
SLEEP
SMART
100+
POWER
M
ODE
4
5
2
1
3
5. PIP SIZE (Large or Small)
4. PIP FREEZE
USING PIP WITH THE REMOTE CONTROL
B
y using the PIP buttons on the
remote the PIP picture can be moved and swapped with the main screen. The main screen picture can also be frozen in the PIP win­dow.
Press the PIP ON/OFF button
to show the PIP picture.
PIP appears in a corner of TV screen. Press PIP ON/OFF again to remove PIP from the main screen.
Press the PIP POSITION but-
ton to move the PIP picture (from
corner-to-corner on the TV screen.)
This feature allows you to move PIP and avoid blocking off any main screen action.
With PIP on the TV screen,
press the SWAP button to swap the main screen picture with the PIP picture. See "Smart Help" note on this page.
Press FREEZE to hold the cur-
rent MAIN screen picture in the PIP window (Main picture is still active).
If PIP is currently OFF, the PIP window will automatically appear.
Press FRZ repeatedly to update the frozen PIP with current pic­tures from the Main screen.
You cannot reposition a frozen PIP picture.
Press the PIP ON/OFF button to drop the frozen PIP picture from the screen.
Press the PIP SIZE button to
change the size of the PIP window
shown on the TV screen. Press the PIP SIZE button again to
see and compare the large and small size PIP windows.
You cannot change the size of a frozen PIP picture.
1
2
3
1. PIP ON / OFF
2. PIP POSITION
3. PIP SWAP
4
5
STOP
Remember, if the TV is show­ing a "VCR/AUX" supplied picture on the main screen (when the TV and VCR are turned OFF), a blank screen will appear when the TV is turned back ON again.
If this happens, just press the CH(annel) or buttons to
select a TV station for normal viewing.
SMART
HELP
BEGIN
38
Page 39
SELECTING THE PICTURE SOURCE FOR PIP
MAIN MENU
FEATURES
SOUND
HELP
EXIT
EXIT
1 OF 3
PICTURE SOURCE
MORE...
CLOSED
CAPTIONS
FEATURE MENU
CHANNEL
MEMORY
CABLE
TUNING
PIP SOURCE SELECT
HELP
EXIT
ANTENNA VCR/AUX
EXIT
2 OF 3
MORE...
HALF HOUR
REMINDER
FEATURE MENU
CHANNEL
DISPLAY
SLEEP TIMER
SET CLOCK
& ON TIMER
EXIT
3 OF 3
FEATURE MENU
LANGUAGE
SELECTION
MORE...
STOP
REW
§§
FF
©©
PLAY
©
REC
STATUS
VOL
CH
1
2
3
4
5
6
7
8
9
0
ON/OFF
TV /VCR
VCR
CBL
TV
SWAP
FREEZE
POS
SIZE
ENTER
M
E
N
U
M
CLEAR
~
!
SURF
MUTE
PAUSE II
SLEEP
SMART
100+
POWER
M
ODE
1
1
3
2
2
PIP
SOURCE
PARTENAL
CONTROL
MORE...
T
he picture for the PIP window
can come through either the ANT/CABLE or VCR/AUX Inputs (on the rear of the TV). PIP Picture Source simply tells the TV which one of these sources it is to show in the PIP window.
Select PIP SOURCE control.
With FEATURES MENU (3 of 3) on screen, move the RED highlight with the MENU buttons. Then
press the MENU (M) button.
Press the MENU ▲▼ and MENU (M) buttons to highlight
and select either the ANTENNA or VCR/AUX (U) item.
VCR/AUX- for a picture signal
coming from the VCR/AUX IN Audio/Video jacks on the TV.
ANTENNA- for a picture signal
coming from the ANT/CABLE Input on the TV.
Press the STATUS button to clear the screen.
PIP SOURCE
STOP
1
2
3
SMART HELP
Remember. The PIP
screen will be blank unless a signal is connected to the selected source (either ANT/CABLE or VCR/AUX Inputs) on the rear of the TV.
BEGIN
39
Page 40
ADJUSTING PICTURE-IN-PICTURE COLOR AND TINT
2
MAIN MENU
FEATURES
SOUND
HELP
EXIT
PICTURE MENU
FLESH CORRECTION
EXIT
2 OF 2
PIP COLOR PIP TINT
MORE...
CONVERGENCE
PICTURE MENU
SHARP
CLEARVIEW
EXIT
1 OF 2
COLOR TINT
MORE...
BRIGHT
STOP
REW
§§
FF
©©
PLAY
©
REC
STATUS
VOL
CH
1
2
3
4
5
6
7
8
9
0
ON/OFF
TV /VCR
VCR
CBL
TV
SWAP
FREEZE
POS
SIZE
ENTER
M
E
N
U
M
CLEAR
~
!
SURF
MUTE
PAUSE II
SLEEP
SMART
100+
POWER
M
ODE
1
1
4
2
2
3
MIN
HELP
EXIT
MAX
PIP COLOR
RED
HELP
EXIT
GRN
PIP TINT
T
he Picture-In-Picture (PIP)
Color and Tint controls are
used to make fine tune adjustments to the color settings for PIP (when it is shown on the TV screen).
Select PIP COLOR (or PIP
TINT) control.
With PICTURE MENU (2 of 2) on screen, move the RED highlight with the MENU buttons. Then
press the MENU (M) button.
Press the MENU ▲▼ buttons
to move the RED highlight. Press the MENU button to turn the PIP COLOR or TINT control ON.
The PIP automatically comes on to show the PIP window on the TV screen.
Press the (+) and (-) buttons to
adjust the PIP for Color (or Tint) levels you prefer.
Press the STATUS button to
clear the screen.
PIP COLOR / PIP TINT
STO
1
2
3
4
BEGIN
SMART HELP
Remember. Although
there are separate COLOR and TINT controls for PIP, the adjustment levels for these con­trols depend on the TV's main pic­ture. For example: If the main screen is showing a black and white picture, PIP would also be in black and white (even though its source is in color).
40
Page 41
1
CABLE OUT
CABLE IN
ANTENNA
OUT
ANTENNA
IN
VIDEO AUDIO
IN
IN
OUT OUT
2
R
L
75V UHF/VHF
ANT/CABLE
REAR SURROUND
EXT. SPEAKERS
VCR/AUX IN
VIDEO AUDIO
RL
R
L
8V
+
-
R
L
VIDEO
OUT
VAR AUDIO OUT SUR AUDIO OUT
3
75V UHF/VHF
ANT/CABLE
REAR SURROUND
EXT. SPEAKERS
VCR/AUX IN
VIDEO AUDIO
RL
R
L
8V
+
-
R
L
VIDEO OUT
VAR AUDIO OUT SUR AUDIO OUT
S-VIDEO-1
S-VIDEO-1
MORE PIP CONNECTIONS
P
IP hookup with Cable Converter Box and VCR.
First use an optional signal
splitter and connect the original
cable TV signal to both the CABLE IN on the Cable Converter and the ANTENNA plug on the rear of the TV.
Connect the CABLE OUT on
the Converter to the ANT. IN on
the VCR.
Connect the VIDEO OUT
jack on the VCR to the VIDEO
IN jack on the TV.
Also connect the AUDIO OUT (R and L) jacks from the VCR to the AUDIO IN jacks on the TV.
SIGNAL
SPLITTER
Contact the Parts
Information Center
1 800 292-6066
to order any optional
accessories
CABLE TV CONVERTER
VCR
REAR OF TV
AUDIO VIDEO
CABLES SUPPLIED
1
2
3
STOP
Remember to use the Cable TV Converter Box to select channels for PIP, the VCR must be set to the same channel as the chan­nel selection switch on the rear of the Cable Converter (either channel 3 or
4).
SMART
HELP
BEGIN
41
Page 42
TIPS IF SOMETHING ISN'T WORKING
• Check the TV power cord. Unplug the TV, wait 1 minute, then reinsert plug into outlet and push POWER button again.
• Check to be sure outlet is not on a wall switch.
• Check antenna connections on the rear of the TV. Are they properly secured to the antenna plug on the TV?
• Check the CABLE TUNING control for correct position.
• Check PICTURE SOURCE control for correct position "VCR/AUX" position without a signal source will result in a blank screen.
• Check TV-VCR-CBL “System” buttons on the remote. Press the remote’s TV System button to send commands to the TV; VCR System to sent to VCR; etc.
• Check batteries. Replace with AA Heavy Duty (Zinc Chloride) or Alkaline batteries if necessary.
• Clean the remote and the remote sensor window on the TV.
• Check the VOLUME buttons.
• Check the MUTE button on the remote control..
• Check the TV SPEAKER ON/OFF control for the correct position.
• If attempting auxiliary equipment hook-ups, check audio jack connections and that the auxiliary equipment is on and in the proper operating modes.
• Repeat channel selection.
• Add desired channel numbers (ADD/DELETE CHANNELS control) into TV memory.
• Check CABLE TUNING control for correct position.
P
lease make these simple
checks before calling for ser­vice. These tips can save you time and money since charges for TV installation and adjustment of customer controls are not cov­ered under your warranty.
No Power
No Picture
No Sound
Remote Does Not
Work
TV Displays Wrong
Channel or No
Channels Above 13
This TV is equipped with protective circuitry that shuts the TV off in case of moderate power surges. Should this occur turn the TV back on by pressing the POWER button once or twice, or unplug and then replug the power cord at the AC outlet. This feature is NOT designed to prevent damage due to high power surges such as those caused by lightning, which is not covered by your warranty.
Cleaning and Care
• To avoid possible shock hazard be sure the TV is unplugged from the electrical outlet before cleaning.
• When cleaning the TV screen take care not to scratch or damage the screen surface (avoid wearing jewelry or using anything abrasive- do not use household cleaners). Wipe the front screen with a clean cloth dampened with water. Use even, easy, vertical strokes when cleaning.
• Specially designed screen cleaning kits are also available which contain anti-static cleaners and cloths designed to get into the ridges of the TV screen. If interested, ask your dealer about the MAG4600 Projection TV Screen Cleaning Kit or call our toll-free Accessory Parts ordering number 1-800-292-6066.
• Gently wipe the cabinet surfaces with a clean cloth or sponge dampened in a solution of cool clear water and a mild soap or detergent. Use a clean dry cloth to dry the wiped surfaces.
• Occasionally vacuum the ventilation holes or slots in the cabinet back.
• Never use thinners, insecticide sprays, or other chemicals on or near the cabinet, as they might cause permanent marring of the cabinet finish.
CAUTION: A video source (such as a video game, Compact Disc Interactive - CDI, or TV information channel) which shows a constant non-moving pattern on the TV screen, can cause picture tube damage. When your TV is continuously used with such a source the pattern of the non-moving portion of the game (CDI, etc.) could leave an image per­manently on the picture tube. When not in use, turn the video source OFF. Regularly alternate the use of such video sources with normal TV viewing.
42
Page 43
MAIN MENU
FEATURES
HELP
EXIT
HELP MENU
Installation
For Problems
Of TV Features
1ST TIME SETUP
OPERATIONG TIPS
GLOSSARY
EXIT
SOUNDPICTURE
USING OPERATING TIPS
OPERATING TIPS
Use the and Ä keys on your remote to scroll through the different help items.
• Use the "M" key on your remote will go back to the help menu.
STOP
REW
§§
FF
©©
PLAY
©
REC
STATUS
VOL
CH
1
2
3
4
5
6
7
8
9
0
ON/OFF
TV /VCR
VCR
CBL
TV
SWAP
FREEZE
POS
SIZE
ENTER
M
E
N
U
M
CLEAR
~
!
SURF
MUTE
PAUSE II
SLEEP
SMART
100+
POWER
M
ODE
2
1
2
1
TV HELP MENU
T
he on screen HELP menu
offers both Operating Tips and a list of Glossary definitions for different features on your TV. These items are given to provide you with more information and details on a select group of feature operations.
Select "HELP" on the TV's
Main Menu.
Press the remote's Menu buttons to move UP/DOWN and
from SIDE-TO-SIDE within the list of on-screen features.
Press MENU (M) to select the highlighted "HELP" item.
Press the MENU ▲▼ and
then the MENU (M) buttons to
select either the OPERATING TIPS or GLOSSARY item.
FOLLOW THE ON SCREEN DIREC­TIONS TO VIEW OPERATING TIPS
1
2
STOP
BEGIN
43
Page 44
GLOSSARY TO TELEVISION TERMS
Coaxial Cable * A single solid antenna wire normally matched
with a metal plug (F-type) end connector that screws (or pushes) directly onto a 75 Ohm input found on the Television or VCR.
Display * An on screen message or graphics that help the user operate and adjust his Television feature controls. See On Screen Displays (OSD).
Direct Audio/Video Inputs * Located on the rear of the TV these connectors (RCA phono type plug) are used for the input of audio and video signals. Designed for use with VCRs (or other accessories) in order to receive higher picture resolution and offer sound connection options.
Identify* Method by which a remote control searches and finds an operating code for another product (such as a VCR or Cable Converter). Once the code has been "identified" then the TV remote can operate and send commands to the other product.
Multichannel Television Sound (MTS) * The broadcast stan­dard that allows for stereo sound to be transmitted with the TV picture.
Menu * An on-screen listing of feature controls shown on the Television screen that are made available for user adjustments.
On Screen Displays (OSD) * Refers to the wording or mes­sages generated by the television (or VCR) to help the user with specific feature controls (color adjustment, programming, etc.).
Picture -In-Picture (PIP) * Term used when two pictures are shown on the TV screen at the same time. The smaller PIP picture is supplied by a VCR (or other tuner/video playback source). The PIP picture can also be moved and swapped with the TV's main screen picture.
Programming * The procedure of adding or deleting channel numbers into the Television’s memory circuits. In this way the Television “remembers’’ only the locally available or desired channel numbers and skips over any unwanted chan­nel numbers.
Remote Sensor Window * A window or opening found on the Television control panel through which infrared remote control command signals are received.
Second Audio Program (SAP) * Another or additional audio channel provided for in the Multichannel Television Sound (MTS) broadcast standard. The most frequently proposed use for SAP is the simultaneous bilingual broadcast of TV pro­gram material.
Status * Allows the user to quickly confirm what channel number is currently being viewed. Status can also be used to clear the Television of on screen displays or information (rather than waiting for the displays to “time out” or automati­cally disappear from the screen).
Twin Lead Wire * The more commonly used name for the two strand 300 Ohm antenna wire used with many indoor and outdoor antenna systems. In many cases this type of antenna wire requires an additional adapter (or balun) in order to con­nect to the 75 Ohm Input terminals designed into the more recent Televisions and VCRs.
44
Page 45
INDEX
Accessories/Optional.........................24, 25-27, 36, 41, *Q/U-1
Adapter Connector..............................................36, 41, *Q/U-1
Add/Delete Channels ..........................................12-13, *Q/U-2
Advance Buttons ........................................................*Q/U-2, 4
Audio Controls..................................................................20-24
Audio/Video Input ..................................25-26, 36, 41, *Q/U-2
Automatic Programming..........................................12, *Q/U-2
Battery Installation .........................................................*Q/U-3
Cable TV Connections/Settings ...............11, 36, 41, *Q/U-1, 2
Channel/Time Display..................................14, 16, 19, *Q/U-3
Channel Memory.................................................12-13, *Q/U-2
Channel/Time Reminder.........................................................16
Clock Setting ..........................................................................14
Clock Timer............................................................................15
Closed Captioning ..................................................................10
Color Controls.............................................................6,*Q/U-4
Convergence.............................................................................8
Controls/TV............................................................*Q/U-2, 3, 4
Controls/Remote ...................................28-35, 38, *Q/U-2, 3, 4
Exit .................................................................................*Q/U-4
Features.....................................................................................5
First Time Set Up ...........................................................*Q/U-2
Glossary/TV Terms ................................................................44
Help Menu............................................................43, *Q/U-2, 4
Inputs/Audio and Video ........................................25-26, 36, 41
Language Control.....................................................19, *Q/U-2
Menu...........................................................................*Q/U-2, 4
Minus(-)/Plus (+) Buttons...........................................*Q/U-3, 4
Parental Control.................................................................17-18
Picture-In-Picture (PIP).....................................................36-41
Power Light Indicator.....................................................*Q/U-3
Precautions/Safety......................................2, 3, 42, 48, *Q/U-1
Programming Channels............................................12, *Q/U-2
Remote Control.....................................28-35, 38, *Q/U-2, 3, 4
Remote with VCRs................................................30-31, 34, 35
Requesting Service .....................................................42, 43, 48
RF Coaxial Cable ...............................................36, 41, *Q/U-1
Reminder/Time and Channel..................................................16
Safety/Precautions............................................2, 3, 42, *Q/U-1
Second Audio Program (SAP)................................................21
Sensor Remote................................................................*Q/U-3
Sleep Timer.............................................................................15
Smart Button......................................................................28-29
Smart Picture ..........................................................................28
Smart Sound............................................................................28
Smart Surf...............................................................................29
Sound Image...........................................................................22
Surf Button..............................................................................29
Status Button ..............................................................*Q/U-3, 4
Stereo Light Indicator...............................................21, *Q/U-3
Surround Sound......................................................................24
Speaker Terminals..................................................................24
Time/Channel Display..................................14, 16, 19, *Q/U-3
Timer (Turn On).....................................................................15
VCR Button......................................................................25, 35
VCR/TV Connections.............................25-27, 36, 41, *Q/U-1
Tips for Service...........................................................42, 46-48
TV Speaker Control................................................................22
Warranty.................................................................................48
* Information contained in Quick-Use (Q/U) Guide - page listed
45
Page 46
EL4482-3 Rev. X
Miami/SE Florida
Chicago
Cleveland/
N Ohio
Tampa/W Florida
Ft. Myers/SW Florida
San Francisco/Metro Area
Detroit/Toledo
Pittsburgh/WV Area
Philadelphia/S New Jersey
See Reverse Side for More Details.
Atlanta/N Georgia
Houston/Galveston
Beaumont/Austin
San Antonio
Seattle/Tacoma Area
Knoxville/E Tennessee
Charlotte
Los Angeles
Dallas
Columbus
Wash/Balt
Orlando
Indicates In-Home Service Only
1-800-242-9225
Indicates In-Home/Carry-In Service
MAC2929 1/98
NOTE: If you reside in one of our Philips Factory Service Branch areas (see directory on back), you can contact the nearest Service Branch to obtain efficient and expedient repair for your product. If your product is In-Warranty, you should have proof-of-purchase to ensure No Charge Service. For Out-of-Warranty service, call the location nearest you.
NOTA: Si vous résidez dans une des régions desservies par une succursale de service après vente du fabricant Philips (voir liste ci-dessous), vous pourrez contacter la branche de service après vente la plus près de chez vous pour obtenir un service après vente rapide et efficace. Si le produit est sous garantie, il suffira de présenter une preuve d`achat pour bénéficier d'un service sans frais. Pour les produits non couverts par la garantie, contactez le centre le plus près de chez vous.
NOTA: Si Ud. reside en una de nuestras zonas para sucursales Philips de servicio al de fábrica (ver directorio más abajo), Ud. puede comunicarse con la sucursal de servicio más cercana para obtener una reparación oportuna y eficaz de su producto. Si su producto está todavía bajo garantía, Ud. debe presentar comprobante de compra para no ocasionar ningunos cargos por servicio. Para servicio después del vencimiento de la garan­tía, llame al lugar más cercano de los abajo indicados.
Philips Consumer Electronics Company
Factory Service Center Locations
In Canada
How you can obtain efficient and expedient carry-in, mail-in, or in-home service for your product Please contact Philips at 1-800-661-6162 (French speaking)
1-800-363-7278 (English speaking)
Au Canada
Comment obtenir le service après-vente pour les produits apportés ou envoyés par la poste à notre centre de service ou le service à domicile Veuillez contacter philips á: 1-800-661-6162 (Francophone)
1-800-363-7278
En el Canadá
Cómo recibir servicio efficiente para su producto, en persona, por correo o a domicillo Favor de comunicarse con Philips al: 1-800-661-6162 (francófono)
1-800-363-7278 (anglófono)
46
Page 47
MAC2929 1/98
QUALITY SERVICE IS AS CLOSE AS YOUR TELEPHONE! SIMPLY LOOK OVER THE LIST BELOW FOR THE NUMBER OF A FACTORY SERVICE CENTER
NEAR YOU
. YOUR PRODUCT WILL RECEIVE EFFICIENT AND EXPEDIENT CARRY-IN, MAIL-IN, OR IN-HOME SERVICE, AND YOU WILL RECEIVE PEACE OF MIND,
KNOWING YOUR PRODUCT IS BEING GIVEN THE EXPERT ATTENTION OF PHILIPS’ FACTORY SERVICE. AND, IF THE PHONE NUMBER LISTED FOR YOUR AREA
IS LONG DISTANCE
, CALL 1-800-242-9225 FOR FACTORY SERVICE.
COMMENT OBTENIR NOTRE SERVICE APRÈS VENTE RAPIDE ET EFFICACE SOIT PAR COURRIER, À DOMICILE, OU EN SE PRÉSENTANT À UN CENTRE DE SERVICE PHILIPS. PLUS DE 600 CENTRES DE
RÉCEPTION DE PRODUITS À RÉPARER À TRAVERS LE PAYS: CONTACTER LE CENTRE DE SERVICE AUX CONSOMMATEURS LE PLUS PROCHE POUR SAVOIR L’EMPLACEMENT DE CES DÉPOTS DANS
UN RAYON DE 50 À 75 MILES (80 KM À 120 KM) DU CENTRE DE SERVICE LOCAL.
CÓMO OBTENER UN SERVICIO OPORTUNO Y EFICIENTE POR CORREO, EN CASA O EN PERSONA PARA SU PRODUCTO A TRAVÉS DE UN CENTRO PHILIPS DE SERVICIO. MAS DE 600 SITIOS POR
TODO EL PAIS PARA LA RECEPCION DE PRODUCTOS NECESITADOS DE REPARACIONES: COMUNICARSE CON EL CENTRO DE SERVICIO DE FABRICA MAS CERCANO PARA ESTOS LUGARES DENTRO
DE UN RADIO DE 80 A 120 KM (50 A 75 MILLAS) DEL CENTRO DE SERVICIO LOCAL.
GEORGIA
Philips Factory Service of Georgia 200 N. Cobb Pkwy., Suite 120 Marietta, GA 30062 (770) 795-0085
FT. MYERS, FLORIDA
Philips Factory Service Satellite - Ft. Myers 11601 Cleveland Ave., Suite 15 Ft. Myers, FL 33907 (941) 278-4242
FLORIDA
Philips Factory Service of Florida 1911 US Highway 301 North Tampa, FL 33619 (813) 621-8181
WESTERN U.S.A.
Philips Factory Service Western Region 681 East Brokaw Rd. San Jose, CA 95112 (408) 436-8566
NORTH CAROLINA
Philips Factory Service of N. Carolina 520 G Clanton Rd. Charlotte, NC 28217 (704) 529-6330
TEXAS
Philips Factory Service of Texas 1110 N. Post Oak Rd., Suite 100 Houston, TX 77055 (713) 682-3990
CENTRAL U.S.A.
Philips Factory Service Central US 950 Keynote Circle Brooklyn Heights, OH 44131 (216) 741-3334
MICHIGAN
Philips Factory Service of Michigan 25173 Dequindre Madison Heights, MI 48071 (248) 544-2110
ILLINOIS
Philips Factory Service of Illinois 1360 W. Hamilton Pkwy. Itasca, IL 60143 (630) 775-0990
TENNESSEE
Philips Factory Service of East Tennessee 6700 D Papermill Rd. Knoxville, TN 37919 (423) 584-6614
MID-ATLANTIC
Philips Factory Service Mid-Atlantic 352 Dunks Ferry Rd. Bensalem, PA 19020 (215) 638-7500
47
Page 48
PROJECTION TELEVISION
One Year Free Labor
One Year Free Service on Parts
Two Years Free Service on Cathode Ray Tube Parts / 30 days Free Service on Projection TV Screen
This product can be repaired in-home.
LIMITED WARRANTY
WHO IS COVERED?
You must have proof of purchase to receive warranty service. A sales receipt or other document showing that you purchased the product is considered proof of purchase.
WHAT IS COVERED?
Warranty coverage begins the day you buy your product. for one year thereafter (30 days for the projection TV screen), all parts will be repaired or replaced, and labor and transportation are free. From one to two years from the day of purchase, you pay for the replacement or repair of all parts except the cathode ray tube and the “Clear-Vu” lens, and for all labor and transportation charges. After two years from the day of pur­chase, you pay for the replacement or repair of all parts except the “Clear-Vu” lens (which is guaranteed against manufacturer’s defects for the life of the product), and for all labor and transportation charges.
All parts, including repaired and replaced parts, are covered only for the original warranty period. When the warranty on the product expires, the warranty on all replaced and repaired parts also expires.
WHAT IS EXCLUDED?
Your warranty does not cover:
• labor charges for installation or setup of the product, adjustment of customer controls on the product, and installation or repair of antenna systems outside of the product.
• product repair and/or part replacement because of misuse, acci­dent, unauthorized repair or other cause not within the control of Philips Consumer Electronics Company.
• reception problems caused by signal conditions or cable or antenna systems outside the unit.
• a product that requires modification or adaptation to enable it to operate in any country other than the country for which it was designed, manufactured, approved and/or authorized, or repair of products damaged by these modifications.
• incidental or consequential damages resulting from the product. (Some states do not allow the exclusion of incidental or consequen­tial damages, so the above exclusion may not apply to you. This includes, but is not limited to, prerecorded material, whether copy­righted or not copyrighted.)
• a product used for commercial or institutional purposes.
WHERE IS SERVICE AVAILABLE?
Warranty service is available in all countries where the product is offi­cially distributed by Philips Consumer Electronics Company. In coun­tries where Philips Consumer Electronics Company does not distribute the product, the local Philips service organization will attempt to pro­vide service (although there may be a delay if the appropriate spare parts and technical manual(s) are not readily available).
MAKE SURE YOU KEEP...
Please keep your sales receipt or other document showing proof of purchase. Attach it to this owner’s manual and keep both nearby. Also keep the original box and packing material in case you need to return your product.
BEFORE REQUESTING SERVICE...
Please check your owner’s manual before requesting service. Adjustments of the controls discussed there may save you a service call.
TO GET WARRANTY SERVICE...
Repair must be performed by an authorized service center or a factory service center. If you do not live near a factory service center, contact your dealer. If your dealer is an authorized service center, he will arrange repair. If your dealer is not an authorized service center, he will direct you to the authorized service center engaged by him to service the products he sells.
(In U.S.A., Puerto Rico and U.S. Virgin Islands, all implied warranties, including implied warranties of merchantability and fitness for a particu­lar purpose, are limited in duration to the duration of this express war­ranty. But, because some states do not allow limitations on how long an implied warranty may last, this limitation may not apply to you.)
(In Canada, this warranty is given in lieu of all other warranties. No other warranties are expressed or implied, including any implied war­ranties of merchantability or fitness for a particular purpose. Philips is not liable under any circumstances for any direct, indirect, special, inci­dental or consequential damages, howsoever incurred, even if notified of the possibility of such damages.)
IF YOU HAVE QUESTIONS...
Please contact Philips at:
1-800-661-6162 (French Speaking)
1-800-363-7278 (English Speaking)
REMEMBER...
Please record the model and serial numbers found on the product below. Also, please fill out and mail your warranty registration card promptly. It will be easier for us to notify you if necessary.
MODEL # ________________________________________________ SERIAL # ________________________________________________
This warranty gives you specific legal rights. You may have other rights which vary from state/province to state/province.
Philips Service Company, P.O. Box 555, Jefferson City, Tennessee 37760, (423) 475-8869
48
Page 49
3135 015 07370
Page 50
75V UHF/VHF
ANT/CABLE
REAR SURROUND
EXT. SPEAKERS
VCR/AUX IN
VIDEO AUDIO
RL
R
L
8V
+
-
R
L
VIDEO
OUT
VAR AUDIO OUT SUR AUDIO OUT
S-VIDEO-1
STOP
REW
§§
FF
©©
PLAY
©
REC
STATUS
VOL
CH
1
2
3
4
5
6
7
8
9
0
ON/OFF
TV /VCR
VCR
CBL
TV
SWAP
FREEZE
POS
SIZE
ENTER
M
E
N
U
M
CLEAR
~
!
SURF
MUTE
PAUSE II
SLEEP
SMART
100+
POWER
M
ODE
ANTENNA
OUT
IN
OUT
IN
AUDIO
R
L
VIDEO
IN
OUT
EXIT
1 OF 3
PICTURE SOURCE
MORE...
CLOSED
CAPTIONS
FEATURE MENU
CHANNEL
MEMORY
CABLE
TUNING
S-VIDEO
OUT
4
1
2
3
3
1 OF 3
MORE...
CHANNEL
MEMORY
HELP
EXIT
ANTENNA
S-VIDEO
PICTURE SOURCE SELECT
T
he S(uper)-Video connection on
the rear of the TV can give you better picture detail and clarity, for the playback of S-VHS VCR tapes or Video Discs, than the normal anten­na picture connections.
Note: The VCR (or Video Disc Player) must have a S-VIDEO OUT(put) jack in order for you to complete the connections shown on this page.
Connect the S-VIDEO (S-
VHS) OUT jack from the VCR to
the S-VIDEO 1 jack on the TV. The S-VIDEO connecting cable
will be supplied with the S-VHS VCR (or Video Disc Player).
Connect the AUDIO OUT
jacks R(ight) and L(eft) from the VCR to the AUDIO VCR/AUX IN jacks on the TV.
Select the "S-VIDEO" PIC-
TURE SOURCE control.
With the FEATURES MENU on screen, move the RED highlight with the MENU (M) buttons.
Then press the MENU button. The "S VIDEO" picture source
option appears when a S-VIDEO cable has been connected to the TV.
Turn the VCR ON and place it
in the S-VIDEO (or S-VHS) play­back mode. Insert S-VHS cassette tape and playback in a normal man­ner.
AUX1 - S-VIDEO INPUTS
STOP
1
2
3
4
S-VHS VCR
AUDIO OUT
(RED/WHITE)
S-VIDEO OUT
BACK OF TV
PICTURE AND SOUND FROM PLAYBACK
OF S-VHS VCR TAPE PLAYBACK
BEGIN
SMART HELP
Remember, after it is
connected an easy way to select the S-VIDEO mode is to press the VCR button on the front of the TV (or the TV/VCR button on the remote.)
If you have added AUX 1 to the TV's channel memory, just press the CHANNEL ▲▼ buttons to
select the S-VIDEO mode.
S-VIDEO
CABLE
NOTE: A CD-i (Compact Disc Interactive) player, Video Game, or other S-VIDEO acces­sory can be hooked up to the TV using this type of connection. Please be aware that such video sources, which show a constant non­moving pattern on the TV screen, can cause picture tube damage. When not in use turn your video accessories OFF. Also, regularly alternate the use of video sources with normal TV viewing.
EL6422E001
S-Video Feature Connection (Update)
NOTE:PLEASE REFER TO THE INFORMATION INCLUDED WITH THIS SHEET FOR DETAILS ON THE OPERATION AND USE OF THE TV’S S-VIDEO INPUT.
Since this feature is not shown in the original version of your customer instruction book, please retain this sheet for future reference.
Loading...
