philips 8P5431C Diagram

Download

Page 1

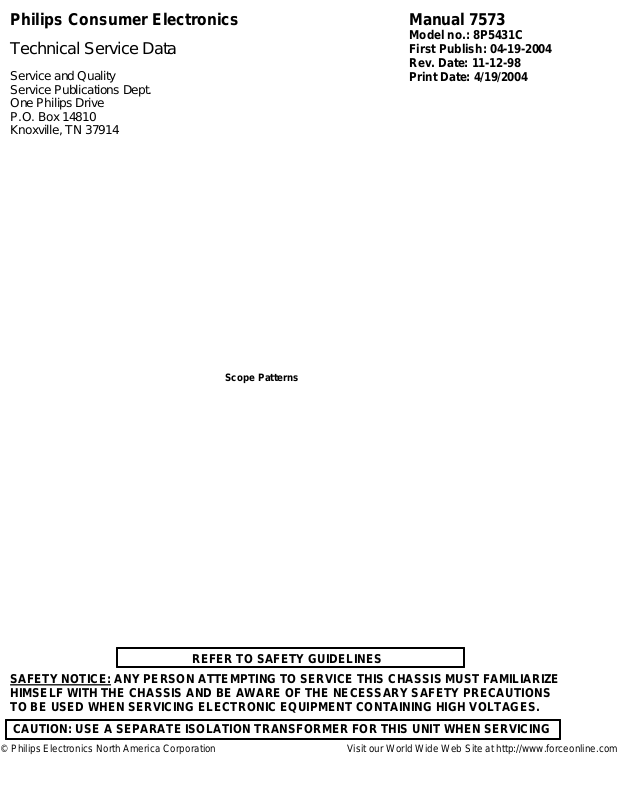

Philips Consumer Electronics

Technical Service Data

Service and Quality Service Publications Dept. One Philips Drive P.O. Box 14810 Knoxville, TN 37914

Manual 7573

Model no.: 8P5431C First Publish: 04-19-2004 Rev. Date: 11-12-98 Print Date: 4/19/2004

Scope Patterns

REFER TO SAFETY GUIDELINES

SAFETY NOTICE: HIMSELF WITH THE CHASSIS AND BE AWARE OF THE NECESSARY SAFETY PRECAUTIONS TO BE USED WHEN SERVICING ELECTRONIC EQUIPMENT CONTAINING HIGH VOLTAGES.

CAUTION: USE A SEPARATE ISOLATION TRANSFORMER FOR THIS UNIT WHEN SERVICING

ANY PERSON ATTEMPTING TO SERVICE THIS CHASSIS MUST FAMILIARIZE

Page 2

8P5431C(7573) Page: 1

1 2 Vp-p 20 usec

0.8 Vp-p 20 usec

5.1 Vp-p 20 usec

3.5 Vp-p 20 usec

3 5 Vp-p 5 msec

4.6 Vp-p 20 usec

1.7 Vp-p 20 usec

8 10 Vp-p 5 msec

9 4 Vp-p 20 usec

4.2 Vp-p 20 usec

1.7 Vp-p 20 usec

4.3 Vp-p 20 usec

0.4 Vp-p 20 usec

3.3 Vp-p 20 usec

4.6 Vp-p 20 usec

4.3 Vp-p 20 usec

17 4 Vp-p 20 usec

2.1 Vp-p 20 usec

1.5 Vp-p 20 usec

0.5 Vp-p 20 usec

Page 3

8P5431C(7573) Page: 2

1.1 Vp-p 20 usec

3A 1280 Vp-p 5 usec

0.8 Vp-p 20 usec

3B 220 Vp-p 5 usec

23 2 Vp-p 20 usec

3C 310 Vp-p 5 usec

1 13 Vp-p 5 usec

4 2 Vp-p 5 msec

2.8 Vp-p 5 msec

9 22 Vp-p 5 msec

4.5 Vp-p 5 msec

10A 25 Vp-p 20 usec

7 3 Vp-p 5 msec

10B 29 Vp-p 20 usec

8 45 Vp-p 5 msec

2.3 Vp-p 5 msec

12B 10 Vp-p 5 msec

12A 400 Vp-p 5 msec

13 130 Vp-p 20 usec

14A 950 Vp-p 20 usec

Page 4

8P5431C(7573) Page: 3

14C 375 Vp-p 20 usec

15B 250 Vp-p 20 usec

14D 112 Vp-p 20 usec

16A

6.2 Vp-p 5 msec

14B 7 Vp-p 20 usec

16B

6.2 Vp-p 5 msec

15A 25 Vp-p 20 usec

17 5 Vp-p 20 usec

18 130 Vp-p 20 usec

22 825 Vp-p 20 usec

19 5 Vp-p 20 usec

23 825 Vp-p 20 usec

20 80 Vp-p 20 usec

24 38 Vp-p 20 usec

21 3 Vp-p 20 usec

1.2 Vp-p 5 msec

1.1 Vp-p 5 msec

3 640 Vp-p 5 msec

4 500 mVp-p 5 msec

5 750 mVp-p 5 msec

Page 5

8P5431C(7573) Page: 4

2.3 Vp-p 5 msec

2.4 Vp-p 5 msec

7 1 Vp-p 5 msec

11 700 mVp-p 5 msec

8 2 Vp-p 5 msec

1.5 Vp-p 5 msec

9 1 Vp-p 5 msec

1.6 Vp-p 20 usec

1.8 Vp-p 20 usec

15 5 Vp-p 20 usec

2.25 Vp-p 20 usec

16 5 Vp-p 5 msec

1.75 Vp-p 20 usec

1 2 Vp-p 20 usec

4.4 Vp-p

0.1usec

5 5 Vp-p

0.1usec

4.75 Vp-p 20 usec

7 5 Vp-p 5 msec

1.4 Vp-p 20 usec

Page 6

8P5431C(7573) Page: 5

9 450 mVp-p 5 msec

4.5 Vp-p 20 usec

10 440 mVp-p 20 usec

14 3 Vp-p 20 usec

11 450 mVp-p 20 usec

15 640 mVp-p 20 usec

12 3 Vp-p 20 usec

16 44 Vp-p 5 msec

3.2 Vp-p 20 usec

3.5 Vp-p 20 usec

18 44 Vp-p 20 usec

22 3 Vp-p 20 usec

19 4 Vp-p 20 usec

1.7 Vp-p 20 usec

3.6 Vp-p 20 usec

5.5 Vp-p 20 usec

5.2 Vp-p 20 usec

1.75 Vp-p 20 usec

27 640 Vp-p 20 usec

28 950 Vp-p 20 usec

Page 7

8P5431C(7573) Page: 6

1.8 Vp-p 20 usec

32B

1.7 Vp-p 20 usec

1.75 Vp-p 20 usec

1.2 Vp-p

0.1usec

1.75 Vp-p 20 usec

34A

0.8 Vp-p 20 usec

32A

1.2 Vp-p 20 usec

34C

1.4 Vp-p 20 usec

34B

1.4 Vp-p 20 usec

Page 8

8P5431C(7573) - PTV 800 & 805 WIRING DIAGRAM Page: 1 of 32

Page 9

8P5431C(7573) - SMALL SIGNAL PANEL - ASG051 & ASG052 - SECTION 1 SCHEMATIC Page: 2 of 32

Page 10

8P5431C(7573) - SMALL SIGNAL PANEL - ASG051 & ASG052 - SECTION 2 SCHEMATIC Page: 3 of 32

Page 11

8P5431C(7573) - SMALL SIGNAL PANEL - ASG051 & ASG052 - SECTION 3 SCHEMATIC Page: 4 of 32

Page 12

8P5431C(7573) - SMALL SIGNAL PANEL - ASG051 & ASG052 - SECTION 4 SCHEMATIC Page: 5 of 32

Page 13

8P5431C(7573) - SMALL SIGNAL PANEL - ASG051 & ASG052 - SECTION 5 SCHEMATIC Page: 6 of 32

Page 14

8P5431C(7573) - SMALL SIGNAL PANEL - ASG051 & ASG052 - SECTION 6 SCHEMATIC Page: 7 of 32

Page 15

8P5431C(7573) - LARGE SIGNAL PANEL - APD019, APD020 & APD021- SECTION 1 SCHEMATIC Page: 8 of 32

Page 16

8P5431C(7573) - LARGE SIGNAL PANEL - APD019, APD020 & APD021- SECTION 2 SCHEMATIC Page: 9 of 32

Page 17

8P5431C(7573) - LARGE SIGNAL PANEL - APD019, APD020 & APD021- SECTION 3 SCHEMATIC Page: 10 of 32

Page 18

8P5431C(7573) - DIGITAL CONVERGENCE PANEL - A10688 - SECTION 1 SCHEMATIC Page: 11 of 32

Page 19

8P5431C(7573) - DIGITAL CONVERGENCE PANEL - A10688 - SECTION 2 SCHEMATIC Page: 12 of 32

Page 20

8P5431C(7573) - DIGITAL CONVERGENCE PANEL - A10688 - SECTION 3 SCHEMATIC Page: 13 of 32

Page 21

8P5431C(7573) - RED CRT PANEL SCHEMATIC Page: 14 of 32

Page 22

8P5431C(7573) - GREEN CRT PANEL SCHEMATIC Page: 15 of 32

Page 23

8P5431C(7573) - BLUE CRT PANEL SCHEMATIC Page: 16 of 32

Page 24

8P5431C(7573) - IR RECEIVER ASSEMBLY SCHEMATIC Page: 17 of 32

Page 25

8P5431C(7573) - SWITCH PANEL SCHEMATIC Page: 18 of 32

Page 26

8P5431C(7573) - SMALL SIGNAL PANEL - ASG051 & ASG052 - CBA (TOP VIEW) Page: 19 of 32

Page 27

8P5431C(7573) - SMALL SIGNAL PANEL - ASG051 & ASG052 - CBA (BOTTOM VIEW) Page: 20 of 32

Page 28

8P5431C(7573) - LARGE SIGNAL PANEL CBA (TOP VIEW) Page: 21 of 32

Page 29

8P5431C(7573) - LARGE SIGNAL PANEL CBA (BOTTOM VIEW) Page: 22 of 32

Page 30

8P5431C(7573) - DIGITAL CONVERGENCE PANEL - CBA (TOP VIEW) Page: 23 of 32

Page 31

8P5431C(7573) - DIGITAL CONVERGENCE PANEL - CBA (BOTTOM VIEW) Page: 24 of 32

Page 32

8P5431C(7573) - RED CRT PANEL CBA (TOP VIEW) Page: 25 of 32

Page 33

8P5431C(7573) - RED CRT PANEL CBA (BOTTOM VIEW) Page: 26 of 32

Page 34

8P5431C(7573) - GREEN CRT PANEL CBA (TOP VIEW) Page: 27 of 32

Page 35

8P5431C(7573) - GREEN CRT PANEL CBA (BOTTOM VIEW) Page: 28 of 32

Page 36

8P5431C(7573) - BLUE CRT PANEL CBA (TOP VIEW) Page: 29 of 32

Page 37

8P5431C(7573) - BLUE CRT PANEL CBA (BOTTOM VIEW) Page: 30 of 32

Page 38

8P5431C(7573) - IR RECEIVER ASSEMBLY CBA Page: 31 of 32

Page 39

8P5431C(7573) - SWITCH PANEL CBA Page: 32 of 32

Page 40

Philips Consumer Electronics

Technical Service Data

Service and Quality Service Publications Dept. One Philips Drive P.O. Box 14810 Knoxville, TN 37914

Pg. SCHEMATIC DIAGRAMS AND PC BOARDS

1. PTV 800 & 805 WIRING DIAGRAM

2. SMALL SIGNAL PANEL - ASG051 & ASG052 - SECTION 1 SCHEMATIC

3. SMALL SIGNAL PANEL - ASG051 & ASG052 - SECTION 2 SCHEMATIC

4. SMALL SIGNAL PANEL - ASG051 & ASG052 - SECTION 3 SCHEMATIC

5. SMALL SIGNAL PANEL - ASG051 & ASG052 - SECTION 4 SCHEMATIC

6. SMALL SIGNAL PANEL - ASG051 & ASG052 - SECTION 5 SCHEMATIC

7. SMALL SIGNAL PANEL - ASG051 & ASG052 - SECTION 6 SCHEMATIC

8. LARGE SIGNAL PANEL - APD019, APD020 & APD021- SECTION 1 SCHEMATIC

9. LARGE SIGNAL PANEL - APD019, APD020 & APD021- SECTION 2 SCHEMATIC

10. LARGE SIGNAL PANEL - APD019, APD020 & APD021- SECTION 3 SCHEMATIC

11. DIGITAL CONVERGENCE PANEL - A10688 - SECTION 1 SCHEMATIC

12. DIGITAL CONVERGENCE PANEL - A10688 - SECTION 2 SCHEMATIC

13. DIGITAL CONVERGENCE PANEL - A10688 - SECTION 3 SCHEMATIC

14. RED CRT PANEL SCHEMATIC

15. GREEN CRT PANEL SCHEMATIC

16. BLUE CRT PANEL SCHEMATIC

17. IR RECEIVER ASSEMBLY SCHEMATIC

18. SWITCH PANEL SCHEMATIC

19. SMALL SIGNAL PANEL - ASG051 & ASG052 - CBA (TOP VIEW)

20. SMALL SIGNAL PANEL - ASG051 & ASG052 - CBA (BOTTOM VIEW)

21. LARGE SIGNAL PANEL CBA (TOP VIEW)

22. LARGE SIGNAL PANEL CBA (BOTTOM VIEW)

23. DIGITAL CONVERGENCE PANEL - CBA (TOP VIEW)

24. DIGITAL CONVERGENCE PANEL - CBA (BOTTOM VIEW)

25. RED CRT PANEL CBA (TOP VIEW)

26. RED CRT PANEL CBA (BOTTOM VIEW)

27. GREEN CRT PANEL CBA (TOP VIEW)

28. GREEN CRT PANEL CBA (BOTTOM VIEW)

29. BLUE CRT PANEL CBA (TOP VIEW)

30. BLUE CRT PANEL CBA (BOTTOM VIEW)

31. IR RECEIVER ASSEMBLY CBA

32. SWITCH PANEL CBA

Manual 7573

Model no.: 8P5431C First Publish: 04-19-2004 Rev. Date: 11-12-98 Print Date: 4/19/2004

REFER TO SAFETY GUIDELINES

SAFETY NOTICE:

ANY PERSON ATTEMPTING TO SERVICE THIS CHASSIS MUST FAMILIARIZE HIMSELF WITH THE CHASSIS AND BE AWARE OF THE NECESSARY SAFETY PRECAUTIONS TO BE USED WHEN SERVICING ELECTRONIC EQUIPMENT CONTAINING HIGH VOLTAGES.

CAUTION: USE A SEPARATE ISOLATION TRANSFORMER FOR THIS UNIT WHEN SERVICING

Page 41

Philips Consumer Electronics

Technical Service Data

Service and Quality Service Publications Dept. One Philips Drive P.O. Box 14810 Knoxville, TN 37914

Manual 7573

Model no.: 8P5431C First Publish: 04-19-2004 Rev. Date: 11-12-98 Print Date: 4/19/2004

Safety Notes

REFER TO SAFETY GUIDELINES

SAFETY NOTICE: HIMSELF WITH THE CHASSIS AND BE AWARE OF THE NECESSARY SAFETY PRECAUTIONS TO BE USED WHEN SERVICING ELECTRONIC EQUIPMENT CONTAINING HIGH VOLTAGES.

CAUTION: USE A SEPARATE ISOLATION TRANSFORMER FOR THIS UNIT WHEN SERVICING

ANY PERSON ATTEMPTING TO SERVICE THIS CHASSIS MUST FAMILIARIZE

Page 42

GENERAL SAFETY NOTES

IMPORTANT SAFETY NOTICE

Proper service and repair is important to the safe, reliable operation of all Philips Consumer Electronics Company** equipment. The service procedures recommended by Phili ps and described in this service manual are effective methods of performing service operations. Some of these service operations require the use of tools specially designed for the purpose. The special tools should be used when and as recommended.

It is important to note that this manual contains various CAUTIONS and NOTICES which should be carefully read in order to minimize the risk of personal injury to service person nel. The possibility exists that improper service methods may damage the equipment. It also is important to understand that these CAUTIONS and NOTICES ARE NOT EXHAUSTIVE. Philips could not possibly know, evaluate and advise the service trade of all conceivable ways in which service might be done or of the possible hazardous consequences of each way. Consequently, Philips has not undertaken any such broad evaluation. Accordingly, a servicer who uses a service procedure or tool which is not recommended by Philips must first satisfy himself thoroughly that neither his safety nor the safe operation of the equipment will be jeopardized by the service method selected.

** Hereafter throughout this manual, Philips Consumer Electronics Company will be referred to as Philips.

WARNING

Critical components having special safety characteristics are identified with a or "S" by the Ref. No. in the parts list and enclosed within a broken line* (where several critical components are grouped in one

area) along with the safety symbol on the schematics or exploded views. Use of substitute replacement parts which do not have the same specified safety characteristics may create shock, fire, or other hazards. Under no circumstances should the original design be modified or altered without written permission from Philips. Philips assumes no liability, express or implied, arising out of any unauthorized modification of design. Servicer assumes all liability.

• Broken Line ____ _ ____ _ ____ _ ____

SAFETY CHECKS

fter the original service problem has been corrected, a complete safety check should be made. Be sure to check over the entire set, not just the areas where you have worked. Some previous servicer may have left an unsafe condition, which could be unknowingly passed on to Your customer. Be sure to check all of the following:

FIRE AND SHOCK HAZARD IMPLOSION X-RADIATION LEAKAGE CURRENT COLD CHECK LEAKAGE CURRENT HOT CHECK PICTURE TUBE REPLACEMENT

Page 43

PARTS REPLACEMENT

FIRE AND SHOCK HAZARD

1. Be sure all components are positioned in such a way as to avoid the possibility of adjacent component shorts. This is especially important on those chassis which are tran sport ed to and from the service shop.

2. Never release a repaired unit unless all protective devices such as insulators, barriers, covers, strain reliefs, and other hardware have been installed in accordance with the original design.

3. Soldering and wiring must be inspected to locate possible cold solder joints, solder splashes, sharp solder points, frayed leads, pinched leads, or damaged insulation (including the ac cord). Be certain to remove loose solder balls and all other loose foreign particles.

4. Check across-the-line components and other components for physical evidence of damage or deterioration and replace if necessary. Follow original layout, lead length, and dress.

5. No lead or component should touch a receiving tube or a resistor rated at 1 watt or more. Lead tension around protruding metal surfaces or edges must be avoided.

6. Critical components having special safety characteristics are identified with an 'S' by the Ref. No. in the parts list and enclosed within a broken line* (where several critical components are grouped in one

area) along with the safety symbol on the schematic diagrams and /or exploded views.

7. When servicing any unit, always use a separate isolation transformer for the chassis. Failure to use a separate isolation transformer may expose you to possible shock hazard, and may cause damage to servicing instruments.

8. Many electronic products use a polarized ac line cord (one wide pin on the plug). Defeating this safety feature may create a potential hazard to the servicer and the user. Extension cords which do not incorporate the polarizing feature should never be used.

9. After reassembly of the unit, always perform an all exposed metal parts of the cabinet. Also, check all metal control shafts (with knobs removed), antenna terminals, handles, screws, etc., to be sure the unit may be safely operated without danger of electrical shock.

* Broken line ____ _ ____ _ ____ _ ____

ac leakage test or resistance test from the line cord to

IMPLOSION

1. All picture tubes used in current model receivers are equipped with an integral implosion system. Care should always be used, and safety glasses worn, whenever handling any picture tube. Avoid scratching or otherwise damaging the picture tube during installation.

2. Use only replacement tubes specified by the manufacturer.

X-RADIATION

Page 44

1. Be sure procedures and instructions to all your service personnel cover the subject of X-radiation.

Potential sources of X-rays in TV receivers are the picture tube and the high voltage circuits. The basic precaution which must be exercised is to keep the high voltage at the factory recommended level.

2. To avoid possible exposure to X-radiation and electrical shock, only the manufacturer's specified anode connectors must be used.

3. It is essential that the service technician has an accurate HV meter available at all times. The calibration of this meter should be checked periodically against a reference standard.

4. When the HV circuitry is operating properly there is no possibility of an X-radiation problem. High voltage should always be kept at the manufacturer's rated value - no higher - for optimum performance. Every time a color set is serviced, the brightness should be run up and down while monitoring the HV with a meter to be certain that the HV is regulated correctly and does not exceed the specified value. We suggest that you and your technicians review test procedures so that HV and HV regulation are always checked as a standard servicing procedure, and the reason for this prudent routine is clearly understood by everyone. It is important to use an accurate and reliable HV meter. It is recommended that the HV reading be recorded on each customer's invoice, which will demonstrate a proper concern for the customer's safety.

5. When troubleshooting and making test measurements in a receiver with a problem of excessive high voltage, reduce the line voltage b y means of a Variac to bring th e HV into acceptable limits while troubleshooting. Do not operate the chassis longer than necessary to locate the cause of the excessive HV.

6. New picture tubes are specifically designed to withstand higher operating voltages without creating undesirable X-radiation. It is strongly recommended that any shop test fixture which is to be used with the new higher voltage chassis be equipped with one of the new type tubes designed for this service.

ddition of a permanently connected HV meter to the shop test fixture is advisable. The CRT types used in these new sets should never be replaced with any other types, as this may result in excessive X-radiation.

7. It is essential to use the specified picture tube to avoid a possible X-radiation problem.

8. Most TV receivers contain some type of emergency "Hold Down" circuit to prevent HV from rising to excessive levels in the presence of a failure mode. These various circuits should be understood by all technicians servicing them, especially since many hold down circuits are inoperative as long as the receiver performs normally.

LEAKAGE CURRENT COLD CHECK

1. Unplug the ac line cord and connect a jumper between the two prongs of the plug.

2. Turn on the power switch.

3. Measure the resistance value between the jumpered ac plug and all exposed cabinet parts of the receiver, such as screw heads, antennas, and control shafts. When the exposed metallic part has a return path to the chassis, the reading should be between 1 megohm and 5.2 megohms. When the exposed metal does not have a return path to the chassis, the reading must be infinity. Remove the

umper from the ac line cord.

Page 45

LEAKAGE CURRENT HOT CHECK

1. Do not use an isolation transformer for this test. Plug the completely reassembled receiver directly into the ac outlet.

2. Connect a metallic cabinet part and a

3. Use an ac voltmeter with at least 5000 ohms/volt sensitivity to measure the potential across the resistor.

The potential at any point should not exceed 0.75 volts. A leakage current tester may be

used to make this test; leakage current must not exceed 0.5milliamp. If a measurement is outside of the specified limits, there is a possibility of shock hazard. The receiver should be repaired and rechecked before returning it to the customer.

. Repeat the above procedure with the ac plug reversed. (Note: An ac adapter is

necessary when a polarized plug is used. Do not defeat the polarizing feature of the plug.)

1.5k, 1OW resistor paralleled by a 0.15uF. capacitor between each exposed good earth ground such as a water pipe, as shown below.

With the instrument completely reassembled, plug the AC line cord directly into a 120V AC outlet. (Do

not use an isolation transformer during this test.) Use a leakage current tester or a

metering system that complies with American National Standards Institute (ANSI) C101.1 Leakage Current for Appliances and Underwriters Laboratories (UL) 1410, (50.7).

C switch first in the on position and then in the off position, measure from a known earth ground (metal water pipe, conduit, etc.) to all exposed metal parts of the instrument (antennas, handle brackets, metal cabinet, screw heads, metallic overlays, control shafts, etc.), especially any exposed metal parts that offer an electrical return path to the chassis. Any current

measured must not exceed 0.5 milliamp. Reverse the instrument power cord

plug in the outlet and repeat the test. See graphic below.

With the instrument

Page 46

PICTURE TUBE REPLACEMENT

The primary source of X-radiation in this television receiver is the picture tube. The picture tube utilized in this chassis is specially constructed to limit X-radiation emissions. For continued X-radiation protection, the replacement tube must be the same type as the original, including suffix letter, or a Philips approved type.

PARTS REPLACEMENT

Many electrical and mechanical parts in Philips television sets have special safety related characteristics. These characteristics are often not evident from visual inspection nor can the protection afforded by them necessarily be obtained by using replacement components rated for higher voltage, wattage, etc. The use of a substitute part which does not have the same safety characteristics as the Philips recommended replacement part shown in this service manual may create shock, fire, or other hazards

TV SAFETY NOTES

SAFETY CHECKS IMPLOSION

Page 47

X-RADIATION PICTURE TUBE REPLACEMENT PARTS REPLACEMENT

WARNING

Before removing the CRT anode cap, turn the unit OFF and short the HIGH VOLTAGE to the CRT DAG ground.

SERVICE NOTE:

The CRT DAG is not at chassis ground.

TV-VCR COMBI SAFETY NOTES

IMPORTANT SAFETY PRECAUTIONS

Prior to shipment from the factory, our products are strictly inspected for recognized product safety and electrical codes of the countries in which they are to be sold. However, in order to maintain such compliance, it is equally important to implement the following precautions when a set is being serviced.

SAFETY PRECAUTIONS FOR TV CIRCUITS

1. Before returning an instrument to the customer, always make a safety check of the entire instrument,

including, but not limited to, the following items: a. Be sure that no built-in protective devices are defective or have been defeated during servicing. (1)

Protective shields are provided on this chassis to protect both the technician and the customer. Correctly replace all missing protective shields, including any removed for servicing convenience. (2) When reinstalling the chassis and/or other assembly in the cabinet, be sure to put back in place all protective devices, including but not limited to, nonmetallic control knobs, insulating fishpapers, adjustment and compartment covers/shields, and isolation resistor/capacitor networks. Do not operate this instrument or permit it to be operated without all protective devices correctly installed and functioning. Servicers who defeat safety features or fail to perform safety checks may be liable for any resulting damage.

b. Be sure that there are no cabinet openings through which an adult or child might be able to insert their fingers and contact a hazardous voltage. Such openings include, but are not limited to, (1) spacing between the picture tube and the cabinet mask, (2) excessively wide cabinet ventilation slots, and (3) an improperly fitted and/or incorrectly secured cabinet back cover.

c. Do a

ANY MEASUREMENTS NOT WITHIN THE LIMITS SPECIFIED HEREIN INDICATE A POTENTIAL SHOCK HAZARD THAT MUST BE ELIMINATED BEFORE RETURNING THE INSTRUMENT TO THE CUSTOMER OR BEFORE CONNECTING THE ANTENNA OR ACCESSORIES.

LEAKAGE CURRENT CHECK

Page 48

d. X-Radiation and High Voltage Limits - Because the pic tu r e t u b e is th e p r i m ar y p o t ential source of X-radiation in solid-state TV receivers, it is specially constructed to prohibit X-radiation emissions. For continued X-radiation protection, the replacement picture tube must be the same type as the original. Also, because the picture tube shields and mounting hardware perform an X-radiation protection function, they must be correctly in place. High voltage must be measured each time servicing is performed that involves B+, horizontal deflection or high voltage. Correct operation of the X-radiation protection circuits also must be reconfirmed each time they are serviced. (X-radiation protection circuits also may be called "horizontal disable" or "hold down.") Read and apply the high voltage limits and, if the chassis is so equipped, the X-radiation protection circuit specifications given on instrument labels and in the Product Safety & X-Radiation Warning note on the service data chassis schematic. High voltage is maintained within specified limits by close tolerance safety-related components/adjustments in the high-voltage circuit. If high voltage exceeds specified limits, check each component specified on the chassis schematic and take corrective action.

2. Read and comply with all caution and safety-related notes on or inside the receiver cabinet, on the receiver chassis, or on the picture tube.

3. Design Alteration Warning - Do not alter or add to the mechanical or electrical design of this TV receiver. Design alterations and additions , including, but not limited to circuit modifications and the addition of items such as auxiliary audio and/or video output connections, might alter the safety characteristics of this receiver and create a hazard to the user. Any design alterations or additions will void the manufacturer's warranty and may make you, the servicer, responsible for personal injury or property damage resulting therefrom.

4. Picture Tube Implosion Protection Warning - The picture tube in this receiver employs integral implosion protection. For continued implosion protection, replace the picture tube only with one of the same type number. Do not remove, install, or otherwise handle the picture tube in any manner without first putting on shatterproof goggles equipped with side shields. People not so equipped must be kept safely away while picture tubes are handled. Keep the picture tube away from your body. Do not handle the picture tube by its neck. Some "in-line" picture tubes are equipped with a permanently attached deflection yoke; because of potential hazard, do not try to remove such "permanently attached" yokes from the picture tube.

5. Hot Chassis Warning

a. Some TV receiver chassis are electrically connected directly to one conductor of the ac power cord and may be serviced safely without an isolation transformer only if the ac power plug is inserted so that the chassis is connected to the ground side of the ac power source. To confirm that the ac power plug is inserted correctly, with an ac voltmeter, measure between the chassis and a known earth ground. If a voltage reading in excess of 1.OV is obtained, remove and reinsert the ac power plug in the opposite polarity and again measure the voltage potential between the chassis and a known earth ground.

b. Some TV receiver chassis normally have 85Vac (RMS) between chassis and earth ground regardless of the ac plug polarity. This chassis can be safety-serviced only with an isolation transformer inserted in the power line between the receiver and the ac power source, for both personnel and test equipment protection. Some TV receiver chassis have a secondary ground system in addition to the main chassis ground. This secondary ground system is not isolated from the ac power line. The two ground systems are electrically separated by insulation material that must not be defeated or altered.

6. Observe original lead dress. Take extra care to assure correct lead dress in the following areas: a. near sharp edges, b. near thermally hot parts - be sure that leads and components do not touch

Page 49

thermally hot parts, c. the ac supply, d. high voltage, and e. antenna wiring. Always inspect in all areas

for pinched, out of place, or frayed wiring. Check ac power cord for damage.

7. Components, parts, and/or wiring that appear to have overheated or are otherwise damaged should be replaced with components, parts, or wiring that meet original specifications. Additionally, determine the cause of overheating and/or damage and, if necessary, take corrective action to remove any potential safety hazard.

PRECAUTIONS DURING SERVICE

. Parts identified by the symbol are critical for safety. Replace only with part number specified.

B. In addition to safety, other parts and assemblies are specified for conformance with regulations applying to spurious radiation. These must also be replaced only with specified replacements.

Examples: RF converters, RF cables, noise blocking capacitors, and noise blocking filters, etc.

C. Use specified internal wiring. Note especially:

1) Wires covered with PVC tubing

2) Double insulated wires

3) High voltage leads D. Use specified insulating materials for hazardous

live parts. Note especially:

1) Insulation Tape

2) PVC tubing

3) Spacers

4) Insulators for transistors E. When replacing ac primary side components (transformers, power cord, etc.), wrap ends of wires

securely about the terminals before soldering. F. Observe that the wires do not contact heat producing parts (heatsinks, oxide metal film resistors,

fusible resistors, etc.) G. Check that replaced wires do not contact sharp edged or pointed parts. H. When a power cord has been replaced, check that 10-15 kg of force in any direction will not

loosen it. I. Also check areas surrounding repaired locations. J. Use care that foreign objects (screws, solder droplets, etc.) do not remain inside the set. K. Crimp type wire connector

When replacing the power transformer in sets where the connections between the power cord and power transformer primary lead wires are performed using crimp type connectors, in order to prevent shock hazards, perform carefully and precisely the following steps.

Replacement procedure

1) Remove the old connector by cutting the wires at a point close to the connector. Important: Do not re-use a connector (discard it).

Page 50

2) Strip about 15 mm of the insulation from the ends of the wires. If the wires are stranded, twist the strands to avoid frayed conductors.

3) Align the lengths of the wires to be connected. Insert the wires fully into the connector.

4) Use the crimping tool to crimp the metal sleeve at the center position. Be sure to crimp fully to the complete closure of the tool.

L. When connecting or disconnecting the VCR connectors, first, disconnect the ac plug from the ac supply socket.

SAFETY CHECK AFTER SERVICING

Examine the area surrounding the repaired location for damage or deterioration. Observe that screws, parts and wires have been returned to original positions. Afterwards, perform the following tests and confirm the specified values in order to verify compliance with safety standards.

1. Clearance Distance When replacing primary circuit components, confirm specified clearance distance (d) and (d') between

soldered terminals, and between terminals and surrounding metallic parts. (See graphic bllow)

Table 1 : Ratings for selected area

AC Line Voltage Region Clearance Distance

(d) (d')

USA or > 3.2 mm 110 to 130 V CANADA (0.126 inches)

Note: This table is unofficial and for reference only. Be sure to confirm the precise values.

2. LEAKAGE CURRENT CHECKS

Page 51

VCR SAFETY NOTES

FIRE & SHOCK HAZARD (VCR)

1. Be sure that all components are positioned in such a way to avoid possibility of shorts to adjacent components. This is especially important on those chassis which are transported to and from the repair shop.

2. Always replace all protective devices such as insulators and barriers after working on a set.

3. Check for damaged insulation on wires including the ac cord.

4. Check across-the-line components for damage and replace if necessary.

5. After re-assembly of the unit, always perform an ac leakage test on the exposed metallic parts of the cabinet such as the knobs, antenna terminals, etc. to be sure the set is safe to operate without danger of electrical shock. Do not use a line isolation transformer during this test. Use an ac voltmeter having 5000 ohms per volt or more sensitivity in the following manner: Connect a 1500 ohm 10 wan resistor, paralleled by 0.15 MFD ac type capacitor, between a known good earth ground (water pipe, conduit, etc.) and the exposed metallic parts, one at a time. Mea sure the ac voltage across the combination 1500 ohm resistor and 0.15 MFD capacitor. Reverse the ac plug on the set and repeat ac voltage measurements again for each exposed metallic part. Voltage measured must not exceed O.6 volts R.M.S. This corresponds to 0.4 milliamp ac. Any value exceeding this limit constitutes a potential shock hazard and must be corrected immediately.

GENERAL

Power Supply-This receiver is designed for operation on 120 Volts, 6OHz alternating current (ac) only. Never connect to a supply having a different frequency or voltage.

IMPORTANT NOTICE

This device employs many circuits, components, and mechanical parts designed for protection against fire, shock and RF interference. For continued safety any servicing should be performed by qualified personnel and exact replacement parts should be used. Under no circumstances should the original design be altered.

PRODUCT SAFETY GUIDELINES FOR ALL PRODUCTS

CAUTION: Do not modify any circuit. Service work should be performed only after you are thoroughly

familiar with all of the following safety checks. Risk of potential hazards and injury to the user increases if safety checks are not adhered to.

USE A SEPARATE ISOLATION TRANSFORMER FOR THIS UNIT WHEN SERVICING.

Page 52

PREVENTION OF ELECTROSTATIC DISCHARGE (ESD)

Some semiconductor solid state devices can be damaged easily by static electric ity . Such com p onents commonly are called Electrostatically Sensitive (ES) Devices, Examples of typical ES devices are integrated circuits and some field-effect transistors and semiconductor "chip" components. The following techniques should be used to help reduce the incidence of component damage caused by electrostatic discharge (ESD).

1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any ESD on your body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging ESD wrist strap, which should be removed for potential shock reasons prior to applying power to the unit under test.

2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as aluminum foil, to prevent electrostatic charge buildup or exposure of the assembly.

3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.

4. Use only an anti-static solder removal device. Some solder removal devices not classified as "antistatic (ESD protected)" can generate an electrical charge sufficient to damage ES devices.

5. Do not use freon·propelled chemicals. These can generate electrical charges sufficient to damage ES devices.

6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it (Most replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or comparable conductive material).

7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material to the chassis or circuit assembly into which the device will be installed.

CAUTION : Be sure no power is applied to the chassis or circuit and observe all other safety precautions.

8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise harmless motion such as the brushing together of your clothes fabric or the lifting of your feet from a carpeted floor can generate static electricity (ESD) sufficient to damage an ES device.)

NOTE to CATV system Installer:

This reminder is provided to call the CATV system installer's attention to article 820-22 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

Page 53

Philips Consumer Electronics

Technical Service Data

Service and Quality Service Publications Dept. One Philips Drive P.O. Box 14810 Knoxville, TN 37914

Manual 7573

Model no.: 8P5431C First Publish: 04-19-2004 Rev. Date: 11-12-98 Print Date: 4/19/2004

Mechanical Diagrams

REFER TO SAFETY GUIDELINES

SAFETY NOTICE: HIMSELF WITH THE CHASSIS AND BE AWARE OF THE NECESSARY SAFETY PRECAUTIONS TO BE USED WHEN SERVICING ELECTRONIC EQUIPMENT CONTAINING HIGH VOLTAGES.

CAUTION: USE A SEPARATE ISOLATION TRANSFORMER FOR THIS UNIT WHEN SERVICING

ANY PERSON ATTEMPTING TO SERVICE THIS CHASSIS MUST FAMILIARIZE

Page 54

CABINET EXPLODED VIEW Page: 1 of 3

Page 55

CRT LENS ASSEMBLY EXPLODED VIEW Page: 2 of 3

Page 56

Page: 3 of 3

Page 57

Philips Consumer Electronics

Technical Service Data

Service and Quality Service Publications Dept. One Philips Drive P.O. Box 14810 Knoxville, TN 37914

Manual 7573

Model no.: 8P5431C First Publish: 04-19-2004 Rev. Date: 11-12-98 Print Date: 4/19/2004

Parts List

REFER TO SAFETY GUIDELINES

SAFETY NOTICE: HIMSELF WITH THE CHASSIS AND BE AWARE OF THE NECESSARY SAFETY PRECAUTIONS TO BE USED WHEN SERVICING ELECTRONIC EQUIPMENT CONTAINING HIGH VOLTAGES.

CAUTION: USE A SEPARATE ISOLATION TRANSFORMER FOR THIS UNIT WHEN SERVICING

ANY PERSON ATTEMPTING TO SERVICE THIS CHASSIS MUST FAMILIARIZE

Page 58

8P5431C - Manual no. 7573 Page: 1

CBA's

CBA Large Signal Panel . . . . . . . . . . 4835 219 77751

CBA Small Signal Panel . . . . . . . . . . 4835 219 77756

CBA Digital Convergence Panel. . . . . . . 4835 219 77788

CBA Green CRT Panel. . . . . . . . . . . . 4835 219 77782

CBA Red CRT Panel. . . . . . . . . . . . . 4835 219 77783

CBA Blue CRT Panel . . . . . . . . . . . . 4835 219 77784

CBA Customer Control Assembly. . . . . . . 4835 219 77764

CBA IR Receiver Panel. . . . . . . . . . . 0000 00A RR023

CBA Switch Panel . . . . . . . . . . . . . 4835 219 77786

CBA Remote Transmitter UR714 . . . . . . . 4835 219 17699

CONVERGENCE PANEL

C11 1000uF., 50V, Electrolytic . . . . . . 3198 026 51020

C13 470uF., 25V, Electrolytic. . . . . . . 4835 124 47576

C14 100uF., 25V, Electrolytic. . . . . . . 3198 025 31010

C16 100pF., 5%, 50V, Ceramic . . . . . . . 3198 016 01010

C17 100pF., 5%, 50V, Ceramic . . . . . . . 3198 016 01010

C19 0.1uF., 50V, Ceramic . . . . . . . . . 3198 023 21040

C20 0.01uF.,10%, 100V, Polyester . . . . . 4835 121 47232

C21 2700pF.,10%, 100V, Polyester . . . . . 4835 122 47487

C22 220pF., 5%, 50V, Ceramic . . . . . . . 3198 016 02210

C23 220pF., 5%, 50V, Ceramic . . . . . . . 3198 016 02210

C24 10pF., 5%, 50V, Ceramic. . . . . . . . 3198 016 01090

C25 0.1uF., 50V, Ceramic . . . . . . . . . 3198 023 21040

C29 0.1uF., 50V, Ceramic . . . . . . . . . 3198 023 21040

C30 0.1uF., 20%, 50V, Ceramic. . . . . . . 2238 581 16741

C31 27pF., 5%, 50V, Ceramic. . . . . . . . 3198 016 02790

C32 330pF., 10%, 50V, Ceramic Disc . . . . 3198 019 13310

C33 2.2uF., 20%, 50V, Electrolytic . . . . 3198 025 52280

C34 0.1uF., 50V, Ceramic . . . . . . . . . 3198 023 21040

C35 220uF., 25V, Electrolytic. . . . . . . 3198 025 32210

C36 22uF., 20%, 50V, Electrolytic. . . . . 3198 025 52290

C37 0.1uF., 20%, 50V, Ceramic. . . . . . . 2238 581 16741

C38 1000uF., 25V, Electrolytic . . . . . . 3198 026 31020

C39 27pF., 5%, 50V, Ceramic. . . . . . . . 3198 016 02790

C41 2.2uF., 20%, 50V, Electrolytic . . . . 3198 025 52280

C42 0.1uF., 50V, Ceramic . . . . . . . . . 3198 023 21040

C50 0.1uF., 50V, Ceramic . . . . . . . . . 3198 023 21040

C51 100pF., 5%, 50V, Ceramic . . . . . . . 3198 016 01010

C52 0.1uF., 20%, 50V, Ceramic. . . . . . . 2238 581 16741

C71 100pF., 5%, 50V, Ceramic . . . . . . . 3198 016 01010

C72 100pF., 5%, 50V, Ceramic . . . . . . . 3198 016 01010

C73 100pF., 5%, 50V, Ceramic . . . . . . . 4835 122 87025

C74 27pF., 5%, 50V, Ceramic. . . . . . . . 3198 016 02790

C81 1000uF., 50V, Electrolytic . . . . . . 3198 026 51020

C83 470uF., 25V, Electrolytic. . . . . . . 4835 124 47576

C84 100uF., 25V, Electrolytic. . . . . . . 3198 025 31010

C85 0.1uF., 63V, Metalized Polyester . . . 4835 121 47602 C86 0.1uF., 63V, Metalized Polyester . . . 4835 121 47602

C87 1000uF., 16V, Electrolytic . . . . . . 3198 026 21020

C88 0.1uF., 50V, Ceramic . . . . . . . . . 3198 023 21040

C100 0.022uF., 5%, 50V, Polyester. . . . . 4835 122 47091

C101 39pF., 50V, Ceramic Disc . . . . . . . 4835 122 47651

C106 2.2uF., 20%, 50V, Electrolytic . . . . 3198 025 52280

C107 2.2uF., 20%, 50V, Electrolytic . . . . 3198 025 52280

C108 2.2uF., 20%, 50V, Electrolytic . . . . 3198 025 52280

C109 2.2uF., 20%, 50V, Electrolytic . . . . 3198 025 52280

C110 0.1uF., 50V, Ceramic . . . . . . . . . 3198 023 21040

C111 0.1uF., 50V, Ceramic . . . . . . . . . 3198 023 21040

C112 270pF., 10%, 50V, Ceramic Disc . . . . 4835 122 47668

C127 0.22uF., 100V, Metalized Polyester . . 4835 121 47038

C150 0.022uF.,5%, 50V, Polyester . . . . . 4835 122 47091

C151 39pF., 50V, Ceramic Disc . . . . . . . 4835 122 47651

C152 0.01uF.,10%, 100V, Polyester . . . . . 4835 121 47232

C153 0.01uF.,10%, 100V, Polyester . . . . . 4835 121 47232

C157 2.2uF., 20%, 50V, Electrolytic . . . . 3198 025 52280

C158 2.2uF., 20%, 50V, Electrolytic . . . . 3198 025 52280

C162 270pF., 10%, 50V, Ceramic Disc . . . . 4835 122 47668

C173 470pF., 5%, 50V, Ceramic . . . . . . . 3198 016 04710

C174 470pF., 5%, 50V, Ceramic . . . . . . . 3198 016 04710

C175 0.1uF., 50V, Ceramic . . . . . . . . . 3198 023 21040

C176 0.1uF., 50V, Ceramic . . . . . . . . . 3198 023 21040

C177 0.22uF., 100V, Metalized Polyester . . 4835 121 47038

C180 1uF., 20%, 50V, Electrolytic . . . . . 3198 025 51080

C200 0.022uF., 5%, 50V, Polyester. . . . . 4835 122 47091

C201 39pF., 50V, Ceramic Disc . . . . . . . 4835 122 47651

C206 2.2uF., 20%, 50V, Electrolytic . . . . 3198 025 52280

C207 2.2uF., 20%, 50V, Electrolytic . . . . 3198 025 52280

C208 2.2uF., 20%, 50V, Electrolytic . . . . 3198 025 52280

C209 2.2uF., 20%, 50V, Electrolytic . . . . 3198 025 52280

C210 0.1uF., 50V, Ceramic . . . . . . . . . 3198 023 21040

C211 0.1uF., 50V, Ceramic . . . . . . . . . 3198 023 21040

C212 270pF., 10%, 50V, Ceramic Disc . . . . 4835 122 47668

C227 0.22uF., 100V, Metalized Polyester . . 4835 121 47038

C250 0.022uF.,5%, 50V, Polyester . . . . . 4835 122 47091

C251 39pF., 50V, Ceramic Disc . . . . . . . 4835 122 47651

C252 0.01uF.,10%, 100V, Polyester . . . . . 4835 121 47232

C253 0.01uF.,10%, 100V, Polyester . . . . . 4835 121 47232

C257 2.2uF., 20%, 50V, Electrolytic . . . . 3198 025 52280

S = Safety Part Be sure to use exact replacement part.

C258 2.2uF., 20%, 50V, Electrolytic . . . . 3198 025 52280

C262 270pF., 10%, 50V, Ceramic Disc . . . . 4835 122 47668

C265 0.1uF., 63V, Metalized Polyester . . . 4835 121 47602

C273 470pF., 5%, 50V, Ceramic . . . . . . . 3198 016 04710

C274 470pF., 5%, 50V, Ceramic . . . . . . . 3198 016 04710

C275 0.1uF., 50V, Ceramic . . . . . . . . . 3198 023 21040

C276 0.1uF., 50V, Ceramic . . . . . . . . . 3198 023 21040

C277 0.22uF., 100V, Metalized Polyester . . 4835 121 47038

C280 1uF., 20%, 50V, Electrolytic . . . . . 3198 025 51080

C300 0.022uF.,5%, 50V, Polyester . . . . . 4835 122 47091

C301 39pF., 50V, Ceramic Disc . . . . . . . 4835 122 47651

C306 2.2uF., 20%, 50V, Electrolytic . . . . 3198 025 52280

C307 2.2uF., 20%, 50V, Electrolytic . . . . 3198 025 52280

C308 2.2uF., 20%, 50V, Electrolytic . . . . 3198 025 52280

C309 2.2uF., 20%, 50V, Electrolytic . . . . 3198 025 52280

C310 0.1uF., 50V, Ceramic . . . . . . . . . 3198 023 21040

C311 0.1uF., 50V, Ceramic . . . . . . . . . 3198 023 21040

C312 270pF., 10%, 50V, Ceramic Disc . . . . 4835 122 47668

C327 0.22uF., 100V, Metalized Polyester . . 4835 121 47038

C350 0.022uF.,5%, 50V, Polyester . . . . . 4835 122 47091

C351 39pF., 50V, Ceramic Disc . . . . . . . 4835 122 47651

C352 0.01uF.,10%, 100V, Polyester . . . . . 4835 121 47232

C353 0.01uF.,10%, 100V, Polyester . . . . . 4835 121 47232

C357 2.2uF., 20%, 50V, Electrolytic . . . . 3198 025 52280

C358 2.2uF., 20%, 50V, Electrolytic . . . . 3198 025 52280

C362 270pF., 10%, 50V, Ceramic Disc . . . . 4835 122 47668

C373 470pF., 5%, 50V, Ceramic . . . . . . . 3198 016 04710

C374 470pF., 5%, 50V, Ceramic . . . . . . . 3198 016 04710

C375 0.1uF., 50V, Ceramic . . . . . . . . . 3198 023 21040

C376 0.1uF., 50V, Ceramic . . . . . . . . . 3198 023 21040

C377 0.22uF., 100V, Metalized Polyester . . 4835 121 47038

C380 1uF., 20%, 50V, Electrolytic . . . . . 3198 025 51080

R10 8.2k, 5%, 1/10W, Carbon Film . . . . . 4835 111 37448

R11 470 ohm, 5%, 1/2W, Metal Film. . . . . 4835 116 57723

R12 2.2k, 5%, 1/10W, Carbon Film . . . . . 4835 111 37234

R13 15k, 5%, 1/10W, Carbon Film. . . . . . 4835 111 37458

R14 3.3k, 5%, 1/10W, Carbon Film . . . . . 4835 111 37247

R18 100 ohm, 5%, 1/10W, Carbon Film. . . . 4835 111 37432

R19 100 ohm, 5%, 1/10W, Carbon Film. . . . 4835 111 37432

R20 100 ohm, 5%, 1/2W, Metal Film. . . . . 4835 116 57684

R21 100 ohm, 5%, 1/10W, Carbon Film. . . . 4835 111 37432

R22 3.3k, 5%, 1/2W, Metal Film . . . . . . 4835 116 57714

R24 1.5k, 5%, 1/2W, Metal Film . . . . . . 4835 116 57697

R25 33k, 5%, 1/10W, Carbon Film. . . . . . 4835 111 37248

R27 47k, 5%, 1/10W, Carbon Film. . . . . . 4835 111 27052

R28 2.7k, 5%, 1/10W, Carbon Film . . . . . 4835 111 27076

R29 220 ohm, 5%, 1/2W, Metal Film. . . . . 4835 116 57705

R30 1.5k, 5%, 1/10W, Carbon Film . . . . . 4835 111 37437

R31 100 ohm, 5%, 1/10W, Carbon Film. . . . 4835 111 37432

R32 100 ohm, 5%, 1/2W, Metal Film. . . . . 4835 116 57684

R33 47k, 5%, 1/10W, Carbon Film. . . . . . 4835 111 27052

R34 47k, 5%, 1/10W, Carbon Film. . . . . . 4835 111 27052

R35 1k, 5%, 1/10W, Carbon Film . . . . . . 4822 051 10102

R35 1k, 5%, 1/10W, Carbon Film. . . . . . 4822 051 10102

R36 100 ohm, 5%, 1/2W, Metal Film. . . . . 4835 116 57684

R37 10k, 5%, 1/10W, Carbon Film. . . . . . 4835 111 37216

R38 10k, 5%, 1/10W, Carbon Film. . . . . . 4835 111 37216

R41 47k, 5%, 1/10W, Carbon Film. . . . . . 4835 111 27052

R42 100 ohm, 5%, 1/10W, Carbon Film. . . . 4835 111 37432

R47 10k, 5%, 1/10W, Carbon Film. . . . . . 4835 111 37216

R48 470 ohm, 5%, 1/2W, Metal Film. . . . . 4835 116 57723

R49 2.2k, 5%, 1/2W, Metal Film . . . . . . 4835 110 47006

R54 100 ohm, 5%, 3W, Metal Oxide . . . . . 2120 105 92503

R55 1.5k, 5%, 1/2W, Metal Film . . . . . . 4835 116 57697

R56 100 ohm, 5%, 3W, Metal Oxide . . . . . 2120 105 92503

R57 1.5k, 5%, 1/2W, Metal Film . . . . . . 4835 116 57697

R78 6.8k, 5%, 1/10W, Carbon Film . . . . . 4835 111 37272

R79 2.4k, 5%, 1/2W, Metal Film . . . . . . 2322 187 53242

R80 10k, 5%, 1/2W, Metal Film. . . . . . . 4835 116 57686

R82 1k, 5%, 1/10W, Carbon Film . . . . . . 4822 051 10102

R82 1k, 5%, 1/10W, Carbon Film. . . . . . 4822 051 10102

R83 47k, 5%, 1/10W, Carbon Film. . . . . . 4835 111 27052

R84 47k, 5%, 1/2W, Metal Film. . . . . . . 4835 116 57724

R86 100 ohm, 5%, 1/2W, Metal Film. . . . . 4835 116 57684

R87 100 ohm, 5%, 1/2W, Metal Film. . . . . 4835 116 57684

R88 100 ohm, 5%, 1/2W, Metal Film. . . . . 4835 116 57684

R89 100 ohm, 5%, 1/2W, Metal Film. . . . . 4835 116 57684

R90 10k, 5%, 1/10W, Carbon Film. . . . . . 4835 111 37216

R91 100 ohm, 5%, 1W, Metal Oxide . . . . . 2120 105 90191

R92 10k, 5%, 1/10W, Carbon Film. . . . . . 4835 111 37216

R93 470 ohm, 5%, 1/2W, Metal Film. . . . . 4835 116 57723

R94 1.5k, 5%, 1/2W, Metal Film . . . . . . 4835 116 57697

R95 1.5k, 5%, 1/2W, Metal Film . . . . . . 4835 116 57697

R98 2.94k, 1%, 0.4W, Metal Film. . . . . . 4835 116 57649

R99 470 ohm, 5%, 1/2W, Metal Film. . . . . 4835 116 57723

R100 1.3k, 5%, 1/2W, Metal Film . . . . . . 4835 116 57694

R101 2.7k, 5%, 1/10W, Carbon Film . . . . . 4835 111 27076

R102 220 ohm, 5%, 1/2W, Metal Film. . . . . 4835 116 57705

R103 820 ohm, 5%, 1/2W, Metal Film. . . . . 4835 116 57741

R104 6.8k, 5%, 1/2W, Metal Film . . . . . . 4835 116 57736

R105 1.2k, 5%, 1/10W, Carbon Film . . . . . 4835 111 27042

R106 470 ohm, 5%, 1/10W, Carbon Film. . . . 4835 111 37259

Page 59

8P5431C (continued) Page: 2

R107 330 ohm, 5%, 1/10W, Carbon Film. . . . 4835 111 37443

R108 150 ohm, 5%, 1/3W, Metal Film. . . . . 4835 116 57151

R109 100 ohm, 5%, 1/3W, Metal Film. . . . . 4835 116 87002

R110 18k, 5%, 1/2W, Metal Film. . . . . . . 4835 110 57187

R111 5.1 ohm, 5%, 1W, Metal Oxide . . . . . 4835 116 57121

R112 5.1 ohm, 5%, 1W, Metal Oxide . . . . . 4835 116 57121

R113 680 ohm, 5%, 1/2W, Metal Film. . . . . 4835 116 57735

R114 12 ohm, 5%, 1/3W, Metal Film . . . . . 4835 116 57164

R115 12 ohm, 5%, 1/3W, Metal Film . . . . . 4835 116 57164

R127 10 ohm, 5%, 1/2W, Metal Film . . . . . 4835 116 57097

R147 2.94k, 1%, 0.4W, Metal Film. . . . . . 4835 116 57649

R148 2.7k, 5%, 1/10W, Carbon Film . . . . . 4835 111 27076

R149 470 ohm, 5%, 1/2W, Metal Film. . . . . 4835 116 57723

R150 1.3k, 5%, 1/10W, Carbon Film . . . . . 4835 111 27069

R152 220 ohm, 5%, 1/2W, Metal Film. . . . . 4835 116 57705

R153 820 ohm, 5%, 1/2W, Metal Film. . . . . 4835 116 57741

R154 6.8k, 5%, 1/10W, Carbon Film . . . . . 4835 111 37272

R155 1.2k, 5%, 1/10W, Carbon Film . . . . . 4835 111 27042

R156 470 ohm, 5%, 1/10W, Carbon Film. . . . 4835 111 37259

R157 330 ohm, 5%, 1/10W, Carbon Film. . . . 4835 111 37443

R158 150 ohm, 5%, 1/3W, Metal Film. . . . . 4835 116 57151

R159 100 ohm, 5%, 1/3W, Metal Film. . . . . 4835 116 87002

R160 18k, 5%, 1/2W, Metal Film. . . . . . . 4835 110 57187

R161 5.1 ohm, 5%, 1W, Metal Oxide . . . . . 4835 116 57121

R162 5.1 ohm, 5%, 1W, Metal Oxide . . . . . 4835 116 57121

R163 560 ohm, 5%, 1/2W, Metal Film. . . . . 4835 116 57731

R177 10 ohm, 5%, 1/2W, Metal Film . . . . . 4835 116 57097

R179 0.33 ohm, 5%, 5W, Metal Oxide. . . . . 4835 116 67152

R180 0.33 ohm, 5%, 5W, Metal Oxide. . . . . 4835 116 67152

R182 0.33 ohm, 5%, 5W, Metal Oxide. . . . . 4835 116 67152

R183 0.33 ohm, 5%, 5W, Metal Oxide. . . . . 4835 116 67152

R198 2.94k, 1%, 0.4W, Metal Film. . . . . . 4835 116 57649

R199 470 ohm, 5%, 1/2W, Metal Film. . . . . 4835 116 57723

R200 1.3k, 5%, 1/2W, Metal Film . . . . . . 4835 116 57694

R201 2.7k, 5%, 1/10W, Carbon Film . . . . . 4835 111 27076

R202 220 ohm, 5%, 1/2W, Metal Film. . . . . 4835 116 57705

R203 820 ohm, 5%, 1/2W, Metal Film. . . . . 4835 116 57741

R204 6.8k, 5%, 1/2W, Metal Film . . . . . . 4835 116 57736

R205 1.2k, 5%, 1/10W, Carbon Film . . . . . 4835 111 27042

R206 470 ohm, 5%, 1/10W, Carbon Film. . . . 4835 111 37259

R207 330 ohm, 5%, 1/10W, Carbon Film. . . . 4835 111 37443

R208 150 ohm, 5%, 1/3W, Metal Film. . . . . 4835 116 57151

R209 100 ohm, 5%, 1/3W, Metal Film. . . . . 4835 116 87002

R210 18k, 5%, 1/2W, Metal Film. . . . . . . 4835 110 57187

R211 5.1 ohm, 5%, 1W, Metal Oxide . . . . . 4835 116 57121

R212 5.1 ohm, 5%, 1W, Metal Oxide . . . . . 4835 116 57121

R213 680 ohm, 5%, 1/2W, Metal Film. . . . . 4835 116 57735

R214 12 ohm, 5%, 1/3W, Metal Film . . . . . 4835 116 57164

R215 12 ohm, 5%, 1/3W, Metal Film . . . . . 4835 116 57164

R227 10 ohm, 5%, 1/2W, Metal Film . . . . . 4835 116 57097

R247 3K65 1%, 0.4W, Metal Film. . . . . . . 4835 116 57462

R248 2.7k, 5%, 1/10W, Carbon Film . . . . . 4835 111 27076

R249 470 ohm, 5%, 1/2W, Metal Film. . . . . 4835 116 57723

R250 1.3k, 5%, 1/10W, Carbon Film . . . . . 4835 111 27069

R252 220 ohm, 5%, 1/2W, Metal Film. . . . . 4835 116 57705

R253 820 ohm, 5%, 1/2W, Metal Film. . . . . 4835 116 57741

R254 6.8k, 5%, 1/2W, Metal Film . . . . . . 4835 116 57736

R255 1.2k, 5%, 1/10W, Carbon Film . . . . . 4835 111 27042

R256 470 ohm, 5%, 1/10W, Carbon Film. . . . 4835 111 37259

R257 330 ohm, 5%, 1/10W, Carbon Film. . . . 4835 111 37443

R258 150 ohm, 5%, 1/3W, Metal Film. . . . . 4835 116 57151

R259 100 ohm, 5%, 1/3W, Metal Film. . . . . 4835 116 87002

R260 18k, 5%, 1/2W, Metal Film. . . . . . . 4835 110 57187

R261 5.1 ohm, 5%, 1W, Metal Oxide . . . . . 4835 116 57121

R262 5.1 ohm, 5%, 1W, Metal Oxide . . . . . 4835 116 57121

R263 560 ohm, 5%, 1/2W, Metal Film. . . . . 4835 116 57731

R277 10 ohm, 5%, 1/2W, Metal Film . . . . . 4835 116 57097

R279 0.33 ohm, 5%, 5W, Metal Oxide. . . . . 4835 116 67152

R280 0.33 ohm, 5%, 5W, Metal Oxide. . . . . 4835 116 67152

R282 0.33 ohm, 5%, 5W, Metal Oxide. . . . . 4835 116 67152

R283 0.33 ohm, 5%, 5W, Metal Oxide. . . . . 4835 116 67152

R298 2.94k, 1%, 0.4W, Metal Film. . . . . . 4835 116 57649

R299 470 ohm, 5%, 1/2W, Metal Film. . . . . 4835 116 57723

R300 1.3k, 5%, 1/2W, Metal Film . . . . . . 4835 116 57694

R301 2.7k, 5%, 1/10W, Carbon Film . . . . . 4835 111 27076

R302 220 ohm, 5%, 1/2W, Metal Film. . . . . 4835 116 57705

R303 820 ohm, 5%, 1/2W, Metal Film. . . . . 4835 116 57741

R304 6.8k, 5%, 1/2W, Metal Film . . . . . . 4835 116 57736

R305 1.2k, 5%, 1/10W, Carbon Film . . . . . 4835 111 27042

R306 470 ohm, 5%, 1/10W, Carbon Film. . . . 4835 111 37259

R307 330 ohm, 5%, 1/10W, Carbon Film. . . . 4835 111 37443

R308 150 ohm, 5%, 1/3W, Metal Film. . . . . 4835 116 57151

R309 100 ohm, 5%, 1/3W, Metal Film. . . . . 4835 116 87002

R310 18k, 5%, 1/2W, Metal Film. . . . . . . 4835 110 57187

R311 5.1 ohm, 5%, 1W, Metal Oxide . . . . . 4835 116 57121

R312 5.1 ohm, 5%, 1W, Metal Oxide . . . . . 4835 116 57121

R313 680 ohm, 5%, 1/2W, Metal Film. . . . . 4835 116 57735

R314 12 ohm, 5%, 1/3W, Metal Film . . . . . 4835 116 57164

R315 12 ohm, 5%, 1/3W, Metal Film . . . . . 4835 116 57164

R327 10 ohm, 5%, 1/2W, Metal Film . . . . . 4835 116 57097

R347 2.43k, 1%, 0.4W, Metal Film. . . . . . 4835 116 57028

R348 2.7k, 5%, 1/10W, Carbon Film . . . . . 4835 111 27076

S = Safety Part Be sure to use exact replacement part.

R349 470 ohm, 5%, 1/2W, Metal Film. . . . . 4835 116 57723

R350 1.3k, 5%, 1/10W, Carbon Film . . . . . 4835 111 27069

R352 220 ohm, 5%, 1/2W, Metal Film. . . . . 4835 116 57705

R353 820 ohm, 5%, 1/2W, Metal Film. . . . . 4835 116 57741

R354 6.8k, 5%, 1/2W, Metal Film . . . . . . 4835 116 57736

R355 1.2k, 5%, 1/10W, Carbon Film . . . . . 4835 111 27042

R356 470 ohm, 5%, 1/10W, Carbon Film. . . . 4835 111 37259

R357 330 ohm, 5%, 1/10W, Carbon Film. . . . 4835 111 37443

R358 150 ohm, 5%, 1/3W, Metal Film. . . . . 4835 116 57151

R359 100 ohm, 5%, 1/3W, Metal Film. . . . . 4835 116 87002

R360 18k, 5%, 1/2W, Metal Film. . . . . . . 4835 110 57187

R361 5.1 ohm, 5%, 1W, Metal Oxide . . . . . 4835 116 57121

R362 5.1 ohm, 5%, 1W, Metal Oxide . . . . . 4835 116 57121

R363 560 ohm, 5%, 1/2W, Metal Film. . . . . 4835 116 57731

R377 10 ohm, 5%, 1/2W, Metal Film . . . . . 4835 116 57097

R379 0.33 ohm, 5%, 5W, Metal Oxide. . . . . 4835 116 67152

R380 0.33 ohm, 5%, 5W, Metal Oxide. . . . . 4835 116 67152

R382 0.33 ohm, 5%, 5W, Metal Oxide. . . . . 4835 116 67152

R383 0.33 ohm, 5%, 5W, Metal Oxide. . . . . 4835 116 67152

D5 Diode, BAS216. . . . . . . . . . . . . 4835 130 37905

D6 Diode, BAS216. . . . . . . . . . . . . 4835 130 37905

D7 Diode, BAS216. . . . . . . . . . . . . 4835 130 37905

D10 Diode, BAS216. . . . . . . . . . . . . 4835 130 37905

D11 Diode, BAS216. . . . . . . . . . . . . 4835 130 37905

D12 Diode, BAS216. . . . . . . . . . . . . 4835 130 37905

D13 Diode, BAS216. . . . . . . . . . . . . 4835 130 37905

D100 Diode, 1N4150. . . . . . . . . . . . . 4835 130 37934

D111 Diode, BAS216. . . . . . . . . . . . . 4835 130 37905

D112 Diode, BAS216. . . . . . . . . . . . . 4835 130 37905

D113 Diode, BAS216. . . . . . . . . . . . . 4835 130 37905

D114 Diode, BAS216. . . . . . . . . . . . . 4835 130 37905

D150 Diode, 1N4150. . . . . . . . . . . . . 4835 130 37934

D200 Diode, 1N4150. . . . . . . . . . . . . 4835 130 37934

D211 Diode, BAS216. . . . . . . . . . . . . 4835 130 37905

D212 Diode, BAS216. . . . . . . . . . . . . 4835 130 37905

D213 Diode, BAS216. . . . . . . . . . . . . 4835 130 37905

D214 Diode, BAS216. . . . . . . . . . . . . 4835 130 37905

D250 Diode, 1N4150. . . . . . . . . . . . . 4835 130 37934

D300 Diode, 1N4150. . . . . . . . . . . . . 4835 130 37934

D311 Diode, BAS216. . . . . . . . . . . . . 4835 130 37905

D312 Diode, BAS216. . . . . . . . . . . . . 4835 130 37905

D313 Diode, BAS216. . . . . . . . . . . . . 4835 130 37905

D314 Diode, BAS216. . . . . . . . . . . . . 4835 130 37905

D350 Diode, 1N4150. . . . . . . . . . . . . 4835 130 37934

VR1 Diode, BB909A. . . . . . . . . . . . . 4835 130 37949

IC6 IC MC7805CT 13.59MHz Voltage Regulator 4835 209 87486

IC10 IC NE5532N PLL Filter. . . . . . . . . 4835 209 17038

IC11 IC ST24W08B6 EEPROM. . . . . . . . . . 4835 209 88556

IC13 IC UPD65654GF-260 Convergence Spline Pr

ocessor. . . . . . . . . . . . . . . . 4835 209 88475

IC100 IC NE5532N Green Output Amplifier. . . 4835 209 17038

IC165 IC TDA1313/N1 Green DAC. . . . . . . . 4835 209 88476

IC200 IC NE5532N Blue Output Amplifier . . . 4835 209 17038

IC265 IC TDA1313/N1 Blue DAC . . . . . . . . 4835 209 88476

IC300 IC NE5532N Red Output Amplifier. . . . 4835 209 17038

IC365 IC TDA1313/N1 Red DAC. . . . . . . . . 4835 209 88476

Q5 Transistor, +15 Volt Regulator, BD139. 4835 130 47642

Q6 Transistor, Intensity Buffer,. . . . . 4835 130 47086

Q7 Transistor, Fast Blanking Buffer, SMBT1

159-2T . . . . . . . . . . . . . . . . 4835 130 47086

Q8 Transistor, Horizontal Pulse Buffer, SM

BT1159 . . . . . . . . . . . . . . . . 4835 130 47086

Q9 Transistor, Vertical Pulse Buffer, SMBT

1159-2 . . . . . . . . . . . . . . . . 4835 130 47086

Q10 Transistor, 13.59MHz Voltage Controlled

Oscil. . . . . . . . . . . . . . . . . 4835 209 47125

Q11 Transistor, +5.5 Volt Regulator, SPS735 4835 130 47051 Q15 Transistor, -15 Volt Regulator, BD140. 4835 130 47641

Q100 Transistor, NPN, BC547B. . . . . . . . 4835 130 47055

Q101 Transistor, NPN, BC547B. . . . . . . . 4835 130 47055

Q102 Transistor, NPN, BC547B. . . . . . . . 4835 130 47055

Q103 Transistor, NPN, BC547B. . . . . . . . 4835 130 47055

Q104 Transistor, PNP, BD140 . . . . . . . . 4835 130 47641

Q105 Transistor, NPN, BD139 . . . . . . . . 4835 130 47642

Q106 Transistor, NPN, SJE1331-5 . . . . . . 4835 130 47107

Q107 Transistor, PNP, SJE1763 . . . . . . . 4835 130 47084

Q150 Transistor, NPN, BC547B. . . . . . . . 4835 130 47055

Q151 Transistor, NPN, BC547B. . . . . . . . 4835 130 47055

Q152 Transistor, NPN, BC547B. . . . . . . . 4835 130 47055

Q153 Transistor, NPN, BC547B. . . . . . . . 4835 130 47055

Q154 Transistor, PNP, BD140 . . . . . . . . 4835 130 47641

Q155 Transistor, NPN, BD139 . . . . . . . . 4835 130 47642

Q156 Transistor, NPN, SJE1331-5 . . . . . . 4835 130 47107

Q157 Transistor, PNP, SJE1763 . . . . . . . 4835 130 47084

Q200 Transistor, NPN, BC547B. . . . . . . . 4835 130 47055

Q201 Transistor, NPN, BC547B. . . . . . . . 4835 130 47055

Q202 Transistor, NPN, BC547B. . . . . . . . 4835 130 47055

Q203 Transistor, NPN, BC547B. . . . . . . . 4835 130 47055

Q204 Transistor, PNP, BD140 . . . . . . . . 4835 130 47641

Q205 Transistor, NPN, BD139 . . . . . . . . 4835 130 47642

Q206 Transistor, NPN, SJE1331-5 . . . . . . 4835 130 47107

Q207 Transistor, PNP, SJE1763 . . . . . . . 4835 130 47084

Page 60

8P5431C (continued) Page: 3

Q250 Transistor, NPN, BC547B. . . . . . . . 4835 130 47055

Q251 Transistor, NPN, BC547B. . . . . . . . 4835 130 47055

Q252 Transistor, NPN, BC547B. . . . . . . . 4835 130 47055

Q253 Transistor, NPN, BC547B. . . . . . . . 4835 130 47055

Q254 Transistor, PNP, BD140 . . . . . . . . 4835 130 47641

Q255 Transistor, NPN, BD139 . . . . . . . . 4835 130 47642

Q256 Transistor, NPN, SJE1331-5 . . . . . . 4835 130 47107

Q257 Transistor, PNP, SJE1763 . . . . . . . 4835 130 47084

Q300 Transistor, NPN, BC547B. . . . . . . . 4835 130 47055

Q301 Transistor, NPN, BC547B. . . . . . . . 4835 130 47055

Q302 Transistor, NPN, BC547B. . . . . . . . 4835 130 47055

Q303 Transistor, NPN, BC547B. . . . . . . . 4835 130 47055

Q304 Transistor, PNP, BD140 . . . . . . . . 4835 130 47641

Q305 Transistor, NPN, BD139 . . . . . . . . 4835 130 47642

Q306 Transistor, NPN, SJE1331-5 . . . . . . 4835 130 47107

Q307 Transistor, PNP, SJE1763 . . . . . . . 4835 130 47084

Q350 Transistor, NPN, BC547B. . . . . . . . 4835 130 47055

Q351 Transistor, NPN, BC547B. . . . . . . . 4835 130 47055

Q352 Transistor, NPN, BC547B. . . . . . . . 4835 130 47055

Q353 Transistor, NPN, BC547B. . . . . . . . 4835 130 47055

Q354 Transistor, PNP, BD140 . . . . . . . . 4835 130 47641

Q355 Transistor, NPN, BD139 . . . . . . . . 4835 130 47642

Q356 Transistor, NPN, SJE1331-5 . . . . . . 4835 130 47107

Q357 Transistor, PNP, SJE1763 . . . . . . . 4835 130 47084

Z2 Zener Diode, 12V, BZX79. . . . . . . . 4835 130 37001

Z3 Zener Diode, 10V, BZX79. . . . . . . . 4835 130 37014

Z5 Zener Diode, 5.1V, BZX79 . . . . . . . 4835 130 37119

Z6 Zener Diode, 5.1V, MMSZ5231B . . . . . 4835 220 17061

Z7 Zener Diode, 5.1V, MMSZ5231B . . . . . 4835 220 17061

Z8 Zener Diode, 5.1V, MMSZ5231B . . . . . 4835 220 17061

Z9 Zener Diode, 5.1V, MMSZ5231B . . . . . 4835 220 17061

Z10 Zener Diode, 5.1V, BZX7. . . . . . . . 4835 130 37941

Z15 Zener Diode, 5.1V, BZX79 . . . . . . . 4835 130 37119

Z30 Zener Diode, 5.1V, BZX79 . . . . . . . 4835 130 37119

Z200 Zener Diode, 30V, BZX7 . . . . . . . . 4835 130 37942

Z201 Zener Diode, 30V, BZX7 . . . . . . . . 4835 130 37942

Z300 Zener Diode, 30V, BZX7 . . . . . . . . 4835 130 37942

Z301 Zener Diode, 30V, BZX7 . . . . . . . . 4835 130 37942

L3 5uH., Adjustable Coil. . . . . . . . . 4835 157 58097

L4 10uH., Suppression Coil. . . . . . . . 4835 152 27026

L5 22uH., 10%, Choke Coil . . . . . . . . 4835 152 27049

L6 22uH., 10%, Choke Coil . . . . . . . . 4835 152 27049

L11 5.6uH., 5%, Peaking Coil . . . . . . . 2422 535 94291

L12 5.6uH., 5%, Peaking Coil . . . . . . . 2422 535 94291

L13 5.6uH., 5%, Peaking Coil . . . . . . . 2422 535 94291

L16 5.6uH., 5%, Peaking Coil . . . . . . . 2422 535 94291

L19 5.6uH., 5%, Peaking Coil . . . . . . . 2422 535 94291

L20 5.6uH., 10%, Peaking Coil LAL03. . . . 4835 157 57103

L22 5.6uH., 10%, Peaking Coil LAL03. . . . 4835 157 57103

L24 5.6uH., 10%, Peaking Coil LAL03. . . . 4835 157 57103

L25 6.8uH., 10% Peaking Coil LAL03 . . . . 4835 157 57988

L26 6.8uH., 10% Peaking Coil LAL03 . . . . 4835 157 57988

L27 6.8uH., 10% Peaking Coil LAL03 . . . . 4835 157 57988

L28 6.8uH., 10% Peaking Coil LAL03 . . . . 4835 157 57988

L29 6.8uH., 10% Peaking Coil LAL03 . . . . 4835 157 57988

BRXXX Zero ohm, Carbon Film. . . . . . . . . 4835 111 27056

BRSXXX Zero ohm, Carbon Film. . . . . . . . . 4835 111 27056

F1 4 Amp Fuse . . . . . . . . . . . . . . 4835 253 37027

F2 4 Amp Fuse . . . . . . . . . . . . . . 4835 253 37027

F3 1 Amp Fuse . . . . . . . . . . . . . . 4835 253 37026

HS6 Small Signal Shield. . . . . . . . . . 3135 011 02251

HS100 Heatsink for Digital Convergence . . . 3135 011 02000 HS100 Spring Clip for Q306 and Q307 (2 used) 3135 011 03270 HS150 Heatsink for Digital Convergence . . . 3135 011 02000 HS150 Spring Clip for Q356 and Q357 (2 used) 3135 011 03270 HS200 Heatsink for Digital Convergence . . . 3135 011 02000 HS200 Spring Clip for Q206 and Q207 (2 used) 3135 011 03270 HS250 Heatsink for Digital Convergence . . . 3135 011 02000 HS250 Spring Clip for Q256 and Q257 (2 used) 3135 011 03270 HS300 Heatsink for Digital Convergence . . . 3135 011 02000 HS300 Spring Clip for Q156 and Q157 (2 used) 3135 011 03270 HS350 Heatsink for Digital Convergence . . . 3135 011 02000 HS350 Spring Clip for Q106 and Q107 (2 used) 3135 011 03270

J307 8 Pin Connector. . . . . . . . . . . . 2422 025 15025

J468 9 Pin Connector. . . . . . . . . . . . 2422 025 15205

J483 5 Pin Connector. . . . . . . . . . . . 3135 010 02931

J484 5 Pin Connector. . . . . . . . . . . . 3135 010 02931

J485 5 Pin Connector. . . . . . . . . . . . 3135 010 02931

J654A 10 Pin Board Connector . . . . . . . . 2422 025 15027

P701 10 Pin Connector . . . . . . . . . . . 4835 265 97463

P801 10 Pin Connector . . . . . . . . . . . 4835 265 97463

P901 10 Pin Connector . . . . . . . . . . . 4835 265 97463

SA701 Surge Protector. . . . . . . . . . . . 4835 116 97013

SA801 Surge Protector. . . . . . . . . . . . 4835 116 97013

SA901 Surge Protector. . . . . . . . . . . . 4835 116 97013

SHB200 Shield (for Digital Convergence) . . . 3135 011 01890 SHD200 Heatsink for Digital Convergence . . . 3135 011 03291

TP4 2 Pin Board Connector. . . . . . . . . 2422 025 02496

Y1 Saw Filter, 390MHz . . . . . . . . . . 4835 153 97054

RED CRT APNEL

S = Safety Part Be sure to use exact replacement part.

C701 0.01uF., 400V, Electrolytic. . . . . . 0025 972 51039

C702 0.01uF., 400V, Electrolytic. . . . . . 0025 972 51039

S C705 1000pF., 20%, 2kV, Ceramic Disc. . . . 4822 122 32064

C717 10uF., 350V, Electrolytic. . . . . . . 2020 012 93272

C720 10uF., 20%, 50V, Electrolytic. . . . . 3198 025 51090

C721 0.1uF., 63V, Metalized Polyester . . . 4835 121 47602

C750 100pF., 5%, 50V, Ceramic Disc. . . . . 3198 019 01010

C751 1200pF.,5%, 100V, Polyester. . . . . . 4835 121 47558

C752 1000pF., 20%, 1kV, Ceramic Disc. . . . 4822 122 32064

S R701 27 ohm, 5%, 1/2W, Metal Oxide. . . . . 4835 116 57112

R703 100 ohm, 5%, 1/3W, Carbon Film . . . . 4822 050 21001

S R710 1.5k, 10%, 1/2W, Carbon Composition. . 4835 110 47001 S R716 110 ohm, 5%, 1/2W, Carbon Composition. 4835 110 47096 S R718 22k, 20%, 1/2W, Carbon Composition . . 4835 110 47167

S R719 5.6 ohm, 5%, 1/2W, Metal Film . . . . 4835 116 57595

S R720 5.6 ohm, 5%, 1/2W, Metal Film . . . . 4835 116 57595

S R730 3.3k, 5%, 5W, Metal Oxide. . . . . . . 4835 116 67302

S R731 3.3k, 5%, 5W, Metal Oxide. . . . . . . 4835 116 67302

R735 100 ohm, 5%, 1/3W, Carbon Film . . . . 4822 050 21001

R738 100k, 5%, 1/3W, Carbon Film. . . . . . 4822 050 21004

R742 750 ohm, 1%, 1/4W, Carbon Film . . . . 4835 110 57352

R743 220 ohm, 1%, 0.6W, Metal Film. . . . . 4835 116 57765

R745 75 ohm, 2%, 1/2W, Carbon Film. . . . . 4835 110 47202

R751 15 ohm, 1%, 0.6W, Metal Film . . . . . 4835 116 57766

R752 22k, 5%, 1/4W, Carbon Composition. . . 4835 110 57317

R753 43 ohm, 5%, 1/2W, Carbon Film. . . . . 4835 110 47195

R755 47 ohm, 5%, 1/8W, Carbon Film. . . . . 4822 050 14709

R756 68 ohm, 5%, 1/3W, Carbon Film. . . . . 4835 110 57008

D705 Diode, MUR140. . . . . . . . . . . . . 4835 130 37102

Q701 Transistor, Upper Cascode, 2SC3790E. . 4835 130 47886 Q702 Transistor, Lower Cascode, SPS7350 . . 4835 130 47051

Q703 Transistor, Bias, SPS9 . . . . . . . . 4835 130 47091

L701 100uH., 10%, Peaking Coil. . . . . . . 4835 157 67077

L702 15uH., Coil LAL04. . . . . . . . . . . 4835 157 67087

L703 47uH., Coil LAL02. . . . . . . . . . . 4835 157 67088

L704 47uH., Coil LAL02. . . . . . . . . . . 4835 157 67088

L705 22uH., 5%, Peaking Coil. . . . . . . . 4835 157 67089

HS701 Heatsink for Q701. . . . . . . . . . . 3135 011 01230

J540A 2 Pin Connector. . . . . . . . . . . . 3135 010 02941

J567 2 Pin Connector. . . . . . . . . . . . 3135 010 02941

J580 Contact Pin. . . . . . . . . . . . . . 3135 010 00470

J654 10 Pin Board Connector . . . . . . . . 2422 025 15027

GREEN CRT PANEL

C801 0.01uF., 400V, Electrolytic. . . . . . 0025 972 51039

S C805 1000pF., 20%, 2kV, Ceramic Disc. . . . 4822 122 32064

C807 0.01uF., 400V, Electrolytic. . . . . . 0025 972 51039

C817 10uF., 350V, Electrolytic. . . . . . . 2020 012 93272

C820 10uF., 20%, 50V, Electrolytic. . . . . 3198 025 51090

C821 0.1uF., 63V, Metalized Polyester . . . 4835 121 47602

C850 100pF., 5%, 50V, Ceramic Disc. . . . . 3198 019 01010

C851 1200pF.,5%, 100V, Polyester. . . . . . 4835 121 47558

C852 1000pF., 20%, 1kV, Ceramic Disc. . . . 4822 122 32064

S R801 27 ohm, 5%, 1/2W, Metal Oxide. . . . . 4835 116 57112

R803 100 ohm, 5%, 1/3W, Carbon Film . . . . 4822 050 21001

S R810 1.5k, 5%, 1/2W, Carbon Composition . . 4835 110 47194 S R816 110 ohm, 5%, 1/2W, Carbon Composition. 4835 110 47096 S R818 22k, 20%, 1/2W, Carbon Composition . . 4835 110 47167

S R819 5.6 ohm, 5%, 1/2W, Metal Film . . . . 4835 116 57595

S R820 5.6 ohm, 5%, 1/2W, Metal Film . . . . 4835 116 57595

R825 220k, 5%, 1/2W, Metal Film . . . . . . 4835 116 57018

R826 100k, 5%, 1/2W, Metal Film . . . . . . 4835 116 57687

S R830 3.3k, 5%, 5W, Metal Oxide. . . . . . . 4835 116 67302

S R831 3.3k, 5%, 5W, Metal Oxide. . . . . . . 4835 116 67302

R835 100 ohm, 5%, 1/3W, Carbon Film . . . . 4822 050 21001

R838 100k, 5%, 1/3W, Carbon Film. . . . . . 4822 050 21004

R842 750 ohm, 1%, 0.6W, Metal Film. . . . . 4835 116 57767

R843 220 ohm, 1%, 0.6W, Metal Film. . . . . 4835 116 57765

R845 75 ohm, 2%, 1/2W, Carbon Film. . . . . 4835 110 47202

R851 15 ohm, 1%, 0.6W, Metal Film . . . . . 4835 116 57766

R852 22k, 5%, 1/4W, Carbon Composition. . . 4835 110 57317

R853 43 ohm, 5%, 1/2W, Carbon Film. . . . . 4835 110 47195

R855 47 ohm, 5%, 1/3W, Carbon Film. . . . . 4835 110 57019

R856 68 ohm, 5%, 1/3W, Carbon Film. . . . . 4835 110 57008

R857 10k, 5%, 1/2W, Metal Film. . . . . . . 4835 116 57686

D805 Diode, MUR140. . . . . . . . . . . . . 4835 130 37102

Q801 Transistor, Upper Cascode, 2SC3790E. . 4835 130 47886 Q802 Transistor, Lower Cascode, SPS7350 . . 4835 130 47051

Q803 Transistor, Bias, SPS9 . . . . . . . . 4835 130 47091

L801 100uH., 10%, Peaking Coil. . . . . . . 4835 157 67077

L802 15uH., Coil LAL04. . . . . . . . . . . 4835 157 67087

L803 47uH., Coil LAL02. . . . . . . . . . . 4835 157 67088

L804 47uH., Coil LAL02. . . . . . . . . . . 4835 157 67088

L805 22uH., 10%, Peaking Coil . . . . . . . 4835 157 67069

HS801 Heatsink for Q801. . . . . . . . . . . 3135 011 01230

J401 4 Pin Board Connector. . . . . . . . . 2422 025 15021

J540 2 Pin Connector. . . . . . . . . . . . 3135 010 02941

J568 2 Pin Connector. . . . . . . . . . . . 3135 010 02941

J569 2 Pin Connector. . . . . . . . . . . . 3135 010 02941

J581 Contact Pin. . . . . . . . . . . . . . 3135 010 00470

J608 10 Pin Board Connector . . . . . . . . 2422 025 15196

Page 61

8P5431C (continued) Page: 4

J654A 10 Pin Board Connector . . . . . . . . 2422 025 15027

J658A 10 Pin Board Connector . . . . . . . . 2422 025 14677

BLUE CRT PANEL

C901 0.01uF., 400V, Electrolytic. . . . . . 0025 972 51039

C902 0.01uF., 400V, Electrolytic. . . . . . 0025 972 51039

S C905 1000pF., 20%, 2kV, Ceramic Disc. . . . 4822 122 32064

C917 10uF., 350V, Electrolytic. . . . . . . 2020 012 93272

C920 10uF., 20%, 50V, Electrolytic. . . . . 4835 124 47202

C921 0.1uF., 63V, Metalized Polyester . . . 4835 121 47602

C950 100pF., 5%, 50V, Ceramic Disc. . . . . 3198 019 01010

C951 1200pF.,5%, 100V, Polyester. . . . . . 4835 121 47558

C952 1000pF., 20%, 1kV, Ceramic Disc. . . . 4822 122 32064

S R901 27 ohm, 5%, 1/2W, Metal Oxide. . . . . 4835 116 57112

R903 100 ohm, 5%, 1/3W, Carbon Film . . . . 4822 050 21001

S R910 1.5k, 10%, 1/2W, Carbon Composition. . 4835 110 47001 S R916 110 ohm, 5%, 1/2W, Carbon Composition. 4835 110 47096 S R918 22k, 20%, 1/2W, Carbon Composition . . 4835 110 47167

S R919 5.6 ohm, 5%, 1/2W, Metal Film. . . . . 4835 116 57595

S R920 5.6 ohm, 5%, 1/2W, Metal Film. . . . . 4835 116 57595

S R930 3.3k, 5%, 5W, Metal Oxide. . . . . . . 4835 116 67302

S R931 3.3k, 5%, 5W, Metal Oxide. . . . . . . 4835 116 67302

R935 100ohm, 5%, 1/3W, Carbon Film. . . . . 4822 050 21001

R938 100k, 5%, 1/3W, Carbon Film. . . . . . 4822 050 21004

R942 750ohm, 1%, 1/4W, Carbon Film. . . . . 4835 110 57352

R943 220 ohm, 1%, 0.6W, Metal Film. . . . . 4835 116 57765

R945 75 ohm, 2%, 1/2W, Carbon Film. . . . . 4835 110 47202

R951 15 ohm, 1%, 0.6W, Metal Film . . . . . 4835 116 57766

R952 22k, 5%, 1/4W, Carbon Composition. . . 4835 110 57317

R953 43 ohm, 5%, 1/2W, Carbon Film. . . . . 4835 110 47195

R955 47 ohm, 5%, 1/8W, Carbon Film. . . . . 4822 050 14709

R956 68 ohm, 5%, 1/3W, Carbon Film. . . . . 4835 110 57008

D905 Diode, MUR140. . . . . . . . . . . . . 4835 130 37102

Q901 Transistor, Upper Cascode, 2SC3790E. . 4835 130 47886 Q902 Transistor, Lower Cascode, SPS7350 . . 4835 130 47051

Q903 Transistor, Bias, SPS9 . . . . . . . . 4835 130 47091

L901 100uH., 10%, Peaking Coil. . . . . . . 4835 157 67077

L902 15uH., Coil LAL04. . . . . . . . . . . 4835 157 67087

L903 47uH., Coil LAL02. . . . . . . . . . . 4835 157 67088

L904 47uH., Coil LAL02. . . . . . . . . . . 4835 157 67088

L905 22uH., 10%, Peaking Coil . . . . . . . 4835 157 67069

HS901 Heatsink for Q901. . . . . . . . . . . 3135 011 01230

J569A 2 Pin Connector. . . . . . . . . . . . 3135 010 02941

J570 2 Pin Connector. . . . . . . . . . . . 3135 010 02941

J582 Contact Pin. . . . . . . . . . . . . . 3135 010 00470

J658 10 Pin Board Connector . . . . . . . . 2422 025 14677

MODEL 008P5431C101

S 20 AC Cord, Filtered. . . . . . . . . . . 4835 321 17128

27 Back Cover (Lower) . . . . . . . . . . 4835 432 97707

26 Back Cover (Upper) . . . . . . . . . . 4835 432 97693

Baffle Mount Receptacle (x6) . . . . . 4835 265 97154

Battery f/Remote AA ZC 1.5V. . . . . . 4835 138 17047

Caster (x4). . . . . . . . . . . . . . 4835 528 77071

17 Chassis Frame. . . . . . . . . . . . . 4835 432 17943

3 Extr., Screen Bottom . . . . . . . . . 3135 014 02950

2 Extr., Screen Edge, Side (x2). . . . . 3135 014 03070

14 Extr., Screen Edge, Top. . . . . . . . 3135 014 03060

4 Foot Base Rail (x2). . . . . . . . . . 3135 014 03131

16 Frame f/Digital Convergence. . . . . . 4835 432 17846

11 Frame, Screen 54" (x2) . . . . . . . . 3135 014 06350

9 Hole Insert (x17). . . . . . . . . . . 3135 014 02741

18 Jack Panel Frame . . . . . . . . . . . 3135 014 06650

13 Lens, Fresnel. . . . . . . . . . . . . 3135 013 00950

10 Lens, Lenticular . . . . . . . . . . . 3135 013 00920

22 Light Barrier. . . . . . . . . . . . . 4835 432 17945

15 Mirror Board Mtng Brkt. (x2) . . . . . 3135 011 02401

25 Mirror Mounting. . . . . . . . . . . . 3135 013 01410

24 Mirror Trapz 2nd Surface . . . . . . . 3135 013 01140

Owners Manual. . . . . . . . . . . . . 3135 015 07370

Quick Use Guide. . . . . . . . . . . . 3135 015 07360

Rear Barrier . . . . . . . . . . . . . 4835 432 97694

19 Rear Jack Panel Overlay. . . . . . . . 4835 459 17556

Remote Transmit. UR714SB . . . . . . . 4835 219 17699

1 Retainer Treelock (x15). . . . . . . . 3135 014 02620

8 Speaker Full 4x6" 8 Ohm (x2) . . . . . 4835 240 47011

7 Speaker Grille . . . . . . . . . . . . 4835 459 47113

SMALL SIGNAL PANEL (1 TUNER)

C1 100uF., 16V, Electrolytic. . . . . . . 3198 025 21010

C2 15pF., 5%, 50V, Ceramic. . . . . . . . 3198 016 01590

C4 470uF., 50V, Electrolytic. . . . . . . 3198 025 54770

C5 100uF., 16V, Electrolytic. . . . . . . 3198 025 21010

C7 0.01uF., 10%, 50V, Ceramic . . . . . . 3198 017 01030

C8 220uF., 16V, Electrolytic. . . . . . . 3198 025 22210

C9 10uF., 20%, 50V, Electrolytic. . . . . 3198 025 51090

C10 10uF., 20%, 50V, Electrolytic. . . . . 3198 025 51090

C13 1uF., 20%, 50V, Electrolytic . . . . . 3198 025 51080

C14 1uF., 20%, 50V, Electrolytic . . . . . 3198 025 51080

S = Safety Part Be sure to use exact replacement part.

C19 10uF., 20%, 50V, Electrolytic. . . . . 3198 025 51090

C25 10uF., 20%, 50V, Electrolytic. . . . . 3198 025 51090

C30 10uF., 20%, 16V, Electrolytic. . . . . 2020 012 92805

C37 100uF., 16V, Electrolytic. . . . . . . 3198 025 21010

C39 220uF., 16V, Electrolytic. . . . . . . 3198 025 22210

C45 0.01uF., 10%, 50V, Ceramic . . . . . . 4835 122 87042

C46 1000uF., 16V, Electrolytic . . . . . . 4835 124 47571

C50 1000pF., 10%, 50V, Ceramic . . . . . . 3198 017 01020

C51 1000pF., 10%, 50V, Ceramic . . . . . . 3198 017 01020

C100 5600pF., 10%, 50V, Ceramic . . . . . . 4835 122 87043

C101 0.15uF., 5%, 50V, Polyester. . . . . . 2020 308 90118

C102 0.15uF., 5%, 50V, Polyester. . . . . . 2020 308 90118

C103 0.15uF., 5%, 50V, Polyester. . . . . . 2020 308 90118

C104 2.2uF., 25V, Electrolytic. . . . . . . 4835 124 97179

C105 8200pF., 10%, 50V, Ceramic . . . . . . 4835 122 87527

C106 4.7uF., 20%, 16V, Electrolytic . . . . 2020 004 90258

C107 2.2uF., 25V, Electrolytic. . . . . . . 4835 124 97179

C108 2.2uF., 25V, Electrolytic. . . . . . . 4835 124 97179

C109 10uF., 20%, 50V, Electrolytic. . . . . 3198 025 51090

C110 10uF., 20%, 50V, Electrolytic. . . . . 3198 025 51090

C111 1uF., 35V, Electrolytic. . . . . . . . 4835 124 97175

C112 1uF., 35V, Electrolytic. . . . . . . . 4835 124 97175

C113 0.047uF., 10%, 50V, Ceramic. . . . . . 3198 017 04730

C114 0.1uF., 25V, Ceramic . . . . . . . . . 3198 017 21040

C115 4.7uF., 20%, 16V, Electrolytic . . . . 2020 004 90258

C116 10uF., 20%, 50V, Electrolytic. . . . . 3198 025 51090

C117 10uF., 20%, 50V, Electrolytic. . . . . 3198 025 51090

C118 0.47uF., 100V, Metalized Polyester . . 4835 121 47364 C119 0.22uF., 100V, Metalized Polyester . . 4835 121 47038

C120 4.7uF., 20%, 16V, Electrolytic . . . . 2020 004 90258

C121 0.22uF., 100V, Metalized Polyester . . 4835 121 47038

C122 4.7uF., 20%, 16V, Electrolytic . . . . 2020 004 90258

C123 4.7uF., 20%, 16V,Electrolytic. . . . . 2020 004 90258

C124 2.2uF., 25V, Electrolytic. . . . . . . 4835 124 97179

C125 2.2uF., 25V, Electrolytic. . . . . . . 4835 124 97179

C126 0.015uF., 10%, 50V, Ceramic. . . . . . 4835 122 87063

C127 0.015uF., 10%, 50V, Ceramic. . . . . . 4835 122 87063

C128 2.2uF., 25V,Electrolytic . . . . . . . 4835 124 97179

C129 8200pF., 10%, 50V,Ceramic. . . . . . . 4835 122 87527

C130 0.15uF., 5%, 50V, Polyester. . . . . . 2020 308 90118

C131 5600pF., 10%, 50V, Ceramic . . . . . . 4835 122 87043

C132 0.15uF., 5%, 50V, Polyester. . . . . . 2020 308 90118

C133 0.15uF., 5%, 50V, Polyester. . . . . . 2020 308 90118

C135 1000uF., 35V, Electrolytic . . . . . . 4835 124 47498

C136 1000uF., 35V, Electrolytic . . . . . . 4835 124 47498

C137 10uF., 20%, 50V, Electrolytic. . . . . 3198 025 51090

C138 10uF., 20%, 50V, Electrolytic. . . . . 3198 025 51090

C140 0.1uF., 25V,Ceramic. . . . . . . . . . 3198 017 21040

C142 10uF., 20%, 50V, Electrolytic. . . . . 3198 025 51090

C154 0.1uF., 25V, Ceramic . . . . . . . . . 3198 017 21040

C155 100uF., 16V, Electrolytic. . . . . . . 3198 025 21010

C156 10uF., 20%, 50V, Electrolytic. . . . . 3198 025 51090

C157 47uF., 20%, 25V,Electrolytic . . . . . 3198 025 34790

C158 10uF., 20%, 50V, Electrolytic. . . . . 3198 025 51090

C160 47uF., 20%, 25V, Electrolytic. . . . . 3198 025 34790

C161 100pF., 5%, 50V, Ceramic . . . . . . . 3198 016 01010

C162 100uF., 50V, Electrolytic. . . . . . . 3198 025 51010

C164 100pF., 5%, 50V, Ceramic . . . . . . . 3198 016 01010

C165 47uF., 20%, 25V, Electrolytic. . . . . 3198 025 34790

C166 0.1uF., 10%, 50V, Ceramic. . . . . . . 4835 122 87061

C167 10uF., 50V, Electrolytic . . . . . . . 4835 124 47525

C168 0.1uF., 10%, 50V, Ceramic. . . . . . . 4835 122 87061

C169 1000uF., 25V, Electrolytic . . . . . . 4835 124 47583

C170 1uF., 20%, 50V, Electrolytic . . . . . 3198 025 51080

C171 0.1uF., 10%, 50V, Ceramic. . . . . . . 4835 122 87061

C172 0.1uF., 10%, 50V,Ceramic . . . . . . . 4835 122 87061

C173 100uF., 16V, Electrolytic. . . . . . . 3198 025 21010

C174 10uF., 20%, 50V, Electrolytic. . . . . 3198 025 51090

C175 1000uF., 25V, Electrolytic . . . . . . 4835 124 47583

C176 0.1uF., 10%, 50V, Ceramic. . . . . . . 4835 122 87061

C177 0.01uF., 10%, 50V, Ceramic . . . . . . 3198 017 01030

C178 47uF., 20%, 25V, Electrolytic. . . . . 3198 025 34790

C179 0.1uF., 10%, 50V, Ceramic. . . . . . . 4835 122 87061

C180 0.01uF., 10%, 50V, Ceramic . . . . . . 3198 017 01030

C181 0.1uF., 25V, Ceramic . . . . . . . . . 3198 017 21040

C186 1uF., 20%, 50V, Electrolytic . . . . . 3198 025 51080

C190 47uF., 20%, 25V, Electrolytic. . . . . 3198 025 34790

C191 10uF., 20%, 50V, Electrolytic. . . . . 3198 025 51090

C195 10uF., 20%, 50V, Electrolytic. . . . . 3198 025 51090

C198 47uF., 20%, 50V, Electrolytic. . . . . 3198 025 54790

C199 47uF., 20%, 50V, Electrolytic. . . . . 3198 025 54790

C200 0.1uF., 10%, 50V, Ceramic. . . . . . . 4835 122 87061

C201 4.7uF., 20%, 16V, Electrolytic . . . . 2020 004 90258

C202 1000pF., 10%, 50V, Ceramic . . . . . . 3198 017 01020

C203 0.01uF., 10%, 50V, Ceramic . . . . . . 3198 017 01030

C204 100uF., 25V, Electrolytic. . . . . . . 3198 025 31010

C205 0.1uF., 10%, 50V, Ceramic. . . . . . . 4835 122 87061

C206 0.01uF., 10%, 50V, Ceramic . . . . . . 4835 122 87042

C207 2.2uF., 25V, Electrolytic. . . . . . . 4835 124 97179

C208 330pF., 10%, 50V, Ceramic. . . . . . . 4835 122 47047

C209 0.01uF., 10%, 50V, Ceramic . . . . . . 4835 122 87042

C210 16pF., 5%, 50V, Ceramic. . . . . . . . 4835 122 87449

Page 62

8P5431C (continued) Page: 5

C211 0.47uF., 35V, Electrolytic . . . . . . 4835 124 97182

C212 0.068uF., 10%, 50V, Ceramic. . . . . . 4835 122 87448

C213 0.33uF., 35V, Electrolytic . . . . . . 4835 124 97037

C216 0.01uF., 10%, 50V, Ceramic . . . . . . 4835 122 87042

C217 470pF., 10%, 50V, Ceramic. . . . . . . 2020 552 93057

C218 1uF., 35V, Electrolytic. . . . . . . . 4835 124 97175

C220 0.1uF., 10%, 50V, Ceramic. . . . . . . 4835 122 87061

C221 10uF., 20%, 50V, Electrolytic. . . . . 3198 025 51090

C222 0.1uF., 10%, 50V, Ceramic. . . . . . . 4835 122 87061

C223 0.1uF., 10%, 50V, Ceramic. . . . . . . 4835 122 87061

C225 0.047uF., 10%, 50V, Ceramic. . . . . . 4835 122 87071

C227 0.01uF., 10%, 50V, Ceramic . . . . . . 3198 017 01030

C229 0.1uF., 25V, Ceramic . . . . . . . . . 3198 017 21040

C230 220pF., 5%, 50V, Ceramic . . . . . . . 3198 016 02210

C300 0.1uF., 25V, Ceramic . . . . . . . . . 3198 017 21040

C301 33pF., 5%, 50V, Ceramic. . . . . . . . 3198 016 03390

C302 33pF., 5%, 50V, Ceramic. . . . . . . . 3198 016 03390

C303 6.8uF., 10V, Electrolytic. . . . . . . 4835 124 97183

C304 1000pF., 10%, 50V, Ceramic . . . . . . 3198 017 01020

C305 1000pF., 10%, 50V, Ceramic . . . . . . 3198 017 01020

C306 1000pF., 10%, 50V, Ceramic . . . . . . 3198 017 01020

C307 1000pF., 10%, 50V, Ceramic . . . . . . 3198 017 01020

C308 1000pF., 10%, 50V, Ceramic . . . . . . 3198 017 01020

C309 1000pF., 10%, 50V, Ceramic . . . . . . 3198 017 01020

C310 1000pF., 10%, 50V, Ceramic . . . . . . 3198 017 01020

C311 6.8uF., 10V, Electrolytic. . . . . . . 4835 124 97183

C312 100pF., 5%, 50V, Ceramic . . . . . . . 3198 016 01010

C313 1000pF., 10%, 50V, Ceramic . . . . . . 3198 017 01020

C314 1000pF., 10%, 50V, Ceramic . . . . . . 3198 017 01020

C315 1000pF., 10%, 50V, Ceramic . . . . . . 3198 017 01020

C316 1000pF., 10%, 50V, Ceramic . . . . . . 3198 017 01020

C317 1000pF., 10%, 50V, Ceramic . . . . . . 3198 017 01020

C318 1000pF., 10%, 50V, Ceramic . . . . . . 3198 017 01020

C319 1000pF., 10%, 50V, Ceramic . . . . . . 3198 017 01020

C321 1000pF., 10%, 50V, Ceramic . . . . . . 4835 122 87041

C322 1uF., 35V, Electrolytic. . . . . . . . 4835 124 97175

C323 1uF., 35V, Electrolytic. . . . . . . . 4835 124 97175

C341 Trimmer Capacitor, 3pF.-40pF., 250V. . 2222 808 11409

C342 0.47uF., 35V, Electrolytic . . . . . . 4835 124 97182

C355 100pF., 5%, 50V, Ceramic . . . . . . . 3198 016 01010

C356 100pF., 5%, 50V, Ceramic . . . . . . . 3198 016 01010

C359 1000pF., 10%, 50V, Ceramic . . . . . . 3198 017 01020

C360 1000pF., 10%, 50V, Ceramic . . . . . . 3198 017 01020

C362 100pF., 5%, 50V, Ceramic . . . . . . . 3198 016 01010

C363 100pF., 5%, 50V, Ceramic . . . . . . . 3198 016 01010

C375 1000pF., 10%, 50V, Ceramic . . . . . . 3198 017 01020

C376 1000pF., 10%, 50V, Ceramic . . . . . . 3198 017 01020

C377 1000pF., 10%, 50V, Ceramic . . . . . . 3198 017 01020

C378 1000pF., 10%, 50V, Ceramic . . . . . . 3198 017 01020

C379 1000pF., 10%, 50V, Ceramic . . . . . . 3198 017 01020

C382 1000pF., 10%, 50V, Ceramic . . . . . . 3198 017 01020

C383 27pF., 5%, 50V, Ceramic. . . . . . . . 3198 016 02790

C386 1000pF., 10%, 50V, Ceramic . . . . . . 3198 017 01020

C387 2.2uF., 25V, Electrolytic. . . . . . . 4835 124 97179

C390 100pF., 5%, 50V, Ceramic . . . . . . . 3198 016 01010

C391 1000pF., 10%, 50V, Ceramic . . . . . . 3198 017 01020

C395 0.1uF., 25V, Ceramic . . . . . . . . . 3198 017 21040

C396 0.1uF., 25V, Ceramic . . . . . . . . . 3198 017 21040

C400 4.7uF., 20%, 16V, Electrolytic . . . . 2020 004 90258

C401 22uF., 20%, 25V, Electrolytic. . . . . 4835 124 47707

C402 0.1uF., 10%, 50V, Ceramic. . . . . . . 4835 122 87061

C405 0.01uF., 10%, 50V, Ceramic . . . . . . 4835 122 87042

C406 10uF., 20%, 50V, Electrolytic. . . . . 3198 025 51090

C407 0.01uF., 10%, 50V, Ceramic . . . . . . 4835 122 87042

C408 10uF., 20%, 50V, Electrolytic. . . . . 3198 025 51090

C600 33pF., 5%, 50V, Ceramic. . . . . . . . 3198 016 03390

C601 0.1uF., 25V, Ceramic . . . . . . . . . 3198 017 21040

C602 82pF., 5%, 50V, Ceramic. . . . . . . . 3198 016 08290

C603 0.1uF., 25V, Ceramic . . . . . . . . . 3198 017 21040

C604 0.033uF., 10%, 50V, Ceramic. . . . . . 3198 017 03330

C605 0.33uF., 35V, Electrolytic . . . . . . 4835 124 97037

C606 0.1uF., 25V, Ceramic . . . . . . . . . 3198 017 21040

C607 0.1uF., 25V, Ceramic . . . . . . . . . 3198 017 21040

C608 82pF., 5%, 50V, Ceramic. . . . . . . . 3198 016 08290

C609 82pF., 5%, 50V, Ceramic. . . . . . . . 3198 016 08290

C611 1uF., 20%, 50V, Electrolytic . . . . . 3198 025 51080

C612 0.1uF., 25V, Ceramic . . . . . . . . . 3198 017 21040

C615 2.2uF., 25V, Electrolytic. . . . . . . 4835 124 97179

C616 0.1uF., 10%, 50V, Ceramic. . . . . . . 4835 122 87061

C617 1000pF., 10%, 50V, Ceramic . . . . . . 3198 017 01020

C618 0.01uF., 10%, 50V, Ceramic . . . . . . 3198 017 01030

C619 0.47uF., 100V, Metalized Polyester . . 4835 121 47222

C620 0.018uF., 10%, 50V, Ceramic. . . . . . 4835 122 87533

C621 100uF., 25V, Electrolytic. . . . . . . 3198 025 31010

C622 100uF., 25V, Electrolytic. . . . . . . 3198 025 31010

C623 1uF., 35V, Electrolytic. . . . . . . . 4835 124 97175

C624 680pF., 5%, 50V, Ceramic . . . . . . . 3198 016 06810

C625 82pF., 5%, 50V, Ceramic. . . . . . . . 4835 122 87593

C628 0.22uF., 50V, Ceramic. . . . . . . . . 4835 122 87087

C629 68pF., 5%, 50V, Ceramic. . . . . . . . 3198 016 06890

C637 4700pF., 10%, 50V, Ceramic . . . . . . 3198 017 04720

C638 0.1uF., 25V, Ceramic . . . . . . . . . 3198 017 21040

S = Safety Part Be sure to use exact replacement part.

C639 0.33uF., 35V, Electrolytic . . . . . . 4835 124 97037

C640 0.012uF., 10%, 50V, Ceramic. . . . . . 4835 122 87501

C641 0.1uF., 25V, Ceramic . . . . . . . . . 3198 017 21040

C642 2.2uF., 25V, Electrolytic. . . . . . . 4835 124 97179

C643 200pF., 5%, 50V, Ceramic . . . . . . . 4835 122 87092

C645 620pF., 5%, 50V, Ceramic . . . . . . . 4835 122 87089

C647 1000pF., 10%, 50V, Ceramic . . . . . . 4835 122 87041

C648 120pF., 5%, 50V, Ceramic . . . . . . . 4835 122 87046

C649 51pF., 5%, 50V, Ceramic. . . . . . . . 4835 122 87054

C650 180pF., 5%, 50V, Ceramic . . . . . . . 4835 122 87028

C651 10uF., 20%, 50V, Electrolytic. . . . . 3198 025 51090

C654 0.1uF., 25V, Ceramic . . . . . . . . . 3198 017 21040

C655 220uF., 16V, Electrolytic. . . . . . . 3198 025 22210

C656 100uF., 16V, Electrolytic. . . . . . . 3198 025 21010

C658 360pF., 5%, 50V, Ceramic . . . . . . . 4835 122 87484

C659 180pF., 5%, 50V, Ceramic . . . . . . . 4835 122 87028

C660 120pF., 5%, 50V, Ceramic . . . . . . . 3198 016 01210

C661 15pF., 5%, 50V, Ceramic. . . . . . . . 4835 122 87047

C662 0.1uF., 25V, Ceramic . . . . . . . . . 3198 017 21040

C664 0.1uF., 25V, Ceramic . . . . . . . . . 3198 017 21040

C665 0.1uF., 25V, Ceramic . . . . . . . . . 3198 017 21040

C667 2.2uF., 25V, Electrolytic. . . . . . . 4835 124 97179

C675 0.1uF., 25V, Ceramic . . . . . . . . . 3198 017 21040

C676 82pF., 5%, 50V, Ceramic. . . . . . . . 4835 122 87038

C677 0.033uF., 10%, 50V, Ceramic. . . . . . 3198 017 03330

C679 43pF., 5%, 50V, Ceramic. . . . . . . . 2020 552 94276

C680 10uF., 20%, 50V, Electrolytic. . . . . 3198 025 51090

C681 56P 5%, 50V, Ceramic . . . . . . . . . 4835 122 87096

C690 220uF., 25V, Electrolytic. . . . . . . 3198 025 32210

C691 0.1uF., 25V, Ceramic . . . . . . . . . 3198 017 21040

C699 1uF., 35V, Electrolytic. . . . . . . . 4835 124 97175

C719 0.01uF., 10%, 50V, Ceramic . . . . . . 3198 017 01030

C720 47uF., 20%, 25V, Electrolytic. . . . . 3198 025 34790

C721 0.1uF., 25V, Ceramic . . . . . . . . . 3198 017 21040

C722 47uF., 20%, 25V, Electrolytic. . . . . 3198 025 34790

C723 0.33uF., 35V, Electrolytic . . . . . . 4835 124 97037

C724 0.1uF., 25V, Ceramic . . . . . . . . . 3198 017 21040

C729 10uF., 20%, 50V, Electrolytic. . . . . 3198 025 51090

C731 0.1uF., 10%, 50V, Ceramic. . . . . . . 4835 122 87061

C732 47uF., 20%, 25V, Electrolytic. . . . . 3198 025 34790

C734 0.01uF., 10%, 50V, Ceramic . . . . . . 3198 017 01030

C735 0.01uF., 10%, 50V, Ceramic . . . . . . 3198 017 01030

C736 0.01uF., 10%, 50V, Ceramic . . . . . . 4835 122 87042

C738 10pF., 5%, 50V, Ceramic. . . . . . . . 3198 016 01090

C749 10pF., 5%, 50V, Ceramic. . . . . . . . 3198 016 01090

C750 100uF., 25V, Electrolytic. . . . . . . 3198 025 31010

C760 0.01uF., 10%, 50V, Ceramic . . . . . . 3198 017 01030

C766 0.01uF., 10%, 50V, Ceramic . . . . . . 3198 017 01030

C767 10pF., 5%, 50V, Ceramic. . . . . . . . 4835 122 87045

C1000 0.1uF., 10%, 50V, Ceramic. . . . . . . 4835 122 87061

C1001 0.22uF., 50V, Ceramic. . . . . . . . . 4835 122 87087

C1002 0.1uF., 25V, Ceramic . . . . . . . . . 3198 017 21040

C1003 0.22uF., 50V, Ceramic. . . . . . . . . 4835 122 87087

C1004 680pF., 5%, 50V, Ceramic . . . . . . . 3198 016 06810

C1005 100pF., 5%, 50V, Ceramic . . . . . . . 3198 016 01010

C1006 100pF., 5%, 50V, Ceramic . . . . . . . 3198 016 01010

C1007 47uF., 20%, 25V, Electrolytic. . . . . 3198 025 34790

C1009 100pF., 5%, 50V, Ceramic . . . . . . . 3198 016 01010

C1010 100pF., 5%, 50V, Ceramic . . . . . . . 3198 016 01010

C1011 220pF., 5%, 50V, Ceramic . . . . . . . 3198 016 02210

C1012 1000pF., 10%, 50V, Ceramic . . . . . . 3198 017 01020

C1013 1uF., 35V,Electrolytic . . . . . . . . 4835 124 97175

C1014 100pF., 5%, 50V, Ceramic . . . . . . . 3198 016 01010

C1016 220uF., 25V, Electrolytic. . . . . . . 3198 025 32210

C1017 1000pF., 10%, 50V, Ceramic . . . . . . 3198 017 01020

C1020 100pF., 5%, 50V, Ceramic . . . . . . . 3198 016 01010

C1021 0.01uF., 10%, 50V, Ceramic . . . . . . 3198 017 01030

C1022 0.01uF., 10%, 50V, Ceramic . . . . . . 3198 017 01030

C1023 0.01uF., 10%, 50V, Ceramic . . . . . . 3198 017 01030

C1025 0.01uF., 10%, 50V, Ceramic . . . . . . 3198 017 01030

C1026 560pF., 5%, 50V,Ceramic. . . . . . . . 4835 122 87055

C1027 0.1uF., 100V, Metalized Polyester. . . 2222 365 22104

C1028 0.01uF., 10%, 50V, Ceramic . . . . . . 3198 017 01030

C1029 1uF., 20%, 50V, Electrolytic . . . . . 3198 025 51080

C1031 0.1uF., 10%, 50V, Ceramic. . . . . . . 4835 122 87061

C1034 12pF., 5%, 50V, Ceramic. . . . . . . . 3198 016 01290

C1035 12pF., 5%, 50V, Ceramic. . . . . . . . 3198 016 01290

C1037 0.01uF., 10%, 50V, Ceramic . . . . . . 4835 122 87042

C1038 0.01uF., 10%, 50V, Ceramic . . . . . . 4835 122 87042

C1039 0.01uF., 10%, 50V, Ceramic . . . . . . 3198 017 01030

C1040 0.1uF., 25V, Ceramic . . . . . . . . . 3198 017 21040

C1041 0.01uF., 10%, 50V, Ceramic . . . . . . 3198 017 01030

C1042 0.01uF., 10%, 50V, Ceramic . . . . . . 3198 017 01030

C1043 1000pF., 10%, 50V, Ceramic . . . . . . 3198 017 01020

C1044 0.1uF., 10%, 50V, Ceramic. . . . . . . 4835 122 87061

C1046 10uF., 10V, Electrolytic . . . . . . . 4835 124 97178

C1050 0.1uF., 10%, 50V, Ceramic. . . . . . . 4835 122 87061

C1051 0.1uF., 10%, 50V, Ceramic. . . . . . . 4835 122 87061

C1052 1uF., 35V, Electrolytic. . . . . . . . 4835 124 97175

BRSXXX 0 ohm, "Chip" Jumper . . . . . . . . . 4835 111 27056

BRXXX 0 ohm, Jumper. . . . . . . . . . . . . 3198 021 90010

BRXXX 0 ohm, "Chip" Jumper . . . . . . . . . 4835 111 27056

Page 63

8P5431C (continued) Page: 6

S R3 22 ohm, 5%, 1/2W, Metal Film . . . . . 4835 116 57708

R4 100 ohm, 5%, 1/2W, Metal Film. . . . . 4835 116 57684

R5 22k, 5%, 1/2W, Metal Film. . . . . . . 4835 116 57706

R6 1k, 5%, 1/4W, Carbon Film. . . . . . . 4835 111 37022

R11 22k, 5%, 1/10W, Carbon Film. . . . . . 4835 111 37441

R12 10k, 5%, 1/2W, Metal Film. . . . . . . 4835 116 57686

R13 100 ohm, 5%, 1/2W, Metal Film. . . . . 4835 116 57684

R14 100 ohm, 5%, 1/10W, Carbon Film. . . . 4835 111 37432

R17 180k, 5%, 1/10W, Carbon Film . . . . . 4835 111 37484

R18 2.2k, 5%, 1/10W, Carbon Film . . . . . 4835 111 37234

R19 2.2 Meg ohm, 5%, 1/10W, Carbon Film. . 4835 111 27047

R20 180k, 5%, 1/10W, Carbon Film . . . . . 4835 111 37484

R21 2.2k, 5%, 1/10W, Carbon Film . . . . . 4835 111 37234

R22 2.2 Meg ohm, 5%, 1/10W, Carbon Film. . 4835 111 27047

R29 75 ohm, 5%, 1/10W, Carbon Film . . . . 4835 111 37276

R30 75 ohm, 5%, 1/10W, Carbon Film . . . . 4835 111 37276

R31 2.2k, 5%, 1/4W, Carbon Film. . . . . . 3198 011 02220

R32 1k, 5%, 1/10W, Carbon Film . . . . . . 4822 051 10102

R33 1k, 5%, 1/10W, Carbon Film . . . . . . 4822 051 10102

R34 2.2k, 5%, 1/4W, Carbon Film. . . . . . 3198 011 02220

S R35 100 ohm, 5%, 1/2W, Metal Film. . . . . 4835 116 57684

R37 180k, 5%, 1/10W, Carbon Film . . . . . 4835 111 37484

R38 180k, 5%, 1/10W, Carbon Film . . . . . 4835 111 37484

R44 560 ohm, 5%, 1/10W, Carbon Film. . . . 4835 111 27054

R45 1.6k, 5%, 1/10W, Carbon Film . . . . . 3198 021 51620

R46 510 ohm, 5%, 1/10W, Carbon Film. . . . 3198 021 55110

R47 1.8k, 5%, 1/10W, Carbon Film . . . . . 4835 111 37231

R48 820 ohm, 5%, 1/10W, Carbon Film. . . . 4835 111 37466

R49 1.6k, 5%, 1/10W, Carbon Film . . . . . 3198 021 51620

R51 47k, 5%, 1/10W, Metal Film . . . . . . 4835 111 37445

R52 47k, 5%, 1/10W, Metal Film . . . . . . 4835 111 37445

R55 33k, 5%, 1/10W, Carbon Film. . . . . . 4835 111 37248

R56 33k, 5%, 1/10W, Carbon Film. . . . . . 4835 111 37248

R59 1k, 5%, 1/10W, Carbon Film . . . . . . 4822 051 10102

S R63 10 ohm, 5%, 1/4W, Carbon Film. . . . . 3198 011 01090

R64 150 ohm, 5%, 1/4W, Carbon Film . . . . 3198 011 01510

R65 150 ohm, 5%, 1/4W, Carbon Film . . . . 3198 011 01510

R66 68 ohm, 5%, 1/4W, Carbon Film. . . . . 3198 011 06890

R67 150 ohm, 5%, 1/10W, Carbon Film. . . . 3198 021 51510

R71 100k, 5%, 1/2W, Metal Film . . . . . . 4835 116 57687

S R74 51 ohm, 5%, 1/4W, Carbon Film. . . . . 4835 111 37138

S R76 51 ohm, 5%, 1/4W, Carbon Film. . . . . 4835 111 37138

R83 100 ohm, 5%, 1/2W, Metal Film. . . . . 4835 116 57684

R84 100 ohm, 5%, 1/2W, Metal Film. . . . . 4835 116 57684

R89 100k, 5%, 1/10W, Carbon Film . . . . . 4835 111 37434

R90 220k, 5%, 1/10W, Carbon Film . . . . . 4835 111 37235

R91 10k, 5%, 1/2W, Metal Film. . . . . . . 4835 116 57686

R100 10k, 5%, 1/10W, Carbon Film. . . . . . 4835 111 37216

R101 20k, 5%, 1/10W, Carbon Film. . . . . . 3198 021 52030

R102 2.2k, 5%, 1/10W, Carbon Film . . . . . 4835 111 37234

R103 8.2k, 5%, 1/10W, Carbon Film . . . . . 4835 111 37448

R104 160 ohm, 5%, 1/10W, Carbon Film. . . . 3198 021 51610

R105 100 ohm, 5%, 1/2W, Metal Film. . . . . 4835 116 57684

R106 100 ohm, 5%, 1/2W, Metal Film. . . . . 4835 116 57684

S R107 33 ohm, 5%, 1/2W, Metal Film . . . . . 4835 116 57366

R108 2.2k, 5%, 1/10W, Carbon Film . . . . . 4835 111 37234

R109 20k, 5%, 1/10W, Carbon Film. . . . . . 3198 021 52030

R110 2.2k, 5%, 1/10W, Carbon Film . . . . . 4835 111 37234

R111 10k, 5%, 1/10W, Carbon Film. . . . . . 4835 111 37216

R112 22k, 5%, 1/10W, Carbon Film. . . . . . 4835 111 37441

R113 22k, 5%, 1/10W, Carbon Film. . . . . . 4835 111 37441

R115 1k, 5%, 1/10W, Carbon Film . . . . . . 4822 051 10102

R116 22k, 5%, 1/10W, Carbon Film. . . . . . 4835 111 37441

R117 22k, 5%, 1/2W, Metal Film. . . . . . . 4835 116 57706

R118 47k, 5%, 1/4W, Carbon Film . . . . . . 3198 011 04730

R119 22k, 5%, 1/2W, Metal Film. . . . . . . 4835 116 57706

R120 22k, 5%, 1/10W, Carbon Film. . . . . . 4835 111 37441

R121 47k, 5%, 1/4W, Carbon Film . . . . . . 3198 011 04730

R122 470 ohm, 5%, 1/4W, Carbon Film . . . . 3198 011 14710

R123 2.7k, 5%, 1/4W, Carbon Film. . . . . . 3198 011 02720

R124 47k, 5%, 1/10W, Metal Film . . . . . . 4835 111 37445

R125 100k, 5%, 1/2W, Metal Film . . . . . . 4835 116 57687

R126 100k, 5%, 1/2W, Metal Film . . . . . . 4835 116 57687

R127 100k, 5%, 1/10W, Carbon Film . . . . . 4835 111 37434

R128 10k, 5%, 1/10W, Carbon Film. . . . . . 4835 111 37216

R133 47k, 5%, 1/4W, Carbon Film . . . . . . 3198 011 04730

R134 100k, 5%, 1/10W, Carbon Film . . . . . 4835 111 37434

R139 10k, 5%, 1/10W, Carbon Film. . . . . . 4835 111 37216

R172 100k, 5%, 1/10W, Carbon Film . . . . . 4835 111 37434

R175 100k, 5%, 1/2W, Metal Film . . . . . . 4835 116 57687

R177 1k, 5%, 1/10W, Carbon Film . . . . . . 4822 051 10102

R178 1k, 5%, 1/10W, Carbon Film . . . . . . 4822 051 10102

R179 47 ohm, 5%, 1/2W, Metal Film . . . . . 4835 116 57727

R186 12k, 5%, 1/4W, Carbon Film . . . . . . 3198 011 01230

R187 1.5k, 5%, 1/10W, Carbon Film . . . . . 4835 111 37437

R189 1.5k, 5%, 1/10W, Carbon Film . . . . . 4835 111 37437

R190 12k, 5%, 1/4W, Carbon Film . . . . . . 3198 011 01230

R191 4.7 ohm, 5%, 1/10W, Carbon Film. . . . 3198 021 54780

R192 4.7 ohm, 5%, 1/10W, Carbon Film. . . . 3198 021 54780

R193 220k, 5%, 1/10W, Carbon Film . . . . . 4835 111 37235

R194 1k, 5%, 1/2W, Metal Film . . . . . . . 4835 116 57685

R195 100k, 5%, 1/2W, Metal Film . . . . . . 4835 116 57687

S = Safety Part Be sure to use exact replacement part.

R196 100 ohm, 5%, 1/2W, Metal Film. . . . . 4835 116 57684

R197 270k, 5%, 1/4W, Carbon Film. . . . . . 3198 011 02740

R198 110k, 5%, 1/2W, Metal Film . . . . . . 2322 187 53114

R199 100k, 5%, 1/2W, Metal Film . . . . . . 4835 116 57687

R200 24k, 5%, 1/2W, Carbon Film . . . . . . 4835 110 47199

R201 22k, 5%, 1/8W, Carbon Film . . . . . . 4835 111 37558

R202 Control Adjust, 4.7k . . . . . . . . . 2020 363 90236

R203 9.1k, 5%, 1/10W, Carbon Film . . . . . 3198 021 59120

R204 6.8k, 5%, 1/4W, Carbon Film. . . . . . 2322 711 61682

R205 2.2k, 5%, 1/4W, Carbon Film. . . . . . 2322 711 61222

R206 2.7k, 5%, 1/4W, Carbon Film. . . . . . 3198 011 02720

R207 6.2k, 5%, 1/4W, Carbon Film. . . . . . 2322 711 61622

R208 9.1k, 5%, 1/2W, Metal Film . . . . . . 2322 187 53912

R209 10k, 5%, 1/8W, Metal Film. . . . . . . 4835 111 37556

R212 390 ohm, 5%, 1/4W, Carbon Film . . . . 2322 711 61391

R214 47 ohm, 5%, 1/10W, Carbon Film . . . . 4835 111 37262

R215 1k, 5%, 1/4W, Carbon Film. . . . . . . 4835 111 37022

R216 270 ohm, 5%, 1/4W, Carbon Film . . . . 2322 711 61271

R217 100k, 5%, 1/2W, Metal Film . . . . . . 4835 116 57687

R218 62k, 5%, 1/4W, Carbon Film . . . . . . 2322 711 61623

R219 47k, 5%, 1/4W, Carbon Film . . . . . . 4835 111 37561

R220 100 ohm, 5%, 1/10W, Carbon Film. . . . 4835 111 37432

R221 1k, 5%, 1/4W, Carbon Film. . . . . . . 4835 111 37022

R222 470 ohm, 5%, 1/10W, Carbon Film. . . . 4835 111 37259

R228 680k, 5%, 1/10W, Carbon Film . . . . . 3198 021 56840

R229 3.6k, 5%, 1/4W, Carbon Film. . . . . . 2322 711 61362

R230 47k, 5%, 1/4W, Carbon Film . . . . . . 4835 111 37561

R231 4.7k, 5%, 1/8W, Metal Film . . . . . . 4835 111 37559

R232 10k, 5%, 1/8W, Metal Film. . . . . . . 4835 111 37556

R233 47k, 5%, 1/4W, Carbon Film . . . . . . 4835 111 37561

R234 680k, 5%, 1/10W, Carbon Film . . . . . 3198 021 56840

R235 1.8k, 5%, 1/4W, Carbon Film. . . . . . 4835 111 37065

R236 330 ohm, 5%, 1/10W, Carbon Film. . . . 4835 111 37443

R238 2.7k, 5%, 1/4W, Carbon Film. . . . . . 4835 111 37083

R240 0 ohm, Carbon Film . . . . . . . . . . 4835 111 27056

R241 0 ohm, Carbon Film . . . . . . . . . . 4835 111 27056

R242 1k, 5%, 1/4W, Carbon Film. . . . . . . 4835 111 37022

R243 4.3k, 5%, 0.24W, Carbon Film . . . . . 2322 711 61432

R244 Control Adjust, 1k,. . . . . . . . . . 4835 100 17014

R245 2.2k, 5%, 1/10W, Carbon Film . . . . . 4835 111 37234

R246 150k, 5%, 1/10W, Carbon Film . . . . . 4835 111 27045

R247 1.1k, 5%, 1/4W, Carbon Film. . . . . . 2322 711 61112

R248 470 ohm, 5%, 1/10W, Carbon Film. . . . 4835 111 37259

R255 100 ohm, 5%, 1/4W, Carbon Film . . . . 4835 111 37021

R300 1/4W, 5%, 100 ohm, Carbon Composition. 4835 110 57066

R301 1k, 5%, 1/2W, Metal Film . . . . . . . 4835 116 57685

R302 4.7k, 5%, 1/8W, Metal Film . . . . . . 4835 111 37559

R303 1k, 5%, 1/10W, Carbon Film . . . . . . 4822 051 10102

R304 47k, 5%, 1/4W, Carbon Film . . . . . . 3198 011 04730

R305 100k, 5%, 1/2W, Metal Film . . . . . . 4835 116 57687

R306 100k, 5%, 1/10W, Carbon Film . . . . . 4835 111 37434

R307 100 ohm, 5%, 1/4W, Carbon Composition. 4835 110 57066

R308 47k, 5%, 1/10W, Metal Film . . . . . . 4835 111 37445

R309 15k, 5%, 1/2W, Metal Film. . . . . . . 4835 116 57698

R310 4.7k, 5%, 1/10W, Carbon Film . . . . . 4835 111 27052

R311 100 ohm, 5%, 1/4W, Carbon Composition. 4835 110 57066

R312 10k, 5%, 1/2W, Metal Film. . . . . . . 4835 116 57686

R313 3.3k, 5%, 1/10W, Carbon Film . . . . . 4835 111 37247

R314 47k, 5%, 1/10W, Metal Film . . . . . . 4835 111 37445

R315 100 ohm, 5%, 1/2W, Metal Film. . . . . 4835 116 57684

R316 100 ohm, 5%, 1/2W, Metal Film. . . . . 4835 116 57684

R317 4.7k, 5%, 1/2W, Metal Film . . . . . . 4835 116 57724

R318 1k, 5%, 1/10W, Carbon Film . . . . . . 4822 051 10102

R319 16k, 5%, 1/10W, Carbon Film. . . . . . 3198 021 51630

R320 4.7k, 5%, 1/10W, Carbon Film . . . . . 4835 111 27052

R323 4.7k, 5%, 1/10W, Carbon Film . . . . . 4835 111 27052

R324 4.7k, 5%, 1/10W, Carbon Film . . . . . 4835 111 27052

R325 1k, 5%, 1/2W, Metal Film . . . . . . . 4835 116 57685

R326 1k, 5%, 1/4W, Carbon Film. . . . . . . 4835 111 37022

R327 4.7k, 5%, 1/10W, Carbon Film . . . . . 4835 111 27052

R328 4.7k,, 5%, 1/8W, Metal Film. . . . . . 4835 111 37559

R329 470 ohm, 5%, 1/2W, Metal Film. . . . . 4835 116 57723

R330 470 ohm, 5%, 1/2W, Metal Film. . . . . 4835 116 57723

R331 4.7k, 5%, 1/8W, Metal Film . . . . . . 4835 111 37559

R332 470 ohm, 5%, 1/2W, Metal Film. . . . . 4835 116 57723

R333 3.3k, 5%, 1/10W, Carbon Film . . . . . 4835 111 37247

R334 4.7k,, 5%, 1/8W, Metal Film. . . . . . 4835 111 37559

R335 4.7k, 5%, 1/8W, Metal Film . . . . . . 4835 111 37559

R336 4.7k, 5%, 1/10W, Carbon Film . . . . . 4835 111 27052

R337 47k, 5%, 1/4W, Carbon Film . . . . . . 3198 011 04730

R338 470 ohm, 5%, 1/10W, Carbon Film. . . . 4835 111 37259

R339 4.7k, 5%, 1/2W, Metal Film . . . . . . 4835 116 57724

R340 47 ohm, 5%, 1/10W, Carbon Film . . . . 4835 111 37262

R341 1k, 5%, 1/2W, Metal Film . . . . . . . 4835 116 57685

R342 3.3k, 5%, 1/10W, Carbon Film . . . . . 4835 111 37247

R343 3.3k, 5%, 1/10W, Carbon Film . . . . . 4835 111 37247

R344 4.7k, 5%, 1/10W, Carbon Film . . . . . 4835 111 27052

R346 1k, 5%, 1/2W, Metal Film . . . . . . . 4835 116 57685

R347 4.7k, 5%, 1/10W, Carbon Film . . . . . 4835 111 27052

R348 470 ohm, 5%, 1/2W, Metal Film. . . . . 4835 116 57723

R350 4.7k, 5%, 1/10W, Carbon Film . . . . . 4835 111 27052

R351 1k, 5%, 1/10W, Carbon Film . . . . . . 4822 051 10102

Page 64

8P5431C (continued) Page: 7

R352 470 ohm, 5%, 1/10W, Carbon Film. . . . 4835 111 37259

R353 1k, 5%, 1/10W, Carbon Film . . . . . . 4822 051 10102

R354 1k, 5%, 1/10W, Carbon Film . . . . . . 4822 051 10102

R355 1k, 5%, 1/10W, Carbon Film . . . . . . 4822 051 10102

R356 1k, 5%, 1/10W, Carbon Film . . . . . . 4822 051 10102

R357 100 ohm, 5%, 1/2W, Metal Film. . . . . 4835 116 57684

R358 100 ohm, 5%, 1/10W, Carbon Film. . . . 4835 111 37432

R359 47k, 5%, 1/4W, Carbon Film . . . . . . 3198 011 04730

R361 1k, 5%, 1/2W, Metal Film . . . . . . . 4835 116 57685

R363 4.7k, 5%, 1/10W, Carbon Film . . . . . 4835 111 27052

R364 100 ohm, 5%, 1/10W, Carbon Film. . . . 4835 111 37432

R365 1k, 5%, 1/10W, Carbon Film . . . . . . 4822 051 10102

R366 10k, 5%, 1/10W, Carbon Film. . . . . . 4835 111 37216

R367 47 ohm, 5%, 1/2W, Metal Film . . . . . 4835 116 57727

R369 1k, 20%, 1/4W, Carbon Composition. . . 4835 110 57318 R370 1k, 20%, 1/4W, Carbon Composition. . . 4835 110 57318 R371 1k, 20%, 1/4W, Carbon Composition. . . 4835 110 57318 R372 1k, 20%, 1/4W, Carbon Composition. . . 4835 110 57318 R373 1k, 20%, 1/4W, Carbon Composition. . . 4835 110 57318 R374 1k, 20%, 1/4W, Carbon Composition. . . 4835 110 57318

R375 470 ohm, 5%, 1/10W, Carbon Film. . . . 4835 111 37259

R376 470 ohm, 5%, 1/10W, Carbon Film. . . . 4835 111 37259

R377 470 ohm, 5%, 1/10W, Carbon Film. . . . 4835 111 37259

R379 4.7k, 5%, 1/10W, Carbon Film . . . . . 4835 111 27052

R380 2.2k, 5%, 1/10W, Carbon Film . . . . . 4835 111 37234

R381 10k, 5%, 1/10W, Carbon Film. . . . . . 4835 111 37216

R382 2.2k, 5%, 1/10W, Carbon Film . . . . . 4835 111 37234

R383 22k, 5%, 1/10W, Carbon Film. . . . . . 4835 111 37441

R390 100 ohm, 5%, 1/10W, Carbon Film. . . . 4835 111 37432

R397 100k, 5%, 1/10W, Carbon Film . . . . . 4835 111 37434

R398 100k, 5%, 1/10W, Carbon Film . . . . . 4835 111 37434

R399 100k, 5%, 1/10W, Carbon Film . . . . . 4835 111 37434

S R402 10 ohm, 5%, 3W, Metal Oxide. . . . . . 2120 105 92585

R600 1k, 5%, 1/2W, Metal Film . . . . . . . 4835 116 57685

R601 1k, 5%, 1/10W, Carbon Film . . . . . . 4822 051 10102

R602 22k, 5%, 1/10W, Carbon Film. . . . . . 4835 111 37441

R603 3.3k, 5%, 1/4W, Carbon Film. . . . . . 4835 111 37035

R604 100 ohm, 5%, 1/2W, Metal Film. . . . . 4835 116 57684

R605 180 ohm 5%, 1/10W, Carbon Film . . . . 4835 111 37229

R606 180 ohm, 5%, 1/10W, Carbon Film. . . . 4835 111 37229

R607 2.2k, 5%, 1/10W, Carbon Film . . . . . 4835 111 37234

R608 0 ohm, 1/8W, Carbon Film . . . . . . . 4835 110 67173

R609 36k, 5%, 1/10W, Carbon Film. . . . . . 3198 021 53630

R610 100 ohm, 5%, 1/2W, Metal Film. . . . . 4835 116 57684

R611 1k, 5%, 1/10W, Carbon Film . . . . . . 4822 051 10102

R612 560 ohm, 5%, 1/10W, Carbon Film. . . . 4835 111 27054

R613 47 ohm, 5%, 1/4W, Carbon Film. . . . . 2322 711 61479

R614 330 ohm, 5%, 1/10W, Carbon Film. . . . 4835 111 37443

R615 390 ohm, 5%, 1/10W, Carbon Film. . . . 4835 111 37253

R616 560 ohm, 5%, 1/10W, Carbon Film. . . . 4835 111 27054

R617 10 ohm, 5%, 1/10W, Carbon Film . . . . 4835 111 37363

R618 1k, 5%, 1/10W, Carbon Film . . . . . . 4822 051 10102

R619 47 ohm, 5%, 1/4W, Carbon Film. . . . . 2322 711 61479

R620 360 ohm, 5%, 1/4W, Carbon Film . . . . 2322 711 61361

R621 620 ohm, 5%, 1/4W, Carbon Film . . . . 2322 711 61621

R622 360 ohm, 5%, 1/4W, Carbon Film . . . . 2322 711 61361

R623 2k, 5%, 1/4W, Carbon Film. . . . . . . 2322 711 61202

R624 430 ohm, 5%, 1/4W, Carbon Film . . . . 3198 011 04310

R625 2k, 5%, 1/10W, Carbon Film . . . . . . 4835 111 27091

R626 100 ohm, 5%, 1/4W, Carbon Film . . . . 4835 111 37021

R627 910 ohm, 5%, 1/4W, Carbon Film . . . . 2322 711 61911

R628 51 ohm, 5%, 1/4W, Carbon Film. . . . . 3198 011 05190

R629 51k, 5%, 1/10W, Carbon Film. . . . . . 4835 111 27057

R630 430 ohm, 5%, 1/10W, Carbon Film. . . . 3198 021 54310

R631 110k, 5%, 1/10W, Carbon Film . . . . . 3198 021 51140

R632 270 ohm, 5%, 1/10W, Carbon Film. . . . 4835 111 37424

R633 390 ohm, 5%, 1/4W, Carbon Film . . . . 3198 011 03910

R634 51 ohm, 5%, 1/4W, Carbon Film. . . . . 3198 011 05190

R635 2.4k, 5%, 1/10W, Carbon Film . . . . . 3198 021 52420

R636 0 ohm, Carbon Film . . . . . . . . . . 4835 111 27056

R637 1.5k, 5%, 1/2W, Metal Film . . . . . . 4835 116 57697

R638 15k, 5%, 1/2W, Metal Film. . . . . . . 4835 116 57698

R640 330 ohm, 5%, 1/10W, Carbon Film. . . . 4835 111 37443

R641 750 ohm, 5%, 1/4W, Carbon Film . . . . 4835 111 37121

R642 430 ohm, 5%, 1/10W, Carbon Film. . . . 3198 021 54310

R644 100 ohm, 5%, 1/10W, Carbon Film. . . . 4835 111 37432

R649 2k, 5%, 1/4W, Carbon Film. . . . . . . 2322 711 61202

R650 330 ohm, 5%, 1/2W, Metal Film. . . . . 4835 116 57713

R655 3.6k, 5%, 1/10W, Carbon Film . . . . . 3198 021 53620

R656 2k, 5%, 1/10W, Carbon Film . . . . . . 4835 111 27091

R658 100 ohm, 5%, 1/2W, Metal Film. . . . . 4835 116 57684

R659 100 ohm, 5%, 1/2W, Metal Film. . . . . 4835 116 57684

R660 10k, 5%, 1/2W, Metal Film. . . . . . . 4835 116 57686

R661 430 ohm, 5%, 1/4W, Carbon Film . . . . 4835 111 37101

R662 100 ohm, 5%, 1/4W, Carbon Film . . . . 4835 111 37021

R663 430 ohm, 5%, 1/4W, Carbon Film . . . . 4835 111 37101

R664 100 ohm, 5%, 1/4W, Carbon Film . . . . 4835 111 37021

R665 430 ohm, 5%, 1/4W, Carbon Film . . . . 4835 111 37101

R666 100 ohm, 5%, 1/4W, Carbon Film . . . . 4835 111 37021

R667 10k, 5%, 1/10W, Carbon Film. . . . . . 4835 111 37216

R669 10k, 5%, 1/10W, Carbon Film. . . . . . 4835 111 37216

R670 330k, 5%, 1/10W, Carbon Film . . . . . 3198 021 53340

S = Safety Part Be sure to use exact replacement part.

R671 470 ohm, 5%, 1/4W, Carbon Film . . . . 4835 111 37104

R672 470 ohm, 5%, 1/4W, Carbon Film . . . . 4835 111 37104

R673 100 ohm, 5%, 1/10W, Carbon Film. . . . 4835 111 37432

R674 1k, 5%, 1/10W, Carbon Film . . . . . . 4822 051 10102

R675 2k, 5%, 1/10W, Carbon Film . . . . . . 4835 111 27091

R676 620 ohm, 5%, 1/10W, Carbon Film. . . . 3198 021 56210

R677 1k, 5%, 1/10W, Carbon Film . . . . . . 4822 051 10102

R678 470 ohm, 5%, 1/10W, Carbon Film. . . . 4835 111 37259

R679 100 ohm, 5%, 1/10W, Carbon Film. . . . 4835 111 37432

R681 1k, 5%, 1/10W, Carbon Film . . . . . . 4822 051 10102

S R682 47 ohm, 5%, 1/4W, Carbon Film. . . . . 2322 711 61479

R683 8.2k, 5%, 1/4W, Carbon Film. . . . . . 4835 111 37043

R684 390 ohm, 5%, 1/10W, Carbon Film. . . . 4835 111 37253

R685 1.8k, 5%, 1/4W, Carbon Film. . . . . . 4835 111 37065

R686 100 ohm, 5%, 1/10W, Carbon Film. . . . 4835 111 37432

R687 620 ohm, 5%, 1/10W, Carbon Film. . . . 3198 021 56210

R688 470 ohm, 5%, 1/10W, Carbon Film. . . . 4835 111 37259

R689 560 ohm, 5%, 1/10W, Carbon Film. . . . 4835 111 27054

R690 1 Meg ohm, 5%, 1/4W, Carbon Film . . . 2322 711 61105

R691 10 ohm, 5%, 1/4W, Carbon Film. . . . . 4835 111 37132

R692 470 ohm, 5%, 1/10W, Carbon Film. . . . 4835 111 37259

R694 13k, 5%, 1/10W, Carbon Film. . . . . . 4835 111 27059

R695 100 ohm, 5%, 1/4W, Carbon Film . . . . 4835 111 37021

R696 390 ohm, 5%, 1/10W, Carbon Film. . . . 4835 111 37253

R697 390 ohm, 5%, 1/10W, Carbon Film. . . . 4835 111 37253

R698 51 ohm, 5%, 1/4W, Carbon Film. . . . . 3198 011 05190

R699 180k, 5%, 1/10W, Carbon Film . . . . . 4835 111 37484

R724 12k, 5%, 1/4W, Carbon Film . . . . . . 2322 711 61123

R725 100 ohm, 5%, 1/10W, Carbon Film. . . . 4835 111 37432

R726 4.7k, 5%, 1/10W, Carbon Film . . . . . 4835 111 27052

R727 1k, 5%, 1/10W, Carbon Film . . . . . . 4822 051 10102

R728 560 ohm, 5%, 1/10W, Carbon Film. . . . 4835 111 27054

R729 560 ohm, 5%, 1/10W, Carbon Film. . . . 4835 111 27054

R730 1k, 5%, 1/4W, Carbon Film. . . . . . . 4835 111 37022

R731 12k, 5%, 1/10W, Carbon Film. . . . . . 3198 021 51230

R732 100 ohm, 5%, 1/4W, Carbon Film . . . . 4835 111 37021

R733 4.7k,, 5%, 1/8W, Metal Film. . . . . . 4835 111 37559

R734 1k, 5%, 1/10W, Carbon Film . . . . . . 4822 051 10102

R735 560 ohm, 5%, 1/10W, Carbon Film. . . . 4835 111 27054

R736 560 ohm, 5%, 1/10W, Carbon Film. . . . 4835 111 27054

R737 1k, 5%, 1/10W, Carbon Film . . . . . . 4822 051 10102

R738 1k, 5%, 1/4W, Carbon Film. . . . . . . 4835 111 37022

R739 1k, 5%, 1/4W, Carbon Film. . . . . . . 4835 111 37022

S R740 18 ohm, 5%, 1/4W, Carbon Film. . . . . 2322 711 61189

R759 10k, 5%, 1/10W, Carbon Film. . . . . . 4835 111 37216

R772 100 ohm, 5%, 1/2W, Metal Film. . . . . 4835 116 57684

R773 100 ohm, 5%, 1/2W, Metal Film. . . . . 4835 116 57684

R774 470 ohm, 5%, 1/2W, Metal Film. . . . . 4835 116 57723

R776 5.1k, 2%, 1/8W, Carbon Film. . . . . . 2322 730 31512

R777 10k, 5%, 1/10W, Carbon Film. . . . . . 4835 111 37216

R778 2k, 5%, 1/10W, Carbon Film . . . . . . 4835 111 27091

R779 1k, 5%, 1/10W, Carbon Film . . . . . . 4822 051 10102

R783 4.7k, 5%, 1/10W, Carbon Film . . . . . 4835 111 27052

R785 2.2k, 2%, 1/8W, Carbon Film. . . . . . 2322 730 31222

R786 15k, 5%, 1/10W, Carbon Film. . . . . . 4835 111 37458

R787 3k, 5%, 1/10W, Carbon Film . . . . . . 4835 111 37554

R788 1.8k, 5%, 1/10W, Carbon Film . . . . . 4835 111 37231

R790 10k, 5%, 1/10W, Carbon Film. . . . . . 4835 111 37216

R791 6.8k, 5%, 1/4W, Carbon Film. . . . . . 3198 011 06820

R794 200 ohm, 5%, 1/10W, Carbon Film. . . . 3198 021 52010

R795 100 ohm, 5%, 1/10W, Carbon Film. . . . 4835 111 37432

R796 220 ohm, 5%, 1/4W, Carbon Film . . . . 2322 711 61221

R797 220 ohm, 5%, 1/4W, Carbon Film . . . . 2322 711 61221

R798 100 ohm, 5%, 1/10W, Carbon Film. . . . 4835 111 37432

R799 1k, 5%, 1/10W, Carbon Film . . . . . . 4822 051 10102

R800 100 ohm, 5%, 1/10W, Carbon Film. . . . 4835 111 37432

R801 1k, 5%, 1/10W, Carbon Film . . . . . . 4822 051 10102

R802 100 ohm, 5%, 1/10W, Carbon Film. . . . 4835 111 37432

R806 1k, 2% 1/8W, Carbon Film . . . . . . . 4835 110 67216

R808 390 ohm, 5%, 1/10W, Carbon Film. . . . 4835 111 37253

R809 1.6k, 5%, 1/10W, Carbon Film . . . . . 3198 021 51620

R812 4.7k, 5%, 1/10W, Carbon Film . . . . . 4835 111 27052

R814 4.7 Meg ohm, 5%, 1/10W, Carbon Film. . 3198 021 54750

R821 100 ohm, 5%, 1/4W, Carbon Film . . . . 4835 111 37021

R822 2.2k, 5%, 1/10W, Carbon Film . . . . . 4835 111 37234

R1001 22k, 5%, 1/2W, Metal Film. . . . . . . 4835 116 57706

R1002 220k, 5%, 1/10W, Carbon Film . . . . . 4835 111 37235

R1003 100 ohm, 5%, 1/2W, Metal Film. . . . . 4835 116 57684

R1004 68 ohm, 5%, 1/4W, Carbon Film. . . . . 3198 011 06890

R1006 470 ohm, 5%, 1/2W, Metal Film. . . . . 4835 116 57723

R1007 1k, 5%, 1/2W, Metal Film . . . . . . . 4835 116 57685

R1008 220k, 5%, 1/10W, Carbon Film . . . . . 4835 111 37235

R1009 470k, 5%, 1/10W, Carbon Film . . . . . 4835 111 37407

R1012 12k, 5%, 1/10W, Carbon Film. . . . . . 3198 021 51230

R1015 330 ohm, 5%, 1/4W, Carbon Film . . . . 4835 111 37034

S R1016 100 ohm, 5%, 1/2W, Metal Film. . . . . 4835 116 57684

R1017 47 ohm, 5%, 1/10W, Carbon Film . . . . 4835 111 37262

R1018 560 ohm, 5%, 1/10W, Carbon Film. . . . 4835 111 27054

R1020 100 ohm, 5%, 1/2W, Metal Film. . . . . 4835 116 57684

R1021 22k, 5%, 1/2W, Metal Film. . . . . . . 4835 116 57706

R1022 22k, 5%, 1/2W, Metal Film. . . . . . . 4835 116 57706

R1023 100 ohm, 5%, 1/10W, Carbon Film. . . . 4835 111 37432

Page 65

8P5431C (continued) Page: 8

R1027 100 ohm, 5%, 1/10W, Carbon Film. . . . 4835 111 37432

R1030 100 ohm, 5%, 1/10W, Carbon Film. . . . 4835 111 37432

R1032 47k, 5%, 1/10W, Metal Film . . . . . . 4835 111 37445

R1050 1k, 5%, 1/10W, Carbon Film . . . . . . 4822 051 10102

R1051 1k, 5%, 1/10W, Carbon Film . . . . . . 4822 051 10102

R1052 1.5k, 5%, 1/10W, Carbon Film . . . . . 4835 111 37437

R1053 750 ohm, 5%, 1/4W, Carbon Film . . . . 3198 011 07510

D100 Diode BAS216 . . . . . . . . . . . . . 4835 130 37905

D150 Diode 1N4148 . . . . . . . . . . . . . 4835 130 37048

D151 Diode 1N4148 . . . . . . . . . . . . . 4835 130 37048

D300 Diode 1N4148 . . . . . . . . . . . . . 4835 130 37048

D301 Diode BAS216 . . . . . . . . . . . . . 4835 130 37905

D302 Diode 1N4148 . . . . . . . . . . . . . 4835 130 37048

D303 Diode BAS216 . . . . . . . . . . . . . 4835 130 37905

D305 Diode BAS216 . . . . . . . . . . . . . 4835 130 37905

D306 Diode BAS216 . . . . . . . . . . . . . 4835 130 37905

D310 Diode BAS216 . . . . . . . . . . . . . 4835 130 37905

D311 Diode BAS216 . . . . . . . . . . . . . 4835 130 37905

D312 Diode BAS216 . . . . . . . . . . . . . 4835 130 37905

D313 Diode BAS216 . . . . . . . . . . . . . 4835 130 37905

D320 Diode 1N4148 . . . . . . . . . . . . . 4835 130 37048

D321 Diode BAS216 . . . . . . . . . . . . . 4835 130 37905

D322 Diode BAS216 . . . . . . . . . . . . . 4835 130 37905

D323 Diode BAS216 . . . . . . . . . . . . . 4835 130 37905

D324 Diode BAS216 . . . . . . . . . . . . . 4835 130 37905

D325 Diode BAS216 . . . . . . . . . . . . . 4835 130 37905

D401 Diode 1N4148 . . . . . . . . . . . . . 4835 130 37048

D600 Diode BAS216 . . . . . . . . . . . . . 4835 130 37905

D601 Diode BAS216 . . . . . . . . . . . . . 4835 130 37905

D602 Diode BAS216 . . . . . . . . . . . . . 4835 130 37905

D603 Diode BAS216 . . . . . . . . . . . . . 4835 130 37905

D605 Diode BAS216 . . . . . . . . . . . . . 4835 130 37905

D607 Diode BAS216 . . . . . . . . . . . . . 4835 130 37905

D608 Diode 1N4148 . . . . . . . . . . . . . 4835 130 37048

D609 Diode 1N4148 . . . . . . . . . . . . . 4835 130 37048

D610 Diode 1N4148 . . . . . . . . . . . . . 4835 130 37048

D611 Diode BAS216 . . . . . . . . . . . . . 4835 130 37905

D612 Diode BAS216 . . . . . . . . . . . . . 4835 130 37905

D613 Diode 1N4148 . . . . . . . . . . . . . 4835 130 37048

D614 Diode 1N4148 . . . . . . . . . . . . . 4835 130 37048

D615 Diode BAS216 . . . . . . . . . . . . . 4835 130 37905

D617 Diode 1N4148 . . . . . . . . . . . . . 4835 130 37048

D618 Diode 1N4148 . . . . . . . . . . . . . 4835 130 37048

D630 Diode BAS216 . . . . . . . . . . . . . 4835 130 37905

D700 Diode BAS216 . . . . . . . . . . . . . 4835 130 37905

IC1 IC, A/V Switch . . . . . . . . . . . . 4835 209 87952

IC106 IC, 10/25W Hi-Fi Power Audio Amp . . . 4835 209 87082 IC107 IC 2-Channel Multi/Demultiplexer . . . 4835 209 17033 IC120 IC, Stereo Decoder & Audio Processor . 4835 209 88337

IC200 IC, IF Signal Processor. . . . . . . . 4835 209 87757

IC300 IC LC864265A, Tuning Microprocessor. . 3135 010 02991

IC304 IC ST24C02B1, EEPROM . . . . . . . . . 4835 209 88326

IC400 IC MC7812CT, 12V Regulator . . . . . . 9334 006 10682

IC401 IC MC7805CT, 5V Regulator. . . . . . . 9334 536 00682

IC600 IC, Y/C/S Processor. . . . . . . . . . 4835 209 88331

IC606 IC, 9V Regulator . . . . . . . . . . . 4835 209 88009

IC701 IC, Chroma/Luma Switch . . . . . . . . 4835 209 87089

IC703 IC MC7805CT. . . . . . . . . . . . . . 9334 536 00682

IC1001 IC MC44461B. . . . . . . . . . . . . . 9322 107 07682

Q3 Transistor, NPN BC847B . . . . . . . . 4822 130 60511

Q4 Transistor, Buffer . . . . . . . . . . 4822 130 60511

Q5 Transistor, Buffer . . . . . . . . . . 4822 130 60511

Q7 Transistor, NPN BC847B . . . . . . . . 4822 130 60511

Q8 Transistor, NPN BC847B . . . . . . . . 4822 130 60511

Q9 P-Channel JFET, Mono/Stereo Switch . . 9340 053 20126 Q12 Transistor, Mono/Stereo Inverter . . . 4822 130 60511

Q14 Transistor, NPN BC847B . . . . . . . . 4822 130 60511

Q16 Transistor, NPN BC847B . . . . . . . . 4822 130 60511

Q17 Transistor, NPN BC847B . . . . . . . . 4822 130 60511

Q141 Transistor, Variable Audio Out Switch. 4822 130 60511

Q152 P-Channel JFET, Mute . . . . . . . . . 4835 130 47083

Q153 P-Channel JFET, Mute . . . . . . . . . 4835 130 47083

Q154 P-Channel JFET, Mute . . . . . . . . . 4835 130 47083

Q155 P-Channel JFET, Mute . . . . . . . . . 4835 130 47083

Q156 Transistor, Mute Inverter. . . . . . . 4835 130 47055

Q200 Transistor, Video Amp. . . . . . . . . 5322 130 60508

Q201 Transistor, Coincidence Detector . . . 5322 130 60508 Q202 Transistor, Coincidence Detector . . . 4822 130 60511 Q203 Transistor, Coincidence Detector . . . 5322 130 60508

Q204 Transistor, Video Buffer . . . . . . . 4822 130 60511

Q300 Transistor, Standby LED Switch . . . . 4822 130 60511

Q301 Transistor, SDA Amp. . . . . . . . . . 4822 130 60511

Q302 Transistor, SCC Amp. . . . . . . . . . 4822 130 60511

Q303 Transistor, Power LED Switch . . . . . 4822 130 60511

Q304 Transistor, Fast Blanking Buffer . . . 4822 130 60511 Q305 Transistor, OSD Intensity Buffer . . . 4822 130 60511

Q306 Transistor, Horizontal Amp . . . . . . 4822 130 60511

Q308 Transistor, Vertical Amp . . . . . . . 4822 130 60511

Q309 Transistor, PNP Switch . . . . . . . . 5322 130 60508

Q313 Transistor, SCC Amp. . . . . . . . . . 4822 130 60511

Q314 Transistor, SDA Amp. . . . . . . . . . 4822 130 60511

Q315 Transistor, Reset (Inverted) . . . . . 5322 130 60508

S = Safety Part Be sure to use exact replacement part.

Q600 Transistor, Chroma Switch. . . . . . . 4822 130 60511

Q601 Transistor, Chroma Delay . . . . . . . 5322 130 60508

Q602 Transistor, Chroma Buffer. . . . . . . 5322 130 60508

Q603 Transistor, OSD Intensity Modulator. . 5322 130 60508

Q604 Transistor, Red Driver . . . . . . . . 4822 130 60511

Q605 Transistor, Green Driver . . . . . . . 4822 130 60511

Q606 Transistor, Blue Driver. . . . . . . . 4822 130 60511

Q607 Transistor, Blue Linearity . . . . . . 5322 130 60508

Q608 Transistor, Blue Linearity . . . . . . 4822 130 60511

Q609 Transistor, 2.2V Regulator . . . . . . 4822 130 60511

Q611 Transistor, Sync Buffer. . . . . . . . 5322 130 60508

Q612 Transistor, ABL Buffer . . . . . . . . 5322 130 60508

Q613 Transistor, ABL Clamp. . . . . . . . . 5322 130 60508

Q614 Transistor, Vertical Buffer. . . . . . 4822 130 60511

Q616 Transistor, Green Buffer . . . . . . . 5322 130 60508

Q617 Transistor, Green Clipper. . . . . . . 5322 130 60508

Q618 Transistor, Red Buffer . . . . . . . . 5322 130 60508

Q619 Transistor, Red Clipper. . . . . . . . 5322 130 60508

Q620 Transistor, Blue Buffer. . . . . . . . 5322 130 60508

Q621 Transistor, Blue Clipper . . . . . . . 5322 130 60508

Q623 Transistor, Common Base Allpass. . . . 4822 130 60511

Q624 Transistor, Chroma Buffer. . . . . . . 4822 130 60511

Q625 Transistor, Chroma Buffer. . . . . . . 4822 130 60511

Q626 Transistor, Common Base Allpass. . . . 4822 130 60511

Q627 Transistor, Common EmitterAllpass. . . 5322 130 60508

Q632 Transistor, Blue Linearity . . . . . . 5322 130 60508

Q635 Transistor, Horizontal Killer. . . . . 4822 130 60511

Q703 Transistor, SVHSC Amp. . . . . . . . . 4822 130 60511

Q704 Transistor, SVHSC Amp. . . . . . . . . 5322 130 60508

Q705 Transistor, SVHSL Amp. . . . . . . . . 4822 130 60511

Q715 Transistor, NPN BC847B . . . . . . . . 4822 130 60511

Q720 Transistor, SVHSL Amp. . . . . . . . . 5322 130 60508

Q1000 Transistor, PNP T2907. . . . . . . . . 4835 130 47065

Q1010 Transistor, NPN BC847B . . . . . . . . 4822 130 60511

Q1020 Transistor, PNP BC85 . . . . . . . . . 5322 130 60508

Z100 Zener Diode, 8.2V. . . . . . . . . . . 4835 130 37503

Z101 Zener Diode, 8.2V. . . . . . . . . . . 4835 130 37503

Z200 Zener Diode, MMSZ5257B . . . . . . . . 4835 130 37823

Z300 Zener Diode, MMSZ5231B . . . . . . . . 4835 220 17061

L116 Peaking Coil, 10uH.. . . . . . . . . . 4835 157 58198

L200 Peaking Coil, 0.68uH., 5%. . . . . . . 4835 150 57053

L201 Adjustable Coil, 4.5MHz. . . . . . . . 4835 157 57113

L202 Adjustable Coil, 45.75MHz. . . . . . . 4835 157 57594

L203 Peaking Coil, 2.2uH., 5% . . . . . . . 4835 150 57054

L204 Adjustable Coil, 4.75MHz . . . . . . . 4835 157 57485

L205 Peaking Coil, 2.2uH., 5% . . . . . . . 4835 150 57054

L206 Peaking Coil, 8.2uH. ,5% . . . . . . . 4835 150 57056

L208 Peaking Coil, 12uH, 5% . . . . . . . . 4835 150 57058

L209 Peaking Coil, 1000uH., 10% . . . . . . 4835 157 57828

L210 Peaking Coil, 47uH., 5%. . . . . . . . 4835 150 57055

L211 Peaking Coil, 12uH., 5%. . . . . . . . 4835 150 57058

L212 Peaking Coil, 12uH., 10% . . . . . . . 4835 157 67075

L300 Peaking Coil, 5.6uH., 5% . . . . . . . 2422 535 94322

L301 Peaking Coil, 12uH., 5%. . . . . . . . 4835 150 57058

L302 Peaking Coil, 12uH., 5%. . . . . . . . 4835 150 57058

L303 Peaking Coil, 6.8uH., 10%. . . . . . . 2422 535 96708

L313 Peaking Coil, 4.7uH., 10%. . . . . . . 4835 157 67057

L373 Peaking Coil, 0.68uH., 20% . . . . . . 4835 157 57596

L374 Peaking Coil, 6.8uH., 10%. . . . . . . 2422 535 96708

L375 Peaking Coil, 0.68uH., 20% . . . . . . 4835 157 57596

L379 Peaking Coil, 0.68uH., 20% . . . . . . 4835 157 57596

L405 Ferrite Bead, 100MHz . . . . . . . . . 4835 157 57995

L600 Peaking Coil, 33uH,. 5%. . . . . . . . 4835 157 58113

L601 Peaking Coil, 10uH., 10% . . . . . . . 4835 157 67074

L602 Peaking Coil, 10uH., 5% . . . . . . . 4835 150 57008

L604 Peaking Coil, 12uH., 5% . . . . . . . 4835 157 57831

L605 Peaking Coil, 10uH., 5% . . . . . . . 4835 150 57008

L606 Peaking Coil, 3.3uH., 5%. . . . . . . 4835 157 57832

L607 Peaking Coil, 3.9uH., 5%. . . . . . . 4835 157 57893

L608 Peaking Coil, 12uH., 5%. . . . . . . . 4835 157 57831

L609 Peaking Coil, 22uH., 5%. . . . . . . . 4835 157 67018

L610 Peaking Coil, 15uH., 5%. . . . . . . . 4835 157 57057

L611 Peaking Coil, 5.6uH., 5% . . . . . . . 4835 157 57833

L612 Peaking Coil, 27uH., 5%. . . . . . . . 4835 157 67019

L613 Peaking Coil, 4.7uH., 5% . . . . . . . 4835 150 57028

L614 Peaking Coil, 4.7uH., 5% . . . . . . . 4835 150 57028

L615 Peaking Coil, 4.7uH., 5% . . . . . . . 4835 150 57028

L700 Peaking Coil, 10uH., 10% . . . . . . . 4835 157 67074

L707 Peaking Coil, 4.7uH., 5% . . . . . . . 4835 150 57077

L1000 Peaking Coil, 1.2uH., 5% . . . . . . . 4835 157 67028

L1001 Peaking Coil, 6.8 uH., 5%. . . . . . . 4835 157 57061

L1003 Peaking Coil, 6.8uH., 5% . . . . . . . 4835 157 57061

L1004 Peaking Coil, 4.7uH., 5% . . . . . . . 4835 150 57028

BKT1 Jack Panel Bracket . . . . . . . . . . 3135 011 01900

CLP106 Spring Clip for IC 106 . . . . . . . . 3135 011 02270

MEC4 IF Shield. . . . . . . . . . . . . . . 3135 011 02360

F100 Fuse, 5 Amp. . . . . . . . . . . . . . 4835 253 37021

HS106A Heatsink for IC 106. . . . . . . . . . 3135 011 02260

HS400 Heatsink for IC 400. . . . . . . . . . 3135 011 02510

HS401 Heatsink for IC 401. . . . . . . . . . 3135 011 03291

HS703 Heatsink for IC 703. . . . . . . . . . 3135 011 02510

J2 Phono Jack Assembly. . . . . . . . . . 4835 265 97388

Page 66

8P5431C (continued) Page: 9

J3 Jack Assembly. . . . . . . . . . . . . 4835 265 97386

J5 4 Pin Push Terminal. . . . . . . . . . 4835 265 97448

J250 5 Pin Board Connector. . . . . . . . . 2422 025 15832

J300 7 Pin Board Connector. . . . . . . . . 2422 025 14674

J302 4 Pin Board Connector. . . . . . . . . 2422 025 14672

J305 3 Pin Board Connector. . . . . . . . . 2422 025 14669

J307 8 Pin Board Connector. . . . . . . . . 2422 025 15025

J402 7 Pin Board Connector. . . . . . . . . 2422 025 15193

J403 7 Pin Board Connector. . . . . . . . . 2422 025 14674

J467 7 Pin Board Connector. . . . . . . . . 2422 025 15024

J601 7 Pin Board Connector. . . . . . . . . 2422 025 14674

J608 10 Pin Board Connector . . . . . . . . 2422 025 15196

SHD1T Shield for Small Signal Board. . . . . 3135 011 02251

SHD3T Shield for Small Signal Board. . . . . 3135 011 02251

TUNEXT Connector for Tuner. . . . . . . . . . 4835 265 97076

UV1236 Tuner, UV1236. . . . . . . . . . . . . 4835 210 47081

Y100 Ceramic Resonator. . . . . . . . . . . 4835 122 97102

Y1000 Crystal Resonator, 14.318MHz . . . . . 4835 242 77059

Y1001 Crystal Resonator, 14.318MHz . . . . . 4835 242 77059

Y200 Saw Filter . . . . . . . . . . . . . . 4835 153 97024

Y202 Ceramic Filter, 4.5MHz . . . . . . . . 4835 154 97168

Y203 Ceramic Filter, 4.5MHz . . . . . . . . 4835 153 57004

Y301 Peizoelectric Crystal. . . . . . . . . 4835 242 77283

Y600 Crystal Resonator 3.579MHz . . . . . . 2422 543 00862

Y601 Ceramic Resonator. . . . . . . . . . . 4835 153 97004

Y603 Comb Filter. . . . . . . . . . . . . . 2422 549 43197

LARGE SIGNAL PANEL

S C402 1000pF., 10%, 1kV, Ceramic . . . . . . 4835 122 47373

C403 6800pF., 10%, 250Vac Metal Film. . . . 4835 122 97082

S C406 220pF., 10%, 1kV, Ceramic. . . . . . . 4835 122 47458

S C407 3900pF., 5%, 1kV, Polypropylene. . . . 4835 121 47636

C408 330pF., 10%, 500V, Ceramic . . . . . . 4835 122 47648

C409 3300uF., 35V, Electrolytic . . . . . . 4835 124 47559

C410 0.1uF., 10%, 100V, Polyester . . . . . 4822 121 41608

C411 0.1uF., 400V, Polyester. . . . . . . . 0025 968 41049

C412 330pF., 10%, 500V, Ceramic . . . . . . 4835 122 47648

C413 330pF., 10%, 500V, Ceramic . . . . . . 4835 122 47648

C414 330uF., 25V, Electrolytic. . . . . . . 4835 124 47632

C415 100pF., 5%, 50V, Ceramic . . . . . . . 4835 122 87025

C416 4700pF., 2.5%, 63V, Polypropylene. . . 4835 121 47087

C417 2200pF., 10%, 50V, Ceramic . . . . . . 4835 122 87524

C418 1000pF., 50V, Ceramic. . . . . . . . . 4835 122 47004

C419 1000pF., 10%, 50V, Ceramic . . . . . . 4835 122 87041

C420 100pF., 5%, 50V, Ceramic . . . . . . . 4835 122 87025

C421 0.1uF., 10%, 50V, Ceramic. . . . . . . 4835 122 87061

C422 0.1uF., 10%, 100V, Polyester . . . . . 4822 121 41608

S C423 470uF., 250V, Electrolytic . . . . . . 4835 124 47141

S C424 470uF., 250V, Electrolytic . . . . . . 4835 124 47141

C425 0.1uF., 400V, Polyester. . . . . . . . 0025 968 41049

C426 330pF., 10%, 500V, Ceramic . . . . . . 4835 122 47648

C427 3300uF., 25V, Electrolytic . . . . . . 4835 124 47672

C428 0.1uF., 10%, 100V, Polyester . . . . . 4822 121 41608

C429 1000pF., 10%, 1kV, Ceramic . . . . . . 4835 122 47373

S C430A 22uF., 250V, Electrolytic. . . . . . . 4835 124 47021

C431 1000pF., 10%, 1kV, Ceramic . . . . . . 4835 122 47373

C432 1500uF., 35V, Electrolytic . . . . . . 4835 124 47581

C433 0.1uF., 10%, 100V, Polyester . . . . . 4822 121 41608

C434 1000pF., 10%, 1kV, Ceramic . . . . . . 4835 122 47373

C435 3300uF., 25V, Electrolytic . . . . . . 4835 124 47575

C436 0.1uF., 10%, 100V, Polyester . . . . . 4822 121 41608

C437 100pF., 5%, 50V, Ceramic . . . . . . . 4835 122 87025

C438 1000pF., 10%, 1kV, Ceramic . . . . . . 4835 122 47373

C439 0.1uF., 10%, 100V, Polyester . . . . . 4822 121 41608

C440 220pF., 10%, 1kV, Ceramic. . . . . . . 4835 122 47458

C441 6800uF., 16V, Electrolytic . . . . . . 4835 124 47579

C442 470uF., 200V, Electrolytic . . . . . . 4835 124 47097

C443 0.1uF., 250V, Polyester. . . . . . . . 4835 121 47278

C444 1000pF., 10%, 1kV, Ceramic . . . . . . 4835 122 47373

C445 1000pF., 10%, 1kV, Ceramic . . . . . . 4835 122 47373

C447 0.1uF., 10%, 100V, Polyester . . . . . 4822 121 41608

S C449 0.1uF., 10%, 250Vac, Metallic. . . . . 4835 122 97067

C450 0.68uF., 10%, 250Vac, Metallic . . . . 4835 122 97068

C451 0.47uF., 400V, Polyester . . . . . . . 4835 121 47634

C452 1.5uF., 50V, Electrolytic. . . . . . . 4835 124 47568

C453 0.01uF., 10%, 50V, Ceramic . . . . . . 4835 122 87042

C454 47uF., 25V, Electrolytic . . . . . . . 4835 124 47708

C455 0.1uF., 10%, 50V, Ceramic. . . . . . . 4835 122 87061

C456 100uF., 50V, Electrolytic. . . . . . . 4835 124 47563

C457 1uF., 50V, Electrolytic. . . . . . . . 4835 121 47406

C458 4.7uF., 20%, 50V, Electrolytic . . . . 4835 124 47072

C459 2200uF., 50V, Electrolytic . . . . . . 4835 124 47574

C468 0.1uF., 10%, 50V, Ceramic. . . . . . . 4835 122 87061

C469 330pF., 10%, 500V, Ceramic . . . . . . 4835 122 47648

C470 0.1uF., 10%, 50V, Ceramic. . . . . . . 4835 122 87061

C471 1uF., 50V, Electrolytic. . . . . . . . 4835 121 47406

C472 0.22uF., 20%, 50V, Ceramic . . . . . . 4835 122 87087

C473 1000pF., 10%, 1kV, Ceramic . . . . . . 4835 122 47373

C474 2200uF., 50V, Electrolytic . . . . . . 4835 124 47574

C475 0.1uF., 10%, 100V, Polyester . . . . . 4822 121 41608

C476 0.015uF., 400V, Polyester. . . . . . . 4835 121 47203

S = Safety Part Be sure to use exact replacement part.

C477 0.015uF., 400V, Polyester. . . . . . . 4835 121 47203

C478 1000uF., 50V, Electrolytic . . . . . . 4835 124 47573

C479 1000uF., 50V, Electrolytic . . . . . . 4835 124 47573

C480 0.1uF., 10%, 100V, Polyester . . . . . 4822 121 41608

C481 100uF., 25V, Electrolytic. . . . . . . 4835 124 47501

C482 0.1uF., 50V, Ceramic . . . . . . . . . 4835 122 87375

C483 100uF., 25V, Electrolytic. . . . . . . 4835 124 47501

C499 0.1uF., 10%, 50V, Ceramic. . . . . . . 4835 122 87061

C501 0.47uF., 5%, 100V, Polyester . . . . . 4835 121 47364

C503 680pF., 5%, 50V, Ceramic . . . . . . . 4835 122 87037

C511 0.1uF., 10%, 50V, Polyester. . . . . . 4822 121 42094

C555 1000uF., 35V, Electrolytic . . . . . . 4835 124 47551

C557 100uF., 50V, Electrolytic. . . . . . . 4835 124 47563

C558 150pF., 10%, 500V, Ceramic . . . . . . 2020 557 90711

C559 0.068uF., 10%, 100V, Polyester . . . . 4835 121 47042

C560 2.2uF., 50V, Electrolytic. . . . . . . 4835 124 47502

C561 3300uF., 35V, Electrolytic . . . . . . 4835 124 47559

C564 0.047uF., 10%, 100V, Polyester . . . . 4835 121 47005

C565 2200pF., 10%, 50V, Ceramic . . . . . . 4835 122 87083

C567 0.022uF., 10%, 50V, Ceramic. . . . . . 4835 122 87064

C569 0.1uF., 50V, Ceramic . . . . . . . . . 4835 122 87375

C570 0.1uF., 50V, Ceramic . . . . . . . . . 4835 122 87375

C571 0.1uF., 50V, Ceramic . . . . . . . . . 4835 122 87375

C572 100uF., 50V, Electrolytic. . . . . . . 4835 124 47563

C573 2200pF., 10%, 50V, Ceramic . . . . . . 4835 122 87524

C580 100pF., 5%, 50V, Ceramic . . . . . . . 4835 122 87025

C584 50V, 0.47uF., Polyester. . . . . . . . 3198 014 04740

C585 3.3uF., 5%, 50V, Polyester . . . . . . 4835 121 47516

C586 0.022uF., 10%, 100V, Polyester . . . . 4835 121 47627

C587 680pF., 5%, 50V, Ceramic . . . . . . . 4835 122 87019

C588 0.01uF., 10%, 50V, Ceramic . . . . . . 4835 122 87042

C800 1uF., 50V, Electrolytic. . . . . . . . 4835 121 47406

C801 0.1uF., 50V, Ceramic . . . . . . . . . 4835 122 87375

C805 0.1uF., 250V, Polyester. . . . . . . . 4835 121 47629

C806 1000pF., 500V, Ceramic . . . . . . . . 4835 122 47384

C807 0.1uF., 50V, Ceramic . . . . . . . . . 4835 122 87375

C808 680pF., 10%, 500V, Ceramic . . . . . . 4835 122 47035

C809 0.1uF., 250V, Polyester. . . . . . . . 4835 121 47278

C810 470uF., 200V, Electrolytic . . . . . . 4835 124 47673

S C811 330pF., 20%, 2kV, Ceramic. . . . . . . 4835 122 47058

C814 47uF., 315V, Electrolytic. . . . . . . 4835 124 47482

C815 1000pF., 500V, Ceramic . . . . . . . . 4835 122 47384

C817 0.011uF., 1.6kV, Polyprop. . . . . . . 4835 121 47612

C818 560pF., 10%, 500V, Ceramic . . . . . . 4835 122 47212

C819 0.039uF., 630V, Polypropylene. . . . . 4835 121 47638

C820 4.7uF., 100V, Polyester. . . . . . . . 4835 121 47633

C822 0.43uF., 250V, Polypropylene . . . . . 4835 121 47607

C824 1000pF., 500V, Ceramic . . . . . . . . 4835 122 47384

C826 100uF., 50V, Electrolytic. . . . . . . 4835 124 47563

C900 220uF., 16V, Electrolytic. . . . . . . 4835 124 47494

C901 3300pF., 5%, 50V, Ceramic. . . . . . . 4835 122 87447

C902 680pF., 5%, 50V, Ceramic . . . . . . . 3198 016 06810

C903 1uF., 50V, Electrolytic. . . . . . . . 4835 121 47406

C904 0.01uF., 10%, 50V, Ceramic . . . . . . 4835 122 87042

C905 0.1uF., 10%, 50V, Ceramic. . . . . . . 4835 122 87061

C906 0.01uF., 10%, 50V, Ceramic . . . . . . 4835 122 87042

C907 0.015uF., 10%, 50V, Ceramic. . . . . . 4835 122 87063

C908 15pF., 10%, 500V, Ceramic. . . . . . . 4835 122 47455

C909 330pF., 10%, 500V, Ceramic . . . . . . 4835 122 47648

C910 0.047uF., 10%, 100V, Polyester . . . . 4835 121 47081

C911 4.7uF., 50V, Electrolytic. . . . . . . 4835 124 47506

S C913 1000uF., 16V, Electrolytic . . . . . . 4835 124 47699

C914 470uF., 200V, Electrolytic . . . . . . 4835 124 47673

S C915 6800pF., 1.6kV, Polypropylene. . . . . 4835 121 47637

S C916 6800pF., 10%, 50V, Polyester . . . . . 2020 300 90571

C917 0.1uF., 250V, Polyester. . . . . . . . 4835 121 47278

C918 2.2uF., 50V, Electrolytic. . . . . . . 4835 124 47502

C919 0.12uF., 100V, Polyester . . . . . . . 4835 121 47425

C920 4.7uF., 50V, Electrolytic. . . . . . . 4835 124 47506

C921 100uF., 25V, Electrolytic. . . . . . . 4835 124 47501

C922 470uF., 25V, Electrolytic. . . . . . . 4835 121 47405

C923 1000pF., 10%, 50V, Ceramic . . . . . . 4835 122 87041

S C924 820pF., 10%, 2kV, Ceramic. . . . . . . 4835 122 57004

C927 1uF., 50V, Electrolytic. . . . . . . . 4835 121 47406

C928 0.33uF., 50V, Electrolytic . . . . . . 4835 124 47525

C929 330pF., 10%, 500V, Ceramic . . . . . . 4835 122 47648

C930 1uF., 100V, Electrolytic . . . . . . . 4835 124 47485

C931 0.47uF., 5%, 100V, Polyester . . . . . 4835 121 47364

C932 0.1uF., 10%, 50V, Ceramic. . . . . . . 4835 122 87061

C933 330pF., 10%, 500V, Ceramic . . . . . . 4835 122 47033

C2804 100uF., 50V, Electrolytic. . . . . . . 4835 124 47563

C2805 10uF., 50V, Electrolytic . . . . . . . 4835 124 47499

C2836 1000pF., 10%, 1kV, Ceramic . . . . . . 4835 122 47373

C2837 10uF., 50V, Electrolytic . . . . . . . 4835 124 47499

C2838 1000pF., 10%, 1kV, Ceramic . . . . . . 4835 122 47373

C2839 0.01uF., 20%, 2kV, Ceramic . . . . . . 4835 122 57002

BRXX 0 ohm, "Chip" Jumper . . . . . . . . . 4835 111 37019

S R401 100k, 5%, 2W, Metal Oxide. . . . . . . 4835 116 67264

S R402 2k, 5%, 1/2W, Metal Film . . . . . . . 4835 116 57703

S R404 100 ohm, 5%, 10W, Wire Wound . . . . . 4835 112 37032

S R405 4.7 ohm, 1/2W, Metal Film. . . . . . . 4835 116 57009

R406 100 ohm, 5%, 1/4W, Carbon. . . . . . . 4835 110 57247

Page 67

8P5431C (continued) Page: 10

S R407 0.1 ohm, 5%, 1W, Metal Film. . . . . . 4835 116 67179

S R408 0.12 ohm, 5%, 1W, Metal Film . . . . . 4835 116 67121

S R409 10 ohm, 5%, 20W, Wire Wound. . . . . . 4835 112 47012

R411 10 ohm, 5%, 1/2W, Metal Film . . . . . 4835 116 67131

R412 510 ohm, 5%, 1/4W, Carbon. . . . . . . 4835 110 57179

S R413 2k, 5%, 1/4W, Metal Film . . . . . . . 4835 111 37029

S R414 0.91 ohm, 5%, 1/2W, Metal Film . . . . 4835 116 57053

S R415 100k, 5%, 2W, Metal Oxide. . . . . . . 4835 116 67264

S R416 15 ohm, 5%, 1/3W, Metal Film . . . . . 4835 116 57064

R417 10k, 5%, 1/8W, Metal Film. . . . . . . 4835 111 37556

R418 5.76k, 1%, 1/8W, Metal Film. . . . . . 4835 111 27064

R419 22k, 5%, 1/8W, Metal Film. . . . . . . 4835 111 37558

R420 1.6k, 5%, 1/2W, Metal Film . . . . . . 2322 187 53162

R421 390 ohm, 5%, 1/4W, Metal Film. . . . . 4835 111 37095

R422 100k, 5%, 1/4W, Metal Film . . . . . . 4835 111 37024

R423 3.92k, 1%, 1/8W, Metal Film. . . . . . 4835 111 27063

R424 18.2k, 1%, 1/8W, Metal Film. . . . . . 4835 116 57637

R425 2.4k, 5%, 1/4W, Metal Film . . . . . . 2322 711 61242

R426 100k, 1/2W, Metal Film . . . . . . . . 4835 116 57687

R427 27k, 1/10W, Metal Film . . . . . . . . 4835 111 37442

R428 24k, 5%, 1/10W, Metal Film . . . . . . 4835 111 37241

R429 68k, 1/10W, Metal Film . . . . . . . . 4835 111 37273

S R430 1k, 5%, 3W, Metal Film . . . . . . . . 4835 116 57242

R431 10k, 1/2W, Metal Film. . . . . . . . . 4835 116 57686

R433 4.7k, 1/2W, Metal Film . . . . . . . . 4835 116 57724

R438 33k, 1/10W, Metal Film . . . . . . . . 4835 111 37248

R439 10k, 1/10W, Metal Film . . . . . . . . 4835 111 37216

R440 10k, 1/10W, Metal Film . . . . . . . . 4835 111 37216

R442 33k, 1/10W, Metal Film . . . . . . . . 4835 111 37248

R443 100k, 1/10W, Metal Film. . . . . . . . 4835 111 37434

S R444 100k, 5%, 1W, Metal Oxide. . . . . . . 4835 116 67267

R445 5.1k, 5%, 1/10W, Metal Film. . . . . . 4835 111 27086

R446 10k, 1/2W, Metal Film. . . . . . . . . 4835 116 57686

S R447 100k, 5%, 1W, Metal Oxide. . . . . . . 4835 116 67267

R448 10k, 5%, 1/8W, Metal Film. . . . . . . 4835 111 37556

S R449 10 ohm, 1/2W, Metal Film . . . . . . . 4835 116 57097

R450 11.5k, 1%, 1/8W, Metal Film. . . . . . 4835 116 57636

R451 1.82k, 1%, 1/10W, Metal Film . . . . . 4835 111 27065

R452 3.32k, 1%, 1/8W, Metal Film. . . . . . 4835 111 27062

S R453 102k, 1%, 1/8W, Metal Film . . . . . . 4835 116 57389

R454 2.67k, 1%, 1/8W, Metal Film. . . . . . 4835 111 27061

R455 470 ohm, Control Adjust. . . . . . . . 4835 100 17039

R456 510k, 5%, 1/2W, Metal Film . . . . . . 2322 187 53514

R457 100 ohm, 1/2W, Metal Film. . . . . . . 4835 116 57684

R458 330 ohm, 1/2W, Metal Film. . . . . . . 4835 116 57713

S R466 0.12 ohm, 5%, 1W, Metal Film . . . . . 4835 116 67121

R469 1.5 ohm, 5%, 1/2W, Metal Film. . . . . 4835 116 57755

S R472 1.2k, 5%, 2W, Metal Film . . . . . . . 4835 116 57357

S R475 15 ohm, 5%, 2W, Metal Oxide. . . . . . 4835 116 67263

S R476 100k, 5%, 2W, Metal Oxide. . . . . . . 2322 194 73104

R478 47k, 5%, 1/2W, Metal Film. . . . . . . 4835 111 67001

R483 27 ohm, 5%, 1/4W, Carbon Film. . . . . 4835 110 57174

S R484 2k, 5%, 1W, Metal Film . . . . . . . . 4835 116 67154

S R485 2k, 5%, 1W, Metal Film . . . . . . . . 4835 116 67154

R486 1k, 5%, 1/4W, Carbon Film. . . . . . . 4835 110 57018

R500 4.7k, 5%, 1/8W, Metal Film . . . . . . 4835 111 37559

R501 10k, 5%, 1/8W, Metal Film. . . . . . . 4835 111 37556

R503 120k, 5%, 1/4W, Metal Film . . . . . . 4835 111 37055

R504 120k, 5%, 1/2W, Metal Film . . . . . . 4835 116 57693

R505 220 ohm, 5%, 1/4W, Metal Film. . . . . 4835 111 37071

R506 120k, 5%, 1/4W, Metal Film . . . . . . 4835 111 37055

R507 62k, 5%, 1/4W, Metal Film. . . . . . . 4835 111 37356

R508 4.3k, 2%, 1/4W, Metal Film . . . . . . 4835 111 37498

R510 470k, 1/10W, Metal Film. . . . . . . . 4835 111 37407

R511 47k, 5%, 1/10W, Metal Film . . . . . . 4835 111 37445

R512 10k, 5%, 1/8W, Metal Film. . . . . . . 4835 111 37556

R513 39k, 5%, 1/4W, Metal Film. . . . . . . 4835 111 37097

R514 10k, 5%, 1/8W, Metal Film. . . . . . . 4835 111 37556

R550 47k, 5%, 1/10W, Metal Film . . . . . . 4835 111 37445

R554 1k, 5%, 1/10W, Metal Film. . . . . . . 4822 051 10102

S R555 1 ohm, 5%, 1W, Metal Oxide . . . . . . 4835 116 67268

R558 100 ohm, 5%, 1/3W, Metal Film. . . . . 4835 116 87002

S R559 1k, 5%, 1W, Metal Oxide. . . . . . . . 4835 116 67266

S R560 220 ohm, 1W, Metal Oxide . . . . . . . 4835 116 57603

R561 27k, 5%, 1/4W, Metal Film. . . . . . . 4835 111 37033

R562 24k, 5%, 1/4W, Metal Film. . . . . . . 4835 111 37081

S R564 1 ohm, 5%, 3W, Wire Wound. . . . . . . 2122 251 01385

R565 1k, 5%, 1/4W, Metal Film . . . . . . . 4835 111 37022

R570 470 ohm, 1/2W, Metal Film. . . . . . . 4835 116 57723

R571 1k, 1/2W, Metal Film . . . . . . . . . 4835 116 57685

S R572 1k, 5%, 1/10W, Metal Film. . . . . . . 4822 051 10102

S R573 750 ohm, 5%, 1W, Metal Film. . . . . . 4835 116 67016

R578 470 ohm, 5%, 1/4W, Metal Film. . . . . 4835 111 37104

R581 2.2K, 5%, 1/2W, Metal Film . . . . . . 4835 110 47006

R582 91k, 5%, 1/2W, Metal Film. . . . . . . 2322 187 53913

R583 18k, 5%, 1/4W, Metal Film. . . . . . . 4835 111 37066

R585 20k, 5%, 1/10W, Metal Film . . . . . . 4835 111 37313

R586 10k, 1/10W, Metal Film . . . . . . . . 4835 111 37216

R587 12k, 5%, 1/4W, Metal Film. . . . . . . 4835 111 37025

R588 47 ohm, 5%, 1/4W, Metal Film . . . . . 4835 111 37107

R589 47 ohm, 5%, 1/4W, Metal Film . . . . . 4835 111 37107

R800 470 ohm, 5%, 1/4W, Metal Film. . . . . 4835 111 37104

S = Safety Part Be sure to use exact replacement part.

R801 47k, 5%, 1/4W, Metal Film. . . . . . . 4835 111 37038

R802 68k, 5%, 1/4W, Metal Film. . . . . . . 4835 111 37118

R803 100 ohm, 5%, 1/2W, Metal Film. . . . . 4835 116 57552

R805 100 ohm, 5%, 1/2W, Metal Film. . . . . 4835 116 57552

R806 1k, 20%, 1/2W, Carbon Comp.. . . . . . 4835 110 47215

R807 300 ohm, 5%, 1/4W, Metal Film. . . . . 4835 111 37085

R808 2.2k, 5%, 1/2W, Carbon Film. . . . . . 4835 110 47083

R809 270 ohm, 1/10W, Metal Film . . . . . . 4835 111 37424

S R810 1.5k, 5%, 5W, Metal Film . . . . . . . 4835 116 67218

S R811 1.5k, 5%, 5W, Metal Film . . . . . . . 4835 116 67218

R812 68k, 5%, 1/4W, Metal Film. . . . . . . 4835 111 37118

S R813 1.5 ohm, 5%, 2W, Metal Film. . . . . . 4835 116 67217

R814 33 ohm, 5%, 1/2W, Metal Film . . . . . 4835 116 57366

R815 0.27 ohm, 5%, 1/2W, Metal Film . . . . 4835 116 57112

S R816 0.56 ohm, 5%, 1/2W, Metal Film . . . . 4835 116 67006

S R817 470 ohm, 5%, 1/4W, Metal Film. . . . . 4835 111 37104

R821 560 ohm, 5%, 1/2W, Carbon. . . . . . . 4835 111 57002

R822 270 ohm, 5%, 1/2W, Carbon. . . . . . . 4835 110 47113

R823 68k, 5%, 1/4W, Metal Film. . . . . . . 4835 111 37118

R824 270 ohm, 5%, 1/2W, Carbon. . . . . . . 4835 110 47113

S R825 1 ohm, 5%, 1/2W, Metal Film. . . . . . 4835 116 57441

R826 270 ohm, 5%, 1/2W, Carbon. . . . . . . 4835 110 47113

R827 68k, 5%, 1/4W, Metal Film. . . . . . . 4835 111 37118

R828 68k, 5%, 1/4W, Metal Film. . . . . . . 4835 111 37118

R829 15 ohm, 1/2W, Metal Film . . . . . . . 4835 116 57699

S R830 510 ohm, 5%, 1W, Metal Film. . . . . . 4835 116 67124

R840 1M., 5%, 1/2W, Metal Film. . . . . . . 4835 116 57764

S R900 240 ohm, 5%, 1W, Metal Film. . . . . . 4835 116 57355

R901 10k, Control Adjust. . . . . . . . . . 4835 100 17036

R902 24k, 5%, 1/4W, Metal Film. . . . . . . 4835 111 37081

R904 3k, 5%, 1/4W, Metal Film . . . . . . . 4835 111 37086

R905 120k, 5%, 1/4W, Metal Film . . . . . . 4835 111 37055

R906 1.5k, 5%, 1/4W, Metal Film . . . . . . 4835 111 37026

R907 5.6k, 5%, 1/4W, Metal Film . . . . . . 4835 111 37112

R908 1.5k, 1/10W, Metal Film. . . . . . . . 4835 111 37437

R910 10k, 5%, 1/8W, Metal Film. . . . . . . 4835 111 37556

R911 30 ohm, 5%, 1/4W, Metal Film . . . . . 4835 111 37354

R912 10k, 5%, 1/8W, Metal Film. . . . . . . 4835 111 37556

R913 4.7k, 1/2W, Metal Film . . . . . . . . 4835 116 57724

R914 47k, 5%, 1/4W, Metal Film. . . . . . . 4835 111 37038

R915 820 ohm, 5%, 1/4W, Metal Film. . . . . 4835 111 37123

R916 1k, 5%, 1/4W, Metal Film . . . . . . . 4835 111 37022

R917 1k, 5%, 1/4W, Metal Film . . . . . . . 4835 111 37022

R918 2k, 5%, 1/2W, Metal Film . . . . . . . 4835 116 57703

R919 3.6k, 5%, 1/4W, Metal Film . . . . . . 4835 111 37092

R920 1k, 5%, 1/4W, Metal Film . . . . . . . 4835 111 37022

R921 18k, 5%, 1/4W, Metal Film. . . . . . . 4835 111 37066

R922 1.5k, 5%, 1/4W, Metal Film . . . . . . 4835 111 37026

R923 15k, 1/2W, Metal Film. . . . . . . . . 4835 116 57698

R924 360 ohm, 5%, 1/4W, Metal Film. . . . . 4835 111 37036

R926 100 ohm, 5%, 1/4W, Metal Film. . . . . 4835 111 37021

R927 10k, 5%, 1/8W, Metal Film. . . . . . . 4835 111 37556

R928 2.2k, 2%, 1/8W, Metal Film . . . . . . 2322 730 31222

R930 10k, 5%, 1/2W, Carbon Film . . . . . . 4835 110 47173

R931 1 Meg, 5%, 1/4W, Metal Film. . . . . . 4835 111 37047

R932 5.6k, 1/10W, Metal Film. . . . . . . . 4835 111 37376

R933 1 Meg, 5%, 1/4W, Metal Film. . . . . . 4835 111 37047

S R934 0.33 ohm, 5%, 1/2W, Metal Film . . . . 4835 116 57114

S R937 33k, 1W, Metal Oxide . . . . . . . . . 4835 116 67253

S R938 30 ohm, 5%, 10W, Wire Wound. . . . . . 4835 112 37033

R939 8060 ohm, 1%, 1/8W, Metal. . . . . . . 4835 116 57597

S R940 11.5k, 1%, 0.6W, Metal Film. . . . . . 4835 116 57612

R941 110k, 5%, 1/2W, Carbon Comp. . . . . . 4835 110 47193

S R942 510k, 5%, 1/8W, Metal Film . . . . . . 4835 111 37266

R943 2.2k, Control Adjust . . . . . . . . . 4835 100 17047

S R944 240 ohm, 2%, 1/8W, Carbon. . . . . . . 4835 110 67204

R945 680k, 5%, 1/4W, Metal Film . . . . . . 4835 111 37119

R946 33k, 2%, 1/4W, Carbon Film . . . . . . 4835 110 57321

R947 820 ohm, 5%, 1/4W, Metal Film. . . . . 4835 111 37123

R948 1k, 5%, 1/10W, Metal Film. . . . . . . 4822 051 10102

R949 620 ohm, 5%, 1/4W, Metal Film. . . . . 4835 111 37114

R951 10k, 1/2W, Metal Film. . . . . . . . . 4835 116 57686

R952 10 ohm, 5%, 1/4W, Metal Film . . . . . 4835 111 37132

R954 39k, 5%, 1/4W, Metal Film. . . . . . . 4835 111 37097

R955 33k, 5%, 1/2W, Carbon Film . . . . . . 4835 110 47172

R956 100 ohm, 1/2W, Metal Film. . . . . . . 4835 116 57684

R957 1.5k, 5%, 1/4W, Metal Film . . . . . . 4835 111 37026

S R958 39 ohm, 5%, 2W, Metal Oxide. . . . . . 4835 110 57065

R959 1k, 20%, 1/2W, Carbon Comp.. . . . . . 4835 110 47215

R960 100 ohm, 5%, 1/2W, Metal Film. . . . . 4835 116 57552

S R961 68 ohm, 5%, 1/3W, Metal Film . . . . . 4835 116 57751

R964 10 ohm, 20%, 1/2W, Carbon. . . . . . . 4835 110 47164

R965 1 Meg, 5%, 1/4W, Metal Film. . . . . . 4835 111 37047

R967 470 ohm, 5%, 1/4W, Metal Film. . . . . 4835 111 37104

R968 20k, 5%, 1/4W, Metal Film. . . . . . . 4835 111 37069

R969 47K, 5%, 1/10W, Metal Film . . . . . . 4835 111 37445

R970 10k, 1/10W, Metal Film . . . . . . . . 4835 111 37216

R971 100k, 1/10W, Metal Film. . . . . . . . 4835 111 37434

R975 100 ohm, 5%, 1/2W, Metal Film. . . . . 4835 116 57552

S R980 4.7k, 5%, 10W, Metal Oxide . . . . . . 4835 116 67272

R2810 1.1k, 5%, 1/4W, Metal Film . . . . . . 4835 111 37051

R2812 110k, 5%, 1/4W, Metal Film . . . . . . 4835 111 37052

Page 68

8P5431C (continued) Page: 11

R2834 0.27 ohm, 5%, 1/2W, Metal Film . . . . 4835 116 57112

R2835 3k, 5%, 1/2W, Metal Film . . . . . . . 4835 116 57757

R2836 270 ohm, 1/2W, Metal Film. . . . . . . 4835 116 57709

R2837 12k, 5%, 1/4W, Metal Film. . . . . . . 4835 111 37025

R2838 2.4k, 5%, 1/4W, Metal. . . . . . . . . 2322 711 61242

S R2839 300k, 5%, 3W, Metal Film . . . . . . . 2322 195 73304

D402 Diode BYV95C . . . . . . . . . . . . . 4835 130 37052

D403 Diode, Silicon MUR120. . . . . . . . . 4835 130 37674

D404 Diode BYV95C . . . . . . . . . . . . . 4835 130 37052

D405 Diode BAX18. . . . . . . . . . . . . . 4835 130 37933

D406 Diode GBU6J. . . . . . . . . . . . . . 4835 130 37931

D407 Diode, Silicon MUR120. . . . . . . . . 4835 130 37674

D409 Diode BAS216 . . . . . . . . . . . . . 4835 130 37905

D416 Diode, Silicon . . . . . . . . . . . . 4835 130 37663

D417 Diode MUR460 . . . . . . . . . . . . . 4835 130 37932

D418 Diode, Silicon MUR460. . . . . . . . . 4835 130 37488

D419 Diode, Silicon . . . . . . . . . . . . 4835 130 37491

D420 Diode BAX18. . . . . . . . . . . . . . 4835 130 37933

D431 Diode BAX18. . . . . . . . . . . . . . 4835 130 37933

D432 Diode 1N4150 . . . . . . . . . . . . . 4835 130 37934

D433 Diode, Silicon . . . . . . . . . . . . 4835 130 37663

D434 Diode, Silicon . . . . . . . . . . . . 4835 130 37663

D501 Diode BAS216 . . . . . . . . . . . . . 4835 130 37905

D502 Diode BAS216 . . . . . . . . . . . . . 4835 130 37905

D503 Diode BAS216 . . . . . . . . . . . . . 4835 130 37905

D504 Diode, Silicon BYD77D. . . . . . . . . 4835 130 37497

D505 Diode BAS216 . . . . . . . . . . . . . 4835 130 37905

D550 Diode BYV95C . . . . . . . . . . . . . 4835 130 37052

D551 Diode BAS216 . . . . . . . . . . . . . 4835 130 37905

D571 Diode BAS216 . . . . . . . . . . . . . 4835 130 37905

D801 Diode BYD33J . . . . . . . . . . . . . 4835 130 37094

D802 Diode BYV95C . . . . . . . . . . . . . 4835 130 37052

D806 Diode BY228. . . . . . . . . . . . . . 4835 130 37166

D808 Diode BYW95C . . . . . . . . . . . . . 4835 130 37059

D900 Diode BAS216 . . . . . . . . . . . . . 4835 130 37905

D901 Diode 1N4148 . . . . . . . . . . . . . 4835 130 37048

D902 Diode BY328. . . . . . . . . . . . . . 4835 130 37938

D904 Diode BAX18. . . . . . . . . . . . . . 4835 130 37933

D905 Diode BYD33J . . . . . . . . . . . . . 4835 130 37094

D906 Diode, Silicon MUR140. . . . . . . . . 4835 130 37102

D907 Diode, Silicon MUR140. . . . . . . . . 4835 130 37102

D908 Diode BYV95C . . . . . . . . . . . . . 4835 130 37052

D909 Diode BAV103 . . . . . . . . . . . . . 4835 130 37937

D910 Diode BYW95C . . . . . . . . . . . . . 4835 130 37059

D911 Diode BAS216 . . . . . . . . . . . . . 4835 130 37905

D2830 Diode BYD33M . . . . . . . . . . . . . 4835 130 37012

S IC400 IC LM393N, Dual Comparator . . . . . . 4835 209 87081

IC401 IC, 6126640002 . . . . . . . . . . . . 4835 209 87834

IC402 IC, 6127710001 . . . . . . . . . . . . 4835 209 87712

S IC403 OPT CP CNX83A, Optoisolator. . . . . . 4835 209 88555

S IC405 OPT CP CNW136.300. . . . . . . . . . . 4835 209 88561

S IC406 OPT CP CNX83A. . . . . . . . . . . . . 4835 209 88555

IC408 IC MC7805CT, Vertical Deflection . . . 4835 209 88535

IC550 IC TDA3654Q/N3 . . . . . . . . . . . . 4835 209 17162

IC551 IC TA8859CP, IIC Defl. Processor . . . 4835 209 88565

IC552 IC MC7812CT, 12V Regulator . . . . . . 4835 209 88554

IC900 IC MC1391P, Horiz. Processor . . . . . 9332 898 70682

IC901 IC, 6126729002 . . . . . . . . . . . . 4835 209 88011

IC902 IC, 6128270001 . . . . . . . . . . . . 4835 209 87838

Q2830 Transistor, NPN. . . . . . . . . . . . 4835 130 47893

C914 Transistor, BU2508DF . . . . . . . . . 4835 532 47018

S Q400 Transistor, BC847B . . . . . . . . . . 4822 130 60511

Q401 N-Channel Power MOSFET . . . . . . . . 4835 130 47888

Q402 Transistor, Standby Regulator. . . . . 4835 130 47885

S Q403 Transistor, BC847B . . . . . . . . . . 4822 130 60511

Q404 Transistor, BC85 . . . . . . . . . . . 5322 130 60508

Q442 Transistor, BU2508DF . . . . . . . . . 4835 532 47018

Q500 Transistor, BC85 . . . . . . . . . . . 5322 130 60508

Q501 Transistor, BC85 H&V Dfl Fail-safe . . 5322 130 60508

Q502 Transistor, BC847B . . . . . . . . . . 4822 130 60511

Q503 Transistor, BC847B . . . . . . . . . . 4822 130 60511

Q550 Transistor, PNP. . . . . . . . . . . . 4835 130 47084

Q551 Transistor, BC847B . . . . . . . . . . 4822 130 60511

Q800 Transistor, BC847B . . . . . . . . . . 4822 130 60511

Q801 Transistor, 2SC2482, Horiz. Driver . . 4835 130 47073

Q802 Transistor, 2SD2539. . . . . . . . . . 4835 130 48074

Q803 Transistor, PNP, Hor. Pre-Driver . . . 4835 130 47065 Q900 Transistor, BC847B, Sync Pls. Inv. . . 4822 130 60511

Q901 Transistor, BC85 . . . . . . . . . . . 5322 130 60508

Q902 Transistor, SPS9397-1, Shutdown. . . . 4835 130 47091

Q903 Transistor, BC85, Error Sig. Inv.. . . 5322 130 60508

Q904 Transistor, BC85, Soft Start . . . . . 5322 130 60508

Q906 Transistor, 2SD2539, HVOT. . . . . . . 4835 130 48074

Q907 Transistor, NPN, Beam Limiter. . . . . 4835 130 47889

Q908 Transistor, PNP Av Bm Cur. Lim.. . . . 4835 130 47891

Z400 Zener Diode, BZX79B10. . . . . . . . . 4835 130 37935

Z500 Zener Diode, 10V . . . . . . . . . . . 4835 130 37739

Z501 Diode BZX79-B18. . . . . . . . . . . . 4835 130 37936

Z503 Zener Diode, P6KE62A . . . . . . . . . 4835 130 37547

Z901 Zener Diode, 6.2V. . . . . . . . . . . 4835 130 37751

L401 Peaking Coil, 2.2uH. 10% . . . . . . . 4835 157 57051

L405 Peaking Coil, 2.2uH. 10% . . . . . . . 4835 157 57051

S = Safety Part Be sure to use exact replacement part.

L407 Ferrite Bead . . . . . . . . . . . . . 4835 526 17001

L408 Suppression Coil, 10uH.. . . . . . . . 4835 152 27002

S L409 Peaking Coil, 2.2uH. . . . . . . . . . 4835 150 57054

L410 Suppression Coil, 18uH.. . . . . . . . 4835 150 57051

L412 Ferrite Bead . . . . . . . . . . . . . 4835 526 17001

L413 Suppression Coil, 10uH.. . . . . . . . 4835 152 27002

L415 Suppression Coil, 1.8uH. . . . . . . . 4835 152 27029

L416 Ferrite Bead . . . . . . . . . . . . . 4835 526 17001

L420 Ferrite Bead . . . . . . . . . . . . . 4835 526 17001

S L421 Line Input Choke . . . . . . . . . . . 4835 152 27028

L422 Suppression Coil, 10uH.. . . . . . . . 4835 152 27002

L423 Suppression Coil, 10uH.. . . . . . . . 4835 152 27002

L424 Suppression Coil, 10uH.. . . . . . . . 4835 152 27002

L425 Suppression Coil, 10uH.. . . . . . . . 4835 152 27002

L426 Suppression Coil, 42uH.. . . . . . . . 4835 157 57063

L427 Ferrite Bead . . . . . . . . . . . . . 4835 526 17001

L428 Suppression Coil, 42uH.. . . . . . . . 4835 157 57063

L429 Ferrite Bead . . . . . . . . . . . . . 4835 526 17001

L430 Ferrite Bead . . . . . . . . . . . . . 4835 526 17001

L432 Suppression Coil, 10uH.. . . . . . . . 4835 152 27002

L435 Suppression Coil, 10uH.. . . . . . . . 4835 152 27002

L440 Suppression Coil, 10uH.. . . . . . . . 4835 152 27002

L467 Line Choke . . . . . . . . . . . . . . 4835 157 57077

L550 Suppression Coil, 10uH.. . . . . . . . 4835 152 27002

L803 Coil, Choke. . . . . . . . . . . . . . 3121 218 31110

L804 Linear Coil. . . . . . . . . . . . . . 0036 202 80026

L805 Ferrite Bead . . . . . . . . . . . . . 4835 526 17003

L902 Coil, 22uH., 10% . . . . . . . . . . . 4835 150 57052

L903 Suppression Coil, 3.6uH. . . . . . . . 4835 152 27001

L905 Suppression Coil, 5.6uH., 10%. . . . . 4835 152 27038

S T401 Transformer, Switch Mode . . . . . . . 4835 148 87339

S T402 Transformer, Power . . . . . . . . . . 4835 148 87345

S T800 Transformer, Horiz. Driver . . . . . . 4835 142 47021

S T801 Transformer, Scan Power. . . . . . . . 4835 148 87318

S T802 Transformer, Dynamic Focus . . . . . . 4835 142 47025

S T900 Flyback Transformer. . . . . . . . . . 3128 138 20280

S T901 Transformer, Horiz. Driver . . . . . . 4835 142 47022

S F401 Fuse, 5A . . . . . . . . . . . . . . . 4835 253 37022

S F402 Fuse, 5A . . . . . . . . . . . . . . . 4835 253 37021

S F408 Fuse, 5A. . . . . . . . . . . . . . . 4835 253 37021

S F409 Fuse, 5A . . . . . . . . . . . . . . . 4835 253 37021

FB910 Ferrite Bead . . . . . . . . . . . . . 4835 526 17002

HS401 MM Heatsink. . . . . . . . . . . . . . 3135 011 00620

HS401 Transistor, BU2508DF . . . . . . . . . 4835 532 47018

HS406 Heatsink, Vert.. . . . . . . . . . . . 0073 531 90006

HS408 Heatsink, Transistor . . . . . . . . . 0073 166 50008

HS416 Heatsink, Transistor . . . . . . . . . 0073 166 50008

HS419 Heatsink, Diode. . . . . . . . . . . . 0073 562 10006

HS433 Heatsink, Transistor . . . . . . . . . 0073 166 50008

HS434 Heatsink, Transistor . . . . . . . . . 0073 166 50008

HS550 Heatsink . . . . . . . . . . . . . . . 0073 601 50001

HS802 MM Heatsink LS BD. . . . . . . . . . . 3135 011 00550

HS802 Transistor, BU2508DF . . . . . . . . . 4835 532 47018

HS902 Heatsink . . . . . . . . . . . . . . . 0073 525 60011

HS906 Heatsink, Horiz. . . . . . . . . . . . 0073 510 30012

J401 4 Pin Connector, Yellow. . . . . . . . 0018 223 60004

J402 7 Pin Connector, Yellow. . . . . . . . 0018 223 60007

J403 7 Pin Board Connector. . . . . . . . . 2422 025 14674

J408 Contact Pin. . . . . . . . . . . . . . 3135 010 00470

J467 7 Pin Connector. . . . . . . . . . . . 2422 025 15024

J468 9 Pin Connector, Green . . . . . . . . 0018 223 80009

J500 Contact Pin. . . . . . . . . . . . . . 3135 010 00470

J501 Contact Pin. . . . . . . . . . . . . . 3135 010 00470

J502 Contact Pin. . . . . . . . . . . . . . 3135 010 00470

J511 Contact Pin. . . . . . . . . . . . . . 3135 010 00470

J540 Contact Pin. . . . . . . . . . . . . . 3135 010 00470

J601 7 Pin Board Connector. . . . . . . . . 2422 025 14674

Q401 Spring Clip f/Q401 . . . . . . . . . . 4835 256 97316

Q802 Spring Clip f/Q802 . . . . . . . . . . 4835 256 97316

Q906 Spring Clip f/Q906 . . . . . . . . . . 4835 256 97316

S SA401 Resistor, Surge Absorber . . . . . . . 4835 116 67143

STEREO SPREAD MODULE

00ATC669 CUSTOMER CONTROL ASSEMBLY

00ARR023 IR Receiver Panel . . . . . . 4835 219 77785

00ASW129 Switch Assembly . . . . . . . 4835 219 77786

ATC669, ATC670 & ATC671 CUST. CNTRL. ASSY

ATC669, ATC670 & ATC671 CUST. CNTRL. AS SY

Crystal Assembly . . . . . . . . . . . 3135 017 01951

00ARR023, 00ARR024 & 00A10699 IR RECEIVER PANEL

00ARR023, 00ARR024 & 00A10699 IR RECEIV ER PANEL

D301 Green LED. . . . . . . . . . . . . . . 4835 130 97095

D302 Red LED. . . . . . . . . . . . . . . . 4835 130 97096

IR300 IR Receiver. . . . . . . . . . . . . . 4835 219 67061

J302 5 Pin Board Connector. . . . . . . . . 2422 038 00176

Page 69

8P5431C (continued) Page: 12

J305 3 Pin Board Connector. . . . . . . . . 2422 038 00175

00ASW129, 00ASW130 & 00ASW131 SWITCH ASSEMBLY

00ASW129, 00ASW130 & 00ASW131 SWITCH AS SEMBLY

J300 7 Pin Board Connector. . . . . . . . . 2422 025 14674

Keypad . . . . . . . . . . . . . . . . 3135 013 02470

00706087 0001, 0002 OPTICAL ASSEMBLY

S Deflection Yoke. . . . . . . . . . . . 2422 549 43801

Focus Lead . . . . . . . . . . . . . . 3135 010 00730

S Focus/Screen Control.. . . . . . . . . 2322 460 90514

S HV Anode Lead (3 used) . . . . . . . . 4835 321 27397

B Compression Spring (4 used). . . . . . 3135 011 00610

S E CRT 180DLB22 (Blue). . . . . . . . . . 4835 310 57408

S E CRT 180DLB22 (Green) . . . . . . . . . 4835 310 57411

S E CRT 180DLB22 (Red) (HU). . . . . . . . 4835 310 57409

H Seal, CRT. . . . . . . . . . . . . . . 3135 013 02321

I Coolant (Enough to do 3 CRTs). . . . . 3135 010 02040

K Fill Plug. . . . . . . . . . . . . . . 4835 432 17791

L Fill Plug Seal . . . . . . . . . . . . 4835 290 87147

M Diaphragm Cover. . . . . . . . . . . . 4835 432 17736

O Expansion Diaphragm. . . . . . . . . . 3135 013 01060

P Coupler Red & Blue 46" (0001). . . . . 4835 290 87153

P Coupler Red & Blue 54" (0002). . . . . 4835 290 87155

P Coupler, Green . . . . . . . . . . . . 4835 290 87152

R O-Ring Seal (Lens to Coupler). . . . . 4835 290 87141

S Lens, C-Element, Blue & Red. . . . . . 4835 381 47016

S Lens, C-Element, Green . . . . . . . . 4835 381 47019

W Lens, Main, Blue . . . . . . . . . . . 4835 381 47017

W Lens, Main, Red & Green. . . . . . . . 4835 381 47022

S = Safety Part Be sure to use exact replacement part.

philips 8P5431C Diagram

Specifications and Main Features

Frequently Asked Questions

User Manual
