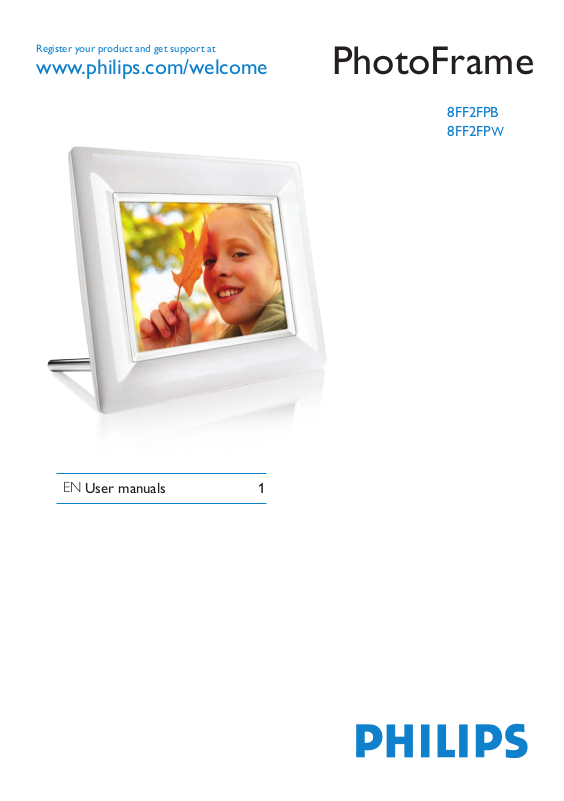

Philips 8FF2FPW-37B User Manual

PhotoFrame

www.philips.com/welcome

8FF2FPB

8FF2FP

User manuals 1

Content

Introduction

1. Important Information

1.1 Safety precautions and maintenance

1.2 Care of the PhotoFrame

1.3 Recycling

2. Your PhotoFrame

2.1 What’s in the Box

2.2 Control Buttons and Menu Navigation

2.3 Connections

2.4 Product Highlights

3. Getting started

3.1 Placing the Product

3.2 Connecting to the Mains

3.3 Turning on your PhotoFrame

3.4 Initial Setup

4. Using your PhotoFrame

4.1 View Photos

4.2 Find a Photo

4.3 Copy Photos

4.4 Delete Photos using the PhotoFrame

5. Use More of your PhotoFrame

5.1 Menu Navigation

5.2 Photo Menu

7. Technical data

3 3

8. Frequently asked questions

3 4

9. Service and Warranty

5 5 6 6 7

8 8 8 8 8

11 11 11 12 13

14 14 14

Settings

6.1 Slideshow Sequence

6.2 Transition Effects

6.3 Frequency

6.4 Collage

6.5 Background Color

6.6 Brightness

6.7 Language

6.8 Memory Card

6.9 Timer Function (Auto On/Off)

6.10 Check the Status of your Photoframe

6.11 Rotate Function (Auto Tilt)

6.12 Beep On/Off

6.13 Key Help

Content

18 18 18 19 20 20 21 21 22 22 24 25 25 26

Introduction

Philips digital PhotoFrame can be placed either vertically or horizontally to fit the photos on display. You can place it somewhere in a room for a continuous display by connecting it to the mains power supply.

1. Important

1.1 Safety precautions and maintenance

Read and follow these instructions when connecting and using your PhotoFrame:

• To protect your display from possible damage, do not put excessive pressure on the LCD panel. When moving your PhotoFrame, grasp the frame to lift; do not lift the it by placing your hand or fingers on the LCD panel.

• Unplug the PhotoFrame if you are not going to use it for an extensive period of time.

• Unplug the PhotoFrame if you need to clean it with a slightly damp cloth. The screen may be wiped with a dry cloth when the power is off. However, never use alcohol, solvents or ammonia-based liquids.

• Consult a service technician if the PhotoFrame does not operate normally when you have followed the instructions in this manual.

• The casing cover should be opened only by qualified service personnel.

• Keep the PhotoFrame out of direct sunlight and away from stoves or any other heat source.

• Keep the PhotoFrame dry. To avoid electric shock, do not expose it to rain or excessive moisture.

• When positioning the PhotoFrame, make sure the power plug and outlet are easily accessible.

• To avoid the risk of shock or permanent damage to the set, do not expose the PhotoFrame to rain or excessive moisture.

•

For wall mounting,please use a

7.0*25*3.0mm screw and for best result,

please screw over seven turns.

1.2

PhotoFrame is a complicated electronic device and cannot withstand shock from being dropped.

PhotoFrame is neither moisture proof nor moisture resistant. Exposing it to moisture or liquid of any kind will very likely damage your PhotoFrame.

The LCD panel of PhotoFrame is made of glass and is therefore sensitive to abnormal force and sharp edges.

Use only a dry soft cloth to clean your screen.

Care of the PhotoFrame

Do not drop

Do not expose to moisture

Do not hit or scratch

Screen cleaning

ENGLISH

Important

Keep the stand clear from cables

Make sure the stand of your PhotoFrame is clear from cables as cables could pull the stand out of PhotoFrame to the floor.

Temperature and humidity limitations

Operating temperature:

Humidity: 20% ~ 80%

1.3 Recycling

• The PhotoFrame uses materials that can be recycled. To minimize the amount of waste in the environment, check your area for companies that will recover used televisions for dismantling and collection of reusable materials, or contact your dealer for recycling tips.

• Please dispose of the carton and packing material through the proper waste disposal management in your area.

Important

0° ~ 40° (Celsius) / 32° ~ 104° (Fahrenheit)

2. YourPhotoFrame

PhotoFrame

www.philips.com/welcome

2.1 What’s in the box

EN User manuals 1

HSILGNE

8FF2FPB 8FF2FPW

Digital PhotoFrame

else you’ll need

What

Power adaptor

Power outlet Digital Photos on memory card or PC

User manual

Your PhotoFrame

2.2 Control Buttons and Menu

Navigation

2.3 Connections

2.3.1 Memory Card

Photo display (underside)

A B

• Use your PhotoFrame by pressing the control buttons in the back.

• The control buttons and instructions are shown at the bottom of the menu screen.

Use the navigation controller to move between the menus. Move it left and right to cycle through the menu tree.

CF Card(Type I)

SD/MMC/MS/xD Card

Inserting a memory card:

• Insert the memory card into the slot in the frame.

• For xD, SD, MMC, MMC+, or Memory Stick

cards slide the card until it locks in place.

After a few seconds, photos on the memory

•

card will display and a slideshow will start.

DO NOT remove the memory card immediately after inserting it in to the PhotoFrame or when PhotoFrame is counting the Photos.Wait until the screen is stable

Removing a memory card:

• To remove the or Memory Stick card,

Note : To be able to delete photos from the memory card it must NOT be locked.To unlock the card follow the manufacturer’s instructions.

xD,SD, MMC, MMC+,

pull out the card.

Your PhotoFrame

2.3.2 USB

Connections

For Windows PC (XP & Vista):

• Connect PhotoFrame to a PC via a USB cable (not supplied) where it will be recognized

• For installation and

as a mass storage device.

more details about his

application, follow instrustions in user manual.

PhotoFrame

For Mac System: (OS X):

• Connect PhotoFrame to the Mac via a USB cable (not supplied) where it will be recognized as a mass

storage device.

• Select the photos to be transferred and copy

them directly under the root directory of the storage card. (Only JPEG formatted images supported).

• Disconnect the USB cable(not supplied).

2.4 Product highlights

HSILGNE

The PhotoFrame is designed to be flexible and convenient to use and it provides the following features:

• High pixel density for sharp and crisp photo display.

• View photos directly from memory cards – no PC needed.

• Auto-Tilt function so portrait and landscape photos are displayed in the best possible way.

• Rotating stand for best possible way of viewing photos.

• Clock and alarm.

Note: Do not disconnect PhotoFrame when copying or transferring Photo between PC and PhotoFrame.

Your PhotoFrame

3. Getting started

3.4 Initial Setup

3.4.1

Setup the Language

3.1 Placing the Product

The PhotoFrame should be placed on a flat surface and close to a power socket. Keep it away from high temperatures and high levels of moisture

3.2 Connecting to the mains

Connect the supplied power cable from PhotoFrame to a power outlet.

Note:

For safety reasons and best stability Philips recommend to adjust the stand with the angle defined by the two click positions. Using other positions may cause the PhotoFrame to fall and it is the responsibility of the user.

3.3 Turning on your PhotoFrame

Press the power button.

Press the Mode button to toggle to the Main Menu, select the Setup and press Play/OK to Language.

Navigate Up and Down to select your

preferred language (select between English, French, Spanish, Italian, German, Russian, Dutch, Danish, Simplified Chinese and Japanese)

Press the Play/OK button to confirm

your selection. The new setting will be effective immediately.

Press the Mode button to leave this menu and play the slideshow.

3.4.2 Access Menus

There are two ways to access the menu. To quick access the menu while you are viewing photos, press the Menu button to see the menu options for photo editing or slideshow settings. To access the menu options starting from the main menu:

Press the Mode button.

Navigate Down to highlight the required

menu (Clock, Photos and Setup). Press Play/OK to access the menu.

To exit from the menus press the Mode button again to return to the slideshow.

Getting Started

Set Time, Date and Alarm

Use this function to set the time and date of the PhotoFrame

• Press the Mode button to access the

Main

Menu.

• Navigate Down to highlight Clock and press Play/OK.

• From the Clock screen, press Play/OK.

• Navigate Down to Time and Date.

• Navigate Right to Time/Date/12/24 hr/

Slideshow Clock

and press the Play/OK

button.

Date:

•

Navigate Up and Down to select the

date.

• between

•

Navigate Left and Right to move

days, months and years.

Press the Play/OK button to confirm.

Press

the Mode button to leave this menu

and

play the slideshow.

Note:

The time and date must be set before the Alarm Clock can be set.

• From the Clock screen, press Play/OK.

• Navigate Up to Alarm Clock.

• Navigate Right to Time/Day/On/Off and press the Play/OK button.

ENGLISH

Time:

• Navigate Up and Down to select the

time.

• Navigate Left and Right to move between hours and minutes.

• Press the Play/OK button to confirm.

Time Mode:

Navigate Up and Down to select 12/24 hr.

Getting Started

Time:

• Navigate Up and Down to select the time.

• Navigate Left and Right to move between hours and minutes.

• Press the Play/OK button to confirm. Day:

•

Navigate Up and Down to select

Everyday, Weekday, or Weekend.

• Press the Play/OK button to confirm.

On/Off :

• Navigate up or down to select Off or On.

•

Press the Play/OK button to confirm.

1. To quick access the clock when in slideshow, press Play/OK twice.

2. To access the clock from the Main menu:

• Press the Mode button to access the

Main Menu.

• Navigate Up to highlight and

Clock

press Play/OK.

Press the

and play the slideshow.

Mode button to leave this menu

3.4.3 Choosing Clock Mode

The clock can either be viewed in the Full screen or Slideshow : Full Screen – displays the clock in top left of the screen and a pre-selected photo will be displayed. Slideshow - displays the clock in the bottom right of the screen.

There are two ways to display photo in the clock mode:

• From the

Clock Menu

screen:

• Navigate Down to Time and Date.

• Navigate Right to Time/Date/12/24 hr /Slideshow Clock and press e Play/OK button.

• Navigate Up and Down to select

and press Play/OK.

Clock

• Navigate Up and Down to select No or Yes .

• Press the Play/OK button to confirm

selection.

Press the Mode button to leave this

menu and play the slideshow, browse or

clock mode.

Slideshow

Getting Started
