Philips 820400_8314.5 schematic

Colour television Chassis

(TOP)

(SOFT WRAP)

FTL2.2E

AA

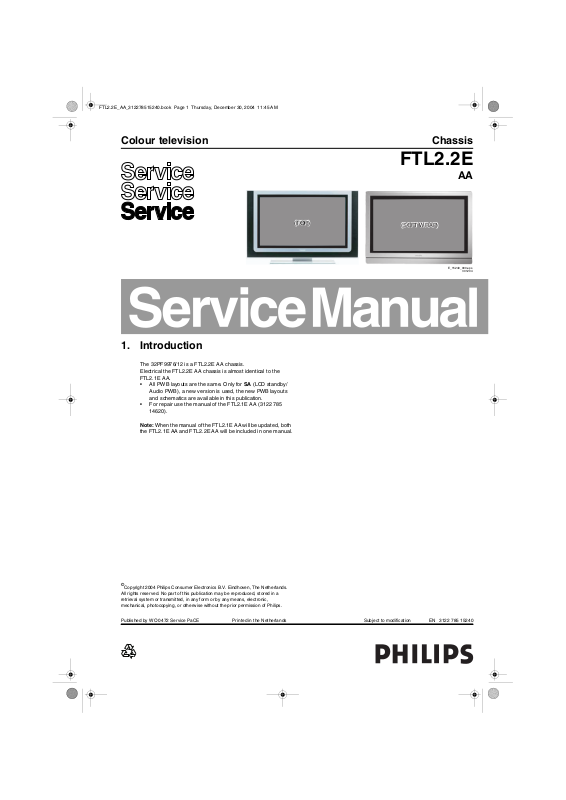

1. Introduction

The 32PF9976/12 is a FTL2.2E AA chassis.
Electrical the FTL2.2E AA chassis is almost identical to the
FTL2.1E AA.

• All PWB layouts are the same. Only for SA (LCD standby/
Audio PWB), a new version is used, the new PWB layouts
and schematics are available in this publication.

• For repair use the manual of the FTL2.1E AA (3122 785

14620).

(TOP)

(SOFT WRAP)

(SOFT WRAP)

E_15240_000.eps

301204

Note: When the manual of the FTL2.1E AA will be updated, both
the FTL2.1E AA and FTL2.2E AA will be included in one manual.

©

Copyright 2004 Philips Consumer Electronics B.V. Eindhoven, The Netherlands.
All rights reserved. No part of this publication may be reproduced, stored in a
retrieval system or transmitted, in any form or by any means, electronic,
mechanical, photocopying, or otherwise without the prior permission of Philips.

Published by WO 0472 Service PaCE Printed in the Netherlands Subject to modification EN 3122 785 15240

EN 2 FTL2.2E AA2.

Delta FTL2.2 vs. FTL2.1

2. Delta FTL2.2 vs. FTL2.1

The differences of the FTL2.2E chassis with respect to the
FTL2.1E chassis are listed below.

2.1 Option codes

Table 2-1 Option codes of the 32PF9976/12

46436 40992 49472 04096
04118 01537 16448 49601

2.2 Mechanical

The main difference between the FTL2.1 and FTL2.2 is the
mechanical styling. The FTL2.1 uses a “Top” styling, the
FTL2.2 uses a “Soft Wrap” styling. See photo above.

2.3 DFU (Directions For Use)

Model specific DFU’s can be downloaded from the following
website:

http://www.philips.com/support

2.4 Commercial specifications

Table 2-2 Commercial specifications

FTL2.1 FTL2.2

Ambi-light No Ambi-light
PixelPlus II PixelPlus
Sound 3*15W Sound: 2*15W
5 speakers 4 speakers
Full Dual Window No Full Dual Window

2.5 Spare Parts

In the update manual the complete Spare Part list will be
available. At this moment, a model specific spare part list, can
be downloaded from the following website:

http://www.atyourservice.ce.philips.com

Circuit Diagrams and PWB Layouts

3. Circuit Diagrams and PWB Layouts

LCD Standby Audio Panel: Connections

1234

CONNECTIONS

A

B

C

D

E

TO

DISPLAY

PH-B

GND screw

1314

1

2

3

4

5

6

7

8

9

10

0001

1

GND-SSP

GND-SSP

TO

DISPLAY

1315

1

2

3

4

5

6

7

8

9

10

PH-B

TO

DISPLAY

1316

1
2
3
4
5
6
7
8

9
10
11
12

B12P-PH-K

GND-SSP

TO

DISPLAY

1317

1
2
3
4
5
6
7
8
9
10
11
12

B12P-PH-K

1318

1
2
3
4
5
6

B6B-PH-K

GND-SSP

3FTL2.2E AA 3.

56

+5V_SW

9008

9002

F137

RES

+5V_SW

RES

9009

DIM_CONTROL

F138

RES

9003

GND-SSP

DIM_CONTROL

9V_STBY_SW

ON_OFF

SA1 (3x)

GND-SSP

SA1

ON_OFF

SA1 (3x)

+5V2-RELAY-IO2

+8V6
+12V

+5V_SW

GND-SSP

F114

VTUN

+12V

9V_STBY

DIM_CONTROL
SA1

ON_OFF
SA1 (3x)
DIM_CONTROL

SA1
POR

SA2
ON_OFF
SA1 (3x)

+5V_SW

STANDBY
SA2
PROT_AUDIOSUPPLY

SA2

F113

F115

GND-SSP
9113

F121

F139

TO 1M03

F131

F109

+5V2

9001

GND-SSP

F136

F117

F135

F111

F122

F132

1

2

3

4

5

6

7

8

9

10

OR

1M46

B11B-PH-K

78910

TO

DISPLAY

1313
16
15
14
13

PH-B

12

11
10

9
8
7
6
5
4
3
2
1

440091-7

1M03

SSB EMG

SSB JAGUARTO 1M03

1
2
3
4

TO 1M46 SSB EMG

5
6
7
8

TO 1M46 SSB JAGUAR

9
10
11

F104

F105

F106

F107

F119

GND-SSP

OR

F102

F120

TO

DISPLAY

1312

16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1

440091-7

TO 1303

LCD SUPPLY

TO 1320

LCD SUPPLY

42"

9004

5018

68u

RES

9010

9005

5019

68u

RES

9011

42"

1303

1
2
3
4

B4P-VH

1320

1
2
3

B3P-VH

F103

GND-SSP

3190

GND-SSP

1K2

F110

9006

3191

+24V_2

9007

1K2

1M10

B4B-PH-K

1304
1
2

3

4

B4P-VH

LCD SUPPLY

1309

1
2
3

B3P-VH

1K2

3192

TO

1
2

3
4

AMBI LIGHT

F101

9018

TO 1304

A2

30"/37"/42"

F112

GND-SSP

+12V_+24V

F108

TO 1304

AS1

LC04

TO 1309

A2

LCD SUPPLY

30"/37"/42"

TO 1309

AS2

LC04

+12V_A

A

B

C

D

E

0001 E1
1303 A9
1304 B9
1309 D9
1312 A8
1313 A7
1314 B1
1315 B2
1316 A3
1317 A4
1318 A5
1320 B9
1M03 B7
1M10 A9
1M46 D7
3190 D9
3191 D9
3192 D9
5018 C8
5019 D8
9001 E6
9002 B5
9003 B5
9004 C8
9005 D8
9006 C9
9007 C9
9008 A5
9009 A5
9010 C8
9011 D8
9018 B10
9113 B6
F101 B10
F102 A8
F103 A9
F104 A7
F105 A7
F106 A7
F107 B7
F108 B10
F109 E6
F110 B9
F111 B6
F112 D10
F113 B6
F114 E6
F115 B6
F117 E6
F119 B7
F120 C8
F121 B6
F122 C6
F131 D6
F132 E6
F135 D6
F136 D6
F137 A5
F138 B5
F139 C6

8204 000 8314.5

123456

78

E_14620_132.eps

281204

910

A

B

C

D

E

F

G

H

8204 000 8314.5

12345678

9101112 13

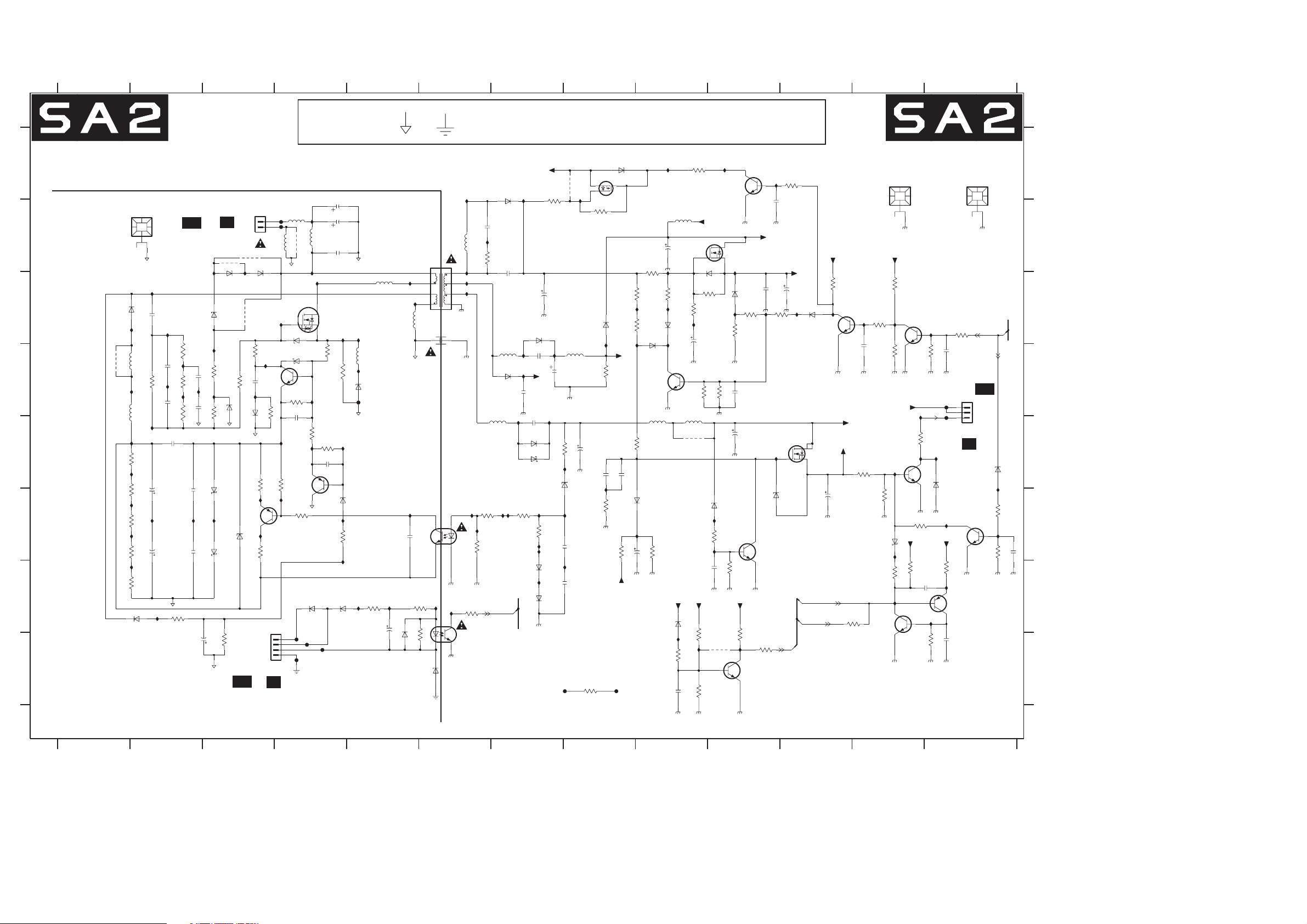

STANDBY

Caution: Both and symbols can indicate a HOT ground in this schematic!!

3516

4K7

+12V_A

6130

BZX384-C12

3161

12K

3171

100R

50V1u0

2160

0V7 (0V6)

33K

3132

5508

RES15u

9112

6149

I161

3141

I168

2154

GND-SSP

+5V2-RELAY-IO2

RES

10K

3534

I192

RES

2K2

RES

3535

I510

PMSTA42

7131
STP16NF06FP

6132

I112

GND-SSP

33K

3513

GND-SSP

BZX384-C5V6

470R

15n

3176

GND-SSP

GND-SSPGND-SSPGND-SSP

I104

3135

2535

2512

7512

10K

3536

PDZ6.8-B

GND-SSP
3172

33K

330R

10n

RES

220u 25V

GND-SSP

GND-SSP

+5V2

10K

I189

7508
BC847BW

RES

RES

8V9 (8V8)

2131

GND-SSP

7140
BC847BW

3539

470R

+12V

I116

I511

2515

GND-SSPGND-SSP

22n

3134

1K0

I148

6531

3517

22K

2n2

+8V6

2132

100u 25V

I106

7531
BSP030

BZX384-C15

SA2

PROT_AUDIOSUPPLY

SA1

POR

BAS316

Prot-OVV

SA1

3140

3153

3159

6148

I163

2140

11V5 (12V)

GND-SSP
3511

68K

22K 22K

6133

BAS316

BC847BW

GND-SSP

5506

47R

11V7 (11V7)

BAS316

50V10u

3142

GND-SSP

I108

7532

12K

I509

2511

11V9 (11V8)
I103

3512

6134

I126

+12V

I512

5507

15u

220u 25V

470R

BAS316

GND-SSP

6508

3537

2538

I197

BZX384-C9V1

3K3

10n

9111

6103

I140

RES

I513

I153

BYV27-200

COLD GROUND

1301

HEATSINK

1

2

GNDHOT

I122

2n2

2101

BYV27-200

I131

10u

5106

5102

3106

3107

3110 3109

3112

6114

2103

1K5

3111

I142

2105

I147

I162

2102

390R 390R

25V 100u

I169

I172

390R

I177

100u25V

2163

390R

I181

390R

I190

HOT GROUND

TO 1306

3103

3105

100p 100p

3102

2111

47n

GNDHOT

3145

4K7

AS1

LC04

I136

I144

I173

1K

2162

220R

2159

1K

GNDHOT

2144

2110

2124

I141

1u

1u

TO 1306

A1

LCD SUPPLY

30"/37"/42"

9023
6118

I110

BZX384-C33

RES

RES

6117

BZX384-C33

I134

RES

4M7

3101

470p

I143

RES

6104

470p

1M0

3138

GNDHOT

6142

BAT54 COL

I174

6108

BAT54 COL

10u

3147

50V

GNDHOT

I111

9020

3117

I145

BZX384-C27

6106

22K

TO 1307

AS1

LC04

1306

1
2

B2P-VA-BF-BK

9021

6119

BZX384-C33

RES

47R

3104

I135

BC817-25W

47R

470p

2145

6144

3152

BAS316

GNDHOT

15R

3125

I166

I185

PDZ-20B

3100

100R

1
2
3
4

TO 1307

A1

LCD SUPPLY

30"/37"/42"

F124

F123

I130

7101

1K0

7100

BC857BW

1307

B4P-VH

5501

GNDHOT

BZX384-C15

BAT54 COL

I155

3126

I167

F127

5504

33u

RES

6105

6115

3160

1K0

2112

10n

BC857BW

10K

GND

(289V)

275V

5505

9022

3148

I156

7105

3127

5K6

6150

BZG03-C200

F128

F130

I100

I113

I119

7102
STP6NK60Z

I146

47R

GNDHOT

3149

2123

100n

3150

10K

F129

2107

10u

2108

10u

2152

10n

I132

100R

3108

I154

6116

3146

6151

BZX384-C33

I133

5108

I199

4R7

6147

GNDHOT

BZX384-C5V6

I175

47R

I180

I191

GNDHOT

SML4736-6V8

F100

3155

10K

5104

5500

5

I118

3

2

I124

110

5105

2506

GNDHOT

I171

6n8

2153

I183 I184

3156

1K0

25V220u

2150

6156

3157

BAS316

22K

6153

GND

BZG03-C200

10V2m2

GND-SSP

3999

1K0

I159

3515

100K

6125

3137

2539

3538

6511

BZX384-C12

7511

BST82

SB340

I127

+12Vstby

100K

1u0

2534

100R

3175

+11V

F134

I107

I125

1u0

10K

GND-SSP

9019

3509

2K2

100V

22u

GND-SSP

I128

2118

GND-SSP

I149

6122

251m

2109

2149

F133

3113

5115

22R

GND-SSP

PDZ-3.9B

I160

1u

I170

1u

34V (34V)

RES

I508

2510

VTUN

10u

3114

6504

I102

BYV27

1n0

2129

I105

3122

470R

2507

100p

2508

6113

BYW29EX-200

5112

2143

I129

6140

BYV95C

GND-SSP

5103

3128

4R7

I502

I503

220R

Prot-OVV

2n2

I198

+11V

2141

470n

I138

2513

I137

2n2

6107

STPS8H100

6505

SB360

I501

I158

3124

33R

10R

3123

I164
I165

6120

BAS316

I176

6121

BAS316

SA2

GND-SSP

I101

5110

6

I114

7

I120

8

I123

GND-SSP

470p

GND-SSP

7501

TCET1102

I157

14

32

GND-SSP

GND-SSP

I186

3158

14

47R

7150

TCET1102

32 9110

GND-SSP

COLD GROUNDHOT GROUND

12345678910

1311

HEATSINK

1

2

GND-SSP

+5V2

4K7

3528

0V (0V)

6532

I109

7506

BC847BW

GND-SSP

5V3 (5V3)

+5V_SW

25V100u

2533

GND-SSP GND-SSP

I115

2536

GND-SSP

+5V2

3560

6K8

3506

470R

+5V2-RELAY-IO2

4K7

3532

3529

I117

BC847BW

100R

10n

1K5

3533

GND-SSP

GND-SSP

+5V2-RELAY-IO2

7560
BC817-25W

0V8 (0V8)

I152

3K9

3561

GND-SSP

6540

BAT54 COL

I504

3541

3544

220R

I179

5V3 (5V3)

7509

BC847BW

GND-SSP GND-SSP

7507

I121

3531

15K

2n2

22K

2537

3530

GND-SSP

GND-SSP

F125

I139

F126

B3B-EH-A

TO 1305

4R7

3562

LCD SUPPLY

I150

I151

30"/37"/42"

6562

BZX384-C22

GND-SSP

I505

3510

220R

+5V2

+5V2

2K2

2544

2K2

3540

GND-SSP

I178

10n

BC857BW
7505

I182

10n

10K

3542

2540

GND-SSP

11 12 13

1310

HEATSINK

1

2

GND-SSP

STANDBY

0V2 (0V2)

TO 1305

AS1

1305

LC04

1
2
3

A1

6510

I507

3507

7510

BC847BW

3508

GND-SSP

E_14620_133.eps

PDZ2.7-B

10K

I506

15K

2509

GND-SSP

281204

SA1

3508 F13
3509 A7
3510 F12
3511 B9
3512 C9
3513 D10
3515 B8
3516 A9
3517 A11
3528 C11
3529 C12
3530 D13
3531 C13
3532 C12
3533 D12
3534 H9
3535 H9
3536 H10
3537 H9
3538 F8
3539 H10
3540 G13
3541 G12
3542 H13
3544 G12
3560 E12
3561 F12
3562 E12
3999 H8
5102 D1
5103 E7
5104 C5
5105 C5
5106 D1
5108 D5
5110 B6
5112 D7
5115 D8
5500 B6
5501 B4
5504 B4
5505 B4
5506 E9
5507 B9
5508 E9
6103 C1
6104 D3
6105 C4
6106 F3
6107 E7
6108 F3
6113 C7
6114 G2
6115 D4
6116 F4
6117 C3
6118 B3
6119 B3
6120 G7
6121 G7
6122 E7
6125 C8
6130 B10
6132 C10
6133 C9
6134 C9
6140 D7
6142 F3
6144 D3
6147 D5
6148 F8
6149 F9
6150 G4
6151 G5
6153 H6
6156 H5
6504 A7
6505 E7
6508 G9
6510 E13
6511 A8
6531 F10
6532 C11
6540 F12
6562 E13
7100 F4
7101 D4
7102 C4
7105 E4
7131 B10
7140 F10
7150 H6
7501 F6
7505 G13
7506 C11
7507 C12
7508 H10
7509 G12
7510 F13
7511 A8
7512 A10
7531 E11
7532 D9
7560 E12
9019 A8
9020 C3

9021 B3
9022 B4
9023 B3
9110 H10
9111 D1
9112 E9
F100 D5
F123 B4
F124 B4
F125 D13
F126 E13
F127 H4
F128 H4
F129 H4
F130 H4
F133 H8
F134 H8
I100 B4
I101 A6
I102 A7
I103 C9
I104 B10
I105 B7
I106 C11
I107 C8
I108 C9
I109 C11
I110 C3
I111 C3
I112 C10
I113 B4
I114 B6
I115 C12
I116 C10
I117 C12
I118 C5
I119 C4
I120 C6
I121 C13
I122 C2
I123 C6
I124 C5
I125 D8
I126 D9
I127 C8
I128 D7
I129 D7
I130 C4
I131 C2
I132 C4
I133 C5
I134 D3
I135 D3
I136 D2
I137 E7
I138 E7
I139 E12
I140 C1
I141 D3
I142 D2
I143 D3
I144 D2
I145 D3
I146 D4
I147 E2
I148 E10
I149 E7
I150 E13
I151 E13
I152 E12
I153 E1
I154 E4
I155 E4
I156 E4
I157 F6
I158 F7
I159 F8
I160 F8
I161 F9
I162 E2
I163 F9
I164 F7
I165 F7
I166 F3
I167 F4
I168 F9
I169 F2
I170 G8
I171 F5
I172 F2
I173 F2
I174 F3
I175 F5
I176 G7
I177 F2
I178 G13
I179 G12
I180 G5
I181 G2
I182 G13
I183 G5
I184 G6
I185 F3
I186 G6
I189 H10
I190 G2

I191 G5
I192 H9
I197 C9
I198 D7
I199 D5
I501 F7
I502 F7
I503 F6
I504 F12
I505 F13
I506 F13
I507 F13
I508 A8
I509 A9
I510 A10
I511 A10
I512 H9
I513 D1

1301 B2
1305 D13
1306 B3
1307 H4
1310 A13
1311 A12
2101 C2
2102 F2
2103 D2
2105 D2
2107 A4
2108 B4
2109 F7
2110 F2

A

2111 E2
2112 D4
2118 D7
2123 E4
2124 H2
2129 B6
2131 C10
2132 C11
2140 F8
2141 D7
2143 D7
2144 F2

B

2145 D3
2149 G7
2150 G5
2152 B4
2153 F5
2154 G10
2159 D2
2160 C9
2162 D2
2163 F2
2506 C6

C

2507 B7
2508 C7
2509 F13
2510 E8
2511 B9
2512 E10
2513 E7
2515 B10
2533 F11
2534 E8
2535 D10
2536 D12

D

2537 D13
2538 H9
2539 E8
2540 H13
2544 G13
3100 F3
3101 D3
3102 D2
3103 D2
3104 D3
3105 D2
3106 E1

E

3107 F1
3108 D4
3109 F1
3110 F1
3111 D2
3112 G1
3113 E7
3114 F6
3117 D3
3122 B6
3123 F7

F

3124 F7
3125 E3
3126 E4
3127 F4
3128 F6

2n2

3132 D9
3134 C10
3135 C10
3137 D8
3138 D3
3140 C8
3141 F10

G

3142 F9
3145 G2
3146 F4
3147 H3
3148 E4
3149 E4
3150 D4
3152 D3
3153 C8
3155 G5
3156 G6
3157 H5

H

3158 G6
3159 E8
3160 D4
3161 C10
3171 C9
3172 C10
3175 F8
3176 G10
3506 G12
3507 F13

Circuit Diagrams and PWB Layouts

5FTL2.2E AA 3.

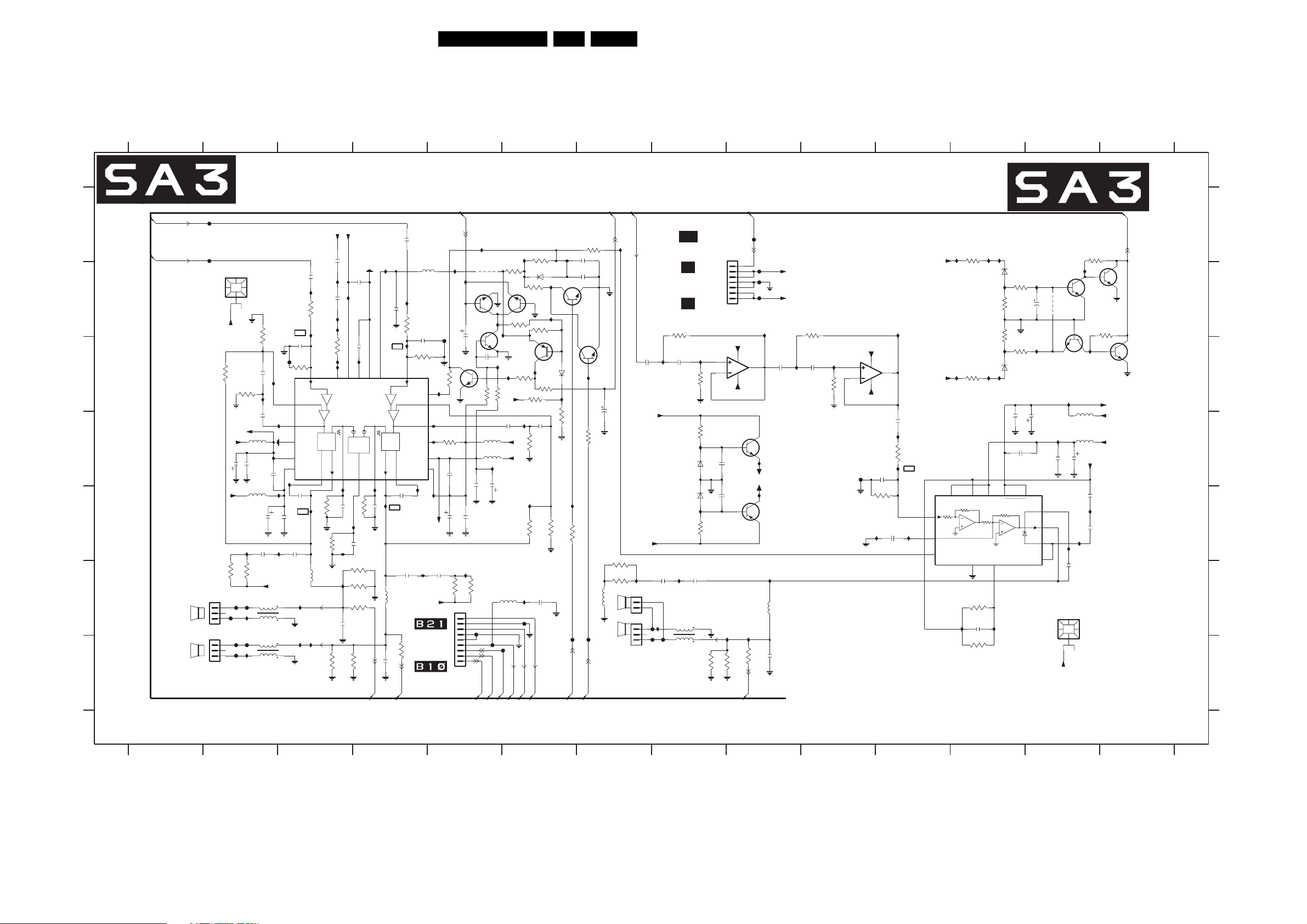

LCD Standby Audio Panel: Audio

0044 F13
0045 B2
1735 F2
1736 G2
1737 F7
1738 F7
1739 F5
1M02 A9
2702 C4
2704 C3

2705 A7
2706 B4
2707 C4
2708 A3
2709 D6
2710 D6
2711 E2
2712 D5
2713 B7
2714 E4

2715 F4
2716 E4
2717 G4
2718 E3
2719 F5
2720 B3
2721 C2
2722 D2
2723 F8
2725 F6

2726 E3
2727 E3
2728 E3
2729 F3
2741 F12
2743 F13
2753 E13
2754 D11
2755 D11
2756 E11

123R45678910

2758 G9
2759 F8
2762 E13
2764 B3
2766 A4
2768 E5
2769 D5
2777 D2
2778 C5
2779 E3

AUDIO

SA3

SA3

AUDIO-L

AUDIO-R

A

B

C

D

E

F

15W/8

15W/8

G

F711

F712

0045

HEATSINK

1

2

-Vf1

56K

3723

3722

68K

-Vf11

-16V-19V

100u

2777

2788

+16V+19V

I725

3726

3724

220R

-18V

1735

F708

F722
1
2
3

B3B-PH-K

1
2

L

3

B3B-PH-K

1736

F738

F710

I767

F721

I770

F739

5708

5707

I756

220n

220R

4K7

2721

2722

2711

1n

PLT09H

PLT09H

470p

470p

I777

2790

5730

5731

2780 E5
2781 D5
2782 D12
2783 C7
2784 D13
2785 B13
2786 B4
2787 C5
2788 D2
2789 D2

3721

F713

I726

I757

2789

I779

100u

I754

-Vf11

220n

2779

2790 E2
2791 C7
2792 C8
2793 D13
2794 C9
2795 D12
2796 C10
2797 D8
2798 E8
2799 D13

3701 E6
3702 B6
3703 A6
3704 B6
3705 C3
3706 E6
3707 D6
3708 E6
3709 F5
3710 E4

3711 D5

3713 D7
3714 C6
3715 B6
3716 B6
3717 F4
3718 G4
3720 F7
3721 B2

3722 C2
3723 C2
3724 F2
3725 E3
3726 F2
3727 F5
3729 G9
3730 F7
3741 F12
3743 F4

3744 G12
3746 C6
3747 C6
3748 C5

3750 G3
3751 G8
3752 B8
3753 G8
3754 C8

3755 B10
3756 F4
3757 G3
3758 C10
3759 D8
3760 E8
3761 A12
3762 B12
3763 B12
3764 C12

3765 C12
3766 B143712 E3
3767 B12
3768 A13
3790 C4
3791 C3
3792 B3
3793 B4
3794 D11
3795 C5

3796 E11
3797 C5
3798 D6
5701 F4
5702 F3
5703 B5
5704 F7
5705 F6
5707 D2
5708 E2

5711 D5
5712 D5
5720 F9
5722 D13
5723 D133749 A7
5730 F2
5731 G2
5732 G8
6701 C6
6702 B12

6703 C12
6704 B6
6710 D8
6711 E8
7700 C5
7701 B7
7702 E11
7703 C7
7704 B5
7705 B6

7706 C6
7707 C5
7708 C13
7709 C13
7710 B13
7711 B13
7712 D9
7713 E9
7714 C5
7715-1 C9

7715-2 C11
9717 B5
9718 B13
F708 F2
F710 G2
F711 A2
F712 A2
F713 C3
F714 B5
F718 D10

F720 G8
F721 G2
F722 F2
F731 G8
F736 G7
F737 G6
F738 F2
F739 G2
F741 F8
F742 B9

F743 B9
F744 B9
F745 A9
F747 F5
F748 G5
F749 G6
F751 F6
I700 E6
I701 E6
I702 A6

I703 B6
I704 A6
I705 D6
I706 D5
I707 D5
I708 F12
I709 E4
I710 F5
I711 C4
I712 A5

I713 E4
I714 C8
I715 A7
I716 E3
I717 B5
I718 B5
I719 E3
I720 C8
I721 C3
I722 B3

I723 B9
I724 D3
I725 E2
I726 C3
I727 B5
I728 C9
I729 C5
I730 F7
I731 B11
I732 B6

I733 C10
I734 F12
I735 D8
I736 E8
I737 C6
I738 C6
I739 B6
I740 D9
I741 E9
I742 C12

I743 C12
I744 D5
I745 B4
I746 E13
I747 D11
I748 B3
I749 C3
I750 B12
I751 A12
I752 E13

I753 B3
I754 E3
I755 F4
I756 C2
I757 D2
I758 E11
I759 E11
I760 C5
I761 F8
I762 D11

I763 C6
I764 C13
I765 D13
I766 F9
I767 F2
I768 G3
I769 F3
I770 G2
I771 G3
I772 F8

I773 F9
I774 F9
I776 E4
I777 D2
I778 E3
I779 E3
I780 E13
I781 C13
I782 C13
I783 B3

I784 B3
I785 B4
I786 B4
I787 C4
I788 C7
I790 F3
I791 B12
I792 B13
I793 B13
I794 B12

I795 F6
I796 C12
I797 C12
I798 E5
I799 E4

11 12 13 14

SA3

SA3 (3x)

-Vf11

-Vf1

2u2

2766

2708

220n

2u2

2764

I753

I783

I722

2704

1n

3791

2K7

FEED4

19

FEED3

17

NC

20

-VCC3

24

+VCC2

22

I724

2726

33n

I778

220n

2727

1n

I769

12

43

I768

12

43

2720

10K

68u

I771

220n

3792

I784

I748

8R2

3705

I721

I749

IN2 18

VREG 25

G=2.5

PRE-AMP2

INTERGR 2

PWM

STAGE2

BOOT221

OUT223

I716

22K

3725

2728

10K

3712

I719

5702

I790

2729

2K2

3750

T215

330p

2718

680n

3757

I785

2786

22n

I745

2707

100n

I787

-5V 16

+5V 12

GND 13

-VCC1 1

PRE-AMP1

INTERGR 1

STAGE2

OSC

OSC8

OUT13

T111

I713

22K

I776

330p

3710

2716

I799

22p

3756

2K2

3743

2K2

68u

3717

100K

2706

I711

PWM

2714

5701

I786

100n

3793

STBY-MUTE

G=2.5

CURREF

BOOT15

33n

2715

1n

5703

30R

10K

2702

1n

3790

2K7

TDA7490

IN1 10

FEED1

FEED2

-VCC2

+VCC1

I709

I755

TO 1M52

7700

SSB EMG

OR

3718

100K

680n

TO 1M52

2K2

2717

PROT1

I712

I727

9717

I717

7704

BC847B

7707

470R

220n

100u

1739

2778

2780

I710

220R

3709

2781

4u7

220n

220R

F747

F748

2787

1u0

220n

3797

I718

5712

5711

2769

I760

220K

3795

7714
BC847BW

I744

100u

F714

BC847B

3748

I729

6

7

I706

9

I707

3711

14

120K

2

4

2712

I798

2768

-Vf1

2719

1n

3727

-18V

-Vf1

1
2
3
4
5
6
7
8
9

B9B-PH-K

3704

10K

7705

I732

I738

120K

+16V+19V

2710

470p

+16V+19V

-16V-19V

5705

F749

F751

3715

47K

BC857B

3714

I705

I700

I795

3703

I704

33K

BAS316

6704

3702

I703

10K

BC847B

I739

3716

47K

7706

I737

3747

47K

47K

3746

39K

2709

470p

68K

3707

3706

56K

3708

2725

100p

6701

3798

4K7

F737

3749

2705

I702

470R

470n
2713

470n

7701

BC847B

7703

BC847B

I788

BAS316

I763

15K

1K2

3713

I701

10K

3701

F736

SSB JAGUAR

PROT1

PROT1

SA3

SA3

POR-CLASSD

SOUND-ENABLE

SA3

SA3

AUDIO-L

AUDIO-R

AUDIO-SW

PROT_AUDIOSUPPLY

SA3

SA3

SA3

SA3

SOUND-ENABLE

SA3

POR-CLASSD

SA3

SA3

DCPROT

AUDIO-SW

I715

2783

22u 16V

3720

220R
3730

I730

220R

1737

5704

B2B-PH-K

1738

B3B-PH-K

15W/8

CENTERWOOFER

LCD SUPPLY 42"

LCD SUPPLY 30"/37"

2791

I714

1u0

+16V+19V

-16V-19V

2723

1n

1
2

I772

3

3
2

F741

2

1

F720 F731

TO 1M02

AS2

LC04

TO 1M02

A4

OR

TO 1M02

A2

3752

330R

2792

1u0

I735

I736

I761

2759

PLT09H

5732

I720

3754

3759

BZX384-C15

BZX384-C15

3760

1n

4

1

22K

3K3

6711 6710

3K3

3753

B7B-EH-A

3

2

2797

2798

2K2

I766

3751

1M02

7
6
5
4
3
2
1

220n

220n

SA3

3768

100K

-Vf21

7711
BC847B

3766

100K

7708
BC847B

220n

220n

SA3

PROT_AUDIOSUPPLY

-Vf21

-16V-19V

+16V+19V

DCPROT

F745

I751

I750

11

+VCCS

IN

FEEDCAP

STBY|MUTE

I708

3761

10R

3764

10R

-VCCS

PRE

3741

10K

2741

3744

100K

8

7

22p

I794

I796

+VCC

FREQGNDS

6702

I791

3762

3763

I797

6703

I743I742

13

14 -VCC1 15

-VCC

PWM

NC

6

I734

BZX384-C10

3767

100K

2K2

2K2

3765

100K

BZX384-C10

2782

220n

2795

220n

BOOT 3

BOOTD

4

I792

2785

I782

2793

-VCC2

16V

100u

100u

1OUT

2

12 VREG

9718

2784

-Vf21

7710
BC847B

I764

I765

220n

1

7709
BC847B

2799

I752

2743

I793

I781

5723

5722

100u

2762

I780

2753

I746

33n

HEATSINK0044

2

I731

2754

3794

+16V+19V

-16V-19V

2u2

I762

10K

I747

7702

TDA7482

9

I759

5

10

F742

+16V+19V

F743

F744

-16V-19V

I723

Vp

7715-1

8

LM833D

1

4

Vm

7712
BC847B

I740

Vp

Vm

I741

BC857B

7713

I774

5720

I773

3729

100K

2K2

2758

PROT1

2794

68u

3755

470R

I733

2796

I728

1u0

1u0

3758

680n

Vp

7715-2

8

LM833D

5

6

8K2

F718

7

4

Vm

2755

1n

3796

2K7

I758

2756

470p

A

B

C

D

E

F

G

SA3

8204 000 8313.5

12345678910

11 12 13 14

E_14620_134.eps

281204

Circuit Diagrams and PWB Layouts

6FTL2.2E AA 3.

Layout LCD Standby Audio Panel (Top Side)

3104 313 6010.5

E_14620_135.eps

020704

0001 G4
0044 D1
0045 E1
1301 B1
1303 E4
1304 D4
1305 A3
1306 A1
1307 A2
1309 D4
1310 A3
1311 B4
1312 F4
1313 G4
1314 G4
1315 F4
1316 G4
1317 F4
1318 F4
1320 E4
1735 G1
1736 G1
1737 G3
1738 G2
1739 F3
1M02 G3
1M03 A4
1M10 D4
1M46 A4
2101 B2
2102 B1
2107 A1
2108 A1
2111 A1
2118 B3
2124 B2
2132 A4
2140 C3
2143 B3
2150 A2
2152 D2
2160 B4
2163 B1
2506 B2
2507 D3
2508 D3
2510 D4
2511 D4
2512 C4
2513 C4
2533 A4
2717 F1
2729 G2
2758 E3
2768 F1
2769 F1
2778 E1
2783 G1
2785 E3
2788 F2
2790 E2
2793 E3
2799 E3
3101 B1
3102 B1
3103 B2
3108 C2
3111 B1
3155 A2
3190 E3
3191 E3
3192 E3
3509 D4
3711 F1
3713 F3
3747 E1
5018 E4
5019 E4
5102 B2
5103 C4
5104 C2
5108 C1
5110 C3
5112 C3
5115 B3
5500 C3
5501 A1
5504 A1
5505 B1
5506 C4

5507 D4
5508 C4
5701 F2
5702 F2
5704 E2
5707 G2
5708 G3
5711 F1
5712 E1
5720 E2
5722 E3
5723 E3
5730 G2
5731 G1
5732 G3
6103 B2
6107 C4
6113 B3
6114 B2
6125 A3
6140 C3
6504 D3
6505 C4
7102 C1
7131 B4
7150 A2
7501 B2
7700 F2
7702 E3
9001 A4
9004 E4
9005 E4
9006 E4
9007 E4
9010 E4
9011 E4
9018 D4
9022 A1
9050 G4
9051 G4
9052 F4
9053 B1
9054 B1
9055 C2
9056 A4
9057 A3
9058 A4
9059 B4
9060 A3
9061 A4
9062 A4
9063 A4
9064 A3
9065 A4
9066 A4
9067 C4
9068 C4
9069 A4
9070 A4
9071 F4
9072 F4
9073 F4
9112 C4
9113 A4
9721 G2
9722 G3
9723 G1
9724 F1
9725 E3
9726 D2
9727 D3
9728 E2
9729 D2
9730 E1
9731 F3
9732 G3
9733 G3
9734 F1
9735 F3
9736 F1
9738 F3
9739 F2
9740 E1
9741 E1
9742 E1
9743 G3
9744 F3
9745 G3

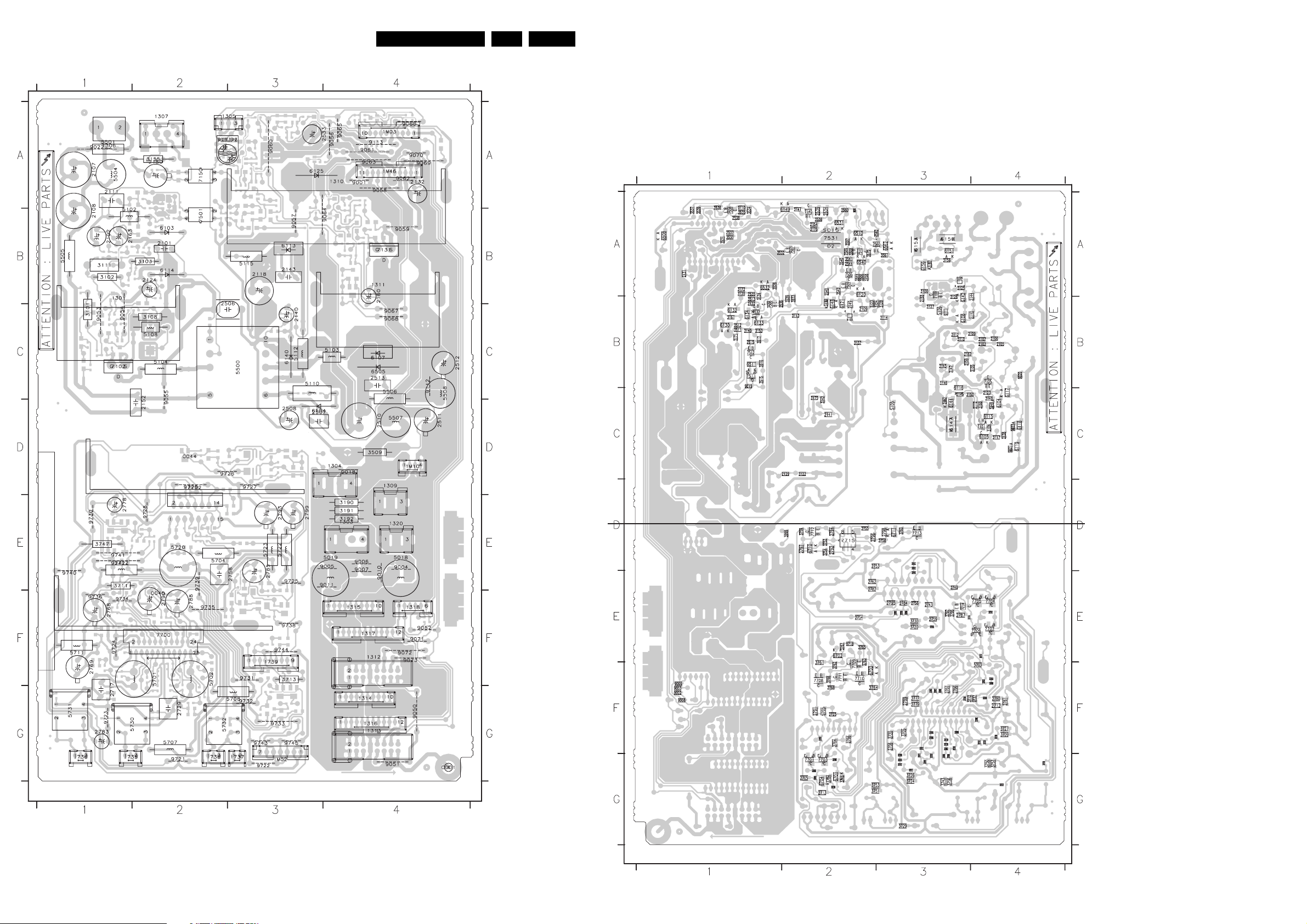

Layout LCD Standby Audio Panel (Overview Bottom Side)

2103 B4

2149 B2

2538 A1

2710 F3

2722 G3

2756 E3

2786 F4

3104 C4

3123 B2

3140 B1

3155 A3
2105 B4
2109 B2
2110 B4
2112 C4
2123 C4
2129 C2
2131 A1
2141 C2
2144 A4
2145 C3

2153 B3
2154 A2
2159 B3
2162 B3
2509 A2
2515 B1
2534 A2
2535 A1
2536 B2
2537 A1

2539 A2
2540 A2
2544 A2
2702 F4
2704 F3
2705 G2
2706 F3
2707 F3
2708 F3
2709 G3

2711 G3
2712 F4
2713 G2
2714 F4
2715 F4
2716 F3
2718 F3
2719 F4
2720 F3
2721 G3

2723 E3
2725 F2
2726 G3
2727 G3
2728 F3
2741 D3
2743 E3
2753 D3
2754 E2
2755 E3

2759 E3
2762 E2
2764 F2
2766 F2
2777 F3
2779 F3
2780 F4
2781 F4
2782 E2
2784 E3

2787 E3
2789 F3
2791 F2
2792 D2
2794 D2
2795 E3
2796 D2
2797 D2
2798 D3
3100 A3

3105 B4
3106 B4
3107 B4
3109 B4
3110 B3
3112 B3
3113 B2
3114 B3
3117 C4
3122 C2

3124 B3
3125 A3
3126 A3
3127 B3
3128 B3
3132 B1
3134 A1
3135 A1
3137 B2
3138 C4

3141 A2
3142 C2
3145 B3
3146 B3
3147 B3
3148 C4
3149 C4
3150 C4
3152 C3
3153 B1

3156 A3

3157 A3

3158 A2

3159 B2

3160 C4

3161 B1

3171 B1

3172 A1

3175 C2

3176 A2

3190 E1
3191 E1
3192 E1
3506 A2
3507 A2
3508 A2
3509 D1
3510 A2
3511 B1
3512 B1
3513 B1

Part 1

E_14620_136a.eps

E_14620_136b.eps

3104 313 6010.5

3515 B1
3516 B1
3517 B1
3528 A1
3529 B2
3530 A1
3531 A1
3532 A2
3533 B2
3534 A1
3535 A1

Part 2

3536 A1

3701 F2

3537 A1

3702 G2

3538 A2

3703 G2

3539 A1

3704 G2

3540 A2

3705 F3

3541 A2

3706 G3

3542 A2

3707 F3

3544 A2

3708 F3

3560 A2

3709 F4

3561 A3

3710 F3

3562 A3

3711 E4

E_14620_136.eps

131004

3712 F4
3713 F2
3714 E4
3715 E3
3716 G2
3717 G4
3718 G4
3720 E3
3721 F3
3722 G3
3723 G3

3724 G3
3725 F3
3726 G3
3727 F4
3729 G3
3730 E3
3741 D3
3743 G3
3744 E3
3746 G2
3747 E4
3748 F4
3749 E3
3750 G4
3751 G3
3752 D2
3753 G3
3754 D2
3755 D2
3756 G3
3757 G4
3758 D3
3759 D2
3760 D3
3761 F2
3762 F2
3763 E2
3764 F2
3765 E2
3766 F2
3767 E2
3768 F2
3790 F4
3791 F3
3792 F3
3793 F4
3794 E3
3795 E3
3796 E3
3797 E3
3798 G2
3999 D2
5105 C3
5106 B3
5703 F4
5705 F2
6104 C4
6105 C4
6106 A3
6108 B3
6115 C4
6116 B3
6117 B4
6118 C4
6119 C4
6120 A2
6121 B2
6122 B2
6130 B1
6132 B1
6133 B1
6134 B1
6142 B3
6144 C3
6147 C3
6148 B2
6149 A2
6150 A3
6151 A3
6153 A3
6156 A3
6508 A1
6510 A2
6511 B1
6531 A2
6532 A1
6540 A2
6562 A3
6701 G2
6702 E2
6703 F3
6704 G2
6710 D2
6711 D3
7100 A3
7101 C4
7105 B4
7140 A2
7505 A2
7506 B1
7507 A2
7508 A1
7509 A2
7510 A2
7511 B1
7512 B1
7531 A2
7532 B1
7560 A3
7701 G2
7703 G2

7704 E4
7705 E4
7706 E3
7707 E4
7708 F2
7709 F2
7710 F2
7711 F2
7712 D2
7713 D3
7714 E3
7715 D2
9002 F1
9003 F1
9008 F1
9009 F1
9019 B1
9020 B4
9021 C4
9023 C4
9074 A2
9110 A1
9111 B3
9717 E4
9718 E2
9737 F4

Circuit Diagrams and PWB Layouts

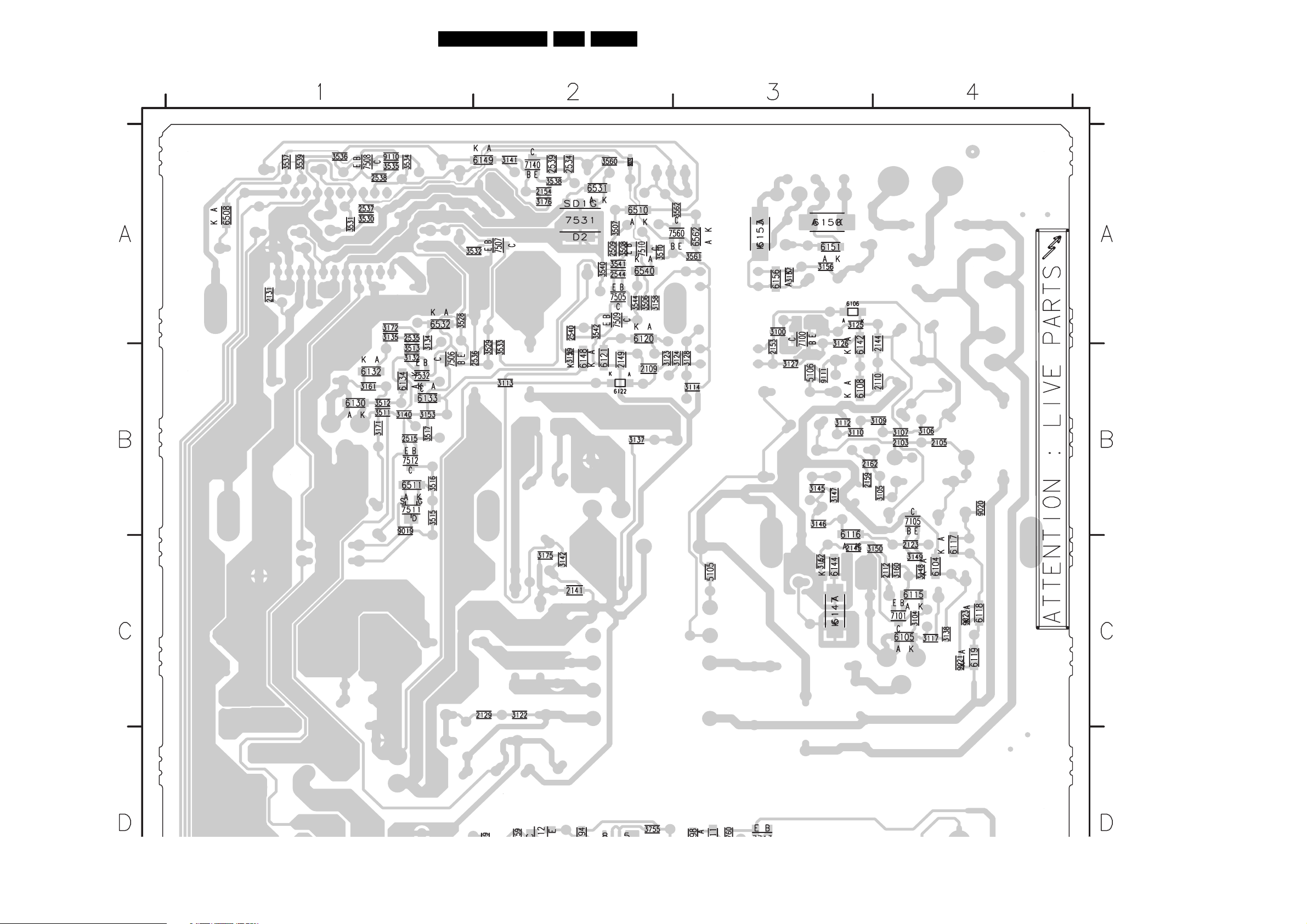

Layout LCD Standby Audio Panel (Part 1 Bottom Side)

7FTL2.2E AA 3.

Part 1

E_14620_136a.eps

131004

Circuit Diagrams and PWB Layouts

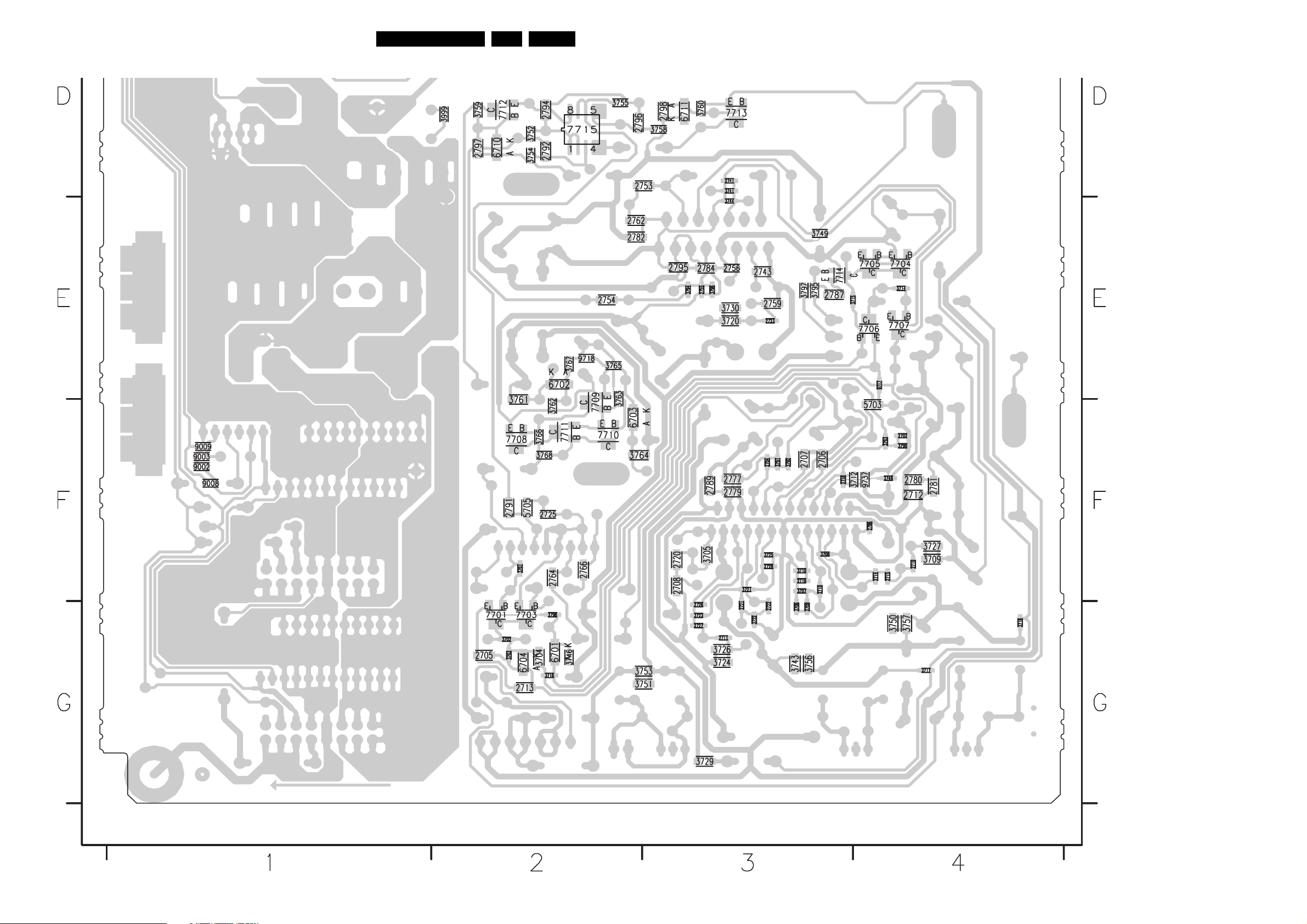

Layout LCD Standby Audio Panel (Part 2 Bottom Side)

8FTL2.2E AA 3.

Part 2

E_14620_136b.eps

131004
