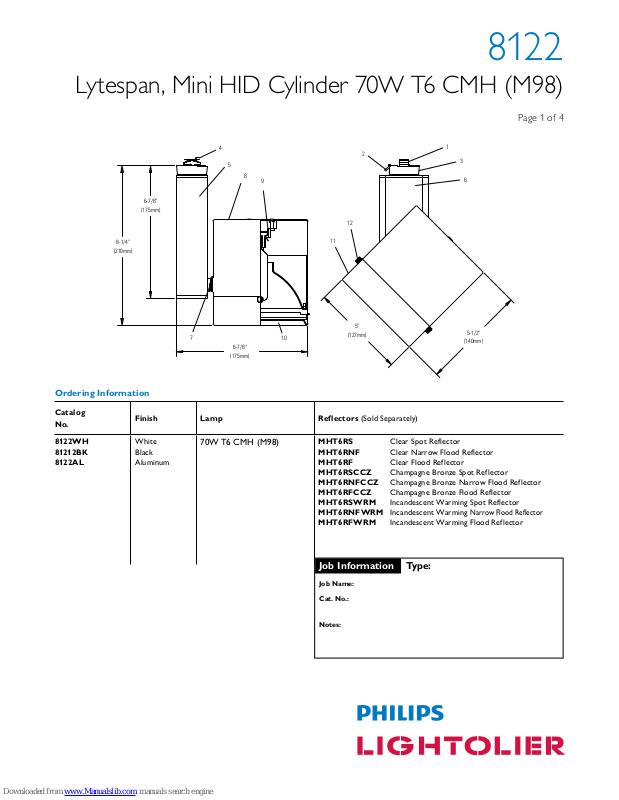

8122

Lytespan, Mini HID Cylinder 70W T6 CMH (M98)

Page 1 of 4

(175mm)

8-1/4"

(210mm)

Ordering Information

Catalog

No.

Finish Lamp Reflectors (Sold Separately)

6-7/8"

4

5

8

9

11

7

6-7/8"

(175mm)

10

2

12

5"

(127mm)

1

3

6

5-1/2"

(140mm)

8122WH
81212B K
8122 AL

White
Black
Aluminum

70W T6 CMH (M98)

MHT6RS Clear Spot Reflector
MHT6RNF Clear Narrow Flood Reflector
MHT6RF Clear Flood Reflector
MHT6RSCCZ Champagne Bronze Spot Reflector
MHT6RNFCCZ Champagne Bronze Narrow Flood Reflector
MHT6RFCCZ Champagne Bronze Flood Reflector
MHT6RSWRM Incandescent Warming Spot Reflector
MHT6RNFWRM Incandescent Warming
MHT6RFWRM Incandescent Warming Flood Reflector

Narrow Flood Reflector

Job Information Type:

Job Name:

Cat. No.:

Notes:

8122

Lytespan, Mini HID Cylinder 70W T6 CMH (M98)

Page 2 of 4

4

5

8

9

6-7/8"

(175mm)

8-1/4"

(210mm)

7

6-7/8"

(175mm)

10

Features

1. Track attachment fitting: Molded polycarbonate, rotates

into track. Integral polarity keyguard.

2. Push tab: Molded polycarbonate white, black or gray finish.

Detaches unit.

3. Track adaptor housing: Die-cast aluminum.

4. Movable contact: Solid brass. Extends for connection to 2nd

circuit in Advent track.

5. Ballast housing: Extruded housing with die-cast aluminum

end caps.

6. Ballast: High Power Factor metal halide electronic ballast.

Thermally protected, 0.64A maximum input current,

maximum 77W input power.

7. Pivot mounts: Allows for 350° horizontal and 180° vertical

rotation with tensioned mounts for controlled aim.

8. Housing: 0.04" (1.02mm) aluminum.

9. Lampholder: Bi-pin G12 single-ended base. 5kV (750V) pulse

rated porcelain body socket with nickel-plated contacts. 18

AWG silicone leads with fiberglass outer sleeve hidden inside

of housing.

10. Protective glass: 0.13" (3.18 mm) tempered glass.

11. Housing cover: 0.04" (1.02mm) aluminum.

12. Knobs: Steel painted knurled knob.

2

12

11

5"

(127mm)

1

3

6

5-1/2"

(140mm)

Accessories (Holds one accessory only)

Diffusion/ Special Filters: AF4 series

Color Filters: ADF4 series

Louver (Hex Cell): AL4HC

Markings

cCSAus Certified for dry locations only.

Mounting

On Monopoint, Multipoint, recessed track, sloped ceiling

adapter, Basic, Radius and Advent track systems only. Ceiling

and horizontal or vertical wall mounted. Not compatible with

ProSpec track system.

Finish

All painted finishes are baked powder or enamel.
