Philips 6756 X User Manual
6756X
Rechargeable
Cordless Razor
Shaving Lotion
Dispensing
Razor
6756X B_W new DFU 9/12/03 5:25 PM Page 1 (Black plate)
ENGLISH 4
ESPAÑOL 24
6756X
3
6756X B_W new DFU 9/12/03 5:25 PM Page 3 (Black plate)
IMPORTANT SAFETY
INSTRUCTIONS
When using an electric razor, basic safety precautions should
always be followed, including the following:
Read all instructions before using this appliance.
DANGER
To reduce the risk of electric shock:
1. Do not reach for a charging base that has fallen into water.
Unplug immediately.
2. Do not use a charging base while bathing or in a shower.
3. Do not place or store a charging base where it can fall or be
pulled into a tub or sink. Do not place charging base in or drop
into water or other liquid.
4. Always unplug charging base from the electrical outlet
immediately after using, except when razor is (re)charging.
5. Unplug charging base before cleaning.
6
When discarding razor, unplug razor and remove rechargeable
batteries. See Battery Removal instructions.
WARNING
To reduce the risk of burns,fire, electric shock, or injury to
persons:
1. Close supervision is necessary when this razor is used by, on, or
near children or invalids.
2. Use this razor for its intended household use as described in
this manual. Do not use attachments not recommended by
Philips Electronics North America Corporation.
3. Never operate this razor if it has a damaged cord or plug, if it is
not working properly, if it has been dropped or damaged, or
ENGLISH4
6756X B_W new DFU 9/12/03 5:25 PM Page 4 (Black plate)
dropped into water. Return the razor to an Authorized Norelco
Service Location for examination and repair.
4. Keep the razor and cord away from heated surfaces.
5 Never drop or insert any object into any opening.
6. Do not charge razor or plug in charging base outdoors or
operate where aerosol (spray) products are being used or
where oxygen is being administered.
7. Do not use this razor with a damaged or broken comb,as facial
injury may occur.
8. Always place razor in base first,then plug base into outlet.To
disconnect, turn razor off then remove plug from base from
outlet.
9. To prevent possible damage to the cord, do not wrap cord
around the charging base.
10. Never put razor in direct sunlight or store in a pouch at a
temperature above 140ºF.
11. Razor is water-safe and can be rinsed under running tap water
or used in shower. Do not submerge razor in water.
SAVE THESE
INSTRUCTIONS
IMPORTANT: The power plug contains a transformer. Do not
cut off the power plug to replace it with another plug, as this will
cause a hazardous condition.
IMPORTANT
YOUR RAZOR CONTAINS NICKEL-CADMIUM
RECHARGEABLE BATTERIES. See Battery Removal instruction
sheet
for battery disposal information
.
ENGLISH 5
6756X B_W new DFU 9/12/03 5:25 PM Page 5 (Black plate)
ENGLISH6
60 - DAY MONEY-BACK GUARANTEE
To enjoy the closest and most comfortable shave from your new Norelco Men’s
Razor, the razor should be used exclusiv
ely for 3 weeks. This allows your hair
and skin enough time to adapt to the Norelco Shaving System. If, after that
period of time, you are not fully satisfied with your Norelco Men’s Razor, send
the product back and we’ll refund you the full purchase price.
The razor must be shipped prepaid by insured mail, insurance prepaid,
and have the sales slip, indicating purchase price and the date of
purchase, enclosed. The razor must be postmarked no later than 60 da
ys
after the date of purchase. Norelco reserves the right to verify the purchase
price of the razor and limit refunds not to exceed suggested retail price.
Send dated sales slip, your complete name and address as indicated
below, and the razor, prepaid to:
Norelco Consumer Products Company
A Division of Philips Electronics North America Corporation
450 North Medinah Road, Dock 16
Roselle, IL 60172-2329
Please allow 4-6 weeks for delivery of check. (Please Print)
Name_________________________________________________________
Address________________________________________________________
City___________________________________________________________
State_____Zip__________________________________________________
Daytime Telephone No. (____)_____________________________________
Email Address___________________________________________________
REASON FOR RETURNING:______________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
______________________________________________________________
AREA CODE
6756X B_W new DFU 9/12/03 5:25 PM Page 6 (Black plate)
Table of Contents
Features.........................................................8-9
Important .......................................................10
LED Charging Indications...........................10
Charging ...................................................10-11
Recharging......................................................11
Inserting The First Cartridge...............11-12
Replacing Cartridges .............................12-13
Put It To The Test & Shaving Tips ..............13
How To Shave With An
Electric Razor..........................................13-15
Trimming...................................................15-16
Cleaning....................................................16-19
Storing.............................................................20
Tips ..................................................................20
Assistance.......................................................20
Accessories..............................................20-21
Battery Removal...........................................21
Warranty.........................................................22
Spanish ............................................................24
ENGLISH 7
6756X B_W new DFU 9/12/03 5:25 PM Page 7 (Black plate)
Features
Nivea for Men
Shaving Lotion Applicator
Contour Shaving
System
Razor Head
Assembly
Indi
vidually Floating
Heads
Raz
or Head Release
Button
•
Hair
Chamber captures
shaven hair
Green Charging
Indicator Light /
Red Low Battery
Indicator Light
On/Off Button
ENGLISH8
How the Unique Norelco Lift and Cut
®
Shaving System Makes Close Comfortable:
Groove channels beard
closer to cutting system
Lifter raises hair Blade cuts hair which
then drops below skin level
6756X B_W new DFU 9/12/03 5:25 PM Page 8 (Black plate)
Click-On Trimmer
Attachment for
beard, moustache
and sideburns
Automatic
Worldwide Voltage
100V to 240V AC
Cleaning Brush
Travel / Storage
Pouch
Rechargeable
Cordless - Initial 4
hour full charge for
up to 40 minutes of
cordless shave time
1-Hour Full Charge
Full 2-Year
Warranty
60-Day Money-
Back Guarantee
ENGLISH 9
6756X B_W new DFU 9/12/03 5:25 PM Page 9 (Black plate)
Important
C
◗ Only use the power plug and the charging stand
provided to charge the razor.
◗ The power plug transforms 100-240 AC volts
to 12 volts DC.
◗ An adaptor plug may be necessary for cord
usage in some foreign countries.Your new razor
will automatically convert internally to work on
100V to 240V AC/DC systems.
LED Charging Indications
◗ As soon as you start charging the razor, the
green charging indicator light will go on.
◗ When the batteries have been fully charged,
the green charging indicator light will start
blinking.
◗ The red recharging indicator light will blink
when batteries are almost empty.
◗ The red recharging indicator light will blink a
few times after the razor has been switched off.
Charging
◗ Charging or recharging at temperatures below
40ºF or higher than 95ºF adversely affects
lifetime of batteries.
◗ Battery Performance is best if you recharge
only when batteries are (almost) completely
empty.
◗ Do not charge razor in pouch.
1 Connect the small plug into the charging
stand and put the power plug into any
ENGLISH10
6756X B_W new DFU 9/12/03 5:25 PM Page 10 (Black plate)
100V to 240V AC/DC outlet. Use only the
cord and stand provided.

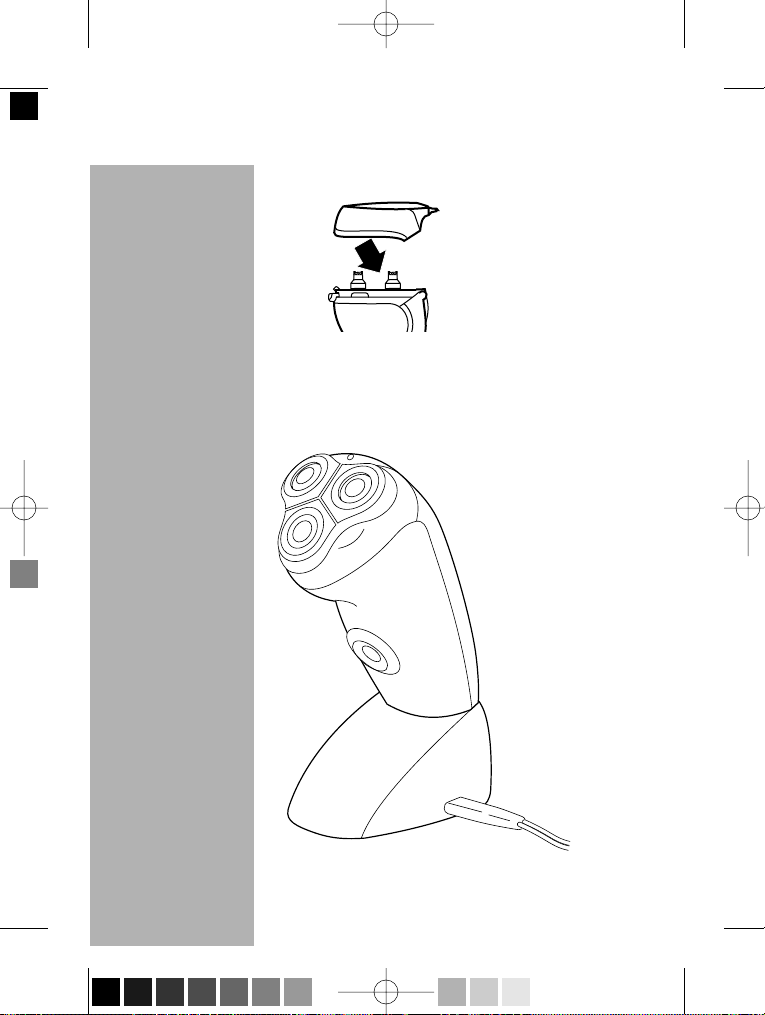

2 Place the razor in the charging stand. The
green charging indicator light will go on.
3 First time charging and recharging after
non-use for 1 month or more requires a
full 4 hours.
Recharging
◗ First time charging requires 4 hours.
◗ After initial charge, recharging normally takes
1 hour.
◗ When batteries have been fully charged, green
indicator light will start to blink. A fully charged
razor has cordless shaving time of up to
approx. 40 minutes. Return razor to charging
stand after shaving.
◗ Red recharging indicator light will blink when
batteries are almost empty.
Inserting the First Cartridge
C
1 Take one lotion or gel cartridge.Take the
connector supplied and remove it from
the little bag. Push it into the plastic cap of
cartridge until it locks into position with a
click.
C
2 Push the release button on the back of
razor downwards and open the cover of
the cartridge compartment.
ENGLISH 11
6756X B_W new DFU 9/12/03 5:25 PM Page 11 (Black plate)
C
3 Slide the cartridge with the connector in
place into the razor. It only fits properly if
the white side of the connector is pointing
upwards. Close the cover.
4 Press the applicator button a few times
until the Nivea for Men shaving lotion or
gel appears in the small hole located on
razor head assembly.The razor is now
ready for use.
Replacing Cartridges
1 Open back cover of razor.
2 Remove empty cartridge, pull out and save
the connector. DO NOT discard the
connector.
3 Rinse out cartridge compartment with
water before replacing cartridge.Air dry
thoroughly.
4 Insert connector into the plastic cap of
new cartridge until it clicks into position.
5 Follow steps 2-4 for “Inserting the First
Cartridge.”
Use only Norelco Advantage Nivea for
Men shaving lotion (HQ160) or gel
(HQ161) cartridges with this razor.
Do not throw the connector away when you
replace an empty cartridge.You will need to use
the same connector for the other cartridges.
ENGLISH12
6756X B_W new DFU 9/12/03 5:25 PM Page 12 (Black plate)
ENGLISH 13
The Nivea for Men shaving lotion or gel
cartridges should be stored at a temperature
between 32ºF and 104ºF.
Put It To The Test & Shaving Tips
◗ 21-Day Trial and Conversion Process. It is a
fact that your skin and beard need time to
adjust to any new shaving system.
◗ Use your new razor exclusively for 3 weeks
to fully enjoy the closeness of a Norelco
shave.
◗ At first you may not get as close a shave as
you expect, or your face may even become
slightly irritated.This is normal since your
beard and skin will need time to adjust. Invest
3 weeks and you’ll soon experience the full
joy of your new razor.
◗ Stick with it! If you alternate shaving methods
during the adjustment period, it may make it
more difficult to adapt to the Norelco shaving
system.
◗ If you are still not convinced after 21 days,
Norelco will refund you the full purchase
price, guaranteed.
How To Shave With An Electric Razor
◗ Use this razor for its intended household use
as described in this manual.
1 Remove Protective Razor Head Cap.Turn
razor ON.
6756X B_W new DFU 9/12/03 5:25 PM Page 13 (Black plate)
ENGLISH
C
2 Hold the razor against the skin and press
the pump button located on the back of
razor head to dispense shaving lotion or
gel. Once a sufficient amount of lotion or
gel has pumped out, move the razor heads
quickly over the skin.
3 Shave against the direction of beard
growth using quick and both straight and
circular motions.
4 You may use this shaving system on either
wet or dry skin.The shaving lotion or gel
provides immediate hydrating action and
lessens drag or pull against skin.
5 Easy does it. Gently press the razor to
your skin so the floating heads can follow
the contours of your face.DO NOT press
too hard.Too much pressure can pinch the
skin into the combs.
6 Turn razor OFF when finished shaving.
7 After shaving,you may rinse and dry your
skin. Flip open Razor Head Assembly and
clean heads and hair chamber by running
under hot water. Replace Advantage razor
heads (model HQ167) once a year for
optimal shaving results.
8 You may leave the cartridge in place in
your razor if you plan on using razor
regularly.When you will not be using your
14
6756X B_W new DFU 9/12/03 5:25 PM Page 14 (Black plate)
Loading...
