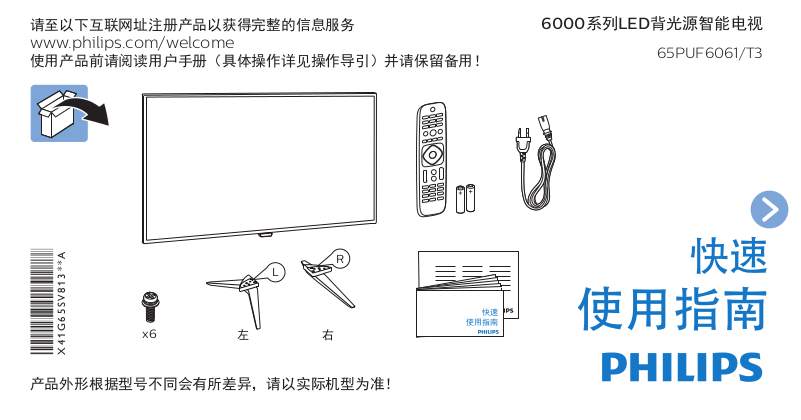

Page 1
请至以下互联网址注册产品以获得完整的信息服务
www.philips.com/welcome
使用产品前请阅读用户手册（具体操作详见操作导引）并请保留备用！
6000系列LED背光源智能电视
65PUF6061/T3
L
x6
X41G65SV813**A
产品外形根据型号不同会有所差异，请以实际机型为准！
左 右
R
使用指南
快速
使用指南
Page 2

您的产品包装箱内物品摆放位置

以上图示仅供参考，具体请以实际为准！
遥控器放置在保丽龙 的上部，如图示。
底座放置在保丽龙的 上部，如图示。
附件包
底座放置在保丽龙的 上部，如图示。
附件包放置在机台的背部，如图示。 *附件包内包含快速使用指南，保修 卡，底座螺丝，电源线，电池。
2
Page 3
目录
您的产品包装箱内物品摆放位置 2 重要信息 4 安装底座 7 连接 10 电池安装方式 13 打开电视 14 操作导引 14 电子电气产品有害物质限制使用标识要求 15
3
Page 4

重要信息

安全 环境温度：5到45摄氏度 小心触电或发生火灾！
•• 切勿让电视机与雨或水接触。切勿将液体容 器（例如花瓶）放置在电视机旁边或上面。 如果将液体洒到了电视机表面或内部，请 立即断开电视机的电源。请与Philips•客户 服务中心联系，对电视机进行检查后再行使 用。
•• 切勿将电视机、遥控器或电池放在明火或其 它热源（包括直射的阳光）附近。为避免火 焰蔓延，请始终使蜡烛或其它明火远离电视 机、遥控器和电池。
4
•• 切勿向电视机上的通风槽或其它开口中插入 任何物体。
•• 旋转电视机时，请确保电源线不会绷紧。电 源线绷紧会使电源连接变松，进而产生火 花。
小心短路或起火！
•• 切勿将遥控器或电池暴露在雨中、水中或过 热的环境中。
•• 请避免电源插头产生拉力。松动的电源插头 可能产生火花或者导致起火。
Page 5
小心人身伤害或电视机损坏！
小心伤害儿童！
•• 需由两个人搬运重量超过25千克的电视机。
•• 将电视机安装在机座上时，请仅使用提供的 机座。将机座牢固地固定到电视机上。将电 视机放在水平、平坦且可承受电视机和机座 总重量的表面上。
•• 采用壁挂方式安装电视时，请仅使用可 承受电视机重量的壁挂安装托架。将壁 挂安装托架固定到可承受电视机和壁挂 安装托架总重量的墙壁上。TPV Display Technology(Xiamen)Co.,Ltd.对由于安装 不当而造成的事故、人身伤害或损失不负任 何责任。
请遵循以下注意事项，以避免因电视机掉落而 导致儿童受伤：
•• 切勿将电视机放在由可拉动的布或其它材料 覆盖的表面上。
•• 确保电视机的任何部分均位于表面边缘以 内。
•• 将电视机放在较高的家具（如书柜）上时， 一定要将家具和电视机都固定到墙壁或适当 的支撑物上。
•• 告知儿童爬上家具触摸电视机可能带来的危 险。
小心误食电池！
•• 此产品的遥控器含有电池，有可能被孩童误 食，请将电池放于孩童无法接触的位置。
5
Page 6
小心过热！
1
4
右
左
2
1
右
左
3
*取出电视机。
*请将电视机底部边缘靠近台面边缘 , 将下巴放置于台面外。
*确保平整台面上无杂物后铺上软布。
*将底座按照图示对齐放置(注意区分左右支撑) , R、L在底座上有标识。
65” 23.4kg
R
左
右
L
•• 切勿将电视机安装在封闭空间内。•始终在 电视机周围留出至少4英寸或10厘米的空间 以便通风。确保窗帘或其它物体不会遮挡电 视机上的通风槽。
小心损坏电视机！
•• 在将电视机连接到电源插座上之前，请确保 电源电压与电视机背面印刷的值相匹配。如 果电压不同，切勿将电视机连接到电源插座 上。
•• 电视长期不使用的情况下，请切断电源。
小心人身伤害、起火或电源线损坏！
•• 切勿将电视机或任何物体放在电源线上。
•• 电源插头作为断开装置，应当保持能方便地 操作。
•• 断开电源线时，应始终握住插头，而不能拉 电缆。
•• 雷雨天气来临之前，请断开电视机与电源插 座及天线的连接。•在雷雨天气里，切勿触 摸电视机、电源线或天线的任何部分。
•• 接入本设备的有线网络天线必须与保护接地 隔离，否则可能会引起着火等危险！
小心听力损害！
•• 避免在高音量下或长时间使用耳机或听筒。
6
Page 7
1

安装底座

1
65” 23.4kg
2
3
*取出电视机。
右
*请将电视机底部边缘靠近台面边缘 , 将下巴放置于台面外。
左
4
右
*确保平整台面上无杂物后铺上软布。
R
右
*将底座按照图示对齐放置(注意区分左右支撑) , R、L在底座上有标识。
左
L
左
7
Page 8
5
6
x6
左
L
R
*按照图示将螺丝锁紧。 *将电视扶起放好。
8
右
Page 9
VESA (x,y) 65” 400x400 M6
(壁挂配件需另外购买)
建议螺丝有效螺牙长度16-18MM (不含垫片)
x
y
9
Page 10
10
2
连接
POWER
天线/
有线电视
电缆
Page 11
REC
HDMI
IN
OUT
HDMI 1
®
天线/
有线电视
HDMI 2
或
INTERNET
网口
HDMI 1
®
HDMI 2
视频输入 & 音频输入
CVBS L/R
HDMI 2
HDMI 1
®
11
Page 12
USB
同轴
同轴输出
12
Page 13
2
3

电池安装方式

1
43
13
Page 14
4

打开电视 操作导引

5
按下电视背面多功能方向键的中间
请按照提示，进行电视设置。
键，打开电视机。
按“帮助”键
更多操作信息请参考•PHILIPS support 网站。
马上扫码，报装报修， 一步搞定，简单三步， 加入飞利浦电视俱乐部，享额外延保专属权益！
扫码关注
热线电话：4008 800 008
www.philips.com.cn
14
飞你不可
注册会员
Page 15
6

电子电气产品有害物质限制使用标识要求

本产品有害物质名称及含量
有害物质
零部件名称
塑料外框 ○ ○ ○ ○ ○ ○ 后壳 ○ ○ ○ ○ ○ ○
LCD面板 电路板组件* × ○ ○ ○ ○ ○
底座 ○ ○ ○ ○ ○ ○ 电源线 × ○ ○ ○ ○ ○ 其他线材 × ○ ○ ○ ○ ○ 遥控器 × ○ ○ ○ ○ ○ *：电路板组件包括印刷电路板及其构成的零部件，如电阻、电容、集成电路、连接器等。 本表格根据•SJ/T 11364•的规定编制
○：表示该有害物质在该部件所有均质材料中的含量均在•GB/T 26572规定的限量要求以下。 ×：表示该有害物质至少在该部件的某一均质材料中的含量超出•GB/T 26572规定的限量要求。 备注：以上打“×”的部件，应功能需要，部分有害物质含量超过GB/T 26572规定的限量要求，但符合欧盟RoHS•法规
要求（属于豁免部分）。
CCFL LED
铅(Pb) 汞(Hg) 镉(Cd) 六价铬•
(Cr(VI))
× × ○ ○ ○ ○ × ○ ○ ○ ○ ○
多溴联苯•
(PBB)
多溴二苯醚•
(PBDE)
15
Page 16
该电子电气产品含有某些有害物质，在环保使用期限内可以放心使用，超过环保使用期限之后则应该进 入回收循环系统。
《废弃电器电子产品回收处理管理条例》提示性说明
为了更好地关爱及保护地球，当用户不再需要此产品或产品寿命终止时，请遵守国家废弃电器电子产品 回收处理相关法律法规，将其交给当地具有国家认可的回收处理资质的厂商进行回收处理。
16
Page 17
所有注册和未注册的商标是其各自所有者的财产。规格如有变更，恕不另行通知。 Philips 和 Philips 盾牌图形是皇家飞利浦有限公司的注册商标，其使用需遵循皇家飞利浦有限公司的许可。
出版日期：2017年2月
Page 18
以 65PUF6652/T3 机种为例： 工厂模式调整：选项+1999+回看
项目名称 功能说明 备注
Brand 机种品牌 不可调整 Model 机器型号 不可调整 HW Ver 硬体板号 不可调整 SW Ver 软体版本 不可调整 Scaler 主芯片型号 不可调整 Tuner 高频头型号 不可调整 Panel 液晶屏型号 不可调整 ADC Adjust ADC调整 免调 WB Adjust 白平衡调整 不建议调整 SSC Adjust 展频调整 不建议调整 EQ Adjust 不建议调整 Burn In 拷机模式 On/Off Start adbd Reset 复位 Reset ALL 重置所有 Exit 退出工厂模式
Page 19

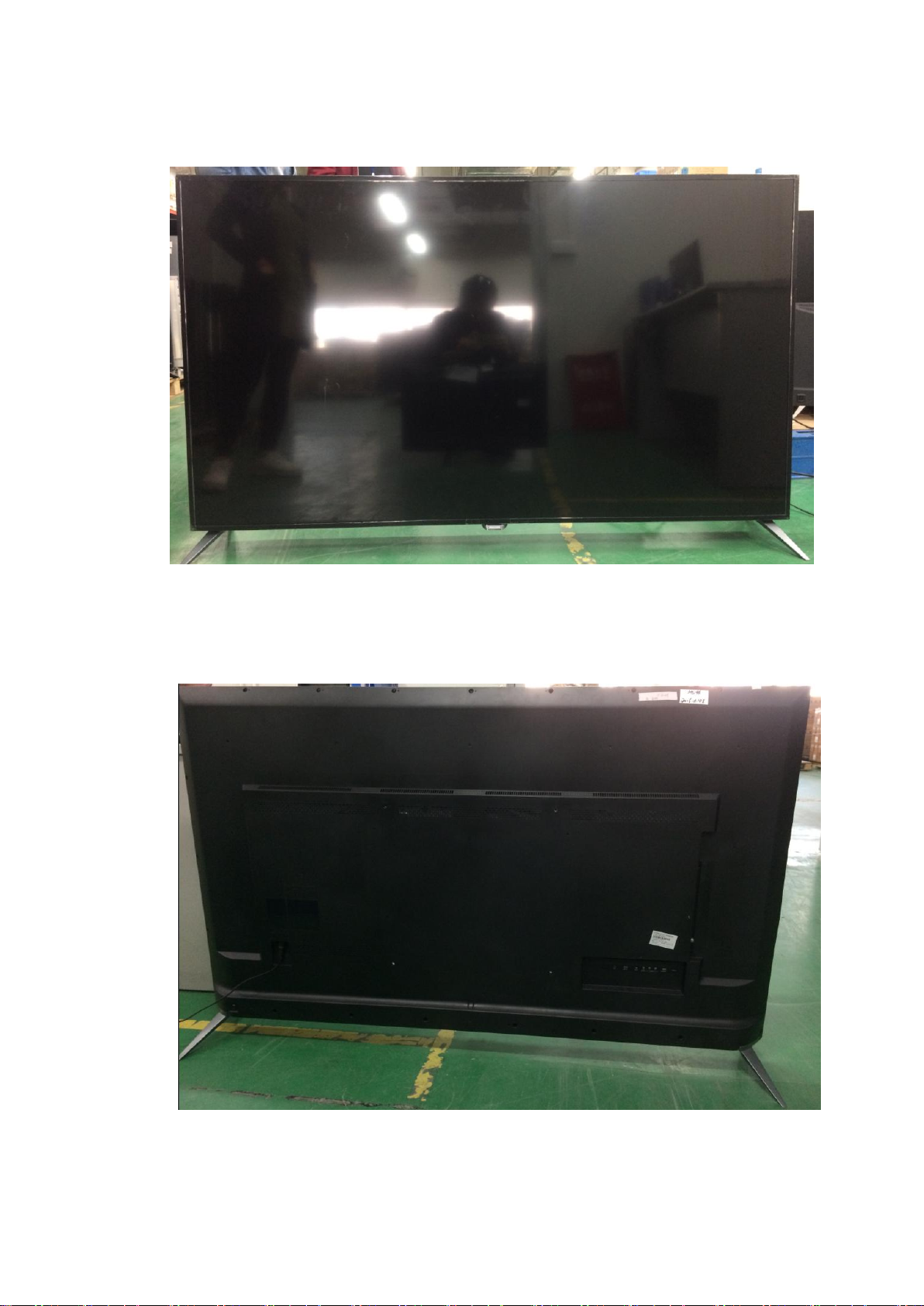

1. 正视图
2. 后视图
Page 20

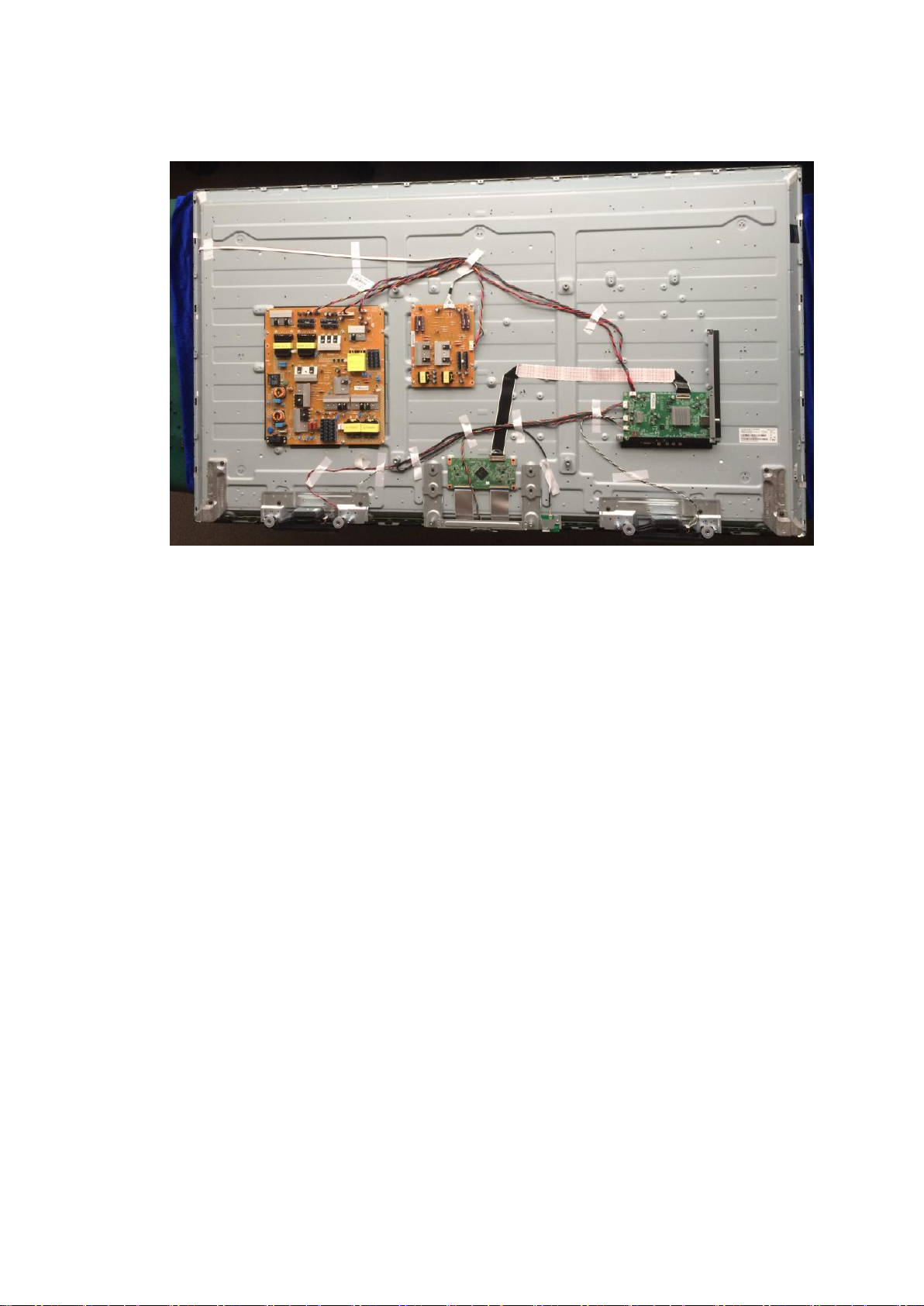

3. 内部结构图
Page 21

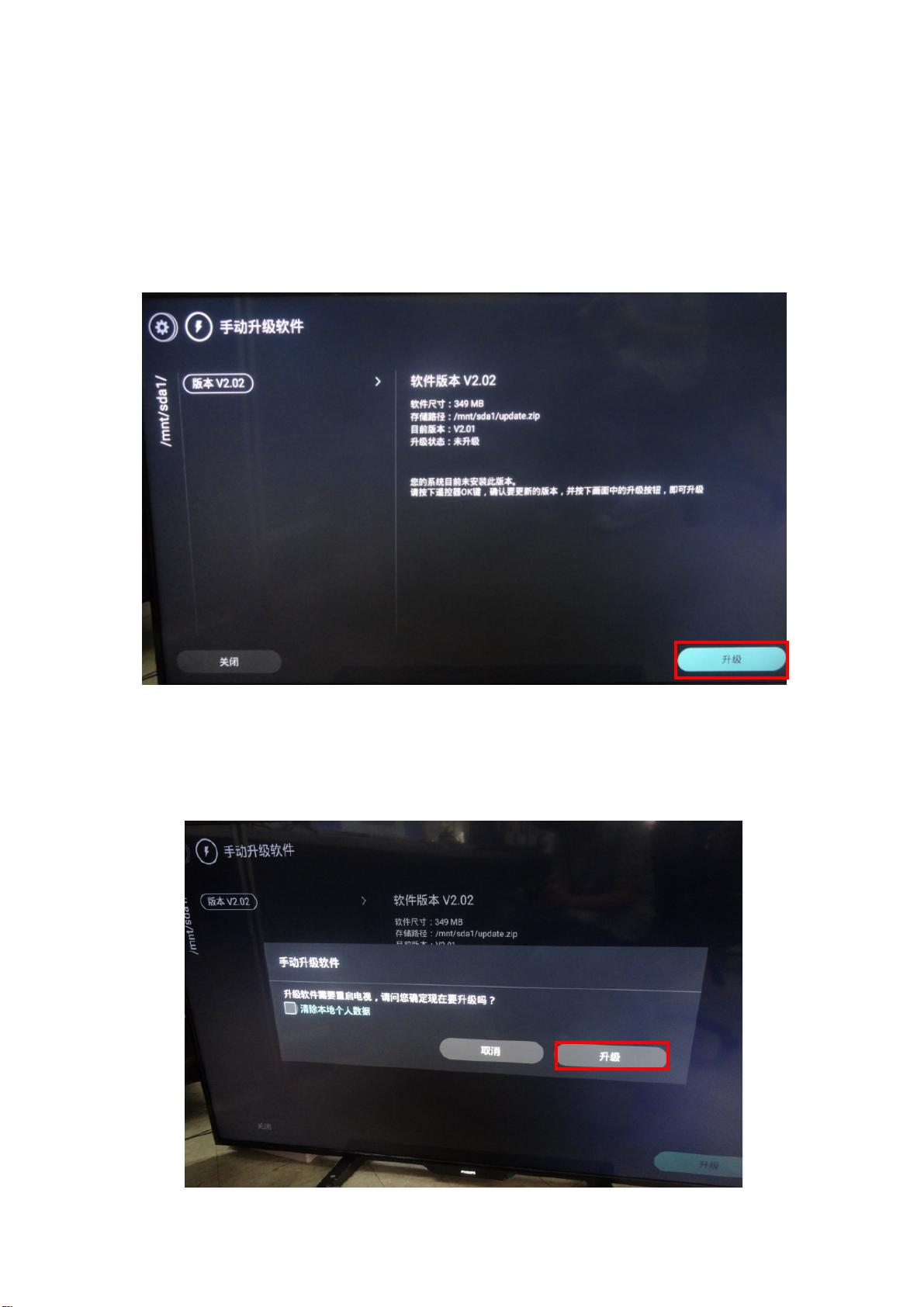

一、USB 本地软体升级方式：
1、将软体(名称：update.zip)copy 到 USB 根目录 2、TV 正常开机后将 USB 接入 3、使用遥控器：设置‐>电视设置‐>关于电视‐>系统信息‐>手
动软体升级，出现如下界面 ：
4、选择”升级”确认升级，出现如下提示：“清除本地个人数
据”可勾选可不勾选。
Page 22
5、点击“升级”后电视会自动重启，重启后电视界面如下， 升级结束后自动进入电视播放界面。
6、按设置‐>电视设置‐>关于电视‐>当前版本信息； 确认软体版本。
注：TV 升级过程中，请勿断电和插拔 U 盘。
Page 23
二、USB 上电软体升级方式：
1.1将获取的软体拷贝至 U 盘根目录（注意：名称必须是
usb_update.bin）；
1.3将 U 盘插在 TV 后面 USB3.0 的接口上（蓝色标志），TV
上电；

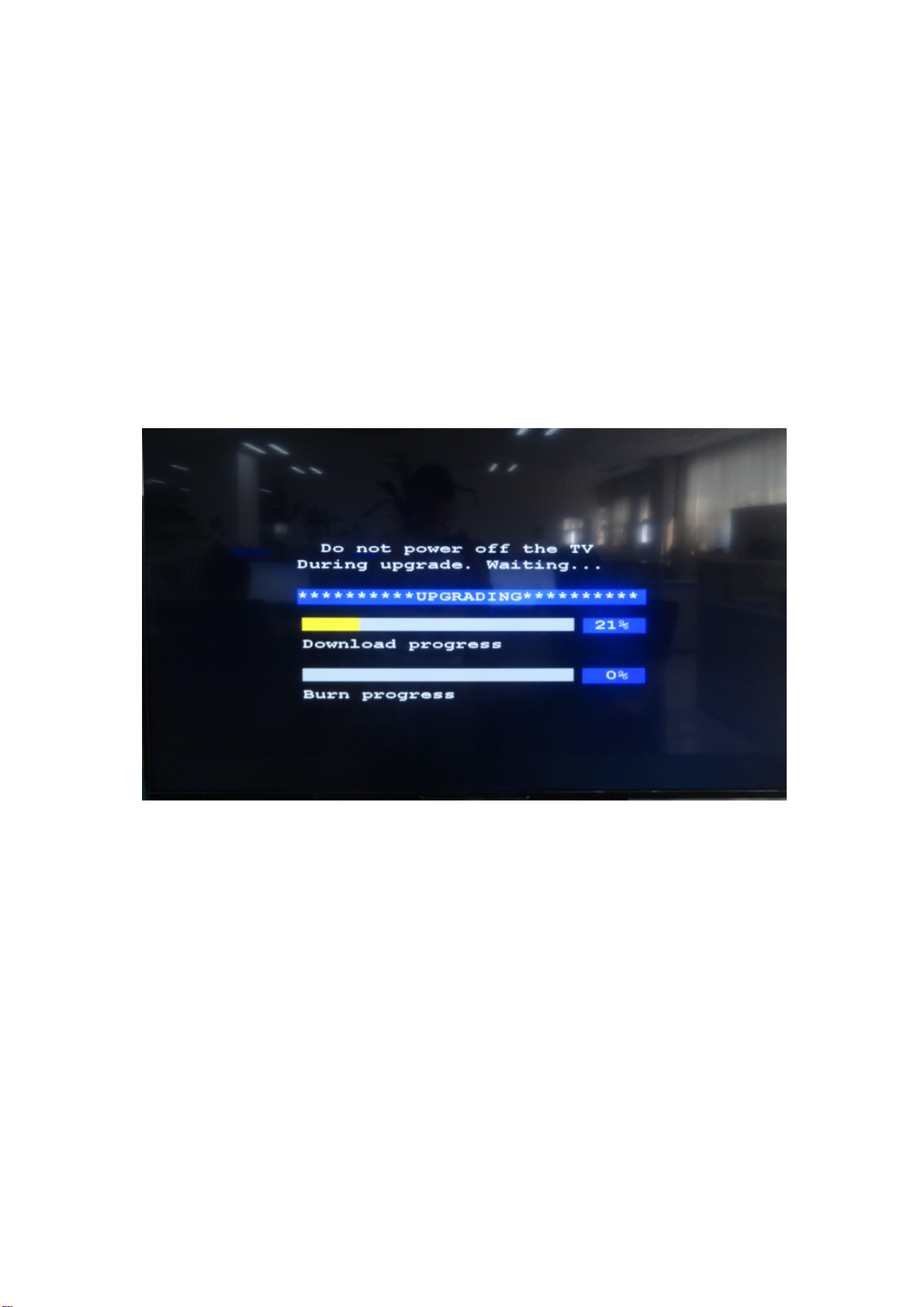

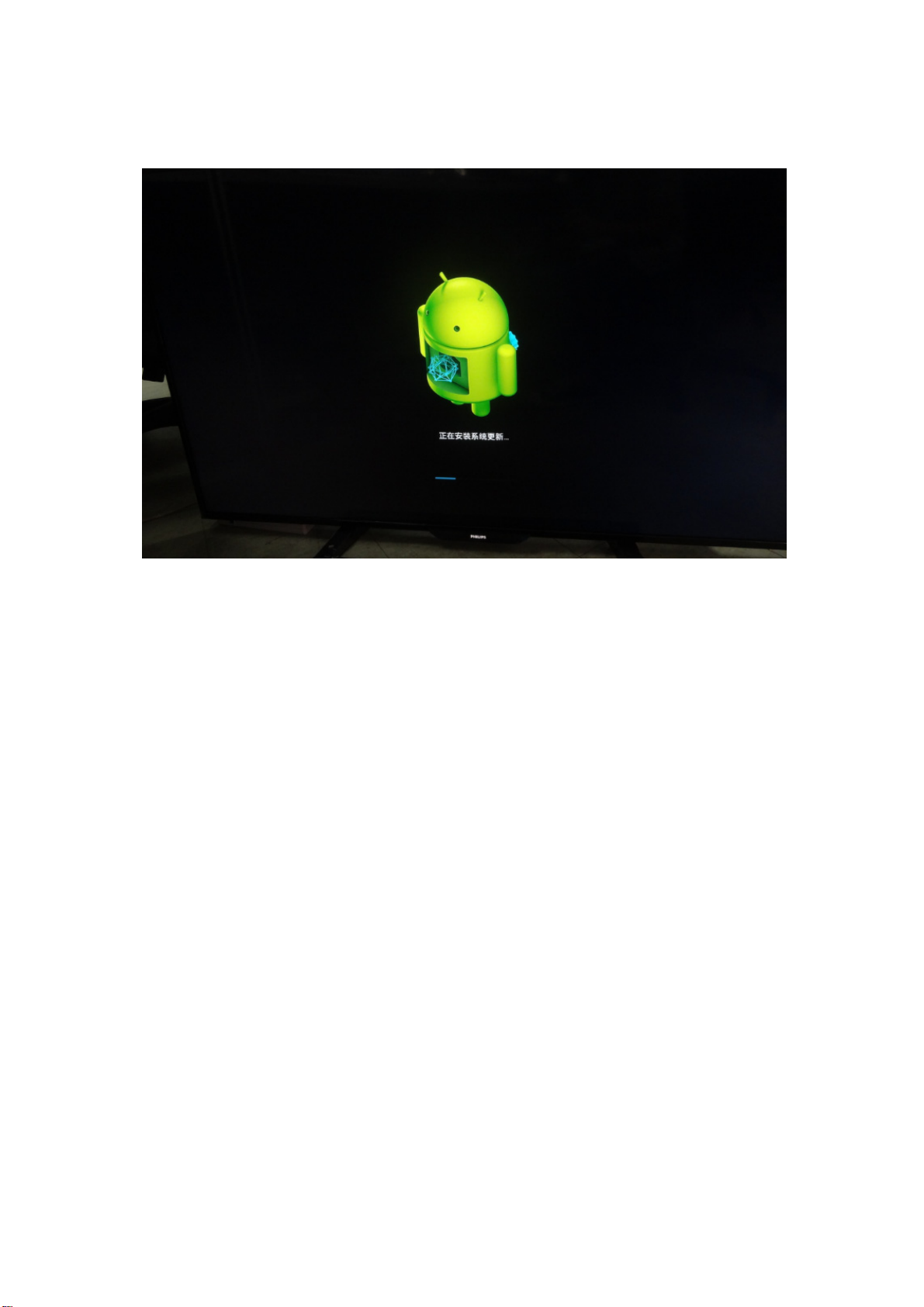

1.4TV 进入升级，出现如下提示；
1.5TV 软体升级后，TV 自动重启。
注：TV 升级过程中，请勿断电和插拔 U 盘。
Page 24
二、HiTool 升级方式：

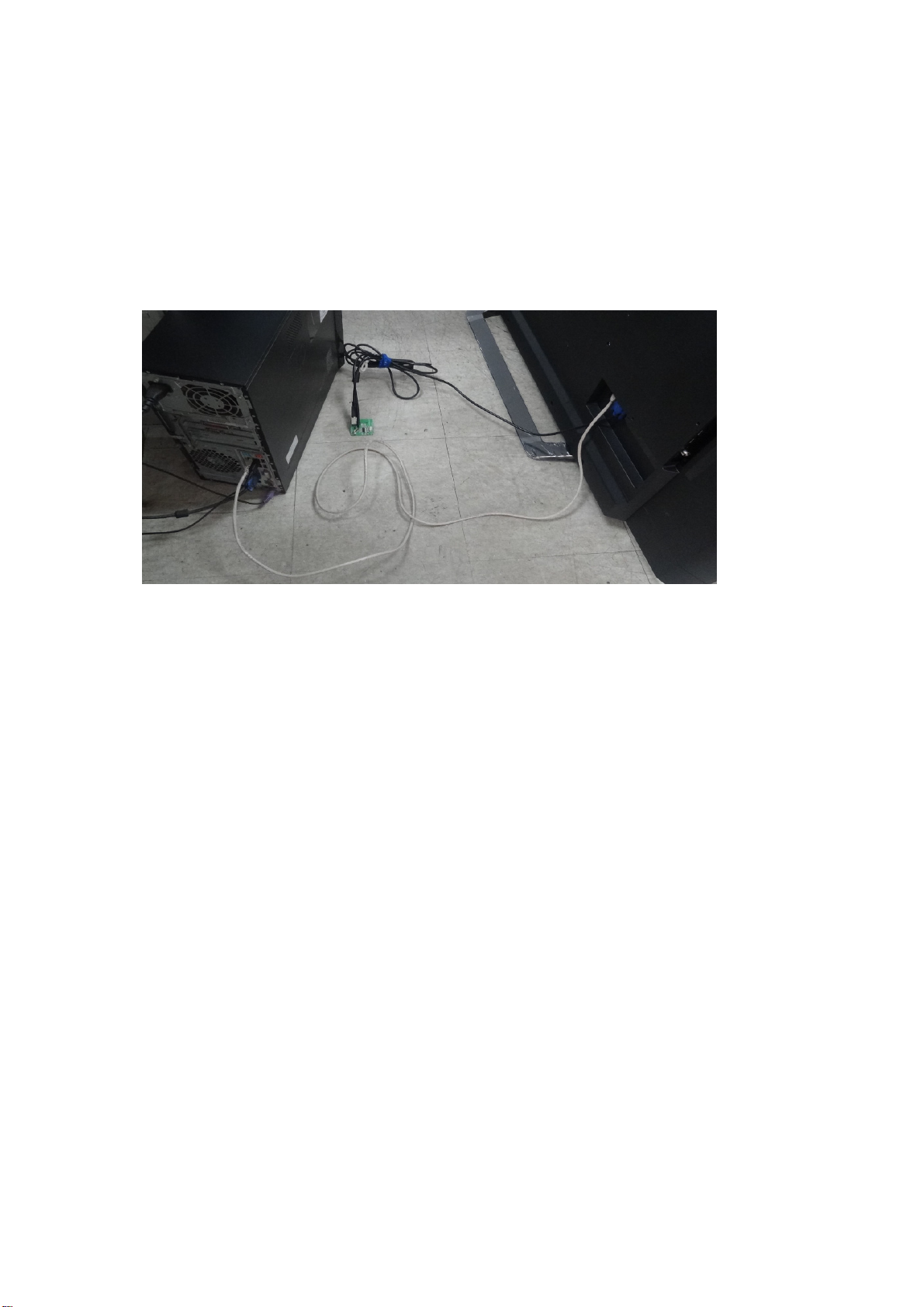

1.1连接好单板的网口线、串口线及电源线。
1.1.1网口线：网口线的一端连接电脑主机网口，另一端
连接TV的网口，如下图1所示
图1网口线连接图
1.1.2网口线连接完后手动更改服务器IP地址。
Window7电脑：
a、打开本地连接的属性，手动更改服务器IP地址。如下图2
所示
Page 25
2
1
4
3

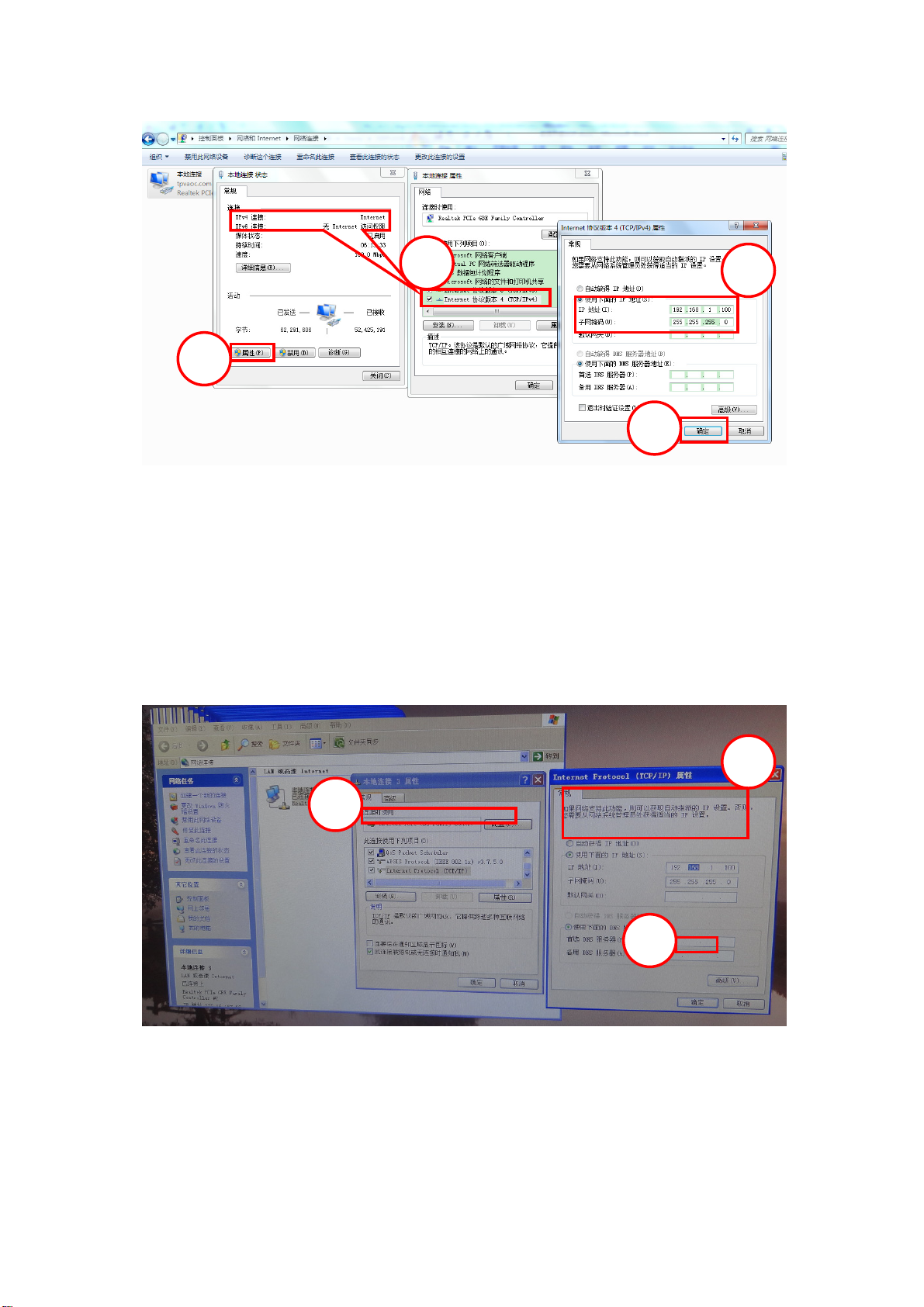

图2window7服务器IP设置
WindowXP电脑：
b.打开本地连接的属性，手动更改服务器IP地址。如下图3
所示：
2
1
3
图3windowXP服务器IP设置
1.1.3串口线连接图。VGA端连接TV的VGA端口，USB端连接
主机的USB端口。如下图5所示：
Page 26


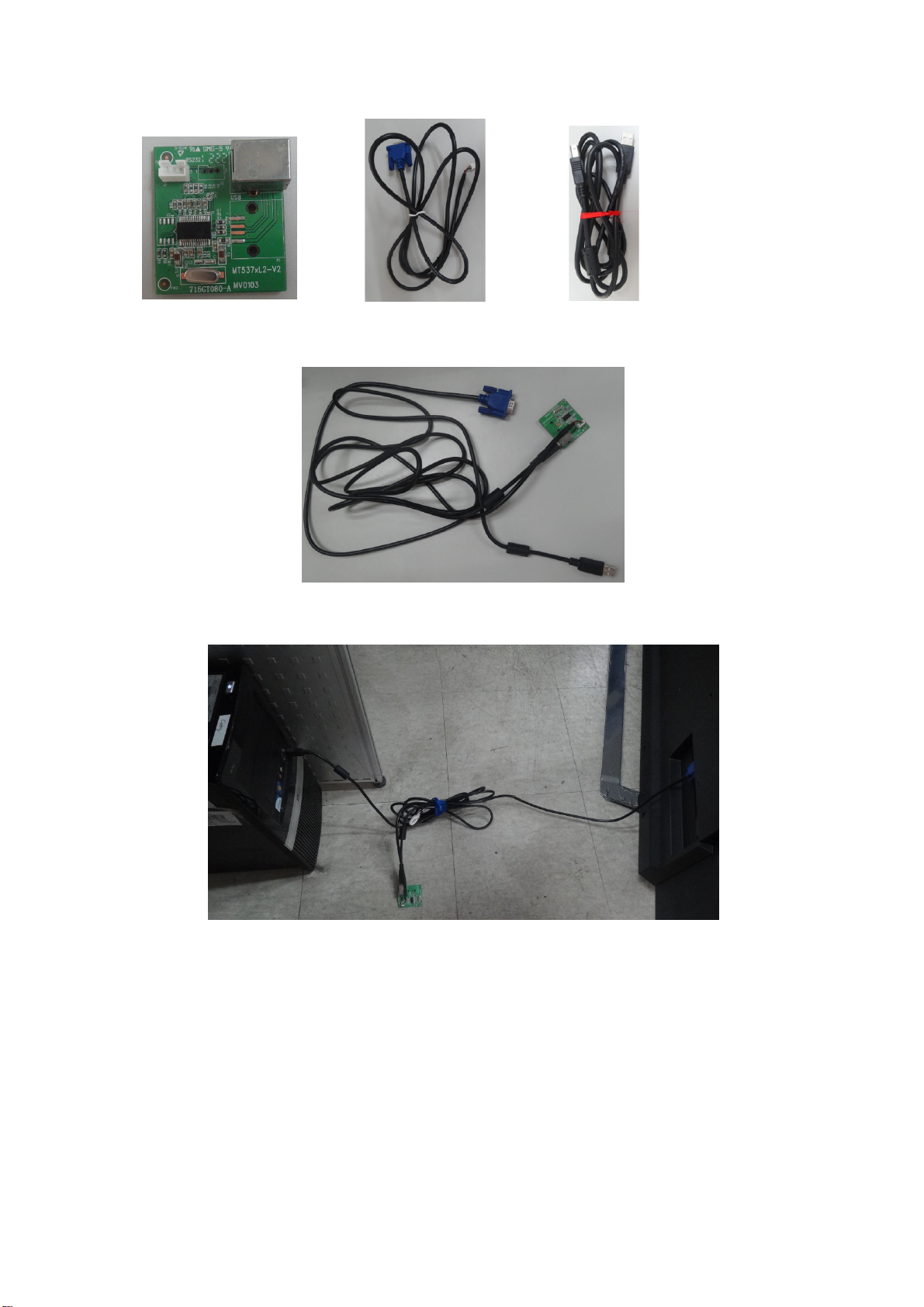

a.715GT080‐A小板b.VGA线c.USB数据线
图4715GT080‐A串口转接小板连接图
图5串口线连接图

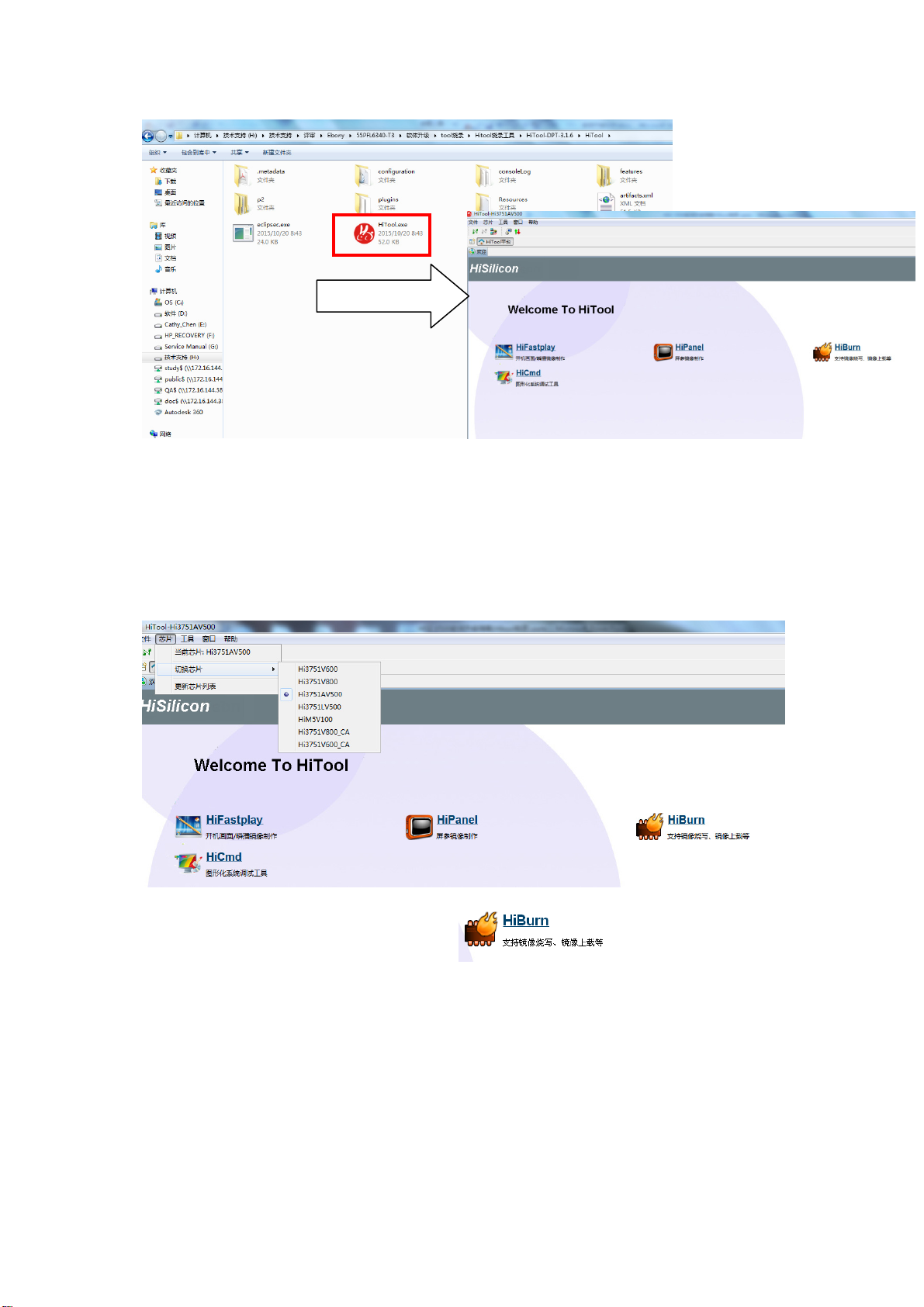

1.2连接号网口线和串口线后，打开烧写工具HiTool,如下图
红框所示：
Page 27
打开 HiTool
1.3 首次打开时根据提示设置芯片；之后如需变更，选择：
芯片→切换芯片→选择所需芯片型号，如：Hi3751AV500 ，
如下图所示：
1.4 选择首页中的HiBurn图标 打开如下界面：
窗口中显示的参数均为默认值 。
Page 28
1.5参数设置：
1.5.1PC与板端配置

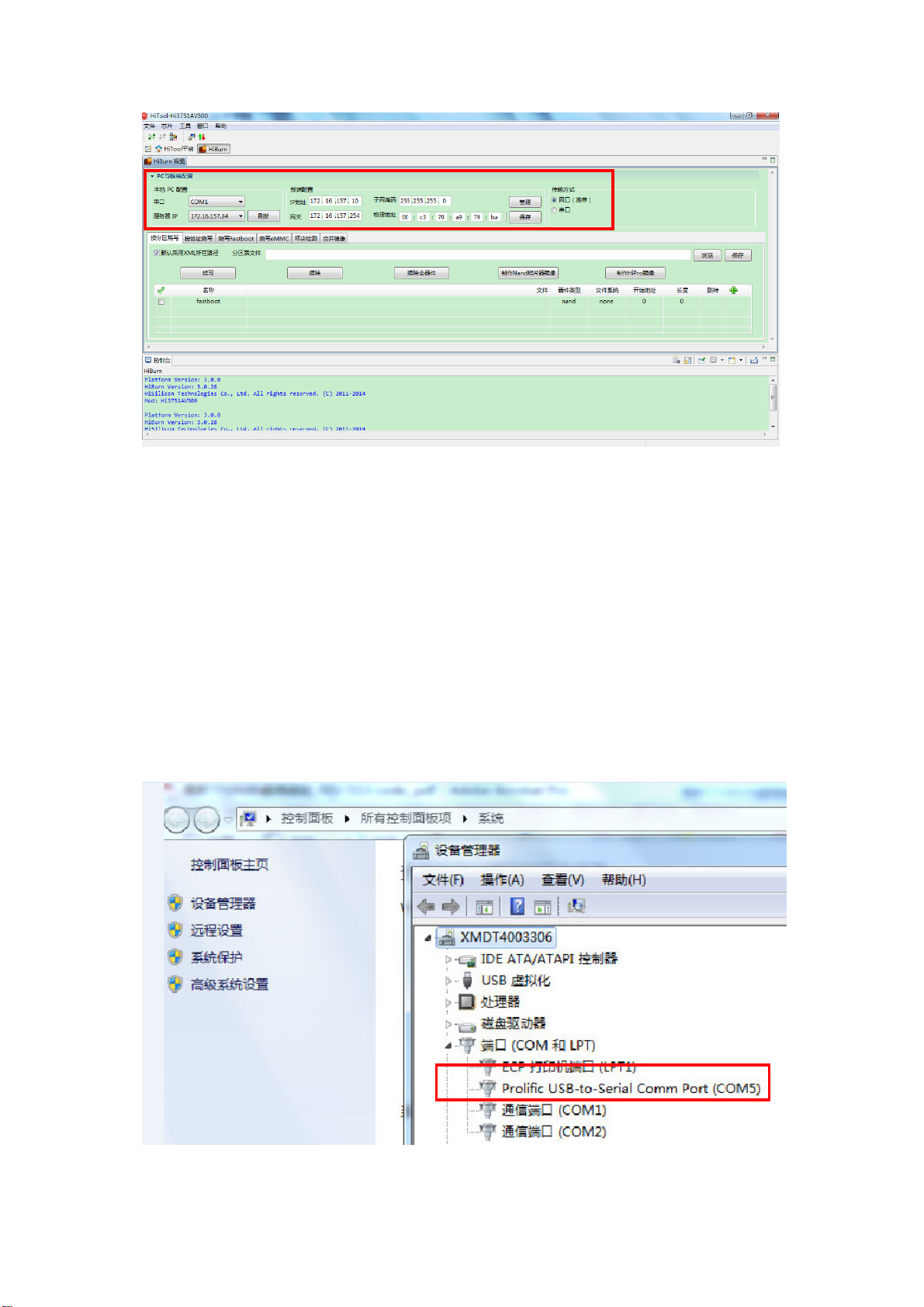

注意：本地PC设置：先刷新，选择已连接的串口（到服
务器的设备管理器看，比如连接上串口tool后显
示COM5，如下图6所示）、服务IP(如上图2、图3
所示)；
图6 串口
Page 29
板端配置：IP地址需要更改下(如：169.254.242.0
改成169.254.242.10，即最后一码需非0)，使用默认
的易发生烧写失败情况
1.5.2 传输方式选“网口”。

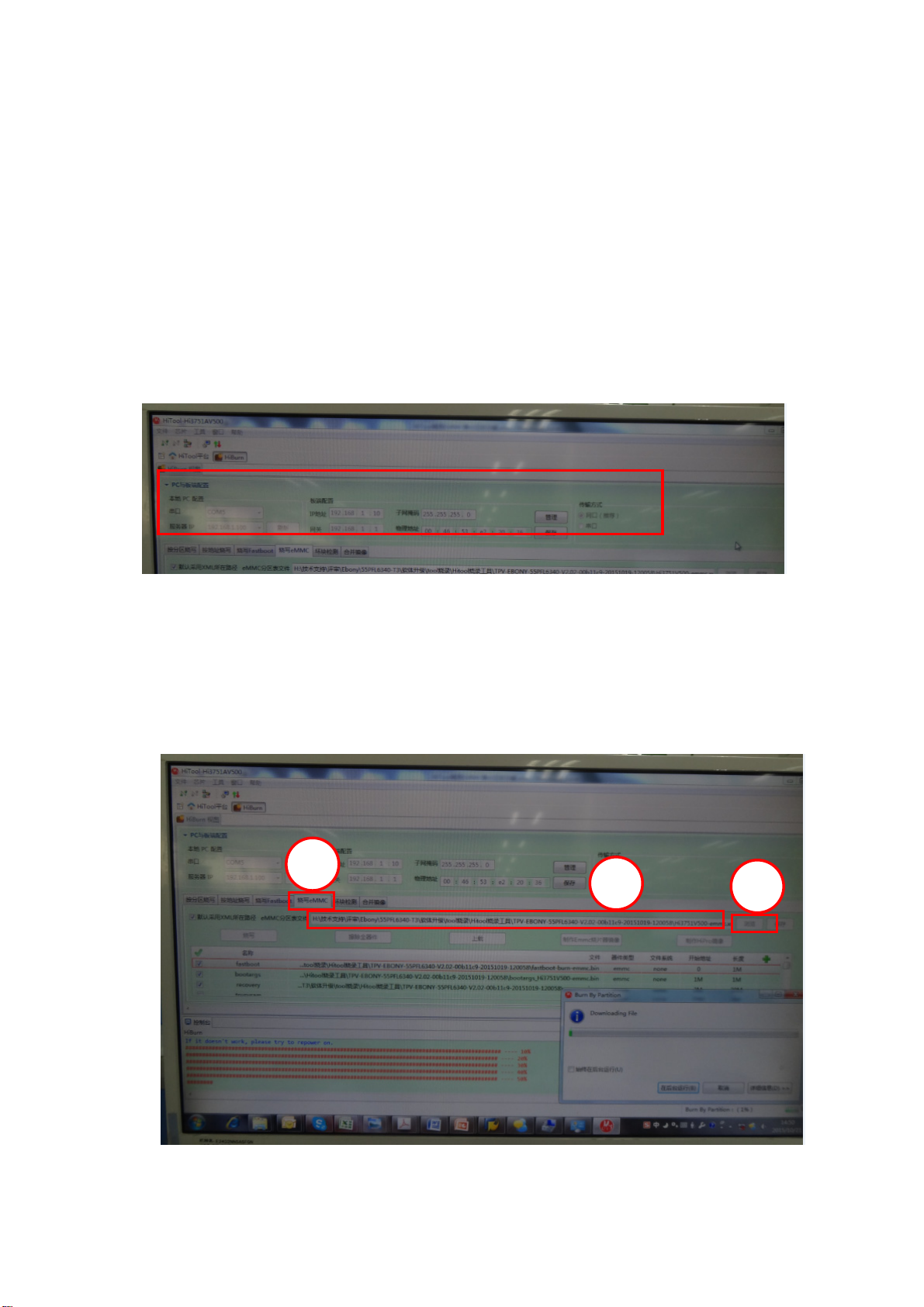

参数设置完后，如下图7所示：
图7参数设置
1.6参数设置完后，选择“烧写eMMC”选项，点击“浏览”，
在资源路径下选择Hi3751AV500‐emmc.xml
1
3
2
Page 30
1.7 点击“烧写”，然后TV重新上电，开始烧写。
若提醒烧写失败，请检查串口、IP设置是否正确，再次烧写 。
1.8等待24分钟左右，提醒如下，表示烧写成功。
1.9烧写成功后，TV自动重启。按设置‐>电视设置‐>关于电视
‐>当前版本信息；确认软体版本。
注：TV 升级过程中，请勿断电和拔插网线、串口线。
Page 31
版本 发布日期 变更说明 对外机种名
A00
3/11/2017
首次发布
65PUF6061/T3
A01
12/9/2017
新增
65PUF6061/T3
A02
12/9/2017
新增
65PUF6061/T3
A03
12/20/2017
新增
65PUF6061/T3
Page 32
对内机种名 Scalar
E65G27NDBQPHNNX
E65G27NDBQP1NNX
E65G17NDBQPANNX
E65H17NDBQP5NNX
Page 33
屏 主板板号
TPT650U2-RU1A0.Q S9A XM TPV
715G7924M02B00004Y
TPT650UA-DJ4QS5.N ST2A XM TPV
715G7924M0GB01004Y
TPT650U2-RU1A0.Q S9A XM TPV
715G7924M03B00004Y
TPT650U2-RU1A0.Q S9B XM TPV
715G7924M03B00004Y
Page 34
电源板板号 升压板板号 按键板板号
715G6887P01006002M
715G7700P01000002M
715G7088K01000004K
715G6887P01006002M
715G7700P01000002M
715G7088K01000004K
715G6887P01006002M
715G7700P01000002M
715G7088K01000004K
715G7312P02001002S
715G7088K01000004K
Page 35
遥控板板号
715G7074R03000004Y
715G7074R03000004Y
715G7074R03000004Y
715G7074R03000004Y
Page 36
项⽬
编号
395GH20002WT009000
395GH20014WT045000
398GR08BCPHN0001CH
398GR08BCPHN0001CR
708GXA538130WPX1CH
LVM650J4QS5AE52X0X
P34E24760GM03G0300
0010 1 X36G060006211000HK NON-WOVEN FABRIC 0010 1 X52G1801 TVX32 BGP INSULATING SHEET 0011 1 036T 600 18119 GP NON-WOVEN FABRIC 0011 1 041G 68508 A control card 0011 1 0M1G 130 6 47 CR3 SCREW M3 6 0011 1 0M1G 940 6125 SCREW M4 6 0011 1 0M1G1030 5120 Screw 0011 1 0M1G1030 5120 Screw 0011 1 0M1G1030 6 47 CR3 SCREW M3 6 0011 1 0M1G1030 6 47 CR3 SCREW M3 6 0011 1 0M1G1030 8120 SCREW M3 8 0011 1 0M1G1740 10225 CR3 SCREW M4 10 0011 1 0Q1G 930 6 47 CR3 SCREW 0011 1 0Q1G 930 6 47 CR3 SCREW 0011 1 317G01 317GAAWF634XUG WIFI USB IEEE 802.11 b/g/n SDWF-2F/GJ 0011 1 SP01 378G0120451YAE SPEAKER 8 OHM 12W 190*45*44.9MM NA UNIT 0011 1 ECN408 395G179W51HC68 V-by-One FFC 51 660 0.5MM 0011 1 ECN408 395G179X51HC68 V-by-One FFC 51 680 0.5MM 0011 1 ECN602 395G801404WY91 HARNESS 4P-B&R+B&W 900/500 0011 1 ECN01 395GH20002LT009000 HARNESS 2P pitch2.0-2P pitch1.25 500mm 0011 1 ECN01 0011 1 ECN102 395GH20008DT052000 HARNESS 5P pitch1.25-8P pitch2.0 400 0011 1 ECN102 395GH20008YT052000 HARNESS 5P pitch1.25-8P pitch2.0 400 0011 1 ECN700 395GH20012AT031000 HARNESS 12P P2.0-16P p2.0+14P p2.5 850/8 0011 1 ECN401 395GH20014AT032000 HARNESS 14P pitch2.0-13P pitch1.25+2P p 0011 1 ECN401 395GH20014DT032000 HARNESS 14P pitch2.0-13P pitch1.25+2P p 0011 1 ECN9201 0011 1 ECN9201 395GH20014XT045000 HARNESS 14P pitch2.0-10P pitch2.0 600 0011 1 RC01 0011 1 RC01 0011 1 0011 1 E750 750TBV650DS1A8N000 LCD TPT650UA-DJ4QS5.N ST1A XM TPV 0011 1 756TXGCB0ID002000X MCU ASSY 0011 1 A15T1166201 BKT_POWER_TOP 0011 1 ADTVG3235XA1 ADAPTER BOARD 715G6887 0011 1 CBPRG9DDXE CONVERSION NA 0011 1 IRPFGXB7 IR BOARD 0011 1 KEPFEAA9 KEY BOARD 0011 1 LNTVGI472XXE9 CONVERTER BOARD -­0011 1 E750 0011 1 P33E0738XJL01T0100 KEY_FUNCTION 0011 1 P33E0851XCS01L01BA DECO_REAR_COVER 0011 1 0011 1 P40GD000813 9A A4 PALLET LABEL -for A4 paper 0011 1 Q02G707105000100XL BOLT 0011 1 Q11G701006000L00ZL PCB-SUPPORT 0011 1 Q11G701015000L00JY PCB-SUPPORT D3.5xH15 0011 1 Q12G6300 26 3 RUBBER PAD 0011 1 Q16G0001 10 2 EVA WASHER 0011 1 Q36G060006204800JY NON-WOVEN FABRIC
级别 点位 组件 对象描述
HARNESS 2P pitch2.0-2P pitch1.25 500mm
HARNESS 14P pitch2.0-10P pitch2.0 600
REMOTE PHILIPS RL134B chinese REMOTE PHILIPS RC44N chinese PHILIPS 40(126 CH)
PANEL TPT650UA-DJ4QS5.N ST1A XM TPV
REAR_COVER TV65W-15ph04-ph07-ph09
Page 37
0011 1 Q36T 600 37 19 GP NONWOVEN FABRIC
Q52G15010TV0070WXW
Q52G1501150523AWBK
X15T9957N01000GMYF
ARTWORK CARTON 65PUF6721/T3 CHINA BOTTOM
ARTWORK CARTON 65PUF6721-T3 CHINA OUT BO
X44GXA5781301A0TH1
ARTWORK CARTON 65PUF6721-T3 CHINA OUT BO
X45G990110700000WN
708GXA538130WPX1CH
0011 1 Q36T 600 49 2 HIMERON 0011 1 Q40G0001624 4A 产线需求的栈板LABEL 0011 1 Q49G 51500 HF Cleaning Naphtha 0011 1 Q52G130118600000YY TAPE 0011 1 Q52G130118600000YY TAPE 0011 1 0011 1 0011 1 Q52G160119100A00YY TAPE 0011 1 X15T212310100000BL BKT_SPEAKER 0011 1 X15T212410100000BL BKT_SPEAKER 0011 1 X15T212550100000Z1 BKT_HOLDER 0011 1 X15T273510100000BL BKT_IO_SIDE 0011 1 0011 1 X16G000400200000JS SPONGE 0011 1 X20T817302100000FE DIE-CASTING_Bracket_L 0011 1 X20T817402100000FE DIE-CASTING_Bracket_R 0011 1 X37T8284011000LAXD BASE_ASS’Y TV65W-16ph02-ph04b-ph06 NA 0011 1 X37T8284011000RAXD BASE_ASS’Y TV65W-16ph02-ph04b-ph06 NA 0011 1 X40G2015043X1501XY LABEL SIDE 0011 1 X40G2016065X2001XY IO LABEL 0011 1 X41G75DV81302A SHEET-FLYER Opening sheet for China 0011 1 X44GXA530FB0JA 0011 1 X44GXA531010XY CUSHION-T N/A Non-region(Global) 0011 1 X44GXA532010XY CUSHION-B N/A Non-region(Global) 0011 1 X44GXA533010XY CUSHION-L N/A Non-region(Global) 0011 1 X44GXA534010XY CUSHION-R N/A Non-region(Global) 0011 1 X44GXA53401EPE CUSHION-FRONT N/A Non-region(Global) 0011 1 X44GXA5381302A0TJA ARTWORK CARTON 65PUF6061/T3 CHINA 0011 1 X44GXA570FB0H1 0011 1 0011 1 0011 1 M05201 X52G1801400P0000HK INSULATING SHEET 0011 1 M05201 X52G1801400P0000JY INSULATING SHEET 0011 1 X52G20010TV03700BK INSULATING SHEET 0012 1 E08901 089G214A15N HL AC POWER CORD 1500 0012 1 E08901 089G214A15N IS AC POWER CORD 1500 0012 1 BT01 392GB1TA1A3C2C BATTERY 1.5V 2P R03(KI)2S/PG 0012 1 Q45G88010TV05600X1 PROTECT BAG 0012 1 X40G000881328A OTHER LABEL 开机必读标签 0012 1 X41G65SV81351A QSG 65PUF6061/T3 china 0012 1 X41G78DV81311E WARRANTY CARD TPV address china 0013 1 040G 58162435A MANUAL P/N LABEL 0013 1 Q40G000162492B CEL LABEL G3 1.3 54x79.2 mm 0013 1 X40G000181310C CARTON LABEL 0013 1 X40G000181310C CARTON LABEL 0013 1 X40G065081352A RATING LABEL 65PUF6061/T3
1 0011 2 Q44G6002160 90 PAPER BOARD 1600*900 0011 2 Q44G6002162120 PAPER BOARD 0011 2 Q44G9003100 CORNER PAPER
TAPE_INSULATING TAPE_INSULATING
BKT_IO_BTM
PROTECT BAG 1200*1800
PHILIPS 40(126 CH)
Page 38
0011 2 Q50G 4 10 TIE (Y1900221)
361G0058509MYW005A
0011 2 Q50G060000301W00JI Q50G060000301W00JI 0011 2 Q50G060046502A00JY PACKAGE_BUCKLE 0011 2 Q50G060046502A00JY PACKAGE_BUCKLE 0011 2 Q52G1301 9 BIG TAPE FOR PHILIPS 0011 2 Q52G1301 9 BIG TAPE FOR PHILIPS 0011 2 X07G009816802C PALLET 0011 2 X07G012316802C PALLET 0011 2 X44GSLIP00176A SLIPSHEET 0011 2 X44GSLIP00177A SLIPSHEET 0011 2 X45G770101700000QF PROTECT RIBBON
1 756TXGCB0ID002000X MCU ASSY 0021 2 SMTR-U413 100TPIVY002DTX PHP 65PUF6061/T3 EMMC NA NA 0021 2 U413 356G333304A600 NAND FLASH THGBMBG5D1KBAIT 4G BGA 153
1 ADTVG3235XA1 ADAPTER BOARD 715G6887 0013 2 Z40G0002ALL01A OTHER LABEL 0071 2 GND2 009G6005 1 GND TERMINAL 0071 2 GND4 009G6005 1 GND TERMINAL 0071 2 GND1 009G6005 1 GND TERMINAL 0071 2 GND3 009G6005 1 GND TERMINAL 0071 2 CN9202 033G327814D ONNECTOR 14P 2.5pitch 0071 2 C9901 063G107M47410M CAP X2 470NF 20% 275V - ­0071 2 C9902 063G107M47410M CAP X2 470NF 20% 275V - ­0071 2 C9204 067G215Z102 7K EC 1000UF 20% 50V EJ 10*40 0071 2 C9214 067G215Z102 7K EC 1000UF 20% 50V EJ 10*40 0071 2 C9213 067G215Z102 7K EC 1000UF 20% 50V EJ 10*40 0071 2 C9203 067G215Z102 7K EC 1000UF 20% 50V EJ 10*40 0071 2 C9107 067G215Z152 6K EC 1500UF 20% 35V 10*40 5000 hr 0071 2 C9105 067G215Z152 6K EC 1500UF 20% 35V 10*40 5000 hr 0071 2 C9106 067G215Z152 6K EC 1500UF 20% 35V 10*40 5000 hr 0071 2 L9902 073G 174272 X LINE FILTER 8MH MIN 5A 3LFT25157-802M 0071 2 L9901 073G 174272 X LINE FILTER 8MH MIN 5A 3LFT25157-802M 0071 2 CN9901 087G 50147D HC HF AC R/A 2P 12.81mm 0071 2 D9800 093G 52918 RECTIFIER 1N5408G-04 X0 3A 1000V DO201AD 0071 2 D9801 093G 52918 RECTIFIER 1N5408G-04 X0 3A 1000V DO201AD 0071 2 0Q1G 340 8140 SCREW Q1-SELF TAPING SCREW :Q x8.0 0071 2 CN9201 311GW200C14AAX WAFER 2.0mm 14P V/T W2010-14SVA-S03 0071 2 CN9101 311GW200C16AAX CONN 2.0mm 16P V/T W2010-16SVA-S03 0071 2 IC9202 356G013903B0HF Photo-Coupler PC123Y82FZ9F DIP-4 0071 2 IC9103 356G013903B0HF Photo-Coupler PC123Y82FZ9F DIP-4 0071 2 IC9102 356G013903B0HF Photo-Coupler PC123Y82FZ9F DIP-4 0071 2 RV9901 361G0046681KZE VARISTOR 680V 10% 0071 2 NR9901 0071 2 R9841 361G020J247GB000TZ RST CEM 0.024R 5% 2W MPR2W0R024J 0071 2 R9840 361G020J247GB000TZ RST CEM 0.024R 5% 2W MPR2W0R024J 0071 2 C9902 363G107K474BEC CAP X2 470nF 10% 275V 18*9*13.5 B32922L2 0071 2 C9901 363G107K474BEC CAP X2 470nF 10% 275V 18*9*13.5 B32922L2 0071 2 C9801 363G210J105GHP CAP MPP 1UF 5% 450V 0071 2 C9803 363G210J105GHP CAP MPP 1UF 5% 450V 0071 2 C9243 363G211J2235HE CAP MPP 22nF 5% 1KV 18*5*10.5 B32652A022 0071 2 C9216 363G211J2235HE CAP MPP 22nF 5% 1KV 18*5*10.5 B32652A022
NTCR 5R 20% 3.1W SCK13055MTY501
Page 39
0071 2 C9823 367G215X820PKZ EC 82uF 20% 450V 13*50mm 2000 hr 720mA 0071 2 C9805 367G215X820PKZ EC 82uF 20% 450V 13*50mm 2000 hr 720mA 0071 2 C9804 367G215X820PKZ EC 82uF 20% 450V 13*50mm 2000 hr 720mA 0071 2 FB9902 371G0055021H02 BEAD 6.5*12.5 700R 25% BF-I60100R-815 0071 2 FB9901 371G0055021H02 BEAD 6.5*12.5 700R 25% BF-I60100R-815 0071 2 L9903 373G0174301H00 LINE FILTER 0.25mH MIN 2A LCL-11010 HA 0071 2 L9802 373G0174378H00 PFC CHOKE 200uH 10% 4A GL-14019 HA 0071 2 L9801 373G0174378H00 PFC CHOKE 200uH 10% 4A GL-14019 HA 0071 2 L9102 373G0253247H00 CHOKE COIL 3UH 15% DR8*8 5A 0071 2 L9201 373G0253247H00 CHOKE COIL 3UH 15% DR8*8 5A 0071 2 L9101 373G0253247H00 CHOKE COIL 3UH 15% DR8*8 5A 0071 2 L9202 373G0253247H00 CHOKE COIL 3UH 15% DR8*8 5A 0071 2 L9203 373G0253247H00 CHOKE COIL 3UH 15% DR8*8 5A 0071 2 SW9901 377G02604B100F RELAY 12V 0071 2 T9101 380GL32P175N00 X'FMR 300uH 10% 6.5uH ER40 YUVA-2084-3 0071 2 T9201 380GL52P236H00 X'FMR 270uH 12% 42uH EE42 BCK-14264-HA 0071 2 T9202 380GL52P236H00 X'FMR 270uH 12% 42uH EE42 BCK-14264-HA 0071 2 705TAE57168 Q9101 ASS"Y 0071 2 705TAE57169 Q9201 Q9202 ASS"Y 0071 2 705TAE84036 F9901 ASSY 0071 2 705TAE93147 BD9901 ASS'Y 0071 2 705TAE93148 BD9902 ASS'Y 0071 2 705TXF57997 Q9802 D9804 ASS"Y 0071 2 705TXF57998 Q9801 D9802ASS"Y 0071 2 705TXF57999 Q9111 ASS"Y 0071 2 705TXF93998 D9206 D9207 D9210 ASS'Y 0071 2 705TXF93999 D9202 D9204 ASS'Y 0071 2 709T68870XM001 COMSUMPTIVE ASSY 0071 2 ADG3235XA1SMT ADAPTER BOARD FOR SMT
1 CBPRG9DDXE CONVERSION NA 0013 2 Z40G0002ALL01A OTHER LABEL 0021 2 SMTRG9DDXE MAIN BOARD FOR SMT
1 IRPFGXB7 IR BOARD 0051 2 SMTIRPFGXB7 IR BOARD FOR SMT
1 KEPFEAA9 KEY BOARD 0031 2 SMTKEPFEAA9 KEY BOARD FOR SMT
1 LNTVGI472XXE9 CONVERTER BOARD -­0013 2 Z40G0002ALL01A OTHER LABEL 0051 2 GND6 009G6005 1 GND TERMINAL 0051 2 GND3 009G6005 1 GND TERMINAL 0051 2 GND5 009G6005 1 GND TERMINAL 0051 2 GND2 009G6005 1 GND TERMINAL 0051 2 CN8601 033G380210B YH L CONNECTOR 10P 2.0 0051 2 CN8602 033G380212B YH L WAFER 12.0mm 12P 0051 2 C8601 067G215Z102 7K EC 1000UF 20% 50V EJ 10*40 0051 2 C8607 067G215Z102 7K EC 1000UF 20% 50V EJ 10*40 0051 2 C8653 067G515Z221 9K EC 220UF 20% 100V 10*35 5000 hr 0051 2 C8602 067G515Z221 9K EC 220UF 20% 100V 10*35 5000 hr 0051 2 C8654 067G515Z221 9K EC 220UF 20% 100V 10*35 5000 hr 0051 2 C8608 067G515Z221 9K EC 220UF 20% 100V 10*35 5000 hr 0051 2 L8604 373G0253247H00 CHOKE COIL 3UH 15% DR8*8 5A
Page 40
0051 2 L8602 373G0253247H00 CHOKE COIL 3UH 15% DR8*8 5A 0051 2 L8601 373G0253353X01 BOOST CHOKE 33uH 10% 4A 3LCEQ2513-330K­0051 2 L8603 373G0253353X01 BOOST CHOKE 33uH 10% 4A 3LCEQ2513-330K­0051 2 705TAF57069 Q8602 D8601 ASS"Y 0051 2 705TAF57070 Q8604 D8604 ASS"Y 0051 2 709T77000XM001 COMSUMPTIVE ASSY 0051 2 LNGI472XXE9SMT CONVERTER BOARD FOR SMT
2 705TAE57168 Q9101 ASS"Y 0704 3 051G 200 1 OIL FOR DISAPPEAR 0704 3 0M1G1730 8120 SCREW M3 8 0704 3 Q9101 357G0667650006 MOSFET TK11A65D 11A 650V TO-220SIS 0704 3 HS9101 Q90T0236007A0000SY HEAT SINK
2 705TAE57169 Q9201 Q9202 ASS"Y 0704 3 051G 200 1 OIL FOR DISAPPEAR 0704 3 0M1G1730 8120 SCREW M3 8 0704 3 Q9202 357G0667A07 MOSFET TK13A50D 13A 500V - SC-67 0704 3 Q9201 357G0667A07 MOSFET TK13A50D 13A 500V - SC-67 0704 3 HS9201 Q90T0236003A0000SY HEAT SINK
2 705TAE84036 F9901 ASSY 0704 3 084G 34 14 bSE -- -- -­0704 3 F9901 384G004100816C FUSE 8A 250V VUC UDA 8A 250V（PF）
2 705TAE93147 BD9901 ASS'Y 0704 3 051G 200 1 OIL FOR DISAPPEAR 0704 3 0M1G1730 8120 SCREW M3 8 0704 3 BD9901 393G0050460600 BRIDGE TS10P06G-04 10A 800V TS-6P 0704 3 HS9901 Q90T0222007A0000SY HEAT SINK
2 705TAE93148 BD9902 ASS'Y 0704 3 051G 200 1 OIL FOR DISAPPEAR 0704 3 0M1G1730 8120 SCREW M3 8 0704 3 BD9902 393G0050460600 BRIDGE TS10P06G-04 10A 800V TS-6P 0704 3 HS9902 Q90T0222007A0000SY HEAT SINK
2 705TXF57997 Q9802 D9804 ASS"Y 0704 3 051G 200 1 OIL FOR DISAPPEAR 0704 3 Q9802 057G 667954 MOSFET TK18A60V 18A 600V SC-67 0704 3 D9804 093G 52905 DIODE FMNS-1106S TO-220 0704 3 0M1G1730 8120 SCREW M3 8 0704 3 HS9802 Q90T0236004A0000SY HEAT SINK
2 705TXF57998 Q9801 D9802ASS"Y 0704 3 051G 200 1 OIL FOR DISAPPEAR 0704 3 Q9801 057G 667954 MOSFET TK18A60V 18A 600V SC-67 0704 3 D9802 093G 52905 DIODE FMNS-1106S TO-220 0704 3 0M1G1730 8120 SCREW M3 8 0704 3 HS9801 Q90T0236004A0000SY HEAT SINK
2 705TXF57999 Q9111 ASS"Y 0704 3 051G 200 1 OIL FOR DISAPPEAR 0704 3 0M1G1730 8120 SCREW M3 8 0704 3 Q9111 357G0600100600 OSFET TK22A10N1 22A 100V TO-220SIS 0704 3 HS9102 Q90T0236007A0000SY HEAT SINK
2 705TXF93998 D9206 D9207 D9210 ASS'Y 0704 3 051G 200 1 OIL FOR DISAPPEAR 0704 3 D9207 093G 60258 IODE FME-220B TO-220 SANKEN
Page 41
0704 3 D9206 093G 60258 IODE FME-220B TO-220 SANKEN 0704 3 D9210 093G 60329 IODE FMEN-220A 20A/100V TO-220 0704 3 0M1G1730 8120 SCREW M3 8 0704 3 HS9202 Q90T0236003A0000SY HEAT SINK
2 705TXF93999 D9202 D9204 ASS'Y 0704 3 051G 200 1 OIL FOR DISAPPEAR 0704 3 D9204 093G 60258 IODE FME-220B TO-220 SANKEN 0704 3 D9202 093G 60258 IODE FME-220B TO-220 SANKEN 0704 3 0M1G1730 8120 SCREW M3 8 0704 3 HS9203 Q90T0236002A0000HG HEAT SINK
2 709T68870XM001 COMSUMPTIVE ASSY 0071 3 051G 200 1 OIL FOR DISAPPEAR 0071 3 052G 2191 A TAPE_OTHER(PET,PAPER,SECURITY,ETC…) 0071 3 055G 23520 .leaning Naphtha 0071 3 055G 23524 WELDING FLUX WITHOUT PB 0071 3 Q49G 51100 Water-based Cleaning Agent 0071 3 Q51G 6 4509 GLUE_RTV 0071 3 Q55G 100622 TIN STICK(SAC0507) 0071 3 Q55G 100655 Sn-Cu Solder
2 ADG3235XA1SMT ADAPTER BOARD FOR SMT 0710 3 IC9201 056G 379211 AC/DC SSC9522S-TL SOP-18 0710 3 IC9901 056G 665142 IC CAP004DG-TL SOP-8 0710 3 Q9205 057G 417525 SMALLTRAN MMBT3904 200mA 40V SOT-23 0710 3 Q9204 057G 417526 SMALLTRAN MMBT3906 -0.2A -40V SOT-23 0710 3 Q9109 057G 417912 T SMALLTRAN 2SA1797 -3A -50V PCP 0710 3 Q9206 057G 667A03 MOSFET STD1NK60T4 1A 600V 30W DPAK 0710 3 Q9805 057G 667A03 MOSFET STD1NK60T4 1A 600V 30W DPAK 0710 3 Q9803 057G 667A03 MOSFET STD1NK60T4 1A 600V 30W DPAK 0710 3 Q9804 057G 667A03 MOSFET STD1NK60T4 1A 600V 30W DPAK 0710 3 R9218 061G0805000 JT RST 0805 0.05R MAX 1/8W 0710 3 JR914 061G0805000 JY RST CHIPR MAX 0R05 OHM 1/8W YAGEO 0710 3 R9816 061G0805100 JT RST CHIP 10R 1/8W 5% TZAI YUAN 0710 3 R9206 061G0805100 JT RST CHIP 10R 1/8W 5% TZAI YUAN 0710 3 R9205 061G0805100 JT RST CHIP 10R 1/8W 5% TZAI YUAN 0710 3 R9806 061G0805100 JT RST CHIP 10R 1/8W 5% TZAI YUAN 0710 3 R9211 061G0805100 JT RST CHIP 10R 1/8W 5% TZAI YUAN 0710 3 R9225 061G08051001FT RST CHIP 1K 1/8W 1% 0710 3 R9244 061G08051001FT RST CHIP 1K 1/8W 1% 0710 3 R9121 061G08051001FT RST CHIP 1K 1/8W 1% 0710 3 R9158 061G08051002FT RST CHIP 10K 1/8W 1% 0710 3 R9213 061G08051002FY RST CHIP 10K 1/8W 1% 0710 3 R9209 061G08051002FY RST CHIP 10K 1/8W 1% 0710 3 R9154 061G08051003FT RST CHIP 100K 1/8W 1% 0710 3 R9221 061G0805101 JT RST CHIP 100R 1/8W 5% TZAI YUAN 0710 3 R9820 061G0805102 JY RST CHIPR 1K OHM 5% 1/8W YAGEO 0710 3 R9242 061G0805102 JY RST CHIPR 1K OHM 5% 1/8W YAGEO 0710 3 R9831 061G0805102 JY RST CHIPR 1K OHM 5% 1/8W YAGEO 0710 3 R9109 061G0805103 JF RST CHIPR 10K OHM +-5% 1/8W FENGHUA 0710 3 R9817 061G0805103 JT RST 0805 10K 5% 1/8W 0710 3 R9807 061G0805103 JT RST 0805 10K 5% 1/8W 0710 3 R9832 061G0805103 JY RST CHIPR 10KOHM +-5% 1/8W YAGEO
Page 42
0710 3 R9821 061G0805103 JY RST CHIPR 10KOHM +-5% 1/8W YAGEO 0710 3 R9243 061G0805103 JY RST CHIPR 10KOHM +-5% 1/8W YAGEO 0710 3 R9837 061G0805103 JY RST CHIPR 10KOHM +-5% 1/8W YAGEO 0710 3 R9102 061G0805104 JF RST CHIPR 100KOHM +-5% 1/8W FENGHUA 0710 3 R9825 061G08051203FT RST CHIPR 120KOHM +- 1% 1/8W TZAI YUAN 0710 3 R9838 061G08051203FT RST CHIPR 120KOHM +- 1% 1/8W TZAI YUAN 0710 3 R9107 061G0805121 JT RST CHIPR 120OHM +- 5% 1/8W TZAI YUAN 0710 3 R9120 061G08051432FT RST 0805 14.3k 1% 1/8W 0710 3 R9119 061G08051501FT RST CHIPR 1K5 +-1% 1/8W TZAI YAUN 0710 3 R9116 061G08051501FT RST CHIPR 1K5 +-1% 1/8W TZAI YAUN 0710 3 R9219 061G08051602FT RST CHIPR 16K +-1% 1/8W TZAI YUAN 0710 3 R9216 061G08051800FT RST 0805 180R 1% 1/8W TZAI YUAN 0710 3 R9210 061G08051802FY RST CHIP 18K 1/8W 1% 0710 3 R9224 061G08052001FT RST CHIP 2K 1/8W 1% 0710 3 R9136 061G08052002FT RST CHIP 20K 1/8W 1% 0710 3 R9115 061G08052201FT CHIP 2K2 1/8W 1% 0710 3 R9833 061G08052203FT RST CHIPR 220KOHM +-1% 1/8W 0710 3 R9222 061G08052431FT RST CHIP 2K43 1/8W 1% 0710 3 R9808 061G0805330 FY RST CHIP 33R 1% 1/8W 0710 3 R9104 061G08053300FT RST CHIPR 330 OHM +-1% 1/8W TZAI YUAN 0710 3 R9834 061G08053302FT RST CHIP 33K 1/8W 1% 0710 3 R9822 061G08054702FT RST CHIP 47K 1/8W 1% 0710 3 R9214 061G0805471 JT RST CHIPR 470OHM +-5% 1/8W TZAI YUAN 0710 3 R9118 061G0805472 JF RST CHIPR 4.7KOHM +-5% 1/8W FENGHUA 0710 3 R9234 061G08055101FT RST CHIP 5K1 1/8W 1% 0710 3 R9160 061G08055103FT RST CHIP 510K OHM 1/8W 1% TZAI YUAN 0710 3 R9826 061G08057501FT RST CHIP R 7K5 1/8W +/-1% 0710 3 R9212 061G0805820 JY RST CHIP R 82ohm 1/8W +/-5% YAGEO 0710 3 R9208 061G0805820 JY RST CHIP R 82ohm 1/8W +/-5% YAGEO 0710 3 JR911 061G1206000 JY RST CHIPR MAX0R05 1/4W YAGEO 0710 3 JR908 061G1206000 JY RST CHIPR MAX0R05 1/4W YAGEO 0710 3 R9248 061G1206000 JY RST CHIPR MAX0R05 1/4W YAGEO 0710 3 JR904 061G1206000 JY RST CHIPR MAX0R05 1/4W YAGEO 0710 3 JR917 061G1206000 JY RST CHIPR MAX0R05 1/4W YAGEO 0710 3 JR910 061G1206000 JY RST CHIPR MAX0R05 1/4W YAGEO 0710 3 JR912 061G1206000 JY RST CHIPR MAX0R05 1/4W YAGEO 0710 3 JR901 061G1206000 JY RST CHIPR MAX0R05 1/4W YAGEO 0710 3 JR902 061G1206000 JY RST CHIPR MAX0R05 1/4W YAGEO 0710 3 JR909 061G1206000 JY RST CHIPR MAX0R05 1/4W YAGEO 0710 3 JR903 061G1206000 JY RST CHIPR MAX0R05 1/4W YAGEO 0710 3 JR905 061G1206000 JY RST CHIPR MAX0R05 1/4W YAGEO 0710 3 JR913 061G1206000 JY RST CHIPR MAX0R05 1/4W YAGEO 0710 3 JR907 061G1206000 JY RST CHIPR MAX0R05 1/4W YAGEO 0710 3 R9814 061G12060007JT RST CHIPR MAX 0R05 1/4W 1206 0710 3 R9813 061G12060007JT RST CHIPR MAX 0R05 1/4W 1206 0710 3 R9126 061G1206100 JT RST CHIPR 10 OHM +-5% 1/4W TZAI YUAN 0710 3 R9235 061G12061001FT RST CHIP R 1Kohm +-1% 1/4W 0710 3 R9157 061G12061002FT RST CHIPR 10KOHM +-1% 1/4W 1206 0710 3 R9810 061G12061004FT RST CHIP R 1 MOHM +-1% 1/4W 0710 3 R9812 061G12061004FT RST CHIP R 1 MOHM +-1% 1/4W 0710 3 R9802 061G12061004FT RST CHIP R 1 MOHM +-1% 1/4W
Page 43
0710 3 R9803 061G12061004FT RST CHIP R 1 MOHM +-1% 1/4W 0710 3 R9809 061G12061004FT RST CHIP R 1 MOHM +-1% 1/4W 0710 3 R9811 061G12061004FT RST CHIP R 1 MOHM +-1% 1/4W 0710 3 R9114 061G12061008FT RST CHIPR 1OHM +-1% 1/4W TZAI YUAN 0710 3 R9108 061G12061009FT RST CHIP R 10ohm 1/4W +/-1% 0710 3 R9827 061G1206101 JT RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN 0710 3 R9836 061G1206102 JT RST CHIPR 1KOHM +-5% 1/4W TZAI YUAN 0710 3 R9204 061G1206103 JT RST CHIPR 10KOHM +-5% 1/4W TZAI YUAN 0710 3 R9203 061G12061504FT RST CHIP 1M5 1/4W 1% 0710 3 R9202 061G12061504FT RST CHIP 1M5 1/4W 1% 0710 3 R9207 061G12061504FT RST CHIP 1M5 1/4W 1% 0710 3 R9122 061G1206153 JT RST CHIPR 15KOHM +-5% 1/4W TZAI YUAN 0710 3 R9815 061G12061622FT RST CHIP 16.2K 1/4W 1% TZAI YUAN 0710 3 R9804 061G12061622FT RST CHIP 16.2K 1/4W 1% TZAI YUAN 0710 3 R9236 061G12062001FT RST CHIP R 2Kohm 1/4W +/-1% 0710 3 R9824 061G12062004FT RST CHIP R 2Mohm 1/4W +/-1% 0710 3 R9828 061G12062004FT RST CHIP R 2Mohm 1/4W +/-1% 0710 3 R9829 061G12062004FT RST CHIP R 2Mohm 1/4W +/-1% 0710 3 R9299 061G12062008FT RST CHIP 2 OHM +-1% 1/4W 1206 0710 3 R9155 061G1206202 JT RST CHIP R 2Kohm 1/4W +/-5% 0710 3 R9156 061G1206202 JT RST CHIP R 2Kohm 1/4W +/-5% 0710 3 R9165 061G1206202 JT RST CHIP R 2Kohm 1/4W +/-5% 0710 3 R9164 061G1206202 JT RST CHIP R 2Kohm 1/4W +/-5% 0710 3 R9166 061G1206202 JT RST CHIP R 2Kohm 1/4W +/-5% 0710 3 R9229 061G1206203 JT RST CHIPR 20KOHM +-5% 1/4W TZAI YUAN 0710 3 R9133 061G1206270 JF RST CHIPR 27 OHM +-5% 1/4W FENGHUA 0710 3 R9112 061G1206270 JF RST CHIPR 27 OHM +-5% 1/4W FENGHUA 0710 3 R9131 061G1206270 JF RST CHIPR 27 OHM +-5% 1/4W FENGHUA 0710 3 R9132 061G1206270 JF RST CHIPR 27 OHM +-5% 1/4W FENGHUA 0710 3 R9110 061G1206270 JF RST CHIPR 27 OHM +-5% 1/4W FENGHUA 0710 3 R9111 061G1206270 JT RST CHIPR 27 OHM +-5% 1/4W TZAI YUAN 0710 3 R9153 061G1206302 JT RST CHIP 3K 5% 1/4W 0710 3 R9818 061G1206330 JT RST CHIP R 33ohm 1/4W +/-5% 0710 3 R9161 061G1206335 JF RST CHIPR 3.3M OHM +-5% 1/4W FENGHUA 0710 3 R9163 061G1206335 JF RST CHIPR 3.3M OHM +-5% 1/4W FENGHUA 0710 3 R9162 061G1206335 JF RST CHIPR 3.3M OHM +-5% 1/4W FENGHUA 0710 3 R9124 061G12064322FT RST CHIPR 43.2K OHM 1/4W +/-1% 0710 3 R9223 061G1206471 JT ST CHIPR 470 OHM +-5% 1/4W TZAI YUAN 0710 3 R9228 061G1206472 JT RST CHIP R 4K7 1/4W +/-5% 0710 3 R9125 061G1206479 JT RST 1206 4.7R 5% 1/4W 0710 3 R9159 061G1206510 JF RST CHIPR 51 OHM +-5% 1/4W FENGHUA 0710 3 R9237 061G12065101FT RST 1206 5.1KR 1% 1/4W 0710 3 R9113 061G12065108FT RST 1206 5R1 1% 1/4W 0710 3 R9117 061G1206512 JT RST CHIPR 5.1 KOHM +-5% 1/4W TZAI YUAN 0710 3 R9123 061G1206512 JT RST CHIPR 5.1 KOHM +-5% 1/4W TZAI YUAN 0710 3 R9139 061G1206754 JT RST CHIPR 750K +-5% 1/4W TZAI YUAN 0710 3 R9137 061G1206754 JT RST CHIPR 750K +-5% 1/4W TZAI YUAN 0710 3 R9138 061G1206754 JT RST CHIPR 750K +-5% 1/4W TZAI YUAN 0710 3 C9128 065G080510031J Y CAP CHIP 0805 10PF J 50V NPO 0710 3 C9134 065G080510131J F CAP CHIP 0805 100PF J 50V NPO 0710 3 C9218 065G080510231J F CAP 0805 1NF 5% 50V NPO
Page 44
0710 3 C9127 065G080510231J F CAP 0805 1NF 5% 50V NPO 0710 3 C9139 065G080510232K F CAP 0805 1000PF 10% 50V X7R 0710 3 C9140 065G080510232K F CAP 0805 1000PF 10% 50V X7R 0710 3 C9822 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10% 0710 3 C9812 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10% 0710 3 C9820 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10% 0710 3 C9816 065G080510332K M CAP 0805 10NF 10% 50V X7R 0710 3 C9112 065G080510332K Y CAP CHIP 0805 10N 50V X7R +/-10% 0710 3 C9147 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R 0710 3 C9239 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R 0710 3 C9133 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R 0710 3 C9141 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R 0710 3 C9232 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R 0710 3 C9202 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R 0710 3 C9228 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R 0710 3 C9135 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R 0710 3 C9212 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R 0710 3 C9206 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R 0710 3 C9220 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10% 0710 3 C9240 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10% 0710 3 C9817 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10% 0710 3 C9819 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10% 0710 3 C9824 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10% 0710 3 C9821 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10% 0710 3 C9244 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10% 0710 3 C9811 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10% 0710 3 C9226 065G080510432K Y CAP CHIP 0805 100N 50V X7R +/-10% 0710 3 C9217 065G080510522K M AP 0805 1UF 10% 25V X7R 0710 3 C9207 065G080510532K T CAP 0805 1UF 10% 50V X7R 0710 3 C9144 065G080510532K T CAP 0805 1UF 10% 50V X7R 0710 3 C9143 065G080510532K T CAP 0805 1UF 10% 50V X7R 0710 3 C9137 065G080510532K T CAP 0805 1UF 10% 50V X7R 0710 3 C9124 065G080510532K T CAP 0805 1UF 10% 50V X7R 0710 3 C9210 065G080510532K T CAP 0805 1UF 10% 50V X7R 0710 3 C9136 065G080522031J Y CAP CHIP 0805 22pF J 50V NP0 0710 3 C9810 065G080522031J Y CAP CHIP 0805 22pF J 50V NP0 0710 3 C9807 065G080522031J Y CAP CHIP 0805 22pF J 50V NP0 0710 3 C9813 065G080522432K F CAP 0805 220NF 10% 50V X7R 0710 3 C9242 065G080522432K Y CAP CHIP 0805 220N 50V X7R +/-10% 0710 3 C9121 065G080522432K Y CAP CHIP 0805 220N 50V X7R +/-10% 0710 3 C9818 065G080533232K F CAP 0805 3.3NF 10% 50V X7R 0710 3 C9815 065G080533432K M CAP 0805 330NF 10% 50V X7R GRM219R71H33 0710 3 C9208 065G080547031J Y AP CHIP 0805 47P 50V NP0 +/-5% 0710 3 C9231 065G080547432K F 0805 0.47UF K 50V X7R 0710 3 C9225 065G0805475A2K T CAP CHIP 0805 4.7uF K 10V X7R 0710 3 C9219 065G080556131J F CAP CHIP 0805 560PF J 50V NPO 0710 3 C9104 065G080568131J F CAP 0805 680PF 5% 50V NPO 0710 3 C9221 065G120610272K Y CAP 1206 1NF 10% 500V X7R 0710 3 IC9204 356G0158003600 Shunt Regu TL431G-AE2-R SOT23-3 0710 3 IC9104 356G0158003600 Shunt Regu TL431G-AE2-R SOT23-3 0710 3 IC9101 356G0379008604 AC/DC LD5522 GS SOP-8
Page 45
0710 3 IC9801 356G0379016600 PFC UCC28063DR SOIC-16 0710 3 IC9111 356GD563008617 DC/DC SP6018ES8RGB 1A 16V SOP-8 0710 3 Q9102 357G0761A0100T SMALLTRAN BTC4672M3 5A 50V 0.6W SOT-89 0710 3 Q9108 357G07630620HF .F MOSFET 2N7002K_R1_00001 0.3A 60V 0710 3 R9135 361G12061603FT RST 1206 160K 1% 1/4W SMD1206160KF 0710 3 R9227 361G12068201FT RST 1206 8.2K 1% 1/4W SMD12068K2F 0710 3 D9108 393G006432S0HF SWITCHING 1N4148W 0.15A 75V SOD-123 0710 3 D9110 393G006432S0HF SWITCHING 1N4148W 0.15A 75V SOD-123 0710 3 ZD9206 393G039S65200T ZENER BZT52-B20 20V 0.5W SOD-123 0710 3 ZD9205 393G039S65200T ZENER BZT52-B20 20V 0.5W SOD-123 0710 3 ZD9204 393G039S95200T00HF HF BZT52-B6V2_R1_00001 6.2V 0.41W 0710 3 ZD9210 393G039S95400T00HF ZENER BZT52-B3V6_R1_00001 3.6V 0.41W SOD 0710 3 ZD9801 393G039S95400T00HF ZENER BZT52-B3V6_R1_00001 3.6V 0.41W SOD 0710 3 ZD9212 393G039S95400T00HF ZENER BZT52-B3V6_R1_00001 3.6V 0.41W SOD 0710 3 ZD9211 393G039S95400T00HF ZENER BZT52-B3V6_R1_00001 3.6V 0.41W SOD 0710 3 ZD9214 393G039S95400T00HF ZENER BZT52-B3V6_R1_00001 3.6V 0.41W SOD 0710 3 ZD9213 393G039S95400T00HF ZENER BZT52-B3V6_R1_00001 3.6V 0.41W SOD 0710 3 ZD9202 393G039SA1200T ZENER BZT52-B22 22V 0.41W SOD-123 150C 0710 3 ZD9109 393G039SA1400T ZENER BZT52-B16_R1_00001 16V 0.41W 0710 3 ZD9106 393G039SA2900T ZENER BZT52-B15 15V 0.41 SOD-123 0710 3 ZD9201 393G039SA2900T ZENER BZT52-B15 15V 0.41 SOD-123 0710 3 ZD9203 393G039SA2900T ZENER BZT52-B15 15V 0.41 SOD-123 0710 3 ZD9107 393G039SA2900T ZENER BZT52-B15 15V 0.41 SOD-123 0710 3 D9205 393G060S50000T00HF HF SS1060FL_R1_00001 1A 60V SOD123FL 0710 3 D9805 393G060S50000T00HF HF SS1060FL_R1_00001 1A 60V SOD123FL 0710 3 D9806 393G060S50000T00HF HF SS1060FL_R1_00001 1A 60V SOD123FL 0710 3 D9102 393G060S50000T00HF HF SS1060FL_R1_00001 1A 60V SOD123FL 0710 3 D9803 393G060S50000T00HF HF SS1060FL_R1_00001 1A 60V SOD123FL 0710 3 D9203 393G060S50000T00HF HF SS1060FL_R1_00001 1A 60V SOD123FL 0710 3 D9807 393G060S50000T00HF HF SS1060FL_R1_00001 1A 60V SOD123FL 0710 3 D9208 393G060S50000T00HF HF SS1060FL_R1_00001 1A 60V SOD123FL 0710 3 D9105 393G060S50000T00HF HF SS1060FL_R1_00001 1A 60V SOD123FL 0710 3 D9106 393G060SA0500T SCHOTTKY SK810C R6 8A 100V SMC 0710 3 D9104 393G060SA0500T SCHOTTKY SK810C R6 8A 100V SMC 0710 3 709T68870XS001 COMSUMPTIVE ASSY 0710 3 ADG3235XA1AI ADAPTER BOARD FOR AI
2 SMTRG9DDXE MAIN BOARD FOR SMT 0210 3 U402 056G 643 43 RESET G690L263T73Uf 2.63V SOT-23 0210 3 ZD413 056G 662 41 ESD PROTECT AZ5123-01H.R7G (for 3.3V ci 0210 3 U503 056G 665918 IC STMPS2171STR SOT23-5L 0210 3 Q409 057G 417511 MMBT3904 0210 3 Q502 057G 417511 MMBT3904 0210 3 Q703 057G 417511 MMBT3904 0210 3 Q511 057G 417511 MMBT3904 0210 3 Q705 057G 417511 MMBT3904 0210 3 Q601 057G 417511 MMBT3904 0210 3 Q420 057G 417512 MMBT3906 0210 3 Q410 057G 417512 MMBT3906 0210 3 Q501 057G 417512 MMBT3906 0210 3 Q602 057G 417512 MMBT3906 0210 3 Q708 057G 417512 MMBT3906
Page 46
0210 3 Q510 057G 417518 TRA LMBT3904LT1G 200mA/40V SOT-23 LRC 0210 3 Q701 057G 763 79 FET AO4449 -7A/-30V SOIC-8 0210 3 Q408 057G 763 79 FET AO4449 -7A/-30V SOIC-8 0210 3 RP401 061G 1263308JY RST CHIP ARRAY 33R 1/16W 5% 8P4R 0210 3 RP408 061G 1263308JY RST CHIP ARRAY 33R 1/16W 5% 8P4R 0210 3 RP411 061G 1263308JY RST CHIP ARRAY 33R 1/16W 5% 8P4R 0210 3 RP412 061G 1263308JY RST CHIP ARRAY 33R 1/16W 5% 8P4R 0210 3 RP407 061G 1263308JY RST CHIP ARRAY 33R 1/16W 5% 8P4R 0210 3 RP410 061G 1263308JY RST CHIP ARRAY 33R 1/16W 5% 8P4R 0210 3 RP414 061G 1263308JY RST CHIP ARRAY 33R 1/16W 5% 8P4R 0210 3 RP406 061G 1263308JY RST CHIP ARRAY 33R 1/16W 5% 8P4R 0210 3 RP413 061G 1263308JY RST CHIP ARRAY 33R 1/16W 5% 8P4R 0210 3 RP409 061G 1263308JY RST CHIP ARRAY 33R 1/16W 5% 8P4R 0210 3 RP404 061G 1263308JY RST CHIP ARRAY 33R 1/16W 5% 8P4R 0210 3 RP403 061G 1263308JY RST CHIP ARRAY 33R 1/16W 5% 8P4R 0210 3 RP405 061G 1263308JY RST CHIP ARRAY 33R 1/16W 5% 8P4R 0210 3 RP402 061G 1263308JY RST CHIP ARRAY 33R 1/16W 5% 8P4R 0210 3 TH102 061G 56A100 WT PTCR SMD 0.12R MAX 0.8W 0210 3 TH104 061G 56A100 WT PTCR SMD 0.12R MAX 0.8W 0210 3 R651 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA 0210 3 R116 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA 0210 3 R121 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA 0210 3 R118 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA 0210 3 R583 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA 0210 3 R518 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA 0210 3 R716 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA 0210 3 R103 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA 0210 3 R4025 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA 0210 3 R717 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA 0210 3 R102 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA 0210 3 R4003 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA 0210 3 R755 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA 0210 3 R104 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA 0210 3 R4120 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA 0210 3 R4102 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA 0210 3 R4017 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA 0210 3 R4018 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA 0210 3 R105 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO 0210 3 R4013 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO 0210 3 R4027 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO 0210 3 R538 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO 0210 3 R148 061G0402000 JY RST CHIPR MAX 0R05 OHM 1/16W YAGEO 0210 3 R4103 061G0402100 JY RST CHIPR 10 OHM +-5% 1/16W YAGEO 0210 3 R4128 061G0402100 JY RST CHIPR 10 OHM +-5% 1/16W YAGEO 0210 3 R4104 061G0402100 JY RST CHIPR 10 OHM +-5% 1/16W YAGEO 0210 3 R4129 061G0402100 JY RST CHIPR 10 OHM +-5% 1/16W YAGEO 0210 3 R4106 061G04021000FY RST CHIP 100R 1/16W 1% 0210 3 R500 061G04021000FY RST CHIP 100R 1/16W 1% 0210 3 R4108 061G04021000FY RST CHIP 100R 1/16W 1% 0210 3 R449 061G04021001FY RST CHIP 1K 1/16W 1% 0210 3 R4113 061G04021001FY RST CHIP 1K 1/16W 1%
Page 47
0210 3 R447 061G04021001FY RST CHIP 1K 1/16W 1% 0210 3 R454 061G04021001FY RST CHIP 1K 1/16W 1% 0210 3 R453 061G04021001FY RST CHIP 1K 1/16W 1% 0210 3 R448 061G04021001FY RST CHIP 1K 1/16W 1% 0210 3 R455 061G04021001FY RST CHIP 1K 1/16W 1% 0210 3 R452 061G04021001FY RST CHIP 1K 1/16W 1% 0210 3 R446 061G04021001FY RST CHIP 1K 1/16W 1% 0210 3 R586 061G04021002FT RST CHIPR 10K +-1% 1/16W TZAI YUAN 0210 3 R588 061G04021002FT RST CHIPR 10K +-1% 1/16W TZAI YUAN 0210 3 R584 061G04021002FT RST CHIPR 10K +-1% 1/16W TZAI YUAN 0210 3 R183 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO 0210 3 R4111 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO 0210 3 R154 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO 0210 3 R142 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA 0210 3 R143 061G0402101 JF RST CHIPR 100 OHM +-5% 1/16W FENGHUA 0210 3 R4124 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO 0210 3 R117 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO 0210 3 R511 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO 0210 3 R433 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO 0210 3 R512 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO 0210 3 R466 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO 0210 3 R144 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO 0210 3 R434 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO 0210 3 R594 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO 0210 3 R489 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO 0210 3 R120 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO 0210 3 R4123 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO 0210 3 R593 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO 0210 3 R617 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO 0210 3 R7031 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO 0210 3 R7038 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO 0210 3 R403 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO 0210 3 R524 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO 0210 3 R513 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO 0210 3 R7043 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO 0210 3 R7020 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO 0210 3 R615 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO 0210 3 R517 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO 0210 3 R596 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO 0210 3 R7037 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO 0210 3 R591 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO 0210 3 R1005 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA 0210 3 R582 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA 0210 3 R1006 061G0402103 JF RST CHIPR 10KOHM +-5% 1/16W FENGHUA 0210 3 R404 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 0210 3 R160 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 0210 3 R592 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 0210 3 R589 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 0210 3 R590 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 0210 3 R402 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 0210 3 R487 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO
Page 48
0210 3 R7035 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 0210 3 R409 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 0210 3 R597 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 0210 3 R619 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 0210 3 R614 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 0210 3 R411 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 0210 3 R4001 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 0210 3 R514 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 0210 3 R510 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 0210 3 R644 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 0210 3 R654 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 0210 3 R4109 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 0210 3 R407 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 0210 3 R725 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 0210 3 R161 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 0210 3 R115 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 0210 3 R713 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 0210 3 R469 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 0210 3 R509 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 0210 3 R401 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 0210 3 R4002 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 0210 3 R613 061G0402104 JF RST CHIPR 100KOHM +-5% 1/16W FENGHUA 0210 3 R4119 061G0402104 JF RST CHIPR 100KOHM +-5% 1/16W FENGHUA 0210 3 R7028 061G0402104 JF RST CHIPR 100KOHM +-5% 1/16W FENGHUA 0210 3 R7036 061G0402104 JF RST CHIPR 100KOHM +-5% 1/16W FENGHUA 0210 3 R7042 061G0402104 JF RST CHIPR 100KOHM +-5% 1/16W FENGHUA 0210 3 R460 061G0402105 JT RST CHIP R 1Mohm 1/16W +/-5% TZAI YUAN 0210 3 R4101 061G04021201FY RST CHIP 1.2K 1/16W 1% 0210 3 R7002 061G04021202FY RST CHIP 12K 1/16W 1% YAGEO 0210 3 R7039 061G04021212FF RST 0402 12.1K 1% 1/16W FENGHUA 0210 3 R7001 061G04021213FF RST 0402 121K 1/16W 1% FENGHUA 0210 3 R7025 061G04021213FF RST 0402 121K 1/16W 1% FENGHUA 0210 3 R167 061G0402123 JY RST CHIPR 12KOHM £«-5£¥ 1/16W YAGEO 0210 3 R166 061G0402123 JY RST CHIPR 12KOHM £«-5£¥ 1/16W YAGEO 0210 3 R7032 061G04021692FY RST 0402 16.9K 1% 1/16W ­0210 3 R519 061G0402184 JY RST CHIP 180K 1/16W 5% YAGEO 0210 3 R445 061G0402201 JY RST CHIP 200R 1/16W 5% YAGEO 0210 3 R187 061G0402220 JY RST CHIPR 22 OHM +-5% 1/16W YAGEO 0210 3 R186 061G0402220 JY RST CHIPR 22 OHM +-5% 1/16W YAGEO 0210 3 R188 061G0402220 JY RST CHIPR 22 OHM +-5% 1/16W YAGEO 0210 3 R185 061G0402220 JY RST CHIPR 22 OHM +-5% 1/16W YAGEO 0210 3 R7027 061G0402220 JY RST CHIPR 22 OHM +-5% 1/16W YAGEO 0210 3 R439 061G0402220 JY RST CHIPR 22 OHM +-5% 1/16W YAGEO 0210 3 R441 061G0402220 JY RST CHIPR 22 OHM +-5% 1/16W YAGEO 0210 3 R735 061G04022202FT RST CHIP 22K 1/16W 1% TZAI YUAN 0210 3 R7000 061G04022202FY RST CHIP 22K 1/16W 1% YAGEO 0210 3 R7029 061G04022202FY RST CHIP 22K 1/16W 1% YAGEO 0210 3 R164 061G0402222 JF RST CHIPR 2.2KOHM +-5% 1/16W FENGHUA 0210 3 R174 061G0402222 JF RST CHIPR 2.2KOHM +-5% 1/16W FENGHUA 0210 3 R4115 061G0402222 JY RST 0402 2.2K 5% 1/16W RC0402JR-072K2L 0210 3 R444 061G0402241 JY RST CHIPR 240 OHM +-5% 1/16W YAGEO
Page 49
0210 3 R756 061G0402241 JY RST CHIPR 240 OHM +-5% 1/16W YAGEO 0210 3 R451 061G0402241 JY RST CHIPR 240 OHM +-5% 1/16W YAGEO 0210 3 R515 061G04022702FT RST 0402 27K 1% 1/16W 0210 3 R7041 061G04022702FT RST 0402 27K 1% 1/16W 0210 3 R7005 061G04023002FY RST 0402 30K 1% 1/16W RC0402FR-1330KL 0210 3 R520 061G04023013FT RST 0402 301K 1% 1/16W TZAI YUAN 0210 3 R618 061G04023013FT RST 0402 301K 1% 1/16W TZAI YUAN 0210 3 R165 061G0402330 JF RST CHIPR 33 OHM +-5% 1/16W FENGHUA 0210 3 R169 061G0402330 JF RST CHIPR 33 OHM +-5% 1/16W FENGHUA 0210 3 R163 061G0402330 JF RST CHIPR 33 OHM +-5% 1/16W FENGHUA 0210 3 R172 061G0402330 JF RST CHIPR 33 OHM +-5% 1/16W FENGHUA 0210 3 R147 061G0402330 JT RST CHIP 33R 1/16W 5% TZAI YUAN 0210 3 R153 061G0402330 JT RST CHIP 33R 1/16W 5% TZAI YUAN 0210 3 R641 061G0402330 JT RST CHIP 33R 1/16W 5% TZAI YUAN 0210 3 R642 061G0402330 JT RST CHIP 33R 1/16W 5% TZAI YUAN 0210 3 R457 061G0402330 JY RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO 0210 3 R459 061G0402330 JY RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO 0210 3 R612 061G0402330 JY RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO 0210 3 R465 061G0402330 JY RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO 0210 3 R468 061G0402330 JY RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO 0210 3 R7030 061G0402330 JY RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO 0210 3 R463 061G0402330 JY RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO 0210 3 R461 061G0402330 JY RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO 0210 3 R456 061G0402330 JY RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO 0210 3 R462 061G0402330 JY RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO 0210 3 R162 061G0402330 JY RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO 0210 3 R616 061G0402330 JY RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO 0210 3 R464 061G0402330 JY RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO 0210 3 R643 061G0402330 JY RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO 0210 3 R458 061G0402330 JY RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO 0210 3 R467 061G0402330 JY RST CHIPR 33 OHM £«-5£¥ 1/16W YAGEO 0210 3 R733 061G04023302FF RST 0402 33K 1% 1/16W FENGHUA 0210 3 R599 061G0402339 JF RST 0402 3.3R 5% 1/16W RC-02W3R3JT 0210 3 R598 061G0402339 JF RST 0402 3.3R 5% 1/16W RC-02W3R3JT 0210 3 R580 061G04024022FF RST CHIP 40.2K 1/16W 1% FENGHUA 0210 3 R173 061G0402471 JY RST CHIPR 470OHM +-5% 1/16W YAGEO 0210 3 R4057 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA 0210 3 R4125 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA 0210 3 R657 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA 0210 3 R656 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA 0210 3 R729 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 0210 3 R521 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 0210 3 R523 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 0210 3 R711 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 0210 3 R728 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 0210 3 R189 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 0210 3 R718 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 0210 3 R450 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 0210 3 R158 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 0210 3 R190 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 0210 3 R595 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L
Page 50
0210 3 R757 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 0210 3 R157 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 0210 3 R443 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 0210 3 R714 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 0210 3 R470 061G0402473 JY RST CHIPR 47KOHM +-5% 1/16W YAGEO 0210 3 R131 061G04025103FF RST 0402 510K 1% 1/16W FENGHUA 0210 3 R7026 061G04026801FY RST CHIP 6K8 1/16W 1% 0210 3 R7003 061G04026801FY RST CHIP 6K8 1/16W 1% 0210 3 R146 061G04027509FY RST CHIP 75R 1/16W 1% 0210 3 R170 061G04027509FY RST CHIP 75R 1/16W 1% 0210 3 R171 061G04027509FY RST CHIP 75R 1/16W 1% 0210 3 R168 061G04027509FY RST CHIP 75R 1/16W 1% 0210 3 R704 061G0603000 JY RST CHIPR MAX0R05 1/10W YAGEO 0210 3 R4046 061G0603000 JY RST CHIPR MAX0R05 1/10W YAGEO 0210 3 R759 061G0603000 JY RST CHIPR MAX0R05 1/10W YAGEO 0210 3 R709 061G0603154 JY RST CHIPR 150K +-5% 1/10W YAGEO 0210 3 R4047 061G0603473 JY RST CHIPR 47KOHM 1/10W YAGEO 0210 3 R705 061G0603473 JY RST CHIPR 47KOHM 1/10W YAGEO 0210 3 R585 061G06036042FF RST 0603 60.4K 1% 1/10W FENGHUA 0210 3 R4117 061G06036801FY RST CHIP 6K8 1/10W 1% 0210 3 R4053 061G06038202FF RST CHIPR 82K OHM +- 1% 1/10W FENGHUA 0210 3 R192 061G1206000 JY RST CHIPR MAX0R05 1/4W YAGEO 0210 3 R638 061G12061809FT RST 1206 18R 1% 1/4W 0210 3 R639 061G12061809FT RST 1206 18R 1% 1/4W 0210 3 R640 061G12061809FT RST 1206 18R 1% 1/4W 0210 3 R655 061G12061809FT RST 1206 18R 1% 1/4W 0210 3 R4010 061G1206222 JF RST CHIPR 2.2KOHM +-5% 1/4W FENGHUA 0210 3 C461 065G040210031J A CAP 0402 10PF 5% 50V NP0 ­0210 3 C4035 065G040210131J T CAP CHIP 0402 100pF 50V NPO 0210 3 C127 065G040210232K Y CAP 0402 1NF 10% 50V X7R CC0402KRX7R9BB 0210 3 C413 065G040210232K Y CAP 0402 1NF 10% 50V X7R CC0402KRX7R9BB 0210 3 C434 065G040210232K Y CAP 0402 1NF 10% 50V X7R CC0402KRX7R9BB 0210 3 C7031 065G040210232K Y CAP 0402 1NF 10% 50V X7R CC0402KRX7R9BB 0210 3 C128 065G040210232K Y CAP 0402 1NF 10% 50V X7R CC0402KRX7R9BB 0210 3 C157 065G040210332K E CAP 0402 10NF 10% 50V X7R C0402X7R103K5 0210 3 C611 065G040210412K A CAP CHIP 0402 100nF K 16V X7R 0210 3 C7069 065G040210412K A CAP CHIP 0402 100nF K 16V X7R 0210 3 C7071 065G040210412K A CAP CHIP 0402 100nF K 16V X7R 0210 3 C7133 065G040210412K A CAP CHIP 0402 100nF K 16V X7R 0210 3 C177 065G040210412K A CAP CHIP 0402 100nF K 16V X7R 0210 3 C7012 065G040210412K A CAP CHIP 0402 100nF K 16V X7R 0210 3 C7068 065G040210412K A CAP CHIP 0402 100nF K 16V X7R 0210 3 C7051 065G040210412K A CAP CHIP 0402 100nF K 16V X7R 0210 3 C7131 065G040210412K A CAP CHIP 0402 100nF K 16V X7R 0210 3 C7014 065G040210412K A CAP CHIP 0402 100nF K 16V X7R 0210 3 C7059 065G040210412K A CAP CHIP 0402 100nF K 16V X7R 0210 3 C7058 065G040210412K A CAP CHIP 0402 100nF K 16V X7R 0210 3 C510 065G040210412K F CAP 0402 100NF 10% 16V X7R 0210 3 C453 065G040210412K Y CAP 0402 100NF 10% 16V X7R 0210 3 C763 065G040210412K Y CAP 0402 100NF 10% 16V X7R 0210 3 C170 065G040210412K Y CAP 0402 100NF 10% 16V X7R
Page 51
0210 3 C425 065G040210412K Y CAP 0402 100NF 10% 16V X7R 0210 3 C4015 065G040210412K Y CAP 0402 100NF 10% 16V X7R 0210 3 C772 065G040210412K Y CAP 0402 100NF 10% 16V X7R 0210 3 C788 065G040210412K Y CAP 0402 100NF 10% 16V X7R 0210 3 C169 065G040210412K Y CAP 0402 100NF 10% 16V X7R 0210 3 C422 065G040210412K Y CAP 0402 100NF 10% 16V X7R 0210 3 C793 065G040210412K Y CAP 0402 100NF 10% 16V X7R 0210 3 C176 065G040210412K Y CAP 0402 100NF 10% 16V X7R 0210 3 C424 065G040210412K Y CAP 0402 100NF 10% 16V X7R 0210 3 C419 065G040210412K Y CAP 0402 100NF 10% 16V X7R 0210 3 C4012 065G040210412K Y CAP 0402 100NF 10% 16V X7R 0210 3 C102 065G040210412K Y CAP 0402 100NF 10% 16V X7R 0210 3 C797 065G040210412K Y CAP 0402 100NF 10% 16V X7R 0210 3 C454 065G040210412K Y CAP 0402 100NF 10% 16V X7R 0210 3 C4002 065G040210412K Y CAP 0402 100NF 10% 16V X7R 0210 3 C440 065G040210412K Y CAP 0402 100NF 10% 16V X7R 0210 3 C1000 065G040210412K Y CAP 0402 100NF 10% 16V X7R 0210 3 C442 065G040210412K Y CAP 0402 100NF 10% 16V X7R 0210 3 C164 065G040210412K Y CAP 0402 100NF 10% 16V X7R 0210 3 C446 065G040210412K Y CAP 0402 100NF 10% 16V X7R 0210 3 C4019 065G040210412K Y CAP 0402 100NF 10% 16V X7R 0210 3 C421 065G040210412K Y CAP 0402 100NF 10% 16V X7R 0210 3 C4020 065G040210412K Y CAP 0402 100NF 10% 16V X7R 0210 3 C444 065G040210412K Y CAP 0402 100NF 10% 16V X7R 0210 3 C791 065G040210412K Y CAP 0402 100NF 10% 16V X7R 0210 3 C4011 065G040210412K Y CAP 0402 100NF 10% 16V X7R 0210 3 C447 065G040210412K Y CAP 0402 100NF 10% 16V X7R 0210 3 C435 065G040210412K Y CAP 0402 100NF 10% 16V X7R 0210 3 C4014 065G040210412K Y CAP 0402 100NF 10% 16V X7R 0210 3 C451 065G040210412K Y CAP 0402 100NF 10% 16V X7R 0210 3 C4009 065G040210412K Y CAP 0402 100NF 10% 16V X7R 0210 3 C7041 065G040210412K Y CAP 0402 100NF 10% 16V X7R 0210 3 C443 065G040210412K Y CAP 0402 100NF 10% 16V X7R 0210 3 C4018 065G040210412K Y CAP 0402 100NF 10% 16V X7R 0210 3 C760 065G040210412K Y CAP 0402 100NF 10% 16V X7R 0210 3 C418 065G040210412K Y CAP 0402 100NF 10% 16V X7R 0210 3 C428 065G040210412K Y CAP 0402 100NF 10% 16V X7R 0210 3 C427 065G040210412K Y CAP 0402 100NF 10% 16V X7R 0210 3 C450 065G040210412K Y CAP 0402 100NF 10% 16V X7R 0210 3 C1001 065G040210412K Y CAP 0402 100NF 10% 16V X7R 0210 3 C789 065G040210412K Y CAP 0402 100NF 10% 16V X7R 0210 3 C1014 065G040210412K Y CAP 0402 100NF 10% 16V X7R 0210 3 C455 065G040210412K Y CAP 0402 100NF 10% 16V X7R 0210 3 C452 065G040210412K Y CAP 0402 100NF 10% 16V X7R 0210 3 C792 065G040210412K Y CAP 0402 100NF 10% 16V X7R 0210 3 C4006 065G040210412K Y CAP 0402 100NF 10% 16V X7R 0210 3 C178 065G040210412K Y CAP 0402 100NF 10% 16V X7R 0210 3 C140 065G040210412K Y CAP 0402 100NF 10% 16V X7R 0210 3 C765 065G040210412K Y CAP 0402 100NF 10% 16V X7R 0210 3 C7036 065G040210412K Y CAP 0402 100NF 10% 16V X7R 0210 3 C4004 065G040210412K Y CAP 0402 100NF 10% 16V X7R
Page 52
0210 3 C108 065G040210412K Y CAP 0402 100NF 10% 16V X7R 0210 3 C109 065G040210412K Y CAP 0402 100NF 10% 16V X7R 0210 3 C445 065G040210412K Y CAP 0402 100NF 10% 16V X7R 0210 3 C501 065G040210412K Y CAP 0402 100NF 10% 16V X7R 0210 3 C759 065G040210412K Y CAP 0402 100NF 10% 16V X7R 0210 3 C4017 065G040210412K Y CAP 0402 100NF 10% 16V X7R 0210 3 C785 065G040210412K Y CAP 0402 100NF 10% 16V X7R 0210 3 C795 065G040210412K Y CAP 0402 100NF 10% 16V X7R 0210 3 C4013 065G040210412K Y CAP 0402 100NF 10% 16V X7R 0210 3 C441 065G040210412K Y CAP 0402 100NF 10% 16V X7R 0210 3 C511 065G040210412K Y CAP 0402 100NF 10% 16V X7R 0210 3 C463 065G040210412K Y CAP 0402 100NF 10% 16V X7R 0210 3 C783 065G040210412K Y CAP 0402 100NF 10% 16V X7R 0210 3 C794 065G040210412K Y CAP 0402 100NF 10% 16V X7R 0210 3 C1015 065G040210412K Y CAP 0402 100NF 10% 16V X7R 0210 3 C4016 065G040210412K Y CAP 0402 100NF 10% 16V X7R 0210 3 C503 065G040210412K Y CAP 0402 100NF 10% 16V X7R 0210 3 C432 065G040210412K Y CAP 0402 100NF 10% 16V X7R 0210 3 C4003 065G040210412K Y CAP 0402 100NF 10% 16V X7R 0210 3 C4001 065G040210412K Y CAP 0402 100NF 10% 16V X7R 0210 3 C612 065G040210412K Y CAP 0402 100NF 10% 16V X7R 0210 3 C505 065G040210412K Y CAP 0402 100NF 10% 16V X7R 0210 3 C4007 065G040210412K Y CAP 0402 100NF 10% 16V X7R 0210 3 C4005 065G040210412K Y CAP 0402 100NF 10% 16V X7R 0210 3 C426 065G040210412K Y CAP 0402 100NF 10% 16V X7R 0210 3 C429 065G040210412K Y CAP 0402 100NF 10% 16V X7R 0210 3 C459 065G040210412K Y CAP 0402 100NF 10% 16V X7R 0210 3 C727 065G040210412K Y CAP 0402 100NF 10% 16V X7R 0210 3 C433 065G040210412K Y CAP 0402 100NF 10% 16V X7R 0210 3 C762 065G040210412K Y CAP 0402 100NF 10% 16V X7R 0210 3 C758 065G040210412K Y CAP 0402 100NF 10% 16V X7R 0210 3 C4022 065G040210412K Y CAP 0402 100NF 10% 16V X7R 0210 3 C423 065G040210412K Y CAP 0402 100NF 10% 16V X7R 0210 3 C650 065G040210425K F CHIP 0402 0.1UF 25V X5R 0210 3 C4032 065G040210425K Y CAP 0402 100nF 10% 25V X5R 0210 3 C4030 065G040210425K Y CAP 0402 100nF 10% 25V X5R 0210 3 C706 065G040210506K T CAP 0402 1UF 10% 6.3V X6S ­0210 3 C7042 065G040210506K T CAP 0402 1UF 10% 6.3V X6S ­0210 3 C773 065G040210506K T CAP 0402 1UF 10% 6.3V X6S ­0210 3 C7035 065G040210506K T CAP 0402 1UF 10% 6.3V X6S ­0210 3 C769 065G040210506K T CAP 0402 1UF 10% 6.3V X6S ­0210 3 C774 065G040210506K T CAP 0402 1UF 10% 6.3V X6S ­0210 3 C430 065G040210506K T CAP 0402 1UF 10% 6.3V X6S ­0210 3 C417 065G040210506K T CAP 0402 1UF 10% 6.3V X6S ­0210 3 C796 065G040210506K T CAP 0402 1UF 10% 6.3V X6S ­0210 3 C448 065G040210506K T CAP 0402 1UF 10% 6.3V X6S ­0210 3 C777 065G040210506K T CAP 0402 1UF 10% 6.3V X6S ­0210 3 C117 065G040210506K T CAP 0402 1UF 10% 6.3V X6S ­0210 3 C799 065G040210506K T CAP 0402 1UF 10% 6.3V X6S ­0210 3 C7040 065G040210506K T CAP 0402 1UF 10% 6.3V X6S ­0210 3 C781 065G040210506K T CAP 0402 1UF 10% 6.3V X6S -
Page 53
0210 3 C7038 065G040210506K T CAP 0402 1UF 10% 6.3V X6S ­0210 3 C4008 065G040210506K T CAP 0402 1UF 10% 6.3V X6S ­0210 3 C7049 065G040210506K T CAP 0402 1UF 10% 6.3V X6S ­0210 3 C779 065G040210506K T CAP 0402 1UF 10% 6.3V X6S ­0210 3 C770 065G040210506K T CAP 0402 1UF 10% 6.3V X6S ­0210 3 C776 065G040210506K T CAP 0402 1UF 10% 6.3V X6S ­0210 3 C7039 065G040210506K T CAP 0402 1UF 10% 6.3V X6S ­0210 3 C740 065G040210506K T CAP 0402 1UF 10% 6.3V X6S ­0210 3 C771 065G040210506K T CAP 0402 1UF 10% 6.3V X6S ­0210 3 C196 065G040210506K T CAP 0402 1UF 10% 6.3V X6S ­0210 3 C778 065G040210506K T CAP 0402 1UF 10% 6.3V X6S ­0210 3 C7046 065G040210506K T CAP 0402 1UF 10% 6.3V X6S ­0210 3 C160 065G040210506K T CAP 0402 1UF 10% 6.3V X6S ­0210 3 C775 065G040210506K T CAP 0402 1UF 10% 6.3V X6S ­0210 3 C790 065G040210506K T CAP 0402 1UF 10% 6.3V X6S ­0210 3 C506 065G040210506K T CAP 0402 1UF 10% 6.3V X6S ­0210 3 C7037 065G040210506K T CAP 0402 1UF 10% 6.3V X6S ­0210 3 C119 065G040210506K T CAP 0402 1UF 10% 6.3V X6S ­0210 3 C768 065G040210506K T CAP 0402 1UF 10% 6.3V X6S ­0210 3 C780 065G040210506K T CAP 0402 1UF 10% 6.3V X6S ­0210 3 C118 065G040210506K T CAP 0402 1UF 10% 6.3V X6S ­0210 3 C787 065G040210506K T CAP 0402 1UF 10% 6.3V X6S ­0210 3 C504 065G040210506K T CAP 0402 1UF 10% 6.3V X6S ­0210 3 C751 065G040210506K T CAP 0402 1UF 10% 6.3V X6S ­0210 3 C197 065G040210506K T CAP 0402 1UF 10% 6.3V X6S ­0210 3 C757 065G040210506K T CAP 0402 1UF 10% 6.3V X6S ­0210 3 C449 065G040210506K T CAP 0402 1UF 10% 6.3V X6S ­0210 3 C786 065G040210506K T CAP 0402 1UF 10% 6.3V X6S ­0210 3 C766 065G040210506K T CAP 0402 1UF 10% 6.3V X6S ­0210 3 C431 065G040210506K T CAP 0402 1UF 10% 6.3V X6S ­0210 3 C767 065G040210506K T CAP 0402 1UF 10% 6.3V X6S ­0210 3 C416 065G040210506K T CAP 0402 1UF 10% 6.3V X6S ­0210 3 C720 065G040210605M A CAP 0402 10UF 20% 6.3V X5R CL05A106MQ5N 0210 3 C7001 065G040210605M A CAP 0402 10UF 20% 6.3V X5R CL05A106MQ5N 0210 3 C469 065G040215131J Y CHIP 150pF 50V NP0 YAGEO 0210 3 C723 065G040222031J Y CAP CHIP 0402 22P 50V NP0 +/-5% 0210 3 C171 065G040222232K F CAP 0402 2.2NF K 50V X7R 0210 3 C1005 065G040222232K F CAP 0402 2.2NF K 50V X7R 0210 3 C7132 065G040222415K Y CAP CHIP 0402 220nF 16V X5R 0210 3 C7072 065G040222415K Y CAP CHIP 0402 220nF 16V X5R 0210 3 C457 065G040230031J A CAP 0402 30PF 5% 5% 50V NP0 0210 3 C165 065G040230031J A CAP 0402 30PF 5% 5% 50V NP0 0210 3 C166 065G040230031J A CAP 0402 30PF 5% 5% 50V NP0 0210 3 C458 065G040230031J A CAP 0402 30PF 5% 5% 50V NP0 0210 3 C121 065G040233031J F CAP 0402 33PF 5% 50V NP0 0210 3 C114 065G040233031J F CAP 0402 33PF 5% 50V NP0 0210 3 C7053 065G040233232K F CAP 0402 3.3NF 10% 50V X7R 0210 3 C7017 065G040233232K F CAP 0402 3.3NF 10% 50V X7R 0210 3 C180 065G040247031J Y CAP 0402 47PF 5% 50V NP0 0210 3 C182 065G040247031J Y CAP 0402 47PF 5% 50V NP0 0210 3 C1007 065G040247312K Y CAP 0402 47NF 10% 16V X7R
Page 54
0210 3 C183 065G040247312K Y CAP 0402 47NF 10% 16V X7R 0210 3 C115 065G040247312K Y CAP 0402 47NF 10% 16V X7R 0210 3 C190 065G040247312K Y CAP 0402 47NF 10% 16V X7R 0210 3 C1011 065G040247312K Y CAP 0402 47NF 10% 16V X7R 0210 3 C116 065G040247312K Y CAP 0402 47NF 10% 16V X7R 0210 3 C199 065G040247312K Y CAP 0402 47NF 10% 16V X7R 0210 3 C198 065G040247312K Y CAP 0402 47NF 10% 16V X7R 0210 3 C415 065G0402474A5K A CAP 0402 470NF 10% 10V X5R 0210 3 C437 065G0402474A5K A CAP 0402 470NF 10% 10V X5R 0210 3 C414 065G0402474A5K A CAP 0402 470NF 10% 10V X5R 0210 3 C436 065G0402474A5K A CAP 0402 470NF 10% 10V X5R 0210 3 C438 065G0402474A5K A CAP 0402 470NF 10% 10V X5R 0210 3 C1027 065G040247931C Y CAP 0402 4.7PF 0.25pF 50V NP0 0210 3 C1026 065G040247931C Y CAP 0402 4.7PF 0.25pF 50V NP0 0210 3 C4023 065G060310432K A CAP 0603 100NF 10% 50V X7R 0210 3 C617 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R 0210 3 C615 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R 0210 3 C4033 065G060310432K Y CAP 0603 100NF 10% 50V X7R 0210 3 C508 065G060310512K A CAP 0603 1UF 10% 16V X7R 0210 3 C4039 065G060310512K T CAP 0603 1UF 10% 16V X7R EMK107B7105KA 0210 3 C7057 065G060310512K T CAP 0603 1UF 10% 16V X7R EMK107B7105KA 0210 3 C7016 065G060310512K T CAP 0603 1UF 10% 16V X7R EMK107B7105KA 0210 3 C7052 065G060310522K A CAP 0603 1UF 10% 25V X7R CL10B105KA8NNN 0210 3 C112 065G060310605M M CAP 0603 10UF 20% 6.3V X5R 0210 3 C726 065G060310605M M CAP 0603 10UF 20% 6.3V X5R 0210 3 C741 065G060310605M M CAP 0603 10UF 20% 6.3V X5R 0210 3 C420 065G060310605M M CAP 0603 10UF 20% 6.3V X5R 0210 3 C107 065G060310605M M CAP 0603 10UF 20% 6.3V X5R 0210 3 C631 065G060310605M M CAP 0603 10UF 20% 6.3V X5R 0210 3 C722 065G060310605M M CAP 0603 10UF 20% 6.3V X5R 0210 3 C7047 065G060310605M M CAP 0603 10UF 20% 6.3V X5R 0210 3 C725 065G060310605M M CAP 0603 10UF 20% 6.3V X5R 0210 3 C138 065G060310605M M CAP 0603 10UF 20% 6.3V X5R 0210 3 C753 065G060310605M M CAP 0603 10UF 20% 6.3V X5R 0210 3 C721 065G060310605M M CAP 0603 10UF 20% 6.3V X5R 0210 3 C439 065G060310605M M CAP 0603 10UF 20% 6.3V X5R 0210 3 C701 065G060322422K T CAP CHIP0603 220NF K 25V X7R 0210 3 C628 065G060333131J Y CAP CHIP 0603 330P 50V NP0 +/-5% 0210 3 C632 065G060333131J Y CAP CHIP 0603 330P 50V NP0 +/-5% 0210 3 C626 065G060333131J Y CAP CHIP 0603 330P 50V NP0 +/-5% 0210 3 C625 065G060333131J Y CAP CHIP 0603 330P 50V NP0 +/-5% 0210 3 C460 065G060347506K A CAP 0603 4.7UF 10% 6.3V X6S ­0210 3 C613 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R 0210 3 C633 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R 0210 3 C616 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R 0210 3 C618 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R 0210 3 C620 065G080510615K T CHIP 10uF 16V X5R 0805 0210 3 C621 065G080510615K T CHIP 10uF 16V X5R 0805 0210 3 C623 065G080522432K F CAP 0805 220NF 10% 50V X7R 0210 3 C622 065G080522432K F CAP 0805 220NF 10% 50V X7R 0210 3 C737 065G080522605M M CAP 0805 22UF 20% 6.3V X5R
Page 55
0210 3 C736 065G080522605M M CAP 0805 22UF 20% 6.3V X5R
AUDIO AD82587D-QG24NAR 2x20W E-TSSOP-24
0210 3 C7130 065G080522605M M CAP 0805 22UF 20% 6.3V X5R 0210 3 C7129 065G080522605M M CAP 0805 22UF 20% 6.3V X5R 0210 3 C738 065G080522605M M CAP 0805 22UF 20% 6.3V X5R 0210 3 C735 065G080522605M M CAP 0805 22UF 20% 6.3V X5R 0210 3 C7127 065G120610625K A CAP 1206 10UF 10% 25V X5R 0210 3 C7128 065G120610625K A CAP 1206 10UF 10% 25V X5R 0210 3 C7060 065G120610625K T CAP 1206 10uF 10% 25V X5R TMK316 BJ106K 0210 3 C7011 065G120610625K T CAP 1206 10uF 10% 25V X5R TMK316 BJ106K 0210 3 C7010 065G120610625K T CAP 1206 10uF 10% 25V X5R TMK316 BJ106K 0210 3 C7054 065G120610625K T CAP 1206 10uF 10% 25V X5R TMK316 BJ106K 0210 3 C7062 065G1206226A5K A 1206 22UF K 10V X5R 0210 3 C7018 065G1206226A5K A 1206 22UF K 10V X5R 0210 3 C7019 065G1206226A5K A 1206 22UF K 10V X5R 0210 3 C7055 065G1206226A5K A 1206 22UF K 10V X5R 0210 3 C110 067G311R1013LT EC SMD 100UF 20% 16V 6.3*5.3 0210 3 HDCP-U413 070GHDCP500HDC HDCP CODE 0210 3 FB403 071G 56K121 TA HIP BEAD 120R/6000mA HCB2012KF-121T60 0210 3 FB703 071G 59A121 TA CHIP BEAD 120R/3000mA HCB1608KF-121T30 0210 3 L710 073G253S 67 M SMD CHOKE 3.3UH 20% 0.028R 6.5A 0210 3 L711 073G253S 67 M SMD CHOKE 3.3UH 20% 0.028R 6.5A 0210 3 D100 093G 6433S switching diode BAV99 0210 3 ZD507 093G 39GA01 T RLZ5.6B 0210 3 D701 093G 60S 37 T SCHOTTKY SM260A 2A 40V DO-214AC 0210 3 ZD110 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ 0210 3 ZD112 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ 0210 3 ZD115 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ 0210 3 ZD111 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ 0210 3 ZD114 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ 0210 3 ZD113 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ 0210 3 ZD109 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ 0210 3 D101 093G 64S526SEM SWITCHING BAS316WS 250mA 100V SOD323 0210 3 D511 093G 64S526SEM SWITCHING BAS316WS 250mA 100V SOD323 0210 3 D501 093G 64S526SEM SWITCHING BAS316WS 250mA 100V SOD323 0210 3 D510 093G 64S900 T DIODE BAS316 SOD-323 PHILIPS 0210 3 D502 093G 64S900 T DIODE BAS316 SOD-323 PHILIPS 0210 3 CN408 311GF050Z51ADC FFC CONN 0.5mm 51P R/A F05036-51P-E 0210 3 CN109 311GW125D05ADL WAFER 1.25mm 5P R/A B1254W05HUM2 0210 3 U705 356G056313200C00HF LDO AZ1117CH-1.2TRG1 1A 1.2V SOT-223 0210 3 U711 356G056317300C00HF LDO AZ1084CD-3.3TRG1 5A 3.3V TO-252-2(3) 0210 3 U707 356G056351400C00HF LDO AZ1117CH- 3.3TRG1 1.35A 3.3V SOT-223 0210 3 U703 356G056351400C00HF LDO AZ1117CH- 3.3TRG1 1.35A 3.3V SOT-223 0210 3 U407 356G0566024600 Silicon Tuner MxL661-AG-R 0210 3 U401 356G0568577603 SCALER Hi3751ARBCV5100D00 PBGA-577 0210 3 U403 356G0615004612 DRAM K4B4G1646E-BCK0 4G FBGA-96 0210 3 U404 356G0615004612 DRAM K4B4G1646E-BCK0 4G FBGA-96 0210 3 U601 356G0616024602 0210 3 U413 356G333304A600 NAND FLASH THGBMBG5D1KBAIT 4G BGA 153 0210 3 U510 356G74LS016064000C Logic 74HC4052PW (cu) TSSOP-16 0210 3 U702 356GD563005243 DC/DC SY8079AAC 2A 6.5V SOT23-5 0210 3 U708 356GD563006610 DC/DC TPS563201DDCR 17V 3A SOT-23-6
Page 56
0210 3 U713 356GD563006610 DC/DC TPS563201DDCR 17V 3A SOT-23-6
CHIP BEAD 0402 120R 25% MGLB1005M121T1R3
CHIP BEAD 0402 120R 25% MGLB1005M121T1R3
CHIP BEAD 0402 120R 25% MGLB1005M121T1R3
CHIP BEAD 0402 120R 25% MGLB1005M121T1R3
CHIP BEAD 0402 120R 25% MGLB1005M121T1R3
CHIP BEAD 0402 120R 25% MGLB1005M121T1R3
CHIP BEAD 0402 120R 25% MGLB1005M121T1R3
CHIP BEAD 0402 120R 25% MGLB1005M121T1R3
CHIP BEAD 0402 120R 25% MGLB1005M121T1R3
0210 3 U710 356GD563008611 DC/DC RT6206BHGSP 5.5A 18V SOP-8 0210 3 U712 356GD563008611 DC/DC RT6206BHGSP 5.5A 18V SOP-8 0210 3 Q512 357G07630620HF .F MOSFET 2N7002K_R1_00001 0.3A 60V 0210 3 TH101 361G0056159ALT PTCR SMD 1.5A 1% 0.8W 1206L150SLYR 0210 3 R7034 361G04022492FY RST 0402 24.9K 1% 1/16W RC0402FR-0724K9 0210 3 R7040 361G04022492FY RST 0402 24.9K 1% 1/16W RC0402FR-0724K9 0210 3 R108 361G04025108FT RST 0402 5.1 ohm 1% 1/16W SMD04025R1F 0210 3 R110 361G04025108FT RST 0402 5.1 ohm 1% 1/16W SMD04025R1F 0210 3 R109 361G04025108FT RST 0402 5.1 ohm 1% 1/16W SMD04025R1F 0210 3 R114 361G04025108FT RST 0402 5.1 ohm 1% 1/16W SMD04025R1F 0210 3 R111 361G04025108FT RST 0402 5.1 ohm 1% 1/16W SMD04025R1F 0210 3 R113 361G04025108FT RST 0402 5.1 ohm 1% 1/16W SMD04025R1F 0210 3 R101 361G06031330FY RST 0603 133Ω 1% 1/10W N/A 0210 3 C761 365G040222502K000M CAP 0402 2.2uF 20% 6.3V X7S GRM155C70J2 0210 3 C456 365G040222502K000M CAP 0402 2.2uF 20% 6.3V X7S GRM155C70J2 0210 3 C7075 365G040222502K000M CAP 0402 2.2uF 20% 6.3V X7S GRM155C70J2 0210 3 C7065 365G040222502K000M CAP 0402 2.2uF 20% 6.3V X7S GRM155C70J2 0210 3 C101 365G060310606M001A CAP 0603 10uF 20% 6.3V X6S CL10X106MQ8NN 0210 3 C4010 365G060310606M001A CAP 0603 10uF 20% 6.3V X6S CL10X106MQ8NN 0210 3 C784 365G060310606M001A CAP 0603 10uF 20% 6.3V X6S CL10X106MQ8NN 0210 3 C798 365G060310606M001A CAP 0603 10uF 20% 6.3V X6S CL10X106MQ8NN 0210 3 C103 365G060310606M001A CAP 0603 10uF 20% 6.3V X6S CL10X106MQ8NN 0210 3 C502 365G060310615M000A CAP 0603 10U 20% 16V X5R CL10A106MO8NQN 0210 3 C782 365G080522606M000M CAP 0805 22uF 20% 6.3V X6S GRM21BC80J22 0210 3 C764 365G080522606M000M CAP 0805 22uF 20% 6.3V X6S GRM21BC80J22 0210 3 C126 365G080547172K000F CAP 0805 470pF 10% 500V X7R ­0210 3 C168 365G120647282K000Y CAP 1206 4.7nf 10% 1KV X7R CC1206KKX7RC 0210 3 C123 365G120647282K000Y CAP 1206 4.7nf 10% 1KV X7R CC1206KKX7RC 0210 3 C136 365G120647282K000Y CAP 1206 4.7nf 10% 1KV X7R CC1206KKX7RC 0210 3 C161 365G120647282K000Y CAP 1206 4.7nf 10% 1KV X7R CC1206KKX7RC 0210 3 C104 365G120647282K000Y CAP 1206 4.7nf 10% 1KV X7R CC1206KKX7RC 0210 3 C134 365G120647282K000Y CAP 1206 4.7nf 10% 1KV X7R CC1206KKX7RC 0210 3 C105 365G120647282K000Y CAP 1206 4.7nf 10% 1KV X7R CC1206KKX7RC 0210 3 C135 365G120647282K000Y CAP 1206 4.7nf 10% 1KV X7R CC1206KKX7RC 0210 3 C130 365G120647282K000Y CAP 1206 4.7nf 10% 1KV X7R CC1206KKX7RC 0210 3 C124 365G120647282K000Y CAP 1206 4.7nf 10% 1KV X7R CC1206KKX7RC 0210 3 C7034 367G311F1014LT 367G311F1014LT 20% --25V --8*6.5 -- -­0210 3 C4025 367G311X221FLT EC SMD 220uF 20% 25V 8x10.2 5000 hr 0.6 0210 3 MAC-U413 370G0MAC642CNT Buy key CNTV腾讯版MAC for 海 0210 3 HDCP2-U413 370GHDCP603PHP CD CD HDCP2.2 code for Wifi Miracast 0210 3 FB605 371G042P121M02 0210 3 FB705 371G042P121M02 0210 3 FB606 371G042P121M02 0210 3 FB608 371G042P121M02 0210 3 FB712 371G042P121M02 0210 3 FB709 371G042P121M02 0210 3 FB402 371G042P121M02 0210 3 FB501 371G042P121M02 0210 3 FB607 371G042P121M02 0210 3 FB710 371G042P221M00 CHIP BEAD 0402 220R 25% MGLB1005M221T1R
Page 57
0210 3 FB711 371G042P221M00 CHIP BEAD 0402 220R 25% MGLB1005M221T1R
SMD CHOKE 75R 25% 280mA 75R BW21S7511B01
715G7924M0CB01004N
715G7924M0CB01004Y
0210 3 FB103 371G042U102C00 CHIP BEAD 0402 1000 25% FCM1005KF-102T0 0210 3 FB104 371G042U102C00 CHIP BEAD 0402 1000 25% FCM1005KF-102T0 0210 3 L102 373G0603338FKD CHIP IND 0.33uH 10% 0.1 0.75 SDFL1608LR3 0210 3 L600 373G253S147Y00 SMD CHOKE 22uH 20% 1.5A 0.115R NR6045T22 0210 3 L601 373G253S147Y00 SMD CHOKE 22uH 20% 1.5A 0.115R NR6045T22 0210 3 L602 373G253S147Y00 SMD CHOKE 22uH 20% 1.5A 0.115R NR6045T22 0210 3 L603 373G253S147Y00 SMD CHOKE 22uH 20% 1.5A 0.115R NR6045T22 0210 3 L101 373G253S239D00 0210 3 L703 373G253S356M00 0804D09092 0210 3 L704 373G253S356M00 0804D09092 0210 3 L702 373G253S526M00 SMD CHOKE 4.7uH 20% 0.9A 0.444R MPIH2016 0210 3 CN501 388G340FJ05FAT0001 HDMI R/A 19P 1*1 BLACK 8.4mm 0210 3 CN504 388G340FJ05FAT0001 HDMI R/A 19P 1*1 BLACK 8.4mm 0210 3 X102 393G022S60100J CRYSTAL NXH16.000AE18F-KAB8-PA 16MHz 18 0210 3 X401 393G022SA44TXC CRYSTAL 7V24000017 ±20ppm 18PF 0210 3 ZD710 393G039SA2300T ZENER BZT52-B7V5 7.5V 0.41W SOD-123 0210 3 709T79240XS001 COMSUMPTIVE ASSY 0210 3 E715 0210 3 E715 2220 3 CN104 088G 78G135ACL RCA JACK R/A 6P Y/W/R 1*3 H=10.5 C-PIN 2220 3 CN103 088G352F6B3ACL USB A TYPE R/A 6P BLACK H=8.4 2220 3 CN106 088G353GFF1ACL D-SUB CONN 15P BLUE R/A H=10mm 2220 3 CN602 311GW200A04ABX AFER 2.0mm 4P 2220 3 CN102 311GW200C08ABL .AFER 2.0mm 8P R/A ­2220 3 CN700 311GW200C12BBX CONN 2.0mm 12P R/A W2010-12RVA-S04 2220 3 CN401 311GW200C14BBX CONN 2.0mm 14P R/A W2010-14RVA-S04 2220 3 CN601 388G078G111ACL RCA R/A 3P 1*1 ORANGE 10.5 2220 3 CN108 388G342GFB6AKX RJ45 R/A 15P 1*1 BLACK 11.2 2220 3 CN101 388G352F911ADL USB 3.0 A R/A 9P 1*1 BLUE 8.4mm 2220 3 SH101 388G510G502FCL RF RF Shielding 5P 1*1 GRAY 9.5 2220 3 TU101 388G510H402FHC RF IFP-013-2 5P 1*1 W 11.2 2220 3 HS401 P90T0051301 Heat Sink 2220 3 HS601 Q90G6119 6 HEAT SINK 25 10
2 SMTIRPFGXB7 IR BOARD FOR SMT 0510 3 Q207 057G 477904 T TRA BC847BW 100mA/45V SOT-323 0510 3 Q201 057G 477904 T TRA BC847BW 100mA/45V SOT-323 0510 3 R206 061G0402000 JT RST 0402 0.05R MAX 1/16W ­0510 3 R205 061G0402000 JT RST 0402 0.05R MAX 1/16W ­0510 3 R213 061G0402000 JT RST 0402 0.05R MAX 1/16W ­0510 3 R202 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN 0510 3 R230 061G0402102 JT RST CHIP 1K 1/16W 5% TZAI YUAN 0510 3 R233 061G0402102 JT RST CHIP 1K 1/16W 5% TZAI YUAN 0510 3 R209 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN 0510 3 R208 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN 0510 3 R234 061G0402222 JT RST CHIP 2K2 1/16W 5% TZAI YUAN 0510 3 R232 061G0402229 JT RST CHIP 2R2 1/16W 5% TZAI YUAN 0510 3 R231 061G0402229 JT RST CHIP 2R2 1/16W 5% TZAI YUAN 0510 3 C201 065G040210412K Y CAP 0402 100NF 10% 16V X7R 0510 3 C204 065G0402105A5K M CAP 0402 1UF 10% 10V X5R 0510 3 C202 065G0402105A5K M CAP 0402 1UF 10% 10V X5R
MAIN PCB FR4 DS 3*109*1.6MM MAIN PCB FR4 DS 193*109*1.6MM
Page 58
0510 3 C205 065G0402105A5K M CAP 0402 1UF 10% 10V X5R 0510 3 LED201 081G 15R 1 EL CHIP LED Red 99-213/R6C-AR2S2B/2C 0510 3 LED205 081G 15W 1 EL CHIP LED WHITE 99-113UNC/2223010/TR8 0510 3 LED206 081G 15W 1 EL CHIP LED WHITE 99-113UNC/2223010/TR8 0510 3 LED206 081G 15W 1 GP CHIP LED White GPSS008WC1-D 0510 3 LED205 081G 15W 1 GP CHIP LED White GPSS008WC1-D 0510 3 ZD201 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ 0510 3 CN201 311GW125D13ACL CONN 1.25mm 13P V/T B1254W13VUM2 0510 3 CN201 311GW125D13ACX CONN 1.25mm 13P V/T S1315-13SVB-S03-R 0510 3 U203 356GS527006006 LIGHT SENSOR JSA-1130 6pin 0510 3 U201 356GS927036606 SMD IR RECEIVER SIR8B19R1 36 0510 3 LED201 381G0A1500R1GP LED R GPSS008RC4 0510 3 E715 715G7074R03000004Y IR PCB FR4 DS 36*26*0.8mm
2 SMTKEPFEAA9 KEY BOARD FOR SMT 0310 3 R01 061G06031201FF RST CHIPR 1.2KOHM +-1% 1/10W 0310 3 R01 061G06031201FT RST CHIP 1K2 1/10W 1% 0310 3 R01 061G06031201FY RST CHIPR 1.2KOHM +-1% 1/10W 0310 3 R05 061G06031502FF RST CHIPR 15KOHM +-1% 1/10W FENGHUA 0310 3 R05 061G06031502FT RST CHIP 15K 1/10W 1% 0310 3 R05 061G06031502FY RST CHIP 15K 1/10W 1% 0310 3 R04 061G06032201FT RST CHIP 2K2 1/10W 1% 0310 3 R04 061G06032201FY RST CHIP 2K2 1/10W 1% 0310 3 R02 061G06034709FT RST CHIP 47R 1/10W 1% 0310 3 R03 061G06036801FF RST CHIPR 6.8KOHM +-1% 1/10W FENGHUA 0310 3 R03 061G06036801FT RST CHIP 6K8 1/10W 1% 0310 3 R03 061G06036801FY RST CHIP 6K8 1/10W 1% 0310 3 C06 065G060310432K A CAP 0603 100NF 10% 50V X7R 0310 3 C06 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R 0310 3 C06 065G060310432K Y CAP 0603 100NF 10% 50V X7R 0310 3 CN01 311GW125D02ADX WAFER 1.25mm 2P R/A S1315-02RVB-S03-K 0310 3 SW01 377G060902C0CJ CHIP TACT SW 6P 6mm 160g SMD 0310 3 SW01 377G060902C0HC CHIP TACT SW 6P 6mm 160g SMD 0310 3 709T70880XS001 COMSUMPTIVE ASSY 0310 3 E715 715G7088K01000004K KEY PCB FR4 DS 22*29.5*1.6mm
2 705TAF57069 Q8602 D8601 ASS"Y 0704 3 051G 200 1 OIL FOR DISAPPEAR 0704 3 D8601 093G 60329 IODE FMEN-220A 20A/100V TO-220 0704 3 0M1G1730 8120 SCREW M3 8 0704 3 Q8602 357G0600100017 MOSFET P3710BTF 19A 100V TO-220F 0704 3 HS8601 Q90T0236003A0000BF HEAT SINK
2 705TAF57070 Q8604 D8604 ASS"Y 0704 3 051G 200 1 OIL FOR DISAPPEAR 0704 3 D8604 093G 60329 IODE FMEN-220A 20A/100V TO-220 0704 3 0M1G1730 8120 SCREW M3 8 0704 3 Q8604 357G0600100017 MOSFET P3710BTF 19A 100V TO-220F 0704 3 HS8602 Q90T0236003A0000BF HEAT SINK
2 709T77000XM001 COMSUMPTIVE ASSY 0709 3 052G 2191 A TAPE_OTHER(PET,PAPER,SECURITY,ETC…) 0709 3 055G 23520 .leaning Naphtha 0709 3 055G 23524 WELDING FLUX WITHOUT PB 0709 3 Q49G 51100 Water-based Cleaning Agent
Page 59
0709 3 Q51G 6 4509 GLUE_RTV 0709 3 Q55G 100622 TIN STICK(SAC0507) 0709 3 Q55G 100655 Sn-Cu Solder
2 LNGI472XXE9SMT CONVERTER BOARD FOR SMT 0051 3 R8614 061G0805000 JT RST 0805 0.05R MAX 1/8W 0051 3 R8604 061G0805100 JT RST CHIP 10R 1/8W 5% TZAI YUAN 0051 3 R8621 061G0805100 JT RST CHIP 10R 1/8W 5% TZAI YUAN 0051 3 R8672 061G08051001FT RST CHIP 1K 1/8W 1% 0051 3 R8648 061G08051001FT RST CHIP 1K 1/8W 1% 0051 3 R8671 061G08051001FT RST CHIP 1K 1/8W 1% 0051 3 R8650 061G08051002FT RST CHIP 10K 1/8W 1% 0051 3 R8651 061G08051002FT RST CHIP 10K 1/8W 1% 0051 3 R8673 061G08051002FT RST CHIP 10K 1/8W 1% 0051 3 R8630 061G0805101 JT RST CHIP 100R 1/8W 5% TZAI YUAN 0051 3 R8613 061G0805101 JT RST CHIP 100R 1/8W 5% TZAI YUAN 0051 3 R8622 061G0805103 JT RST 0805 10K 5% 1/8W 0051 3 R8605 061G0805103 JT RST 0805 10K 5% 1/8W 0051 3 R8638 061G08052008FT RST 0805 2R 1% 1/8W ­0051 3 R8603 061G08052008FT RST 0805 2R 1% 1/8W ­0051 3 R8668 061G08052203FT RST CHIPR 220KOHM +-1% 1/8W 0051 3 R8670 061G08052403FT RST CHIP 240K 1% 1/8W 0051 3 R8647 061G08055602FT RST CHIP R 56K 1/8W +/-1% 0051 3 R8649 061G0805564 JT RST CHIPR 560K +-5% 1/8W TZAI YUAN 0051 3 R8663 061G08057503FT RST 0805 750K 1% 1/8W 0051 3 R8664 061G08057503FT RST 0805 750K 1% 1/8W 0051 3 R8641 061G1206100 JT RST CHIPR 10 OHM +-5% 1/4W TZAI YUAN 0051 3 R8642 061G12061001FT RST CHIP R 1Kohm +-1% 1/4W 0051 3 R8615 061G12061001FT RST CHIP R 1Kohm +-1% 1/4W 0051 3 R8632 061G12061001FT RST CHIP R 1Kohm +-1% 1/4W 0051 3 R8629 061G12061002FT RST CHIPR 10KOHM +-1% 1/4W 1206 0051 3 R8612 061G12061002FT RST CHIPR 10KOHM +-1% 1/4W 1206 0051 3 R8628 061G12061003FT RST 1206 100K 1% 1/4W SMD1206100KF 0051 3 R8611 061G12061003FT RST 1206 100K 1% 1/4W SMD1206100KF 0051 3 R8610 061G12061003FT RST 1206 100K 1% 1/4W SMD1206100KF 0051 3 R8627 061G12061003FT RST 1206 100K 1% 1/4W SMD1206100KF 0051 3 R8639 061G12062003FT RST CHIPR 200KOHM +-1% 1/4W TZAI YUAN 0051 3 R8658 061G1206202 JT RST CHIP R 2Kohm 1/4W +/-5% 0051 3 R8624 061G1206224 JT RST CHIPR 220KOHM +-5% 1/4W TZAI YUAN 0051 3 R8626 061G1206224 JT RST CHIPR 220KOHM +-5% 1/4W TZAI YUAN 0051 3 R8607 061G1206224 JT RST CHIPR 220KOHM +-5% 1/4W TZAI YUAN 0051 3 R8608 061G1206224 JT RST CHIPR 220KOHM +-5% 1/4W TZAI YUAN 0051 3 R8625 061G1206224 JT RST CHIPR 220KOHM +-5% 1/4W TZAI YUAN 0051 3 R8609 061G1206224 JT RST CHIPR 220KOHM +-5% 1/4W TZAI YUAN 0051 3 R8640 061G12063602FT RST CHIPR 36K +-1% 1/4W TZAI YUAN 0051 3 R8684 061G12065109FT RST 1206 51R 1% 1/4W 0051 3 R8685 061G12065109FT RST 1206 51R 1% 1/4W 0051 3 R8687 061G12065109FT RST 1206 51R 1% 1/4W 0051 3 R8686 061G12065109FT RST 1206 51R 1% 1/4W 0051 3 R8643 061G1206564 JT RST 1206 560K 5% 1/4W 0051 3 C8639 065G080510131J M CAP CHIP 0805 100pF J 50V NPO 0051 3 C8640 065G080510131J M CAP CHIP 0805 100pF J 50V NPO
Page 60
0051 3 C8614 065G080510232K M CAP 0805 1NF 10% 50V X7R 0051 3 C8641 065G080510232K M CAP 0805 1NF 10% 50V X7R 0051 3 C8616 065G080510232K M CAP 0805 1NF 10% 50V X7R 0051 3 C8624 065G080510332K M CAP 0805 10NF 10% 50V X7R 0051 3 C8619 065G080510332K M CAP 0805 10NF 10% 50V X7R 0051 3 C8621 065G080510332K M CAP 0805 10NF 10% 50V X7R 0051 3 C8618 065G080510522K M AP 0805 1UF 10% 25V X7R 0051 3 C8620 065G080510522K M AP 0805 1UF 10% 25V X7R 0051 3 C8613 065G080510522K M AP 0805 1UF 10% 25V X7R 0051 3 C8630 065G080515232K Y CAP CHIP 0805 1N5 50V X7R +/-10% 0051 3 C8627 065G080515232K Y CAP CHIP 0805 1N5 50V X7R +/-10% 0051 3 C8657 065G080515232K Y CAP CHIP 0805 1N5 50V X7R +/-10% 0051 3 C8656 065G080515232K Y CAP CHIP 0805 1N5 50V X7R +/-10% 0051 3 C8612 065G080522232K Y CAP CHIP 0805 2N2 50V X7R +/-10% 0051 3 C8606 065G080522232K Y CAP CHIP 0805 2N2 50V X7R +/-10% 0051 3 C8615 065G080522512K M CAP 0805 2.2UF 10% 16V X7R 0051 3 C8617 065G080522512K M CAP 0805 2.2UF 10% 16V X7R 0051 3 C8642 065G080547131J M CAP 0805 470PF 5% 50V NP0 0051 3 C8643 065G080547131J M CAP 0805 470PF 5% 50V NP0 0051 3 U8601 356G0700024602 LED DRIVER OZ9902AGN SOP-24 0051 3 Q8606 357G0761A0100T SMALLTRAN BTC4672M3 5A 50V 0.6W SOT-89 0051 3 Q8605 357G0763100604 MOSFET PA110BDA 15A 100V TO-252 0051 3 Q8603 357G0763100604 MOSFET PA110BDA 15A 100V TO-252 0051 3 R8617 361G12062708FT RST 1206 2R7 1% 1/4W SMD12062R7F 0051 3 R8616 361G12062708FT RST 1206 2R7 1% 1/4W SMD12062R7F 0051 3 R8636 361G12062708FT RST 1206 2R7 1% 1/4W SMD12062R7F 0051 3 R8635 361G12062708FT RST 1206 2R7 1% 1/4W SMD12062R7F 0051 3 R8619 361G12062708FT RST 1206 2R7 1% 1/4W SMD12062R7F 0051 3 R8634 361G12062708FT RST 1206 2R7 1% 1/4W SMD12062R7F 0051 3 R8618 361G12062708FT RST 1206 2R7 1% 1/4W SMD12062R7F 0051 3 R8633 361G12062708FT RST 1206 2R7 1% 1/4W SMD12062R7F 0051 3 R8645 361G12063608FT RST 1206 3R6 1% 1/4W SMD12063R6FT 0051 3 R8646 361G12063608FT RST 1206 3R6 1% 1/4W SMD12063R6FT 0051 3 R8653 361G12063608FT RST 1206 3R6 1% 1/4W SMD12063R6FT 0051 3 R8661 361G12063608FT RST 1206 3R6 1% 1/4W SMD12063R6FT 0051 3 R8656 361G12063608FT RST 1206 3R6 1% 1/4W SMD12063R6FT 0051 3 R8637 361G12063608FT RST 1206 3R6 1% 1/4W SMD12063R6FT 0051 3 R8620 361G12063608FT RST 1206 3R6 1% 1/4W SMD12063R6FT 0051 3 R8644 361G12063608FT RST 1206 3R6 1% 1/4W SMD12063R6FT 0051 3 R8690 361G12063908FT RST 1206 3R9 1% 1/4W SMD12063R9F 0051 3 R8691 361G12063908FT RST 1206 3R9 1% 1/4W SMD12063R9F 0051 3 R8692 361G12063908FT RST 1206 3R9 1% 1/4W SMD12063R9F 0051 3 R8697 361G12063908FT RST 1206 3R9 1% 1/4W SMD12063R9F 0051 3 R8694 361G12063908FT RST 1206 3R9 1% 1/4W SMD12063R9F 0051 3 R8693 361G12063908FT RST 1206 3R9 1% 1/4W SMD12063R9F 0051 3 R8696 361G12063908FT RST 1206 3R9 1% 1/4W SMD12063R9F 0051 3 R8695 361G12063908FT RST 1206 3R9 1% 1/4W SMD12063R9F 0051 3 ZD8601 393G039S96400T00HF ZENER BZT52-B13_R1_00001 13V 0.41W SOD-1 0051 3 D8602 393G060S50000T00HF HF SS1060FL_R1_00001 1A 60V SOD123FL 0051 3 D8606 393G060S50000T00HF HF SS1060FL_R1_00001 1A 60V SOD123FL 0051 3 D8605 393G060S50000T00HF HF SS1060FL_R1_00001 1A 60V SOD123FL
Page 61
0051 3 709T77000XS001 COMSUMPTIVE ASSY 0051 3 LNGI472XXE9AI CONVERTER BOARD FOR AI
3 709T68870XS001 COMSUMPTIVE ASSY 0709 4 051G 100502 Surface Mount Adhesives 0709 4 052G 2191 A TAPE_OTHER(PET,PAPER,SECURITY,ETC…) 0709 4 055G 23520 .leaning Naphtha 0709 4 Q05G6054 1 SHEET 0709 4 Q09G6012 1 PIN
3 ADG3235XA1AI ADAPTER BOARD FOR AI 7100 4 BD9902 006G 31 4 EYELET 7100 4 BD9901 006G 31 4 EYELET 7100 4 L9901 006G 31 4 EYELET 7100 4 L9902 006G 31 4 EYELET 7100 4 L9802 006G 31500 EYELET 7100 4 T9202 006G 31500 EYELET 7100 4 T9201 006G 31500 EYELET 7100 4 CN9901 006G 31500 EYELET 7100 4 T9101 006G 31500 EYELET 7100 4 L9801 006G 31500 EYELET 7100 4 C9902 006G 31502 EYELET 7100 4 C9803 006G 31502 EYELET 7100 4 C9804 006G 31502 EYELET 7100 4 C9823 006G 31502 EYELET 7100 4 NR9901 006G 31502 EYELET 7100 4 C9901 006G 31502 EYELET 7100 4 RV9901 006G 31502 EYELET 7100 4 C9805 006G 31502 EYELET 7100 4 C9801 006G 31502 EYELET 7100 4 040G 45762420A LABEL 25x6mm 7100 4 R9201 061G 30310852T SY RST FUSE 0.1R 5% 1W 7100 4 C9215 065G 1K101 2T6921 CAP CER 100pF 1KV K Y5P 7100 4 C9108 065G 1K10193T CAP CER 100PF 10% 1KV R 7100 4 C9201 065G 1K10293T CAP CER 1NF 10% 1KV R CK45-R3AD102K-SRY 7100 4 C9825 065G 1K1029ST CAP CER 1NF 10% 1KV R 7100 4 C9826 065G 1K1029ST CAP CER 1NF 10% 1KV R 7100 4 C9123 065G 1K22293S CAP CER 2.2NF 10% 1KV R TAPING 7100 4 C9116 065G 1K22293S CAP CER 2.2NF 10% 1KV R TAPING 7100 4 C9126 065G 1M10333S CAP CER 10NF 20% 1KV Y5U 7100 4 C9125 065G 1M10333S CAP CER 10NF 20% 1KV Y5U 7100 4 C9920 065G306K10123R CAP Y1 100PF 10% 250V Y5P 7100 4 C9915 065G306K22123R CAP Y1 220PF 10% 250V Y5P 7100 4 C9914 065G306K22123R CAP Y1 220PF 10% 250V Y5P 7100 4 C9913 065G306K22123R CAP Y1 220PF 10% 250V Y5P 7100 4 C9916 065G306K33123R CAP Y1 330PF 10% 250V Y5P 7100 4 C9919 065G306M10233R CAP Y1 1NF 20% 250V Y5U 7100 4 C9918 065G306M10233R CAP Y1 1NF 20% 250V Y5U 7100 4 C9146 067G 3151007KB A EC 10UF 20% 50V 6.3*7 3000H ER 7100 4 C9103 067G 5151017KT EC 100UF 20% 50V 10*9 EJ 7100 4 C9238 067G 5153316KT EC 330UF 20% 35V 10*12 5000H EV 7100 4 C9236 067G 5153316KT EC 330UF 20% 35V 10*12 5000H EV 7100 4 C9237 067G 5153316KT EC 330UF 20% 35V 10*12 5000H EV
Page 62
7100 4 C9115 067G 5154714KT EC 470UF 20% 25V 10*12 5000 hr 1.45A EV 7100 4 C9113 067G 5154714KT EC 470UF 20% 25V 10*12 5000 hr 1.45A EV 7100 4 C9109 067G 5154797KB EC 4.7UF 20% 50V 5*11 EY 7100 4 C9211 067G315M2207KB EC 22UF 20% 50V 6.3*7 3000 hr 7100 4 FB9801 071G 55 23 BEAD 3.5*7.5*0.8 100R 25% GBQM4.777.571 7100 4 FB9800 071G 55 23 BEAD 3.5*7.5*0.8 100R 25% GBQM4.777.571 7100 4 FB9803 071G 55 26 H BEAD 3.5*6.0*0.8 127R 25% BF-I35060R-79 7100 4 FB9804 071G 55 26 H BEAD 3.5*6.0*0.8 127R 25% BF-I35060R-79 7100 4 FB9805 071G 55 26 H BEAD 3.5*6.0*0.8 127R 25% BF-I35060R-79 7100 4 FB9904 071G 55 26 H BEAD 3.5*6.0*0.8 127R 25% BF-I35060R-79 7100 4 FB9802 071G 55 26 H BEAD 3.5*6.0*0.8 127R 25% BF-I35060R-79 7100 4 FB9806 071G 55 29 FERRITE BEAD 7100 4 FB9903 071G 55 29 FERRITE BEAD 7100 4 D9201 093G 52908 RECTIFIER UF4007 A0 1 1000 DO-41 7100 4 D9103 093G 60953 SCHOTTKY FR107G-A0 1A 1000V DO-41 7100 4 D9101 093G1080 252T RECTIFIER SARS01-V1 1.2A 800V DO-41 7100 4 J946 095G 90 23 JUMP WIRE - ­7100 4 J931 095G 90 23 JUMP WIRE - ­7100 4 J930 095G 90 23 JUMP WIRE - ­7100 4 J951 095G 90 23 JUMP WIRE - ­7100 4 J926 095G 90 23 JUMP WIRE - ­7100 4 J932 095G 90 23 JUMP WIRE - ­7100 4 J963 095G 90 23 JUMP WIRE - ­7100 4 J933 095G 90 23 JUMP WIRE - ­7100 4 J915 095G 90 23 JUMP WIRE - ­7100 4 J943 095G 90 23 JUMP WIRE - ­7100 4 J962 095G 90 23 JUMP WIRE - ­7100 4 J925 095G 90 23 JUMP WIRE - ­7100 4 J923 095G 90 23 JUMP WIRE - ­7100 4 J958 095G 90 23 JUMP WIRE - ­7100 4 J947 095G 90 23 JUMP WIRE - ­7100 4 J911 095G 90 23 JUMP WIRE - ­7100 4 J944 095G 90 23 JUMP WIRE - ­7100 4 J935 095G 90 23 JUMP WIRE - ­7100 4 J957 095G 90 23 JUMP WIRE - ­7100 4 J934 095G 90 23 JUMP WIRE - ­7100 4 J916 095G 90 23 JUMP WIRE - ­7100 4 J964 095G 90 23 JUMP WIRE - ­7100 4 J921 095G 90 23 JUMP WIRE - ­7100 4 J922 095G 90 23 JUMP WIRE - ­7100 4 J910 095G 90 23 JUMP WIRE - ­7100 4 J909 095G 90 23 JUMP WIRE - ­7100 4 J928 095G 90 23 JUMP WIRE - ­7100 4 J937 095G 90 23 JUMP WIRE - ­7100 4 J903 095G 90 23 JUMP WIRE - ­7100 4 J956 095G 90 23 JUMP WIRE - ­7100 4 J942 095G 90 23 JUMP WIRE - ­7100 4 J905 095G 90 23 JUMP WIRE - ­7100 4 J920 095G 90 23 JUMP WIRE - ­7100 4 J919 095G 90 23 JUMP WIRE - ­7100 4 J960 095G 90 23 JUMP WIRE - -
Page 63
7100 4 J902 095G 90 23 JUMP WIRE - ­7100 4 J917 095G 90 23 JUMP WIRE - ­7100 4 J938 095G 90 23 JUMP WIRE - ­7100 4 J965 095G 90 23 JUMP WIRE - ­7100 4 J913 095G 90 23 JUMP WIRE - ­7100 4 J912 095G 90 23 JUMP WIRE - ­7100 4 J954 095G 90 23 JUMP WIRE - ­7100 4 J929 095G 90 23 JUMP WIRE - ­7100 4 J904 095G 90 23 JUMP WIRE - ­7100 4 J924 095G 90 23 JUMP WIRE - ­7100 4 J918 095G 90 23 JUMP WIRE - ­7100 4 J907 095G 90 23 JUMP WIRE - ­7100 4 J959 095G 90 23 JUMP WIRE - ­7100 4 J940 095G 90 23 JUMP WIRE - ­7100 4 J936 095G 90 23 JUMP WIRE - ­7100 4 J945 095G 90 23 JUMP WIRE - ­7100 4 J948 095G 90 23 JUMP WIRE - ­7100 4 J914 095G 90 23 JUMP WIRE - ­7100 4 J939 095G 90 23 JUMP WIRE - ­7100 4 J906 095G 90 23 JUMP WIRE - ­7100 4 J952 095G 90 23 JUMP WIRE - ­7100 4 J961 095G 90 23 JUMP WIRE - ­7100 4 J949 095G 90 23 JUMP WIRE - ­7100 4 J927 095G 90 23 JUMP WIRE - ­7100 4 J953 095G 90 23 JUMP WIRE - ­7100 4 J941 095G 90 23 JUMP WIRE - ­7100 4 J923 095G 90 23 J JUMP WIRE 1P-1P 100 7100 4 J925 095G 90 23 J JUMP WIRE 1P-1P 100 7100 4 J962 095G 90 23 J JUMP WIRE 1P-1P 100 7100 4 J943 095G 90 23 J JUMP WIRE 1P-1P 100 7100 4 J915 095G 90 23 J JUMP WIRE 1P-1P 100 7100 4 J933 095G 90 23 J JUMP WIRE 1P-1P 100 7100 4 J954 095G 90 23 J JUMP WIRE 1P-1P 100 7100 4 J912 095G 90 23 J JUMP WIRE 1P-1P 100 7100 4 J913 095G 90 23 J JUMP WIRE 1P-1P 100 7100 4 J926 095G 90 23 J JUMP WIRE 1P-1P 100 7100 4 J932 095G 90 23 J JUMP WIRE 1P-1P 100 7100 4 J945 095G 90 23 J JUMP WIRE 1P-1P 100 7100 4 J936 095G 90 23 J JUMP WIRE 1P-1P 100 7100 4 J940 095G 90 23 J JUMP WIRE 1P-1P 100 7100 4 J959 095G 90 23 J JUMP WIRE 1P-1P 100 7100 4 J907 095G 90 23 J JUMP WIRE 1P-1P 100 7100 4 J918 095G 90 23 J JUMP WIRE 1P-1P 100 7100 4 J924 095G 90 23 J JUMP WIRE 1P-1P 100 7100 4 J904 095G 90 23 J JUMP WIRE 1P-1P 100 7100 4 J929 095G 90 23 J JUMP WIRE 1P-1P 100 7100 4 J963 095G 90 23 J JUMP WIRE 1P-1P 100 7100 4 J942 095G 90 23 J JUMP WIRE 1P-1P 100 7100 4 J951 095G 90 23 J JUMP WIRE 1P-1P 100 7100 4 J916 095G 90 23 J JUMP WIRE 1P-1P 100 7100 4 J934 095G 90 23 J JUMP WIRE 1P-1P 100
Page 64
7100 4 J957 095G 90 23 J JUMP WIRE 1P-1P 100
361G2SWJ17852T00TZ
7100 4 J935 095G 90 23 J JUMP WIRE 1P-1P 100 7100 4 J944 095G 90 23 J JUMP WIRE 1P-1P 100 7100 4 J911 095G 90 23 J JUMP WIRE 1P-1P 100 7100 4 J947 095G 90 23 J JUMP WIRE 1P-1P 100 7100 4 J930 095G 90 23 J JUMP WIRE 1P-1P 100 7100 4 J927 095G 90 23 J JUMP WIRE 1P-1P 100 7100 4 J949 095G 90 23 J JUMP WIRE 1P-1P 100 7100 4 J961 095G 90 23 J JUMP WIRE 1P-1P 100 7100 4 J952 095G 90 23 J JUMP WIRE 1P-1P 100 7100 4 J953 095G 90 23 J JUMP WIRE 1P-1P 100 7100 4 J903 095G 90 23 J JUMP WIRE 1P-1P 100 7100 4 J937 095G 90 23 J JUMP WIRE 1P-1P 100 7100 4 J928 095G 90 23 J JUMP WIRE 1P-1P 100 7100 4 J920 095G 90 23 J JUMP WIRE 1P-1P 100 7100 4 J931 095G 90 23 J JUMP WIRE 1P-1P 100 7100 4 J946 095G 90 23 J JUMP WIRE 1P-1P 100 7100 4 J909 095G 90 23 J JUMP WIRE 1P-1P 100 7100 4 J948 095G 90 23 J JUMP WIRE 1P-1P 100 7100 4 J914 095G 90 23 J JUMP WIRE 1P-1P 100 7100 4 J939 095G 90 23 J JUMP WIRE 1P-1P 100 7100 4 J906 095G 90 23 J JUMP WIRE 1P-1P 100 7100 4 J905 095G 90 23 J JUMP WIRE 1P-1P 100 7100 4 J941 095G 90 23 J JUMP WIRE 1P-1P 100 7100 4 J956 095G 90 23 J JUMP WIRE 1P-1P 100 7100 4 J965 095G 90 23 J JUMP WIRE 1P-1P 100 7100 4 J938 095G 90 23 J JUMP WIRE 1P-1P 100 7100 4 J917 095G 90 23 J JUMP WIRE 1P-1P 100 7100 4 J902 095G 90 23 J JUMP WIRE 1P-1P 100 7100 4 J960 095G 90 23 J JUMP WIRE 1P-1P 100 7100 4 J919 095G 90 23 J JUMP WIRE 1P-1P 100 7100 4 J910 095G 90 23 J JUMP WIRE 1P-1P 100 7100 4 J922 095G 90 23 J JUMP WIRE 1P-1P 100 7100 4 J921 095G 90 23 J JUMP WIRE 1P-1P 100 7100 4 J964 095G 90 23 J JUMP WIRE 1P-1P 100 7100 4 FB9202 095G 90 23 J JUMP WIRE 1P-1P 100 7100 4 J958 095G 90 23 J JUMP WIRE 1P-1P 100 7100 4 R9140 361G152M22052T00TZ RST MOF 22R 5% 2W MOF2WS22RJT52 7100 4 R9141 361G152M75352T00TZ RST MOF 75K 5% 2W ­7100 4 R9902 361G212Y51452T00TZ RST MGF 510k 5% 1/2W MG1/2W510KJT52E8 7100 4 R9901 361G212Y51452T00TZ RST MGF 510k 5% 1/2W MG1/2W510KJT52E8 7100 4 R9101 7100 4 C9209 365G001D5096WT CAP CER 5PF 0.5pF 1KV SL CC81-1KV-06d-S 7100 4 C9802 365G001J4706ST CAP CER 47PF 5% 1KV SL 8SL470J102N56G 7100 4 C9809 365G001J4706ST CAP CER 47PF 5% 1KV SL 8SL470J102N56G 7100 4 C9808 365G001J4706ST CAP CER 47PF 5% 1KV SL 8SL470J102N56G 7100 4 C9806 365G001J4706ST CAP CER 47PF 5% 1KV SL 8SL470J102N56G 7100 4 C9904 365G001J4706ST CAP CER 47PF 5% 1KV SL 8SL470J102N56G 7100 4 C9911 365G306K2206SR CAP Y1 22PF 10% 250V SL 5SL220KT402N96G 7100 4 C9912 365G306K2206SR CAP Y1 22PF 10% 250V SL 5SL220KT402N96G 7100 4 C9205 367G515X221HKT EC 220uF 20% 50V 10*12 5000 hr 1330mA EV
RST NWR 0.17R 5% 2W NKNP2WS0R17JT52
Page 65
7100 4 709T68870XA001 COMSUMPTIVE ASSY
Q51G02UV0LT0HF0000
Q55G02SP1VT0HF0000
Q49G03WB1TF0HF0000
Q52G170100700B00XW
Q52G170100700B00XW
7100 4 E715 715G6887P01006002M PWR PCB FR2 CTI>600 SS 292*327*1.6mm
3 709T79240XS001 COMSUMPTIVE ASSY 0010 4 0020 4 0709 4 051G 200 1 OIL FOR DISAPPEAR 0709 4 052G 2191 A TAPE_OTHER(PET,PAPER,SECURITY,ETC…) 0709 4 055G 100610 Solder Paste 0709 4 Q05G6054 1 SHEET 0709 4 Q09G6012 1 PIN 0709 4 0709 4 0709 4 Q55G 100622 TIN STICK(SAC0507)
3 709T70880XS001 COMSUMPTIVE ASSY 0709 4 052G 2191 A TAPE_OTHER(PET,PAPER,SECURITY,ETC…) 0709 4 055G 23520 .leaning Naphtha 0709 4 055G 100610 Solder Paste 0709 4 Q05G6054 1 SHEET 0709 4 Q09G6012 1 PIN 0709 4
3 709T77000XS001 COMSUMPTIVE ASSY 0709 4 051G 100502 Surface Mount Adhesives 0709 4 052G 2191 A TAPE_OTHER(PET,PAPER,SECURITY,ETC…) 0709 4 055G 23520 .leaning Naphtha 0709 4 Q05G6054 1 SHEET 0709 4 Q09G6012 1 PIN
3 LNGI472XXE9AI CONVERTER BOARD FOR AI 0051 4 040G 45762420A LABEL 25x6mm 0051 4 C8623 067G 5151007KB EC 10UF 20% 50V 5*11 EY 0051 4 C8609 067G 5154709KT EC 47UF 20% 100V 10*12 0051 4 C8603 067G 5154709KT EC 47UF 20% 100V 10*12 0051 4 FB8605 071G 55 26 H BEAD 3.5*6.0*0.8 127R 25% BF-I35060R-79 0051 4 FB8606 071G 55 26 H BEAD 3.5*6.0*0.8 127R 25% BF-I35060R-79 0051 4 J815 071G 55 29 FERRITE BEAD 0051 4 J808 071G 55 29 FERRITE BEAD 0051 4 J831 095G 90 23 JUMP WIRE - ­0051 4 J809 095G 90 23 JUMP WIRE - ­0051 4 J845 095G 90 23 JUMP WIRE - ­0051 4 J841 095G 90 23 JUMP WIRE - ­0051 4 J833 095G 90 23 JUMP WIRE - ­0051 4 J807 095G 90 23 JUMP WIRE - ­0051 4 J842 095G 90 23 JUMP WIRE - ­0051 4 J829 095G 90 23 JUMP WIRE - ­0051 4 J826 095G 90 23 JUMP WIRE - ­0051 4 J819 095G 90 23 JUMP WIRE - ­0051 4 J843 095G 90 23 JUMP WIRE - ­0051 4 J802 095G 90 23 JUMP WIRE - ­0051 4 J825 095G 90 23 JUMP WIRE - ­0051 4 J835 095G 90 23 JUMP WIRE - ­0051 4 J830 095G 90 23 JUMP WIRE - ­0051 4 J820 095G 90 23 JUMP WIRE - -
UV glue Solder Paste
Water-based Cleaning Agent MESH PRINTTING_PAPER
MESH PRINTTING_PAPER
Page 66
0051 4 J801 095G 90 23 JUMP WIRE - ­0051 4 J814 095G 90 23 JUMP WIRE - ­0051 4 J803 095G 90 23 JUMP WIRE - ­0051 4 J822 095G 90 23 JUMP WIRE - ­0051 4 J818 095G 90 23 JUMP WIRE - ­0051 4 J840 095G 90 23 JUMP WIRE - ­0051 4 J837 095G 90 23 JUMP WIRE - ­0051 4 J810 095G 90 23 JUMP WIRE - ­0051 4 J817 095G 90 23 JUMP WIRE - ­0051 4 J806 095G 90 23 JUMP WIRE - ­0051 4 J834 095G 90 23 JUMP WIRE - ­0051 4 J805 095G 90 23 JUMP WIRE - ­0051 4 J821 095G 90 23 JUMP WIRE - ­0051 4 J812 095G 90 23 JUMP WIRE - ­0051 4 J813 095G 90 23 JUMP WIRE - ­0051 4 J816 095G 90 23 JUMP WIRE - ­0051 4 J804 095G 90 23 JUMP WIRE - ­0051 4 J827 095G 90 23 JUMP WIRE - ­0051 4 J824 095G 90 23 JUMP WIRE - ­0051 4 J836 095G 90 23 JUMP WIRE - ­0051 4 J823 095G 90 23 JUMP WIRE - ­0051 4 J811 095G 90 23 JUMP WIRE - ­0051 4 J832 095G 90 23 JUMP WIRE - ­0051 4 J838 095G 90 23 JUMP WIRE - ­0051 4 J828 095G 90 23 JUMP WIRE - ­0051 4 J840 095G 90 23 J JUMP WIRE 1P-1P 100 0051 4 J818 095G 90 23 J JUMP WIRE 1P-1P 100 0051 4 J822 095G 90 23 J JUMP WIRE 1P-1P 100 0051 4 J803 095G 90 23 J JUMP WIRE 1P-1P 100 0051 4 J814 095G 90 23 J JUMP WIRE 1P-1P 100 0051 4 J831 095G 90 23 J JUMP WIRE 1P-1P 100 0051 4 J820 095G 90 23 J JUMP WIRE 1P-1P 100 0051 4 J830 095G 90 23 J JUMP WIRE 1P-1P 100 0051 4 J835 095G 90 23 J JUMP WIRE 1P-1P 100 0051 4 J825 095G 90 23 J JUMP WIRE 1P-1P 100 0051 4 J802 095G 90 23 J JUMP WIRE 1P-1P 100 0051 4 J843 095G 90 23 J JUMP WIRE 1P-1P 100 0051 4 J819 095G 90 23 J JUMP WIRE 1P-1P 100 0051 4 J826 095G 90 23 J JUMP WIRE 1P-1P 100 0051 4 J829 095G 90 23 J JUMP WIRE 1P-1P 100 0051 4 J842 095G 90 23 J JUMP WIRE 1P-1P 100 0051 4 J807 095G 90 23 J JUMP WIRE 1P-1P 100 0051 4 J833 095G 90 23 J JUMP WIRE 1P-1P 100 0051 4 J841 095G 90 23 J JUMP WIRE 1P-1P 100 0051 4 J845 095G 90 23 J JUMP WIRE 1P-1P 100 0051 4 J836 095G 90 23 J JUMP WIRE 1P-1P 100 0051 4 J824 095G 90 23 J JUMP WIRE 1P-1P 100 0051 4 J827 095G 90 23 J JUMP WIRE 1P-1P 100 0051 4 J804 095G 90 23 J JUMP WIRE 1P-1P 100 0051 4 J816 095G 90 23 J JUMP WIRE 1P-1P 100 0051 4 J813 095G 90 23 J JUMP WIRE 1P-1P 100
Page 67
0051 4 J823 095G 90 23 J JUMP WIRE 1P-1P 100
361G2SWJ10852T00TZ
361G2SWJ10852T00TZ
361G2SWJ10852T00TZ
361G2SWJ10852T00TZ
0051 4 J809 095G 90 23 J JUMP WIRE 1P-1P 100 0051 4 J801 095G 90 23 J JUMP WIRE 1P-1P 100 0051 4 J837 095G 90 23 J JUMP WIRE 1P-1P 100 0051 4 J810 095G 90 23 J JUMP WIRE 1P-1P 100 0051 4 J817 095G 90 23 J JUMP WIRE 1P-1P 100 0051 4 J806 095G 90 23 J JUMP WIRE 1P-1P 100 0051 4 J834 095G 90 23 J JUMP WIRE 1P-1P 100 0051 4 J805 095G 90 23 J JUMP WIRE 1P-1P 100 0051 4 J821 095G 90 23 J JUMP WIRE 1P-1P 100 0051 4 J812 095G 90 23 J JUMP WIRE 1P-1P 100 0051 4 J828 095G 90 23 J JUMP WIRE 1P-1P 100 0051 4 J838 095G 90 23 J JUMP WIRE 1P-1P 100 0051 4 J832 095G 90 23 J JUMP WIRE 1P-1P 100 0051 4 J811 095G 90 23 J JUMP WIRE 1P-1P 100 0051 4 R8606 0051 4 R8688 0051 4 R8677 0051 4 R8623 0051 4 C8677 367G515X221HKT EC 220uF 20% 50V 10*12 5000 hr 1330mA EV 0051 4 C8666 367G515X221HKT EC 220uF 20% 50V 10*12 5000 hr 1330mA EV 0051 4 C8626 367G515X221HKT EC 220uF 20% 50V 10*12 5000 hr 1330mA EV 0051 4 C8625 367G515X221HKT EC 220uF 20% 50V 10*12 5000 hr 1330mA EV 0051 4 C8637 367G515X221HKT EC 220uF 20% 50V 10*12 5000 hr 1330mA EV 0051 4 C8638 367G515X221HKT EC 220uF 20% 50V 10*12 5000 hr 1330mA EV 0051 4 709T77000XA001 COMSUMPTIVE ASSY 0051 4 E715 715G7700P01000002M PWR PCB FR2 CTI>600 SS 150*193.5*1.6mm
4 709T68870XA001 COMSUMPTIVE ASSY 0010 5 052G 2191 A TAPE_OTHER(PET,PAPER,SECURITY,ETC…)
4 709T77000XA001 COMSUMPTIVE ASSY 0709 5 052G 2191 A TAPE_OTHER(PET,PAPER,SECURITY,ETC…)
RST NWR 0R1 5% 2W NKNP2WS0R1JT52 RST NWR 0R1 5% 2W NKNP2WS0R1JT52 RST NWR 0R1 5% 2W NKNP2WS0R1JT52 RST NWR 0R1 5% 2W NKNP2WS0R1JT52
Page 68
层次 点位 物料 物料描述 组件数量
395GH20002WT009000
395GH20014WT045000
398GR08BCPHN0001CH
398GR08BCPHN0001CR
708GXA536150WPX3CH
756TXHCB07D033000X
1 036T 600 18119 GP NON-WOVEN FABRIC 1 1 041G 68508 A control card 0.100 1 052G 1185 TAPE 90 1 052G 1185 TAPE 90 1 0M1G 130 6 47 CR3 SCREW M3 6 6 1 0M1G 940 6125 SCREW M4 6 4 1 0M1G1030 5120 SCREW 18 1 0M1G1030 5120 SCREW 2 1 0M1G1030 6 47 CR3 SCREW M3 6 24 1 0M1G1030 8120 SCREW M3 8 4 1 0M1G1740 10225 CR3 SCREW M4 10 4 1 0M1G1760 16 47 CR3 SCREW M6 16 2 1 0Q1G 930 6 47 CR3 SCREW 2 1 0Q1G 930 6 47 CR3 SCREW 1 1 E31701 317GAAWF634XUG WIFI USB IEEE 802.11 b/g/n SDWF-2F/GJ 1 1 SP01 378G0120451YAE SPEAKER 8 OHM 12W 190*45*44.9MM NA UNIT 2 1 ECN408 395G279X51HD07 V-by-One FFC 51P 660mm 0.5MM 1 1 ECN602 395G801404WY91 HARNESS 4P-B&R+B&W 900/500 1 1 ECN102 395GH12506DT003000 HARNESS 5P pitch1.25-6P pitch2.0 400mm 1 1 ECN01 395GH20002LT009000 HARNESS 2P pitch2.0-2P pitch1.25 500mm 1 1 ECN01 1 ECN700 395GH20012AT031000 HARNESS 12P P2.0-16P p2.0+14P p2.5 850/8 1 1 ECN401 395GH20014AT032000 HARNESS 14P pitch2.0-13P pitch1.25+2P p 1 1 ECN401 395GH20014DT032000 HARNESS 14P pitch2.0-13P pitch1.25+2P p 1 1 ECN9201 1 ECN9201 395GH20014XT045000 HARNESS 14P pitch2.0-10P pitch2.0 600 1 1 RC01 1 RC01 1 2 Q07G010016202C00BL PALLET 0.045 2 Q07G012016202C00BL PALLET 0.045 2 Q44G6002154100 PAPER BOARD 0.136 2 Q44G6002159114 PAPER BOARD 0.136 2 Q44G9003 96 CORNER PAPER 0.727 2 Q45G 77 5 PE PACKING 401 2 Q50G 4 10 TIE (Y1900221) 99 2 Q50G060046502A00JY PACKAGE_BUCKLE 4 2 Q52G1301 9 BIG TAPE FOR PHILIPS 174 2 X44GSLIP00113A PAPER SLIPSHEET 0.045 2 X44GSLIP162122 SLIPSHEET 0.045 1 E750 1 2 SMTF-U413 100TP7VY005DTX PHP 65PUF6061/T3 EMMC V4.13 NA 1 2 U413 356G3333004612 EMMC THGBMDG5D1LBAIT 4GB FBGA153 1 1 A15T1166201 BKT_POWER_TOP 1 1 ADTVG3235XA1 ADAPTER BOARD 715G6887 1 2 Z40G0002ALL01A OTHER LABEL 1 2 GND3 009G6005 1 GND TERMINAL 1 2 GND1 009G6005 1 GND TERMINAL 1 2 GND4 009G6005 1 GND TERMINAL 1
750TBV650UA9A8N000 LCD TPT650U2-RU1A0.Q S9A XM TPV 1
HARNESS 2P pitch2.0-2P pitch1.25 500mm 1
HARNESS 14P pitch2.0-10P pitch2.0 600 1
REMOTE PHILIPS RL134B chinese 1 REMOTE PHILIPS RC44N chinese 1 PHILIPS 40(154 CH) 1
MCU ASSY 1
Page 69
2 GND2 009G6005 1 GND TERMINAL 1
361G0058509MYW005A
2 CN9202 033G327814D ONNECTOR 14P 2.5pitch 1 2 C9204 067G215Z102 7K EC 1000UF 20% 50V EJ 10*40 1 2 C9214 067G215Z102 7K EC 1000UF 20% 50V EJ 10*40 1 2 C9213 067G215Z102 7K EC 1000UF 20% 50V EJ 10*40 1 2 C9203 067G215Z102 7K EC 1000UF 20% 50V EJ 10*40 1 2 C9107 067G215Z152 6K EC 1500UF 20% 35V 10*40 5000 hr 1 2 C9105 067G215Z152 6K EC 1500UF 20% 35V 10*40 5000 hr 1 2 C9106 067G215Z152 6K EC 1500UF 20% 35V 10*40 5000 hr 1 2 L9901 073G 174272 X LINE FILTER 8MH MIN 5A 3LFT25157-802M 1 2 L9902 073G 174272 X LINE FILTER 8MH MIN 5A 3LFT25157-802M 1 2 CN9901 087G 50147D HC HF AC R/A 2P 12.81mm 1 2 D9801 093G 52918 RECTIFIER 1N5408G-04 X0 3A 1000V DO201AD 1 2 D9800 093G 52918 RECTIFIER 1N5408G-04 X0 3A 1000V DO201AD 1 2 0Q1G 340 8140 SCREW Q1-SELF TAPING SCREW :Q x8.0 2 2 CN9201 311GW200C14AAX W AFER 2.0mm 14P V/T W2010-14SVA-S03 1 2 CN9101 311GW200C16AAX CONN 2.0mm 16P V/T W2010-16SVA-S03 1 2 IC9202 356G013903B0HF Photo-Coupler PC123Y82FZ9F DIP-4 1 2 IC9103 356G013903B0HF Photo-Coupler PC123Y82FZ9F DIP-4 1 2 IC9102 356G013903B0HF Photo-Coupler PC123Y82FZ9F DIP-4 1 2 RV9901 361G0046681KZE VARISTOR 680V 10% 1 2 NR9901 2 R9841 361G020J247GB000TZ RST CEM 0.024R 5% 2W MPR2W0R024J 1 2 R9840 361G020J247GB000TZ RST CEM 0.024R 5% 2W MPR2W0R024J 1 2 C9902 363G107K474BEC CAP X2 470nF 10% 275V 18*9*13.5 B32922L2 1 2 C9901 363G107K474BEC CAP X2 470nF 10% 275V 18*9*13.5 B32922L2 1 2 C9901 363G107K474BKC CAP X2 470nF 10% 275V 18*9*13.5 R46KI34 1 2 C9902 363G107K474BKC CAP X2 470nF 10% 275V 18*9*13.5 R46KI34 1 2 C9801 363G210J105GHP CAP MPP 1UF 5% 450V 1 2 C9803 363G210J105GHP CAP MPP 1UF 5% 450V 1 2 C9243 363G211J2235HE CAP MPP 22nF 5% 1KV 18*5*10.5 B32652A022 1 2 C9216 363G211J2235HE CAP MPP 22nF 5% 1KV 18*5*10.5 B32652A022 1 2 C9823 367G215X820PKZ EC 82uF 20% 450V 13*50mm 2000 hr 720mA 1 2 C9805 367G215X820PKZ EC 82uF 20% 450V 13*50mm 2000 hr 720mA 1 2 C9804 367G215X820PKZ EC 82uF 20% 450V 13*50mm 2000 hr 720mA 1 2 FB9902 371G0055021H02 BEAD 6.5*12.5 700R 25% BF-I60100R-815 1 2 FB9901 371G0055021H02 BEAD 6.5*12.5 700R 25% BF-I60100R-815 1 2 L9903 373G0174301H00 LINE FILTER 0.25mH MIN 2A LCL-11010 HA 1 2 L9802 373G0174378H00 PFC CHOKE 200uH 10% 4A GL-14019 HA 1 2 L9801 373G0174378H00 PFC CHOKE 200uH 10% 4A GL-14019 HA 1 2 L9203 373G0253247H00 CHOKE COIL 3UH 15% DR8*8 5A 1 2 L9202 373G0253247H00 CHOKE COIL 3UH 15% DR8*8 5A 1 2 L9101 373G0253247H00 CHOKE COIL 3UH 15% DR8*8 5A 1 2 L9201 373G0253247H00 CHOKE COIL 3UH 15% DR8*8 5A 1 2 L9102 373G0253247H00 CHOKE COIL 3UH 15% DR8*8 5A 1 2 SW9901 377G02604B100F RELAY 12V 1 2 T9101 380GL32P175N00 X'FMR 300uH 10% 6.5uH ER40 YUVA-2084-3 1 2 T9201 380GL52P236H00 X'FMR 270uH 12% 42uH EE42 BCK-14264-HA 1 2 T9202 380GL52P236H00 X'FMR 270uH 12% 42uH EE42 BCK-14264-HA 1 2 705TAE57168 Q9101 ASS"Y 1 3 051G 200 1 OIL FOR DISAPPEAR 0.018
NTCR 5R 20% 3.1W SCK13055MTY501 1
Page 70
3 0M1G1730 8120 SCREW M3 8 1 3 Q9101 357G0667650006 MOSFET TK11A65D 11A 650V TO-220SIS 1 3 HS9101 Q90T0236007A0000SY HEAT SINK 1 2 705TAE57169 Q9201 Q9202 ASS"Y 1 3 051G 200 1 OIL FOR DISAPPEAR 0.036 3 0M1G1730 8120 SCREW M3 8 2 3 Q9202 357G0667A07 MOSFET TK13A50D 13A 500V - SC-67 1 3 Q9201 357G0667A07 MOSFET TK13A50D 13A 500V - SC-67 1 3 HS9201 Q90T0236003A0000SY HEAT SINK 1 2 705TAE84036 F9901 ASSY 1 3 084G 34 14 FUSE -- -- -- 2 3 F9901 384G004100816C FUSE 8A 250V VUC UDA 8A 250V（PF） 1 2 705TAE93147 BD9901 ASS'Y 1 3 051G 200 1 OIL FOR DISAPPEAR 0.055 3 0M1G1730 8120 SCREW M3 8 1 3 BD9901 393G0050460600 BRIDGE TS10P06G-04 10A 800V TS-6P 1 3 HS9901 Q90T0222007A0000SY HEAT SINK 1 2 705TAE93148 BD9902 ASS'Y 1 3 051G 200 1 OIL FOR DISAPPEAR 0.055 3 0M1G1730 8120 SCREW M3 8 1 3 BD9902 393G0050460600 BRIDGE TS10P06G-04 10A 800V TS-6P 1 3 HS9902 Q90T0222007A0000SY HEAT SINK 1 2 705TXF57997 Q9802 D9804 ASS"Y 1 3 051G 200 1 OIL FOR DISAPPEAR 0.036 3 Q9802 057G 667954 MOSFET TK18A60V 18A 600V SC-67 1 3 D9804 093G 52905 DIODE FMNS-1106S TO-220 1 3 0M1G1730 8120 SCREW M3 8 2 3 HS9802 Q90T0236004A0000SY HEAT SINK 1 2 705TXF57998 Q9801 D9802ASS"Y 1 3 051G 200 1 OIL FOR DISAPPEAR 0.036 3 Q9801 057G 667954 MOSFET TK18A60V 18A 600V SC-67 1 3 D9802 093G 52905 DIODE FMNS-1106S TO-220 1 3 0M1G1730 8120 SCREW M3 8 2 3 HS9801 Q90T0236004A0000SY HEAT SINK 1 2 705TXF57999 Q9111 ASS"Y 1 3 051G 200 1 OIL FOR DISAPPEAR 0.036 3 0M1G1730 8120 SCREW M3 8 2 3 Q9111 357G0600100600 OSFET TK22A10N1 22A 100V TO-220SIS 1 3 HS9102 Q90T0236007A0000SY HEAT SINK 1 2 705TXF93998 D9206 D9207 D9210 ASS'Y 1 3 051G 200 1 OIL FOR DISAPPEAR 0.036 3 D9207 093G 60258 IODE FME-220B TO-220 SANKEN 1 3 D9206 093G 60258 IODE FME-220B TO-220 SANKEN 1 3 D9210 093G 60329 IODE FMEN-220A 20A/100V TO-220 1 3 0M1G1730 8120 SCREW M3 8 3 3 HS9202 Q90T0236003A0000SY HEAT SINK 1 2 705TXF93999 D9202 D9204 ASS'Y 1 3 051G 200 1 OIL FOR DISAPPEAR 0.036 3 D9204 093G 60258 IODE FME-220B TO-220 SANKEN 1 3 D9202 093G 60258 IODE FME-220B TO-220 SANKEN 1 3 0M1G1730 8120 SCREW M3 8 2
Page 71
3 HS9203 Q90T0236002A0000HG HEAT SINK 1 2 709T68870XM001 COMSUMPTIVE ASSY 1 3 051G 200 1 OIL FOR DISAPPEAR 1 3 052G 2191 A TAPE_OTHER(PET,PAPER,SECURITY,ETC…) 0.079 3 055G 23520 .leaning Naphtha 0.100 3 055G 23524 WELDING FLUX WITHOUT PB 3.889 3 Q49G 51100 Water-based Cleaning Agent 2 3 Q51G 6 4509 GLUE_RTV 1.800 3 Q55G 100622 TIN STICK(SAC0507) 0.100 3 Q55G 100655 Sn-Cu Solder 13.460 2 ADG3235XA1SMT ADAPTER BOARD FOR SMT 1 3 IC9201 056G 379211 AC/DC SSC9522S-TL SOP-18 1 3 IC9901 056G 665142 Discharge IC CAP004DG-TL SOP-8 1 3 Q9205 057G 417525 SMALLTRAN MMBT3904 200mA 40V SOT-23 1 3 Q9204 057G 417526 SMALLTRAN MMBT3906 -0.2A -40V SOT-23 1 3 Q9109 057G 417912 T SMALLTRAN 2SA1797 -3A -50V PCP 1 3 Q9206 057G 667A03 MOSFET STD1NK60T4 1A 600V 30W DPAK 1 3 Q9805 057G 667A03 MOSFET STD1NK60T4 1A 600V 30W DPAK 1 3 Q9803 057G 667A03 MOSFET STD1NK60T4 1A 600V 30W DPAK 1 3 Q9804 057G 667A03 MOSFET STD1NK60T4 1A 600V 30W DPAK 1 3 R9218 061G0805000 JT RST 0805 0.05R MAX 1/8W 1 3 JR914 061G0805000 JY RST 0805 0.05R MAX 1/8W RC0805JR-070RL 1 3 R9816 061G0805100 JT RST CHIP 10R 1/8W 5% TZAI YUAN 1 3 R9206 061G0805100 JT RST CHIP 10R 1/8W 5% TZAI YUAN 1 3 R9205 061G0805100 JT RST CHIP 10R 1/8W 5% TZAI YUAN 1 3 R9806 061G0805100 JT RST CHIP 10R 1/8W 5% TZAI YUAN 1 3 R9211 061G0805100 JT RST CHIP 10R 1/8W 5% TZAI YUAN 1 3 R9225 061G08051001FT RST CHIP 1K 1/8W 1% 1 3 R9244 061G08051001FT RST CHIP 1K 1/8W 1% 1 3 R9121 061G08051001FT RST CHIP 1K 1/8W 1% 1 3 R9158 061G08051002FT RST CHIP 10K 1/8W 1% 1 3 R9213 061G08051002FY RST CHIP 10K 1/8W 1% 1 3 R9209 061G08051002FY RST CHIP 10K 1/8W 1% 1 3 R9154 061G08051003FT RST CHIP 100K 1/8W 1% 1 3 R9221 061G0805101 JT RST CHIP 100R 1/8W 5% TZAI YUAN 1 3 R9820 061G0805102 JY RST CHIPR 1K OHM 5% 1/8W YAGEO 1 3 R9242 061G0805102 JY RST CHIPR 1K OHM 5% 1/8W YAGEO 1 3 R9831 061G0805102 JY RST CHIPR 1K OHM 5% 1/8W YAGEO 1 3 R9109 061G0805103 JF RST CHIPR 10K OHM +-5% 1/8W FENGHUA 1 3 R9817 061G0805103 JT RST 0805 10K 5% 1/8W 1 3 R9807 061G0805103 JT RST 0805 10K 5% 1/8W 1 3 R9832 061G0805103 JY RST CHIPR 10KOHM +-5% 1/8W YAGEO 1 3 R9821 061G0805103 JY RST CHIPR 10KOHM +-5% 1/8W YAGEO 1 3 R9243 061G0805103 JY RST CHIPR 10KOHM +-5% 1/8W YAGEO 1 3 R9837 061G0805103 JY RST CHIPR 10KOHM +-5% 1/8W YAGEO 1 3 R9102 061G0805104 JF RST CHIPR 100KOHM +-5% 1/8W FENGHUA 1 3 R9838 061G08051203FT RST CHIPR 120KOHM +- 1% 1/8W TZAI YUAN 1 3 R9825 061G08051203FT RST CHIPR 120KOHM +- 1% 1/8W TZAI YUAN 1 3 R9107 061G0805121 JT RST CHIPR 120OHM +- 5% 1/8W TZAI YUAN 1 3 R9120 061G08051432FT RST 0805 14.3k 1% 1/8W 1 3 R9119 061G08051501FT RST CHIPR 1K5 +-1% 1/8W TZAI YAUN 1
Page 72
3 R9116 061G08051501FT RST CHIPR 1K5 +-1% 1/8W TZAI YAUN 1 3 R9219 061G08051602FT RST CHIPR 16K +-1% 1/8W TZAI YUAN 1 3 R9216 061G08051800FT RST 0805 180R 1% 1/8W TZAI YUAN 1 3 R9210 061G08051802FY RST CHIP 18K 1/8W 1% 1 3 R9224 061G08052001FT RST CHIP 2K 1/8W 1% 1 3 R9136 061G08052002FT RST CHIP 20K 1/8W 1% 1 3 R9115 061G08052201FT CHIP 2K2 1/8W 1% 1 3 R9833 061G08052203FT RST CHIPR 220KOHM +-1% 1/8W 1 3 R9222 061G08052431FT RST CHIP 2K43 1/8W 1% 1 3 R9808 061G0805330 FY RST CHIP 33R 1% 1/8W 1 3 R9104 061G08053300FT RST CHIPR 330 OHM +-1% 1/8W TZAI YUAN 1 3 R9834 061G08053302FT RST CHIP 33K 1/8W 1% 1 3 R9822 061G08054702FT RST CHIP 47K 1/8W 1% 1 3 R9214 061G0805471 JT RST CHIPR 470OHM +-5% 1/8W TZAI YUAN 1 3 R9118 061G0805472 JF RST CHIPR 4.7KOHM +-5% 1/8W FENGHUA 1 3 R9234 061G08055101FT RST CHIP 5K1 1/8W 1% 1 3 R9160 061G08055103FT RST CHIP 510K OHM 1/8W 1% TZAI YUAN 1 3 R9826 061G08057501FT RST CHIP R 7K5 1/8W +/-1% 1 3 R9212 061G0805820 JY RST CHIP R 82ohm 1/8W +/-5% YAGEO 1 3 R9208 061G0805820 JY RST CHIP R 82ohm 1/8W +/-5% YAGEO 1 3 JR911 061G1206000 JY RST CHIPR MAX0R05 1/4W YAGEO 1 3 JR908 061G1206000 JY RST CHIPR MAX0R05 1/4W YAGEO 1 3 R9248 061G1206000 JY RST CHIPR MAX0R05 1/4W YAGEO 1 3 JR904 061G1206000 JY RST CHIPR MAX0R05 1/4W YAGEO 1 3 JR917 061G1206000 JY RST CHIPR MAX0R05 1/4W YAGEO 1 3 JR910 061G1206000 JY RST CHIPR MAX0R05 1/4W YAGEO 1 3 JR912 061G1206000 JY RST CHIPR MAX0R05 1/4W YAGEO 1 3 JR901 061G1206000 JY RST CHIPR MAX0R05 1/4W YAGEO 1 3 JR902 061G1206000 JY RST CHIPR MAX0R05 1/4W YAGEO 1 3 JR909 061G1206000 JY RST CHIPR MAX0R05 1/4W YAGEO 1 3 JR903 061G1206000 JY RST CHIPR MAX0R05 1/4W YAGEO 1 3 JR905 061G1206000 JY RST CHIPR MAX0R05 1/4W YAGEO 1 3 JR913 061G1206000 JY RST CHIPR MAX0R05 1/4W YAGEO 1 3 JR907 061G1206000 JY RST CHIPR MAX0R05 1/4W YAGEO 1 3 R9814 061G12060007JT RST CHIPR MAX 0R05 1/4W 1206 1 3 R9813 061G12060007JT RST CHIPR MAX 0R05 1/4W 1206 1 3 R9126 061G1206100 JT RST CHIPR 10 OHM +-5% 1/4W TZAI YUAN 1 3 R9235 061G12061001FT RST CHIP R 1Kohm +-1% 1/4W 1 3 R9157 061G12061002FT RST CHIPR 10KOHM +-1% 1/4W 1206 1 3 R9811 061G12061004FT RST CHIP R 1 MOHM +-1% 1/4W 1 3 R9809 061G12061004FT RST CHIP R 1 MOHM +-1% 1/4W 1 3 R9803 061G12061004FT RST CHIP R 1 MOHM +-1% 1/4W 1 3 R9802 061G12061004FT RST CHIP R 1 MOHM +-1% 1/4W 1 3 R9812 061G12061004FT RST CHIP R 1 MOHM +-1% 1/4W 1 3 R9810 061G12061004FT RST CHIP R 1 MOHM +-1% 1/4W 1 3 R9114 061G12061008FT RST CHIPR 1OHM +-1% 1/4W TZAI YUAN 1 3 R9108 061G12061009FT RST CHIP R 10ohm 1/4W +/-1% 1 3 R9827 061G1206101 JT RST CHIPR 100 OHM +-5% 1/4W TZAI YUAN 1 3 R9836 061G1206102 JT RST CHIPR 1KOHM +-5% 1/4W TZAI YUAN 1 3 R9204 061G1206103 JT RST CHIPR 10KOHM +-5% 1/4W TZAI YUAN 1 3 R9203 061G12061504FT RST CHIP 1M5 1/4W 1% 1
Page 73
3 R9202 061G12061504FT RST CHIP 1M5 1/4W 1% 1 3 R9207 061G12061504FT RST CHIP 1M5 1/4W 1% 1 3 R9122 061G1206153 JT RST CHIPR 15KOHM +-5% 1/4W TZAI YUAN 1 3 R9815 061G12061622FT RST CHIP 16.2K 1/4W 1% TZAI YUAN 1 3 R9804 061G12061622FT RST CHIP 16.2K 1/4W 1% TZAI YUAN 1 3 R9236 061G12062001FT RST CHIP R 2Kohm 1/4W +/-1% 1 3 R9824 061G12062004FT RST CHIP R 2Mohm 1/4W +/-1% 1 3 R9828 061G12062004FT RST CHIP R 2Mohm 1/4W +/-1% 1 3 R9829 061G12062004FT RST CHIP R 2Mohm 1/4W +/-1% 1 3 R9299 061G12062008FT RST CHIP 2 OHM +-1% 1/4W 1206 1 3 R9166 061G1206202 JT RST CHIP R 2Kohm 1/4W +/-5% 1 3 R9164 061G1206202 JT RST CHIP R 2Kohm 1/4W +/-5% 1 3 R9165 061G1206202 JT RST CHIP R 2Kohm 1/4W +/-5% 1 3 R9156 061G1206202 JT RST CHIP R 2Kohm 1/4W +/-5% 1 3 R9155 061G1206202 JT RST CHIP R 2Kohm 1/4W +/-5% 1 3 R9229 061G1206203 JT RST CHIPR 20KOHM +-5% 1/4W TZAI YUAN 1 3 R9110 061G1206270 JF RST CHIPR 27 OHM +-5% 1/4W FENGHUA 1 3 R9132 061G1206270 JF RST CHIPR 27 OHM +-5% 1/4W FENGHUA 1 3 R9131 061G1206270 JF RST CHIPR 27 OHM +-5% 1/4W FENGHUA 1 3 R9112 061G1206270 JF RST CHIPR 27 OHM +-5% 1/4W FENGHUA 1 3 R9133 061G1206270 JF RST CHIPR 27 OHM +-5% 1/4W FENGHUA 1 3 R9111 061G1206270 JT RST CHIPR 27 OHM +-5% 1/4W TZAI YUAN 1 3 R9153 061G1206302 JT RST CHIP 3K 5% 1/4W 1 3 R9818 061G1206330 JT RST CHIP R 33ohm 1/4W +/-5% 1 3 R9161 061G1206335 JF RST CHIPR 3.3M OHM +-5% 1/4W FENGHUA 1 3 R9163 061G1206335 JF RST CHIPR 3.3M OHM +-5% 1/4W FENGHUA 1 3 R9162 061G1206335 JF RST CHIPR 3.3M OHM +-5% 1/4W FENGHUA 1 3 R9124 061G12064322FT RST CHIPR 43.2K OHM 1/4W +/-1% 1 3 R9223 061G1206471 JT ST CHIPR 470 OHM +-5% 1/4W TZAI YUAN 1 3 R9228 061G1206472 JT RST CHIP R 4K7 1/4W +/-5% 1 3 R9125 061G1206479 JT RST 1206 4.7R 5% 1/4W 1 3 R9159 061G1206510 JF RST CHIPR 51 OHM +-5% 1/4W FENGHUA 1 3 R9237 061G12065101FT RST 1206 5.1KR 1% 1/4W 1 3 R9113 061G12065108FT RST 1206 5R1 1% 1/4W 1 3 R9117 061G1206512 JT RST CHIPR 5.1 KOHM +-5% 1/4W TZAI YUAN 1 3 R9123 061G1206512 JT RST CHIPR 5.1 KOHM +-5% 1/4W TZAI YUAN 1 3 R9138 061G1206754 JT RST CHIPR 750K +-5% 1/4W TZAI YUAN 1 3 R9137 061G1206754 JT RST CHIPR 750K +-5% 1/4W TZAI YUAN 1 3 R9139 061G1206754 JT RST CHIPR 750K +-5% 1/4W TZAI YUAN 1 3 C9128 065G080510031J Y CAP CHIP 0805 10PF J 50V NPO 1 3 C9134 065G080510131J F CAP CHIP 0805 100PF J 50V NPO 1 3 C9218 065G080510231J F CAP 0805 1NF 5% 50V NPO 1 3 C9127 065G080510231J F CAP 0805 1NF 5% 50V NPO 1 3 C9140 065G080510232K F CAP 0805 1000PF 10% 50V X7R 1 3 C9139 065G080510232K F CAP 0805 1000PF 10% 50V X7R 1 3 C9822 065G080510232K Y CAP 0805 1nF 10% 50V X7R CC0805KRX7R9BB1 1 3 C9812 065G080510232K Y CAP 0805 1nF 10% 50V X7R CC0805KRX7R9BB1 1 3 C9820 065G080510232K Y CAP 0805 1nF 10% 50V X7R CC0805KRX7R9BB1 1 3 C9816 065G080510332K F CAP 0805 10NF K 50V X7R 1 3 C9816 065G080510332K M CAP 0805 10NF 10% 50V X7R 1 3 C9112 065G080510332K Y CAP CHIP 0805 10N 50V X7R +/-10% 1
Page 74
3 C9226 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R 1
CAP 0805 47pF 5% 50V NP0 CC0805JRNPO9BN4
3 C9811 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R 1 3 C9821 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R 1 3 C9819 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R 1 3 C9220 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R 1 3 C9240 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R 1 3 C9817 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R 1 3 C9244 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R 1 3 C9824 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R 1 3 C9206 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R 1 3 C9212 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R 1 3 C9135 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R 1 3 C9228 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R 1 3 C9202 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R 1 3 C9232 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R 1 3 C9141 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R 1 3 C9133 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R 1 3 C9239 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R 1 3 C9147 065G080510432K F CAP CHIP 0805 0.1UF K 50V X7R 1 3 C9821 065G080510432K Y CAP 0805 100nF 10% 50V X7R CC0805KRX7R9B 1 3 C9811 065G080510432K Y CAP 0805 100nF 10% 50V X7R CC0805KRX7R9B 1 3 C9226 065G080510432K Y CAP 0805 100nF 10% 50V X7R CC0805KRX7R9B 1 3 C9824 065G080510432K Y CAP 0805 100nF 10% 50V X7R CC0805KRX7R9B 1 3 C9817 065G080510432K Y CAP 0805 100nF 10% 50V X7R CC0805KRX7R9B 1 3 C9244 065G080510432K Y CAP 0805 100nF 10% 50V X7R CC0805KRX7R9B 1 3 C9819 065G080510432K Y CAP 0805 100nF 10% 50V X7R CC0805KRX7R9B 1 3 C9220 065G080510432K Y CAP 0805 100nF 10% 50V X7R CC0805KRX7R9B 1 3 C9240 065G080510432K Y CAP 0805 100nF 10% 50V X7R CC0805KRX7R9B 1 3 C9217 065G080510522K M AP 0805 1UF 10% 25V X7R 1 3 C9207 065G080510532K T CAP 0805 1UF 10% 50V X7R - 1 3 C9144 065G080510532K T CAP 0805 1UF 10% 50V X7R - 1 3 C9143 065G080510532K T CAP 0805 1UF 10% 50V X7R - 1 3 C9137 065G080510532K T CAP 0805 1UF 10% 50V X7R - 1 3 C9124 065G080510532K T CAP 0805 1UF 10% 50V X7R - 1 3 C9210 065G080510532K T CAP 0805 1UF 10% 50V X7R - 1 3 C9136 065G080522031J Y CAP CHIP 0805 22pF J 50V NP0 1 3 C9810 065G080522031J Y CAP CHIP 0805 22pF J 50V NP0 1 3 C9807 065G080522031J Y CAP CHIP 0805 22pF J 50V NP0 1 3 C9813 065G080522432K F CAP 0805 220NF 10% 50V X7R 1 3 C9121 065G080522432K F CAP 0805 220NF 10% 50V X7R 1 3 C9242 065G080522432K F CAP 0805 220NF 10% 50V X7R 1 3 C9121 065G080522432K Y CAP 0805 220nF 10% 50V X7R CC0805KKX7R9B 1 3 C9242 065G080522432K Y CAP 0805 220nF 10% 50V X7R CC0805KKX7R9B 1 3 C9818 065G080533232K F CAP 0805 3.3NF 10% 50V X7R 1 3 C9815 065G080533432K F CAP 0805 330NF 10% 50V X7R 1 3 C9815 065G080533432K M CAP 0805 330NF 10% 50V X7R GRM219R71H33 1 3 C9208 065G080547031J F CAP CHIP 0805 47PF J 50V NPO 1 3 C9208 065G080547031J Y 3 C9231 065G080547432K F 0805 0.47UF K 50V X7R 1 3 C9225 065G0805475A2K T CAP CHIP 0805 4.7uF K 10V X7R 1 3 C9219 065G080556131J F CAP CHIP 0805 560PF J 50V NPO 1
1
Page 75
3 C9104 065G080568131J F CAP 0805 680PF 5% 50V NPO 1 3 C9221 065G120610272K F CAP 1206 1NF 10% 500V X7R 1 3 C9221 065G120610272K Y CAP 1206 1nF 10% 500V X7R CC1206KKX7RBBB 1 3 IC9204 356G0158003600 Shunt Regu TL431G-AE2-R SOT23-3 1 3 IC9104 356G0158003600 Shunt Regu TL431G-AE2-R SOT23-3 1 3 IC9101 356G0379008604 AC/DC LD5522 GS SOP-8 1 3 IC9801 356G0379016600 PFC UCC28063DR SOIC-16 1 3 IC9111 356GD563008617 DC/DC SP6018ES8RGB 1A 16V SOP-8 1 3 Q9102 357G0761A0100T SMALLTRAN BTC4672M3 5A 50V 0.6W SOT-89 1 3 Q9108 357G07630620HF HF MOSFET 2N7002K_R1_00001 0.3A 60V 1 3 R9135 361G12061603FT RST 1206 160K 1% 1/4W SMD1206160KF 1 3 R9227 361G12068201FT RST 1206 8.2K 1% 1/4W SMD12068K2F 1 3 D9108 393G006432S0HF SWITCHING 1N4148W 0.15A 75V SOD-123 1 3 D9110 393G006432S0HF SWITCHING 1N4148W 0.15A 75V SOD-123 1 3 ZD9206 393G039S65200T ZENER BZT52-B20 20V 0.5W SOD-123 1 3 ZD9205 393G039S65200T ZENER BZT52-B20 20V 0.5W SOD-123 1 3 ZD9204 393G039S95200T00HF HF BZT52-B6V2_R1_00001 6.2V 0.41W 1 3 ZD9210 393G039S95400T00HF ZENER BZT52-B3V6_R1_00001 3.6V 0.41W SOD 1 3 ZD9801 393G039S95400T00HF ZENER BZT52-B3V6_R1_00001 3.6V 0.41W SOD 1 3 ZD9212 393G039S95400T00HF ZENER BZT52-B3V6_R1_00001 3.6V 0.41W SOD 1 3 ZD9211 393G039S95400T00HF ZENER BZT52-B3V6_R1_00001 3.6V 0.41W SOD 1 3 ZD9214 393G039S95400T00HF ZENER BZT52-B3V6_R1_00001 3.6V 0.41W SOD 1 3 ZD9213 393G039S95400T00HF ZENER BZT52-B3V6_R1_00001 3.6V 0.41W SOD 1 3 ZD9202 393G039SA1200T ZENER BZT52-B22 22V 0.41W SOD-123 150C 1 3 ZD9109 393G039SA1400T ZENER BZT52-B16_R1_00001 16V 0.41W 1 3 ZD9107 393G039SA2900T ZENER BZT52-B15 15V 0.41 SOD-123 1 3 ZD9203 393G039SA2900T ZENER BZT52-B15 15V 0.41 SOD-123 1 3 ZD9201 393G039SA2900T ZENER BZT52-B15 15V 0.41 SOD-123 1 3 ZD9106 393G039SA2900T ZENER BZT52-B15 15V 0.41 SOD-123 1 3 D9205 393G060S50000T00HF HF SS1060FL_R1_00001 1A 60V SOD123FL 1 3 D9805 393G060S50000T00HF HF SS1060FL_R1_00001 1A 60V SOD123FL 1 3 D9806 393G060S50000T00HF HF SS1060FL_R1_00001 1A 60V SOD123FL 1 3 D9102 393G060S50000T00HF HF SS1060FL_R1_00001 1A 60V SOD123FL 1 3 D9803 393G060S50000T00HF HF SS1060FL_R1_00001 1A 60V SOD123FL 1 3 D9203 393G060S50000T00HF HF SS1060FL_R1_00001 1A 60V SOD123FL 1 3 D9807 393G060S50000T00HF HF SS1060FL_R1_00001 1A 60V SOD123FL 1 3 D9208 393G060S50000T00HF HF SS1060FL_R1_00001 1A 60V SOD123FL 1 3 D9105 393G060S50000T00HF HF SS1060FL_R1_00001 1A 60V SOD123FL 1 3 D9106 393G060SA0500T SCHOTTKY SK810C R6 8A 100V SMC 1 3 D9104 393G060SA0500T SCHOTTKY SK810C R6 8A 100V SMC 1 3 709T68870XS001 COMSUMPTIVE ASSY 1 4 051G 100502 Surface Mount Adhesives 0.090 4 052G 2191 A TAPE_OTHER(PET,PAPER,SECURITY,ETC…) 0.470 4 055G 23520 .leaning Naphtha 0.336 4 Q05G6054 1 SHEET 0.054 4 Q09G6012 1 PIN 0.011 3 ADG3235XA1AI ADAPTER BOARD FOR AI 1 4 BD9902 006G 31 4 EYELET 2 4 BD9901 006G 31 4 EYELET 2 4 L9901 006G 31 4 EYELET 4 4 L9902 006G 31 4 EYELET 4
Page 76
4 L9802 006G 31500 EYELET 4 4 T9202 006G 31500 EYELET 4 4 T9201 006G 31500 EYELET 4 4 CN9901 006G 31500 EYELET 2 4 T9101 006G 31500 EYELET 4 4 L9801 006G 31500 EYELET 4 4 C9803 006G 31502 EYELET 2 4 C9804 006G 31502 EYELET 1 4 C9823 006G 31502 EYELET 1 4 C9902 006G 31502 EYELET 2 4 NR9901 006G 31502 EYELET 2 4 C9901 006G 31502 EYELET 2 4 C9805 006G 31502 EYELET 1 4 C9801 006G 31502 EYELET 2 4 RV9901 006G 31502 EYELET 2 4 040G 45762420A LABEL 25x6mm 1 4 R9201 061G 30310852T SY RST FUSE 0.1R 5% 1W 1 4 C9215 065G 1K101 2T6921 CAP CER 100pF 1KV K Y5P 1 4 C9108 065G 1K10193T CAP CER 100PF 10% 1KV R 1 4 C9201 065G 1K10293T CAP CER 1NF 10% 1KV R CK45-R3AD102K-SRY 1 4 C9825 065G 1K1029ST CAP CER 1NF 10% 1KV R 1 4 C9826 065G 1K1029ST CAP CER 1NF 10% 1KV R 1 4 C9116 065G 1K22293S CAP CER 2.2NF 10% 1KV R TAPING 1 4 C9123 065G 1K22293S CAP CER 2.2NF 10% 1KV R TAPING 1 4 C9125 065G 1M10333S CAP CER 10NF 20% 1KV Y5U 1 4 C9126 065G 1M10333S CAP CER 10NF 20% 1KV Y5U 1 4 C9920 065G306K10123R CAP Y1 100PF 10% 250V Y5P 1 4 C9913 065G306K22123R CAP Y1 220PF 10% 250V Y5P 1 4 C9914 065G306K22123R CAP Y1 220PF 10% 250V Y5P 1 4 C9915 065G306K22123R CAP Y1 220PF 10% 250V Y5P 1 4 C9913 065G306K2212WR CAP Y1 220PF 10% 250V Y5P CT7-Y1-250V-06 1 4 C9915 065G306K2212WR CAP Y1 220PF 10% 250V Y5P CT7-Y1-250V-06 1 4 C9914 065G306K2212WR CAP Y1 220PF 10% 250V Y5P CT7-Y1-250V-06 1 4 C9916 065G306K33123R CAP Y1 330PF 10% 250V Y5P 1 4 C9919 065G306M10233R CAP Y1 1NF 20% 250V Y5U 1 4 C9918 065G306M10233R CAP Y1 1NF 20% 250V Y5U 1 4 C9146 067G 3151007KB A EC 10uF 20% 50V 6.3*7 3000 hr 350mA ER1H 1 4 C9103 067G 5151017KT EC 100UF 20% 50V 10*9 EJ 1 4 C9238 067G 5153316KT EC 330UF 20% 35V 10*12 5000 hr 1 4 C9236 067G 5153316KT EC 330UF 20% 35V 10*12 5000 hr 1 4 C9237 067G 5153316KT EC 330UF 20% 35V 10*12 5000 hr 1 4 C9113 067G 5154714KT EC 470UF 20% 25V 10*12 5000 hr 1.45A EV 1 4 C9115 067G 5154714KT EC 470UF 20% 25V 10*12 5000 hr 1.45A EV 1 4 C9109 067G 5154797KB EC 4.7uF 20% 50V 5*11 5000 hr 0.25A EY1H 1 4 C9211 067G315M2207KB EC 22uF 20% 50V 6.3*7 3000 hr 360mA ER1H 1 4 FB9801 071G 55 23 BEAD 3.5*7.5*0.8 100R 25% GBQM4.777.571 1 4 FB9800 071G 55 23 BEAD 3.5*7.5*0.8 100R 25% GBQM4.777.571 1 4 FB9803 071G 55 26 H BEAD 3.5*6.0*0.8 127R 25% BF-I35060R-79 1 4 FB9804 071G 55 26 H BEAD 3.5*6.0*0.8 127R 25% BF-I35060R-79 1 4 FB9805 071G 55 26 H BEAD 3.5*6.0*0.8 127R 25% BF-I35060R-79 1 4 FB9904 071G 55 26 H BEAD 3.5*6.0*0.8 127R 25% BF-I35060R-79 1
Page 77
4 FB9802 071G 55 26 H BEAD 3.5*6.0*0.8 127R 25% BF-I35060R-79 1 4 FB9806 071G 55 29 FERRITE BEAD 1 4 FB9903 071G 55 29 FERRITE BEAD 1 4 D9201 093G 52908 RECTIFIER UF4007 A0 1 1000 DO-41 1 4 D9103 093G 60953 SCHOTTKY FR107G-A0 1A 1000V DO-41 1 4 D9101 093G1080 252T RECTIFIER SARS01-V1 1.2A 800V DO-41 1 4 J927 095G 90 23 JUMP WIRE - - 1 4 J953 095G 90 23 JUMP WIRE - - 1 4 J941 095G 90 23 JUMP WIRE - - 1 4 J905 095G 90 23 JUMP WIRE - - 1 4 J930 095G 90 23 JUMP WIRE - - 1 4 J951 095G 90 23 JUMP WIRE - - 1 4 J926 095G 90 23 JUMP WIRE - - 1 4 J932 095G 90 23 JUMP WIRE - - 1 4 J963 095G 90 23 JUMP WIRE - - 1 4 J933 095G 90 23 JUMP WIRE - - 1 4 J915 095G 90 23 JUMP WIRE - - 1 4 J943 095G 90 23 JUMP WIRE - - 1 4 J962 095G 90 23 JUMP WIRE - - 1 4 J925 095G 90 23 JUMP WIRE - - 1 4 J923 095G 90 23 JUMP WIRE - - 1 4 J958 095G 90 23 JUMP WIRE - - 1 4 J947 095G 90 23 JUMP WIRE - - 1 4 J911 095G 90 23 JUMP WIRE - - 1 4 J944 095G 90 23 JUMP WIRE - - 1 4 J935 095G 90 23 JUMP WIRE - - 1 4 J957 095G 90 23 JUMP WIRE - - 1 4 J934 095G 90 23 JUMP WIRE - - 1 4 J916 095G 90 23 JUMP WIRE - - 1 4 J964 095G 90 23 JUMP WIRE - - 1 4 J921 095G 90 23 JUMP WIRE - - 1 4 J922 095G 90 23 JUMP WIRE - - 1 4 J910 095G 90 23 JUMP WIRE - - 1 4 J909 095G 90 23 JUMP WIRE - - 1 4 J946 095G 90 23 JUMP WIRE - - 1 4 J931 095G 90 23 JUMP WIRE - - 1 4 J920 095G 90 23 JUMP WIRE - - 1 4 J919 095G 90 23 JUMP WIRE - - 1 4 J960 095G 90 23 JUMP WIRE - - 1 4 J902 095G 90 23 JUMP WIRE - - 1 4 J917 095G 90 23 JUMP WIRE - - 1 4 J938 095G 90 23 JUMP WIRE - - 1 4 J965 095G 90 23 JUMP WIRE - - 1 4 J913 095G 90 23 JUMP WIRE - - 1 4 J912 095G 90 23 JUMP WIRE - - 1 4 J954 095G 90 23 JUMP WIRE - - 1 4 J929 095G 90 23 JUMP WIRE - - 1 4 J904 095G 90 23 JUMP WIRE - - 1 4 J924 095G 90 23 JUMP WIRE - - 1 4 J918 095G 90 23 JUMP WIRE - - 1 4 J907 095G 90 23 JUMP WIRE - - 1
Page 78
4 J959 095G 90 23 JUMP WIRE - - 1 4 J940 095G 90 23 JUMP WIRE - - 1 4 J936 095G 90 23 JUMP WIRE - - 1 4 J945 095G 90 23 JUMP WIRE - - 1 4 J948 095G 90 23 JUMP WIRE - - 1 4 J914 095G 90 23 JUMP WIRE - - 1 4 J939 095G 90 23 JUMP WIRE - - 1 4 J906 095G 90 23 JUMP WIRE - - 1 4 J952 095G 90 23 JUMP WIRE - - 1 4 J961 095G 90 23 JUMP WIRE - - 1 4 J949 095G 90 23 JUMP WIRE - - 1 4 J928 095G 90 23 JUMP WIRE - - 1 4 J937 095G 90 23 JUMP WIRE - - 1 4 J903 095G 90 23 JUMP WIRE - - 1 4 J956 095G 90 23 JUMP WIRE - - 1 4 J942 095G 90 23 JUMP WIRE - - 1 4 J923 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 J925 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 J962 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 J943 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 J915 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 J933 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 J954 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 J912 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 J913 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 J926 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 J932 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 J945 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 J936 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 J940 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 J959 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 J907 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 J918 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 J924 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 J904 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 J929 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 J963 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 J942 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 J951 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 J916 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 J934 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 J957 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 J935 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 J944 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 J911 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 J947 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 J930 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 J927 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 J949 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 J961 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 J952 095G 90 23 J JUMP WIRE 1P-1P 100 1
Page 79
4 J953 095G 90 23 J JUMP WIRE 1P-1P 100 1
361G2SWJ17852T00TZ
4 J903 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 J937 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 J928 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 J920 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 J931 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 J946 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 J909 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 J948 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 J914 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 J939 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 J906 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 J905 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 J941 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 J956 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 J965 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 J938 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 J917 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 J902 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 J960 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 J919 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 J910 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 J922 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 J921 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 J964 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 FB9202 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 J958 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 R9140 361G152M22052T00TZ RST MOF 22R 5% 2W MOF2WS22RJT52 1 4 R9141 361G152M75352T00TZ RST MOF 75K 5% 2W - 1 4 R9902 361G212Y51452T00TZ RST MGF 510k 5% 1/2W MG1/2W510KJT52E8 1 4 R9901 361G212Y51452T00TZ RST MGF 510k 5% 1/2W MG1/2W510KJT52E8 1 4 R9101 4 C9209 365G001D5096WT CAP CER 5PF 0.5pF 1KV SL CC81-1KV-06d-S 1 4 C9806 365G001J4706ST CAP CER 47PF 5% 1KV SL 8SL470J102N56G 1 4 C9904 365G001J4706ST CAP CER 47PF 5% 1KV SL 8SL470J102N56G 1 4 C9809 365G001J4706ST CAP CER 47PF 5% 1KV SL 8SL470J102N56G 1 4 C9802 365G001J4706ST CAP CER 47PF 5% 1KV SL 8SL470J102N56G 1 4 C9808 365G001J4706ST CAP CER 47PF 5% 1KV SL 8SL470J102N56G 1 4 C9802 365G001J4706WT CAP CER 47PF 5% 1KV SL CC81-1KV-06d-SL-4 1 4 C9809 365G001J4706WT CAP CER 47PF 5% 1KV SL CC81-1KV-06d-SL-4 1 4 C9904 365G001J4706WT CAP CER 47PF 5% 1KV SL CC81-1KV-06d-SL-4 1 4 C9806 365G001J4706WT CAP CER 47PF 5% 1KV SL CC81-1KV-06d-SL-4 1 4 C9808 365G001J4706WT CAP CER 47PF 5% 1KV SL CC81-1KV-06d-SL-4 1 4 C9108 365G001K1019WT CAP CER 100PF 10% 1KV R CT81-1KV-06d-2R 1 4 C9123 365G001K2229WS CAP CER 2.2NF 10% 1KV R CT81-1KV-12d-2R 1 4 C9116 365G001K2229WS CAP CER 2.2NF 10% 1KV R CT81-1KV-12d-2R 1 4 C9911 365G306K2206SR CAP Y1 22PF 10% 250V SL 5SL220KT402N96G 1 4 C9912 365G306K2206SR CAP Y1 22PF 10% 250V SL 5SL220KT402N96G 1 4 C9205 367G515X221HKT EC 220uF 20% 50V 10*12 5000 hr 1330mA EV 1 4 709T68870XA001 COMSUMPTIVE ASSY 1 5 052G 2191 A TAPE_OTHER(PET,PAPER,SECURITY,ETC…) 0.040
RST NWR 0.17R 5% 2W NKNP2WS0R17JT52 1
Page 80
4 E715 715G6887P01006002M PWR PCB FR2 CTI>600 SS 292*327*1.6mm 1 1 CBPRG9CDXB CONVERSION G7924-M02-B02-0040-2-20170221 1 2 Z40G0002ALL01A OTHER LABEL 1 2 SMTRG9CDXB MAIN BOARD FOR SMT 1 3 CN109 033G8032 5F HR CONNECTOR 1 3 U707 056G 563114 LDO G1117-33T63UF 1A 3.3V SOT-223 1 3 U703 056G 563114 LDO G1117-33T63UF 1A 3.3V SOT-223 1 3 U402 056G 643 43 RESET G690L263T73Uf 2.63V SOT-23 1 3 ZD413 056G 662 41 ESD PROTECT AZ5123-01H.R7G (for 3.3V ci 1 3 U503 056G 665918 IC STMPS2171STR SOT23-5L 1 3 Q511 057G 417511 MMBT3904 1 3 Q705 057G 417511 MMBT3904 1 3 Q703 057G 417511 MMBT3904 1 3 Q409 057G 417511 MMBT3904 1 3 Q502 057G 417511 MMBT3904 1 3 Q601 057G 417511 MMBT3904 1 3 Q410 057G 417512 MMBT3906 1 3 Q420 057G 417512 MMBT3906 1 3 Q602 057G 417512 MMBT3906 1 3 Q708 057G 417512 MMBT3906 1 3 Q501 057G 417512 MMBT3906 1 3 Q510 057G 417518 SMALLTRAN LMBT3904LT1G 0.2A 40V SOT-23 1 3 Q701 057G 763 79 MOSFET AO4449 -7A -30V SO-8 1 3 Q408 057G 763 79 MOSFET AO4449 -7A -30V SO-8 1 3 RP403 061G 1263308JY RST CHIP ARRAY 33R 1/16W 5% 8P4R 1 3 RP408 061G 1263308JY RST CHIP ARRAY 33R 1/16W 5% 8P4R 1 3 RP407 061G 1263308JY RST CHIP ARRAY 33R 1/16W 5% 8P4R 1 3 RP405 061G 1263308JY RST CHIP ARRAY 33R 1/16W 5% 8P4R 1 3 RP402 061G 1263308JY RST CHIP ARRAY 33R 1/16W 5% 8P4R 1 3 RP414 061G 1263308JY RST CHIP ARRAY 33R 1/16W 5% 8P4R 1 3 RP412 061G 1263308JY RST CHIP ARRAY 33R 1/16W 5% 8P4R 1 3 RP411 061G 1263308JY RST CHIP ARRAY 33R 1/16W 5% 8P4R 1 3 RP401 061G 1263308JY RST CHIP ARRAY 33R 1/16W 5% 8P4R 1 3 RP409 061G 1263308JY RST CHIP ARRAY 33R 1/16W 5% 8P4R 1 3 RP404 061G 1263308JY RST CHIP ARRAY 33R 1/16W 5% 8P4R 1 3 RP410 061G 1263308JY RST CHIP ARRAY 33R 1/16W 5% 8P4R 1 3 RP406 061G 1263308JY RST CHIP ARRAY 33R 1/16W 5% 8P4R 1 3 RP413 061G 1263308JY RST CHIP ARRAY 33R 1/16W 5% 8P4R 1 3 TH104 061G 56A100 WT PTCR SMD 0.12R MAX 0.8W 1 3 TH102 061G 56A100 WT PTCR SMD 0.12R MAX 0.8W 1 3 R518 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA 1 3 R4023 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA 1 3 R716 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA 1 3 R121 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA 1 3 R165 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA 1 3 R116 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA 1 3 R717 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA 1 3 R172 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA 1 3 R4003 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA 1 3 R4102 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA 1 3 R4120 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA 1
Page 81
3 R583 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA 1 3 R104 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA 1 3 R169 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA 1 3 R102 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA 1 3 R142 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA 1 3 R755 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA 1 3 R103 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA 1 3 R4035 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA 1 3 R118 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA 1 3 R143 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA 1 3 R4025 061G0402000 JF RST CHIPR MAX0R05 1/16W FENGHUA 1 3 R587 061G0402000 JT RST 0402 0.05R MAX 1/16W - 1 3 R581 061G0402000 JT RST 0402 0.05R MAX 1/16W - 1 3 R4027 061G0402000 JY RST 0402 0.05R MAX 1/16W RC0402JR-070RL 1 3 R538 061G0402000 JY RST 0402 0.05R MAX 1/16W RC0402JR-070RL 1 3 R4013 061G0402000 JY RST 0402 0.05R MAX 1/16W RC0402JR-070RL 1 3 R4103 061G0402100 JY RST CHIPR 10 OHM +-5% 1/16W YAGEO 1 3 R4129 061G0402100 JY RST CHIPR 10 OHM +-5% 1/16W YAGEO 1 3 R4104 061G0402100 JY RST CHIPR 10 OHM +-5% 1/16W YAGEO 1 3 R4128 061G0402100 JY RST CHIPR 10 OHM +-5% 1/16W YAGEO 1 3 R512 061G0402100 JY RST CHIPR 10 OHM +-5% 1/16W YAGEO 1 3 R511 061G0402100 JY RST CHIPR 10 OHM +-5% 1/16W YAGEO 1 3 R4108 061G04021000FY RST CHIP 100R 1/16W 1% 1 3 R500 061G04021000FY RST CHIP 100R 1/16W 1% 1 3 R4106 061G04021000FY RST CHIP 100R 1/16W 1% 1 3 R455 061G04021001FY RST 0402 1K 1% 1/16W RC0402FR-07 1KL 1 3 R447 061G04021001FY RST 0402 1K 1% 1/16W RC0402FR-07 1KL 1 3 R4113 061G04021001FY RST 0402 1K 1% 1/16W RC0402FR-07 1KL 1 3 R446 061G04021001FY RST 0402 1K 1% 1/16W RC0402FR-07 1KL 1 3 R452 061G04021001FY RST 0402 1K 1% 1/16W RC0402FR-07 1KL 1 3 R449 061G04021001FY RST 0402 1K 1% 1/16W RC0402FR-07 1KL 1 3 R454 061G04021001FY RST 0402 1K 1% 1/16W RC0402FR-07 1KL 1 3 R448 061G04021001FY RST 0402 1K 1% 1/16W RC0402FR-07 1KL 1 3 R453 061G04021001FY RST 0402 1K 1% 1/16W RC0402FR-07 1KL 1 3 R586 061G04021002FT RST CHIPR 10K +-1% 1/16W TZAI YUAN 1 3 R584 061G04021002FT RST CHIPR 10K +-1% 1/16W TZAI YUAN 1 3 R154 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO 1 3 R1005 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO 1 3 R183 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO 1 3 R4111 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO 1 3 R1006 061G04021002FY RST CHIP 10K 1/16W 1% YAGEO 1 3 R117 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO 1 3 R433 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO 1 3 R434 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO 1 3 R4124 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO 1 3 R593 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO 1 3 R144 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO 1 3 R120 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO 1 3 R4123 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO 1 3 R466 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO 1 3 R489 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO 1
Page 82
3 R594 061G0402101 JY RST CHIPR 100 OHM +-5% 1/16W YAGEO 1 3 R524 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO 1 3 R517 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO 1 3 R640 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO 1 3 R7020 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO 1 3 R617 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO 1 3 R596 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO 1 3 R591 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO 1 3 R736 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO 1 3 R615 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO 1 3 R646 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO 1 3 R743 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO 1 3 R513 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO 1 3 R748 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO 1 3 R403 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO 1 3 R754 061G0402102 JY RST CHIPR 1KOHM +-5% 1/16W YAGEO 1 3 R509 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 1 3 R725 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 1 3 R4109 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 1 3 R115 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 1 3 R614 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 1 3 R106 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 1 3 R630 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 1 3 R590 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 1 3 R592 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 1 3 R713 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 1 3 R589 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 1 3 R401 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 1 3 R161 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 1 3 R411 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 1 3 R4001 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 1 3 R619 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 1 3 R4002 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 1 3 R510 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 1 3 R487 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 1 3 R402 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 1 3 R644 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 1 3 R404 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 1 3 R407 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 1 3 R160 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 1 3 R409 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 1 3 R514 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 1 3 R469 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 1 3 R741 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 1 3 R628 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 1 3 R629 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 1 3 R4029 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 1 3 R597 061G0402103 JY RST CHIPR 10KOHM +-5% 1/16W YAGEO 1 3 R742 061G0402104 JF RST CHIPR 100KOHM +-5% 1/16W FENGHUA 1 3 R7028 061G0402104 JF RST CHIPR 100KOHM +-5% 1/16W FENGHUA 1 3 R131 061G0402104 JF RST CHIPR 100KOHM +-5% 1/16W FENGHUA 1
Page 83
3 R4119 061G0402104 JF RST CHIPR 100KOHM +-5% 1/16W FENGHUA 1 3 R753 061G0402104 JF RST CHIPR 100KOHM +-5% 1/16W FENGHUA 1 3 R460 061G0402105 JT RST CHIP R 1Mohm 1/16W +/-5% TZAI YUAN 1 3 R4101 061G04021201FY RST CHIP 1.2K 1/16W 1% 1 3 R7002 061G04021202FY RST CHIP 12K 1/16W 1% YAGEO 1 3 R750 061G04021212FF RST 0402 12.1K 1% 1/16W FENGHUA 1 3 R7025 061G04021213FF RST 0402 121K 1/16W 1% FENGHUA 1 3 R7001 061G04021213FF RST 0402 121K 1/16W 1% FENGHUA 1 3 R166 061G0402123 JY RST CHIPR 12KOHM £«-5£¥ 1/16W YAGEO 1 3 R167 061G0402123 JY RST CHIPR 12KOHM £«-5£¥ 1/16W YAGEO 1 3 R738 061G04021692FY RST 0402 16.9K 1% 1/16W - 1 3 R519 061G0402184 JY RST CHIP 180K 1/16W 5% YAGEO 1 3 R445 061G0402201 JY RST CHIP 200R 1/16W 5% YAGEO 1 3 R185 061G0402220 JY RST CHIPR 22 OHM +-5% 1/16W YAGEO 1 3 R441 061G0402220 JY RST CHIPR 22 OHM +-5% 1/16W YAGEO 1 3 R7027 061G0402220 JY RST CHIPR 22 OHM +-5% 1/16W YAGEO 1 3 R187 061G0402220 JY RST CHIPR 22 OHM +-5% 1/16W YAGEO 1 3 R439 061G0402220 JY RST CHIPR 22 OHM +-5% 1/16W YAGEO 1 3 R188 061G0402220 JY RST CHIPR 22 OHM +-5% 1/16W YAGEO 1 3 R186 061G0402220 JY RST CHIPR 22 OHM +-5% 1/16W YAGEO 1 3 R735 061G04022202FT RST CHIP 22K 1/16W 1% TZAI YUAN 1 3 R7029 061G04022202FY RST CHIP 22K 1/16W 1% YAGEO 1 3 R7000 061G04022202FY RST CHIP 22K 1/16W 1% YAGEO 1 3 R174 061G0402222 JF RST CHIPR 2.2KOHM +-5% 1/16W FENGHUA 1 3 R164 061G0402222 JF RST CHIPR 2.2KOHM +-5% 1/16W FENGHUA 1 3 R4115 061G0402222 JY RST 0402 2.2K 5% 1/16W RC0402JR-072K2L 1 3 R444 061G0402241 JY RST CHIPR 240 OHM +-5% 1/16W YAGEO 1 3 R451 061G0402241 JY RST CHIPR 240 OHM +-5% 1/16W YAGEO 1 3 R756 061G0402241 JY RST CHIPR 240 OHM +-5% 1/16W YAGEO 1 3 R752 061G04022702FT RST 0402 27K 1% 1/16W 1 3 R515 061G04022702FT RST 0402 27K 1% 1/16W 1 3 R7005 061G04023002FY RST 0402 30K 1% 1/16W RC0402FR-1330KL 1 3 R520 061G04023013FT RST 0402 301K 1% 1/16W TZAI YUAN 1 3 R153 061G0402330 JT RST CHIP 33R 1/16W 5% TZAI YUAN 1 3 R147 061G0402330 JT RST CHIP 33R 1/16W 5% TZAI YUAN 1 3 R467 061G0402330 JY RST 0402 33R 5% 1/16W - 1 3 R462 061G0402330 JY RST 0402 33R 5% 1/16W - 1 3 R457 061G0402330 JY RST 0402 33R 5% 1/16W - 1 3 R468 061G0402330 JY RST 0402 33R 5% 1/16W - 1 3 R464 061G0402330 JY RST 0402 33R 5% 1/16W - 1 3 R612 061G0402330 JY RST 0402 33R 5% 1/16W - 1 3 R631 061G0402330 JY RST 0402 33R 5% 1/16W - 1 3 R463 061G0402330 JY RST 0402 33R 5% 1/16W - 1 3 R458 061G0402330 JY RST 0402 33R 5% 1/16W - 1 3 R632 061G0402330 JY RST 0402 33R 5% 1/16W - 1 3 R162 061G0402330 JY RST 0402 33R 5% 1/16W - 1 3 R163 061G0402330 JY RST 0402 33R 5% 1/16W - 1 3 R465 061G0402330 JY RST 0402 33R 5% 1/16W - 1 3 R456 061G0402330 JY RST 0402 33R 5% 1/16W - 1 3 R459 061G0402330 JY RST 0402 33R 5% 1/16W - 1 3 R643 061G0402330 JY RST 0402 33R 5% 1/16W - 1
Page 84
3 R616 061G0402330 JY RST 0402 33R 5% 1/16W - 1 3 R461 061G0402330 JY RST 0402 33R 5% 1/16W - 1 3 R7030 061G0402330 JY RST 0402 33R 5% 1/16W - 1 3 R733 061G04023302FF RST 0402 33K 1% 1/16W FENGHUA 1 3 R599 061G0402339 JF RST 0402 3.3R 5% 1/16W RC-02W3R3JT 1 3 R598 061G0402339 JF RST 0402 3.3R 5% 1/16W RC-02W3R3JT 1 3 R618 061G04024303FF RST 0402 430K 1% 1/16W FENGHUA 1 3 R173 061G0402471 JY RST CHIPR 470OHM +-5% 1/16W YAGEO 1 3 R4125 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA 1 3 R4057 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA 1 3 R481 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 1 3 R482 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 1 3 R647 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 1 3 R714 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 1 3 R595 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 1 3 R190 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 1 3 R450 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 1 3 R157 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 1 3 R648 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 1 3 R443 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 1 3 R711 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 1 3 R729 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 1 3 R189 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 1 3 R728 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 1 3 R718 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 1 3 R523 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 1 3 R757 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 1 3 R158 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 1 3 R521 061G0402472 JY RST 0402 4.7K 5% 1/16W RC0402JR-074K7L 1 3 R470 061G0402473 JY RST CHIPR 47KOHM +-5% 1/16W YAGEO 1 3 R613 061G04026202FF RST CHIP 62K 1/16W 1% FENGHUA 1 3 R613 061G04026202FT RST CHIP 62K 1/16W 1% TZAI YUAN 1 3 R7003 061G04026801FY RST CHIP 6K8 1/16W 1% 1 3 R7026 061G04026801FY RST CHIP 6K8 1/16W 1% 1 3 R168 061G04027509FY RST CHIP 75R 1/16W 1% 1 3 R171 061G04027509FY RST CHIP 75R 1/16W 1% 1 3 R146 061G04027509FY RST CHIP 75R 1/16W 1% 1 3 R170 061G04027509FY RST CHIP 75R 1/16W 1% 1 3 R4046 061G0603000 JY RST 0603 0.05R MAX 1/10W RC0603JR-070RL 1 3 FB704 061G0603000 JY RST 0603 0.05R MAX 1/10W RC0603JR-070RL 1 3 R704 061G0603000 JY RST 0603 0.05R MAX 1/10W RC0603JR-070RL 1 3 R4053 061G0603154 JY RST CHIPR 150K +-5% 1/10W YAGEO 1 3 R709 061G0603154 JY RST CHIPR 150K +-5% 1/10W YAGEO 1 3 R705 061G0603473 JY RST CHIPR 47KOHM 1/10W YAGEO 1 3 R4117 061G06036801FY RST CHIP 6K8 1/10W 1% 1 3 R192 061G1206000 JY RST CHIPR MAX0R05 1/4W YAGEO 1 3 R623 061G1206100 JT RST CHIPR 10 OHM +-5% 1/4W TZAI YUAN 1 3 R625 061G1206100 JT RST CHIPR 10 OHM +-5% 1/4W TZAI YUAN 1 3 R624 061G1206100 JT RST CHIPR 10 OHM +-5% 1/4W TZAI YUAN 1 3 R626 061G1206100 JT RST CHIPR 10 OHM +-5% 1/4W TZAI YUAN 1 3 R4010 061G1206222 JF RST CHIPR 2.2KOHM +-5% 1/4W FENGHUA 1
Page 85
3 R4047 061G1206473 JT RST CHIPR 47 KOHM +-5% 1/4W TZAI YUAN 1 3 C461 065G040210031J E CAP 0402 10PF 5% 50V NP0 C0402C0G100J50 1 3 C139 065G040210031J E CAP 0402 10PF 5% 50V NP0 C0402C0G100J50 1 3 C4035 065G040210131J E CAP 0402 100PF 5% 50V NP0 1 3 C127 065G040210232K E CAP 0402 1NF 10% 50V X7R C0402X7R102K500 1 3 C126 065G040210232K E CAP 0402 1NF 10% 50V X7R C0402X7R102K500 1 3 C129 065G040210232K E CAP 0402 1NF 10% 50V X7R C0402X7R102K500 1 3 C413 065G040210232K E CAP 0402 1NF 10% 50V X7R C0402X7R102K500 1 3 C7031 065G040210232K E CAP 0402 1NF 10% 50V X7R C0402X7R102K500 1 3 C434 065G040210232K E CAP 0402 1NF 10% 50V X7R C0402X7R102K500 1 3 C755 065G040210332K E CAP 0402 10NF 10% 50V X7R C0402X7R103K5 1 3 C736 065G040210332K E CAP 0402 10NF 10% 50V X7R C0402X7R103K5 1 3 C157 065G040210332K E CAP 0402 10NF 10% 50V X7R C0402X7R103K5 1 3 C7059 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1 3 C7014 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1 3 C7058 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1 3 C7012 065G040210412K A CAP 0402 100nF 10% 16V X7R CL05B104KO5NN 1 3 C169 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1 3 C635 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1 3 C428 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1 3 C730 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1 3 C453 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1 3 C4018 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1 3 C109 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1 3 C727 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1 3 C4009 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1 3 C505 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1 3 C459 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1 3 C612 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1 3 C4004 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1 3 C1000 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1 3 C7036 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1 3 C424 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1 3 C445 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1 3 C108 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1 3 C783 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1 3 C4012 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1 3 C423 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1 3 C4015 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1 3 C426 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1 3 C1014 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1 3 C441 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1 3 C789 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1 3 C501 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1 3 C429 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1 3 C733 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1 3 C758 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1 3 C791 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1 3 C759 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1 3 C442 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1 3 C4005 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1
Page 86
3 C4019 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1 3 C176 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1 3 C748 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1 3 C4003 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1 3 C418 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1 3 C454 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1 3 C503 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1 3 C443 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1 3 C425 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1 3 C451 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1 3 C4016 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1 3 C164 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1 3 C433 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1 3 C4020 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1 3 C446 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1 3 C4007 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1 3 C432 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1 3 C788 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1 3 C729 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1 3 C1001 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1 3 C440 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1 3 C463 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1 3 C639 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1 3 C4014 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1 3 C140 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1 3 C772 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1 3 C792 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1 3 C793 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1 3 C178 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1 3 C4013 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1 3 C4022 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1 3 C762 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1 3 C765 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1 3 C421 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1 3 C4002 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1 3 C427 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1 3 C760 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1 3 C435 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1 3 C170 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1 3 C455 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1 3 C1015 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1 3 C419 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1 3 C797 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1 3 C4006 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1 3 C422 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1 3 C4011 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1 3 C744 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1 3 C4001 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1 3 C4017 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1 3 C450 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1 3 C794 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1
Page 87
3 C511 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1 3 C785 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1 3 C102 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1 3 C763 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1 3 C444 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1 3 C795 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1 3 C7041 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1 3 C745 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1 3 C447 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1 3 C452 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1 3 C4032 065G040210425K E CAP 0402 100NF 10% 25V X5R C0402X5R104K 1 3 C650 065G040210425K E CAP 0402 100NF 10% 25V X5R C0402X5R104K 1 3 C4030 065G040210425K E CAP 0402 100NF 10% 25V X5R C0402X5R104K 1 3 C776 065G040210506K T CAP 0402 1UF 10% 6.3V X6S - 1 3 C4008 065G040210506K T CAP 0402 1UF 10% 6.3V X6S - 1 3 C118 065G040210506K T CAP 0402 1UF 10% 6.3V X6S - 1 3 C780 065G040210506K T CAP 0402 1UF 10% 6.3V X6S - 1 3 C757 065G040210506K T CAP 0402 1UF 10% 6.3V X6S - 1 3 C506 065G040210506K T CAP 0402 1UF 10% 6.3V X6S - 1 3 C119 065G040210506K T CAP 0402 1UF 10% 6.3V X6S - 1 3 C768 065G040210506K T CAP 0402 1UF 10% 6.3V X6S - 1 3 C778 065G040210506K T CAP 0402 1UF 10% 6.3V X6S - 1 3 C448 065G040210506K T CAP 0402 1UF 10% 6.3V X6S - 1 3 C7040 065G040210506K T CAP 0402 1UF 10% 6.3V X6S - 1 3 C790 065G040210506K T CAP 0402 1UF 10% 6.3V X6S - 1 3 C754 065G040210506K T CAP 0402 1UF 10% 6.3V X6S - 1 3 C775 065G040210506K T CAP 0402 1UF 10% 6.3V X6S - 1 3 C740 065G040210506K T CAP 0402 1UF 10% 6.3V X6S - 1 3 C7039 065G040210506K T CAP 0402 1UF 10% 6.3V X6S - 1 3 C799 065G040210506K T CAP 0402 1UF 10% 6.3V X6S - 1 3 C7037 065G040210506K T CAP 0402 1UF 10% 6.3V X6S - 1 3 C177 065G040210506K T CAP 0402 1UF 10% 6.3V X6S - 1 3 C779 065G040210506K T CAP 0402 1UF 10% 6.3V X6S - 1 3 C197 065G040210506K T CAP 0402 1UF 10% 6.3V X6S - 1 3 C781 065G040210506K T CAP 0402 1UF 10% 6.3V X6S - 1 3 C706 065G040210506K T CAP 0402 1UF 10% 6.3V X6S - 1 3 C770 065G040210506K T CAP 0402 1UF 10% 6.3V X6S - 1 3 C160 065G040210506K T CAP 0402 1UF 10% 6.3V X6S - 1 3 C430 065G040210506K T CAP 0402 1UF 10% 6.3V X6S - 1 3 C796 065G040210506K T CAP 0402 1UF 10% 6.3V X6S - 1 3 C7042 065G040210506K T CAP 0402 1UF 10% 6.3V X6S - 1 3 C751 065G040210506K T CAP 0402 1UF 10% 6.3V X6S - 1 3 C417 065G040210506K T CAP 0402 1UF 10% 6.3V X6S - 1 3 C196 065G040210506K T CAP 0402 1UF 10% 6.3V X6S - 1 3 C431 065G040210506K T CAP 0402 1UF 10% 6.3V X6S - 1 3 C777 065G040210506K T CAP 0402 1UF 10% 6.3V X6S - 1 3 C449 065G040210506K T CAP 0402 1UF 10% 6.3V X6S - 1 3 C774 065G040210506K T CAP 0402 1UF 10% 6.3V X6S - 1 3 C771 065G040210506K T CAP 0402 1UF 10% 6.3V X6S - 1 3 C7038 065G040210506K T CAP 0402 1UF 10% 6.3V X6S - 1 3 C504 065G040210506K T CAP 0402 1UF 10% 6.3V X6S - 1
Page 88
3 C769 065G040210506K T CAP 0402 1UF 10% 6.3V X6S - 1
CAP 0603 1uF 10% 16V X7R CL10B105KO8NNNC
3 C7049 065G040210506K T CAP 0402 1UF 10% 6.3V X6S - 1 3 C787 065G040210506K T CAP 0402 1UF 10% 6.3V X6S - 1 3 C117 065G040210506K T CAP 0402 1UF 10% 6.3V X6S - 1 3 C786 065G040210506K T CAP 0402 1UF 10% 6.3V X6S - 1 3 C773 065G040210506K T CAP 0402 1UF 10% 6.3V X6S - 1 3 C416 065G040210506K T CAP 0402 1UF 10% 6.3V X6S - 1 3 C7046 065G040210506K T CAP 0402 1UF 10% 6.3V X6S - 1 3 C7035 065G040210506K T CAP 0402 1UF 10% 6.3V X6S - 1 3 C767 065G040210506K T CAP 0402 1UF 10% 6.3V X6S - 1 3 C735 065G040210506K T CAP 0402 1UF 10% 6.3V X6S - 1 3 C766 065G040210506K T CAP 0402 1UF 10% 6.3V X6S - 1 3 C7001 065G040210605M A CAP 0402 10UF 20% 6.3V X5R CL05A106MQ5N 1 3 C720 065G040210605M A CAP 0402 10UF 20% 6.3V X5R CL05A106MQ5N 1 3 C469 065G040215131J A CAP 0402 150PF 5% 50V NP0 1 3 C723 065G040222031J E CAP 0402 22PF 5% 50V NP0 C0402C0G220J50 1 3 C1005 065G040222232K F CAP 0402 2.2NF K 50V X7R 1 3 C171 065G040222232K F CAP 0402 2.2NF K 50V X7R 1 3 C734 065G040222415K Y CAP CHIP 0402 220nF 16V X5R 1 3 C749 065G040222415K Y CAP CHIP 0402 220nF 16V X5R 1 3 C166 065G040230031J A CAP 0402 30PF 5% 5% 50V NP0 1 3 C458 065G040230031J A CAP 0402 30PF 5% 5% 50V NP0 1 3 C165 065G040230031J A CAP 0402 30PF 5% 5% 50V NP0 1 3 C457 065G040230031J A CAP 0402 30PF 5% 5% 50V NP0 1 3 C121 065G040233031J F CAP 0402 33PF 5% 50V NP0 1 3 C114 065G040233031J F CAP 0402 33PF 5% 50V NP0 1 3 C7053 065G040233232K F CAP 0402 3.3NF 10% 50V X7R 1 3 C7017 065G040233232K F CAP 0402 3.3NF 10% 50V X7R 1 3 C180 065G040247031J E AP 0402 47PF 5% 50V NP0 1 3 C182 065G040247031J E AP 0402 47PF 5% 50V NP0 1 3 C1007 065G040247312K F CAP 0402 47NF 10% 16V X7R 1 3 C183 065G040247312K F CAP 0402 47NF 10% 16V X7R 1 3 C115 065G040247312K F CAP 0402 47NF 10% 16V X7R 1 3 C116 065G040247312K F CAP 0402 47NF 10% 16V X7R 1 3 C1011 065G040247312K F CAP 0402 47NF 10% 16V X7R 1 3 C190 065G040247312K F CAP 0402 47NF 10% 16V X7R 1 3 C199 065G040247312K F CAP 0402 47NF 10% 16V X7R 1 3 C198 065G040247312K F CAP 0402 47NF 10% 16V X7R 1 3 C438 065G0402474A5K Y CAP CHIP 0402 0.47UF K 10V X5R 1 3 C437 065G0402474A5K Y CAP CHIP 0402 0.47UF K 10V X5R 1 3 C436 065G0402474A5K Y CAP CHIP 0402 0.47UF K 10V X5R 1 3 C415 065G0402474A5K Y CAP CHIP 0402 0.47UF K 10V X5R 1 3 C414 065G0402474A5K Y CAP CHIP 0402 0.47UF K 10V X5R 1 3 C1027 065G040247931C Y CAP 0402 4.7PF 0.25pF 50V NP0 1 3 C1026 065G040247931C Y CAP 0402 4.7PF 0.25pF 50V NP0 1 3 C631 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R 1 3 C632 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R 1 3 C630 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R 1 3 C629 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R 1 3 C4033 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R 1 3 C508 065G060310512K A
1
Page 89
3 C7016 065G060310512K T CAP 0603 1UF 10% 16V X7R EMK107B7105KA 1 3 C4039 065G060310512K T CAP 0603 1UF 10% 16V X7R EMK107B7105KA 1 3 C7057 065G060310512K T CAP 0603 1UF 10% 16V X7R EMK107B7105KA 1 3 C7047 065G060310605M M CAP 0603 10UF 20% 6.3V X5R 1 3 C107 065G060310605M M CAP 0603 10UF 20% 6.3V X5R 1 3 C741 065G060310605M M CAP 0603 10UF 20% 6.3V X5R 1 3 C112 065G060310605M M CAP 0603 10UF 20% 6.3V X5R 1 3 C728 065G060310605M M CAP 0603 10UF 20% 6.3V X5R 1 3 C420 065G060310605M M CAP 0603 10UF 20% 6.3V X5R 1 3 C138 065G060310605M M CAP 0603 10UF 20% 6.3V X5R 1 3 C753 065G060310605M M CAP 0603 10UF 20% 6.3V X5R 1 3 C725 065G060310605M M CAP 0603 10UF 20% 6.3V X5R 1 3 C439 065G060310605M M CAP 0603 10UF 20% 6.3V X5R 1 3 C726 065G060310605M M CAP 0603 10UF 20% 6.3V X5R 1 3 C636 065G060310605M M CAP 0603 10UF 20% 6.3V X5R 1 3 C743 065G060310605M M CAP 0603 10UF 20% 6.3V X5R 1 3 C701 065G060322422K F CAP 0603 220NF 10% 25V X7R 1 3 C4023 065G060322422K F CAP 0603 220NF 10% 25V X7R 1 3 C619 065G060347131J F CAP CHIP 0603 470PF J 50V NPO 1 3 C633 065G060347131J F CAP CHIP 0603 470PF J 50V NPO 1 3 C622 065G060347131J F CAP CHIP 0603 470PF J 50V NPO 1 3 C624 065G060347131J F CAP CHIP 0603 470PF J 50V NPO 1 3 C460 065G060347506K A CAP 0603 4.7UF 10% 6.3V X6S - 1 3 C128 065G060356931D Y CAP CHIP 0603 5P6 50V NP0 +/-0.5PF 1 3 C623 065G080510432K A CAP CHIP 0805 0.1UF K 50V X7R 1 3 C625 065G080510432K A CAP CHIP 0805 0.1UF K 50V X7R 1 3 C634 065G080510432K A CAP CHIP 0805 0.1UF K 50V X7R 1 3 C620 065G080510432K A CAP CHIP 0805 0.1UF K 50V X7R 1 3 C620 065G080510432K M CAP 0805 100nF 10% 50V X7R GRM21BR71H104 1 3 C634 065G080510432K M CAP 0805 100nF 10% 50V X7R GRM21BR71H104 1 3 C623 065G080510432K M CAP 0805 100nF 10% 50V X7R GRM21BR71H104 1 3 C625 065G080510432K M CAP 0805 100nF 10% 50V X7R GRM21BR71H104 1 3 C628 065G080522432K F CAP 0805 220NF 10% 50V X7R 1 3 C621 065G080522432K F CAP 0805 220NF 10% 50V X7R 1 3 C7010 065G120610625K T CAP 1206 10uF 10% 25V X5R TMK316 BJ106K 1 3 C7011 065G120610625K T CAP 1206 10uF 10% 25V X5R TMK316 BJ106K 1 3 C7060 065G120610625K T CAP 1206 10uF 10% 25V X5R TMK316 BJ106K 1 3 C7054 065G120610625K T CAP 1206 10uF 10% 25V X5R TMK316 BJ106K 1 3 C7055 065G1206226A5K A CAP 1206 22uF 10% 10V X5R CL31A226KPHNNN 1 3 C7018 065G1206226A5K A CAP 1206 22uF 10% 10V X5R CL31A226KPHNNN 1 3 C7062 065G1206226A5K A CAP 1206 22uF 10% 10V X5R CL31A226KPHNNN 1 3 C7019 065G1206226A5K A CAP 1206 22uF 10% 10V X5R CL31A226KPHNNN 1 3 C746 065G121010622K T CAP 1210 10UF 10% 25V X7R 1 3 C731 065G121010622K T CAP 1210 10UF 10% 25V X7R 1 3 C7051 067G311C1013LT EC SMD 100UF 20% 16V 6.3*7.7 3000 hr 210 1 3 C7050 067G311C1013LT EC SMD 100UF 20% 16V 6.3*7.7 3000 hr 210 1 3 C110 067G311R1013LT EC SMD 100uF 20% 16V 6.3*5.3 2000 hr 210 1 3 HDCP-U413 070GHDCP500HDC HDCP CODE 1 3 FB403 071G 56K121 TA HIP BEAD 120R/6000mA HCB2012KF-121T60 1 3 FB703 071G 59A121 TA CHIP BEAD 120R/3000mA HCB1608KF-121T30 1 3 L103 073G 6333810M CHIP INDUCTOR 0.33UH 10% 0.75R 100mA 1
Page 90
3 L704 073G253S 46 M SMD CHOKE 4.7UH 20% MGSD54-4R7M-LF 2.8A 1 3 L703 073G253S 46 M SMD CHOKE 4.7UH 20% MGSD54-4R7M-LF 2.8A 1 3 L711 073G253S 67 M SMD CHOKE 3.3UH 20% 0.028R 6.5A 1 3 L710 073G253S 67 M SMD CHOKE 3.3UH 20% 0.028R 6.5A 1 3 D102 093G 6433S witching diode BAV99 1 3 ZD507 093G 39GA01 T RLZ5.6B 1 3 D701 093G 60S 37 T SCHOTTKY SM260A 2A 40V DO-214AC 1 3 D502 093G 64S526SEM SWITCHING BAS316WS 250mA 100V SOD323 1 3 D501 093G 64S526SEM SWITCHING BAS316WS 250mA 100V SOD323 1 3 D511 093G 64S526SEM SWITCHING BAS316WS 250mA 100V SOD323 1 3 D101 093G 64S526SEM SWITCHING BAS316WS 250mA 100V SOD323 1 3 D502 093G 64S900 T DIODE BAS316 SOD-323 PHILIPS 1 3 CN408 311GF050Z51ADC FFC CONN 0.5mm 51P R/A F05036-51P-E 1 3 CN109 311GW125D05ADL WAFER 1.25mm 5P R/A B1254W05HUM2 1 3 U705 356G056313200C00HF LDO AZ1117CH-1.2TRG1 1A 1.2V SOT-223 1 3 U711 356G056317300C00HF LDO AZ1084CD-3.3TRG1 5A 3.3V TO-252-2(3) 1 3 U707 356G056351400C00HF LDO AZ1117CH- 3.3TRG1 1.35A 3.3V SOT-223 1 3 U703 356G056351400C00HF LDO AZ1117CH- 3.3TRG1 1.35A 3.3V SOT-223 1 3 U407 356G0566024600 Silicon Tuner MxL661-AG-R 1 3 U401 356G0568577601 SCALER Hi3751ARBCV5000D00 PBGA-577 1 3 U401 356G0568577603 SCALER Hi3751ARBCV5100D00 PBGA-577 1 3 U403 356G0615004612 DRAM K4B4G1646E-BCK0 4G FBGA-96 1 3 U404 356G0615004612 DRAM K4B4G1646E-BCK0 4G FBGA-96 1 3 U601 356G061613300A AUDIO AD82588B-LG48NAY 2x15W stereo E-LQ 1 3 U413 356G3333004612 EMMC THGBMDG5D1LBAIT 4GB FBGA153 1 3 U702 356GD563006183 DC/DC SY8009BABC 2A 3.3V SOT23-6 1 3 U704 356GD563008140 DC/DC TPS54328DDAR 3A 0.76~7V DDA 1 3 U706 356GD563008140 DC/DC TPS54328DDAR 3A 0.76~7V DDA 1 3 U710 356GD563008611 DC/DC RT6206BHGSP 5.5A ADJ SOP-8 1 3 U712 356GD563008611 DC/DC RT6206BHGSP 5.5A ADJ SOP-8 1 3 Q512 357G07630620HF HF MOSFET 2N7002K_R1_00001 0.3A 60V 1 3 TH101 361G0056159ALT PTCR SMD 1.5A 1% 0.8W 1206L150SLYR 1 3 R751 361G04022492FY RST 0402 24.9K 1% 1/16W RC0402FR-0724K9 1 3 R739 361G04022492FY RST 0402 24.9K 1% 1/16W RC0402FR-0724K9 1 3 R111 361G04025108FT RST 0402 5.1 ohm 1% 1/16W SMD04025R1F 1 3 R109 361G04025108FT RST 0402 5.1 ohm 1% 1/16W SMD04025R1F 1 3 R108 361G04025108FT RST 0402 5.1 ohm 1% 1/16W SMD04025R1F 1 3 R110 361G04025108FT RST 0402 5.1 ohm 1% 1/16W SMD04025R1F 1 3 R113 361G04025108FT RST 0402 5.1 ohm 1% 1/16W SMD04025R1F 1 3 R114 361G04025108FT RST 0402 5.1 ohm 1% 1/16W SMD04025R1F 1 3 R101 361G06031330FY RST 0603 133Ω 1% 1/10W N/A 1 3 C132 365G040210931B000Y AP 0402 1pf 0.1pF 50V NP0 CC0402BRNPO9 1 3 C761 365G040222502K000M CAP 0402 2.2uF 20% 6.3V X7S GRM155C70J2 1 3 C738 365G040222502K000M CAP 0402 2.2uF 20% 6.3V X7S GRM155C70J2 1 3 C456 365G040222502K000M CAP 0402 2.2uF 20% 6.3V X7S GRM155C70J2 1 3 C756 365G040222502K000M CAP 0402 2.2uF 20% 6.3V X7S GRM155C70J2 1 3 C158 365G040227931C000F AP 0402 2.7pF 0.25pF 50V NP0 0402CG2R7 1 3 C159 365G040227931C000F AP 0402 2.7pF 0.25pF 50V NP0 0402CG2R7 1 3 C7052 365G060310535K000T CAP 0603 1UF 10% 50V X5R 1 3 C798 365G060310606M000T CAP 0603 10uF 20% 6.3V X6S JMK107BC6106 1 3 C784 365G060310606M000T CAP 0603 10uF 20% 6.3V X6S JMK107BC6106 1
Page 91
3 C101 365G060310606M000T CAP 0603 10uF 20% 6.3V X6S JMK107BC6106 1
CHIP BEAD 0402 120R 25% MGLB1005M121T1R3
CHIP BEAD 0402 120R 25% MGLB1005M121T1R3
CHIP BEAD 0402 120R 25% MGLB1005M121T1R3
CHIP BEAD 0402 120R 25% MGLB1005M121T1R3
CHIP BEAD 0402 120R 25% MGLB1005M121T1R3
CHIP BEAD 0402 120R 25% MGLB1005M121T1R3
CHIP BEAD 0402 120R 25% MGLB1005M121T1R3
CHIP BEAD 0402 120R 25% MGLB1005M121T1R3
CHIP BEAD 0402 120R 25% MGLB1005M121T1R3
CHIP BEAD 0402 120R 25% MGLB1005M121T1R3
Q49G03WB1TF0HF0000
Q51G02UV0LT0HF0000
Q52G170100700B00XW
3 C103 365G060310606M000T CAP 0603 10uF 20% 6.3V X6S JMK107BC6106 1 3 C4010 365G060310606M000T CAP 0603 10uF 20% 6.3V X6S JMK107BC6106 1 3 C502 365G060310615M000A CAP 0603 10U 20% 16V X5R CL10A106MO8NQN 1 3 C722 365G060322605M000M CAP 0603 22uF 20% 6.3V X5R GRM188R60J226 1 3 C721 365G060322605M000M CAP 0603 22uF 20% 6.3V X5R GRM188R60J226 1 3 C782 365G080522606M000M CAP 0805 22uF 20% 6.3V X6S GRM21BC80J22 1 3 C764 365G080522606M000M CAP 0805 22uF 20% 6.3V X6S GRM21BC80J22 1 3 C7034 367G311F1014LT 367G311F1014LT 20% --25V --8*6.5 -- -- 1 3 C4025 367G311X221FLT EC SMD 220uF 20% 25V 8x10.2 5000 hr 0.6 1 3 MAC-U413 370G0MAC642CNT Buy key CNTV腾讯版MAC for 海 1 3 HDCP2-U413 370GHDCP603PHP CD CD HDCP2.2 code for Wifi Miracast 1 3 FB603 371G042P121M02 3 FB605 371G042P121M02 3 FB709 371G042P121M02 3 FB607 371G042P121M02 3 FB705 371G042P121M02 3 FB402 371G042P121M02 3 FB501 371G042P121M02 3 FB606 371G042P121M02 3 FB608 371G042P121M02 3 FB712 371G042P121M02 3 FB711 371G042P221M00 CHIP BEAD 0402 220R 25% MGLB1005M221T1R 1 3 FB710 371G042P221M00 CHIP BEAD 0402 220R 25% MGLB1005M221T1R 1 3 FB103 371G042U102C00 CHIP BEAD 0402 1000 25% FCM1005KF-102T0 1 3 FB104 371G042U102C00 CHIP BEAD 0402 1000 25% FCM1005KF-102T0 1 3 L104 373G0402277FJM CHIP IND 27nH 5% 300mA 0.7ohm MGCI1005T 1 3 L101 373G0402277FJM CHIP IND 27nH 5% 300mA 0.7ohm MGCI1005T 1 3 L102 373G0402826FJM CHIP IND 8.2NH 5% 0.3A 0.35R MGCI1005T8 1 3 L103 373G0603338FKD CHIP IND 0.33uH 10% 0.1 0.75 SDFL1608LR3 1 3 L603 373G253S147Y00 3B01D3016222uH 20% 1.5A 0.115R NR6045T22 1 3 L601 373G253S147Y00 3B01D3016222uH 20% 1.5A 0.115R NR6045T22 1 3 L604 373G253S147Y00 3B01D3016222uH 20% 1.5A 0.115R NR6045T22 1 3 L602 373G253S147Y00 3B01D3016222uH 20% 1.5A 0.115R NR6045T22 1 3 L702 373G253S526M00 SMD CHOKE 4.7uH 20% 0.9A 0.444R MPIH2016 1 3 CN501 388G340FJ05FAT0001 HDMI R/A 19P 1*1 BLACK 8.4mm 1 3 CN504 388G340FJ05FAT0001 HDMI R/A 19P 1*1 BLACK 8.4mm 1 3 X102 393G022S60100J CRYSTAL NXH16.000AE18F-KAB8-PA 16MHz 18 1 3 X401 393G022S662CEC CRYSTAL K-F-24.000M-18-1020-2070-40 24.0 1 3 X401 393G022SA44TXC CRYSTAL 7V24000017 ±20ppm 18PF 1 3 ZD710 393G039SA2300T ZENER BZT52-B7V5 7.5V 0.41W SOD-123 1 3 709T79240XS001 COMSUMPTIVE ASSY 1 4 051G 200 1 OIL FOR DISAPPEAR 0.170 4 052G 2191 A TAPE_OTHER(PET,PAPER,SECURITY,ETC…) 0.020 4 055G 100610 Solder Paste 0.688 4 Q05G6054 1 SHEET 0.163 4 Q09G6012 1 PIN 0.034 4 4 4
Water-based Cleaning Agent 0.470 UV glue 0.652 MESH PRINTTING_PAPER 2.860
4 Q55G 100622 TIN STICK(SAC0507) 0.100
1 1 1 1 1 1 1 1 1 1
Page 92
4
Q55G02SP1VT0HF0000
3 E715 715G7924M03B00004N MAIN PCB FR4 DS 193*109*1.6MM 1 3 E715 715G7924M03B00004Y MAIN PCB FR4 DS 193*109*1.6MM 1 3 HS-U404 X16G000500100000JS ABSORB 1 3 C627 067G315M1016KV EC 100uF 20% 35V 8*7 3000 hr 470mA ER1V1 1 3 C646 067G315M1016KV EC 100uF 20% 35V 8*7 3000 hr 470mA ER1V1 1 3 CN104 088G 78G135ACL RCA JACK R/A 6P Y/W/R 1*3 H=10.5 C-PIN 1 3 CN103 088G352F6B3ACL USB A TYPE R/A 6P BLACK H=8.4 1 3 CN103 088G352F6B3AYG USB CONN A TYPE R/A 6P BLACK H=8.4 1 3 CN106 088G353GFF1ACL D-SUB CONN 15P BLUE R/A H=10mm 1 3 CN602 311GW200A04ABX AFER 2.0mm 4P 1 3 CN102 311GW200C06ABL W AFER 2.0mm 6P R/A B2000W06HTKB 1 3 CN700 311GW200C12BBX CONN 2.0mm 12P R/A W2010-12RVA-S04 1 3 CN401 311GW200C14BBX CONN 2.0mm 14P R/A W2010-14RVA-S04 1 3 CN601 388G078G111ACL RCA R/A 3P 1*1 ORANGE 10.5 1 3 CN108 388G342GFB6AKX RJ45 R/A 15P 1*1 BLACK 11.2 1 3 CN101 388G352F911ADL USB 3.0 A R/A 9P 1*1 BLUE 8.4mm 1 3 TU101 388G510G601FHC RF RF connector 6P 1*1 - 13.8 mm 1 3 HS401 P90T0051301 HEAT SINK 38.5 40 10 1 3 HS601 Q90G6119 6 HEAT SINK 25 10 1 1 IRPFGXB7 IR BOARD 1 2 SMTIRPFGXB7 IR BOARD FOR SMT 1 3 Q201 057G 477904 T TRA BC847BW 100mA/45V SOT-323 1 3 Q207 057G 477904 T TRA BC847BW 100mA/45V SOT-323 1 3 R213 061G0402000 JT RST 0402 0.05R MAX 1/16W - 1 3 R206 061G0402000 JT RST 0402 0.05R MAX 1/16W - 1 3 R205 061G0402000 JT RST 0402 0.05R MAX 1/16W - 1 3 R202 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN 1 3 R230 061G0402102 JT RST CHIP 1K 1/16W 5% TZAI YUAN 1 3 R233 061G0402102 JT RST CHIP 1K 1/16W 5% TZAI YUAN 1 3 R209 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN 1 3 R208 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN 1 3 R234 061G0402222 JT RST CHIP 2K2 1/16W 5% TZAI YUAN 1 3 R232 061G0402229 JT RST 0402 2.2R 5% 1/16W - 1 3 R231 061G0402229 JT RST 0402 2.2R 5% 1/16W - 1 3 C201 065G040210412K Y CAP 0402 100NF 10% 16V X7R 1 3 C205 065G0402105A5K M CAP 0402 1UF 10% 10V X5R 1 3 C202 065G0402105A5K M CAP 0402 1UF 10% 10V X5R 1 3 C204 065G0402105A5K M CAP 0402 1UF 10% 10V X5R 1 3 LED201 081G 15R 1 EL CHIP LED Red 99-213/R6C-AR2S2B/2C 1 3 LED205 081G 15W 1 EL CHIP LED WHITE 99-113UNC/2223010/TR8 1 3 LED206 081G 15W 1 EL CHIP LED WHITE 99-113UNC/2223010/TR8 1 3 LED206 081G 15W 1 GP CHIP LED White GPSS008WC1-D 1 3 LED205 081G 15W 1 GP CHIP LED White GPSS008WC1-D 1 3 ZD201 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ 1 3 CN201 311GW125D13ACL CONN 1.25mm 13P V/T B1254W13VUM2 1 3 CN201 311GW125D13ACX CONN 1.25mm 13P V/T S1315-13SVB-S03-R 1 3 U203 356GS527006006 LIGHT SENSOR JSA-1130 6pin 1 3 U201 356GS927036606 SMD IR RECEIVER SIR8B19R1 36 1 3 LED201 381G0A1500R1GP LED R GPSS008RC4 1 3 709T70740XS001 COMSUMPTIVE ASSY 1
Solder Paste 3.085
Page 93
4
Q52G170100700B00XW
Q52G170100700B00XW
4 052G 2191 A TAPE_OTHER(PET,PAPER,SECURITY,ETC…) 0.020 4 055G 23520 .leaning Naphtha 0.050 4 055G 100610 Solder Paste 0.100 4 Q05G6054 1 SHEET 0.010 4 Q09G6012 1 PIN 0.010 3 E715 715G7074R03000004Y IR PCB FR4 DS 36*26*0.8mm 1 3 P40GD000813 9A A4 PALLET LABEL -for A4 paper 0.001 1 KEPFEAA9 KEY BOARD 1 2 SMTKEPFEAA9 KEY BOARD FOR SMT 1 3 R01 061G06031201FF RST CHIPR 1.2KOHM +-1% 1/10W 1 3 R01 061G06031201FT RST CHIP 1K2 1/10W 1% 1 3 R01 061G06031201FY RST CHIPR 1.2KOHM +-1% 1/10W 1 3 R05 061G06031502FF RST CHIPR 15KOHM +-1% 1/10W FENGHUA 1 3 R05 061G06031502FT RST CHIP 15K 1/10W 1% 1 3 R05 061G06031502FY RST CHIP 15K 1/10W 1% 1 3 R04 061G06032201FT RST CHIP 2K2 1/10W 1% 1 3 R04 061G06032201FY RST CHIP 2K2 1/10W 1% 1 3 R02 061G06034709FT RST CHIP 47R 1/10W 1% 1 3 R03 061G06036801FF RST CHIPR 6.8KOHM +-1% 1/10W FENGHUA 1 3 R03 061G06036801FT RST CHIP 6K8 1/10W 1% 1 3 R03 061G06036801FY RST CHIP 6K8 1/10W 1% 1 3 C06 065G060310432K F CAP CHIP 0603 0.1UF K 50V X7R 1 3 C06 065G060310432K Y CAP 0603 100NF 10% 50V X7R 1 3 CN01 311GW125D02ADX WAFER 1.25mm 2P R/A S1315-02RVB-S03-K 1 3 SW01 377G060902C0CJ CHIP TACT SW 6P 6mm 160g SMD 1 3 SW01 377G060902C0HC CHIP TACT SW 6P 6mm 160g SMD 1 3 709T70880XS001 COMSUMPTIVE ASSY 1 4 052G 2191 A TAPE_OTHER(PET,PAPER,SECURITY,ETC…) 0.021 4 055G 23520 .leaning Naphtha 0.012 4 055G 100610 Solder Paste 0.022 4 Q05G6054 1 SHEET 0.010 4 Q09G6012 1 PIN 0.010 4 3 E715 715G7088K01000004K KEY PCB FR4 DS 22*29.5*1.6mm 1 1 LNTVFI472XXE9 CONVERTER BOARD -- 1 2 Z40G0002ALL01A OTHER LABEL 1 2 GND2 009G6005 1 GND TERMINAL 1 2 GND5 009G6005 1 GND TERMINAL 1 2 GND3 009G6005 1 GND TERMINAL 1 2 GND6 009G6005 1 GND TERMINAL 1 2 CN8601 033G380210B YH L CONNECTOR 10P 2.0 1 2 CN8602 033G380212B YH L WAFER 12.0mm 12P 1 2 C8601 067G215Z102 7K EC 1000UF 20% 50V EJ 10*40 1 2 C8607 067G215Z102 7K EC 1000UF 20% 50V EJ 10*40 1 2 C8653 067G515Z221 9K EC 220UF 20% 100V 10*35 5000 hr 1 2 C8654 067G515Z221 9K EC 220UF 20% 100V 10*35 5000 hr 1 2 C8602 067G515Z221 9K EC 220UF 20% 100V 10*35 5000 hr 1 2 C8608 067G515Z221 9K EC 220UF 20% 100V 10*35 5000 hr 1 2 L8602 373G0253247H00 CHOKE COIL 3UH 15% DR8*8 5A 1 2 L8604 373G0253247H00 CHOKE COIL 3UH 15% DR8*8 5A 1
MESH PRINTTING_PAPER 0.150
MESH PRINTTING_PAPER 0.034
Page 94
2 L8601 373G0253353X01 BOOST CHOKE 33uH 10% 4A 3LCEQ2513-330K- 1 2 L8603 373G0253353X01 BOOST CHOKE 33uH 10% 4A 3LCEQ2513-330K- 1 2 705TAF57069 Q8602 D8601 ASS"Y 1 3 051G 200 1 OIL FOR DISAPPEAR 0.036 3 D8601 093G 60329 IODE FMEN-220A 20A/100V TO-220 1 3 0M1G1730 8120 SCREW M3 8 2 3 Q8602 357G0600100017 MOSFET P3710BTF 19A 100V TO-220F 1 3 HS8601 Q90T0236003A0000BF HEAT SINK 1 2 705TAF57070 Q8604 D8604 ASS"Y 1 3 051G 200 1 OIL FOR DISAPPEAR 0.036 3 D8604 093G 60329 IODE FMEN-220A 20A/100V TO-220 1 3 0M1G1730 8120 SCREW M3 8 2 3 Q8604 357G0600100017 MOSFET P3710BTF 19A 100V TO-220F 1 3 HS8602 Q90T0236003A0000BF HEAT SINK 1 2 709T77000XM001 COMSUMPTIVE ASSY 1 3 052G 2191 A TAPE_OTHER(PET,PAPER,SECURITY,ETC…) 0.079 3 055G 23520 .leaning Naphtha 0.100 3 055G 23524 WELDING FLUX WITHOUT PB 3.889 3 Q49G 51100 Water-based Cleaning Agent 2 3 Q51G 6 4509 GLUE_RTV 1.200 3 Q55G 100622 TIN STICK(SAC0507) 0.100 3 Q55G 100655 Sn-Cu Solder 2.964 2 LNFI472XXE9SMT CONVERTER BOARD FOR SMT 1 3 R8614 061G0805000 JT RST 0805 0.05R MAX 1/8W 1 3 R8621 061G0805100 JT RST CHIP 10R 1/8W 5% TZAI YUAN 1 3 R8604 061G0805100 JT RST CHIP 10R 1/8W 5% TZAI YUAN 1 3 R8671 061G08051001FT RST CHIP 1K 1/8W 1% 1 3 R8648 061G08051001FT RST CHIP 1K 1/8W 1% 1 3 R8672 061G08051001FT RST CHIP 1K 1/8W 1% 1 3 R8650 061G08051002FT RST CHIP 10K 1/8W 1% 1 3 R8673 061G08051002FT RST CHIP 10K 1/8W 1% 1 3 R8651 061G08051002FT RST CHIP 10K 1/8W 1% 1 3 R8613 061G0805101 JT RST CHIP 100R 1/8W 5% TZAI YUAN 1 3 R8630 061G0805101 JT RST CHIP 100R 1/8W 5% TZAI YUAN 1 3 R8622 061G0805103 JT RST 0805 10K 5% 1/8W 1 3 R8605 061G0805103 JT RST 0805 10K 5% 1/8W 1 3 R8638 061G08052008FT RST 0805 2R 1% 1/8W - 1 3 R8603 061G08052008FT RST 0805 2R 1% 1/8W - 1 3 R8668 061G08052203FT RST CHIPR 220KOHM +-1% 1/8W 1 3 R8670 061G08052403FT RST CHIP 240K 1% 1/8W 1 3 R8647 061G08055602FT RST CHIP R 56K 1/8W +/-1% 1 3 R8649 061G0805564 JT RST CHIPR 560K +-5% 1/8W TZAI YUAN 1 3 R8663 061G08057503FT RST 0805 750K 1% 1/8W 1 3 R8664 061G08057503FT RST 0805 750K 1% 1/8W 1 3 R8641 061G1206100 JT RST CHIPR 10 OHM +-5% 1/4W TZAI YUAN 1 3 R8642 061G12061001FT RST CHIP R 1Kohm +-1% 1/4W 1 3 R8632 061G12061001FT RST CHIP R 1Kohm +-1% 1/4W 1 3 R8615 061G12061001FT RST CHIP R 1Kohm +-1% 1/4W 1 3 R8612 061G12061002FT RST CHIPR 10KOHM +-1% 1/4W 1206 1 3 R8629 061G12061002FT RST CHIPR 10KOHM +-1% 1/4W 1206 1 3 R8627 061G12061003FT RST 1206 100K 1% 1/4W SMD1206100KF 1
Page 95
3 R8611 061G12061003FT RST 1206 100K 1% 1/4W SMD1206100KF 1
CAP 0805 1nF 10% 50V X7R GRM216R71H102KA
CAP 0805 1nF 10% 50V X7R GRM216R71H102KA
CAP 0805 1nF 10% 50V X7R GRM216R71H102KA
3 R8610 061G12061003FT RST 1206 100K 1% 1/4W SMD1206100KF 1 3 R8628 061G12061003FT RST 1206 100K 1% 1/4W SMD1206100KF 1 3 R8639 061G12062003FT RST CHIPR 200KOHM +-1% 1/4W TZAI YUAN 1 3 R8658 061G1206202 JT RST CHIP R 2Kohm 1/4W +/-5% 1 3 R8626 061G1206224 JT RST CHIPR 220KOHM +-5% 1/4W TZAI YUAN 1 3 R8624 061G1206224 JT RST CHIPR 220KOHM +-5% 1/4W TZAI YUAN 1 3 R8625 061G1206224 JT RST CHIPR 220KOHM +-5% 1/4W TZAI YUAN 1 3 R8609 061G1206224 JT RST CHIPR 220KOHM +-5% 1/4W TZAI YUAN 1 3 R8607 061G1206224 JT RST CHIPR 220KOHM +-5% 1/4W TZAI YUAN 1 3 R8608 061G1206224 JT RST CHIPR 220KOHM +-5% 1/4W TZAI YUAN 1 3 R8640 061G12063602FT RST CHIPR 36K +-1% 1/4W TZAI YUAN 1 3 R8686 061G12065109FT RST 1206 51R 1% 1/4W 1 3 R8685 061G12065109FT RST 1206 51R 1% 1/4W 1 3 R8684 061G12065109FT RST 1206 51R 1% 1/4W 1 3 R8687 061G12065109FT RST 1206 51R 1% 1/4W 1 3 R8643 061G1206564 JT RST 1206 560K 5% 1/4W 1 3 C8639 065G080510131J M CAP CHIP 0805 100pF J 50V NPO 1 3 C8640 065G080510131J M CAP CHIP 0805 100pF J 50V NPO 1 3 C8616 065G080510232K M 3 C8614 065G080510232K M 3 C8641 065G080510232K M 3 C8619 065G080510332K M CAP 0805 10NF 10% 50V X7R 1 3 C8621 065G080510332K M CAP 0805 10NF 10% 50V X7R 1 3 C8624 065G080510332K M CAP 0805 10NF 10% 50V X7R 1 3 C8613 065G080510522K M AP 0805 1UF 10% 25V X7R 1 3 C8620 065G080510522K M AP 0805 1UF 10% 25V X7R 1 3 C8618 065G080510522K M AP 0805 1UF 10% 25V X7R 1 3 C8627 065G080515232K Y CAP CHIP 0805 1N5 50V X7R +/-10% 1 3 C8630 065G080515232K Y CAP CHIP 0805 1N5 50V X7R +/-10% 1 3 C8656 065G080515232K Y CAP CHIP 0805 1N5 50V X7R +/-10% 1 3 C8657 065G080515232K Y CAP CHIP 0805 1N5 50V X7R +/-10% 1 3 C8612 065G080522232K Y CAP 0805 2.2nF 10% 50V X7R CC0805KRX7R9B 1 3 C8606 065G080522232K Y CAP 0805 2.2nF 10% 50V X7R CC0805KRX7R9B 1 3 C8615 065G080522512K M CAP 0805 2.2UF 10% 16V X7R 1 3 C8617 065G080522512K M CAP 0805 2.2UF 10% 16V X7R 1 3 C8643 065G080547131J M CAP 0805 470pF 5% 50V NP0 GRM2165C1H471J 1 3 C8642 065G080547131J M CAP 0805 470pF 5% 50V NP0 GRM2165C1H471J 1 3 U8601 356G0700024602 LED DRIVER OZ9902AGN-A2-0-TR SOP-24 1 3 Q8606 357G0761A0100T SMALLTRAN BTC4672M3 5A 50V 0.6W SOT-89 1 3 Q8605 357G0763100604 MOSFET PA110BDA 15A 100V TO-252 1 3 Q8603 357G0763100604 MOSFET PA110BDA 15A 100V TO-252 1 3 R8644 361G12063608FT RST 1206 3R6 1% 1/4W SMD12063R6FT 1 3 R8617 361G12063608FT RST 1206 3R6 1% 1/4W SMD12063R6FT 1 3 R8633 361G12063608FT RST 1206 3R6 1% 1/4W SMD12063R6FT 1 3 R8618 361G12063608FT RST 1206 3R6 1% 1/4W SMD12063R6FT 1 3 R8656 361G12063608FT RST 1206 3R6 1% 1/4W SMD12063R6FT 1 3 R8645 361G12063608FT RST 1206 3R6 1% 1/4W SMD12063R6FT 1 3 R8634 361G12063608FT RST 1206 3R6 1% 1/4W SMD12063R6FT 1 3 R8619 361G12063608FT RST 1206 3R6 1% 1/4W SMD12063R6FT 1 3 R8661 361G12063608FT RST 1206 3R6 1% 1/4W SMD12063R6FT 1
1 1 1
Page 96
3 R8646 361G12063608FT RST 1206 3R6 1% 1/4W SMD12063R6FT 1 3 R8637 361G12063608FT RST 1206 3R6 1% 1/4W SMD12063R6FT 1 3 R8653 361G12063608FT RST 1206 3R6 1% 1/4W SMD12063R6FT 1 3 R8620 361G12063608FT RST 1206 3R6 1% 1/4W SMD12063R6FT 1 3 R8616 361G12063608FT RST 1206 3R6 1% 1/4W SMD12063R6FT 1 3 R8636 361G12063608FT RST 1206 3R6 1% 1/4W SMD12063R6FT 1 3 R8635 361G12063608FT RST 1206 3R6 1% 1/4W SMD12063R6FT 1 3 R8691 361G12063908FT RST 1206 3R9 1% 1/4W SMD12063R9F 1 3 R8692 361G12063908FT RST 1206 3R9 1% 1/4W SMD12063R9F 1 3 R8693 361G12063908FT RST 1206 3R9 1% 1/4W SMD12063R9F 1 3 R8694 361G12063908FT RST 1206 3R9 1% 1/4W SMD12063R9F 1 3 R8697 361G12063908FT RST 1206 3R9 1% 1/4W SMD12063R9F 1 3 R8690 361G12063908FT RST 1206 3R9 1% 1/4W SMD12063R9F 1 3 R8696 361G12063908FT RST 1206 3R9 1% 1/4W SMD12063R9F 1 3 R8695 361G12063908FT RST 1206 3R9 1% 1/4W SMD12063R9F 1 3 ZD8601 393G039S96400T00HF ZENER BZT52-B13_R1_00001 13V 0.41W SOD-1 1 3 D8606 393G060S50000T00HF HF SS1060FL_R1_00001 1A 60V SOD123FL 1 3 D8605 393G060S50000T00HF HF SS1060FL_R1_00001 1A 60V SOD123FL 1 3 D8602 393G060S50000T00HF HF SS1060FL_R1_00001 1A 60V SOD123FL 1 3 709T77000XS001 COMSUMPTIVE ASSY 1 4 051G 100502 Surface Mount Adhesives 0.014 4 052G 2191 A TAPE_OTHER(PET,PAPER,SECURITY,ETC…) 0.210 4 055G 23520 .leaning Naphtha 0.147 4 Q05G6054 1 SHEET 0.024 4 Q09G6012 1 PIN 0.005 3 LNFI472XXE9AI CONVERTER BOARD FOR AI 1 4 040G 45762420A LABEL 25x6mm 1 4 C8623 067G 5151007KB EC 10UF 20% 50V 5*11 EY 1 4 C8609 067G 5154709KT EC 47UF 20% 100V 10*12 1 4 C8603 067G 5154709KT EC 47UF 20% 100V 10*12 1 4 FB8606 071G 55 26 H BEAD 3.5*6.0*0.8 127R 25% BF-I35060R-79 1 4 FB8605 071G 55 26 H BEAD 3.5*6.0*0.8 127R 25% BF-I35060R-79 1 4 J815 071G 55 29 FERRITE BEAD 1 4 J808 071G 55 29 FERRITE BEAD 1 4 J837 095G 90 23 JUMP WIRE - - 1 4 J804 095G 90 23 JUMP WIRE - - 1 4 J816 095G 90 23 JUMP WIRE - - 1 4 J811 095G 90 23 JUMP WIRE - - 1 4 J817 095G 90 23 JUMP WIRE - - 1 4 J826 095G 90 23 JUMP WIRE - - 1 4 J833 095G 90 23 JUMP WIRE - - 1 4 J842 095G 90 23 JUMP WIRE - - 1 4 J812 095G 90 23 JUMP WIRE - - 1 4 J818 095G 90 23 JUMP WIRE - - 1 4 J819 095G 90 23 JUMP WIRE - - 1 4 J840 095G 90 23 JUMP WIRE - - 1 4 J829 095G 90 23 JUMP WIRE - - 1 4 J803 095G 90 23 JUMP WIRE - - 1 4 J821 095G 90 23 JUMP WIRE - - 1 4 J805 095G 90 23 JUMP WIRE - - 1 4 J845 095G 90 23 JUMP WIRE - - 1
Page 97
4 J827 095G 90 23 JUMP WIRE - - 1 4 J813 095G 90 23 JUMP WIRE - - 1 4 J824 095G 90 23 JUMP WIRE - - 1 4 J806 095G 90 23 JUMP WIRE - - 1 4 J810 095G 90 23 JUMP WIRE - - 1 4 J802 095G 90 23 JUMP WIRE - - 1 4 J841 095G 90 23 JUMP WIRE - - 1 4 J809 095G 90 23 JUMP WIRE - - 1 4 J807 095G 90 23 JUMP WIRE - - 1 4 J820 095G 90 23 JUMP WIRE - - 1 4 J834 095G 90 23 JUMP WIRE - - 1 4 J831 095G 90 23 JUMP WIRE - - 1 4 J828 095G 90 23 JUMP WIRE - - 1 4 J832 095G 90 23 JUMP WIRE - - 1 4 J836 095G 90 23 JUMP WIRE - - 1 4 J835 095G 90 23 JUMP WIRE - - 1 4 J830 095G 90 23 JUMP WIRE - - 1 4 J843 095G 90 23 JUMP WIRE - - 1 4 J825 095G 90 23 JUMP WIRE - - 1 4 J822 095G 90 23 JUMP WIRE - - 1 4 J801 095G 90 23 JUMP WIRE - - 1 4 J814 095G 90 23 JUMP WIRE - - 1 4 J823 095G 90 23 JUMP WIRE - - 1 4 J838 095G 90 23 JUMP WIRE - - 1 4 J845 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 J838 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 J813 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 J827 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 J805 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 J821 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 J803 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 J829 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 J840 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 J819 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 J818 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 J812 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 J842 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 J833 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 J826 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 J817 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 J811 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 J816 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 J823 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 J814 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 J801 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 J822 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 J825 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 J843 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 J830 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 J835 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 J810 095G 90 23 J JUMP WIRE 1P-1P 100 1
Page 98
4 J806 095G 90 23 J JUMP WIRE 1P-1P 100 1
361G2SWJ10852T00TZ
361G2SWJ10852T00TZ
361G2SWJ10852T00TZ
361G2SWJ10852T00TZ
LVE6500RU1AADP2X0X
P34E24760GM03G0300
Q52G14010120HF0AXW
Q52G15010TV0070WXW
Q52G1501150523AWBK
4 J836 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 J832 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 J828 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 J831 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 J834 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 J820 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 J807 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 J809 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 J841 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 J802 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 J824 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 J837 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 J804 095G 90 23 J JUMP WIRE 1P-1P 100 1 4 R8606 4 R8623 4 R8688 4 R8677 4 C8677 367G515X221HKT EC 220uF 20% 50V 10*12 5000 hr 1330mA EV 1 4 C8638 367G515X221HKT EC 220uF 20% 50V 10*12 5000 hr 1330mA EV 1 4 C8626 367G515X221HKT EC 220uF 20% 50V 10*12 5000 hr 1330mA EV 1 4 C8625 367G515X221HKT EC 220uF 20% 50V 10*12 5000 hr 1330mA EV 1 4 C8666 367G515X221HKT EC 220uF 20% 50V 10*12 5000 hr 1330mA EV 1 4 C8637 367G515X221HKT EC 220uF 20% 50V 10*12 5000 hr 1330mA EV 1 4 709T77000XA001 COMSUMPTIVE ASSY 1 5 052G 2191 A TAPE_OTHER(PET,PAPER,SECURITY,ETC…) 0.400 4 E715 715G7700P01000002M PWR PCB FR2 CTI>600 SS 150*193.5*1.6mm 1 1 E750 1 P33E0738XJL01T0100 KEY_FUNCTION 1 1 P33E0851XCS01L01BA DECO_REAR_COVER 1 1 1 P40GD000813 9A A4 PALLET LABEL -for A4 paper 0.100 1 M00205 Q02G707105000100XL BOLT 5 1 Q11G701006000L00ZL PCB-SUPPORT 2 1 Q12G6300 26 3 RUBBER PAD 3 1 Q16G0001 10 2 EVA WASHER 1 1 Q36G060006204800JY NON-WOVEN FABRIC 2 1 Q36T 600 37 19 GP NONWOVEN FABRIC 2 1 Q36T 600 49 2 NON-WOVEN FABRIC 2 1 Q40G0001624 4A 产线需求的栈板LABEL 0.100 1 Q49G 51500 HF Cleaning Naphtha 4.822 1 Q52G130118600000YY TAPE 10 1 Q52G130118600000YY TAPE 20 1 M05210 1 1 1 Q52G160119100A00YY TAPE 24 1 M00205 X02G901001700000HX BOLT M3 5 1 X12G8012 1 RUBBER PAD 8 1 X15T212310100000BL BKT_SPEAKER 1 1 X15T212410100000BL BKT_SPEAKER 1
RST NWR 0R1 5% 2W NKNP2WS0R1JT52 1 RST NWR 0R1 5% 2W NKNP2WS0R1JT52 1 RST NWR 0R1 5% 2W NKNP2WS0R1JT52 1 RST NWR 0R1 5% 2W NKNP2WS0R1JT52 1
PANEL TPT650U2-RU1A0.Q S9A XM TPV 1
REAR_COVER TV65W-15ph04-ph07-ph09 1
MESH PRINTTING_PAPER 40 TAPE_INSULATING 30 TAPE_INSULATING 80
Page 99
1 X15T212510100000Z1 BKT_HOLDER 1
X15T9957N01000GMYF
X52G14010120HF0ABK
392GB1TA1A372E00CH
1 X15T273510100000BL BKT_IO_SIDE 1 1 1 X20T817302100000FE DIE-CASTING_Bracket_L 1 1 X20T817402100000FE DIE-CASTING_Bracket_R 1 1 X36G060006211000HK NON-WOVEN FABRIC 0.250 1 X36G060006211000HK NON-WOVEN FABRIC 2 1 X37T8284011000LBXD BASE_ASS’Y TV65W-16ph02-ph04b-ph06 NA 1 1 X37T8284011000RBXD BASE_ASS’Y TV65W-16ph02-ph04b-ph06 NA 1 1 X40G2015043X1502XY IO LABEL 1 1 X40G2016065X2002XY IO LABEL 1 1 X41G75DV81302A SHEET-FLYER Opening sheet for China 1 1 X44GXA536241FB CUSHION-die cut Carton N/A Non-region(Gl 1 1 X44GXA5381302B0TJA ARTWORK CARTON 65PUF6061/T3 CHINA 1 1 X44GXA751010XY CUSHION-TL N/A Non-region(Global) 1 1 X44GXA752010XY CUSHION-B N/A Non-region(Global) 1 1 X44GXA753010XY CUSHION-L N/A Non-region(Global) 1 1 X44GXA754010XY CUSHION-R N/A Non-region(Global) 1 1 X44GXA75701EPE CUSHION-FRONT N/A Non-region(Global) 1 1 X45G880114900000X1 PROTECT BAG 1200*1800 1 1 X52G09010050000ABK X52G09010050000ABKER,SECURITY,ETC…) 460 1 M05210 1 X52G1801 TVX32 BGP INSULATING SHEET 2 1 X52G1801400P000AZA INSULATING SHEET 1 1 X52G20010TV03700BK INSULATING SHEET 1 1 E08901 089G214A15N HL AC POWER CORD 1500 1 1 E08901 089G214A15N IS AC POWER CORD 1500 1 1 E31702 317GARFM008TCL RF MODULE GL03-2-E 1 1 E09201 1 X40G000881328A OTHER LABEL 开机必读标签 1 1 X41G65SV81357A QSG 65PUF6061/T3 外置天线隔 1 1 X41G78DV81311F WARRANTY CARD TPV address china 1 1 X45G880113600000X1 MANUAL PE BAG 290*195 1 1 040G 58162435A MANUAL P/N LABEL 1 1 Q40G000162492B CEL LABEL G3 1.3 54x79.2 mm 1 1 X40G000181310C CARTON LABEL 1 1 X40G000181310C CARTON LABEL 1 1 X40G065081352A RATING LABEL 65PUF6061/T3 1 1 Q11G701015000L00JY PCB-SUPPORT D3.5xH15 3
BKT_IO_BTM 1
TAPE 40
BATTERY 1.5V 2P PHP7S2/237603 1
Page 100
层次 点位 物料 物料描述 组件数量
395GH20002WT009000
395GH20014WT045000
398GR08BCPHN0001CH
398GR08BCPHN0001CR
708GXA536150WPX3CH
1 M00205 X02G901001700000HX BOLT M3 4 1 X41G78DV81311F WARRANTY CARD TPV address china 1 1 X44GXA752010XY CUSHION-B N/A Non-region(Global) 1 1 036T 600 18119 GP NON-WOVEN FABRIC 1 1 041G 68508 A control card 0.100 1 052G 1185 TAPE 90 1 052G 1185 TAPE 90 1 E08901 089G214A15N HL AC POWER CORD 1500 1 1 E08901 089G214A15N IS AC POWER CORD 1500 1 1 0M1G 130 6 47 CR3 SCREW M3 6 6 1 0M1G 940 6125 SCREW M4 6 6 1 0M1G1030 5120 SCREW 14 1 0M1G1030 5120 SCREW 2 1 0M1G1030 6 47 CR3 SCREW M3 6 24 1 0M1G1030 8120 SCREW M3 8 4 1 0M1G1740 10225 CR3 SCREW M4 10 4 1 0Q1G 930 6 47 CR3 SCREW 2 1 0Q1G 930 6 47 CR3 SCREW 1 1 317G01 317GAAWF634XUG WIFI USB IEEE 802.11 b/g/n SDWF-2F/GJ 1 1 SP01 378G0120451YAE SPEAKER 8 OHM 12W 190*45*44.9MM NA UNIT 2 1 ECN408 395G179W51HC68 V-by-One FFC 51 660 0.5MM 1 1 ECN408 395G179X51HC68 V-by-One FFC 51 680 0.5MM 1 1 ECN602 395G801404WY91 HARNESS 4P-B&R+B&W 900/500 1 1 ECN01 395GH20002LT009000 HARNESS 2P pitch2.0-2P pitch1.25 500mm 1 1 ECN01 1 ECN102 395GH20008DT052000 HARNESS 5P pitch1.25-8P pitch2.0 400 1 1 ECN102 395GH20008YT052000 HARNESS 5P pitch1.25-8P pitch2.0 400 1 1 ECN700 395GH20012AT031000 HARNESS 12P P2.0-16P p2.0+14P p2.5 850/8 1 1 ECN401 395GH20014AT032000 HARNESS 14P pitch2.0-13P pitch1.25+2P p 1 1 ECN401 395GH20014DT032000 HARNESS 14P pitch2.0-13P pitch1.25+2P p 1 1 ECN9201 1 ECN9201 395GH20014XT045000 HARNESS 14P pitch2.0-10P pitch2.0 600 1 1 RC01 1 RC01 1 2 Q07G010016202C00BL PALLET 0.045 2 Q07G012016202C00BL PALLET 0.045 2 Q44G6002154100 PAPER BOARD 0.136 2 Q44G6002159114 PAPER BOARD 0.136 2 Q44G9003 96 CORNER PAPER 0.727 2 Q45G 77 5 PE PACKING 401 2 Q50G 4 10 TIE (Y1900221) 99 2 Q50G060046502A00JY PACKAGE_BUCKLE 4 2 Q52G1301 9 BIG TAPE FOR PHILIPS 174 2 X44GSLIP00113A PAPER SLIPSHEET 0.045 2 X44GSLIP162122 SLIPSHEET 0.045 1 E750 1 756TXGCB0ID001010X MCU ASSY 1 2 SMTR-U413 100TPIVY001D1X PHP 65PUF6061/T3 EMMC V3.18 AB30DB35 1 2 U413 356G3333004612 EMMC THGBMDG5D1LBAIT 4GB FBGA153 1
750TBV650DS2A8N000 LCD TPT650UA-DJ4QS5.N ST2A XM TPV 1
HARNESS 2P pitch2.0-2P pitch1.25 500mm 1
HARNESS 14P pitch2.0-10P pitch2.0 600 1
REMOTE PHILIPS RL134B chinese 1 REMOTE PHILIPS RC44N chinese 1 PHILIPS 40(154 CH) 1
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
