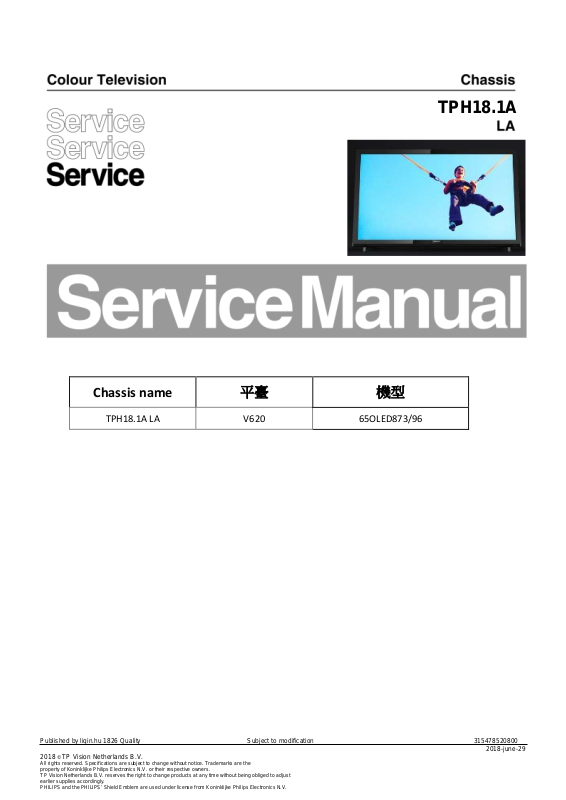

Philips 65OLED873/96 Schematic

TPH18.1A

Chassisname

平臺 機型

TPH18.1ALA V620 65OLED873/96

Published by liqin.hu 1826 Quality Subject to modification 315478520800

© TP Vision Netherlands B.V.

2018

All rights reserved. Specifications are subject to change without notice. Trademarks are the
property of Koninklijke Philips Electronics N.V. or their respective owners.
TP Vision Netherlands B.V. reserves the right to change products at any time without being obliged to adjust
earlier supplies accordingly.
PHILIPS and the PHILIPS’ Shield Emblem are used under license from Koninklijke Philips Electronics N.V.

2018-june-29

1.產品諮訊……….……………………………………………………………………………………3

2.內觀圖與拆卸步驟………………….…………………………………………………………………….4

內觀圖………………………………………………………………………………………………4
拆卸步驟 ……………………………………………………………………………………………5

3.服務模式…………….…………….………………….……………………………………………….….8

4.軟體升級步驟………...……………………………………………………………………………..9

5.故障排除…..……………………….………………………………………………………………10

6.電氣框圖…………………….………………….………………………………………………… 11

7.主要晶片規格介紹……...……………………………………………………………………. …..14

8.線路圖……………...……………………………………………………………………………….15

8.1 715G9679 電源板……………………………………………………………..……………………15

8.2 715G9643 主機板………………………………………………………………..……………………19

8.3 715G8555 遙控板…………………………………………………………………………………….43

8.4 715G8623 IR板………………………………………. ……. …….……………………………….44

8.5 715G7007 AMBI板…………………………………. …… . …….……………………………….46

8.6 715G8789 AMBI板…… ……………………………. ……. …….……………………………….48

8.7 715G8046 LED板…………………… ……………………. ……. …….…………………… ………….

9.爆炸圖……………….………………….……………………………………………………………..49

OLED873 serial 65"…………………………………………………………………………………………….49

Published by liqin.hu 1826 Quality Subject to modification 315478520800

© TP Vision Netherlands B.V.

2018

All rights reserved. Specifications are subject to change without notice. Trademarks are the
property of Koninklijke Philips Electronics N.V. or their respective owners.
TP Vision Netherlands B.V. reserves the right to change products at any time without being obliged to adjust
earlier supplies accordingly.
PHILIPS and the PHILIPS’ Shield Emblem are used under license from Koninklijke Philips Electronics N.V.

2018-june-29

1. 產品資訊

產品資訊可能會隨時變更，恕不另行通知。

有關詳細產品資訊，請至以下網站查詢

www.philips.com/TVsupport

支援的輸入信號格式

電腦格式

• 解析度 - 垂直頻率：

• 640 × 480 - 60Hz

• 720 × 400 - 70Hz

• 800 × 600 - 56Hz / 60Hz

• 1024 × 768 - 60Hz

• 1920 × 1080 - 60Hz

視頻格式

• 解析度 - 垂直頻率：

• 480i - 60Hz

• 480p - 60Hz

• 576i - 50Hz

• 576p - 50Hz

• 720p - 50Hz, 60Hz

• 1080i - 50Hz, 60Hz

• 1080p - 24Hz, 25Hz, 30Hz, 50Hz,

60Hz

• 4Kx2K - 30Hz, 23.98Hz, 25Hz,

尺寸和重量

65OLED873/96

• 不含腳座的尺寸(寬) × (高) × (深)：

1452.7 mm × 839.5 mm × 56.5 mm

－重量：23.7 kg

• 含腳座的尺寸(寬) × (高) × (深)：

1452.7 mm × 891.9 mm × 280.2 mm

－重量：24.2 kg

多媒體

• 支援的儲存裝置：USB（支援FAT 32/
FAT 16 USB 儲存裝置。）

電源

• 主電源：110V , 60Hz

• 待機功耗：≤ 0.5 W

• 環境溫度：5 至 45°C

• 功耗

• 65OLED873/96： 335W

支援的顯示器安裝壁掛架

如要安裝顯示器，請購買飛利浦顯示器安裝壁掛架。

50Hz/60Hz

警告

當顯示器遇到不支援的解析度和垂直頻率,

會有黑螢幕或螢幕雪花狀況發生, 請切換到

顯示器能顯示的解析度及垂直頻率使用。

•• 當觀看HDMI時, 若有遇到不支援問題 (例如:
綠螢幕), 請依下列步驟處理:

1. 將訊號接到HDMI 3。

2. 在[設定] > [顯示器設定] > [HDMI Ultra
HD] > [HDMI Switch 切換模式]。

警告

• 請按照顯示器安裝壁掛架隨附所有說明操作。TP

VISION EUROPE B.V, 對於因安裝不當而造成的事
故、人身傷害或損失，概不負責。

1. 請先將壁掛架鎖於顯示器背後。

2. 為避免損壞電纜和插口，請確保將鎖好壁掛架的顯

示器背面(含音箱凸包處) 和牆面間至少保留2.2英
寸或5.5釐米的間隙。

3. 確定壁掛螺栓符合下列規格：

顯示器

65OLED873/96

需要的點距

(mm)

300*300

需要的安裝螺釘

4 × M6 （建議長度最

多 15mm, 最少 10mm）

2. 內觀圖與拆卸步驟

2.1 內觀圖

ECN401

IR/LED BOARD

J

(1056)

MAIN POWER SUPPLY

A

(1054)

Ambilight

(1062)

CN902

CN9102

CN9101

ECN9101

ECN601

LOUDSPEAKER

(1184)

Woofer

(1186)

ECN9202

ECN406

內觀圖 (65" OLED873 系列)

Ambilight

(1062)

ECN602

ECN601

ECN410

ECN408

LOUDSPEAKER

CN410

CN401

(1184)

CN702

CN408

CN602

CN601

CN415

CN407

BB

SSB (1053)

Ambilight

(1062)

CN406

WIFI MODULE

W

(WiFi02)

Ambilight

(1061)

EXA04

ECN03

EXA02

ECN406

EXA02

後殼圖 (65" OLED873 系列)

EXA04

EXA04

KEY BOARD

E

(1057)

Ambilight

(1061)

2.2 拆卸步驟

2.2.1 底座

1. 卸下固定支架的固定螺絲【1】 。

2. 從機器上取下左右底座。

1

1

2.2.2 後殼

警告: 在卸掉後蓋前，切斷主機板電源線。

1. 小心地拆卸固定於後蓋的卡扣【2】和[3],。

2. 從SSB中拔下標有紅色方框的連接器[2]。

3. 輕輕地從電視上抬起後蓋。從機子上抬起後蓋同時確保電線和電纜沒有損壞。

2

1

1

2

3

2

3

2

3

2

2

2

2 2

2

2 2

2

2

3

OLED 873 series)

2.2.3 遙控板

1. 從SSB板上釋放連接器,小心，鍵盤被夾在後蓋上，請小心不要損壞易碎的連接器!

2. 從鍵盤控制台中移除所有固定螺絲[1]和連接器[2]，然後從後蓋取出。
如有不良，更換整個遙控板。

1

2

2

1

2.2.4 主機板

警示: 在重新裝配時，必須將所有不同的螺絲重新安裝在原來的位置上。否則，可能會損壞主機板。

1. 從與SSB連接的LVDS連接器【1】中拔掉LVDS線材。

警示: 小心，因為這些是非常脆弱的連接器!

2. 從所有其他連接器【2】拔掉線材。

3. 從SSB上拆卸所有固定螺絲【3】。

4. 現在可以將主機板從側連接器的蓋子上移出，然後從輸入/輸出端的鐵架中取出.

3

1

3
3

2

3

3

2.2.5

電源板

警示: 在重新裝配時，必須將所有不同的螺絲重新安裝在原來的位置上。否則，可能會破壞PSU。

1. 輕輕地拔掉電源板的所有連接線。

2. 拆卸電源板中所有固定螺絲。

3. 現在電源板可以被取出了。

喇叭（揚聲器）

2.2.6

1. 輕輕地撕掉保護揚聲器電纜的膠紙帶。

2. 從主機板中拔出揚聲器的連接頭。

3. 可以取出揚聲器。
如有不良，更換整個喇叭。

2.2.7 WIFI

1.插頭連接器的紅色盒子。
2。拆卸固定螺絲，確保 WIFI 模組安全。當缺陷,更換整個單位。

2.2.7 LCD 液晶面板

1. 如前面所述，拆卸主機板。

2. 如前面所述，拆卸電源板。

3. 如前面所述，拆卸底座支架。

4. 如前面所述，拆卸紅外線接收器/發光二極體。

5. 拆卸固定螺絲釘固定在前框板上的固定螺絲。取出這些夾子。

6. 拆卸所有不屬於面板的金屬部件。

7. 將液晶面板從前框抬起。

如有不良品，更換整個裝置。

3. 服務模式

3.1 服務模式

功能表服務模式功能被劃分為以下部分

 工廠模式.
 客戶服務模式(CSM)

工廠模式提供了功能，服務工程師可以使用它來修理/校準電視。
CSM是一種可以由使用者啟用的服務模式。 CSM顯示診斷資訊，客戶可以提供看到的資訊給經銷商或呼叫中心。CSM提供的資訊和CSM的目的是:

 提高電視機維修的成功率。
 減少呼叫電話的次數。
 在沒有上門服務的情況下解決客戶的問題。

注意：一些新機器的遙控按鈕的命名有所差異，可能對功能表模式的進入會有影響. 例如，舊的“功能表”按鈕現在被稱為“HOME”(或由“house”
圖示表示)

3.2 工廠模式:

用途

 執行一些參數調整.

技術參數

 顯示或更改屏板ID資訊
 顯示或更改高頻頭ID資訊.
 錯誤緩衝清除.
 各種軟體調整設置
 測試模式顯示.
 公共廣播服務密碼重設.
 等等.

如何啟動工廠模式

要啟動工廠模式，請使用以下方法:

 遙控器上按鍵的使用順序：從 “menu/home” 按 “1999”, 緊接著按“Back/Return” 按鍵. 連續按，中間不能有間斷。

進入工廠模式後，我們可以看到許多顯示的專案，使用up/down鍵顯示上一個/下一個的功能表項目。

如何退出工廠模式

使用下列方法之一:

 從功能表中選擇退出工廠並按“OK”按鈕。

注意: 工廠模式下，當電視的電源中斷或正常切換到“待機”狀態時，電視將在電源再次供應時出現“正常運行模式”中。錯誤緩衝區將不會被清除。

3.3 客戶服務模式(CSM)

用途

客戶服務模式顯示了在電視操作設置上的錯誤代碼和資訊。呼叫中心可以指示客戶(通過電話)輸入CSM，以識別該設置的狀態，這有助於呼叫中心在
進行服務調用之前診斷電視機的問題和故障。
CSM是一種唯讀模式;因此，在這種模式下，維修是不可能。

技術參數

如何啟動

 忽略“服務不友好模式” 。
 每行的序號(使CSM各行間獨立) 。
 將螢幕模式設置為全屏(螢幕上的所有內容都是可見的) 。
 在離開客戶服務模式後，原始設置將被恢復。
 可以使用“CH+”或“CH-”來進行頻道流覽，或在遙控器中輸入特定的頻道號。

CSM

遙控器上按鍵的不間斷地按 “456987”. 進入CSM模式後，我們可以看到許多顯示的專案，使用up/down鍵顯示上一個/下一個的功能表項目。

Note: 只有在螢幕上沒有(使用者)功能表時才可能啟動CSM!

如何翻到下一頁

CSM

通過遙控器上的“標誌-向下/向上”按鈕(或滾動輪)，可以實現功能表滾動。

如何退出

CSM

要退出CSM，請使用以下方法之一：

 在遙控器上按下菜單/home鍵。
 按下遙控器上的電源按鈕。
 按下電視上的電源按鈕。

4. 軟體升級步驟

4.1 軟體升級
以下介紹 .bin 文檔的軟體升級步驟.

1. 準備一個USB存儲卡（大小：1G~8G，檔案格式：FLAT）。

2. 將該軟體複製到USB快閃記憶體盤(根目錄) 。

3. 關掉電視，插入USB 2.0埠。

4. 打開電視。電視將自動檢測USB記憶，然後一個視窗跳出來如下：

確定

5. 遙控器選擇確定，並按OK，軟體會自動升級。

6. 當電視軟體更新完成後，電視將自動打開。移除你的USB快閃記憶體盤。

7. 我們可以進入CSM模式檢查當前軟體版本是否正確。

取消

注意:請在拔掉USB和AC電源插頭之前，確保軟體升級已經完成。

Trouble shooting

Picture-related

2016年12月10日

2016/4/8

Ask Photo

SW

issue

N

Intermittent

problem ?

Y

Y

SW latest ?

N

Update SW

N

Problem

solved ?

Y

Finish

Y

Picture ?

N

Backlight?

N

LED working ?

Y

Sound ?

SW+SSB

Y

N

PSU/SSB

Y

PSU+ Panel

Menu Smarkt

function?

N

SSB+LVDS+Panel

RAM

Y

Signal

issue

Trouble shooting

Audio/Sound-

related

2016年12月10日

2016/4/8

HW

issue

SW

N

Intermittent

problem ?

Y

Y

SW latest ?

N

Update SW

N

Problem

solved ?

Y

Finish

Y

Sound ?

N

Mute ?

N

Extra device

connect?

N

Factory
setting

Sound back ? Setting issue

N

Y

Y

Check extra

Y

device

Setting

issue

SSB+SPK

Trouble shooting system

N

Smart

function

issue ?

N

Intermittent

problem ?

Remark2:

Y

Y

2016年4月11日

2016/12/11

System related

Remark1:

Y

TV start

up ?

N

Network

connect ?

N

Connect network

Y

SW latest ?

N

Update SW

Problem

solved ?

Y

Y

N

SW issue

Commerce way

SCC

available ?

Y

Execute

SCC

Problem

solved ?

Y

N

N

SW update

available ?

Y

SW update

N

Problem

Y

solved ?

N

HW repair

Remark1 : What is System related issue ?

1.Permanent reboots

2.Intermittent reboots

3.No function, no standby LED (set dead)

4.No function, blinking LED

5.Set freezes, intermittently

6.Slow response to user interaction

7.Switches ON by itself

8.Switches Off by itself

9.Stuck in standby mode / unable to start up

10.Stuck on PHILIPS / ANDROID logo

11.CAM not recognized by TV

12.CAM authentication issue

13.Misc CAM issue

14.IP-EPG issues

15.BC-EPG issues

16.PVR issues w/ BC-EPG

17.PVR issues w/ IP-EPG

18.PVR issues / generic

19.EDFU-related issue

20.Features not available in UI / cannot be activated

Remark2 : How to judge intermittent issue ?

1.When the problem happened can be solved by:

1)AC off AC on

2)DC off DC on

3)RC switch different source

2.The problem intermittent happened

Finish

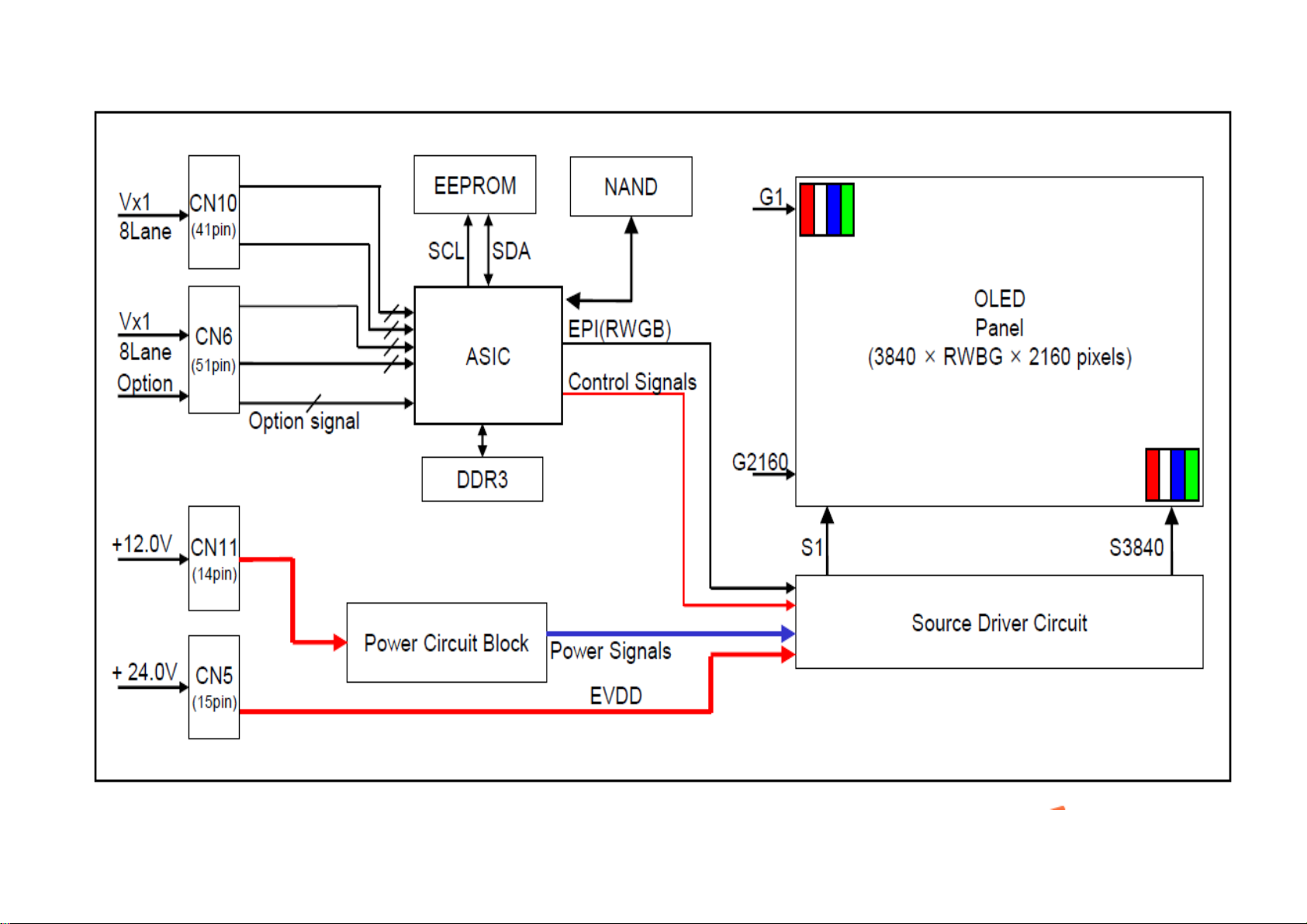

6. 電氣框圖

6.1 主機板方框圖

6.2 供電

該平臺的電源架構

AUDIO

AMP

Display power

CN9101

AC-input +
Main filter

AC IN

12

Platform

Hi3751V620

LVDS

12

6.3 主機板供電架構

r

6.4 主機板實物主要電壓

R314 +3.3V_STB

R315 +3.3V_VCC

R811 +5V_USB

C5228 +3.3V_Tune

Power SSB Top View

R827 +5V STB

Power SSB Bottom View

7.主晶片規格介紹

7.1 AD83586B-LG48NAY (IC U601--AUDIO)

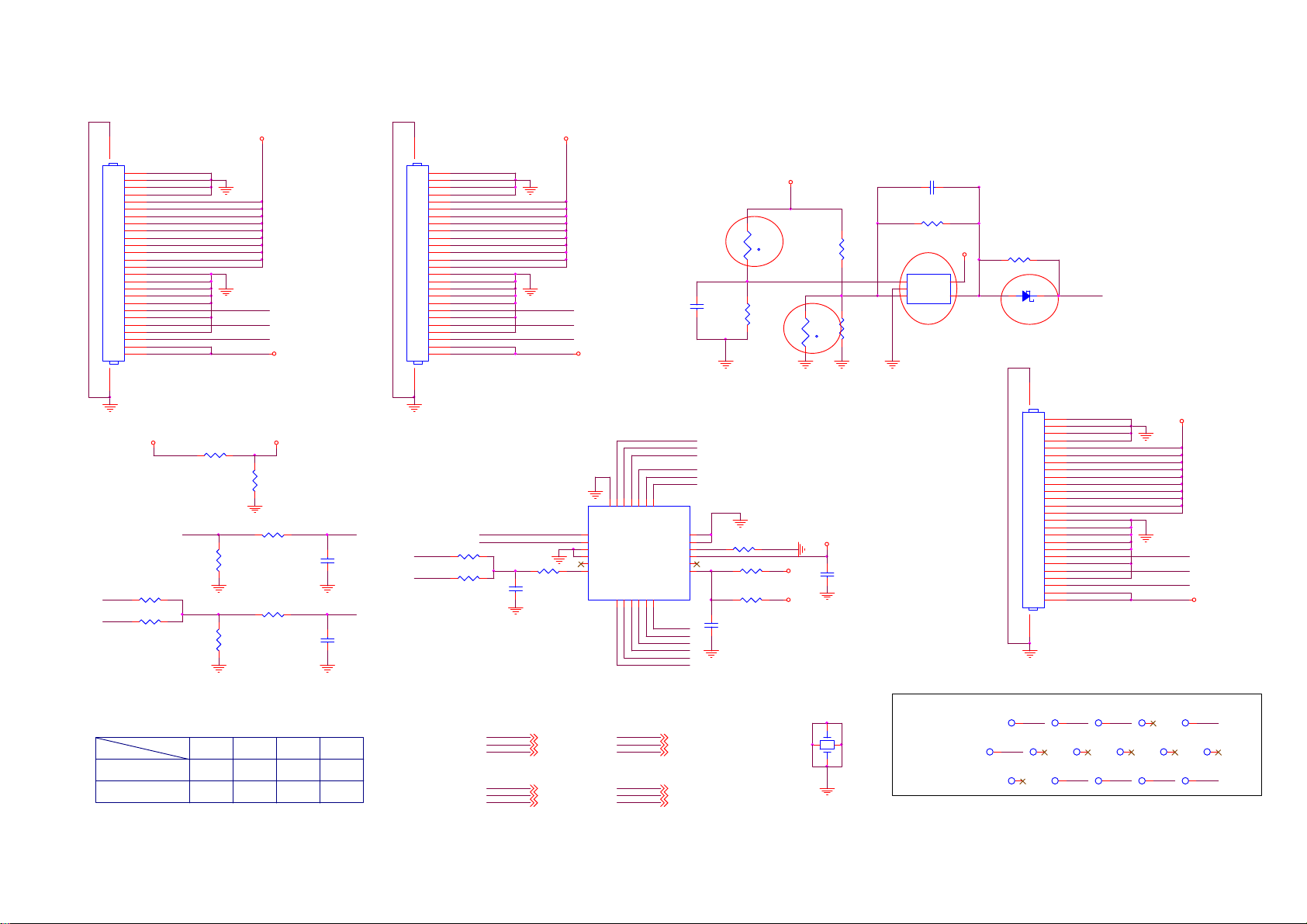

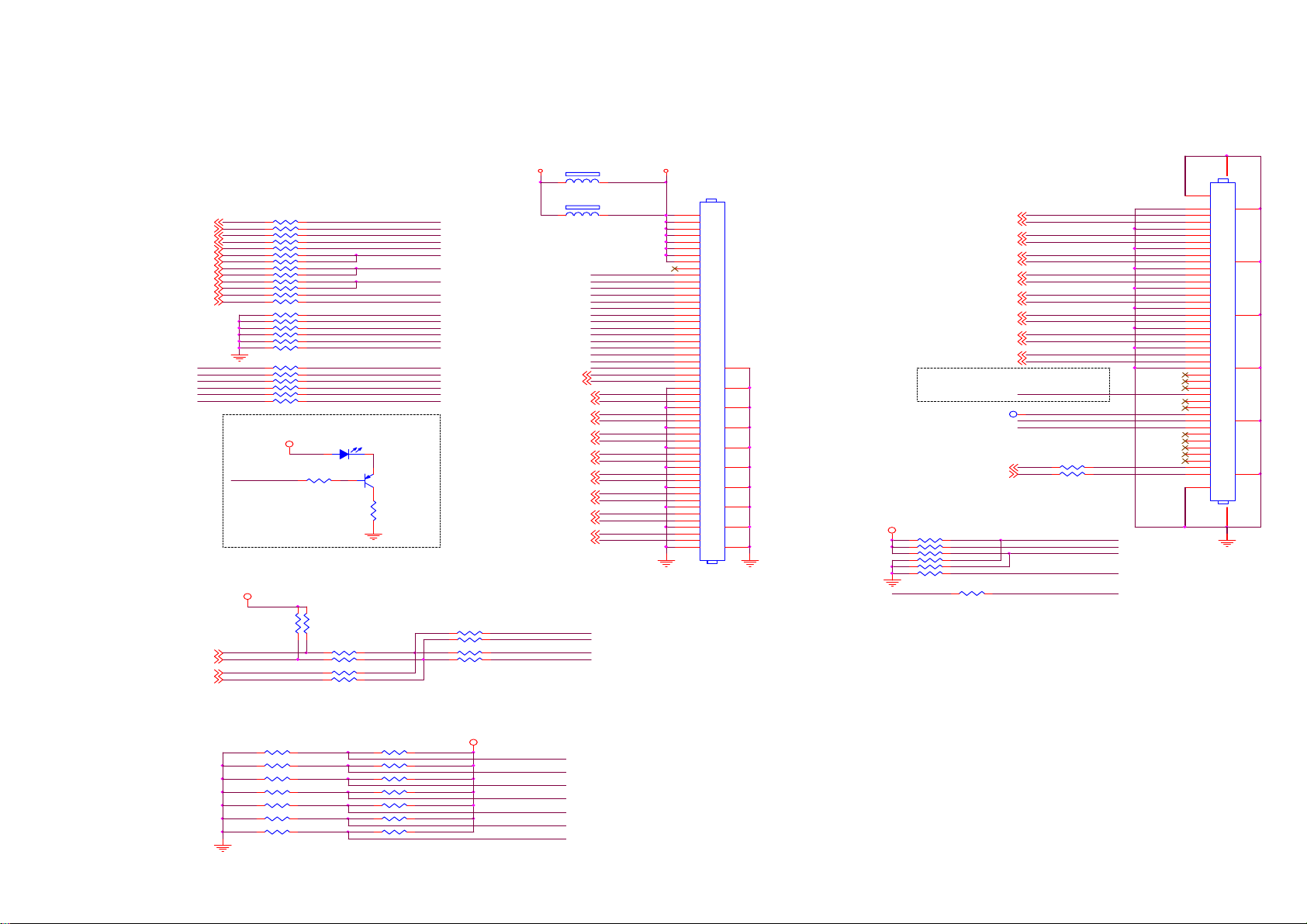

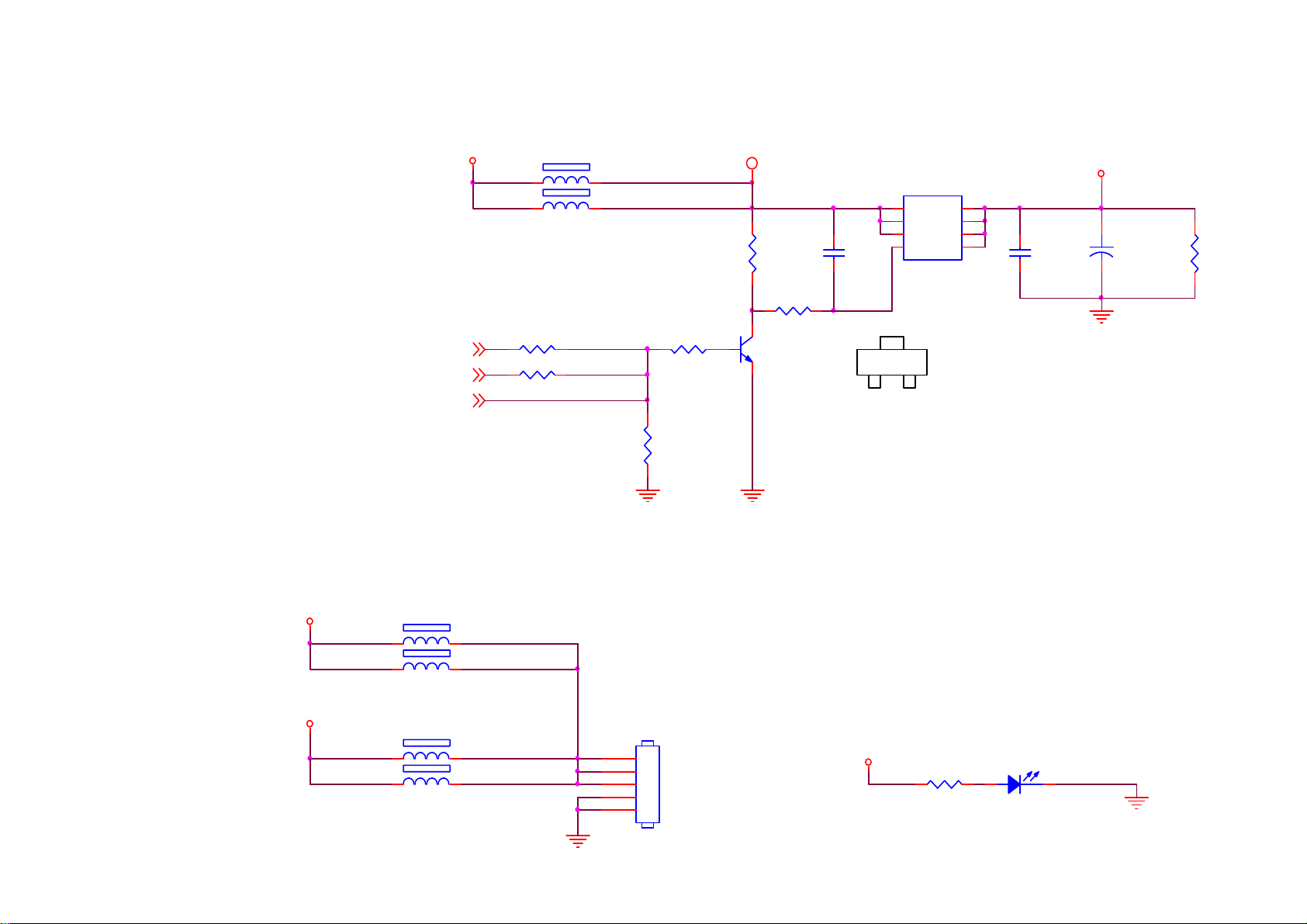

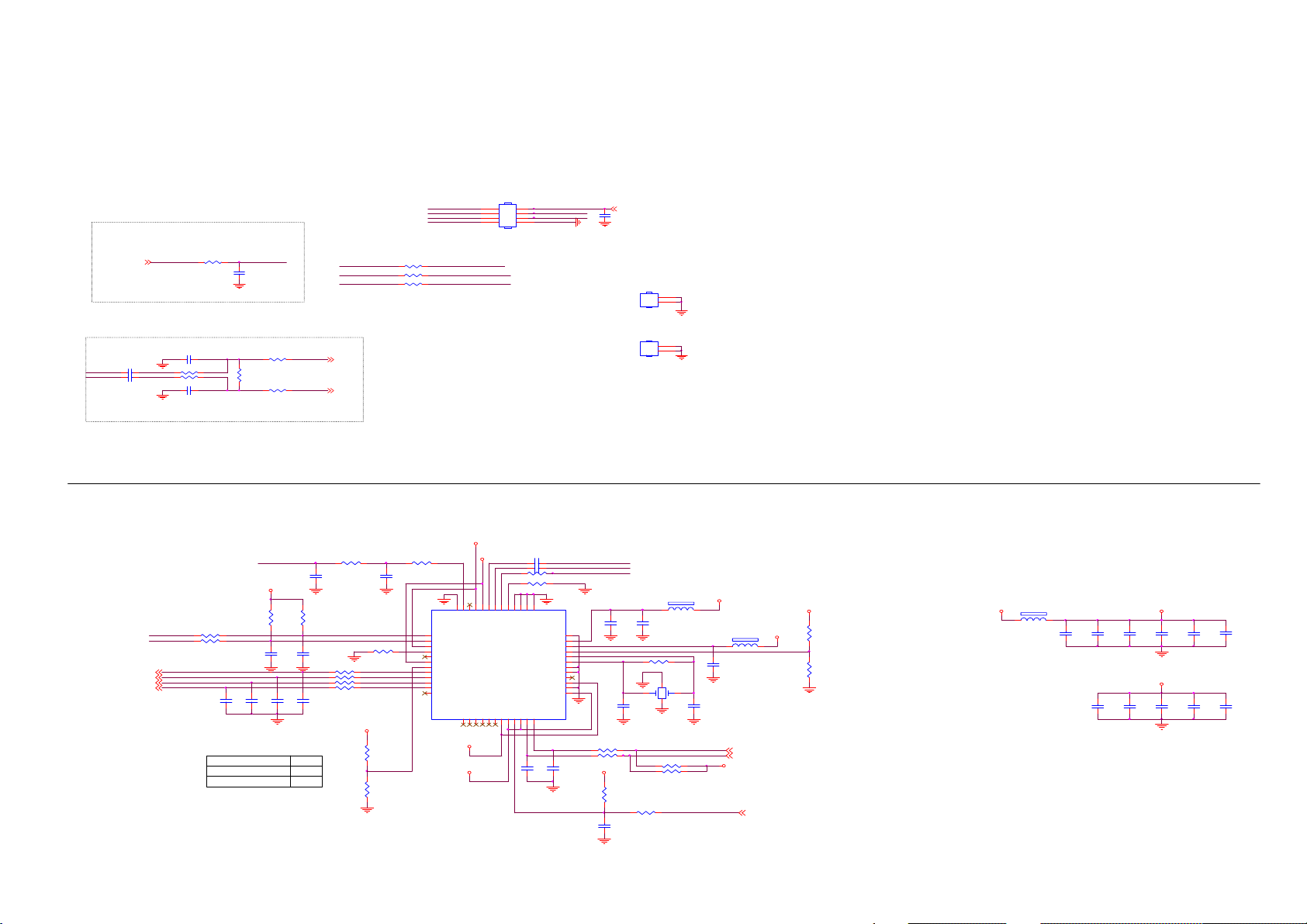

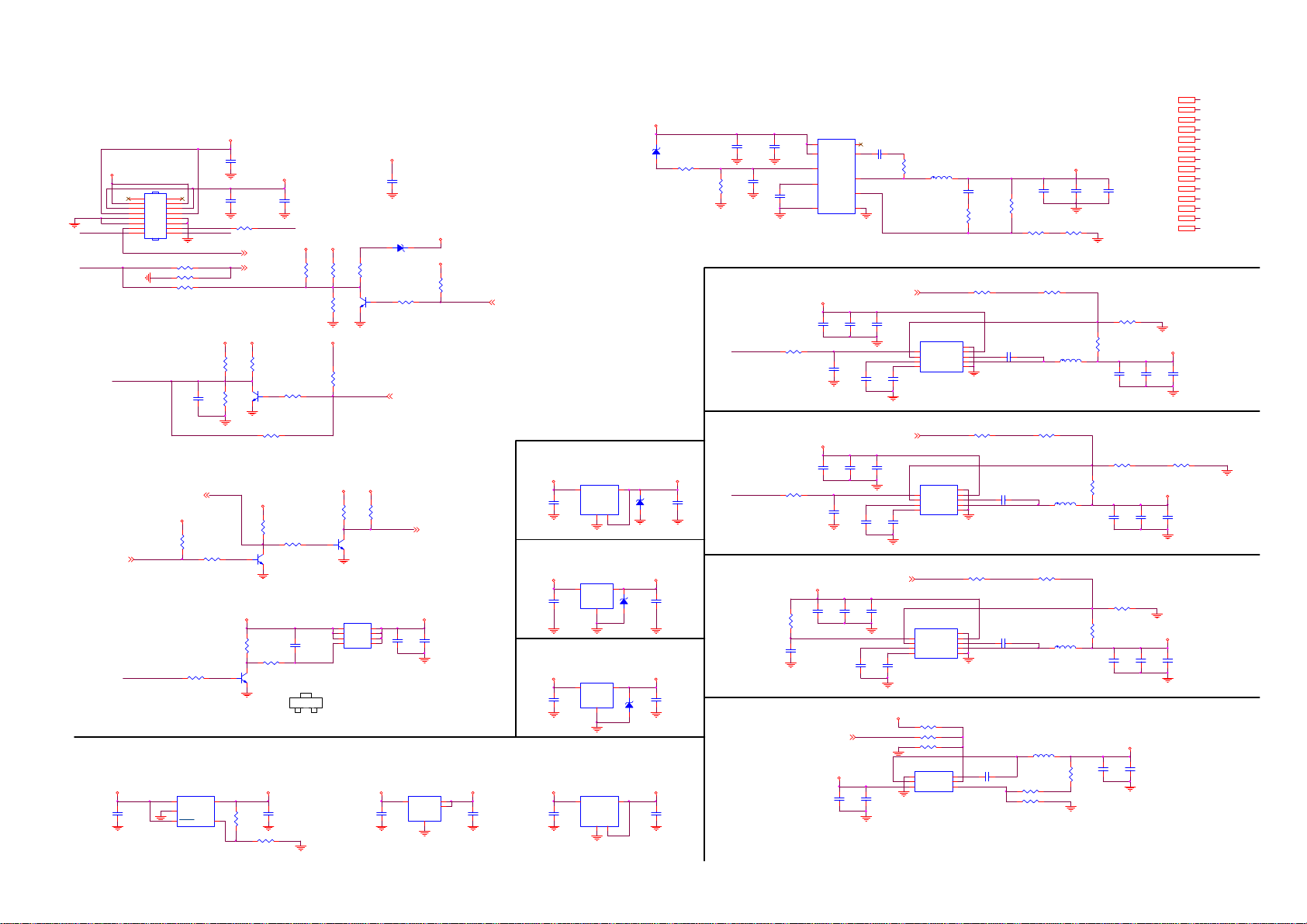

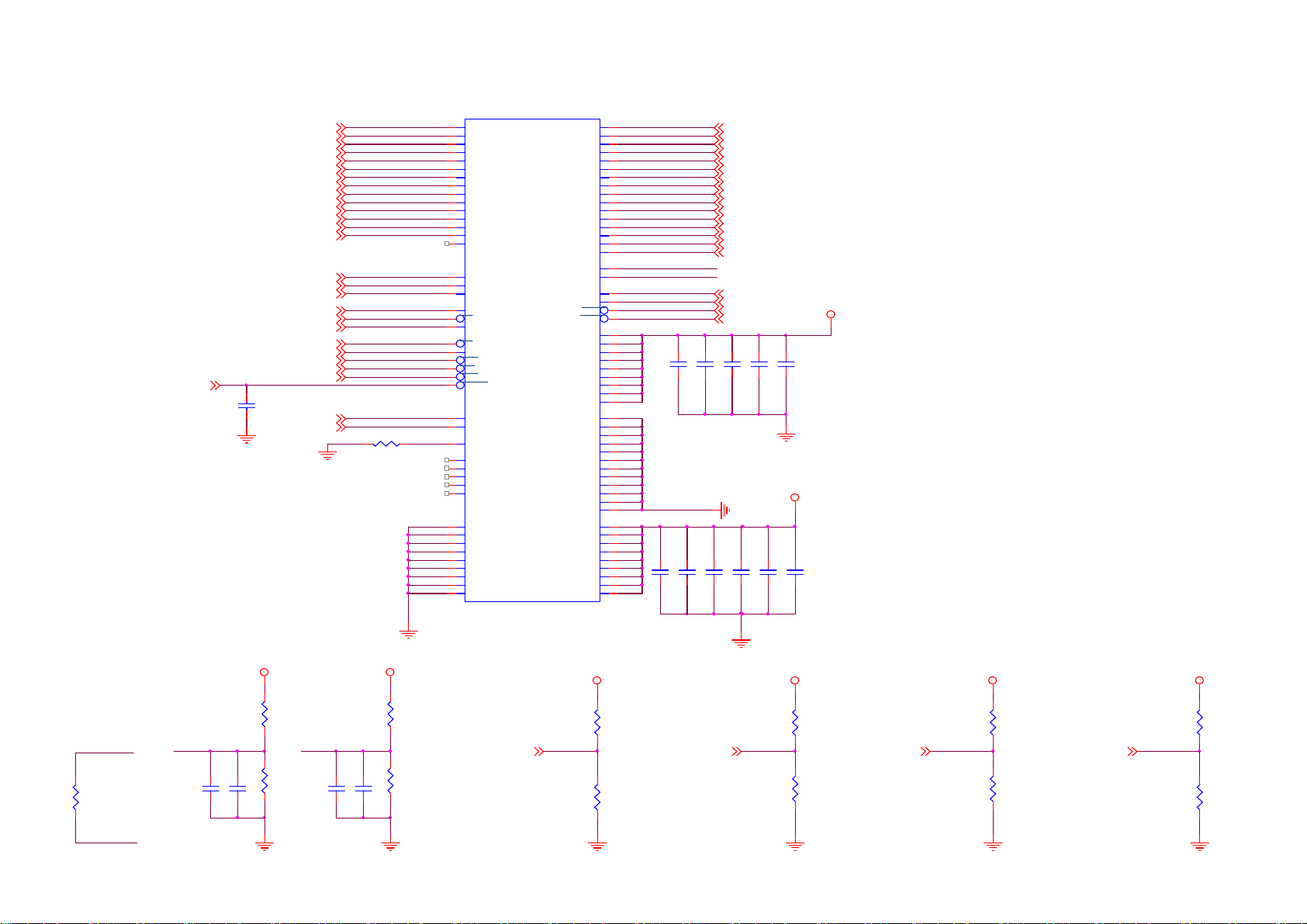

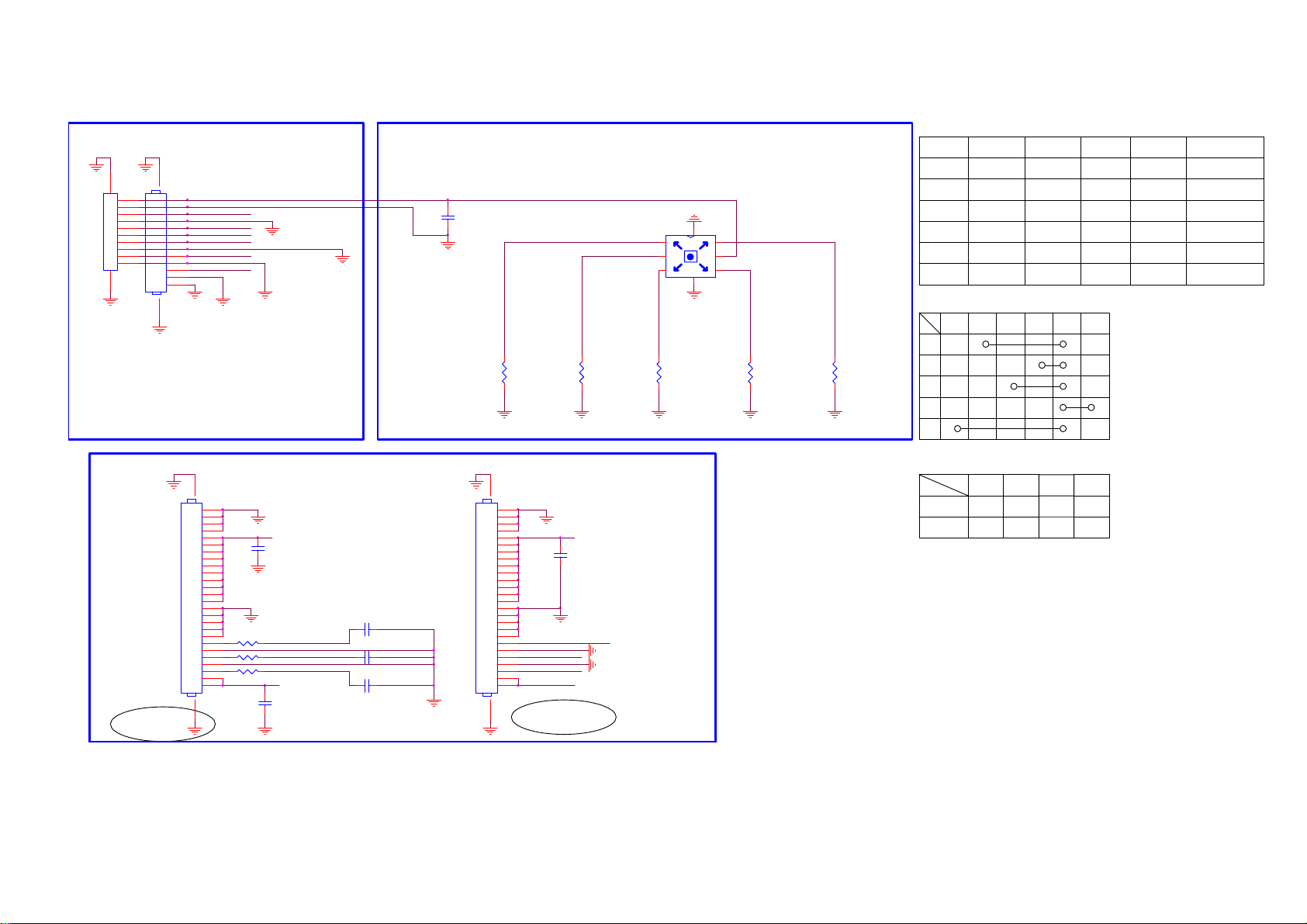

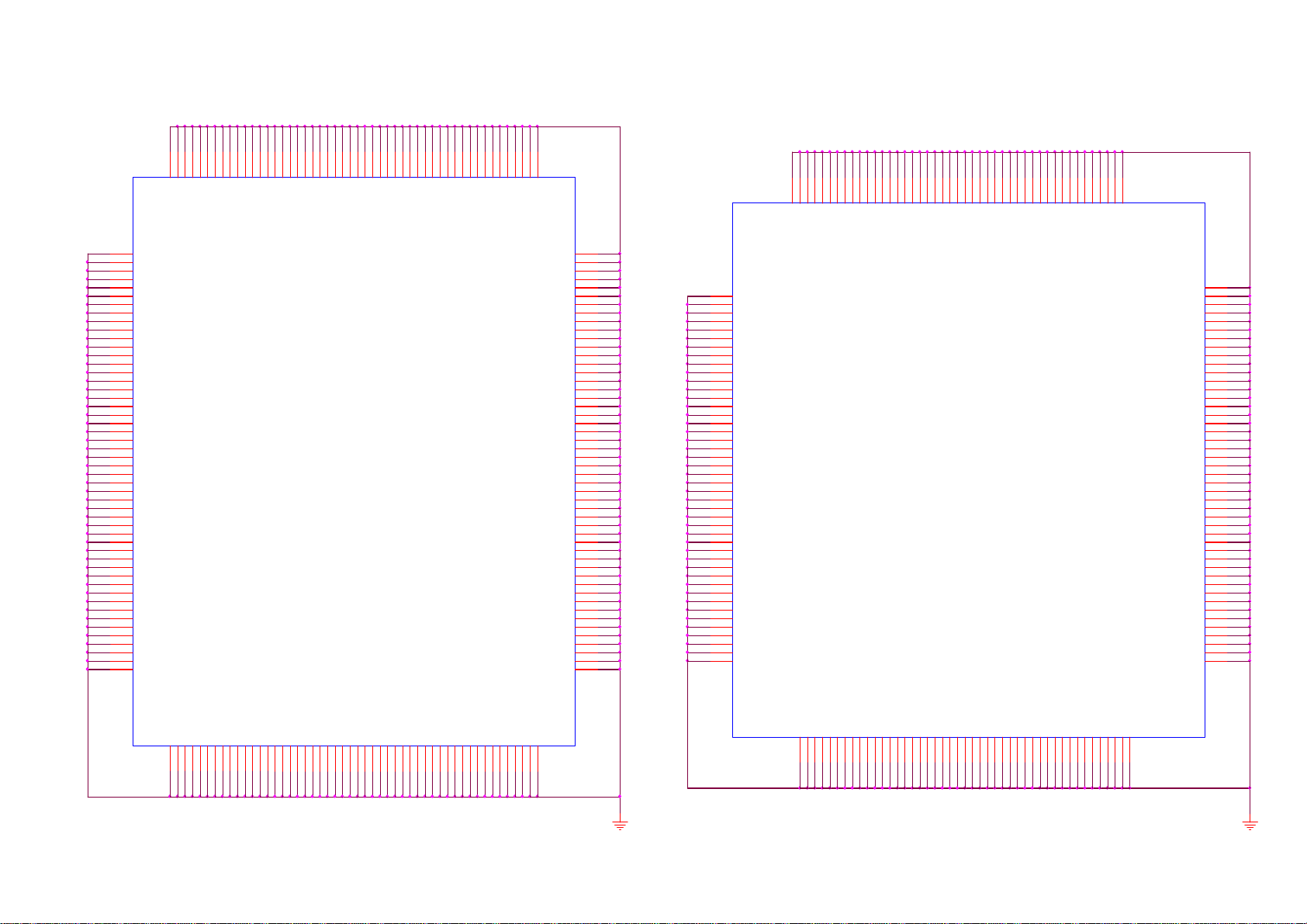

8.線路圖

8.1 715 G9679 電源板

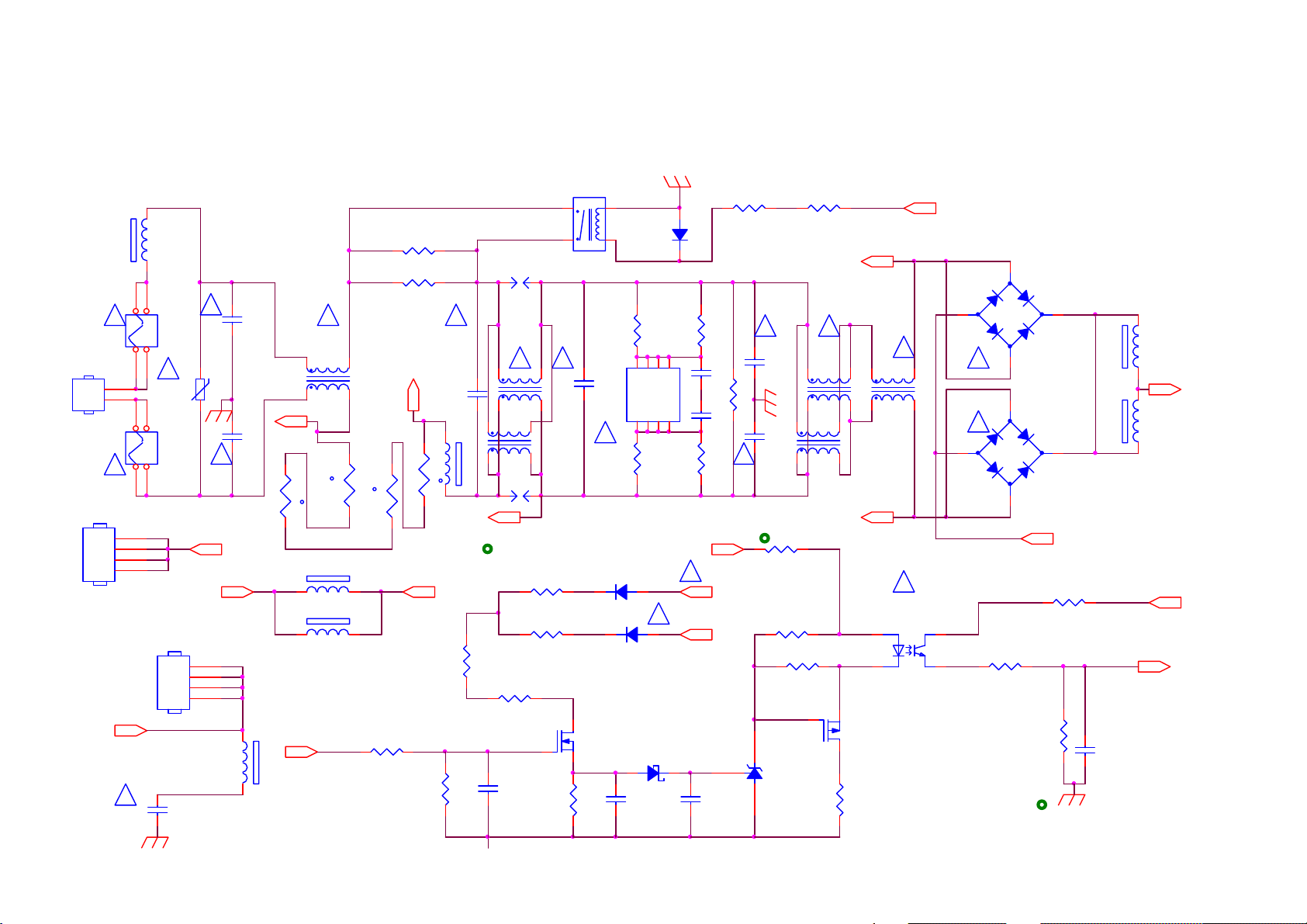

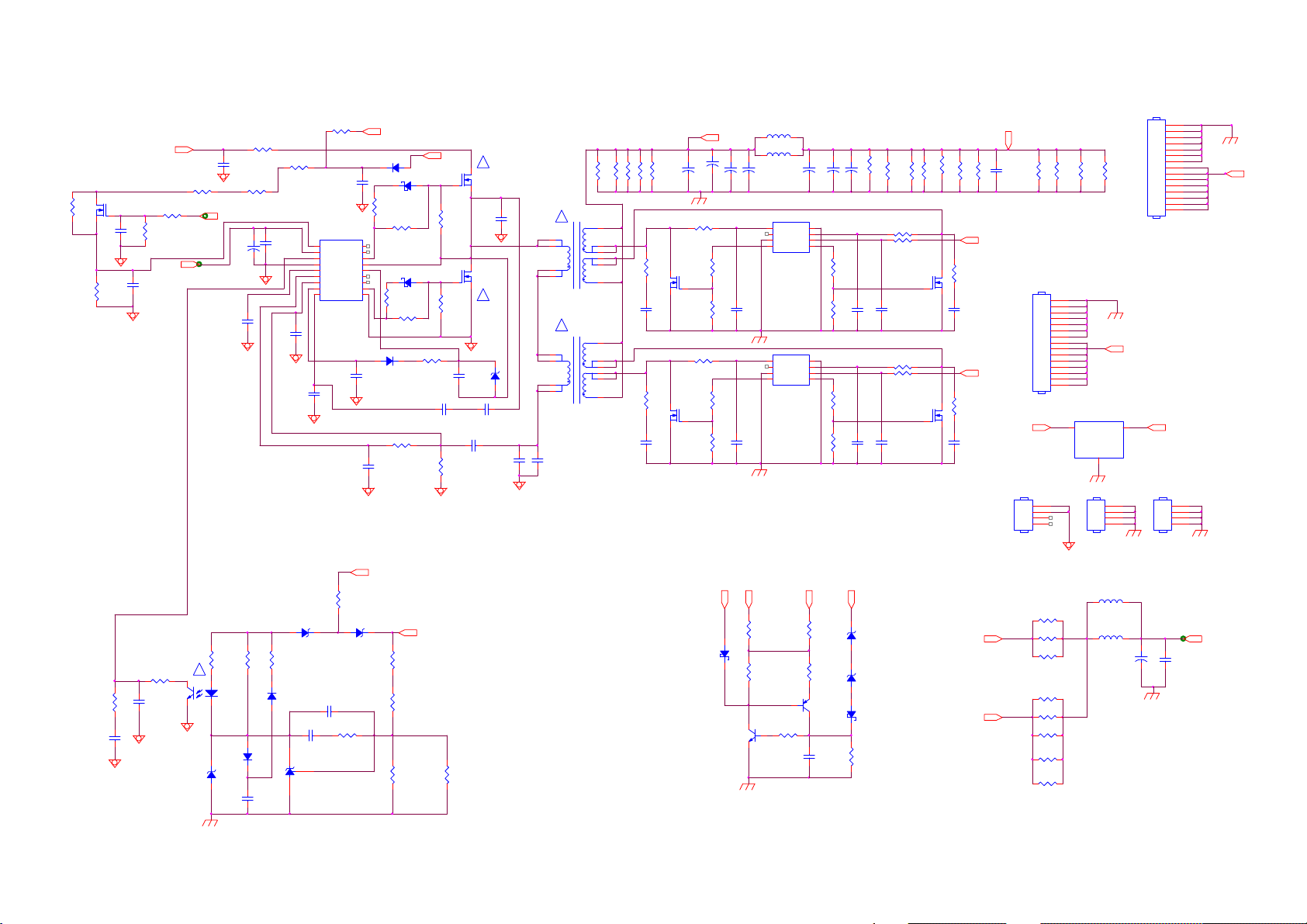

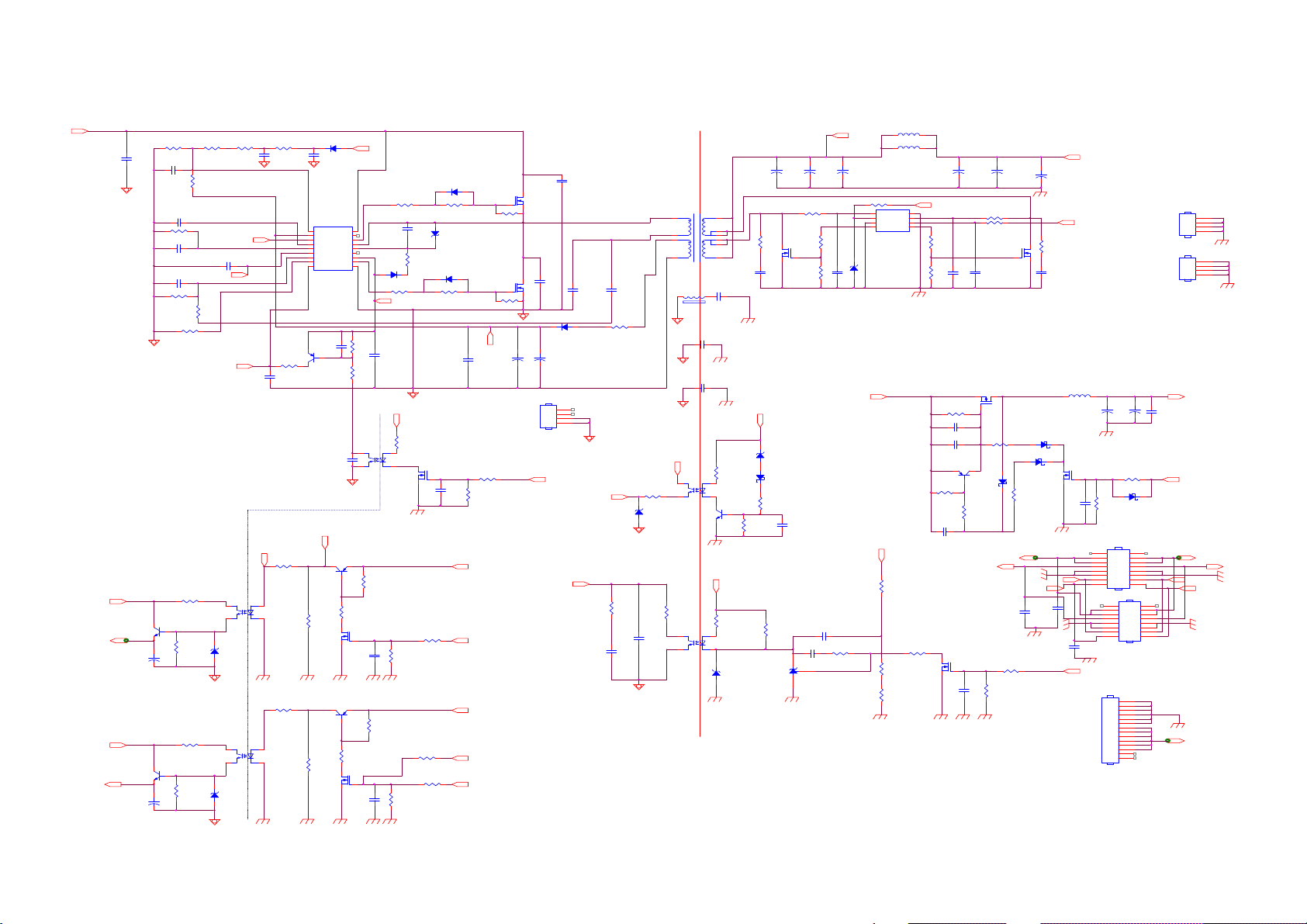

8-1-1 Input stage

FB9905

NTCR 5R 20% 3. 6W

BEAD

TH9902

1 2

F9901
8A 250V

!

RV9901

F9902
8A 250V

!

!

C9901

L9904

680V

NC / 220PF 250V

C9902

!

NC / 220PF 250V

TH9905

0.7R 3. 6W

TH3

12

4

3

10uH

1

2

t

TH9906

t

1 2

BD_OUT-

TH3

FB9909

1 2

BEAD

! !

1 2

CN9901

3 4

1
2

CONN

!

1 2

3 4

HS9902

1
2
3
4

HEAT SINK

(for BD9902)

1 2

HS9901

(for BD9901)

FB9910

1
2
3
4

BEAD

HEAT SINK

BD_OUT-

!

C9920

NC / 680PF 250V

FB9904

BEAD

12

+VCC2

1K OHM 5% 1/8W

NTCR 2R 20% 3. 6W

TH9901

470NF 305V

TH4

FB9906

12

t

t

0.7R 3. 6W
TH9 904 0.7R 3. 6W

1 2

TH4

R9924
1M 1%

R9927

R9914

C9903

BEAD

12

0.7R 3. 6W

BO

TH9903

10K 1/8W 1%

SG9901

DSPL-501N-A21F

8mH
L9901

!

1

4

1

2

4

3

DSPL-501N-A21F

R99121M 1%

R9913 1M 1%

R9925 1M 1%

Q9902

MTN127KN3

4.7nF 50V

C9914

120K OHM 1%

!

2

C9904

3

9MH
L9905

SG9902

R9926

SW9901RELAY

3 1

4

750K 1/4W

U9901

!

R9903

470NF 305V

750K 1/4W

IN 4007-52 1 100 0

IN 4007-52 1 100 0

C9915

2.2UF 50V

2

R9901

CAP004DG-TL

D9901

1 2

D9904

750K 1/4W

1

3

D12D1

NC

8

!

D9902

D9903

SS1060FL

C9916

R9928 2 OHM 1%

US1M_HF

R9902

4

NC

NC5D26D27NC

R9904
750K 1/4W

+VCC2

!

L

N

22pF 50V

R9905 NC_3. 9MOH M +-5% 1/2W

!

C9910

100PF 500V

C9909

100PF 500V

!

2.2K OHM 1% 1/8W

R9929 0R05

!

C9905

330PF 250V

1

L9902
8mH

1

4

2

C9906330PF 250V

4

3

R9918

1K OHM 1% 1/8W

R9917

R9916

10K OHM 1% 1/8W

U9904
AS431AN-E1

L

L9903

4

2

1

3

10uH

9MH

L9906

N

EL817M(X)

1

2 3

CPH3351
Q9903

R9915

2K 1% 1/8W

!

!

U9903

3

2

DV5

-

4

!

!

4

-

4

R9923

12.7K OH M 1% 1/8W

10K 1/8W 1%

2

3

3

2

+

R9920

BD9901
D25JAB60V

1

BD9902
D25JAB60V

1

+

BD_OUT-

R9921

0.05R

12

FB9901
127R

BD_OUT+

12

FB9902
127R

+12V

ACD

C9918

4.7nF 50V

8-1-2 PFC stage

M+

BD_OUT+

BD_OUT-

HS9801

HEAT SINK

(for Q9803, D9805)

+VCC2

HS9802

!

2

811

L9801
450uH

10

C9801

1UF 450V

C9802

1UF 450V

ZCDA

811

L9802
450uH

R9801
16mR

1
2
3
4

R9802
16mR

ZCDB

R9809
3M3 1%

R9810
3M3 1%

GDA

!

2

10

GDB

+VCC2

R9806
22R 1%

R9803
22R 1%

22uF 50V

R9840
1K 1/4W

ZD9804

R9811
3M3 1%

AOD1N60

Q9807

C9826

R9841

1 2

BZT52-B18

R9812

100N 50V

ZCDB

VSENSE

C9811
1NF 50V

HVSEN

R9813

16.2K 1%

C9812
22pF 50V

R9814
124K 1%

10K

C9815

162K OHM 1% 1/ 8W

1
2
3
4

820P 50V

D9801
S8KC

D9803
SS1060FL

1 2

D9804
SS1060FL

1 2

C9813

+

U9801
UCC28063DR

1

ZCDB

2

VSENSE

3

TSET

4

PHB

5

COMP

6

AGND

7

VINAC
HVSEN8PWMCNTL

120K OHM 1% 1/8W

R9815

9.53K 1/8W

C9816

0.47uf 10% 50V

R9804
22R 1%

Q9801

MMBT2907A

R9807
22R 1%

Q9802
MMBT 2907A

C9814
100NF 50 V

ZCDA

VREF

GDA

PGND

VCC
GDB

R9816

D9802
S8KC

R9805
10K 1/4W

R9808

10K 1/4W

16
15
14
13
12
11
10

CS

9

ZD9803

BZT52-B3V6

Q9803
TK39A60W

!

!

Q9804
TK39A60W

12

FB9801

1 2

127R

C9803
100PF

FB9802

127R

C9805
100PF

GDA

GDB

R9818

C9817

3.3NF 50V

FMN-1106S

12

R9817

16.2K 1%

C9819
220NF 50V

680R 1/4W

C9804
100PF

D9805

C9806
100PF

D9806

FMN-1106S

C9818
22pF 50V

!

!

HVSEN

ZCDA

BD_OUT-

2M 1%

R9823

C9820
1NF 50V

R9820

R9821
2M 1%

R9822
2M 1%

NC

C9807

470PF

C9821
100N 50V

R9824

82K 1% 1/8W

C9808

10NF 1KV

R9819

2M 1%

Q9805
AOD1N60

!

+

C9810
150uF 450V

R9825
2M 1%

R9826
2M 1%

R9831
1K 1/4W

R9832
10K

+VCC2

!

+

C9809

B+

150uF 450V

R9827
2M 1%

R9828

2M 1%

R9829

NC

Q9806
AOD1N60

R9833
1K 1/4W

VSENSE

C9822

1 2

1NF 50V

ZD9801

BZT52-B18

R9830
124K 1%

C9823
100N 50V

R9834
10K

1 2

ZD9802

BZT52-B18

HEAT SINK

(For Q9804, D9806)

8-1-3 12V power stage

3.3M 1/4W

B+

+VCC1

+VCC2

+VCC2

+VCC3

C9119

10UF 50V

C9120

10UF 50V

C9101

2.2NF

+

+

R9104

150K 1% 1/8W

C9102
330nF

C9104

10nf 10% 50v

R9113

51K 1/8W 1%

C9105

100NF 50V

C9107

220pF 5% 50V

R9114

82 OHM

Q9104
BTC4672M3

Q9105
BTC4672M3

R9116
100K

R9120

R9122

3K

R9121

NC/20K

3K

R9123

NC/20K

R9102 3.3M 1/ 4W

R9103

1M 1%

R9105
20M

FB_LLC

C9106

0.47uF 50V

CL

R9115
120 OHM 5% 1/8W

STB

4

ZD9102
BZT52-B18

1 2

4

ZD9103
BZT52-B16

1 2

U9105
EL817M(X)

U9106
EL817M(X)

R9101

C9151

1nF 2KV

MMBT3906
R9117

47K +-5% 1/8W

C9114
4N7 50V

COLDHOT

LLC_OVP

R9145
2K OHM 1% 1/8W

1

23

R9151
2K OHM 1% 1/8W

1

23

Q9103

C9103

U9101

SSC3S910

1

VSEN

2

VCC

3

FB

4

ADJ

5

CSS

6

CL

7

RC

8

PL
SB9GND

C9113

10nf 10% 50v

C9118
10N 50V

DV5

R9148

10KOHM

10K

R9154

D9101
1N4007GHA0G

1nF 2KV

Q9111
MMBT3906

Q9114
MMBT3906

VGH

REG
VGL

ST

NC

VS
VB

NC

R9147
10K

R9153
10K

Q9113
2N7002K

Bo

18
17
16
15
14
13
12
11
10

R9118

47K +-5% 1/8W

R9119
10K

U9103
EL817M(X)

4

R9146
1K5

Q9112
2N7002K

C9144

100N 50V

C9145

100N 50V

C9108
100NF 50V

2.2UF 50V

R9152
1K5

R9106

10R 1/8W 5%

D9103

10R 1/8W 5%

R9110

REG

C9115

+12VS

1

23

R9150
510K

R9156
510K

R9109
2R2 +-5% 1/8W

US1M_HF

R9142

5.1K

R9149
100R

R9930

R9155
100R

12

ZD9101
BZT52-B15

D9104
1N4148W

R9111
82 OHM

Q9110
2N7002K

C9143
100N 50V

0 OHM 1/8W

D9102
1N4148W

R9107
82 OHM

Q9101

Q9102

TK13A50D

C9148

47uF 100V

TK13A50 D

+

R9108

10K

R9112

10K

+VCC1

C9116
100NF 50V

R9144
100R

R9143
510K

+12VS

FB_LLC

PS_ON/OFF

DV5

ACD

PANEL_ON/OFF

C9110
100PF

+

C9117
47uF 100V

HS9101

HEAT SINK

DV5

D9105

US1M_HF

1
2
3
4

1K 1/8W 1%

C9109

1NF

C9111
15nF

HOT COLD

T9101

485uH

4

6
1

2

C9112
100PF

R9172
2R2 1%

FB9903

127R

C9919

C9921

+VCC1

U9104
EL817M(X)

4

R9124

10K 1/8W 1%

CL

R9125

C9121

ZD9104
BZT52-B5V6

1 2

1N 50V

C9122

220N 50V

HOT COLD

R9126

0.05R

U9107
EL817M(X)

4

BZT52-B15

Q9115

ZD9105

12

10
9
8
7

11

C9908

12

1NF 250V

NC/680PF 250V

680PF 250V

1

23

MMBT3904

+12VS

1

23

1 2

R9157
2K 1/8W 5%

R9160

3.9K OHM 1% 1/8W

Q9106

+12VS

1 2

12

R9159

1K 1/8W 1%

+

C9123

1500uF 25V

R9128

NC/10 OHM 1% 1/4W

47K 1/8W 1%

C9128

NC/1nF 50V

ZD9106
BZT52-B15

D9107
SS1060

R9158

100 OHM 1%

C9139
10N 50V

4.7K

R9161

+

C9124

1500uF 25V

R9127

1K OHM 1% 1/8W

TK58A06N1

R9130

C9140
NC/47N 50V

C9141

100NF 50V

AS431AN-E1
U9108

C9125

1500uF 25V

R91292R2 +-5% 1/8W

R9162

30K 1/8W 1

+12VS

+

ZD9107
BZT52-B4V7

1 2

C9129 47PF 50V

+12V

L9101

3.0uH+-10%

L9102

3.0uH+-10%

R9178 10K 1/ 8W 1%

VD24VSS

3

EN

VD1

2

PGND

VDD

1

VG2

VG1

MP6922LGS-Z

U9102

47K 1/8W 1%

+12V

R9163

9.1K OHM 1% 1/8W

R9165
2K 1/8W 1%

R9166

1.8K OHM 1% 1/8W

470UF 25V

5
6
7
8

R9132

R9164

5K6 +-1% 1/8W

C9126

DV5

R9131
2R2 +-5% 1/8W

C9133

NC/2.2UF 50V

C9134 1uF 50V

R9179

10K 1/8W 1%

C9150

1uF

+

C9127

470UF 25V

C9130

47PF 50V

MTB5D0P03FP-0-UB-S

R9138

30K 1/8W 1

Q9118

MMBT3906

Q9116

2N7002K

R9134

1K OHM 1% 1/8W

R9133
10 OHM 1% 1/8W

Q9107

TK58A06N1

C9131

2.2UF 50V

Q9109

R9139

47K 1/8W 1%

D9110SS1060FL

R9180

33K 1/8W 1%

C9146

0.1uF 50V

Standby

R9167
100R

R9168

C9142

100N 50V

+

470UF 25V

12

47K 1/8W 1%

510K

C9149

D9109

D9108

1 2

SS1060FL

1 2

SS1060FL

R9181

PS_ON/OFF

ACD

0.1uF 50V

+

R9135
NC/ 10 OH M 1% 1/ 4W

C9132
NC/1nF 50V

3.0uH+-10%

C9147

C9922

100N 50V

+12V

L9103

Q9117

2N7002K

C9138

+12V

0.1uF 50V

DV5

C9135

470UF 25V

2
4
6

8
10
12
14
16

CN9102

+

+

C9136

470UF 25V

R9141
100R

D9106

1 2

SS1060FL

R9140

510K 1% 1/8W

CONN

CN9101

1
3
5
7
9
11
13
15

15
13
11

9
7
5
3
1

CN9103 NC/CONN

1
2
3
4
5
6
7
8
9
10
11
12
13
14

HS9102

HEAT SINK

HS9103

HEAT SINK

C9137

0.1uF 50V

T-CON_ON/OFF

16
14
12
10
8
6
4
2

1
2
3
4

1
2
3
4

+12V_T

+12V+12V

T-CON_ON/OFF

PANEL_ON/OF F

+12V_T

+24V_A+24V_A

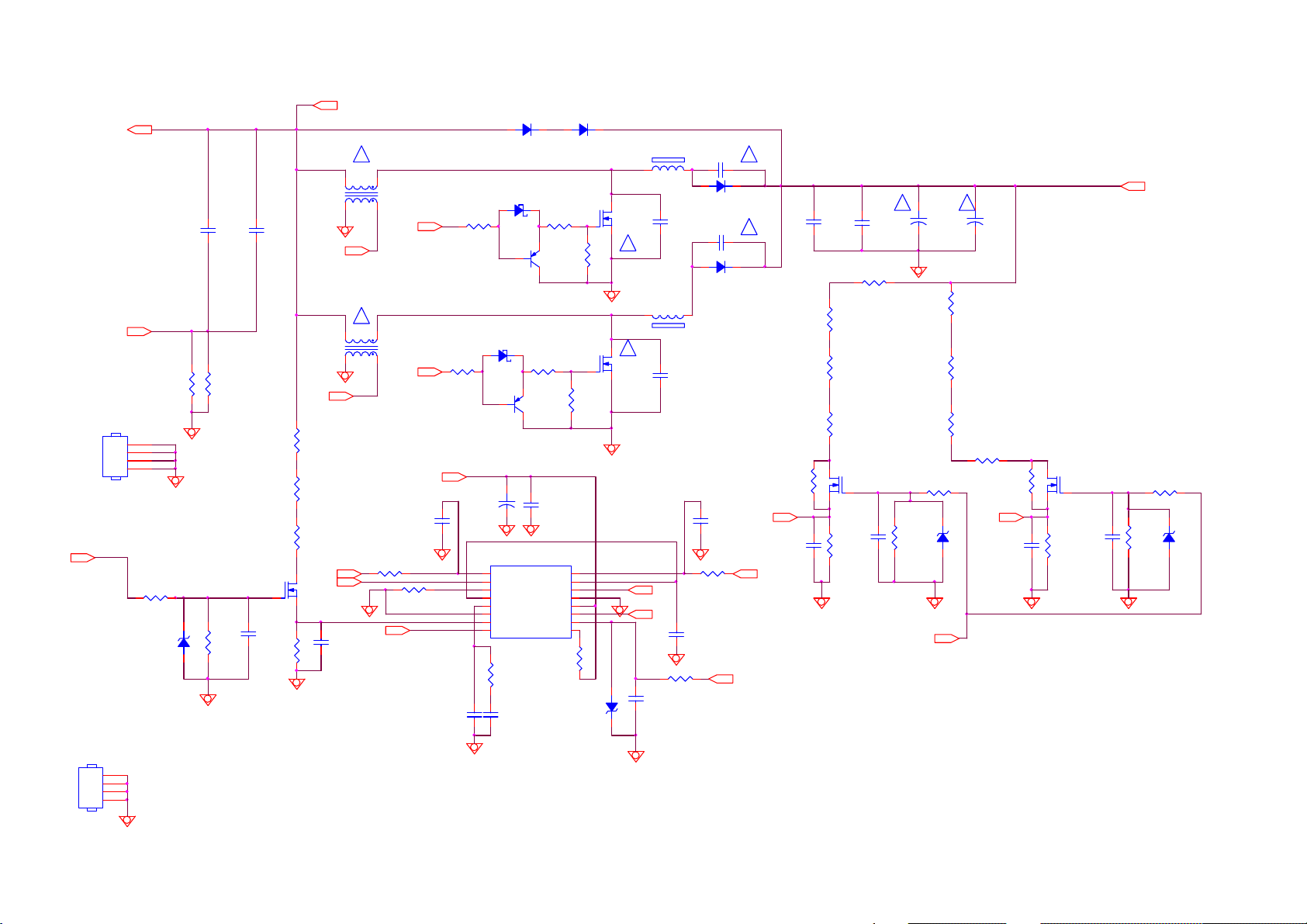

8-1-4 24V power stage

R9272

900R 5%

R9264
900R 5%
R9273

R9265

2K4

2K4

8

9
10
11
12

7

8

9
10
11
12

7

R9266
900R 5%

R9221
10 OHM 1% 1/4W

1nF 50V

C9226

R9231
10 OHM 1% 1/4W

1nF 50V

C9231

C9219

C9220

+

1000UF 35V

R9220

1K OHM 1% 1/8W

TK56A12N1

Q9203

R9229

1K OHM 1% 1/8W

Q9205

TK56A12N1

R9233

47K 1/8W 1%

1000UF 35V

R9252

NC/0R05

Q9209

C9242

0.1UF 50V

R9205
12K 1/8W

AOD1N60

R9254
10K 1/8W 1%

C9202
100NF 50V

R9253

+VCC3

B+

R9204110K 1%

1K 1/8W 1%

C9201
10NF 1KV

R9203 300K 1% 1/2W

+VCC3

C9203

22uF 50V

C9205

0.47uf 10% 50V

R9201 0R1

R9202 1M 1%

+

100NF 50V

1nF 50V

C9204

C9206

C9243

47P 50V

U9201

1

Vsen

2

Vcc

3

FB

4

GND

5

Css

6

OC

7

RC

8

Reg
RV9COM

SSC9522S

R9267 0R1

C9247

10NF 1KV

NC
NC

VGH

VS

VB
NC
NC

VGL

D9203

C9212
1nF 50V

D9208FR107G-A0

R9206
10 OHM 1/8W

18

68OHM +-5% 1/8W

17
16
15
14
13
12
11
10

US1M_HF

C9209
1UF

B+

D9201 SS1060FL

12

R9207

D9202
SS1060FL

12

R9209
10 OHM 1/8W

R9210

68OHM +-5% 1/8W

R9213
1K 1/8W 1%

180 OHM 1% 1/8W

M+

10K 1/8W

10K 1/8W

R9212

10R 1/8W 5%

C9210
10PF 3KV

R9208

R9211

R9214

C9208
1UF

C9213
100PF

!

Q9201
TK13A50D

C9207
330PF

Q9202
TK13A50D

!

ZD9201

BZT52-B15

C9211
10PF 3KV

1 2

C9214

!

1
2

6
5

210uH

T9201

!

1
2

6
5

210uh

T9202

C9215
27nF

27nF

+24VS

C9221

+

+

1000UF 35V

R9222
2R2 +-5% 1/8W

R9223

47K 1/8W 1%

R9232
2R2 +-5% 1/8W

R9268

R9269

R9270

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

R9271

2K4

2K4

U9206

OUT3IN

2

HS9202

HEAT SINK

L9201

3.0uH+-10%
L9202

3.0uH+-10%

+

C9222

1000UF 35V

3
2
1

C9227

10PF 50V

3
2
1

C9232

10PF 50V

470UF 35V

U9202

VD24VSS
EN

VD1

PGND

VDD

VG2

VG1

MP6922LGS-Z

U9203

VD24VSS
EN

VD1

PGND

VDD

VG2

VG1

MP6922LGS-Z

+

C9223

5
6
7
8

5
6
7
8

47K 1/8W 1%

47K 1/8W 1%

5.1KR 1%

+

+

C9224470UF 35V

R9224
2R2 +-5% 1/8W

R9225

R9234
2R2 +-5% 1/8W

R9235

R9217

C9246

470UF 35V

C9228

C9233

5.1KR 1%

10PF 50V

10PF 50V

R9218

R9259

R9219

5.1KR 1%

R9226
1K OHM 1% 1/8W

R9227
10 OHM 1% 1/8W

C9229

2.2UF 50V

R9236

1K OHM 1% 1/8W

R9237
10 OHM 1% 1/8W

C9234

2.2UF 50V

900R 5%

R9258
900R 5%

Q9204
TK56A 12N 1

Q9206
TK56A 12N 1

900R 5%

R9263

R9260

900R 5%

MP6922

R9228
10 OHM 1% 1/4W

C9230
1nF 50V

MP6922

R9238
10 OHM 1% 1/4W

C9235
1nF 50V

+24V

C9225

0.47UF 50V

HS9201

HEAT SINK

2K4

CN9202

NC/CONN

MP6922

1
2
3
4

2K4

CN9201

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

CONN

+24V

1

+24VS

GND

HS9203

HEAT SINK

1
2
3
4

1
2
3
4

+24V

R9215

2K4 +/-1% 1/8W

C9217

4.7UF 25V

560 OHM 1/8W

R9216

C9216
10nf 10% 50 v

+24VS

0R05

R9261

1 2

!

R9245

12

43

U9204
EL817M(X)

ZD9204
BZT52-B22

1 2

R9243

R9244

100 OHM 1%

10K 1/8W 1%

2.2K OHM 1% 1/ 8W
D9205

IN4148W R HG

D9204

IN4148W R H G

C9241

0.47UF 50V

ZD9203
BZT52-B5V6

C9240
100NF 50V

U9205
AS431AN-E1

C9239
NC

1 2

ZD9202
NC/BZT52-B5V6G

R9242

1K 1/8W 1%

+24V

R9239
15K 1/8W 1%

R9240
2K 1/8W 1%

1.96K OHM 1% 1/8W

R9241

R9262
100K

D9206

SS1060FL

12

R9246
NC

R9247
2K 1/8W 1 %

Q9208
MMBT3904

1K OHM 1% 1/8W

R9248

+12VSDV5LLC_OVP

+24V

0.05R

R9249

R9250
1K OHM 1% 1/8W

Q9207
MMBT3906

C9236
100NF 50V

ZD9205
BZT52-B15

1 2

ZD9206
BZT52-B15

1 2
12

R9251
1K 1/8W 1%

D9207
SS1060FL

L9204

3.0uH+-10%

R9255

0R05
0R05

0R05

0R05

0R05

0R05

0R05

0R05

L9203

3.0uH+-10%

+

C9238

C9237

0.47UF 50V

470UF 35V

+24VS +24V_A

+12VS

R9256

R9257

R9173

R9174

R9175

R9176

R9177

8.2 B 715G9643 主機板

8-2-1 Tuner Input/Demodulator
RF Input I2C address is 0xC0

(Side)

CN163

2

1

3V3_TU

3

IF_OUTP_T

5

IF_OUTN_T

7

C147 100nF 16V
C148 100nF 16V

R107 NC/0R05 O HM

R122 NC

39

37

40

38

ATB

SIFI P

SIFI N

SIFQP

SIFQN

GND

AVDD33

CAVDD

ADDR

XTAL O

XTAL I

DISEQC_IN

DISEQC_OUT

GPO1

VDD33

TEST_MO DE

CVDD

24

C188NCC189

TUNER_CLK_OUT

36
35
34
33
32
31
30
29
28
27
26
25

R165 33 OHM 1/16W
R166 33 OHM 1/16W

NC

IF_OUTN_T
IF_OUTP_T

DEMO_ADDR
DEM_XOUT
DEM_XIN

3V3_DEM

R167
51K

C190
1UF 10V

3V3_TU [6]

C5228
10uF 10V

HS1

2
1

HEAT SINK

HS2

2
1

HEAT SINK

X15J205510100000LH

1 2

C151

C150

100nF 16V

10NF 50V

R162 NC

24

1

C181
10PF 50V

R105 4.7K1/16W

R104 4.7K1/16W

R168 0R05 OHM

X10 2
24MHz

FB102

120R

3V3_DEM

3

C182

8.2PF 50V

I2C3_SDA
I2C3_SCL

DEM_RSTN

RF_AGC

RF_AGC[6]

IF_AGC trace shield with GND

Close to U401

IF_N

C141 1UF 10V

IF_P

C143 1UF 10V

Close to U401

C139 33PF 50V

R116 0R05 OHM
R119 0R05 OHM

C146 33PF 50V

Demodulator (DVB-T2)

For AP region

I2C3_SDA
I2C3_SCL

DEM_TSI1_SYNC[6]
DEM_TSI1_VLD[6]
DEM_TSI1_CLK[6]
DEM_TSI1_D0[6]

DEM_TSI1_SYNC
DEM_TSI1_VLD
DEM_TSI1_CLK
DEM_TSI1_D0

R109 10K

R125 NC
R126 NC

External OSC/CLK

External XTAL

IF_AGC_TUXG

C131
47NF 16V

R114 100OHM

R117
NC/330 OHM 1/16W

R120 100OHM

3V3_DEM

SDA_T
SCL_T

C161

C162

10PF 50V

10PF 50V

DEM_IF_AGC

R123

4.7K1/16W

C158NCC159

C163NCC180

IFN

IFP

C194
100nF 16V

R124

4.7K1/16W

NC

R130 33 OH M 1/ 16W
R131 33 OH M 1/ 16W
R132 82R
R133 82R

NC

Pin 7STATUS

High

Low

IF_AGC_TUXG

IF_N

IFN [6]

IFP [6]

R173 200R

3V3_DEM

DEM_IF_AGC
I2C3_SDA
I2C3_SCL

TUNER_CLK_OUT

R103 NC/0R05 OHM
R102 NC/0R05 OHM
R101 NC/0R05 OHM

IF Trace

space/trace/space/trace/space(mil)
8 / 6 / 5 / 6 / 8

R121 10K
C149
100nF 16V

49

1

GPO7

2

GPO6

3

CVDD

R128 NC

R163
NC

R164
2K7

4

GPO5

5

GPO4

6

VDD33

7

STATUS

8

TSSYNC

9

TSVLID

10

TSCLK

11

TS0

12

TS1

4
6
8

CONN

DEM_IF_AGC

IF_OUTN_T

IF_OUTP_TIF_P

1V2_DEM

3V3_DEM

45

44

42

41

46

48

43

TIFP

TIFN

GPO247GPO3

CVDD

E-PAD

VDD33

CLK_IO

U102

ATBM7831

TS213TS314TS415TS516TS617TS718VDD3319CVDD20RESET21CVDD22SCLS23SDAS

3V3_DEM

1V2_DEM

FB104

1 2

120R
C160
10NF 50V

I2C3_SDA [6]
I2C3_SCL [6]

3V3_DEM

1V2_DEM

DEM_RSTN [6]

3V3_DEM

R127
NC

R129

4.7K1/16W

3V3_TU

FB103

1 2

120R

C152
100nF 16V

C153

100nF 16V

C183
100nF 16V

3V3_DEM

C154
100nF 16V

1V2_DEM

C184

100nF 16V

C155

100nF 16V

C185
100nF 16V

C156
100nF 16V

C186

100nF 16V

C157

22uF 6.3V

0603

C187
100nF 16V

8-2-2 AV/Ethernet/USB Inputs

(Down)

388G342GFB6AKX

USB 2.0 Port for BT USB 2.0 Port for WIFI
(Internal) (Internal)

AV Input

USB 3.0 Port

CN111

2

A

B

C

RCA JACK

388G078G137ACL0001

Change component IO to AV

Rain

USB 2.0 Port for BT
(Internal)

CN104

RJ45 15P

16

TCT P 1

TH1

TD+ P 2

TD- P 3

RD+ P4

RD- P5

RCT P6

NC P7
NC P8

NC P9
NC P10
NC P11

Y- P12

Y+ P13

G- P14

G+ P15

TH2

17

910

CN106

CONN
1
2
3
4
5
6
7
8

Y

1
4

YPbPr_L

3
6

YPbPr_R

5

1

C175 100nF 16V

2
3
4
5
6

C176 100nF 16V

7
8
9
10
11
12

R153 330 OHM 1/16W

13

R154 100OHM

14

R155 330 OHM 1/16W

15

R156 100OHM

R157 0R05

1206

5V_USB

C191

0603

1UF16V

12

ZD106

NC/MLVG0402

12

ZD107

NC/MLVG0402

R142 10K
R143 10K

12

ZD103

NC/MLVG0402

Run as Differential Pairs

FE_TX+
FE_TX­FE_RX+
FE_RX-

FEPHYLED1
FEPHYLED0

C192

NC/22PF 50V

R144
12K 1/16W

R145
12K 1/16W

FE_TX+ [6]
FE_TX- [6]
FE_RX+ [6]
FE_RX- [6]

FEPHYLED1 [6]
FEPHYLED0 [6]

R169

NC/4.7K1/16W

C193

NC/ 22PF 50V

C168
NC/10PF 50V

C169
NC/330PF 50V

VCC_3V3

Place close to U401

AV_AU_L
AV_AU_R

C170
NC/330PF 50V

R170

NC/4.7K1/16W

R174NCR175

NC

AV_CVBS

R141
75R 1/16W 1%

AV_AU_L [6]
AV_AU_R [6]

1
2

4
5

R171 33 OHM 1/16W
R172 33 OHM 1/16W

AV_CVBS [6]

U105
NC/AZ1045-04F.R7G

IN1
IN2

IN3
IN4

NC
NC

NC
NC

GND

GND

3

8

Run as 90 Ohm +/-15%

Differential Pairs

USB2_DM0
USB2_DP0

BT_WU
BT_RST

10

FE_RX-

9

FE_RX+

7

FE_TX-

6

FE_TX+

USB2_DM0[6]
USB2_DP0 [6]

BT_WU [6]
BT_RST [ 6]

USB 3.0 Port

(Side)

R135
47K

0603

C164
10uF 10V

0805

CN102

USB CONN 9P

088G352E912AXH

C123

+

100UF 16V

4

3

1

2

D-

D+

VCC

GND

USB2.0

USB3.0

RXN5RXP6GND7TXN8TXP

USB_RXP
USB_RXN

USB_DM
USB_DP

11

HAND110HAND2

9

5
3

USB_TXP
USB_TXN

12

ZD108

NC/MLVG0402

U103
G5250K1T1U

OUT
OC

12

ZD104

NC/MLVG0402

12

NC/MLVG0402

2

ZD109

GND

12

4

IN

1

EN

ZD105

NC/MLVG0402

12

ZD110

NC/MLVG0402

5V_USB

C165
10uF 10V

0805

R137 5.1R 1/16W
R138 5.1R 1/16W

Run As 90 Ohm +/-15%

Differential Pairs

Run As 90 Ohm +/-15%

Differential Pairs

12

ZD111

NC/MLVG0402

VCC_3V3

R136
NC/4.7K1/16W

R134 100OHM

C171 100nF 16V
C172 100nF 16V

R146 5.1R 1/16W
R147 5.1R 1/16W

USB trace run 90 Ohm differential pairs

space/trace/space/trace/space(mil)
12 / 9 / 5 / 9 / 12

USB3_PWR_EN

USB3_DM
USB3_DP

USB3_TXP
USB3_TXN

USB3_RXP
USB3_RXN

USB3_PWR_EN [6]

USB3_DM [6]
USB3_DP [6]

USB3_TXP[6]
USB3_TXN[6]

USB3_RXP[ 6]
USB3_RXN [6]

5V_USB

U104
AP2171DWG-7

1

OUT

2

GND
FLG3EN

R151 5.1R 1/16W
R152 5.1R 1/16W

Run as 90 Ohm +/-15%

Differential Pairs

5

IN

4

C174
1UF16V

0603

R148 100OHM

R150
NC/10K

USB2_DM2

USB3_PWR_EN

USB2_D M2 [6]

CN103

USB CONN

388G352F6B3AXH

USB2_D P2 [6]

C173

R149

10uF 10V

47K

0805

0603

1

1234

2
3
4

ZD112

NC/MLVG0402

1 2

ZD113

NC/MLVG0402

6 5

1 2

5V_USB

5V_STB

R811 NC/0R05 1/8W

R827 0R05 1/8W

CN105

2

1

4

3

6

5

8

7

CONN

8P R/A 2.0mm

311GW200C08ABL

C177

1UF16V

0603

NC/22PF 50V
NC/22PF 50V

C178

R158

4.7K1/16W

C179

3V3_STB

R159

NC/4.7K1/16W

R176NCR177

NC

R161 33 OHM 1/16W
R160 33 OHM 1/16W

Run as 90 Ohm +/-15%

Differential Pairs

USB2_DM1
USB2_DP1
WIFI_WOL

WIFI_RST

USB2_DM1 [6]
USB2_DP1 [6]
WIFI_WOL [7]

WIFI_RST[6]

8-2-3 HDMI/MHL Inputs

CN506 HDMI 19P

20

SHLD0

TMDSD2+

22

SHLD2

TMDSD1+

TMDSD0+

DDC_GND

23

SHLD3

21

SHLD1

388G340FJ05FXH0001

HDMI 1(1.4)(MHL)

(Side)

DSHLD0

TMDSD2-

DSHLD1

TMDSD1-

DSHLD2

TMDSD0-

TMDSC+
CSHLD0
TMDSC-

VCC5

Run As 100 Ohm Differential Pairs

1

HDMI0_RX2P_IN

2

CD_SENSE

3

HDMI0_RX2N_IN

4

HDMI0_RX1P_IN

5
6

HDMI0_RX1N_IN

7

HDMI0_RX0P_IN

8
9

HDMI0_RX0N_IN

10

HDMI0_RXCP_IN

11
12

HDMI0_RXCN_IN

13

CEC

CEC

14

NC

15

HDMI0SCL

SCL

16

HDMI0SDA

SDA

17
18

HDMI0_5V

19

HDMI0_HPD

HPD

C501

47NF 16V

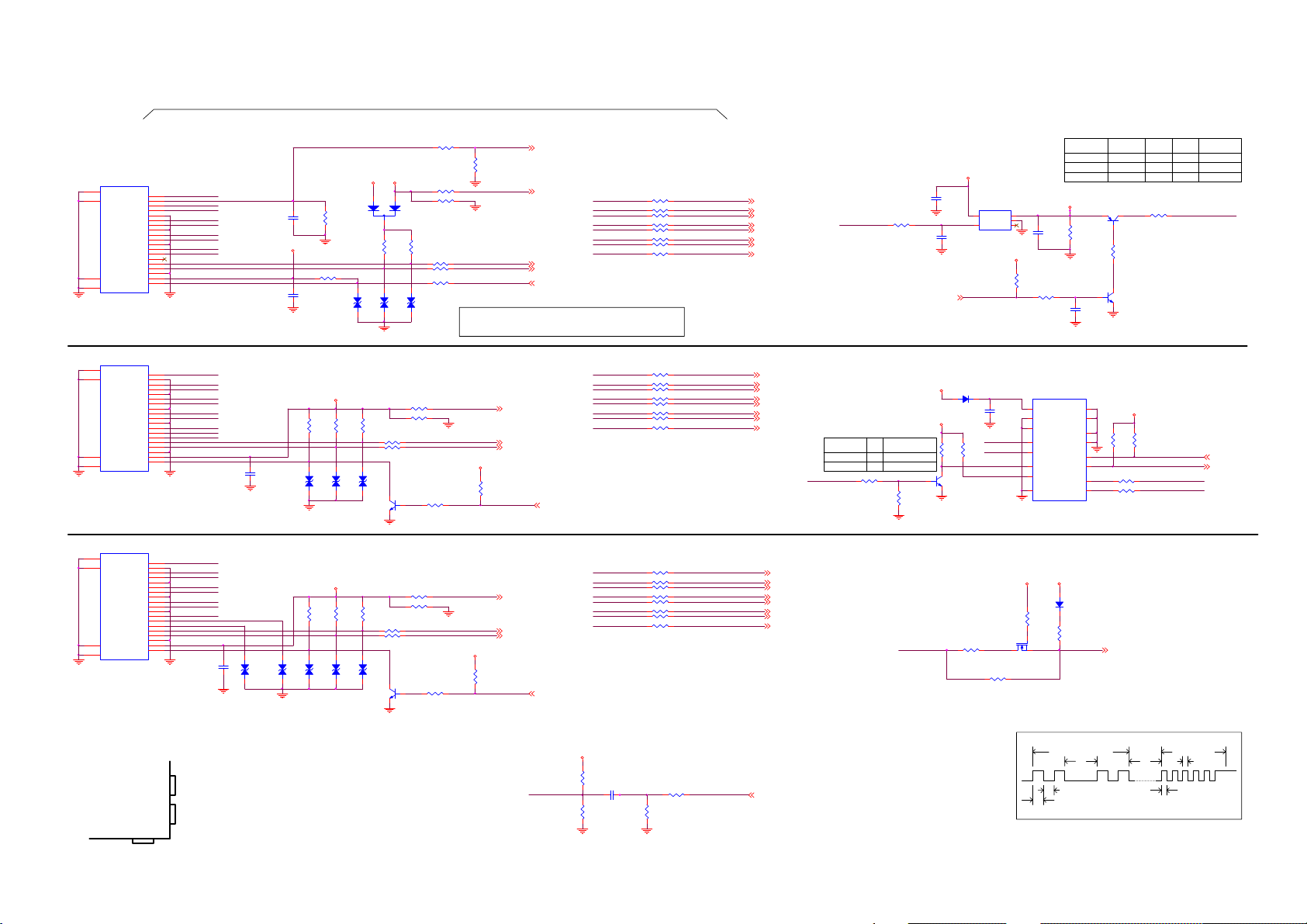

5VBUS

R509 NC/1K

C505
100nF 16V

space/trace/space/trace/space(mil)

8 / 6 / 5 / 6 / 8

5V_STB

5VBUS

1

2

D501

R505

BAT54CH

300K

3

R510
10K

12

12

ZD501

ZD502

R501 18K

R503 1K
R504 10K

R511
10K

R513 33 OHM 1/16W
R514 33 OHM 1/16W

R515 4.7R

12

ZD503
NC/MLVG0402
NC/MLVG0402
NC/MLVG0402

HDMI0_D0+/-

MHL

MHL_CD_SENSE

R502
30K OHM

HDMI0_DET

HDMI0_SCL
HDMI0_SDA

HDMI0_HTP_CBUS

MHL_CD_SENSE [6]

HDMI0_DET [6]

HDMI0_SCL [6]
HDMI0_SDA [6]

HDMI0_H TP_CBUS [6]

space/trace/space/gnd/space/trace/space(mil)

4 / 12 / 4 / 5 / 4 / 12 / 4

Differential 100 +- 10 ohms

Common Mode 30 +- 5 ohms

HDMI0_RX2P_IN
HDMI0_RX2N_IN

HDMI0_RX1P_IN
HDMI0_RX1N_IN

HDMI0_RX0P_IN
HDMI0_RX0N_IN

HDMI0_RXCP_IN
HDMI0_RXCN_IN

R552 2R2 +-5% 1/16W
R553 2R2 +-5% 1/16W

R554 2R2 +-5% 1/16W
R555 2R2 +-5% 1/16W

R556 2R2 +-5% 1/16W
R557 2R2 +-5% 1/16W

R558 2R2 +-5% 1/16W
R559 2R2 +-5% 1/16W

HDMI0_RX2P
HDMI0_RX2N

HDMI0_RX1P
HDMI0_RX1N

HDMI0_RX0P
HDMI0_RX0N

HDMI0_RXCP
HDMI0_RXCN

HDMI0_RX2P [6]
HDMI0_RX2N [6]

HDMI0_RX1P [6]
HDMI0_RX1N [6]

HDMI0_RX0P [6]
HDMI0_RX0N [6]

HDMI0_RXCP [6]
HDMI0_RXCN [6]

CD SENSE

MHL 2.0 Voltage Charge Input detect

Current limit TYP. 1.5A

VCC_5V

CD_SENSE

R507 100OHM

C502

U502

1UF16V

STMPS2171STR

0603

C504
NC

MHL_VBUS_EN[7]

5

IN

4

MHL_VBUS_EN

1

OUT

2

GND

FAULT3EN

3V3_STB

5VBUS

C503
10uF 10V

0805

R516
47K

R517

4.7K1/16W

MHL Mode

HDMI Mode

No Source

R508
NC/10K 1/10W

0603

C506
1UF 10V

Q501
MMBT3906

Input detect

R512

4.7K1/16W

Q502
MMBT3904

H

L

L

PNP

control

Output

OFF

ON

ON

R506

1K

NPN

Output

control

OFF

ON

ON

HDMI0_HTP_CBUS

HDMI0_DET

H

H

L

CN501 HDMI 19P

20

SHLD0

22

SHLD2

23

SHLD3

21

SHLD1

388G340FJ05FXH0001

HDMI 2(1.4)(Debug)

(Side)

Change debug function to HDMI2(CN501),move ARC function to HDMI3(CN502 );

Rain

CN502 HDMI 19P

20

SHLD0

22

SHLD2

23

SHLD3

21

SHLD1

388G340FJ05FXH0001

HDMI 3(2.0a)(ARC)

(Down)

Change debug function to HDMI2(CN501),move ARC function to HDMI3(CN502);

Rain

TMDSD2+

DSHLD0

TMDSD2-

TMDSD1+

DSHLD1

TMDSD1-

TMDSD0+

DSHLD2

TMDSD0-

TMDSC+
CSHLD0
TMDSC-

DDC_GND

VCC5

TMDSD2+

DSHLD0

TMDSD2-

TMDSD1+

DSHLD1

TMDSD1-

TMDSD0+

DSHLD2

TMDSD0-

TMDSC+
CSHLD0
TMDSC-

DDC_GND

VCC5

1

HDMI1_RX2P_IN

2
3

HDMI1_RX2N_IN

4

HDMI1_RX1P_IN

5
6

HDMI1_RX1N_IN

7

HDMI1_RX0P_IN

8
9

HDMI1_RX0N_IN

10

HDMI1_RXCP_IN

11
12

HDMI1_RXCN_IN

13

CEC

CEC

14

UART_SEL

NC

15

HDMI1SCL

SCL

16

HDMI1SDA

SDA

17
18

HDMI1_5V

19

HDMI1_HPD

HPD

1

HDMI2_RX2P_IN

2
3

HDMI2_RX2N_IN

4

HDMI2_RX1P_IN

5
6

HDMI2_RX1N_IN

7

HDMI2_RX0P_IN

8
9

HDMI2_RX0N_IN

10

HDMI2_RXCP_IN

11
12

HDMI2_RXCN_IN

13

CEC

CEC

14

HDMI_ARC

NC

15

HDMI2SCL

SCL

16

HDMI2SDA

SDA

17
18

HDMI2_5V

19

HDMI2_HPD

HPD

CN506/HDMI1

CN501/HDMI2

C509

NC/100N16V

C508
NC/100N16V

12

ZD504

NC/MLVG0402

12

ZD508

NC/MLVG0402

HDMI1_5V

R520
1K

12

ZD505

NC/MLVG0402

HDMI2_5V

R533
1K

12

ZD509

NC/MLVG0402

R521
10K

12

ZD506

NC/MLVG0402

R534
10K

12

ZD510

NC/MLVG0402

R518 1K
R519 10K

R522
10K

R523 NC/33 OHM 1/16W
R524 NC/33 OHM 1/16W

12

ZD507

NC/MLVG0402

Q503
MMBT390 4

R531 1K
R532 10K

R535
10K

R536 33 OHM 1/16W
R538 33 OHM 1/16W

12

ZD511

NC/MLVG0402

Q505
MMBT390 4

R530

R542

4.7K1/16W

4.7K1/16W

HDMI1_DET

HDMI1_SCL
HDMI1_SDA

HDMI1_5V

HDMI2_DET

HDMI2_SCL
HDMI2_SDA

HDMI2_5V

R527
10K

HDMI1_HOTPLUG

R540
10K

HDMI2_HOTPLUG

HDMI1_DET [6]

HDMI1_SCL [ 6]
HDMI1_SDA [ 6]

HDMI2_DET [6]

HDMI2_SCL [ 6]
HDMI2_SDA [ 6]

HDMI1_HOTPLUG[6]

HDMI2_HOTPLUG [6]

HDMI_ARC

HDMI1_RX2P_IN
HDMI1_RX2N_IN

HDMI1_RX1P_IN
HDMI1_RX1N_IN

HDMI1_RX0P_IN
HDMI1_RX0N_IN

HDMI1_RXCP_IN
HDMI1_RXCN_IN

HDMI2_RX2P_IN
HDMI2_RX2N_IN

HDMI2_RX1P_IN
HDMI2_RX1N_IN

HDMI2_RX0P_IN
HDMI2_RX0N_IN

HDMI2_RXCP_IN
HDMI2_RXCN_IN

VCC_5V

R525
NC/10K

C507 1UF 10V R526 0R05 OHM

R528
NC/39K 1/16W 5%

R560 2R2 +-5% 1/16W
R561 2R2 +-5% 1/16W

R562 2R2 +-5% 1/16W
R563 2R2 +-5% 1/16W

R564 2R2 +-5% 1/16W
R565 2R2 +-5% 1/16W

R566 2R2 +-5% 1/16W
R567 2R2 +-5% 1/16W

R568 2R2 +-5% 1/16W
R569 2R2 +-5% 1/16W

R570 2R2 +-5% 1/16W
R571 2R2 +-5% 1/16W

R572 2R2 +-5% 1/16W
R573 2R2 +-5% 1/16W

R574 2R2 +-5% 1/16W
R575 2R2 +-5% 1/16W

ARC Function

HDMI ARC

DC voltage level = 4V
Signal voltage p-p = 500 mV +-100mV (Test need add 55 ohm terminal resistor to GND )
Tr,Tf <= 60 ns

R529
NC

HDMI1_RX2P
HDMI1_RX2N

HDMI1_RX1P
HDMI1_RX1N

HDMI1_RX0P
HDMI1_RX0N

HDMI1_RXCP
HDMI1_RXCN

HDMI2_RX2P
HDMI2_RX2N

HDMI2_RX1P
HDMI2_RX1N

HDMI2_RX0P
HDMI2_RX0N

HDMI2_RXCP
HDMI2_RXCN

ARC_OUT

HDMI1_RX2P [6]
HDMI1_RX2N [6]

HDMI1_RX1P [6]
HDMI1_RX1N [6]

HDMI1_RX0P [6]
HDMI1_RX0N [6]

HDMI1_RXCP [6]
HDMI1_RXCN [ 6]

HDMI2_RX2P [6]
HDMI2_RX2N [6]

HDMI2_RX1P [6]
HDMI2_RX1N [6]

HDMI2_RX0P [6]
HDMI2_RX0N [6]

HDMI2_RXCP [6]
HDMI2_RXCN [ 6]

ARC_OUT[6]

UART_SEL

HDMI Pin14

NC

+12V

Factory UART And HDMI I2C Switch

S0

H

R547 62K

5V_STB

D503

BAS316WS

5V_STB

Channel

HDMI Function

Debug ModeL

R550
43K 1/16W

CEC Function

CEC

R545
10K

Q506
MMBT3904

R539

R546
10K

100OHM

R541

C510
100nF 16V

HDMI1SDA
HDMI1SCL

S0
S1

5V_STB

Q504
2N7002K

NC/100OHM

MHL CBUS Wake Pulse Sequence

U503
74HC4052PW

16

VCC

7

VEE

8

GND

13

1Z

3

2Z

10

S0

9

S1

6

/E

R551
100OHM

T1

3V3_STB

Wake Pulse Sequence

T1

12
1

14
5

15
2

11
4

T2

5V_STB

R543

R544

10K

10K

R548 33 OHM 1/16W
R549 33 OHM 1/16W

HDMI_CEC [6]

T3

1Y0
2Y0

1Y1
2Y1

1Y2
2Y2

1Y3
2Y3

D502
BAS316WS

R537
27K 1/16W 1%

HDMI_CEC

T1 = 18~22 ms (typ. 20)

T2 = 54~66 ms (typ. 60)
T3 = 100~1000 ms
T4 = 80~120 us (typ. 100)

UART0_TXD
UART0_RXD

HDMI1_SDA
HDMI1_SCL

Discovery Pulse

T4

T4

UART0_TXD [7,28]
UART0_RXD [7,28]

CN502/HDMI3

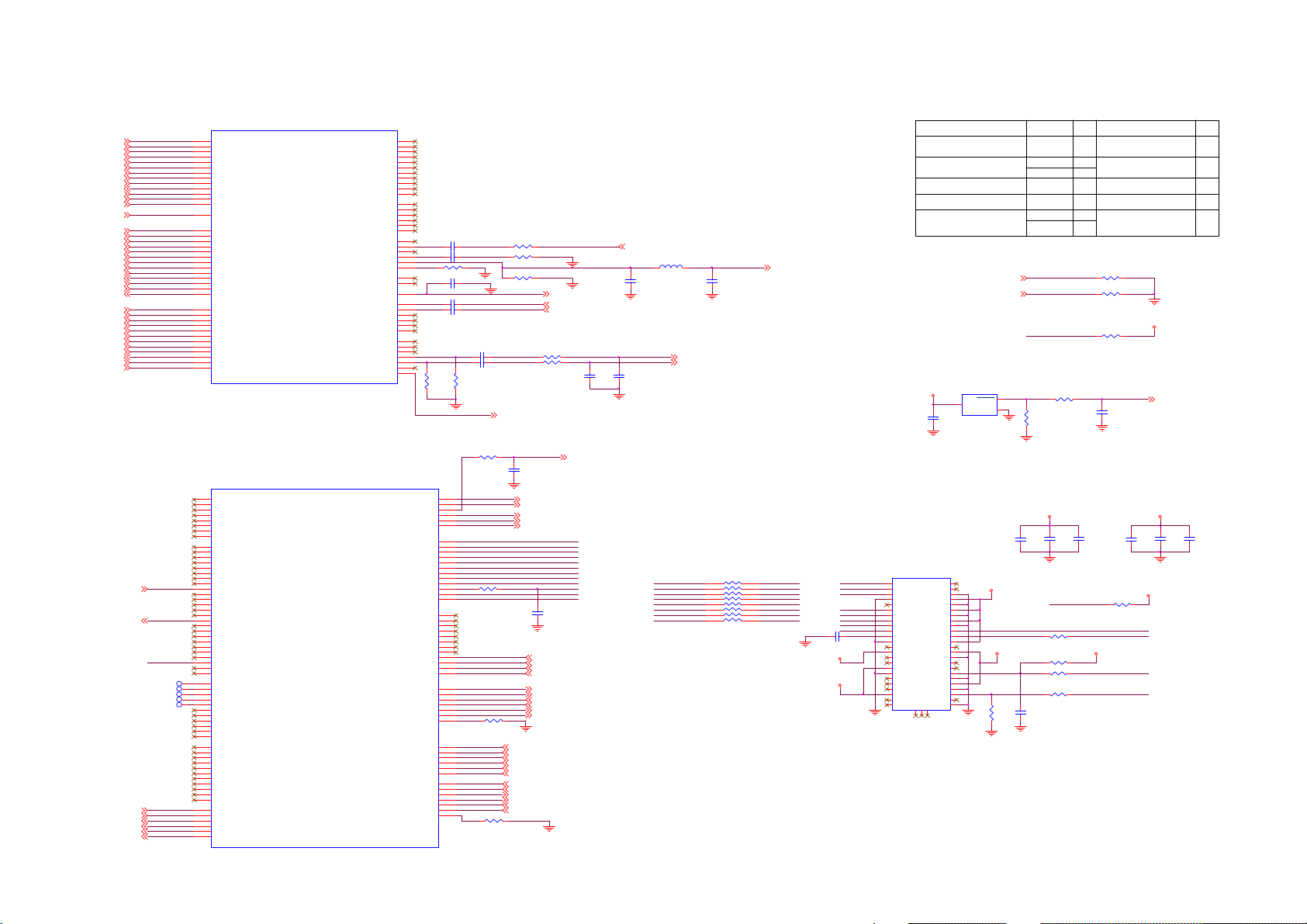

8-2-4 Hi3751V620 Input/eMMC

HDMI Input

BT_WU[4]

BT_RST[4]

HDMI0_RX0N
HDMI0_RX0P
HDMI0_RX1N
HDMI0_RX1P
HDMI0_RX2N
HDMI0_RX2P
HDMI0_RXCN
HDMI0_RXCP
HDMI0_DET
HDMI0_HTP_CBUS
HDMI0_SCL
HDMI0_SDA
MHL_CD_SENSE

HDMI_CEC

HDMI1_RX0N
HDMI1_RX0P
HDMI1_RX1N
HDMI1_RX1P
HDMI1_RX2N
HDMI1_RX2P
HDMI1_RXCN
HDMI1_RXCP
HDMI1_DET
HDMI1_HOTPLUG
HDMI1_SCL
HDMI1_SDA
ARC_OUT

HDMI2_RX0N
HDMI2_RX0P
HDMI2_RX1N
HDMI2_RX1P
HDMI2_RX2N
HDMI2_RX2P
HDMI2_RXCN
HDMI2_RXCP
HDMI2_DET
HDMI2_HOTPLUG
HDMI2_SCL
HDMI2_SDA

BT_WU

BT_RST

HDMI0_RX0N[5]
HDMI0_RX0P[5]
HDMI0_RX1N[5]
HDMI0_RX1P[5]
HDMI0_RX2N[5]
HDMI0_RX2P[5]
HDMI0_RXCN[5]
HDMI0_RXCP[5]
HDMI0_DET[5]
HDMI0_HTP_CBUS[5]
HDMI0_SCL[5]
HDMI0_SDA[5]
MHL_CD_SENSE[5]

HDMI_CEC[5]

HDMI1_RX0N[5]
HDMI1_RX0P[5]
HDMI1_RX1N[5]
HDMI1_RX1P[5]
HDMI1_RX2N[5]
HDMI1_RX2P[5]
HDMI1_RXCN[5]
HDMI1_RXCP[5]
HDMI1_DET[5]
HDMI1_HOTPLUG[5]
HDMI1_SCL[5]
HDMI1_SDA[5]
ARC_OUT[5]

HDMI2_RX0N[5]
HDMI2_RX0P[5]
HDMI2_RX1N[5]
HDMI2_RX1P[5]
HDMI2_RX2N[5]
HDMI2_RX2P[5]
HDMI2_RXCN[5]
HDMI2_RXCP[5]
HDMI2_DET[5]
HDMI2_HOTPLUG[5]
HDMI2_SCL[5]
HDMI2_SDA[5]

BOOT_SEL1

TP1
TP2
TP3
TP4
TP5

IF Input

IFP[3]
IFN[3]
RF_AGC[3]
DEM_RSTN[3]
I2C3_SCL[3]
I2C3_SDA[3]

IFP
IFN
RF_AGC
DEM_RSTN
I2C3_SCL
I2C3_SDA

U401F

AN27

HDMI0_RX0N

AM27

HDMI0_RX0P

AL28

HDMI0_RX1N

AK28

HDMI0_RX1P

AN29

HDMI0_RX2N

AM29

HDMI0_RX2P

AL26

HDMI0_RXCN

AK26

HDMI0_RXCP

AJ26

HDMI0_DET/ STB_GPIO20_0

AJ27

CBUS_PAD

AJ24

HDMI0_SC L/STB_GPIO20_4

AJ25

HDMI0_SD A/STB_GPIO20_3

AH25

MHL_CD_SENSE/STB_GPIO21_2

AH20

HDMI_CEC /STB_GPIO21_1

AN23

HDMI1_RX0N

AM23

HDMI1_RX0P

AL24

HDMI1_RX1N

AK24

HDMI1_RX1P

AN25

HDMI1_RX2N

AM25

HDMI1_RX2P

AL22

HDMI1_RXCN

AK22

HDMI1_RXCP

AJ22

HDMI1_DET/ STB_GPIO20_1

AH22

HDMI1_HOTPLU G/STB_GPIO19_6

AH23

HDMI1_SC L/STB_GPIO20_6

AJ23

HDMI1_SD A/STB_GPIO20_5

AH27

ARC_PAD

AN19

HDMI2_RX0N

AM19

HDMI2_RX0P

AL20

HDMI2_RX1N

AK20

HDMI2_RX1P

AN21

HDMI2_RX2N

AM21

HDMI2_RX2P

AL18

HDMI2_RXCN

AK18

HDMI2_RXCP

AJ20

HDMI2_DET/ STB_GPIO20_2

AJ21

HDMI2_HOTPLU G/STB_GPIO19_7

AJ19

HDMI2_SC L/STB_GPIO21_0

AH19

HDMI2_SD A/STB_GPIO20_7

Hi3751ARBCV6200M00

U401D

P32

CI_DQ0/GPIO8_3

R28

CI_DQ1/GPIO8_4

P33

CI_DQ2/GPIO8_5

AD30

CI_DQ3/GPIO8_6

AE33

CI_DQ4/GPIO8_7

AC30

CI_DQ5/GPIO9_0

AD29

CI_DQ6/GPIO9_1

AD33

CI_DQ7/GPIO9_2

R33

CI_ADR0/GPIO15_0

R30

CI_ADR1/GPIO15_1

R31

CI_ADR2/GPIO15_2

T28

CI_ADR3/SIM0_DET

V32

CI_ADR4/SIM0_CLK

T30

CI_ADR5/SIM0_PWREN

U28

CI_ADR6/GPIO10_2

U29

CI_ADR7/GPIO10_6

AB33

CI_ADR8/GPIO9_4

AA31

CI_ADR9/GPIO9_5

AC32

CI_ADR10

AA30

CI_ADR 11/GPIO15_3

V31

CI_ADR 12/GPIO5_4

Y30

CI_ADR 13/GPIO9_3

AA33

CI_ADR 14/GPIO9_6

P29

CI_CD N/GPI O9_7

AB30

CI_CEN /GPIO15_4

AB31

CI_OEN/ GPIO10_0

V30

CI_WEN /GPIO10_1

U32

CI_RST/ GPIO10_3

AA29

CI_IORDN/GPIO10_4

AB32

CI_IOWR N/GPIO10_5

U31

CI_REGN/BOOT_SEL1

V33

CI_RDY/SIM0_RST

T31

CI_WAITN/SIM0_DATA

T33

JTAG_TMS/TSI0_D0/GPI O4_1

P28

JTAG_TRSTN/TSI0_D1 /GPIO4_2

R32

JTAG_TCK/TSI0_D2/ GPIO4_3

AD31

JTAG_TDI/TSI0_D 3/GPIO4_4

AD32

JTAG_TDO/TSI0_D4/ GPIO4_5

AC29

TSI0_D5/GPI O4_6

AC31

TSI0_D6/GPI O4_7

AB29

TSI0_D7/GPI O5_0

U30

TSI0_CLK/GPI O5_1

T32

TSI0_VLD/GPI O5_2

R29

TSI0_SYNC/GPIO5_3

W30

TSO0_D0/GPIO7_0

AA32

TSO0_D1/GPIO7_1

W29

TSO0_D2/GPIO7_2

V29

TSO0_D3/GPIO7_3

Y31

TSO0_D4/GPIO7_4

Y32

TSO0_D5/GPIO7_5

W31

TSO0_D6/GPIO7_6

T29

TSO0_D7/GPIO7_7

W32

TSO0_CLK/GPIO8_0

W33

TSO0_VLD/GPIO8_1

Y29

TSO0_SYNC/ GPIO8_2

AG32

IFP

AG33

IFN

AJ31

RF_TAGC/ JTAG_MUX0/GPIO10_7

AJ30

AGC_RF_SE L/JTAG_MUX1/GPIO11_0/ PWM1

AH31

TUNER_SCL/I2C3_SCL/GPIO11_1

AJ32

TUNER_SDA/I2C3_SDA/GPIO11_2

Hi3751ARBCV6200M00

SOG
VGA_RP
VGA_GP
VGA_BP

VGA_GN1
VGA_GN2
VGA_GN3

VGA_HS0

VGA_VS0
VGA_DDC_SC L/GPIO15_5
VGA_DDC _SDA/GPI O15_6

HDMI & AFE & AUDIO

TSI1_SYNC/SD_CARD_PWREN/GPIO6_7

CI & CA & IF & SFC & EMMC & SD & FE & USB

SOY

YP
PBP
PRP
YN1
YN2

CVBS0
CVBS1
CVBS2

CVBS_VCOM

VDAC1_OU T

BG_RES_10K

MIC _N
MIC _P

SPDIF_OUT/GPI O3_4

LINEIN _R1
LINEIN _L1
LINEIN _R2
LINEIN _L2
LINEIN _R3
LINEIN _L3

SGND

HEADPH ONE_R1

HEADPHONE_L1

LINEOUT_R2

LINEOUT_L2

LINEOUT_R3

LINEOUT_L3

SFC_WPN _IO2/GPI O1_7/SPI2 _DO

SFC_CS1N /GPIO2_3/ SPI2_CSN

SFC_HOLD N_IO3/ GPIO2_2/PMC4

SFC_DIO/GPIO1_6/PWM0

SFC_DOI/ GPI O2_1/PWM2/SPI2_DI

SFC_CLK/ GPIO2_0/ SPI2_CLK

EMMC_D0/GPIO3_0
EMMC_D1/GPIO3_3
EMMC_D2/GPIO3_2
EMMC_D3/GPIO3_6
EMMC_D4/GPIO3_5
EMMC_D5/GPIO3_7
EMMC_D6/GPIO4_0
EMMC_D7/GPIO3_1

EMMC_DQS/GPIO2_4

EMMC_CLK/GPIO2_7

EMMC_CCMD/GPIO2_6

EMMC_R STN /GP IO2 _5

SD_CARD_DETN
TSI1_D3/SD _CDATA0/GPI O6_0
TSI1_D2/SD _CDATA1/GPI O5_7
TSI1_D7/SD _CDATA2/GPI O6_4
TSI1_D6/SD _CDATA3/GPI O6_3

TSI1_D4/SD_ CCLK_OUT/G PIO6_1

TSI1_D5/SD_CCMD/GPIO6_2
TSI1_D1/SD_ CWPR/ GPIO5_6

TSI1_CLK/GPIO6_5

TSI1_VLD/PMC2/ GPIO6_6

TSI1_D0/PMC3/ GPIO5_5

FEPHY LED0/R OMBOOT_SEL

FEPHYLED1/SFC_ADDR_MOD

AJ14
AN15
AL14
AN13
AK14
AM13
AM15
AJ13
AH14
AJ12
AH13

AH15
AL16
AL15
AN17
AK15
AK16

AH16
AJ16

C4006 47NF 16V

AM17
AJ17

C4007 47NF 16V R4007 33 OHM 1/16W

AJ15
AH17

R4008 10K 1%

AK31
AK32

C4008 10PF 50V

AL10
AM31

C4011 1UF 10V

AN31

C4012 1UF 10V

AM32
AN32
AL30
AJ29

AG28
AM33
AL31
AL33
AL32
AK33
AK30

R4015

470K

R4006 33 OHM 1/16W

C4013 4.7UF 6. 3V
C4014 4.7UF 6. 3V R4014 560R

R4016

470K

LINE_OUT_L3 [28]

R4019

1K

G28

USB3_PWR_EN

F29
F27
G27

WIFI_RST

G26

LED_B

F28

LD_EN

AM7
AL8
AM8
AL7
AN7
AN6
AM6
AL9
AM5
AN4

R4020 33 OHM 1/16W

AM4
AN9

AG30
AE29
AF30
AE32
AE31
AE30
AF32
AF31
AG29

DEM_TSI1_CLK

AH30

DEM_TSI1_VLD

AF29

DEM_TSI1_SYNC

AH29

DEM_TSI1_D0

AK12
AL12
AM11
AN11
AK10
AJ10
AD16

R4026 10K 1%

H33

USB2_DP0

H32

USB2_DM0

J30

USB2_DP1

J31

USB2_DM1

K32

USB2_DP2

K33

USB2_DM2

L31

USB3_DP

L30

USB3_DM

N31

USB3_TXP

N30

USB3_TXN

M33

USB3_RXP

M32

USB3_RXN

L24

R4027 133R 1/ 10W 1%

FE_TX­FE_TX+
FE_RX­FE_RX+
FEPHYLED0
FEPHYLED1

0603

FE_TXN
FE_TXP
FE_RXN
FE_RXP

FE_REXT

USB2_DP0
USB2_DM0
USB2_DP1
USB2_DM1
USB2_DP2
USB2_DM2

USB3_DP3
USB3_DM3
USB3_TXP
USB3_TXN
USB3_RXP
USB3_RXN

USB2_RBIAS

R4009

SPDIF_ OUT
AV_AU_R

AV_AU_L

R4013 560R

PMC4_GPU

C4019

2.2UF 6.3V

USB3_PWR_EN [4]
UART_SW#[28]

WIFI_RST[4]
LED_B [ 7]
LD_EN [26]

USB2_DP0 [4]
USB2_DM0 [ 4]
USB2_DP1 [4]
USB2_DM1 [ 4]
USB2_DP2 [4]
USB2_DM2 [ 4]

USB3_DP [4]
USB3_DM [ 4]
USB3_TXP [4]
USB3_TXN [4]
USB3_RXP [4 ]
USB3_RXN [ 4]

75R 1/16W 1%

SPDIF_ OUT [1 2]
AV_AU_R [4]

AV_AU_L [4]

EMMC_D0
EMMC_D1
EMMC_D2
EMMC_D3
EMMC_D4
EMMC_D5
EMMC_D6
EMMC_D7
EMMC_DQS
EMMC_CLK
EMMC_C MD
EMMC_RSTN

C4026
NC/10PF 50V

DEM_TSI1_CLK [3]
DEM_TSI1_VLD [3]
DEM_TSI1_SYN C [ 3]
DEM_TSI1_D0 [ 3]

FE_TX-[4]
FE_TX+[4]
FE_RX- [4]
FE_RX+ [4]
FEPHYLED0 [4]
FEPHYLED1 [4]

AV Input/Output

PMC4_GPU [13]

Ethernet Input

USB 2.0 Input

USB 3.0 Input

AV_CVBS

VDAC1_OUT

C4015

2.2nF 50V

AV_CVBS [ 4]

L401 2.2UH
C4009
220PF 50V

LINE_OUT_R 2
LINE_OUT_L2

C4016

2.2nF 50V

EMMC_D 0
EMMC_D 1
EMMC_D 2
EMMC_D 7
EMMC_D 6
EMMC_D 5
EMMC_D 3
EMMC_D 4

Change component IO to AV

Rain

LINE_OUT_R2 [12]
LINE_OUT_L2 [12]

RP401 0R

RP402 0R

AV_CVBS_OUT

C4010
220PF 50V

8
7
6
5
8
7
6
5

1
2
3
4
1
2
3
4

AV_CVBS_OUT [12]

NF_D0
NF_D1
NF_D2
NF_D7
NF_D6
NF_D5
NF_D3

C4027 2.2U F 6. 3V

VCC_1V8

VCC_3V3

NF_D0
NF_D1
NF_D2

NF_D3
NF_D4
NF_D5NF_D4
NF_D6
NF_D7

8GB e-M MC

U406
THGB MH G6C1 LBAIL

A3

DAT0

A4

DAT1

A5

DAT2

A6

VSS

A7

NC

B2

DAT3

B3

DAT4

B4

DAT5

B5

DAT6

B6

DAT7

C2

VDDI

C4

Vssq

C5

NC

C6

Vccq

D4

A1 index

E5

NC

E6

Vcc

E7

Vss

E8

NC

E9

NC

E10

NC

F5

Vcc

F10

NC

G3

NC

FUNCTION MODE

ROMBOOT SEL

BOOT DEVICE SEL

POWER ON RESET SEL

JTAG SEL

JTAG_MUX

3V3_STB

NCB1NCC1NC

N1

Boot Strap Selection

RSTN

Vssq
Vccq
Vssq
Vccq
Vssq
Vccq
Vssq

CLK
CMD
Vccq

Vcc

Vss

VSS

Vcc

Vss

Vss

C4018
100nF 16V

NC
NC

NC

NC
NC

DS
NC

FUNC_SEL[7]

POR_SEL[7]

U407
G690L293T73Uf

RESET

3

Vcc

GND

P10

VCC_1V8
P7
P6
P5
P4
P3
N5
N4
N2
M6
M5
M4
K10

VCC_3V3
K9
K8
K7
K6
K5
J5
J10
H10
H5
G10
G5

2
1

NF_CMD

NF_RSTN

R4025

NC/33K 1/ 16 W

FUNC_SE L

ROMBO OT_ SEL

BOOT _SEL 0

BOOT _SEL 1

POR_SEL

JTAG_SEL

JTAG_MUX0

JTAG_MUX1

Chip Config

FUNC_SEL

POR_SEL

BOOT_SEL1

R4017 100OHM

R4018
100K

VCC_3V3

C4020

C4021

100nF 16V

100nF 16V

EMMC_C MD

R4021 0R05 OH M

R4022 47K
R4023 0R05 OH M

R4024 0R05 OH M

C4028
NC

0:NORM AL FUNCTI O N

DS

1:TEST

DS

0:BOOT FRO M ROM

1:BOOT FROM FLASH

00:SPI FLASH

DS

01:RESERVED

DS

1X:eMMC

0:reset from RESTIN pin

US

1:reset from internal POR signal

0:registers control JTAG

DS

1:JTAG_MUX0/1 control JTAG

00:A53 JATG

S

01:DSP JTAG
10:DDRC JT AG

S

11:A53 JTAG

R4010 1K

R4011 1K

R4012 10K

SYS_RSTN

C4017
NC

C4022

2.2UF 6. 3V

R4133 10K

EMMC_CLK

EMMC_CMD

VCC_1V8

EMMC_RSTN

EMMC_DQS

VCC_3V3

VCC_1V8

C4023
100nF 16V

VCC_1V8

SYS_RSTN [ 7]

C4024

100nF 16V

0

0

10

0

0

C4025

2.2UF 6.3V

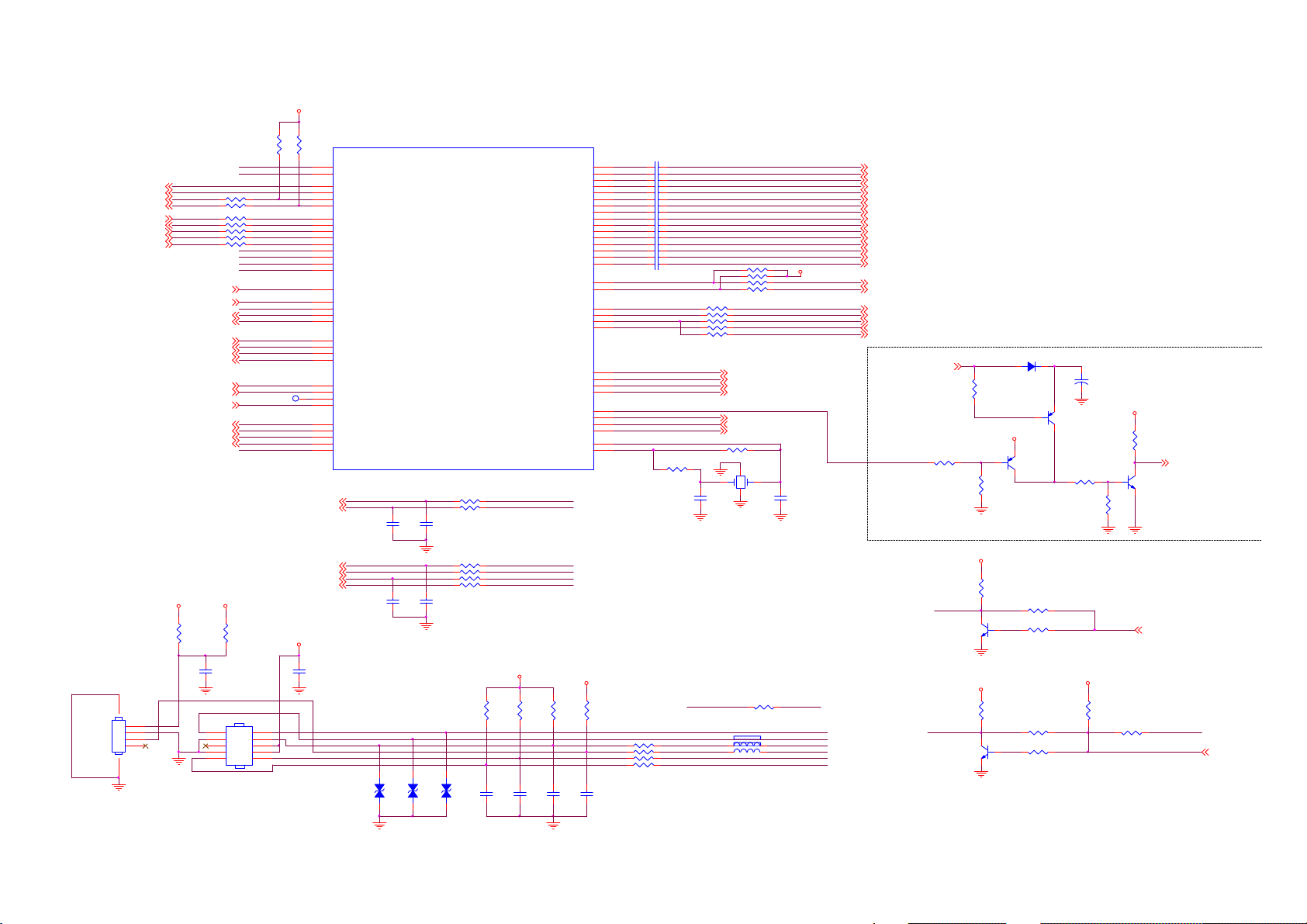

8-2-5 Hi3751V620 GPIO/KEY/IR/VB1

VCC_3V3

U401E Hi3751ARBCV6200M00

BRI_PWM2/GPI O0_5/SPI1_D O/SCN_EN/SPI3_DO

R4043 1K
R4044 1K

C4047

C4048

2.2UF 6. 3V

2.2UF 6. 3V

R4052 22 OHM 1/16W
R4053 22 OHM 1/16W
R4055 22 OHM 1/16W
R4063 22 OHM 1/16W

C4049

C4050

22PF 50V

22PF 50V

12

ZD404

12

ZD405

NC/MLVG0402

ZD403

NC/MLVG0402
NC/MLVG0402

VBO_TX0P
VBO_TX0N
VBO_TX1P
VBO_TX1N
VBO_TX2P
VBO_TX2N
VBO_TX3P
VBO_TX3N
VBO_TX4P
VBO_TX4N
VBO_TX5P
VBO_TX5N
VBO_TX6P
VBO_TX6N
VBO_TX7P
VBO_TX7N

VBO_LOCKN

EN_3D/VD P_VSYNC/GPIO0_7

SYNC _3D_IN/SPI0_DI/GPIO0_2

SYNC _3D_OUT/SPI 0_CSN/GPIO0_1

VSYNC _GLSS/SPI0_C LK/GPIO0_0

BRI_PWM1/GPI O0_4/SPI0_DO/LD_EN

BRI_PWM0/GPIO0_3

BRI_PWM3/GPI O0_6/SPI1_CLK/SPI3_CLK

STB_GPIO18_0
STB_GPIO18_1
STB_GPIO18_2
STB_GPIO18_3

V-BY-ONE & I 2S & I2C & XTAL & I R & ADC

PMC0
PMC1

I2S1_BCLK
I2S1_DOUT
I2S1_MCLK
I2S1_WS

3V3_STB

R4074
NC/6K8 1%

C4056
NC/10N 50V

R4075
6K8 1%

C4057

NC/10N 50V

R4076
100K

C4058
NC/100PF 50V

VBO_HPN

OLED_ON_RF[26]
OLED_FW_GPIO[26]
OLED_OFF_RS[26]
OLED_ERROR_DET[26]
OLED_EVDD_DET[26]

CN415

WAFER 1. 25m m

4.7K1/16W

4.7K1/16W

R4059

R4060

TP6

3V3_STB

AJ4

PMC0/GPIO12_4

AK2

PMC1/GPIO12_6

AK3

I2C0_SCL/ GPIO11_6

AL3

I2C0_SDA/ GPIO11_7

D23

I2C1_SCL/ GPIO1_5/SPI 1_DI/SPI3_DI

C23

I2C1_SDA/ GPIO1_4/SPI 1_CSN/SPI3_CSN

AM1

I2S0_BCLK/GPI O12_1

AN2

I2S0_DIN 0/GPIO12_5

AN3

I2S0_DOUT0/GPI O12_3

AM3

I2S0_MCLK/GPIO12_0

AL5

I2S0_WS/GPI O12_2

AJ1

I2S1_BCLK/GPI O15_7

AJ3

I2S1_DOUT/I 2S1_DIN/GPIO13_2

AK1

I2S1_MCLK/BOOT_SEL0

AJ2

I2S1_WS/GPI O12_7

AE3

IRIN /STB_GPIO19_0

AH3

LS_ADC0/STB_GPIO18_4

AG5

LS_ADC1/STB_GPIO18_5

AG4

LS_ADC2/STB_GPIO18_6

AH4

LS_ADC3/STB_GPIO18_7

AF3

UART1_RXD/UAR T0_RXD/STB_GPIO19_1/VGA_DDC_SDA/DBGI2C_SD A

AE4

UART1_TXD/UART0_TXD/STB_GPIO19_2/VGA_DDC_SCL/DBGI2C_SCL

AL4

UART2_RXD//I 2C2_SCL/GPIO13_0/I2S0_DIN1

AM2

UART2_TXD/I2S1_DOUT1/I 2C2_SDA/GPIO13_1/I2S0_DOUT1

AD5

FUNC _SEL

AE2

POR_SEL

AJ9

JTAG_SEL

AD2

RESTIN

G25

BLK_ON/GPIO1_3

AE5

STANDBY/ STB_GPIO19_3

AL2

AMP_MUTE/STB_GPIO19_5

F26

POWEN/GPI O1_0

AD1

LED_PWM/STB_GPIO19_4

PMC0_VDD[13]
PMC1_CPU[13]

I2S_BCLK[12]
I2S_DOUT[12]
I2S_MCLK[12]
I2S_WS[12]

PMC0_VDD
PMC1_CPU

I2S_BCLK
I2S_DOUT
I2S_MCLK
I2S_WS

C4055
100nF 16V

LIGHT_LOGO
KEY_IN

PMC0

I2C0_SCL[12]
I2C0_SDA[12]
M5_I2C1_SCL[16,26]
M5_I2C1_SDA[16,26]

I2C0_SCL
I2C0_SDA
I2C1_SCL
I2C1_SDA

KEY0_IN[11]

FRC_RST[16]

AUD_RSTN[12]

UART0_RXD[ 5,28]

UART0_TXD[5,28]
UART2_RXD_SCL2[11,28]
UART2_TXD_SDA2[11,28]

FUNC _SEL[6]

POR_SEL[6]

SYS_RSTN[6]

BL_ON_OFF[13]

PWR_ON_OFF[13]

AUD_MUTE[12,28]

TCON _PWR[27]

3V3_STB

R4134

0R05 OHM

PMC1

R4146 0R 05 OHM
R4147 0R 05 OHM

R4176 0R 05 OHM
R4301 0R 05 OHM
R4303 0R 05 OHM
R4302 0R 05 OHM
R4304 0R 05 OHM

I2S1_BCLK
I2S1_DOUT
I2S1_MCLK
I2S1_WS

IR_IN

IR_IN[28]

KEY0_IN
KEY1_IN
FRC_RST
AUD_RSTN

UART0_RXD
UART0_TXD
UART2_RXD_SCL2
UART2_TXD_SDA2

FUNC_SEL
POR_SEL

SYS_RSTN

BL_ON_OFF
PWR_ON_OF F
AUD_MUTE
TCON _PWR
LOGO

VCC_3V3

R4135
0R05 OHM

C4054
NC/100N16V

56

1
2
3
4

CN401

CONN

2

1

4

3

6

5

8

7

10

9

12

Keypad / IR / LED

space/trace/space/trace/space(mil)

10 / 6 / 5 / 6 / 10

D26

C4228 100nF 16V

C26

C4230 100nF 16V

B27

C4229 100nF 16V

A27

C4232 100nF 16V

D28

C4234 100nF 16V

C28

C4235 100nF 16V

B29

C4233 100nF 16V

A29

C4231 100nF 16V

D30

C4240 100nF 16V

C30

C4243 100nF 16V

B31

C4242 100nF 16V

A31

C4241 100nF 16V

C33

C4239 100nF 16V

C32

C4238 100nF 16V

E33

C4237 100nF 16V

E32

C4236 100nF 16V

G21

VBO_HPN

F22

VBO_LOCKN

E22

3D_EN/VDP_VSYN C

E23

SYNC _3D_IN

D24

SYNC _3D_OUT

G22

I2C_RDY/AC_DET

G24

BL_BR_CTRL

F24

AMBI_ON_OFF

E24

AMBI_SPI_DATA

F25

AMBI_SPI_CLK

AD3
AD4

DDR_PWREN

AF4
AH26

MHL_VBUS_EN

AG2

XOU T

XIN

XIN

AG1

XOU T

VCC_3V3

R4140
NC/4.7K1/16W

R4079 100OHM
R4141 33 OHM 1/16W
R4080 1K
R4081 NC/1K

C4226

NC/10N 50V

VB1 Output to MEMC chip

R4073 NC/ 100OHM
R4077 NC/ 100OHM
R4078 NC/ 100OHM
R4308 NC/ 100OHM
R4086 100OHM

R4042

100OHM

Keypad / IR / LED

R4062 10K
R4061 10K
R4071 100OHM
R4072 100OHM

BL_BR_CTRL [13]
AMBI_ON_OFF [11]
AMBI_SPI_DATA [11]
AMBI_SPI_CLK [11]

DDR_PWREN [13]

WIFI_WOL [4]

MHL_VBUS_EN [5]

R4041 1M

X401

24

24MHZ

1

C4045
18PF 50V

Crystal

R4082 NC

FB410 FB411 -->371G042P221D00

1 2

FB411 220R

1 2

FB410 220R

3

VBO_TX0P
VBO_TX0N
VBO_TX1P
VBO_TX1N
VBO_TX2P
VBO_TX2N
VBO_TX3P
VBO_TX3N
VBO_TX4P
VBO_TX4N
VBO_TX5P
VBO_TX5N
VBO_TX6P
VBO_TX6N
VBO_TX7P
VBO_TX7N

VCC_3V3

SOC_SYNC_3D_OUT
POWER_EN_MEMC

C4046
18PF 50V

LOGOLED_RED

LED_RED
LED_BLUE
IR_IN
LOGO
KEY0_IN
KEY1_IN

M5_RXCON_O_0P [20]
M5_RXCON_O_0N [20]
M5_RXCON_O_1P [20]
M5_RXCON_O_1N [20]
M5_RXCON_O_2P [20]
M5_RXCON_O_2N [20]
M5_RXCON_O_3P [20]
M5_RXCON_O_3N [20]
M5_RXCON_O_4P [20]
M5_RXCON_O_4N [20]
M5_RXCON_O_5P [20]
M5_RXCON_O_5N [20]
M5_RXCON_O_6P [20]
M5_RXCON_O_6N [20]
M5_RXCON_O_7P [20]
M5_RXCON_O_7N [20]

M5_VBORX_HPN [20]
M5_VBORX_LOCKN [20]

3D_EN/PC ID [26]
3D_SYN C_OUT_SOC [20]
SOC_SYN C_3D_OUT [16]
GPIO1_2 [16]
POWER_EN_MEMC [22]

ACD_PSU[13]

ACD_V620

R754 10K

LED_BLUE

LED_RED

3V3_STB

VCC_5V

ACD_PSU

R770
10K 1/10W

0603

R766
100K

R4054
NC/2K OHM

Q401
NC/MMBT3904

R4066
NC/1K

Q402
NC/MMBT3904

D701

LL4148

Q709

Q708
MMBT3906

MMBT3906

R767

4.7K1/16W

VCC_3V3

R4064 33 OHM 1/16W

R4065 NC/4.7K1/16W

R4068 33 OHM 1/16W

R4070 NC/4.7K1/16W

Updated on 2017/09/04 for

Panel T5 timiing control

+

C775
100UF 16V

VCC_3V3

R769
10K

Q710

MMBT3904
R768
100K

LED_R

LED_R [13]

3V3_STB

R4067
NC/4.7K1/16W

R4069 NC

OLED_AC_DET [26]

LED_R

LED_B

LED_B [6]

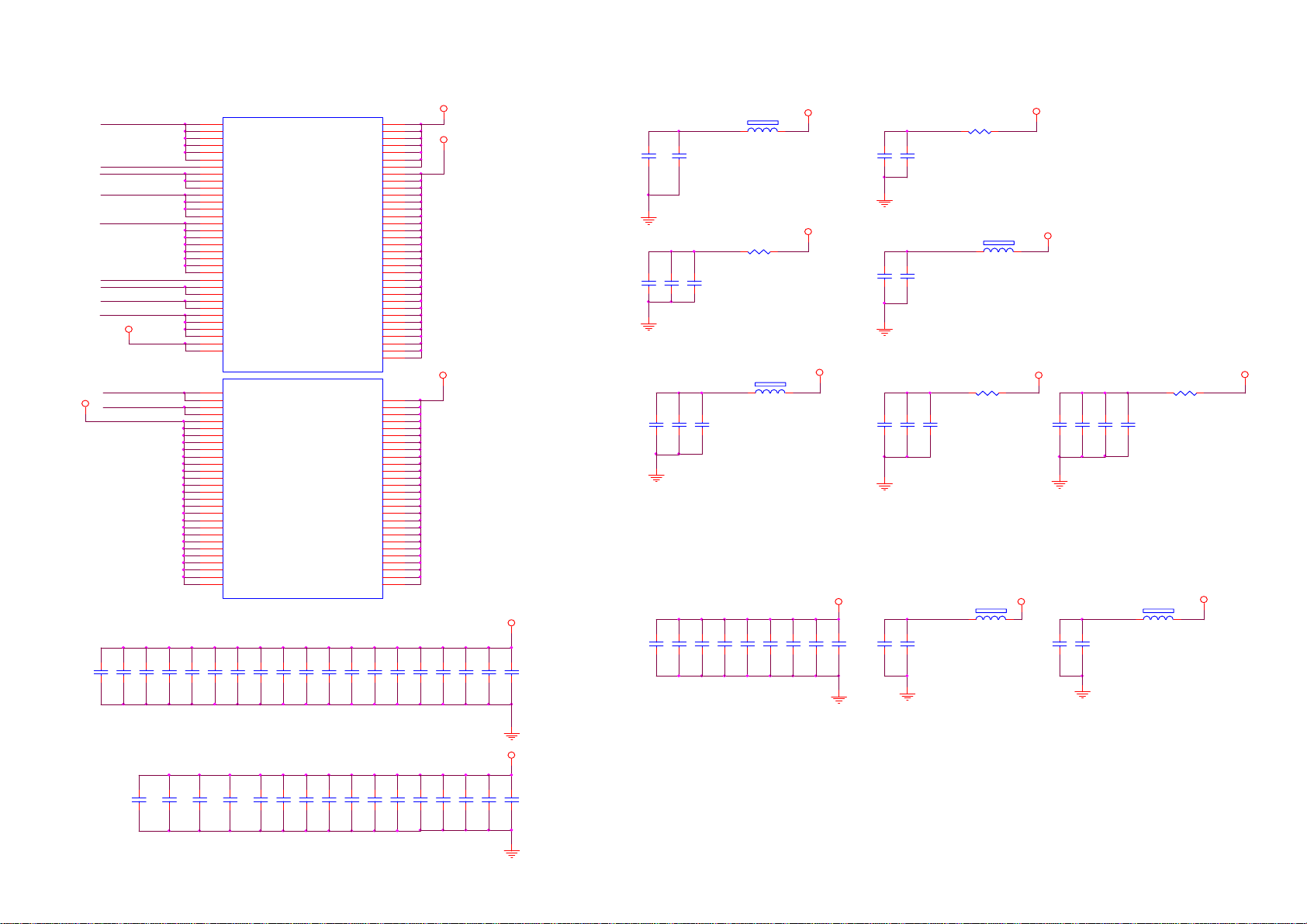

8-2-6 Hi3751V620 Power/GND

1V1_VDD

P15
P16
P17
R14
R15
R16
R17

T13
T14
T15

T16
U12
U13
U14
U15
V12
V13
V14

W12

1V1_CPU

W13

AB11
AC11
AC12
AC13
AC14
AE10
AE11
AE12

1V1_GPU

AE13

R23
R25

T23

T25
U23
U25
V23
V25

1V5_DDR3

C4091

100nF 16V

C4105
1UF 10V

C4092
1UF 10V

C4106
1UF 10V

E5
F4
F5
F6
F7
G6
G7
G8
G9

G10

H7
H8
H9

H10

J7
J8

J9
K7
K8

J13

R9

power

U401C

VDD1
VDD2
VDD3
VDD4
VDD5
VDD6
VDD7
VDD8
VDD9
VDD10
VDD11
VDD12
VDD13
VDD14
VDD15
VDD16
VDD17
VDD18
VDD19
VDD20

VDD_CPU1
VDD_CPU2
VDD_CPU3
VDD_CPU4
VDD_CPU5
VDD_CPU6
VDD_CPU7
VDD_CPU8
VDD_CPU9

VDD_GPU1
VDD_GPU2
VDD_GPU3
VDD_GPU4
VDD_GPU5
VDD_GPU6
VDD_GPU7
VDD_GPU8

VDDIO_DDR1
VDDIO_DDR2
VDDIO_DDR3
VDDIO_DDR4
VDDIO_DDR5
VDDIO_DDR6
VDDIO_DDR7
VDDIO_DDR8
VDDIO_DDR9
VDDIO_DDR10
VDDIO_DDR11
VDDIO_DDR12
VDDIO_DDR13
VDDIO_DDR14
VDDIO_DDR15
VDDIO_DDR16
VDDIO_DDR17
VDDIO_DDR18
VDDIO_DDR19
VDDIO_CK_DDR0
VDDIO_CK_DDR1

Hi3751ARBCV 6200M00

C4093
1UF 10V

C4107
1UF 10V

C4094
1UF 10V

C4108
1UF 10V

POWER

1V1_VDD

1V1_GPU

C4095
1UF 10V

C4109
1UF 10V

C4096
1UF 10V

C4110
1UF 10V

AVDD_DDR 0_PLL1
AVDD_DDR 0_PLL2
AVDD_DDR 1_PLL1
AVDD_DDR 1_PLL2

AVDD11_FE

AVDD11_AFE

AVDD11_PLL_AFE
AVDD11_HDMI RX1
AVDD11_HDMI RX2

AVDD11_QAM

AVDDREF

AVDD11_PLL

DVDD11_USB3

AVCC11_USB2
AVDD11_VBO_1
AVDD11_VBO_2
AVDD11_VBO_3

DVDD33_1
DVDD33_2
DVDD33_3
DVDD33_4
DVDD33_5
DVDD33_6
DVDD33_7
DVDD33_8

AVDD33_FE
AVDD33_AFE1
AVDD33_AFE2

AVDD33_HDMI RX1
AVDD33_HDMI RX2

AVDD33_USB2

AVDD33_USB3
AVDD33_VBO_1
AVDD33_VBO_2
AVDD33_VBO_3

AVDD33_PLL

PVDD33_CODEC

DVDD33_STANDBY 1
DVDD33_STANDBY 2

DVDD1833_EMMC1
DVDD1833_EMMC2

DVDD11_LD O1_OUT

AVREF

C4097

C4098

10uF 6.3V

22uF 6.3V

0603

0603

C4112

C4111

22uF 6.3V

10uF 6.3V

0603

0603

AVDD_DDR0_PLL

J15

AVDD_DDR1_PLL
J11
N9
T8

1V2_LDO
AC17
AC19
AC18
AC21
AC22

AVDDREF
Y23

AA23
U11

N23
M23

1V1_VDD
M20
M21
M22

R27
T27
W28
Y28
AA28

VCC_3V3
AD28
AE28
AH28

AE16
AE19
AE18
AE21
AE22

M25
N25
J22
J23

AVDD33_PLL
J24

V10
AF28

3V3_STB
AC4
AC5

VCC_1V8
AK8
AK9

AA11

LDO_1V1_OUT

AC25

C4084

2.2UF 6. 3V

AVDD11_PLL

1V1_VDD

PVDD33_CODE C

C4083

2.2UF 6.3V

C4070
1UF 10V

C4059

100nF 16V

1V2_LDO

C4064

100nF 16V

VBO_1V1 & USB_1V1

AVDD_DDR 0_PLL

VCC_3V3 VCC_3V3

FB401

1 2

120R

1V2_LDO

C4063

100nF 16V

C4069

100nF 16V

HDMI_1V2 & AFE_1V2

AVDD11_PLL

FE_1V2

FB404

1 2

120R

VCC_3V3

C4076

C4077

100nF 16V

100nF 16V

VCC_3V3 VCC _3V3

USB_3V3

C4085

C4086

100nF 16V

10uF 6.3V

VBO_3V3

C4087

100nF 16V

FB406

1 2

120R

C4060
1UF 10V

C4065

2.2UF 6. 3V

C4071

100nF 16V

C4078

100nF 16V

C4066

2.2UF 6. 3V

1V1_VDD

C4088
1UF 10V

PVDD33_CODECVC C_3V3

C4099

100nF 16V

1V2_LDO

C4072

100nF 16V

C4079
1UF 10V

C4089
10uF 6.3V

06030603

C4100
1UF 10V

1 2

1 2

C4073
10uF 6.3V

0603

HDMI_3V3 & AFE_3V3

FB402

120R

FB403

120R

VCC_3V3

VCC_3V3

C4080

100nF 16V

FB405

1 2

120R

3V3_STB

C4101

100nF 16V

AVDD_DDR1_PLL

C4061

100nF 16V

AVDDREF

C4067

100nF 16V

VCC_3V3

FE_3V3

C4074

100nF 16V

C4081

100nF 16V

AVDD33_PLL

VCC_1V8

C4103

100nF 16V

C4102
1UF 10V

C4062
1UF 10V

C4068
1UF 10V

C4075
1UF 10V

C4082

2.2UF 6.3V

C4090
1UF 10V

C4104
10uF 6.3V

0603

C4225

2.2UF 6.3V

AA12
AA13
AA14
AA15
AA16
AA17
AA18
AA19
AA20
AA21

AB12
AB13
AB14
AB15
AB16
AB17
AB18
AB19
AB20
AB21
AB22
AB23
AB26
AB28

AC15
AC16
AC28

AN33

N20

N19

N18

N17

N16

N15

V21

V20

V19

V18

V17

V16

V15

U22

U21

U20

U19

U18

U17

U16

T22

T21

T20

T19

T18

T17

T12

T11

R22

R21

R20

R19

R18

R13

R12

R11

P23

P22

P21

P20

P19

P18

P14

P13

P12

P11

N22

VSS153

VSS152

VSS151

VSS150

VSS149

VSS148

VSS147

VSS146V6VSS145V4VSS144V3VSS143

VSS142

VSS141

VSS140

VSS139

VSS138

VSS137

VSS136U8VSS135U7VSS134U5VSS133

VSS132

VSS131

VSS130

VSS129

VSS128

VSS127

VSS126

VSS125T6VSS124T3VSS123

VSS122

VSS121

VSS120

VSS119

VSS118

VSS117

VSS116

VSS115R7VSS114R3VSS113

VSS112

VSS111

VSS110

VSS109

VSS108

VSS107

VSS106

VSS105

VSS104

V22

VSS154

V28

VSS155

W8

VSS156

W14

VSS157

W15

VSS158

W16

VSS159

W17

VSS160

W18

VSS161

W19

VSS162

W20

VSS163

W21

VSS164

W22

VSS165

Y3

VSS166

Y12

VSS167

Y13

VSS168

Y14

VSS169

Y15

VSS170

Y16

VSS171

Y17

VSS172

Y18

VSS173

Y19

VSS174

Y20

VSS175

Y21

VSS176

AA7

VSS177

AA8

VSS178
VSS179
VSS180
VSS181
VSS182
VSS183
VSS184
VSS185
VSS186
VSS187
VSS188

AB2

VSS189
VSS190
VSS191
VSS192
VSS193
VSS194
VSS195
VSS196
VSS197
VSS198
VSS199
VSS200
VSS201
VSS202
VSS203

AC3

VSS204
VSS205
VSS206
VSS207

AD6

VSS208

AE6

VSS209

AF5

VSS210

AG3

VSS211

AG6

VSS212

AH5

VSS213

AH6

VSS214

AJ5

VSS215

AK4

VSS216

AK6

VSS217

AK7

VSS218

AM9

VSS219

AN1

VSS220
VSS221

AVSS33_CODEC

AVSS_QAM2

AGNDREF

AVSS_AFE1

AVSS_QAM1

Y22

AC26

AVSS_HDMI RX4

AVSS_HDMI RX3

AVSS_HDMI RX2

AVSS_HDMI RX1

AVSS_AFE2

AA22

AE23

AE20

AG31

AD18

AC23

AC20

AD19

AVSS_HDMI RX12

AVSS_HDMI RX11

AVSS_HDMI RX10

AVSS_HDMI RX9

AVSS_HDMI RX8

AVSS_HDMI RX7

AVSS_HDMI RX6

AVSS_HDMI RX5

AL19

AL17

AJ28

AK29

AK27

AK25

AK23

AK21

AK19

U401B

GND

Hi3751ARBCV6200M00

AVSS_USB3_2

AVSS_USB3_1

AVSS_PLL

AVSS_HDMI RX18

AVSS_HDMI RX17

AVSS_HDMI RX16

AVSS_HDMI RX15

AVSS_HDMI RX14

AVSS_HDMI RX13

V11

N29

M31

M30

AL29

AL27

AL25

AL23

AL21

AVSS_USB3_3

B32

A33

A32

E25

B33

D31

D29

D27

C31

C29

C27

AVSS_VBO_11

AVSS_VBO_10

AVSS_VBO_9

AVSS_VBO_8

AVSS_VBO_7

AVSS_VBO_6

AVSS_VBO_5

AVSS_VBO_4

AVSS_VBO_3

AVSS_VBO_2

AVSS_VBO_1

VSS103P9VSS102P6VSS101

AVSS_VBO_20

AVSS_VBO_19

AVSS_VBO_18

AVSS_VBO_17

AVSS_VBO_16

AVSS_VBO_15

AVSS_VBO_14

AVSS_VBO_13

AVSS_VBO_12

K24

K23

K22

E31

E30

E29

E28

E27

E26

AE17

N14

N21

VSS99

VSS98

VSS97

VSS96

VSS95

VSS94

VSS100

VSS3

VSS2

VSS1A1AVSS33_FE4

AVSS33_FE3

AVSS33_FE2

AVSS33_FE1

A22

A15

A13

AL13

AL11

AK11

M18

N13

N12

N11

M19

VSS93

VSS85

VSS92

VSS91

VSS90

VSS89N7VSS88N4VSS87N2VSS86

VSS8

VSS7

VSS6B6VSS5B3VSS4

B21

B16

B14

M17

VSS84

M16

VSS83

M15

VSS82

M14

VSS81

M13

VSS80

M12

VSS79

M11

VSS78

M7

VSS77

M4

VSS76

M1

VSS75

L29

VSS74

L26

VSS73

L20

VSS72

L19

VSS71

L18

VSS70

L17

VSS69

L16

VSS68

L15

VSS67

L14

VSS66

L13

VSS65

L12

VSS64

L11

VSS63

L7

VSS62

L5

VSS61

L4

VSS60

L2

VSS59

K31

VSS58

K30

VSS57

K26

VSS56

K4

VSS54

K1

VSS53

J29

VSS52

J14

VSS51

J5

VSS49

J2

VSS48

H31

VSS47

H19

VSS46

H6

VSS45

H4

VSS44

G20

VSS43

G19

VSS42

G17

VSS41

G16

VSS40

G14

VSS39

G13

VSS38

G11

VSS37

G3

VSS36

F21

VSS35

F14

VSS34

F12

VSS33

F10

VSS32

F3

VSS31

E17

VSS30

E15

VSS29

E10

VSS28

E6

VSS27

E4

VSS26

D22

VSS25

D18

VSS24

D17

VSS23

D16

VSS22

D15

VSS21

D8

VSS20

D5

VSS19

D4

VSS18

D2

VSS17

C19

VSS16

C18

VSS15

VSS14

VSS13

VSS12

VSS11C3VSS10C1VSS9

C17

C12

C10

C4113

100nF 16V

C4122

1UF 10V

C4114

100nF 16V

C4123

1UF 10V

C4115

100nF 16V

C4124

100nF 16V

C4116
1UF 10V

C4125

1UF 10V

1V1_CPU

C4117
1UF 10V

C4126

470NF 10V

C4118
1UF 10V

C4127

1UF 10V

C4119
1UF 10V

C4128
100nF 16V

C4120
10uF 6.3V

0603

C4129
1UF 10V

C4121
22uF 6.3V

0603

1V5_DDR3

C4130
100nF 16V

C4131

1UF 10V

C4132
100nF 16V

C4133
470NF 10V

C4134
10uF 6.3V

0603

C4135
10uF 6.3V

0603

C4136
10uF 6.3V

0603

C4137
10uF 6.3V

0603

C4138

NC/10uF 6.3V

0603

C4139
NC/10uF 6.3V

0603

Heat Sink

HS40 1

1
2

HEAT SINK

P90G0025 1

R4136 NC
R4137 NC

0603

0603

A

1V5_DDR3

1V5_DDR3

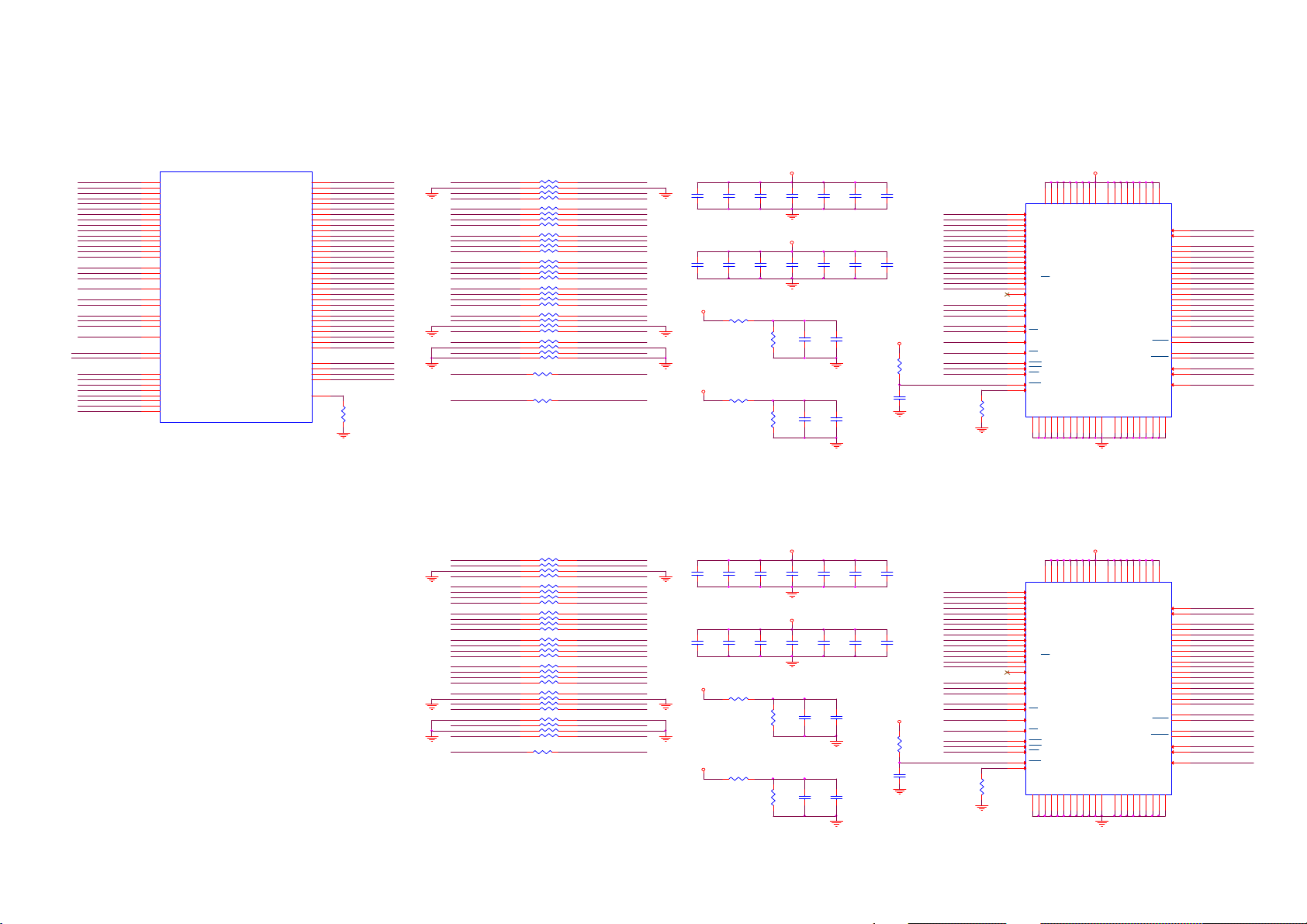

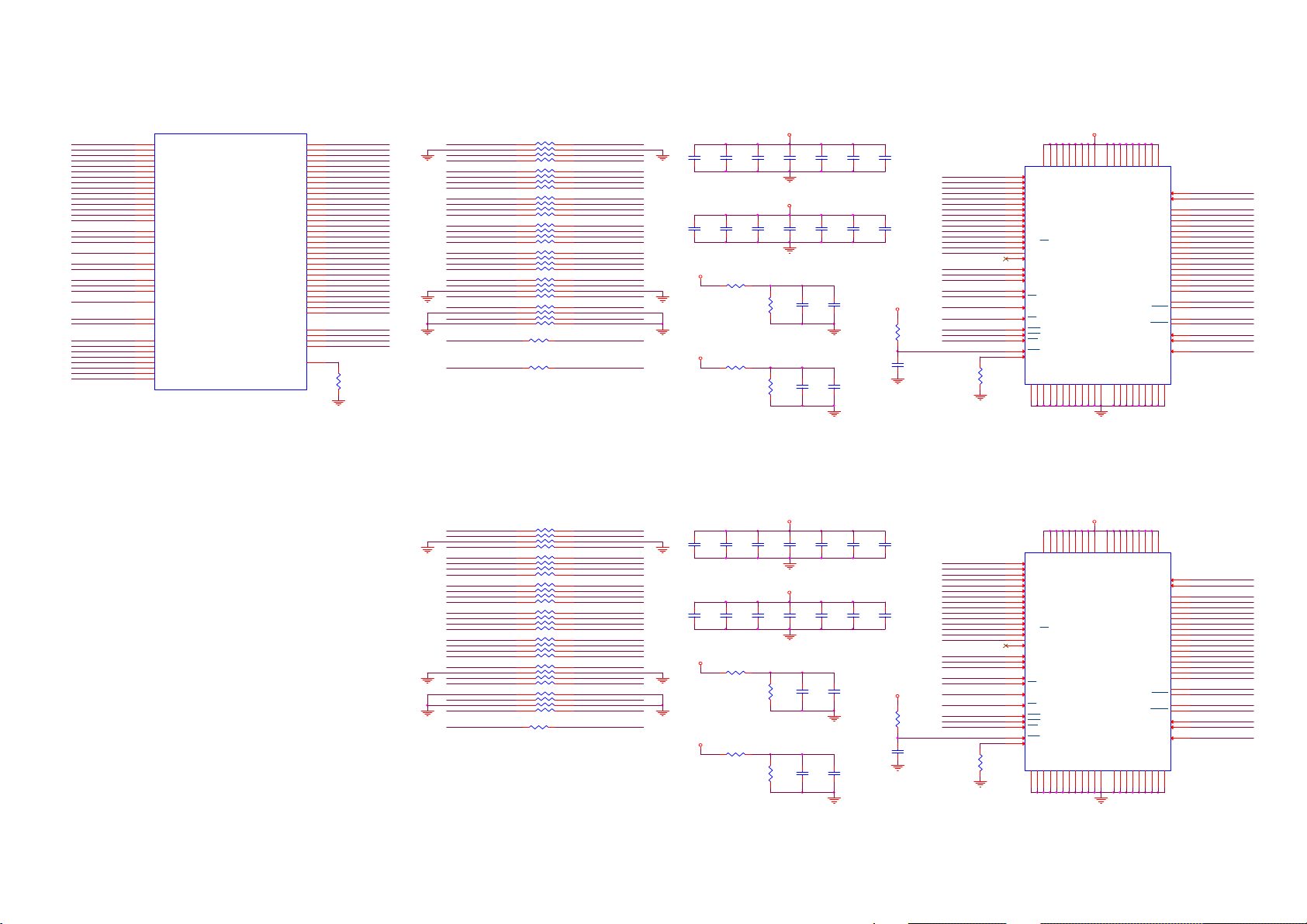

8-2-7 Hi3751V620 DDR III-1

DDR0_ADDR0
DDR0_ADDR1
DDR0_ADDR2
DDR0_ADDR3
DDR0_ADDR4
DDR0_ADDR5
DDR0_ADDR6
DDR0_ADDR7
DDR0_ADDR8
DDR0_ADDR9
DDR0_ADDR10
DDR0_ADDR11
DDR0_ADDR12
DDR0_ADDR13
DDR0_ADDR14

DDR0_BA0
DDR0_BA1
DDR0_BA2

DDR0_ODT
DDR0_CSN

DDR0_CKE
DDR0_RASN

DDR0_CASN
DDR0_WEN

DDR0_R ESETN

DDR0_C LK0_P
DDR0_C LK0_N

DDR0_D QS0_P
DDR0_D QS0_N
DDR0_D QS1_P
DDR0_D QS1_N
DDR0_D QS2_P
DDR0_D QS2_N
DDR0_D QS3_P
DDR0_D QS3_N

DDR0 DDR A

U401

C6

DDR0_A0

A9

DDR0_A1

B5

DDR0_A2

E7

DDR0_A3

C9

DDR0_A4

B4

DDR0_A5

C8

DDR0_A6

A4

DDR0_A7

B8

DDR0_A8

C7

DDR0_A9

F9

DDR0_A10

A7

DDR0_A11

D9

DDR0_A12

D6

DDR0_A13

B7

DDR0_A14

C4

DDR0_BA0

E9

DDR0_BA1

D7

DDR0_BA2

B2

DDR0_ODT

A2

DDR0_CS_N

D10

DDR0_CKE

A6

DDR0_RAS_N

E8

DDR0_CAS_N

A3

DDR0_WE_N

C5

DDR0_RESETN

B10

DDR0_C LK0_P

A10

DDR0_C LK0_N

C20

DDR0_D QS0_P

B20

DDR0_D QS0_N

B19

DDR0_D QS1_P

A19

DDR0_D QS1_N

C13

DDR0_D QS2_P

B13

DDR0_D QS2_N

B12

DDR0_D QS3_P

A12

DDR0_D QS3_N

Hi3751ARBCV6200M00

1

C22

DDR0_DQ0
DDR0_DQ1
DDR0_DQ2
DDR0_DQ3
DDR0_DQ4
DDR0_DQ5
DDR0_DQ6
DDR0_DQ7
DDR0_DQ8
DDR0_DQ9

DDR0_DQ10

DDR0

DDR0_DQ11
DDR0_DQ12
DDR0_DQ13
DDR0_DQ14
DDR0_DQ15
DDR0_DQ16
DDR0_DQ17
DDR0_DQ18
DDR0_DQ19
DDR0_DQ20
DDR0_DQ21
DDR0_DQ22
DDR0_DQ23
DDR0_DQ24
DDR0_DQ25
DDR0_DQ26
DDR0_DQ27
DDR0_DQ28
DDR0_DQ29
DDR0_DQ30
DDR0_DQ31

DDR0_DM0
DDR0_DM1
DDR0_DM2
DDR0_DM3

DDR0_ZQ

DDR0_D Q0

E18

DDR0_D Q1

D21

DDR0_D Q6

F18

DDR0_D Q3

E21

DDR0_D Q4

C16

DDR0_D Q7

D20

DDR0_D Q2

B17

DDR0_D Q5

F19

DDR0_D Q8

B22

DDR0_D Q11

A18

DDR0_D Q14

A21

DDR0_D Q9

D19

DDR0_D Q12

C21

DDR0_D Q13

B18

DDR0_D Q10

E20

DDR0_D Q15

C14

DDR0_D Q18

E12

DDR0_D Q21

C15

DDR0_D Q22

F11

DDR0_D Q23

A16

DDR0_D Q20

D11

DDR0_D Q17

F15

DDR0_D Q16

E11

DDR0_D Q19

D12

DDR0_D Q26

E16

DDR0_D Q31

C11

DDR0_D Q24

B15

DDR0_D Q25

D13

DDR0_D Q30

F16

DDR0_D Q27

E13

DDR0_D Q28

F17

DDR0_D Q29

F20

DDR0_D M0

E19

DDR0_D M1

E14

DDR0_D M2

D14

DDR0_D M3

F8

R4093

240R 1%

DDR0_ADDR6
DDR0_ADDR4

DDR0_ADDR1
DDR0_ADDR10

DDR0_ADDR14
DDR0_ADDR11
DDR0_ADDR8

DDR0_ADDR0
DDR0_BA2
DDR0_C ASN
DDR0_R ASN

DDR0_R ESETN
DDR0_ADDR13
DDR0_ADDR9
DDR0_ADDR2

DDR0_BA0
DDR0_ADDR3
DDR0_ADDR7
DDR0_ADDR5

DDR0_BA1
DDR0_ADDR12

DDR0_C KE
DDR0_ODT

DDR0_W EN

DDR0_C LK0_P DDR 0_CLK0_N

RP403 33R

RP404 33R

RP405 33R

RP406 33R

RP407 33R

RP408 33R

RP409 33R

R4089 33 OHM 1/16W

R4090 200R 1%

8
2
3
4

1
2
3
4

1
2
3
4

1
2
3
4

1
2
3
4

1
2
3
4

1
2
3
4

DDR_ADDR6_A

7
6

DDR_ADDR4_A

5

DDR_ADDR1_A

8

DDR_ADDR10_A

7

DDR_ADDR14_A

6

DDR_ADDR11_A

5

DDR_ADDR8_A

8

DDR_ADDR0_A

7

DDR_BA2_A

6

DDR_CASN_A

5

DDR_RASN_A

8

DDR_R ESETN_A

7

DDR_ADDR13_A

6

DDR_ADDR9_A

5

DDR_ADDR2_A

8

DDR_BA0_A

7

DDR_ADDR3_A

6

DDR_ADDR7_A

5

DDR_ADDR5_A

8

DDR_BA1_A

7

DDR_ADDR12_A

6
5

DDR_CKE_A

8

DDR_ODT0_A

7
6

DDR_CS0N_ADDR0_C SN

5

DDR_WEN_A

VDD

C4140

100nF 16V

VDDQ

C4147

1UF 10V

1V5_DDR3

1V5_DDR3

C4141

100nF 16V

C4148

1UF 10V

R4084

1Kohm 1/16W +/-1 %

R4091

1Kohm 1/16W +/-1 %

C4142

100nF 16V

1V5_DDR3

C4149

1UF 10V

DDR_VREF_DQ_0

R4085

1Kohm 1/16W +/ -1%

DDR_VREF_CA_0

R4094

1Kohm 1/16W +/ -1%

C4143

100nF 16V

C4150

470NF 10V

C4154

100nF 16V

C4157

100nF 16V

C4144

100nF 16V

C4151

470NF 10V

C4155
1UF 10V

C4158
1UF 10V

C4145
1UF 10V

C4152
100nF 16V

C4146
22uF 6.3V

0603

C4153
100nF 16V

1V5_DDR3

R4088

4.7K1/16W

C4156

1NF

DDR_ADDR0_A
DDR_ADDR1_A
DDR_ADDR2_A
DDR_ADDR3_A
DDR_ADDR4_A
DDR_ADDR5_A
DDR_ADDR6_A
DDR_ADDR7_A
DDR_ADDR8_A
DDR_ADDR9_A
DDR_AD DR10_A
DDR_AD DR11_A
DDR_AD DR12_A
DDR_AD DR13_A
DDR_AD DR14_A

DDR_BA0_A
DDR_BA1_A
DDR_BA2_A

DDR0_C LK0_P
DDR0_C LK0_N

DDR_CKE_A
DDR_CS0N_A
DDR_RASN_A

DDR_CASN_A
DDR_WEN_A

DDR_R ESETN_A

R4092

240R 1%

VDDB2VDDD9VDDG7VDDK2VDDK8VDDN1VDDN9VDDR1VDD

U402

K4B4G1646E-BCMA

DDR B

R9

VDDQA1VDDQA8VDDQC1VDDQC9VDDQD2VDDQE9VDDQF1VDDQH2VDDQ

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

T7

A14

M7

NC_A15

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

J3

RAS

K3

CAS

L3

WE

T2

RST

L8

ZQ

VSSA9VSSB3VSSE1VSSG8VSSJ2VSSJ8VSSM1VSSM9VSSP1VSSP9VSST1VSST9VSSQB1VSSQB9VSSQD1VSSQD8VSSQE2VSSQE8VSSQF9VSSQG1VSSQ

H9

VREF_DQ
VREF_CA

DQL0
DQL1
DQL2
DQL3
DQL4
DQL5
DQL6

DQL7
DQU0
DQU1
DQU2
DQU3
DQU4
DQU5
DQU6
DQU7

LDQS

LDQS
UDQS

UDQS

UDM

H1

DDR_VREF_DQ_0

M8

DDR_VR EF_CA_0

E3

DDR0_DQ0

F7

DDR0_DQ1

F2

DDR0_DQ2

F8

DDR0_DQ3

H3

DDR0_DQ4

H8

DDR0_DQ5

G2

DDR0_DQ6

H7

DDR0_DQ7

D7

DDR0_DQ8

C3

DDR0_DQ9

C8

DDR0_DQ10

C2

DDR0_DQ11

A7

DDR0_DQ12

A2

DDR0_DQ13

B8

DDR0_DQ14

A3

DDR0_DQ15

F3

DDR0_D QS0_P

G3

DDR0_D QS0_N

C7

DDR0_D QS1_P

B7

DDR0_D QS1_N

E7

LDM

ODT

DDR0_DM0

D3

DDR0_DM1

K1

DDR_ODT0_A

G9

1

DDR0_ADDR1
DDR0_ADDR4

DDR0_ADDR6
DDR0_ADDR8

DDR0_ADDR11
DDR0_ADDR14
DDR0_ADDR10

DDR0_R ASN
DDR0_C ASN
DDR0_BA2
DDR0_ADDR0

DDR0_ADDR2
DDR0_ADDR9
DDR0_ADDR13
DDR0_R ESETN

DDR0_ADDR5 DDR_ADDR5_B
DDR0_ADDR7
DDR0_ADDR3
DDR0_BA0

DDR0_C KE
DDR0_ADDR12

DDR0_BA1

DDR0_C SN
DDR0_ODT

DDR0_W EN

RP410 33R

RP411 33R

RP412 33R

RP413 33R

RP414 33R

RP415 33R

RP416 33R

R4098 33 OHM 1/16W

8
2
3
4

1
2
3
4

1
2
3
4

1
2
3
4

1
2
3
4

1
2
3
4

1
2
3
4

DDR_ADDR1_B

7

DDR_ADDR4_B

6
5

DDR_ADDR6_B

8

DDR_ADDR8_B

7

DDR_ADDR11_B

6

DDR_ADDR14_B

5

DDR_ADDR10_B

8
7

DDR_CASN_B

6

DDR_BA2_B DDR0_DQ16

5

DDR_ADDR0_B

8

DDR_ADDR2_B

7

DDR_ADDR9_B

6

DDR_ADDR13_B

5

DDR_R ESETN_B

8
7

DDR_ADDR7_B

6

DDR_ADDR3_B

5

DDR_BA0_B

8

DDR_CKE_B

7
6

DDR_ADDR12_B

5

DDR_BA1_B

8
7

DDR_CS1N_B

6
5

DDR_ODT1_B

DDR_WEN_B

VDD

C4159

100nF 16V

VDDQ

C4166

100nF 16V

1V5_DDR3

1V5_DDR3

C4160

1UF 10V

C4167

1UF 10V

R4095

1Kohm 1/16W +/-1 %

R4099

1Kohm 1/16W +/-1 %

C4161

100nF 16V

1V5_DDR3

C4168

1UF 10V

DDR_VREF_DQ_1

R4096

1Kohm 1/16W +/ -1%

DDR_VREF_CA_1

R4101

1Kohm 1/16W +/ -1%

C4162

100nF 16V

C4169

1UF 10V

C4173

100nF 16V

C4176

100nF 16V

C4163

100nF 16V

C4170

1UF 10V

C4174
1UF 10V

C4177
1UF 10V

C4164
100nF 16V

C4171
470NF 10V

C4165
22uF 6.3V

0603

C4172
470NF 10V

1V5_DDR3

R4097

4.7K1/16W

C4175

1NF

DDR_ADDR0_B
DDR_ADDR1_B
DDR_ADDR2_B
DDR_ADDR3_B
DDR_ADDR4_BDDR_RASN_B
DDR_ADDR5_B
DDR_ADDR6_B
DDR_ADDR7_B
DDR_ADDR8_B
DDR_ADDR9_B
DDR_AD DR10_B
DDR_AD DR11_B
DDR_AD DR12_B
DDR_AD DR13_B
DDR_AD DR14_B

DDR_BA0_B
DDR_BA2_B
DDR0_C LK0_P

DDR0_C LK0_N
DDR_CKE_B
DDR_CS1N_B
DDR_RASN_B

DDR_CASN_B
DDR_WEN_B

DDR_R ESETN_B

R4100

240R 1%

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

T7

A14

M7

NC_A15

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

J3

RAS

K3

CAS

L3

WE

T2

RST

L8

ZQ

VSSA9VSSB3VSSE1VSSG8VSSJ2VSSJ8VSSM1VSSM9VSSP1VSSP9VSST1VSST9VSSQB1VSSQB9VSSQD1VSSQD8VSSQE2VSSQE8VSSQF9VSSQG1VSSQ

1V5_DDR31V5_DDR3

VDDB2VDDD9VDDG7VDDK2VDDK8VDDN1VDDN9VDDR1VDD

U403

K4B4G1646E-BCMA

R9

VDDQA1VDDQA8VDDQC1VDDQC9VDDQD2VDDQE9VDDQF1VDDQH2VDDQ

H9

VREF_DQ
VREF_CA

DQL0
DQL1
DQL2
DQL3
DQL4
DQL5
DQL6

DQL7
DQU0
DQU1
DQU2
DQU3
DQU4
DQU5
DQU6
DQU7

LDQS

LDQS
UDQS

UDQS

UDM

H1

DDR_VREF_DQ_1

M8

DDR_VR EF_CA_1

E3
F7

DDR0_DQ17

F2

DDR0_DQ18

F8

DDR0_DQ19

H3

DDR0_DQ20

H8

DDR0_DQ21

G2

DDR0_DQ22

H7

DDR0_DQ23

D7

DDR0_DQ24

C3

DDR0_DQ25

C8

DDR0_DQ26

C2

DDR0_DQ27

A7

DDR0_DQ28DDR_BA1_B

A2

DDR0_DQ29

B8

DDR0_DQ30

A3

DDR0_DQ31

F3

DDR0_D QS2_P

G3

DDR0_D QS2_N

C7

DDR0_D QS3_P

B7

DDR0_D QS3_N

E7

LDM

ODT

DDR0_DM2

D3

DDR0_DM3

K1

DDR_ODT1_B

G9

DDR B

8-2-8 Hi3751V620 DDR III-2

DDR1 DDR C

DDR1_ADDR0
DDR1_ADDR1
DDR1_ADDR2
DDR1_ADDR3
DDR1_ADDR4
DDR1_ADDR5
DDR1_ADDR6
DDR1_ADDR7
DDR1_ADDR8
DDR1_ADDR9
DDR1_ADDR10
DDR1_ADDR11
DDR1_ADDR12
DDR1_ADDR13
DDR1_ADDR14

DDR1_BA0
DDR1_BA1
DDR1_BA2

DDR1_ODT
DDR1_CSN

DDR1_CKE
DDR1_RASN

DDR1_CASN
DDR1_WEN

DDR1_RESETN

DDR1_CLK0_P
DDR1_CLK0_N

DDR1_DQS0_P
DDR1_DQS0_N
DDR1_DQS1_P
DDR1_DQS1_N
DDR1_DQS2_P
DDR1_DQS2_N
DDR1_DQS3_P
DDR1_DQS3_N

U401G

W6

DDR1_A0

U6

DDR1_A1

AA2

DDR1_A2

AB6

DDR1_A3

V2

DDR1_A4

Y5

DDR1_A5

V5

DDR1_A6

AB4

DDR1_A7

W3

DDR1_A8

AA3

DDR1_A9

Y2

DDR1_A10

W4

DDR1_A11

T5

DDR1_A12

AA5

DDR1_A13

Y1

DDR1_A14

AA4

DDR1_BA0

V1

DDR1_BA1

Y6

DDR1_BA2

AB3

DDR1_ODT

AB1

DDR1_CS_N

T4

DDR1_CKE

Y4

DDR1_RAS_N

W5

DDR1_CAS_N

AB5

DDR1_WE_N

AA6

DDR1_RESETN

U3

DDR1_CLK0_P

U4

DDR1_CLK0_N

G1

DDR1_DQS0_P

G2

DDR1_DQS0_N

H2

DDR1_DQS1_P

H3

DDR1_DQS1_N

P3

DDR1_DQS2_P

P2

DDR1_DQS2_N

R2

DDR1_DQS3_P

R1

DDR1_DQS3_N

Hi37 51 ARBCV6 200 M00

1V5_DDR3

VDDB2VDDD9VDDG7VDDK2VDDK8VDDN1VDDN9VDDR1VDD

U404

K4B4G1646E-BCMA

DDR D

1V5_DDR3

VDDB2VDDD9VDDG7VDDK2VDDK8VDDN1VDDN9VDDR1VDD

U405

K4B4G1646E-BCMA

R9

VDDQA1VDDQA8VDDQC1VDDQC9VDDQD2VDDQE9VDDQF1VDDQH2VDDQ

R9

VDDQA1VDDQA8VDDQC1VDDQC9VDDQD2VDDQE9VDDQF1VDDQH2VDDQ

VREF_DQ

VREF_CA

DQL0

DQL1

DQL2

DQL3

DQL4

DQL5

DQL6

DQL7

DQU0

DQU1

DQU2

DQU3

DQU4

DQU5

DQU6

DQU7

LDQS

LDQS
UDQS

UDQS

UDM

VREF_DQ

VREF_CA

DQL0

DQL1

DQL2

DQL3

DQL4

DQL5

DQL6

DQL7

DQU0

DQU1

DQU2

DQU3

DQU4

DQU5

DQU6

DQU7

LDQS

LDQS
UDQS

UDQS

UDM

H9

H1

DDR_VREF_DQ_2

M8

DDR_VREF_CA_2

E3

DDR1_DQ0

F7

DDR1_DQ1

F2

DDR1_DQ2

F8

DDR1_DQ3

H3

DDR1_DQ4

H8

DDR1_DQ5

G2

DDR1_DQ6

H7

DDR1_DQ7

D7

DDR1_DQ8

C3

DDR1_DQ9

C8

DDR1_DQ10

C2

DDR1_DQ11

A7

DDR1_DQ12

A2

DDR1_DQ13

B8

DDR1_DQ14

A3

DDR1_DQ15

F3

DDR1_DQS0_P

G3

DDR1_DQS0_N

C7

DDR1_DQS1_P

B7

DDR1_DQS1_N

E7

LDM

ODT

H9

LDM

ODT

DDR1_DM0

D3

DDR1_DM1

K1

DDR_ODT0_C

G9

H1

DDR_VREF_DQ_3

M8

DDR_VREF_CA_3

E3

DDR1_DQ16

F7

DDR1_DQ17

F2

DDR1_DQ18

F8

DDR1_DQ19

H3

DDR1_DQ20

H8

DDR1_DQ21

G2

DDR1_DQ22

H7

DDR1_DQ23

D7

DDR1_DQ24

C3

DDR1_DQ25

C8

DDR1_DQ26

C2

DDR1_DQ27

A7
A2

DDR1_DQ29

B8

DDR1_DQ30

A3

DDR1_DQ31

F3

DDR1_DQS2_P

G3

DDR1_DQS2_N

C7

DDR1_DQS3_P

B7

DDR1_DQS3_N

E7

DDR1_DM2

D3

DDR1_DM3

K1

DDR_ODT1_D

G9

C4179

100nF 16V

C4186

100nF 16V

C4198

470NF 10V

C4205

100nF 16V

1V5_DDR3

C4180

100nF 16V

1V5_DDR3

C4187

100nF 16V

DDR_VREF_DQ_2

R4103

1Kohm 1/16W +/-1%

DDR_VREF_CA_2

R4112

1Kohm 1/16W +/-1%

1V5_DDR3

C4199

100nF 16V

1V5_DDR3

C4206

100nF 16V

DDR_VREF_DQ_3

R4114

1Kohm 1/16W +/-1%

DDR_VREF_CA_3

R4119

1Kohm 1/16W +/-1%

C4181

470NF 10V

C4188

470NF 10V

C4192

100nF 16V

C4195

100nF 16V

C4200

100nF 16V

C4207

100nF 16V

C4211

100nF 16V

C4214

100nF 16V

C4182

100nF 16V

C4189

1UF 10V

C4193
1UF 10V

C4196
1UF 10V

C4201

100nF 16V

C4208

100nF 16V

C4212
1UF 10V

C4215
1UF 10V

C4183
100nF 16V

C4190
1UF 10V

C4202
100nF 16V

C4209
100nF 16V

C4184
22uF 6.3V

0603

C4191
1UF 10V

1V5_DDR3

C4203
22uF 6.3V

0603

C4210
100nF 16V

1V5_DDR3

DDR_ADDR0_C
DDR_ADDR1_C
DDR_ADDR2_C
DDR_ADDR3_C
DDR_ADDR4_C
DDR_ADDR5_C
DDR_ADDR6_C
DDR_ADDR7_C
DDR_ADDR8_C
DDR_ADDR9_C
DDR_ADDR10_C
DDR_ADDR11_C
DDR_ADDR12_C
DDR_ADDR13_C
DDR_ADDR14_C

DDR_BA0_C
DDR_BA1_C
DDR_BA2_C

DDR1_CLK0_P
DDR1_CLK0_N

DDR_CKE_C
DDR_CS0N_C
DDR_RASN_C

R4106

DDR_CASN_C
DDR_WEN _C

4.7K1/16W

DDR_RESETN_C

C4194

1NF

DDR_ADDR0_D
DDR_ADDR1_D
DDR_ADDR2_D
DDR_ADDR3_D
DDR_ADDR4_D
DDR_ADDR5_D
DDR_ADDR6_D
DDR_ADDR7_D
DDR_ADDR8_D
DDR_ADDR9_D
DDR_ADDR10_D
DDR_ADDR11_D
DDR_ADDR12_D
DDR_ADDR13_D
DDR_ADDR14_D

DDR_BA0_D
DDR_BA1_D DDR1_DQ28
DDR_BA2_D

DDR1_CLK0_P
DDR1_CLK0_N

DDR_CKE_D
DDR_CS1N_D
DDR_RASN_D

R4115

DDR_CASN_D
DDR_WEN _D

4.7K1/16W

DDR_RESETN_D

C4213

1NF

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

T7

A14

M7

NC_A15

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

J3

RAS

K3

CAS

L3

WE

T2

RST

L8

ZQ

R4110

VSSA9VSSB3VSSE1VSSG8VSSJ2VSSJ8VSSM1VSSM9VSSP1VSSP9VSST1VSST9VSSQB1VSSQB9VSSQD1VSSQD8VSSQE2VSSQE8VSSQF9VSSQG1VSSQ

240R 1%

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC

T3

A13

T7

A14

M7

NC_A15

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

J3

RAS

K3

CAS

L3

WE

T2

RST

L8

ZQ

R4118

VSSA9VSSB3VSSE1VSSG8VSSJ2VSSJ8VSSM1VSSM9VSSP1VSSP9VSST1VSST9VSSQB1VSSQB9VSSQD1VSSQD8VSSQE2VSSQE8VSSQF9VSSQG1VSSQ

240R 1%

D3

DDR1_DQ0
DDR1_DQ1
DDR1_DQ2
DDR1_DQ3
DDR1_DQ4
DDR1_DQ5
DDR1_DQ6
DDR1_DQ7
DDR1_DQ8
DDR1_DQ9

DDR1_DQ10
DDR1_DQ11
DDR1_DQ12

DDR1

DDR1_DQ13
DDR1_DQ14
DDR1_DQ15
DDR1_DQ16
DDR1_DQ17
DDR1_DQ18
DDR1_DQ19
DDR1_DQ20
DDR1_DQ21
DDR1_DQ22
DDR1_DQ23
DDR1_DQ24
DDR1_DQ25
DDR1_DQ26
DDR1_DQ27
DDR1_DQ28
DDR1_DQ29
DDR1_DQ30
DDR1_DQ31

DDR1_DM0
DDR1_DM1
DDR1_DM2
DDR1_DM3

DDR1_ZQ

DDR1_DQ2

K2

DDR1_DQ1

C2

DDR1_DQ6

K3

DDR1_DQ3

B1

DDR1_DQ4

M2

DDR1_DQ5

D1

DDR1_DQ0

L3

DDR1_DQ7

H5

DDR1_DQ12

E3

DDR1_DQ11

J1

DDR1_DQ10

E2

DDR1_DQ13

J3

DDR1_DQ8

F2

DDR1_DQ9

J6

DDR1_DQ14

F1

DDR1_DQ15

M5

DDR1_DQ16

N3

DDR1_DQ17

K5

DDR1_DQ18

R5

DDR1_DQ21

K6

DDR1_DQ22

R4

DDR1_DQ19

J4

DDR1_DQ20

R6

DDR1_DQ23

P4

DDR1_DQ24

M6

DDR1_DQ25

T2

DDR1_DQ26

N1

DDR1_DQ31

P5

DDR1_DQ28

M3

DDR1_DQ29

T1

DDR1_DQ30

L6

DDR1_DQ27

G5

DDR1_DM0

G4

DDR1_DM1

N5

DDR1_DM2

N6

DDR1_DM3

AB7

R4111

240R 1%

DDR1_ADDR6
DDR1_ADDR4

DDR1_ADDR1
DDR1_ADDR10

DDR1_ADDR14
DDR1_ADDR11
DDR1_ADDR8

DDR1_ADDR0
DDR1_BA2
DDR1_CASN
DDR1_RASN

DDR1_ADDR5
DDR1_ADDR13
DDR1_ADDR9
DDR1_ADDR2

DDR1_BA0
DDR1_ADDR3
DDR1_ADDR7
DDR1_RESETN

DDR1_BA1
DDR1_ADDR12

DDR1_CKE
DDR1_ODT
DDR1_CSN

DDR1_WEN

DDR1_ADDR1
DDR1_ADDR4

DDR1_ADDR6
DDR1_ADDR8

DDR1_ADDR11
DDR1_ADDR14
DDR1_ADDR10

DDR1_RASN
DDR1_CASN
DDR1_BA2
DDR1_ADDR0

DDR1_ADDR2
DDR1_ADDR9
DDR1_ADDR13
DDR1_ADDR5

DDR1_RESETN
DDR1_ADDR7
DDR1_ADDR3
DDR1_BA0

DDR1_CKE
DDR1_ADDR12

DDR1_BA1

DDR1_ODT

DDR1_WEN

1

RP417 33R

RP418 33R

RP419 33R

RP420 33R

RP421 33R

RP422 33R

RP423 33R

R4107 33 OHM 1/16W

R4108 200R 1%

RP424 33R

RP425 33R

RP426 33R

RP427 33R

RP428 33R

RP429 33R

RP430 33R

R4116 33 OHM 1/16W

8

2

7

3

6

4

5

1

8

2

7

3

6

4

5

1

8

2

7

3

6

4

5

1

8

2

7

3

6

4

5

1

8

2

7

3

6

4

5

1

8

2

7

3

6

4

5

1

8

2

7

3

6

4

5

1

8

2

7

3

6

4

5

1

8

2

7

3

6

4

5

1

8

2

7

3

6

4

5

1

8

2

7

3

6

4

5

1

8

2

7

3

6

4

5

1

8

2

7

3

6

4

5

1

8

2

7

3

6

4

5

DDR_ADDR6_C
DDR_ADDR4_C

DDR_ADDR1_C
DDR_ADD R10_C

DDR_ADD R14_C
DDR_ADD R11_C
DDR_ADDR8_C

DDR_ADDR0_C
DDR_BA2_C
DDR_CASN_C
DDR_RASN_C

DDR_ADDR5_C
DDR_ADD R13_C
DDR_ADDR9_C
DDR_ADDR2_C

DDR_BA0_C
DDR_ADDR3_C
DDR_ADDR7_C
DDR_RESETN_C

DDR_BA1_C
DDR_ADD R12_C

DDR_CKE_C
DDR_ODT0_C
DDR_CS0N_C

DDR_WEN_C

DDR1_CLK0_NDDR1_CLK0_P

DDR_ADDR1_D
DDR_ADDR4_D

DDR_ADDR6_D
DDR_ADDR8_D

DDR_ADD R11_D
DDR_ADD R14_D
DDR_ADD R10_D

DDR_RASN_D
DDR_CASN_D
DDR_BA2_D
DDR_ADDR0_D

DDR_ADDR2_D
DDR_ADDR9_D
DDR_ADD R13_D
DDR_ADDR5_D

DDR_RESETN_D
DDR_ADDR7_D
DDR_ADDR3_D
DDR_BA0_D

DDR_CKE_D
DDR_ADD R12_D

DDR_BA1_D

DDR_CS1N_DDDR1_CSN
DDR_ODT1_D

DDR_WEN_D

VDD

C4178

100nF 16V

VDDQ

C4185

100nF 16V

1V5_DDR3

1V5_DDR3

VDD

C4197

470NF 10V

VDDQ

C4204

100nF 16V

1V5_DDR3

1V5_DDR3

R4102

1Kohm 1/16W +/-1%

R4109

1Kohm 1/16W +/-1%

R4113

1Kohm 1/16W +/-1%

R4117

1Kohm 1/16W +/-1%

DDR D

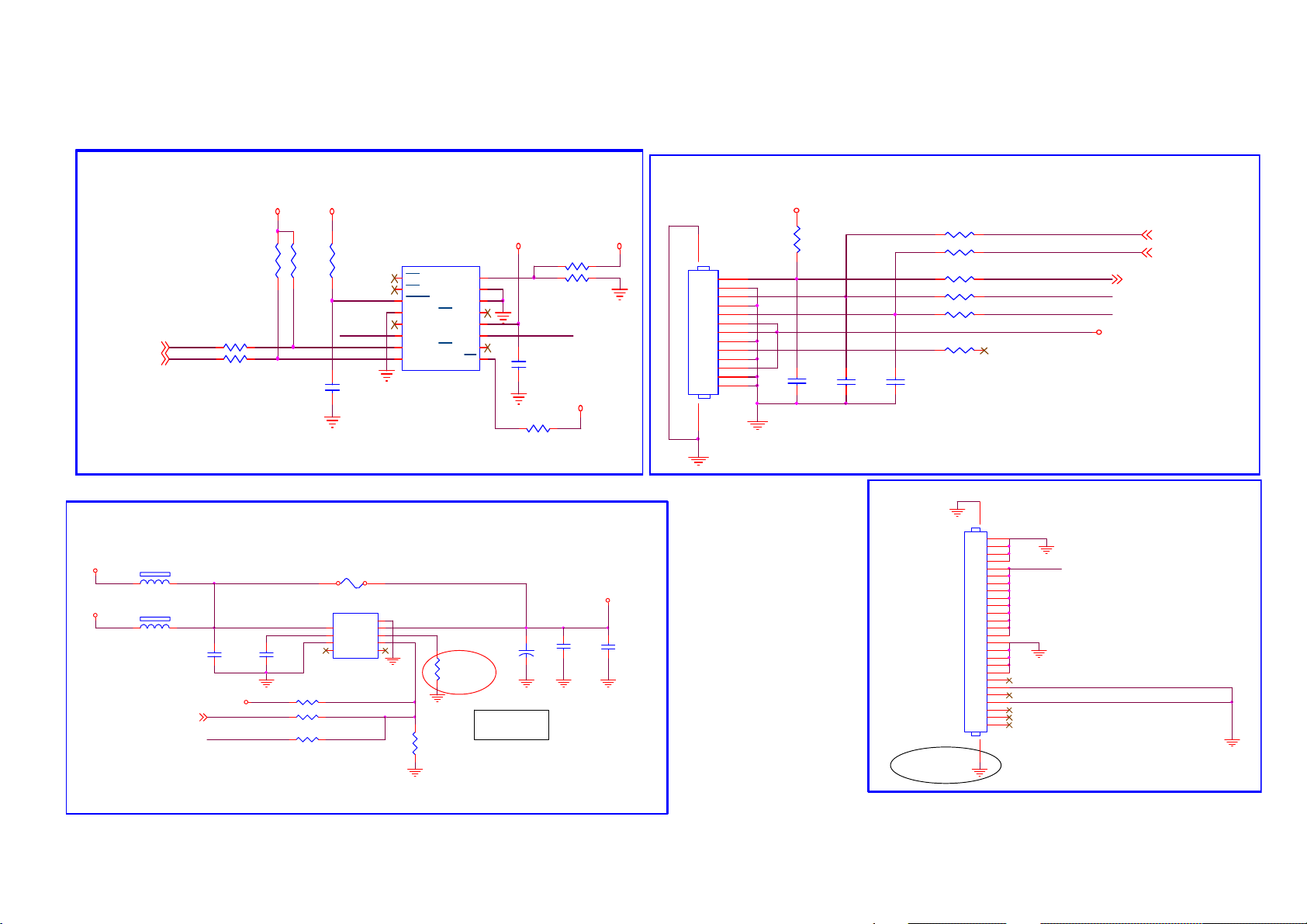

8-2-9 AmbiLight

AmbiLight 2K17 AL3 TO JOYSTICK

I2C Address: 0x28

VCC_3V3 VCC_3V3

VCC_3V3 VCC_3V3

R4123
NC

R4124
NC

R4120
NC

SPI_DATA SPI_CLK

UART2_TXD_SDA2[7,28]
UART2_RXD_SCL2[7,28]

R4125 NC
R4126 NC

C4217
NC

U411

NC/SC18IS602BIPW

1

SS0/GPIO0

2

SS1/GPIO1

3

RESET

4

Vss
MISO
MOSI
SDA
SCL

SS3/GPIO3

SS2/GPIO2

5
6
7
8

VDD

SPICLK

INT

A2
A1
A0

16
15
14
13
12
11
10
9

R4121 NC
R4122 10K

C4216
NC

VCC_3V3

CN403

1415

1
2
3
4
5
6
7
8
9
10
11
12
13

CONN

R4127 10K

311GW125D10ACL change to 311GW125D13ACL

3V3_STB

R4083
6K8 1%

C4218

1NF

C4219

22PF 50V

Reserve for connect to last light bar

R4142 33 OHM 1/16W
R4143 33 OHM 1/16W

R4128 100R 1/ 16W 1%
R4129 NC 33 OH M 1/16W
R4130 NC 33 OH M 1/16W

R4280 NC / 6K8 1%

C4220

22PF 50V

Ambilight SPI reserve

Rain

AMBI_SPI_CLK

AMBI_SPI_DATA

KEY0_IN
SPI_CLK
SPI_DATA

LED_VCC

AMBI_SPI_CLK [7]
AMBI_SPI_DATA [7]

KEY0_IN [7]

2728

1
2

AL_12V

1 2

FB746 120R 6A

P12V

1 2

FB747

AMBI_ON_OFF[7]

NC/ 120R 6A

C4223

10UF 16V

0805

VCC_3V3

AMBI_ON_OFF

AMBI_SPI_CLK

1
2

C4224

22NF 25V

R4233 NC / 10K 1/ 16W 5%
R4144 33 OH M 1/16W

R4145 N C / 33 OH M 1/16W

Ambilight SPI reserve

Rain

3

F401

NC/ 2A 63V

U412

APL3546A KAI-TRG

GND

VIN

VOUT

SS

ISET
GND
NC4NC

9
8
7
6

EN

5

R4132
10K

R4131

130K 1/10W

0603

3
4
5
6
7

LED_VCC

LED_VCC

C4227

+

100UF 16V

130K ---> 3A

C4221
10UF 16V

0805 0805

C4222

10UF 16V

311GF050N26BDX

/311GF050N26BDJ

8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26

CONN 26P
CN406

GND

LED_VCC

GND

AL Protection Reserve for connect to last light bar

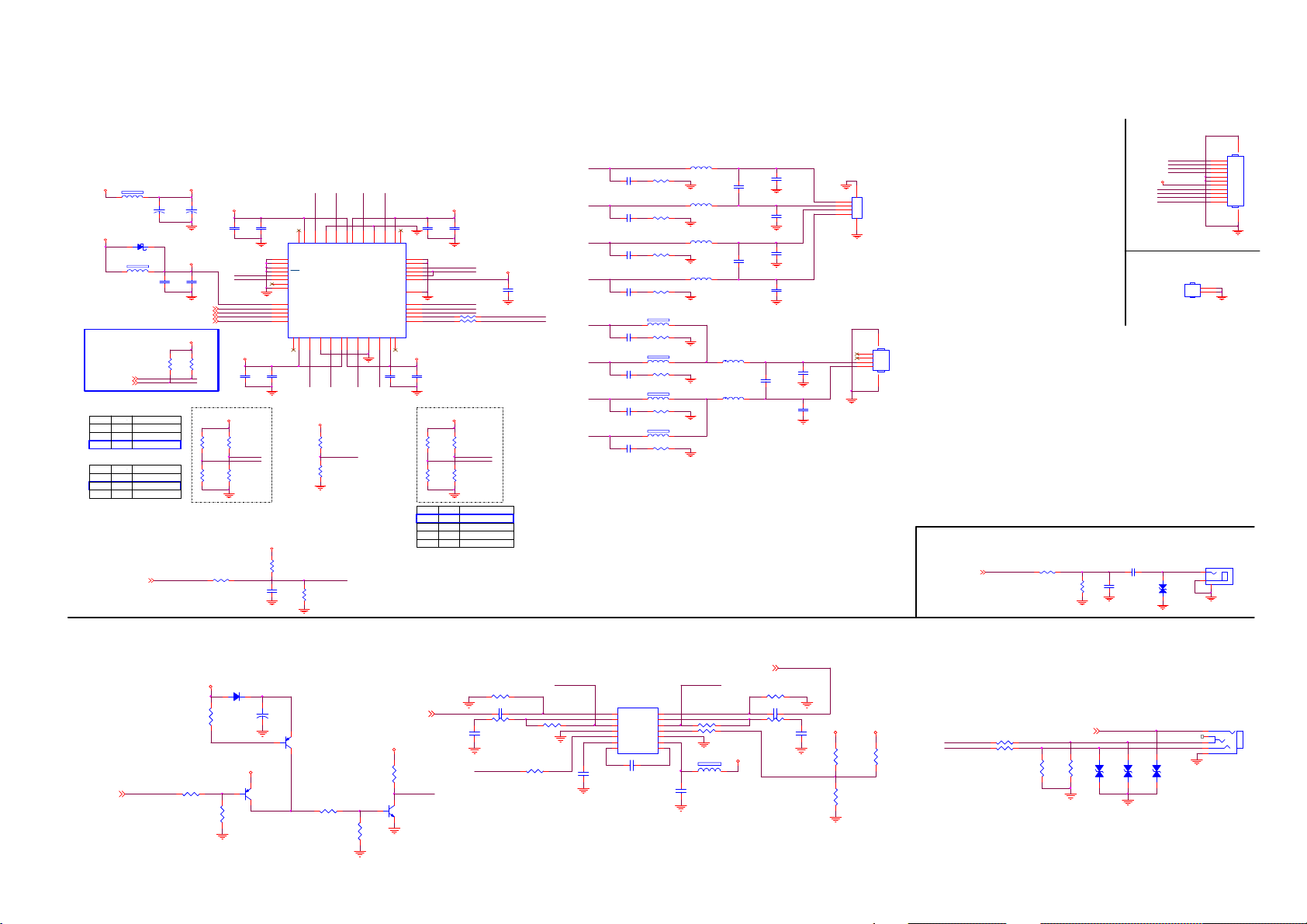

8-2-10 Audio Amp/SPK/SPDIF Output

For external AMP

10uH -> 373G253S081X00

22uH -> 373G253S193D00

R601

10 OHM 1/4W

1206

R602

10 OHM 1/4W

1206

R603

10 OHM 1/4W

1206

R604

10 OHM 1/4W

1206

1 2

R607

10 OHM 1/4W

1206

1 2

R610

10 OHM 1/4W

1206

1 2

R611

10 OHM 1/4W

1206

1 2

R617

10 OHM 1/4W

1206

47uH -> 373G253S173Y00

L601
22uH

C603

470NF 50V

L602
22uH

L603
22uH

C614

470NF 50V

L604
22uH

L605
10uH

L606
10uH

100N 50V

C602

0805

0805

100N 50V

C607

0805

100N 50V
C613

0805

0805

100N 50V

C619

0805

C622

C627

680NF 50V

1206

0.47UF 50V

0805

C629
680NF 50V

1206

4

L+

3

L-

2

R+

1

R-

4Pin R/A 2.0mm

311GW200A04ABX

C603,C614 footprint change to 0805 for 50V

Rain

SW+
SW-

CN601

5 6

CONN

4
3
2
1

4Pin R/A 2.5mm

311GW250B04DBX or
311GW250B04DBL

L-

R+

L+

R-

Speaker

L

Output

R

CN602

SubWoofer

Output

CONN

5 6

SPDIF Output (Rear)

SPDIF_OUT

SPDIF_OUT[6]

R624 100OHM

R626

NC/75 OHM 1/16W

2.0 CH -> use 356G061613300A AD82588B

2.1 CH -> use 356G0616048602 AD83586B

2.1 Channel

2.1 Channel

I2C0_SDA
I2C0_SCL

Mode

Mono

Stereo

Mode

Mono

Stereo

+

AUD_RSTN

C604

100uF 35V

SMT

C615
100nF 16V

R608
10K

AMP_PWR

+

C605

100uF 35V

SMT

AMP_3V3

C616
10uF 10V

0805

I2S_DOUT[7]
I2S_WS[7]
I2S_BCLK[7]
I2S_MCLK[7]

VCC_3V3

R609
10K

R612
1K

R619
NC/1K

R625 33 OHM 1/16W

AMP_PWR

C608

C609

0.1uF

0.1uF

0603

0603

49

THERMA LPAD

1

SDATA1

2

MS

3

PLL

4

CFG0
CFG1

I2S_DOUT
I2S_WS
I2S_BCLK
I2S_MCLK

AMP_PWR AMP_PWR

AMP_3V3

R613
NC/1K

CFG0
CFG1

R620
1K

CFG0

5

CFG1

6

CLK_OUT

7

DGND

8

DVDD

9

SDATA0

10

LRCIN

11

BCLK

12

MCLK

C623

C624

0.1uF

0.1uF

0603

VCC_3V3

R623
NC/1M 1/16W

C633

0.1uF

0603

AD83586

AD82588

AU_12V

VCC_3V3

CFG0

0

1

X

CFG0

1

0

1

1 2

I2C0_SDA[7]
I2C0_SCL[7]

CFG1

CFG1

AUD_RSTN[7]

FB601

120R 3A

D601

1 2

SS0520_R1
FB602

1 2

NC/600 OHM

0

0

1

1

1

0

RB

LB

U601

RA

39

41

40

42

43

RA

RB

GNDR

VDDLB

VDDRB

LINEIN

RESET#

ERROR#

DVDD

DGND

SB2

LA

LB

48

44

46

45

47

LA

NC

GNDL

VDDLA

AD835 86 B-LG48 NAY

NC13VDDS114S1A15GNDS116S1B17VDDS118VDDS219S2B20GNDS221S2A22VDDS223NC

SA1

SA2LoSB1

AMP_3V3

R614
NC/10K

AMP_DEF

R618
10K

Initial default volume setting

1 : Un-Mute
0 : Mute

AMP_RSTN

R627
10K

LA

C601

470P 50V

0603

AMP_PWR

C611

C610

0.1uF

0.1uF

0603

0603

37

38

NC

36

VDDRA

35

LREX

34

AMP_RSTN

33

AMP_PDN

32

PD#

31

30

29
28
27
26
25

A_SCL
A_SDA

C626

0.1uF

0603

SA0

Lo

Hi

Hi

R615
NC/10K

R621
10K

AMP_DEF
AMP_SA1
AMP_SA0

R605 33 OHM 1/16W
R606 33 OHM 1/16W

AMP_3V3

SA1

Lo

Hi

Lo

Hi

DEF
SA1
SA0
SCL
SDA

24

C625

0.1uF

06030603

R616
NC/10K

R622
10K

AMP_SA0
AMP_SA1

I2C Address

0x60

0x62

0x68

0x6A

AMP_3V3

AMP_3V3

C617
100nF 16V

I2C0_SCL
I2C0_SDA

LB

C606

470P 50V

0603

RA

C612

470P 50V

0603

RB

C618

470P 50V

0603

SA1

FB603 120R 3A
C620

470P 50V

0603

SA2

FB604 120R 3A
C621

470P 50V

0603

SB1

FB605 120R 3A
C628

470P 50V

0603

SB2

FB606 120R 3A
C630

470P 50V

0603

For POP Noise AV Output (Side)

For POP Noise

5V_STB

D602

LL4148

+

R630
10K 1/10W

0603

Active LOW

AUD_MUTE

R644

AUD_MUTE[7,28]

10K

R646
100K

VCC_3V3

C634
100UF 16V

SMT

Q602
MMBT3906

Q601

MMBT3906

R647 4.7K1/16W

R648
100K

LINE_OUT_L2[6]

VCC_3V3

R642
10K

AMP_PDN

Q603
MMBT390 4

R628 100K

LINE_OUT_L2

C635 1UF 10V C636 1U F 10V

C637

1UF 10V

AMP_PDN

A_OUT_L A_OUT_R

U602
AD22650-QH14NAT

1
2

C640

1UF 10V

3
4
5
6

C639 1UF 10V

R633 20K 1/16W R634 20K 1/16W

R643 100OHM

LINP

RINP

LINN

RINN

OUTL

OUTR
SGND
EN

PGND
PVSS

PVDD
CN7CP

14
13
12
11

UVP

10
9
8

R635 30K OHM

FB607

1 2

300R

C641

1UF 10V

LINE_OUT_R2[6]

VCC_3V3

R629 100K

R632 10KR631 10K

LINE_OUT_R2

C638

1UF 10V

VCC_3V3 P12V

R638

1.5K 1/16W

R645

1K

R639

NC/1. 5K 1/ 16W

A_OUT_R

R636 10 OHM
R637 10 OHM

AV_CVBS_OUT[6]

R640

NC/100K

R641

NC/100K

AV Output (Side)

AV_CVBS_OUT

12

ZD602

NC/MLVG0402

For external AMP

C631 1UF16V

0603

C632
NC

12

ZD603

NC/MLVG0402

CN608

I2S_MCLK
I2S_BCLK
I2S_WS
I2S_DOUT

VCC_3V3

AMP_RSTN
AMP_PDN
A_SCL
A_SDA

311GW125D11ACL

For external AMP reserve

Rain

Coaxial

12

ZD601

NC/MLVG0402

LINE_LOUTA_OUT_L
LINE_ROUT

12

ZD604

Heat Sink

HS60 1

HEAT SINK

Q90G6119 6

Coaxial

2
1

388G078G111ACL

3
5
4
2
1

10
11

CONN

1
2

CN603

RCA JACK

3

CN605

PHONE JACK

388G302F5B1ACL

NC/MLVG0402

1
2
3
4
5
6
7
8
9

12 13

A

8-2-11 System Power

From Power Board

AL_12V

CN702 CONN

2

1

4

3
6
8

10
12
14
16

5

7

9

11

13

15

R764 100OHM
R765 NC/4.7K1/16W
R712 NC/100OHM

P12V

PANEL_ON/OFF ACD

ACD

PANEL_ON/OFF

LED_R[7]

3V3_STB

R733

PWR_ON_OFF[7]

PWR_ON_OFF

PWR_ON_ OFF

VCC_3V3

C758
1UF 10V

2.2K1/16W

High : Power On

Low: Power Off

R743 2K OHM

U709
G9141T11U

1

IN

2

GND
SHDN3SET

Vout = 1.0x(R1+R2)/R2

AU_12V

P12V

PW_ON

TCON _ON /OF F

VCC_3V3

C723

NC/10N 50V

LED_R

OUT

AU_12V

C704
NC/0.1uF 50V

0805

C711
NC/0.1uF 50V

0603

R706 100OHM

TCON_ON/OFF [27]

ACD_PSU [ 7]

DIM

VCC_5V

R760
NC/1K

R722
NC/10K

R724 NC/100OHM

5V_STB

R735
2K OHM

R741
47K

Q706
MMBT3904

5

R1

R750

4

12K 1%

R751 15K 1%

R2

AU_12V / 24V

PS_ON

R720
1K

R723 2K OHM

Q702
MMBT3904

R732

4.7K1/16W

Q704
MMBT3904

R742

33K 1/16W

VCC_1V8

C759
10UF 6.3V

P12V

12V

C712
NC/10uF 25V

1206

VCC_3V3

R734
2K OHM

C744

220NF 10V

C

B

R761
NC/10K

E

VCC_5V

3V3_STB

5V_STB

AL_12V

1 2

R710

R709
NC/10K

NC/2K

0603

R715
NC/3.3K

0603

R721

4.7K1/16W

R716 2K OHM

Q701
MMBT3904

BL_ON_OFF

High: Backlight On

Low : Backlight Off

VCC_3V3

R763

R731

NC/10K

1K

PS_ON

Q703
MMBT3904

Q705

1

8

S

D

2

7

S

D

3

6

S

D

4

5

G

D

AO4449 -7A/-30V

3V3_TU

C760
1UF 10V

C773
NC/0. 1uF 50V

0805

ZD702
NC/BZT52-B6V8S

BL_ON_OFF [7]

VCC_5V5V_STB

C741

10uF 10V

0805

U710
G912T63U

VI3VO

P12V

3V3_STB

R711

4.7K1/16W

High: Light

Low : Dark

PS_ON [14, 22,28]

C742

10uF 10V

0805

2
4

4

GND

1

BL_BR_CTRL

1V2_DEM

C761
10UF 6.3V

BL_BR_CTRL [ 7]

Standby Power

5V_STB

C728
1UF16V

0603

Normal Power

VCC_5V

C736
1UF16V

0603

Tuner Power

VCC_5V

C751
1UF 10V

356G056351400C00HF change to 356G056351500C00HF.

Rain

VCC_3V3

C762
1UF 10V

U703
AZ1117CH-3.3TRG1

3

VOUT

VIN

ADJ(GND)

1

U705
AZ1084CS2-3.3TRG1

VIN3VOUT

GND

1

U707
AZ1117D

VI3VO

GND

1

U711
AZ1117CH-1.2TRG

3

VOUT

VIN

ADJ(GND)

1

P12V

ZD701
BZT52-B5V6S

1 2

R702 4.7K1/16W

3V3_STB

2

ZD706

C729

BZT52-B3V6

4

4

22UF

0805

1 2

VCC_3V3

2

C737

ZD703

22UF

BZT52-B3V6

0805

1 2

3V3_TU

2

C752

ZD704

10UF 6.3V 20%

0603

1 2

BZT52-B3V6

1V2_LDO

2

C763
10UF 6.3V 20%

4

4

0603

R703

12K 1/16W

C701

10UF 16V

0805

PS_ON

PS_ON

C702

10UF 16V

0805

C705
NC

R719 100OHM

R730 100OHM

C710

4.7UF 10% 10V

0603

VCC_5V

R739
10K

C745
NC

U701
SY8366QNC

8

IN

7

IN

1

EN

5

VC

9

GND

Vout = 0.6x(R1+R2)/R2

P12V

C713
10uF 25V

1206

P12V

C724
10uF 25V

1206

C738
10uF 25V

1206

DDR_PWREN[7]

AU_12V[12]
P12V[11,12, 14,22,27,28]
5V_STB[4,5, 12,28]
VCC_5V[5,7,14,28]

R717

C709

22UF 10V

1206

R2

C731
22UF

0805

R2

C746
22UF

0805

R2

C718
22UF

0805

15K 1%

24.9K 1%

24.9K 1%

3V3_STB[4,5,6,7,8,11,28]
VCC_3V3[4, 6,7,8,11,12, 28]
VCC_1V8[6,8]
1V2_LDO[8]
1V1_VDD[8]
1V1_CPU[8]
1V1_GPU[8]
1V5_DDR3[8,9,10]
3V3_TU[3]
1V2_DEM[3]

1V1_VDD

C719

C720

22UF

10uF 10V

0805

0805

R728

390R 1/16W 1%

1V1_CPU

C732

C733

22UF

10uF 10V

0805

0805

1V1_GPU

C747

C748

22UF

NC/10uF 10V

0805

0805

2

PG

C703

6

BS

0.1uF 25V

R701

2.2R 1%

373G253S146D00

1
2
3

C722
10NF 50V

Vout = 0.765x(R1+R2)/R2

1
2
3

C735
10NF 50V

Vout = 0.765x(R1+R2)/R2

U706
TPS54328DDAR

1

EN

2

VFB

3

VREG5
SS4GND

C750
10NF 50V

Vout = 0.765x(R1+R2)/R2

L701

2.2uH

PMC0_VDD

U702
TPS54328DDAR

E-PAD

EN

VIN

VFB

VBST

VREG5

SW

SS4GND

PMC1_CPU

U704
TPS54528DDAR

E-Pad

EN

VIN

VFB

VBST

VREG5

SW

SS4GND

PMC4_GPU

R736 100K 1%

E-PAD

VIN

VBST

SW

C706
470PF 50V

R1

R705
1K

R713 100K 1%

9
8
7

C716 100nF 16V

6
5

R725 68.1K 1%

9
8
7

C727 100nF 16V

6
5

9
8
7

C743 100nF 16V

6
5

R704
100K 1%

10

LX

4

FB

3

ILMT

PMC0_VDD[7]

C714

C715

10uF 25V

100nF 16V

1206

C717
NC

C721
1UF 10V

PMC1_CPU[7]

C726

C725

100nF 16V

10uF 25V

1206

C730
NC

C734
1UF 10V

PMC4_GPU[6]

C740

C739

100nF 16V

10uF 25V

1206

C749
1UF 10V

5V_STB

C707

22UF 10V

1206

R707

R708

13K 1%

0R05 OHM

R2

R714 27K 1/16W 1%

L702

2.2uH

373G253S146D00

R726 0R05 OH M

R1

L703

2.2uH

373G253S146D00

R737 10K 1%

R1

L704

2.2uH

373G253S146D00

R1

C708

22UF 10V

1206

R718

12.1K 1%

R727

R729

12.1K 1%

R738

R740

16.9K 1%

P12V

C757
10uF 25V

1206

R744 27K 1/16W
R745 100OHM
R746 10K

1
2

Vout = 0.768x(R1+R2)/R2

U708

GND

VBST

SW

EN

VIN3VFB

TPS563201DDCR

6

C755 100nF 16V

5
4

373G253S256D00

L705

2.2uH

R1

R748 1.87K 1%
R749 27K 1/16W 1%

R2

R747
24K 1%

C753

22UF

0805

1V5_DDR3

C754

22UF

0805

DDR_PWREN

P12V

C756
10uF 25V

1206

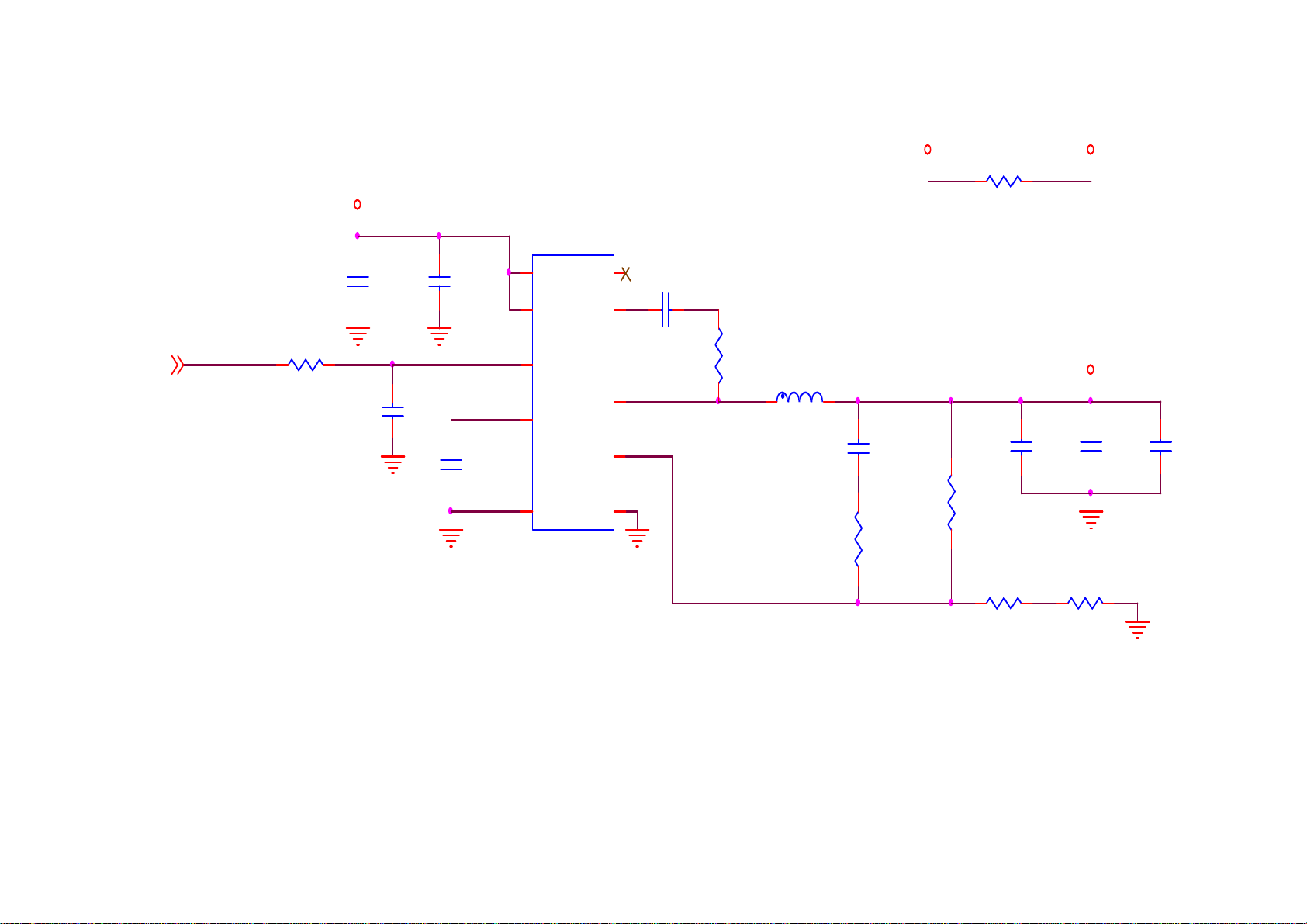

8-2-12 V620 Voltage Spec/GPIO Table

5V_USB VCC_5V

P12V

R759 NC / 0R 05 1/ 8W

0805

U712
SY8366QNC

C764

10U F 16V

0805

PS_ON[13,22,28]

PS_ON

R753 100OHM

C765

10UF 16V

0805

8

IN

7

IN

1

EN

C767

5

NC

VC

C772

4.7U F 10% 10V

0603

9

GND

Vout = 0.6x(R1+R2)/ R2

PG
BS

LX

FB

ILMT

2
6

10

4

3

C766

0.1uF 25V

R752

2. 2R 1%

373G253S146D00

L706

2.2uH
C768

470PF 50V

R756
1K

R1

R755
100K 1%

R757

13K 1%

5V_USB

C769

22UF 10V

1206

R758

0R05 OH M

R2

C770

22UF 10V

1206

C771

22UF 10V

1206

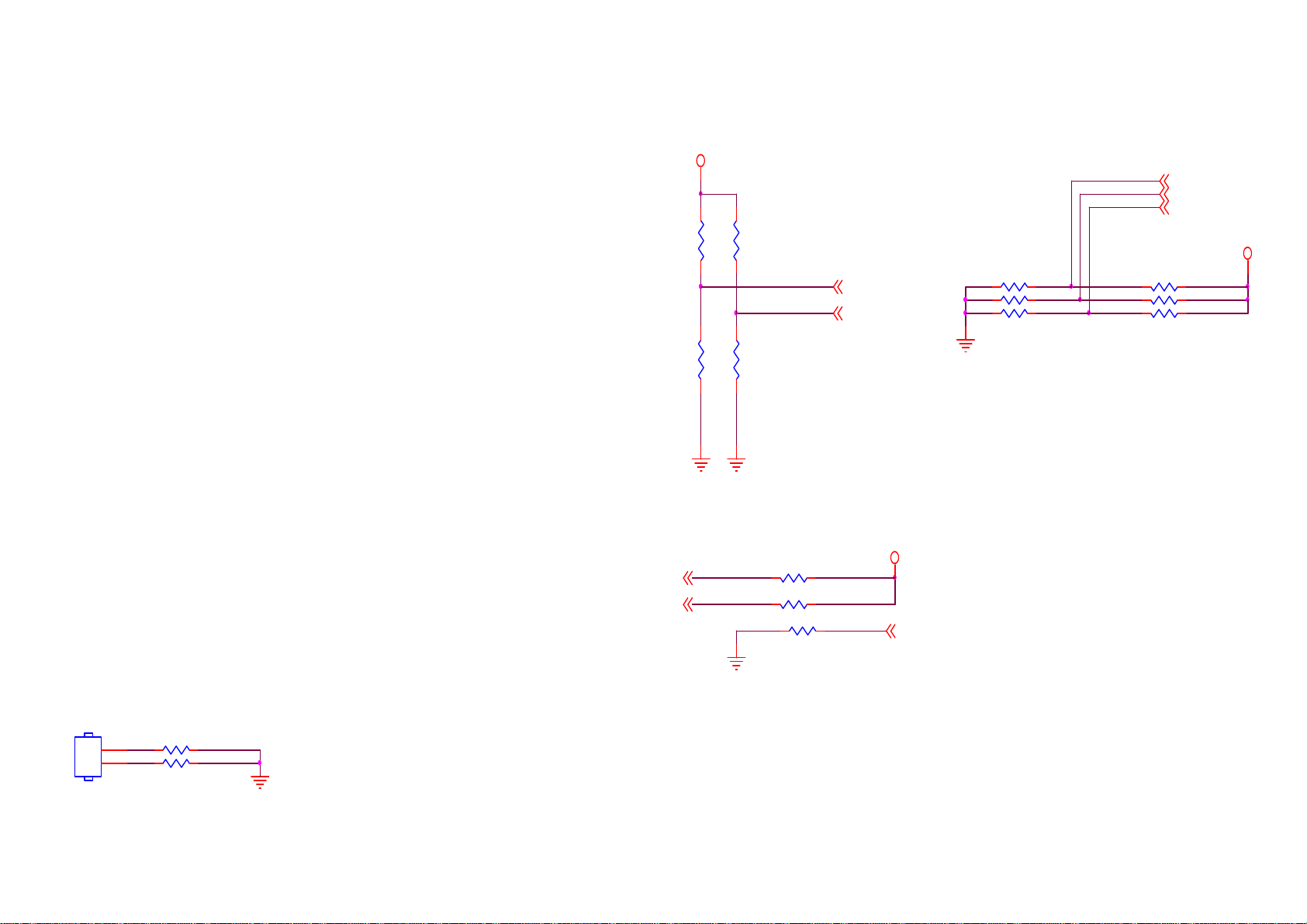

8-2-13 HI3251V600 Power tree & Boot

R4509
10K 1/16W 5%

M5_PCB_L[16]

M5_T CON_SEL[16]

R4001
NC/1K

DVDD33

R4002
10K 1/16W 5%

M5_FUNC_SEL
M5_ROMBOOT_SEL

R4510
NC/1K

M5_PCB_L
M5_TCON_SEL

M5_FUNC_SEL [16]
M5_ROMBOOT_SEL [16]

R4513 10K 1/16W 5%
R4512 10K 1/16W 5%
R4511 1K

M5_KPG_MOD

DVDD33

M5_KPG_MOD [16]

R4503 1K
R4505 NC/1K
R4507 NC/1K

DDR_MOD1
DDR_MOD0
M5_POR_SEL

DDR_MOD1[21]
DDR_MOD0[21]
M5_POR_SEL [16]

R4504 N C / 10K 1 / 16W 5%
R4506 10K 1/ 16W 5%
R4508 10K 1/ 16W 5%

DVDD33

Heat Sink

HU1

HEAT SINK

P90G0025 1

1
2

R4514 NC
R4515 NC

0603

0603

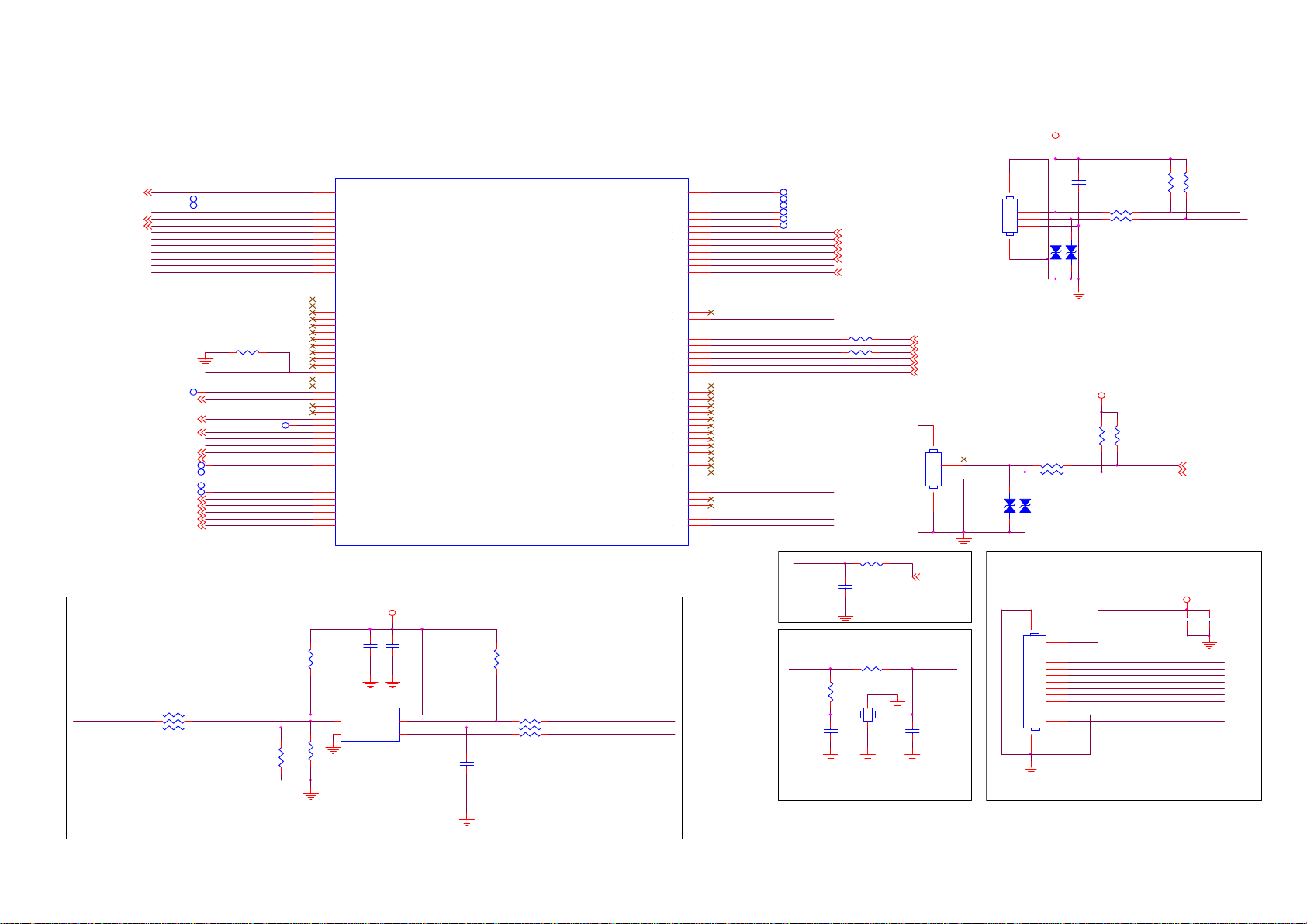

8-2-14 HI3251V600 IO/SP/I2C/Reset

IO & SPI & I2C & UART & Crystal & Reset UART0

IO & SPI & I 2C & UART & Cr yst al & Reset

M5_BIT_SEL[26]

M5_LD_EN[26]
M5_PCID_EN[26]

SPI FLASH

M5_SFC_CS1N
M5_SFC_DOI
M5_SFC_WPN_IO2

Hisilic o n SP I FL A S H

DF0
DF1

M5_GPIO0_2

M5_PMC0[22]

PANEL_PWR[27]
GPIO1_2[7]

M5_I2C2_MSCL[26]
M5_I2C2_MSDA[26]

TS3 TP
TS4 TP

TS5 TP
TS6 TP

M5_JTAG_TCK[20]
M5_JTAG_TDI[20]
M5_JTAG_TDO[20]
M5_JTAG_TMS[20]
M5_JTAG_TRSTN[20]

R4030 33R 1/16W 5%
R4031 33R 1/16W 5%
R4033 33R 1/16W 5%

1.MX25L1606E

2.W25Q16DVSSIG

3.GD25Q16CSIG

M5_BIT_SEL
M5_DF0M5_DF0
M5_DF1M5_DF1
M5_SCN_ENM5_SCN_EN
M5_LD_EN
M5_PCID_EN
M5_SW_RESETM5_SW_RESET
M5_DIMM_PWM0
M5_DIMM_PWM1M5_DIMM_PWM 1
M5_DIMM_PWM2M5_DIMM_PWM 2
M5_DIMM_PWM3M5_DIMM_PWM 3
M5_DIMM_PWM4M5_DIMM_PWM 4
M5_DIMM_PWM5M5_DIMM_PWM 5
M5_DIMM_PWM6M5_DIMM_PWM 6
M5_DIMM_PWM7M5_DIMM_PWM 7
M5_DIMM_SPI_VSYNCM5_DIMM_SPI_VSYNC

NC/100OHM

M5_EXT_PWM_IN

M5_GPIO0_2M5_GPIO0_2
M5_PMC0M5_PMC0

PANEL_PWRPANEL_PWR

GPIO1_1

GPIO1_2GPIO1_2
M5_I2C1_SCL
M5_I2C1_SDA
M5_I2C2_MSCLM5_I2C2_MSCLM5_I2C2_MSCL
M5_I2C2_MSDAM5_I2C2_MSDA
M5_I2C3_MSCL
M5_I2C3_MSDA

M5_JTAG_MUXM5_JTAG_MUX
M5_JTAG_SELM5_JTAG_SEL
M5_JTAG_TCKM5_JTAG_TCK
M5_JTAG_TDIM5_JTAG_TDI
M5_JTAG_TDOM5_JTAG_TDO
M5_JTAG_TMSM5_JTAG_TMS
M5_JTAG_TRSTNM5_JTAG_TRSTN

M5_SFC_CS1N_P
M5_SFC_DOI_P
M5_SFC_WPN_IO2_P

R4039 4.7K1/ 16W

AT14

BIT_SEL/GPIO11_0

AR13

DF0/GPIO10_5

AU13

DF1/GPIO10_6

AR14

SCN_EN/GPIO11_1

AV14

LD_EN/GPIO11_2

AV13

PCID_EN/GPIO10_7

AP15

SW_RESET/GPI O11_4

AV5

DIMM_SPI0_DO/DIMM_PWM0/GPIO8_0

AR6

DIMM_SPI0_ CLK/DI MM_PW M1/ GPI O8_1

AT6

DIMM_SPI0_DI /DI MM_PWM2/GPIO8_2

AU6

DIMM_SPI0_CSN /DI MM_PWM3/GPIO8_3

AR7

DIMM_SPI1_DO/DIMM_PWM4/GPIO8_4

AT7

DIMM_SPI1_ CLK/DI MM_PW M5/ GPI O8_5

AU7

DIMM_SPI1_DI /DI MM_PWM6/GPIO8_6

AV7

DIMM_SPI1_CSN /DI MM_PWM7/GPIO8_7

AP8

DIMM_SPI_VSY NC/ GPIO2_0

AR8

DIMM_BRI_PWM0/GPIO2_1

AU34

TCON_DIMM_SPI0_DO/TCON_DIMM_PWM0/GPIO9_0

AT35

TCON_DIMM_SPI0_CLK/TCON_DIMM_PWM1/GPIO9_1

AR35

TCON_DIMM_SPI0_DI/TCON _DIMM_PWM2/GPIO9_2

AU36

TCON _D IMM_ SPI 0_CSN/ TCON_DI MM_PW M3/ GPI O9_3

AT36

TCON_DIMM_SPI1_DO/TCON_DIMM_PWM4/GPIO9_4

AT37

TCON_DIMM_SPI1_CLK/TCON_DIMM_PWM5/GPIO9_5

AR38

TCON_DIMM_SPI1_DI/TCON _DIMM_PWM6/GPIO9_6

AR37

TCON _D IMM_ SPI 1_CSN/ TCON_DI MM_PW M7/ GPI O9_7

AR36

TCON_DIMM_VSYNC/GPIO3_0

AV34

TCON_BRI_PWM0/GPIO3_1

AR17

EXT_PWM_IN

AR9

GPIO0_0

AT9

GPIO0_1

AU9

GPIO0_2

A21

SYS_PWM0_PSD/GPIO0_3

B21

SYS_PWM1_PSD/GPIO0_4

C21

SYS_PWM2_PSD/GPIO0_5

AR16

GPIO1_0

AP16

GPIO1_1

AR18

GPIO1_2

AP20

I2C1_SCL/GPIO6_4

AR20

I2C1_SDA/GPIO6_5

C2

I2C2_MSCL/GPIO7_1

B3

I2C2_MSDA/GPIO7_0

AP37

I2C3_MSCL/GPIO6_7

AP36

I2C3_MSDA/GPIO6_6

AK37

JTAG_MUX

AK38

JTAG_SEL

AM36

JTAG_TCK

AN37

JTAG_TDI

AM38

JTAG_TDO

AN38

JTAG_TMS

AN36

JTAG_TRSTN

DVDD33

C4002 100n F 16V

R4524NC/4.7K1/16W

R4038 NC/ 4.7K1/ 16W

1

CS#

2

SO/SIO1

3

WP#
GND4SI/SIO0

C4003 10uF 6.3V

U486

MX25L1606EM2I-12G

VCC

HOLD#

SCLK

8
7
6
5

M5_SFC_HOLDN_IO3_P M5_DIMM_SPI_VSYNCM5_DIMM_SPI_VSYNC
M5_SFC_CLK_P
M5_SFC_DIO_P

U408J

Hi3251V600

IR_SY NC_OUT/LR_SY NC_OUT/GPIO10_2

SOC_3D_SY NC_OUT/SOC_EN _3D_PSD/GPIO10_1

R45264.7K1/16W

R4032 33R 1/16W 5%
R4034 33R 1/16W 5%
R4037 33R 1/16W 5%

C5008 NC/ 10pF 16V

TCON_3D_SY NC_OUT/GPIO10_4

SOC_EN_3D/EN_3D_OUT/GPIO11_3

P2P_ATO_1
P2P_ATO_0

P2P_SDLOCK

FUNC_SEL

TCON _S EL

ROMBOOT_SEL

SFC_DIO/GPIO4_0

SFC_WPN_IO2/GPIO4_1

SFC_CLK/GPIO4_2
SFC_DOI/GPIO4_3

SFC_HOLDN_IO3/GPIO4_4

SFC_CS0N/GPIO4_5
SFC_CS1N/GPIO4_6

SOC_3D_SY NC_IN/GPIO10_0

TCON_3D_SY NC_IN/GPIO10_3

TCON_CKV/GPIO13_4

TCON_GVON/GPIO13_5

TCON_OE1/GPI O13_2

TCON_OE2/GPI O13_3
TCON_POL1/GPIO14_0
TCON_POL2/GPIO14_1
TCON_RES0/GPIO14_2
TCON_RES1/GPIO14_3
TCON_RES2/GPIO14_4
TCON_RES3/GPIO14_5

TCON_STV1/GPIO13_0
TCON_STV2/GPIO13_1

TCON_TP1/GPIO13_6
TCON_TP2/GPIO13_7

UART0_RXD/I2C1_SDA_PSD

UART0_TXD/I2C1_SCL_PSD

UART1_RXD/DBGI2C_SDA

UART1_TXD/DBGI2C_SCL

M5_SFC_HOLDN_IO3
M5_SFC_CLK
M5_SFC_DIO

V4_ATO
V8_ATO

P2P_XSTB

PCB_L

KPG_MOD

POR_SEL

RESTIN

XOU T

AB11
U11
AH25
AH22
AT8
AV8
AK34
AL37
AM37
AL36
AP17
AT16
AL35
AU18
AT18
AV18
AU19
AT17
AU20
AT19

AV20
AT20
AR19
AV4
AU5
AR15

AT10
D21
AR10
E21
AU10
F21
AV10
AP11
C20
D20
AR11
E20
AT11
F20

AV11
AR12
AU12
AT12

AU15

XIN

AV16

P2P_ATO_1
P2P_ATO_0
V4_ATO
V8_ATO
M5_P2P_XSTB
M5_P2P_SDLOCK
M5_PCB_L
M5_KPG_MOD
M5_FUNC_SEL
M5_TCON_SEL
M5_POR_SEL
M5_RESTIN
M5_ROMBOOT_SEL
M5_SFC_DIO
M5_SFC_WPN_IO2
M5_SFC_CLK
M5_SFC_DOI
M5_SFC_HOLDN_IO3

ATO_1TP
ATO_2TP
V4_ATO1TP
V8_ATO1TP
TS1TP
TS2TP

M5_SFC_CS1N

M5_SOC_3D_SYNC_IN
M5_IR_SYNC_OUT/LR_SYNC_OUT
SOC_IN_3D_EN
M5_TCON_3D_SYNC_IN
M5_TCON_3D_SYNC_OUT
M5_SOC_EN_3D/EN_3D_OUT

M5_UART0RXD
M5_UART0TXD

M5_XIN
M5_XOUT

M5_RESTIN

SMD XTAL

M5_XOUT

M5_PCB_L [15]
M5_KPG_MOD [15]
M5_FUNC_SEL [15]
M5_TCON_SEL [15]
M5_POR_SEL [15]

M5_ROMBOOT_SEL [15]

R4150 100OHM
R4152 100OHM

R4028NC/1K

C4005
NC/1nF 50V

R4525 1M OHM 5%
R4035

100R 1/16W 5%

24

1

3

X1

C5006

24MHz

10PF 50V

UART0

CN405

56

CONN

1
2
3
4

ZD1
NC/MLVG0402

SOC_SYNC_3D_OUT [7]
M5_IR_SYNC_OUT/LR_SYNC_OUT [20]
M5_3D_EN [26]
M5_TCON_3D_SYNC_IN [26]
M5_TCON_3D_SYNC_OUT [26]
M5_SOC_EN_3D/EN_3D_OUT [26]

I2C DEBUG

56

CN402

1
2
3
4

CONN

FRC_RST [7]

I2C1_SCL
I2C1_SDA

12

ZD3

ESD ESD

LOCAL DI M M I NG

12

R4522 0R05 1/ 16 W
R4523 0R05 1/ 16 W

ZD4

NC/MLVG0402
NC/MLVG0402

1415

M5_XIN

C4004

8.2PF 50V

DVDD33

12

CN409

NC/CONN

1
2
3
4
5
6
7
8
9
10
11
12
13

C4001

100nF 16V

R4518 33R 1/ 16W 5%
R4519 33R 1/ 16W 5%

12

ZD2
NC/MLVG0402

DVDD33

NC/4.7K1/16W

R4520

R4516

4.7K1/16W

ESD

ESD

NC/4.7K1/16W

R4521

M5_I2C1_SCL

M5_I2C1_SDA

C4245

NC/100nF 16V

M5_SCN_ENM5_SCN_ENM5_SCN_EN
M5_SW_RESETM5_SW_RESET
M5_DIMM_PWM0
M5_DIMM_PWM1M5_DIMM_PWM1
M5_DIMM_PWM2M5_DIMM_PWM2
M5_DIMM_PWM3M5_DIMM_PWM3
M5_DIMM_PWM4M5_DIMM_PWM4
M5_DIMM_PWM5M5_DIMM_PWM5
M5_DIMM_PWM6M5_DIMM_PWM6
M5_DIMM_PWM7M5_DIMM_PWM7

R4517

4.7K1/16W

M5_UART0RXD
M5_UART0TXD

M5_I2C1_SCL [7,26]
M5_I2C1_SDA [7,26]

5V0

C4244
NC/10uF 6. 3V

SPI FLASH SMD XTAL LOCAL DIMMING

8-2-15 HI3251V600 SOC power

DVDD33

DVDD33_3
DVDD33_4
DVDD33_5
DVDD33_6
DVDD33_7
DVDD33_8
DVDD33_9

VDD_1
VDD_2
VDD_3
VDD_4
VDD_5
VDD_6
VDD_7
VDD_8

VDD_9
VDD_10
VDD_11
VDD_12
VDD_13
VDD_14
VDD_15
VDD_16
VDD_17
VDD_18
VDD_19
VDD_20
VDD_21
VDD_22
VDD_23
VDD_24
VDD_25
VDD_26
VDD_27

C5052 100nF 16V

C5053 100nF 16V

AG13
AG14
AG15
AG16
AG17
AG25
AG26
U19
U20
U21
U22
V18
V19
V20
V21
V22
W17
W18
W19
W20
W21
W22
Y17
Y18
Y19
Y20
Y21
Y22
AA17
AA18
AA19
AA20
AA21
AA22

L29
L30
L31
M23
M24
M25
M26
M27
M28
M29
M30
N27
N28
N29
P27
P28
R27
R28
T27
T28
U28
V28
W27
W28
Y27
Y28
AA28

C5054 100nF 16V

C5055 100nF 16V

VDD_1V1

DDR3_1V5

C5056 1UF 10V

V600_AVDD11_PLL

C5010 10uF 6.3V

C5009 100nF 16V

AVDD11_VBOTX

C5014 100nF 16V

C5013 100nF 16V

C5015 10uF 6.3V

AVDD33_PLL_VBOTX

C5019 100nF 16V

C5018 100nF 16V

DDR3_1V5

C5057 1UF 10V

C5058 470NF 10% 10V

C5059 470NF 10% 10V

C5028 100nF 16V

C5029 100nF 16V

C5044 100nF 16V

U15

AVDD11_P2P_1_1

U16

AVDD11_P2P_1_2

V15

AVDD11_P2P_1_3

AB15

AVDD11_P2P_2_1

AC15

AVDD11_P2P_2_2

AC16

AVDD11_P2P_2_3

AD20

AVDD11_PLL

AD22

AVDD11_VBO_RX_1

AD23

AVDD11_VBO_RX_2

AD24

AVDD11_VBO_RX_3

R17

AVDD11_VBOTX_0_1

R18

AVDD11_VBOTX_0_2

R15

AVDD11_VBOTX_1_1

R16

AVDD11_VBOTX_1_2

R12

AVDD33_MLVDS_CMB_1_1

T12

AVDD33_MLVDS_CMB_1_2

U12

AVDD33_MLVDS_CMB_1_3

V12

AVDD33_MLVDS_CMB_1_4

AA12

AVDD33_MLVDS_CMB_2_1

AB12

AVDD33_MLVDS_CMB_2_2

AC12

AVDD33_MLVDS_CMB_2_3

AD12

AVDD33_MLVDS_CMB_2_4

AG19

AVDD33_PLL

M16

AVDD33_PLL_VBOTX_0

M13

AVDD33_PLL_VBOTX_1

AG22

AVDD33_VBO_RX_1

AG23

AVDD33_VBO_RX_2

M17

AVDD33_VBOTX_0_1

M18

AVDD33_VBOTX_0_2

M14

AVDD33_VBOTX_1_1

M15

AVDD33_VBOTX_1_2

L20

DVDD33_1

M20

DVDD33_2

W25

AVDD33_DDR0_PLL1

T25

AVDD33_DDR0_PLL2

P23

AVDD33_DDR1_PLL1

P21

AVDD33_DDR1_PLL2

U27

VDDIO_CK_DDR0

M22

VDDIO_CK_DDR1

G33

VDDIO_DDR1

G34

VDDIO_DDR2

G35

VDDIO_DDR3

H32

VDDIO_DDR4

H33

VDDIO_DDR5

H34

VDDIO_DDR6

H35

VDDIO_DDR7

J31

VDDIO_DDR8

J32

VDDIO_DDR9

J33

VDDIO_DDR10

J34

VDDIO_DDR11

K28

VDDIO_DDR12

K29

VDDIO_DDR13

K30

VDDIO_DDR14

K31

VDDIO_DDR15

K32

VDDIO_DDR16

L23

VDDIO_DDR17

L24

VDDIO_DDR18

L25

VDDIO_DDR19

L26

VDDIO_DDR20

L27

VDDIO_DDR21

L28

VDDIO_DDR22

C5047 1UF 10V

C5046 1UF 10V

C5045 100nF 16V

C5048 470NF 10% 10V

U408I

Hi3251V600

U408H

Hi3251V600

DDR PWR Inter fa ce of

C5050 10uF 6.3V

C5049 470NF 10% 10V

VDDIO_DDR23
VDDIO_DDR24
VDDIO_DDR25
VDDIO_DDR26
VDDIO_DDR27
VDDIO_DDR28
VDDIO_DDR29
VDDIO_DDR30
VDDIO_DDR31
VDDIO_DDR32
VDDIO_DDR33
VDDIO_DDR34
VDDIO_DDR35
VDDIO_DDR36
VDDIO_DDR37
VDDIO_DDR38
VDDIO_DDR39
VDDIO_DDR40
VDDIO_DDR41
VDDIO_DDR42
VDDIO_DDR43
VDDIO_DDR44
VDDIO_DDR45
VDDIO_DDR46
VDDIO_DDR47
VDDIO_DDR48
VDDIO_DDR49

C5051 100nF 16V

VDD_1V1

V600_AVDD11_PLL

AVDD11_VBO_RX

AVDD11_VBOTX

DVDD33

V600_AVDD33_PLL
AVDD33_PLL_VBOTX

AVDD33_VBO_RX

AVDD33_VBOTX

DVDD33

AVDD33_DDR0_PLL AVDD33_VBOTX

DDR3_1V5

AVDD33_DDR1_PLL

C5043 100nF 16V

C5042 100nF 16V

C5041 100nF 16V

R4541 0R 05 1/16W

C5020 10uF 6.3V

C5030 100nF 16V

C5031 100nF 16V

FB501

1 2

120R

1 2

C5032 100nF 16V

FB503

120R

C5033 100nF 16V

VDD_1V1

VDD_1V1

C5034 1UF 10V

DVDD33

C5035 1UF 10V

DVDD33

C5036 10uF 6.3V

AVDD11_VBO_RX

C5011 100nF 16V

C5012 10uF 6.3V

V600_AVDD33_PLL

C5017 10uF 6.3V

C5016 100nF 16V

AVDD33_VBO_RX

C5022 100nF 16V

C5021 100nF 16V

C5023 10uF 6.3V

C5038 10uF 6.3V

C5037 100nF 16V

R4040 0R 05 1/ 16W

FB502

1 2

120R

R4542

DVDD33DVDD33 DVDD33

0R05 1/16W

FB504

1 2

120R

DVDD33

VDD_1V1

DVDD33

DVDD33

DVDD33

R4543

FB505

120R

0R05 1/16W

DVDD33

C5027 10uF 6.3V

C5026 100nF 16V

C5025 100nF 16V

C5024 100nF 16V

AVDD33_DDR1_PLLAVDD33_DDR0_PLL

C4039 100nF 16V

C4040 10uF 6.3V

1 2

VDD_1V1

C5062 NC/22uF 6.3V

C5061 NC/22uF 6.3V

C5060 NC/22uF 6.3V

C5064 100nF 16V

C5063 22uF 6.3V

C5065 100nF 16V

C5066 1UF 10V

C5067 1UF 10V

C5068 100nF 16V

C5069 100nF 16V

C5070 100nF 16V

C5071 1UF 10V

C5072 1UF 10V

C5074 10uF 6.3V

C5073 10uF 6.3V

C5075 10uF 6.3V

8-2-17 HI3251V600 GND interface

GND Interface

AV3

AV2

AV1

AU4

AU3

AU2

AU1

AT5

AR5

AR4

AR3

AP5

AN5

AN4

AN3

AM6

AM5

AL7

AL6

AL5

AL4

AL3

AK8

AK7

AK6

AK5

AJ9

AJ8

AJ7

AJ6

AJ5

AJ4

AJ3

AH10

AH9

AH8

AH7

AH6

AH5

AG11

AG10

AG9

AG8

AG7

AG6

AG5

AG4

AG3

AF12

AF11

AVSS_MLVDS200

AVSS_MLVDS199

AVSS_MLVDS198

AVSS_MLVDS197

AVSS_MLVDS196

AVSS_MLVDS195

AVSS_MLVDS194

AVSS_MLVDS193

AVSS_MLVDS192

AVSS_MLVDS191

AVSS_MLVDS190

AVSS_MLVDS189

AVSS_MLVDS188

AVSS_MLVDS187

AVSS_MLVDS186

AVSS_MLVDS185

AVSS_MLVDS184

AVSS_MLVDS183

AVSS_MLVDS182

AVSS_MLVDS181

AVSS_MLVDS180

AVSS_MLVDS179

AVSS_MLVDS178

AVSS_MLVDS177

AVSS_MLVDS176

AVSS_MLVDS175

AVSS_MLVDS174

AVSS_MLVDS173

AVSS_MLVDS172

AVSS_MLVDS171

AVSS_MLVDS170

AVSS_MLVDS169

AVSS_MLVDS168

AVSS_MLVDS167

AVSS_MLVDS166

AVSS_MLVDS165

AVSS_MLVDS164

AVSS_MLVDS163

AVSS_MLVDS162

AVSS_MLVDS161

AVSS_MLVDS160

AVSS_MLVDS159

AVSS_MLVDS158

AVSS_MLVDS157

AVSS_MLVDS156

AVSS_MLVDS155

AVSS_MLVDS154

AVSS_MLVDS153

AVSS_MLVDS152

AVSS_MLVDS151

AF10
AF9
AF8
AF7
AF6
AF5
AE12
AE11
AE10
AE9
AE8
AE7
AE6
AE5
AE4
AE3
AD11
AD10
AD9
AD8
AD7
AD6
AD5
AC11
AC10
AC9
AC8
AC7
AC6
AC5
AC4
AC3
AB10
AB9
AB8
AB7
AB6
AB5
AA11
AA10
AA9
AA8
AA7
AA6
AA5
AA4
AA3
Y12
Y11
Y10

L10

M10
M11

N10
N11
N12

E3
E4

F5
G3
G4
G5
G6
H5
H6
H7

J3

J4

J5

J6

J7

J8

K5

K6

K7

K8

K9

L3

L4

L5

L6

L7

L8

L9
M5

M6
M7
M8
M9

N3
N4
N5
N6
N7
N8
N9

P5

P6

P7

P8

AVSS_MLVDS1
AVSS_MLVDS2
AVSS_MLVDS3
AVSS_MLVDS4
AVSS_MLVDS5
AVSS_MLVDS6
AVSS_MLVDS7
AVSS_MLVDS8
AVSS_MLVDS9
AVSS_MLVDS10
AVSS_MLVDS11
AVSS_MLVDS12
AVSS_MLVDS13
AVSS_MLVDS14
AVSS_MLVDS15
AVSS_MLVDS16
AVSS_MLVDS17
AVSS_MLVDS18
AVSS_MLVDS19
AVSS_MLVDS20
AVSS_MLVDS21
AVSS_MLVDS22
AVSS_MLVDS23
AVSS_MLVDS24
AVSS_MLVDS25
AVSS_MLVDS26
AVSS_MLVDS27
AVSS_MLVDS28
AVSS_MLVDS29
AVSS_MLVDS30
AVSS_MLVDS31
AVSS_MLVDS32
AVSS_MLVDS33
AVSS_MLVDS34
AVSS_MLVDS35
AVSS_MLVDS36
AVSS_MLVDS37
AVSS_MLVDS38
AVSS_MLVDS39
AVSS_MLVDS40
AVSS_MLVDS41
AVSS_MLVDS42
AVSS_MLVDS43
AVSS_MLVDS44
AVSS_MLVDS45
AVSS_MLVDS46
AVSS_MLVDS47
AVSS_MLVDS48
AVSS_MLVDS49
AVSS_MLVDS50

U408G

Hi3251V600

MISC Interface of

AVSS_MLVDS150
AVSS_MLVDS149
AVSS_MLVDS148
AVSS_MLVDS147
AVSS_MLVDS146
AVSS_MLVDS145
AVSS_MLVDS144
AVSS_MLVDS143
AVSS_MLVDS142
AVSS_MLVDS141
AVSS_MLVDS140
AVSS_MLVDS139
AVSS_MLVDS138
AVSS_MLVDS137
AVSS_MLVDS136
AVSS_MLVDS135
AVSS_MLVDS134
AVSS_MLVDS133
AVSS_MLVDS132
AVSS_MLVDS131
AVSS_MLVDS130
AVSS_MLVDS129
AVSS_MLVDS128
AVSS_MLVDS127
AVSS_MLVDS126
AVSS_MLVDS125
AVSS_MLVDS124
AVSS_MLVDS123
AVSS_MLVDS122
AVSS_MLVDS121
AVSS_MLVDS120
AVSS_MLVDS119
AVSS_MLVDS118
AVSS_MLVDS117
AVSS_MLVDS116
AVSS_MLVDS115
AVSS_MLVDS114
AVSS_MLVDS113
AVSS_MLVDS112
AVSS_MLVDS111
AVSS_MLVDS110
AVSS_MLVDS109
AVSS_MLVDS108
AVSS_MLVDS107
AVSS_MLVDS106
AVSS_MLVDS105
AVSS_MLVDS104
AVSS_MLVDS103
AVSS_MLVDS102
AVSS_MLVDS101

AG20
AG21
AG24
AH21
AH23
AH24
AH26

AJ21
AJ22
AJ23
AJ24
AJ25
AJ26

AJ27
AK21
AK22
AK23
AK24
AK25
AK26
AK27
AK28

AL21

AL22

AL23

AL24

AL25

AL26

AL27

AL28

AL29
AM21
AM22
AM23
AM24
AM25
AM26
AM27
AM28
AM29
AM30
AN21
AN22
AN23

AVSS_PLL
AVSS_VBO_RX1
AVSS_VBO_RX2
AVSS_VBO_RX3
AVSS_VBO_RX4
AVSS_VBO_RX5
AVSS_VBO_RX6
AVSS_VBO_RX7
AVSS_VBO_RX8
AVSS_VBO_RX9
AVSS_VBO_RX10
AVSS_VBO_RX11
AVSS_VBO_RX12
AVSS_VBO_RX13
AVSS_VBO_RX14
AVSS_VBO_RX15
AVSS_VBO_RX16
AVSS_VBO_RX17
AVSS_VBO_RX18
AVSS_VBO_RX19
AVSS_VBO_RX20
AVSS_VBO_RX21
AVSS_VBO_RX22
AVSS_VBO_RX23
AVSS_VBO_RX24
AVSS_VBO_RX25
AVSS_VBO_RX26
AVSS_VBO_RX27
AVSS_VBO_RX28
AVSS_VBO_RX29
AVSS_VBO_RX30
AVSS_VBO_RX31
AVSS_VBO_RX32
AVSS_VBO_RX33
AVSS_VBO_RX34
AVSS_VBO_RX35
AVSS_VBO_RX36
AVSS_VBO_RX37
AVSS_VBO_RX38
AVSS_VBO_RX39
AVSS_VBO_RX40
AVSS_VBO_RX41
AVSS_VBO_RX42
AVSS_VBO_RX43

M19

M12

L15

L14

L12

L11

K14

K13

K12

K11

K10

J13

J12

J11

J10

H13

H12

H11

H10

G12

G11

G10

F12

F11

F10

E11

E10

D11

D7

AVSS_VBOTX_1_15

AVSS_VBOTX_1_14E9AVSS_VBOTX_1_13E8AVSS_VBOTX_1_12E7AVSS_VBOTX_1_11E6AVSS_VBOTX_1_10

D9

AVSS_VBOTX _1_8

AVSS_VBOTX _1_9

AVSS_VBOTX_1_7
AVSS_VBOTX_1_6
AVSS_VBOTX_1_5
AVSS_VBOTX_1_4
AVSS_VBOTX_1_3
AVSS_VBOTX_1_2

AVSS_VBOTX_1_1
AVSS_VBOTX_0_48
AVSS_VBOTX_0_47
AVSS_VBOTX_0_46
AVSS_VBOTX_0_45
AVSS_VBOTX_0_44
AVSS_VBOTX_0_43
AVSS_VBOTX_0_42
AVSS_VBOTX_0_41
AVSS_VBOTX_0_40
AVSS_VBOTX_0_39
AVSS_VBOTX_0_38
AVSS_VBOTX_0_37
AVSS_VBOTX_0_36
AVSS_VBOTX_0_35
AVSS_VBOTX_0_34
AVSS_VBOTX_0_33
AVSS_VBOTX_0_32
AVSS_VBOTX_0_31
AVSS_VBOTX_0_30
AVSS_VBOTX_0_29
AVSS_VBOTX_0_28
AVSS_VBOTX_0_27
AVSS_VBOTX_0_26
AVSS_VBOTX_0_25
AVSS_VBOTX_0_24
AVSS_VBOTX_0_23
AVSS_VBOTX_0_22
AVSS_VBOTX_0_21
AVSS_VBOTX_0_20
AVSS_VBOTX_0_19
AVSS_VBOTX_0_18
AVSS_VBOTX_0_17
AVSS_VBOTX_0_16
AVSS_VBOTX_0_15
AVSS_VBOTX_0_14
AVSS_VBOTX_0_13
AVSS_VBOTX_0_12
AVSS_VBOTX_0_11

D5
D3
C11
C9
C7
C5
C3
L19
L18
L17
K19
K18
K17
K16
K15
J19
J18
J17
J16
J15
J14
H19
H18
H17
H16
H15
H14
G19
G18
G17
G16
G15
G14
G13
F18
F17
F16
F15
F14
F13
E18
E17
E16
E15
E14

L13

L16

AVSS_VBOTX_1_50

AVSS_VBOTX_1_49

AVSS_VBOTX_1_48

AVSS_VBOTX_1_47

AVSS_VBOTX_1_46

AVSS_VBOTX_1_45

AVSS_VBOTX_1_44

AVSS_VBOTX_1_43

AVSS_VBOTX_1_42

AVSS_VBOTX_1_41

AVSS_VBOTX_1_40

AVSS_VBOTX_1_39

AVSS_VBOTX_1_38

AVSS_VBOTX_1_37

AVSS_VBOTX_1_36

AVSS_VBOTX_1_35J9AVSS_VBOTX_1_34

AVSS_VBOTX_1_33

AVSS_VBOTX_1_32

AVSS_VBOTX_1_31

AVSS_VBOTX_1_30H9AVSS_VBOTX_1_29H8AVSS_VBOTX_1_28

AVSS_VBOTX_1_27

AVSS_VBOTX_1_26

AVSS_VBOTX_1_25G9AVSS_VBOTX_1_24G8AVSS_VBOTX_1_23G7AVSS_VBOTX_1_22

AVSS_VBOTX_1_21

AVSS_VBOTX_1_20

AVSS33_PLL_VBOTX_1

AVSS33_PLL_VBOTX_0

AVSS_VBOTX_1_19F9AVSS_VBOTX_1_18F8AVSS_VBOTX_1_17F7AVSS_VBOTX_1_16

U408F

Hi3251V600

MISC I nterfac e of

AVSS_MLVD S 53

AVSS_MLVD S 52

AVSS_MLVD S 51

P9

P12

P11

P10

AVSS_MLVD S 61R9AVSS_MLVD S 60R8AVSS_MLVD S 59R7AVSS_MLVD S 58R6AVSS_MLVD S 57R5AVSS_MLVD S 56R4AVSS_MLVD S 55R3AVSS_MLVD S 54

T11

T10

R11

R10

AVSS_MLVD S 69

AVSS_MLVD S 68T9AVSS_MLVD S 67T8AVSS_MLVD S 66T7AVSS_MLVD S 65T6AVSS_MLVD S 64T5AVSS_MLVD S 63

AVSS_MLVD S 62

AVSS_MLVD S 77U9AVSS_MLVD S 76U8AVSS_MLVD S 75U7AVSS_MLVD S 74U6AVSS_MLVD S 73U5AVSS_MLVD S 72U4AVSS_MLVD S 71U3AVSS_MLVD S 70

V11

V10

U10

AVSS_MLVD S 84

AVSS_MLVD S 83V9AVSS_MLVD S 82V8AVSS_MLVD S 81V7AVSS_MLVD S 80V6AVSS_MLVD S 79V5AVSS_MLVD S 78

AVSS_MLVD S 92W9AVSS_MLVD S 91W8AVSS_MLVD S 90W7AVSS_MLVD S 89W6AVSS_MLVD S 88W5AVSS_MLVD S 87W4AVSS_MLVD S 86W3AVSS_MLVD S 85

W12

W11

W10

AVSS_MLVD S 100Y9AVSS_MLVD S 99Y8AVSS_MLVD S 98Y7AVSS_MLVD S 97Y6AVSS_MLVD S 96Y5AVSS_MLVD S 95

AVSS_MLVD S 94

AVSS_MLVD S 93

AVSS_VBO_RX44

E13

E12

D19

D17

D15

D13

C19

C17

C15

C13

AT34

AT32

AT30

AT28

AT26

AT24

AP21

AN31

AN30

AN29

AN28

AN27

AN26

AN25

AN24

AR22

AP33

AP32

AP31

AP30

AP29

AP28

AP27

AP26

AP25

AP24

AP23

AP22

AT22

AR34

AR32

AR30

AR28

AR26

AR24

AVSS_VBOTX _0_10

AVSS_VBOTX _0_9

AVSS_VBOTX _0_8

AVSS_VBOTX _0_7

AVSS_VBOTX _0_6

AVSS_VBOTX _0_5

AVSS_VBOTX _0_4

AVSS_VBOTX _0_3

AVSS_VBOTX _0_2

AVSS_VBOTX _0_1

AVSS_VBO_RX78

AVSS_VBO_RX77

AVSS_VBO_RX76

AVSS_VBO_RX75

AVSS_VBO_RX74

AVSS_VBO_RX73

AVSS_VBO_RX72

AVSS_VBO_RX71

AVSS_VBO_RX70

AVSS_VBO_RX69

AVSS_VBO_RX68

AVSS_VBO_RX67

AVSS_VBO_RX66

AVSS_VBO_RX65

AVSS_VBO_RX64

AVSS_VBO_RX63

AVSS_VBO_RX62

AVSS_VBO_RX61

AVSS_VBO_RX60

AVSS_VBO_RX59

AVSS_VBO_RX58

AVSS_VBO_RX57

AVSS_VBO_RX56

AVSS_VBO_RX55

AVSS_VBO_RX54

AVSS_VBO_RX53

AVSS_VBO_RX52

AVSS_VBO_RX51

AVSS_VBO_RX50

AVSS_VBO_RX49

AVSS_VBO_RX48

AVSS_VBO_RX47

AVSS_VBO_RX46

AVSS_VBO_RX45

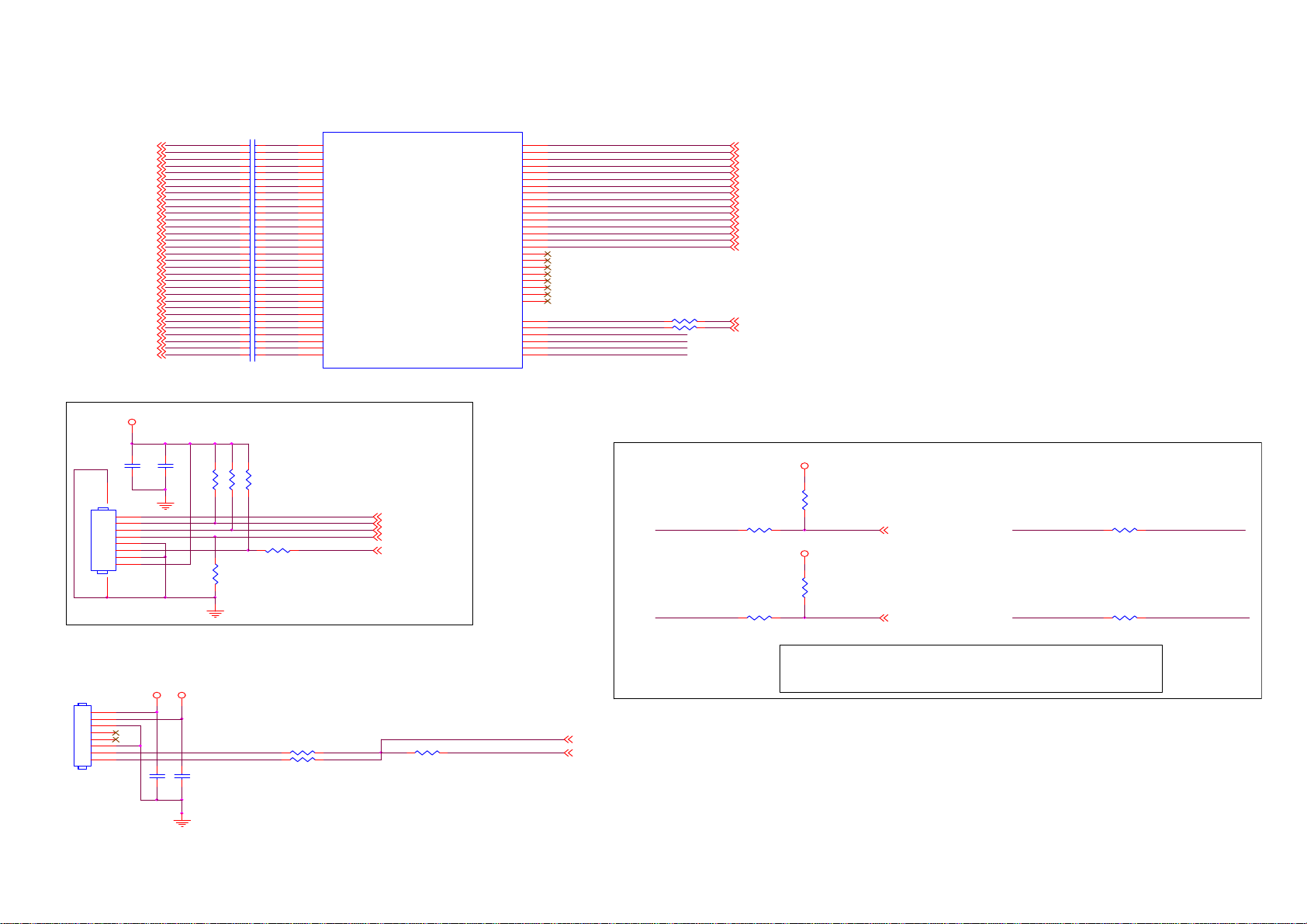

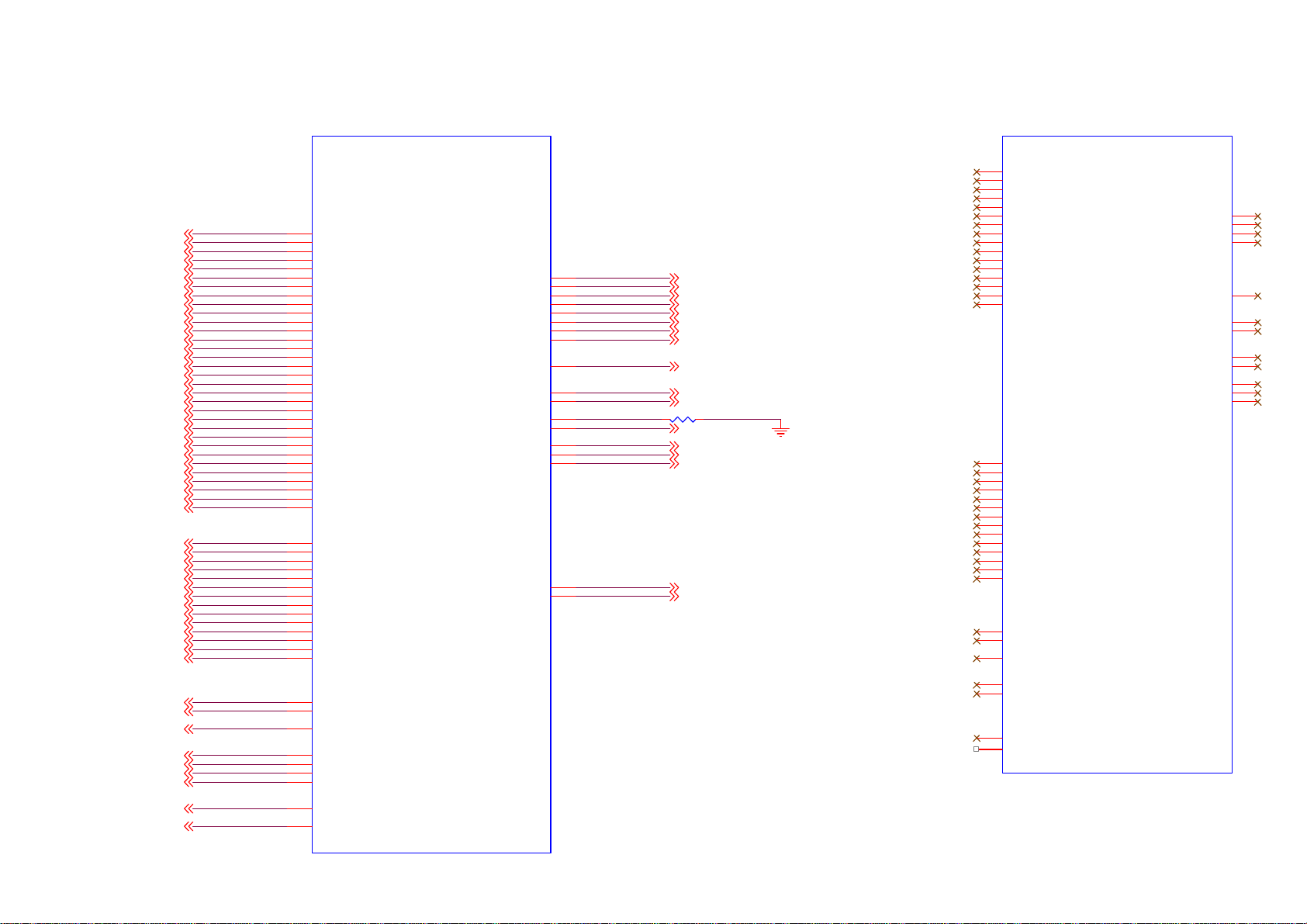

8-2-18 HI3251V600 VBO RX/TX/JTAG/3D

VBO RX & TX & JTAG & 3D IR Interface

AU22
AV22
AR23
AT23
AU24
AV24
AR25
AT25
AU26
AV26
AR27
AT27
AU28
AV28
AR29
AT29
AU30
AV30
AR31
AT31
AU32
AV32
AR33
AT33

AT21
AR21
E19
F19
F6
E5

M5_RXCON_O_0N
M5_RXCON_O_0P
M5_RXCON_O_1N
M5_RXCON_O_1P
M5_RXCON_O_2N
M5_RXCON_O_2P
M5_RXCON_O_3N
M5_RXCON_O_3P
M5_RXCON_O_4N
M5_RXCON_O_4P
M5_RXCON_O_5N
M5_RXCON_O_5P
M5_RXCON_O_6N
M5_RXCON_O_6P
M5_RXCON_O_7N
M5_RXCON_O_7P

MEMC VBO RX

VBORX_HPN
VBORX_LOCKN
M5_VBOTX0_HPN
M5_VBOTX0_LOCKN
M5_VBOTX1_HPN
M5_VBOTX1_LOCKN

R4148 100OHM
R4149 100OHM

M5_VBOTX1_HPN

M5_RXCON_O_0N [7]
M5_RXCON_O_0P [7]
M5_RXCON_O_1N [7]
M5_RXCON_O_1P [7]
M5_RXCON_O_2N [7]
M5_RXCON_O_2P [7]
M5_RXCON_O_3N [7]
M5_RXCON_O_3P [7]
M5_RXCON_O_4N [7]
M5_RXCON_O_4P [7]
M5_RXCON_O_5N [7]
M5_RXCON_O_5P [7]
M5_RXCON_O_6N [7]
M5_RXCON_O_6P [7]
M5_RXCON_O_7N [7]
M5_RXCON_O_7P [7]

M5_VBORX_HPN [7]
M5_VBORX_LOCKN [7]

DVDD33

R4048

100R 1/16W 5%

R4553

100R 1/16W 5%

DVDD33

R4047
10K 1/16W 5%

M5_H PN _TX1

R4552
10K 1/16W 5%

M5_LOCKN_VTX1

M5_HPN_TX1 [26]

M5_LOCKN_VTX1 [ 26 ]

M5_HPN_TX1

M5_LOCKN_VTX1M5_VBOTX1_LOCKN

R4049

100R 1/16W 5%

R4554

100R 1/16W 5%

M5_VBOTX0_HPN

M5_VBOTX0_LOCKN

M5_J TAG_TR STN
M5_J TAG_TD I
M5_J TAG_TMS
M5_J TAG_TC K

M5_J TAG_TD O

33R 1/16W 5%

C12
D12

A13

B13
C14
D14

A15

B15
C16
D16

A17

B17
C18
D18

A19

B19

C10
D10

A11

B11

C4
D4
A5
B5
C6
D6
A7
B7
C8
D8
A9
B9

VBO_0_TX0N
VBO_0_TX0P
VBO_0_TX1N
VBO_0_TX1P
VBO_0_TX2N
VBO_0_TX2P
VBO_0_TX3N
VBO_0_TX3P
VBO_0_TX4N
VBO_0_TX4P
VBO_0_TX5N
VBO_0_TX5P
VBO_0_TX6N
VBO_0_TX6P
VBO_0_TX7N
VBO_0_TX7P
VBO_1_TX0N
VBO_1_TX0P
VBO_1_TX1N
VBO_1_TX1P
VBO_1_TX2N
VBO_1_TX2P
VBO_1_TX3N
VBO_1_TX3P
VBO_1_TX4N
VBO_1_TX4P
VBO_1_TX5N
VBO_1_TX5P
VBO_1_TX6N
VBO_1_TX6P
VBO_1_TX7N
VBO_1_TX7P

U408C

Hi3251V600

VBORX_HPN/GPIO17_0

VBORX_LOCKN/GPIO17_1

VBOTX0_HPN/GPIO12_0

VBOTX0_LOCKN/GPIO12_1

VBOTX1_HPN/GPIO12_2

VBOTX1_LOCKN/GPIO12_3

M5_J TAG_TR STN [16]
M5_J TAG_TD I [ 16 ]
M5_J TAG_TMS [ 16]
M5_J TAG_TC K [ 16]

M5_J TAG_TD O [ 16]

VBO_RX0N
VBO_RX0P
VBO_RX1N
VBO_RX1P
VBO_RX2N
VBO_RX2P
VBO_RX3N
VBO_RX3P
VBO_RX4N
VBO_RX4P
VBO_RX5N
VBO_RX5P
VBO_RX6N
VBO_RX6P
VBO_RX7N
VBO_RX7P
VBO_RX8N
VBO_RX8P
VBO_RX9N
VBO_RX9P

VBO_RX10N

VBO_RX10P

VBO_RX11N

VBO_RX11P

V0_TX0N[26]
V0_TX0P[26]
V0_TX1N[26]
V0_TX1P[26]
V0_TX2N[26]
V0_TX2P[26]
V0_TX3N[26]
V0_TX3P[26]
V0_TX4N[26]
V0_TX4P[26]
V0_TX5N[26]
V0_TX5P[26]
V0_TX6N[26]
V0_TX6P[26]
V0_TX7N[26]
V0_TX7P[26]
V1_TX0N[26]
V1_TX0P[26]
V1_TX1N[26]
V1_TX1P[26]
V1_TX2N[26]
V1_TX2P[26]
V1_TX3N[26]
V1_TX3P[26]
V1_TX4N[26]
V1_TX4P[26]
V1_TX5N[26]
V1_TX5P[26]
V1_TX6N[26]
V1_TX6P[26]
V1_TX7N[26]
V1_TX7P[26]

DVDD33

910

1
2
3
4
5
6
7
8

CN407
CONN

V0_TX0N
V0_TX0P
V0_TX1N
V0_TX1P
V0_TX2N
V0_TX2P
V0_TX3N
V0_TX3P
V0_TX4N
V0_TX4P
V0_TX5N
V0_TX5P
V0_TX6N
V0_TX6P
V0_TX7N
V0_TX7P
V1_TX0N
V1_TX0P
V1_TX1N
V1_TX1P
V1_TX2N
V1_TX2P
V1_TX3N
V1_TX3P
V1_TX4N
V1_TX4P
V1_TX5N
V1_TX5P
V1_TX6N
V1_TX6P
V1_TX7N
V1_TX7P

JTAG

C5132 100nF 16V

C5133 NC/ 10uF 6. 3V

MEMC VBO TX

C5079 100nF 16V
C5081 100nF 16V
C5083 100nF 16V
C5085 100nF 16V
C5087 100nF 16V
C5076 100nF 16V
C5077 100nF 16V
C5078 100nF 16V
C5092 100nF 16V
C5094 100nF 16V
C5096 100nF 16V
C5098 100nF 16V
C5100 100nF 16V
C5102 100nF 16V
C5104 100nF 16V
C5106 100nF 16V
C5108 100nF 16V
C5110 100nF 16V
C5112 100nF 16V
C5114 100nF 16V
C5116 100nF 16V
C5118 100nF 16V
C5120 100nF 16V
C5122 100nF 16V
C5124 100nF 16V
C5125 100nF 16V
C5126 100nF 16V
C5127 100nF 16V
C5128 100nF 16V
C5129 100nF 16V
C5130 100nF 16V
C5131 100nF 16V

R4544 4.7K1/16W

R4545 4.7K1/16W

R4546 NC/4. 7K1/16W

R4050

R4051
1K 1/16W 5%

CN404
NC/WAFER

1
2
3
4
5
6
7
8

C5134

100nF 16V

DVDD335V0

LR_SYNC_OUT
IR_SYNC_OUT

C5135

100nF 16V

3D IR OUT

3D IR OUT

R4555 100R 1/ 16W 5%
R4556 100R 1/ 16W 5%

M5_IR_SYNC_OUT/LR_SYNC_OUT

R4151 0R05 OHM

3D_SYNC_OUT_SOC

Notes:O nly VBO TX0 HP&LO CK CAN BE USE

M5_IR_SYNC_OUT/LR_SYNC_OUT [16]
3D_SYNC_OUT_SOC [7]

8-2-19 HI3251V600 DDR0/DDR1 Control

DDR0 & DDR1 Control

B36

DDR3_DQ0

E34

DDR3_DQ1

C37

DDR3_DQ2

U408B

Hi3251V600

DDR0DQ0[23]
DDR0DQ1[23]
DDR0DQ2[23]
DDR0DQ3[23]
DDR0DQ4[23]
DDR0DQ5[23]
DDR0DQ6[23]
DDR0DQ7[23]
DDR0DQ10[23]
DDR0DQ9[23]
DDR0DQ8[23]
DDR0DQ11[23]
DDR0DQ14[23]
DDR0DQ13[23]
DDR0DQ12[23]
DDR0DQ15[23]
DDR0DQ16[24]
DDR0DQ17[24]
DDR0DQ18[24]
DDR0DQ19[24]
DDR0DQ20[24]
DDR0DQ21[24]
DDR0DQ22[24]
DDR0DQ23[24]
DDR0DQ26[24]
DDR0DQ31[24]
DDR0DQ24[24]
DDR0DQ25[24]
DDR0DQ30[24]
DDR0DQ29[24]
DDR0DQ28[24]
DDR0DQ27[24]

DDR0ADDR3[23,24]
DDR0ADDR4[23,24]
DDR0ADDR0[23,24]
DDR0ADDR9[23,24]
DDR0ADDR6[23,24]
DDR0ADDR13[23,24]
DDR0ADDR11[23,24]
DDR0ADDR2[23,24]
DDR0ADDR1[23,24]
DDR0ADDR7[23,24]
DDR0ADDR10[23,24]
DDR0ADDR8[23,24]
DDR0ADDR12[23,24]
DDR0ADDR5[23,24]

DDR0BA0[23,24]
DDR0BA1[23,24]

DDR0BA2[23,24]

DDR0DM0[23]
DDR0DM1[23]
DDR0DM2[24]
DDR0DM3[24]

DDR0CLK0_P[23,24]
DDR0CLK0_N[23,24]

DDR0DQ0
DDR0DQ1
DDR0DQ2
DDR0DQ3
DDR0DQ4
DDR0DQ5
DDR0DQ6
DDR0DQ7
DDR0DQ10
DDR0DQ9
DDR0DQ8
DDR0DQ11
DDR0DQ14
DDR0DQ13
DDR0DQ12
DDR0DQ15
DDR0DQ16
DDR0DQ17
DDR0DQ18
DDR0DQ19
DDR0DQ20
DDR0DQ21
DDR0DQ22
DDR0DQ23
DDR0DQ26
DDR0DQ31
DDR0DQ24
DDR0DQ25
DDR0DQ30
DDR0DQ29
DDR0DQ28
DDR0DQ27

DDR0ADDR3
DDR0ADDR4
DDR0ADDR0
DDR0ADDR9
DDR0ADDR6
DDR0ADDR13
DDR0ADDR11
DDR0ADDR2
DDR0ADDR1
DDR0ADDR7
DDR0ADDR10
DDR0ADDR8
DDR0ADDR12
DDR0ADDR5

DDR0BA0
DDR0BA1

DDR0BA2

DDR0DM0
DDR0DM1
DDR0DM2
DDR0DM3

DDR0CLK0_P
DDR0CLK0_N

AG38
AD33
AG36
AD35
AH36
AC35
AH37
AC33
AC36

AF33
AC37
AG34
AD38
AH34
AD37
AH35

Y38
V34

AA37

V33

AB38

U33

AB36

U35
Y36
Y34

U37

AA35

U36

AA33

K36
N38

G38
N36
G37
N35
H37
M35
H36
R33
M33
P33

F37
P34

AF35

AE35

W35

V35

R37
R36

T36
T38

J36

J38

L37

DDR3_DQ0
DDR3_DQ1
DDR3_DQ2
DDR3_DQ3
DDR3_DQ4
DDR3_DQ5
DDR3_DQ6
DDR3_DQ7
DDR3_DQ8
DDR3_DQ9
DDR3_DQ10
DDR3_DQ11
DDR3_DQ12
DDR3_DQ13
DDR3_DQ14
DDR3_DQ15
DDR3_DQ16
DDR3_DQ17
DDR3_DQ18
DDR3_DQ19
DDR3_DQ20
DDR3_DQ21
DDR3_DQ22
DDR3_DQ23
DDR3_DQ24
DDR3_DQ25
DDR3_DQ26
DDR3_DQ27
DDR3_DQ28
DDR3_DQ29
DDR3_DQ30
DDR3_DQ31

DDR3_A0
DDR3_A1
DDR3_A2
DDR3_A3
DDR3_A4
DDR3_A5
DDR3_A6
DDR3_A7
DDR3_A8
DDR3_A9
DDR3_A10
DDR3_A11
DDR3_A12
DDR3_A13

DDR3_BA0
DDR3_BA1

DDR3_BA2

DDR3_DM0
DDR3_DM1
DDR3_DM2
DDR3_DM3

DDR3_CLK0_P
DDR3_CLK0_N

AF36

DDR3_DQS0_P

DDR3_DQS0_N

DDR3_DQS1_P

DDR3_DQS1_N

DDR3_DQS2_P

DDR3_DQS2_N

DDR3_DQS3_P

DDR3_DQS3_N

DDR3_ODT

DDR3_CSN
DDR3_CKE

DDR3_ZQ

DDR3_RESETN

DDR3_RASN
DDR3_CASN

DDR3_WEN

DDR0 Interfac e of

DDR_MOD0
DDR_MOD1

AF37
AE37
AE38
W36
W37
V38
V37

K34

M38
R34

K33
F38

P35
L35
K35

AK35
AK36

DDR0DQS0_P
DDR0DQS0_N
DDR0DQS1_P
DDR0DQS1_N
DDR0DQS2_P
DDR0DQS2_N
DDR0DQS3_P
DDR0DQS3_N

DDR0ODT

DDR0CSN
DDR0CKE

DDR0ZQ
DDR0RESETN

DDR0RASN
DDR0CASN
DDR0WEN

DDR_MOD0
DDR_MOD1

DDR0DQS0_P [23]
DDR0DQS0_N [23]
DDR0DQS1_P [23]
DDR0DQS1_N [23]
DDR0DQS2_P [24]
DDR0DQS2_N [24]
DDR0DQS3_P [24]
DDR0DQS3_N [24]

DDR0ODT[23,24]

DDR0CSN [23,24]
DDR0CKE [23,24]

R4057 240 OHM +-1% 1/16W

DDR0RESETN [23,24]
DDR0RASN [23,24]

DDR0CASN [23,24]
DDR0WEN [23,24]

DDR_MOD0[15]
DDR_MOD1[15]

E33
D37
A32
D38
B31
C32
C35
E32
B35
F31
E35
E31
F35

B27
A29
B26
C24
B29
B24
E26
B25
D26
A25
F29
F25
F28
A26

C23
E27

C28

D34
D33

B30
C30

DDR3_DQ3
DDR3_DQ4
DDR3_DQ5
DDR3_DQ6
DDR3_DQ7
DDR3_DQ8
DDR3_DQ9
DDR3_DQ10
DDR3_DQ11
DDR3_DQ12
DDR3_DQ13
DDR3_DQ14
DDR3_DQ15

DDR3_A0
DDR3_A1
DDR3_A2
DDR3_A3
DDR3_A4
DDR3_A5
DDR3_A6
DDR3_A7
DDR3_A8
DDR3_A9
DDR3_A10
DDR3_A11
DDR3_A12
DDR3_A13

DDR3_BA0
DDR3_BA1

DDR3_BA2

DDR3_DM0
DDR3_DM1

DDR3_CLK0_P
DDR3_CLK0_N

U408A

Hi3251V600

DDR1 Interfac e of

DDR3_DQS0_P
DDR3_DQS0_N
DDR3_DQS1_P
DDR3_DQS1_N

DDR3_ODT

DDR3_CSN

DDR3_CKE

DDR3_ZQ

DDR3_RESETN

DDR3_RASN
DDR3_CASN

DDR3_WEN

B34
A34
B33
C33

E23

A28
E30

F22
A23

D30
D24
F24

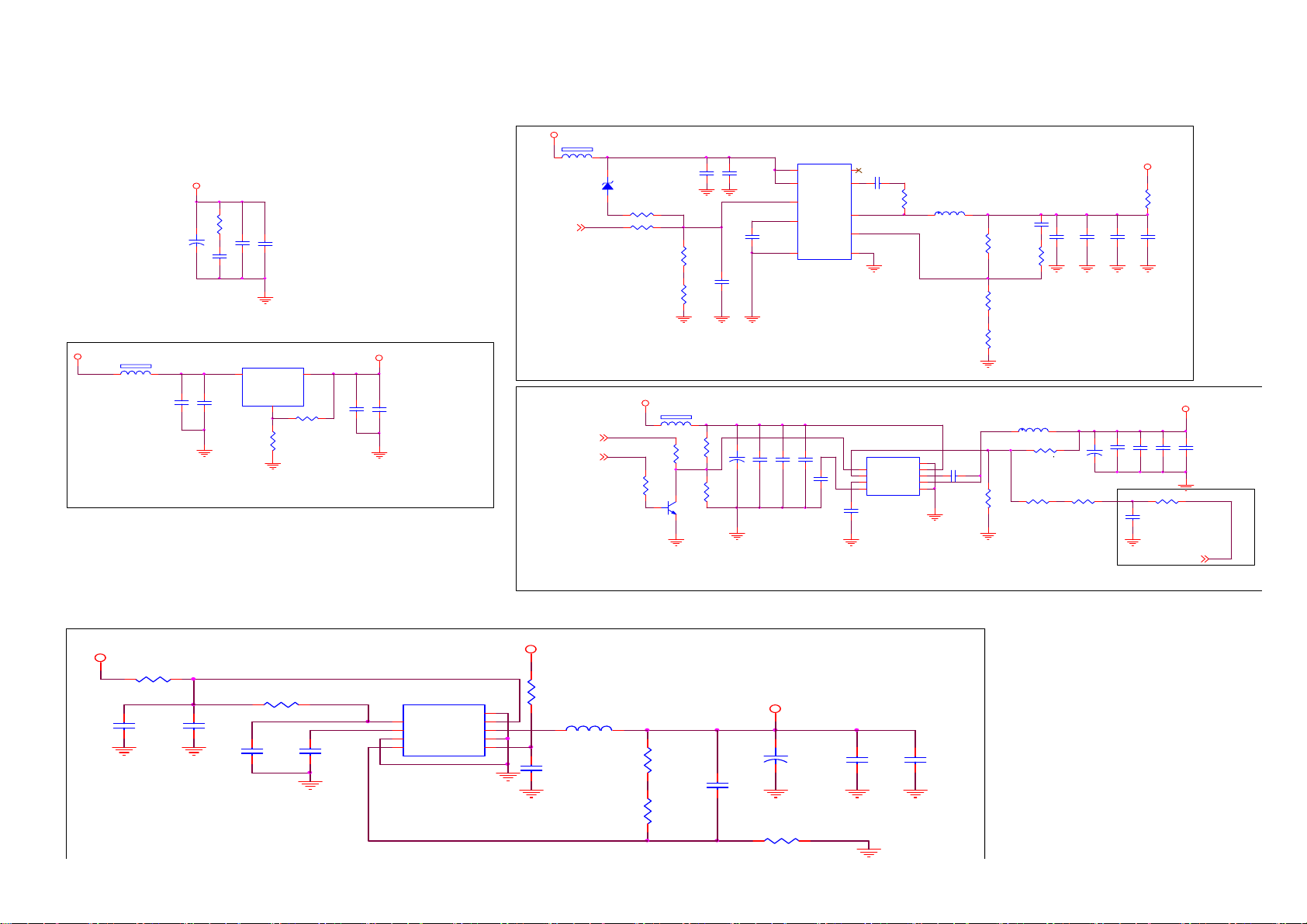

8-2-20 HI3251V600 Power Suply

MEMC POWER IN

5V0

5V0

5V0

For EMC consideration

GND pin should be as closed to input ground as possible,and the trace should be as thick as possible

MEMC POWER IN

P12V

22R 1/10W 5%

C801

+

220UF 35V

FB702

1 2

600OHM

VOUT=1.25*(1+249/ 150)=3. 325V

R810 0R05 1/8W

0805

C839
10uF 10V

C818 100 N 16V

C817 4.7uF 10V

1V5_DDR3_PWR

1V5_DDR3_PWR

C821
10uF 10V

0805

R803

C812

C813 100N 16V

C815 1UF 25V

10uF 25V

GND/ ADJ

1

R813

150R 1/16W 1%

R815
249R 1%

U802

2

0603

AZ1084CD-AD JTRG1

VIN3VOUT

R812 10R 1/10W 5%

C822
1UF16V

0603

C823
100N 16V

DVDD33

C820 100N 16V

C819 4. 7uF 10V

373G253S356Y00

3V3(500mA)

U803
AT1529F11U

1

VCC

2

REF

3

GND

4

FB

Vout = 0.8x(R1+R2)/R2

E-PAD

VIN

PGND

P12V

FB703

1 2

120R 6A

PS_ON[13,14,22,28]

For EMC consideration

GND pin should be as closed to input ground as possible,and the trace should be as thick as possible

POWER_EN_MEMC[7]

PS_ON[13,14,22,28]

PS_ON

R809
NC/0R 05 1/ 16W

Big plane

ZD705
NC/BZ T52-B7V5

1 2

R820 NC/3.3K 1%
R762 100OHM

R824
NC/3. 3K 1%

VOUT=0.6*(1+100K/ 13.24K) =5.1 3V

P12V

1 2

PS_ON

R772

100OHM

Q711
NC/MMBT3904

FB701

220R

C827
10uF 16V

C0805

R822

NC/62K 1/ 16W 1%

NC/27K 1/ 16W 5%

5V0

VOUT=0.8*(13.2K+15K)/15)=1.504V

R771

9
8
7

LX

6
5

EN

4.7K1/16W

C824
100N 16V

L712

2.2UH

1.2A

R814

R1

13K 1%

R816
200R 1/16W 1%

C828
10uF 16V

C0805

C831

4.7UF 6. 3V

C836

NC/100N 16V

R801

C803 100UF 16V

+

R804

NC/10K 1/ 16W 5%

For EMC consideration

GND pin should be as closed to input ground as possible,and the trace should be as thick as possible

DDR3_1V5

C826
10NF 5 0V

R817 15K 1%

C807

10uF 25V

+

R2

8
7

1

5

9

C837

10uF 25V

C840
100UF 16V

IN

PG
BS

IN

EN

LX

VC

FB

GND

ILMT

U804 SY 8366QNC

5A DC-DC For VDD

C808

C809

100N 16V

10N 50V

SY8366QNC: Max:6A

Vin 4V~25V

Vout = 0.6V (1+(

⊙

R1/R2 ))

2

C829

6

0.1uF

10

Big plane

4

3

U801
TPS54528DDAR

1

EN

2

VFB

3

VREG5
SS4GND

C816

1UF 6.3V

C825
22UF

0805

E-Pad
VBST

VIN
SW

R818

2.2R 1%

9
8
7
6
5

C838
22UF

0805

L714

2.2UH

R821

100K 1/10W 1%

R2

100N 16V

C811

Big plane2.2uH

C830
470P 50V

R1

R823

1K1/10W

R825
13K 1%

R826
240 OHM +-1% 1/16W

L713

2.2uH

R802

R805 15.4K 1/10 W

1%

R806
0R05 1/16W

5V0

R819

0R05

C833

C834

C805 10UF

22UF

6.3V

C0805

C835
22UF

6.3V

C806 100N 16V

C814

2.2uF 6.3V

VDD_1V1

C802 100N 16V

R808
1K 1/10W 1%

Close to M5

0.92V-1.3V

C810 100N 16V

C832

22UF

22UF

6.3V

6.3V

C0805 C0805

C0805

4.5A Max

C804 100U F 16V

R807

68.1K 1%

+

12.1K 1%

1%

M5_PMC0[16]

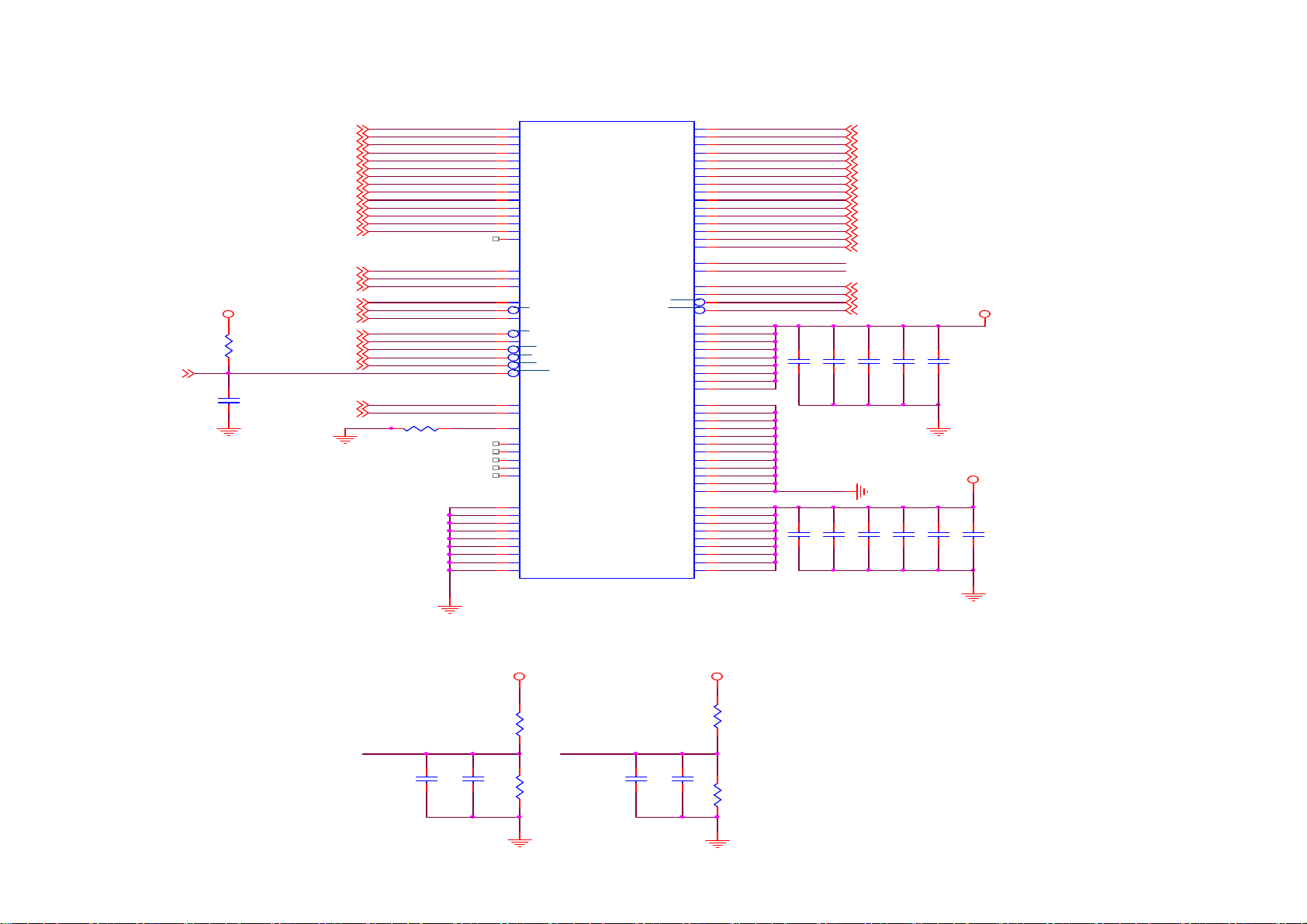

8-2-21 HI3251V600 DDRA

U482

K4B1G1646I-BCK0

DDR0ADDR0[21,24]
DDR0ADDR1[21,24]
DDR0ADDR2[21,24]
DDR0ADDR3[21,24]
DDR0ADDR4[21,24]
DDR0ADDR5[21,24]
DDR0ADDR6[21,24]
DDR0ADDR7[21,24]
DDR0ADDR8[21,24]

DDR0ADDR9[21,24]
DDR0ADDR10[21,24]
DDR0ADDR11[21,24]
DDR0ADDR12[21,24]
DDR0ADDR13[21,24]

DDR0BA0[21,24]
DDR0BA1[21,24]
DDR0BA2[21,24]

DDR3_1V5 DDR3_1V5

R4244

4.7K1/16W

DDR0RESETN[21,24]

C5182

1N 50V

DDR0CLK0_P[21,24]
DDR0CLK0_N[21,24]
DDR0CKE[21,24]

DDR0CSN[21,24]
DDR0ODT[21,24]
DDR0RASN[21,24]
DDR0WEN[21,24]
DDR0CASN[21,24]

DDR0DM0[21]
DDR0DM1[21]

DDR0ADDR0
DDR0ADDR1
DDR0ADDR2
DDR0ADDR3
DDR0ADDR4
DDR0ADDR5
DDR0ADDR6
DDR0ADDR7
DDR0ADDR8
DDR0ADDR9
DDR0ADDR10
DDR0ADDR11
DDR0ADDR12
DDR0ADDR13

DDR0BA0
DDR0BA1
DDR0BA2

DDR0CLK0_P
DDR0CLK0_N
DDR0CKE

DDR0CSN
DDR0ODT
DDR0RASN
DDR0WEN
DDR0CASN
DDR0RESET N

DDR0DM0
DDR0DM1

1%

R4245

240 OHM +-1% 1/16W

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC~

T3

A13

T7

A14

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

L3

WE

K3

CAS

T2

RESET

E7

LDM

D3

UDM

L8

ZQ

J1

NC1

J9

NC2

L1

NC3

L9

NC4

M7

NC5

B1

VSSQ1

B9

VSSQ2

D1

VSSQ3

D8

VSSQ4

E2

VSSQ5

E8

VSSQ6

F9

VSSQ7

G1

VSSQ8

G9

VSSQ9

DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQ8

DQ9
DQ10
DQ11
DQ12
DQ13
DQ14
DQ15

VREFDQ

VREFCA

LDQS

UDQS

LDQS

UDQS

VDD1
VDD2
VDD3
VDD4
VDD5
VDD6
VDD7
VDD8
VDD9

VSS1
VSS2
VSS3
VSS4
VSS5
VSS6
VSS7
VSS8
VSS9

VSS10
VSS11
VSS12

VDDQ1
VDDQ2
VDDQ3
VDDQ4
VDDQ5
VDDQ6
VDDQ7
VDDQ8
VDDQ9

E3
F7
F2
F8
H3
H8
G2
H7
D7
C3
C8
C2
A7
A2
B8
A3

H1
M8

F3
C7
G3
B7

B2
D9
G7
K2
K8
N1
N9
R1
R9

A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9

A1
A8
C1
C9
D2
E9
F1
H2
H9

DDR0DQ0
DDR0DQ1
DDR0DQ2
DDR0DQ3
DDR0DQ4
DDR0DQ5
DDR0DQ6
DDR0DQ7
DDR0DQ8
DDR0DQ9
DDR0DQ10
DDR0DQ11
DDR0DQ12
DDR0DQ13
DDR0DQ14
DDR0DQ15

DDRVREF_DQ_0
DDRVREF_CA_0

DDR0DQS0_P
DDR0DQS1_P
DDR0DQS0_N
DDR0DQS1_N

C5177 100nF 16V

C5183 100nF 16V

DDR0DQ0[21]
DDR0DQ1[21]
DDR0DQ2[21]
DDR0DQ3[21]
DDR0DQ4[21]
DDR0DQ5[21]
DDR0DQ6[21]
DDR0DQ7[21]
DDR0DQ8[21]
DDR0DQ9[21]
DDR0DQ10 [21]
DDR0DQ11 [21]
DDR0DQ12 [21]
DDR0DQ13 [21]
DDR0DQ14 [21]
DDR0DQ15 [21]

DDR0DQS0_P [21]
DDR0DQS1_P [21]
DDR0DQS0_N [21]
DDR0DQS1_N [21]

C5179 100nF 16V

C5178 100nF 16V

C5184 100nF 16V

C5185 100nF 16V

C5180 100nF 16V

C5181 1uF 10V

DDR3_1V5

C5186 100nF 16V

C5188 1uF 10V

C5187 1uF 10V

DDR3_1V5

R4246

1% 1%

DDRVREF_DQ_0 DDRVREF_CA_0

C5189 100nF 16V

C5190 1uF 10V

1K 1/16W 1%

R4248

1%

1K 1/16W 1%

DDR3_1V5

R4247

1K 1/16W 1%

C5191 100nF 16V

C5192 1uF 10V

R4249
1K 1/16W 1%

8-2-22 HI3251V600 DDRB

U483

<DEVICE>

DDR0ADDR0[21,23]
DDR0ADDR1[21,23]
DDR0ADDR2[21,23]
DDR0ADDR3[21,23]
DDR0ADDR4[21,23]
DDR0ADDR5[21,23]
DDR0ADDR6[21,23]
DDR0ADDR7[21,23]
DDR0ADDR8[21,23]

DDR0ADDR9[21,23]
DDR0ADDR10[21,23]
DDR0ADDR11[21,23]
DDR0ADDR12[21,23]
DDR0ADDR13[21,23]

DDR0BA0[21,23]
DDR0BA1[21,23]
DDR0BA2[21,23]

DDR0CLK0_P[21,23,24]
DDR0CLK0_N[21,23,24]
DDR0CKE[21,23]

DDR0CSN[21,23,24]
DDR0ODT[21,23,24]
DDR0RASN[21,23]
DDR0WEN[21,23]

DDR0RESETN[21,23]

C5198

1N 50V

DDR0CASN[21,23]

DDR0DM2[21]
DDR0DM3[21]

DDR0ADDR0
DDR0ADDR1
DDR0ADDR2
DDR0ADDR3
DDR0ADDR4
DDR0ADDR5
DDR0ADDR6
DDR0ADDR7
DDR0ADDR8
DDR0ADDR9
DDR0ADDR10
DDR0ADDR11
DDR0ADDR12
DDR0ADDR13

DDR0BA0
DDR0BA1
DDR0BA2

DDR0CLK0_P
DDR0CLK0_N
DDR0CKE

DDR0CSN
DDR0ODT
DDR0RASN
DDR0WEN
DDR0CASN
DDR0RESETN

DDR0DM2
DDR0DM3

R4250
240 OHM +-1% 1/16W

N3

A0

P7

A1

P3

A2

N2

A3

P8

A4

P2

A5

R8

A6

R2

A7

T8

A8

R3

A9

L7

A10/AP

R7

A11

N7

A12/BC~

T3

A13

T7

A14

M2

BA0

N8

BA1

M3

BA2

J7

CK

K7

CK

K9

CKE

L2

CS

K1

ODT

J3

RAS

L3

WE

K3

CAS

T2

RESET

E7

LDM

D3

UDM

L8

ZQ

J1

NC1

J9

NC2

L1

NC3

L9

NC4

M7

NC5

B1

VSSQ1

B9

VSSQ2

D1

VSSQ3

D8

VSSQ4

E2

VSSQ5

E8

VSSQ6

F9

VSSQ7

G1

VSSQ8

G9

VSSQ9

DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQ8

DQ9
DQ10
DQ11
DQ12
DQ13
DQ14

DQ15

VREFDQ

VREFCA

LDQS

UDQS

LDQS

UDQS

VDD1
VDD2
VDD3
VDD4
VDD5
VDD6
VDD7
VDD8
VDD9

VSS1
VSS2
VSS3
VSS4
VSS5
VSS6
VSS7
VSS8

VSS9
VSS10
VSS11
VSS12

VDDQ1
VDDQ2
VDDQ3
VDDQ4
VDDQ5
VDDQ6
VDDQ7
VDDQ8
VDDQ9

E3

DDR0DQ16

F7

DDR0DQ17

F2

DDR0DQ18

F8

DDR0DQ19

H3

DDR0DQ20

H8

DDR0DQ21

G2

DDR0DQ22

H7

DDR0DQ23

D7

DDR0DQ24

C3

DDR0DQ25

C8

DDR0DQ26

C2

DDR0DQ27

A7

DDR0DQ28

A2

DDR0DQ29

B8

DDR0DQ30

A3

DDR0DQ31

H1

DDRVREF_DQ_1

M8

DDRVREF_CA_1

F3

DDR0DQS2_P

C7

DDR0DQS3_P

G3

DDR0DQS2_N

B7

DDR0DQS3_N

B2
D9
G7
K2
K8
N1
N9
R1
R9

A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9

A1
A8
C1
C9
D2
E9
F1
H2
H9

C5193 100nF 16V

C5199100nF 16V

C5200100nF 16V

DDR0DQ16 [21]
DDR0DQ17 [21]
DDR0DQ18 [21]
DDR0DQ19 [21]
DDR0DQ20 [21]
DDR0DQ21 [21]
DDR0DQ22 [21]
DDR0DQ23 [21]
DDR0DQ24 [21]
DDR0DQ25 [21]
DDR0DQ26 [21]
DDR0DQ27 [21]
DDR0DQ28 [21]
DDR0DQ29 [21]
DDR0DQ30 [21]
DDR0DQ31 [21]

DDR0DQS2_P [21]
DDR0DQS3_P [21]
DDR0DQS2_N [21]
DDR0DQS3_N [21]

C5195 100nF 16V

C5194 100nF 16V

C5201100nF 16V

C5202100nF 16V

C5196 100nF 16V

DDR3_1V5

C52031uF 10V

DDR3_1V5

C5197 1uF 10V

C52041uF 10V

DDR3_1V5 DDR3_1V5

R4251

1%

1K 1/16W 1%

DDR0CLK0_N DDR 0CLK0_N

R4259
NC/ 200R 1/ 16W 5%

DDR0CLK0_P

DDRVREF_DQ_1

C5205 100nF 16V

C5206 1uF 10V

R4257

1%

1K 1/16W 1%

DDRVREF_CA_1

C5207 100nF 16V

C5208 1uF 10V

R4252

1K 1/16W 1%

DDR0ODT[21,23,24]

R4258

1K 1/16W 1%

DDR3_1V5 DDR3_1V5

R4253

100R 1/16W 1%

DDR0ODT

R4260

100R 1/16W 1%

DDR0CSN[21,23,24]

DDR0CSN

R4254

100R 1/ 16W 1 %

DDR0CLK0_N[21,23,24]

R4261

100R 1/ 16W 1 %

DDR3_1V5

R4255

100R 1/16 W 1%

R4262

100R 1/16 W 1%

DDR3_1V5

R4256

100R 1/16 W 1%

DDR0CLK0_P[21,23,24]

DDR 0CLK0_P

R4263

100R 1/16 W 1%

8-2-23 HI3251V600 DDRC

Remove option DDR for VBO trace optimization

8-2-24 HI3251V600 VBO TX 1&4 Divi

FB412

1 2

FB413

M5_HPN_TX1[20]
M5_LOCKN_VTX1[20]

1 2

V1_TX0N[20]
V1_TX0P[20]

V1_TX1N[20]
V1_TX1P[20]

V1_TX2N[20]
V1_TX2P[20]

V1_TX3N[20]
V1_TX3P[20]

V1_TX4N[20]
V1_TX4P[20]

V1_TX5N[20]
V1_TX5P[20]

V1_TX6N[20]
V1_TX6P[20]

V1_TX7N[20]
V1_TX7P[20]

LED8
GPTS06033GC1-PB

1 2

1

OFF_RS
EVDD_ON
ERROR_DET
EVDD_DET
8B_10B_SEL
LD-EN

PCID_EN
3D_EN_P
3D_LR_O

3D_LR_IN
OFF_RS

EVDD_ON
ERROR_DET
I2C-SDA1
I2C-SCL1
EVDD_DET

DATA _F ORMAT1
DATA _F ORMAT0
PCID_EN
PIN31
LD-EN
AGP

23

Q707
LBC857BWT1G

R4314
470 OHM 1/16W

OLED_OFF_RS[7]
OLED_AC_DET[7]
OLED_ERROR_DET[7]
OLED_EVDD_DET[7]

M5_BIT_SEL[16]
LD_EN[6]
M5_LD_EN[16]
M5_PCID_EN[16]
3D_EN/PC ID[7]

M5_SOC_EN_3D/EN_3D_OUT[16]

M5_3D_EN[16]
M5_TCON_3D_SYNC_OUT[16]
M5_TCON_3D_SYNC_IN[16]

R4411 0R05 OHM
R4412 0R05 OHM
R4413 0R05 OHM
R4421 0R05 OHM
R4424 NC/0R05 OHM
R4422 NC/0R05 OHM
R4429 NC/0R05 OHM
R4430 NC/0R05 OHM
R4418 NC/0R05 OHM
R4425 NC/0R05 OHM
R4428 NC/0R05 OHM
R4426 NC/0R05 OHM
R4427 NC/0R05 OHM

3D_LR_O
3D_LR_IN
3D_EN_P
3D_EN_P
3D_LR_O
3D_LR_IN

TX-LO CKn

M5_LOCKN_VTX1

Layout:

Put LED on TOP layer

DVDD33

R4305 NC/0R05 OHM
R4306 NC/0R05 OHM
R4307 NC/0R05 OHM
R4319 NC/0R05 OHM
R4320 NC/0R05 OHM
R4322 NC/0R05 OHM

R4562 NC/33R 1/ 16W 5%
R4563 NC/33R 1/ 16W 5%
R4564 33R 1/16W 5%
R4567 NC/33R 1/ 16W 5%
R4568 NC/33R 1/ 16W 5%
R4569 NC/33R 1/ 16W 5%

DVDD33

R4313

10K+-5%1/16W

PANEL_VCC1PANEL_POWER

NC/120R 6A

NC/120R 6A

OFF_RS
EVDD_ON
ERROR_DET
I2C-SDA1
I2C-SCL1
DATA _F ORMAT0
DATA _F ORMAT1
PCID_EN
LDC_SDA
LDC_SCL
EVDD_DET
PIN31
LD-EN
AGP
8B_10B_SEL
M5_HPN_TX1
M5_LOCKN_VTX1

V1_TX0N
V1_TX0P

V1_TX1N
V1_TX1P

V1_TX2N
V1_TX2P

V1_TX3N
V1_TX3P

V1_TX4N
V1_TX4P

V1_TX5N
V1_TX5P

V1_TX6N
V1_TX6P

V1_TX7N
V1_TX7P

51
50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10

9
8
7
6
5
4
3
2
1

CONN

CN408

CONN 41P

CN410

50
41

47
40
39
38
37
36
35
34
33

46
32
31
30
29
28
27
26
25

45
24
23
22
21
20
19
18
17

44
16
15
14
13
12
11
10

9

43

8
7
6
5
4
3
2
1

42
51

TS7 TP

V0_TX0N
V0_TX0P

V0_TX1N
V0_TX1P

V0_TX2N
V0_TX2P

V0_TX3N
V0_TX3P

V0_TX4N
V0_TX4P

V0_TX5N
V0_TX5P

V0_TX6N
V0_TX6P

V0_TX7N
V0_TX7P

BUS_SW

PWM_OUT
Boost-EN
P8_GND

CMI

不接地

V0_TX0N[20]
V0_TX0P[20]

V0_TX1N[20]
V0_TX1P[20]

V0_TX2N[20]
V0_TX2P[20]

V0_TX3N[20]
V0_TX3P[20]

V0_TX4N[20]
V0_TX4P[20]

V0_TX5N[20]
V0_TX5P[20]

V0_TX6N[20]
V0_TX6P[20]

V0_TX7N[20]

61

60

V0_TX7P[20]

BUS_SW

55" H=EN LOW/OPEN=DISABLE

65" NC

59

58

57

56

55

OLED_ON_RF[7]

OLED_FW_GPI O[7]

R4232 0R05 OHM
R4434 0R05 OHM

ON_RF
WP

55" Pin 1 NC

65" Pin 1 GND

54

53

52

DVDD33

R4557 NC/3. 3K 1/ 16W
R4559 NC/1K 1/ 16W
R4561 NC/1K 1/ 16W
R4558 NC/4. 7K 1/ 16W
R4431 NC/0R05 OHM
R4532 NC/0R05 OHM

3D_EN_P

R4560 NC/ 22 OH M 1/16W

BUS_SW
OLED_FW_GPIO
OLED_ON_RF

P8_GND

Boost-EN

48 49

R4182

R4181

10K

10K

M5_I2C2_MSDA[16]
M5_I2C2_MSCL[16]

M5_I2C1_SDA[7,16]
M5_I2C1_SCL[7,16]

M5_I2C2_MSDA
M5_I2C2_MSCL

M5_I2C1_SDA
M5_I2C1_SCL

V600 I2C

R4329 NC/ 0R 05 OHM
R4330 NC/ 0R 05 OHM

R4331 0R05 OHM
R4332 0R05 OHM

V620 I2C

R4185 NC/0R05 OHM
R4186 NC/0R05 OHM

R4183 0R05 OHM
R4184 0R05 OHM

DVDD33

R4534 NC/0R05 OHM R4565 NC/1K 1/ 16W
R4536 NC/0R05 OHM R4566 NC/1K 1/ 16W
R4537 NC/0R05 OHM R4571 NC/1K 1/ 16W
R4539 NC/0R05 OHM R4572 NC/1K 1/ 16W

R4573 NC/1K 1/ 16WR4540 NC/0R05 OHM
R4547 NC/0R05 OHM R4574 NC/1K 1/ 16W
R4548 NC/0R05 OHM R4575 NC/1K 1/ 16W

LDC_SDA
LDC_SCL

I2C-SDA1

I2C-SCL1

DATA _F ORMAT0
DATA _F ORMAT1
PCID_EN
PIN31
LD-EN
AGP
8B_10B_SEL

8-2-25 LCD Panel T-CON Power

LCD Panel T-CON Power

P12V

FB420
FB421

1 2
1 2

NC/120R 6A
NC/120R 6A

PANEL_POWER_IN

R4172
NC/47K

1
2
3
4

C5173
NC/220N 25V

0603

Q712
NC / AO4449 -7A/-30V

S
S
S
G

8

D

7

D

6

D

5

D

PANEL_POWER

C5174

NC/0.1uF

+

C5172

NC/220UF 16V

SMT

R4173

NC/1K

08050603

R4178
NC/100K

PANEL_PWR[16]
TCON_PWR[7]

R4535 NC/0R05 OHM
R4325 0R05 OH M

R4179
NC/2K OHM

Q714
NC/MMBT3904

C

B

E

TCON_ON/OFF[13]

R4180
NC

PANEL_POWER

PANEL_POWER_IN

FB418
FB419

FB416
FB417

1 2
1 2

1 2
1 2

NC/120R 6A
NC/120R 6A

NC/120R 6A
NC/120R 6A

CN703

NC/CONN 5P

1
2
3
4
5

PANEL_POWER

R4312

NC/2.2K OHM

Layout:

Put LED on TO P layer

LED4

1 2

NC/GPTS06033GC1-PB

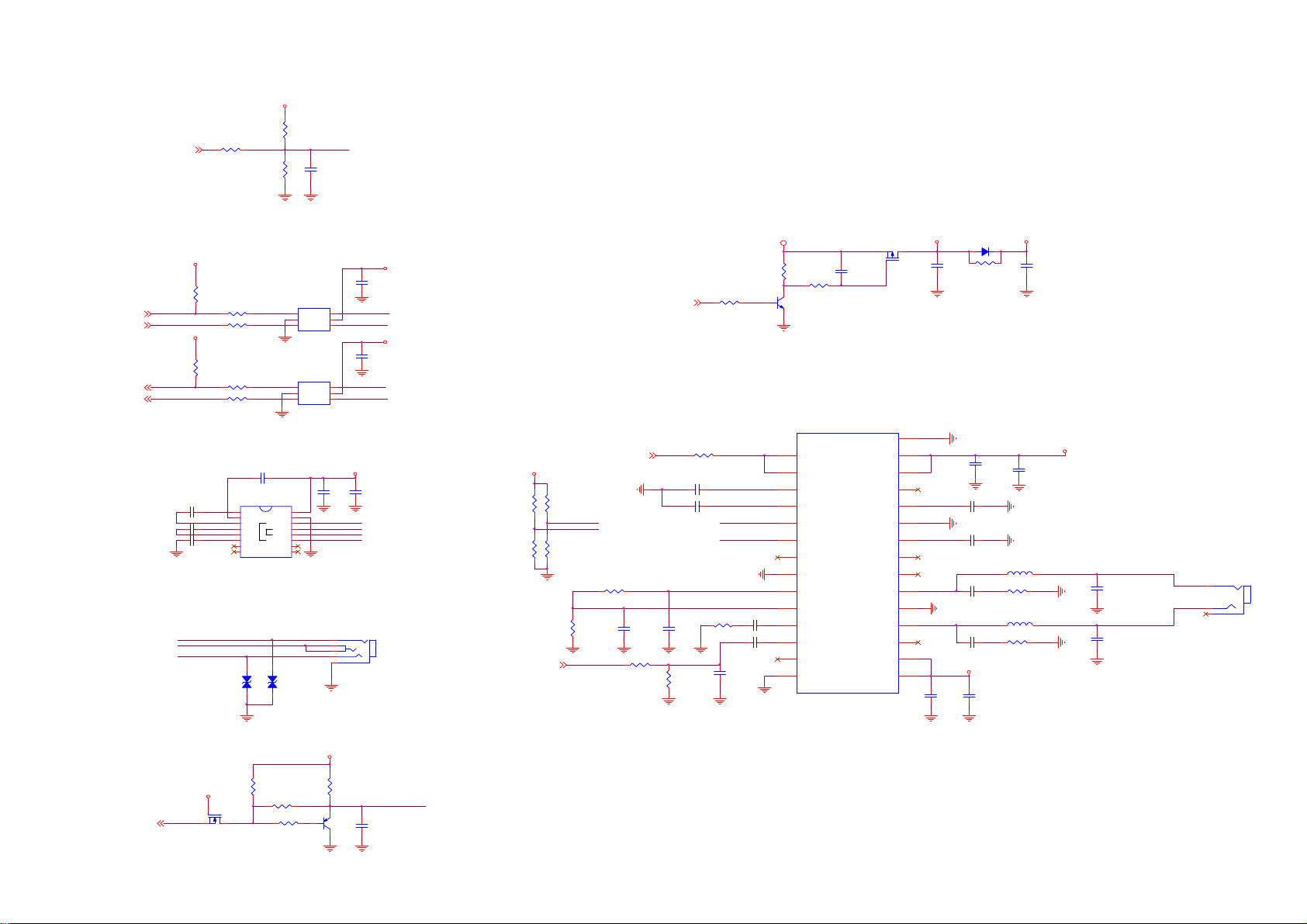

8-2-26 Hotel TV Interface

VCC_5V

R4230
NC/1K 1/16W

C4255

NC/1UF 25V

VCC
GND

T1out

R1in

R1out

T1in
T2in

12

ZD4202

NC/MLVG0402

NC/MLVG0402

HTVUART_SW#

C4246

1UF 10% 16V

U4203

NC/TS5A3157DCKR

1

NO

IN

2

GND

V+

NC3COM

U4204

NC/TS5A3157DCKR

1

NO

IN

2

GND

V+

NC3COM

C4253

NC/10UF 10V

16
15
14

TX_HOTE L

13

RX_HOTEL

12

UART_RX

11

UART_TX

10
9

C4274

NC/100 nF 50 V

6

HTVUART_SW#

5
4

UART_RX

C4275

NC/100 nF 50 V

6

HTVUART_SW#

5
4

UART_TX

5V_STB

C4268

NC/10 0nF 50 V

CN4201

NC/PHONE JACK

3
5
4
2
1

5V_STB

5V_STB

VCC_3V3

R4209

NC/10K

R4215

NC/4. 7K 1/ 10W

LINE_OUT_L3[6]

R4210

NC/4. 7K 1/10W

BATH_GAIN0
BATH_GAIN1

R4216

NC/10K

R4224 NC/100K 1/10W 1%

R4225

NC/27K 1/10W 1%

LINEOUT_L3

AUD_MUTE[7,12]

C4273

NC/1UF 50V

R4228 NC / 1K 1/ 10W

PS_ON[ 13,14,22 ]

R4207 N C / 4. 7K 1/ 16W

C4261 NC / 220N F 25V

C4271 NC / 220N F 25V

C4256

NC/1UF 50V

R4229

NC/10K 1/10W

R4217 NC / 10R 1/ 16W

UART_SW#[6]

VCC_5V

R4205

NC/10K 1/ 16 W 5%

UART2_RXD_SCL2[7,11]

UART0_RXD[5,7]

UART2_TXD_SDA2[7,11]

UART0_TXD[5,7]

UART0_RXD

UART0_TXD

RX_HOTEL
IR_HOTEL

TX_HOTE L

VCC_5V

R4211
NC/10K 1/ 16 W 5%

C4266

NC/1UF 25V

C4258

NC/1UF 25V

C4259

NC/1UF 25V

R4235
NC/10K 1/ 16W

R4208 NC/10R 1/16W
R4212 NC/10R 1/16W

R4213 NC/10R 1/16W
R4214 NC/10R 1/16W

U4201
NC/ST3232CTR

1

C1+

2

V+

3

C1-

4

C2+

5

C2-

6

V-

7

T2out
R2in8R2out

12

ZD4201

R4201

NC/10K 5% 1/ 16W

BATH_GAIN0

BATH_GAIN1

R4226

NC/0R05 OHM

C4250

NC

P12V

10

11

C4254

NC/220 NF 25V

12

C4247

NC/220 NF 25V

13

14

R4202
NC/100K

R4203

NC/47K

Q4201
NC /MMB T3904

U603

NC/AD 52580-QG28NAR

1

SDZ

2

FAULTZ

3

LINP

4

LINN

5

GAIN0

6

GAIN1

7

AVCC

8

AGND

9

GVDD

PLIMIT

RINN

RINP

NC

PBTL

C4262
NC/100 NF 16V

Therm al P a d

PVCCL

PVCCL

OUTPL

OUTNL

OUTNR

OUTPR

BSPL

PGND

BSNL

BSNR

PGND

BSPR

PVCC

PVCC

Q4202
NC/AO3401A

29

28

27

26

25

24

23

22

21

20

19

18

17

16

15

12V_Hotel

C4249

NC/10UF 25V

C4263

NC/0. 1uF 50V

D4201

NC/S3B

R4204

NC/0 R05 1/ 4W

C4270

NC/100 nF 50V

C4264

NC/1nF 50V

C4252

NC/1nF 50V

C4251

NC/330 pF 50V

C4267

NC/330 pF 50V

A12V

C4257

NC/10UF 25V

A12V

L4201

R4223

NC/10OH M1/16W

L4202

R4227

NC/10OH M1/16W

C4269

NC/10UF 25V

C4248

NC/10UF 25V

NC/33uH

NC/33uH

A12V

BATH_OUT-

C4265

NC/220n F 25V

BATH_OUT+

C4272

NC/220n F 25V

CN4202

2

3
1

NC/PHONE JACK

5V_STB

R4219

Q4205
NC/2N 7002K

NC/10K 1/16W 5%

R4221 NC

R4222

NC/100R 1/16W 5%

3V3_STB

IR_IN

IR_IN[7]

R4220

NC/10K 1/ 16W 5%

23

1

Q4206
NC/2N 3906S-RTK/PS

IR_HOTEL

C4260

NC/100p F 50V

8.3 715G8576 遙控板

8-3-1 Key

CONN TO SSB

1112

CN04

1
2
3
4
5
6
7
8
9
10

NC/C ON N 10P 1.25MM

Co-layot

CN01

1415

1
2
3
4
5
6
7
8
9
10
11
12
13

GND_AL

CONN 13P 1. 25MM

KEY1
AMBI_SPI_CLK
AMBI_SPI_MOSI

+12V_AMBI
+12V_AMBI

AMBI_TEMP
+12V_AMBI

GND_AL

----><----|

GND_AL

GND_AL

GND_AL

JOYSTICK

100PF 50V

C06

Right

----><----|

R01

1K2 1/10W 1%

CenterUpDown

------------

----><----|

R02

47R 1/10W 1%

7

1 6

F5

2

F1

3 4

F3

8

SW01

------

----><----|

R03

6K8 1/10W 1%

TAC T S W 6 P

Joystick key define

Direction switch
Center
Right
Left

F4

5

F2

Down
Up

2-5 short
1-5 short
4-5 short
3-5 short
6-5 short

No function

ResistanceKey function

Menu

0R
CH+ 1K2
CH­VOL­VOL+

2K2

6K8

15K

NA 3.135 to 3. 465VNA NA

Voltage

0V

0.5V

0.81V

1.65V

2.27V

3.3V

Range

0.0 to 0.22 V

0.39 to 0.60 V

0.67 to 0.95 V

1.41 to 1.87 V

1.93 to 2.58 V

Joystick circuit diagram

R04

Left

------

2K2 1/10W 1%

R05

------

15K 1/10W 1%

----><----|

----><----|

pin1

pin2

pin3

pin4 pin5

pin6
F1
F2
F3
F4
F5

TO AMBI LIGHT

2728

CONN 26P

CN03

311GF050N26BDX
/311GF050N26BDJ

1
2
3
4
5

+12V_AMBI

6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26

GND_AL

R10 0R05 1/16W
R9 0R05 1/16W
R8 NC/0R 05 1/ 16W

+3V3_AMBI

GND_AL

C07
1uF 16V X5R

GND_AL

C08

1UF 10V

AMBI_TEMP
AMBI_SPI_CLK

AMBI_SPI_MOSI

C09

NC/100PF 50V

C10 NC/ 100PF 50V

C11 NC/100PF 50V

CONN 26P

CN02

26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5

AMBI_SPI_CLK

4
3

AMBI_SPI_MOSI

2
1

27 28

311GF050N26BDX
/311GF050N26BDJ

+12V_AMBI

GND_AL

AMBI_TEMP

+3V3_AMBI

GND_AL

C12
1uF 16V X5R

Joystick diversity for AL

CN03

AL2

AL3/AL4 Y

N

C07

R9

N

N

Y

Y

R10

N
Y

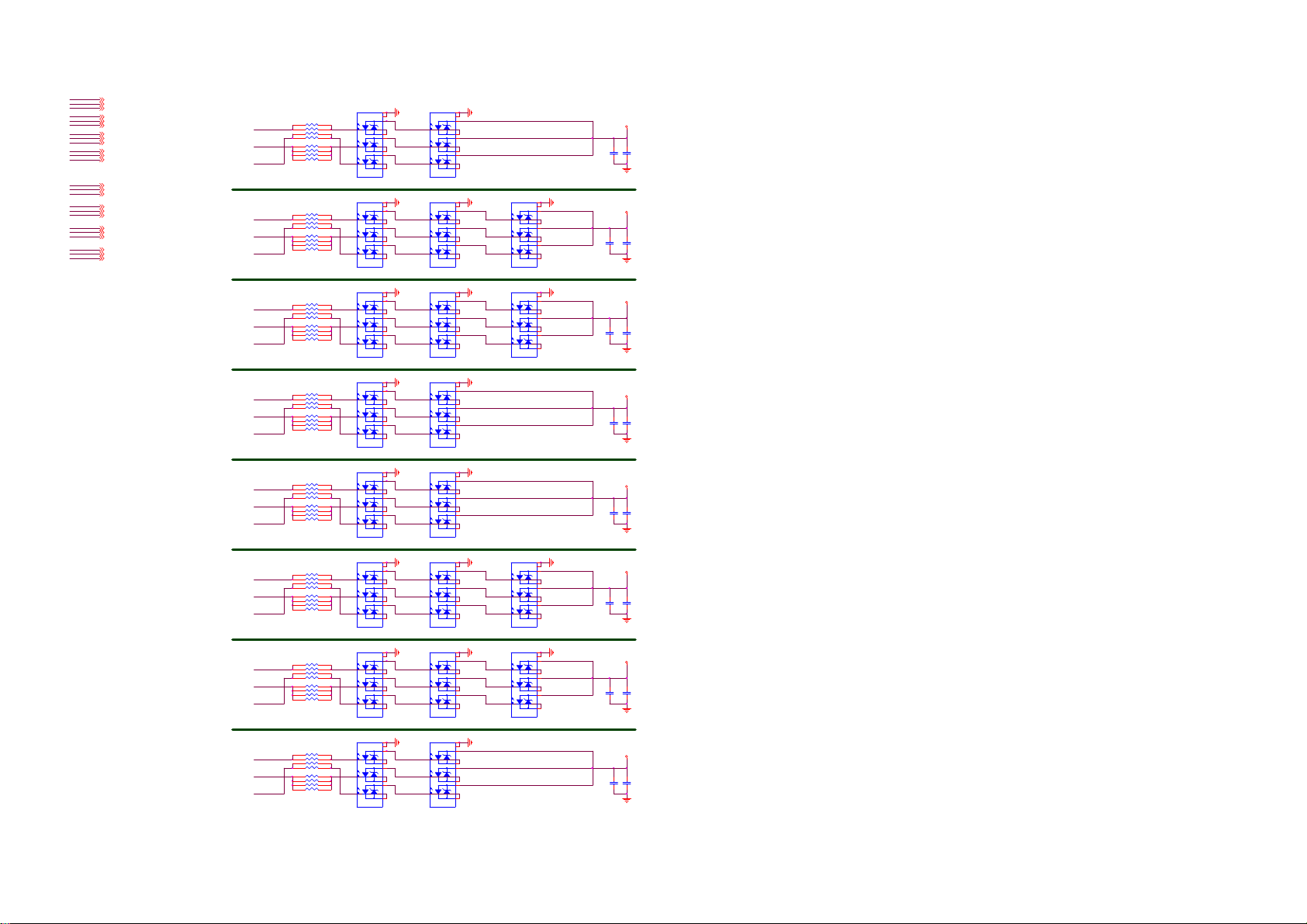

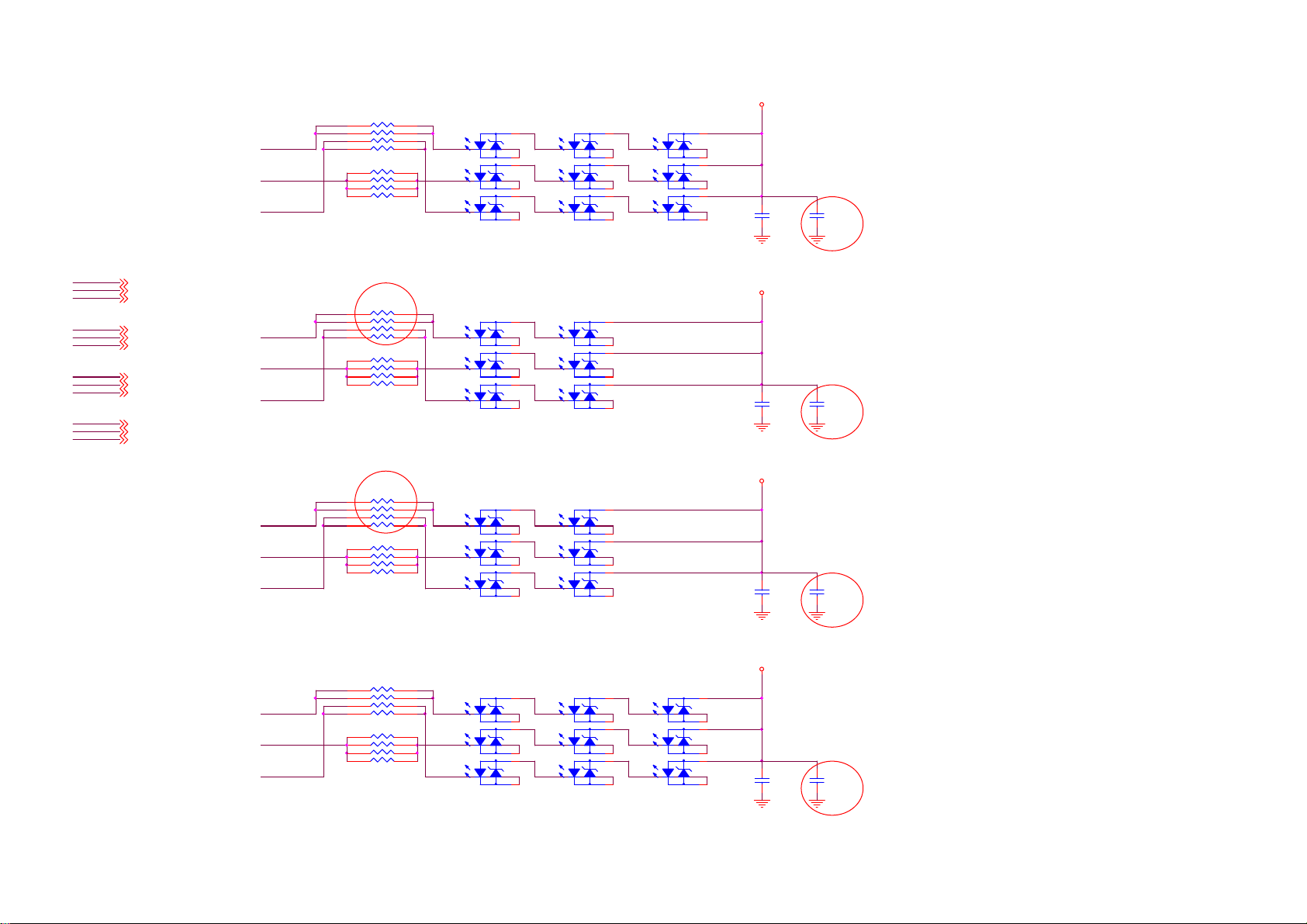

8.4 715G7007 AMBI 板

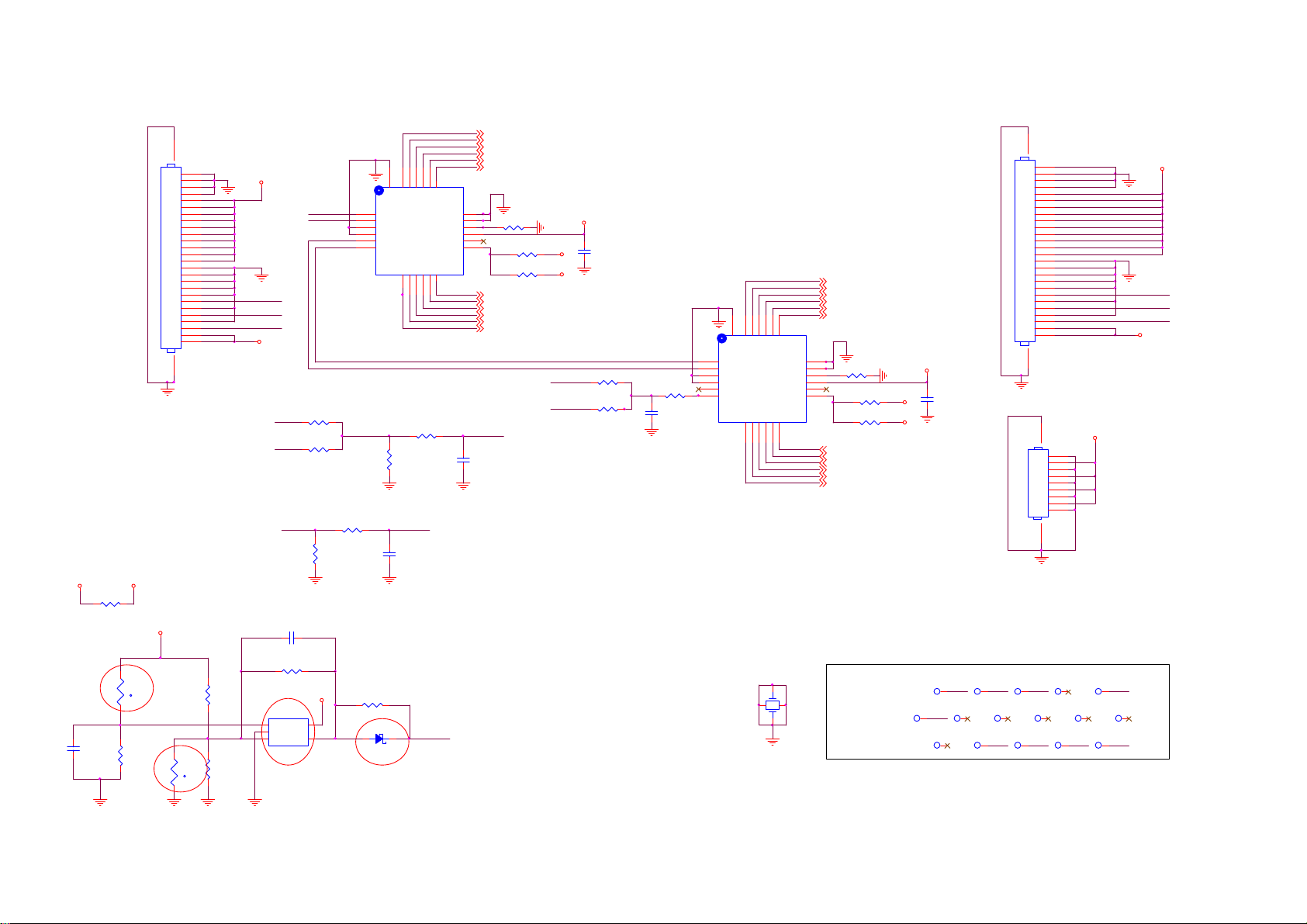

8-4-1 TLC5971

XA02

CONN

27 28

SD1

SD2

26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1

+3V3

S012

0R05 1/16W

S013

NC/ 0R 05 1/ 16W

SCKI

S006

0R05 1/16W

+12V

AMBI-TEMP
SCKI
SD1

R005

100OHM1/16W

R003

10K 1/16W 5%

R006

100OHM1/16W

R004

10K 1/16W 5%

+3V3

+3V3AL

S007

NC/ 0R05 1/ 16W

SCKI-BUF

SCKI-BUF

C006

10PF 50V

SDI-BUF

C007

10PF 50V

XA0 5

NC/CONN

+12V

26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1

27 28

SD1

S014

NC/ 0R 05 1/ 16W

SD2

S015

0R05 1/16W

SDI-BUF
SCKI-BUF

AMBI-TEMP
SCKI
SD1

U002

R002

220R +-5% 1/16W

C005

100pF 50V

TLC5971RGER

+3V3

1
2
3
4
5
6

SDTI
SCKI
NC(1)
NC
SCKO
SDTO

25

24

E-Pad

20

23

21

OUTB0

OUTB1

OUTR122OUTG1

OUTR27OUTG28OUTB29OUTR310OUTG311OUTB3

OUTR019OUTG0

12

PWM2-B4
PWM2-G4
PWM2-R4
PWM2-B3
PWM2-G3
PWM2-R3

PWM2-B2
PWM2-G2
PWM2-R2

PWM2-B1
PWM2-G1
PWM2-R1

GND

NC

IREF

VREG

NC

VCC

T+

C002

100N16V

18
17

R001 1.2K OHM 1/16W 1%

16
15
14
13

S001

NC/ 0R 05 1/ 16W

S008

0R05 1/16W

C001

100N16V

12

R008

10K 1%

t

R007

3K3 1%

+3V3

+12V

+3V3

12

R009

NC/10K

t

+3V3AL

R011

10K 1%

R010

18Kohm 1/16W +/-1%

C004

1uF 10V

C003 100N16V

R012

U001

1

A

2

B
GND3Y

LMV321IDCKR SC -70

27K 1/16W 5%

VCC

+3V3

5
4

S002 NC / 0R 05 1/16W

D100

1 2

1PS76SB10

XA04

CONN

2728

AMBI-TEMP

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26

+12V

AMBI-TEMP
SCKI
SD2

+3V3

Function
CounterClockwise

(XA02:IN, XA04:OUT)
Clockw is e

(XA02:OUT, XA04:IN)

Item

S012

YES
NO

S013

NO NO
YES

S014

YES

S015

YES
NO

PWM2-R1 3
PWM2-G1 3
PWM2-B1 3

PWM2-R2 3
PWM2-G2 3
PWM2-B2 3

PWM2-R3 3
PWM2-G3 3
PWM2-B3 3

PWM2-R4 3
PWM2-G4 3
PWM2-B4 3

3

2 4

1

X000

Test Pad

F011

SD2

F003

F009

SCKI

F008

F010

T+

F012 F013

F004

AMBI-TEMP

F005

F007

SD1

+3V3AL

F116

F006

+3V3

F014

F001

F002

+12V

F015

GND

8-4-2 Ambilight 10-LED

22R

PWM2-B1

PWM2-R1

PWM2-G1

R019

1
2
3
4

R020 560R

1
2
3
4

8
7
6
5

8
7
6
5

D008

Red BlueGreen

P5018/RSSGBB7-2K14

6

5
4

3
2

1

D009

Red BlueGreen

P5018/RSSGBB7-2K14

6

5
4

3
2

1

D010

P5018/RSSGBB7-2K14

6

5
4

Red BlueGreen

3
2

1

+12V

C012

100N16V

C013

NC/ 100N F 50V

PWM2-R1 2
PWM2-G1 2
PWM2-B1 2

PWM2-R2 2
PWM2-G2 2
PWM2-B2 2

PWM2-R3 2
PWM2-G3 2
PWM2-B3 2

PWM2-R4 2
PWM2-G4 2
PWM2-B4 2

PWM2-B2

PWM2-R2

PWM2-G2

PWM2-B3

PWM2-R3

PWM2-G3

PWM2-B4

PWM2-R4

PWM2-G4

R017

1
2
3
4

R018 560R

1
2
3
4

R014

1
2
3
4

R016 560R

1
2
3
4

R013

1
2
3
4

R015 560R

1
2
3
4

180R

180R

22R

8
7
6
5

8
7
6
5

8
7
6
5

8
7
6
5

8
7
6
5

8
7
6
5

D006

Red BlueGreen

P5018/RSSGBB7-2K14

D004

Red BlueGreen

P5018/RSSGBB7-2K14

D001

Red BlueGreen

P5018/RSSGBB7-2K14

6

5
4

3
2

1

6

5
4

3
2

1

6

5
4

3
2

1

D007

P5018/RSSGBB7-2K14

D005

P5018/RSSGBB7-2K14

D002

P5018/RSSGBB7-2K14

6

5
4

Red BlueGreen

3
2

1

6

5
4

Red BlueGreen

3
2

1

6

5
4

Red BlueGreen

3
2

1

D003

P5018/RSSGBB7-2K14

6

5
4

Red BlueGreen

3
2

1

+12V

+12V

+12V

C014

100N16V

C010

100N16V

C008

100N16V

C015

NC/ 100N F 50V

C011

NC/ 100N F 50V

C009

NC/ 100N F 50V

8.5 715G8789 AMBI板

8-5-1 TLC5971

PWM1-B3

PWM1-B3 3

PWM1-G3

PWM1-G3 3

PWM1-R3

PWM1-R3 3

23

24

OUTB1

OUTR122OUTG1

OUTR27OUTG28OUTB29OUTR310OUTG311OUTB3

R006

100OHM1/16W

PWM1-B4

PWM1-B4 3

PWM1-G4

PWM1-G4 3

PWM1-R4

OUTR019OUTG0

GND
IREF

VREG

VCC

PWM1-B1
PWM1-G1
PWM1-R1
PWM1-B2
PWM1-G2
PWM1-R2

NC

NC

18
17
16
15
14
13

SDI-BUF

C007

10PF 50V

PWM1-R4 3

R001 1K 5 1%

S001

0R05 OHM

S008

NC/0R05 OHM

PWM1-B1 3
PWM1-G1 3
PWM1-R1 3
PWM1-B2 3
PWM1-G2 3
PWM1-R2 3

SD1

SD2

12V

3V3

3V3AL

C004

1UF 6. 3V

S011

NC/ 0R 05 OH M

S012

0R05 OHM

C009

10PF 50V

R053

220R +-5% 1/16W

G5031Q51U

U003

20

21

OUTB0

12

3V3 3V3AL

S006

NC/ 0R 05 1/ 16W

XA0 4

CONN 26P

3V3

2728

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26

12V

AMBI-TEMP

SCKI
SD1

3V3

SD1

S009

0R05 OHM

SD2

S010

NC/0R 05 OH M

SCKI

C003 100N16V

SDI-BUF
SCK-BUF

R005

100OHM1/16W

R003

10K 1/16W 5%

U002

G5031Q51U

25

E-PAD

1

SDTI

2

SCKI

3

NC

4

NC

5

SCKO

6

SDTO

R004

10K 1/16W 5%

SCK-BUF

C006

10PF 50V

CONN 26P

26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10

XA0 2

9
8
7
6
5
4
3
2
1

27 28

12V

XA0 5

1
2
3
4
5
6
7
8
9

CONN

10 11

PWM2-B3

PWM2-B3 3

PWM2-G3

PWM2-G3 3

PWM2-R3

PWM2-R3 3

PWM2-B4

PWM2-B4 3

PWM2-G4

PWM2-G4 3

PWM2-R4

OUTR019OUTG0

GND

NC

IREF

VREG

NC

VCC

PWM2-B1
PWM2-G1
PWM2-R1
PWM2-B2
PWM2-G2

PWM2-R2

PWM2-R4 3

18
17
16
15
14
13

PWM2-B1 3
PWM2-G1 3

PWM2-R1 3
PWM2-B2 3
PWM2-G2 3
PWM2-R2 3

R002 1K 5 1%

S003

0R05 OHM

S004

NC/0R05 OHM

3V3AL

C008

12V

1UF 6. 3V

3V3

25

21

24

20

23

E-PAD

OUTB0

OUTB1

1
2
3
4
5
6

SDTI
SCKI
NC
NC
SCKO
SDTO

OUTR122OUTG1

OUTR27OUTG28OUTB29OUTR310OUTG311OUTB3

12

12V

AMBI-TEMP
SCKI
SD2

3V3

R012

T+

C002

100N16V

12

R008

10K 1%

t

R007

3K3 1%

12

R009

NC/10K

R011

10K 1%

R010

18Kohm 1/16W +/-1%

1
2

U001

1IN+

VCC+
GND
1IN-3OUT

LMV321IDCKR

27K 1/16W 5%

3V3

5
4

S002 NC/ 0R 05 1/ 16W

D100

1 2

LBAT54HT1G

AMBI-TEMP

t

3

2 4

1

X000

Test Pad

F003

SCKI

F011

F008 F012 F013

SD2

F009

F010

F004

T+

AMBI-TEMP

F005

F007

SD1

3V3AL

F016

F006

3V3

F001

12V

F014 F015

F002

GND

8-5-2 20LED

PWM2-B4

PWM2-B4 2

PWM2-G4

PWM2-G4 2

PWM2-R4
PWM2-B3

PWM2-G3
PWM2-R3

PWM2-B2
PWM2-G2
PWM2-R2

PWM2-B1
PWM2-G1
PWM2-R1

PWM1-B4
PWM1-G4
PWM1-R4

PWM1-B3
PWM1-G3
PWM1-R3

PWM1-B2
PWM1-G2
PWM1-R2

PWM1-B1
PWM1-G1
PWM1-R1

PWM2-R4 2
PWM2-B3 2

PWM2-G3 2
PWM2-R3 2

PWM2-B2 2
PWM2-G2 2
PWM2-R2 2

PWM2-B1 2
PWM2-G1 2
PWM2-R1 2

PWM1-B4 2
PWM1-G4 2
PWM1-R4 2

PWM1-B3 2
PWM1-G3 2
PWM1-R3 2

PWM1-B2 2
PWM1-G2 2
PWM1-R2 2

PWM1-B1 2
PWM1-G1 2
PWM1-R1 2

D102

200R

RP003

1

8
2
3
4

1

RP004 560R

2
3
4

RP001

1
2
3
4

1

RP002 560R

2
3
4

RP2

1
2
3
4

1

RP3 560R

2
3
4

RP4

1
2
3
4

1

RP5 560R

2
3
4

RP8

1
2
3
4

1

RP7 560R

2
3
4

RP13

1
2
3
4

1

RP6 560R

2
3
4

RP12

1
2
3
4

1

RP9 560R

2
3
4

RP11

1
2
3
4

1

RP10 560R

2
3
4

7
6
5

8
7
6
5

22R

8
7
6
5

8
7
6
5

22R

8
7
6
5

8
7
6
5

200R

8
7
6
5

8
7
6
5

200R

8
7
6
5

8
7
6
5

22R

8
7
6
5

8
7
6
5

22R

8
7
6
5

8
7
6
5

200R

8
7
6
5

8
7
6
5

Red BlueGreen

LTW-X45T-P2H

D112

Red BlueGreen

LTW-X45T-P2H

D123

Red BlueGreen

LTW-X45T-P2H

D142

Red BlueGreen

LTW-X45T-P2H

D101

Red BlueGreen

LTW-X45T-P2H

D111

Red BlueGreen

LTW-X45T-P2H

D124

Red BlueGreen

LTW-X45T-P2H

D141

Red BlueGreen

LTW-X45T-P2H

PWM1-B1

PWM1-R1

1

PWM1-G1

PWM1-B2

PWM1-R2

2

PWM1-G2

PWM1-B3

PWM1-R3

3

PWM1-G3

PWM1-B4

PWM1-R4

4

PWM1-G4

PWM2-B1

PWM2-R1

5

PWM2-G1

PWM2-B2

PWM2-R2

6

PWM2-G2

PWM2-B3

7

PWM2-R3

PWM2-G3

PWM2-B4

PWM2-R4

8

PWM2-G4

D103

LTW-X45T-P2H

D113

LTW-X45T-P2H

D132

LTW-X45T-P2H

D143

LTW-X45T-P2H

D104

LTW-X45T-P2H

D114

LTW-X45T-P2H

D131

LTW-X45T-P2H

D144

LTW-X45T-P2H

8
7
6

5
4

Red BlueGreen

3
2

1

D122

LTW-X45T-P2H

D133

LTW-X45T-P2H

D121

LTW-X45T-P2H

D134

LTW-X45T-P2H

8
7
6

5
4

Red BlueGreen

3
2

1

8
7
6

5
4

Red BlueGreen

3
2

1

8
7
6

5
4

Red BlueGreen

3
2

1

8
7
6

5
4

Red BlueGreen

3
2

1

8
7
6

5
4

Red BlueGreen

3
2

1

8
7
6

5
4

Red BlueGreen

3
2

1

8
7
6

5
4

Red BlueGreen

3
2

1

8
7
6

5
4

Red BlueGreen

3
2

1

8
7
6

5
4

Red BlueGreen

3
2

1

8
7
6

5
4

Red BlueGreen

3
2

1

8
7
6

5
4

Red BlueGreen

3
2

1

100NF 25V

C011

100NF 25V

C014

100NF 25V

100NF 25V

100NF 25V

C018

100NF 25V

C020

100NF 25V

100NF 25V

12V

C013

C010

100NF 50V

12V

C012

100NF 50V

12V

C015

100NF 50V

12V

C016

C017

100NF 50V

12V

C024

C019

100NF 50V

12V

C025

100NF 50V

12V

C021

100NF 50V

12V

C022

C023

100NF 50V

8
7
6

5
4

3
2

1

8
7
6

5
4

3
2

1

8
7
6

5
4

3
2

1

8
7
6

5
4

3
2

1

8
7
6

5
4

3
2

1

8
7
6

5
4

3
2

1

8
7
6

5
4

3
2

1

8
7
6

5
4

3
2

1

8.6 715G8046 LED板

9．爆炸圖

9.1 OLED873 series 65"

0065

WIFI0

1053

1061

1186

1184

1062

0040

0063

1054

1057

1061

1050

3532

1068

0036

1056

0050
