Philips 65BDL4510D/75 leaflet

Download

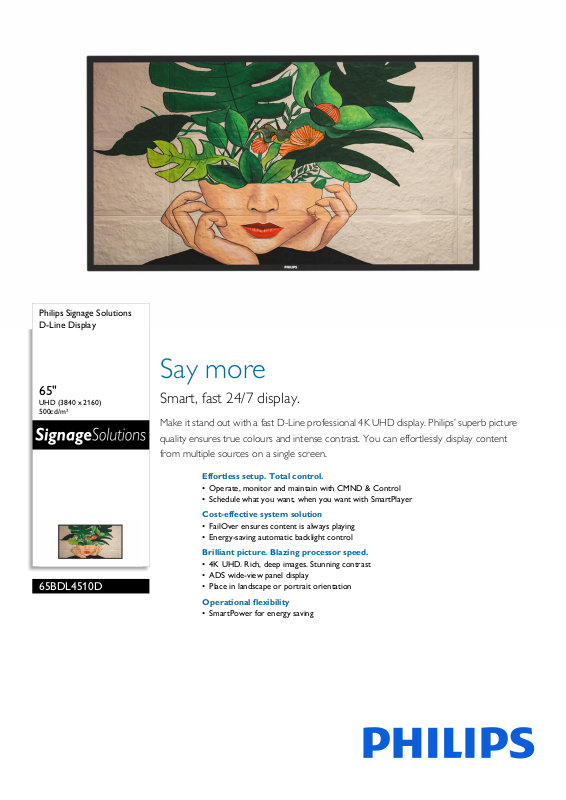

Page 1

Philips Signage Solutions D-Line Display

Say more

65"

UHD (3840 x 2160) 500cd/m²

65BDL4510D

Smart, fast 24/7 display.

Make it stand out with a fast D-Line professional 4K UHD display. Philips’ superb picture quality ensures true colours and intense contrast. You can effortlessly display content from multiple sources on a single screen.

Effortless setup. Total control.

• Operate, monitor and maintain with CMND & Control

• Schedule what you want, when you want with SmartPlayer

Cost-effective system solution

• FailOver ensures content is always playing

• Energy-saving automatic backlight control

Brilliant picture. Blazing processor speed.

• 4K UHD. Rich, deep images. Stunning contrast

• ADS wide-view panel display

• Place in landscape or portrait orientation

Operational flexibility

• SmartPower for energy saving

Page 2

65BDL4510D/75

D-Line Display

65" UHD (3840 x 2160), 500cd/m²

Highlights

CMND & Control

Run your display network over a local (LAN) connection. CMND & Control allows you to perform vital functions like controlling inputs and monitoring display status. Whether you're in charge of one screen or 100.

FailOver

From waiting room to meeting room, never show a blank screen. FailOver lets your Philips Professional Display switch automatically between primary and secondary inputs ensuring content keeps playing even if the

primary source goes down. Simply set a list of alternate inputs to be sure your business is always on.

ADS wide-view panel display

Be seen from any angle with ADS wide-view te

chnology. Advanced Super Dimension Switch delivers faster on-display picture processing for smoother content transitions, remarkable image accuracy, and superior colour reproduction with 180 degree viewing.

SmartPower

The backlight intensity can be controlled and pre-set by the system to reduce the power

consumption by up to 50%, which saves substantially on energy costs.

SmartPlayer

Turn your USB into a true cost effective digital signage device. Simply save your content (video, audio, pictures) on your USB and plug into your display.Create your playlist and schedule your content via the on screen menu, and enjoy your own created playlists anytime, anywhere.

Page 3

65BDL4510D/75

D-Line Display

65" UHD (3840 x 2160), 500cd/m²

Specifications

Picture/Display

• Diagonal screen size: 64.5 inch / 163.8 cm

• Panel resolution: 3840 x 2160

• Optimum resolution: 3840 x 2160 @60Hz

• Brightness: 500 cd/m²

• Contrast ratio (typical): 1200:1

• Aspect ratio: 16:9

• Response time (typical): 8 ms

• Pixel pitch: 0.372 x 0.372 mm

• Display colors: 1.07 Billion

• Viewing angle (H / V): 178 / 178 degree

• Dynamic contrast ratio: 500,000:1

• Panel technology: ADS

• Picture enhancement: 3/2 - 2/2 motion pull down, 3D Co contrast enhancement, Motion compens. deinterlacing, Progressive scan

lter, 3D MA deinterlacing, Dynamic

mbfi

Connectivity

• Video input: HDMI 2.0 (x3), Display Port1.2 (x1), DVI-I (x 1), USB 2.0 (x2)

• Video output: DisplayPort 1.2 (x1), HDMI 2.0 (x1)

• Audio input: 3.5 mm jack

• Audio output: 3.5mm jack

• Other connections: OPS

• External control: RJ45, RS232C (in/out) 2.5 mm

k, IR (in/out) 3.5 mm jack

Supported Display Resolution

• Computer formats Res

olution Refresh rate 1920 x 1080 60Hz 1680 x 1050 60Hz 1600 x 900 60Hz 1024 x 768 60Hz 1280 x 1024

80 x 720 60Hz

12 1440 x 900 60 Hz 3840 x 2160 30, 60Hz 640 x 480 60Hz 800 x 600 60Hz

deo formats

• Vi olution Refresh rate

Res 1080i 50, 60Hz 576p 50Hz 576i 50Hz 480p 60Hz 480i 60Hz 1080p 50, 60Hz

60Hz

2160p 24, 30, 60Hz 720p 50,60 Hz

Dimensions

•Set dimensions (W x H x D):

1462.3 x 837.3 x 68.9 (@Wall mount)/ 89.9 e) mm

(@Handl

• Set dimensions in inch (W x H x D): 7 x 32.96 x 2.71 inch(wall mount)/3.54

57.5 e) inch

(@Handl

• Bezel width: 14.9 mm (Even bezel)

• Product weight (lb): 61.29 lb

• Product weight: 27.8 kg

• VESA Mount: 400 (H) x 400(V) mm, M6

Convenience

• Placement: Landscape (24/7), Portrait (24/7)

• Keyboard control: Hidden, Lockable Signal loop through: IR Loopthrough, DisplayPort,

• HDMI, RS

• Network controllable: RJ45, RS232

• Screen saving functions: Pixel Shift, Low Bright

• Energy saving functions: Smart Power

232

Power

• Standby power consumption: <0.5 W

• Mains power: 100 ~ 240 VAC, 50 ~ 60 Hz

• Consumption (Typical): 135 W

• Consumption (Max): 290 W

• Energy Label Class: G

Operating conditions

• Temperature range (operation): 0 ~ 40 °C

• Temperature range (storage): -20 ~ 60 °C

• Altitude: 0 ~ 3000 m

• MTBF: 50,000 hour(s)

• Humidity range (operation)[RH]: 20 ~ 80%

hout condensation)

• Humidity range (storage) [RH]: 5 ~ 95% (without

sation)

conden

Sound

• Built-in speakers: 2 x 10W RMS

Accessories

• Included accessories: AC Power Cord, RS232 cable, Quick start guide, IR sensor cable (1.8M), Remote Control & AAA Batteries

• Included Accessories: Philips lo

(x1), AC Switch

ver, RS232 daisy-chain cable, Screws, USB ver (x1)

Multimedia Applications

• USB Playback Audio: AAC, HEAAC, MPEG

• USB Playback Picture: BMP, JPEG, PNG

• USB Playback Video: MPEG, H.263, H.2 VP8

64, H.265,

Miscellaneous

• On-Screen Display Languages: English, French, German, Spanish, Polish, Turkish, Russian, Italian, Simplified Chinese, Traditional Chinese, Arabic, Japanese, Danish, Dutch, Finnish, Norwegian, Portuguese, Swedish

• Regulatory approvals: CB, CE, BSMI, CCC, CU,

• Warranty: 3 year warranty

•

EMF, FC

8.0, ETL

C, Class

A, PSB, RoHS, VCCI, EnergyStar

Issue date 2022-04-21

Version: 1.0.1

12 NC: 8670 001 68869 EAN: 87 12581 76899 7

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips N.V. or their respective owners.
