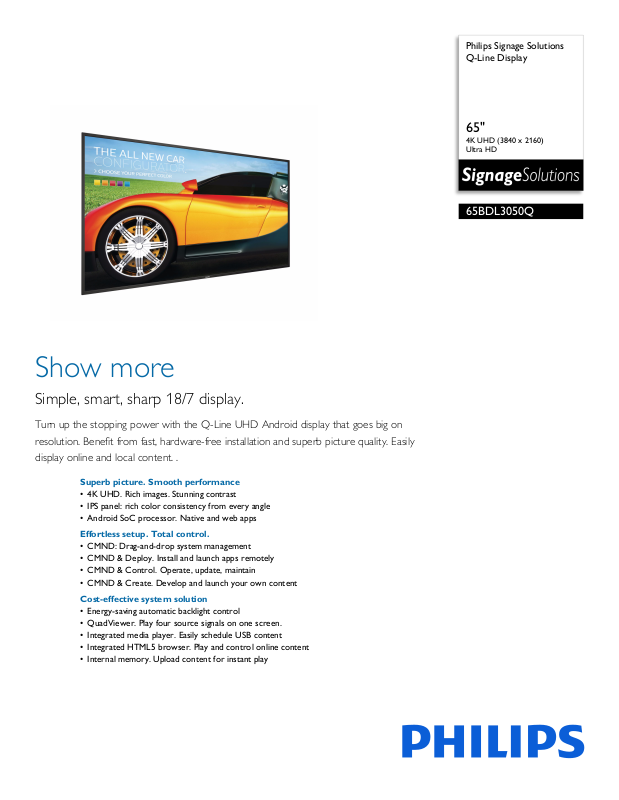

Philips 65BDL3050Q User Manual

Philips Signage Solutions
Q-Line Display

65"

4K UHD (3840 x 2160)
Ultra HD

65BDL3050Q

Show more

Simple, smart, sharp 18/7 display.

Turn up the stopping power with the Q-Line UHD Android display that goes big on
resolution. Benefit from fast, hardware-free installation and superb picture quality. Easily
display online and local content. .

Superb picture. Smooth performance

• 4K UHD. Rich images. Stunning contrast

• IPS panel: rich color consistency from every angle

• Android SoC processor. Native and web apps

Effortless setup. Total control.

• CMND: Drag-and-drop system management

• CMND & Deploy. Install and launch apps remotely

• CMND & Control. Operate, update, maintain

• CMND & Create. Develop and launch your own content

Cost-effective system solution

• Energy-saving automatic backlight control

• QuadViewer. Play four source signals on one screen.

• Integrated media player. Easily schedule USB content

• Integrated HTML5 browser. Play and control online content

• Internal memory. Upload content for instant play

65BDL3050Q/00

Q-Line Display

65" 4K UHD (3840 x 2160), Ultra HD

Highlights

Powered by Android

Control your display via an Internet connection.
Android­are optimized for native Android apps, and you
can install web apps directly to the display too.
A built-in scheduler makes it easy to launch apps
and content based on time of day.

CMND

Take control of your Philips Professional Display
ne
maintain, and play via one easy-to-use interface.
From installation to daily operation.

powered Philips Professional Displays

twork. CMND lets you manage, update,

CMND & Control

Run your display network over a local (LAN)
connection. CMND & Control allows you to
perform vital functions like controlling inputs
and monitoring display status. Whether you're
in charge of one screen or 100.

CMND & Create

Take control of your content with CMND &
Create

. A drag-and-drop interface makes it
simple to publish your own content-whether it's
a daily specials board or branded corporate
information. Preloaded templates and integrated
widgets ensure your stills, text, and video will be
up and running in no time.

CMND & Deploy

Quickly install and launch any app-even when
you're o
Deploy lets you add and update your own apps,
as well as apps from the Philips Professional
Display App Store. Simply scan the QR code, log
in to the store, and click on the app you want to
install. The app is automatically downloaded and
launched.

Internal memory

Save and play content without the need for a
permane
professional display has an internal memory,
which allows you to upload media into the
display for instant playback. The internal
memory also functions as a cache for online
streaming.

ff-site and working remotely. CMND &

nt external player. Your Philips

65BDL3050Q/00

Q-Line Display

65" 4K UHD (3840 x 2160), Ultra HD

Specifications

Picture/Display

• Diagonal screen size: 64.5 inch / 163.9 cm

• Panel resolution: 3840 x 2160

• Optimum resolution: 3840 x 2160 @ 60 Hz

• Brightness: 350 cd/m²

• Contrast ratio (typical): 4000:1

• Response time (typical): 8 ms

• Aspect ratio: 16:9

• Viewing angle (H / V): 178 / 178 degree

• Pixel pitch: 0.372 x 0.372 mm

• Display colors: 1.07 Billion

• Picture enhancement: 3/2 - 2/2 motion pull down,
mbfilter, Progressive scan, 3D MA

3D Co
deinterlacing, Dynamic contrast enhancement,
Color Enhancement, Color Temperature
Adjustment, De-interlacer, Noise Reduction, Smart

• Operating system: Android 5.0.1

• Panel technology: AMVA

Supported Display Resolution

• Computer formats

Resolution Refresh rate
1920 x 1080 60Hz
1024 x 768 60, 75Hz
1280 x 1024 60Hz
1280 x 768 60Hz
1280 x 800 60Hz
1360 x 768 60Hz
640 x 480 60, 72, 75Hz
720 x 400 70Hz
800 x 600 60, 75Hz

deo formats

• Vi

Resolution Refresh rate
576p 25, 50Hz
1080i 25, 30Hz
1080p 50, 60Hz
2160p 30,50, 60Hz
480i 30, 60Hz
480p 30, 60Hz
576i 25, 50Hz
720p 50, 60Hz

Connectivity

• Video input: VGA (Analog D-Sub), DisplayPort (1.2),

HDMI (x4), USB 2.0 (Type A) (x2)

• Audio input: 3.5 mm jack

• Audio output: Audio Left/Right (RCA)

• External control: RS232C (in/out) 2.5 mm jack, IR
/out) 3.5 mm jack, RJ45

(in

• Other connections: AC-out,

Analog audio Left/Right out, Display Port, HDMI, IR
out, micro SD, OPS, PC Audio in, RS232 Serial, USB

2.0, USB power outlet (5 V. 2 amp)

Analog (D-sub input),

Convenience

• Screen saving functions: Pixel Shift, Low Brightness

• Keyboard control: Lockable

• Network controllable: LAN (RJ45), RS232, Card

• Signal Loop Through: RS232, IR Loopthrough

• Energy saving functions: Smart Power

•Placement: Landscape

• Remote control signal: Lockable

• Tiled Matrix: Up to 10 x 15

• Ease of installation: Smart Insert, AC Out

• Memory: 8GB eMMC

32, HDMI (One Wire)

OPS RS2

Dimensions

• Bezel width: 13.9 (Top/Left/Right) 14.9 (Bottom)

mm

• Set dimensions (W x H x D):

8.7 x 834.7 x 81.6 mm

145

• Set dimensions in inch (W x H x D):

57.43 x 32.86 x 3.21 inch

• Product weight: 24.8 kg

• Product weight (lb): 54.7 lb

• VESA Mount: 400 x 400 mm, M6

Operating conditions

• Altitude: 0 ~ 3000 m

• Temperature range (operation): 0 ~ 40 °C

• Temperature range (storage): -20 ~ 60 °C

• Relative humidity: 20 ~ 80 (operation),10 -

torage) %

90%(s

• MTBF: 50,000 hour(s)

Power

• Mains power: 100 ~ 240 VAC, 50 ~ 60 Hz

• Consumption (On mode): 110 W

• Standby power consumption: <0.5W

• Power Saving Features: Smart Power

Sound

• Built-in speakers: 2 x 10W RMS

Accessories

• Included accessories: AC Power Cord, RS232 cable,
Batteries for remote control, Quick start guide,
Remote Control, HDMI cable, IR sensor cable
(1.8M)

• Optional accessories: Table top stand

• Included Accessories: RS232 daisy-chain cable, USB

er and screw x1

Cov

Multimedia Applications

• USB Playback Video: ASF, AVI, DAT, FLV, MKV,
MOV, MP4, MPEG, MPG, TRP, TS, VOB, WEBM,
WMV

• USB Playback Picture: BMP, JPE

• USB Playback Audio: AAC, M4A, MP3, WMA

G, JPG, PNG

Miscellaneous

• Warranty: 3 year warranty

• On-Screen Display Languages: Arabic, Simplified
Chinese, Traditio
German, Italian, Polish, Russian, Spanish, Turkish,
Japanese, Czech, Danish, Dutch, Finnish, Norwegian,
Portuguese, Swedish

• Regulatory approvals: BSMI, CB, CCC, CE, EAC,

MF, EnergyStar 7.0, FCC, Class B, PSB, UL/cUL

E

nal Chinese, English, French,

Internal Player

• Storage: 8GB eMMC

• CPU: Quad Core Full HD

• Memory: 2GB DDR3

•

Issue date 2019-03-20

Version: 6.0.1

12 NC: 8670 001 42306
EAN: 87 12581 74358 1

© 2019 Koninklijke Philips N.V.
All Rights reserved.

Specifications are subject t
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.

www.philips.com

o change without notice.
