65BDL3050Q

V1.10

www.philips.com/welcome

User Manual (English)

65BDL3050Q

Safety Instructions

Warnings and Precautions

KNOW THESE SAFETY SYMBOLS

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT

REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol indicates high voltage is present inside. It is dangerous to make any kind of contact with any inside part of this product.

This symbol alerts you that important literature concerning operation and maintenance has been included with this product.

CAUTION: FCC/CSA regulations state that any unauthorized changes

or modications to this equipment may void the user’s

authority to operate it.

CAUTION: To prevent electric shock, match the wide blade of plug to

the wide slot, and fully insert the plug.

TO PREVENT DAMAGE WHICH MAY RESULT IN FIRE OR ELECTRIC SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

The Socket-outlet should be installed near the apparatus and be easily accessible.

Read and follow these instructions when connecting and using your Public Information Display:

• Unplug the display if you are not going to use it for an extensive period of time.

• Unplug the display if you need to clean it with a slightly damp cloth. The screen many be wiped with a dry cloth when the power is off.

However, never use alcohol, solvents or ammonia-based liquids.

• Consult a service technician if the display does not operate normally

when you have followed the instructions in this manual.

• The casing cover should be opened only by qualied service personnel.

• Keep the display out of direct sunlight and away from stoves or any

other heat sources.

• Remove any object that could fall into the vents or prevent proper cooling of the display’s electronics.

• Do not block the ventilation holes on the cabinet.

• Keep the display dry. To avoid electric shock, do not expose it to rain

or excessive moisture.

• If turning off the display by detaching the power cable, wait for 6 seconds before re-attaching the power cable for normal operation.

• To avoid the risk of shock or permanent damage to the set do not expose the display to rain or excessive moisture.

• When positioning the display, make sure the power plug and outlet are easily accessible.

• IMPORTANT: Always activate a screen saver program during your application. If a still image in high contrast remains on the screen for an

extended period of time, it may leave an ‘after-image’ or ‘ghost image’

on the front of the screen. This is a well-known phenomenon that is caused by the shortcomings inherent in LCD technology. In most cases the afterimage will disappear gradually over a period of time after the power has been switched off. Be aware that the after-image symptom cannot be repaired and is not covered under warranty.

65BDL3050Q

Important Safety Instructions

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the

manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers,

stoves, or other apparatus (including ampliers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the

provided plug does not t into your outlet, consult an electrician for

replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specied by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or

table specied by the manufacturer, or sold with the

apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualied service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-

supply cord or plug is damaged, liquid has been spilled or objects have

fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15. The batteries (batteries installed) shall not be exposed to excessive

heat such as sunshine, re or the like.

16. An all-pole MAINS SWITCH is used as the disconnect device, the location on the apparatus and the function of the switch shall be described, and the switch shall remain readily operable

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,

DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.

WARNING: Apparatus shall not be exposed to dripping or splashing

and no objects lled with liquids, such as vases, shall be

placed on the apparatus.

WARNING: The batteries (batteries installed) shall not be exposed to

excessive heat such as sunshine, re or the like.

WARNING: The mains plug or appliance coupler is used as the

disconnect device,the disconnect device shall remain readily operable.

WARNING: To prevent the spread of re, keep candles or other open

ames away from this product at all times.

WARNING: To prevent injury, this apparatus must be securely attached

to the oor/wall in accordance with the installation

instructions.

WARNING: The Class I apparatus shall be connected to a mains socket

outlet with a protective earthing connection.

WARNING

Never place a television set in an unstable location. A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

• Using cabinets or stands recommended by the manufacturer of the television set.

• Only using furniture that can safely support the television set.

• Ensuring the television set is not overhanging the edge of the

supporting furniture.

• Not placing the television set on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the television set to a suitable support.

• Not placing the television set on cloth or other materials that may be located between the television set and supporting furniture.

• Educating children about the dangers of climbing on furniture to reach the television set or its controls.

If your existing television set is being retained and relocated, the same considerations as above should be applied.

CAUTION: These servicing instructions are for use by qualied service

personnel only. To reduce the risk of electric shock,do not perform any servicing other than that contained in the

operating instructions unless you are qualitied to do so.

CAUTION: Excessive sound pressure from earphones and headphones

can cause hearing loss. Adjustment of the equalizer to

maximum increases the earphone and headphone output voltage and the sound pressure level. Therefore, to protect

your hearing, adjust the equalizer to an appropriate level.

For UL/CUL application: For use only with UL Listed Wall Mount Bracket with minimum weight/load: 24.8 Kg

For CB application: Unit without base weight: 24.8 Kg. The equipment and

its associated mounting means still remain secure during the test.(Used wall mounting kit: 400x400 mm distance by using M6 screws of 10 mm long plus the thickness of the mounting bracket.

iii

65BDL3050Q

IMPORTANT INFORMATION

Ifatelevisionisnotpositionedinasufcientlystablelocation,itcanbe potentiallyhazardousduetofalling.Manyinjuries,particularlytochildren, canbeavoidedbytakingsimpleprecautionssuchas:

• Using cabinets or stands recommended by the manufacturer of the television.

• Only using furniture that can safely support the television.

• Ensuring the television is not overhanging the edge of the supporting

furniture.

• Not placing the television on tall furniture(for example, cupboards or bookcases)without anchoring both the furniture and the television to a suitable support.

• Not standing the televisions on cloth or other materials placed between the television and supporting furniture.

• Educating children about the dangers of climbing on furniture to reach the television or its controls.

EU Declaration of Conformity

This device complies with the requirements set out in the Council

Directive on the Approximation of the Laws of the Member States relating to Electromagnetic Compatibility (2014/30/EU), Low-voltage Directive (2014/35/EU) and RoHS directive (2011/65/EU).

This product has been tested and found to comply with the harmonized

standards for Information Technology Equipment, these harmonized standards published under Directives of Ofcial Journal of the European

Union.

Warning:

This equipment is compliant with Class A of EN55032/CISPR 32. In a residential environment this equipment may cause radio interference.

ESD Warnings

When user close to the monitor may cause the equipment discharge and

reboot to the display of main menu.

Federal Communications Commission (FCC) Notice (U.S. Only)

Note: This equipment has been tested and found to

comply with the limits for a Class A digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference when the

equipment is operated in a commercial

environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and

used in accordance with the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is

likely to cause harmful interference in which case the

user will be required to correct the interference at his

own expense.

Changes or modications not expressly approved by

the party responsible for compliance could void the

user’s authority to operate the equipment.

Use only an RF shielded cable that was supplied with the display when connecting this display to a computer device.

To prevent damage which may result in re or shock hazard, do not

expose this appliance to rain or excessive moisture. This device complies with Part 15 of the FCC Rules. Operation is subject

to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Envision Peripherals Inc. 47409 Seabridge Drive Fremont, CA 94538 Tel. 510-770-9988

Polish Center for Testing and Certication

Notice

InformationforEAC

Monthandyearof manufacturing

Nameandlocationof manufacturer

Importerandinformation Наименованиеорганизации:ООО

pleasereferinformationinRatinglabel.

ООО“Профтехника” Адрес:3-йПроездМарьинойрощи, 40/1офис1.Москва,127018,Россия

“Профтехника” Адрес:3-йПроездМарьинойрощи, 40/1офис1.Москва,127018,Россия Контактноелицо:НатальяАстафьева, +74956402020 nat@profdisplays.ru

The equipment should draw power from a socket with an attached protection circuit (a three-prong socket). All equipment that works

together (computer, display, printer, and so on) should have the same power supply source.

The phasing conductor of the room’s electrical installation should have a

reserve short-circuit protection device in the form of a fuse with a nominal value no larger than 16 amperes (A).

To completely switch off the equipment, the power supply cable must be

removed from the power supply socket, which should be located near the

equipment and easily accessible.

A protection mark “B” conrms that the equipment is in compliance with the protection usage requirements of standards PN-93/T-42107 and PN-

89/E-06251.

Electric, Magnetic and Electronmagnetic Fields (“EMF”)

1. We manufacture and sell many products targeted at consumers, which, like any electronic apparatus, in general have the ability to emit and receive electromagnetic signals.

2. One of our leading Business Principles is to take all necessary health and safety measures for our products, to comply with all applicable

legal requirements and to stay well within the EMF standards applicable

at the time of producing the products.

3. We are committed to develop, produce and market products that cause no adverse health effects.

4. We conrm that if its products are handled properly for their intended

use, they are safe to use according to scientic evidence available today.

5. We play an active role in the development of international EMF and safety standards, enabling us to anticipate further developments in standardization for early integration in its products.

65BDL3050Q

Information for U.K. only

WARNING – THIS APPLIANCE MUST BE EARTHED.

Important:

(B)

(A)

This apparatus is supplied with an approved moulded 13A plug. To change a fuse in this type of plug proceed as follows:

1. Remove fuse cover and fuse.

2. Fit new fuse which should be a BS 1362 5A,A.S.T.A. or BSI approved type.

3. Ret the fuse cover.

If the tted plug is not suitable for your socket outlets, it should be cut off and an appropriate 3-pin plug tted in its place.

If the mains plug contains a fuse, this should have a value of 5A. If a plug without a fuse is used, the fuse at the distribution board should not be greater than 5A.

NOTE: The severed plug must be destroyed to avoid a possible shock

hazard should it be inserted into a 13A socket elsewhere.

How to connect a plug

The wires in the mains lead are coloured in accordance with the following code:

BLUE – “NEUTRAL” (“N”) BROWN – “LIVE” (“L”) GREEN & YELLOW – “EARTH” (“E”)

1. The GREEN & YELLOW wire must be connected to the terminal in the plug which is marked with the letter “E” or by the Earth symbol or coloured GREEN or GREEN & YELLOW.

2. The BLUE wire must be connected to the terminal which is marked with the letter “N” or coloured BLACK.

3. The BROWN wire must be connected to the terminal which marked with the letter “L” or coloured RED.

Before replacing the plug cover, make certain that the cord grip is clamped over the sheath of the lead – not simply over the three wires.

65BDL3050Q

≤200

China RoHS

根据中国大陆《电子电气产品有害物质限制使用标识要求》，以下部分列出了本产品中可能包含的有害物质的名称和含量。

仅适用于非热带气候条件下安全使用 :

有害物质

零部件名称

外壳 ○ ○ ○ ○ ○ ○

液晶显示屏 × ○ ○ ○ ○ ○

电路板组件* × ○ ○ ○ ○ ○

电源适配器 × ○ ○ ○ ○ ○

电源线/连接线 × ○ ○ ○ ○ ○

遥控器 X ○ ○ ○ ○ ○

本表格依据SJ/T 11364 的规定编制。

*: 电路板组件包括印刷电路板及其构成的零部件，如电阻、电容、集成电路、连接器等。

O: 表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572规定的限量要求以下。

X: 表示该有害物质至少在该部件的某一均质材料中的含量超

出GB/T 26572规定的限量要求。

上表中打“×”的部件，应功能需要，部分有害物质含量超出 GB/T 26572规定的限量要求，但符合欧盟RoHS法规要求（属于豁免部分）。

铅

(Pb)汞(Hg)镉(Cd)

六价铬

(Cr

(VI))

多溴联苯

(PBB)

多溴二

苯醚

(PBDE)

汉文仅适用于非热带气候条件下安全使用。

蒙古文

藏文

维文

壮文

Dan hab yungh youq gij dienheiq diuzgen mbouj dwg diegndat haenx ancienz sawjyungh.

仅适用于海拔 2000m 以下地区安全使用 :

汉文仅适用于海拔 2000m 以下地区安全使用。

蒙古文

藏文

维文

壮文Hai dou gaxgonq, wngdang sien duenh denvasen bae.

“注意

汉文

蒙古文

如果电池更换不当会有爆炸危险只能用同样类型或等效类型的电池来更换”

备注：上表仅做为范例，实际标示时应依照各产品的实际部件及所含有害物质进行标示。

环保使用期限

在产品本体上标示的该标志表示环境保护使用期限为

电子信息产品的环境保护使用期限是指电子信息产品中所含的有害物质不会向外部泄漏或出现突然变异，并且电子信息产品的用户在使用该电子信息产品时也不会对环境造成严重污染或对人体、财产带来严重损害的期限。

在环境保护期限中，请按照使用说明书使用本产品。

本环境保护使用不覆盖易损件：电池。

《废弃电子产品回收处理管理条例》提示性说明

为了更好地关爱及保护地球，当用户不再需要此产品或产品寿命终止时，请遵守国家废弃电器电子产品回收处理相关法律规定，将其交给当地具有国家认可的回收处理资质的厂商进行回收处理。

警告

此为 A 级产品。在生活环境中，该产品可能会造成无线电干扰。在这种情况下，可能需要用户对干扰采取切实可行的措施。

年。

藏文

维文

壮文

汉文

蒙古文

藏文

维文

壮文

“Louzsim

Danghnaeuz denyouz vuenh ndaej mbouj habdangq aiq miz gij yungyiemj fatseng bauqcaq Cijndaej yungh gij denyouz doengzyiengh loihhingz roxnaeuz daengjyauq loihl haenx vuenh”

“接入本设备的有线网络天线必须与保护接地隔离 , 不然可能会引起着火等危险 !”

“Gij mizsienq vangjloz denhsen ciephaeuj bonj sezbi daeuj

haenx itdingh aeu caeuq gij ciepdieg baujhoh doxliz, mboujne aiq miz gij yungyiemj dawzfeiz daengj!”

65BDL3050Q

North Europe (Nordic Countries) Information

Placering/Ventilation

VARNING:

FÖRSÄKRA DIG OM ATT HUVUDBRYTARE OCH UTTAG ÄR LÄTÅTKOMLIGA, NÄR DU STÄLLER DIN UTRUSTNING PÅPLATS.

Placering/Ventilation

ADVARSEL:

SØRG VED PLACERINGEN FOR, AT NETLEDNINGENS STIK OG STIKKONTAKT ER NEMT TILGÆNGELIGE.

Paikka/Ilmankierto

VAROITUS:

SIJOITA LAITE SITEN, ETTÄ VERKKOJOHTO VOIDAAN

TARVITTAESSA HELPOSTI IRROTTAA PISTORASIASTA.

Plassering/Ventilasjon

ADVARSEL:

NÅR DETTE UTSTYRET PLASSERES, MÅ DU PASSE PÅ AT KONTAKTENE FOR STØMTILFØRSEL ER LETTE Å NÅ.

End-of-Life Disposal

Your new Public Information Display contains materials that can be recycled and reused. Specialized companies can recycle your product to increase the amount of reusable materials and to minimize the amount to be disposed of.

Please nd out about the local regulations on how to dispose of your old

display from your local philips dealer.

(For customers in Canada and U.S.A.)

This product may contain lead and/or mercury. Dispose of in accordance to local-state and federal regulations. For additional information on recycling contact www.eia.org (Consumer Education Initiative)

Waste Electrical and Electronie EquipmentWEEE

Attention users in European Union private households

This marking on the product or on its packaging illustrates that, under European Directive 2012/19/ EU governing used electrical and electronic appliances, this product may not be disposed of with normal household waste. You are responsible for disposal of

this equipment through a designated waste electrical and electronic equipment collection. To determine

the locations for dropping off such waste electrical

and electronic, contact your local government ofce,

the waste disposal organization that serves your household or the store at which you purchased the product.

End of Life Directives-Recycling

Your new Public Information Display contains several materials that can be recycled for new users.

Please dispose of according to all Local, State, and Federal laws.

As an ENERGY STAR Partner, we have determined that this product meets the ENERGY STAR guidelines

for energy efciency.

Restriction on Hazardous Substances statement (India)

This product complies with the “E-Waste (Management) Rules, 2016” CHAPTER V, rule 16, sub-rule (1) . Whereas New Electrical and

Electronic Equipment and their components or consumables or parts or

spares do not contain Lead, Mercury, Cadmium, Hexavalent Chromium, polybrominated biphenyls and polybrominated diphenyl ethers beyond a maximum concentration value of 0.1% by weight in homogenous materials for lead, mercury, hexavalent chromium, polybrominated biphenyls and polybrominated diphenyl ethers and of 0.01% by weight in homogenous materials for cadmium. except of exemptions set in Schedule 2 of the Rule.

E-Waste Declaration for India

This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead it is your

responsibility to dispose of your waste equipment

by handing it over to a designated collection point for the recycling of waste electrical and electronic

equipment . The separate collection and recycling of your waste equipment at the time of disposal

will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about E -waste please visit http://www.india.philips. com/about/sustainability/recycling/index.page and to know where you can drop off your waste

equipment for recycling in India please contact on

below given contact details.

vii

65BDL3050Q

Após o uso, as pilhas deverão ser entregues ao estabelecimento comercial

e/ou baterias

rede de assistência técnica autorizada.

Helpline number: 1800-425-6396 (Monday to Saturday, 9 a.m. to 5:30 pm)

Centralized E-waste collection center Address: TPV Technology India Private Limited, 59, Maheswari Nagar, 1st Main Road, Mahadevapura Post, Whiteeld Road Bangalore, Karnataka, PIN: 560048, Tel: 080-3023-1000 E-mail: india.callcentre@tpv-tech.com

Batteries

ForEU:Thecrossed-outwheeledbinimplies thatusedbatteriesshouldnotbeputtothe generalhouseholdwaste!Thereisaseparate collectionsystemforusedbatteries,toallow propertreatmentandrecyclinginaccordancewith

legislation.

Pleasecontactyourlocalauthorityfordetailson thecollectionandrecyclingschemes.

ForSwitzerland:Theusedbatteryistobereturned

to the selling point.

Forothernon-EUcountries:Pleasecontactyour localauthorityforcorrectmethodofdisposalof theusedbattery.

AccordingtoEUdirective2006/66/EC,thebattery can’tbe disposedimproperly.Thebatteryshall be separatedtocollectbylocalservice.

Turkey RoHS:

Türkiye Cumhuriyeti: EEE Yönetmeliğine Uygundur

Ukraine RoHS:

Обладнання відповідає вимогам Технічного регламенту щодо обмеження використання деяких небезпечних речовин в електричному та електронному обладнанні, затвердженого постановою Кабінету Міністрів України від 3 грудня 2008 № 1057

viii

65BDL3050Q

Table Of Contents

1. UnpackingandInstallation .......................................................1

1.1. Unpacking ......................................................................................... 1

1.2. Package Contents ........................................................................1

1.3. Installation Notes ......................................................................... 1

1.4. Mounting on a Wall ....................................................................2

2. PartsandFunctions ...................................................................3

2.1. Control Panel .................................................................................3

2.2. Input/Output Terminals .............................................................4

2.3. Remote Control ........................................................................... 6

3. ConnectingExternalEquipment.......................................... 10

3.1. Connecting External Equipment (DVD/VCR/

VCD) ...............................................................................................10

3.2. Connecting a PC ....................................................................... 10

3.3. Connecting Audio Equipment ...........................................11

3.4. Connecting Multiple Displays in a Daisy-chain

Conguration .............................................................................. 11

3.5. IR connection .............................................................................. 12

3.6. IR Pass-through Connection ...............................................13

6. OSD Menu ............................................................................... 39

6.1. Navigating the OSD Menu .................................................. 39

6.2. OSD Menu Overview ........................................................... 39

7. SupportedMediaFormats .................................................... 45

8. InputMode ............................................................................... 47

9. PixelDefectPolicy .................................................................. 48

9.1. Pixels and Sub-Pixels ............................................................... 48

9.2. Types of Pixel Defects + Dot Denition .................... 48

9.3. Bright Dot Defects ...................................................................48

9.4. Dark Dot Defects.....................................................................49

9.5. Proximity of Pixel Defects ...................................................49

9.6. Pixel Defect Tolerances ......................................................... 49

9.7. MURA ............................................................................................. 49

10. CleaningandTroubleshooting .............................................. 50

10.1. Cleaning ..........................................................................................50

10.2. Troubleshooting ......................................................................... 51

11. TechnicalSpecications ......................................................... 53

4. Operation ................................................................................. 14

4.1. Watch the Connected Video Source ............................ 14

4.2. Change Picture Format ......................................................... 14

4.3. Overview.......................................................................................14

4.4. Media Player introduction: ................................................... 15

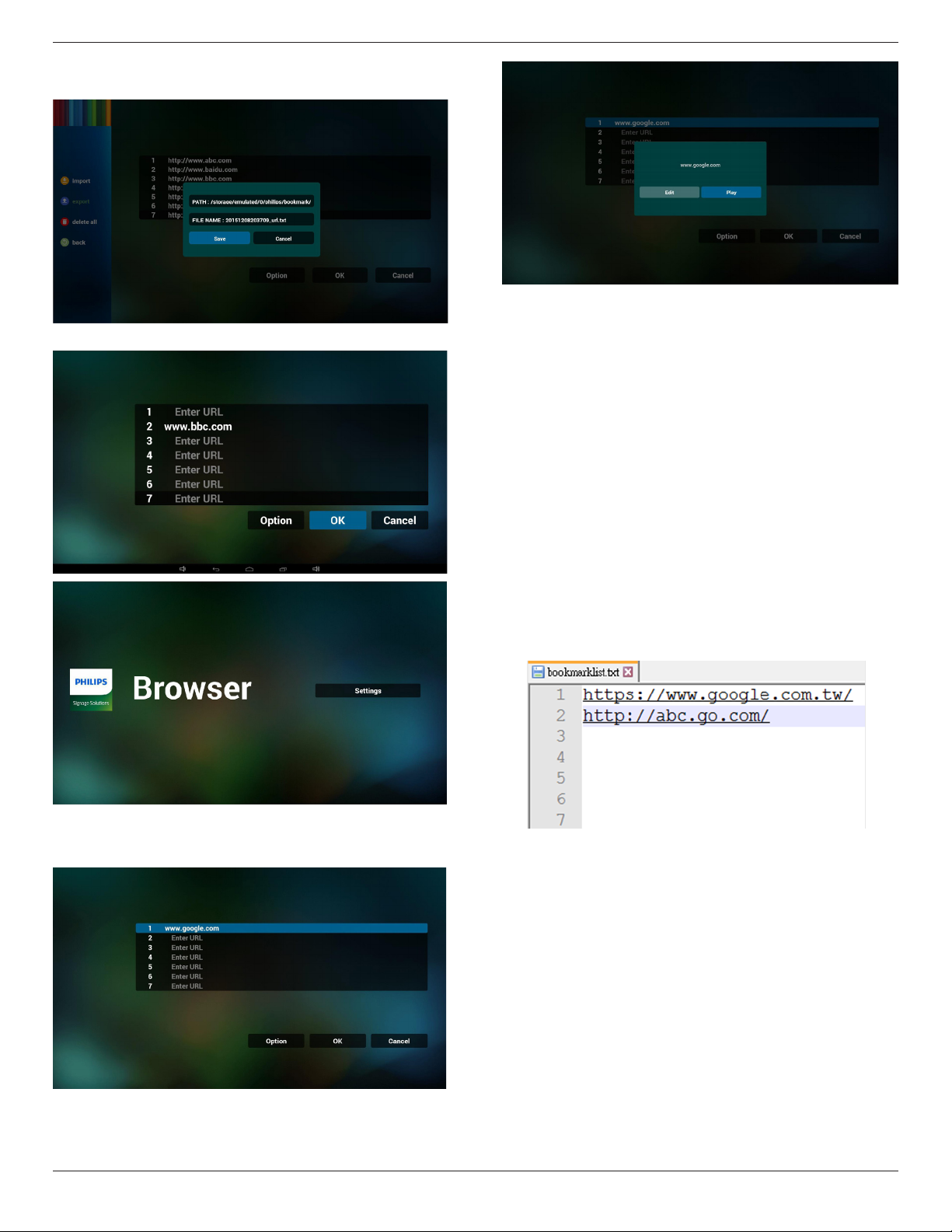

4.5. Browser manual ......................................................................... 17

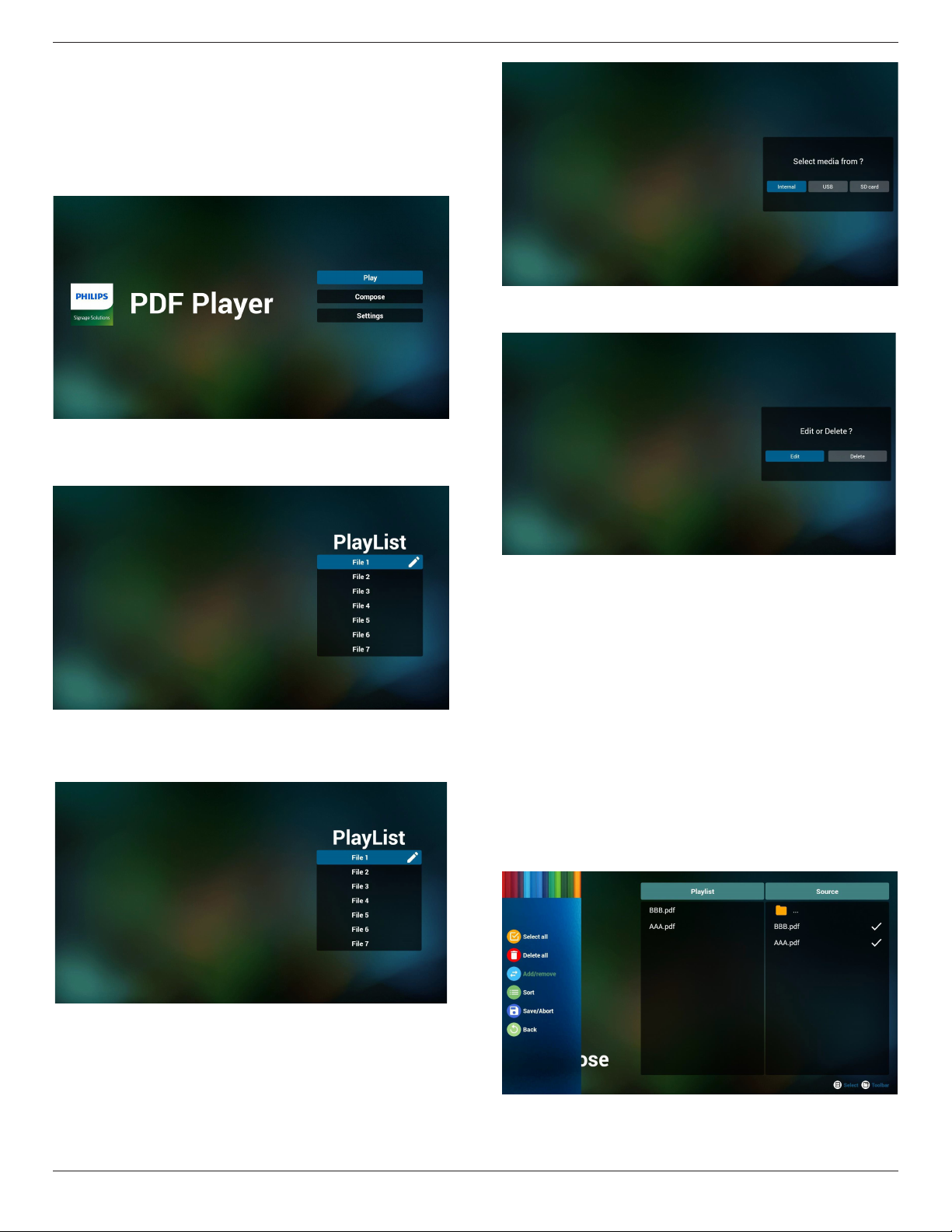

4.6. PDF reader play ......................................................................... 20

4.7. CMND & Play .............................................................................22

4.8. Custom App ................................................................................ 22

5. Signagedisplay ......................................................................... 24

5.1. Setting ..............................................................................................24

5.2. Wi-Fi ................................................................................................ 24

5.3. Ethernet..........................................................................................24

5.4. Proxy ................................................................................................ 25

5.5. Signage Display ........................................................................... 25

5.6. System Tools ................................................................................33

5.7. Clone Media File ....................................................................... 34

5.8. Display ........................................................................................... 35

5.9. Apps ................................................................................................. 35

5.10. Security ........................................................................................... 35

5.11. Date & time .................................................................................35

5.12. Developer options ................................................................... 35

5.13. About .............................................................................................. 36

5.14. Supplementary ........................................................................... 36

1. Unpacking and Installation

1.1. Unpacking

• This product is packed in a carton, together with the standard accessories.

• Any other optional accessories will be packed separately.

• Due to the size and weight of this display it is recommended for two people to move it.

• After opening the carton, ensure that the contents are complete and in good condition.

1.2. Package Contents

Please verify that you received the following items with your package content:

• LCD display

• Quick start guide

• Remote control with AAA batteries

• Power cord

• RS232 cable

• RS232 daisy chain cable

• IR sensor cable

• HDMI cable

• USB cover and screw x1

* The supplied power cord varies depending on destination.

Quick start guide

65BDL3050Q

NORMAL

FORMAT

SOURCE

INFOLIST

OPTIONSADJUST

VOL

ID SET ENTER

Remote Control

and AAA Batteries

Power Cord

RS232 Cable

HDMI Cable USB Cover x1IR Sensor Cable

RS232 Daisy Chain Cable

* Differences according to regions Display design and accessories may differ from those illustrated above.

NOTES:

• For all other regions, apply a power cord that conforms to the AC voltage of the power socket and has been approved by and complies with the safety regulations of the particular country (Type H05W-F, 2G or 3G, 0.75 or 1 mm2 should be used).

• You might like to save the package box and packing material for shipping the display.

1.3. Installation Notes

• Due to the high power consumption, always use the plug exclusively designed for this product. If an extended line is required, please consult your

service agent.

• The product should be installed on a at surface to avoid tipping. The distance between the back of the product and the wall should be maintained

for proper ventilation. Avoid installing the product in the kitchen, bathroom or any other places with high humidity so as not to shorten the service life of the electronic components.

• The product can normally operate only under 3000m in altitude. In installations at altitudes above 3000m, some abnormalities may be experienced.

65BDL3050Q

Table

1.4. Mounting on a Wall

To mount this display to a wall, you will have to obtain a standard wall-mounting kit (commercially available). We recommend using a mounting interface that complies with TUV-GS and/or UL1678 standard in North America.

Protective Sheet

VESA Grid

1. Lay a protective sheet on a table, which was wrapped around the display when it was packaged, beneath the screen surface so as not to scratch the screen face.

2. Ensure you have all accessories for mounting this display (wall mount, ceiling mount, table stand, etc).

3. Follow the instructions that come with the base mounting kit. Failure to follow correct mounting procedures could result in damage to the equipment or injury to the user or installer. Product warranty does not cover damage caused by improper installation.

4. For the wall-mounting kit, use M6 mounting screws (having a length 10 mm longer than the thickness of the mounting bracket) and tighten them securely.

5. Unit without base weight= 24.8 kg. The equipment and its associated mounting means still remain secure during the test. For use only with UL Listed Wall Mount Bracket with minimum weight/load: 24.8 kg.

6. Portrait is not allowed.

1.4.1. VESA Grid

65BDL3050Q

Caution:

To prevent the display from falling:

• For wall or ceiling installation, we recommend installing the display with metal brackets which are commercially available. For detailed installation instructions, refer to the guide received with the respective bracket.

• To lessen the probability of injury and damage resulting from fall of the display in case of earthquake or other natural disaster, be sure to consult the

bracket manufacturer for installation location.

Ventilation Requirements for enclosure locating

To allow heat to disperse, leave space between surrounding objects as shown in the diagram below.

400(H) x 400(V) mm

100 mm

100 mm 100 mm

100 mm

2. Parts and Functions

MUTE INPUT

2.1. Control Panel

65BDL3050Q

1 2 3 4 5 6 7 8

[ ] button

Use this button to turn the display on or put the display to standby.

[MUTE] button

Switch the audio mute ON/OFF.

[INPUT] button

Choose the input source.

[ ] button

• Increase the volume

• Enter into submenu while OSD menu is on

[ ] button

• Decrease the volume

• Back to previous menu while OSD menu is on

[ ] button

• Move the highlight bar up to adjust the selected item while

OSD menu is on

• Increase the adjustment while adjust value.

[ ] button

• Move the highlight bar down to adjust the selected item while

OSD menu is on.

• Decrease the adjustment while adjust value.

Remote control sensor and power status indicator

• Receives command signals from the remote control.

• Indicates the operating status of the display without OPS:

- Lights green when the display is turned on

- Lights red when the display is in standby mode

- When {SCHEDULE} is enabled, the light blinks green and red

- If the light blinks red, it indicates that a failure has been detected

- Lights off when the main power of the display is turned off

*UsingIRsensorcableforbetterremotecontrolperformance. (Please refer to the instructions of 3.5)

[MENU] button

Return to previous menu while OSD menu is on, or to activate the OSD menu when OSD menu is off.

65BDL3050Q

100-240V 50-60Hz 2.5A

HDMI 1 IN HDMI 2 IN

DP IN

RJ45

RS232

OUT

RS232

2.2. Input/Output Terminals

USB 5V/0.5A

MICRO SD

5V/2A

19 18

AC IN

AC power input from the wall outlet.

MAIN POWER SWITCH

Switch the main power on/off.

AC OUT

AC power supply to the AC IN jack of a media player.

RJ-45

LAN control function for the use of remote control signal from control center.

RS232C IN / 6 RS232C OUT

RS232C network input / output for the loop-through function.

DisplayPort IN

DisplayPort video input.

HDMI1 IN / 9 HDMI2 IN / 10 HDMI3 IN /

HDMI4 IN

HDMI video/audio input.

IR OUT / 13 IR IN

IR signal input / output for the loop-through function. NOTES:

• This display’s remote control sensor will stop working if the jack

[IR IN] is connected.

• To remotely control your A/V device via this display, refer to page 14 for or IR Pass Through connection.

VGA IN (D-Sub)

VGA video input.

AUDIO IN

Audio input for VGA source (3.5mm stereo phone).

5 7

6 8 9

AUDIO OUT

Audio output to external AV device.

USB PORT

Connect your USB storage device

USB PORT A

USB

5V/2A

MICRO SD CARD

Connect your MICRO SD CARD.

OPS SLOT

Slot for installing the optional OPS module.

SECURITY LOCK

Used for security and theft prevention.

USB 2.0 5V/0.5A

IR-INIR-OUT

USB 3.0 5V/0.9A

AUDIO OUT

AUDIO IN

D-SUB

HDMI 3 IN HDMI 4 IN

14 13

65BDL3050Q

2.2.1. Inserting the batteries in the remote control

The remote control is powered by two 1.5V AAA batteries.

To install or replace batteries:

1. Press and then slide the cover to open it.

2. Align the batteries according to the (+) and (–) indications inside the battery compar tment.

3. Replace the cover.

Caution:

The incorrect use of batteries can result in leaks or bursting. Be sure to follow these instructions:

• Place “AAA” batteries matching the (+) and (–) signs on each battery to the (+) and (–) signs of the battery compartment.

• Do not mix battery types.

• Do not combine new batteries with used ones. It causes shorter life or leakage of batteries.

• Remove the dead batteries immediately to prevent them from liquid leaking in the battery compartment. Don’t touch exposed battery acid, as it can

damage your skin.

NOTE: If you do not intend to use the remote control for a long period, remove the batteries.

2.2.2. Handling the remote control

• Do not subject to strong shock.

• Do not allow water or other liquid to splash the remote control. If the remote control gets wet, wipe it dry immediately.

• Avoid exposure to heat and steam.

• Other than to install the batteries, do not open the remote control.

2.2.3. Operating range of the remote control

Point the top of the remote control toward the display’s remote control sensor when pressing a

button.

Use the remote control within a distance of less than 5m/16ft from the display’s sensor, and a

horizontal and vertical angle of less than 30 degrees. NOTE: The remote control may not function properly when the remote control sensor on the

display is under direct sunlight or strong illumination, or when there is an obstacle in the path of signal transmission.

3030

65BDL3050Q

2.3. Remote Control

2.3.1. General functions

[ ] LIST button

No function.

NAVIGATION buttons

[ ]

Root Menu: Go to Smart picture OSD. Main Menu: Move the highlight bar up to adjust the selected item.

IRDaisyChainMenu: Increase controlled Group ID number.

[ ]

Root Menu: Go to Audio source OSD. Main Menu: Move the highlight bar down to adjust the selected

item. IRDaisyChainMenu: Decrease controlled Group ID number.

[ ]

Main Menu: go to previous level menu. Source Menu: Exit source menu.

VolumeMenu: Decrease Audio Volume.

[ ]

Main Menu: go to next level menu or set selected option. Source Menu: Go to selected source.

VolumeMenu: Increase Audio Volume.

[ ] button

Root Menu: Go to IR daisy chain OSD in Primary/Secondary mode. Main Menu: Conrm an entry or selection.

[ ] ADJUST button

Go to Auto Adjust OSD for VGA only.

[ ] MUTE button

Toggle Audio Mute/Unmute.

[ ] [ ] [ ] [ ] COLOR buttons

Choose tasks or options.(for Media Input only)

[ ]

Hot key for Window selection function.

[ ] POWER button

Power ON/OFF.

[PLAY] buttons

Control playback of media les.(for Media Input only)

Freezefeature

Pause: Freeze hot key for all inputs content.

Play: Unfreeze hot key for all input content.

[ ] SOURCE button

Root Menu: Go to Video source OSD.

[ ] HOME button

Root Menu: Go to Main Menu OSD. Others: Exit OSD.

[Number/ ID SET/ ENTER] button

Enter text for network setting. Press to set the display ID. Refer to 2.3.2. ID Remote Control

for more detail.

[ ] FORMAT button

Change Image Zoom Mode [Full][4:3][Real][21:9][Custom].

[ ] BACK button

Return to the previous menu page or exit from the previous function.

[ ] INFO button

Show Information OSD

[ ] OPTIONS button

No function.

[ ] [ ] VOLUME button

Adjust volume.

65BDL3050Q

2.3.2. ID Remote Control

You can set the remote control ID when you want to use this remote control on one of several different displays.

Press [ID] button. The red LED blinks twice.

1. Press [ID SET] button for more than 1 second to enter the ID Mode. The red LED lights up. Press the [ID SET] button again will exit the ID Mode. The red LED lights off.

Press the digit numbers [0] ~ [9] to select the display you want to control. For example: press [0] and [1] for display No.1, press [1] and [1] for display No.11. The numbers available are from [01] ~ [255].

2. Not pressing any button within 10 seconds will exit the ID Mode.

3. If an error pressing of buttons other than the digits occured, wait 1 second after the red LED lights off and then lights up again, then press the correct digits again.

4. Press [ENTER] button to conrm. The red LED blinks twice and then lights off.

NOTE:

• Press [NORMAL] button. The green LED blinks twice, indicating the display is in normal operation.

• It is necessary to set up the ID number for each display before selecting its ID number.

65BDL3050Q

2.3.3. Remote Control buttons on Android source

3)Media Player -> Play -> choose non-empty play list -> press

to play all the media les in the play list.

4) Set media playlist in Boot on Source or Schedule by OSD menu.

2. Play PDF le There are 3 ways to play media les.

1) File Manager

Find the pdf le from the File Manager and select it to play.

2) PDF Player -> Play -> choose non-empty play list -> press

to play all the PDF les in the play list.

3) Set pdf playlist in Boot on Source or Schedule by OSD menu.

3. When playing PDF, video or music, press to stop playing. Then if pressing again, playing will be started from the

beginning of the le.

4. When playing PDF, video or music, press button to pause playing.

5. All media or pdf les should be put at the folder, which is named “philips” with sub-folder, under the root directory of the specied

storage (internal/USB/SD Card). All sub-folders (video/photo/music/

pdf) are named by media types and shouldn’t be changed.

videos: {root dir of storage}/philips/video/

photos: {root dir of storage}/philips/photo/

music : {root dir of storage}/philips/music/

pdfs : {root dir of storage}/philips/pdf/

Note that the root directories of three storages are

Internal storage: /sdcard

USB storage: /mnt/usb_storage

SD card : /mnt/external_sd

] SOURCE button

[

Choose input source. The button is only controlled by Scalar.

[ ] HOME button

[ ] POWER button

Turn the display on or put the display to standby. The button is only controlled by Scalar.

[PLAY] buttons

1. Control playback of media(video/audio/picture) les. There are 4 ways to play media les.

1) File Manager

Find the media le from the File Manager and select it to play.

2) Media Player -> Compose -> edit or new add playlist ->

choose any media les -> press to play the media le

directly.

Access OSD menu. The button is only controlled by Scalar.

[ ] LIST button

1. In the content of the web page, move the focus up to the next clickable items.

2. Move the focus up to the next control or widget such as buttons.

NAVIGATION buttons

1. Navigate through menus and choose items.

2. In the content of the web page, these buttons are to control the

scroll bar of the screen. Press or is for moving vertical scroll

bar up or down. Press or is for moving horizontal scroll bar left or right.

3. For PDF les,

»when zoom in/out has been performed,

Press , , or to adjust the position of the

screen.

65BDL3050Q

»when zoom in/out has been not performed,

Press to go to the next page.

Press to go to the previous page.

[ ] button

Conrm an entry or selection.

[ ] ADJUST button

1. In the content of the web page, move the focus down to the next clickable items.

2. Move the focus down to the next control or widget such as buttons.

[ ] MUTE button

Press to turn the mute function on/off. The button is only controlled by Scalar.

[ ] [ ] [ ] [ ] COLOR buttons

1. : No function on Android source. These two buttons are only controlled by Scalar.

2. For PDF les,

press button to perform zoom-in;

[ ] [ ] VOLUME button

Adjust volume. The buttons are only controlled by Scalar.

press button to perform zoom-out.

After zoom-in or zoom-out, press button to revert the pdf le to the original size.

[Number/ ID SET/ ENTER] button

1. No functions for ID SET and ENTER on Android source. These buttons are only controlled by Scalar.

2. For PDF le, enter the page number by pressing number buttons

and then press button to jump to the specic page.

[ ] FORMAT button

Change picture format. The button is only controlled by Scalar.

[ ] BACK button

Return to the previous page or exit from the previous function.

[ ] INFO button

1. Display information about current input signal. It is shown by Scalar.

2. Media Player -> Compose -> edit or new add playlist -> choose

any media les -> press to show the information of the

chosen media le.

[ ] OPTIONS button

Open toolbox in Media Player or PDF Player.

1. Media Player ->Compose -> Edit or new add playlist -> press

to open toolbox. Toolbox will be slide from the left side of

the screen.

2. PDF Player ->Compose -> Edit or new add playlist -> press

to open toolbox. Toolbox will be slide from the left side of

the screen.

65BDL3050Q

IR-INIR-OUT

HDMI 1 IN HDMI 2 IN

AUDIO OUT

IR-OUT

HDMI 1 IN HDMI 2 IN

3. Connecting External Equipment

3.1. Connecting External Equipment (DVD/VCR/VCD)

3.1.1. Using HDMI video input

DVD / VCR / VCD

HDMI Out

3.2. Connecting a PC

3.2.1. Using VGA input

3.2.2. Using HDMI input

[VGA AUDIO IN]

AUDIO IN

D-SUB

[VGA IN]

HDMI 3 IN HDMI 4 IN

[HDMI IN]

Audio Out

VGA Out

D-Sub 15 pin

HDMI 3 IN HDMI 4 IN

[HDMI IN]

HDMI Out

3.2.3. Using DisplayPort input

HDMI 1 IN HDMI 2 IN

DP IN

[DisplayPort IN]

3.3. Connecting Audio Equipment

3.3.1. Connecting an external audio device

65BDL3050Q

DisplayPort Out

[AUDIO OUT] Audio In

AUDIO OUT

Stereo Amplifier

3.4. Connecting Multiple Displays in a Daisy-chain Configuration

You can interconnect multiple displays to create a daisy-chain conguration for applications such as a menu board.

3.4.1. Display control connection

Connect the [RS232 OUT] connector of DISPLAY 1 to the [RS232 IN] connector of DISPLAY 2.

DISPLAY 1

[RS-232C]

[RS-232C IN]

[RS-232C OUT] [RS-232C IN]

DISPLAY 2

65BDL3050Q

[RJ-45]

3.5. IR connection

External

IR Receiver

DISPLAY 1

[RJ-45] [RS-232C OUT] [RS-232C IN]

DISPLAY 2

[IR IN]

DISPLAY 1

[IR OUT]

[IR IN]

DISPLAY 2

DISPLAY 1 DISPLAY 2

[RS-232C OUT] [RS-232C IN]

NOTE:

1. This display’s remote control sensor will stop working if the [IR IN] is connected.

2. IR loop through connection can support up to 9 displays.

3. IR in daisy chain via RS232 connection can support up to 9 displays.

3.6. IR Pass-through Connection

65BDL3050Q

[IR OUT]

DVD / VCR / VCD

[IR IN]

(DVD / VCR / VCD)

Remote Control

65BDL3050Q

Settings Apps Network Storage Help

EthernetWi-Fi

4. Operation

NOTE: The control button described in this section is mainly on the

remote control unless specied otherwise.

4.1. Watch the Connected Video Source

1. Press [ ] SOURCE button.

2. Press [ ] or [ ] button to choose a device, then press [ ]

button.

4.2. Change Picture Format

You can change the picture format to suit the video source. Each video source has its available picture formats.

The available picture formats depend on the video source:

1. Press [ ] FORMAT button to choose a picture format.

• PC mode: {Full} / {4:3} / {Real} / {21:9}/ {Custom}.

• Video mode: {Full} / {4:3} / {Real} / {21:9}/ {Custom}.

4.3. Overview

1. Android PD launcher:

• Android PD launcher is black page, as below:

• Admin mode will show ve icons: “Settings”, “Apps”, “Network”

“Storage” and “Help”.

• When you leave admin mode, system will return to last source.

1)Home page of admin mode, this page has ve items: “Settings”,

“Apps”, “Network” “Storage” and “Help”. Settings : go to settings app. Applications : show all apps. Network : set Wi-Fi (optional), Ethernet Storage : display current PD Android storage information. Help : display QRcode.

2.) Application page:

• Every apps leave by press back key, the screen will go to android PD launcher.

• When you return to android PD launcher, the screen will show hint image, the hint image only show 5 second, as below:

• The hint image will notify you can press source key to change source.

ABC

Browser Settings

SmartCMS

PDF PlayerMedia PlayerFile ManagerChromium

3） Network page

2. Admin mode:

• You can press “Home + 1888” to enter admin mode. Please make sure you see the Home OSD menu after “Home” is

pressed, and then press 1888 in sequence. Two continuous

“Home” keys will not be a valid hotkey.

65BDL3050Q

4）Ethernet page

5) Wi-Fi (Optional)

2. Select “Play” on home page, rst you should choose one playlist to play between FILE 1 and FILE 7. The pencil icon means the playlist is non-empty.

3. Select “Compose” on home page, rst you should choose one playlist to edit between FILE 1 and FILE 7. The pencil icon means the playlist is non-empty.

6) Help page: Display QRcode page.

4.4. Media Player introduction:

1. Home page of Media Player, this page has three items: “Play”, “Compose” and “Settings”. Play : select playlist to play. Compose: edit playlist. Settings: setting play properties.

4. If an empty playlist is chosen, the app will guide you to select the media source.

All media les should be placed in /philips/ of root directory. For example,

videos: {root dir of storage}/philips/video/ photos: {root dir of storage}/philips/photo/ music : {root dir of storage}/philips/music/

65BDL3050Q

5. You could edit or delete a non-empty playlist, just choose the desired playlist which is with pencil icon.

6. Once you start to edit a playlist, you will see below screen.

Source - les in storage. Playlist – les in playlist.

There are 4 icons which map to the keys of remote controller. Option key – launch slide bar Play key – play media le. Info key – show media info. Ok key – select/unselect le.

6-1 In the slide bar, it helps you to do the following:

- select all : select all storage les.

- delete all : delete all playlist les.

- add/remove : update playlist from source.

- sort : sort playlist.

- save/abort : save or abort playlist.

- back : return.

8. Press info key after you choose desired le, you will get the detail information.

9. Press play key after you choose desired le, you will play the media

le directly.

10. If you make a playlist with all images les, before saving, the app will ask you if you want to have background music while playing slideshow.

7. If you choose “Sort” in the slide bar, you can change the order of

les one by one.

11. Select “Settings” on home page, this page has three parts, “Repeat Mode”, “Slideshow Effect” and “Effect Duration”. Repeat Mode : play mode. Slideshow Effect : photo slideshow effect.

Effect Duration : photo effect duration.

65BDL3050Q

12. Media Hotkey

Play : Playback le. Pause: Pause le.

Fast forward: forward 10 second. Rewind: back 10 second.

Stop: Stop le and return to star t. If the gif le, it like the pause.

13. Media format please refer to SupportedMediaFormats.

14. How to edit playlist via FTP.

Step 1. Create media player text le.

- File name : mpplaylistX.txt, “X” means playlist number(1,2,3,4,5,6,7).

Ex. mpplaylist1.txt, mpplaylist2.txt

- Content :

4.5. Browser manual

1. Home page of Browser app, this page has one item: “Settings”. Press Settings then enter next page.

2. Users can choose 1~7. Press any one will show a dialog.

Note : if playlist le contains video and music, when the pd plays music le, the screen will be black.

Step 2. Copy mpplaylistX.txt to “philips” folder of internal storage. You may use FTP to do this.

- File path : /storage/emulated/legacy/philips

Ex. /storage/emulated/legacy/philips/mpplaylist1.txt

Step 3. Prepare media les to “photo”, “video” and “music” folder

under “philips” folder, internal storage only.

- Ex. /storage/emulated/legacy/philips/photo/xxx.jpg /storage/emulated/legacy/philips/video/yyy.mp4 /storage/emulated/legacy/philips/photo/zzz.mp3

Step 4. Start media player app, it will auto import media player text

le.

PS. Once the playlist le (text) is imported, if an user change playlist

by remote controller, this change will not be written to playlist text

le.

3. Enter url and press OK then data will save on List

65BDL3050Q

4. Press “Option” then left side will pop up a list

Import : Import url list le Export : Export url list le

Delete all : Delete all url record on right side Back : left side list will be closed.

4.1 Import

• Click import

• Import le and url will show on list

• File format for import

Format should be like below with le extension “txt”

• Choose storage

• Choose le contains urls

4.2 Export:

• Click export

• Choose storage

• Dialog shows path le will be saved and le’s name. Press “save” button then urls on list will be saved.

5. Press OK then url records will be saved

65BDL3050Q

7. OSD menu interaction with Browser

7.1 Boot on source

• Set OSD menu => Conuration1 => Boot on source => Input

be BROWER Play List be 0. Then PD will show Browser after reboot.

• Set OSD menu => Conuration1 => Boot on source => Input be

BROWER Play List be 1. Then PD will show web page with 1st Url in Browser app.

7.2 Schedule Set OSD menu => Advanced option => Schedule => On time1, Off time2, Input be BROWSER, any day you want of week, and Play List.

Finally check the right box. Then PD will show web page with Url in Browser app at time1 and

nish at time2.

8. How to edit url list via FTP

Step 1. Create media player text le.

- File name : bookmarklist.txt.

- Content :

6. On url list page, if you select non-empty item, it will show a dialog to ask edit or play url. If press “Edit”, it will show edit url dialog, if

press “Play”, it will show web page of item’s url.

Step 2. Copy bookmarklist.txt to “philips” folder of internal storage. You may use FTP to do this.

- File path : /storage/emulated/legacy/philips (for DL, PL)

Ex. /storage/emulated/legacy/philips/bookmarklist.txt

Step 3. Start browser app, it will auto import browser text le.

PS. Once the playlist le (text) is imported, if an user change playlist

by remote controller, this change will not be written to playlist text

le.

65BDL3050Q

4.6. PDF reader play

1. Home page of PDF Player, this page has three items: “Play”, “Compose” and “Settings”.

Play : select playlist to play. Compose: edit playlist.

Settings: setting play properties.

2. Select “Play” on home page, rst you should choose one playlist to play between FILE 1 and FILE 7.

The pencil icon means the playlist is non-empty.

5. You could edit or delete a non-empty playlist, just choose the desired playlist which is with pencil icon.

3. Select “Compose” on home page, rst you should choose one playlist to edit between FILE 1 and FILE 7.

The pencil icon means the playlist is non-empty.

4. If an empty playlist is chosen, the app will guide you to select the media source.

All media les should be placed in /philips/ of root directory. For

example,

pdfs : {root dir of storage}/philips/pdf/

6. Once you start to edit a playlist, you will see below screen.

Source - les in storage. Playlist – les in playlist.

There are 4 icons which map to the keys of remote controller. Option key – launch slide bar

Play key – play media le.

Info key – show media info.

Ok key – select/unselect le.

6-1. In the slide bar, it helps you to do the following:

- select all : select all storage les.

- delete all : delete all playlist les.

- add/remove : update playlist from source.

- sort : sort playlist.

- save/abort : save or abort playlist.

- back : return.

65BDL3050Q

7. If you choose “Sort” in the slide bar, you can change the order of

les one by one.

8. Select “Settings” on home page, this page has two parts, “Repeat Mode” and “Effect Duration”.

Repeat Mode : play mode. Effect Duration : photo effect duration.

9. How to edit pdf list via FTP.

Step 1. Create pdf player text le.

- File name : pdfplaylistX.txt, “X” means playlist number(1,2,3,4,5,6,7). Ex. pdfplaylist1.txt, pdfplaylist2.txt

- Content :

Step 4. Start pdf player app, it will auto import pdf player text le. PS. Once the playlist le (text) is imported, if an user change playlist

by remote controller, this change will not be written to playlist text

le.

Media Hotkey:

Play : Playback le.

Pause: Pause page.

Fast forward: go to next page, if the page is end of the le, it will go to next le.

Rewind: back to last page, if the page is rst of the le, it will back to last le.

Stop: return to rst page of le

Color Hotkey:

Blue : Zoom in.(+10%) Yellow : Zoom out.(-10%) OK : Restore zoom

Arrow keys:

Up/Down/Left/Right : Adjust page. (When the page has zoomed in/ out)

Left : Previous Page. (When the page has not zoomed in/out) Right : Next Page. (When the page has not zoomed in/out)

Combination key:

Number key + OK key : select specic page, and press ok key to

change page.

- Press number key.

- Press OK key, the bottom of the page will show the page number, if page number over total page number, it will not change page and show current page number at the bottom of the page.

Step 2. Copy pdfplaylistX.txt to “philips” folder of internal storage. You may use FTP to do this.

- File path : /storage/emulated/legacy/philips (for DL, PL) Ex. /storage/emulated/legacy/philips/pdfplaylist1.txt

Step 3. Prepare pdf les to “pdf” folder under “philips” folder,

internal storage only.

- Ex. /storage/emulated/legacy/philips/pdf/xxx.pdf /storage/emulated/legacy/philips/pdf/yyy.pdf /storage/emulated/legacy/philips/pdf/zzz.pdf

65BDL3050Q

Custom App

Select App

Play Books

Select App

FORGET

CANCEL

SAVE

Custom App

4.7. CMND & Play

1) Server Setup CMND & Play server address

2) Account Setup CMND & Play account

3) PIN Code Setup CMND & Play PIN code (4) Version There are two options, Ver.2 and Ver.3 Ver. 2 use 2.0/2.2 agreement Ver. 3 use 3.0/3.1 agreement (5) Content There are internal storage/SD card/USB storage 3 options for

selecting. When Ver.2, Server/Account/PIN code will be gray and unavailable.

CMND & Play

Settings

Server

Account

PIN Code

Version

Ver.2

CONTENT

Internal storage

SD card

USB storage

Custom App

Select App

4.8.2. Function Introduction

When Ver.3, Server/Account/PIN code is available.

CMND & Play

Settings

Server

Account

PIN Code

Version

Ver.3

CONTENT

Internal storage

SD card

USB storage

4.8. Custom App

User can set up the application for Customer Source Note:

(1) Only display User Installed app. (2) Will not show up system pre-install app.

4.8.1. OSD Menu operation:

RCU: Source -> Custom If set up customer APK, PD will open customer app when switch source

to Customer mode. If no set up customer APK, PD will show Black screen when switch

source to Customer mode.

Save

Select the App, click the Save will perform the function of storage.

Forget

After press the Forget, can remove previously stored information.

Cancel

Don’t do any change, directly closed Windows.

If no customer installed apk, the list will be blank. The list will be blank and “Save””Forget” will be gray and useless.

If customer installed apk,user can select customer installed apk in list

Custom App

Select App

Play Books

• Case 1: Not set up Custom App case.

Customer app will show up and focus on rst item automatically.

After set up, the setting screen display the app name.

Custom App

Select App

Play Books

65BDL3050Q

• Case 2: Set up Custom App case(there is entity circle to the right of icon)

Custom App

Select App

Play Music

65BDL3050Q

5. Signage display

5.1. Setting

Main items:

(1) Wi-Fi (Show up when plug in Wi-Fi dongle) (2) Ethernet (3) Proxy (4) Signage Display (5) System Tools (6) Display (7) Apps (8) Security (9) Date & time (10) Developer options (11) About

Settings

Network

Ethernet

Device

Signage Display

Display

Personal

Security

System

Date & time

About

5.2. Wi-Fi

Via Enable/Disable to control Wi-Fi On/OFF. After Enable, the screen will list all available Wi-Fi AP.

Note :

1. Ethernet will be disable automatically if Wi-Fi turn on and connect to network.

2. A particular model of Wi-Fi module is required. Please consult the dealer or service technician for help.

5.3. Ethernet

Enable/Disable to turn on/off Ethernet After enable Ethernet, the settings will show:

(1) Connection Type (Available connection type: DHCP/Static IP) A. DHCP B. Static IP C. IP Address

Proxy

System Tools

Apps

Developer options

D. Netmask E. DNS Address F. Gateway (2) Mac Address

Ethernet

Main Switch

Disable

Enable

To see available networks, turn Ethernet on.

Ethernet Configuration

Connection Type

Static IP

Mac Address

00:24:67:21:57:ea

5.3.1. DHCP

DHCP mode:

(1) Cannot modify IP Address, Netmask, DNS Address and Gateway. (2) If connect successfully, it will display current network

conguration.

Ethernet

Main Switch

Disable

Enable

To see available networks, turn Ethernet on.

Ethernet Configuration

Connection Type

DHCP

Mac Address

00:24:67:21:57:ea

Ethernet Configuration

Connection Type

DHCP

Static IP

IP Address

172.17.2.12

Netmask

255.255.255.0

DNS Address

172.16.0.178

Gateway

172.17.2.254

DISCARD SAVE

5.3.2. Static IP

In Static IP mode, user can input IP Address, Netmask, DNS address and Gateway

Note: IP address, netmask, DNS address and gateway address input limitation

(1)Format:

I. number 0-9 II. decimal point “.”

Ethernet

Main Switch

Disable

Enable

To see available networks, turn Ethernet on.

Ethernet Configuration

Connection Type

Static IP

Mac Address

00:24:67:21:57:ea

Ethernet Configuration

Connection Type

DHCP

Static IP

IP Address

Netmask

DNS Address

Gateway

DISCARD SAVE

65BDL3050Q

5.4. Proxy

Browser connect to Proxy server and ask Proxy server to connect some website on Internet.

Enable/Disable to turn on/off Proxy server.

• Click “Enable” to switch proxy function “ON”

• Input the “Proxy hostname”. (Proxy server IP address)

• Input the “Proxy port”. (Proxy server port number)

• Select an “Type”. (Proxy server type.)

• Done.

- If the proxy server is need an authentication to connect, please “check on” the Authentication and input Username & Password.

- If the proxy server is not need an authentication to connect.

Proxy

Main Switch

Disable

Enable

Proxy settings

Proxy hostname

Proxy port

Type HTTP

Authentication

Username

Password

Signage Display

General settings

Signage Display Name

PD_0024672157ea

Boot Logo

Screenshot

Server settings

Email Notification

FTP

Remote Control

SCIP Network Port

Source settings

Media Player

Browser

CMND & Play

PDF Player

Custom App

Security

External Storage

SD card/USB External Storage Unlock

5.5.1. General Settings

1. Signage Display Name Set up PD name “PD_” + Ethernet Mac Address. Note: Input limitation:

(1) length: Max 36 characters (2) format: no limit

Note:

• Proxy type in HTTP, HTTPS, SOCKS4, SOCKS5 are support.

• Only support the connection through the proxy server with

TCP port 80 & 443 & 5228.

• Proxy server with authentication on Windows Sever Series is not support.

5.5. Signage Display

Divide into 4 groups: General Settings / Server Settings / Source Settings / Security

(1) General Settings

A. Signage Display Name B. Boot Logo C. Screenshot

(2) Server Settings

A. Email Notication B. FTP C. Remote Control D. SICP Network Port

(3) Source Settings

A. Media Player B. Browser C. CMND & Play D. PDF Player E. Custom app

(4) Security

A. External Storage

(5) Other

A. TeamViewer Support B. Platform Web API

2. Boot Logo

1) Scalar OSD menu to control Android boot logo enable/disable Scalar OSD menu operation

RCU: Home -> Conguration2 -> Logo -> On/Off/User In user mode, user can choose their own boot logo animation le.

Note:

(1) Boot animation le name: bootanimation.zip

(2) Will pop-up a window for user to select USB and SD card. No priority issue.

65BDL3050Q

2) When boot logo selected, PD will check if there is bootanimation. zip under USB and SD card.

Function introduction: a. Option description /data/local

Use customized boot animation le which is copied from SD card or

USB /mnt/external_sd

Use boot animations le under SD card

/mnt/usb_storage

Use boot animations le under USB

b. Save Press save key to save SD card or USB bootanimation.zip to /data/

local and set it as boot logo. c. Forget Press Forget key to delete /data/local bootanimation.zip and not

show boot logo. d. Cancel Close dialogue w/o changes. Scenario introduction: Case 1

The user don’t settle customized boot logo. PD does not nd any bootanimation.zip le under SD and USB. The list will be blank. Save

and Forget button will be gray and useless.

Case 2

The users do not settle customized boot logo. PD nd bootanimation.zip le under SD and USB. The screen will show bootanimation.zip and select the rst le automatically.

Case 3 The user settle customized boot logo, the screen will show /data/

local/bootanimation.zip.

3) If OSD menu Logo item is On or Off, the users cannot choose boot animation in Android settings.

3. Screenshot

Via Enable/Disable to control screenshot On/Off. After Enable, user can set screenshot timeslot and save path. Note: Time slot of deletion and screenshot:

(1) Will delete picture at initial time 0 sec.

(2) Will screeshot at rst 40 sec.

(3) Media player, Browser, CMND & play, PDF reader, Custom source

are supported.

(4) Screenshot will not include video container

1) Interval Set up interval timeframe. 30 mins or 60 mins.

2) Star t Time Set up screenshot start time.

Note:

(1) If no start time, the screen will show current time automatically

(2) Just press Back key to exit dialog for Set up

(3) Start time cannot be newer than End time. It will show Error toast.

65BDL3050Q

Note：

(1) If no End time, the screen will show current time automatically (2) Start time cannot be newer than End time. It will show error

toast.

4)Repeat Set screenshot repeat cycle. User can choose screenshot time frame.

(Multiple selection)

5)Save to Set up screenshot save path. Internal storage, SD card or USB

storage.) Note: picture storage path (1) In root of internal storage/usb storage/sd card, PD will create

folder automatically. (2) The picture will save to philips/Screenshot/.

3) End Time

Set up screenshot End time

6) Purge Screenshots Set up purge timeframe. One day or One week.

65BDL3050Q

(7) Send screenshots via email After check this item, it will send screenshot to email of administrator

Please refer to Email notication

Note:

Please conrm Email setting is done.

5.5.2. Server Settings

1. Email Notication Via Enable/Disable to control Email On/Off)

After Enable, user can set up Email notication conguration.

Gmail safety setting If Gmail is not working when the settings are completed, please test

the Gmail account via a PC and the below link https://www.google.com/settings/security/lesssecureapps

And conrm on “Access for less secure apps”the“Turn on” item is

selected.

1) SMTP

Set SMTP conguration)

User can set Gmail account or other mail account. User can select other mail account and set up SMTP server, Security

type and port item Note Password input limitation (1) Length: 6-20 characters (2) Format: no limit (3) unavailable port: 5000

Yahoo Email Security Setting

If Yahoo Email is not working when setting complete, please conrm

“Allow apps that use less secure sign in” item is enabled.

2)Manager Email Email

Set up Receiver mail account

65BDL3050Q

3)Test Send Test Mail To test Gmail account receive/send function. Note (1) When Email is Disable, “Send Test Mail Button” button will gray

out

2. FTP Via Enable/Disable to control FTP On/Off. After set up, PD can share

FTP les.

1) Account Set up FTP account Note:

Input limitation (1) Length: 4-20 characters (2) Format:

I. English a-z and A-Z II. Number 0-9

Before password input:

After password input:

Set up completed screen:

2) Password

Set up FTP password.

Note:

Input limitation

(1) Length: 6-20 characters

(2) Format:

I. English a-z and A-Z

II. Number 0-9 FTP password display (1) Will show “*” symbol to instead password if set up password via

remote control. (2) After set up, the password text will show as “*” symbol.

3)Storage Path Show default path: Internal storage Note:

Can only display Internal storage, cannot be modied.(Only show

path)

65BDL3050Q

4) Will show Server is unbinded if Remote control server feedback unbinded status.

5) Port Set up FTP port number. Default: 2121 Note: Input limitation (1) Length: Max 5 characters (2) Range: 1024 ~ 65535 (3) Format: Number 0-9 (4) Unavailable port: 5000 (5) The port number must more than 1024

3. Remote Control Via Enable/Disable to Control Remote Control On/Off User can input Server address. If server does not registered, it will ask

user for PIN code. Bind status:

(1) Will show network is disconnected if not yet connects to network.

(3) Will show Server is unbinded if Remote control server feedback unbinded status.

(4) Will show Server is binded if Sever binded successfully.

(5)Will show Error PIN code if input incorrect PIN code.

(2) Will show Server is disconnected if network connected but remote control server disconnected.

4. SICP Network Port Change SICP Network Port. Note:

1. Range: 1025-65535

2. unavailable port: 8000 / 9988 / 15220 / 28123 / 28124

65BDL3050Q

5.5.3. Source Settings

1. Media Player Can Edit Media Player play list and effect settings.

(1) Open Media Player Player List edit page.

(2) Open Media Player slideshow effect edit page.

Open Browser setting page.

3. CMND & Play

1) Server Setup CMND & Play server address

2) Account Setup CMND & Play account

selecting. When Ver.2, Server/Account/PIN code will be gray and unavailable

2. Browser

Can edit Bookmark conguration.

When Ver.3, Server/Account/PIN code is available.

65BDL3050Q

4. PDF Player

(1) Open PDF Player Player List edit page.

(2) Open PDF Player effect edit page.

Function introduction

(1) Save Select App and press Save key to save it. (2) Forget Press Forget key to clean previous stored data (3) Cancel No change, close window directly If no customer installed apk, the list will be blank. No option for choose. Save and Forget key will be gray and

unavailable.

5. Custom App

User can set up the application for Customer Source. Note

(1) Only display User Installed app.

(2) Will not show up system pre-install app. Scalar OSD menu operation RCU: Source -> Custom If set up customer APK, PD will open customer app when switch source

to Customer mode. If no set up customer APK, PD will show Black screen when switch

source to Customer mode.

User can select customer installed apk in list No setup Custom App

Screen will show available apps and focus on rst app item automatically.

65BDL3050Q

After setup, it will show App name

Case2. Setup Custom App. (there is a checked circle on right)

5.5.4. Security

1. External Storage

Enable: SD card/USB External Storage Lock. Disable: SD card/USB External Storage Unlock. Note: Must re-plug SD card/USB External Storage after unlock the

external storage.

5.6. System Tools

System tools 4 main functions:

(1) Clear Storage (2) Factory Reset (3) Import & Export (4) Clone Media Files

5.6.1. Clear Storage

The purpose is to clear all data in Philips folders. Divided into 4 mode:

(1) Clear all Philips folders (2) Only clear Philips folder under Internal storage. (3) Only clear Philips folder under USB storage. (4) Only clear Philips folder under SD card.

Pop-up the window to display all folders which can be clear.

5.5.5. Other

(1) TeamViewer Support

Enable / Disable TeamViewer support.

(2) Platform Web API

Enable / Disable Platform Web API.

5.6.2. Factory Reset

Factory Reset can recover to Factory default settings.

65BDL3050Q

Press OK to execute Reset function automatically

5.6.3. Import & Export

The function of Import & Export PD settins. Notes.

(1) Settings.db (Saved le name: settings.db)

(2) Will save to Philips folder in storage

5.6.3.1. Export Signage Display Settings

Will export to Philips folder under USB or SD card

(1) Expor t settings.db. Include OSD setting, Android settings but

“Signage Display Name” and “Boot Logo”

(2) Export 3rd party apk to Philips/app/ Note: If no Philips folder exists in USB or SD card, it will be created

automatically. List all available storage (internal/SD/USB)

5.6.3.2. Import Signage Display Settings

Import settings.db from Philips folder under USB or SD card.

(1) Impor t settings.db. Include OSD setting, Android settings but

“Signage Display Name” and “Boot Logo”

(2) Auto install 3rd party apk from Philips/app/ List all available storage (Internal/SD/USB)

Show notication dialog before database import

5.7. Clone Media File

Clone media le from Internal, SD or USB Philips folder.

1. The cloned folder name under Philips folder (1) philips/photo (2) philips/music (3) philips/video (4) philips/cms (5) philips/pdf (6) philips/browser

2. The cloned le extension name is “.cms”)

Clone Source (1) Internal storage

(a) check FTP (b) check /Philips/

(2) SD / USB

Files under root Target Location (1) Internal storage

Save to /Philips/ (2) SD / USB

Save to root

5.8. Display

User can modify the font size, can choose: Small/Normal/Large/Huge

65BDL3050Q

5.9. Apps

Display applications information. Note

(1) User options key on RCU to show setting option.

5.10. Security

(1) Credential storage

Control panel of certicates

5.11. Date & time

Via Scalar OSD menu to control Auto Time On/Off. Note: Add new NTP server to display current server IP

5.12. Developer options

Android developer options. For more information please visit https://developer.android.com/index.html

65BDL3050Q

5.13. About

Main info in About:

(1) System updates (2) Android version (3) Kernel version (4) Build number

5.13.1. System updates

Will automatically search update.zip in USB. Will be shown in list for user selection if found Note:

(1) Only support Android Full image.

(2) le name should be update.zip. (3) the le should be located in root of storage.

5.14.2. How to custom an Android boot animation?

1. Overview

The Android boot animation is used script to load PNG les when

the device boots. It is contained within an uncompressed zip le called bootanimation.zip.

2. Inside the bootanimation.zip le

The bootanimation.zip as follow:

• The image folder (Contains PNG images named in incremental

numbers)

• The desc.txt le

After select update.zip le, PD will restart and start to update.

5.14. Supplementary

5.14.1. Quick Info

You can press “Info + 77” to startup quick info.

Quick info will show “Network” and “Monitor Information”, as below: Note: Operation hours : It is updated every minute. Heat status : It is updated every 5 seconds.

(1) The image folder These contain PNG images named in numbers, starting from

something like 0000.png or 0001.png and proceeding with increments of 1. There has to be at least one folder and there is no known upper limit to the number of folders.

(2) The desc.txt le This le denes how the images in the folder(s) are displayed during

the boot animation, in the following format:

- Width Height Frame-rate

- mode Loop delay-time Folder1

- mode Loop delay-time Folder2

An example of a desc.txt le is:

- 1920 1080 30

- p 1 0 part0

- p 0 0 part1

a. The rst line 1920 and 1080 dene the width and height of the screen

resolution. 30 is the frame rate in fps (frames per second) i.e. number of

images to display per second. b. The second and third lines have a same format.

The rst ‘p’ denes play mode is immediately stop playing when

boot complete.

The number after ‘p’ denes repeat mode

- specifying 0 would make the part loop indenitely till the device has boot complete.

- specifying 1 would make the part playback once.

The next number denes the delay time(ms). For example, if set 10, when all image les has been playback, system will delay 10ms.

The part0 and part1 are image folder name.

The above example, the boot animation will play at a resolution of 1920 by 1080 pixels, at a frame rate of 30 fps, starting with the contents of part0 folder and after playing them in one loop, switching to contents of part1 folder and playing them continuously till the device boot complete.

3. Zip le: Select everything (image folders and desc.txt) inside the Bootanimation

folder and zip them into a new uncompressedziparchive using your favorite compression utility like 7zip or WinRAR and so on.

If using 7zip, set compression level to “Store”

65BDL3050Q

or else bootanimation WON’T work

4. Apply the custom bootanimation Procedure:

(1). Put your custom bootanimztion.zip le into external SD card or

USB and plug into Phillips PD platform. (2.) Make sure the Logo option is enabled.

Press Home key on RCU: OSD menu -> Conguration 2 -> Logo

-> set “User” (3.) Press combination key “Home + 1888” on RCU to go to Admin

mode: Settings -> Signage Display -> GENERAL SETTINGS -> Boot Logo

(4). The system will nd the bootanimation.zip in external SD card or

USB automatically and copy it to /data/local (5.) Once step 1~4 has been done, restart the system. The new

customized boot animation should be displayed during boot time.

If using WinRAR, set “Compression method” to “Store”

65BDL3050Q

5.14.3. How to Install Android app?

There are 3 ways to install your own android app. (a) Via File Manager in Admin Mode

1. If you have apk already

1.1 copy your apk to USB disk or SD card, and then plug them into Philips Android Signage Display.

1.2 Go to Admin Mode > Apps > File Manager

1.3 Using File Manager and nd out your apk and then you can install. Just press “ok” on the selected apk.

2. Download apk by Chromium browser, and then go to <internal storage path>/Download/ by File Manager.

2.1 The rest of steps is the same as above. Please note, each model may have different <internal storage path>.

(b) Via Adb Shell

1. Make sure that your PC can connect to Philips Android Signage Display using adb.

2. Prepare your apk in a folder(for example, C:\apkfolder) on PC.

3. Execute the following instruction by command line tool. C:\apkfolder> adb install -r apk_name.apk

1. If you develop an apk which can download any android app, then your apk can issue a customized intent.

2. Giving the apk name and the path it was stored. The system will help you to install by program.

Description Intent Parameters

lePath

Keep

php.intent.

Sw Update

For example, Intent intent = new Intent(); intent.setAction(“php.intent.action.UPDATE_APK”);

intent.putExtra(“lePath”, “/sdcard/Download/apk_name.apk”);

intent.putExtra(“keep”, true); intent.putExtra(“packageName”, “com.example.apk_name”); intent.putExtra(“activityName”, “com.example.apk_name.MainActivity”); sendBroadcast(intent);

action. UPDATE_APK

packageName

activityName

The absolute le path including the le name.

Indicate that you want

to keep the le or not

after updating. The default value is false.

The target package you want to launch automatically after updating.

The target activity you want to launch automatically after updating. But if current top activity is not activityName, nothing happened.

65BDL3050Q

6. OSD Menu

An overall view of the On-Screen Display (OSD) structure is shown below. You can use it as a reference for further adjusting your display.

6.1. Navigating the OSD Menu

6.1.1. Navigating the OSD menu using the remote control

SOURCE

1. Press [ ] button on the remote control to display the OSD menu.

2. Press [ ] or [ ] button to choose the item you want to adjust.

3. Press [OK] or [ ] button to enter the submenu.

4. In the submenu, press [ ] or [ ] button to toggle among items, press

[ ] or [ ] button to adjust settings. If there is a submenu, press

[OK] or [ ] button to enter the submenu.

5. Press [ ] button to return to the previous menu, or press [ ]

button to exit the OSD menu.

6.1.2. Navigating the OSD menu using the display’s control buttons

1. Press [MENU] button to display the OSD menu.

2. Press [ ] or [ ] button to choose the item you want to adjust.

3. Press [ ] button to enter the submenu.

4. In the submenu, press [ ] or [ ] button to toggle among items,

press [ ] or [ ] button to adjust settings. If there is a submenu, press [ ] button to enter the submenu.

5. Press [MENU] button to return to the previous menu, or press

[MENU] button several times to exit the OSD menu.

FORMAT

INFOLIST

OPTIONSADJUST

6.2. OSD Menu Overview

6.2.1. Picture menu


Screen

Audio

Configuration 1

Configuration 2

Advanced option

Brightness(Picture)

Adjust the overall image and background screen brightness(backlight).

Contrast

Adjust the image contrast ratio for the input signal.

Sharpness

This function is digitally capable to keep crisp image at any timings. It is adjustable to get a distinct image or a soft one as you prefer and set

independently for each picture mode.

Black level

Adjust the image brightness for the background. NOTE: sRGB picture mode is standard and cannot be changed.

Tint (Hue)

Adjust the tint of the screen.

Press + button the esh tone color becomes greenish. Press - button the esh tone color becomes purplish.

NOTE: VIDEO mode only.

Color(Saturation)

Adjust the color of the screen. Press + button to increase color depth. Press - button to decrease color depth. NOTE: VIDEO mode only

Noise Reduction

Adjust the noise reduction level.

Gamma selection

Select a display gamma. It’s refer to the brightness performance curve of

signal input. Choose from {Native} / {2.2} / {2.4} / {s gamma} / {D-image}. NOTE: sRGB picture mode is standard and cannot be changed.

Color temperature

It is used to adjust the color temperature. The image becomes reddish as the color temperature decreases, and

becomes bluish as the color temperature increases.

10000º K 9300 º K 7500 º K 6500 º K 5000 º K 4000 º K 3000 º K

CCT

0.279 ±

0.292 ±

0.030

0.283 ±

0.030

0.298 ±

0.030

Brightness

Contrast

Sharpness

Black level

Tint

Color

Noise reduction

Gamma selection

Color temperature

Color control

Smart power

Overscan

0.299 ±

0.030

0.315 ±

0.030

0.313 ±

0.030

0.329 ±

0.030

0.346±

0.030

0.359±

0.030

Medium

Native

Action

Off

0.382±

0.030

0.384±

0.030

0.440±

0.030

0.403±

0.030

65BDL3050Q

Color control

The color levels of red, green, and blue are adjusted by the color bars. R: Red gain, G: Green gain, B: Blue gain.

Smart power

Smart Power control is not relative to brightness control:

1. Initial setting Brigthness

70 (in the range from 0-100) Power consumption 70% of maximum power consumption

2. Smart Power

OFF: no adaptation MEDIUM: 80% of power consumption relative to current settings HIGH: 65% of power consumption relative to current settings

Overscan

Change the display area of the image. ON: Set to display area about 95%. OFF: Set to display area about 100%.

Picture reset

Reset all settings in the Picture menu. Select “Yes” and press “SET” button to restore to factory preset data. Press “EXIT” button to cancel and then return to the previous menu.

Zoom mode

HDMI, DP, VGA, OPS: {Full}/{4:3}/{Real}/{21:9}/{Custom}. Playing media in Media Player : {Full}/{4:3}/{Real}/{21:9} There are no function when BROWSER, CMND & Play, PDF Player, PDF

Player, Custom and Media Player UI and Android UI Zoom Mode will be “Full” when tiling

Full

This mode restores the correct proportions of pictures transmitted in 16:9 using the full screen display.

4:3

The picture is reproduced in 4:3 format and a black band is displayed on either side of the picture.

Real

This mode displays the image pixel-by-pixel on screen without scaling the original image size.

16:9

The picture is reproduced in 16:9 format and a black band at the top and bottom.

6.2.2. Screen menu


Screen

Audio

Configuration 1

Configuration 2

Advanced option

H position

Control Horizontal Image position within the display area of the LCD. Press + button to move screen to right. Press - button to move screen to left. NOTE: VGA input only.

V position

Control Vertical Image position within the display area of the LCD. Press + button to move screen to up. Press - button to move screen to down. NOTE: VGA input only.

Clock

Press + button to expand the width of the image on the screen the right.

Press - button to narrow the width of the image on the screen the left. NOTE: VGA input only.

H position

V position

Clock

Zoom mode

Custom zoom

Auto adjust

Screen reset

Full

Action

21:9

The picture is reproduced in 21:9 format and a black band at the top and bottom.

Custom

Choose to apply the custom zoom settings in the Custom Zoom submenu.

Custom zoom

You can use this function to further customize the zoom settings to suit the image you want to display.

NOTE: This item is functional only when the {Zoommode} is set to

{Custom}.

Zoom

Expands the horizontal and vertical sizes of the image simultaneously.

H zoom

Expands the horizontal size of the image only.

V zoom

Expands the vertical size of the image only.

H position

Moves the horizontal position of the image left or right.

V position

Moves the vertical position of the image up or down.

65BDL3050Q

Auto adjust

Press “Set” to detect and adjust H position, V position, Clock, Phase automatically.

NOTE: VGA input only.

Screen reset

Reset all settings in the Screen menu to factory preset values.

6.2.3. Audio menu


Screen

Audio

Configuration 1

Configuration 2

Advanced option

Balance

Adjust to emphasize left or right audio output balance.

Treble

Adjust to increase or decrease higher-pitched sounds.

Bass

Adjust to increase or decrease lower-pitched sounds.

Volume

Adjust to increase or decrease the audio output level.

Audio out (line out)

Adjust to increase or decrease line out output level.

Maximum volume

Adjust your own limitation for the maximum volume setting. This stops the volume from being playing at too loud a level.

Minimum volume

Adjust your own limitation for the minimum volume setting.

Mute

Turn the mute function on/off.

Audio source

Select the audio input source. There are no audio output when no video signal.

Analog: audio from audio input Digital : audio from HDMI/DVI audio.

Audio reset

Reset all settings in the Audio menu to factory preset values.

Audio Out Sync

Enable/disable audio out (line out) volume adjustability to sync with internal speakers.

Balance

Treble

Bass

Volume

Audio Out (Line Out)

Maximum Volume

Minimum Volume

Mute

Audio source

Audio reset

Audio Out Sync

100

Off

Digital

Action

Off

6.2.4. Configuration1 menu


Screen

Audio

Configuration 1

Configuration 2

Advanced option

Switch on state

Select the display status used for the next time you connect the power cord.

• {Poweroff} - The display will remain off when the power cord is connected to a wall outlet.

• {Forced on} - The display will turn on when the power cord is connected to a wall outlet.

• {Last status} - The display will return to the previous power status (on/off/standby) when removing and replacing the power cord.

Panel saving

Choose to enable the panel saving functions and thus reduce the risk of “image persistence” or “ghost-imaging”.

• {Brightness} - Select {On} and the image brightness will be reduced to an appropriate level. The Brightness setting in the Picture menu will be unavailable when selected.

• {Pixel shift} - Select the time interval ({Auto}/{10~900} Seconds/ {Off}) for the display to slightly expand the image size and shift the position of pixels in four directions (up, down, left, or right). Activating Pixel Shift will disable H Position, V Position and Zoom Mode in the Screen Menu.

Note: Only support external input source (HDMI, VGA, DP, OPS).

RS232-Routing

Select the network control port. Choose from: {RS232}/{LAN->RS232} / {CardOPSRS232(OPS

modelonly)}.

Boot on source

Choose to select source when boot up. Input: select input source when boot up. Playlist: select playlist index for Media player, Browser, PDF player. 0: no play list. Same as switch source from OSD.1~7: playlist number. No failover function, system will keep source even the source is no

signal input.

Wake on Lan (WOL)

Choose to turn on or off the wake on LAN function. Choose from : {Off} / { On}

Conguration1 reset

Reset all settings in Conguration1 menu to the factory preset values.

Switch on state

Panel saving

RS232 routing

Boot on source

WOL

Configuration1 reset

Factory reset

Force on

Action

RS232

Action

Off

Action

65BDL3050Q

Factory reset

Reset all settings in the OSD menus of {Picture}, {Screen}, {Audio}, {Conguration1}, {Conguration2}, and {Advanced option} to the factory preset values.

Android settings will also reset when factory reset. Press [

] or [ ] button to select {Reset}, and press [OK] button to

do the reset.

Factory reset

CANCEL Reset

6.2.5. Configuration2 menu


Screen

Audio

Configuration 1

Configuration 2

Advanced option

OSD turn off

OSD H position

OSD V position

Information OSD

Logo

Monitor ID

Heat status

Monitor information

HDMI Version

Configuration2 reset

Action

24.21°C 75.57°F

Action

3. If Logo set to USER, custom logo option in android is not set, then there will be no boot logo when power on.

4. If Logo set to USER, custom logo option in android is set, there will be only custom logo when power up.

Monitor ID

Set the ID number for controlling the display via the RS232C

connection. Each display must have a unique ID number when multiple

sets of this display are connected. Monitor ID number range is between 1 to 255.

The option are: {Monitor group}

Monitor ID

Monitor ID Monitor group

• {Monitor group} The options are: {Off} / {1-254}

• {Off} – {Monitor group} are not supported.

• {1-254} – {Monitor group} are supported. The default setting is

1 2

5 6

7 8

1 1

OSD turn off

Set the period of time the OSD (on-screen display) menu stays on the screen.

The options are: {

Off,5~120} seconds.

*{Off} does not disappear automatically.

OSD H-position

Adjust the horizontal position of the OSD menu.

OSD V-position

Adjust the vertical position of the OSD menu.

Information OSD

Set the period of time the information OSD is displayed on the upper right corner of the screen. The information OSD will display when input signal is changed.

The information OSD will remain on the screen with {Off} selection. The options are: {1 ~ 60} seconds.

Logo

Choose to enable or disable the picture of Logo when turn on your display.

The options are:

• {Off}

• {On} (Default)

• {User}

1. If Logo set to ON, both scalar Philips logo and android animation Philips logo will show.

2. If Log set to OFF, neither scalar Philips logo nor android animation logo will not show.

9 10 11 12

13 14 15 16

Heat status

This function allows you to check the thermal status at any time.

Monitor information

Shows information about your display, including model number, serial number, operating hours and software version.

Monitor information

Model name Serial NO. Operation hours SW Version

HDMI Version

Set the HDMI version to 1.4 or 2.0, this setting is only valid on HDMI input

Conguration2 reset

Reset all settings in Conguration2 menu to the factory preset values.

XXBDL3050Q

N/A 0

FBXX.XX

65BDL3050Q

6.2.6. Advanced option menu


Screen

Audio

Configuration 1

Configuration 2

Advanced option

IR control

Select the operation mode of the remote control when multiple displays are connected via an RS232C connection.

• {Unlock} - All displays can be operated normally by the remote control unit.

• {Primary} - Designate this display as the primary display for remote control operation. Only this display can be operated by the remote control. (In primary mode, IR key will always be processed regardless the monitor id/group settings).

• {Secondary} - Designate this display as the secondary display. This display can not be operated by the remote control, and will only receive the control signal from the primary display via the RS232C connection.

• {LockAll} / {LockallbutVolume} / {LockallbutPower} / {Lock allexceptPWR&VOL}- Lock the remote control function of this

display. To unlock, press and hold the [ ] INFO button on the remote control for 6 (six) seconds.

Power LED light

Choose to set power indicate LED on or off. Choose {On} for normal use.

Keyboard control

Choose to enable or disable the display keyboard (control buttons) function.

• {Unlock} - Enable the keyboard function.

• {LockAll} / {LockallbutVolume} / {LockallbutPower} / {Lockall

except PWR & VOL} - Disable the keyboard function.

NOTE: “Keyboard Control Lock Mode” This function completely

disables the access to all Keyboard Control functions. To enable or disable the keyboard control lock, press both [ ]

and [ ] buttons and hold down continuously for more than 3 seconds.

Tiling

With this function you can create a single large-screen matrix (video wall) that consists of up to 150 sets of this display (upto10-setsonthe

verticaland15-setsonthehorizontalsides). This function requires a

daisy-chain connection.

• Switchondelay: Set the power-on delaying time (in seconds). The

default option {Auto} allows a sequential powering-on for each

display by their ID number when multiple displays are connected. The options are: {Off (0) / Auto(1) / 2-255}

• Brightness: {Normal}/{ACS}

• {Normal}: Adjust the overall image and background screen

brightness (backlight).

IR control

Power LED Light

Keyboard control

Tiling

Off Timer

Date and time

Schedule

HDMI with One Wire

Language

OSD Transparency

Power Save

Advanced option reset

Unlock

Action

Off

Action

Off

English

Off

Mode 1

Action

• {ACS}: Apply brightness value (backlight) which is adjusted by MIC tool. The default value before adjustment is the same as OSD brightness value, e.g., 70)

• Type: {Off} (Default)/{SW Tool}/{OSD Only}

• Source resolution: {Full HD}(Default)/ {4K}

• Hmonitors - Select the number of displays on the horizontal side.

• Vmonitors - Select the number of displays on the vertical side.

• Position - Select the position of this display in the screen matrix.

• Framecomp.- Choose to turn the frame compensation function

on or off. If selected {Yes}, the display will adjust the image to compensate for the width of the display bezels in order to accurately display the image.

NOTE: Doesn’t support screen format function in tiling using cascade

mode.

Off Timer

Set automatically power off time (in hours).

Date and time

Adjust the current date and time for the display’s internal clock.

Date and time

Auto Sync

Set date Set time

Choose time zone

London, Dublin GMT+1:00

NTP Server

Current date time

1. Press [OK] button to enter or choose

2. Press [ ] back button to return.

3. Press [ ] or [ ] button to adjust them.

* Cannot set time to date after year 2037.

Schedule

This function allows you to program up to 7 (seven) different scheduled time intervals for the display to activate.

Schedule

Schedule list

Enable

Start time

End time

Input

Playlist

Days of the week

Every week

Back SAVE

2.android.pool.ntp.org

2017/06/27 13:17:33

65BDL3050Q

• Schedule list: You can set 7 schedules.

• Enable: Enable/disable schedule. If set start/end time is conict or

empty, input is empty or time conict with other schedule list, you

cannot enable schedule.

• Starttime:Set start time.

• Endtime: Set end time.

• Input: Platform will go to this select source automatically after the

schedule on.

• Playlist: 1 - 7 : playback File1 - File7 of playlist automatically, only media player, pdf player and browser can set.

• Daysoftheweek: Set Sunday, Monday, Tuesday, Wednesday, Thursday, Friday, Saturday.

• Everyweek:Set lifecycle.

• Back:Does not change schedule data.

• Save: Save schedule data.

HDMI with One Wire

CEC control.

• {Off} - Disable CEC.(Default)

• {On} - Enable CEC.

Language

Select the language used in the OSD menu. The options are: English/Deutsch/

Pyccкий/Polski/Türkçe/

繁體中文/日本語

简体中文

/Français/Italiano/Español/

/Português/ /Danish/

Svenska/Finnish/Norsk/Nederlands.

OSD Transparency

Adjust OSD transparency.

• {Off} - Transparency off.

• {1-100} - Transparency level 1-100.

Power Save

Mode 1 [TCP off, WOL on, auto off] Mode 2 [TCP off, WOL on, auto on/off] Mode 3 [TCP on, WOL off, auto on/off] Mode 4 [TCP on, WOL off, no auto on/off] Power save modes Mode 1: DC off -> Power off. LED: Red. Power Save -> Power off, LED: Red Mode 2: DC off -> Power off, LED: Red. Power Save -> Power Saving. LED: Orange. Can be wake up. Mode 3: DC off -> Back light off, LED: Red Power Save -> Back light off, LED: Orange. Can be wake up. Mode 4: DC off -> Back light off, LED: Red Power Save -> Will not enter power save mode. show “no signal” only.

Mode 1 [TCP off, WOL on, auto off]

Mode 2 [TCP off, WOL on, auto on/off] (gary out)

Mode 3 [TCP off, WOL off, auto on/off]

Mode 4 [TCP off, WOL off, no auto on/off]

RCU Power

Button Off

DC OFF DC OFF V ARM OFF

DC OFF When signal is back,

Backlight OFF Backlight OFF X ARM OFF

Backlight OFF Backlight ON, show

No Signal WoL Android

(ARM)

V ARM OFF

system wake up

X ARM OFF

no signal

* This product does not support Mode 2

Following table is the action for Android board with different power mode.

DC off/on: press power button by RC

Power mode in OSD Mode 1/2 Mode 3/4 DC off shutdown 1. The current source APK(such

as MediaPlayer, Broswer, PDF or SmartCMS) will be closed.

2. Android system will go to the default black launcher.

DC on Boot up 1. Android system reboots

Advanced option reset

Reset all settings except {DateandTime} in the Advanced option menu to factory preset values.

1. Press [OK] or [ ] button to enter the submenu.

2. Press [ ]

or [ ] button to select {Reset} and press the [OK]

button to restore settings to factory preset values. Press the [ ] button or select {Cancel} and press the [OK]

3. button to cancel and then return to the previous menu.

7. Supported Media Formats

USB Multimedia Codec Formats

Video Decode

Type Video Codec Container Decode Encode Channel

MPEG program stream (.DAT, .VOB, .MPG, .MPEG)

MPEG1/2 MPEG1/2

MPEG-4 MPEG4

H.263 H.263

H.264 H.264

H.265 H.265

GOOGLE VP8 VP8 MKV (.mkv) WebM (.webm) V

Motion JPEG MJPEG

MPEG transport stream (.ts) MP4 (.mp4) AVI (.avi) MKV (.mkv)

MP4 (.mp4) AVI (.avi) MKV (.mkv)

FLV (.v)

AVI (.avi)

FLV (.v)

MP4 (.mp4) MPEG transport stream (.ts) ASF (.asf) WMV (.wmv) AVI (.avi) MKV (.mkv)

MP4 (.mp4) MPEG transport stream (.ts) MKV (.mkv)

AVI (.avi) MP4 (.mp4) MKV (.mkv)

65BDL3050Q

Remark

Max Resolution: 1080P@60fps Max Bit Rats : 40Mbps

Max Resolution: 1080P@60fps Max Bit Rats : 135Mbps 4k2k@30fps

Max Resolution: 4K2K@60fps Max Bit Rats : 100Mbps

Max Resolution: 1080P@30fps Max Bit Rats : 20Mbps

Max Resolution: 1920*1080 @30fps Max Bit Rats : 40Mbps

Audio Decode

Type Audio Codec Container Decode Encode Channel Remark

MPEG Audio

Windows

Media Audio

AAC Audio

MPEG1/2/2.5 Audio Layer1/2/3

WMA Version 7, 8, 9,10 pro M0, 10Pro M1,M10 Pro M2

MAIN, ADIF ,ATDS Header AAC-LC and AAC-HE

MP3 V 2

Decode: WMA V 2

File Format: AAC, M4A V 5.1

Bit Rate: 8kbps~320Kbps Sampling Rate: 16KHZ~48KHz

Bit Rate: 8kbps~768Kbps Sampling Rate: 8KHZ~96(M10)KHz Non-support LBR

Bit Rate: N/A Sampling Rate: 8KHZ~48KHz

65BDL3050Q

Image Decode

Type Image Codec Photo Decode Encode Channel Remark

Max Resolution: 7000 x 7000

JPEG JFIF le format 1.02 File Format: JPG, JPEG V

BMP BMP File Format: BMP V

PNG PNG File Format: PNG V

NOTES:

• Sound or video may not work if the contents have a standard bit rate/frame rate above the compatible Frame/sec listed in the table above.

• Video content with a Bit rate or Frame rate larger than the rate specied in the table above can cause choppy video during playback.

The limitation of max resolution depends on DRAM

Max Resolution: 15360 x 8640 The limitation of max resolution depends on

DRAM Max Resolution: 15360 x 8640

The limitation of max resolution depends on DRAM

8. Input Mode

VGA Resolution:

Standard

Resolution

VGA 640 480

WVGA 720 400 70 Hz 33.75 MHz 16:9 Wide Video Graphic Array

SVGA 800 600

XGA 1024 768

WXGA 1280 768 60 Hz 79.5 MHz 5:3 Wide XGA WXGA 1280 800 60 Hz 79.5 MHz 16:10 Wide XGA

SXGA 1280 1024 60 Hz 108 MHz 5:4 Super XGA

WXGA 1360 768 60 Hz 85.5 MHz 16:9 Wide XGA

HD1080 1920 1080 60 Hz 148.5 MHz 16:9 HD1080

Note: 1280x768/60Hz can be supported but not shown in EDID table.

SD Resolution:

Standard Resolution

480i

480p 59.94 Hz 27 MHz

576i

576p 50 Hz 27 MHz

Active Resolution

H Pixels V Lines

Active Resolution

H Pixels V Lines

720 480

720 576

Refresh Rate Pixel Rate Aspect Ratio Stand for Mode

60 Hz 25.175 MHz

4:3 Video Graphic Array72 Hz 31.5 MHz

75 Hz 31.5 MHz

60 Hz 40 MHz 75 Hz 49.5 MHz 60 Hz 65 MHz 75 Hz 78.75 MHz

Refresh Rate Pixel Rate Aspect Ratio

29.97 Hz 13.5 MHz

25 Hz 13.5 MHz

4:3 Super VGA

4:3 Extended Graphic Array

65BDL3050Q

4:3

HD Resolution:

Standard Resolution

720p 1280 720

1080i 1920 1080

1080p 1920 1080

2160p (HDMI only) 3840 2160

Note: OPS/DisplayPort support 3840x2160@30Hz.

• The PC text quality is optimum in HD 1080 mode (1920 x 1080, 60Hz).

• Your PC display screen might appear different depending on the manufacturer (and your particular version of Windows).

• Check your PC instruction book for information about connecting your PC to a display.

• If a vertical and horizontal frequency-select mode exists, select 60Hz (vertical) and 31.5KHz (horizontal). In some cases, abnormal signals (such as

stripes) might appear on the screen when the PC power is turned off (or if the PC is disconnected). If so, press the [INPUT] button to enter the video mode. Also, make sure that the PC is connected.

• When horizontal synchronous signals seem irregular in RGB mode, check PC power saving mode or cable connections.

• The display settings table complies to the IBM/VESA standards, and based on the analog input.

• The DVI support mode is regarded as same to the PC support mode.

• The best timing for the vertical frequency to each mode is 60Hz.

Active Resolution

H Pixels V Lines

Refresh Rate Pixel Rate Aspect Ratio

50 Hz 60 Hz 25 Hz 30 Hz 50 Hz 60 Hz 30 Hz 297 MHz

60 Hz

74.25 MHz 16:9

148.5 MHz 16:9

594 MHz

16:950 Hz

65BDL3050Q

9. Pixel Defect Policy

We strive to deliver the highest quality products and use some of the industry’s most advanced manufacturing processes whilst practicing stringent quality

control. However, pixel or sub-pixel defects on the PDP / TFT panels used in Plasma- & LCD- displays are sometimes unavoidable. No manufacturer can guarantee that all panels will be free from pixel defects, but Philips guarantees that any Plasma- & LCD- displays with an unacceptable number of defects will be repaired during the warranty period in line with your local guarantee conditions.

This notice explains the different types of pixel defects and denes the acceptable defect level for the LCD screen. In order to qualify for repair under warranty, the number of pixel defects must exceed a certain level as shown in the reference table. If the LCD screen is within specication a warranty

exchange / claim back will be refused. Additionally, because some types or combinations of pixel defects are more noticeable than others, Philips sets even

higher quality standards for those.

9.1. Pixels and Sub-Pixels

subpixel

pixel

9.2. Types of Pixel Defects + Dot Definition

Pixel and sub-pixel defects appear on the screen in different ways. There are three categories of pixel defects and several types of sub-pixel defects within each category.

Dot denition = What is a defective “Dot”? :

One or more defective, adjacent sub-pixel are dened as one “dot”. The no. of defective sub-pixels are not relevant to dene a defective dot. This means

that a defective dot can consist of one, two or three defective sub-pixels which can be dark or lit.

A pixel, or picture element, is composed of three sub-pixels in the primary colors of red, green and blue. Many pixels together form an image. When all sub-pixels of a pixel are lit, the three colored sub-pixels together appear as a single white pixel. When all are dark, the three colored sub-pixels together appear as a single black pixel. Other combinations of lit and dark sub-pixels appear as single pixels of other colors.

RR G B

One dot = One Pixel; consists of three sub-pixels of Red, Green, and Blue.

9.3. Bright Dot Defects

Bright dot defects appear as pixels or sub-pixels that are always lit or “on”. These are the examples of bright dot defects:

One lit red, green or blue sub pixel Two adjacent lit sub pixels:

Red + Blue = Purple Red + Green = Yellow Green + Blue = Cyan (Light Blue)

Three adjacent lit sub pixels (one white pixel)

65BDL3050Q

9.4. Dark Dot Defects

Black dot defects appear as pixels or sub-pixels that are always dark or “off”. These are the examples of black dot defects:

One dark dot Two adjacent dark dots = 1 pair of dark dots Two dark dots, specications denes the

minimum distance between dark dots

9.5. Proximity of Pixel Defects

Because pixel and sub-pixels defects of the same type that are nearby one another may be more noticeable, Philips also species tolerances for the proximity of pixel defects. In the table below you can nd specications about:

• Allowed amount of adjacent dark dots = (adjacent dark dots =1 pair of dark dots)

• Minimum distance between dark dots

• Total no. of all defective dots

9.6. Pixel Defect Tolerances

In order to qualify for repair due to pixel defects during the warranty period, a PDP / TFT panel in a Philips Plasma / LCD- display must have pixel or sub-

pixel defects exceeding the tolerances listed in the following table.

BRIGHT DOT EFFECT ACCEPTABLE LEVEL 1 lit sub pixel 2 BLACK DOT EFFECT ACCEPTABLE LEVEL 1 dark sub pixel 10 TOTAL DOT DEFECTS OF ALL TYPES 12

NOTE: * 1 or 2 adjacent sub pixel defects = 1 dot defect

9.7. MURA

Dark spots or patches may occasionally appear on some liquid crystal display (LCD) panels. This is known within the industry as Mura, which is a Japanese

term for “unevenness.” It is used to describe an irregular pattern or area in which uneven screen uniformity appears under certain conditions. Mura is a

result of the deterioration of the liquid crystal alignment layer and is most commonly caused by long-term operation under high ambient temperatures. It

is an industry- wide phenomenon and Mura is not repairable. It is also not covered by our warranty terms. Mura has been around since the introduction of LCD technology and with screens getting bigger and in operation 24/7, many displays are running in low

light conditions. This all adds to the possibility of Mura affecting displays.

HOW TO SPOT MURA

There are many symptoms of Mura and also multiple causes. Several of these are listed below:

• Impurities or foreign particles in the crystal matrix

• Uneven distribution of LCD matrix during manufacturing

• Non-uniform luminance distribution of the backlight

• Panel assembly induced stress

• Flaws within the LCD cells

• Thermal induced stress - high temperature operation over long periods of time

HOW TO AVOID MURA

Although we can not guarantee the complete eradication of Mura every time, in general the appearance of Mura can be minimized by these methods:

• Lower the backlight brightness

• Use a screen saver

• Reduce the ambient temperature around the unit

65BDL3050Q

10. Cleaning and Troubleshooting

10.1. Cleaning

Caution When Using the Display

• Do not bring your hands, face or objects close to the ventilation holes of the display. The top of the display is usually very hot due to the high temperature of exhaust air being released through the ventilation holes. Burns or personal injuries may occur if any body parts are brought too close. Placing any object near the top of the display could also result in heat related damage to the object as well as the display itself.

• Be sure to disconnect all cables before moving the display. Moving the display with its cables attached may damage the cables and thus cause re

or electric shock.

• Disconnect the power plug from the wall outlet as a safety precaution before carrying out any type of cleaning or maintenance procedure.

Front Panel Cleaning Instructions

• The front of the display has been specially treated. Wipe the surface gently using only a cleaning cloth or a soft, lint-free cloth.

• If the surface becomes dirty, soak a soft, lint-free cloth in a mild detergent solution. Wring the cloth to remove excess liquid. Wipe the surface of

the display to remove dirt. Then use a dry cloth of the same type to dry.

• Do not scratch or hit the surface of the panel with ngers or hard objects of any kind.

• Do not use volatile substances such as insert sprays, solvents and thinners.

Cabinet Cleaning Instructions

• If the cabinet becomes dirty, wipe the cabinet with a soft, dry cloth.

• If the cabinet is extremely dirty, soak a lint-free cloth in a mild detergent solution. Wring the cloth to remove as much moisture as possible. Wipe

the cabinet. Use another dry cloth to wipe over until the surface is dry.

• Do not allow any water or detergent to come into contact with the surface of the display. If water or moisture gets inside the unit, operating problems, electrical and shock hazards may result.

• Do not scratch or hit the cabinet with ngers or hard objects of any kind.

• Do not use volatile substances such as insert sprays, solvents and thinners on the cabinet.

• Do not place anything made from rubber or PVC near the cabinet for any extended periods of time.

10.2. Troubleshooting

Symptom PossibleCause Remedy

65BDL3050Q

Nopictureisdisplayed 1. The power cord is disconnected.

2. The main power switch on the back of the display is not switched on.

3. The selected input has no connection.

4. The display is in standby mode.

Interferencedisplayedonthedisplayoraudible

noise is heard

Colorisabnormal The signal cable is not connected properly. Make sure that the signal cable is attached rmly

Pictureisdistortedwithabnormalpatterns 1. The signal cable is not connected properly.

Displayimagedoesn’tllupthefullsizeofthe

screen

Canhearsound,butnopicture Improperly connected source signal cable. Make sure that both video inputs and sound

Caused by surrounding electrical appliances or

uorescent lights.

2. The input signal is beyond the capabilities of the display.

1. The zoom mode is not set correctly.

2. Scan Mode may be set incorrectly to underscan.

3. If the image exceeds the screen size, Scan Mode may need to be set to Underscan.

1. Plug in the power cord.

2. Make sure the power switch is switched on.

3. Connect a signal connection to the display.

Move the display to another location to see is the interference is reduced.

to the back of the display.

1. Make sure that the signal cable is attached

rmly.

2. Check the video signal source to see if it is beyond the range of the display. Please

verify its specications with this display’s specication section.

Use the Zoom mode or Custom zoom function

in the Screen menu to ne tune display geometry and time frequency parameter.

inputs are correctly connected.

Canseepicturebutnosoundisheard 1. Improperly connected source signal cable.

2. Volume is turned all the way down.

3. {Mute} is turned on.

4. No external speaker connected.

Somepictureelementsdonotlightup Some pixels of the display may not turn on. This display is manufactured using an extremely

After-Imagescanstillbeseenonthedisplay afterthedisplayispoweredoff.(Examples ofstillpicturesincludelogos,videogames, computerimages,andimagesdisplayedin4:3 normalmode)

A still picture is displayed for an over extended period of time

1. Make sure that both video inputs and sound inputs are correctly connected.

2. Press [ ] or [ ] button to hear sound.

3. Switch MUTE off by using the [ ] button.

4. Connect external speakers and adjust the volume to a suitable level.

high level of precision technology: however, sometimes some pixels of the display may not display. This is not a malfunction.

Do not allow a still image to be displayed for an extended period of time as this can cause a permanent after-image to remain on the display.

65BDL3050Q

Howtosetupthesettingsinthemenuto controlallthemonitorsatthesametimeand individuallyviaRC?

HowistheRCworking? Daisy chain : no RS232 connected and IR cable No need setting, just to connect with IR cables

Daisy chained by RS232 and no IR cable 1. The rst display sets as “Primary” on OSD

(Advanced option/IR control item), others set as “Secondary”.

2. The setup OSD will show on Top-Left of display.

(Toggle MENU will show again if it disappear)

3. Default setting: ID NO: 0, GP NO: 0, this setting

can control all displays by IR. The “+”, “-” can change “ID NO” to control

signal display by “Monitor ID”. The “UP”, “DOWN” can change “GP NO” to

control multi-display by “Group ID”.

*The rst display always be controlled by IR.

and control by IR. *This way has out-of-synchronizm phenomenon.

Suggest to use above setting with RS-232 cable.

11. Technical Specifications

Display:

Item Specications

Screen Size (Active Area) 163.9 cm / 64.5 inches Aspect Ratio 16:9 Number of pixels 3840 (H) x 2160 (V) Pixel pitch 0.372 (H) x 0.372 (V) [mm] Displayable colors 10 bits(D), 1.07 Billion colors Brightness (typical) 350 cd/m2 Contrast ratio (typical) 4000:1 Viewing angle 178 degrees

In/Out Terminals:

Item Specications

Speaker Output Internal Speakers 10W (L) + 10W (R) [RMS]/8Ω

82 dB/W/M/160 Hz ~ 13 KHz

Audio Output RCA R/L x 1 0.5V [rms] (Normal) / 2 Channel (L+R) Audio Input 3.5mm phone jack x 1 0.5V [rms] (Normal) / 2 Channel (L+R) RS232C RJ-45 RJ-45 Jack x 1 (8 pin) 10/100 LAN Port HDMI Input HDMI Jack x 4

VGA Input D-SUB jack (15pin) Digital RGB: TMDS (Video)

Displayport in Displayport Jack x 1

2.5mm Phone jack x 2 RS232C in/RS232C out

Digital RGB: TMDS (Video + Audio)

(Type A) (19 pin)

(20 pin)

MAX: Video - 720p, 1080p, 3840 x 2160/60 Hz

Audio - 48 KHz/ 2 Channel (L+R)

Supports LPCM only

Analog RGB: 0.7V [p-p] (75Ω), H/CS/V: TTL (2.2kΩ),

MAX: 1920 x 1080/60 Hz (WUXGA) Digital RGB: TMDS (Video + Audio) MAX: Video - 720p, 1080p, 3840 x 2160/30 Hz

Audio - 48 KHz / 2 Channel (L+R)

Supports LPCM only

65BDL3050Q

General:

Item Specications

Power Input 100 - 240V~, 50 - 60Hz, 5.5A Power Output 100 - 240V~, 50 - 60Hz, 2.5A Power Consumption (Max) 295 W Power Consumption (typ.) 165 W Power Consumption (Standby & Off) <0.5 W Dimensions (Without Stand) [W x H x D] 1458.7 x 834.7 x 81.6 mm Weight (Without Stand) 24.8 Kg Gross Weight (Without Stand) 39.3 Kg

Product Fiche :

Item Specications

Energy Efciency Class B Visible Screen Size 163.9 cm / 64.5 inches On Mode Power Consumption (W) 186 W Annual Energy Consumption (kWh) 272 kWh Standby Power Consumption (W) 0.50 W Off Mode Power Consumption (W) 0.50 W Display Resolution (Pixels) 3840 x 2160 Network Standby (W) 2 W

Environmental Condition:

Item Specications

Temperature Operational 0 ~ 40°C

Storage -20 ~ 60°C

Humidity Operational 20 ~ 80% RH (No condensation)

Storage 5 ~ 95% RH (No condensation)

Altitude Operational 0 ~ 3,000 m

Storage / Shipment 0 ~ 9,000 m
