Philips 6120 User Manual

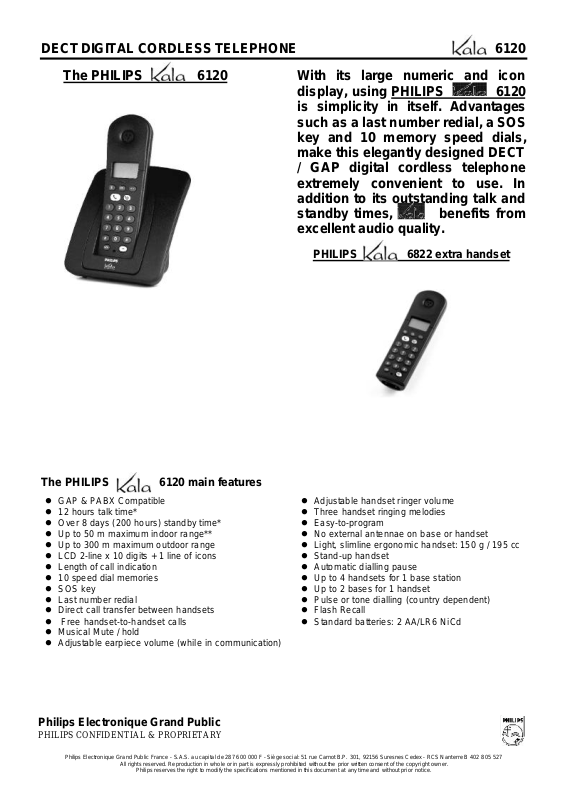

DECT DIGITAL CORDLESS TELEPHONE 6120

The PHILIPS 6120 With its large numeric and icon

display, using PHILIPS 6120 is simplicity in itself. Advantages such as a last number redial, a SOS key and 10 memory speed dials, make this elegantly designed DECT / GAP digital cordless telephone extremely convenient to use. In addition to its outstanding talk and standby times, benefits from excellent audio quality.

PHILIPS 6822 extra handset

The PHILIPS 6120 main features

l GAP & PABX Compatible l 12 hours talk time* l Over 8 days (200 hours) standby time* l Up to 50 m maximum indoor range** l Up to 300 m maximum outdoor range l LCD 2-line x 10 digits + 1 line of icons l Length of call indication l 10 speed dial memories l SOS key l Last number redial l Direct call transfer between handsets l Free handset-to-handset calls l Musical Mute / hold l Adjustable earpiece volume (while in communication)

l Adjustable handset ringer volume l Three handset ringing melodies l Easy-to-program l No external antennae on base or handset l Light, slimline ergonomic handset: 150 g / 195 cc l Stand-up handset l Automatic dialling pause l Up to 4 handsets for 1 base station l Up to 2 bases for 1 handset l Pulse or tone dialling (country dependent) l Flash Recall l Standard batteries: 2 AA/LR6 NiCd

Philips Electronique Grand Public

PHILIPS CONFIDENTIAL & PROPRIETARY

Philips Electronique Grand Public France - S.A.S. au capital de 287 600 000 F - Siège social: 51 rue Carnot B.P. 301, 92156 Suresnes Cedex - RCS Nanterre B 402 805 527

Philips reserves the right to modify the specifications mentioned in this document at any time and without prior notice.

DECT DIGITAL CORDLESS TELEPHONE 6120

Technical specifications

Power Supply

Handset : 2 x AA/LR6 1.2 V 600 mAh NiCd

Base : 8V AC / 250 mA

Performance 12 hours talk*

8 days (200 hours ) standby*

LED indicators

Base : Line/Power

Warning indicators

Handset : Battery discharged

Handset Keys

Dialling keypad Memories SOS Redial Line Internal call Recall / Menu Earpiece volume control

Icons

Battery Programming Memories Line Internal call / Musical mute Range

Compliance ETS 300-329

EN 60950 CTR 6 CTR 10 CTR 22

Dimensions

Base: 121 x 120 x 85 Handset: 53 x 163 x 35 Package (TD 6120): 200 x 174 x 105 Package (TD 6822): 174 x 164 x 65

Weight

Base : 199 g Handset : 150g

Temperature range

Operation : 0°C to + 40°C Storage : -25°C to + 70°C

Relative humidity

Operation : Up to 95 % at 40°C Storage : Up to 95 % at 40°C

Cabinet finishing Non-gloss Package contents Handset

Base 2 extra base station colour

clips

2 AA/R6 NiCd batteries Telecom line cord Power adapter User manual

Radio RF power < 250 mW Range

Indoor : up to 50m max indoor range** Outdoor : up to 300m max outdoor range**

* Quoted talk and standby times with 2 AA/LR6 600 mAh NiCd batteries ** The quoted range is under ideal conditions, i.e. with no obstacles between the base and handset.

The range of DECT cordless telephones depends on:

- the environment in which the base station is located: thick walls, metallic window frames etc. near the base will reduce the phone’s range

- the presence of obstacles between the base station and handset: for example, when using a handset in the garden with the base station inside the house, the range may be reduced by the exterior wall of the house.

Availability in individual countries depends on approval by the relevant authorities. Data subject to alteration without notice.
