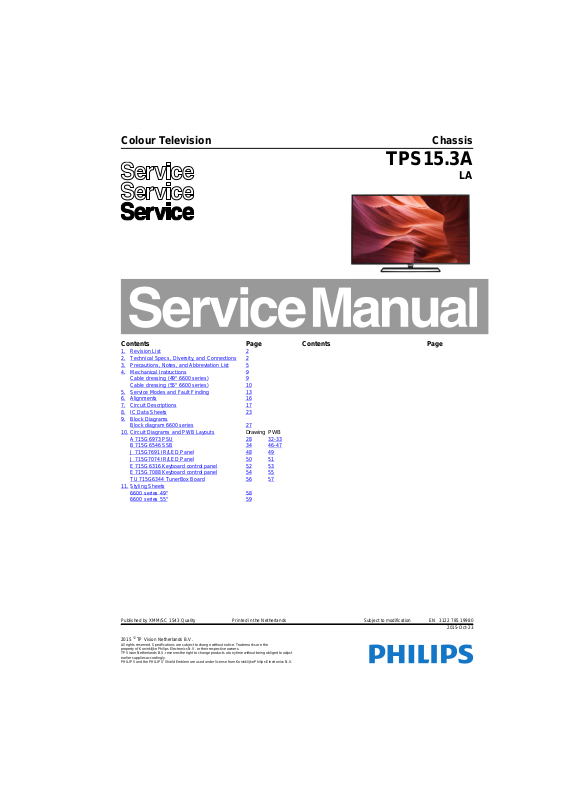

Philips 49PUH6600, 55PUH6600 Schematic

Colour Television Chassis

TPS15.3A

LA

Contents Page Contents Page

1. Revision List 2

2. Technical Specs, Diversity, and Connections 2

3. Precautions, Notes, and Abbreviation List 5

4. Mechanical Instructions 9
Cable dressing (49" 6600 series) 9
Cable dressing (55" 6600 series) 10

5. Service Modes and Fault Finding 13

6. Alignments 16

7. Circuit Descriptions 17

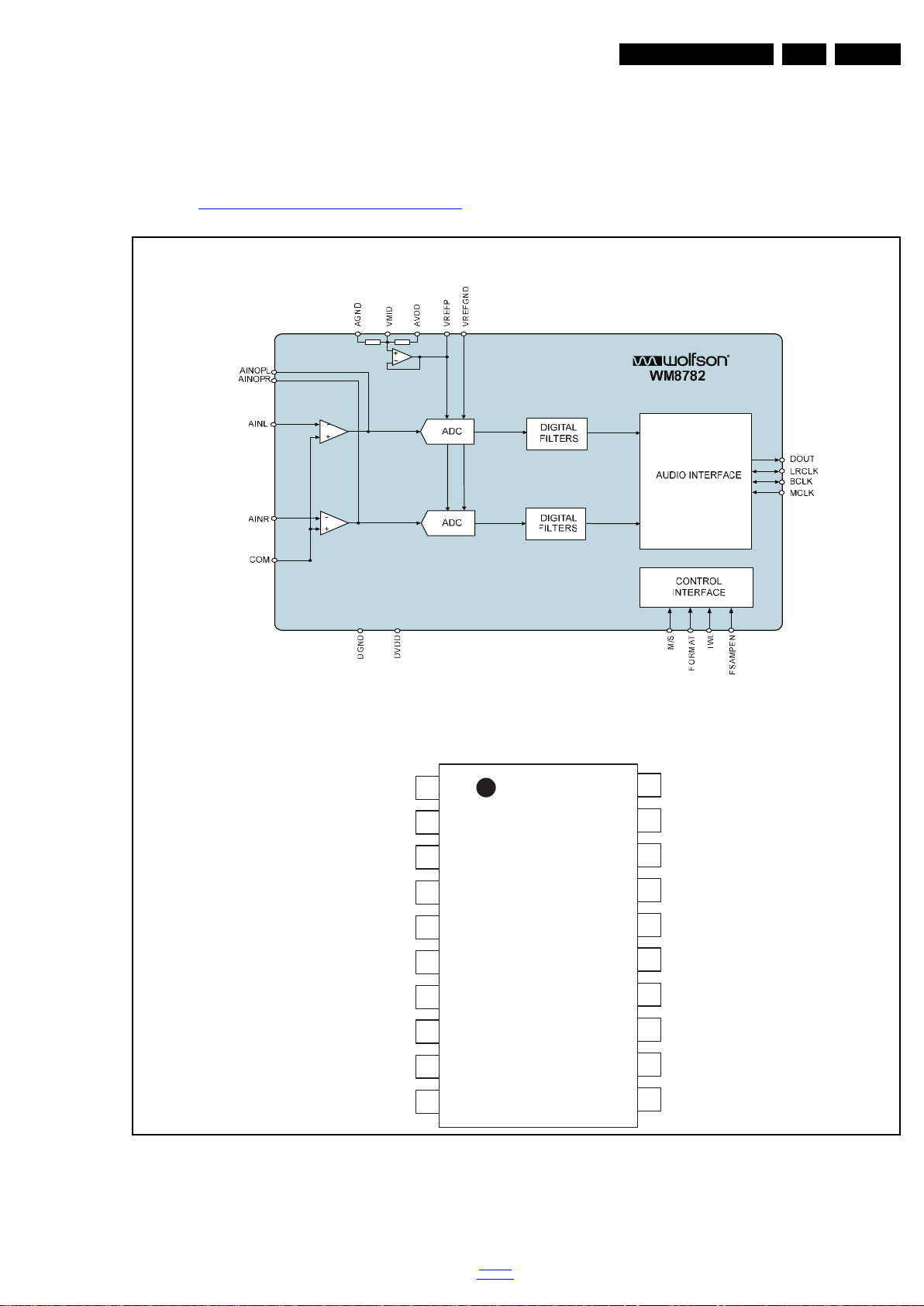

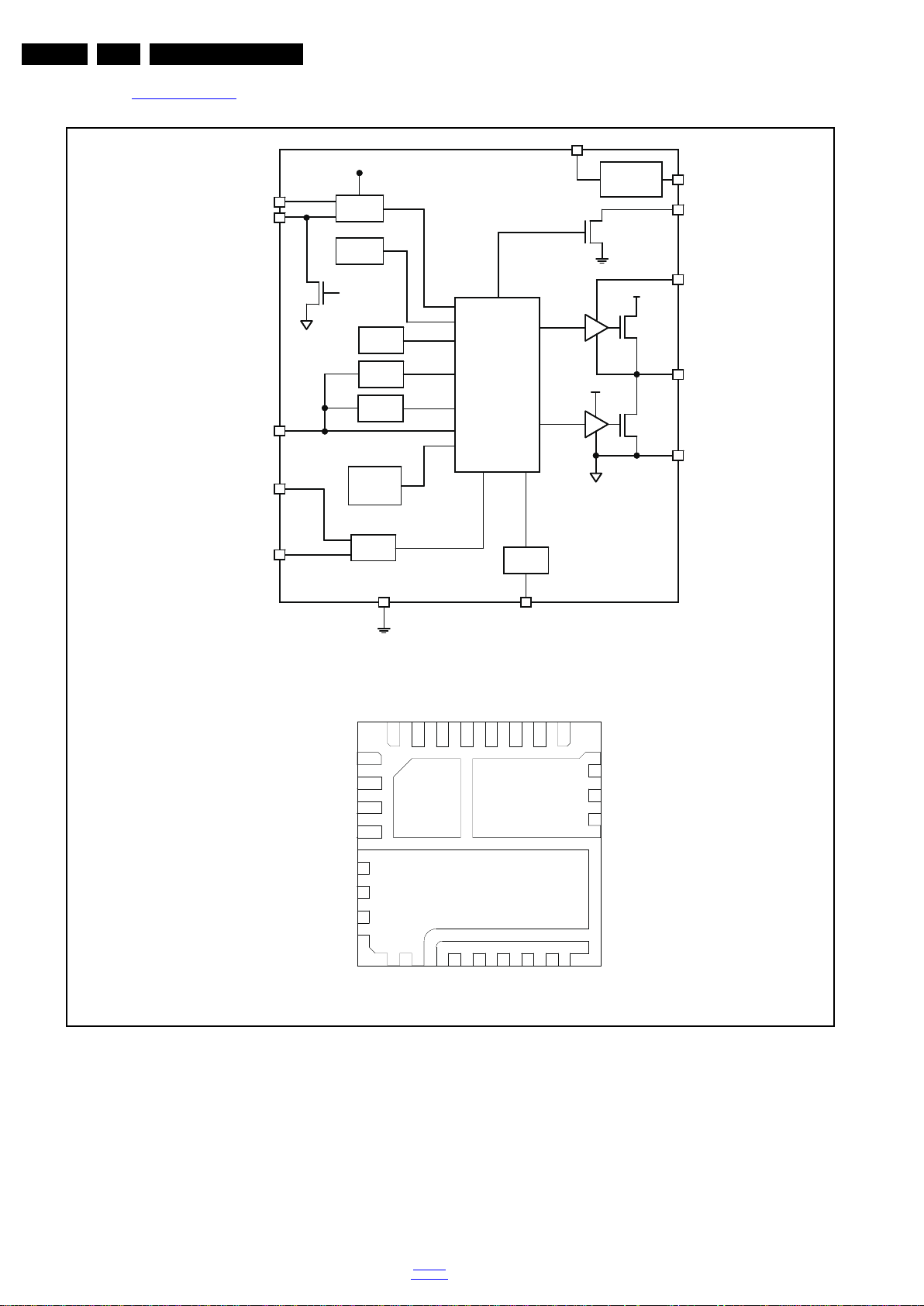

8. IC Data Sheets 23

9. Block Diagrams
Block diagram 6600 series 27

10. Circuit Diagrams and PWB Layouts Drawing PWB

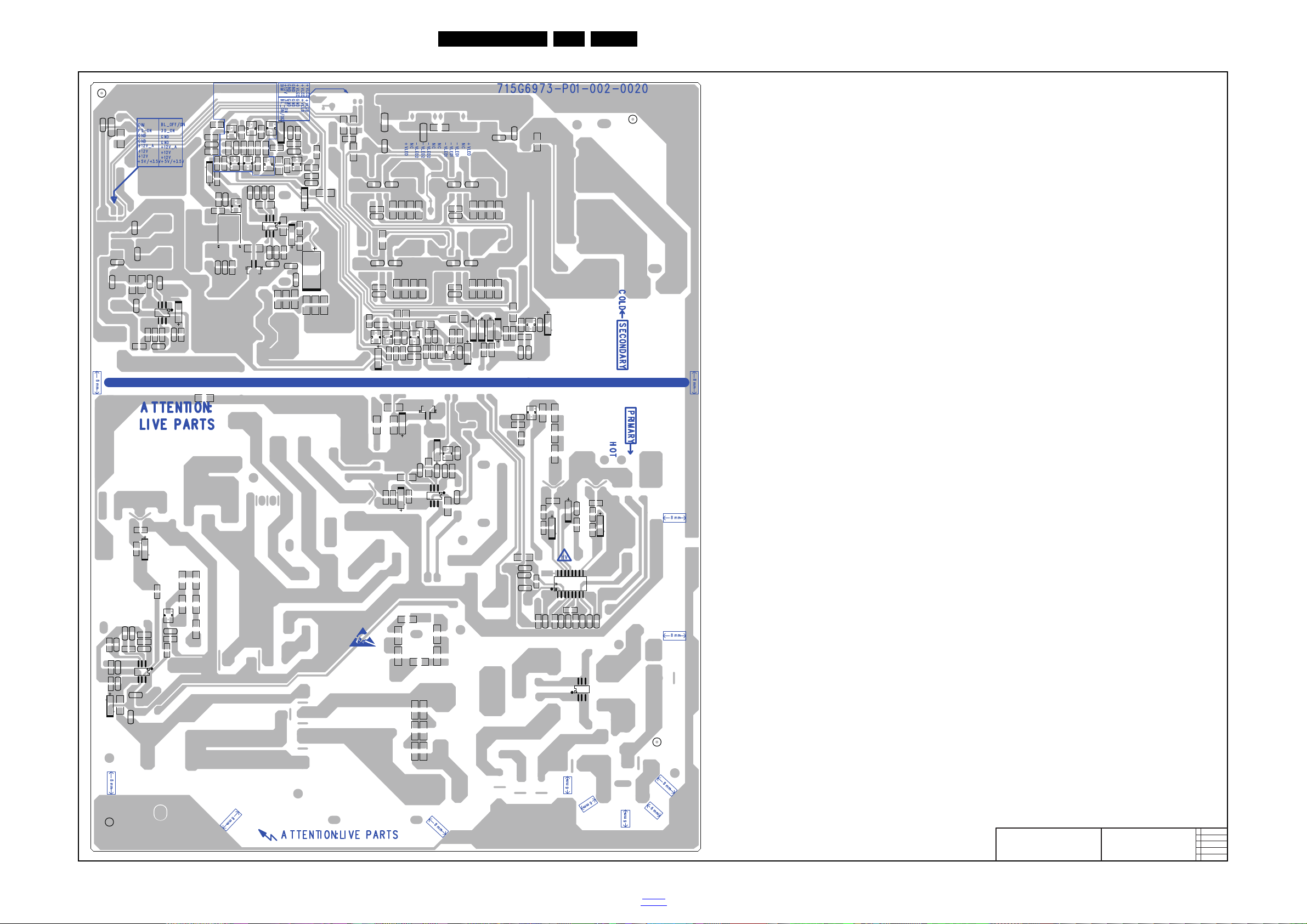

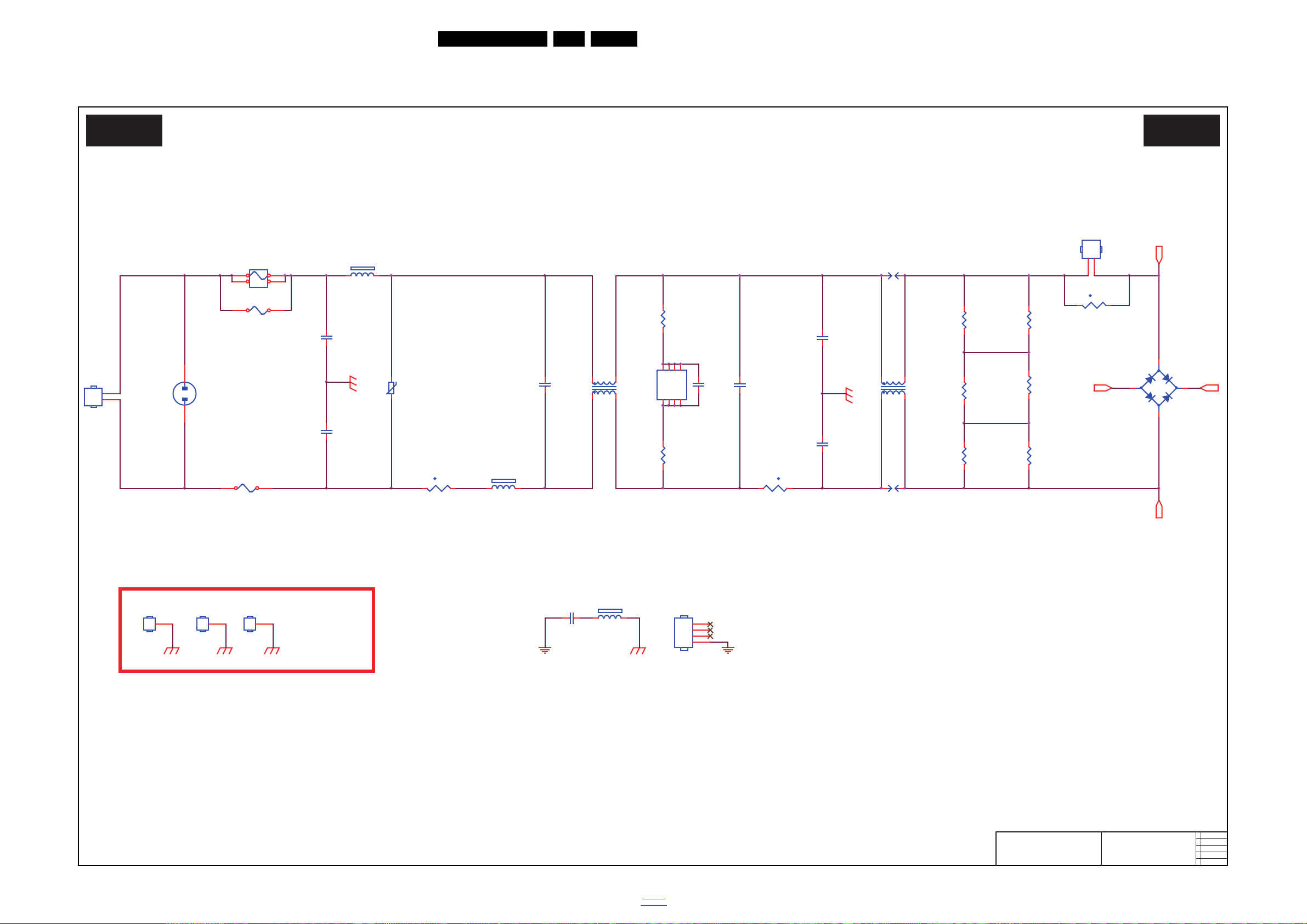

A 715G6973 PSU

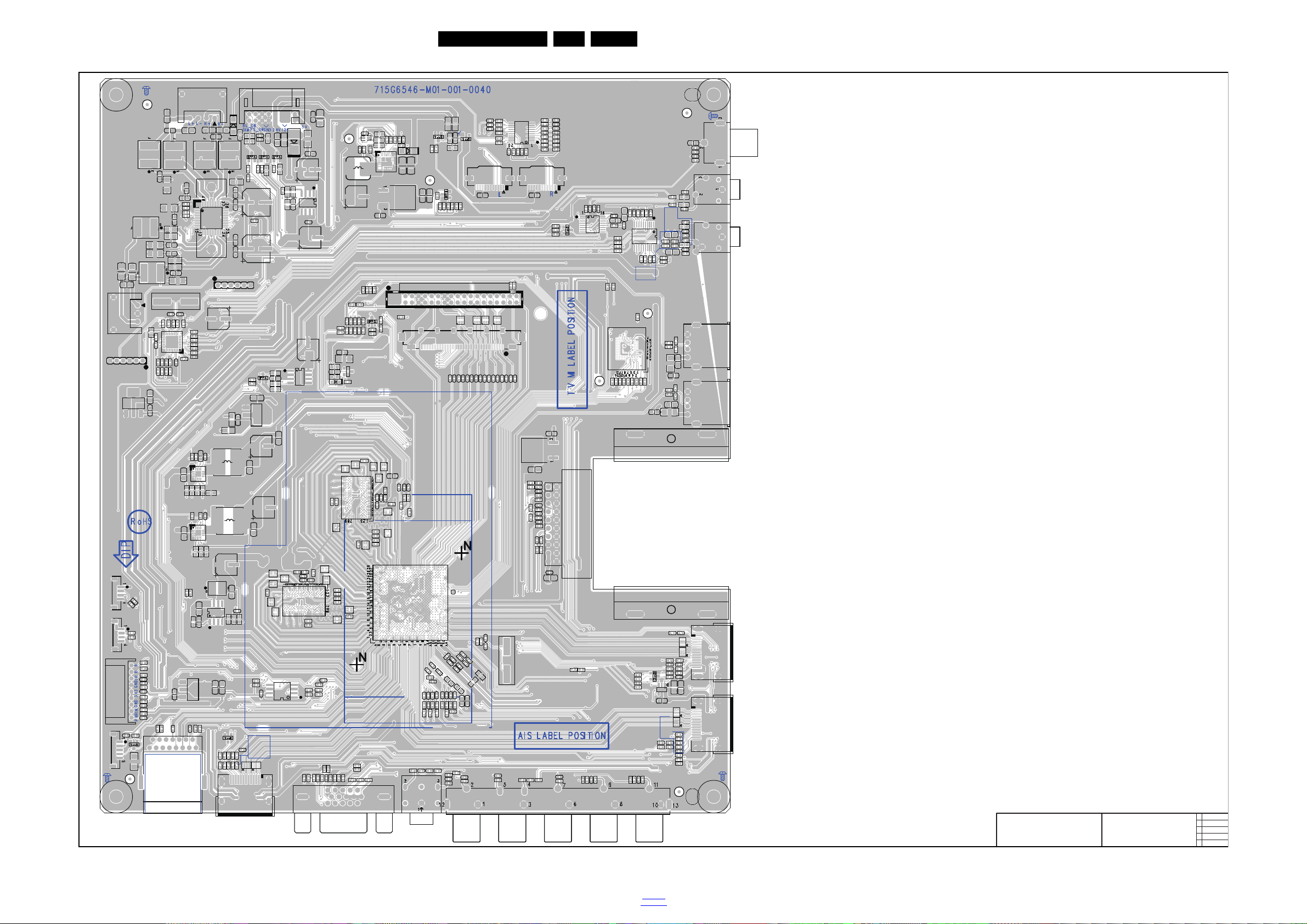

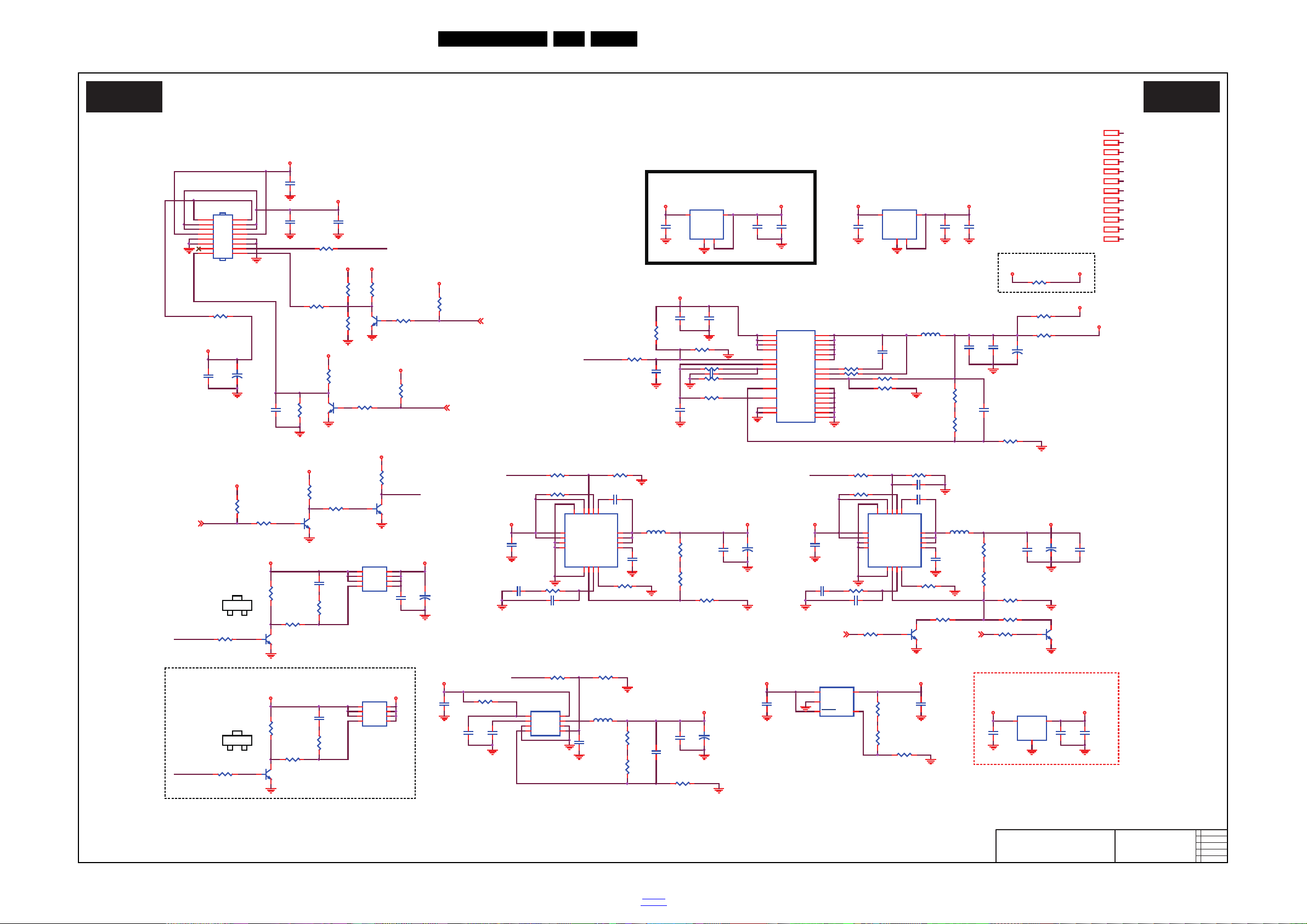

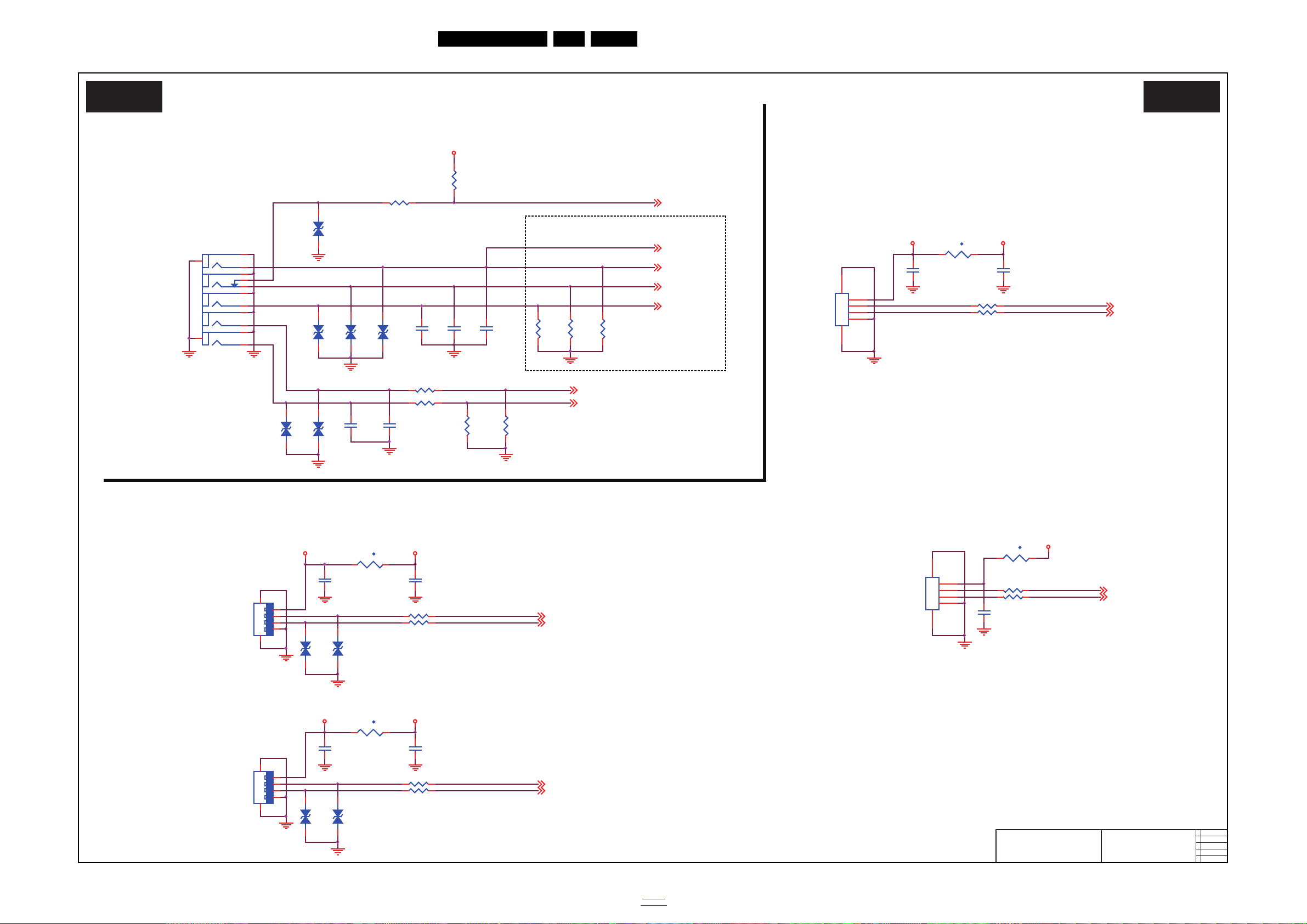

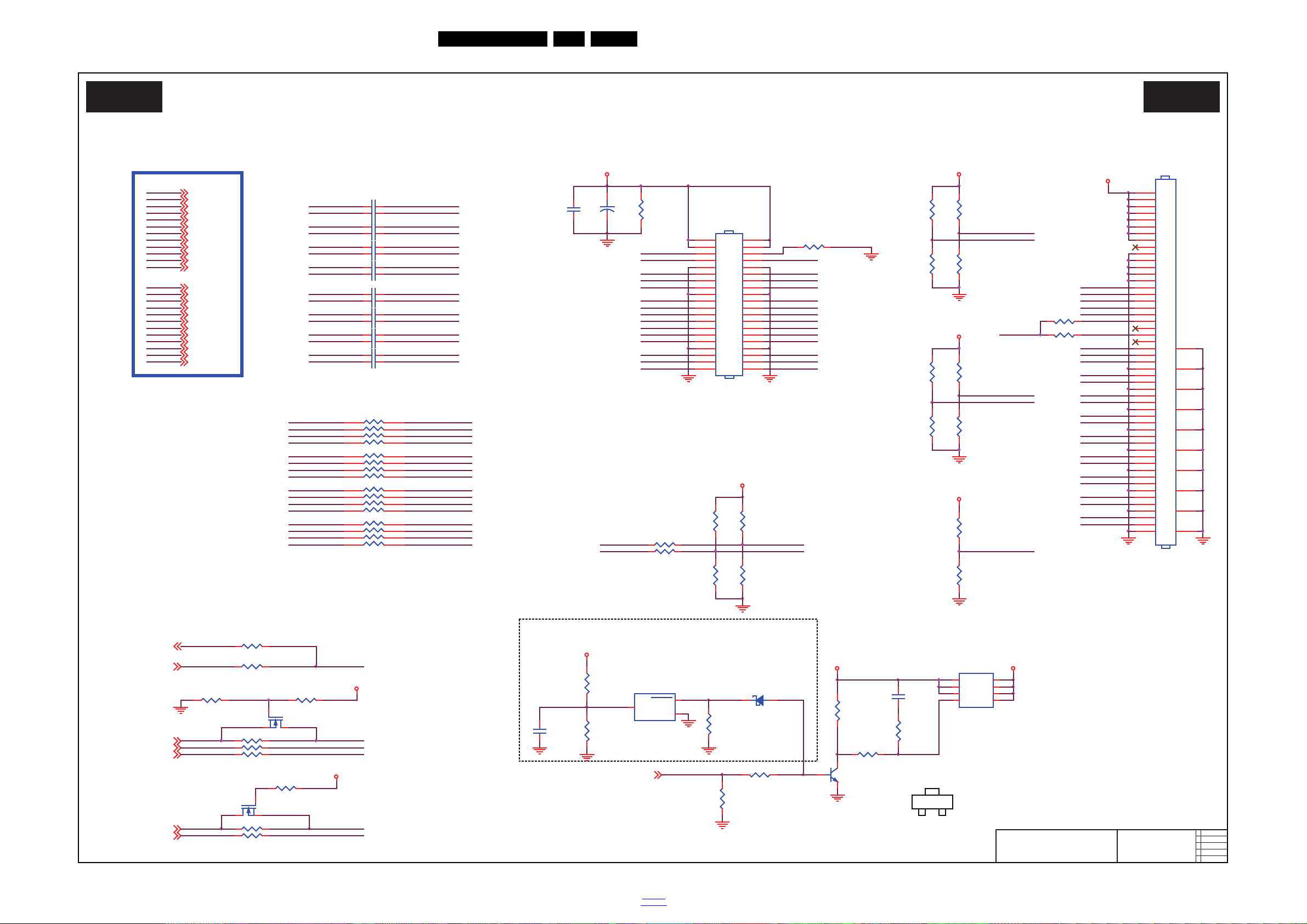

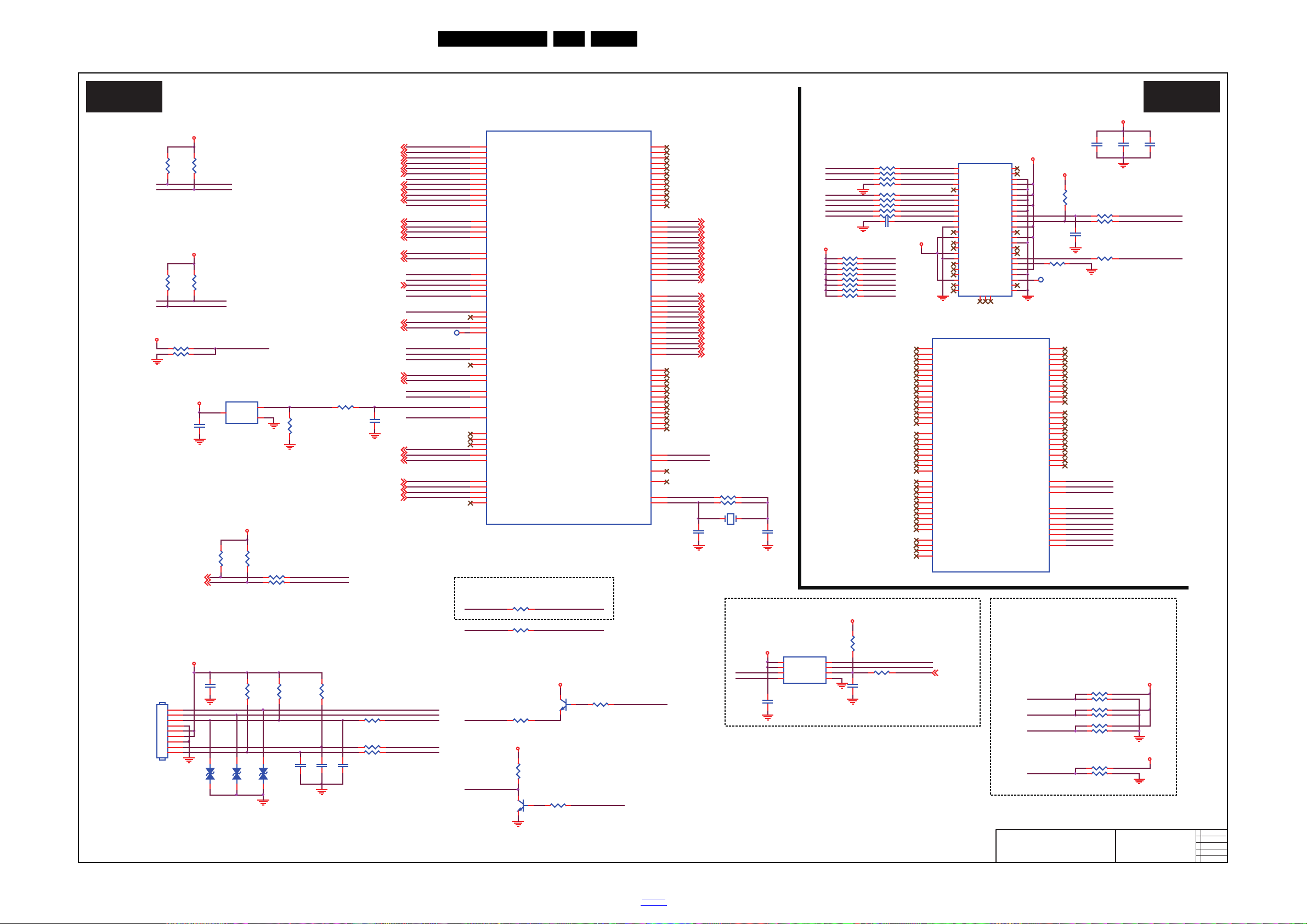

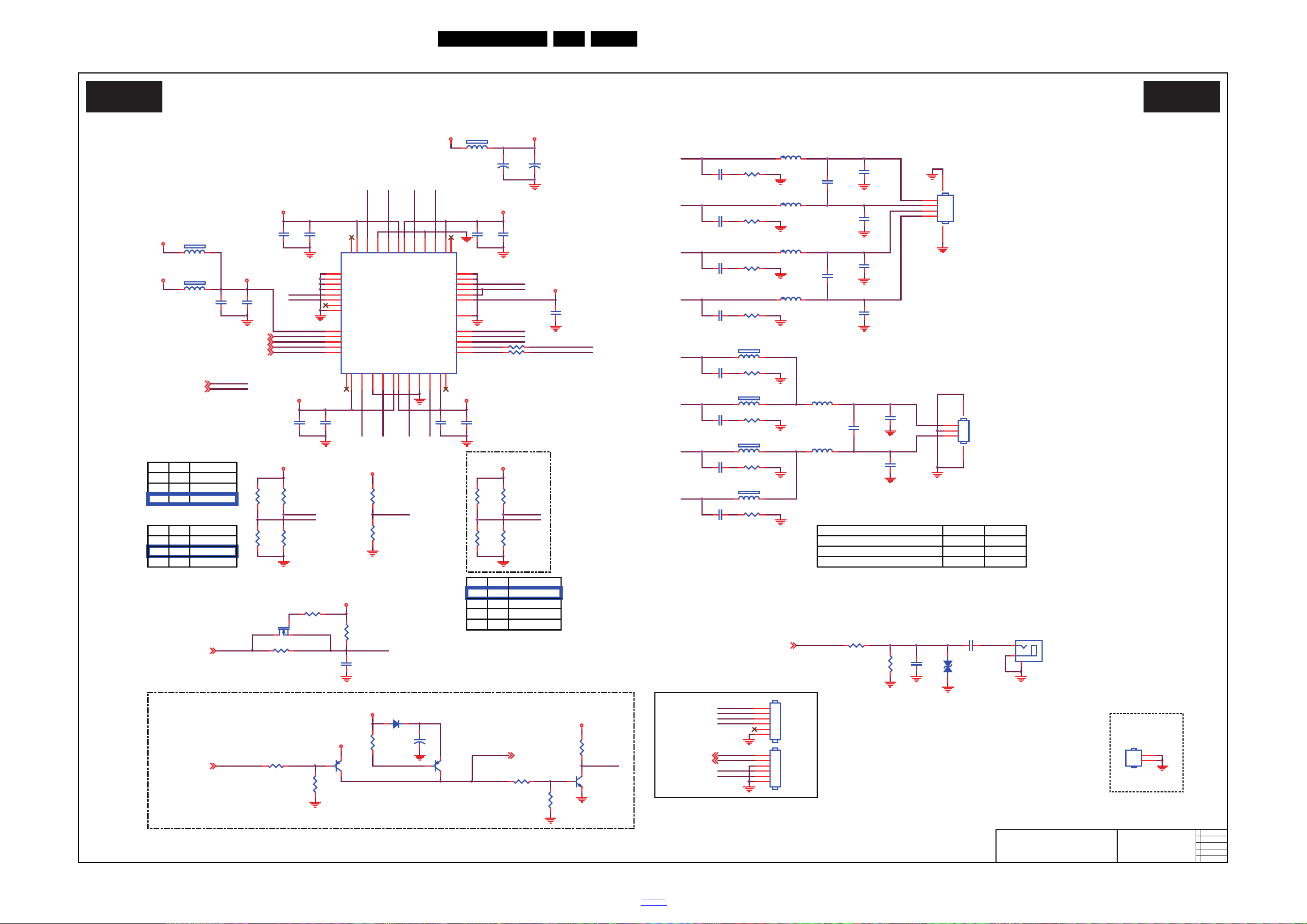

B 715G6546 SSB 34 46-47

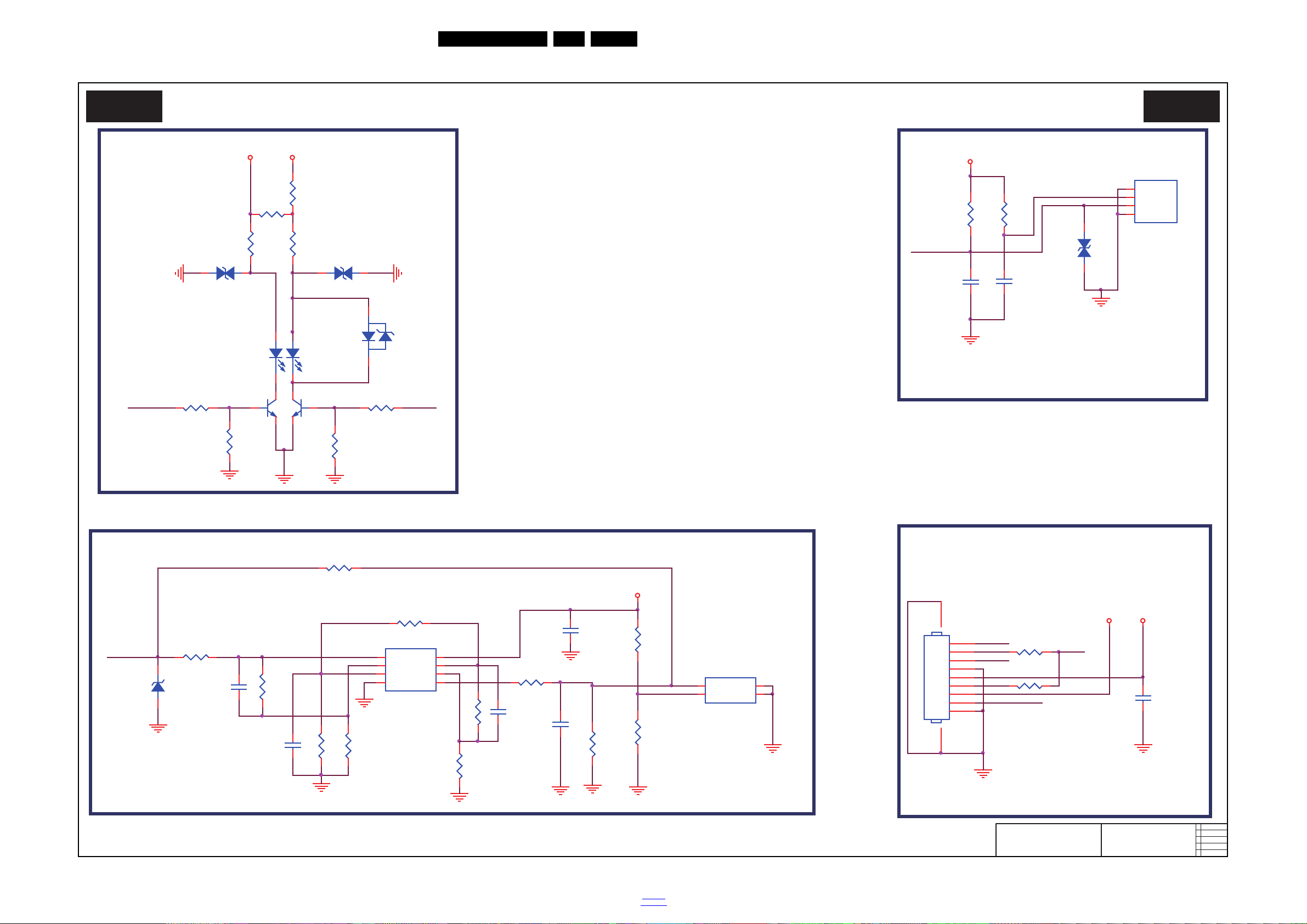

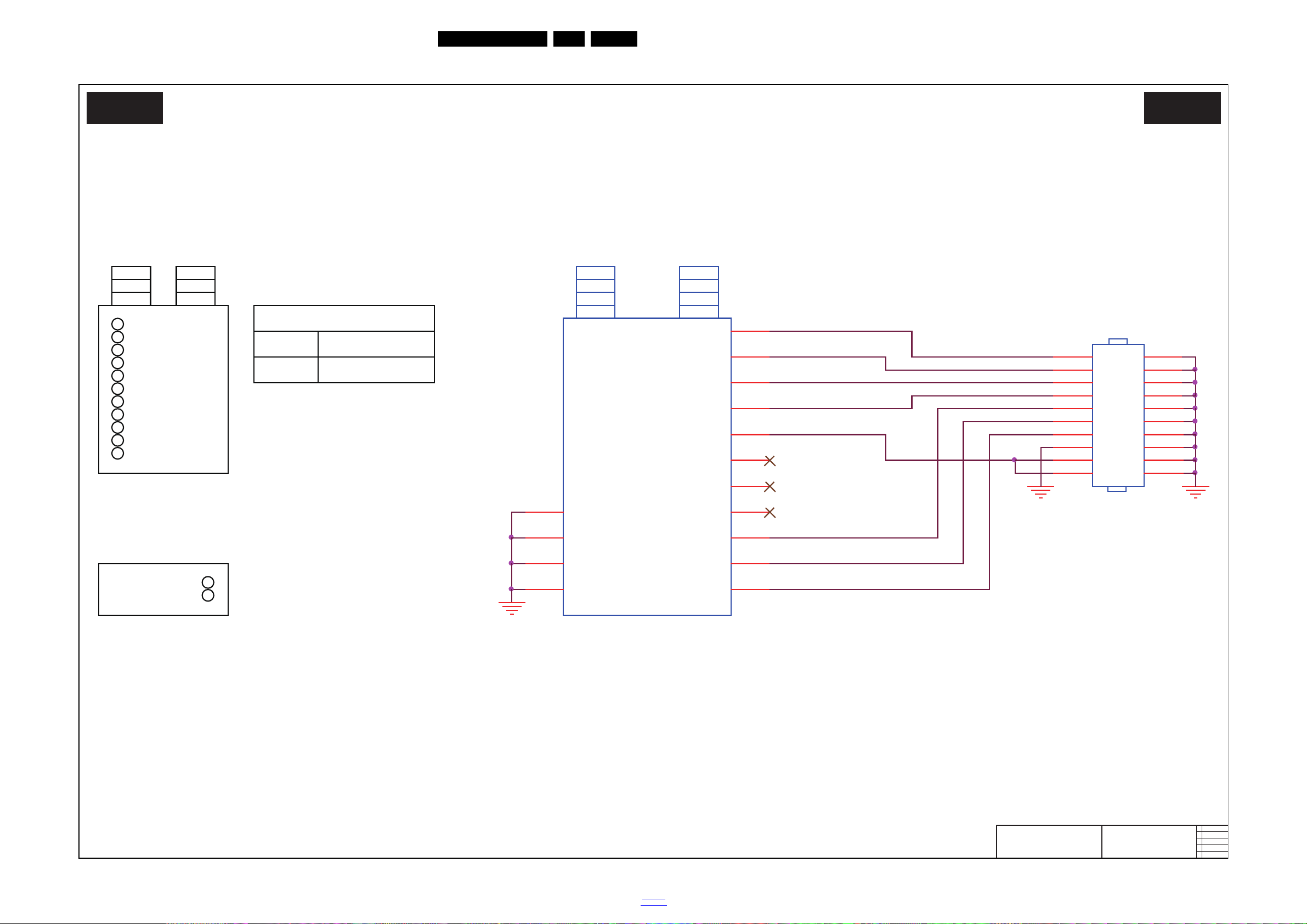

J 715G7691 IR/LED Panel 48 49
J 715G7074 IR/LED Panel 50 51

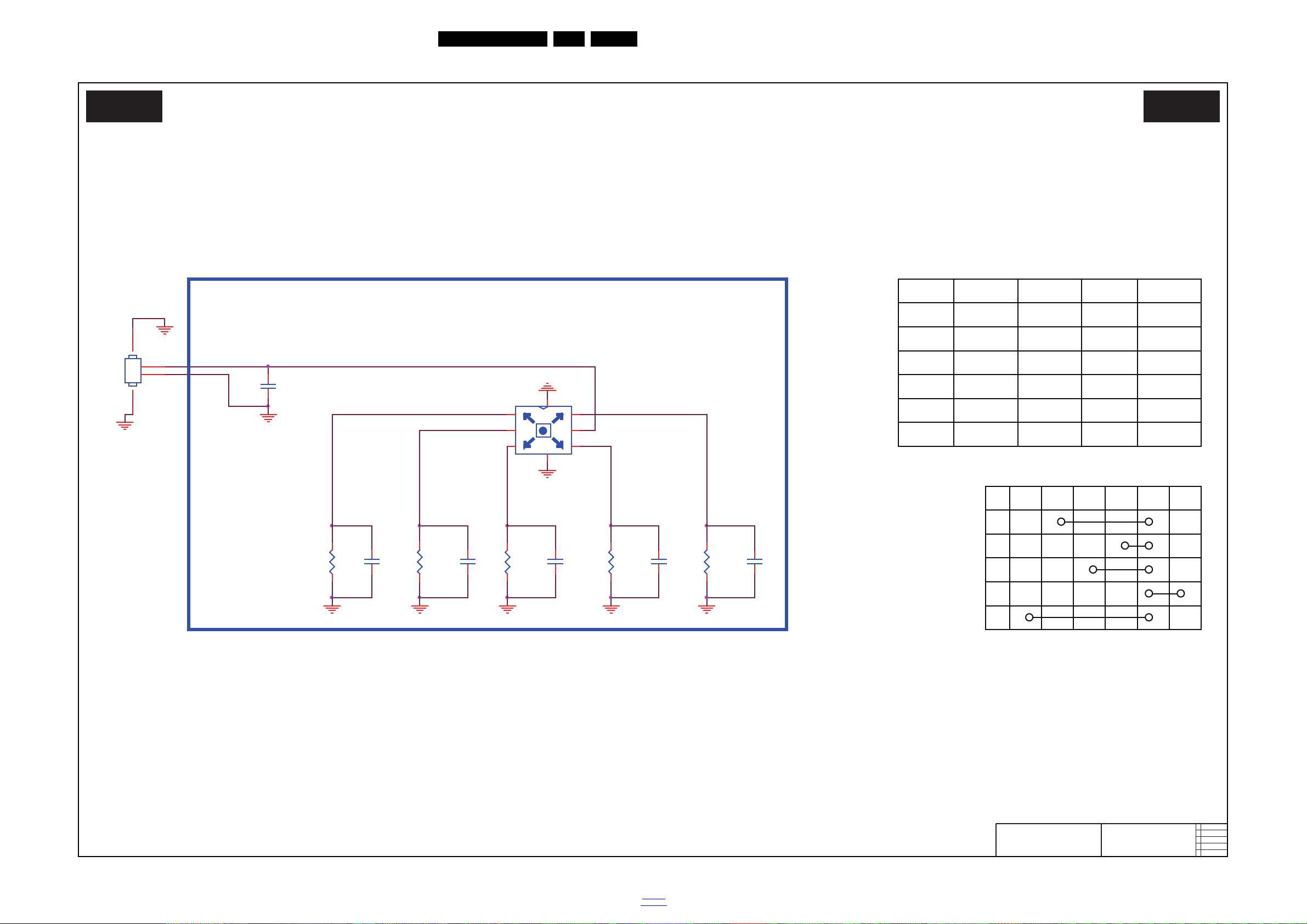

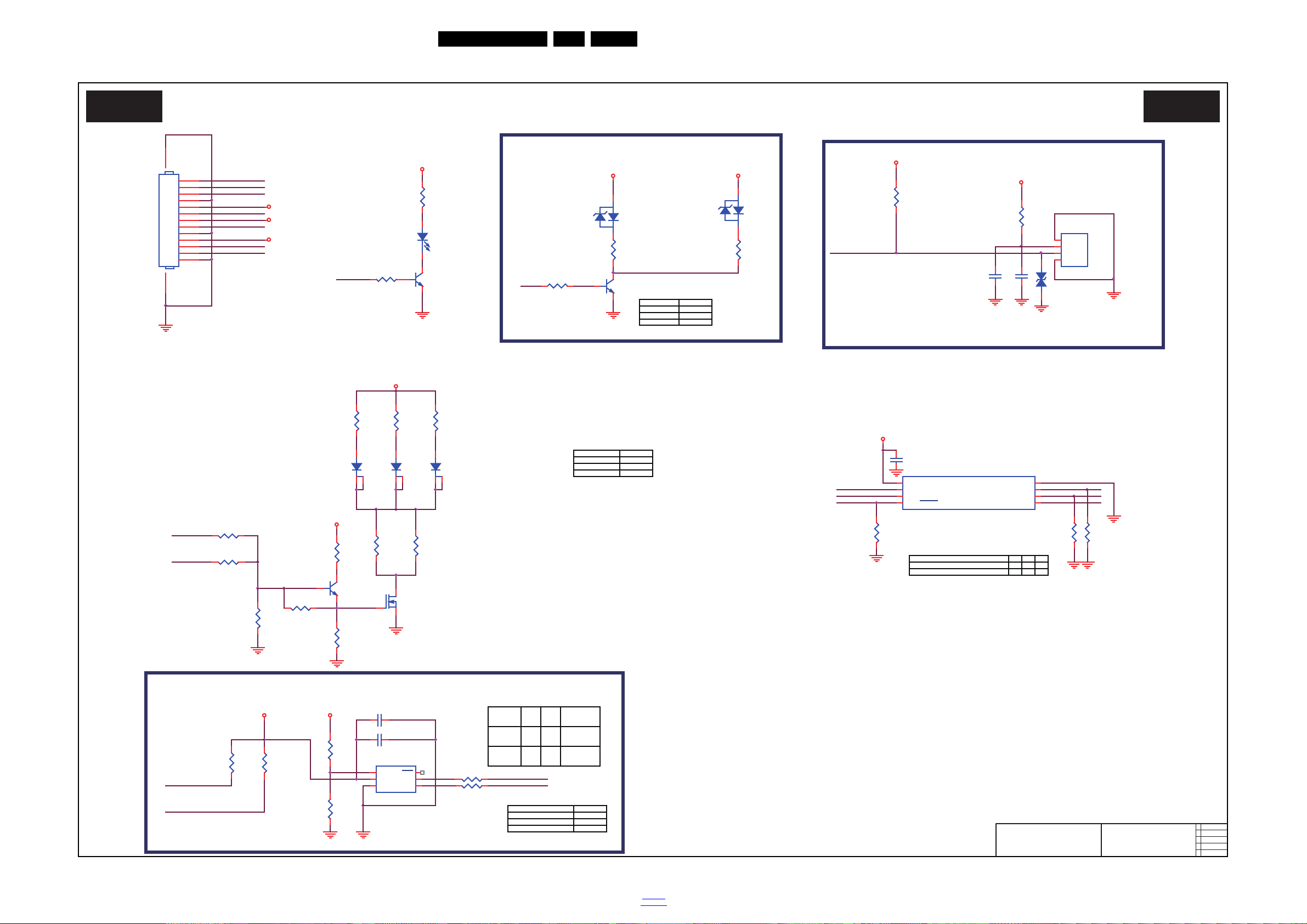

E 715G6316 Keyboard control panel 52 53
E 715G7088 Keyboard control panel 54 55

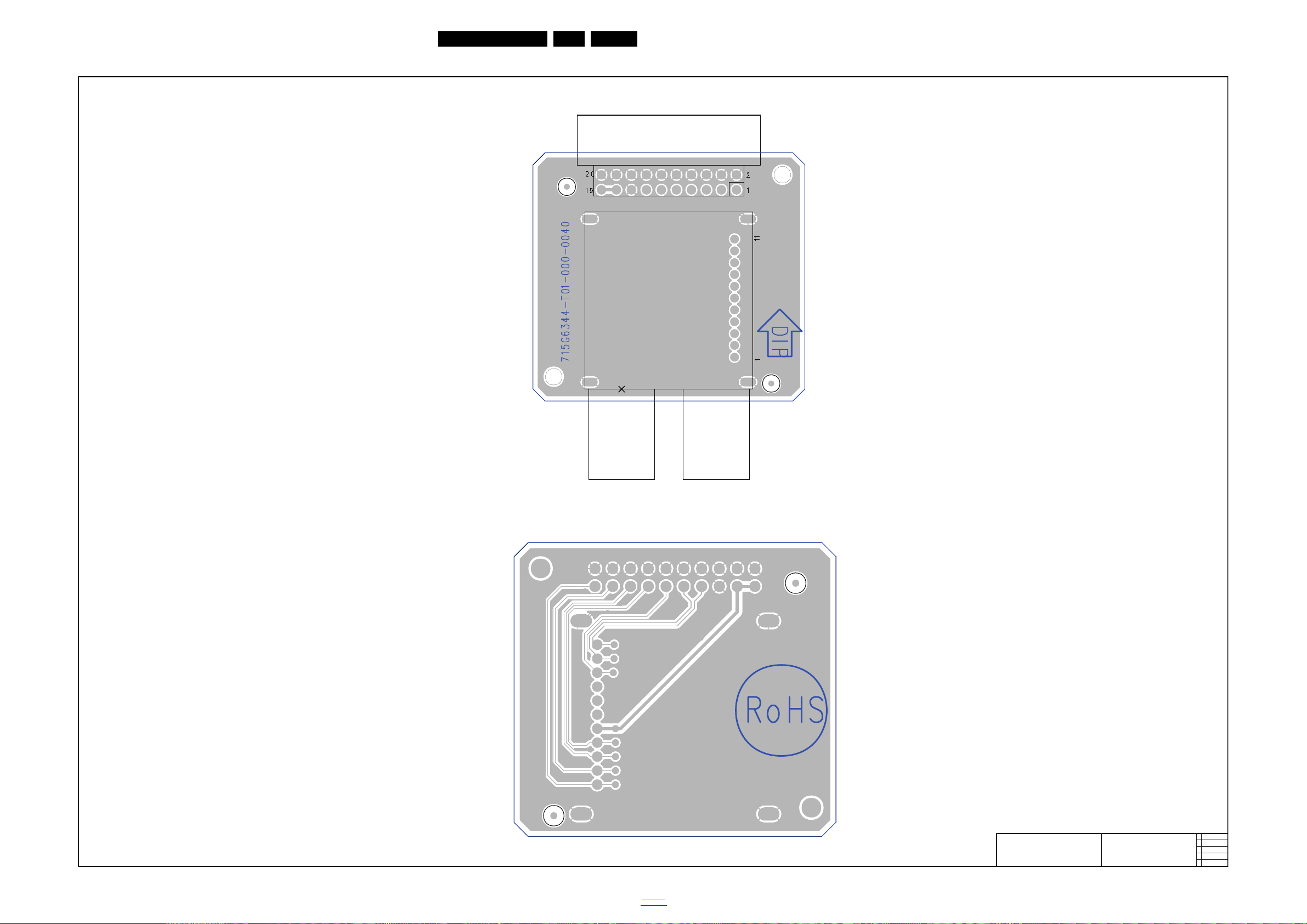

TU 715G6344 TunerBox Board 56 57

11. Styling Sheets
6600 series 49" 58
6600 series 55" 59

28 32-33

Published by XMM/SC 1543 Quality Printed in the Netherlands Subject to modification EN 3122 785 19980

2015-Oct-23

2015 ©

TP Vision Netherlands B.V.

All rights reserved. Specifications are subject to change without notice. Trademarks are the
property of Koninklijke Philips Electronics N.V. or their respective owners.
TP Vision Netherlands B.V. reserves the right to change products at any time without being obliged to adjust
earlier supplies accordingly.
PHILIPS and the PHILIPS’ Shield Emblem are used under license from Koninklijke Phili ps Electronics N.V.

EN 2 TPS15.3A LA1.

Revision List

1. Revision List

Manual xxxx xxx xxxx.0

• First release.

2. Technical Specs, Diversity, and Connections

Index of this chapter:

• Specifications are indicative (subject to change).

2.1 Technical Specifications

2.2 Directions for Use

2.3 Connections

2.4 Chassis Overview

2.1 Technical Specifications

For on-line product support please use the links in back to

div.table 2-1. Here is product information available, as well as

getting started, user manuals, frequently asked questions and

Notes:

software & drivers.

• Figures can deviate due to the different set executions.

Table 2-1 Described Model Numbers and Diversity

24 910 11

Mechanics

CTN

49PUH6600/96 2-1 4-1 4-3 4-4 9.1 10.1 10.2 10.3 10.5 10.7 11.1
55PUH6600/96 2-1 4-2 4-3 4-4 9.1 10.1 10.2 10.4 10.6 10.7 11.2

Connection Overview

Wire Dressing

Rear Cover Removal

Block
Diagrams Schematics

SSB Removal

Block Diagram

Power Supply

SSB

J (IR/LED)

2.2 Directions for Use

Directions for use can be downloaded from the following
websites:

http://www.philips.com/support
http://www.p4c.philips.com

E (Keyboard/Leading Edge)

TunerBox Board

Styling

2015-Oct-23

back to

div.table

2.3 Connections

Audio outAudio out

1

2

NETNETWORKORK

PC / DVI PC / DVI

MICMIC

19900_001.eps

1
2

3

4

10

5
6

7

8

9

1112

1314

1 2 3 4

10000_022_090121.eps

090121

1 2 3 4

10000_022_090121.eps

090121

10000_017_090121.eps

090428

19

1

18 2

Technical Specs, Diversity, and Connections

EN 3TPS15.3A LA 2.

2.3.1 Side Connections

Figure 2-1 Connection overview

Note: The following connector colour abbreviations are used

(acc. to DIN/IEC 757): Bk= Black, Bu= Blue, Gn= Green,
Gy= Grey, Rd= Red, Wh= White, Ye= Yellow.

1 - Cinch: SPDIF - Out

Ye -Coaxial 0.4 - 0.6V

2 - Audio out

Connect to loudspeaker box or equivalent to output audio.

3 - Mic - in

Bk -Microphone 80 - 600  / 10 mW ot

4 - USB1 2.0

1-+5V k
2 -Data (-) jk
3 -Data (+) jk
4 -Ground Gnd H

Figure 2-2 USB (type A)

/ 75  kq

PP

back to

div.table

5 - USB2 2.0

Figure 2-3 USB (type A)

1-+5V k
2 -Data (-) jk
3 -Data (+) jk
4 -Ground Gnd H

6 - TV ANTENNA - In

Signal input from an antenna, cable or satellite.

7 - TV ANTENNA - In

Signal input from an antenna, cable or satellite.

8 - HDMI 2: Digital Video - In, Digital Audio - In/Out

Figure 2-4 HDMI (type A) connector

1 -D2+ Data channel j

2015-Oct-23

EN 4 TPS15.3A LA2.

10000_017_090121.eps

090428

19

1

18 2

1

6

10

11

5

15

10000_002_090121.eps

090127

10000_017_090121.eps

090428

19

1

18 2

10000_025_090121.eps

120320

Technical Specs, Diversity, and Connections

2-Shield Gnd H
3 -D2- Data channel j
4 -D1+ Data channel j
5-Shield Gnd H
6 -D1- Data channel j
7 -D0+ Data channel j
8-Shield Gnd H
9 -D0- Data channel j
10 - CLK+ Data channel j
11 - Shield Gnd H
12 - CLK- Data channel j
13 - Easylink/CEC Control channel jk
14 - ARC Audio Return Channel k
15 - DDC_SCL DDC clock j
16 - DDC_SDA DDC data jk
17 - Ground Gnd H
18 - +5V j
19 - HPD Hot Plug Detect j
20 - Ground Gnd H

9 - HDMI 3: Digital Video - In, Digital Audio with MHL ­In/Out

Figure 2-5 HDMI (type A) connector

1 -D2+ Data channel j
2-Shield Gnd H
3 -D2- Data channel j
4 -D1+ Data channel j
5-Shield Gnd H
6 -D1- Data channel j
7 -D0+ Data channel j
8-Shield Gnd H
9 -D0- Data channel j
10 - CLK+ Data channel j
11 - Shield Gnd H
12 - CLK- Data channel j
13 - Easylink/CEC Control channel jk
14 - ARC Audio Return Channel k
15 - DDC_SCL DDC clock j
16 - DDC_SDA DDC data jk
17 - Ground Gnd H
18 - +5V j
19 - HPD Hot Plug Detect j
20 - Ground Gnd H

4-n.c.
5 -Ground Gnd H
6 -Ground Red Gnd H
7 -Ground Green Gnd H
8 -Ground Blue Gnd H
9-+5V
10 - Ground Sync Gnd H

+5 V j

DC

11 - Ground Red Gnd H
12 - DDC_SDA DDC data j
13 - H-sync 0 - 5 V j
14 - V-sync 0 - 5 V j
15 - DDC_SCL DDC clock j

13 - HDMI 1: Digital Video - In, Digital Audio with MHL ­In/Out

Figure 2-7 HDMI (type A) connector

1 -D2+ Data channel j
2 -Shield Gnd H
3 -D2- Data channel j
4 -D1+ Data channel j
5 -Shield Gnd H
6 -D1- Data channel j
7 -D0+ Data channel j
8 -Shield Gnd H
9 -D0- Data channel j
10 - CLK+ Data channel j
11 - Shield Gnd H
12 - CLK- Data channel j
13 - Easylink/CEC Control channel jk
14 - ARC Audio Return Channel k
15 - DDC_SCL DDC clock j
16 - DDC_SDA DDC data jk
17 - Ground Gnd H
18 - +5V j
19 - HPD Hot Plug Detect j
20 - Ground Gnd H

14 - RJ45: Ethernet

2.3.2 Rear Connections

10 - Cinch: Video YPbPr - In, Audio - In

Gn - Video - Y 1 V
Bu -Video - Pb 0.7 V
Rd -Video - Pr 0.7 V
Wh -Audio - L 0.5 V
Rd -Audio - R 0.5 V

11 - Audio In: PC/DVI - Left / Right,

Gn - Audio L/R in 0.5 V

12 - PC IN:VGA

1 -Video Red 0.7 V
2 -Video Green 0.7 V
3 -Video Blue 0.7 V

2015-Oct-23

/ 75 W jq

PP

/ 75 W jq

PP

/ 75 W jq

PP

/ 10 kW jq

RMS

/ 10 kW jq

RMS

/ 10 k jq

RMS

Figure 2-6 VGA connector

/ 75 W j

PP

/ 75 W j

PP

/ 75 W j

PP

1 -TD+ Transmit signal k
2 -TD- Transmit signal k
3 -RD+ Receive signal j
4 -CT Centre Tap: DC level fixation
5 -CT Centre Tap: DC level fixation
6 -RD- Receive signal j
7 -GND Gnd H
8 -GND Gnd H

2.4 Chassis Overview

Refer to 9. Block Diagrams for PWB/CBA locations.

back to

div.table

Figure 2-8 Ethernet connector

Precautions, Notes, and Abbreviation List

3. Precautions, Notes, and Abbreviation List

Index of this chapter:

3.1 Safety Instructions

3.2 Warnings

3.3 Notes

3.4 Abbreviation List

3.1 Safety Instructions

Safety regulations require the following during a repair:

• Connect the set to the Mains/AC Power via an isolation
transformer (> 800 VA).

• Replace safety components, indicated by the symbol h,
only by components identical to the original ones. Any
other component substitution (other than original type) may
increase risk of fire or electrical shock hazard.

Safety regulations require that after a repair, the set must be
returned in its original condition. Pay in particular attention to
the following points:

• Route the wire trees correctly and fix them with the
mounted cable clamps.

• Check the insulation of the Mains/AC Power lead for
external damage.

• Check the strain relief of the Mains/AC Power cord for
proper function.

• Check the electrical DC resistance between the Mains/AC
Power plug and the secondary side (only for sets that have
a Mains/AC Power isolated power supply):

1. Unplug the Mains/AC Power cord and connect a wire

between the two pins of the Mains/AC Power plug.

2. Set the Mains/AC Power switch to the “on” position

(keep the Mains/AC Power cord unplugged!).

3. Measure the resistance value between the pins of the

Mains/AC Power plug and the metal shielding of the
tuner or the aerial connection on the set. The reading
should be between 4.5 M and 12 M.

4. Switch “off” the set, and remove the wire between the

two pins of the Mains/AC Power plug.

• Check the cabinet for defects, to prevent touching of any
inner parts by the customer.

3.2 Warnings

• All ICs and many other semiconductors are susceptible to
electrostatic discharges (ESD w). Careless handling
during repair can reduce life drastically. Make sure that,
during repair, you are connected with the same potential as
the mass of the set by a wristband with resistance. Keep
components and tools also at this same potential.

• Be careful during measurements in the high voltage
section.

• Never replace modules or other components while the unit
is switched “on”.

• When you align the set, use plastic rather than metal tools.
This will prevent any short circuits and the danger of a
circuit becoming unstable.

3.3 Notes

3.3.1 General

• Measure the voltages and waveforms with regard to the
chassis (= tuner) ground (H), or hot ground (I), depending
on the tested area of circuitry. The voltages and waveforms
shown in the diagrams are indicative. Measure them in the
Service Default Mode with a colour bar signal and stereo
sound (L: 3 kHz, R: 1 kHz unless stated otherwise) and
picture carrier at 475.25 MHz for PAL, or 61.25 MHz for
NTSC (channel 3).

• Where necessary, measure the waveforms and voltages
with (D) and without (E) aerial signal. Measure the
voltages in the power supply section both in normal
operation (G) and in stand-by (F). These values are
indicated by means of the appropriate symbols.

3.3.2 Schematic Notes

• All resistor values are in ohms, and the value multiplier is
often used to indicate the decimal point location (e.g. 2K2
indicates 2.2 k).

• Resistor values with no multiplier may be indicated with
either an “E” or an “R” (e.g. 220E or 220R indicates 220 ).

• All capacitor values are given in micro-farads (10
nano-farads (n 10

• Capacitor values may also use the value multiplier as the
decimal point indication (e.g. 2p2 indicates 2.2 pF).

• An “asterisk” (*) indicates component usage varies. Refer
to the diversity tables for the correct values.

• The correct component values are listed on the Philips
Spare Parts Web Portal.

3.3.3 Spare Parts

For the latest spare part overview, consult your Philips Spare
Part web portal.

3.3.4 BGA (Ball Grid Array) ICs

Introduction

For more information on how to handle BGA devices, visit this
URL: http://www.atyourservice-magazine.com
“Magazine”, then go to “Repair downloads”. Here you will find
Information on how to deal with BGA-ICs.

BGA Temperature Profiles

For BGA-ICs, you must use the correct temperature-profile.
Where applicable and available, this profile is added to the IC
Data Sheet information section in this manual.

3.3.5 Lead-free Soldering

Due to lead-free technology some rules have to be respected
by the workshop during a repair:

• Use only lead-free soldering tin. If lead-free solder paste is
required, please contact the manufacturer of your soldering
equipment. In general, use of solder paste within
workshops should be avoided because paste is not easy to
store and to handle.

• Use only adequate solder tools applicable for lead-free
soldering tin. The solder tool must be able:
– To reach a solder-tip temperature of at least 400°C.
– To stabilize the adjusted temperature at the solder-tip.
– To exchange solder-tips for different applications.

• Adjust your solder tool so that a temperature of around
360°C - 380°C is reached and stabilized at the solder joint.
Heating time of the solder-joint should not exceed ~ 4 sec.
Avoid temperatures above 400°C, otherwise wear-out of
tips will increase drastically and flux-fluid will be destroyed.
To avoid wear-out of tips, switch “off” unused equipment or
reduce heat.

• Mix of lead-free soldering tin/parts with leaded soldering
tin/parts is possible but PHILIPS recommends strongly to
avoid mixed regimes. If this cannot be avoided, carefully
clear the solder-joint from old tin and re-solder with new tin.

3.3.6 Alternative BOM identification

It should be noted that on the European Service website,
“Alternative BOM” is referred to as “Design variant”.

The third digit in the serial number (example:
AG2B0335000001) indicates the number of the alternative
B.O.M. (Bill Of Materials) that has been used for producing the
specific TV set. In general, it is possible that the same TV
model on the market is produced with e.g. two different types
of displays, coming from two different suppliers. This will then

back to

div.table

-9

), or pico-farads (p 10

. Select

EN 5TPS15.3A LA 3.

-6

),

-12

).

2015-Oct-23

EN 6 TPS15.3A LA3.

10000_053_110228.eps

110228

Precautions, Notes, and Abbreviation List

result in sets which have the same CTN (Commercial Type
Number; e.g. 28PW9515/12) but which have a different B.O.M.
number.
By looking at the third digit of the serial number, one can
identify which B.O.M. is used for the TV set he is working with.
If the third digit of the serial number contains the number “1”
(example: AG1B033500001), then the TV set has been
manufactured according to B.O.M. number 1. If the third digit is
a “2” (example: AG2B0335000001), then the set has been
produced according to B.O.M. no. 2. This is important for
ordering the correct spare parts!
For the third digit, the numbers 1...9 and the characters A...Z
can be used, so in total: 9 plus 26= 35 different B.O.M.s can be
indicated by the third digit of the serial number.

Identification: The bottom line of a type plate gives a 14-digit
serial number. Digits 1 and 2 refer to the production centre (e.g.
SN is Lysomice, RJ is Kobierzyce), digit 3 refers to the B.O.M.
code, digit 4 refers to the Service version change code, digits 5
and 6 refer to the production year, and digits 7 and 8 refer to
production week (in example below it is 2010 week 10 / 2010
week 17). The 6 last digits contain the serial number.

Figure 3-1 Serial number (example)

3.3.7 Board Level Repair (BLR) or Component Level Repair (CLR)

If a board is defective, consult your repair procedure to decide
if the board has to be exchanged or if it should be repaired on
component level.
If your repair procedure says the board should be exchanged
completely, do not solder on the defective board. Otherwise, it
cannot be returned to the O.E.M. supplier for back charging!

3.3.8 Practical Service Precautions

• It makes sense to avoid exposure to electrical shock.

While some sources are expected to have a possible
dangerous impact, others of quite high potential are of
limited current and are sometimes held in less regard.

• Always respect voltages. While some may not be

dangerous in themselves, they can cause unexpected
reactions that are best avoided. Before reaching into a
powered TV set, it is best to test the high voltage insulation.
It is easy to do, and is a good service precaution.

3.4 Abbreviation List

0/6/12 SCART switch control signal on A/V

board. 0 = loop through (AUX to TV),

6 = play 16 : 9 format, 12 = play 4 : 3
format

AARA Automatic Aspect Ratio Adaptation:

algorithm that adapts aspect ratio to
remove horizontal black bars; keeps
the original aspect ratio

ACI Automatic Channel Installation:

algorithm that installs TV channels
directly from a cable network by

means of a predefined TXT page
ADC Analogue to Digital Converter
AFC Automatic Frequency Control: control

signal used to tune to the correct

frequency
AGC Automatic Gain Control: algorithm that

controls the video input of the feature

box
AM Amplitude Modulation
AP Asia Pacific
AR Aspect Ratio: 4 by 3 or 16 by 9
ASF Auto Screen Fit: algorithm that adapts

aspect ratio to remove horizontal black

bars without discarding video

information
ATSC Advanced Television Systems

Committee, the digital TV standard in

the USA
ATV See Auto TV
Auto TV A hardware and software control

system that measures picture content,

and adapts image parameters in a

dynamic way
AV External Audio Video
AVC Audio Video Controller
AVIP Audio Video Input Processor
B/G Monochrome TV system. Sound

carrier distance is 5.5 MHz
BDS Business Display Solutions (iTV)
BLR Board-Level Repair
BTSC Broadcast Television Standard

Committee. Multiplex FM stereo sound

system, originating from the USA and

used e.g. in LATAM and AP-NTSC

countries
B-TXT Blue TeleteXT
C Centre channel (audio)
CEC Consumer Electronics Control bus:

remote control bus on HDMI

connections
CL Constant Level: audio output to

connect with an external amplifier
CLR Component Level Repair
ComPair Computer aided rePair
CP Connected Planet / Copy Protection
CSM Customer Service Mode
CTI Color Transient Improvement:

manipulates steepness of chroma

transients
CVBS Composite Video Blanking and

Synchronization
DAC Digital to Analogue Converter
DBE Dynamic Bass Enhancement: extra

low frequency amplification
DCM Data Communication Module. Also

referred to as System Card or

Smartcard (for iTV).
DDC See “E-DDC”
D/K Monochrome TV system. Sound

carrier distance is 6.5 MHz
DFI Dynamic Frame Insertion
DFU Directions For Use: owner's manual
DMR Digital Media Reader: card reader
DMSD Digital Multi Standard Decoding
DNM Digital Natural Motion

2015-Oct-23

back to

div.table

Precautions, Notes, and Abbreviation List

EN 7TPS15.3A LA 3.

DNR Digital Noise Reduction: noise

reduction feature of the set
DRAM Dynamic RAM
DRM Digital Rights Management
DSP Digital Signal Processing
DST Dealer Service Tool: special remote

control designed for service

technicians
DTCP Digital Transmission Content

Protection; A protocol for protecting

digital audio/video content that is

traversing a high speed serial bus,

such as IEEE-1394
DVB-C Digital Video Broadcast - Cable
DVB-T Digital Video Broadcast - Terrestrial
DVD Digital Versatile Disc
DVI(-d) Digital Visual Interface (d= digital only)
E-DDC Enhanced Display Data Channel

(VESA standard for communication

channel and display). Using E-DDC,

the video source can read the EDID

information form the display.
EDID Extended Display Identification Data

(VESA standard)
EEPROM Electrically Erasable and

Programmable Read Only Memory
EMI Electro Magnetic Interference
EPG Electronic Program Guide
EPLD Erasable Programmable Logic Device
EU Europe
EXT EXTernal (source), entering the set by

SCART or by cinches (jacks)
FDS Full Dual Screen (same as FDW)
FDW Full Dual Window (same as FDS)
FLASH FLASH memory
FM Field Memory or Frequency

Modulation
FPGA Field-Programmable Gate Array
FTV Flat TeleVision
Gb/s Giga bits per second
G-TXT Green TeleteXT
H H_sync to the module
HD High Definition
HDD Hard Disk Drive
HDCP High-bandwidth Digital Content

Protection: A “key” encoded into the

HDMI/DVI signal that prevents video

data piracy. If a source is HDCP coded

and connected via HDMI/DVI without

the proper HDCP decoding, the

picture is put into a “snow vision” mode

or changed to a low resolution. For

normal content distribution the source

and the display device must be

enabled for HDCP “software key”

decoding.
HDMI High Definition Multimedia Interface
HP HeadPhone
I Monochrome TV system. Sound

2

C Inter IC bus

I

2

I

D Inter IC Data bus

2

S Inter IC Sound bus

I

carrier distance is 6.0 MHz

IF Intermediate Frequency
IR Infra Red
IRQ Interrupt Request
ITU-656 The ITU Radio communication Sector

(ITU-R) is a standards body

subcommittee of the International

Telecommunication Union relating to

radio communication. ITU-656 (a.k.a.

SDI), is a digitized video format used

for broadcast grade video.

Uncompressed digital component or

digital composite signals can be used.

back to

div.table

The SDI signal is self-synchronizing,
uses 8 bit or 10 bit data words, and has
a maximum data rate of 270 Mbit/s,
with a minimum bandwidth of 135
MHz.

iTV Institutional TeleVision; TV sets for

hotels, hospitals etc.

LS Last Status; The settings last chosen

by the customer and read and stored
in RAM or in the NVM. They are called
at start-up of the set to configure it
according to the customer's

preferences
LATAM Latin America
LCD Liquid Crystal Display
LED Light Emitting Diode
L/L' Monochrome TV system. Sound

carrier distance is 6.5 MHz. L' is Band

I, L is all bands except for Band I
LPL LG.Philips LCD (supplier)
LS Loudspeaker
LVDS Low Voltage Differential Signalling
Mbps Mega bits per second
M/N Monochrome TV system. Sound

carrier distance is 4.5 MHz
MHEG Part of a set of international standards

related to the presentation of

multimedia information, standardised

by the Multimedia and Hypermedia

Experts Group. It is commonly used as

a language to describe interactive

television services
MIPS Microprocessor without Interlocked

Pipeline-Stages; A RISC-based

microprocessor
MOP Matrix Output Processor
MOSFET Metal Oxide Silicon Field Effect

Transistor, switching device
MPEG Motion Pictures Experts Group
MPIF Multi Platform InterFace
MUTE MUTE Line
MTV Mainstream TV: TV-mode with

Consumer TV features enabled (iTV)
NC Not Connected
NICAM Near Instantaneous Compounded

Audio Multiplexing. This is a digital

sound system, mainly used in Europe.
NTC Negative Temperature Coefficient,

non-linear resistor
NTSC National Television Standard

Committee. Color system mainly used

in North America and Japan. Color

carrier NTSC M/N= 3.579545 MHz,

NTSC 4.43= 4.433619 MHz (this is a

VCR norm, it is not transmitted off-air)
NVM Non-Volatile Memory: IC containing

TV related data such as alignments
O/C Open Circuit
OSD On Screen Display
OAD Over the Air Download. Method of

software upgrade via RF transmission.

Upgrade software is broadcasted in

TS with TV channels.
OTC On screen display Teletext and

Control; also called Artistic (SAA5800)
P50 Project 50: communication protocol

between TV and peripherals
PAL Phase Alternating Line. Color system

mainly used in West Europe (colour

carrier = 4.433619 MHz) and South

America (colour carrier

PAL M = 3.575612 MHz and

PAL N = 3.582056 MHz)
PCB Printed Circuit Board (same as “PWB”)
PCM Pulse Code Modulation

2015-Oct-23

EN 8 TPS15.3A LA3.

Precautions, Notes, and Abbreviation List

PDP Plasma Display Panel
PFC Power Factor Corrector (or

Pre-conditioner)
PIP Picture In Picture
PLL Phase Locked Loop. Used for e.g.

FST tuning systems. The customer

can give directly the desired frequency
POD Point Of Deployment: a removable

CAM module, implementing the CA

system for a host (e.g. a TV-set)
POR Power On Reset, signal to reset the uP
PSDL Power Supply for Direct view LED

backlight with 2D-dimming
PSL Power Supply with integrated LED

drivers
PSLS Power Supply with integrated LED

drivers with added Scanning

functionality
PTC Positive Temperature Coefficient,

non-linear resistor
PWB Printed Wiring Board (same as “PCB”)
PWM Pulse Width Modulation
QRC Quasi Resonant Converter
QTNR Quality Temporal Noise Reduction
QVCP Quality Video Composition Processor
RAM Random Access Memory
RGB Red, Green, and Blue. The primary

color signals for TV. By mixing levels

of R, G, and B, all colors (Y/C) are

reproduced.
RC Remote Control
RC5 / RC6 Signal protocol from the remote

control receiver
RESET RESET signal
ROM Read Only Memory
RSDS Reduced Swing Differential Signalling

data interface
R-TXT Red TeleteXT
SAM Service Alignment Mode
S/C Short Circuit
SCART Syndicat des Constructeurs

d'Appareils Radiorécepteurs et

SCL Serial Clock I

Téléviseurs

SCL-F CLock Signal on Fast I
SD Standard Definition
SDA Serial Data I
SDA-F DAta Signal on Fast I

2

C

2

C

2

C bus

2

C bus
SDI Serial Digital Interface, see “ITU-656”
SDRAM Synchronous DRAM
SECAM SEequence Couleur Avec Mémoire.

Colour system mainly used in France
and East Europe. Colour
carriers = 4.406250 MHz and

4.250000 MHz
SIF Sound Intermediate Frequency
SMPS Switched Mode Power Supply
SoC System on Chip
SOG Sync On Green
SOPS Self Oscillating Power Supply
SPI Serial Peripheral Interface bus; a

4-wire synchronous serial data link

standard
S/PDIF Sony Philips Digital InterFace
SRAM Static RAM
SRP Service Reference Protocol
SSB Small Signal Board
SSC Spread Spectrum Clocking, used to

reduce the effects of EMI
STB Set Top Box
STBY STand-BY
SVGA 800 × 600 (4:3)
SVHS Super Video Home System
SW Software

SWAN Spatial temporal Weighted Averaging

Noise reduction
SXGA 1280 × 1024
TFT Thin Film Transistor
THD Total Harmonic Distortion
TMDS Transmission Minimized Differential

Signalling
TS Transport Stream
TXT TeleteXT
TXT-DW Dual Window with TeleteXT
UI User Interface
uP Microprocessor
UXGA 1600 × 1200 (4:3)
V V-sync to the module
VESA Video Electronics Standards

Association
VGA 640 × 480 (4:3)
VL Variable Level out: processed audio

output toward external amplifier
VSB Vestigial Side Band; modulation

method
WYSIWYR What You See Is What You Record:

record selection that follows main

picture and sound
WXGA 1280 × 768 (15:9)
XTAL Quartz crystal
XGA 1024 × 768 (4:3)
Y Luminance signal
Y/C Luminance (Y) and Chrominance (C)

signal
YPbPr Component video. Luminance and

scaled color difference signals (B-Y

and R-Y)
YUV Component video

2015-Oct-23

back to

div.table

4. Mechanical Instructions

19980_100.eps

CN701

CN8101

CN9101

CN403

MAIN POWER SUPPLY

(1054)

A

SSB

(1053)

B

ECN401A

ECN601

ECN403

ECN601

LOUDSPEAKER

(1184)

LOUDSPEAKER

(1184)

IR/LED BOARD

(1056)

J

ECN403

ECN701

E

CN01

KEYBOARD CONTROL

(1057)

CN103

CN601

ECN401A

ECN401A

ECN701

ECN601

CN401

WIFI MODULE

W

WiFi01

ECN103

ECN103

Tuner Board

(1067)

TU01

Index of this chapter:

4.1 Cable Dressing

4.2 Service Positions

4.3 Assembly/Panel Removal

4.4 Set Re-assembly

4.1 Cable Dressing

Mechanical Instructions

Notes:

• Figures below can deviate slightly from the actual situation,
due to the different set executions.

EN 9TPS15.3A LA 4.

Figure 4-1 Cable dressing (49" 6600 series)

back to

div.table

2015-Oct-23

EN 10 TPS15.3A LA4.

19980_101.eps

CN701

CN8101

CN9101

CN403

MAIN POWER SUPPLY

(1054)

A

SSB

(1053)

B

ECN401A

ECN601

ECN403

ECN601

LOUDSPEAKER

(1184)

LOUDSPEAKER

(1184)

IR/LED BOARD

(1056)

J

ECN403

ECN701

E

CN01

KEYBOARD CONTROL

(1057)

CN103

CN601

ECN401A

ECN401A

ECN701

ECN601

CN401

WIFI MODULE

W

WiFi01

ECN103

ECN103

Tuner Board

(1067)

TU01

Mechanical Instructions

Figure 4-2 Cable dressing (55" 6600 series)

4.2 Se rvice Positions

For easy servicing of a TV set, the set should be put face down
on a soft flat surface, foam buffers or other specific workshop
tools. Ensure that a stable situation is created to perform
measurements and alignments. When using foam bars take
care that these always support the cabinet and never only the
display. Caution: Failure to follow these guidelines can
seriously damage the display!
Ensure that ESD safe measures are taken.

4.3 Assembly/Panel Removal

Instructions below apply to the 49PUH6600/96, but will be
similar for 55" model.

4.3.1 Rear Cover

Refer to Figure 4-3
Warning: Disconnect the mains power cord before removing
the rear cover.

1. Remove the fixation screws [1] that secure the base assy,
pull out the base assy from the set. Then remove the
fixation screws [2],[3] that secure the rear cover. Refer to

Figure 4-3

2. Gently lift the rear cover from the TV. Make sure that wires
and cables are not damaged while lifting the rear cover
from the set.

for details.

for details.

2015-Oct-23

back to

div.table

Mechanical Instructions

19980_102.eps

M3 × 8

2

M4 × 8

1

1

1

11

2

2

2

2

22 2

22

2

2

2

2

2 2

2

2

M3 × 6

3

3

3

19980_103.eps

1

3

3

3

3

2

3

5

4

2

EN 11TPS15.3A LA 4.

4.3.2 Keyboard Control unit

1. Gently release the tapes that secure the keyboard cable.

2. Remove the fixation screws that secure the keyboard
control panel.

3. Gently take the keyboard out.

When defective, replace the whole unit.

4.3.3 Small Signal Board (SSB) & Wifi module

Refer to Figure 4-4
Caution: it is mandatory to remount all different screws at their
original position during re-assembly. Failure to do so may result
in damaging the SSB.

1. Release the clips from the LVDS connector [1] that connect
with the SSB.
Caution: be careful, as these are very fragile connectors!
Unplug the cable/flat foils connector.

2. Unplug all other connectors [2].

3. Remove all the fixation screws [3] from the SSB.

4. Take out the SSB with I/O bracket.

5. The SSB can now be shifted away from side connector
cover, then lifted and taken out of the I/O bracket. Refer to

Figure 4-4

6. Unplug the connector [4] from the wifi module, then remove
the fixation screw [5].

7. The wifi module now can be taken out from the panel. Refer
to Figure 4-4

for details.

for details.

for details.

Figure 4-3 Rear cover removal

Figure 4-4 SSB & Wifi module removal

4.3.4 TunerBox Board

1. Gently Unplug Pin connectors from the SSB.

2. Take the TunerBox Board out.

back to

div.table

2015-Oct-23

EN 12 TPS15.3A LA4.

4.3.5 Power Supply Unit (PSU)

Caution: it is mandatory to remount all different screws at their

original position during re-assembly. Failure to do so may result
in damaging the PSU.

1. Unplug all connectors from the PSU.

2. Remove all fixation screws from the PSU.

3. The PSU can be taken out of the set now.

4.3.6 Speakers

1. Gently release the tapes that secure the speaker cables.

2. Unplug the speaker connector from the SSB.

3. Take the speakers out.
When defective, replace the both units.

4.3.7 IR/LED board

1. Unplug the connector from the IR/LED board.

2. Gently release the clip that holds the board and take it out
from the DECO_BEZEL.

When defective, replace the whole unit.

4.3.8 LCD Panel

1. Remove the SSB as described earlier.

2. Remove the PSU as described earlier.

3. Remove the keyboard control panel as described earlier.

4. Remove the stand as described earlier.

5. Remove the IR/LED as described earlier.

6. Remove the WIFI module as described earlier.

7. Remove the fixations screws that fix the metal clamps to
the front bezel. Take out those clamps.

8. Remove all other metal parts not belonging to the panel.

9. Lift the LCD Panel from the bezel.

When defective, replace the whole unit.

Mechanical Instructions

4.4 Set Re-assembly

To re-assemble the whole set, execute all processes in reverse
order.

Notes:

• While re-assembling, make sure that all cables are placed
and connected in their original position. See Figure 4-1

Figure 4-2

• Pay special attention not to damage the EMC foams on the
SSB shields. Ensure that EMC foams are mounted
correctly.

.

to

2015-Oct-23

back to

div.table

Service Modes and Fault Finding

5. Service Modes and Fault Finding

Index of this chapter:

5.1 Test Points

5.2 Service Modes

5.3 Stepwise Start-up

5.4 Software Upgrading

5.5 Fault Finding and Repair Tips

EN 13TPS15.3A LA 5.

Note: For the new model range, a new remote control (RC) is

used with some renamed buttons. This has an impact on the
activation of the Service modes. For instance the old “MENU”
button is now called “HOME” (or is indicated by a “house” icon).

5.2.1 Contents of the Factory mode:

5.1 Test Points

As most signals are digital, it will be difficult to measure
waveforms with a standard oscilloscope.

Perform measurements under the following conditions:

• Service Default Mode.

• Video: Colour bar signal.

• Audio: 3 kHz left, 1 kHz right.

5.2 Service Modes

The Service Mode feature is split into one part:

• Factory Mode.

The Factory mode offer features, which can be used by the
Service engineer to repair/align a TV set. Some features are:

• Make alignments (e.g. White Tone), reset the error buffer
(Factory Mode).

Table 5-1 Factory mode overview

Default value

Item Item value

0 Brand Philips-TWN Philips-TWN Brand name
1 Model 49PUH6600 55PUH6600 Model name
2 HW Ver 715G6546M1A001004K 715G6546M1A001004K Hardware version
3 SW Ver eg: 1.03_20150823_1203_49 eg: 2.02_20150918_0026_55 Software version
4 Date Sun Aug 23 Fri Sep 18 Software release date
5 Scaler MSD8590QV MSD8590QV Scaler name
6 Tuner TDSH-T070F TDSH-T070F Tuner name
7 Panel LVG490EQYM1AD82X0X LVA550QVN03AC52P0X Panel type
8 ADC Adjust Press OK to adjust Press OK to adjust ADC Adjust
9 W/B Adjust Press OK to adjust Press OK to adjust W/B Adjust
10 SSC Adjust Press OK to adjust Press OK to adjust SSC Adjust
11 EQ Adjust Press OK to adjust Press OK to adjust EQ Adjust
12 Burn In Off Off Burn In
13 Reset Press OK Press OK System Reset
14 Exit Press OK Press OK Exit factory mode

Purpose

• To perform extended alignments.

Specifications

• Displaying and or changing Panel ID information.

• Various software alignment settings.

• Testpattern displaying.

• Public Broadcasting Service password Reset.

•etc.

How to Activate the Factory mode

To activate the Factory mode, use the following method:

• Press the following key sequence on the remote control
transmitter: from the “Menu” press “1999”, directly followed
by the “Back” button. Do not allow the display to time out
between entries while keying the sequence.

After entering the Factory mode, the following items are
displayed, the Default value just for reference.

Description49PUH6600/96 55PUH6600/96

How to Exit the Factory mode

Use one of the following methods:

• Select EXIT from the menu and press the “OK” button.
Note: When the TV is switched “off” by a power interrupt, or
normal switch to “stand-by” while in the factory mode, the TV
will show up in “normal operation mode” as soon as the power
is supplied again. The error buffer will not be cleared.

back to

div.table

2015-Oct-23

EN 14 TPS15.3A LA5.

19080_206_110323.eps

120224

Power Off

Standby
Soft Mode

Power On

Semi-
Standby

Standby

Switch

Off(Mains
Power Plug)

Standby Soft Mode
Command Received,
previously in Standby

Soft Mode (Power tact
switch)

TV Wakeup
commands
Received
(TV Wakeup
keys)

Digital
background
tasks started

Digital
background
tasks completed

Swith On,
previously in

Standby/Semi-
Standby (Mains
Power Plug)

Standby
Soft Mode

Command
Received
(Power tact

switch)

Switch Off (Mains
Power Plug)

Switch Off

(Mains Power
Plug)

Swith On,
previously in
Standby Soft Mode
(Mains Power Plug)

Standby
commands

Received (RC

Standby key)

Standby Soft Mode

Command Received,
previously in Standby
Soft Mode (Power
tact switch)

TV Wakeup
commands
Received
(TV Wakeup
keys)

Switch On, previously
in Power On Mode
(Power tact switch)

Standby Soft Mode
Command Received,
(Power tact switch)

Switch Off (Mains
Power Plug)

Switch On,previously in
TV Operation Mode
(Mains Power Plug)

5.3 Stepwise Start-up

Service Modes and Fault Finding

5.4 Software Upgrading

5.4.1 Description

It is possible for the user to upgrade the main software via the
USB port. This allows replacement of a software image in a
stand alone set. A description on how to upgrade the main
software can be found in the DFU or on the Philips website.

5.4.2 Introduction

Philips continuously tries to improve its products, and it’s
recommend that the TV software is updated when updates are
available. Software update files can be obtained from the
dealer or can be downloaded from the following websites:

http://www.philips.com/support

Preparing a portable memory for software upgrade

The following requirements have to be met:

1. A personal computer connected to the internet.

2. An archive utility that supports the ZIP-format (e.g. WinZip
for Windows or Stufflt for Mac OS).

3. A FAT formatted USB memory stick (preferably empty).

Note:

1. Only FAT/DOS-formatted memory sticks are supported.

2015-Oct-23

Figure 5-1 Stepwise Start-up

5.4.3 Check the current TV software version

5.4.4 Download the latest software

back to

div.table

2. Only use software update files that can be found on the

http://www.philips.com/support

Before starting the software upgrade procedure, it is advised to
check that what the current TV software:

1. Press the “Menu” + “1999” + “Back” button on the remote
control to enter the Factory mode.

2. Use the up/down cursor keys to select “SW Ver”.

If the current software version of the TV is the same as the
latest update file found on http://www.philips.com/support
not necessary to update the TV software.

1. Open the internet page http://www.philips.com/support

2. Find information and software related to the TV.

3. Select the latest software update file and download it to the
PC.

4. Insert the USB memory stick into one of the USB ports of
the PC.

5. Decompress the downloaded ZIP file and copy it to the root
directory of the USB flash drive.

web site.

, it is

.

Service Modes and Fault Finding

19452_200_130902.eps

130902

Confirm

No

19452_201_130902.eps

130902

Confirm

No

EN 15TPS15.3A LA 5.

5.4.5 Update the TV software

1. Turn the TV on and wait for it to boot completely.

2. Insert the USB memory stick that contains the software
update files in one of the TV’s USB ports.

3. The TV will detect the USB memory stick automatically.
Then a window jumps out as Figure 5-2

.
Note: If the USB flash drive is not detected after power up,
disconnect it and re-insert it. And no change the software
name.

4. Select [Confirm] and press OK to start software updates.
See Figure 5-2

.

5. Upgrading will now begins and the status of the updating
progress will be displayed. See Figure 5-3

6. When the TV software is updated. Remove your USB flash
drive, and the TV will turn on automatically.

• FUS_clustername_version.zip: Contains the
“autorun.bin” which is needed to upgrade the TV main
software and the software download application.

• NVM_clustername_version.zip: Default NVM content.
Must be programmed via ComPair.

5.4.7 How to Copy NVM Data to/from USB

When copying data to and from a USB memory stick, the folder
“repair” is used. When inserting an empty USB memory stick,
and downloading data to the stick, the TV will create this folder.
When sending data from a USB memory stick to a TV, the

.

intended data must be available in the “repair” folder.
Note that when copying EDID data to the TV, all necessary
EDID files must be in this folder.

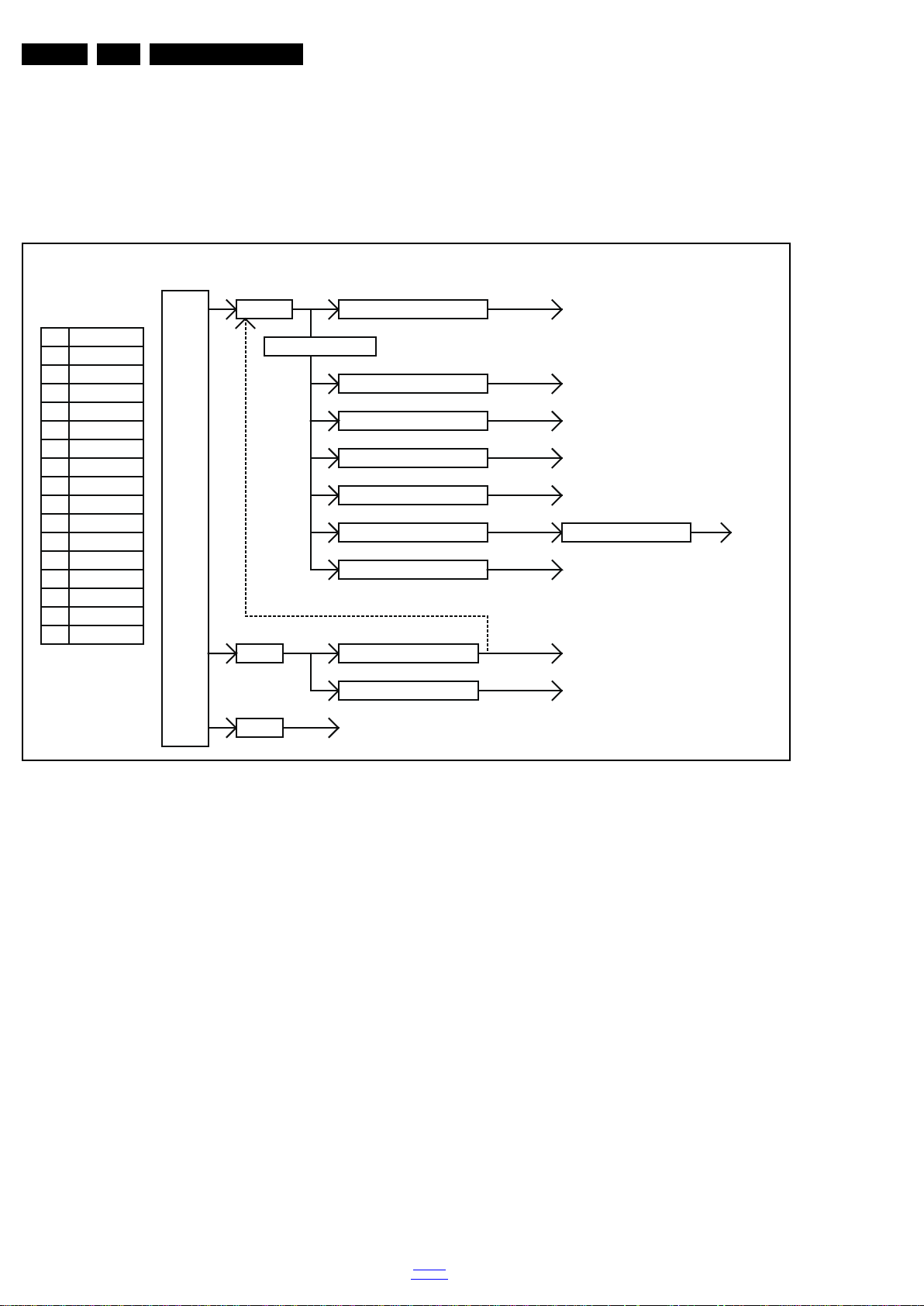

Service mode overview for your reference.

5.5 Fault Finding and Repair Tips

Note:

• It is assumed that the components are mounted correctly
with correct values and no bad solder joints.

• Before any fault finding actions, check if the correct options
are set.

5.5.1 TV Will Not Start-up from Stand-by

Possible Stand-by Controller failure. Re-flash the software.

Figure 5-2 Update the TV software [1/2]

Figure 5-3 Update the TV software [2/2]

Note:

• Do not remove the USB flash drive during the software
update.

• Do not turn off the power during the software update.

• If a power failure occurs during the update, do not remove
the USB flash drive from the TV. The TV will continue the
software update as soon as the power comes up again.

• If an error occurs during the update retry the procedure or
contact the dealer.

• We do not recommend downgrading to an older version.

• Once the upgrade is finished, use the PC to remove the TV
software from the USB portable memory.

5.5.2 Audio Amplifier

The Class D-IC U601 has a powerpad for cooling. When the IC
is replaced it must be ensured that the powerpad is very well
pushed to the PWB while the solder is still liquid. This is needed
to insure that the cooling is guaranteed, otherwise the Class
D-IC could break down in short time.

5.5.3 Loudspeakers

Make sure that the volume is set to minimum during
disconnecting the speakers in the ON-state of the TV. The
audio amplifier can be damaged by disconnecting the speakers
during ON-state of the set!

5.4.6 Content and Usage of the One-Zip Software File

Below you find a content explanation of the One-Zip file, and
instructions on how and when to use it. Only files that are
relevant for Service are mentioned here.

• EDID_clustername.zip: Contains the EDID content of the
different EDID NVMs. See ComPair for further instructions.

back to

div.table

2015-Oct-23

EN 16 TPS15.3A LA6.

6. Alignments

Index of this chapter:

6.1 General Alignment Conditions

6.2 Reset of Repaired SSB

6.1 General Alignment Conditions

Perform all electrical adjustments under the following
conditions:

• Power supply voltage: 90 - 264 V

• Connect the set to the mains via an isolation transformer
with low internal resistance.

• Allow the set to warm up for approximately 15 minutes.

• Measure voltages and waveforms in relation to correct
ground (e.g. measure audio signals in relation to
AUDIO_GND).
Caution: It is not allowed to use heat sinks as ground.

• Test probe: R

• Use an isolated trimmer/screwdriver to perform
alignments.

> 10 M, Ci < 20 pF.

i

6.2 Reset of Repaired SSB

A very important issue towards a repaired SSB from a Service
repair shop (SSB repair on component level) implies the reset
of the NVM on the SSB.

After a repaired SSB has been mounted in the set (set repair
on board level), the type number (CTN) and production code of
the TV has to be set according to the type plate of the set.

, 50/ 60  3 Hz.

AC

Alignments

6.2.1 SSB Identification

SSB’s of this chassis are identified by a “715” code on the SSB.
715Axxxx-Nnn-MMM-OOOO

• 715 main category, Printed Wiring Board

• Axxxx sub category, sequential coding number

• Nnn Version code

• N Development number

• nn Production number

• MMM Mounting variation code

• OOOO Optional variation code

Make sure when replacing an SSB the SSB identification codes
match the replacement board.

2015-Oct-23

back to

div.table

7. Circuit Descriptions

Index of this chapter:

7.1 Introduction

7.2 Power Supply

7.3 DC/DC Converters

7.4 Front-End Analogue ATV reception and DVB-T reception

7.5 HDMI

7.6 Video and Audio Processing - MSD8590QV

Notes:

•Only new circuits (circuits that are not published recently)
are described.

• Figures can deviate slightly from the actual situation, due
to different set executions.

• For a good understanding of the following circuit
descriptions, please use the wiring, block (see chapter

9. Block Diagrams

10. Circuit Diagrams and PWB Layouts

you will find a separate drawing for clarification.

) and circuit diagrams (see chapter

).Where necessary,

Circuit Descriptions

7.1 Introduction

The TPS15.3A LA is a new chassis launched in AP in 2015.
The whole range is covered by MSD8590QV. The major deltas
versus its predecessor support PAL/NTSC/SECAM, with
multi-media, Video out function.

The TPS15.3A LA chassis comes with the following stylings:

• series xxPUH6600xx

7.1.1 Implementation

Key components of this chassis are:

• SCALER MSD8590QV-XZ HSBGA-707

• TUNER - TDSH-T070F

• DRAM K4B4G1646D-BCMA 4Gb FBGA-96

• TEST ONLY AUDIO YSS952 QFN-32

• AUDIO WM8782SEDS/RV SSOP-20

• AUDIO AD82588B-LG48NAY 2x15W stereo E-LQ

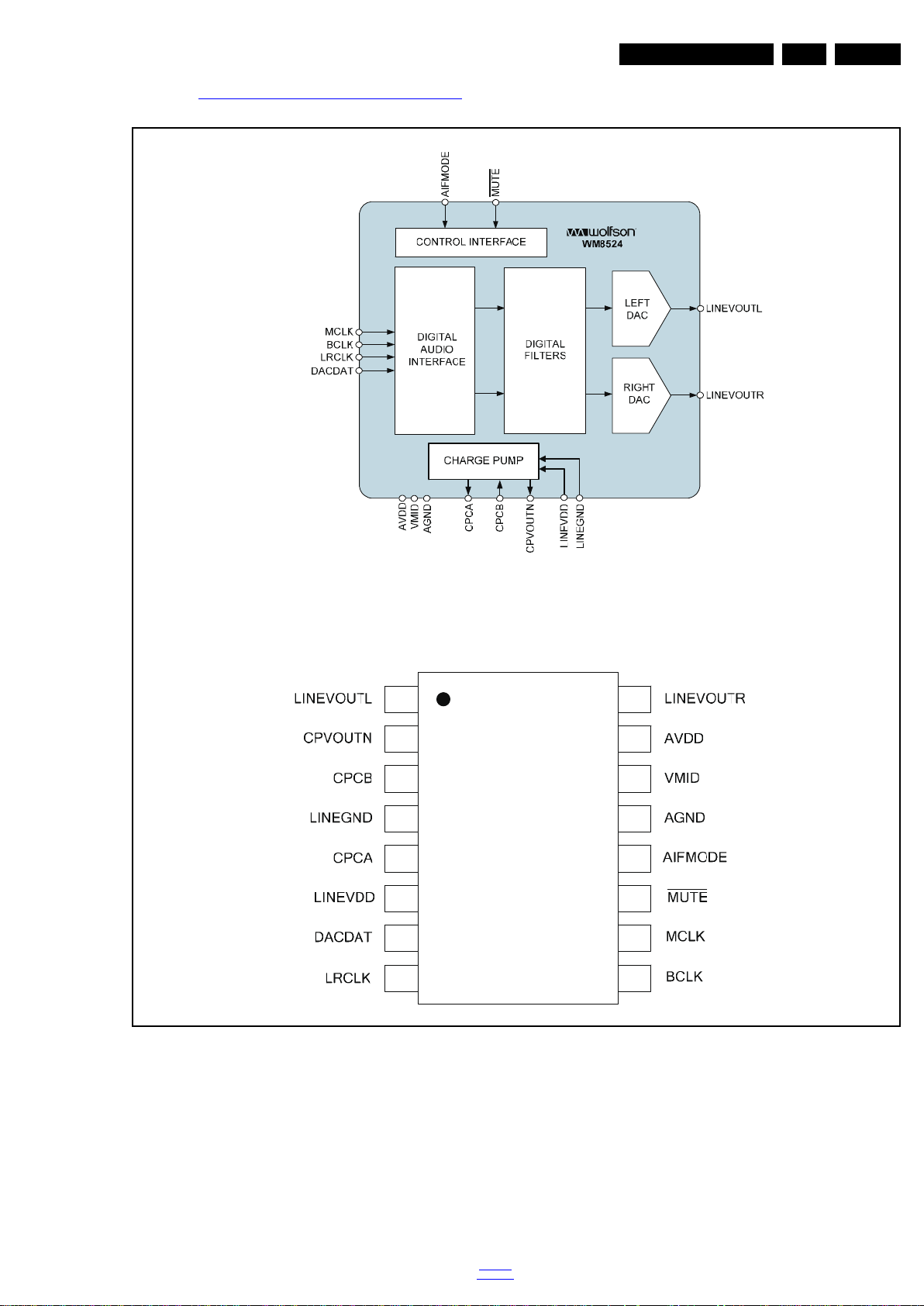

• AUDIO WM8524CGEDT/R / TSSOP-16

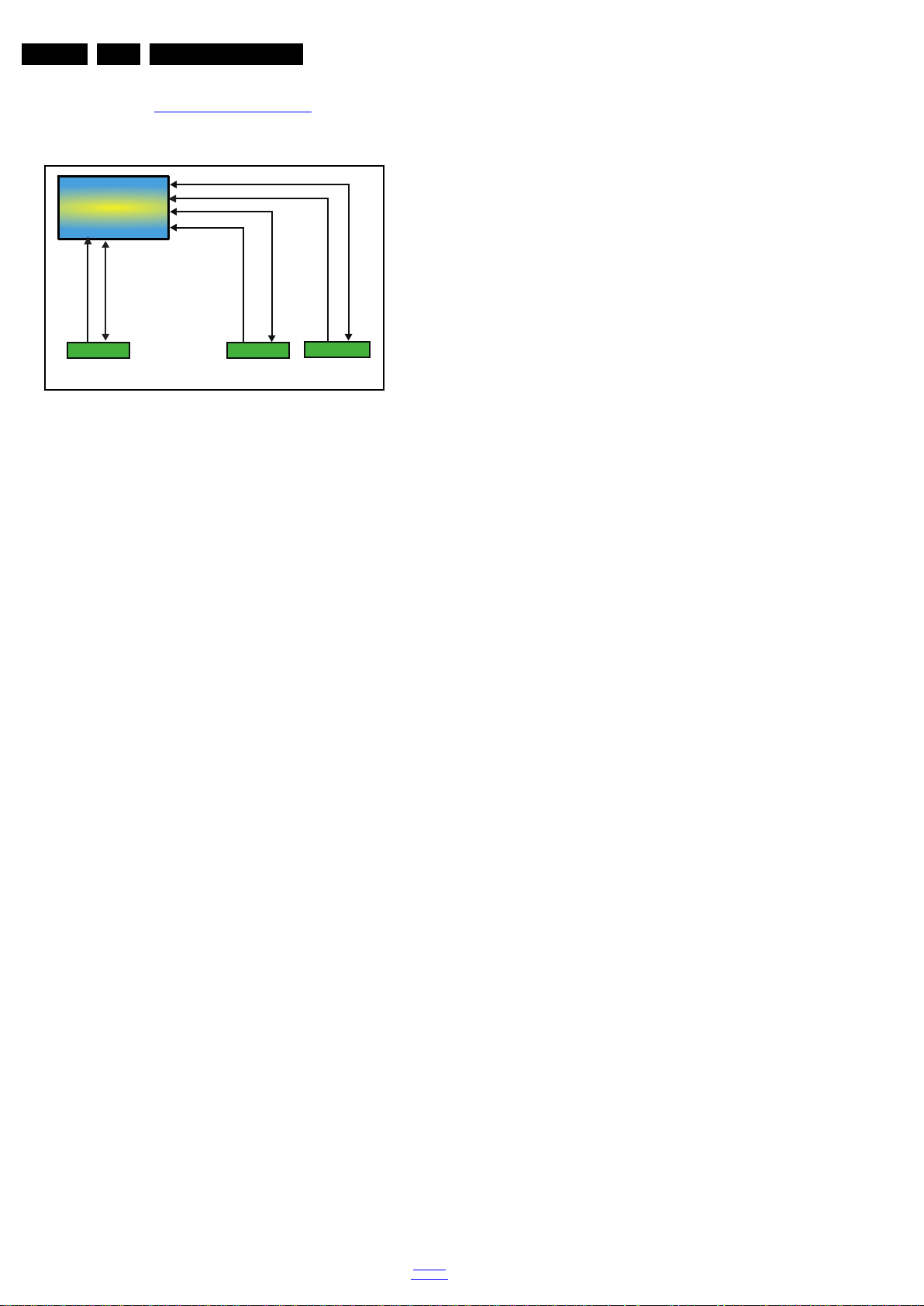

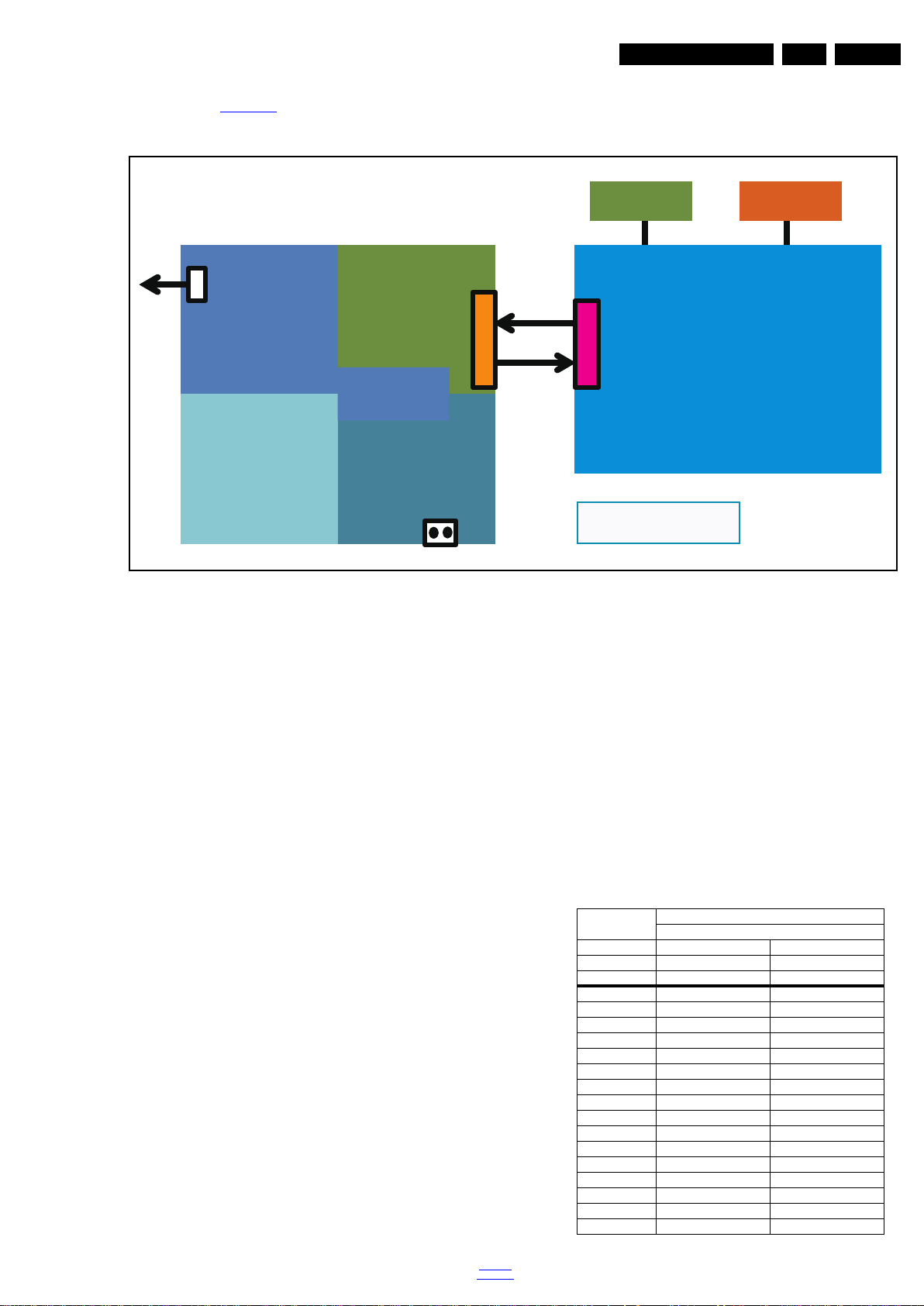

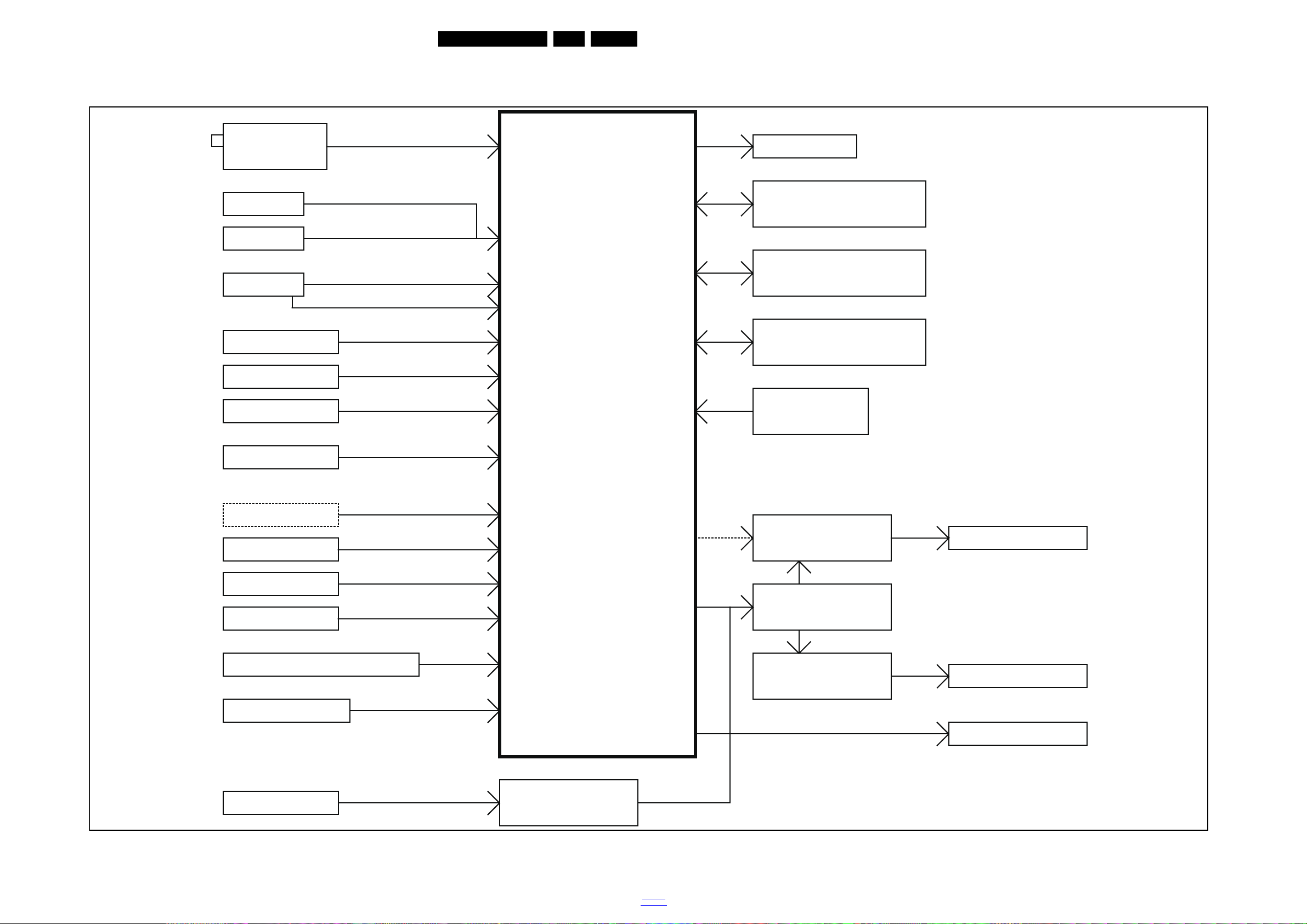

7.1.2 TPS15.3A LA Architecture Overview

EN 17TPS15.3A LA 7.

For details about the chassis block diagrams refer to chapter

9. Block Diagrams

.

back to

div.table

2015-Oct-23

EN 18 TPS15.3A LA7.

19980_200.eps

Tuner

DC/DC

USB

ANALOG I/O

PC Audio

HDMI

HDMI

SPDIF

Audio out

Headphone

MSD8590QV-XZ

ANALOG INPUT

USB

HDMI

NETWORK

DC/DC

DDR

DDR

7.1.3 SSB Cell Layout

Circuit Descriptions

Figure 7-1 SSB layout cells (top view) (6600 series)

2015-Oct-23

back to

div.table

7.2 Power Supply

Platform

MSD8590QV

AUDIO

AMP

LVDS

24V 12V

CN701

AC IN

DIM

BL-ON/OFF

12V

AC input +

Main filter

Display Power

Platfor m p ow er

PFC

Lower Stby
Power

CN8101

1 power-PCB

PS_ON

19980_201.eps

Refer to figures Figure 7-2 for the power architecture of this
platform.

Circuit Descriptions

EN 19TPS15.3A LA 7.

7.2.1 Power Supply Unit

All power supplies are a black box for Service. When defective,
a new board must be ordered and defective one must be
returned, unless the main fuse of the board is broken. Always
replace a defective fuse with one with the correct
specifications. This part is available in the regular market.
Consult the Philips Service web portal for the order codes of the
boards.

Important delta’s with the TPS15.3A LA classis platform are:

• New power architecture for LED backlight

• “Boost” signal is now a PWM-signal + continuous variable.

The control signals are:

• Stand-by

• Lamp “on/off”

• DIM (PWM) (not for PSDL)

In this manual, no detailed information is available because of
design protection issues.

The output voltages to the chassis are:

• +3.65V output (standby mode)

• +12V output (on-mode)

• +3.65V output (on-mode)

• +12V_audio (audio AMP power)

• Output to the display; in case of

- IPB: High voltage to the LCD panel

- PSL and PSLS (LED-driver outputs)

- PSDL (high frequent) AC-current.

7.2.2 Diversity

The diversity in power supply units is mainly determined by the
diversity in displays.

The following displays can be distinguished:

Figure 7-2 Power Architecture (6600 series)

• CCFL/EEFL backlight: power board is conventional IPB

• LED backlight:

- side-view LED without scanning: PSL power board

- side-view LED with scanning: PSLS power board

- direct-view LED without 2D-dimming: PSL power board

- direct-view LED with 2D-dimming: PSDL power board.

PSL stands for Power Supply with integrated LED-drivers.
PSLS stands for a Power Supply with integrated LED-drivers
with added Scanning functionality (added microcontroller).
PSDL stands for a Power Supply for Direct-view LED backlight

with 2D-dimming.

7.2.3 Connector overview

Table 7-1 Connector overview

no. CN8101 CN9101
Descr. to panel to SSB
Pin 12 16

1 +VLED DIM
2 n.c. BL_ON/OFF
3 -VLED 1 PS_ON
4-VLED 1 3D_ON
5-VLED 1 GND
6n.c. GND
7n.c. GND
8-VLED 2 GND
9 -VLED 2 +12V_A
10 -VLED 2 +12V_A
11 n.c. +12V
12 +VLED +12V
13 - +12V
14 - +12V
15 - +3.5V
16 - +3.5V

back to

div.table

Connector
49" & 55"

2015-Oct-23

EN 20 TPS15.3A LA7.

12V

12V

GND

16

15

14

U702 AZ1117D

VCC_1V2_CPU

Max. 6A

Max. 6A

VCC_1V2

U704 G5196R41D

DDR_1V5

U707 AT1528P11U

Max. 2A

U705 G5196R41D

4

24V

Power Board Input : +5VSB, P12V, P24V

10

3

POWER

BOARD

5

GND

Q705 AO4449-7A

12V

VCC_5V

Function

GND

7

5.2V

24V

5.2V

PWR_ON

12V

12

6

2D_3D *
DIM

11

1
2

13

Pin

8

+5VSB

GND

9

BL_ON_OFF

U701 AP1117E33L-13-77

Max. 1A

3V3_STB

VCC_1V8

U706 AP1117E18G-13

Max. 0.6A

TU_3V3

VCC_3V3

Max. 1A

USB_5V

P24V

Q403 AO4449-7A

U703 G5312QN1UP12V

PANEL LVDS Power

Audio Amplifier

Max. 6A

U708 AZ1117D

Max. 1A

U709 AP1117E33L-13-77

Max. 1A

19980_202.eps

Circuit Descriptions

7.3 DC/DC Converters

The on-board DC/DC converters deliver the following voltages
(depending on set execution):

• +5VSB, permanent voltage for the Stand-by controller

• 3V3_STB, power supply for LED/IR receiver and Keyboard

• +12V, input from the power supply for the panel common
(active mode)

• P24V, input from the power supply for the amplifier

• DDR_1V5, supply voltage for DDR

• 5V_USB input supply voltage for WIFI

• +TU_3V3, supply voltage for tuner

• USB_5V, input intermediate supply voltage for USB Power

• 3V3_STB from the power supply for the scaler IC
MSD8590QV

Figures gives a graphical representation of the DC/DC
converters with its current consumptions:

Figure 7-3 DC/DC converters [1] (6600 series)

2015-Oct-23

back to

div.table

Circuit Descriptions

U403 H5 TQ4G63AFR- RDC For DDR I II

U709 AP1117E33L-13-77

T_I2C

U706 AP1117E18G-13

U603 YSS952 Fo r Karaoke DSP

For MSD8590QV

VCC_1V8

U401 MSD8590QV

For USB Por t

USB_5V

U601 AD83586

PANEL LED Driver

+5VSB

PANEL VB1 Pow er

P24V

Q403 AO4449-7A

AMP_24V

P12V

Main Board Power System

For Audio Amplifier

Panel

For Audio Amplifier

U601 AD83586

For Res et IC

U701 AP1117E33L-13-77

U406 G690H293T73

3V3_STB

VCC_1V2_CPU

U705 G5196R41D For MSD8590QV CPUU401 MSD8590QV

For MSD8590QVU401 MSD8590QV

For Audio ADCU602 WM8782SEDS/RV

TU101 TDSH-T070F

TU_3V3

For TUNER 3.3V

U708 AZ1117D

VCC_3V3

U702 AZ1117D

For NAND FlashU407 THGBMBG6D1KBAIL

U703 G5312QN1U

+5VSB

For SPI Flash

U405 MX25L1606EM2I-12G

Q705 AO4449-7A

VCC_5V

U401 MSD8590QV

VCC_1V2

For MSD8590QV CoreU704 G5196R41D

U504 STMPS2171STR

For MHL Pow er

Kala OK DSP
YSS952

Audio Amp
AD83586

M_I2C

Tuner
TDSH-T070F

LED Control IC
PCA9634PW

MSD8590QV

U401 MSD8590QV

For MSD8590QV

U601 AD83586

For Audio Amplifier

U603 YSS952 Fo r Karaoke DSP

U604 WM8524CGEDT/R For Audio DAC

U402 H5TQ4G63AFR-RDC

DDR_1V 5

For DDR III

U707 AT1528P11U U401 MSD8590QV For MSD8590QV

19980_203.eps

MSD8590QV

I2C

I2C

IF_AGC

IF

IF_AGC

TDSH-T070F

SAWless with ATV mode

19980_204.eps

MSD8590QV

I2C

I2C

IF_AGC

IF

IF_AGC

TDSH-T070F

SAWless with DTV mode

19980_205.eps

EN 21TPS15.3A LA 7.

7.4 Front- End Analogue ATV reception and DVB-T reception

7.4.1 Front-End Analogue Part

The Front-End for the analogue tuner consist of the following
key components:

• SCALER MSD8590QV-XZ HSBGA-707

• TUNER - TDSH-T070F

Below find a block diagram of the front-end application for
analogue part.

Figure 7-5 Front-End analogue block diagram

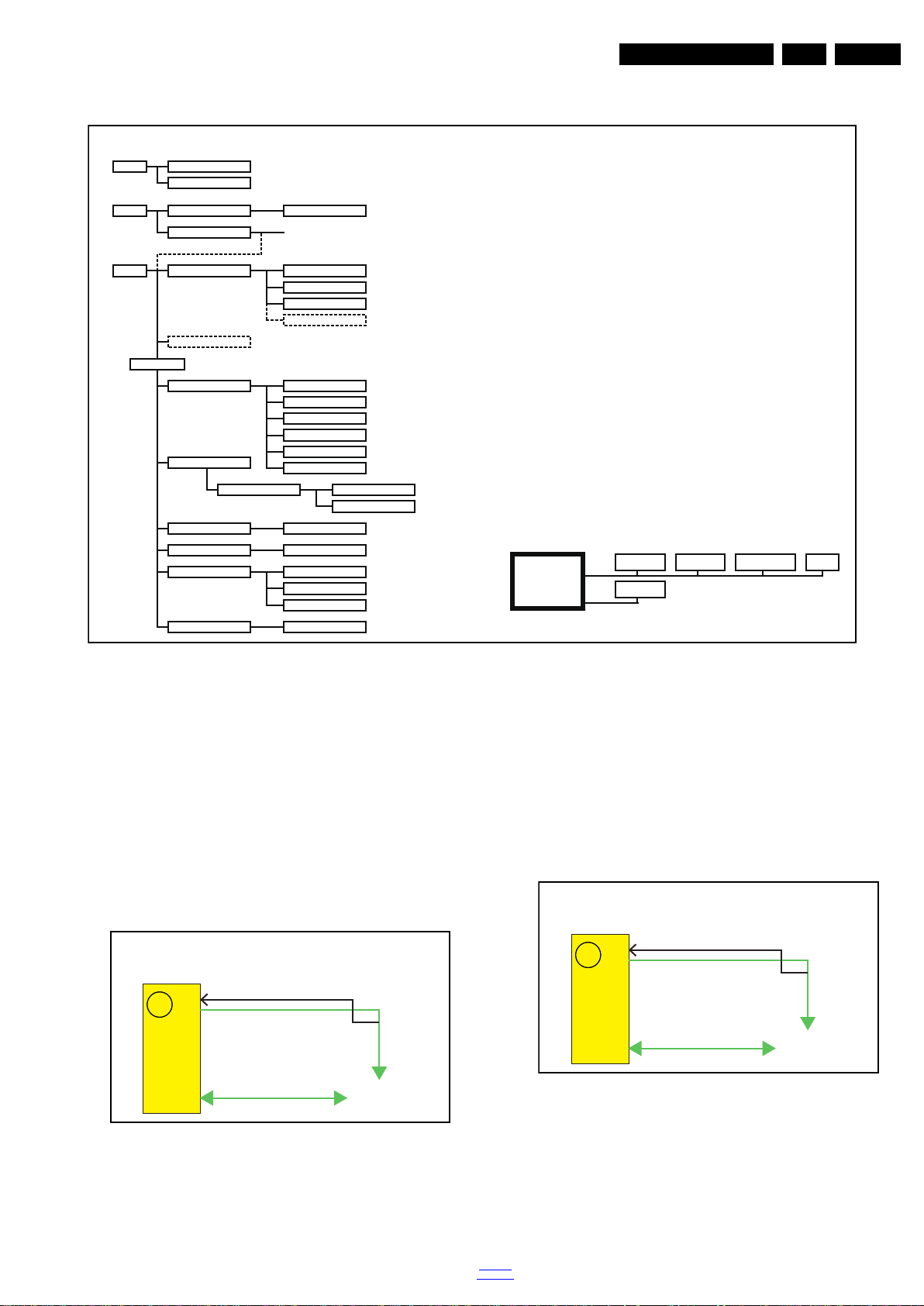

Figure 7-4 DC/DC converters [2] (6600 series)

7.4.2 Front-End DVB-T reception DTV Part

The Front-End for DVB-T DTV part consist of the following key
components:

• SCALER MSD8590QV-XZ HSBGA-707

• TUNER - TDSH-T070F

Below find a block diagram of the front-end application for DTV
part.

back to

div.table

Figure 7-6 Front-End DVB-T DTV block diagram

2015-Oct-23

EN 22 TPS15.3A LA7.

Circuit Descriptions

7.5 HDMI

Refer to figures 7-7 HDMI input configuration for the
application.

MSD8590QV

RX

I2C

RX

CN501
HDMI1

Figure 7-7 HDMI input configuration

The HDMI connector has the following specifications:

• +5V detection mechanism

• Stable clock detection mechanism

• Integrated EDID

• HPD control

• Sync detection

• TMDS output control

CN507

HDMI SIDE

RX

I2C

HDMI SIDE

I2C

CN506

19980_206.eps

7.6 Video and Audio Processing - MSD8590QV

The MSD8590QV is the main audio and video processor (or
System-on-Chip) for this platform. It has the following features:

• High performance Multi-core CPU and GPU

• DVB-T/ DVB-C Front-End Demodulator

• Built-in Frame Rate Converter

• 3D Formatter Engine

• A Multi-Standard A/V Format Decoder

• The MACE-PROUC Video Processor

• Home Theater Sound Processor

• Internet and Variety of Connectivity Support

• Peripheral and Power Management

The MSD8590QV combines front-end video processing
functions, such as NTSC/PAL/SECAM Video Decoder.
MSD8590QV is a Powerful ARM-based Smart TV solution that
supports dual 8/10bit LVDS output, channel decoding, MPEG
decoding, 3D formatter, and media-center functionality
enabled by a high performance AV CODEC and CPU. The
MSD8590QV hosts the most advanced picture processing
engine, MStarACE-PROUC, for all the Experts in various TV
video quality tuning fields to develop the state-of-the-art TV and
DTV system. By the use of AV decoder capable of decoding a
plethora of high definition content with Ethernet, USB 2.0
connectivity and a powerful CPU, an MSD8590QV based
system can provide a high quality media-center experience.

2015-Oct-23

back to

div.table

8. IC Data Sheets

19980_300.eps

Block diagram

Pinning information

1

MCLK

2

3

VREFGND

4
5

VREFP

6
7

AVDD

8

AINR

9

AGND

10

AINOPR

AINOPL
COM

AINL

M/S

BCLK

FSAMPEN

IWL

LRCLK

DGND

DOUT

DVDD

VMID

FORMAT

11

12

13

14

15

16

17

20
19
18

WM8782

WM8782

This chapter shows the internal block diagrams and pin
configurations of ICs that are drawn as “black boxes” in the
electrical diagrams (with the exception of “memory” and “logic”
ICs).

8.1 Diagram 10-2-9 Karaoke/MIC In/Audio Output B09, WM8782SEDS/RV (IC U602)

IC Data Sheets

EN 23TPS15.3A LA 8.

Figure 8-1 Internal block diagram and pin configuration

back to

div.table

2015-Oct-23

EN 24 TPS15.3A LA8.

19980_301.eps

Block diagram

Pinning information

32

31

30

29

28

27

26

9

10

11

12

13

14

15

16

18

19

20

21

22

23

24

8

7

6

5

4

3

2

1

YSS952

(QFN32)

(Top View)

25

17 OPEN

DVSS

GPIO11

GPIO10

GPIO9
GPIO8

OPEN

GPIO0

GPIO1

GPIO7

GPIO6

GPIO5

GPIO4

GPIO3

GPIO2

IOVDD

XOUT
XIN

PLLVDD

IC_N

SDA
SCL

IOVDD

DVDD18

DVDD18

DVSS

PLLVSS

IRQ_N

TESTb

PLLVSS

DVSS

DVSS

YSS952

IC Data Sheets

8.2 Diagram 10-2-9 Karaoke/MIC In/Audio Output B09, YSS952 (IC U603)

2015-Oct-23

back to

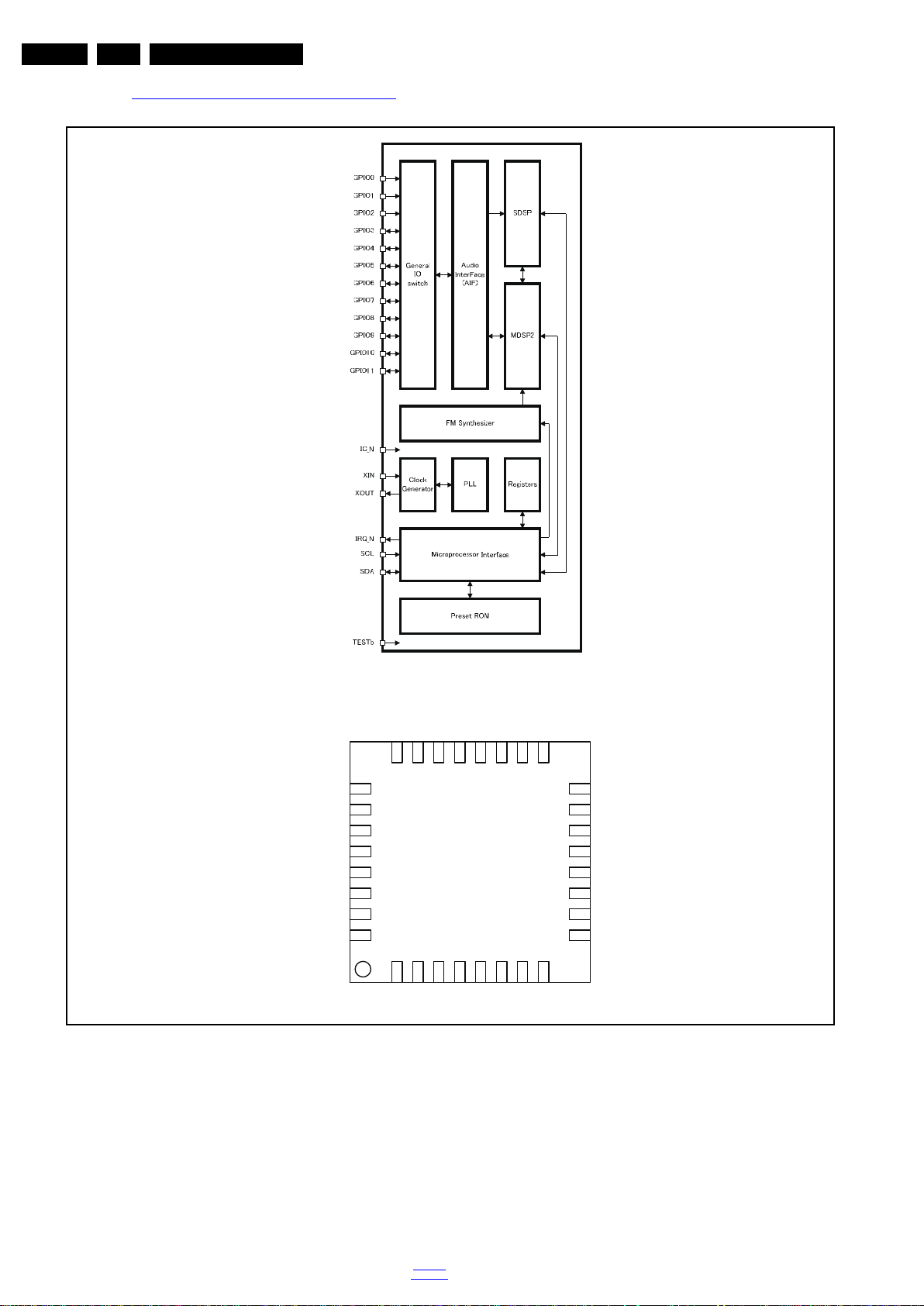

Figure 8-2 Internal block diagram and pin configuration

div.table

8.3 Diagram 10-2-9 Karaoke/MIC In/Audio Output B09, WM8524CGEDT/R (IC U604)

19980_302.eps

Block diagram

Pinning information

WM8524

WM8524

IC Data Sheets

EN 25TPS15.3A LA 8.

Figure 8-3 Internal block diagram and pin configuration

back to

div.table

2015-Oct-23

EN 26 TPS15.3A LA8.

19980_303.eps

Block diagram

Pinning information

1

AGND

LX

V+

2

3

4

5
6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

ILIM

AGND

V5V

PGND

LX
LX
LX
LX

PGND

PGND

LX

LX

PGND

PGND

PGND

PGND

V+
V+
V+
V+

OUT

TON

FB

VCC

EN

BST

PGOOD

NC

1

AGND

LX

V+

2

3

4

5
6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

ILIM

AGND

V5V

PGND

LX
LX
LX
LX

PGND

PGND

LX

LX

PGND

PGND

PGND

PGND

V+
V+
V+
V+

OUT

TON

FB

VCC

EN

BST

PGOOD

NC

G5312QN1U

G5312QN1U

PWM

controller

0.75V

Reference

PGOOD

BST

LX

PGND

TON
OUT

FB

EN

ILIM

AGND

OCP

POR

On-Time

Off-Time

DISCHG

VCC

OT

OVP

UVP

KV+

5V

LDO

V5V

V+

V5V

V+

DH

DL

Q1

Q2

PWM

controller

0.75V

Reference

PGOOD

BST

LX

PGND

TON
OUT

FB

EN

ILIM

AGND

OCP

POR

On-Time

Off-Time

DISCHG

VCC

OT

OVP

UVP

KV+

5V

LDO

V5V

V+

V5V

V+

DH

DL

Q1

Q2

IC Data Sheets

8.4 Diagram 10-2-12 Power B12, G5312QN1U (IC U703)

2015-Oct-23

Figure 8-4 Internal block diagram and pin configuration

back to

div.table

9. Block Diagrams

19980_400.eps

RJ-45

VB1

USB 2.0 Port3

LCD PANEL

R/L

USB 2.0

RF Module

USB 2.0

USB 2.0 Port2

USB 2.0 Port1

R/L

WiFi Module

VIDEO & YPbPr AUDIO IN

USB 2.0 Port0

VGA AUDIO IN

DDR III x 2
(4G 1866MHz)
H5TQ4G63AFR-RDC

RESET IC
G690H293T73

YPbPr

Hsync, Vsync

VIDEO

CVBS (Share with YPbPr Y)

VGA

RGB

YPbPr

HDMI 1 / DVI

HDMI 2 / MHL

TMDS

TMDS

TMDS

HDMI 3 (ARC)

R/L

Audio Amplifier
AD83586

SPEAKER OUTPUT

I2S

NOR FLASH ROM
MX25L1606EM2I-12G

NAND FLASH ROM
THGBMBG6D1KBAIL

MIC

IEC958

SPDIF Output

I2S

Karaoke DSP
YSS952

R/L

Audio DAC
WM8524CGEDT/R

Audio Lineout

Audio ADC
WM8782SEDS/RV

I2SR/L

Tuner
TDSH-T070F

MSD8590QV

VIF

9.1 Block diagram 6600 series

Block Diagrams

EN 27TPS15.3A LA 9.

2015-Oct-23

back to

div.table

Circuit Diagrams and PWB Layouts

19980_500.eps

AC Input

A01 A01

2015-08-04

715G6973

AC Input

CN9901
NC/CONN

1
2

CN9902
AC SOKET

12

F9901

1 2
3 4

RV9901
680V

FB9902
BEAD

12

FB9901
BEAD

12

C9901

470NF 275V

C9902

470NF 275V

L9901
12mH

1

2

4

3

R-

-

+

BD9901
GBJ1008-FUC

2

1

3

4

BO

C9911
47pF 250V

N

Vsin

C9916

1NF 250V

U9901

NC/CAP004DG-TL

NC

1

D12D1

3

NC

4

NC5D26D27NC

8

C9907
NC/47PF

R9901
NC/ 510k 1/ 2W

R9902
NC/ 510k 1/ 2W

GND4
NC/GND

1

CN9903
NC / CONN

L1N

2

GND2
NC/GND

1

GND1
GND

1

T5AH/250V

NC

NC

C9913

220PF 250V

FB9903
BEAD

1 2

C9912
47pF 250V

t

NR9903
1R

12

C9914

220PF 250V

t

NR9902
1R

1 2

L9902
12mH

1

2

4

3

SG9901
NC/DSPL-501N-A21F

SG9902

NC/DSPL-501N-A21F

F9902

R9903
680K OHM +-1% 1/4W

R9904
680K OHM +-1% 1/4W

R9905
680K OHM +-1% 1/4W

F9903

R9906
680K OHM +-1% 1/4W

R9907
680K OHM +-1% 1/4W

R9908
680K OHM +-1% 1/4W

t

NR9901
1R

12

HS9901
HEAT SINK

1
2

3

4

10. Circuit Diagrams and PWB Layouts

10.1 A 715G6973 PSU

10-1-1 AC Input

EN 28TPS15.3A LA 10.

2015-Oct-23

back to

div.table

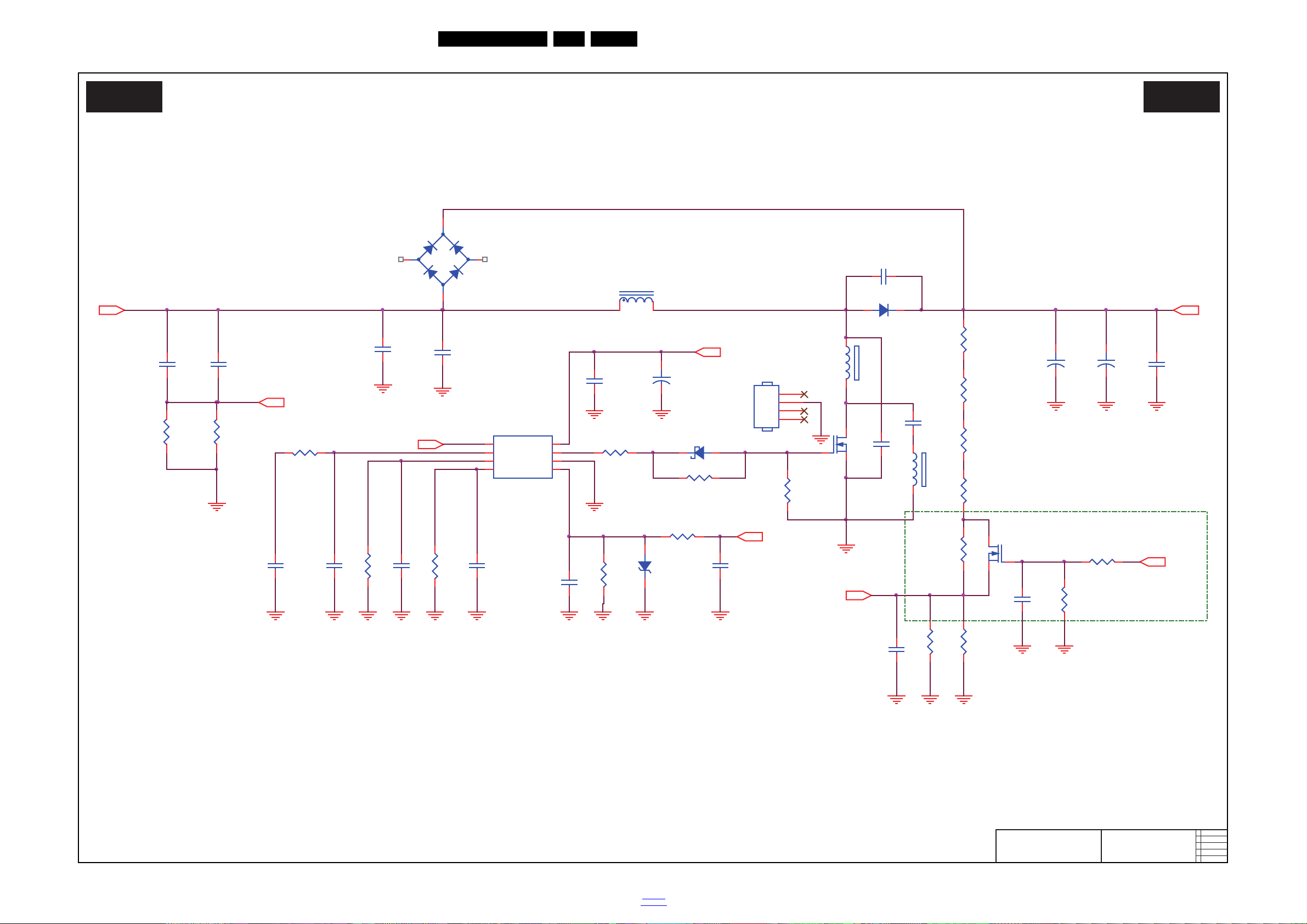

10-1-2 PFC

19980_501.eps

PFC

A02 A02

2015-08-04

715G6973

PFC

-

+

BD9801
KBP208G-C

2

1

3

4

Q9801

TK18A60V

R9816
10K 1/8W 1%

C9815

NC/47PF

D9802
SS1060

12

R9815
75 OHM 1/8W

C9813

3.3nF 50V

R9813

NC / 24K 1/ 8W 1%

ZD9801

BZT52-B3V6

12

R9817
10K 1/8W 1%

R9812
47R 1%

C9812
47PF 50V

HS9801
HEAT SINK

1
2

3

4

R-

+VCC2

+

C9810
10UF 50V

C9811
100N 50V

C9805

1NF 50V

R9808

16K +-1% 1/8W

R9807
470K 1%

C9807

0.47uF 50V

R9809
27K 1/8W 1%

C9806

1uF

R9810

22K 1/8W 1%

C9808

10N 50V

C9819
470PF

R9811

33K 1/8W 1%

C9809

10N 50V

R9818

100K 1/8W 1%

FB9801

BEAD

12

C9818
NC/47PF

C9817

100N 50V

FB9904
NC/BEAD

12

C9820
1NF

L9801
220uH

6

4

C9816
1NF

C9814
47PF

For Power Saving

D9801
FMNS-1106S

+

C9801

68uF 450V

+

C9802

68uF 450V

Vbus

R9803
1MOHM +-1% 1/4W

R9805
680K OHM +-1% 1/4W

R9806
100K 1%

R9804
680K OHM +-1% 1/4W

FB_PFC

FB_PFC

+VCC2

U9801
SSC-2005S

FB

1

COMP

2

RT

3

RDLY4CS

5

GND

6

OUT

7

VCC

8

R9819

NC/0R05

Q9802

AO3160

R9814

10R 1/ 8W 5%

Vsin

C9803
1uF 450V

C9804
1uF 450V

R-

R9801

0.1R 3W

R9802

0.1R 3W

Circuit Diagrams and PWB Layouts

EN 29TPS15.3A LA 10.

2015-Oct-23

back to

div.table

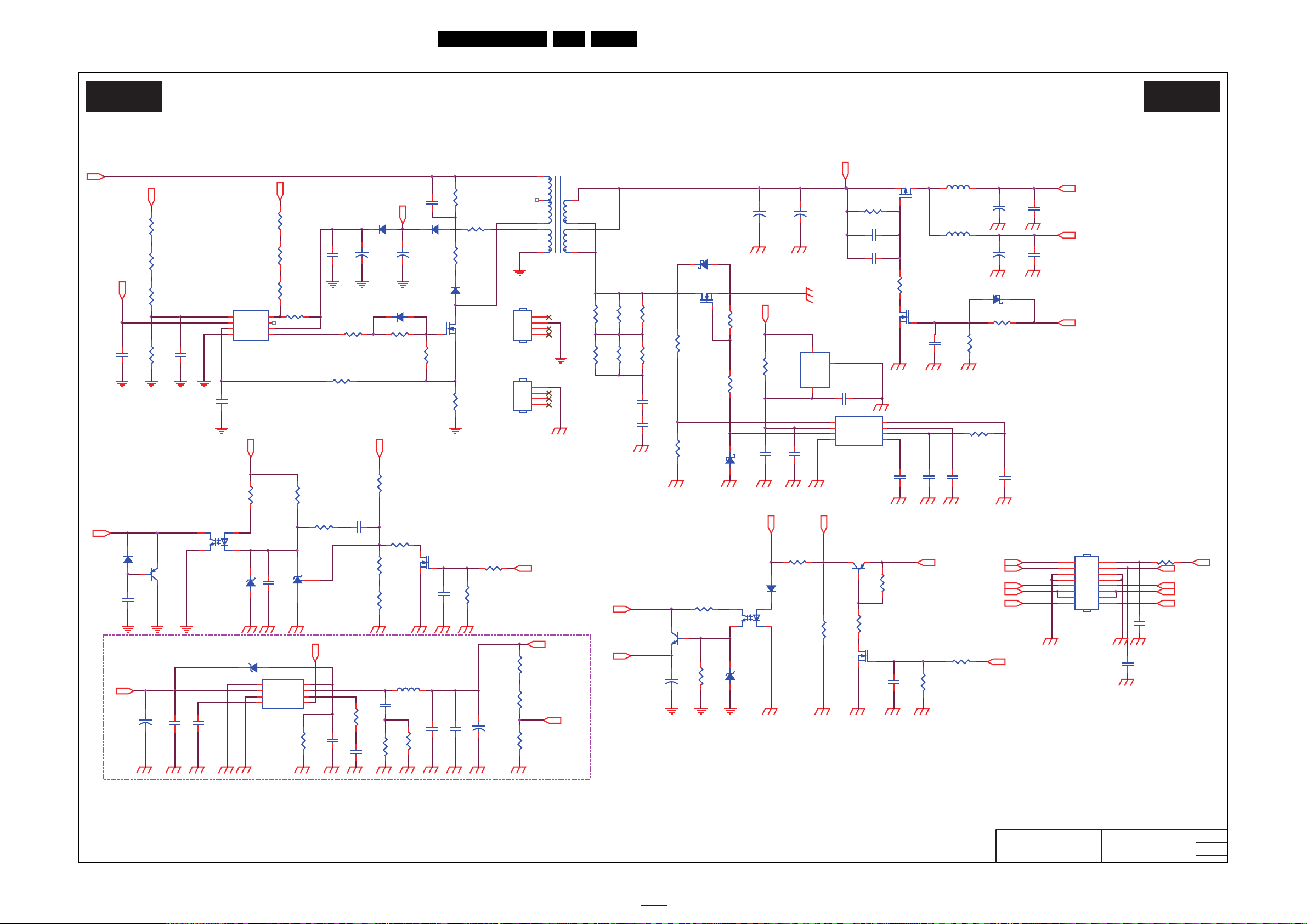

10-1-3 Main power

19930_502.eps

Main power

A03 A03

2015-05-12

715G6973

Main power

C9303

NC/0.1uF 50V

NC

R9122

1K5 +-1% 1/8W

R9109

10K 1/8W 1%

R9146
0R05

12VS

R9123

4.7K 1/8W

C9118

1uF

U9103
AS431AN-E1

+VCC1

R9131

3K

D9108
1N4148

Q9106
BTC4672M3

C9304

NC/ 1nF 50V

+

C9121
10UF 50V

R9301

NC/3K 1/8W +/-1%

R9124
1K 1/8W 1%

+

C9132

10UF 50V

+3.5V

C9119
220N 50V

C9106

2.2NF

L9301
NC/47uH

+VCC2

+12V

R9126

2K2 1/8W 1%

R9127

160R 1%

Q9109

NC/MMBT3906

12VS

R9132

100KOHM +-1% 1/4W

+12V_A

R9125

9K1 1/8W 1%

R9150
22R 5%

DV5

D9107

NC/1N4148W

12VS

R9128

NC/6.2K 1%

Q9105
NC/2N7002K

Q9102
AOTF298L

ZD9105
BZT52-B15

1 2

Vbus

C9120

NC/0.1uF 50V

U9105

SP6018ES8RGB

Timing

1

Pred

2

VR

3

Adj

4

GND

5

MOSG-C

6

Vdd

7

SYNC

8

R9129
NC/ 10K OH M +-5% 1/8W

R9130

NC/330K 1/8W 5%

C9130

NC/4.7NF 50V

U9106
NC/AS78L12RTR-G1

IN

3

OUT

1

GND

2

D9104
SK510C

12

DV5

C9133
10N 50V

+

C9109

1500UF 35V

+

C9110

1500UF 35V

+

C9105

100UF 50V

R9111
82K 2W

R9302

NC/ 20K 1/ 8W 1%

C9305

NC/ 2. 2nF 50V

FB_SB

C9306
NC/ 2. 2nF 50V

D9106

1N4148W

R9133
2K 1/8W 1%

R9303

NC/30 OHM 1/ 4W

R9304

NC/30 OHM 1/ 4W

R9134

10K 1/8W 1%

D9103
SARS01-V1

BO BO

Q9107
MMBT3906

R9135
10K 1/8W 1%

R9136
10K 1/8W 1%

R9118

NC/100K 1/ 8W 1%

D9101
1N4148W

R9142

10ohm +/-1% 1/8W

Q9103
NC/AOD4185

Q9108
2N7002K

R9106
82 OHM

T9101
POWER X'FMR

1

2

4

5

6

7

8

10

11

C9307

NC/1uF

C9308

NC/1uF

+

C9309

NC/ 470U F 25V

C9122

0.1uF 50V

R9105

10ohm +/-1% 1/8W

C9112
NC/1uF

C9111
NC/1uF

R9137
100 OHM 1/4W

R9138

510K 1% 1/8W

PS_ON

R9101

0R22

12VS

R9305
NC/ 11K 1/ 8W 1%

DV5LED_OVP

R9306
NC/0R051/8W

Q9104
NC/2N7002K

R9107
1Kohm +-1% 1/4W

R9307
NC/3K 1/8W +/-1%

R9119
NC/ 100K 1/ 8W 1%

R9112

27 OHM

R9113

27 OHM

R9114

27 OHM

R9115

27 OHM

C9103
330P 50V

R9116

27 OHM

R9117

27 OHM

C9117

NC/0.1uF 50V

C9104

0.1uF 50V

R9121

NC/ 510K 1% 1/ 8W

U9301

NC/AOZ3015AI

PGND

1

VIN

2

AGND

3

VCC4FB

5

COMP

6

LX

7

EN

8

R9120

NC/ 100 OH M 1%

ZD9103
NC/SS1060

1 2

+3.5V

C9107

2N2 50V

R9110

2R2 +-5% 1/4W

R9139

8.2K 1/4W

R9140

5K1 1/8W 1%

U9101
LD5532

BNO

1

COMP

2

CS

3

GND4OUT

5

VCC

6

NC

7

NC

8

+12V

HS9101
HEAT SINK

1
2

3

4

D9102

FR107G-A0

+12V_A

PS_ON

HS9102
HEAT SINK

1
2

3

4

+3.5V

C9114

1uF

C9116

1uF

Q9101
TK11A65D

FB_SB

DIMBL_ON/OFF

3D_ON

R9141

5K1 1/8W 1%

R9145
0R05 1/4W

CN9101
CONN

2
4
6

8

10
12
14
16

1

3

5
7
9
11
13
15

R9143

4R7 1/4W 5%

C9108

2N2 50V

L9101
3UH

L9102
3UH

C9124

1uF

C9123

1uF

+

C9113

470UF 25V

+

C9115

470UF 25V

U9102
EL817M(X)

1

23

4

C9102

1000pF 50V

D9105

SS1060

1 2

C9101

4N7 50V

C9125

NC/ 47P 50V

12VS

FB_12V

FB_12V

C9126

0.1uF 50V

+

C9301

NC/470uF 25V

C9127

100PF 50V

12VS

C9128

0.1uF 50V

R9144
47K +-1% 1/4W

+12V

+12V_A

R9104

100K 1/8W 1%

ZD9301
NC/BZT52-B4V7

12

+VCC1

C9131
NC/ 100N 50V

U9104
EL817M(X)

1

23

4

C9302

NC/1uF

C9129
1NF 500V

R9147
330K +-1% 1/4W

R9149

330K +-1% 1/4W

ZD9104

BZT52-B15

1 2

R9148

330K +-1% 1/4W

R9103

3.3M 1/ 4W

R9102

3.3M 1/ 4W

R9108

3.3M 1/ 4W

Circuit Diagrams and PWB Layouts

EN 30TPS15.3A LA 10.

2015-Oct-23

back to

div.table

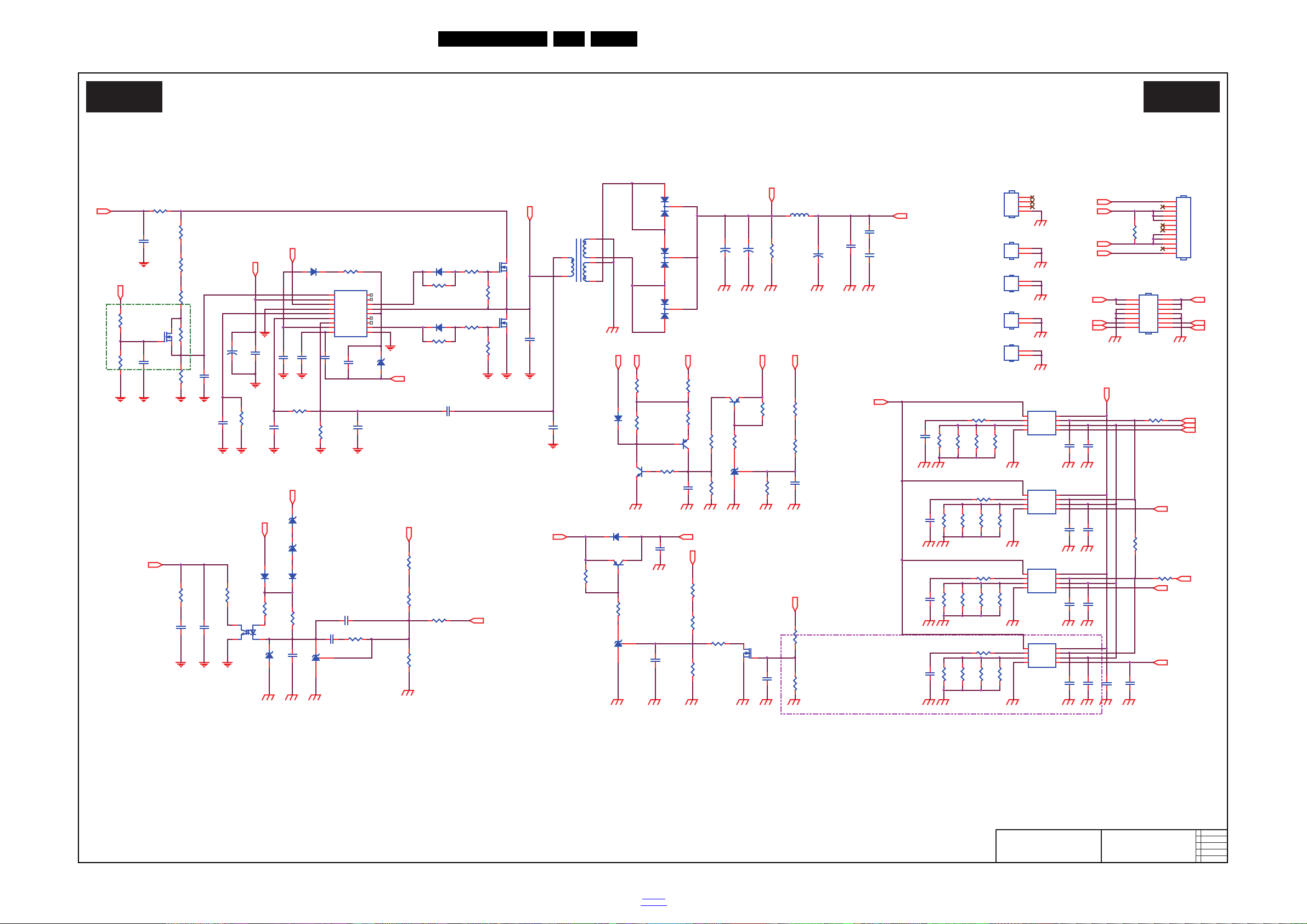

10-1-4 LED Driver

19980_503.eps

LED Driver

A04 A04

2015-08-04

715G6973

LED Driver

+VLED

U8105
TPV101D

DIM

1

EN

2

VCC

3

LED

4

GND

5

ISET

6

GM

7

COMP

8

LED_OVP +12VDV5

U8106
TPV101D

DIM

1

EN

2

VCC

3

LED

4

GND

5

ISET

6

GM

7

COMP

8

D8108

SS1060FL

+VCC2

Q8103
MMBT3904

R8141

1.5R
R8142

1.5R

R8126
0 OHM +-5% 1/8W

R8124
100KOHM +-1% 1/4W

R8129

NC / 0 OH M +-5% 1/ 8W

HS8101
HEAT SINK

1
2

3

4

R8127
2K 1/8W 1%

R8130

1K 1/8W 1%

R8146

1.5R

R8128

1K 1/8W 1%

R8145

1.5R

-VLED1

C8105

0.47UF 50V

Q8104

MMBT3906

R8106

NC

R8151
0 OHM +-5% 1/8W

C8136

1uF

+VCC2

R8107

470R 1/8W 1%

C8106
560PF 50V

R8108
240R 1%

-VLED1

-VLED2

-VLED1

-VLED2

C8107
1nF 50V

C8110

1uF

C8125

0.1uF 50V

C8111

47P 50V

+12V

R8159

5K1 1/8W 1%

Q8105
MMBT3906

R8152
0 OHM +-5% 1/8W

R8147

NC/1R1 1%

C8137

1uF

R8148

NC/1R 1%

R8131

1K 1/8W 1%

+12V

R8132
5K1 1/8W 1%

U8104
AS431AN-E1

TPV101_VCC

3D_ON

R8160

62K 1/8W 1%

R8133

30K 1/8W 1%

DIM

R8134

4.3K OHM 1%

C8126

0.1uF 50V

BL_ON/OFF

C8133

1uF

C8112

5PF

VLED1

C8109
27NF

VLED1

HS8102
HEAT SINK

1
2

HS8103
HEAT SINK

1
2

ZD8101

BZT52-B15

1 2

D8106

SS1060FL

+12V

VS

D8107

SS1060FL

R8119

1K5 +-1% 1/8W

ZD8103

BZT52-B13

1 2

VLED1

R8149

NC/1.5R

R8150

NC/1.5R

R8153
0 OHM +-5% 1/8W

U8107
TPV101D

DIM

1

EN

2

VCC

3

LED

4

GND

5

ISET

6

GM

7

COMP

8

C8132

1uF

C8131

0.1uF 50V

C8138

1uF

R8154
NC/0 OHM +-5% 1/8W

U8108
NC/TPV101D

DIM

1

EN

2

VCC

3

LED

4

GND

5

ISET

6

GM

7

COMP

8

R8163

100K 1/8W 1%

C8135

NC/1uF

C8113

100PF1KV

C8134

NC/0.1uF 50V

D8101
UF4007

R8164

1K 1/8W 1%

R8109
10ohm +/-1% 1/8W

C8139

NC/1uF

FB_LED

C8141

100PF 50V

D8102
SS1060FL

D8103

SS1060FL

R8110
10ohm +/-1% 1/8W

R8113
10ohm +/-1% 1/8W

ZD8104

BZT52-B30

1 2

R8111
47R 1%

R8114
47R 1%

R8112

10K 1/8W 1%

R8115

10K 1/8W 1%

U8103
AS431AN-E1

C8124

NC/0. 47U F 50V

FB_LED

FB_LLC

FB_LLC

R8120

NC/3K 1/8W 5%

VS

R8166

3K3 1/8W 1%

Q8107

LMBT3906LT1G

1

2 3

+12V

TPV101_VCC

R8165

510 OHM +-1% 1/8W

D8110

1N4148W

TPV101_VCC

U8109
AS431AN-E1

R8172
510K 1% 1/8W

Q8108

2N7002K

C8143

0.47UF 50V

R8171
1 MOHM +-1% 1/8W

C8108
100PF1KV

BL_ON/OFF

DIM

R8167

47K 1/8W 1%

R8155
10K 1/4W

R8168
47K 1/8W 1%

R8169
9K1 1/8W 1%

R8157
NC/10K 1/4W

T8101

POWER X'F MR

1

10

12

4

8

5

3D_ON

C8122
NC

C8145
1uF

R8170

39K 1/8W 1%

C8123

0.1uF 50V

C8127

0.1uF 50V

HS8105
NC/HEAT SINK

1
2

HS8104
HEAT SINK

1
2

C8128

1uF

R8125
470K +-5% 1/8W

CN9102
NC/CONN

2
4
6

8

10
12
14

1

3

5
7
9
11
13

C8101
1NF

Vbus

R8101

0.1R

C8144

2.2UF 25V

D8104
SFF1005G

1

2

3

D8105
SFF1005G

1

2

3

U8101
SSC9522S

Vsen

1

Vcc

2

FB

3

GND

4

Css

5

OC

6

RC

7

Reg

8

RV9COM

10

VGL

11

NC

12

NC

13

VB

14

VS

15

VGH

16

NC

17

NC

18

+VLED

C8129

0.1uF 50V

C8130

1uF

+VLED

Q8101

TK10A50D

+VLED

+VLED

Q8102

TK10A50D

+

C8116

220UF 100V

+

C8117

220UF 100V

R8103

1M5 1/4W 1%

R8104

1M5 1/4W 1%

R8102

1M5 1/4W 1%

R8135

1R1 1%

R8136

1.5R

R8139

1R1 1%

R8140

1.5R

R8118
75K

R8143

1R1 1%

R8144

1.5R

C8140

1NF 500V

D8109

NC/FMX-23S

1

2

3

R8161

NC/0R05

C8142

100N 50V

For Power Saving

Q8106

AO3160

R8162

10K 1/8W 1%

CN8101
CONN

1
2

3

4
5
6
7

8

9
10
11
12

L8101
3UH

R8105

18K 1/8W 1%

+

C8118

47UF 100V

C8102

0.1uF 50V

R8123
68K 1/8W 1%

ZD8102

BZT52-B13

1 2

NC

-VLED2

C8104

0.1uF 50V

R8158

0R05 1/4W

+

C8103

22UF 50V

C8119

1NF 500V

R8156

0 OHM +-5% 1/8W

C8120

0.1uF 50V

C8121

0.1uF 50V

VLED1

R8137

1.5R
R8138

1.5R

U8102
EL817M(X)

1

23

4

R8117

470R 1%

C8115

10N 50V

R8116

2K43 1/8W 1%

R8121

510K 1% 1/8W

R8122

300K 1/8W

VLED1

C8114

4.7uF 10V

Circuit Diagrams and PWB Layouts

EN 31TPS15.3A LA 10.

2015-Oct-23

back to

div.table

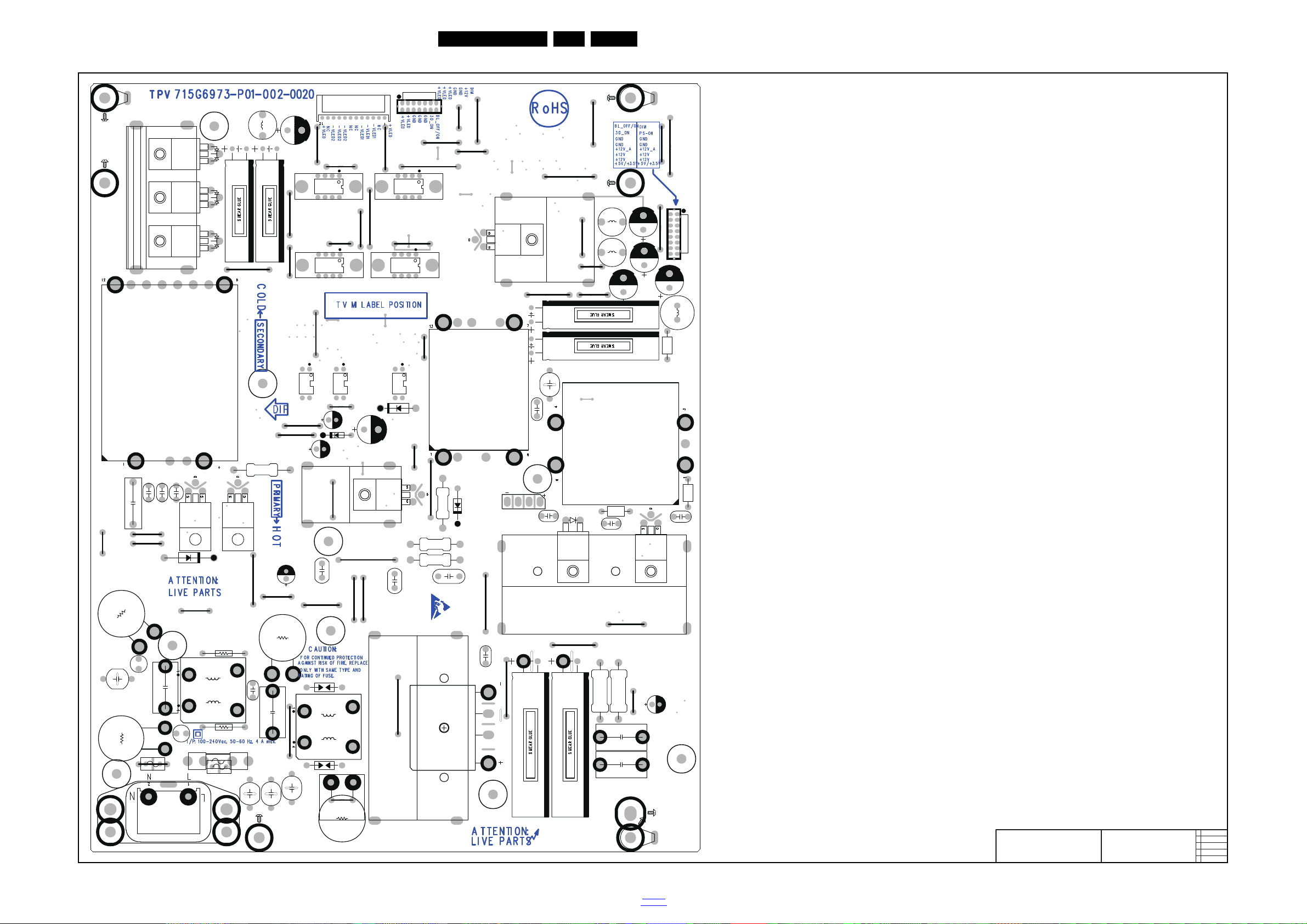

10-1-5 Power layout top

19820_548.eps

2014-12-02

715G6973

LAYOUT TOP

C9121

C8103

C9810

C9814

C9815

C9907

D9102

U8102

U9104

R9111

T8101

J9901

J9902

J9801

J9103

J9105

J9111

J9101

J8105

J8104

J9108

J9802

J8120

J9104

J9116

J9803

J9804

J8101

J9117

J9118

J8107

J9903

J8111

J9114

J9106

J9109

J9115

J9301

F9902

F9903

J9113

C9132

J9107

D9108

R9150

J8114

J8116

J8119

J8122

J8124

J8113

J9112

J9904

J9102

J8123

J8103

J8102

J8117

J8115

J8112

J8108

J8106

J8121

J9805

J9905

C9105

SU2

SU3

SU4

SU9

SU1

SU8

SU7

SU6

SU5

C9818

C9819

C9820

J8109

J9119

C9106

C9109

C9110

C9309

D9103

F9901

R9901

R9902

U9102

C9301

R9101

T9101

DR1

DR2

DE4

DR7

DR6DR5

DR8

DR3

C8112

C8108

C8118

C9113

C9115

C8101

C9802

C9801

C9816

C9803

C9804

C9901

C9902

C9913

CN8101

CN9901

CN9903

D9801

FB9901

FB9902

HS8102

HS8103

U8105

U8106

L8101

L9101

L9102

L9301

R9801

R9802

RV9901

SG9901

SG9902

D8105

D8104

HS8101

HS9901

BD9901

D8101

CN9102

GND1

GND2

GND4

C8116

C8117

MH7

MH2

MH4

MH3

MH1

MH6

MH5

CN9101

C9914

HS9801

HS9101

HS9102

HS8104

HS8105

U8107 U8108

C9916

D8109

NR9901

NR9902

NR9903

L9801

C8109

R8101

CN9902

FB9904

FB9903

BD9801

FB9801

C9911

C9912

C8113

L9901

L9902

Q8102 Q8101

Q9101

Q9102

Q9801

Circuit Diagrams and PWB Layouts

EN 32TPS15.3A LA 10.

2015-Oct-23

back to

div.table

Circuit Diagrams and PWB Layouts

19820_549.eps

2014-12-02

715G6973

LAYOUT BOTTOM

C8102

C8110

C8133

C8104

C8105

C8106

C8107

C8115

C8122

C8114

C8123

C8136

C8127 C8128

C8124

C8141

C8137

C8129 C8130

C8120

C8121

C8140

C8119

C8111

C8125

C8126

C9103

C9101

C9118

C9112

C9111

C9119

C9117

C9124

C9308

C9307

C9305

C9302

C9303

C9304

C9128

C9127

C9126

C9125

C9123

C9306

C9107

C9108

C9104

C9120

C9114

C9116

C9122

C9102

C9809

C9808

C9811

C9813

C9812

C9807

C9806

C9805

U9901

R8103 R8104

R8110

R8102

R8112

R8118

R8105

R8113

R8115

R8107

R8106

R8108

R8117

R8116

R8151

R8125

R8138

R8137

R8135

R8136

R8152

R8139

R8140

R8141

R8142

R8155

R8157

R8156

R8129

R8127

R8130

R8131

R8134

R9146

R9109

R9113

R9114

R9112

R9110

R9126

R9127

R9123

R9122

R9125

R9124

R9139

R9144

R9143

R9130

R9115

R9117

R9116

R9302

R9306

R9301

R9307

R9305

R9118

R9119

R9121

R9303

R9304

R9131

R9136

R9138

R9103R9102

R9108

R9815

R9803

R9814

R9816

R9804

R9808

R9805

R9812

R9813

R9810

R9809

R9811

R9806

R9807

R9908

R9905

R9904

R9907

R9903

R9906

SM9

R9132

R8114

SM12

SM13

U9105

U9801

U9301

R9104

R8111

R9106

JR9101

R8109

R8147

R8148

R8149

R8150

C8139

R8154

R8146

R8145

R8143

R8144

C8138

R8153

C8132C8131C8135C8134

R9140

R9142R9141

R8159

R8133

R8160

R9135

R9133

R9134

R9129

R9145

R8128

JR8101

R9137

JR9102

R8123

R8119

R8120

R8121

R8122

R8158

C8142

C9817

R8162

R8163

R9817

R9818

R8161

R9819

U9101

C9130

R8164

R9147 R9148

R9149

R9107

R9105

C9131

C9129

U8103

U8104

U9103

Q8106

Q9104

Q9105

Q9108

Q9802

R8165

R8166

R8168

R8169

R8172

C8143

C8144

C8145

Q8108

U8109

R8132

R8171

R8167

R8126

R8170

JR9103

JR9104

R9120

R9128

JR9105

R8124

JR8102

JR9106

C9133

SM2

U8101

Q9103

Q9106

Q8103

Q8104

Q8105

Q9107

Q9109

U9106

Q8107

D8102

D8103

D8106

D8107

D8108

D8110

D9101

D9105

D9106

D9107

D9802

ZD8101

ZD8102

ZD8103

ZD8104

ZD9103

ZD9104

ZD9105

ZD9301

ZD9801

D9104

EN 33TPS15.3A LA 10.

10-1-6 Power layout bottom

2015-Oct-23

back to

div.table

10.2 B 715G6546 SSB

19980_504.eps

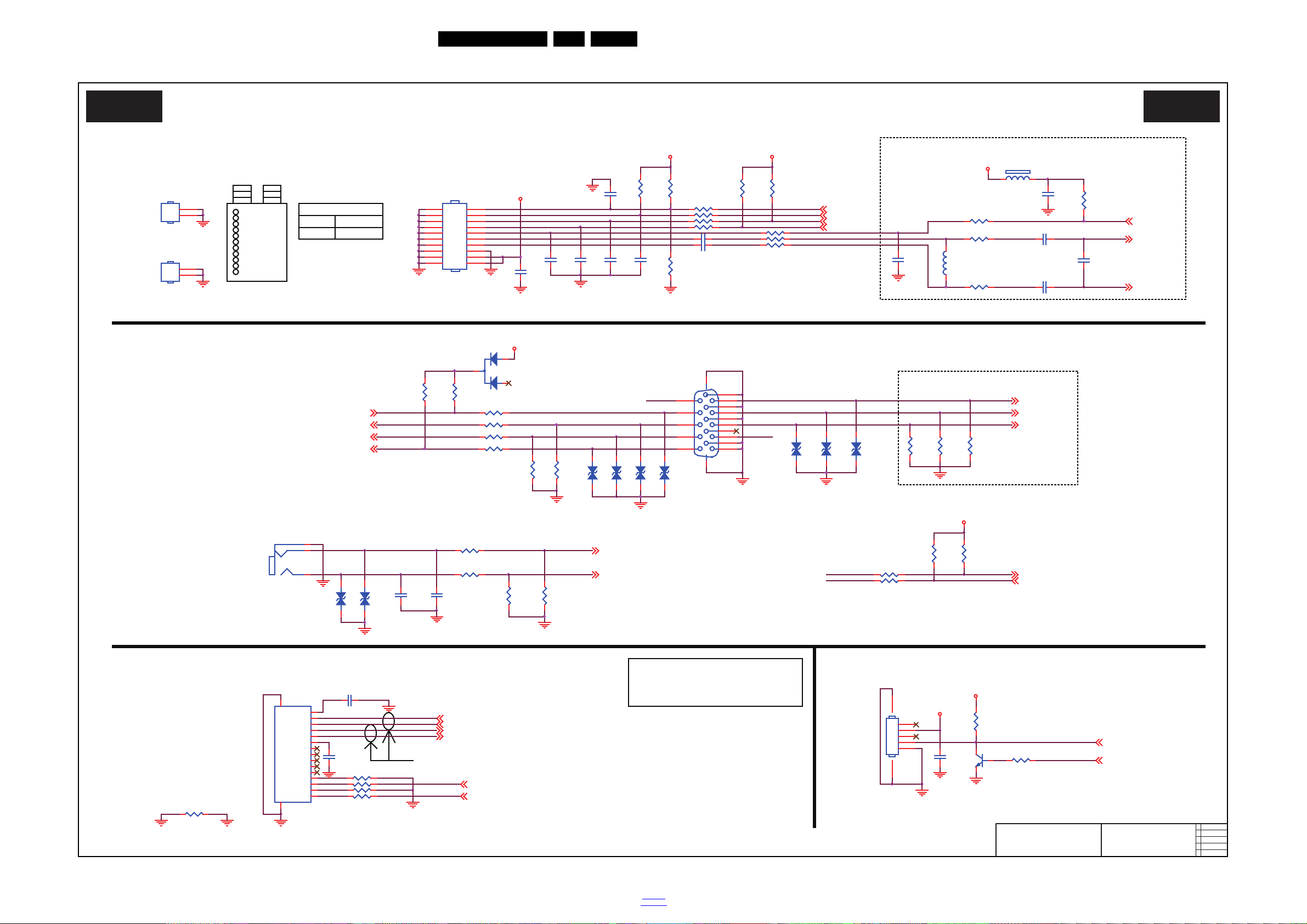

Tuner/VGA/Ethernet Inputs

B01 B01

2015-01-20

715G6546

Tuner/VGA/Ethernet Inputs

VGA_R 6
VGA_G 6

D101

BAT54CH

3

1

2

HS2

BKT_HOLDER

1

2

R117
10K

R138

470OHM1/16W

TU_3V3

R116
10K

VGA_B 6

LAN_LED1

LAN_LED0

C111
100N16V

+5VSB

R123
75R 1/16W 1%

T_RESET

R106 1K
R107 100OHM

TU_SEL
TU_RST

TU_SEL 7
TU_RST7

R137100OHM
R139100OHM

T_SDA

VGA_HSYNC6
VGA_VSYNC6

FB101

60R 0.6A

1 2

C106

10PF 50V

R140 0R05

N_GND

C107

22PF 50V

CN102

CONN

1
2

3

VGA_SCL

R110 100OHM

VGA_SDA

R108390R

For Hotel Mode

ZD106

NC/MLVG0402

12

ZD105

NC/MLVG0402

12

R133
12K 1/16W

ZD107

NC/MLVG0402

12

VGA_RX

R134
12K 1/16W

VGA_TX

VGA_RX

D_IFP 6

VGA_TX

D_IFM 6

ZD108

NC/MLVG0402

12

C115 100N16V

ZD104

NC/MLVG0402

12

ZD103

NC/MLVG0402

12

ZD102

NC/MLVG0402

12

R101
10K

R102
47K

VCC_3V3

RF Switch Control

Cable

space/trace/space/trace/space(mil)
12 / 8 / 5 / 8 / 12

LOW

2

Run As Differential Pairs

space/trace/space/trace/space(mil)
12 / 12 / 6 / 12 / 12

CN101

CONN

1
7
2

8
3

9
4
10
5

11
12
13
14
15

1716

6

LG Silicon Tuner
TDSH-T070F

VGA_G

DDCA_CK7

CABLE

VGA / DVI
Audio Input
(Back)

Power Consumption
MAX : 330mA

Male Type

3

HIGH

R122

75R 1/16W 1%

L101

NC/0.1UH

Ethernet
Input
(Back)

R115

100OHM

1

5
6

088G353GFF1AXH or
088G353GFF1ACL

I2C Address : 0xC0
Tuner IC : TDA18273

9

C110
NC/ 120pF 50V

Tuner Reset : Active LOW

MDI

LAN_LED0 7

Differential 100 +- 10 ohms
Common Mode 50 +- 5 ohms
MDI-T and MDI-R separate > 30mil

LAN_LED1 7

088G342GFB1AGN

R112 0R05 OHM

AIR

11

N_GND

7

1206

10

8

4

VGA Input
(Back)

3D Glasses Launch

Place close to U401

Air

X15T897320100000BL

DDCA_DA7

R121

75R 1/16W 1%

C114
330PF 50V

RF Input
(Side)

IF Trace

C113

330PF 50V

311GB254C20CBX

088G302G3G2ACL

R111 100OHM

C105
100N16V

R103

4.7K1/16W

D_IFP

D_IFM

R125

2.2K1/16W

R124 100OHM

C101
100N16V

R119 100OHM
R120 100OHM

R126

2.2K1/16W

R118 100OHM

VGA_VSYNC

DDCA_DA
VGA_HSYNC

DDCA_CK

R104

2.2K1/16W

VCC_3V3

TU_SCL
TU_SDA

R160
470K

MDI _TP 6

VGA_R

IFAGC
D_IF1

T_SCL

CN161

CONN

1

3

5
7
9
11
13
15
17
19

2
4
6

8

10
12
14
16
18
20

D_IF2

C103 100N16V

TU_SDA 6

PC_Audio_R 6

IF_AGC 6

UART_RX 7
UART_TX 7

PC_Audio_L 6

TU_SCL 6

C112 100N16V

R132100OHM

R131100OHM

R127 10K

R13010K

3D_L_R_O 12

MDI _TN 6

3D_L_R_O

C102 100N16V

R129
10K

C104 100N16V

R128
10K

+5VSB

PC_Audio_R

MDI _TP
MDI _TN
MDI _R P
MDI _R N

CN163

NC/CONN

1
2

3

4
5

67

MDI _R N 6

MDI _R P 6

C117
10N 50V

R161
NC/47K

M_3V3

C109
22N 25V

C116

NC/100N16V

VCC_3V3

R113

100OHM

R114 0R05 OHM

HS1

BKT_HOLDER

1

2

R109

0R05 OHM

IF_AGC

VGA_B

R135 NC/1K

Q101
NC /MMBT3904

C108

100N16V

3D_SYNC_S

ZD109

NC/MLVG0402

12

ZD110

NC/MLVG0402

12

C132
1UF 10V

RF_CTRL

3D_SYNC_S 7

R136 470OHM1/16W

CN162

RJ45 CONN+LED R/A 15P

TCT P 1

1

TD+ P 2

2

TD- P 3

3

RD+ P4

4

RD- P5

5

RCT P6

6

NC P7

7

NC P8

8

NC P9

9

NC P10

10

NC P11

11

Y- P12

12

G- P14

14

Y+ P13

13

G+ P15

15

TH1

16

TH2

17

PC_Audio_L UART_RX

UART_TX

VCC_3V3

R105
10K

10-2-1 Tuner/VGA/Ethernet Inputs

Circuit Diagrams and PWB Layouts

EN 34TPS15.3A LA 10.

2015-Oct-23

back to

div.table

10-2-2 AV/YPbPr/USB Inputs

19950_505.eps

AV/YPbPr/USB Inputs

B02 B02

2015-08-14

715G6546

AV/YPbPr/USB Inputs

CN104

NC/CONN

1
2

3

4

56

R152 NC/0R05 OHM

C125
NC/10uF 10V

R153 NC/0R05 OHM

USB1_D+ 6

USB1_D- 6

t

TH103

PTCR

1 2

VCC_5V

USB 2.0 Port
(Side)

CN103

CONN

1
2

3

4

56

KMC3S075RY002

0805

088G352F6B3ACL

0603

YPbPr_Pr

Y

YPbPr_L

Pr

PB_DET

AV_CVBS

YPbPr_Y

YPbPr_Audio_R

Pb

YPbPr_R

YPbPr_Pb

USB0_DM USB0_D-

USB0_D+USB0_DP

USB3_DM

USB3_D+

USB3_D-

USB2_DM USB2_D-

USB2_D+

YPbPr_Audio_L

USB2_DP

R147
75R 1/16W 1%

USB3_DP

ZD113

NC/MLVG0402

12

C126
10uF 10V

ZD121

NC/MLVG0402

12

ZD114

NC/MLVG0402

12

C127
1UF16V

R154 5R6 1/16W 5%

R143 5R6 1/16W 5%

R142 100OHM

R158 5R6 1/16W 5%
R159 5R6 1/16W 5%

R144 5R6 1/16W 5%

ZD117

NC/MLVG0402

12

C119
1UF16V

ZD111

NC/MLVG0402

12

R149 10K

R145

75R 1/16W 1%

E

A

B

C

D

CN111

RCA JACK

1
2

3

4
6
7

8

9
10

11

12

13

5

1234

CN106

USB CONN

1
2

3

4

6 5

ZD122

NC/MLVG0402

12

C122

NC/10PF 50V

R148 10K

R146

75R 1/16W 1%

C118
10uF 10V

ZD116

NC/MLVG0402

12

C123
330PF 50V

AV Input (Share with Y)
(Back)

t

TH105

PTCR

1 2

C121

NC/10PF 50V

R141

4.7K1/16W

ZD118

NC/MLVG0402

12

ZD112

NC/MLVG0402

12

R150
12K 1/16W

t

TH101

PTCR

1 2

KMC3S075RY002

USB trace run 90 Ohm differential pairs

0805

C131
1UF16V

1234

CN107

USB CONN

1
2

3

4

6 5

ZD115

NC/MLVG0402

12

R155 5R6 1/16W 5%

C120

NC/10PF 50V

KMC3S075RY002

R151
12K 1/16W

C124
330PF 50V

C130
10uF 10V

VCC_3V3

5V_USB0 VCC_5V

5V_USB3 USB_5V

5V_USB2 USB_5V

PB_DET 7

AV_CVBS 6

YPbPr_Pb 6

YPbPr_Audio_R 6

YPbPr_Audio_L 6

YPbPr_Y 6

088G 78G155ACL

USB0_D- 6YPbPr_Pr 6
USB0_D+ 6

USB3_D- 6
USB3_D+ 6

USB2_D+ 6

USB2_D- 6

4P S/T 1.25mm
033G8032 4F S HR

USB 2.0 Port
For RF Module
(Internal)

KMC3S075RY002

0805

5P S/T 1.25mm
033G8032 4F S HR

space/trace/space/trace/space(mil)
12 / 10 / 5 / 10 / 12

088G352F6B3ACL

YPbPr Input
(Back)

0805 0603

PB_DET : Active HIGH

USB 2.0 Port
For WiFi Module
(Internal)

0603

USB1_D­USB1_D+

t

TH102

NC/PTCR

1 2

Circuit Diagrams and PWB Layouts

EN 35TPS15.3A LA 10.

2015-Oct-23

back to

div.table

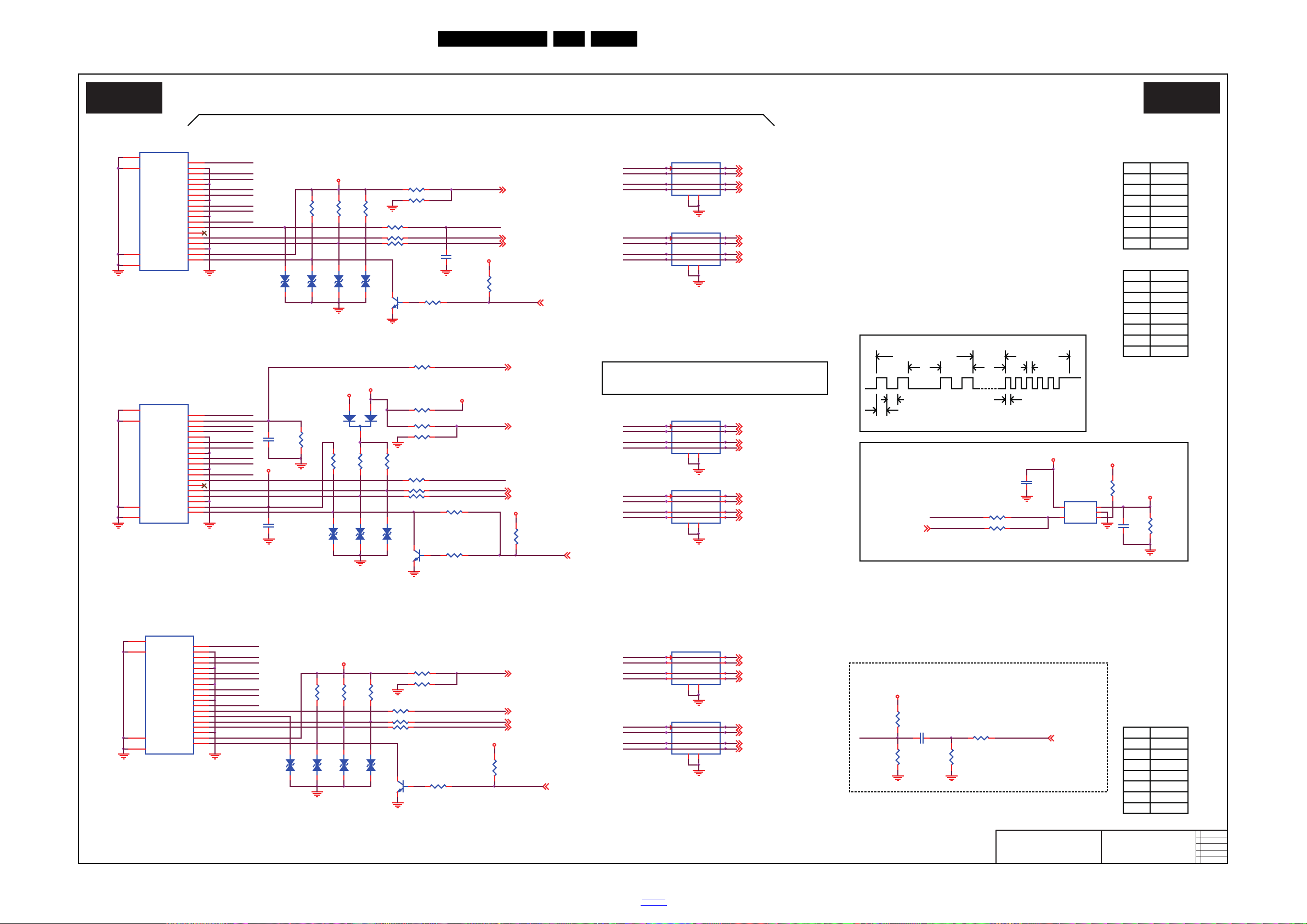

10-2-3 HDMI/MHL Inputs

19980_506.eps

HDMI/MHL Inputs

B03 B03

2015-08-14

715G6546

HDMI/MHL Inputs

R516
NC/1K

CN507 HDMI

SHLD0

20

SHLD1

21

TMDSD2+

1

DSHLD0

2

TMDSD2-

3

TMDSD1+

4

DSHLD1

5

TMDSD1-

6

TMDSD0+

7

DSHLD2

8

TMDSD0-

9

TMDSC+

10

CSHLD0

11

TMDSC-

12

CEC

13

NC

14

SCL

15

SDA

16

DDC_GND

17

VCC5

18

HPD

19

SHLD2

22

SHLD3

23

HDMI3_D1N
HDMI3_D1P

HDMI3_D2N
HDMI3_D2P

ZD508

NC/MLVG0402

12

+5VSB

R513

47K

R521

33 OHM 1/16W

HDMI3_HPDIN 6

R522 33 OHM 1/16 W

HDMI3_DET 7

HDMI3_D2P

HDMI3_SCL

HDMI3_SDA 6

HDMI3_SCL 6

HDMI3_D0P

ZD505

NC/MLVG0402

12

HDMI3_CEC

R517
10K

Q503
MMBT3904

HDMI1_HPDIN 6

R542

4.7K1/16W

HDMI1_5V

HDMI3_DET

HDMI3_5V

ZD506

NC/MLVG0402

12

R541
10K

HDMI1_HPDIN

CN506 HDMI

SHLD0

20

SHLD1

21

TMDSD2+

1

DSHLD0

2

TMDSD2-

3

TMDSD1+

4

DSHLD1

5

TMDSD1-

6

TMDSD0+

7

DSHLD2

8

TMDSD0-

9

TMDSC+

10

CSHLD0

11

TMDSC-

12

CEC

13

NC

14

SCL

15

SDA

16

DDC_GND

17

VCC5

18

HPD

19

SHLD2

22

SHLD3

23

R527
NC/10K

Q502
NC/MMBT3904

R518
10K

HDMI3SDA

+5VSB

HDMI3_CLKP

HDMI3_D1N

HDMI3_D0N

R515

100K1/16W

HDMI3SCL

ZD507

NC/MLVG0402

12

HDMI3_CLKN

HDMI3_D1P

HDMI3_SDA

R528

NC/4.7K1/16W

R530

100K1/16W

HDMI1_DET 7

HDMI3_D2N

R529

47K

HDMI3_HPDIN

HDMI1_DET

U506
AZ1045-04F.R7G

IN1

1

IN2

2

GND

3

IN3

4

IN4

5

NC

6

NC

7

GND

8

NC

9

NC

10

R537 33 OHM 1/16W

5VBUS

HDMI1_SCL

HD MITX_CEC 6
HDMI1_SCL 6

HDMI1_SDA 6

HD MITX_CEC

R536

33 OHM 1/16W

HDMI1_SDA

R534 200OHM1/16W

ARC_OUT 6

U507
AZ1045-04F.R7G

IN1

1

IN2

2

GND

3

IN3

4

IN4

5

NC

6

NC

7

GND

8

NC

9

NC

10

AVDD5V_MHL

R512 10 OHM

ZD501

NC/MLVG0402

12

HDMI_ARC

HDMI3_CLKN
HDMI3_CLKP

HDMI3_D0N
HDMI3_D0P

U508
AZ1045-04F.R7G

IN1

1

IN2

2

GND

3

IN3

4

IN4

5

NC

6

NC

7

GND

8

NC

9

NC

10

ZD509

NC/MLVG0402

12

ZD510

NC/MLVG0402

12

ZD511

NC/MLVG0402

12

C506 1UF16V

5VBUS

ARC_OUT

5VBUS

5VBUS

HD MITX_CEC

U502
AZ1045-04F.R7G

IN1

1

IN2

2

GND

3

IN3

4

IN4

5

NC

6

NC

7

GND

8

NC

9

NC

10

U503
AZ1045-04F.R7G

IN1

1

IN2

2

GND

3

IN3

4

IN4

5

NC

6

NC

7

GND

8

NC

9

NC

10

HDMI1_D0P

HDMI1_CLKP

HDMI1_CLKN

HDMI1_D0N

C504
100N16V

HDMI1_D1P
HDMI1_D2N

HDMI1_D2P

HDMI1_D1N

R52333 OHM 1/1 6W

R511

NC/100OHM

U504

NC/STMPS2171STR

OUT

1

GND

2

FAULT

3

EN

4

IN

5

HDMI3_HPD

R520
NC/10K

+5VSB

C503

NC/1UF16V

HDMI1SDA
HDMI1_5V

HDMI1_CLKP

HDMI1_D2P

HDMI1_D0P

HDMI1_5V

HDMI1_D0N

HDMI1SCL

HDMI1_D2N

HDMI1_CLKN

R525

NC/100K 1/8W

C505

NC/10uF 10V

HDMI1_D1N

HDMI1_CEC

HDMI1_D1P

D2N

3102.81

HDMI3 (ARC)
(Side)

3285.91

3246.83

R519 200OHM1/16W

D2P

HD MITX_CEC

3257.04

D0P

CLKP

4775.12

Wake Pulse Sequence

3043.44

C502
47NF 16V

D0P

D2P

MHL CBUS Wake Pulse Sequence

D0N

3159.26

3141.48

HDMI 1 Trace (mil)

D2N

3116.3

U505
AZ1045-04F.R7G

IN1

1

IN2

2

GND

3

IN3

4

IN4

5

NC

6

NC

7

GND

8

NC

9

NC

10

space/trace/space/gnd/space/trace/space(mil)
4 / 12 / 4 / 5 / 4 / 12 / 4

3184.35

3224.15

T1 = 18~22 ms (typ. 20)
T2 = 54~66 ms (typ. 60)
T3 = 100~1000 ms
T4 = 80~120 us (typ. 100)

space/trace/space/trace/space(mil)
12 / 8 / 5 / 8 / 12

HDMI2_D0N

HDMI2_D2P

HDMI2_D0P

HDMI2_D1P

HDMI2_D1N

D1N

HDMI2_CLKP

HDMI2_D2N

HDMI 2 Trace (mil)

HDMI2_CLKN

088G 34019K AV

088G 34019K AV

D1P

T2

CLKP

3261.78

D1P

T3

CLKP

HDMI2 / MHL
(Side)

T4

4629.68

D2N

D0P

088G340FJ04AAT

MHL Voltage Charge

D1N

Differential 100 +- 10 ohms
Common Mode 30 +- 5 ohms

0603

T1

HDMI ARC
DC voltage level = 4V
Signal voltage p-p = 500 mV +-100mV (Test need add 55 ohm terminal resistor to GND)
Tr,Tf <= 60 ns

3055.9

4957.18

D0N

3201.15

T4

HDMI2_D0+/-

CN501 use 088G340FJ04AAT or 088G340FJ04ATE
CN506, CN507 use 088G 34019K AV

4909.72

5022.07

HDMI1 / DVI
(Back)

4728.82

3121.91

HDMI 3 Trace (mil)

Run As 100 Ohm Differential Pairs

D0N

4613.56

HDMI ARC Function

CD_SENSE

3235.85

D1P

D2P

CLKN

CLKN

Discovery Pulse

CLKN

4854.22

C501
NC/4P7 50V

3076.03

T1

D1N

CD_SENSE

R539
39K 1/16W 5%

HDMI1_5V

R538 0R05 OHM

R540
NC

R501

47K

R524 NC/1K

R507

33 OHM 1/16W

HDMI2_HPDIN 6

R50833 OHM 1/16W

HDMI2_DET 7

HDMI2_HPD

HDMI2_D2P

R506 200OHM1/16W

HDMI2_SCL

HDMI2_SDA 6

HDMI2_SCL 6

HDMI2_D0P

ZD502

NC/MLVG0402

12

R504
10K

HDMI2_DET

ZD503

NC/MLVG0402

12

HDMI2_5V

CN501 HDMI

SHLD0

20

SHLD1

21

TMDSD2+

1

DSHLD0

2

TMDSD2-

3

TMDSD1+

4

DSHLD1

5

TMDSD1-

6

TMDSD0+

7

DSHLD2

8

TMDSD0-

9

TMDSC+

10

CSHLD0

11

TMDSC-

12

CEC

13

NC

14

SCL

15

SDA

16

DDC_GND

17

VCC5

18

HPD

19

SHLD2

22

SHLD3

23

R509
10K

R505
10K

Q501
MMBT3904

HDMI2SDA

HDMI2_D0N

HDMI2_5V

HDMI2_D1N

HDMI2_CLKP

R502

100K1/16W

HDMI2SCL

R526 NC/100OHM

ZD504

NC/MLVG0402

12

HDMI2_CLKN

HDMI2_D1P

HDMI2_5V

R503
1K

HDMI2_SDA

MHL_VBUS_EN

R510

4.7K1/16W

HDMI2_D2N

HDMI2_HPDIN

HDMI_ARC

R514
300K

R535
10K

HDMI3_CLKN 6
HDMI3_CLKP 6

HDMI3_D0N 6
HDMI3_D0P 6

HDMI3_D1P 6

HDMI3_D1N 6

HDMI3_D2P 6

HDMI3_D2N 6

MHL_VBUS_EN7

R533
10K

HDMI2_CEC

R532
10K

R531
1K

HDMI1_HPD

HDMI2_D1P 6

HDMI2_D0P 6

HDMI2_D0N 6

HDMI2_D2P 6

HDMI2_D1N 6

HDMI2_D2N 6

HDMI2_CLKP 6

HDMI2_CLKN 6

HDMI1_CLKN 6

HDMI1_D0N 6

HDMI1_D2N 6
HDMI1_D2P 6

HDMI1_CLKP 6

HDMI1_D0P 6

HDMI1_D1P 6

HDMI1_D1N 6

MHL_CABLE_DET 7

MHL_CABLE_DET

D501

BAT54CH

3

1

2

Circuit Diagrams and PWB Layouts

EN 36TPS15.3A LA 10.

2015-Oct-23

div.table

back to

10-2-4 MSD8590QV Inputs

19980_507.eps

MSD8590QV Inputs

B04 B04

2015-08-12

715G6546

MSD8590QV Inputs

YPbPr_Audio_L
PC_Audio_L

YPbPr_Audio_R
PC_Audio_R

D_IFM

YPbPr_Audio_R 4

IF_AGC

YPbPr_Audio_L 4

PC_Audio_R 3

PC_Audio_L 3

D_IFP

3D_FLAG

D_IFM 3
D_IFP 3
IF_AGC 3

TU_SCL 3
TU_SDA 3

C409

NC/2.2U10V

C410

NC/2.2U10V

I2S_SD

HDMITX_CEC

VGA_VSYNC

ARC_OUT

MIC_IN_R

MIC_IN_LVGA_HSYNC

TU_SCL

AMBI_ON_OFF

TU_SDA

R411 33 OHM 1/16W

C416

22PF 50V

R41333 OHM 1/16W

AVDD5V_MHL

C417 47N F 16V

C406 2.2U10V

C401 47N F 16V

3D_FLAG 12

TP1

1

C402 2.2U10V

C408 2.2U10V

I2S_MCLK

R401 33 OHM 1 /16 W

C415

22PF 50V

C419
10PF 50V

R409 33 OHM 1/16W

C404 2.2U10V

R410 33 OHM 1/16W

HDMI1_D2N5

VGA_VSYNC3

HDMI1_CLKP

HDMI1_D1P
HDMI1_D2N
HDMI1_D2P

HDMI1_SCL

HDMI1_D0N

HDMI1_CLKN

HDMI1_D0P

HDMI1_HPDIN

HDMI1_SDA

HDMI1_D1N

HDMI1_D1P5

VGA_HSYNC3

HDMI1_SCL5
HDMI1_SDA5

I2S_WS 11

YPbPr_Y4

VGA_R3

HDMI1_D1N5

VGA_G3

HDMITX_CEC5

HDMI1_HPDIN5

HDMI1_CLKN5

HDMI1_D2P5

YPbPr_Pr4

I2S_BCLK 11

VGA_B3

HDMI1_CLKP5

I2S_MCLK 11

I2S_SD11

HDMI1_D0N5

YPbPr_Pb4

HDMI1_D0P5

ARC_OUT5

USB 2.0 Input

MIC_IN_L 11

AUVRM

SPDIF_OUT 10

SPDIF_OUT

C4D9

22PF 50V

I2S_WS

I2S_BCLK

SPI_WP 7

R403 68OHM 1/16W

C405 47N F 16V

C403 47NF 16V

R402 33 OHM 1 /16 W

C407 47N F 16V

R404 33 OHM 1 /16 W

MDI_TP 3

MDI_TN 3

VGA_R
VGA_G

MDI_RN 3

VGA_B

MDI_RP 3

YPbPr_Pr

C414 47N F 16V

AV Input

YPbPr_Y
YPbPr_Pb

C413 47NF 16V

C412 47N F 16V

C411 47N F 16V

R40833 OHM 1 /16 W

R405 33 OHM 1 /16 W
R406 33 OHM 1 /16 W
R407 68OHM 1/16W

FB401

60R

1 2

0603

C421
10UF 6. 3V

C420
100N16V

AUVAG

0603

IF Interface

0603

0603

AMBI_ON_OFF 13

0603
0603

VGA Input

YPbPr Input

HDMI Input

AV_CVBS4

MSD8590QV-XZ

U401D

RX0N

R3

RX0P

R2

RX1N

R1

RX1P

T3

RX2N

T1

RX2P

T2

RXCN

P3

RXCP

P2

DDCDA_CK

U5

DDCDA_DA

V5

HOTPLUGA

U6

ARC0

M4

D_RX0N

M3

D_RX0P

M2

D_RX1N

M1

D_RX1P

N3

D_RX2N

N1

D_RX2P

N2

D_RXCN

L3

D_RXCP

L2

DDCDD_CK

N5

DDCDD_DA

M5

HOTPLUGD

L5

C_RX0N

AH7

C_RX0P

AF8

C_RX1N

AH8

C_RX1P

AG8

C_RX2N

AF9

C_RX2P

AG9

C_RXCN

AF7

C_RXCP

AG7

DDCDC_CK

AD6

DDCDC_DA

AC6

HOTPLUGC

AD7

AVDD5V_HDMI_C

AE5

CEC

U4

DM_P0

D1

DP_P0

E2

DM_P1

C1

DP_P1

D2

DM_P2

C2

DP_P2

B1

SSRXN

AG5

SSRXP

AH5

DM

AH4

DP

AF5

SSTXN

AG4

SSTXP

AF4

RN

H2

RP

J3

TN

J2

TP

J1

VIFM

AE2

VIFP

AE1

IFAGC

AF2

TGPIO0

AG6

TGPIO1

AG2

TGPIO2 / (SCKM1)

AE3

TGPIO3 / (SDAM1)

AF3

R412 33 OHM 1 /16 W

C418 47NF 16V

R414 68OHM 1/16W

SPI_WP

AV_CVBS

MSD8590QV-XZ

U401B

RIN0P

V1

GIN0P

V3

GIN0M

V2

BIN0P

U2

HSY NC0

U3

VSYNC0

W4

RIN1P

Y3

GIN1P

W3

GIN1M

W1

BIN1P

W2

RIN2P

AA1

GIN2P

AA3

GIN2M

AA2

BIN2P

Y2

VSYNC2

Y4

CVBS0

AA5

CVBS2

AA6

CVBS3

Y5

VCOM

Y6

CVBS_OUT1

V6

LINEIN_L0

AB1

LINEIN_R0

AB3

LINEIN_L1

AB2

LINEIN_R1

AC3

LINEIN_L2

AB4

LINEIN_R2

AC4

LINEIN_L3

AC2

LINEIN_R3

AD3

LINEOUT_L0

AD2

LINEOUT_R0

AD1

EARPHONE_OUTL

AE4

EARPHONE_OUTR

AD4

AU_VAG

AB6

AU_AVSS_VRM

AB5

I2S_OUT_BCK

L24

I2S_OUT_MCK

K24

I2S_OUT_SD

K25

I2S_OUT_WS

K23

SPDIF_IN

K26

SPDIF_OUT

L23

NC / I2S_IN_BCK

L11

NC / I2S_IN_SD

J10

NC / I2S_IN_WS

K11

MDI_RN
MDI_RP
MDI_TN
MDI_TP

USB0_D+
USB1_D+

USB0_D-

USB2_D+

USB2_D-

USB1_D-

USB3_D­USB3_D+

USB0_D- 4
USB0_D+ 4
USB1_D- 4
USB1_D+ 4
USB2_D- 4
USB2_D+ 4

USB3_D- 4
USB3_D+ 4

HDMI2_D0N5

HDMI2_SCL5
HDMI2_HPDIN5

HDMI2_D2P

HDMI2_D2N5

HDMI2_CLKP5

HDMI2_D1P

HDMI2_CLKN

HDMI2_D0P5

HDMI2_D2N

HDMI2_SDA

HDMI2_CLKP

HDMI2_D1P5

HDMI2_D1N5

HDMI2_CLKN5

HDMI2_D1N

HDMI2_D2P5

HDMI2_SCL

HDMI2_D0N
HDMI2_D0P

HDMI2_SDA5

HDMI2_HPDIN

HDMI3_SCL5

HDMI3_D0N5

HDMI3_HPDIN5

HDMI3_D2P

HDMI3_CLKP5

HDMI3_D2N5

HDMI3_D1P

HDMI3_D0P5

HDMI3_SDA

HDMI3_D2N
HDMI3_CLKN

HDMI3_CLKP

HDMI3_D1P5

HDMI3_CLKN5

HDMI3_D1N5

HDMI3_D2P5

HDMI3_D0N
HDMI3_D1N

HDMI3_D0P

HDMI3_SCL

HDMI3_SDA5

HDMI3_HPDIN

MIC_IN_R 11

Circuit Diagrams and PWB Layouts

EN 37TPS15.3A LA 10.

2015-Oct-23

back to

div.table

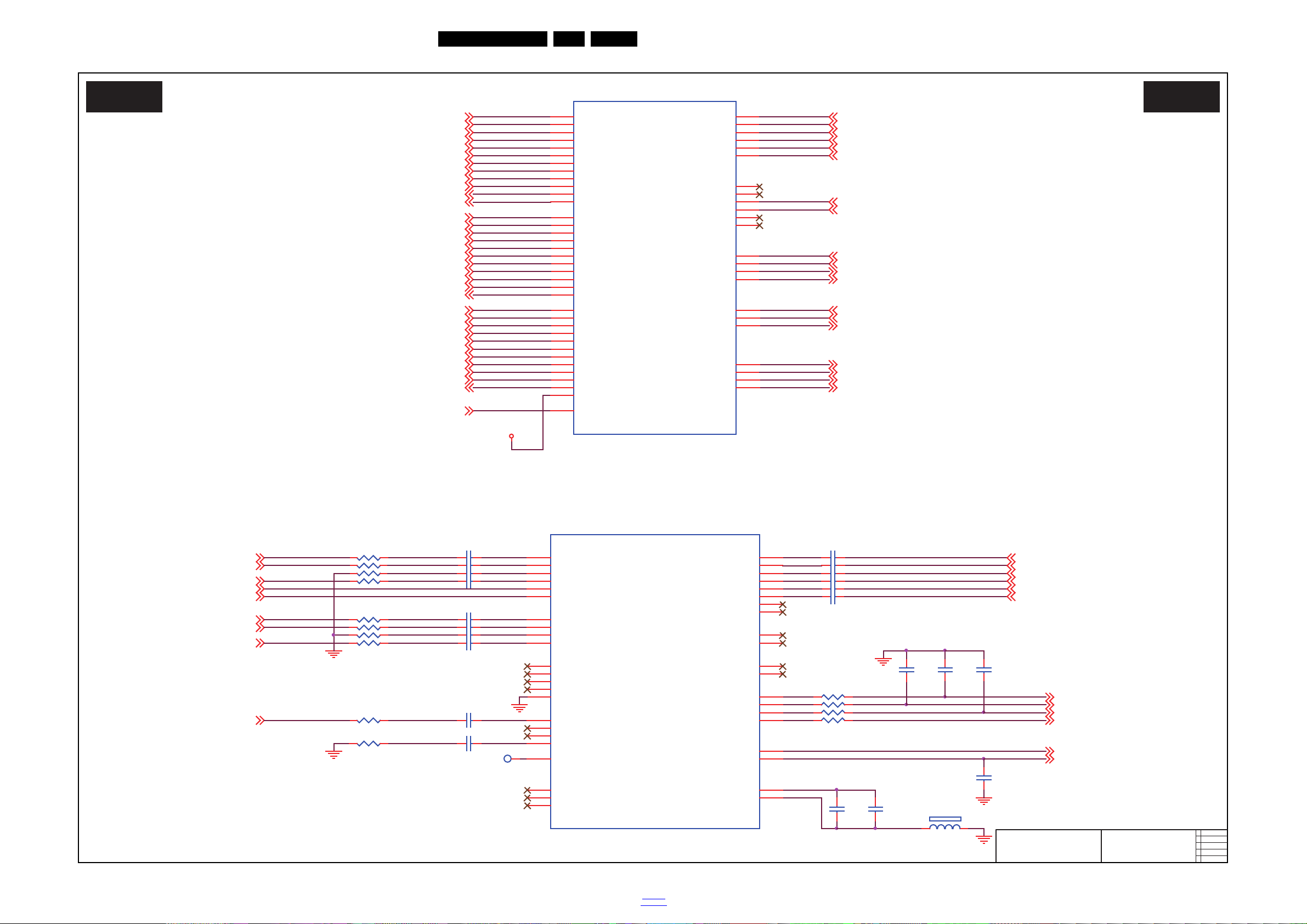

10-2-5 MSD8590QV KEY/IR/GPIO/Flash

19980_508.eps

MSD8590QV KEY/IR/GPIO/Flash

B05 B05

2015-03-24

715G6546

MSD8590QV KEY/IR/GPIO/Flash

R434

4.7K1/16W

R435

4.7K1/16W

3V3_STB

0603

VID1

VID0

9P R/A 2.0mm
033G3802 9B YH L

NAND Flash

R4C8 NC/100OHM

LED_BLUE

R4G9 0R05 OHM

R4H1 0R05 OHM

3D_EN12

3D_EN

SPI_CSN

LVDS_ON_OFF

DDCA_CK

MSCL

HDMI2_DET

DDR_PSW

DDCA_DA

MHL_CABLE_DET

LR_SYNC12

SPI_WP

HDMI3_DET

SPI_SCK

SPI_CSN

SPI_SCK

LR_SYNC

SPI_SDO

PWR_ON

BL_ON_OFF

C424

2.2U10V

C423
100N16V

AUD_RSTN

MSDA

HDMI1_DET

PB_DET

MSDA

C425 2.2U10V

AUD_MUTE
LED_R

SPI_SDI

SPI_SDO

MSCL

SPI_SDI

TP2

1

C422
100N16V

VCC_3V3

R446 33 OHM 1/16W

R447
10K

R454 NC
R455 4.7K1/16W

R457 NC
R459 4.7K1/16W

R461 NC

R460 4.7K1/16W

C432
100N16V

Q401
MMBT3904

R443

3.3K 1/16W

DSP_IRQ11

U405

MX25L1606EM2I-12G

CS#

1

SO/SIO1

2

WP#

3

GND

4

SI/SIO0

5

SCLK

6

HOLD#

7

VCC

8

MHL_VBUS_EN5

MHL_VBUS_EN

R444

3.3K 1/16W

XTALI

R449 NC/1K

IR_IN

RST_P

XTALO

C433
100N16V

SPI_SDI

LED_R

R445 33 OHM 1/16W

PWM_PM

TU_SEL

VID0

VCC_3V3

EMMC_PWR_DET

3V3_STB

3V3_STB

TU_RST

C427
100N16V

VID1

TU_SEL3

PWR_ON14

M_SDA10,11,12,13

TU_RST3

R439
100K1/16W

R442 1M 1/16W

BL_ON_OFF14

AUD_RSTN10,11

C428
10N 50V

TP3

1

R440 100OHM

U406

G690H293T73

GND

1

RESET

2

Vcc

3

AUD_MUTE10

MHL_CABLE_DET5

R466 NC

LVDS_ON_OFF

DDCA_CK3

M_SCL10,11,12,13

DDCA_DA3

PB_DET4

LVDS_ON_OFF12

C429
12PF 50V

R428 10K

R441 0R05 OH M

R43010K
R43110K
R43210K

C430
15PF 50V

X401 24.0MHz

1 2

3V3_STB

3V3_STB

VID114

VID014

EMMC_RSTZ

EMMC_CMD

DSP_IRQ

EMMC_CLK

EMMC_D3
EMMC_D2

EMMC_D4

EMMC_D0

EMMC_D5

EMMC_D1
EMMC_D6
EMMC_D7

BL_BR_CTRL

BL_BR_CTRL14

I2CS_SCL

I2CS_SDA

LED_B

R417
10K

R418
10K

I2CS_SDA
I2CS_SCL

R421
10K

VCC_3V3

LED_R

R452 4.7K1/16W

R464
100K1/16W

LED_RED LED_R

R433 10K
R43710K

R43610K

3V3_STB

NF_D6

NF_D3

NF_D7

NF_D2

NF_D1

NF_D0

NF_D5

NF_D4

R438 10K

VCC_3V3

VCC_3V3

UART_RX3

UART_TX

U407

THGBMBG6D1KBAIL

DAT0

A3

DAT1

A4

DAT2

A5

VSS

A6

NC

A7

DAT3

B2

DAT4

B3

DAT5

B4

DAT6

B5

DAT7

B6

VDDI

C2

Vssq

C4

Vccq

C6

NC

C5

Vcc

E6

Vss

E7

NC

E8

NC

E9

Vcc

F5

NC

F10

Vss

G5

NC

G10

NC

G3

DS

H5

Vss

H10

VSS

J5

Vcc

J10

RSTN

K5

NC

K6

NC

K7

Vss

K8

Vcc

K9

NC

K10

Vccq

M4

CMD

M5

CLK

M6

Vssq

N2

Vccq

N4

Vssq

N5

Vccq

P3

Vssq

P4

Vccq

P5

Vssq

P6

NC

P7

NC

P10

A1 index

D4

NC

E5

NC

E10

NCB1NCC1NC

N1

UART_RX

UART_TX3

LED_RED

ZD401

NC/MLVG0402

12

3V3_STB

LED_RED

L: 0~0.79V
H: 0.79~2.75V

VCC_3V3

R465 NC

3D_SYNC_S

3D_SYNC_S3

VCC_5V

Q402
MMBT3904

Only Philips project used.

LED_BLUE

R467 4.7K1/16W

LED_B

VCC_3V3

VCC_3V3

SYS_RST

R415 0R05 OH M

NF_D0EMMC_D0
NF_D1

R416 0R05 OH M

EMMC_D1

LED_B

C426
NC/33PF 50V

NF_CLK

EMMC_D2 NF_D2

R419 0R05 OH M

R420 0R05 OH M

NF_D3EMMC_D3
NF_D4EMMC_D4

R422 0R05 OH M

NF_CMD

R423 0R05 OHM

EMMC_D5 NF_D5
EMMC_D6 NF_D6

R424 0R05 OH M

EMMC_D7 NF_D7

R425 0R05 OH M

PWM_PM

KEY_PWR

LED_BLUE

MSD8590QV-XZ

U401C

TS0_D[0]

AH11

TS0_D[1]

AH10

TS0_D[2]

AF12

TS0_D[3]

AG11

TS0_D[4]

AF13

TS0_D[5]

AG12

TS0_D[6]

AH13

TS0_D[7]

AG13

TS0_CLK

AF11

TS0_SYNC

AG10

TS0_VLD

AF10

TS1_D[0]

AC20

TS1_D[1]

AD20

TS1_D[2]

AE20

TS1_D[3]

AC21

TS1_D[4]

AE21

TS1_D[5]

AD21

TS1_D[6]

AC22

TS1_D[7]

AC23

TS1_CLK

AD22

TS1_SYNC

AD23

TS1_VLD

AE23

EMMC_CLK / (NAN D _D QS)

AG17

EMMC_CMD

AH17

EMMC_RSTN

AF17

NAND_ALE

AG15

NAND_CEZ

AG16

NAND_CEZ1

AF16

NAND_CLE

AH14

NAND_RBZ

AF15

NAND_REZ

AG14

NAND_WEZ

AF14

NAND_WPZ

AH16

PCM_A[0]

AG20

PCM_A[1]

AH20

PCM_A[2]

AF20

PCM_A[3]

AH19

PCM_A[4]

AG19

PCM_A[5]

AF19

PCM_A[6]

AG18

PCM_A[7]

AF18

PCM_A[8]

AE10

PCM_A[9]

AC11

PCM_A[10]

AD11

PCM_A[11]

AE11

PCM_A[12]

AC12

PCM_A[13]

AD12

PCM_A[14]

AE13

PCM_D[0]

AE7

PCM_D[1]

AD9

PCM_D[2]

AC8

PCM_D[3]

AE8

PCM_D[4]

AD8

PCM_D[5]

AC10

PCM_D[6]

AC9

PCM_D[7]

AD10

PCM_CD_N

AD15

PCM_CE_N

AC14

PCM_IORD_N

AC13

PCM_IOWR_N

AD14

PCM_IRQA_N

AE14

PCM_OE_N

AD13

PCM_REG_N

AE16

PCM_RESET

AC16

PCM_WAIT_N

AD16

PCM_WE_N

AC15

PCM2_CE_N

AE18

PCM2_IRQA_N

AD18

PCM2_RESET

AC19

PCM2_WAIT_N

AD19

EMMC_CLK

R448 NC/100OHM

3D_SYNC

R426 22 OHM 1/16W

EMMC_CMD

HDMI3_DET5

R427 0R05 OH M

HDMI2_DET5

EMMC_RSTZ

B0P 12

HDMI1_DET5

B1P 12

B1P

C0M

B2M 12

C2P 12

B3M

NF_RSTZ

KEY1

R429 0R05 OH M

C0P 12

B3M12

B2P 12

B0M 12

C0P

B0M

B4P 12

B1M

B4P

BCKP 12

B2M

R458

100OHM

B0P

B1M 12

B2P

BCKM

KEY0

C436
NC/ 10N 50V

IR_IN

BCKP

R451
10K

B4M 12

B4M

KEY1

C2P

B3P12

C1M 12

C1P
C1M

C1P 12

CN401

CONN

1
2

3

4
5
6
7

8

9

BCKM 12

C0M 12

B3P

MSD8590QV-XZ

U401A

GPIO_PM[0] / (PAN EL_ON / OF F )

N6

GPIO_PM[1] / (PM_UART_TX)

F3

GPIO_PM[10] / (AMP_MUTE)

L6

GPIO_PM[11] / (SDIO_CDZ)

W6

GPIO_PM[2] / (MHL_C D S)

AC7

GPIO_PM[3] / (MHL_VBUS_EN)

AD5

GPIO_PM[4] / (PW R _ON / OF F )

H5

GPIO_PM[5] / (PM_UART_RX)

F2

GPIO_PM[6] / (SPI_CS)

K1

GPIO_PM[7] / (SD_CDZ)

W5

GPIO_PM[8] / (VBL_C TRL)

M6

PM_LED

J5

GPIO19 / (LAN_LED[0] /TX1/ FAST_UR_CTS)

K2

GPIO20 / (LAN_LED[1] /RX1 FAST_UR_RTS)

K3

GPIO3 / (EJTAG / TX1)

AC24

GPIO4 / (RX1)

AD24

VID0

G5

VID1

G4

SAR0 / (KEY 0)

G6

SAR1

H6

SAR2

J6

SAR3

K6

SAR5 / (Power Detect)

AC5

PWM_PM / (HW STRAPPING)

J4

PWM0 / (SD3)

AC18

PWM1 / (BRI_ADJ)

AE24

PWM2

AF21

PWM3

AG21

PM_SPI_CK

H3

PM_SPI_CZ / (TEST PO I N T)

K10

PM_SPI_DI

G3

PM_SPI_DO

G2

DDCA_CK

K4

DDCA_DA

K5

DDCR_CK

AF22

DDCR_DA

AG22

RESET

G1

IRIN

F1

XTAL_IN

AH2

XTAL_OUT

AG1

U_A0M

L27

U_A0P

L28

U_A1M

M27

U_A1P

L26

U_A2M

N27

U_A2P

M26

U_A3M

P27

U_A3P

P28

U_A4M

R27

U_A4P

P26

U_ACKM

N26

U_ACKP

N28

U_B0M

T27

U_B0P

R26

U_B1M

T26

U_B1P

T28

U_B2M

U26

U_B2P

U27

U_B3M

Y28

U_B3P

W26

U_B4M

AA27

U_B4P

Y26

U_BCKM

W27

U_BCKP

V26

U_C0M

AB28

U_C0P

AB27

U_C1M

AC27

U_C1P

AC28

U_C2M

AD26

U_C2P

AD27

U_C3M

AG28

U_C3P

AF27

U_C4M

AH27

U_C4P

AG27

U_CCKM

AE26

U_CCKP

AE28

U_D0M

AH26

U_D0P

AG26

U_D1M

AH25

U_D1P

AF26

U_D2M

AF25

U_D2P

AG25

U_D3M

AH23

U_D3P

AG23

U_D4M

AH22

U_D4P

AF23

U_DCKM

AF24

U_DCKP

AG24

U_GPIO0 / (UART_TXD) / (HW STRAPPING)

N25

U_GPIO1 / (UART_RXD) / (HW STRAPPING)

N23

U_GPIO2 / (H W STRAPPING)

N24

U_GPIO3 / (PWM5)

M24

U_GPIO4 / (PW M4)

M25

U_GPIO6

M23

U_I2CS_SCL

AD25

U_I2CS_SDA

AE25

U_IRE

AC25

U_SPI1_CK

P24

U_SPI1_DI

P23

U_SPI2_CK / (SPI1_CZ)

R23

U_SPI2_DI / (SPI1_DO)

R24

U_VSYNC_LIKE

R25

U_PAD_RESET

AB14

C431
100N16V

C434

NC/10N 50V

C435

NC/10N 50V

C4P 12

KEY0

C4M 12

C2M
CCKM

C4P

C3P

CCKP 12

KEY_IN

C3M

CCKM 12

C2M 12

C4M

R463 1K

ZD402

NC/MLVG0402

12

C3P12
C3M12

CCKP

R450
10K

3V3_STB

ZD403

NC/MLVG0402

12

R453

3.9K1/16W

R462

1K

SPI_WP 6

LAN_LED03
LAN_LED13

R456 20K 1/16W

LAN_LED0
LAN_LED1

Mode Select

SPI Flash

CHIP_CONFIG[2:0]
{PAD_PM_SPI_DI, PAD_PM_LED, PAD_PWM_PM}
Value Mode Description

3'b000 SB51_ExtSPI 51 boot from SPI
3'b001 HEMCU_ExtSPI ARM boot from SPI
3'b010 HEMCU_ROM_EMMC ARM boot from ROM;outer storage is eMMC
3'b011 HEMCU_ROM_NAND ARM boot from ROM;outer storage is NAND
3'b100 DBUS For test only

EMMC_PW R_DET

U405 should be programmed
before soldering on PCB

R4C6

10K

3D_SYNC12

R4C7 10K

DDR_PSW14

System MCU RESET

Keypad_IR_LED Input

8GB e-MMC

Circuit Diagrams and PWB Layouts

EN 38TPS15.3A LA 10.

2015-Oct-23

back to

div.table

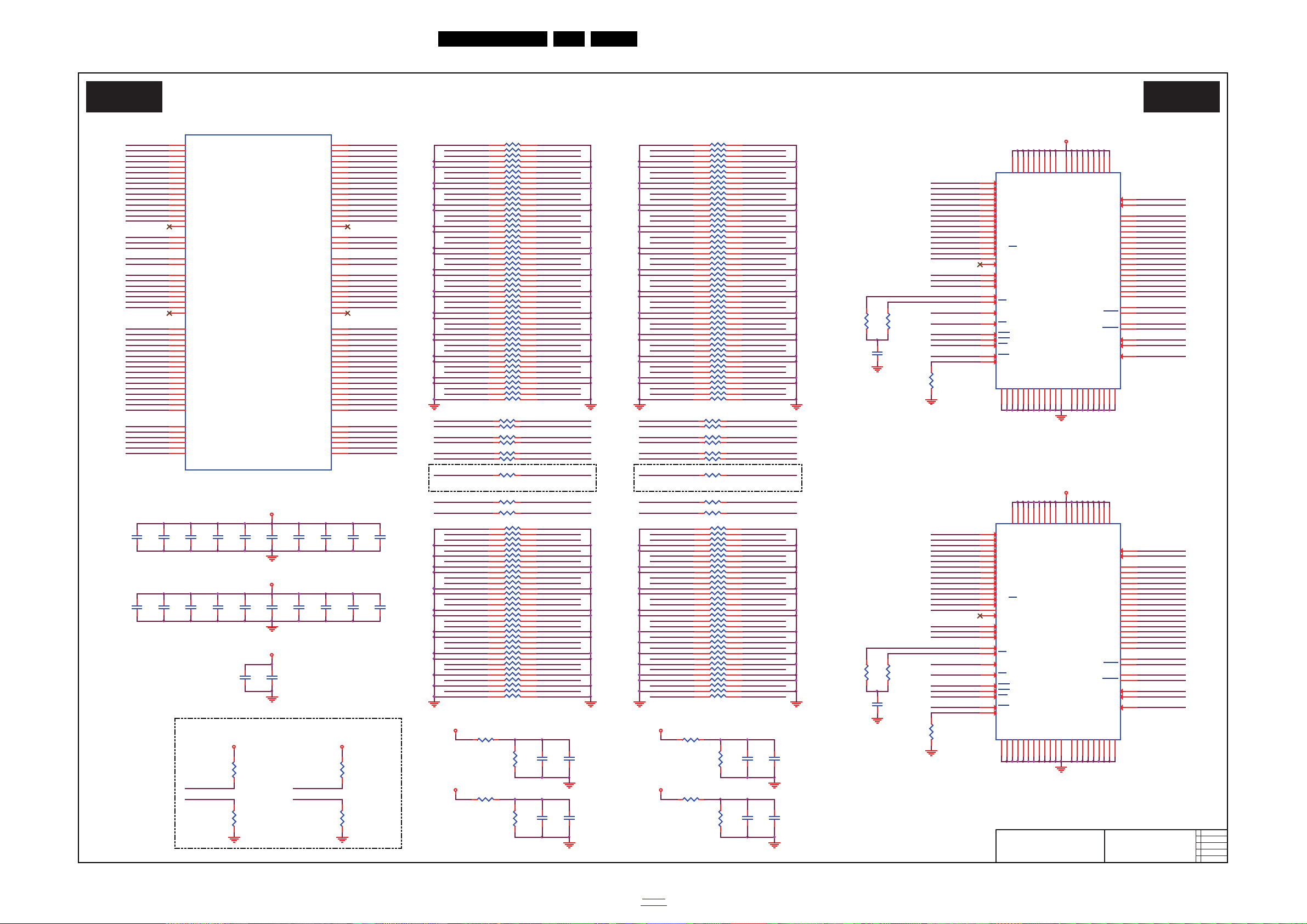

10-2-6 MSD8560QV DDR III

19980_509.eps

MSD8590QV DDR III

B06 B06

2015-08-14

715G6546

MSD8590QV DDR III

C438
100N16V

A-DDR3-DQU0

A_DDR3_DQL1

DDR_1V5

C461

100N16V

R492

1Kohm 1/16W +/-1%

C462
1nF 50V

R494

1Kohm 1/16W +/ -1%

A-MVREFDQ

C466
1nF 50V

A-DDR3-DQL1

A-DDR3-DQU6

A_DDR3_DMU A-DDR3-DMU

A_DDR3_DQU6

A-DDR3-A10
A-DDR3-A11

A-DDR3-A1

A-DDR3-A9

A-DDR3-A3
A-DDR3-A5

A-DDR3-A8

A-DDR3-A12

A-DDR3-A6

A-DDR3-A0

A-DDR3-A4

A-DDR3-A7

A-DDR3-A2

A-DDR3-RESET

RP411 22R

1
2

3

4

8

7
6
5

A-DDR3-A13

RP413 22R

1
2

3

4

8

7
6
5

RP417 22R

1
2

3

4

8

7
6
5

RP401 22R

1
2

3

4

8

7
6
5

RP405 22R

1
2

3

4

8

7
6
5

RP409 22R

1
2

3

4

8

7
6
5

RP403 22R

1
2

3

4

8

7
6
5

RP407 22R

1
2

3

4

8

7
6
5

RP421 22R

1
2

3

4

8

7
6
5

RP419 22R

1
2

3

4

8

7
6
5

RP415 22R

1
2

3

4

8

7
6
5

A_DDR3_DQU0

DDR_1V5

A_DDR3_A2

A_DDR3_A1

A_DDR3_A4

A_DDR3_A0

A_DDR3_A3

A_DDR3_A7

A_DDR3_A5

A_DDR3_A12

A_DDR3_A10

A_DDR3_A6

A_DDR3_A11

A_DDR3_A9

A_DDR3_A8

A_DDR3_CASZ

A_DDR3_A14

A_DDR3_BA1

A_DDR3_RASZ

A_DDR3_ODT

A_DDR3_A13

A_DDR3_BA0

A_DDR3_WEZ

A_DDR3_DQL1

A_DDR3_RESET

A_DDR3_DQL4

A_DDR3_CKE

A_DDR3_DQL0
A_DDR3_DQL2

A_DDR3_BA2

A_DDR3_DQL3

A_DDR3_DQL7

A_DDR3_DQU4

A_DDR3_DQU2

A_DDR3_DQU0
A_DDR3_DQU1

A_DDR3_DQL5

A_DDR3_DQU3

A_DDR3_DQL6

A_DDR3_MCLK

A_DDR3_DMU

A_DDR3_DQSL

A_DDR3_DML

A_DDR3_DQU6
A_DDR3_DQU7

A_DDR3_MCLKZ

A_DDR3_DQU5

A_DDR3_DQSUB

A_DDR3_DQSLB
A_DDR3_DQSU

U402

H5TQ4G63AFR-RDC

NC_A15

M7

VSSA9VSSB3VSSE1VSSG8VSSJ2VSSJ8VSSM1VSSM9VSSP1VSSP9VSST1VSST9VSSQB1VSSQB9VSSQD1VSSQD8VSSQE2VSSQE8VSSQF9VSSQG1VSSQ

G9

A13

T3

A12/BC

N7

A11

R7

A10/AP

L7

A9

R3

A8

T8

A7

R2

A6

R8

A5

P2

A4

P8

A3

N2

A2

P3

A1

P7

A0

N3

BA0

M2

BA1

N8

BA2

M3

CK

J7

CK

K7

CKE

K9

CS

L2

RAS

J3

CAS

K3

WE

L3

ODT

K1

RST

T2

ZQ

L8

LDM

E7

UDM

D3

A14

T7

VDDB2VDDD9VDDG7VDDK2VDDK8VDDN1VDDN9VDDR1VDD

R9

VDDQA1VDDQA8VDDQC1VDDQC9VDDQD2VDDQE9VDDQF1VDDQH2VDDQ

H9

DQU7

A3

DQU6

B8

DQU5

A2

DQU4

A7

DQU3

C2

DQU2

C8

DQU1

C3

DQU0

D7

DQL7

H7

DQL6

G2

DQL5

H8

DQL4

H3

DQL3

F8

DQL2

F2

DQL1

F7

DQL0

E3

LDQS

F3

LDQS

G3

UDQS

C7

UDQS

B7

VREF_DQ

H1

VREF_CA

M8

A-CSZ

A-DDR3-MCLKA_DDR3_MCLK

R471 22 OHM 1/16W
R473 22 OHM 1/16W

A-DDR3-MCLKZA_DDR3_MCLKZ
A-DDR3-DQSLA_DDR3_DQSL

R496
1Kohm 1/16W +/-1%

R475 22 OHM 1/16W

A_DDR3_DQSLB A-DDR3-DQSLB

R477 22 OHM 1/16W

DDR_1V5

R481 22 OHM 1/16W

A-DDR3-DQSUB

B_DDR3_A0

R479 22 OHM 1/16W

B_DDR3_A1

B_DDR3_A4

A_DDR3_DQSUB

B_DDR3_A3

B_DDR3_A7

B_DDR3_A6

A_DDR3_DQSU

B_DDR3_A8

A-DDR3-DQSU

B_DDR3_A2

B_DDR3_A5

B_DDR3_A13
B_DDR3_A14

B_DDR3_A9

B_DDR3_CASZ

B_DDR3_RASZ

B_DDR3_A11
B_DDR3_A12

B_DDR3_A10

B_DDR3_BA1
B_DDR3_BA2

B_DDR3_ODT

B_DDR3_BA0

B_DDR3_DQL0

B_DDR3_WEZ
B_DDR3_CKE

B_DDR3_RESET

B_DDR3_DQL1

B_DDR3_DQL5

B_DDR3_DQL2

B_DDR3_DQL7

B_CSZ

B_DDR3_DQU0

B_DDR3_DQL3
B_DDR3_DQL4

B_DDR3_DQL6

B_DDR3_DQU1
B_DDR3_DQU3

B_DDR3_DQU6

B_DDR3_DQU5

B_DDR3_DQU4

B_DDR3_DQU2

B_DDR3_DQU7

B_DDR3_DML

B_DDR3_DQSUB

B_DDR3_DMU

B_DDR3_DQSLB

B_DDR3_MCLK

B_DDR3_DQSU

B_DDR3_DQSL

B_DDR3_MCLKZ

A_CSZ

STR

C458

2.2U10V

C459
10uF

MSD8590QV-XZ

U401E

A_DDR3_A[0]

D4

A_DDR3_A[1]

D5

A_DDR3_A[2]

E3

A_DDR3_A[3]

B5

A_DDR3_A[4]

D8

A_DDR3_A[5]

A5

A_DDR3_A[6]

D7

A_DDR3_A[7]

B6

A_DDR3_A[8]

E8

A_DDR3_A[9]

D3

A_DDR3_A[10]

D9

A_DDR3_A[11]

E7

A_DDR3_A[12]

E9

A_DDR3_A[13]

E4

A_DDR3_A[14]

D6

A_DDR3_A[15]

B9

A_DDR3_BA[0]

B4

A_DDR3_BA[1]

E10

A_DDR3_BA[2]

E5

A_DDR3_MCLK

A8

A_DDR3_MCLKZ

B8

A_DDR3_ODT

A3

A_DDR3_RASZ

C3

A_DDR3_RESETZ

B7

A_DDR3_WEZ

E6

A_DDR3_CASZ

C4

A_DDR3_CKE

D10

A_DDR3_CS[0]

A6

A_DDR3_CS[1]

B10

A_DDR3_DQ[0]

E13

A_DDR3_DQ[1]

D12

A_DDR3_DQ[2]

E14

A_DDR3_DQ[3]

D11

A_DDR3_DQ[4]

D13

A_DDR3_DQ[5]

E11

A_DDR3_DQ[6]

D14

A_DDR3_DQ[7]

E12

A_DDR3_DQ[8]

A9

A_DDR3_DQ[9]

C15

A_DDR3_DQ[10]

B11

A_DDR3_DQ[11]

A17

A_DDR3_DQ[12]

B12

A_DDR3_DQ[13]

B17

A_DDR3_DQ[14]

A11

A_DDR3_DQ[15]

B16

A_DDR3_DQM[0]

A12

A_DDR3_DQS[0]

A15

A_DDR3_DQSB[0]

A14

A_DDR3_DQM[1]

A18

A_DDR3_DQS[1]

C14

A_DDR3_DQSB[1]

B13

B_DDR3_A[0]

E19

B_DDR3_A[1]

D20

B_DDR3_A[2]

D18

B_DDR3_A[3]

B22

B_DDR3_A[4]

E22

B_DDR3_A[5]

B23

B_DDR3_A[6]

D22

B_DDR3_A[7]

A24

B_DDR3_A[8]

E21

B_DDR3_A[9]

E18

B_DDR3_A[10]

D25

B_DDR3_A[11]

E20

B_DDR3_A[12]

D24

B_DDR3_A[13]

D19

B_DDR3_A[14]

D21

B_DDR3_A[15]

A27

B_DDR3_BA[0]

B21

B_DDR3_BA[1]

E24

B_DDR3_BA[2]

C18

B_DDR3_MCLK

C25

B_DDR3_MCLKZ

B25

B_DDR3_ODT

A20

B_DDR3_RASZ

B20

B_DDR3_RESETZ

B24

B_DDR3_WEZ

B19

B_DDR3_CASZ

A21

B_DDR3_CKE

E25

B_DDR3_CS[0]

A23

B_DDR3_CS[1]

B27

B_DDR3_DQ[0]

H24

B_DDR3_DQ[1]

G25

B_DDR3_DQ[2]

J24

B_DDR3_DQ[3]

F25

B_DDR3_DQ[4]

H25

B_DDR3_DQ[5]

F24

B_DDR3_DQ[6]

J25

B_DDR3_DQ[7]

G24

B_DDR3_DQ[8]

A26

B_DDR3_DQ[9]

G27

B_DDR3_DQ[10]

C27

B_DDR3_DQ[11]

J27

B_DDR3_DQ[12]

D27

B_DDR3_DQ[13]

J26

B_DDR3_DQ[14]

C28

B_DDR3_DQ[15]

H26

B_DDR3_DQM[0]

D28

B_DDR3_DQS[0]

G26

B_DDR3_DQSB[0]

F28

B_DDR3_DQM[1]

K27

B_DDR3_DQS[1]

F26

B_DDR3_DQSB[1]

E27

A_DDR3_CKE
A_DDR3_A10

A_DDR3_DML
A_DDR3_DQU4

A_DDR3_DQU5
A_DDR3_DQU3

A_DDR3_DQU1

A_DDR3_DQL6
A_DDR3_DQL4

B-DDR3-CKEA-DDR3-CKE

DDR_1V5

2nd DDR3 4G bit
1866MHz

A-MVREFCA

R499

1Kohm 1/16W +/-1%

B-MVREFCA

R4A4

1Kohm 1/16W +/-1%

R493

1Kohm 1/16W +/-1%

C463
100N16V

DDR_1V5

C464
1nF 50V

C467

100N16V

C468
1nF 50V

R495

1Kohm 1/16W +/-1%

DDR_1V5

B-MVREFDQ

DDR_1V5

R485 22 OHM 1/16W
R487 22 OHM 1/16W

C437
10N 50V

RP427 22R

1
2

3

4

8

7
6
5

RP435 22R

1
2

3

4

8

7
6
5

RP439 22R

1
2

3

4

8

7
6
5

RP433 22R

1
2

3

4

8

7
6
5

RP429 22R

1
2

3

4

8

7
6
5

RP423 22R

1
2

3

4

8

7
6
5

RP431 22R

1
2

3

4

8

7
6
5

RP425 22R

1
2

3

4

8

7
6
5

RP437 22R

1
2

3

4

8

7
6
5

Shield by GND alone

C465
100N16V

B-DDR3-DQL1

B-DDR3-ODT

B-DDR3-DQU4

B-DDR3-DQU0
B-DDR3-DQU2

B-DDR3-DQU5

B-DDR3-DQL4

R490
56R 1/16W 1%

B-DDR3-A4

B-DDR3-DQL7

B-DDR3-DQL2

B-DDR3-CASZ

B-DDR3-MCLKZ

B-DDR3-DQU3

B-DDR3-DQL3

B-DDR3-BA0

R4A1
1Kohm 1/16W +/-1%

Shield by GND alone

B-DDR3-A14

B-DDR3-BA1

B-DDR3-DQL0

B-DDR3-DQL6

B-DDR3-DQL5

B-DDR3-MCLK

B-DDR3-DQSUB

B-DDR3-A10
B-DDR3-A11

A-DDR3-DQSU

B-DDR3-A12

A-DDR3-DQL5

A-DDR3-DMU

A-DDR3-DQSUB
A-DDR3-DML

B-DDR3-DQU6

A-DDR3-DQL6

B-MVREFDQ

A-DDR3-DQL7

A-DDR3-DQL0
A-DDR3-DQL1

B-DDR3-DQSU

R489

56R 1/16W 1%

C460
10N 50V

A-DDR3-DQL3

A-DDR3-DQL2

B-DDR3-A9

DDR_1V5

B-DDR3-A1

A-DDR3-DQL4

A-DDR3-DQSLB

A-DDR3-DQSL

A-DDR3-DQU5

B-DDR3-A2

B-DDR3-DQSL

A-DDR3-DQU6

B-DDR3-A5

B-DDR3-RESET

A-DDR3-DQU7

A-DDR3-DQU4

B-DDR3-A0

A-DDR3-DQU3

A-DDR3-DQU0
A-DDR3-DQU1
A-DDR3-DQU2

B-DDR3-DQU1

B-DDR3-A6

B-DDR3-DML
B-DDR3-DMU

B-DDR3-BA2

R491
240 OHM +-1% 1/16W

B-DDR3-A13

B-MVREFCA

B-DDR3-WEZ

C457
100N16V

C456
100N16V

U403

H5TQ4G63AFR-RDC

NC_A15

M7

VSSA9VSSB3VSSE1VSSG8VSSJ2VSSJ8VSSM1VSSM9VSSP1VSSP9VSST1VSST9VSSQB1VSSQB9VSSQD1VSSQD8VSSQE2VSSQE8VSSQF9VSSQG1VSSQ

G9

A13

T3

A12/BC

N7

A11

R7

A10/AP

L7

A9

R3

A8

T8

A7

R2

A6

R8

A5

P2

A4

P8

A3

N2

A2

P3

A1

P7

A0

N3

BA0

M2

BA1

N8

BA2

M3

CK

J7

CK

K7

CKE

K9

CS

L2

RAS

J3

CAS

K3

WE

L3

ODT

K1

RST

T2

ZQ

L8

LDM

E7

UDM

D3

A14

T7

VDDB2VDDD9VDDG7VDDK2VDDK8VDDN1VDDN9VDDR1VDD

R9

VDDQA1VDDQA8VDDQC1VDDQC9VDDQD2VDDQE9VDDQF1VDDQH2VDDQ

H9

DQU7

A3

DQU6

B8

DQU5

A2

DQU4

A7

DQU3

C2

DQU2

C8

DQU1

C3

DQU0

D7

DQL7

H7

DQL6

G2

DQL5

H8

DQL4

H3

DQL3

F8

DQL2

F2

DQL1

F7

DQL0

E3

LDQS

F3

LDQS

G3

UDQS

C7

UDQS

B7

VREF_DQ

H1

VREF_CA

M8

B-DDR3-A7

B-DDR3-A3

B-DDR3-DQU7

B-DDR3-A8

B-DDR3-CKE
B-CSZ

B-DDR3-DQSLB

B-DDR3-RASZ

R468

56R 1/16W 1%

2nd DDR3 4G bit
1866MHz

R4A3

1Kohm 1/16W +/-1%

RP420 22R

1
2

3

4

8

7
6
5

B-DDR3-BA1

C455
100N16V

C454
100N16V

RP412 22R

1
2

3

4

8

7
6
5

B_DDR3_WEZ

B-DDR3-ODT

B-DDR3-A12

B_DDR3_CASZ

B_DDR3_A11

B_DDR3_A0

B-DDR3-BA0

RP408 22R

1
2

3

4

8

7
6
5

B_DDR3_BA1

B_DDR3_BA2

B-DDR3-A0

B-DDR3-RESET

B-DDR3-CKE

RP416 22R

1
2

3

4

8

7
6
5

B_DDR3_A14

B-DDR3-A8

B_DDR3_A13

B-DDR3-A7

RP402 22R

1
2

3

4

8

7
6
5

B_DDR3_RASZ

RP404 22R

1
2

3

4

8

7
6
5

B_DDR3_A6

RP424 22R

1
2

3

4

8

7
6
5

B-DDR3-A9

B_DDR3_A8

B-DDR3-BA2
B-DDR3-WEZ

B_DDR3_A3

B-DDR3-A14

B_DDR3_CKE

B-DDR3-CASZ

B-DDR3-A2

B-DDR3-A6

B-DDR3-A11

B_DDR3_A9

B-DDR3-A3

B-DDR3-A4

B_DDR3_A5

B_DDR3_A12

RP414 22R

1
2

3

4

8

7
6
5

B_DDR3_A7

B-DDR3-A5

RP410 22R

1
2

3

4

8

7
6
5

B_DDR3_A2

B-DDR3-A10

RP418 22R

1
2

3

4

8

7
6
5

B-DDR3-A1

B_DDR3_A4

C453
100N16V

B_DDR3_A1

C452
100N16V

RP406 22R

1
2

3

4

8

7
6
5

B_DDR3_A10

B-DDR3-A13

B_DDR3_ODT

A_DDR3_DQL2

B_DDR3_RESET

RP422 22R

1
2

3

4

8

7
6
5

B-DDR3-RASZ

B_DDR3_BA0

R470
240 OHM +-1% 1/16W

R498

1Kohm 1/16W +/-1%

A_DDR3_DQU2

A-DDR3-DQL5

A-DDR3-DQL7

A-DDR3-DQL3

A_DDR3_DQL7
A_DDR3_DQL5

A_DDR3_DQL3

A_DDR3_DQL0

A-CSZA_CSZ

R483 22 OHM 1/16W

A_DDR3_RASZ
A_DDR3_ODT

A-DDR3-A14

A_DDR3_CASZ
A_DDR3_BA0

A_DDR3_A3
A_DDR3_A5

A_DDR3_A7
A_DDR3_RESET

A_DDR3_A13
A_DDR3_A2

A-DDR3-BA1
A-DDR3-BA2

A-DDR3-BA0

A_DDR3_A0

DDR_1V5

A_DDR3_A9

A_DDR3_BA2
A_DDR3_WEZ

A_DDR3_A14
A_DDR3_A1

A_DDR3_A8
A_DDR3_A11

A_DDR3_A4
A_DDR3_A6

A_DDR3_BA1
A_DDR3_A12

A-MVREFDQ

A-DDR3-RASZ
A-DDR3-ODT

A-DDR3-CASZ
A-DDR3-BA0

A-DDR3-A3
A-DDR3-A5

A-DDR3-A7

A_DDR3_DQU7

A-DDR3-RESET

A-DDR3-RESET

A-DDR3-A13
A-DDR3-A2

A-DDR3-A0
A-DDR3-A9

A-DDR3-BA2
A-DDR3-WEZ

A-DDR3-A14
A-DDR3-A1

A-DDR3-A8
A-DDR3-A11

A-DDR3-A4

R4A2

1Kohm 1/16W +/-1%

A-DDR3-A6

A-DDR3-BA1
A-DDR3-A12

R497

1Kohm 1/16W +/-1%

DDR_1V5

B-DDR3-RESET

A-DDR3-CASZ

A-DDR3-RASZ

A-DDR3-ODT

A-DDR3-WEZ

A-DDR3-CKE

B-DDR3-DQU6

B-CSZ

R484 22 OHM 1/16W

A-DDR3-CKE

B_DDR3_DQU7

B-DDR3-DQSU

B_DDR3_MCLK

B-DDR3-DQL6

A-DDR3-A10

R469
56R 1/16W 1%

RP426 22R

1
2

3

4

8

7
6
5

B-DDR3-DQU7

B_DDR3_DQSU

B-DDR3-DQL2

B-DDR3-MCLK

RP43222R

1
2

3

4

8

7
6
5

B_DDR3_DQL3

B_DDR3_DQU1

B_DDR3_DQL0

B-DDR3-DQL1

RP440 22R

1
2

3

4

8

7
6
5

B_DDR3_DQSL

B_DDR3_DQU4

A-DDR3-DML

B_DDR3_DQU2

B-DDR3-DQL5

B-DDR3-DQSL

B_DDR3_DQL1

A-DDR3-DQU4

B_DDR3_DQL7

R482 22 OHM 1/16W

A-DDR3-DQU5

R472 22 OHM 1/16W

A-DDR3-DQU3

R476 22 OHM 1/16W

A-DDR3-DQU1

RP43422R

1
2

3

4

8

7
6
5

A-DDR3-DQU7

R486

22 OHM 1/16W

A-DDR3-DQL2

B-DDR3-DQU2

A-DDR3-DQL0

RP438 22R

1
2

3

4

8

7
6
5

B-DDR3-DQL7

A-DDR3-DQL6

B-DDR3-DQSUB

A-DDR3-DQL4

B-DDR3-DQSLB

B-DDR3-DQU4

B_DDR3_DQU0

B-DDR3-DQU3

B_DDR3_DMU

RP428 22R

1
2

3

4

8

7
6
5

A-DDR3-DQU2

B-DDR3-DQL0

B_DDR3_DQL5

B_DDR3_DQL4

R478 22 OHM 1/16W

B_DDR3_DQSLB

B-DDR3-DMU

R474 22 OHM 1/16W

B_DDR3_MCLKZ

RP43022R

1
2

3

4

8

7
6
5

B-DDR3-DMLB_DDR3_DML

B_DDR3_DQL2

R488

22 OHM 1/16W

B-DDR3-DQU1

B_DDR3_DQU6

B_CSZ

B-DDR3-DQL4

RP43622R

1
2

3

4

8

7
6
5

B-DDR3-DQU5

R480 22 OHM 1/16W

B-DDR3-DQL3

B_DDR3_DQSUB

B-DDR3-MCLKZ

B_DDR3_DQL6

B_DDR3_DQU5
B_DDR3_DQU3

B-DDR3-DQU0

C451
100N16V

C450
100N16V

C444
100N16V

A-DDR3-MCLKZ

C442
100N16V

DDR_1V5

C443
100N16V

C449
100N16V

C447
100N16V

C445
100N16V

C448
100N16V

A-DDR3-MCLK

C446

2.2UF 6. 3V

C439
100N16V

C441
100N16V

C440
100N16V

A-MVREFCA

Circuit Diagrams and PWB Layouts

EN 39TPS15.3A LA 10.

2015-Oct-23

back to

div.table

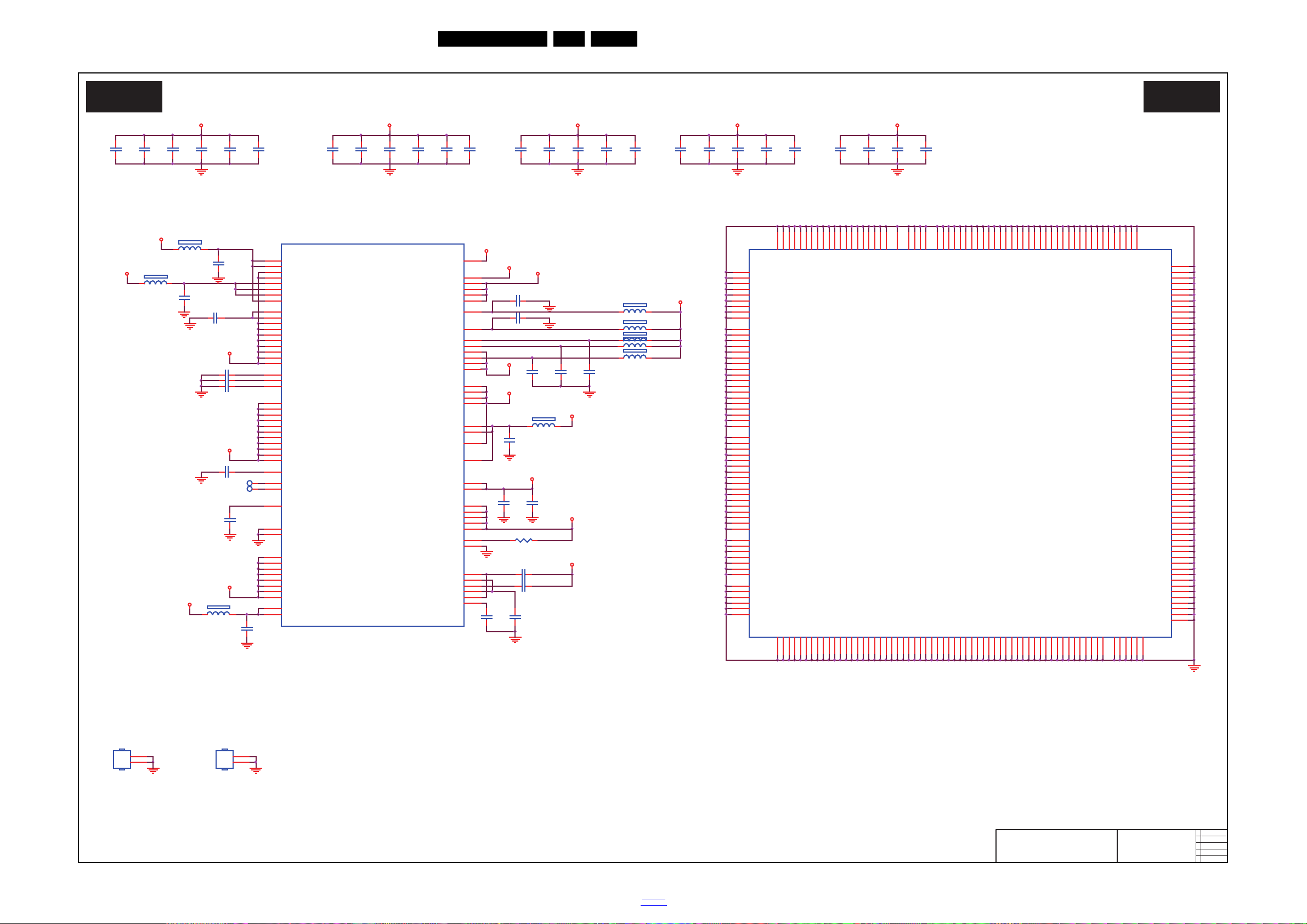

10-2-7 MSD8590QV Power/GND

19980_510.eps

MSD8590QV Power/GND

B07 B07

2015-01-20

715G6546

MSD8590QV Power/GND

VCC_1V2_CPU

VCC_1V2

C474
10uF

C486
100N16V

C490

2.2U10V

C487
100N16V

C489
100N16V

C488
100N16V

C473

2.2U10V

FB405 300R

1 2

FB404 300R

1 2

VCC_3V3

C4A4
100N16V

FB406 300R

1 2

DDR_1V5

VCC_3V3

R4A5

39K

C4A9
1UF 6. 3V

C469
100N16V

C4B3

100N16V

C4B4
100N16V

C478

1UF 6. 3V

C4B1 NC/100N16V

C480
22UF

C477

22uF 6.3V

VCC_1V2_CPU

C476

2.2UF 6. 3V

C493
100N16V

C494

2.2U10V

C492
100N16V

C4B2 NC/100N16V

C491
100N16V

C479
100N16V

C4A8 100N16V

VCC_1V2

VCC_1V2

C4A7
100N16V

C4B5
100N16V

FB409

300R

1 2

VCC_1V2

FB410

300R

1 2

C4A1 100N16V
C4A5 100N16V
C4A6 100N16V

VCC_1V8

C498 100N16V

C484

2.2U10V

C4A3

100N16V

FB408300R

1 2

C485

2.2U10V

3V3_STB

C4A2
100N16V

DDR_1V5

HS401

NC/HEAT SINK

1
2

C472

100N16V

MSD8590QV-XZ

U401F

AVDDL_MOD

P15

AVDDL_PREDRV

P16

AVDDLV_USB

R18

AVDDLV_USB

T18

DVDD_DDR

T16

DVDD_RX_1

R16

DVDD_RX_2

R15

VDDC

R19

VDDC

R20

VDDC

T19

VDDC

T20

VDDC

T21

VDDC

T22

VDDC

T23

VDDC

T24

VDDC_CPU

W20

VDDC_CPU

W21

VDDC_CPU

W22

VDDC_CPU

V19

VDDC_CPU

V20

VDDC_CPU

V21

VDDC_CPU

V22

VDDC_CPU

V23

VDDC_CPU

V24

VDDC_CPU

W23

VDDC_CPU

W24

VSENSE_MIPS

W19

VSENSE_VSS / (TEST POIN T)

L10

DVDD_NODIE

H7

TESTPIN / (TEST POIN T)

K9

GND_EFUSE

J7

AVDD_DDR0_C

J14

AVDD_DDR0_CK

H14

AVDD_DDR0_D

H15

AVDD_DDR0_D

J15

AVDD_DDR1_C

H16

AVDD_DDR1_CK

K17

AVDD_DDR1_D

K16

AVDD_DDR1_D

J16

AVDD_MOD (3.3V)

T5

VDDP_3318 (3.3V/1.8V)

U7

AVDD_PLL

T7

AVDD_MOD (3.3V)

T6

VDDP

T8

AVDD_AU33

N7

AVDD_EAR33

P6

AVDD_NODIE

P4

AVDD3P3_DMPLL

N8

AVDD3P3_DVI

P5

AVDD3P3_MPLL

P11

AVDD3P3_USB

P7

U_VDD

U24

U_VDD

U23

U_VDD

U21

U_VDD

U22

U_AVDDL_MOD

V15

U_AVDDL_PREDRV

V16

U_AVDD12_LVDSRX

U16

U_DVDD_DDR

U20

U_AVDDIO_CMD

L19

U_AVDDIO_DATA

M19

U_AVDD_LVDSRX

W9

U_AVDD_MOD

U9

U_AVDD_MOD

V9

U_AVDD_MPLL

V8

U_VDDP3

U8

U_PAD_TESTPIN / (TEST PO I N T)

M10

NC / E_VDDL_PDRV_N_DATA_A / DVDD_RX1

G12

NC / E_VDDL_PDRV_N_DATA_B

H20

NC / E_VD D L_PD R V_P_C MD

J19

NC / E_VDDL_PDRV_N_CMD / DVDD_RX1

G11

NC / E_VDDL_PDRV_P_DATA_A / DVDD_RX1

G13

NC / E_VD D L_PD R V_P_D ATA_B

J20

AVDDL_DVI_PC

N15

AVDD3P3_DADC

P8

DVDD_DDR_DECAP

K14

U_PADA_REXT

AB13

VDDC_DECAP

U10

VDDC_DECAP

H12

VDDC_CPU_DECAP

N14

VDDC_DECAP

L9

DVDD_RX2_DECAP

K13

AVDD33_LAN

P9

U_AVDDL_MOD

T25

U_AVDDL_PREDEV

U25

C471

100N16V

VCC_1V2

VCC_1V2

C470

1UF 6.3V

FB407 300R

1 2

VCC_3V3

C499 100N16V

C497 100N16V

TP4

1

C481
100N16V

DDR_1V5

C482
1UF 6. 3V

3V3_STB

C483
100N16V

MSD8590QV-XZ

U401G

GND

J21

GND

J22

GND

J23

GND

J28

GND

K7

GND

K8

GND

K12

GND

H19

GND

K21

GND

K28

GND

L7

GND

L8

GND

L12

GND

L13

GND

L14

GND

L15

GND

L16

GND

L17

GND

L21

GND

M7

GND

M8

GND

M9

GND

M11

GND

M12

GND

M13

GND

M14

GND

M15

GND

M16

GND

M17

GND

M18

GND

M20

GND

M21

GND

N9

GND

N10

GND

W17

GND

N12

GND

N13

GND

N16

GND

N17

GND

N18

GND

N19

GND

N20

GND

N21

GND

N22

GND

P10

GND

P12

GND

P13

GND

P14

GND

P21

GND

P22

GND

R17

GND

A2

GND

B3

GND

B14

GND

B15

GND

B18

GND

C6

GND

C8

GND

C9

GND

C11

GND

C12

GND

C16

GND

C17

GND

C20

GND

C21

GND

C23

GND

C24

GND

B26

GND

D15

GND

D16

GND

D26

GND

E15

GND

E23

GND

F4

GND

F6

GND

F8

GND

F10

GND

F12

GND

F14

GND

F15

GND

F18

GND

F20

GND

F22

GND

F27

GND

G7

GND

G8

GND

G9

GND

G10

GND

J9

GND

N11

GND

J11

GND

G15

GND

G19

GND

G20

GND

G21

GND

G22

GND

G23

GND

H8

GND

H9

GND

H10

GND

H11

GND

H13

GND

H21

GND

H22

GND

J8

GND

J12

GND

J13

GND

K15

GND

R4

GNDR5GNDR6GNDR7GNDR8GNDR9GND

R10

GND

R11

GND

R12

GND

R13

GND

H17

GND

R21

GND

R22

GNDT9GND

T10

GND

T11

GND

T12

GND

T13

GND

T14

GND

T15

GND

T17

GNDT4GND

U11

GND

U12

GND

U13

GND

U14

GND

U28

GNDV7GND

V11

GND

V12

GND

V13

GND

V14

GND

U15

GND

V25

GND

V27

GNDW7GNDW8GND

V10

GND

W10

GND

W11

GND

W12

GND

W13

GND

W14

GND

W15

GND

W16

GND

W18

GND

W25

GND

W28

GNDY7GNDY8GNDY9GND

Y10

GND

Y11

GND

Y12

GND

Y13

GND

Y14

GND

Y15

GND

Y16

GND

Y17

GND

Y18

GND

Y19

GND

Y20

GND

Y21

GND

Y22

GND

Y23

GND

Y24

GND

Y25

GND

Y27

GND

AA7

GND

AA8

GND

AA9

GND

AA10

GND

AA11

GND

AA12

GND

AA13

GND

AA14

GND

AA15

GND

AA16

GND

AA17

GND

AA18

GND

AA19

GND

AA20

GND

AA21

GND

AA22

GND

AA23

GND

AA24

GND

AA25

GND

AA26

GND

AB7

GND

AB8

GND

AB9

GND

AB10

GND

AB11

GND

AB12

GND

AB16

GND

AB17

GND

AB18

GND

AB19

GND

AB20

GND

AB21

GND

AB22

GND

AB23

GND

AB24

GND

AB25

GND

AB26

GND

AC17

GND

AC26

GND

AD17

GND

AE17

GND

AE27

GND

AF6

GND

AF28

GND

AG3

GND

U18

GND

U19

GND

P17

GND

P18

GND

U17

GND

V17

GND

V18

GNDB2GND

G14

GND

G28

GND

H27

GND

AB15

GND

C5

GND

C10

GND

E16

GND

D17

GND

E17

GND

F21

GND

E26

GND

F17

GND

M22

GND

L22

GND

K22

GND

J17

C496

2.2UF 6. 3V

FB403

300R

1 2

VCC_3V3

3V3_STB

C4D7

2.2UF 6. 3V

C4D8
1UF 6. 3V

TP5

1

C495
100N16V

FB402

300R

1 2

VCC_1V2

HS402

HEAT SINK

1
2

P90T005920300000SY

For MSD8590QVFor MSD8560QV

C4E1
22UF

P90T005920400000SY

Heat Sink

3V3_STB

Circuit Diagrams and PWB Layouts

EN 40TPS15.3A LA 10.

2015-Oct-23

back to

div.table

10-2-8 Audio Amp/SPK/SPDIF Outputs

19740_507.eps

Audio Amp/SPK/SPDIF Outputs

B08 B08

2014-04-24

715G6546

Audio Amp/SPK/SPDIF Outputs

L601
47uH

FB605 NC/120R 3A

1 2

PD_MUTE

FB606 NC/120R 3A

1 2

PD_MUTE 11

FB607 NC/120R 3A

1 2

C615
100N16V

A_SCL
A_SDA

R605 33 OHM 1/16W
R606 33 OHM 1/16W

M_SDA

M_SCL

CN601

CONN

1

2

3

4

5 6

R624
NC

R623 100OHM

AMP_PDN

AMP_24V

C606

470P 50V

R602

10 OHM 1/4W

C612

470P 50V

R603

10 OHM 1/4W

C618

470P 50V

R604

10 OHM 1/4W

R625
10K 1/10W

AUD_RSTN7,11

AMP_SA1

C661
330PF 50V

R613
NC/10K

R630
NC/100K1/16W

R619
10K

R626
10K

Q603
NC /MMBT3904

R629 NC/10K

L602
47uH

L603
47uH

Q601
MMBT3906

L604
47uH

AMP_RSTN

M_SDA7,11,12,13

M_SDA

M_SCL7,11,12,13

M_SCL

AUD_MUTE

R622 NC/33 OHM 1/16W

CFG0
CFG1

R620
10K

AMP_SA0

R614
NC/10K

CN612

NC/CONN

1
2
3
4
5
6

Y_SDA
Y_SCL

AMP_3V3

C611

0.1uF 50V

AMP_3V3

AMP_3V3

C613

0.1uF 50V

C619

0.1uF 50V

R+

C608

0.1uF 50V

A_SCL

A_SDA

DSP_MCLK

DSP_BCLK

DSP_WS

DSP_SDO0

CN611

NC/CONN

1
2
3
4
5
6

HS601

HEAT SINK

1
2

R601

10 OHM 1/4W

C609

0.1uF 50V

C603

470P 50V

C623

0.1uF 50V

DSP_BCLK

C624

0.1uF 50V

Active LOW

C625

0.1uF 50V

0

C626

0.1uF 50V

0603

I2C Address

SA1

SA2

Heat Sink

SB1

DSP_MCLK

SB2

C607

0.1uF 50V

DSP_WS

AMP_PDN

X

For Debug

0805

L+

8 ohm

1206

DSP_SDO0

0805

0x62

1

SMT

Lo

1

+

C602

100UF 35V

SA0

Speaker

Stereo

ZD601

NC/MLVG0402

12

0x68

Hi

0 Mono

Hi

330nF/50V

24V

Lo

0

CFG1

R+

0x60

AMP VCC

2.1 Channel

C605
NC/0.1uF 50V

Mode

For POP Noise

22uH

Speaker
Output

388G078G111ACL

Lo

10uH -> 073G253S 81 Y
22uH -> 373G253S193D00
47uH -> 373G253S173Y00

47uH

0805

C604/C607/C613/C619/C622/C629

AMP_24V

Hi

AMP_24V

0x6A

SubWoofer
Output

CFG0 24V

R

R-

Hi

L601/L602/L603/L604/L605/L606

L-

0603

Coaxial

16 ohm

680nF/50V

Lo

SA1

0603

0603

L

FB603

NC/600 OHM

1 2

1206

P90T0066101

+5VSB

R627

10K

+

C633
100UF 16V

R628
100K1/16W

D601

LL4148

FB602

600 OHM

1 2

DSP_MCLK11

VCC_3V3

AMP_3V3

SA1

L606
NC/22uH

R608

NC/10 OHM 1/4W

Y_SDA11

C622
NC/ 680N F 50V

Y_SCL11

R607

NC/10 OHM 1/4W

AMP_3V3

C627
NC/0.47UF 50V

C629
NC/ 680N F 50V

C621

NC/ 470P 50V

AMP_RSTN

C620

NC/ 470P 50V

SA2

L605
NC/22uH

U601

AD82588B-LG48NAY

SDATA1

1

MS

2

PLL

3

CFG0

4

CFG1

5

CLK_OUT

6

DGND

7

DVDD

8

SDATA0

9

LRCIN

10

BCLK

11

MCLK

12

NC13NC14NC15NC16NC17NC18NC19NC20NC21NC22NC23NC

24

SDA

25

SCL

26

SA0

27

SA1

28

DEF

29

DGND

30

DVDD

31

PD#

32

ERROR#

33

RESET#

34

LREX

35

LINEIN

36

NC

37

VDDRA

38

RA

39

GNDR

40

RB

41

VDDRB

42

VDDLB

43

LB

44

GNDL

45

LA

46

VDDLA

47

NC

48

THERMALPAD

49

SPDIF_OUT6

C616
10uF 10V

A

CN603

RCA JACK

2
1

3

AMP_SA1
AMP_SA0

3V3_STB

AMP_DEF

CN602

NC/CONN

1

2

3

4 5

AUD_MUTE7

DSP_SDO011
DSP_BCLK11

DSP_WS11

FB601

1 2

P24V

RA

RB

LA

LB

C631
100N 50V

C610

0.1uF 50V

AMP_24V AMP_24V

SW+
SW-

C614
NC/0.1uF 50V

R612
NC/10K

AMP_DEF

R616
10K

R610
1K

CFG1

CFG0

+

C601

100UF 35V

R621
1M 1/16W

Q605
2N7002K

SPDIF_OUT

R611
NC/1K

R617
NC/1K

R618
1K

C630

NC/ 470P 50V

C617
100N16V

C628

NC/ 470P 50V

SB1

R609

NC/10 OHM 1/4W

SB2

R615

NC/10 OHM 1/4W

L-

RB

LA

L+

FB604 NC/120R 3A

1 2

LB

C604

0.1uF 50V

R-

AUD_RSTN

R688 100OHM

VCC_3V3

VCC_3V3

Q602

MMBT3906

1

AD82588

0

Mode

VCC_3V3

Mono

0

AD83586

0

CFG1

CFG0

RA

2.1 ChannelX 1

Stereo

C632 1UF16V

Circuit Diagrams and PWB Layouts

EN 41TPS15.3A LA 10.

2015-Oct-23

back to

div.table

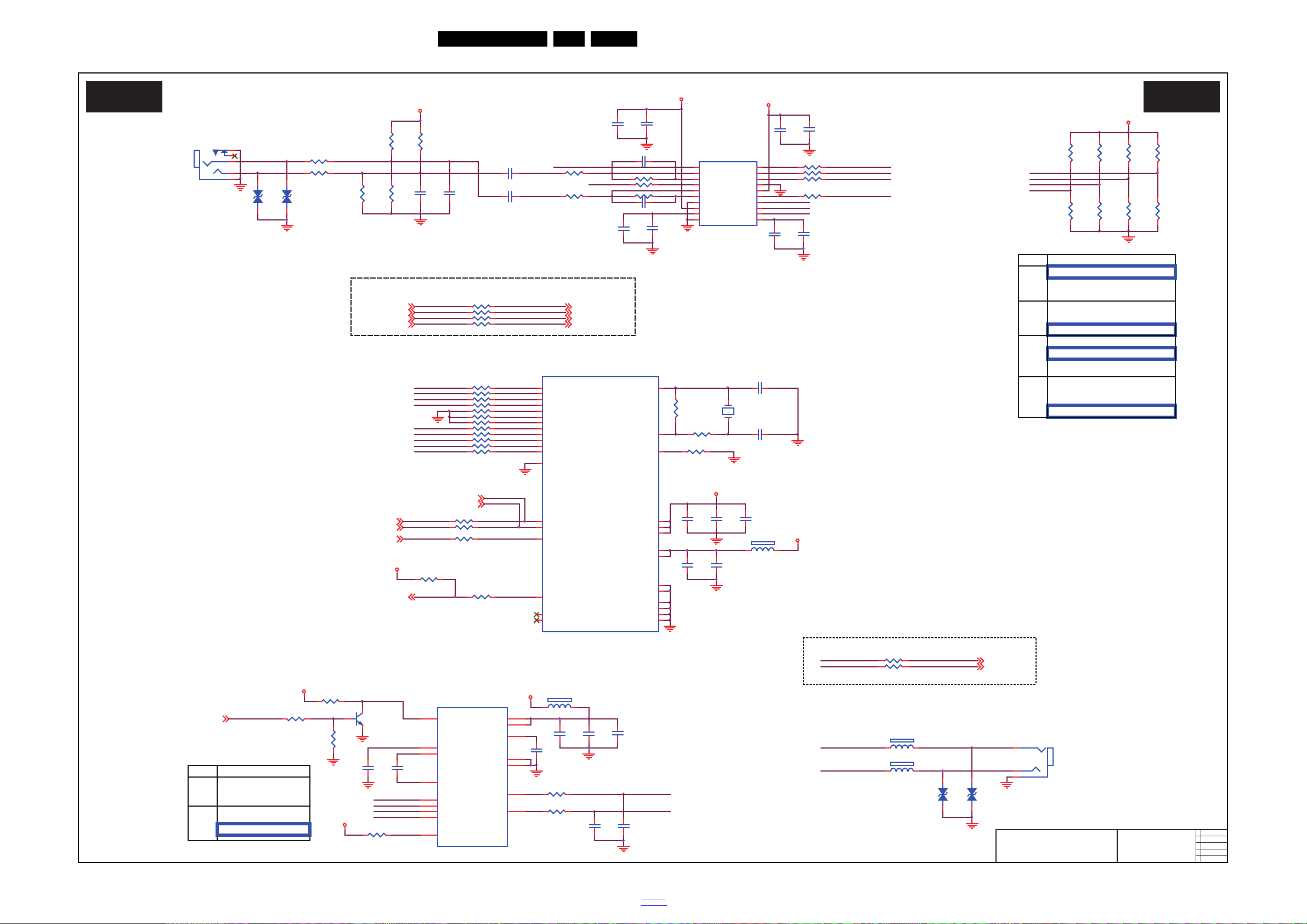

10-2-9 Karaoke/MIC In/Audio Output

19980_512.eps

Karaoke/MIC In/Audio Output

B09 B09

2015-01-20

715G6546

Karaoke/MIC In/Audio Output

R647
10K

R648
10K

C656

2.2U10V

R632
NC/1M

R633
NC/1M

R679 33 OHM 1/16W

C639
1nF 50V

C640
1nF 50V

R635
NC/1K

R636
NC/1K

R653
1K

R652
NC/1K

R654
NC/1K

PD_MUTE10

R68247K

ZD604

NC/MLVG0402

12

ZD605

NC/MLVG0402

12

R685 560R

R686 560R

CN605

PHONE JA CK

1

2

3

LINE_OUT_R

LINE_OUT_L

C660

2.7NF 50V

Y_SCL10
Y_SDA10

Y_SCL

FORMAT

R655
10K

VCC_3V3

Y_SDA

ADC_MS
IWL
FSAMPEN

C663

100PF 50V

U603

YSS952

DVSS

25

DVSS

18

PLLVSS

10

DVSS

23

DVDD18

31

GPIO11

21

GPIO10

26

GPIO9

27

GPIO8

28

GPIO7

30

GPIO6

32

GPIO5

1

GPIO4

2

GPIO3

3

DVDD18

20

GPIO2

5

GPIO1

6

GPIO0

7

IC_N

9

PLLVDD

8

PLLVSS

11

TESTb

22

IRQ_N

19

Xout

13

Xin

12

IOVDD

14

SDA

16

SCL

15

OPEN

24

DVSS

4

IOVDD

29

OPEN

17

E-Pad

33

C659

2.7NF 50V

R664
1M 1/16W

C658
1UF16V

C657
1UF16V

R656 NC/ 0R 05 OH M
R657 NC/ 0R 05 OH M
R658 NC/ 0R 05 OH M
R659 NC/ 0R 05 OH M

FB610 300R

I2S_BCLK6

I2S_SD

I2S_BCLK

I2S_MCLK

I2S_MCLK6
I2S_WS6

I2S_SD6

I2S_WS

C662 100PF 50V

R670

1.5K 1/16W

X60 1

24.576MHZ

12

DSP_SDO1

DSP_BCLK

DSP_WS
DSP_MCLK

R683 4.7K1/16W

FB611 300R

LINE_OUT_R

C655
10uF 10V

LINE_OUT_L

C647 33PF 50V

VCC_3V3

R684
1M 1/16W

LINE_OUT_L

LINE_OUT_R

FB609

300R

1 2

Q604
MMBT3904

MIC _I N_L

MIC _I N_R

M_SDA7,10,12,13

M_SCL7,10,12,13

MIC_IN_R 6

PD_MUTE

M_SDA

DSP_IRQ7

M_SCL

R675 33 OHM 1/16W
R676 33 OHM 1/16W

R677 33 OHM 1/16W

AUD_RSTN

DSP_MCLK 10

DSP_MCLK

DSP_SDO0

DSP_BCLK

DSP_WS

DSP_WS 10

C651

100N16V

DSP_BCLK 10

C652
100N16V

DSP_SDO0 10

C650
100N16V

C648

100N16V

C649
100N16V

VMID

C638 10uF 10V

R642 2K OHM

R646

3.3K 1/16W

R649 2K OHM

C641 10uF 10V

R644

82K 1%

C653
100N16V

R674 0R05 OHM

C654
100N16V

VCC_3V3

R678 10K

DSP_IRQ

U602

WM8782SEDS/RV

MCLK

1

DOUT

2

LRCLK

3

DGND

4

DVDD

5

BCLK

6

IWL

7

FSAMPEN

8

FORMAT

9

VMID

10

VREFGND

11

VREFP

12

AVDD

13

AGND

14

AINOPR

15

AINR

16

COM

17

AINOPL

18

AINL

19

M/S

20

Audio Interface Mode
0 = 24-bit LJ
1 = 24-bit I2S
z = 24-bit RJ

Description

FORMAT

088G302C3B1ACL

088G302C5B1ACL

Mute Control
0 = Mute
1 = Normal

C646 39PF 50V

Description

Karaoke DSP

MUTE

M/S

R650 82K 1%

Audio Mode Select
0 = RJ
1 = LJ
z = I2S

IWL

Audio Output
(Side)

+5VSB

FSAMPEN

Fast sampling rate enable
0 = 48ken (128x OSR)
1 = 96ken (64x OSR)
z = 192ken (32x OSR)

MIC Input
(Side)

AIFMODE

VCC_1V8

Pin

Address : 0x6C

FB608

60R

1 2

C643
10uF 10V

C642
100N16V

VCC_3V3

0 = Slave mode (128fs, 192fs,
256fs, 384fs, 512fs, 768fs)
1 = Master Mode (256fs, 128fs
when FSAMPEN = z)

Pin

When Karaoke Function Disable

Word Length
0 = 16 bit
1 = 20 bit
Z = 24 bit

R660 51R
R661 51R
R662 51R
R663 51R

MIC_IN_L 6

R680NC/33 OHM 1/16W

ADC_MS

VCC_3V3

FORMAT

FSAMPEN

R681NC/33 OHM 1/16W

IWL

I2S_WS
I2S_BCLK
I2S_SD
DSP_SDI1

U604

WM8524CGEDT/R

LINEVOUTL

1

CPVOUTN

2

CPCB

3

LINEGND

4

CPCA

5

LINEVDD

6

DACDAT

7

LRCLK

8

BCLK

9

MCLK

10

MUTE#

11

AIFMODE

12

AGND

13

VMID

14

AVDD

15

LINEOUTR

16

R687 10K

VCC_3V3

R640 0R05 OHM
R643 0R05 OHM
R645 0R05 OHM

R651 0R05 OHM

DSP_MCLK
DSP_SDI1

DSP_BCLK

DSP_WS

C644
100N16V

C645
10uF 10V

AUD_RSTN7,10

R634
NC/1K

MIC _R IN
MIC_LIN

ZD602

NC/MLVG0402

12

ZD603

NC/MLVG0402

12

R665 0R05 OHM
R666 0R05 OHM
R667 0R05 OHM

R671 51R

R668 51R

R672 51R

VMID

R669 51R

R673 51R

CN604

PHONE JACK 5P

1

2

3

5

4

C634
100N16V

R637
NC/10K

C635
10uF 10V

DSP_MCLK
DSP_SDO1
DSP_SDO0

C636
100N16V

DSP_BCLK

DSP_WS

C637
10uF 10V

VCC_3V3

VCC_5V

R6390R05 OHM
R641 0R05 OHM

Circuit Diagrams and PWB Layouts

EN 42TPS15.3A LA 10.

2015-Oct-23

back to

div.table

10-2-10 LVDS/VB1 Output

19980_513.eps

LVDS/VB1 Output

B10 B10

2015-08-20

715G6546

LVDS/VB1 Output

C3M

C4P C4M

C3P

R4A7

NC/4.7K1/16W

R4A8
NC/4.7K1/16W

RXE1P

RXE2N

R4B1

NC/0R05 OHM

RXECKN

RXE2P

RXE1N

RXO2N
RXOCKP

RXO4N

RXO4P

RXECKP

RXOCKN

RXE0P
RXE0N

RXO3P
RXO3N

RXO2P

R4F4
10K

BITSEL

R4F5
10K

R4F6

NC/4.7K1/16W

R4F7
NC/4.7K1/16W

VCC_3V3

RP442 NC/ 0OH M 1/16W

1
2

3

4

8

7
6
5

R4B2
NC/4.7K1/16W

RP443 NC / 0OH M 1/16W

1
2

3

4

8

7
6
5

RP444 NC/ 0OH M 1/16W

1
2

3

4

8

7
6
5

20PX2 S/T 2.0mm
311GW200C40AAL

R4G3 0R05 OHM

VBY0P

SDA

VBY5P

VBY1N

VBY4N

R4G4 0R05 OHM

LVDS_SEL

VBY3N

3D_LR_O

51P R/A 0.5mm
311GF050P51ADP

VBY1P

VBY6N

VBY3P

BITSEL

VBY5N

VBY6P

VBY0N

VBY2P

VBY7P

ROTATE

SCL

VBY4P

R4A9
NC/1K

CN403

CONN

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

U408
NC/AZ809ANSTR-E1

GND

1

RESET

2

Vcc

3

VBY7N

VBY2N

R4G7
NC/820R 1/10W 1%

P12V

R4B3
0R05 OHM

LVDS 60Hz

3D_FLAG_P

C3P

C3M

P12V Drop Detect

LVDS_SEL

Active Voltage is 7.4V

V by One

PANEL_POWER

E

High: Panel Power On
Low : Panel Power Off

3D_EN7

3D_EN

C

space/trace/space/trace/space(mil)
12 / 6 / 4.5 / 6 / 12

B

RXO2P

RXE1P

RXOCKN
RXO4N

RXE1N
RXE2N

RXE0P
RXE2P
RXECKP

RXE0N

RXO3P
RXO4P

RXO2N

RXECKN

RXO3N

RXOCKP

R801

NC/0R05 OHM

R4G6
NC/100K1/16W

R802

NC/0R05 OHM

LD_EN

R4C9

NC/33 OHM 1/16W

BITSEL

C0P 7

B3M

BCKP 7

C0M 7

B1M

C2P 7

B4P 7

B3P

BCKM 7

B1P 7

CCKM

C0P

C1P 7

B3P7

CCKP 7

C1P

B4M

B3M7

B2M 7

C3M

B2M

B0M

B0P

B0M 7
B1M 7

BCKP

C2M 7

C3M7
C4M 7

C1M 7

B4P

B0P 7

C4P 7

3D_LR_O

CCKP

C0M

B4M 7

C4P

R4G8 NC/33 OHM 1/16W

C2P
C2M

3D_L_R_O

B2P 7

B2P

B1P

CCKM 7

C4M

C3P

C1M

C3P7

BCKM

LR_SYNC7

LR_SYNC LVDS_SEL

R4D1

NC/33 OHM 1/16W

HTPDN
LOCKN

C4E2

NC/0.1uF 50V

M_SDA7,10,11,13

R4D2

NC/33 OHM 1/16W

M_SCL

M_SCL7,10,11,13

SCL

R4D3

NC/33 OHM 1/16W

3D_L_R_O3

RP441 NC/ 0OH M 1/16W

1
2

3

4

8

7
6
5

PANEL_POWER

R4C5
10K

R4C3 150K

B3P

Q404
MMBT3904

C2P

C1M

CCKP

B2P

R4C2

0R05 OHM

B4M

B3M

BCKP
BCKM

C1P

LVDS_ON_OFF

B2M

C0P

C2M

CCKM

B4P

C0M

Q403

AO4449 -7A/-30V

S

1

S

2

S

3

G

4

D

8

D

7

D

6

D

5

R4C1
47K

R4C4

4.7K1/16W

LVDS_ON_OFF7

C4D6

220NF 25V

P12V

Q407
NC/2N7002K

Q406
NC/2N7002K

3D_FLAG

3D_FLAG_P

R4G1

NC/3.3K 1/16W

M_SDA

SDA

VCC_3V3

LOCKN

R4F9

NC/100OHM

HTPDN

C4E3 100N16V

VBY3P

3D_LR_O

VBY7N

VBY5P

3D_SYNC

VBY0N

VBY4P

VBY1P

VBY3N

VBY7P

BITSEL

VBY4N

VBY0P

3D_FLAG_P

VBY6P

VBY2P

VBY1N

VBY2N

VBY5N

VBY6N

CN402

NC/CONN

2
4
6

8

10
12
14
16
18
20
22
24
26
28

30
32
34
36
38

40

1

3

5
7
9
11
13
15
17
19
21
23
25
27
29

31
33
35
37
39

+

C4B7

220UF 16V

C4B6

47nF 50V

R4B7
NC/0R05 OHM

B0MB0P
B1MB1P

R4G5

NC/1.2KOHM 1%

R4B6

NC/0R05 OHM

C4E4 100N16V

R4A6

NC/1K 1/4W
C4E5 100N16V
C4E6 100N16V

R4B5
NC/4.7K1/16W

R4B8

NC/33 OHM 1/ 16W

If output is V by One signal, C4E3 ~ C4F9 change to 100nF
If output is LVDS signal, C4E3 ~ C4F9 change to 0R, and
RP441~RP444 change to 0R

R4B4

4.7K1/16W

R4B9

NC/33 OHM 1/16W

C4E7 100N16V
C4E8 100N16V

C4F1 100N16V

C4E9 100N16V

VCC_3V3

PANEL_POWER VCC_3V3

C4F2 100N16V
C4F3 100N16V

C4F5 100N16V

C4F4 100N16V

R4F3 NC/0R05 OHM

3D_SYNC7

3D_FLAG6

C4F6 100N16V
C4F7 100N16V

ROTATE

C4F9 100N16V

C4F8 100N16V

LVDS_SEL

ROTATE

3D_FLAG_P3D_LR_O

2D_3D
L_R

D401

NC/RB551V-30_R1_00001

12

VCC_3V3

VBY5P

VBY0P
VBY1N

VBY5N

VBY6P

VBY1P

VBY4N
VBY4P

VBY7P

VBY6N

PANEL_POWER

VBY2N
VBY2P

VBY0N

VBY3P

VBY3N

VBY7N

R4G2 NC/2.2K1/16W

Circuit Diagrams and PWB Layouts

EN 43TPS15.3A LA 10.

2015-Oct-23

back to

div.table

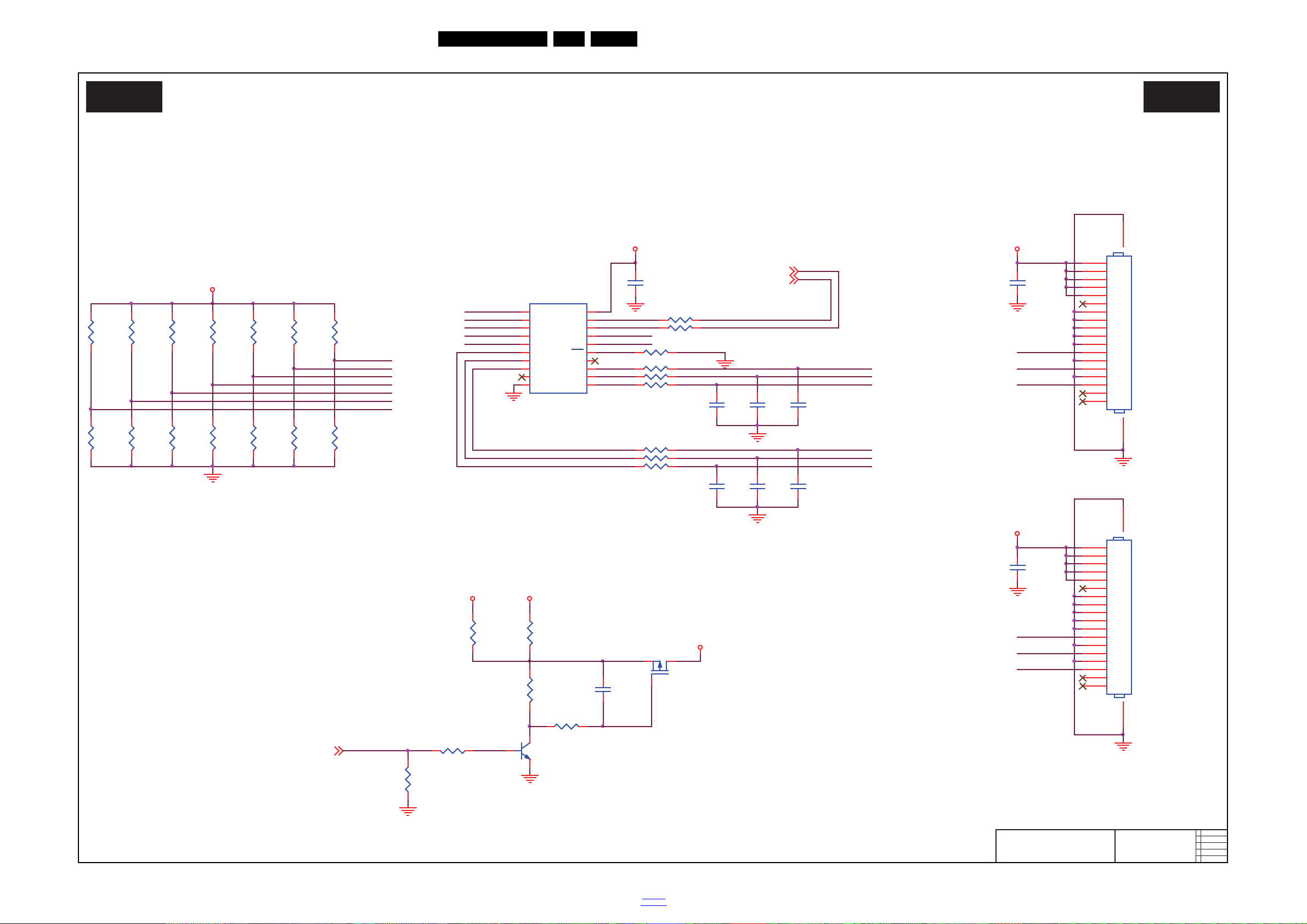

10-2-11 AmbiLight

19980_514.eps

AmbiLight

B11 B11

2015-01-20

715G6546

AmbiLight

R254
NC/10K

AMBI_ON_OFF

I2C Address: 0xC2

R235 NC/100OHM

M_SCLLED_B2

VCC_3V3

R244 NC/100OHM

LED_B6
LED_B5

LED_R_B

R236 NC/100OHM

C212

NC/1nF 50V

LED_B3

LED_L_B

C215

NC/1nF 50V

LED_R_R

C214
NC / 1nF 50V

LED_B4

LED_L_G

R233 NC/100OHM

LED_R_G

LED_B0

U211

NC/PCA9634PW

A0

1

A1

2

A2

3

A3

4

A4

5

LED0

6

LED1

7

LED2

8

LED3

9

Vss10LED4

11

LED5

12

LED6

13

LED7

14

OE

15

A5

16

A6

17

SCL

18

SDA

19

VDD

20

C217
NC / 1nF 50V

LED_L_R

R234 NC/100OHM

C211
NC/100N16V

LED_B1

R246 NC/100OHM

R224 NC/33 OHM 1 /16 W

M_SDA

C213

NC/1nF 50V

C216

NC/ 1nF 50V

R245 NC/100OHM

R232 NC/33 OHM 1/16WR227

NC

LED_B6

R243
NC

R226

NC/4.7K1/16W

R225

NC/4.7K1/16W

LED_B0
LED_B1

R239

NC/4.7K1/16W

R237
NC

R242

NC/4.7K1/16W

R229
NC

LED_B3
LED_B4

R231
NC/4.7K1/16W

VCC_3V3

R240

NC/4.7K1/16W

R228
NC

R241

NC/4.7K1/16W

R238
NC

R230
NC

LED_B5

LED_B2

LED_R_G
LED_R_R
LED_R_B

LED_VCC

LED_VCC

LED_L_R
LED_L_B

LED_L_G

Right
Side

High: Power On
Low : Power Off

AmbiLight

Left
Side

Only for Philips Project

Q201

NC/AO3407A

CN203

NC/CONN

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19 20

AMBI_ON_OFF6

Q202
NC/MMBT3904

R251

NC/4.7K1/16W

P12V

R249
NC/47K

R250

NC/150K

C219

NC/220NF 25V

LED_VCC

C210

NC/0.1uF 50V

C218

NC/0.1uF 50V

M_SDA7,10,11,12

M_SCL7,10,11,12

CN204

NC/CONN

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19 20

R248
NC/0R051/8W

R247
NC

P24V

Circuit Diagrams and PWB Layouts

EN 44TPS15.3A LA 10.

2015-Oct-23

back to

div.table

10-2-12 Power

19740_511.eps

Power

B12 B12

2014-04-24

715G6546

Power

P24V

VCC_1V8

VCC_5V

C721
1nF 50V

C727

100N16V

P12V12,13

U701
AP1117E33L-13-77

ADJ(GND )

1

VOUT

2

VIN

3

4

4

3V3_STB7,9,10
VCC_3V33,4,7,9,10,11,12, 13

C724

NC/10N 50V

B

C735
10N 50V

VCC_1V89,11
VCC_1V29

E

BL_ON_OFF

PANEL_POWER

R704

4.7K

P12V

L702
1uH

R765 4.7K1/16W

R760 150K

VCC_5V

PS_ON

+5VSB

R752
47K

0603

Q705

S

1

S

2

S

3

G

4

D

8

D

7

D

6

D

5

Q710
MMBT3904

C741
220NF 25V

R755
0R05 OHM

R732 1K

C703
10uF 25V

PS_ON

R739

2.2K1/16W

3V3_STB

R712 NC/0R05

U703
G5312QN1U

TON

24

V5V

3

PGND

4

VCC

26

VN

20

VN

19

VN

18

VN

17

AGND

2

BST

22

LX

5

LX

6

LX

7

LX

8

LX

9

LX

10

PGND

11

PGND

12

PGND

13

PGND

14

PGND

15

PGND

16

OUT

25

FB

27

PGOOD

28

ILIM

1

EN

23

AGND

29

+5VSB

R737 100K1/16W

R769
12K +-1% 1/16W

U706
G9141T11U

IN

1

GND

2

SHDN3SET

4

OUT

5

R771
0R05 OHM

P24V10,13

R766 10K

C

Standby Power

BL_ON

R772 15K 1%

C743
100N16V

0603

C750
100N16V

C749
1UF16V

For Tuner

C755
22UF

L704

2.2uH

R773
100 OHM 1% 1/10W

R770
13K 1/10W

R774

15K 1/10W 1%

R768 10OHM1/10WC746

10uF 10V

C747
1UF16V

C756
100N16V

C757
10N 50V

PS_ON

+

C751
220UF 16V

+

C732
220UF 16V

U707
AT1528P11U

VCC

1

REF

2

GND

3

FB4EN

5

PGND

6

LX

7

VIN

8

C745 NC

L703
1uH

PS_ON

R759

200KOHM 1/10W

R764 4.7K1/16W

R744
6K8 1/10W 1%

VCC_3V3

0805

U705

G5196R41D

VINA

1

VIN

2

GND

3

GND

4

AGND5FB6COMP7RT

8

SS

9

LX

10

LX

11

LX

12

BS

13

PG14EN

15

VIN

16

E-Pad

17

VCC_1V2_CPU

C740

470PF 50V

Q709
MMBT3904

R754

15K 1/10W 1%

R749 180K

BL_BR_CTRL 7

Q708
NC /MMBT3904

PS_ON

R751 20K 1/16W

R734 1K

R747
0R05 OHM

C734
22UF

TU_3 V3

R745

7.15K 1%

R735 10K

VID07

TU_3 V33

C728

100N16V

R738 100K1/16W

VID17

C731
10uF 10V

C736
10N 50V

C754
10uF 10V

R763 NC/4.7K1/16W

R758

NC/6K8

C729
10uF 10V

VCC_5V

R746
499 +-1% 1/10W

VCC_5V3,4,7,11,13

3V3_STB

R748 180K

C759 1UF16V

R722 20K 1/16W

VCC_1V2_CPU9

3V3_STB

+5VSB3,5,10,11

C739

470PF 50V

R725
10K

R750 20K 1/16W
C744 NC

R775
NC/47K

0603

0603

C

Q711

NC/AO4449 -7A/ -30V

S

1

S

2

S

3

G

4

D

8

D

7

D

6

D

5

B

R777 NC/150K

PS_ON

0603

R778 NC/4.7K1/16W

0603

Q712
NC/MMBT3904

C758
NC/220N F 25V

R776
NC/0R05 OHM

E

R708 0R051/8W

DIM

P24V

PWR_ON7

VCC_3V3

R724 100K1/16W

PWR_ON

R715 10 OHM

R753

15K 1/10W 1%

R736

3.3K 1/16W

R713 NC/1K

L701

P12V

C714
10uF 25V

R720 20K 1/16W

C723

0.1uF 50V

USB_5V

C716
10uF 10V

+

C718
220UF 16V

CN701

CONN

2
4
6

8
10
12
14
16

1
3
5
7
9
11
13
15

+5VSB

R723
56K +-1% 1/10W

R711
NC/2K OHM

C726
NC

R728 10K1/10W

R727
2K 1/10W

R743 4.7K1/16W

C717
10uF 10V

C733
22UF

AMP_24V

Q701
MMBT390 4

R709 4.7K1/16W

C725
10uF 10V

Q704
MMBT390 4

R705

2.2K1/16W

C705
10uF 10V

R703
NC/4.7K

R779

3.3K

BL_BR_CTRL

C708
10uF 10V

U702
AP1117E33L-13-77

ADJ(GND )

1

VOUT

2

VIN

3

4

4

C707
1UF16V

R706 100 OHM

R714 1K

+

C730

220UF 16V

C713
10uF 25V

C701
NC/0. 1uF 50V

P24V

DDR_1V58,9

USB_5V4

R767 1K

R701 330 OHM

3V3_STB

BL_ON_OFF 7

R726 4.7K1/16W

VCC_5V

+ C742

100UF 16V

VCC_5V VCC_5V

R717
1K 1/10W

C706
NC/10uF 10V

R718 560K

+

C720
100UF 16V

Q702
MMBT3904

R716 1.5R

C719
100N16V

P12V

+5VSB

R721

4.7K1/16W

R707 0R05

P12V

P5V

PW_ON

C748
10uF 10V

R702 NC/0R051/8 W

USB_5VVCC_5V

PS_ON

R740 4.7K1/16W

R731
1K 1/10W

Q703
MMBT3904

+5VSB

VCC_5V

C752
1UF16V

U708
AZ1117D

VI3VO

2

GND

1

C753
10uF 10V

C702
NC/0. 1uF 50V

C760
NC/10uF 10V

C704
1UF16V

U704

G5196R4 1 D

VINA

1

VIN

2

GND

3

GND

4

AGND5FB6COMP7RT

8

SS

9

LX

10

LX

11

LX

12

BS

13

PG14EN

15

VIN

16

E-Pad

17

R733 10K

C709
10uF 10V

VCC_1V2

PS_ON

3V3_STB

+5VSB

R719 10K 1%

C722 1UF16V

DDR_1V5

Circuit Diagrams and PWB Layouts

EN 45TPS15.3A LA 10.

2015-Oct-23

back to

div.table

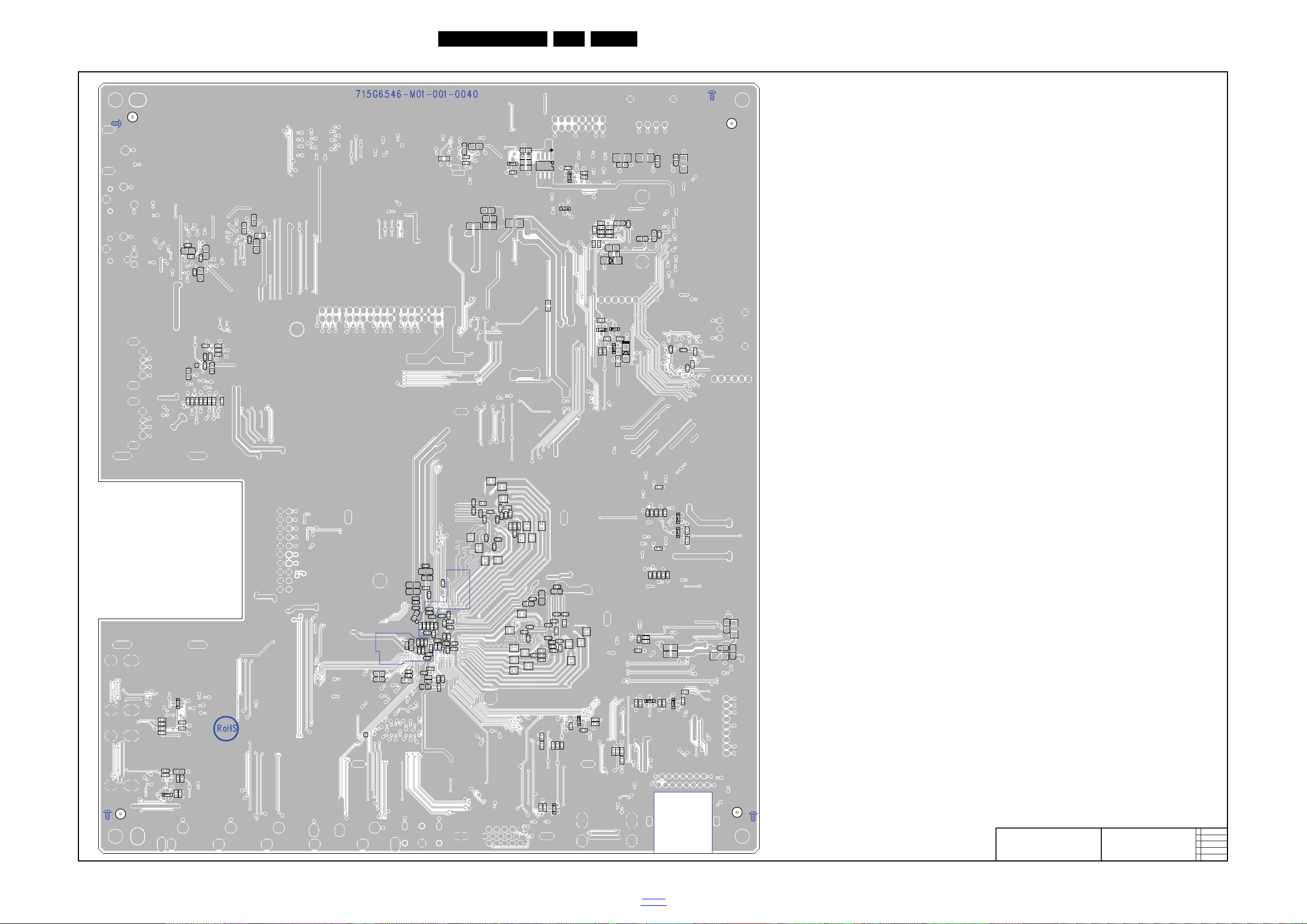

10-2-13 SSB layout top

19980_516.eps

715G6546

SSB layout top

TP19

C706

C708

C709

C755

C127

C761

C131

C219

C402

C404

C406

C408

C707

C503

C603

C605

C608

C609C610

C611

C614

C620

C621

C625 C626

C628

C630

C632

C749

C752

C656

C702

C723

C741

C4D6

C747

C505

C627

C638

C641

C645

C701

C729

C734

C753

C714

C633

C742

C751

L702

FB101

FB608

FB610

FB611

R249

R250

R639

R641

R717

R701

R706

R723

R731

R727
R728

R752

R768

R755

R760

R770

R758

R773

R774

R754

R4C1

R4C2
R4C3

FB601

FB604
FB605

FB606
FB607

R247

R248

R525

R140

R4A6

R601

R607

R608
R609

R615

R707

TH105

C762

C126

C130

C622

C629

C720

C713

C754

L701

R704

TH103

C458

C4B6

C733

C4B7

C703

C705

C732

C748

C704

C730

C718

C746

C731

R753

L703

R744

R745

R746

R747

R759

C210C218

C759

C760

R779

C604

C607

C613

C619

CN403

R780

C4E2

R4G5

R4G7

D401

R787

R785

R786

H15

H9

H16

H17

H18

H12

H7

HS401
HS402

TP6

TP7

TP8

TP9

TP10

TP11

TP12

TP13

TP14

TP15

TP16

TP17

TP18

TP20

TP21

SEN1

SEN8

SEN9

SCREW1

SCREW2

SCREW6

C101

C111

C105

C106

C107

C108

C109

C113

C114

C211

C115

C457

C438

C216

C431

C436

C418

C430

C405

R4B7

R4B8

R4B9

R412

R409

R413

R4B1

R4B2

R4B3

R4B4

R4A7

R4A8

R4A9

R4C5

R4B5

R407

R4B6

R147

R416

R419

R420

R422

R424

RP413

RP402

RP401

RP404

RP406

RP403

RP408

RP405

RP407

RP414

RP429

RP430

RP433

SEN17

H2

H5

SCREW3

SEN4

CN203

CN603

CN102

CN605

CN604

CN107

CN101

C102

C103

C104

C112

C116

C117

C120

C121

C122

C123

C124

C214

C407

C463

C403

C416

C401

C464

C461

C412

C415

C428

C413

C414

C433

C429

C434

C435

C411

C501

C502

C504

C639

C640

C644

C659

C647

C654

C660

C661

C724

C4D9

C217

C719

C726

C727

C743

C757

ZD102 ZD103 ZD104

ZD105

ZD106

ZD107

ZD108

ZD109

ZD110

ZD111

ZD114

ZD115

ZD116

ZD112

ZD113

ZD117ZD118

ZD121ZD122

ZD401

ZD402

ZD403

ZD501

ZD502

ZD503

ZD504

ZD505

ZD506

ZD507

ZD508

ZD509

ZD510

ZD511

ZD601

ZD602

ZD603

ZD604

ZD605

U407

L101

CN103

U704

U603

R101

R102

R106

R105

R107

R108

R110

R109

R111

R112

R113

R114

R115

R118

R119

R122

R121

R124

R123

R126

R127

R128

R129

R130

R131

R132

R133

R134

R135

R136

R138

R141R142

R143
R144

R145

R146

R148

R149

R150

R151

R154

R155

R158

R159

R4D3

R4D2

R244

R246

R226

R238

R251

R443

R444

R450

R451

R453

R458

R462

R463

R401

R402

R441

R442

R493

R417

R418

R408

R403

R405

R406

R404

R423

R457

R415

R425

R410

R411

R446

R445

R503

R504 R505

R506

R507

R508

R512

R514

R516

R517

R518 R519
R521
R522

R523
R527

R528

R529
R530

R531

R532

R533

R534

R536
R537

R610

R611
R617

R618

R623

R624

R637

R632

R633

R634

R635

R636

R640

R642

R643

R644

R645

R649

R650

R651

R647

R648

R652

R653

R654

R655

R656

R657

R658

R659

R660
R661
R662
R663

R680

R665

R666

R667

R668

R669

R670

R671

R672

R673

R675

R676

R677

R678

R682

R683

R684

R685

R686

R687

R721

R726

R725

R711

R713

R719

R740

R4F4

R732

R733

R765

R4C4

U502 U503

U505 U506

Q705

Q403

U707

U405

U701

U504

Q101

Q202

Q501

Q502

Q604

Q702 Q703

Q404

Q201

U602

U708

U604

X401

X601

R714

SEN6

R103R104

R152

R153

CN162

C721

L704

L605

L606

R722

CN204

CN106

U703

R245

R235
R234

R434

R435

R718

R720

R705

R709

Q701

SEN21

SEN22

HS601

HS1

HS2

C646

U402

U403

C110

C462

C417

C648

C650

C728

RP432

RP434

RP439

RP440

RP431

U401

U705

R492

R475

R485

R487

R483

R494

R495

R484

R474

R476

R480

R478

R482

R472

R488

R486

R471
R473

R477
R479
R481

R120

R125

R137

R139

R414

R440

R459

R460 R461

R664

R681

R4F5

R734

R735

C212
C213

C215

R224

R225

R227
R228
R229
R230
R231

R232

R233

R236

R237

R239
R240
R241
R242
R243

R4C6R4C7

R4C9
R4D1

U211

CN602

CN601

CN701

CN161

CN401

L601

L602

L603

L604

TP3

CN402

CN611

CN612

R160

R4F3

R4F6

R4F7

R4F9

U706

Q406

R254

R4G1

Q407

C132

R4G2

U507

U508

C662

C663

R4G3

R4G4

U601

C4E3

C4E4

C4E5

C4E6

C4E7

C4E8

C4E9

C4F1

C4F2

C4F3

C4F4

C4F5

C4F6

C4F7

C4F8

C4F9

RP441

RP442

RP443

RP444

R4G6

U408

CN501

CN506

CN507

CN111

R161 R4G8

R4G9

R4H1

R781

R782

D602

ZD701

U709

U702

CN163

CN104

C601

C602

R689

ZD702

Circuit Diagrams and PWB Layouts

EN 46TPS15.3A LA 10.

2015-Oct-23

back to

div.table

10-2-14 SSB layout bottom

19980_517.eps

715G6546

SSB layout bottom

C424

C637

C119

C425

C506

C606

C612

C618

C623

C624

C631

C657

C658

C125

C717

C616

C725

C635

C643

C655

FB401

FB602

FB609

R625

R716

R702

R602

R603 R604

TH101

C118

C490

R708

C722

R703

TH102

R712

C459

C473

C474

C480

C484

C485

C494

C409

C410

C758
R775

R776

R777

C716

C4E1

R783
R784

C477

SEN12

SEN13

C422

C423

C469

C470

C471

C472

C476
C478

C479

C486

C487

C4A7

C481

C452

C453

C454

C455

C419

C456

C482

C483

C495

C439

C440

C442

C491

C492

C493

C636

C447

C426

C450

C451

C432

C756

R4A5

R749

R426

R428

R431

RP411

RP437

RP425

RP427

RP410

RP412

RP416

RP409

RP418

RP415

RP417

RP424

RP436

RP419

RP438

RP421

RP435

SEN3

Q401

D601

C441

C444

C445

C420

C446

C465

C449

C466

C467

C468

C448

C427

C460

C497

C499

C4A1

C4A2

C4A3

C4A4

C4A5

C4A8

C4A9

C443

C4B3

C4B4

C4B5

C488

C496

C634

C642

C653

C739

C744

R116

R117

R430

R429

R433

R436

R437

R438

R447

R449

R448

R452

R456

R464

R467

R491

R439

R470

R421

R427

R432

R501

R502

R509R510

R511

R513
R515

R520

R524 R526

R535

R538

R539

R540

R541

R542

R605

R606

R612
R613
R614

R616
R619
R620

R621

R622

R626

R627

R628

R629 R630

R646

R674

R679

R736

R739

R743

R737

R767

R748

R750

D501

U406

Q402

Q503

Q601

Q602

Q603

Q704

Q710

SEN10

C489

R715

FB404

R724

R766

C498

C735

C736

C750

C437

C421

C4A6

C4B1

C4B2

C615

C617

C649

C651

C652

C740

C745

RP420

RP422

RP426

RP428

RP423

FB402

FB403

FB405

FB406

FB407

FB408

FB409

FB410

R499

R469

R468

R498

R4A4

R4A1

R496

R489

R490

R4A2

R497

R4A3

R454
R455

R465R466

R738

R751

R763R764

R4C8

C4D7

C4D8

R778

Q711

Q712

TP1

D101

Q708Q709

D603

TP2

TP5

TP4

Circuit Diagrams and PWB Layouts

EN 47TPS15.3A LA 10.

2015-Oct-23

back to

div.table

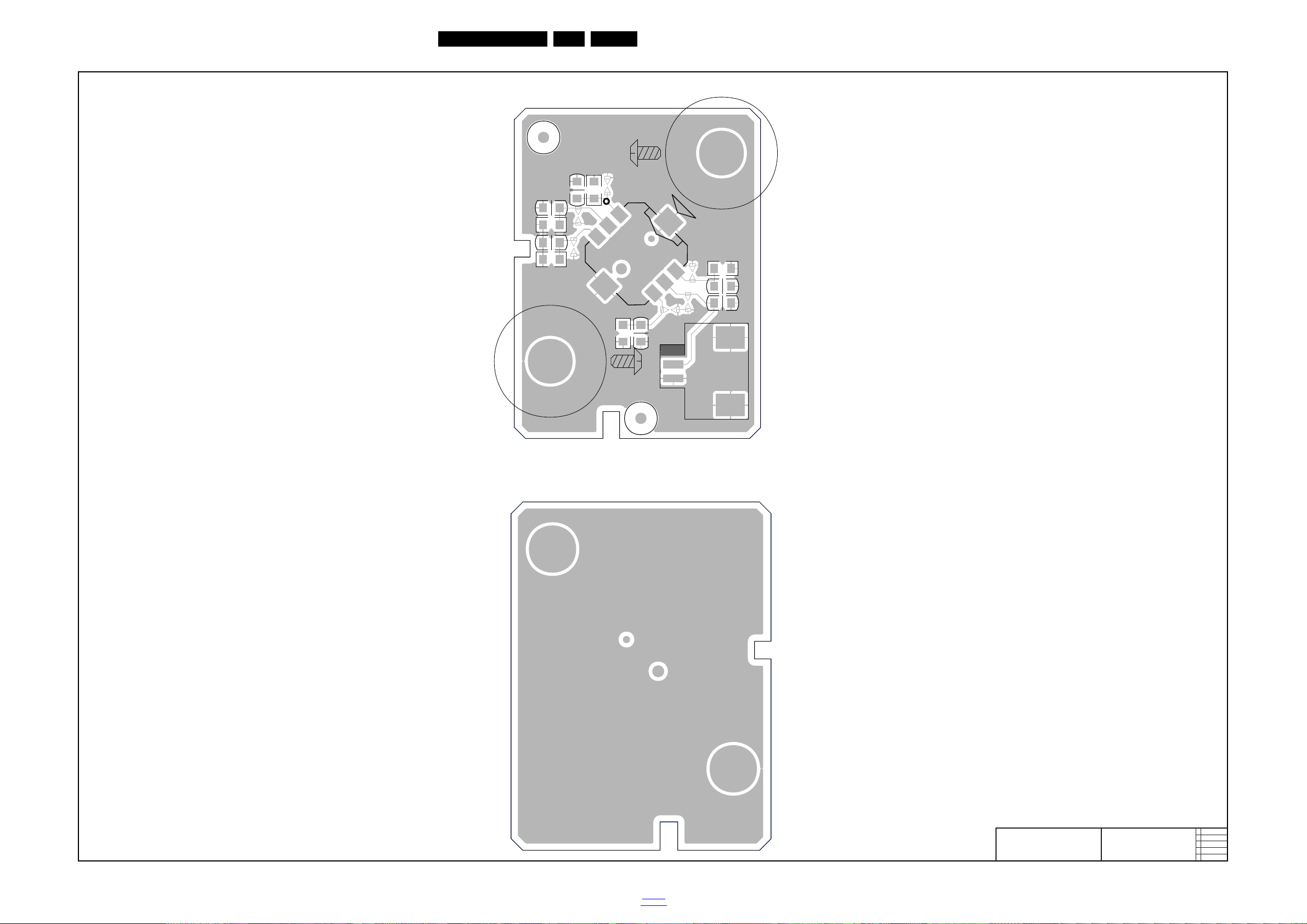

10.3 J 715G7691 IR/LED Panel

19980_518.eps

IR

J J

2015-05-26

715G7691

IR

C210

10uF 10V

3V3SB

SSB to IR

LED_R

RC6

LIGHT_SENSOR

+5V_SW

CN201

CONN

1
2

3

4
5
6
7

8

9

10 11

R236
4K3 1/16W 5%

R221

18R 1/16W 5%

LED_B

R250

0R05 1/16W

R228

4K3 1/16W 5%

Q201

BC847C

R225

2.2K 1/ 16W

3V3SB

LED_R

R220
1K

ZD202

MLVG0402

1 2

BLUE

LED208

NC/LED

12

+5V_SW

R249

NC / 0R 05 1/ 16W

LED light

RED

ZD203 MLVG0402

1 2

Q202

BC847C

LED210

LED

2 1

LED209

GPTS06033RC3-PB

12

R235 49.9 OH M 1% 1/16W

ZD204

MLVG0402

12

C208

1uF 10V

RC6

R223

100OHM

C207

NC / 100P 50V

R222

2K7 1/16W 5%

3V3SB

IR

U202

TSOP75436WTT

GND

1

Vs

2

OUT

3

GND

4

ZD204 close to U202

R244 0R 05 1/ 16W

U203

ALS-PDIC17-55C-TR8

OUT

1

VCC2GND

3

GND

4

R238

NC / 2M OHM 1/16W 5%

C209

1uF 10V

R227

22K1/16W

R229

100K1/16W

C214

100P 50V

U205

LM358APWR

1OUT

1

1IN-

2

1IN+

3

GND42IN+

5

2IN-

6

2OUT

7

VCC

8

C212

100P 50V

Light_sensor

ZD201

UDZSNP3.3B

1 2

R234 100OHM

R230 470OHM1/16W

Light Sensor

R240

NC / 0R 05 1/ 16W

R239

0R05 1/ 16W

R233

39K 1/16W 5%

R231

15K 1/16W

C211

4.7U F 10V

R224

15K 1/16W 5%

C213

100P 50V

R232

18K

+5V_SW

R251

NC / 0R 05 1/ 16W

R252

0R05 1/ 16W

LED_B

10-3-1 IR

Circuit Diagrams and PWB Layouts

EN 48TPS15.3A LA 10.

2015-Oct-23

back to

div.table

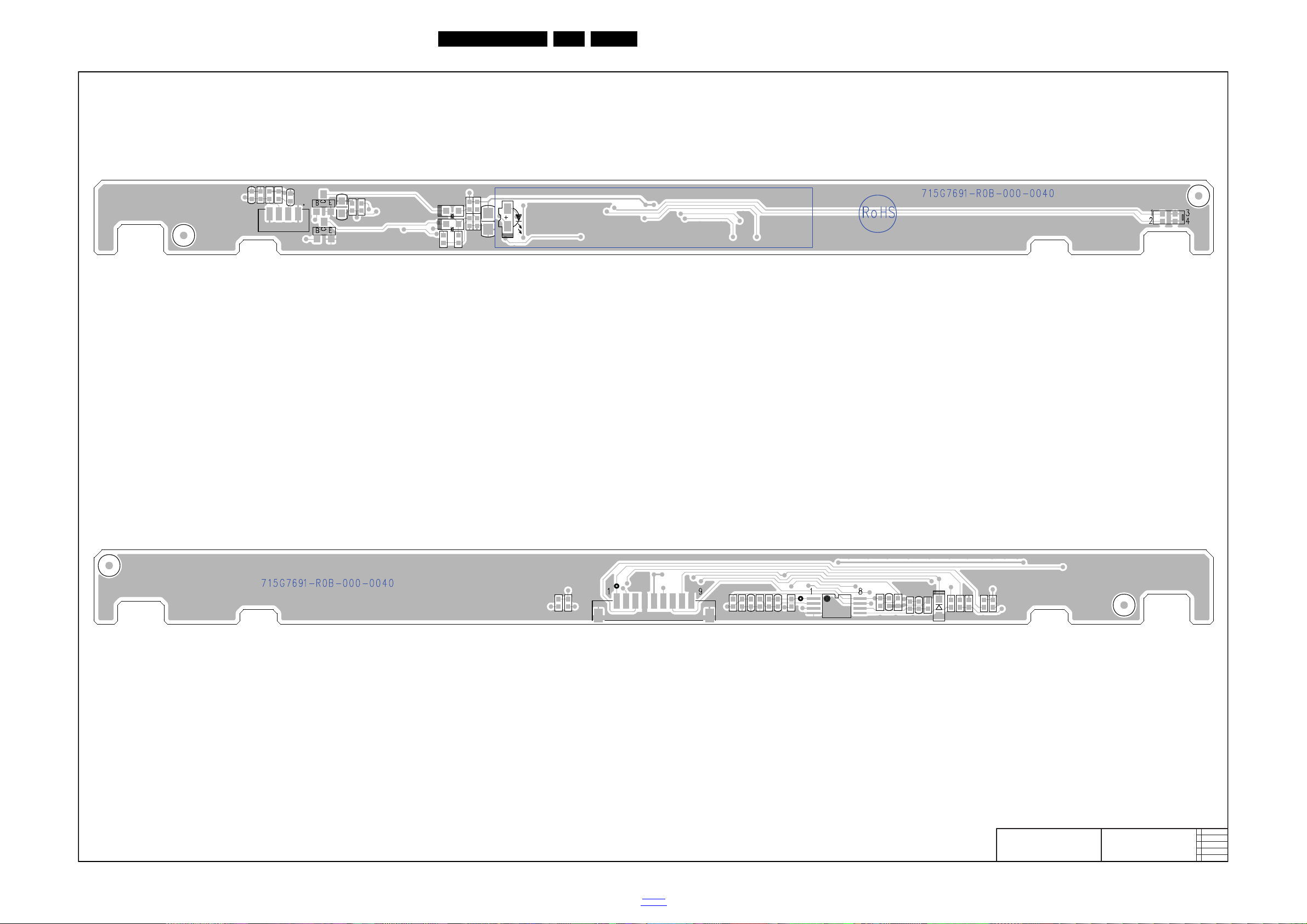

10-3-2 IR/LED board layout

19980_519.eps

715G7691

IR/LED panel

layout top/bottom

2015-06-02

R250

C211

R249

C210

C207

C208

LED208

LED209

LED210

Q201

Q202

R220

R221

R222

R223

R224

R238

U202

U203

ZD202

ZD203

ZD204

ZD2

ZD3

ZD201

C209

C212

C213

C214

R225

R227

R228

R229

R230

R231

R232

R233

R234

R235

R236

R239

R240

R244

U205

ZD1

ZD4

CN201

R252

R251

Layout IR/LED panel (top side)

Layout IR/LED panel (bottom side)

Circuit Diagrams and PWB Layouts

EN 49TPS15.3A LA 10.

2015-Oct-23

back to

div.table

10.4 J 715G7074 IR/LED Panel

19850_526.eps

IR & 3D & Light sensor & LOGO

J J

2014-09-30

C

715G7074

IR &3D&Light sensor&LOGO

R229
0R05 1/16W

R210
10K 1/16W 5%

R211

10K 1/16W 5%

R212
10K 1/16W 5%

C203
1uF 10V

+5V_SW

R219

4.7 OHM +-1% 1/ 10W

R218

10ohm +/-1% 1/ 10W

R217

10ohm +/-1% 1/ 10W

R220

NC/4.7 OHM +-1% 1/10W

C204

1uF 10V

+5V_SW

Standby

LED203

IR LED GPTS12048IRC3-R

12

3

LED204

IR LED GPTS12048IRC3-R

12

3

IR Receiver

3V3SB

R202

100R 1/16W 5%

R201

NC/ 2K7 1/ 16W 5%

3V3SB

RC6

U202

455C

VDD

1

GP5/OSC1/CLKIN

2

GP4/OSC2

3

GP3/MCLR/VPP4GP2/AN2/T0CKI/C1OUT

5

GP1/AN1/C1IN-/ICSPCLK

6

GP0/AN0/C1IN+/ICSPDAT

7

VSS

8

RC6

3D_L/R

3V3SB

LS_SDA

LS_SCL

DVD3V3

Gaming

LED201

GPSS008RC4

12

Red

R204

NC 100R 1/ 16W 5%

R216

10ohm +/-1% 1/ 10W

Active 3D

LOGO

VPP

+5V_SW

3D_L/R

DVD3V3

Wireless_L/R

R207

47K 1/16W 5%

ICSPCLK

ICSDAT
Gaming

3D_L/R

Wireless_L/R

Q202
AO3414

Lighting LOGO

R230

1K 1/16W 5%

R232

2R2 1/16W 5%

DVD3V3

3V3SB

LED205

CHIP LED WHITE 99-113UNC/2223010/TR8

2 1

LED206

CHIP LED WHITE 99-113UNC/2223010/TR8

2 1

R231

2R2 1/16W 5%

3V3SB

LOGO

R205

NC 0R 05 1/ 16W

U203
NC JSA-1130

ADDR

1

VDD

2

GND3SCL

4

SDA

5

INT

6

R213

NC 0R 05 1/ 16W

Light Sensor

R209

NC 10K 1/ 16W 5%

Digital Light Sensor

C202 NC 1uF 10V

R208

NC 10K 1/ 16W 5%

LS_SCL

LS_SDA

R214

NC/ 0R 05 1/ 16W

JSA-1130

R42R41

JSA-1130

NC

NC 0R

0R

I2C addr

R206 N C 0R 05 1/ 16W

0x45

0x44

C201 NC 100N 16V

LS_SDA

LS_SCL

DVD3V3

C205

1uF 10V

Q207
BC847BW

MTK 5593 Panel 100/120Hz] NC

A3D Control

R203 U202R204

Yes

Yes YesNC

5500
6200
6500

LOGO Function

NC
Yes
Yes

Q204
NC/BC847BW

NC

R233

1K 1/16W 5%

LED_R

Q201
BC847BW

R215
NC/ 47K 1/ 16W 5%

LED_R

R234
2K2 1/16W 5%

ZD201

MLVG0402

12

5500
6200
6500

Light sensor Function

NC

Yes

NC

5500
6200
6500

A3D function

Yes

NC
NC

U201

TSOP75436TR

GND

1

VCC

2

Vout

3

GND

4

LED202

IR LED GPTS12048IRC3-R

12

3

PIC12F510-I/SN [Panel 50/60Hz]

R203

100R 1/16W 5%

CN201

1
2

3

4
5
6
7

8

9
10
11
12
13

1415

3V3SB

R221

NC/ 10K 1/ 16W 5%

10-4-1 IR & 3D & Light sensor & LOGO

Circuit Diagrams and PWB Layouts

EN 50TPS15.3A LA 10.

2015-Oct-23

back to

div.table

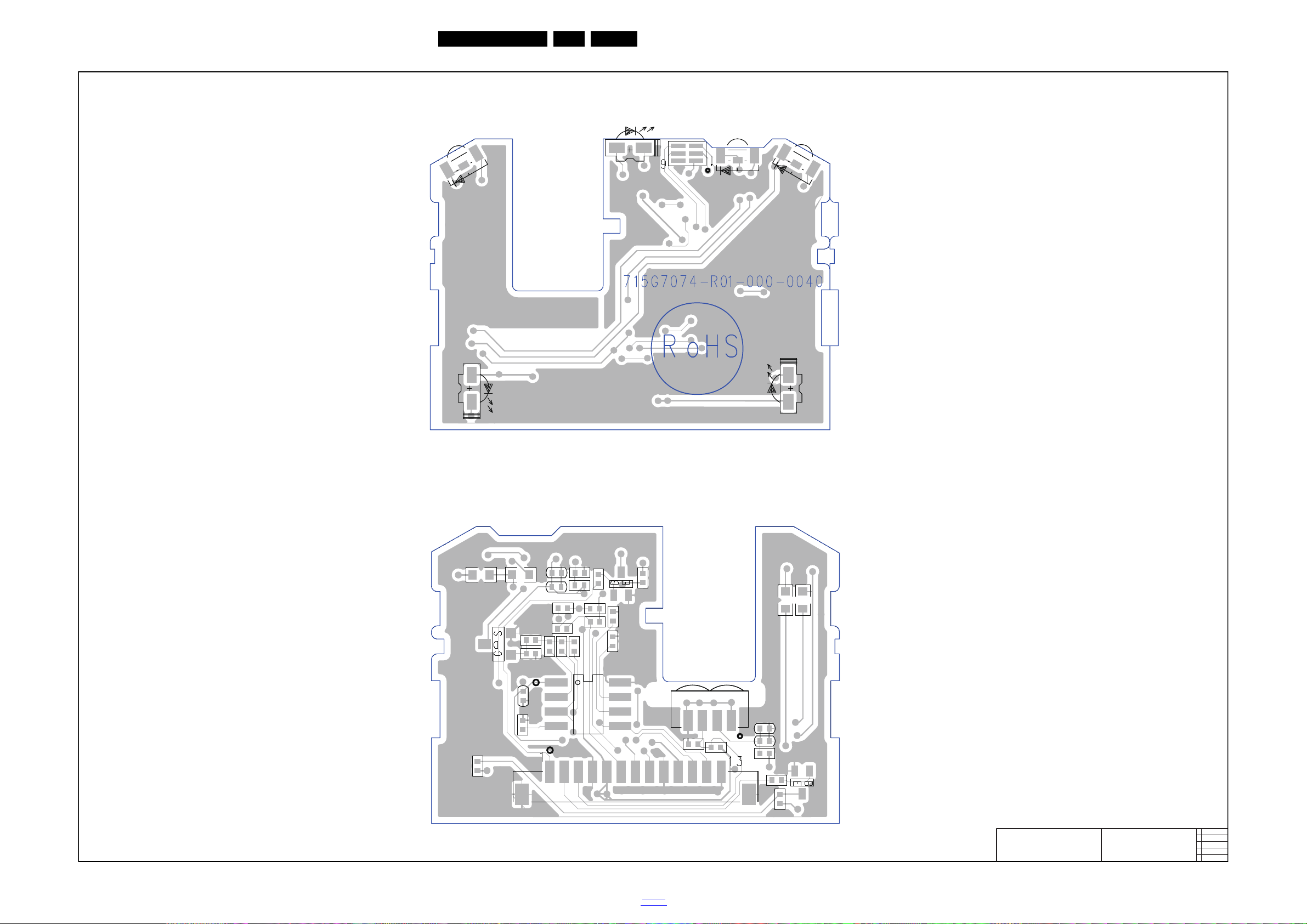

10-4-2 IR/LED board layout

19850_527.eps

715G7074

IR/LED panel

layout top/bottom

LED206

LED201

LED205

U203

LED202

LED203

LED204

R217

R216

R218

R219

R229

Q202

R231

R206

R205

R203

R204

R233

R202

C205

C204

R215

Q207

Q201

R234

R211

R212

U202

C203

R210

R209

R208

CN201

R232

C202
C201

R201

R213
R214

U201

ZD201

R230

R207

Layout IR/LED panel (top side)

Layout IR/LED panel (bottom side)

Circuit Diagrams and PWB Layouts

EN 51TPS15.3A LA 10.

2015-Oct-23

back to

div.table

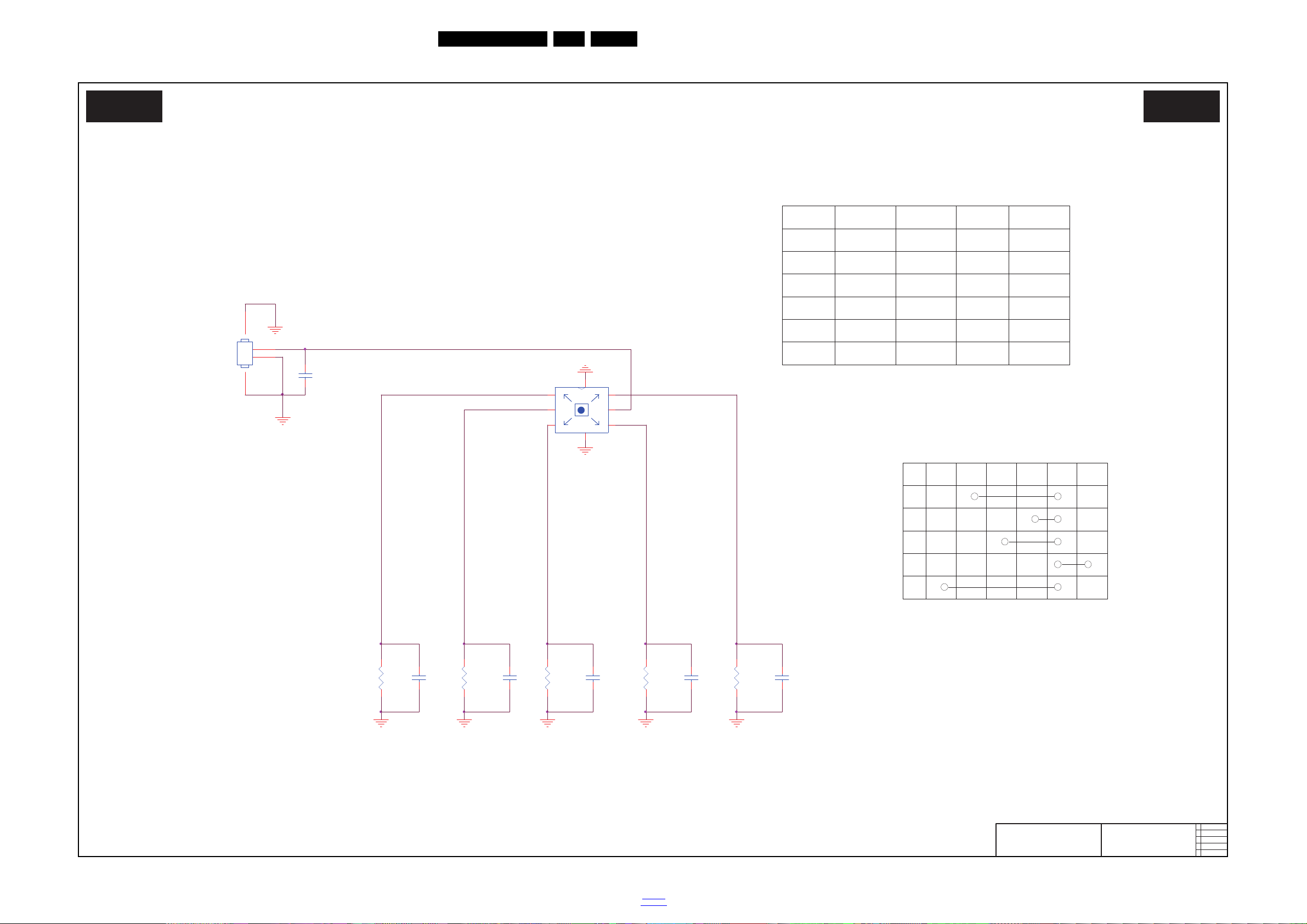

Circuit Diagrams and PWB Layouts

19610_545.eps

Key

E E

2013-09-17

1

715G6316

Keyboard control panel

R03

6K8 1/10W 1%

3 4

2

1 6

5

7

8

F5

F3

F1

F4

F2

SW01

SW 6P

KEY1

Menu
Right
Left
Down
Up

R04

2K2 1/10W 1%

R01

1K2 1/10W 1%

6-5 short

2-5 short

F1

3-5 short

1-5 short
4-5 short

F2

F3

F4

F5

Direction switch

----><----|

C06

100N 50V

Joystick circuit diagram

pin1

0V

0.5V

0.81V

1.65V

2.27V

pin2

No function

pin3

3.3V

C04

NC/100N 50V

pin4

C05

NC/100N 50V

pin5 pin6

----><----|

C01

NC/100N 50V

C02

NC/100N 50V

C03

NC/100N 50V

----><----|

----><----|

----><----|

pUretneCDown

----><----|

R02

0R05 1/ 10W

0R

2K2

ResistanceKey function

Center

CH-

CH+ 1K2

VOL+

VOL-

Left

6K8
15K

Right

1
2

34

CN01

CONN

Voltage

R05

15K 1/10W 1%

10.5 E 715G6316 Keyboard control panel

10-5-1 Key

EN 52TPS15.3A LA 10.

2015-Oct-23

back to

div.table

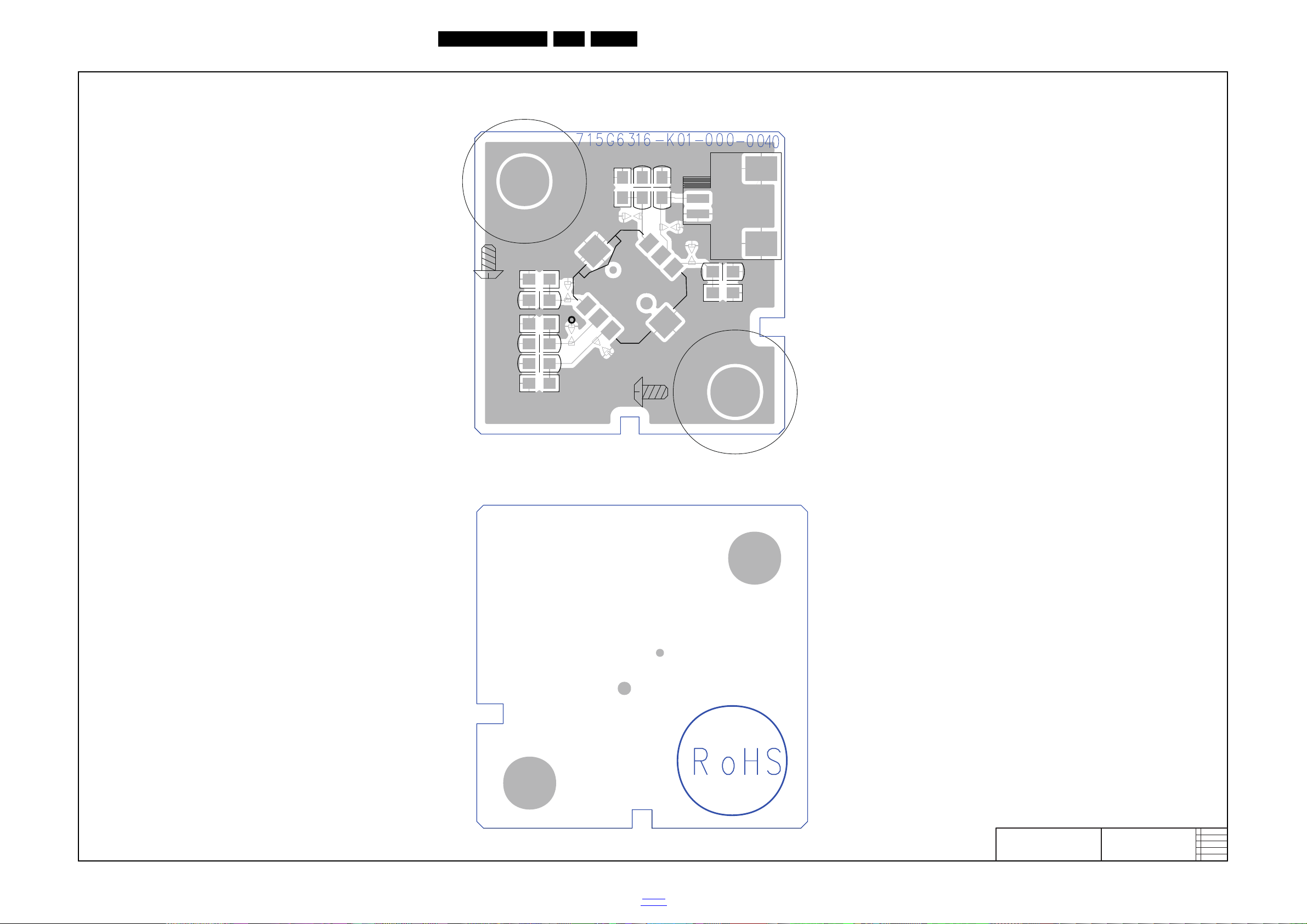

Circuit Diagrams and PWB Layouts

19610_546.eps

2013-09-17

1

715G6316

Keyboard control panel

layout top/bottom

SW2

SW3

SW4

SW5

SW6

SW7

CN01

C01

C02
C03

C04

C05

C06

R01

R02

R03

R04

R05

R1

R2

SW01

Layout Keyboard control panel (top side)

Layout Keyboard control panel (bottom side)

10-5-2 Key board layout

EN 53TPS15.3A LA 10.

2015-Oct-23

back to

div.table

Circuit Diagrams and PWB Layouts

19850_524.eps

Key

E E

2014-05-28

715G7088

Key

KEY1

Menu
Right
Left
Down
Up

6-5 short

R04

2K2 1/10W 1%

2-5 short

F1

3-5 short

R01

1K2 1/10W 1%

1-5 short
4-5 short

F2
F3

F5

F3

F1

F4

F2

SW01

TACT SW 6P

3 4

2

1 6

5

7

8

F4
F5

R05

15K 1/10W 1%

Direction

R03

6K8 1/10W 1%

switch

----><----|

Joystick circuit diagram

C06

0.1uF 50V

pin1

0V

0.5V

0.81V

1.65V

2.27V

pin2

No function

pin3

3.3V

C04

NC / 100N 50V

pin4 pin5

C05

NC / 100N 50V

pin6

----><----|

C01

NC / 100N 50V

C02

NC / 100N 50V

C03

NC / 100N 50V

----><----|

----><----|

----><----|

Down

Up

Center

CN01

CONN

1
2

34

R02

0R05 1/ 10W

0R

2K2

Key functionResistance

Center

CH+

CH-

1K2

VOL-

VOL+

Left

15K

6K8

Right

Voltage

JOYSTICK

10.6 E 715G7088 Keyboard control panel

10-6-1 Key

EN 54TPS15.3A LA 10.

2015-Oct-23

back to

div.table

Circuit Diagrams and PWB Layouts

19850_525.eps

2014-06-06

715G7088

Keyboard control panel

layout top/bottom

C01

C02

C03

C04

C05

C06

R01

R02

R03

R04

R05

H1

H2

H3

H4

H5

H6

CN01

SW01

SW1

SW2

SW3

SW4

Layout Keyboard control panel (top side)

Layout Keyboard control panel (bottom side)

10-6-2 Key board layout

EN 55TPS15.3A LA 10.

2015-Oct-23

back to

div.table

Circuit Diagrams and PWB Layouts

19740_514.eps

Tuner

TU01 TU01

715G6344

Tuner

CN1001

2
1

311GB254C20DBX

CABLE

3

Power Consumption

6

11

HIGH

AIR

LOW

1

4

RF Switch Control

8

10

5

Tuner Reset : Active LOW

2

7

9

Cable

I2C Address : 0xC0
Tuner IC : TDA18273

Air

TU101

TDSH-T070F

RF S/ W C TL

1

Reset

2

+B1

5

NC

8

TH1

12

TH2

13

TH3

14

TH4

15

SCL

3

SDA

4

NC

6

NC

7

IF_AGC

9

DIF1(P)

10

DIF2(N)

11

3V3T

RF_CTRL
TU_RESET
TU_SCL
TU_SDA

IF_AGC
DIF1
DIF2

CN1001

CONN

1
3
5
7

9
11
13
15
17
19

2
4
6
8
10
12
14
16
18
20

10.7 TU 715G6344 TunerBox Board

10-7-1 Tuner

EN 56TPS15.3A LA 10.

2015-Oct-23

back to

div.table

10-7-2 TunerBox Board layout

19740_515.eps

715G6344

TunerBox Board

layout top/bottom

TU101

TU13

TU14

CN1001

TU2

TU12

TU1

TU11

Layout

TunerBox Board

(top side)

Layout

TunerBox Board

(bottom side)

Circuit Diagrams and PWB Layouts

EN 57TPS15.3A LA 10.

2015-Oct-23

back to

div.table

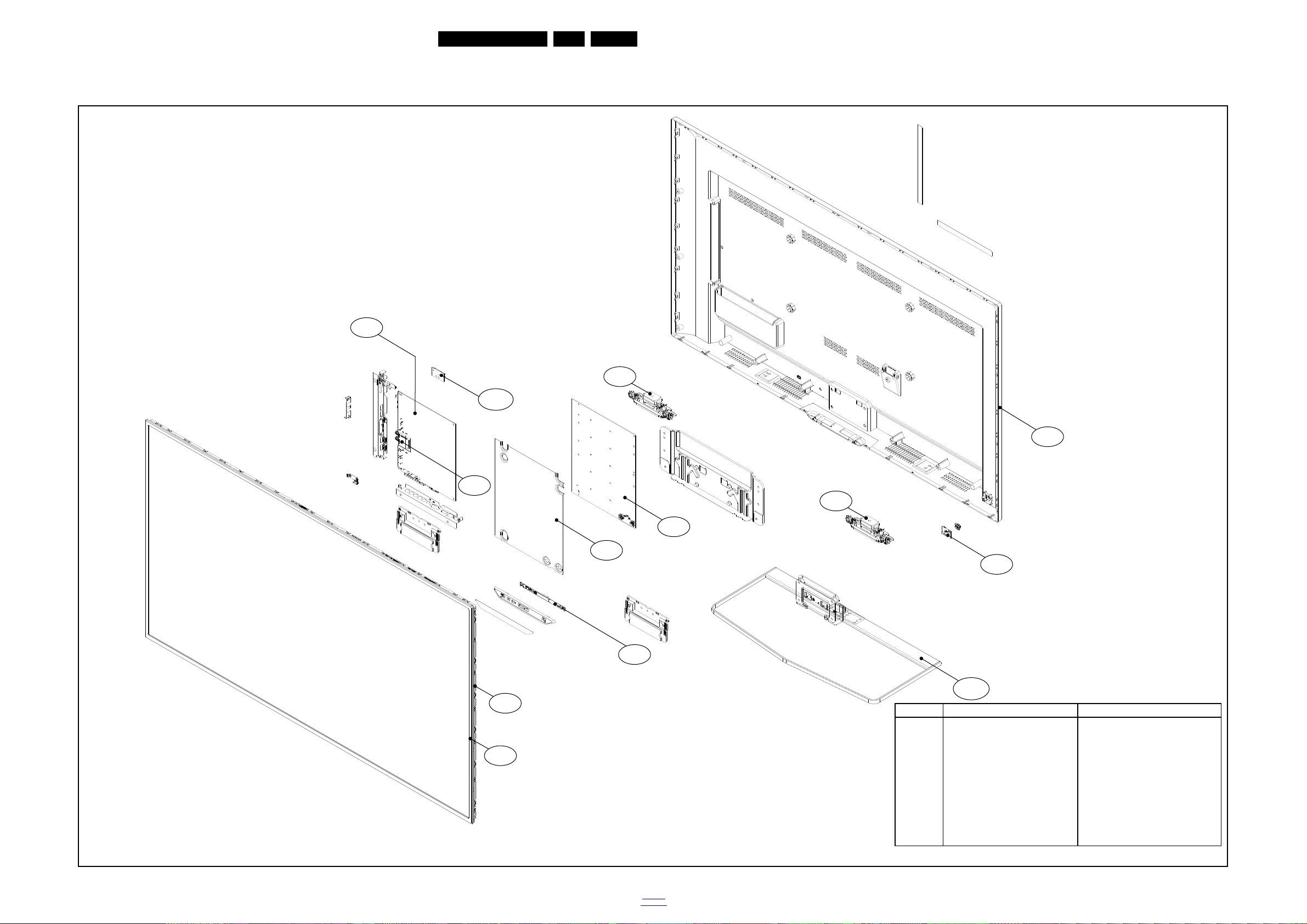

11. Styling Sheets

19980_800.eps

6600 series 49"

FOR ELECTRICAL PARTS/ASSEMBLIES SEE WIRING DIAGRAM CHAPTER 9

Pos No. Description Remarks

0030 Bezel
0040 Rear cover
0050 Stand Assy

0095 V0 Sheet

1050 Display panel
1053 Panel SSB
1054 Power Supply Unit

1056 IR/LED panel
1057 Keyboard control panel
1067 Tuner board

1176 Remote control Not displayed
1184 Speakers

WiFi01 WiFi_USB

0050

0095

0040

1054

1057

1050

1056

1184

1184

1053

0030

1067

WiFi01

11.1 6600 series 49"

Styling Sheets

EN 58TPS15.3A LA 11.

2015-Oct-23

back to

div.table

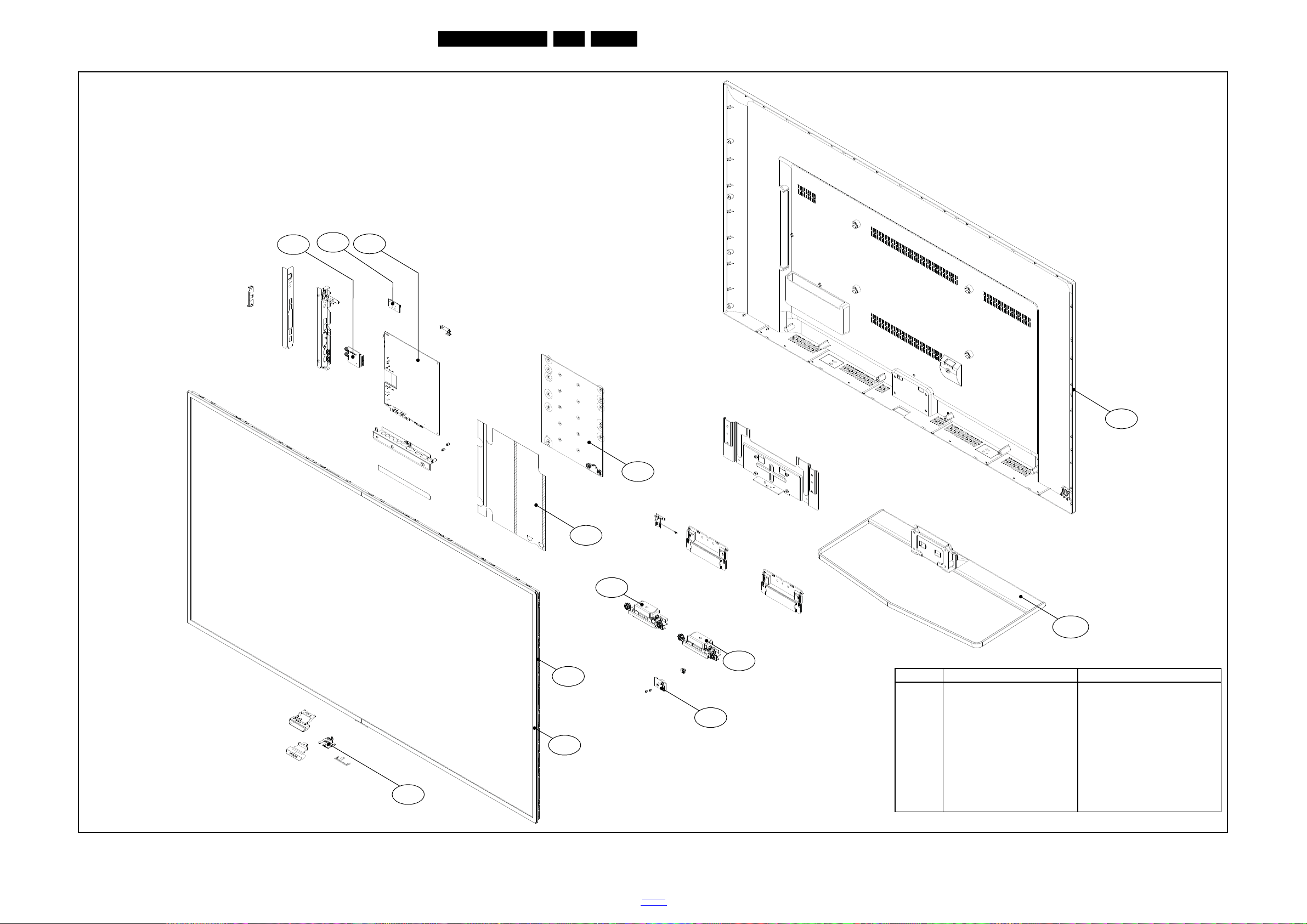

11.2 6600 series 55"

19980_801.eps

6600 series 55"

FOR ELECTRICAL PARTS/ASSEMBLIES SEE WIRING DIAGRAM CHAPTER 9

Pos No. Description Remarks

0030 Bezel
0040 Rear cover
0050 Stand Assy

0095 V0 Sheet

1050 Display panel
1053 Panel SSB
1054 Power Supply Unit

1056 IR/LED panel
1057 Keyboard control panel
1067 Tuner board

1176 Remote control Not displayed
1184 Speakers

WiFi01 WiFi_USB

0050

0095

0040

1054

1057

1050

1056

1184

1184

1053

0030

1067

WiFi01

Styling Sheets

EN 59TPS15.3A LA 11.

2015-Oct-23

back to

div.table
