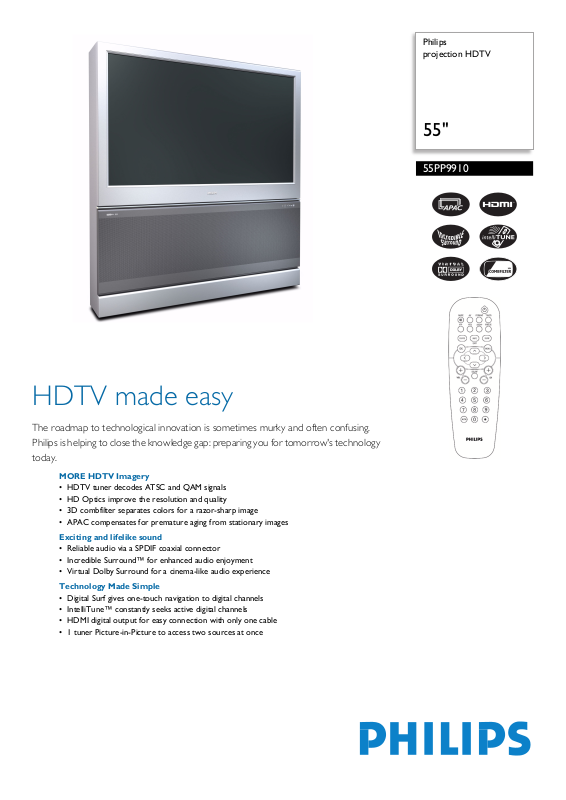

Philips 55PP9910-17 User Manual
For preview purpose only
Philips
projection HDTV
55"
55PP9910
HDTV made easy
The roadmap to technological innovation is sometimes murky and often confusing.
Philips is helping to close the knowledge gap: preparing you for tomorrow's technology
today.
MORE HDTV Imagery
• HDTV tuner decodes ATSC and QAM signals
• HD Optics improve the resolution and quality
• 3D combfilter separates colors for a razor-sharp image
• APAC compensates for premature aging from stationary images
Exciting and lifelike sound
• Reliable audio via a SPDIF coaxial connector
• Incredible Surround™ for enhanced audio enjoyment
• Virtual Dolby Surround for a cinema-like audio experience
Technology Made Simple
• Digital Surf gives one-touch navigation to digital channels
• IntelliTune™ constantly seeks active digital channels
• HDMI digital output for easy connection with only one cable
• 1 tuner Picture-in-Picture to access two sources at once
For preview purpose only
projection HDTV
55"
Technical specifications Product highlights
Picture/Display
• Aspect ratio: 16:9
• Size (inch): 55
• Display technology: CRT, 7" liquid cooled,
Projection TV
• Picture enhancement: 3:2 pull-down, Motion
adaptive de-interlacing, 2D/3D noise reduction,
APAC, Color Transient Improvement,
Directional interpolation, Luminance Transient
Improver, Frame rate conversion
• Screen enhancement: High Contrast, Anti ageing
circuit
• Viewing angle (H / V): 160 / 30
Supported Display Resolution
• Video formats
Resolution Refresh rate
1080i 60Hz
720p 60Hz
480p 60Hz
480i 60Hz
Sound
• Sound Enhancement: Auto Volume Leveller,
Treble and Bass Control, Balance
• Sound System: Dolby Digital, Virtual Dolby
Surround, Incredible Surround, Stereo
• Output power (RMS): 20W RMS (50Hz-10kHz
at 5% THD)
• Speaker diameter: 4" x 6"
• Type: 2 Full Range Oval
Convenience
• Ease of Use: Digital Surf, Channel list,
IntelliTUNE
• Picture in Picture: Picture in picture HD, 1 tuner
PIP, Picture in Picture All Inputs
• Remote control: Standard, with Batteries
• Screen Format Adjustments: 4 Widescreen
modes, 4:3, Native, Panoramic, Zoom
• Languages in manual: English
• Convenience Enhancements: Electronic
Programming Guide, Vchip and parental lock,
Auto Program, AutoChron (automatic clock),
Closed Captioning (analog), Closed captioning
(digital), On Timer, Sleep Timer
• OSD Languages: French, English, Spanish
• Display Controls: Multi-Point Convergence,
Single-Point Convergence
Tuner/Reception/Transmission
• TV system: ATSC, NTSC
• Aerial Input: 75 ohm F-type Antenna, 75 ohm Ftype Cable
• Cable: Unscrambled Digital Cable -QAM
Connectivity
• AV 1: S-Video, CVBS in, Audio L/R in, 480i 60Hz
• AV 2: S-Video, CVBS, Audio L/R in, 480i 60Hz
• AV 3: YPbPr, RGB+H/V, Audio L/R in, 1080i
60Hz, 720p 60Hz, 480p 60Hz, 480i 60Hz
• AV 4: YPbPr, Audio L/R in, 1080i 60Hz, 720p
60Hz, 480p 60Hz, 480i 60Hz
• AV 5: HDMI, Audio L/R in
• Output rear: S/PDIF digital coaxial, Audio L/R
out
• Side: S-Video Y/C, CVBS in, 480i 60Hz, Audio L/
R in, Headphones out
Power
• Mains power: AC 110V/120V, 60Hz
• Complies with: Energy Star
• Consumption: 220W (Typical)
Dimensions
• Product dimension (WxDxH) inch: 52.6" x 25.6"
x 57.0"
• Product dimensions (WxDxH): 134cm x 65cm x
145cm
• Product weight: 85
• Product weight (lb): 187
• Carton dimensions (WxDxH): 146cm x 82cm x
151cm
• Carton dimensions (WxDxH) inch: 57.5" x 32.3"
x 59.4"
• Weight incl. Packaging: 100 kg
• Weight incl. Packaging (lb): 220
• Temperature range (operation): +32°F to 105°F
(0° C to 40° C)
•
55PP9910/17
HDTV Tuner
Built-in HDTV tuner that receives and displays
te rr estrial ATSC and unsc ra mb led ca ble (64/256 QAM)
signals.
HD Optics
The Philips HD Optics system improves the quality of
TV displays, including micro phosphor CRTs, hybrid
projection lenses, first surface mirrors, fine pitched
Lenticular screens and Philips Wideband Video
Amplifier. The result is better resolution.
3D Combfilter
The 3D comb filter separates brightness and color
signals better in 3D domain to eliminate cross-color,
cross-luminance and dot-crawl distortion - all of which
detract from your viewing pleasure. The 3D digital
comb filter performs field-by-field comparisons of the
television image to accurately separate the color from
the black-and-white information and remove both
horizontally and vertically hanging dots, as well as dot
crawl. The result is a razor sharp image.
APAC
Automatic Phosphor Aging Compensation (APAC) is a
Philips technology that is designed to help reduce the
chances of image retention on a television screen. It
prolongs the life of your TV's tube.
Coaxial Digital Audio SPDIF
An SPDIF coaxial cable is a highly reliable way of
connecting digital audio.
Incredible Surround™
Incredible Surround is an audio technology from Philips
that dramatically magnifies the sound field to immerse
you in the audio. Using state-of-the-art electronic phase
shifting, Incredible Surround mixes sounds from left and
right in such a way that it expands the virtual distance
between the two speakers. This wider spread greatly
enhances the stereo effect and creates a more natural
sound dimension. Incredible Surround allows you to
experience total surround with greater depth and width
of sound, without the use of additional speakers.
Virtual Dolby Surround
Virtual Dolby Surround is a processing technology for
enhancing surround sound effects. It which create the
sensation of Dolby Pro Logic without the necessity of
additional rear speakers. You become totally immersed
in your television experience.
Digital Surf
Digital Surf is a unique Philips feature on the remote
control that allows you to make the step to the digital
world by only displaying digitally broadcast channels
while you're channel surfing.
Date of issue 2006-07-07
Version: 2.0
12 NC: 8670 000 19533
UPC: 0 37849 94352 6
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
© 2006 Koninklijke Philips Electronics N.V.
All Rights reserved.
www.philips.com
IntelliTune™
IntelliTune continuously scans the digital spectrum when
a channel change is initiated and will then show the next
available digital channel that it finds. In this way, it not
only looks for your pre-programmed channels but also
assures that you will never miss a new channel that may
have started broadcasting in Digital HD.
HDMI for simple AV connection
HDMI stands for High Definition Multimedia Inter fa ce.
It is a direct digital connection that can carry digital HD
video as well as digital multichannel audio. By
eliminating the conversion to analog signals it delivers
perfect picture and sound quality, completely free from
noise. HDMI is fully backward-compatible with (Digital
Video Interface) DVI.
1 Tuner Picture in Picture
Wi th 1 tun er Pi ctu re- in-P ict ure , yo u can vie w vi deo from
an external source in a small window on your screen.
