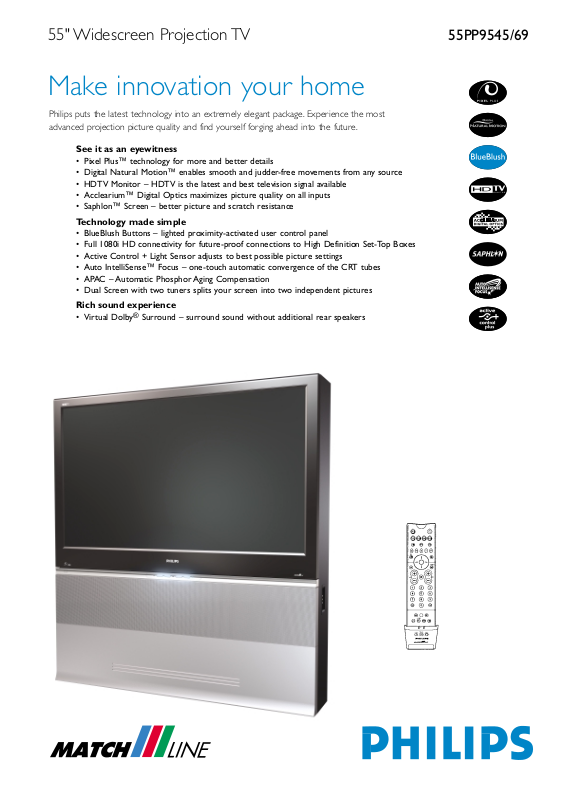

Philips 55PP9545-69 User Manual
55" Widescreen Projection TV
See it as an eyewitness
• Pixel Plus™ technology for more and better details
• Digital Natural Motion™ enables smooth and judder-free movements from any source
• HDTV Monitor – HDTV is the latest and best television signal available
• Acclearium™ Digital Optics maximizes picture quality on all inputs
• Saphlon™ Screen – better picture and scratch resistance
Technology made simple
• BlueBlush Buttons – lighted proximity-activated user control panel
• Full 1080i HD connectivity for future-proof connections to High Definition Set-Top Boxes
• Active Control + Light Sensor adjusts to best possible picture settings
• Auto IntelliSense™ Focus – one-touch automatic convergence of the CRT tubes
• APAC – Automatic Phosphor Aging Compensation
• Dual Screen with two tuners splits your screen into two independent pictures
Rich sound experience
• Virtual Dolby®Surround – surround sound without additional rear speakers
Make innovation your home
Philips puts the latest technology into an extremely elegant package. Experience the most
advanced projection picture quality and find yourself forging ahead into the future.
55PP9545/69
Technical specifications
55PP9545/69
Product highlights
Pixel Plus™
Through the unique improvement of luminance and
color transients, the interpolated pixels are processed,
the luminance amplitude is altered, and pre- and aftershoots for colors are created, resulting in an overall
sharper, crisper picture and much more vivid colors.
Additional color enhancements give an even greater
saturation and lifelike realism.The digital enhancement
of the difference between dark and light parts of the
image also raises the contrast of the overall picture by
up to 30%, making it even more brilliant. Finally,the
Digital Noise Reduction and Digital Natural Motion
correction result in perfectly smooth, judder-free,
noise-free and razor-sharp moving images.
Digital Natural Motion™
Enables smooth and judder-free movements from any
source.The advanced Philips chip used for DNM has
the processing power of several Pentium processors.
It has the ability to detect fast-moving sequences
from film and video material and it can handle
multi-directional movements at the same time.
BlueBlush Buttons
The product has an innovative technology that allows it
to sense the user's needs and meet them. Sensing the
user is near, the product activates the lighting of the
control panel to make it visible.When the controls are
no longer being used and after a short pause, they
will dim.
HDTV Monitor
HDTV display capability (1080i). HDTV monitors
enable you to view high-definition or enhanced-definition
TV programming in the 1080i or 480p signal format.
In order to do so, the TV must be connected via its
component video or RGB inputs to a set-top box, which
is set to operate in the DTV mode.A DTV signal must
be present in your area and the set-top box must be
tuned to the proper channel.An external over-the-air
antenna may be required.Another option is HDTV
broadcast satellite service. Stunning realism in both
picture and sound are delivered!
Full 1080i HD Connectivity
The video inputs use the highest quality connection
type and within the TV combine the latest high output
video processing technology to accept and display
various 1080i HD formats.
Acclearium™ Digital Optics
Philips micro phosphor CRTs feature improved optics
for sharper, more detailed images and enhanced green
phosphor, which creates deeper, more natural colors.
Hybrid projection lenses work in concert with each
CRT to improve focus and correct optical errors,
removing distortion and creating a crisp picture to the
edge of the screen.The lenticular screen has nearly
one-third finer pitch (.515mm) than traditional screens,
improving picture detail and resolution.The Philips
Wideband Video Amplifier reproduces the highest
visible bandwidth in its class—resulting in significantly
more picture detail in pure HD.
Saphlon™ Screen
Saphlon™ Screen technology is built with materials
and processes that deliver more brightness and picture
contrast. It guards against most scratches and fingerprints
and eliminates the glare associated with a separate
protective screen.
Auto IntelliSense™ Focus
Sensors in the TV scan a predefined test pattern and
readjust the signal on the CRTs to assure that red,
green and blue are well aligned.
Date of issue 2004-02-25
Printed in China 2004-02-25
Trademarks are property of Philips Consumer
Electronics. Dolby Virtual is manufactured under
license from Dolby Laboratories.“Dolby” and
the double D symbols are trademarks of
Dolby Laboratories.
Specifications are subject to change without notice.
Trademarks owned by Royal Philips Electronics.
2004 © Royal Philips Electronics - All rights reserved.
www.philips.com
EAN 87 10895 82163 6
55" Widescreen Projection TV
Picture/Display
• Aspect Ratio: 16:9
• Display Technolog y: Projection TV, CRT, 7"
liquid cooled
• Picture Enhancement: Acclearium Digital
Optics,Active Control + Light Sensor,APAC,
Auto Intellisense, Black Stretch, Blue Stretch,
Color Enhancement, Color Transient
Improvement, Digital Comb Filter,Color
Temperature, Digital Natural Motion, Digital
Noise Reduction, Dynamic Contrast, LTI,
Movie Plus, Pixel Plus
• Screen Enhancements: Saphlon Screen,AntiAging Circuit,Anti-Reflection, High Brightness,
High Contrast
• Size: 55"
Supported Display Resolution
• Computer Formats: 640 x 480, 60Hz
• Video Formats: 480i 60Hz, 480p 60Hz, 576i
50Hz, 576p 50Hz, 1080i (1250) 50Hz, 1080i
60Hz, 1080i 50Hz
Sound
• Bass Enhancement: Loudness
• Output Power (RMS): 30 watt RMS
(50Hz-10kHz at 5% THD)
• Sound Enhancement: Automatic Volume
Leveler, Equalizer
• Speaker Size: 2",5"
• Speaker Number: 4
• Speaker Type: tweeter, woofer
Tuner/Reception
• Aerial Input: 75 Ohm IEC-Type, 2 Tuner
with splitter
• Auto Store:Yes
• Standards: NTSC M (3.58-4.5), NTSC (4.43-
5.5), PAL B/G, PAL D/K, PAL I, SECAM B/G,
SECAM D/K, SECAM K1
Connectivity
• AV1: 480i 60Hz, 576i 50Hz, CVBS in,YPbPr,
Audio L/R in
• AV2: 480i 60Hz, 576i 50Hz, CVBS in, S-Video
Y/C,Audio L/R in
• AV3: 1080i 50Hz, 1080i (1250) 50Hz, 1080i
60Hz, 480p 60Hz, 576p 50Hz,YPbPr,
RGB+H/V
• AV4: 1080i 50Hz, 1080i (1250) 50Hz, 1080i
60Hz, 480p 60Hz, 576p 50Hz, DB15,
RGB+H/V
• Side: 480i 60Hz, 576i 50Hz, CVBS in, S-Video
Y/C,Audio L/R in, Headphone out
• Output rear: Subwoofer out, CVBS out, Audio
L/R out
Convenience
• Child Protection: Child Lock, Parental Control
• Clock Functions: Clock, Sleep Timer
• Convenience Enhancements: Proximity
Activated Lighted Controls (BlueBlush
Buttons),Auto Program,Auto Picture Modes,
Auto Sound Modes, Program Information
• Menu Languages: Arabic, Chinese-Simplified,
English, Malay
• Picture Functions: Freeze, Replay, Photo Finish
• Picture-in-Picture: Double Window, Mozaic,
2-Tuner
• Teletext: 1200 page Hypertext
• Remote Control: Universal Remote Control,
RC2049, Batteries
Dimensions
• Product Dimensions (WxHxD): 134 cm x
145 cm x 65 cm
• Product Weight: 85 kg
• Carton Dimensions: 146 cm x 151 cm x
82 cm
• Weight incl. Packaging: 100 kg
Power
• Complies with Energy Star, less than
1 watt standby
• Mains Power: 90-276V, 50/60Hz
• Power Consumption: 180 watts average
