Philips 55PP9545 User Manual

Rear-projection TV

with HD Input

46PP9545

55PP9545

06/01/2004

3135 035 23281

CONTENTS

Thank you for purchasing this television set. You are now the proud owner of a Philips TV, which promises full value to you as a customer. Please read this manual carefully and thoroughly for help with installation and operation.

Setup and Installation

Product Highlights . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 Installing the TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 Using the TV keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 Using the Remote Control Keys . . . . . . . . . . . . . . . .6–7

Operation
Using the Menus
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	. . .8
Install . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	9–10
Picture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	. .11
Sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	. .12
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	. .13
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	. .14
Source and Converge . . . . . . . . . . . . . . . . . . . . . .	. .15

Demo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16 Using Picture-in-Picture . . . . . . . . . . . . . . . . . . . . . . . .17 Using Teletext (if provided) . . . . . . . . . . . . . . . . . . . .18-19

Peripheral Equipment

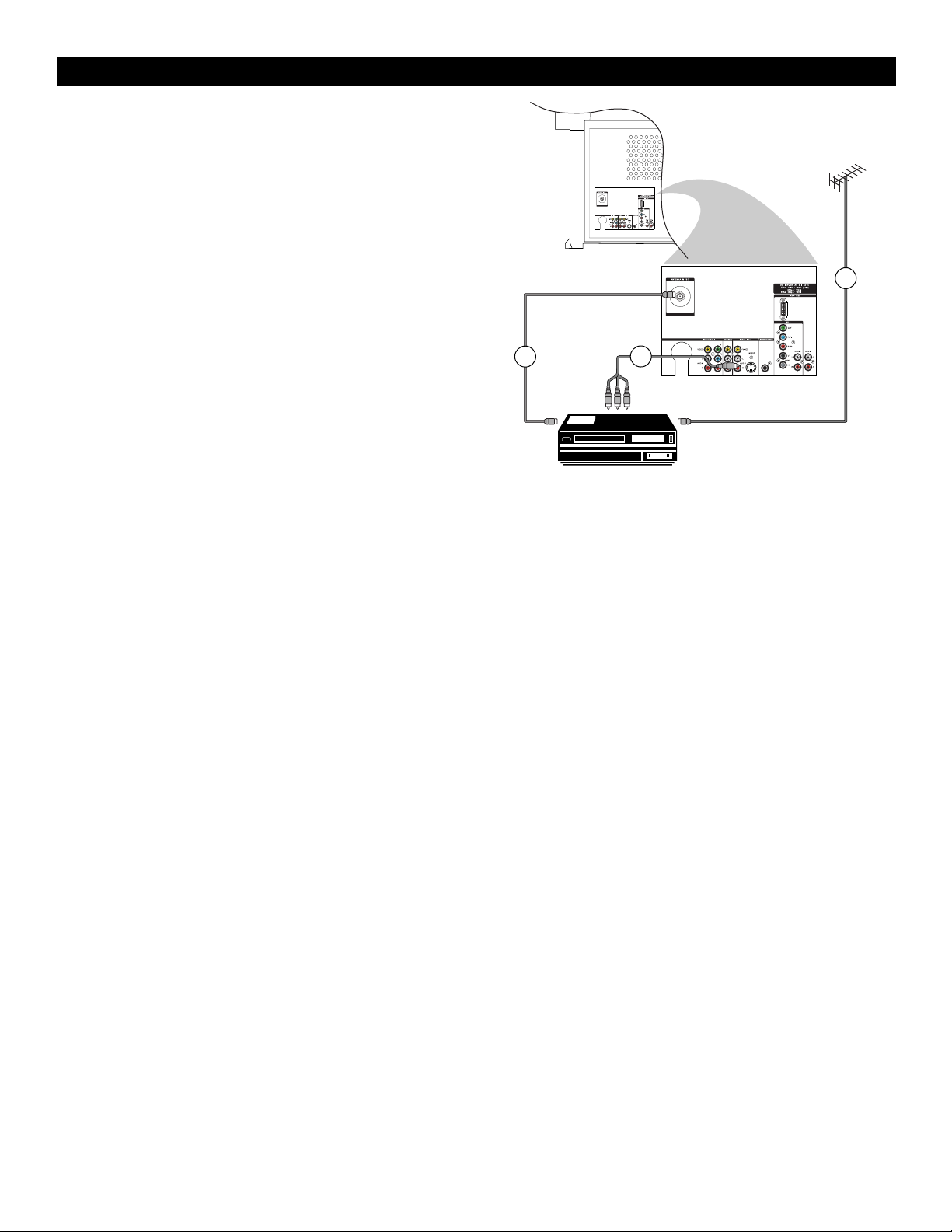

Connecting Peripheral Equipment . . . . . . . . . . . . . .	20-27
Selecting Connected Equipment for Viewing . . . . .	. . .28

General Information

Care, Cleaning, and Tips . . . . . . . . . . . . . . . . . . . . . . . .29

Before Calling Service . . . . . . . . . . . . . . . . . . . . . . . . .30

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

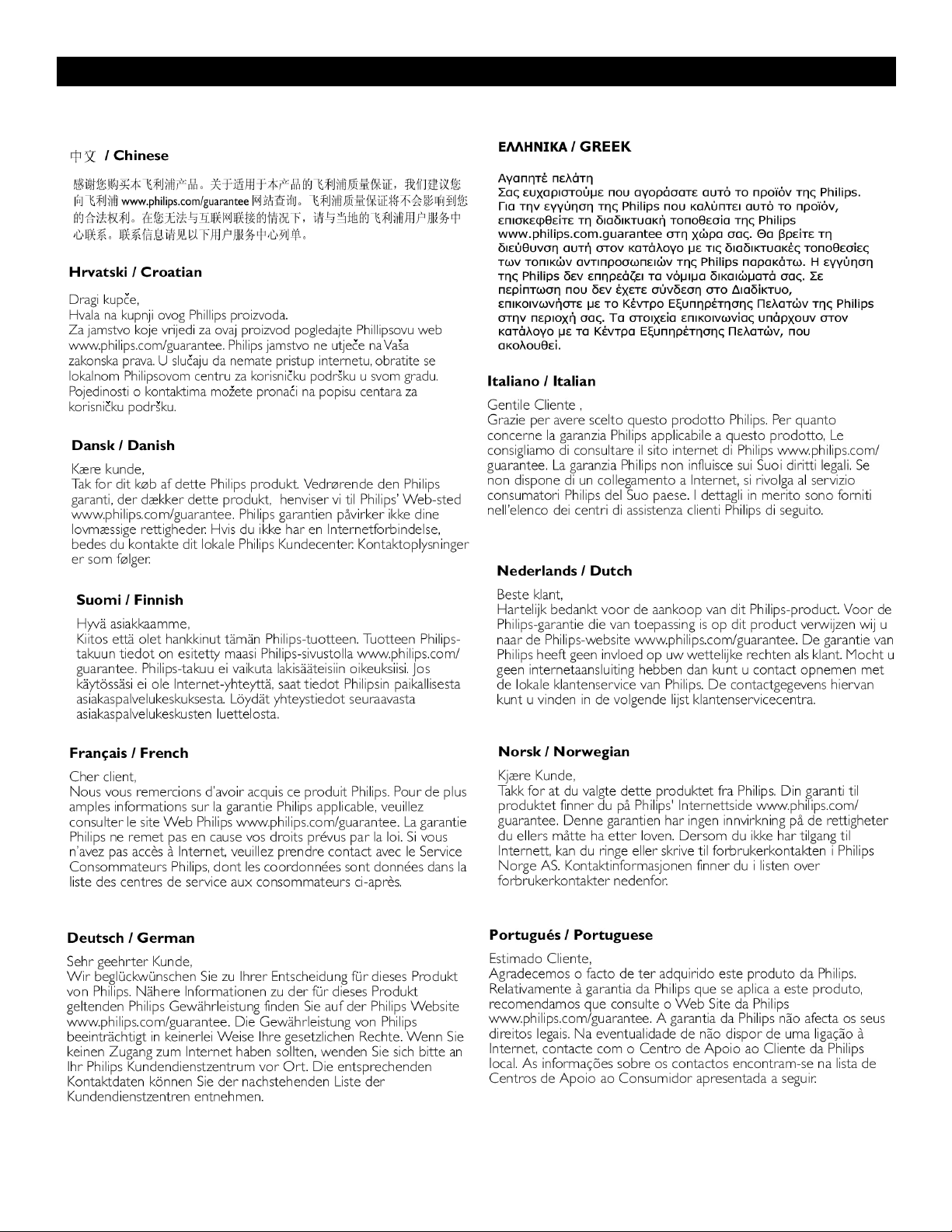

International Guarantee Conditions . . . . . . . . . . . .33-34

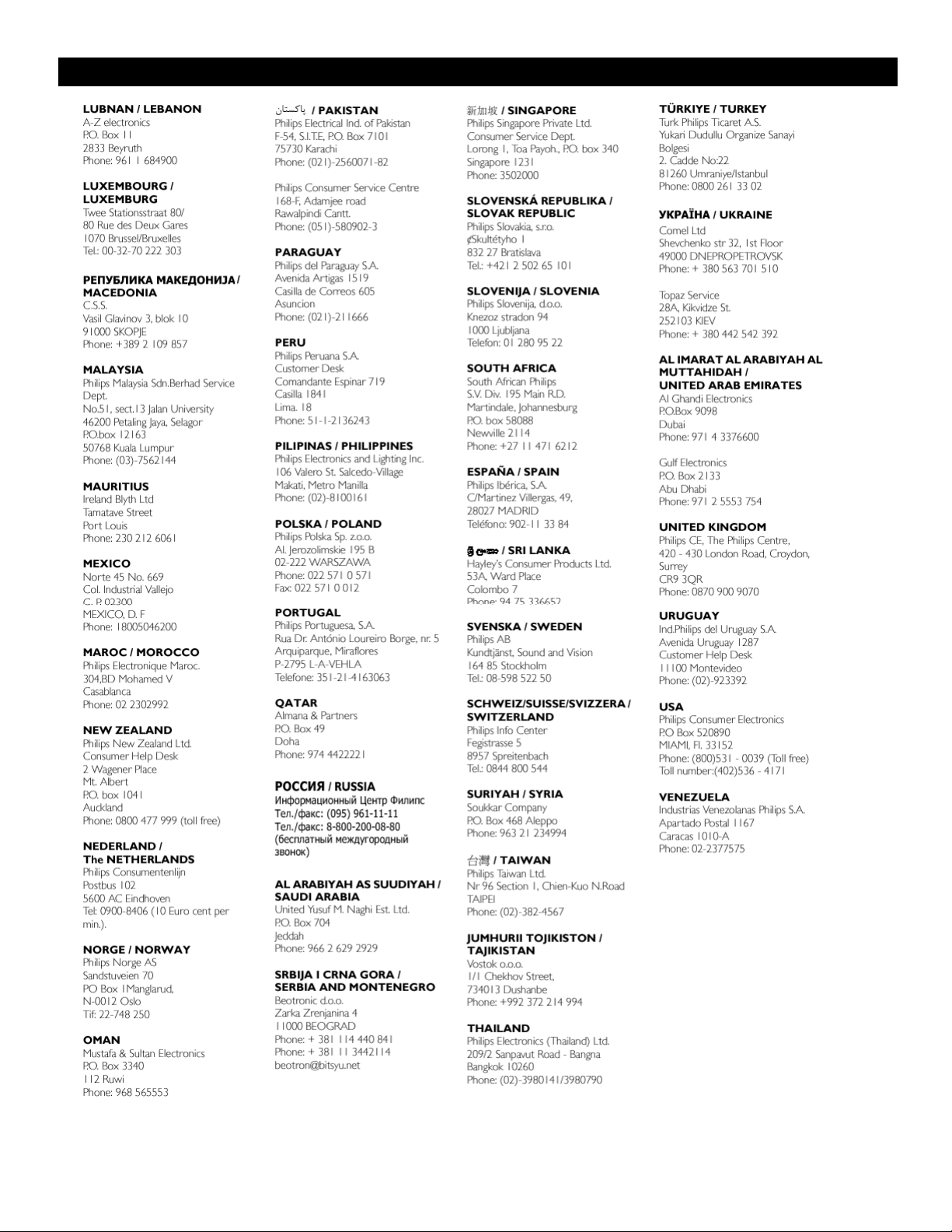

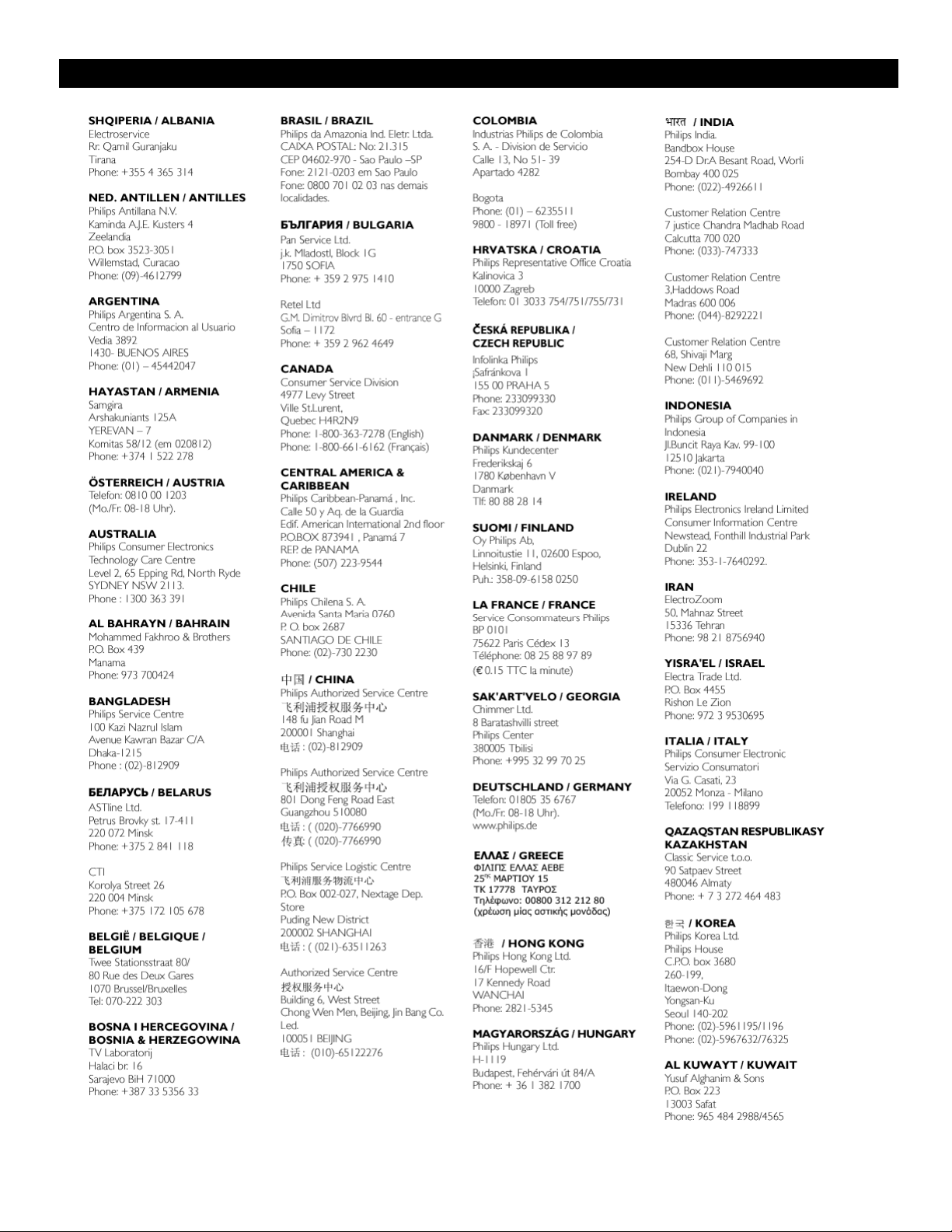

Consumer Information Centres . . . . . . . . . . . . . . .35-36

SAFETY INFORMATION

Disconnect mains plug when :

•the red light below the TV screen is flashing continuously

•a bright white line is displayed across the screen

•cleaning the TV screen (never use abrasive cleaning agents; use a slightly damp chamois leather or soft cloth)

•a lightning storm is occurring

•the set is left unattended for a prolonged period.

Never attempt to repair a defective TV yourself. Always consult a skilled service person.

Battery Usage CAUTION :

To prevent battery leakage which may result in bodily injury or damage to the remote :

•Install ALL batteries correctly, + and – as marked on the remote control.

•Do not mix batteries : (OLD and NEW or CARBON and ALKALINE, etc.).

•Remove batteries when the remote is not used for a long time.

2

PRODUCT HIGHLIGHTS

See it as an eyewitness

•Pixel Plus™ technology for more and better details

•Digital Natural Motion™ enables smooth and jitter-free movements from any source

•HDTV Monitor – HDTV is the latest and best television signal available

•Acclearium™ Digital Optics maximizes picture quality on all inputs

•Saphlon™ Screen – better picture and scratch resistance

Technology made simple

•BlueBlush Buttons – lighted proximity-activated user control panel

•Full 1080i HD connectivity for future-proof connections to High Definition Set-Top Boxes

•Active Control + Light Sensor adjusts to best possible picture settings

•Auto IntelliSense™ Focus – one-touch automatic convergence of the CRT tubes

•APAC – Automatic Phosphor Aging Compensation

•Dual Screen with two tuners splits your screen into two independent pictures

Rich sound experience

• Virtual Dolby® Surround – surround sound without additional rear speakers

Product highlights

Pixel Plus™

Through the unique improvement of luminance and color transients, the interpolated pixels are processed, the luminance amplitude is altered, and preand aftershoots for colors are created, resulting in an overall sharper, crisper picture and much more vivid colors. Additional color enhancements give an even greater saturation and lifelike realism.The digital enhancement of the difference between dark and light parts of the image also raises the contrast of the overall picture by up to 30%, making it even more brilliant. Finally, the Digital Noise Reduction and Digital Natural Motion correction result in perfectly smooth, jitter-free, noise-free and razor-sharp moving images.

Digital Natural Motion™

Enables smooth and jitter-free movements from any source. The advanced Philips chip used for DNM has the processing power of several Pentium processors. It has the ability to detect fast-moving sequences from film and video material and it can handle multi-directional movements at the same time.

BlueBlush Buttons

The product has an innovative technology that allows it to sense the user's needs and meet them. Sensing the user is near, the product activates the lighting of the control panel to make it visible. When the controls are no longer being used and after a short pause, they will dim.

Full 1080i HD Connectivity

The video inputs use the highest quality connection type and within the TV combine the latest high output video processing technology to accept and display various 1080i HD formats.

Acclearium™ Digital Optics

Philips micro phosphor CRTs feature improved optics for sharper, more detailed images and enhanced green phosphor, which creates deeper, more natural colors. Hybrid projection lenses work in concert with each CRT to improve focus and correct optical errors, removing distortion and creating a crisp picture to the edge of the screen. The lenticular screen has nearly one-third finer pitch (.515mm) than traditional screens, improving picture detail and resolution. The Philips Wideband Video Amplifier reproduces the highest visible bandwidth in its class—resulting in significantly more picture detail in pure HD.

Saphlon™ Screen

Saphlon™ Screen technology is built with materials and processes that deliver more brightness and picture contrast. It guards against most scratches and fingerprints and eliminates the glare associated with a separate protective screen.

Auto IntelliSense™ Focus

Sensors in the TV scan a predefined test pattern and readjust the signal on the CRTs to assure that red, green and blue are well aligned.

Acclearium, Active Control, APAC, IntelliSense, and Saphlon are trademarks of Philips Consumer Electronics North America. IntelliSense is a registered trademark of Philips Consumer Electronics North America. Copyright 2002 Philips Consumer Electronics.

*Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

3

	The major benefit of this projection
1 television is its large viewing screen.To
	see the large screen at its best, test
	various locations in the room to find
	the optimal spot for viewing.
	Be sure to allow a minimum of 15 cm
	of space around the TV.
	To avoid cabinet warping, cabinet color
	changes, and increased chance of set
	failure, do not place the TV where
	temperatures can become excessively
	hot—for example, in direct sunlight or
	near a heating appliance.
	Magnetic fields, such as those of exter-
	nal speakers, may cause the picture to
	distort if the speakers are placed too
	close to the television. Move the mag-
	netic field source away from the TV
	until there is no picture distortion.
2	Insert the aerial plug firmly into the
	ANTENNA IN 75Ω socket at the rear

of the set.

Insert the mains plug in the wall sock- 3 et. Refer to the back of the TV set for the correct operation voltage. Consult your local dealer if your main supply is

different.To prevent damaging the mains (AC) cord, which could cause hazard, do not place the TV on the cord.

Remove the cover of the battery com- 4 partment on the remote control.

Insert the two batteries supplied (Type R6-1.5V).

The batteries supplied do not contain the heavy metals mercury and cadmium. Nevertheless, in many countries exhausted batteries may not be disposed of with your household waste.

Please check on how to dispose of exhausted batteries according to local regulations.

See the battery caution statement on page 2.

Note :This remote control functions with TVs that use the RC5 signalling standard.

Switch the TV on : Press the mains

5 power switch on the front of the TV. If Standby key is lighted, press the CH +/– keys, digit keys, or the Standby key on the remote control. Or press the CHANNEL or Standby keys on the front of the TV.

INSTALLING THE TV

	15 cm
	Do not place
	the TV in
15 cm	direct
	15 cm

sunlight or near a heating appliance.

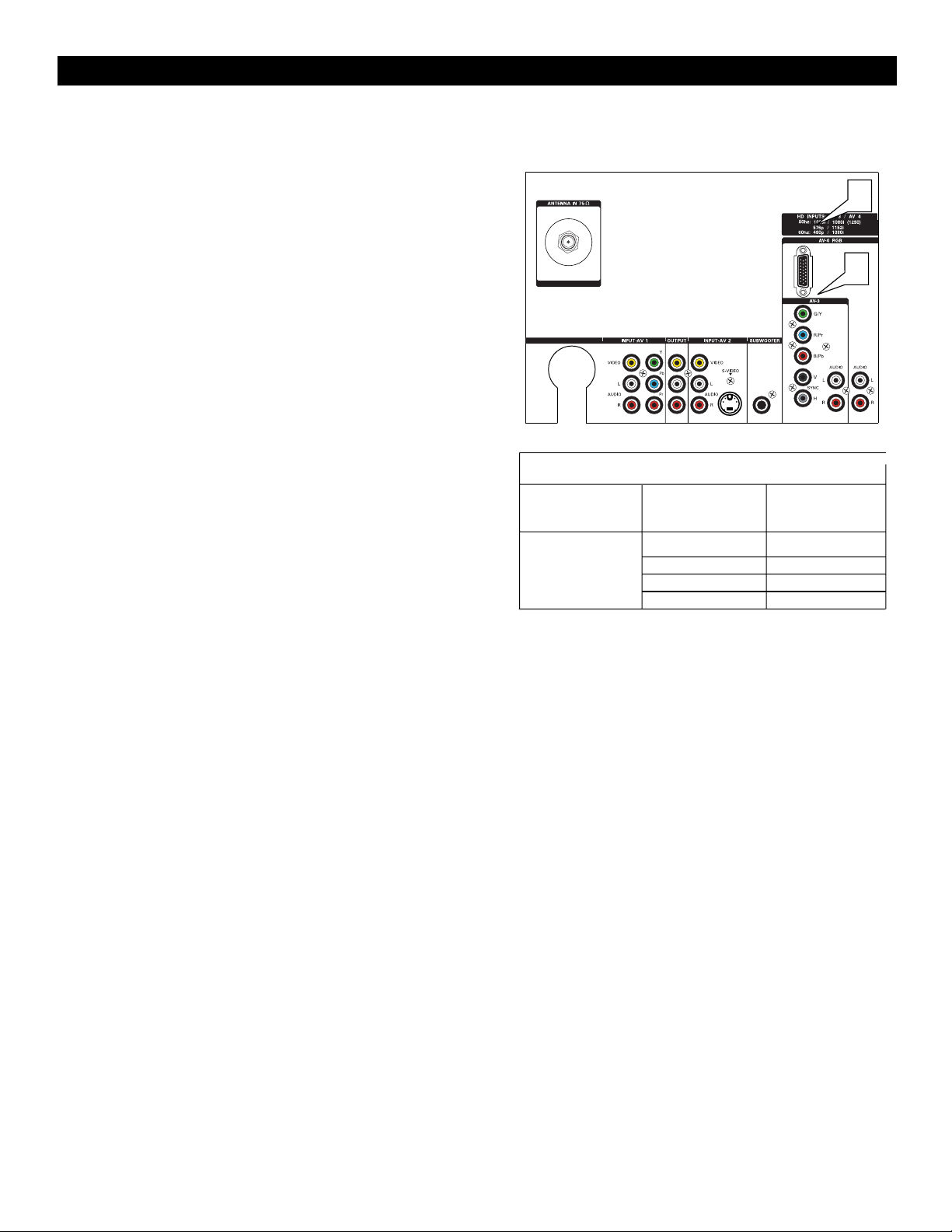

ANTENNA IN 75Ω Socket on the rear of the TV

Power

Key

Mains Power

Key

4

MAINS POWER KEY

Switches the mains power on or off.

Proximity Sensor

IntelliSense

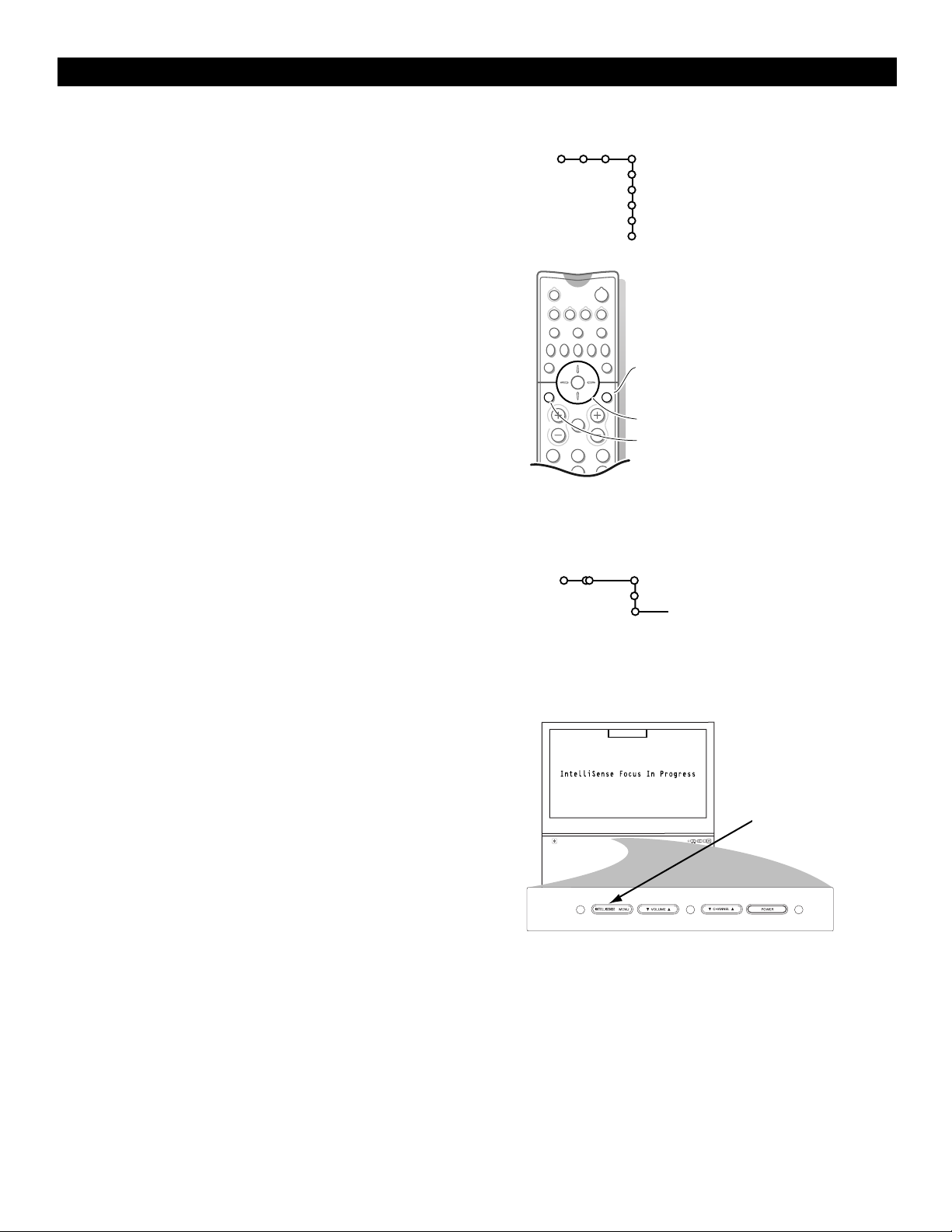

When pressed, automatically adjusts the set’s picture convergence using the Auto IntelliSense® focus feature.

MENU

Press to activate the on-screen menu. Navigate the menu by using the Volume and Channel buttons.

VOLUME fi%

The fi key adjusts the sound volume softer.The % key adjusts the sound volume louder. When using the onscreen menu, press Volume fi or % to navigate right and left and down.

USING THE TV KEYS

BlueBlush Buttons

This product has an innovative technology that allows it to sense the user’s needs and meet them.

Sensing the user is near, the product activates the lighting of the control panel to make it visible. When the controls are no longer being used and after a short pause, they will dim.

Proximity Sensor

POWER

Switches the TV on or activates standby mode.

CHANNEL %fi

The fi key selects channels in descending order.The % key selects channels in ascending order. When using the onscreen menu, press Channel % or fi to navigate up and down.

Proximity Sensor

Enable/disable automatic sensor

By default the TV’s BlueBlush buttons will automatically detect the user approaching and light the control buttons.

This automatic sensing can be disabled to avoid frequent unwanted activation (for example: a pet or child).

Disable automatic sensor: Press the Volume fi% buttons together until the BlueBlush buttons blink once. Now they will light only when pressed.

Enable automatic sensor: If the sensor has been disabled, to enable press the Volume fi% buttons together until the BlueBlush buttons blink twice. Now the BlueBlush buttons will automatically light when the user approaches.

5

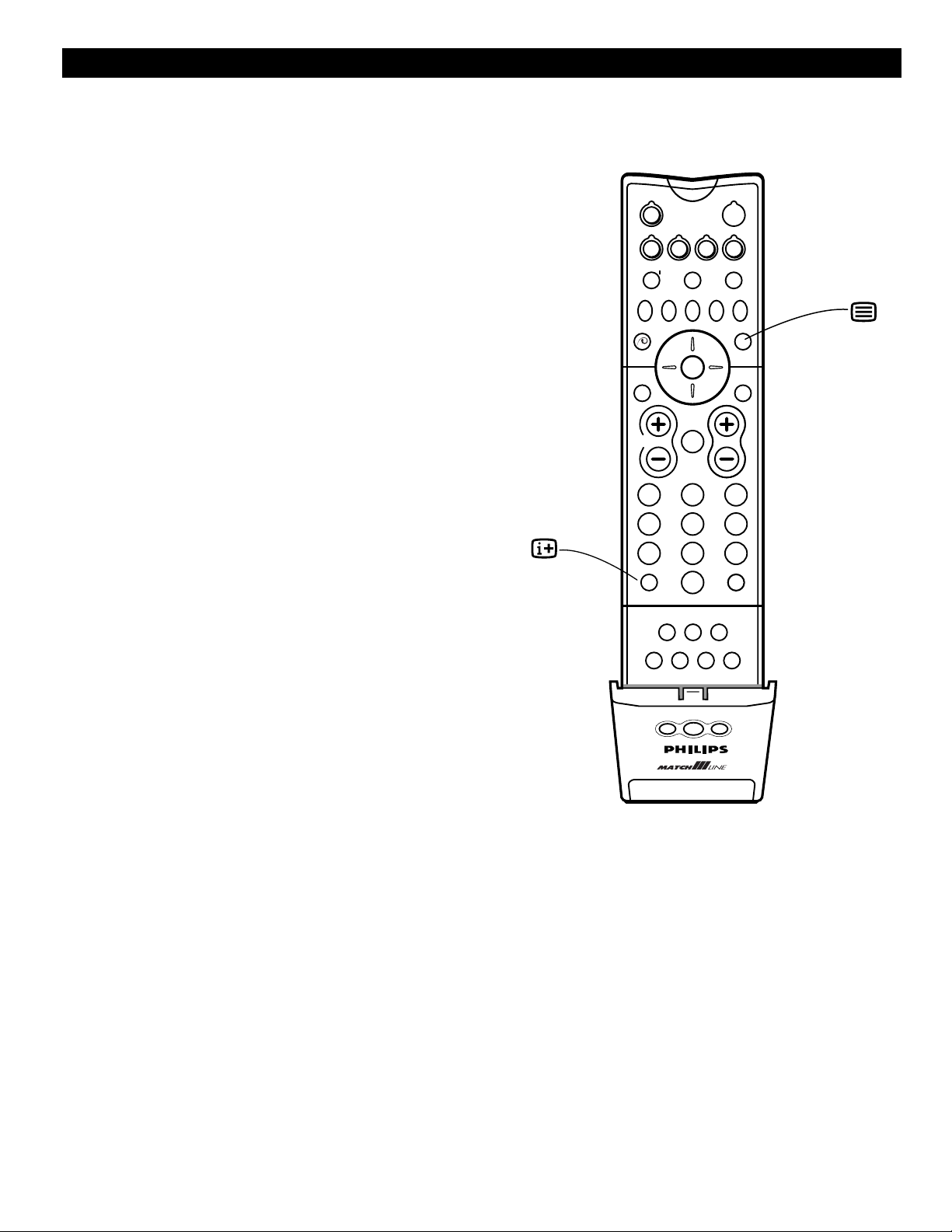

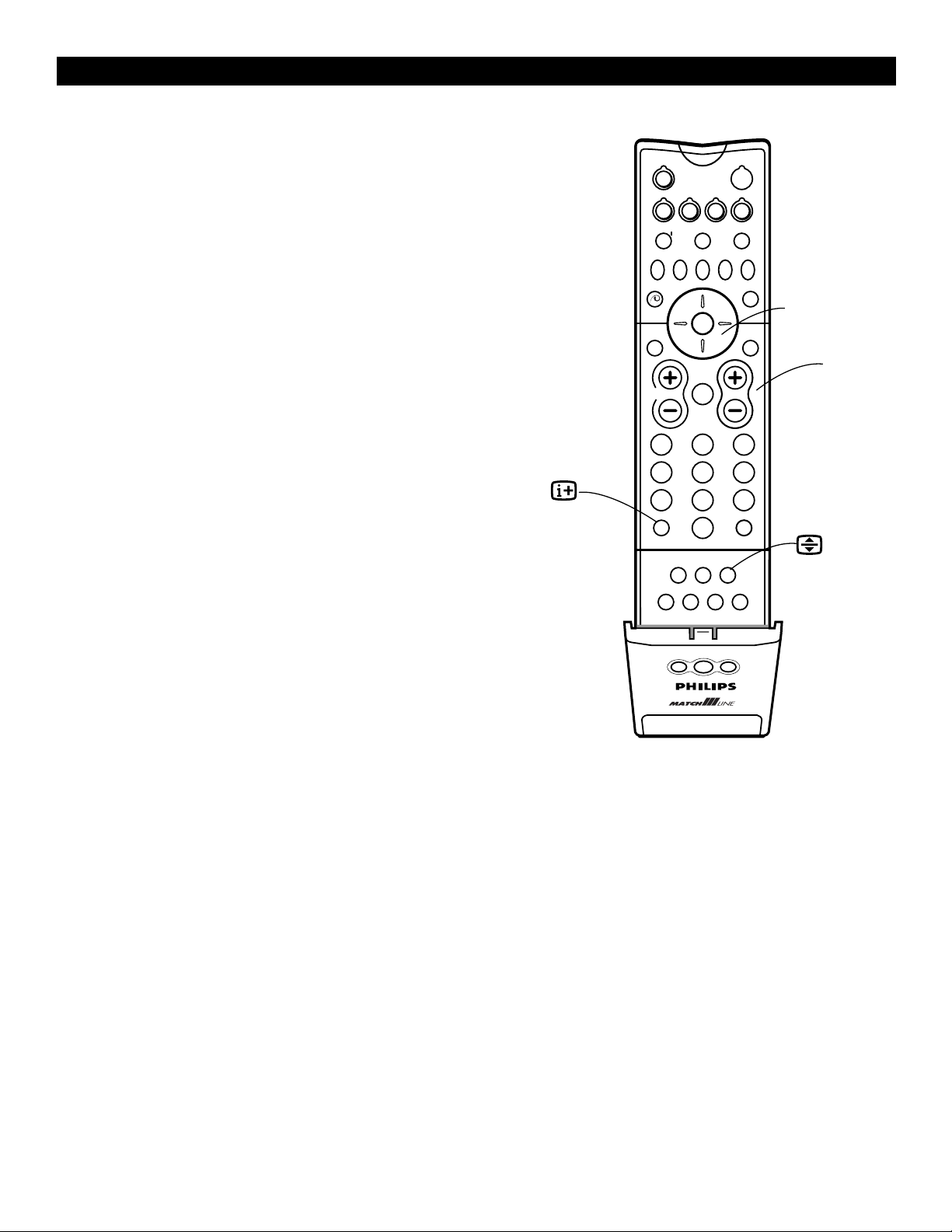

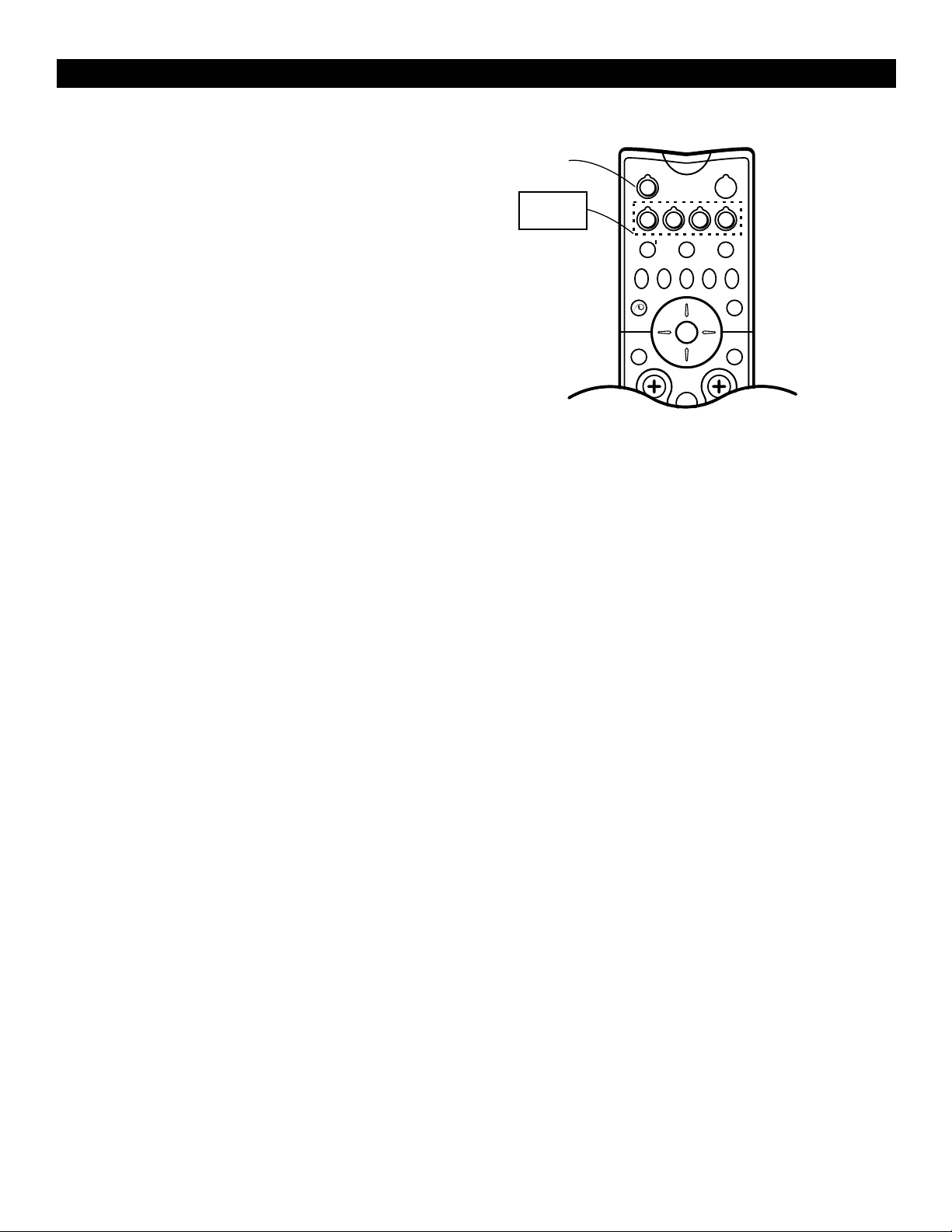

USING THE REMOTE CONTROL KEYS

SELECT ACCESSORY

Press to select the AV input for the device you want to use: AV1, AV2,

AV3, AV4, or side

ACCESSORY MODE

Press to control an accessory device with the remote control. You can control a video recorder, DVD, amplifier, or other auxiliary device (CD or SAT). A green indicator lights up. To return to TV mode press the button again, or wait for the light to go out.

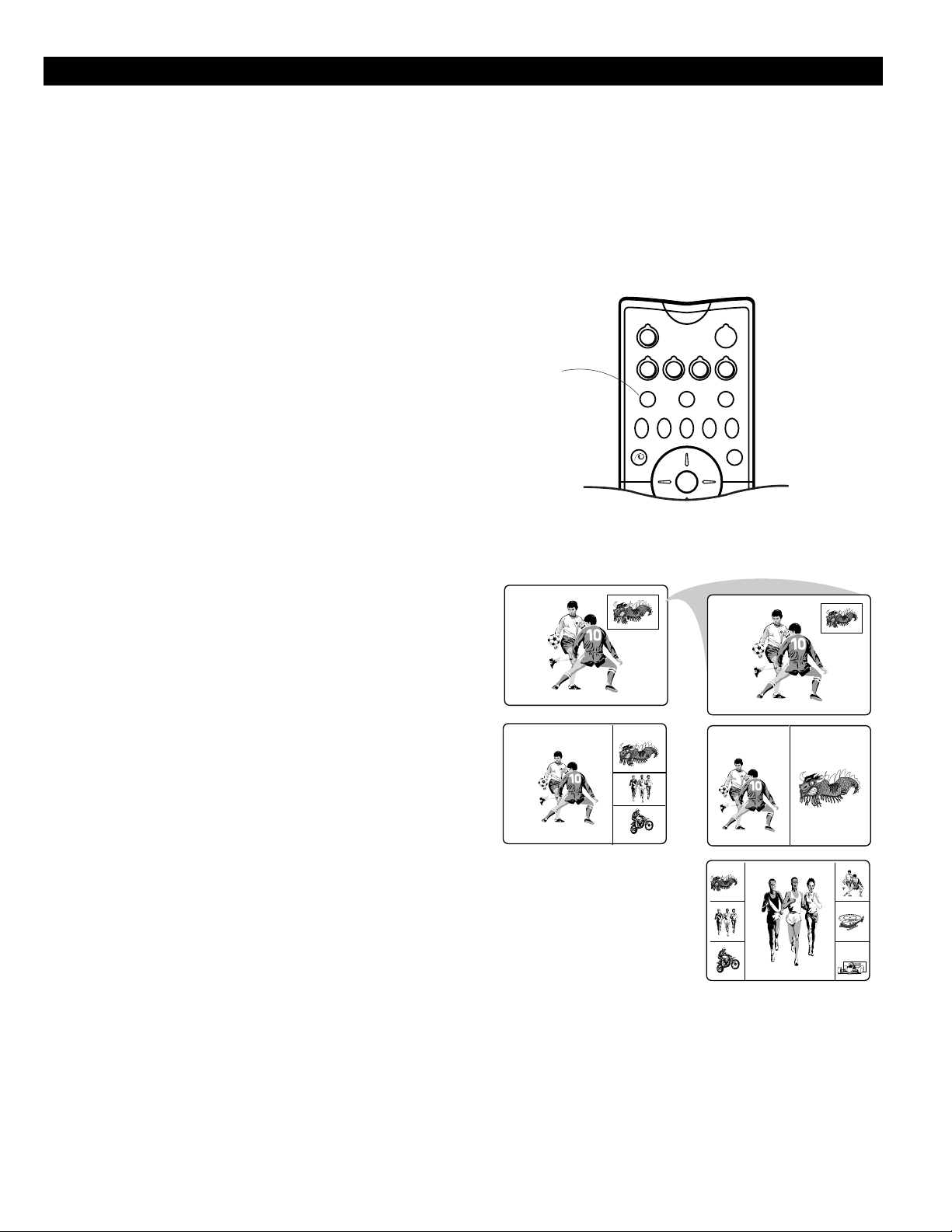

PICTURE-IN-PICTURE (PIP)

Press to access the Picture-in-Picture and Dual-window features.

FREEZE

Press to freeze the main picture when PIP is off. In teletext mode, press to hold a page.

VCR BUTTONS

Use with a Video recorder. Press ®to record, Òand †to search,

‡to stop and πto play.

PIXEL PLUS™

Press to see a demonstration of Pixel Plus. The Left half of the screen has Pixel Plus and Digital Natural Motion turned on and right half of the screen has Pixel Plus and Digital Natural Motion turned off. Press the button again to switch the demonstration off.

CURSOR LEFT

Press to navigate the menus and adjust the settings.

OK

Press to activate or select menu choices

VOLUME +/–

Increases or decreases volume.

DIGITS 0-9

Press to select a channel. For Channels with two digits, you must press the second digit within 2 seconds.

i+ (STATUS/EXIT)

•Press to display information about the current channel and programme, or .when navigating the On-Screen-Display menus. information about the selected item.

TIME DISPLAY

Press to display the time.

SURROUND MODE

Press to select the surround sound mode:

Dolby* Virtual

vB

VCR

DVD

AMP

AUX

b S fi

® Ò ‡ π †

PIXEL

PLUS

x b

		MENU
OK		Ï
V	¬	CH

1 2 3

4 5 6

7 8 9

i 0 0

U h

ZOOM

Q Z q c

Dolby Virtual uses two speakers to simulate the surround effect produced by a multichannel system.

Incredible Surround™

•The Incredible Surround™ feature provides the feeling that the speakers are farther apart to enhance the home-cinema effect.

SMART SOUND

Press to select a preset sound setting.

ACTIVE CONTROL™

Press to select the Active Control level (Off, Minimum, medium, Maximum). Active Control monitors the incoming signal and the surrounding ambient light to provide the best picture by constantly adjusting the contrast, dynamic contrast, brightness, and colour picture settings.

6

ACTIVE

SMART CONTROL SMART

M h a

*Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

Pixel Plus, Incredible Surround, and Active Control are trademarks of Philips Consumer Electronics. Copyright 2003 Philips Consumer Electronics. All rights reserved.

USING THE REMOTE CONTROL KEYS

vB

VCR

DVD

AMP

AUX

b S fi

® Ò ‡ π †

PIXEL

PLUS

x b

		MENU
OK		Ï
V	¬	CH

1 2 3

4 5 6

7 8 9

i 0 0

U h

ZOOM

Q Z q c

ACTIVE

SMART CONTROL SMART

M h a

STANDBY

•Switches the set on and off from standby mode. (The red light indicator lights up when the set is in standby mode.)

PICTURE-IN-PICTURE (PIP)

Press to access the Picture-in-Picture and Dual-window features.

CURSOR UP

Press to navigate the menus and adjust the settings.

TELETEXT ON/OFF

Press to access Teletext information (if provided).

CURSOR RIGHT

Press to navigate the menus and adjust the settings.

CURSOR DOWN

Press to navigate the menus and adjust the settings.

MENU ON/OFF

Press to turn the on-screen menu on and off.

MUTE

Press to mute the sound. To restore the sound, press the key again.

CHANNEL +/–

Press to select channels in ascending and descending order.

SMART SURF

Press to use the Smart Surf feature. If you have Smart Surf set to 2- channels, it will return you to the previously viewed channel. If Smart Surf is set to 9-channel a menu appears with the 9 previously viewed channels.

TELETEXT ENLARGE

Press to enlarge the teletext page.

PICTURE FORMAT

Press to select a picture format. A menu appears with the following options: Automatic, Super Zoom, 4:3, Movie Expand 14:9, Movie Expand 16:9, 16:9 Subtitle;e, and Wide Screen. Press the button to scroll through the choices.

No Function

ACTIVE CONTROL™

Press to switch the Active Control™ feature on or off. When Active Control™ is on, it measures and corrects all incoming signals to provide the best picture-quality settings, controlling Sharpness and Noise Reduction continuously and automatically. The onscreen Active Control™ display items cannot be selected. See page 22.

SMART PICTURE

Press to select from a list of preset picture options.

7

USING THE MENUS : OVERVIEW

1	Press the MENU Ï key on the remote control
	to summon the main menu.
	Note: Should your remote control be lost or broken you
	can still use the keys on the front of the TV. See p. 5.
2	Press the cursor button up or down to select the
	TV, Settings, Install or Demo menu.
	Note: Sometimes not all the menu items are visible on
	the screen. Press the cursor down to reveal all items.
3	Use the cursor button left or right to select the
	menu item.
4	Use the cursor button up or down again to select
	the control you want to select or to adjust. For
	instance, see Picture menu.
5	Press the MENU Ï key to turn off the main
	menu.

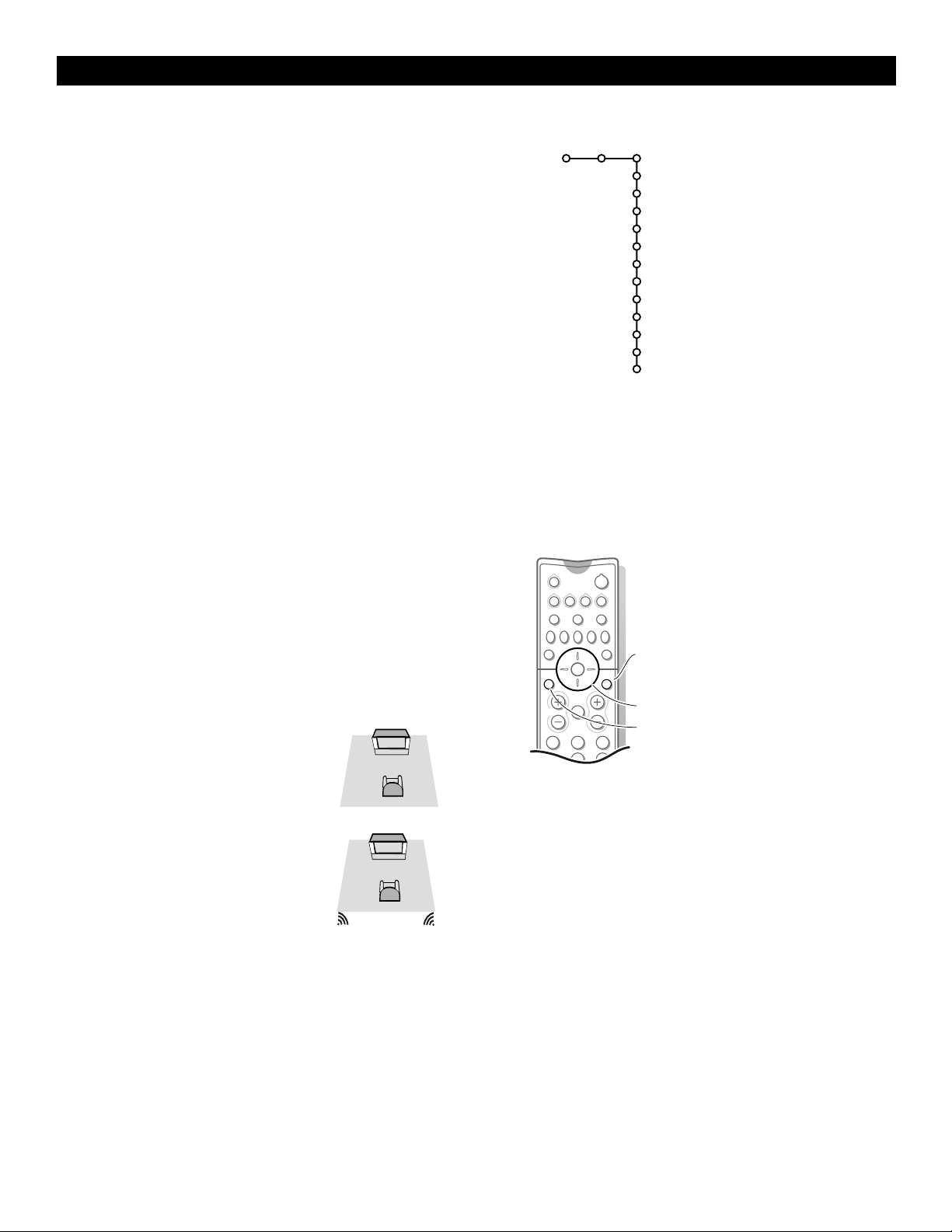

The menu system

Pipes, balls and a puck

The hierarchy of menus and controls is represented by an animated visual mechanism of pipes, balls and a puck.The animated mechanism constantly shows the current whereabouts in the menu structure.

The puck surrounds the ball indicating the user’s current position in the menu hierarchy.The puck is always present when the menu system is displayed.

The puck is divided into 4 parts.They correspond to the directional controls (up/down, left/right) on the remote control.The arrows on the cursor indicate which directions to choose.

When menu items cannot can fit on the TV display, only a portion is shown.

Those omitted are indicated by a cluster of balls.

Direct selection and control

Menu items are controlled as soon as they are selected. Only a few items require information with the OK key.

List controls

A list control is used to select one or more items from a list of options. Press the right key to move the puck into the list. At least one item is the current value and is highlighted.

Moving the puck up or down with the up/down key causes the list to move up or down.

wB

VCR DVD AMP AUX

b S fi

			return or switch
PIXEL			main menu
PLUS
x		b	on/off
		MENU
OK		Ï	cursor to select
V	¬	CH	adjustments
			OK key to acti-
			vate

puck

pipes

balls

Picture Sound Features

TV

100 Hz Dig. Scan

Digital options Pixel Plus Double lines

8

USING THE MENUS : INSTALL

	Press the MENU Ï key on the remote control.
1 When you switch on your TV for the first time and no chan-
	nels are stored so far, the menu Language automatically
	appears on the screen. This menu also has an additional
	item Exit with which the menu can be dismissed. The
	explanation appears in different languages one at a time.
	Choose your preferred language and press the OK key on
	the remote control. Proceed with the Install menu.
2	Use the cursor down to select Install.
3	Use the cursor right to select Language.
	Follow the instructions on screen.

wB

VCR

DVD

AMP

AUX

b S fi

PIXEL

PLUS

x b

	MENU
OK	Ï

V ¬ CH

1 2 3

4	Use the cursor up/down to select your preferred
	language and press the OK key to confirm your
	selection.
5	Proceed with the Install menu.

	Automatic Channel installation
1	Select Automatic installation in the Install menu.
	Note: All channels must be unlocked in order to autopro-
	gram. If requested, enter your PIN to unlock all channels.
	(See TV, Features menu, Child lock, p. 13.)
2	Press the cursor down.
	The autoprogramming option label Start appears.
3	Press the cursor right.
4	The message Searching appears and the progress
	of autoprogramming is displayed.
	When the Automatic installation is complete, the puck
	navigates to Install again.
	The programme list is automatically filled with all the
	programme numbers of the TV channels transmitted.

	Manual Channel installation
1	Select Manual installation in the Install menu.
2	Press the cursor down.
	Follow the instructions on screen.
	Note: Search or direct selection of a TV channel. If you know
	the frequency, enter the 3 digits of the frequency directly with
	the digit keys 0 to 9 (e.g. 048). Press the cursor down to pro-
	ceed.
3	Repeat to search for another TV channel.

4 5 6

7 8 9

Language

Install

English

....

.....

Automatic install

Install

Start

You can now search for and store the TV channels in two different ways: using Automatic Installation or Manual Installation (tuning-in channel by channel). Select your choice with the cursor right.

Note: Channel numbers and names will always be written in Latin characters, even when a language has been selected which uses other characters.

Manual install

Install

System

Search

Fine tune

Antenna level

Store

Searching for and storing TV channels is done channel by channel.You must go through every step of the Manual Installation menu

9

USING THE MENUS : INSTALL

Give name

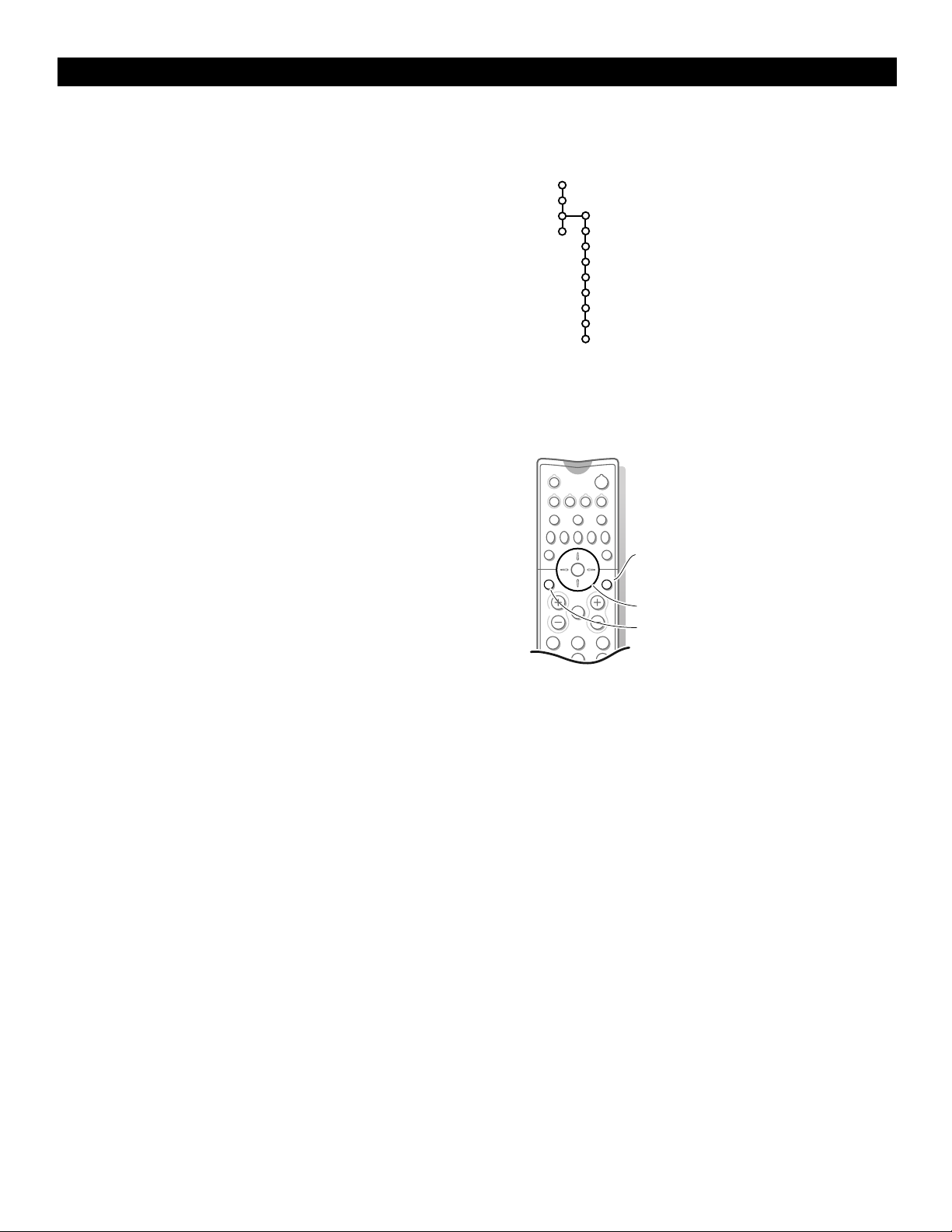

1	Select Give Name in the Install menu and press the
	cursor down.
2	Select the programme number.
	Note: keep the cursor up/down pressed to scroll

through the programme list quickly.

Press the cursor right. A keyboard appears on the 3 screen. Only European characters are displayed.

Note:

-Dependent on the language selected in the language menu, the key Special is available or not.

-When you select Arabic, you can toggle the Special key to display Arabic or English characters.The Shift key is changed to More. Press the More key to toggle between part 1, 2 or 3 of the Arabic character sets.

Press the cursor right to enter the keyboard.

Press the cursor up/down, left/right to select the first character and press OK. Repeat for every character you want to enter.

Select Space to enter a space; Delete to erase the highlighted character in the name entered; Shift to display upperor undercast characters on the keyboard; Special to display special characters on the keyboard. Press OK to confirm.

						® Space	® Delete
			VCR1 p π
			BBC1			A B C D E F G	1	2 3
			BBC2
						H I J K L M N	4	5 6
			CNN			O P Q R S T U	7	8 9
						V W X Y Z	0
			TVE
						®	®
			.....

It is possible to change the name stored in the memory or to assign a name to a TV channel for which a name has not yet been entered. A

with up to 5 letters or numbers can be to the programme numbers 0 to 99. For example SUPER, BBC1,... Before programme

number 0 you can also enter a name for the peripherals that are connected to an external

4

5

Press the cursor left repeatedly when you have finished naming the selected channel or peripheral.

Select another programme number and repeat steps 3 to 5.

Reshuffle

Favorite channels

Reshuffle the programme list

According to your preference you can change the order of the stored TV channels.

1	Select Reshuffle in the Install menu and press the
	OK key.
2	Follow the instructions on screen.

Select Favourite TV channels

1	Select Favourite programmes in the Install
	menu.
2	Select your programme number with the cursor
	up/down.
3	Select Yes or No with the cursor right.
4	Repeat 2 and 3 for every TV channel or external
	you want to make a favourite or a non-favourite TV

channel or external.

p π

π

TVE

π.....

	Reshuffle						Favorite channels
						Favorite channels
VCR1						p
						π
						π
BBC1							Yes	•	No
BBC2							Yes	•	No
CNN							Yes	•	No
TVE							Yes	•	No
2							Yes	•	No

10

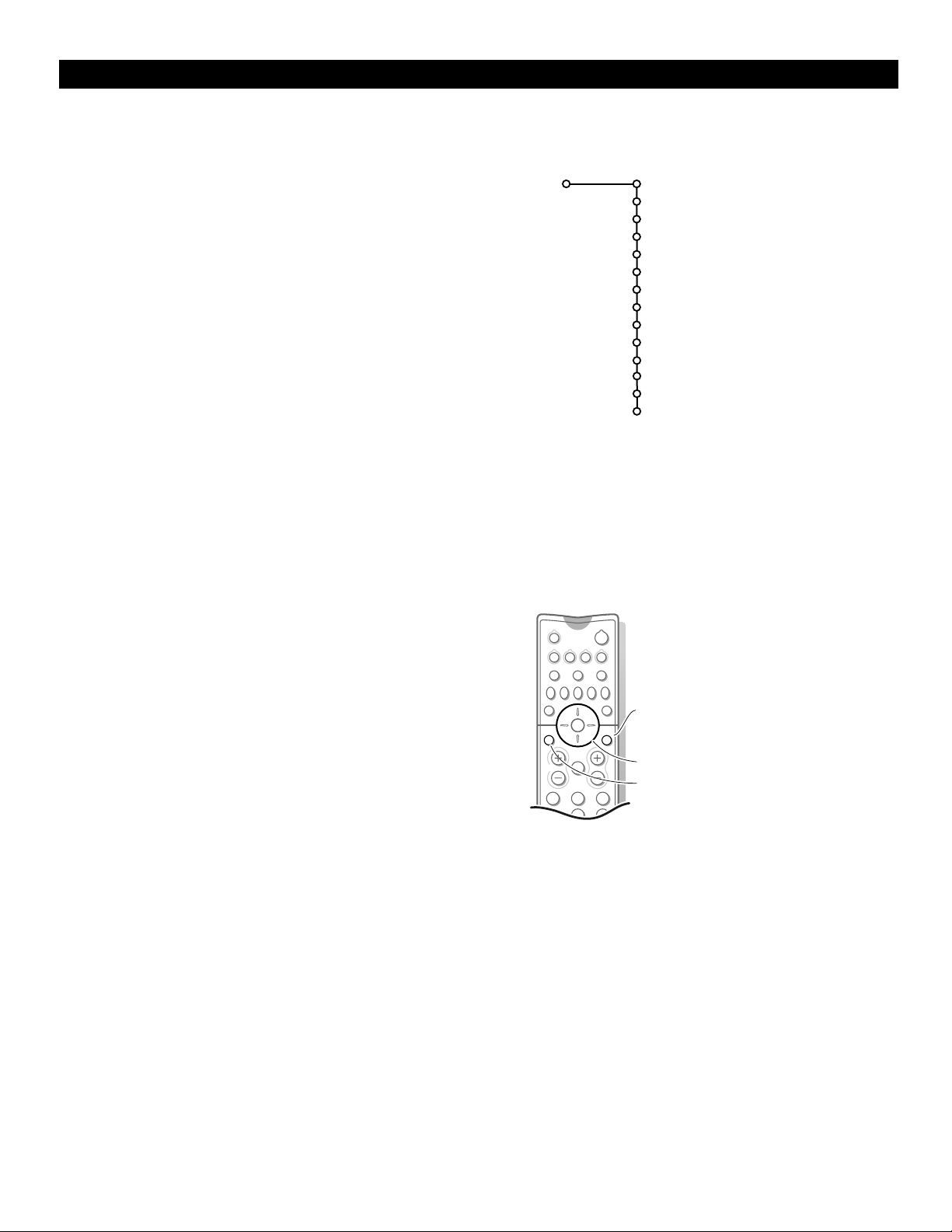

USING THE MENUS : PICTURE

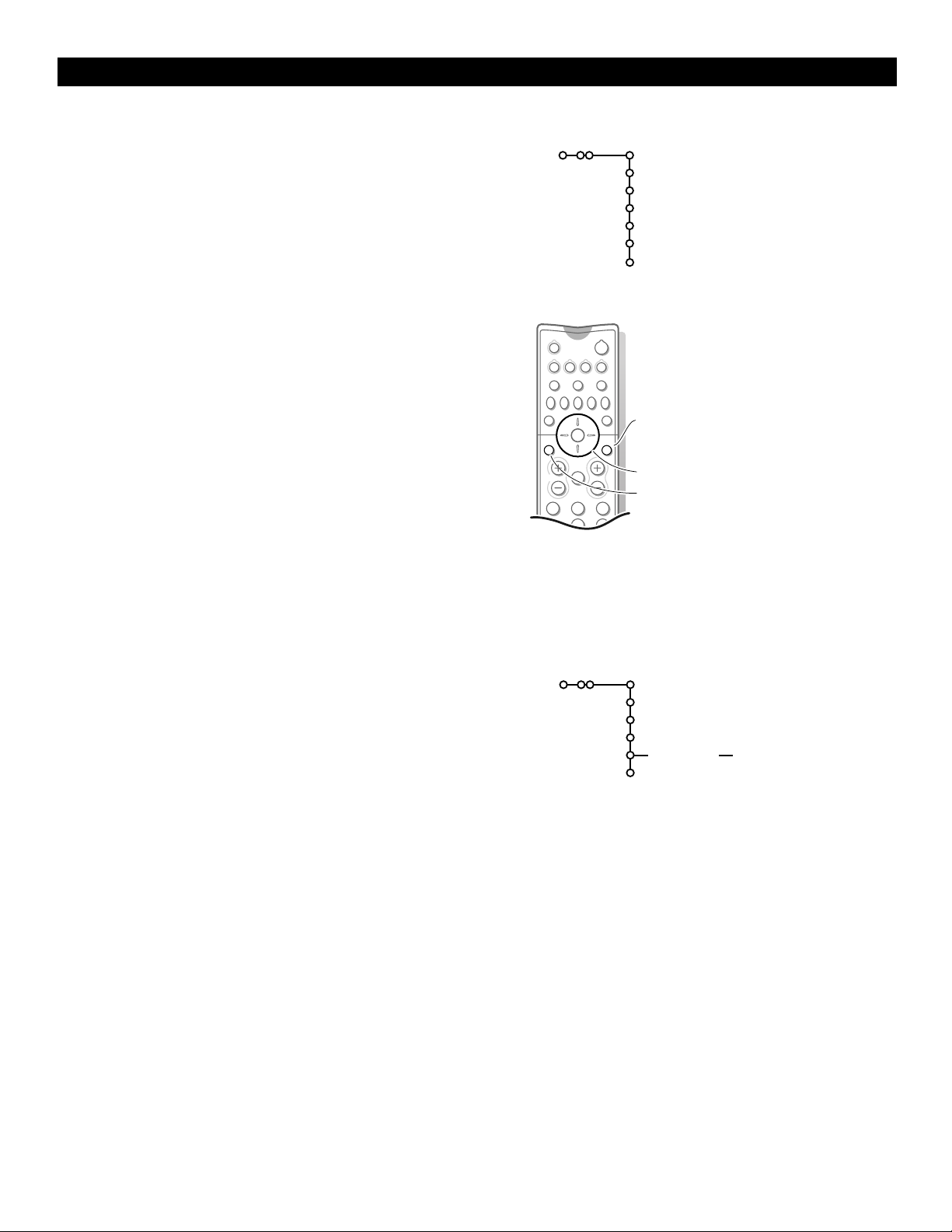

Picture menu

Use the Picture menu to adjust picture settings. Use the onscreen Menu-Info i for more information about the menu items.

1 Press the MENU Ï key on the remote control to summon the main menu.

2 Press the cursor right to select Picture.

Select the menu items in the Picture menu with the 3 cursor up/down.

Adjust the settings with the cursor left/right or enter 4 the list of submenu items with the cursor right.

5 Select a submenu item with the cursor up/down.

The modified adjustments for Contrast, Brightness, Colour, Sharpness,Tint, Digital options and Dynamic Contrast are automatically stored.

Select Factory settings in the Setup menu, General, to restore the predefined factory settings, see p. 14.

Digital Options with PAL signals

Although Pixel Plus is the most ideal setting, it may be preferable, dependent on your own preference, to select Double lines, or 100 Hz Digital Scan.

•100 Hz Dig. Scan 100 Hz + Dig. Scan (Field and line flicker reduction) without motion compensation.

•Movie Plus provides motion compensation to increase clarity around moving images in the picture.

•Pixel Plus creates near High Definition performance inside the TV on the basis of a regular input signal.

The number of lines are increased and the number of pixels on a line are doubled in combination with Digital Natural Motion. As such Pixel Plus enhances both regular broadcast signals and DVD or Digital TV input towards unparalleled sharpness and depth, near High Definition and natural detail.

•Double Lines provides for a doubling of vertical and horizontal resolution which adds astonishing sharpness and a total absence of visible picture lines.

Motion compensation reduces jitter and offers smooth, yet sharp motion reproduction.

Digital Options with NTSC signals

•Progressive Scan line doubling eliminates line flicker.

•Pixel Plus

Note:

- Pixel Plus is not active when Multipip, Teletext (Except when Subtitling is activated) or Teletext Dual screen is selected.

- When having selected Pixel Plus, the size of the menus on screen is reduced. This is a normal behaviour.

-Interference, caused by fluorescent lights just above the TV, may occur when having selected Pixel Plus.

Picture Sound Features

TV

Smart picture

Contrast

Brightness

Colour

Sharpness

Tint

Digital Options

Dynamic contrast

DNR

Colour enhancement

Hue

Picture format

wB

	VCR	DVD AMP	AUX
	b	S	fi
	PIXEL
	PLUS
	x		b
			MENU	return or switch
				main menu on/off
	OK		Ï
	V	¬	CH	cursor to select
				adjustments
				OK key to acti-
				vate

11
