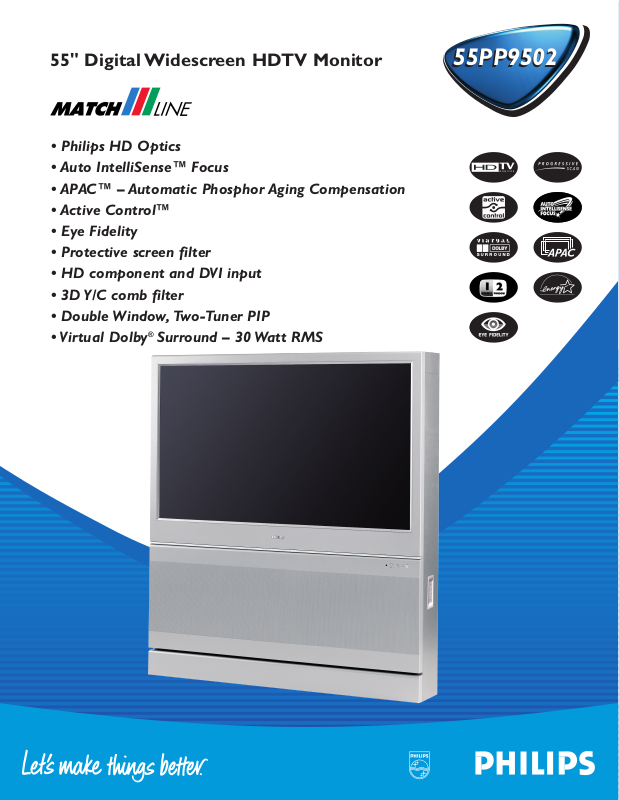

Philips 55PP9502 User Manual

55PP9502

55" Digital Widescreen HDTV Monitor

55PP9502

• Philips HD Optics

• Auto IntelliSense™ Focus

• APAC™ – Automatic Phosphor Aging Compensation

• Active Control™

• Eye Fidelity

• Protective screen filter

• HD component and DVI input

• 3D Y/C comb filter

• Double Window, Two-Tuner PIP

• Virtual Dolby®Surround – 30 Watt RMS


• 1080i HD performance and Line doubling

• Visible screen size: 55"

• Image stability: 60Hz Progressive Scan

• S-Video display - 3 inputs

• AutoPicture™ control (5 modes) Rich, Soft,Natural,Multimedia, Personal

• 3-position Color Temperature

• Control: Brightness, Color Temperature, Sharpness, Dynamic Contrast (on/off)

• 7" liquid cooled tubes

• 550 ft. lamberts peak brightness

Sound

• Sound system: Hi-Fi Stereo

• Virtual Dolby

Surround processing

• Incredible Surround™

• Output: 2 x 15W RMS

• Frequency response:20Hz-15kHz, +1/-3dB (ampl.)

• Loudspeakers:Two 2" / Two 5"

• AutoSound™ control - Theatre, Voice, Music, Personal

• Control:Volume, Bass,Treble and Balance AVL (on/off), Headphone (volume, balance)

• Bass Boost

• Center channel input

• Subwoofer out

Operation

• Easy menu driven installation and operation. Direct access menus and cursor control.

• Selection of three menu languages: (English, French,Spanish)

• Onscreen status display on programs and functions (OSD)

• Sleep timer and Timer

• AutoLock™ to protect young children from objectionable programming with V-chip technology

• Favorite channel list

• Onscreen menu display: Picture menu, Sound menu,Volume control, Features menu, Channel List, AutoSurf™, Installation menu, Preset Name Giving, Language Selection, Active Control demo menu indicating real time picture settings

• Closed Captioning

• Dealer Link: input control for installation and service (Com-pair).

Miscellaneous

• Ambient temperature: +5/+45°C

• Mains: AC 110V ±10%

• Power consumptions:180W average Stand by: <1W

• Product: dimensions:(d x w x h)

25.6 x 52.6 x 57"

• Product weight:190lbs

• Carton dimensions: (d x w x h) 32" x 57.1" x 59.8"

• Shipping weight: 230lbs

• UPC: 0 37849 91883 8

Active Control,APAC, IntelliSense,AutoPicture, AutoSound,AutoSurf, CrystalClear, Easy Tune, Incredible Surround, and RealFlat are trademarks of Philips Consumer Electronics Company.

Manufactured under liscence from Dolby Laboratories. ‘Dolby’ and the double D symbols are trademarks of Dolby Laboratories.

As an ENERGY STAR

Partner,Philips has determined

that this product meets the ENERGY STAR

guidelines for energy efficiency.

Philips HD Optics System

The Philips HD Optics system answers the demand for extreme resolution HD with cutting edge processing and display technology, including micro phosphor CRTs, hybrid projection lenses, first surface mirrors, fine pitched Lenticular screens,and Philips Wideband video amplifier.

Auto IntelliSense™ Focus

Automatically adjust picture convergence at the push of a button. After reviewing a special test pattern, optical sensors send position information to the controller,which then corrects the pictures. Auto IntelliSense™ Focus responds to the natural and man-made magnetic field conditions where the projection TV is located, so you always enjoy the best possible picture.

Automatic Phosphor Aging Compensation — APAC

Non-moving images can be bad for a television screen.If a video image remains stationary, it can eventually leave a permanent after-image on the screen.Video games and the stationary black bars which outline standard 4:3 programming on a widescreen TV compound this problem. Now,Philips has found a way to combat this problem through APAC technology. Periodically,APAC automatically shifts your television picture in very small increments, but increments large enough to blur image retention.Coupled with the Philips Auto Format feature, you have excellent protection from the dreaded screen burn.Think of it as a screen saver for your TV.

Active Control™

Continuous picture analysis and control of Automatic Digital Noise Reduction and Auto Sharpness. Automatically offers the best picture settings.The demo menu shows real-time adjustments of two parameters based on picture content.

Eye Fidelity — Progressive Scan/ Interlaced

Eye Fidelity gives the consumer a choice between two different scanning techniques — Progressive Scan and Interlaced. Progressive Scan doubles the number of visible picture lines per field by

displaying all picture frame lines at once — also eliminating line flicker.The Interlaced mode provides for a double vertical display (interlaced) of Progressive Scan, which reduces annoying motion artifacts.The Interlaced mode also helps smooth out jagged lines sometimes seen on curved and angled surfaces.

Protective screen filter

This filter has been specifically formulated by Philips for HD displays to give the best possible picture and still protect your investment.The protective screen filter helps prevent accidental damage to the delicate front Lenticular screen.

High definition component and DVI inputs

Supports HD video input for superb color purity, crisp color detail, and reduced color noise - Includes separate inputs for Y, Pb, Pr, horizontal sync and vertical sync plus DVI inputs.

3D Y/C comb filter

Activated when using the tuner and composite inputs, the 3D Y/C Comb Filter processes the video with spatial and temporal filtering — virtually eliminating cross color and cross luminance interference improving video resolution.

Double Window,Two-Tuner PIP

Watch two shows,side by side, without a VCR! Two separate tuners let you select two shows and display both in windows of equal proportion.

Virtual Dolby

Surround — 30 Watt RMS

Dolby

processing circuitry for enhanced surround sound effect

creates the sensation of Dolby

Pro Logic without the hassle of

additional rear speakers.

Center channel input

Since it contains the vocal and “steering” information, the center channel is vitally important to overall performance of any large screen in a home theatre system.With standard clip-on style speaker connectors, our center channel input simplifies connection of surround sound equipment for optimal home theatre enjoyment.

Universal remote control - RC2018/1

Universal RC managing TV and peripherals.

Supporting features

• Digital Color Transient Improvement (CTI)

• Digital Histogram

• Picture Freeze

• Auto Aspect Ratio Adaptation

• Incredible Surround™

• Automatic Volume Leveler (AVL)

• Independent headphone volume control

• EasyTune™ (Auto Search, Auto Tune,Auto Install)

• Alternate Channel

• AutoSurf™

• Low power standby (<1W)

55" Digital Widescreen HDTV Monitor

55PP9502

Rear Jackpanel

Side Jackpanel

RC 2018/1

Product highlights

Technical specifications

Internet address

http://www.philips.com

Specifications subject to change without notice.
