Philips 55PP8745, 46PP8745 User Manual

3135 035 23271

55PP8745
46PP8745

Rear-projection TV

Rear-projection TV

with HD Input

with HD Input

2

CONTENTS

Setup and Installation

Product Highlights . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Installing the TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Using the TV keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Using the Remote Control Keys . . . . . . . . . . . . . . . .6–7

Operation

Using the Menus

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Install . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8–13

Picture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14–17

Sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19–22

Using Program List . . . . . . . . . . . . . . . . . . . . . . . . . . .23

Using Smart Surf . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

Using Smart Picture and Smart Sound . . . . . . . . . . . . .24

Using Teletext (if provided) . . . . . . . . . . . . . . . . . . .25–26

Peripheral Equipment

Connecting Peripheral Equipment . . . . . . . . . . . . .27–35

Selecting Connected Equipment for Viewing . . . . . . . .36

General Information

Care, Cleaning, and Tips . . . . . . . . . . . . . . . . . . . . . . . .37

Before Calling Service . . . . . . . . . . . . . . . . . . . . . . . . .38

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40

International Guarantee Conditions . . . . . . . . . . . .41-42

Consumer Information Centres . . . . . . . . . . . . . . .43–44

SAFETY INFORMATION

Disconnect mains plug when :

• the red light below the TV screen is flashing continuously

• a bright white line is displayed across the screen

• cleaning the TV screen (never use abrasive cleaning agents; use a slightly damp chamois leather or soft cloth)

• a lightning storm is occurring

• the set is left unattended for a prolonged period.

Never attempt to repair a defective TV yourself. Always consult a skilled service person.

Battery Usage CAUTION :

To prevent battery leakage which may result in bodily injury or damage to the remote :

• Install ALL batteries correctly, + and – as marked on the remote control.

• Do not mix batteries : (OLD and NEW or CARBON and ALKALINE, etc.).

• Remove batteries when the remote is not used for a long time.

Thank you for purchasing this television set. You are now the proud owner of a Philips TV, which promises full value to
you as a customer. Please read this manual carefully and thoroughly for help with installation and operation.

3

PRODUCT HIGHLIGHTS

Active Control, APAC, Saphlon, Acclearium, and IntelliSense are trademarks of Philips Consumer Electronics North America. IntelliSense is a
registered trademark of Philips Consumer Electronics North America. Copyright 2002 Philips Consumer Electronics.
*Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

See it as an eyewitness

• Progressive Scan – double the visible picture lines for better resolution

• 100Hz Digital Scan eliminates flicker and line jitter for a stable picture

• HDTV Monitor – HDTV is the latest and best television signal available

• Acclearium™ Digital Optics maximizes picture quality on all inputs

• Saphlon™ Screen – better picture and scratch resistance

Technology made simple

• Active Control measures signal to produce best picture

• Auto IntelliSense™ Focus – one-touch automatic convergence of the CRT tubes

• APAC – Automatic Phosphor Aging Compensation

Rich sound experience

• Virtual Dolby®*Surround – surround sound without additional rear speakers

Product highlights

100Hz Digital Scan

Conventional TV creates a picture by scanning 50 times per second (50Hz). This frequency can be detected by the human eye in the form of a field flicker­ing picture. 100Hz sets scan 100 times per second, eliminating the field flickering.

Progressive Scan

A picture frame consists of two fields: the field with the odd lines (field A) and the field with the even lines (field B). Instead of sending field A to the screen
first, followed by field B, the fields A and B are written at one time. In one second, a full image is created using the maximum resolution. At this speed, the
human eye perceives a sharper picture with no line structure.

HDTV Monitor

HDTV Display Capability (1080i). HDTV monitors enable you to view high-definition or enhanced-definition TV programming in the 1080i or 480p signal for­mat. In order to do so, the TV must be connected via its component video or RGB inputs to a set-top box, which is set to operate in the DTV mode. A DTV
signal must be present in your area and the set-top box must be tuned to the proper channel. An external over-the-air antenna may be required. Another
option is HDTV broadcast satellite service. Stunning realism in both picture and sound are delivered!

Acclearium™ Digital Optics

Philips micro phosphor CRTs feature improved optics for sharper, more detailed images and enhanced green phosphor, which creates deeper, more natural
colors. Hybrid projection lenses work in concert with each CRT to improve focus and correct optical errors, removing distortion and creating a crisp picture to
the edge of the screen. The lenticular screen has nearly one-third finer pitch (.515mm) than traditional screens improving picture detail and resolution. The
Philips Wideband Video Amplifier reproduces the highest visible bandwidth in its class—resulting in
significantly more picture detail in pure HD.

Saphlon™ Screen

Saphlon™ Screen technology is built with materials and processes that deliver more brightness and picture contrast. It guards against most scratches and fin­gerprints and eliminates the glare associated with a separate protective screen.

Auto IntelliSense™ Focus

Sensors in the TV scan a predefined test pattern and readjust the signal on the CRTs to assure that red, green and blue are well aligned.

Active Control

With over 3,000 picture adjustments per minute, this 'proactive control system' continuously analyzes incoming video signal qualities for Dynamic Noise
Reduction and sharpness and then automatically corrects them to be like the settings you previously selected in the picture menu.

APAC

APAC is designed to minimize the effects of image retention from stationary images on the screen. Because both analog sources (cable TV and DVD) and
digital sources (HD and progressive scan DVD) have different aspect ratios (4:3, 16:9, 21:9, etc.), the picture on a digital television may have black bars on
the sides or top and bottom. When black bars are detected in either the 4:3 or 16:9 viewing mode, APAC automatically shifts the television picture pixel-by­pixel, just enough to soften image retention. APAC works in both the analog and digital modes, so it provides excellent protection.

1

The major benefit of this projection tel­evision is its large viewing screen. To
see the large screen at its best, test vari­ous locations in the room to find the
optimal spot for viewing.

Be sure to allow a minimum of 15 cm
of space around the TV.

To avoid cabinet warping, cabinet color
changes, and increased chance of set
failure, do not place the TV where tem­peratures can become excessively
hot—for example, in direct sunlight or
near a heating appliance.

Magnetic fields, such as those of exter­nal speakers, may cause the picture to
distort if the speakers are placed too
close to the television. Move the mag­netic field source away from the TV
until there is no picture distortion.

2

Insert the aerial plug firmly into the
ANTENNA IN 75Ω socket at the rear
of the set.

3

Insert the mains plug in the wall sock­et. Refer to the back of the TV set for
the correct operation voltage. Consult
your local dealer if your main supply is
different. To prevent damaging the
mains (AC) cord, which could cause
hazard, do not place the TV on the
cord.

4

Remove the cover of the battery com­partment on the remote control. Insert
the two batteries supplied
(Type R6-1.5V).

The batteries supplied do not contain
the heavy metals mercury and cadmi­um. Nevertheless, in many countries
exhausted batteries may not be dis­posed of with your household waste.
Please check on how to dispose of
exhausted batteries according to local
regulations.

See the battery caution statement on
page 2.

Note : This remote control functions
with TVs that use the RC5 signalling
standard.

5

Switch the TV on : Press the mains
power switch on the front of the TV. If
Standby key is lighted, press the CH
+/– keys, digit keys, or the Standby
key on the remote control. Or press the
CHANNEL or Standby keys on the
front of the TV.

4

INSTALLING THE TV

15 cm

Do not place
the TV in
direct
sunlight or
near a heat­ing appliance.

15 cm

15 cm

INTELLISENSECHANNELVOLUME MENU POWER

Mains Power

Key

Standby

Key

ANTENNA IN 75Ω
Socket on the rear of
the TV

5

USING THE TV KEYS

MAINS POWER KEY

Switches the mains power on or off.

REMOTE SENSOR

Receives infrared commands to acti­vate controls when the remote-control
handset is aimed at it and remote keys
are pushed.

VOLUME

%%fifi

/ MENU

The fifikey adjusts the sound volume
softer. The %%key adjusts the sound
volume louder.

CHANNEL

%%fifi

The fifikey selects channels in
descending order. The %%key selects
channels in ascending order. When
the onscreen menu is displayed,
pressing fifior %%selects the next item
in the menu. Also, use either of these
keys to switch the TV on from
Standby mode.

MENU

Press to access the onscreen menu.

STANDBY

Switches the TV on or
activates standby mode.

INTELLISENSE

When pressed, automatically adjusts
the set’s picture convergence using
the AutoIntellisense focus feature.

INTELLISENSECHANNELVOLUME MENU POWER

6

SLEEP TIMER

Allows you to select a time period after which the set will automatical­ly switch to standby mode. Choose 15, 30, 45, 60, 90, 120, 180, or 240
minutes. See page 25.

A/CH (Alternate Channel)

Allows you to alternate between the last viewed channel and the pres­ent channel.

No Function

These buttons are not used with your television.

FORMAT

Each press selects another picture format. For AV1, CVI, AV2, or
AV3, the options are 4:3, Auto, Expand 4:3, Panorama, and
Widescreen. For the AV4 and AV5 sources, no screen format options

are available through the TV; control the format at the source (DVD player
or digital set-top box).

DIGIT (0–9)

Allows you to select a channel. Note : For a two-digit number, the sec­ond digit must be entered before the “–” sign disappears.

SMART SOUND

Allows you to select from three predefined optimal settings—Voice,
Music, and Theatre—and a Personal setting based on your own selec­tions through the onscreen Sound menu. Press the key repeatedly to
select a setting. See page 24.

MENU

Displays the main menu. Also allows you to go backwards in the
menu system.

CURSOR LEFT

Allows you to access the menus and adjust the settings.

CURSOR UP

Allows you to select the next or previous item in the menu and to
select a screen format. See page 22.

VOLUME +/–

Increases or decreases volume.

AV

Allows you to select the different signal sources connected to the TV.

i+ (STATUS/EXIT)

• Displays the channel number, sound and colour transmission
modes, status of the sleep timer, channel name (if the channel has
been named), and the current time (if the time has been set).

• Allows you to navigate or make adjustments in multipoint-conver­gence mode.

• Allows you to switch the menu off.

DOLBY V (with Dolby* Surround Signals)

Allows you to select various factory surround-sound listening modes :

Dolby Virtual (Virtual Dolby Surround)

Dolby Virtual uses two speakers to simulate the surround effect pro­duced by a multichannel system.

Incredible Surround™

• In Stereo sound mode—when switched on, the Incredible Surround™ fea-

ture provides the feeling that the speakers are farther apart to enhance the
home-cinema effect.

• In Mono sound mode—when switched on, the Incredible Surround feature

enables you to hear a spatial sound effect.

*Manufactured under license from Dolby Laboratories. “Dolby”
and the double-D symbol are trademarks of Dolby Laboratories.

USING THE REMOTE CONTROL KEYS

7

STANDBY

• Switches the set off temporarily to standby mode. (The red light
indicator lights up when the set is in standby mode.)

• To switch the set on from standby mode, press the Standby,
Channel +/–, or Digit (0–9) keys.

FREEZE

Press this button to freeze the picture on the TV screen.

SMART PICTURE

Allows you to select from four predefined optimal settings—Rich,
Natural, Soft, and Multimedia—and a Personal setting based on
choices you make through the onscreen Picture menu. See
page 24.

SURF

Allows you to select up to 10 channels and quickly view them. See
page 23.

CURSOR RIGHT

Allows you to access the menus and adjust the settings.

CURSOR DOWN

Allows you to select the next or previous item in the menu or to select
a screen format.

CHANNEL +/–

Allows you to select channels in ascending and descending order.

MUTE

Allows you to mute the sound. To restore the sound, press the key
again.

TIMER

Allows you to access the onscreen Timer menu, through which you
can set the TV’s clock and the Timer. The Timer can be set to switch
to another channel at a specified time while you are watching another
channel or when the set is in standby mode.

I–II

Allows you to switch from stereo to mono sound during stereo trans­mission or to choose between language I or language II during dual
sound transmission.

TELETEXT

Allows you to access Teletext information (if provided) See
pages 26–27.

PROGRAM LIST

Allows you to navigate through a list of installed programmes for a
quick overview of the channels and to activate the channel you have
selected. See page 23.

ACTIVE CONTROL™

Allows you to switch the Active Control™ feature on or off. When
Active Control™ is on, it measures and corrects all incoming signals
to provide the best picture-quality settings, controlling Sharpness and
Noise Reduction continuously and automatically. The onscreen Active
Control™ display items cannot be selected. See page 22.

USING THE

REMOTE

C

ONTROL KEYS

1

Press the MENU key to display/cancel the main menu.

2

Use the cursor in the up/down directions to select a menu
item.

Note : Sometimes not all the menu items are visible on the
screen; press the cursor up/down until you can see the item
you desire.

3

Use the cursor in the left/right directions to display the
menu and adjust the settings.

4

Press the MENU key to return.

5

Press the m key to switch the menu off.

Note : If no action is executed, the menu automatically dis­appears after about 20 seconds.

8

USING THE

MENUS

:OVERVIEW

Selecting the Menu Language

Note : The menu languages available vary by model.

1

Press the MENU key.

2

Select INSTALL with the cursor down.

3

Press the cursor right to select LANGUAGE.

4

Press the cursor right again.

5

Select your language with the cursor up/down.

From this point on, all onscreen displays will appear in the
language that you have chosen.

Now you can search for and store the TV channels in two
different ways : with Auto Store or Manual Store (tuning in
channel by channel).

USING THE MENUS :INSTALL

Select
menu

item

Return

Switch

menu

off

PICTURE BRIGHTNESS

•

SOUND COLOUR

•

FEATURES CONTRAST

•

INSTALL SHARPNESS

•

COLOUR TEMP

PICTURE LANGUAGE

•

SOUND AUTO STORE

•

FEATURES MANUAL STORE

•

INSTALL SORT

•

INSTALL

LANGUAGE

AUTO STORE B.MELAYU

•

MANUAL STORE

•

SORT

•

CHANNEL EDIT

•

•

INSTALL

LANGUAGE
AUTO STORE B.MELAYU

•

MANUAL STORE

•

SORT

•

CHANNEL EDIT

•

•

CHANNEL EDIT

ENGLISH

•

ENGLISH

•

9

Tuning Channels Automatically

1

Select AUTO STORE in the INSTALL menu.

2

Press the cursor right to start the searching. All the TV channels
are searched for and stored automatically.

3

When the tuning is completed, press the MENU key to
return to the INSTALL menu or press the m key to switch
the menu off.

Note : Channel numbers will always be written in Latin
characters, even when a language that uses other characters
has been selected.

USING THE MENUS :INSTALL

Tuning Channels Manually

Manual tuning allows you to store channel by channel. You must go
through every step of the manual store menu.

1

Select MANUAL STORE in the INSTALL menu.

2

Press the cursor right to enter the menu.

3

Select COLOUR SYSTEM and press the cursor right.
If AUTO is selected, the respective colour system will be

automatically selected according to the transmission system.
Note : If reception is poor, select another colour system

with the cursor up/down.

4

Press the MENU key or the cursor left.

5

Select SOUND SYSTEM and press the cursor right.
If AUTO is selected, the respective sound system will be

automatically selected according to the transmission system.
Note : If the reception is poor, select another sound system

with the cursor up/down.

6

Press the MENU key or the cursor left.

7

Select SEARCH and press the cursor left or right to start
the searching. Searching stops once a transmitting channel is
found

.

Note : If the reception is poor, select another colour and/or
sound system.

Continue to the next page.

INSTALL

LANGUAGE

•

AUTO STORE•SEARCH

•

MANUAL STORE

•

SORT

•

CHANNEL EDIT

•

•

INSTALL

LANGUAGE
AUTO STORE•SEARCHING

•

MANUAL STORE PLEASE WAIT

•

SORT CHAN.FOUND 8

•

CHANNEL EDIT 048 31 MHZ

•

•

PICTURE BRIGHTNESS

•

SOUND COLOUR

•

FEATURES CONTRAST

•

INSTALL SHARPNESS

•

COLOUR TEMP

PICTURE LANGUAGE

•

SOUND AUTO STORE

•

FEATURES MANUAL STORE

•

INSTALL SORT

•

INSTALL

LANGUAGE COLOUR SYSTEM

•

AUTO STORE SOUND SYSTEM

•

MANUAL STORE SEARCH

•

SORT CHANNEL

•

CHANNEL EDIT FINE TUNE

•

•

INSTALL

MANUAL STORE

COLOUR SYSTEM

•

SOUND SYSTEM

•

SEARCH

CHANNEL

•

STORE

•

•

•

INSTALL

MANUAL STORE

COLOUR SYSTEM

•

SOUND SYSTEM

•

SEARCH

CHANNEL

•

STORE

•

•

•

CHANNEL EDIT

048.31MHZ

•

196.25MHZ

•

8

Select CHANNEL.

9

Key in the desired channel number with the digit keys or
with the cursor left/right.

10

Press the cursor down.

In case of poor reception, you can improve the reception by
adjusting the frequency using FINE TUNE.

11

Select FINE TUNE and press the cursor left/right to adjust.

12

In rare cases, certain TV channels may reproduce distorted
or unstable pictures.

Select PLL (Phase Locked Loop) to switch to the setting 2
with the cursor left/right to restore the picture for the respec­tive transmission.

13

Select STORE.

14

Press the cursor right.

The message STORED appears and the search menu item is
highlighted again.

15

Now repeat steps 7–14 to continue searching for another
transmitting channel.

16

Press the MENU key to return to the INSTALL menu or
press the m key to switch the menu off.

10

U

SING THE MENUS

:INSTALL

INSTALL

MANUAL STORE

COLOUR SYSTEM

•

SOUND SYSTEM

•

SEARCH

•

CHANNEL

STORE

•

•

•

INSTALL

MANUAL STORE

•

SOUND SYSTEM

•

SEARCH

•

CHANNEL

•

STORE

•

G

FINE TUNE

•

INSTALL

MANUAL STORE

•

•

SEARCH

•

CHANNEL

•

STORE

•

FINE TUNE

•

G

PLL

INSTALL

MANUAL STORE

COLOUR SYSTEM

•

SOUND SYSTEM

•

SEARCH

•

CHANNEL

•

G

STORE

•

•

•

•

‰

•

18

F

2

INSTALL

MANUAL STORE

COLOUR SYSTEM

•

SOUND SYSTEM

•

SEARCH

•

CHANNEL

•

G

STORE

•

•

‰

STORED

•

11

Sorting Channels

According to your preference, you can change the order of the stored
TV channels.

1

Select SORT in the INSTALL menu.

2

Press the cursor right to enter the menu.

3

Key in the channel number in the FROM column you
want to swap from. Use the digit keys or the cursor
left/right.

4

Press the cursor down and select TO.

5

Key in the channel number in the TO column you want to
swap to.

6

Press the cursor down and select EXCHANGE.

7

Press the cursor right.

The message EXCHANGED appears and the selected
channels are exchanged.

8

Repeat steps 3–7 until all TV channels are allocated as you
like.

9

Press the MENU key to return to the INSTALL menu or
press the m key to switch the menu off.

USING THE

MENUS :INSTALL

INSTALL

LANGUAGE FROM

•

AUTO STORE TO

•

MANUAL STORE EXCHANGE

•

G

F

SORT

•

G

CHANNEL EDIT

•

•

INSTALL

SORT

G

FROM

TO

•

EXCHANGE

•

INSTALL

SORT

FROM

•

G

TO

EXCHANGE

•

INSTALL

SORT

FROM

•

TO

•

G

EXCHANGE

INSTALL

SORT

FROM

•

TO

•

G

EXCHANGE

‰

8

•

‰

6

•

‰

EXCHANGED

•

‰

•

12

Editing Channels

This feature allows you to edit or skip channels from the channel list
that have bad or weak signals or channels that you do not watch
often.

Note : Once a channel is skipped, you cannot select it with the CH –
or + key. You can only access the channel with the digit keys.

1

Select CHANNEL EDIT in the INSTALL menu.

2

Press the cursor right to enter the channel list.

3

Select the channel you want to skip with the cursor
up/down.

4

Press the cursor right to skip the selected channel.

The message SKIPPED is displayed.

5

Press the cursor up/down to select another channel and
repeat step 4.

6

Press the cursor left or the MENU key to return to the
INSTALL menu or the m key to switch the menu off.

Note : To add back channels to the list, repeat steps 1–4 and

press the m key to switch the menu off.

U

SING THE MENUS :INSTALL

INSTALL

LANGUAGE 3

•

AUTO STORE 4

•

MANUAL STORE 5

•

G

SORT 6

•

G

F

CHANNEL EDIT

•

•

INSTALL

LANGUAGE 3

•

AUTO STORE 4

•

‰

7

•

MANUAL STORE 5

•

G

SORT 6

•

G

G

CHANNEL EDIT

•

INSTALL

LANGUAGE 3

•

AUTO STORE 4

•

MANUAL STORE 5

•

G

SORT 6

•

G

G

CHANNEL EDIT

•

F

7

•

F

7 SKIPPED

•

13

Naming Channels

It is possible to assign a name to a TV channel. This feature allows
you to enter a name or modify an existing name of a channel, includ­ing peripherals.

Note : Even when you have selected another language in the
LANGUAGE menu, only the English language character set is
offered to enter names to the TV channels stored.

1

Select a TV channel or peripheral you want to assign a name
or modify the existing name.

2

Select NAME in the INSTALL menu.

3

Press the cursor right to enter the menu.

4

Key in the selected character with the cursor up/down.

5

Move to the next character with the cursor right and key in
the next character. You can key in up to a maximum of five
characters.

6

Press the MENU key to store the named channel.

USING THE

MENUS

:INSTALL

INSTALL

•

AUTO STORE

•

MANUAL STORE

•

SORT

•

G

CHANNEL EDIT

•

G

G

NAME

‰

PERSONAL

•

INSTALL

•

AUTO STORE

•

MANUAL STORE

•

SORT

•

G

CHANNEL EDIT

•

G

G

NAME

INSTALL

•

AUTO STORE

•

MANUAL STORE

•

SORT

•

G

CHANNEL EDIT

•

G

G

NAME

INSTALL

•

AUTO STORE

•

MANUAL STORE

•

SORT

•

G

CHANNEL EDIT

•

G

G

NAME

INSTALL

•

AUTO STORE

•

MANUAL STORE

•

SORT

•

G

CHANNEL EDIT

•

G

G

NAME

‰

PERSONAL

•

‰

-

•

‰

CNN

•

‰

PERSONAL

•

USING THE

MENUS

:PICTURE

Picture Menu Items

Brightness

Allows you to adjust the brightness levels of the picture.

Colour

Allows you to adjust the colour saturation of the picture.

Contrast

Allows you to adjust the contrast levels of the picture.

Sharpness

Allows you to adjust the edge definition of the picture to improve details.

Hue (only with NTSC signals)

Allows you to adjust the colour mix of the picture.

Colour Temperature

Offers the options Normal, Warm, and Cool. Make your selection with the
cursor left/right. Normal keeps whites white. Warm makes whites reddish.
Cool makes whites bluish.

Digital Options

Digital Scan includes 100Hz plus Digital Scan, which together eliminate
picture flickering and line jitter, offering a stable picture for relaxed viewing
(no eye strain). 100Hz offers field flicker reduction. Progressive doubles the
number of visible picture lines per field by displaying all picture frame lines
at once. This minimizes the visibility of the scan lines. Auto detects the input
signal and provides the appropriate mode for the best picture performance.
Choose Digital Scan for PAL 50Hz signals and Progressive Scan for NTSC
60Hz signals.

Dynamic Contrast

Automatically makes the contrast in the darker and the brighter picture areas
more noticeable as the image on screen changes. Normally, select MED. In
certain circumstances it may be preferable to select MIN, MAX, or OFF.

IntelliSense

When activated, automatically adjusts picture convergence in 20 seconds or
less.

Manual Converge

Allows you to make additional picture convergence adjustments to suit per­sonal preferences to to further fine-tune the picture.

Note : The picture settings Brightness, Colour, Contrast, Sharpness (Hue),
and Colour Temperature are stored separately for channels 0–11 and for the
external sources.

Accessing the Menu

1

Press the MENU key to display the main menu.

2

Select PICTURE.

3

Press the cursor right to access the PICTURE submenu.

4

Use the cursor in the up/down directions to select an item.

5

Use the cursor in the left/right directions to make adjust­ments or settings.

6

Press the MENU key to return or press the m key to switch
the menu off.

Select

menu

item

Return

Switch

menu

off

14

F

PICTURE BRIGHTNESS

•

SOUND COLOUR

•

FEATURES CONTRAST

•

G

INSTALL SHARPNESS

•

G

EDIT COLOUR TEMP


G

BRIGHTNESS F30

COLOUR

•

CONTRAST

•

G

SHARPNESS

•

G

HUE

•

COLOUR TEMP

•

•


•

•

COLOUR TEMP CONVERGE RED

•

DIGITAL OPTIONS CONVERGE BLUE

•

DYNAMIC CONTRAST MULTIPOINT RED

•

G

INTELLISENSE MULTIPOINT BLUE

•

• F

MANUAL CONVERGE SAVE MULTIPOINT

15

USING THE

MENUS

:PICTURE

Using Auto IntelliSense

®

Your projection TV has three color projection tubes : one for red, one for
green, and one for blue. When mixed in proper proportion, the beams of
light coming from the tubes can produce any color. To create a clear pic­ture, however, these color beams must be precisely aligned. This align­ment is called convergence. Bumps and vibrations, moving the set, or the
presence of magnetic fields can cause the color beams to become improp­erly aligned, or misconverged, resulting in a fuzzy picture. Using the
Auto IntelliSense®feature, you can automatically adjust convergence in
20 seconds or less.

Note : Allow the TV to warm up for 20 minutes before using Auto
IntelliSense®.

Activating Auto IntelliSense

®

Through the Onscreen Menu

1

Select INTELLISENSE in the PICTURE menu.

2

Press the cursor left or right to activate Auto IntelliSense®.
Picture convergence will be adjusted automatically in 20
seconds.

Activating Auto IntelliSense

®

Using the TV Key

With the TV on, press the IntelliSense key on the front of the TV.
Picture convergence will be adjusted automatically in 20 seconds.

Note : You can also manually adjust picture convergence to suit your
personal preferences or to further fine-tune the picture. See the next
section on using the MANUAL CONVERGE controls.

Press to begin
automatic
convergence

F

PICTURE BRIGHTNESS

•

SOUND COLOUR

•

FEATURES CONTRAST

•

G

INSTALL SHARPNESS

•

G

EDIT COLOUR TEMP


G

BRIGHTNESS F30

COLOUR

•

CONTRAST

•

G

SHARPNESS

•

G

COLOUR TEMP

•

•

•


SHARPNESS

•

COLOUR TEMP

•

DIGITAL OPTIONS

•

DYN. CONTRAST

•

G

INTELLISENSE

IntelliSense Focus In Progress

‰

•

TV Keys

INTELLISENSECHANNELVOLUME MENU POWER

16

USING THE MENUS :PICTURE

Using Manual Converge : Converge Red/Blue

Using the Auto IntelliSense®feature, you can automatically adjust con­vergence in 20 seconds or less (see the previous page). Also, if you
desire, you can use the Manual Converge controls to make additional
convergence adjustments to suit your personal preferences or to further
fine-tune the picture.

Note : Allow the TV to warm up for 20 minutes before adjusting conver­gence.

1

Select MANUAL CONVERGE in the PICTURE menu.

2

Press the cursor down and select either CONVERGE RED
or CONVERGE BLUE.

Note : If various images in the picture have red outlines,
select CONVERGE RED. If various images in the picture
have blue outlines, select CONVERGE BLUE.

3

Use the cursor right, left, up, or down to adjust the cross
hair until the color outline is gone. The adjustment is auto­matically saved in the TV’s memory when you exit the
adjust mode.

4

Press the MENU key to return or the m key to switch the
menu off.

Check the TV picture. If any color outlines remain around
the images, use the MULTIPOINT RED (for red outlines)
or MULTIPOINT BLUE (for blue outlines) control. See
the next section for instructions for using those controls.


MANUAL CONVERGE

G

CONVERGE RED

CONVERGE BLUE

•

MULTIPOINT RED

•

MULTIPOINT BLUE

•

SAVE MULTIPOINT

•

•

•

‰

•

Converge Red

Converge Red

17

USING THE MENUS :PICTURE

Using Manual Converge : Multipoint Red/Blue

The Multipoint Red/Blue convergence controls allow you to adjust
picture convergence at specific points on the TV screen.

Note : Allow the TV to warm up for 20 minutes before adjusting
convergence. Adjust Converge Red or Converge Blue before using
the Multipoint Red/Blue controls. See the previous page.

1

Select MULTIPOINT RED or MULTIPOINT BLUE in
the MANUAL CONVERGE menu.

2

Press the cursor right to enter navigate mode.

3

Use the cursor left, right, up, or down to move to a cross
hair that has a color outline.

4

Press the m (Status/Exit) key to enter adjust mode.

5

Use the cursor left, right, up, or down to adjust the cross
hair until the color outline is gone.

6

Press the m key to return to navigate mode.

7

Repeat steps 3–6 until all misaligned cross hairs have been
adjusted. Then press the MENU key.

8

For your multipoint adjustments to be stored in the TV’s
memory, you must activate SAVE MULTIPOINT.

Note : If you are not satisfied with the adjustments you just
made and want to start over, you can use the UNDO

MULTIPOINT control. This control allows you to undo
the adjustments, but only if you use it before saving.

To save your multipoint adjustments : Select SAVE
MULTIPOINT and press the cursor left or right.

To undo your multipoint adjustments : Select UNDO
MULTIPOINT and press the cursor left or right.

To restore the TV’s picture convergence to factory settings,
select RESTORE FACTORY and press the cursor left or
right.

9

Press the MENU key to return or the m key to switch the
menu off.


MANUAL CONVERGE

CONVERGE RED

•

CONVERGE BLUE

•

G

MULTIPOINT RED

MULTIPOINT BLUE

•

SAVE MULTIPOINT

•

•

•

to Navigate EXIT to Adjust

to Adjust EXIT to Navigate

‰

•

to Navigate EXIT to Adjust

to Adjust EXIT to Navigateto Navigate EXIT to Adjust

to Adjust EXIT to Navigate


MANUAL CONVERGE

CONVERGE RED

•

CONVERGE BLUE

•

G

MULTIPOINT RED

MULTIPOINT BLUE

•

SAVE MULTIPOINT

•

•

•

‰

•


MANUAL CONVERGE

CONVERGE RED

•

CONVERGE BLUE

•

MULTIPOINT RED

•

MULTIPOINT BLUE

•

G

SAVE MULTIPOINT

•

•


MANUAL CONVERGE

•

CONVERGE BLUE

•

MULTIPOINT RED

•

MULTIPOINT BLUE

•

SAVE MULTIPOINT

•

G

UNDO MULTIPOINT

•


MANUAL CONVERGE

•

•

MULTIPOINT RED

•

MULTIPOINT BLUE

•

SAVE MULTIPOINT

•

UNDO MULTIPOINT

•

G

RESTORE FACTORY

SAVE MULTIPOINT

‰

•

UNDO MULTIPOINT

‰

•

RESTORE FACTORY

‰

•


MANUAL CONVERGE

CONVERGE RED

•

CONVERGE BLUE

•

MULTIPOINT RED

•

MULTIPOINT BLUE

•

G

SAVE MULTIPOINT

•

•

OR


MANUAL CONVERGE

•

CONVERGE BLUE

•

MULTIPOINT RED

•

MULTIPOINT BLUE

•

SAVE MULTIPOINT

•

G

UNDO MULTIPOINT

•

OR


MANUAL CONVERGE

•

•

MULTIPOINT RED

•

MULTIPOINT BLUE

•

SAVE MULTIPOINT

•

UNDO MULTIPOINT

•

G

RESTORE FACTORY

‰

STORED

•

‰

RESTORED

•

‰

RESTORED

•

18

USING THE MENUS :SOUND

Sound Menu Items

Treble

Attenuates or amplifies the high-frequency response of the audio out­put signal.

Bass

Attenuates or amplifies the low-frequency response of the audio out­put signal.

Balance

Adjusts the balance of the right and left speaker’s sound output.

AVL (Automatic Volume Leveller)

Automatically controls the volume level to avoid excessive level dif­ferences, especially when switching to another channel or during
commercial breaks.

Headphone

Allows you to adjust the volume and balance of the headphone.

1

Select HEADPHONE.

2

Press the cursor right.

3

Select VOLUME or BALANCE with the cursor up/down.

4

Press the cursor left/right to adjust.

5

Press the MENU key to return.

Accessing the Menu

1

Press the MENU key to display the main menu.

2

Select SOUND with the cursor down.

3

Press the cursor right to access the SOUND submenu.

4

Use the cursor in the up/down directions to select an item.

5

Use the cursor in the left/right directions to make adjust­ments or settings.

6

Press the MENU key to return or press the m key to switch
the menu off.

Select

menu

item

Return

Switch

menu

off

F

PICTURE BRIGHTNESS

•

SOUND COLOUR

•

FEATURES CONTRAST

•

G

INSTALL SHARPNESS

•

G

EDIT COLOUR TEMP

PICTURE TREBLE

•

F

SOUND BASS

•

FEATURES BALANCE

•

G

INSTALL AVL

•

G

EDIT HEADPHONE

SOUND

G

TREBLE

BASS

•

BALANCE

•

G

AVL

•

G

HEADPHONE

•

•

F

59

SOUND

•

BASS

•

BALANCE

•

AVL

•

G

HEADPHONE

•

G

G

BASS BOOST

F

OFF

•

19

USING THE MENUS :FEATURES

Accessing the Menu

1

Press the MENU key to display the main menu.

2

Select FEATURES with the cursor down.

3

Press the cursor right to access the FEATURES submenu.

4

Use the cursor in the up/down directions to select an item.

5

Use the cursor in the left/right directions to make settings.

6

Press the MENU key to return or press the m key to switch
the menu off.

Activating the Timer

The Timer feature allows you to set the timer to switch to another
channel at a specified time while you are watching a channel or
when the TV is in standby mode. You can also set the TV to switch
off automatically at a specific time by setting a Stop Time.

1

Select TIMER in the FEATURES menu.

2

Press the cursor right to enter the Timer.

Setting the Timer

1

Press the cursor right again to enter TIME mode.

2

Key in the current time with the digit keys.

You must use 24-hour, or military, time. For example : 2:15
p.m. is 14:15.

If you entered an incorrect digit :

Complete the actual time with arbitrary numbers, then start
again.

3

Press the cursor left to exit TIME mode.

Continue to the next page.

Select

menu

item

Return

Switch

menu

off

F

PICTURE BRIGHTNESS

•

SOUND COLOUR

•

FEATURES CONTRAST

•

G

INSTALL SHARPNESS

•

G

EDIT COLOUR TEMP

FEATURES

TIMER

G

TIME

START TIME

•

STOP TIME

•

G

CHANNEL

•

G

ACTIVATE

•

•

‰

--:--

•

PICTURE TIMER

•

SOUND CHILD LOCK

•

F

FEATURES PIP

•

INSTALL FORMAT

•

G

EDIT BLUE MUTE

FEATURES

F

TIMER TIME

•

CHILD LOCK START TIME

•

FORMAT STOP TIME

•

BLUE MUTE CHANNEL

•

G

E

ACTIVE CTRLDIACTIVATE

•

FEATURES

TIMER

G

TIME
START TIME

•

STOP TIME

•

G

CHANNEL

•

ACTIVATE

•

•

‰

14:15

•

20

Setting Start Time

1

Select START TIME with the cursor down.

2

Press the cursor right to enter the START TIME mode.

3

Key in the time you want the programme to be switched on.

4

Press the cursor left to exit START TIME mode.

Setting Stop Time

1

Select STOP TIME with the cursor down.

2

Press the cursor right to enter the STOP TIME mode.

3

Key in the time you want the programme to be switched off.

4

Press the cursor left to exit STOP TIME mode.

Selecting the Channel

1

Select CHANNEL with the cursor down.

2

Select the channel you want to switch to.

Activating the Timer

1

Select ACTIVATE with the cursor down.

2

Press the cursor right to enter the ACTIVATE mode to acti-
vate the timer.

3

Using the cursor right, select ONCE or DAILY, according to
if you want to activate the timer on the selected channel and
the selected time every day or only once.

Displaying the Time

1

Select DISPLAY with the cursor down.

2

Press the cursor right to select ON or OFF, according to if
you want to display the current time on the TV screen or not.

3

Press the MENU key to return or the m key to switch the
menu off.

USING THE MENUS :FEATURES

FEATURES

TIMER

TIME

•

G

START TIME

STOP TIME

•

G

CHANNEL

•

G

ACTIVATE

•

•

FEATURES

TIMER

TIME

•

START TIME

•

G

STOP TIME

G

CHANNEL

•

G

ACTIVATE

•

•

FEATURES

TIMER

TIME

•

START TIME

•

STOP TIME

•

G

CHANNEL

ACTIVATE

•

•

FEATURES

TIMER

TIME

•

START TIME

•

STOP TIME

•

CHANNEL

•

G

ACTIVATE

•

G

ACTIVATE

G

ACTIVATE

FEATURES

TIMER

TIME

•

‰

--:--

•

‰

--:--

•

‰

3

•

‰

OFF

•

G

START TIME
STOP TIME

•

G

CHANNEL

•

ACTIVATE

•

•

FEATURES

TIMER

TIME

•

START TIME

•

G

STOP TIME

G

CHANNEL

•

ACTIVATE

•

•

FEATURES

TIMER

TIME

•

START TIME

•

STOP TIME

•

G

CHANNEL

ACTIVATE

•

•

FEATURES

TIMER

•

START TIME

•

STOP TIME

•

CHANNEL

•

ACTIVATE

•

G

DISPLAY

‰

12:30

•

‰

16:00

•

‰

12:30

•

‰

13:30

•

‰

18:00

•

‰

8

•

‰

ON

•

OR

‰

ONCE

•

OR

‰

DAILY

•

Activating the Child Lock

The Child Lock feature allows you to lock channels to prevent chil­dren from watching certain programmes.

Entering the Access Code

1

Select CHILD LOCK in the FEATURES menu.

2

Press the cursor right to enter the ACCESS CODE.

3

Key in the access code 0711 (the default access code).
A message INCORRECT will appear.

4

Key in access code 0711 a second time.
The message CORRECT will appear and make the Child

Lock menu accessible.

Changing the Access Code

1

Select CHANGE CODE to enter an access code of your
choice.

2

Press the cursor right to enter the CHANGE CODE mode.

3

Key in the access code of your choice and confirm it again.
The message CORRECT will appear.

Activating the Child Lock

1

Select LOCK CHANNEL in the CHILD LOCK menu.

Note : Enter the access code if requested. See above.

2

Press the cursor right to enter the LOCK CHANNEL
mode.

3

Use the cursor up/down to select the channel you want to
lock.

4

Press the cursor right to lock the channel.

A keylock symbol will appear beside the locked channel.

From now on the locked channel(s) can be accessed only
via the remote control.

5

Repeat steps 1–4 to unlock a locked channel.
To clear all locked channels at once, select CLEAR ALL in

the CHILD LOCK menu and press the cursor right.
The message CLEARED will appear.

6

Press the MENU key to return or the m key to switch the
menu off.

21

USING THE MENUS :FEATURES

R

FEATURES

TIMER ACCESS CODE

•

F

CHILD LOCK ----

•

FORMAT

•

BLUE MUTE

•

G

ACTIVE CTRL

•

EDIT

FEATURES

TIMER ACCESS CODE

•

F

CHILD LOCK XXXX

•

FORMAT CORRECT

•

BLUE MUTE

•

G

ACTIVE CTRL

•

EDIT

FEATURES

CHILD LOCK

LOCK CHANNEL ENTER

•

G

CHANGE CODE
CLEAR ALL XXXX

•

FEATURES

CHILD LOCK

LOCK CHANNEL CONFIRM

•

G

CHANGE CODE
CLEAR ALL XXXX

•

F

•

F

•

NEW CODE

CODE

CORRECT

FEATURES

TIMER ACCESS CODE

•

F

CHILD LOCK XXXX INCO

•

FORMAT

•

BLUE MUTE

•

G

ACTIVE CTRL

•

EDIT

FEATURES

CHILD LOCK

LOCK CHANNEL ENTER

•

G

CHANGE CODE

CLEAR ALL ----

•

G

FEATURES

CHILD LOCK

LOCK CHANNEL CONFIRM

•

G

CHANGE CODE
CLEAR ALL XXXX

•

FEATURES

CHILD LOCK

LOCK CHANNEL

G

CHANGE CODE 3

•

CLEAR ALL 4

•

G

F

NEW CODE

•

F

CODE

•

F

2

•

5
6

FEATURES

CHILD LOCK

LOCK CHANNEL

G

CHANGE CODE 4

•

CLEAR ALL 5

•

G

FEATURES

CHILD LOCK

LOCK CHANNEL

•

CHANGE CODE

•

G

CLEAR ALL

G

F

3 Ç

•

6
7

F

CLEARED

•

6

FEATURES

CHILD LOCK

LOCK CHANNEL

•

CHANGE CODE

•

G

CLEAR ALL

G

F

•

6

22

U

SING THE MENUS

:FEATURES

Selecting the Screen Format

The TV’s Screen Format options allow you flexibility in viewing
video sources. Select a screen format using the v or cursor up/down
keys or the onscreen menu. To use the onscreen menu :

1

Select FORMAT in the FEATURES menu.

2

Press the cursor right repeatedly to cycle through the differ­ent screen formats and select your desired format. The
options for AV1, CVI, AV2, and AV 3 are :

• 4:3 shows the picture in conventional picture size. Black

bars appear on the left and right sides.

• AUTO format makes the picture fill the screen as much as

possible, eliminating or reducing the size of black bars.

• EXPAND 4:3 zooms the picture horizontally and vertically.

• PANORAMA stretches the outer parts of the picture hori-
zontally and causes some vertical expansion.

• WIDE SCREEN expands the picture horizontally with no

vertical expansion.

For AV 4 and AV5, no screen formats are available through
the TV; make adjustments through the set-top box or DVD
player you have connected.

Switching Active Control™ on

Turn Active Control™ on using the key or the onscreen menu. To
use the onscreen menu :

1

Select ACTIVE CTRL in the FEATURES menu.

2

Press the cursor right to select ON to activate automatic con­trol of Sharpness and Noise Reduction.

3

Press the m key to switch the menu off.

For AV1, CVI, AV2,

or AV3 Sources :

For AV4 and AV5 Sources :

No picture format options are available through the TV.
Control the screen format at the source (DVD player or
digital set-top box).

Switching Blue Mute on

The Blue Mute feature indicates to you the absence of signal in the
transmission when BLUE MUTE is activated.

1

Select BLUE MUTE in the FEATURES menu.

2

Press the cursor right to select ON to activate the blue mute
feature.

3

Press the m key to switch the menu off.

Note : Should your remote control be lost or broken, you can still
change some of the basic picture and sound settings with the keys on
the front of the TV. See page 5.

FEATURES

TIMER

•

CHILD LOCK

•

G

FORMAT

BLUE MUTE

•

G

G

ACTIVE CTRL

•

G

FORMAT

G

FORMAT

G

FORMAT

G

FORMAT

OR

OR

OR

OR

‰

4:3

•

‰

AUTO

•

‰

EXPAND 4:3

•

‰

PANORAMA

•

‰

WIDE SCREEN

•

•

FEATURES

TIMER

•

CHILD LOCK

•

FORMAT

•

G

BLUE MUTE

G

G

ACTIVE CTRL

•

G

BLUE MUTE

FEATURES

•

TIMER

•

CHILD LOCK

•

FORMAT

•

BLUE MUTE

•

G

G

G

ACTIVE CTRL

EDIT

G

ACTIVE CTRL

OR

OR

‰

OFF

•

‰

ON

•

‰

ON

•

‰

OFF

•

23

USING PROGRAM LIST

U

SING SMART SURF

The Program List feature allows you to navigate a list of installed
channels, receive a quick overview of those available, and activate
the channel you desire.

1

Press the PROGRAM LIST b key.

2

Cursor down to cycle through the list of installed channels
and highlight the channel number you want to activate.

The appearance of lock symbol means that a channel is
blocked by the Child Lock feature. See page 21.

3

Cursor right to activate the channel you have selected.

4

Press the m key to switch the menu off.

Adding Channels to the Surf List

You can select a list or series of previously viewed channels with the
SURF key. This feature allows you to switch between different TV
programmes that currently interest you. You can have up to 10 chan­nels in the SURF list. Five channels are shown in the list at one time.
Cursor down/up as necessary to see all the channels in the list.

1

Select a channel you want to add to the Surf list.

2

Press the SURF key.

3

Cursor right to add the selected channel to the Surf list.

4

Repeat steps 1–3 to add more channels to the Surf list.

5

Press the m key to switch the menu off.

6

Press the SURF key repeatedly to cycle through channels.

Deleting Channels to the Surf List

1

Press the SURF key.

2

Press the SURF key again as many times as necessary to
select the channel you want to delete from the Surf list.

3

Cursor right to delete the channel from the list.

4

To delete more channels, repeat the steps above.

PROGRAM LIST

7 ACTIO
8 DRAMA
9 VIOLE Ç

‰

10 ROMAN

•

1 1 - - - - -

12

SURF

F

12 ADD?

•

SURF LIST EMPTY

12

SURF

F

12 DELETE?

•

24

SURF

12

F

24 ADD?

•

24

SURF

12

F

24 DELETE?

•

7

SURF

8
11
15
4

F

7 DELETE?

•

24

USING SMART PICTURE AND SMART SOUND

The Smart Picture feature offers you a choice of five picture settings :
Personal, Rich, Natural, Soft, and Multimedia. Smart Sound offers
you a choice of four sound settings : Personal, Voice, Music, and
Theatre.

Press the SMART ` Picture or SMART ± Sound key on the
remote control repeatedly to cycle through the settings and select your
desired mode.

Smart Picture ``Options

Personal

Picture settings are based on your preference.

Rich

Emphasizes very vibrant colours. This option is desirable for AV
mode in a brightly lighted room.

Natural

Emphaizes all settings equally.being broadcas

Soft

Emphasizes “warm” colours. This option is desirable for a dimly
lighted room and gives a cinema-like effect when the light is
switched off.

Multimedia

Emphasizes “soft” colours. This option is desirable for playing com­puter games.

Smart Sound ±±Options

Personal

Sound settings are based on your preferences.

Voice

Brings voices to the forefront, emphasizing them. Moves music to the
background.

Music

Emphasizes music over voices.

Theatre

Provides a balance between voices and music.

Note : The PERSONAL settings are the ones that you make using the
PICTURE or SOUND menus. These are the only Smart Picture and

Smart Sound settings that can be changed. All others are set at the
factory.

BRIGHTNESS 50
COLOUR 50
CONTRAST 50
SHARPNESS 84

BRIGHTNESS 34
COLOUR 34
CONTRAST 78
SHARPNESS 28

BRIGHTNESS 50
COLOUR 40
CONTRAST 40
SHARPNESS 70

PERSONAL

NATURAL

MULTIMEDIA

BRIGHTNESS 34
COLOUR 34
CONTRAST 89
SHARPNESS 84

BRIGHTNESS 34
COLOUR 34
CONTRAST 53
SHARPNESS 28

RICH

SOFT

PERSONAL

TREBLE 59
BASS 72

MUSIC

TREBLE 62
BASS 69

VOICE

TREBLE 56
BASS 47

THEATRE

TREBLE 59
BASS 72

25

U

SING TELETEXT(IF PROVIDED)

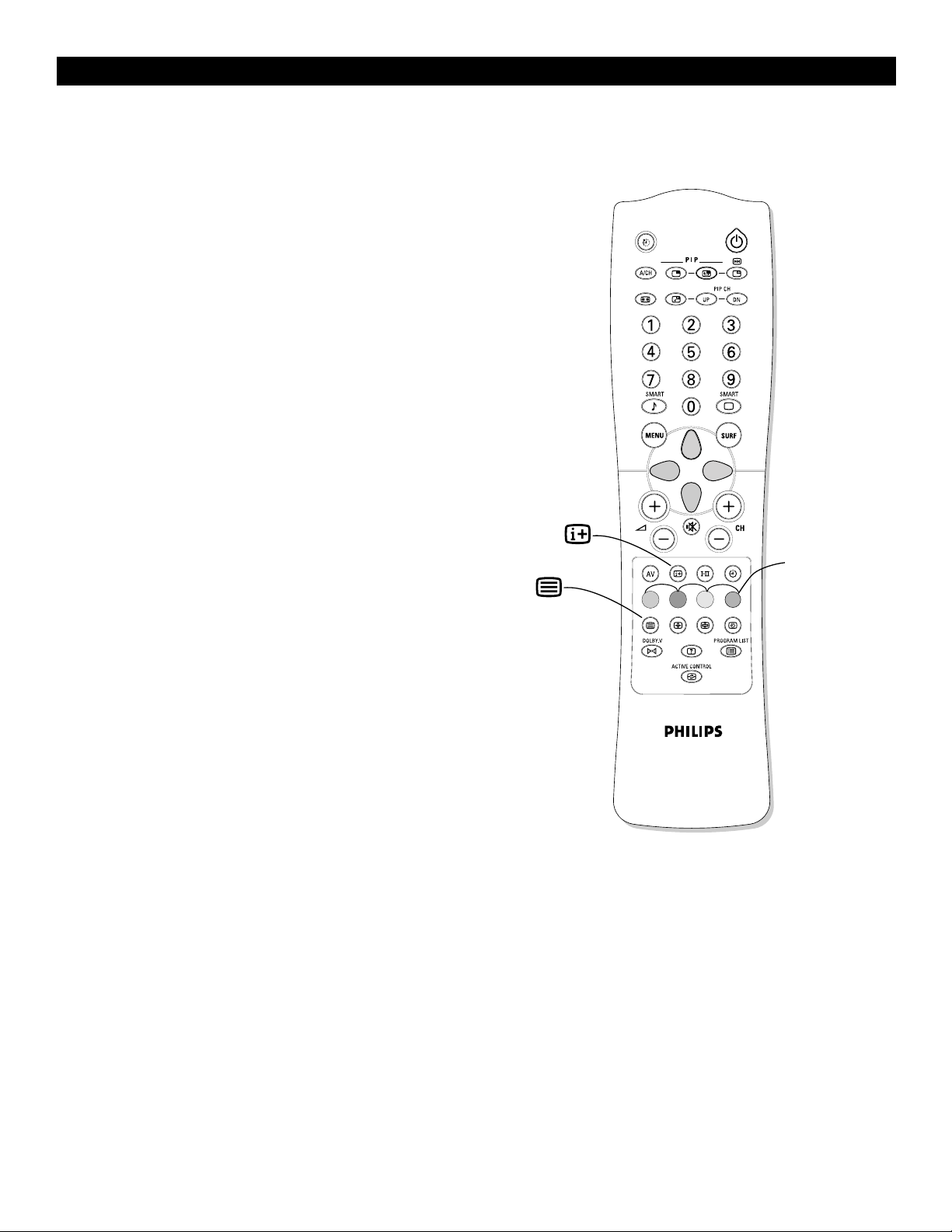

Many TV channels broadcast information via teletext. Each channel
that broadcasts teletext transmits a page with information on how to
use its teletext system. Look for the teletext page with the main index
(usually p. 100).

Depending on the TV channel, teletext is transmitted in different sys­tems. The colours used in the options line correspond with the colour
keys of your remote control.

About Teletext

Easy Text considerably reduces the waiting time (on condition that
the teletext broadcast of the particular TV channel is received for at
least half a minute) by :

• a direct selection of previous and following pages that are in trans­mission and of the pages referred to in the options line at the bot­tom of the teletext screen;

• a habit watcher list : frequently used pages are put automatically
in a list of preferred pages so that they are immediately available;

• the precapturing of the page numbers referred to in the displayed
page; and

• the precapturing of all the subpages.

Switching Teletext on and off

1

Press the bbkey to switch the teletext on.

The main index page appears on the screen together with
two information lines at the top and one option line at the
bottom of the screen.

2

Press the bbkey again to overlay the teletext page on the
TV programme.

3

Press the bbkey once again to switch the teletext off.

Selecting a Teletext Page

With the digit keys

Enter the desired page number with the digit keys.

The page counter seeks the page or the page appears immedi­ately when the page number has been stored in the memory.

A message appears when you have entered a nonexistent or
incorrect page number. Page numbers beginning with 0 or 9
do not exist. Choose another number.

With the option line

Use the colour keys—which correspond to the coloured
options at the bottom of the screen—to select the desired
subject.

If the option line is not on the screen, press the selected
colour key TWICE.

Continue to the next page.

Colour keys

to select

26

USING TELETEXT (IF PROVIDED)

Quickly Running Through the Teletext Pages

Press the cursor up/down or the CH +/– keys to run through
the previous or the following pages.

Selecting the Index Teletext Page

Press the m key to return to the main index (usually
p. 100).

Selecting Subpages

When a selected teletext page consists of different subpages,
one of the subpages appears on the screen.

Arrows in front of the page number indicate that other sub­pages are available.

The other subpages can be selected in two ways :

With the cursor left/right

The other subpage numbers appear in white as soon as the
transmission has found them. They are stored in the memory
so that they are available while the teletext page is on
screen.

Use the cursor left/right to select the previous or the follow­ing subpage.

With the yyKey

• Enter the subpage number yourself :

Press y. Enter the desired subpage with the digit keys : for
example, 3 for the third page of seven subpages.

The TV searches for the selected subpage.

• To rotate subpages automatically :
Press y again to cancel the entered digit key for the sub-

page.

Now the subpages rotate automatically.
Press y again to select the subpages with the cursor

left/right again.

Using Special Teletext Functions

Enlarge

Press h repeatedly to display the upper part and the lower
part, and then to return to the normal page size. When the
upper part is displayed, you can scroll the text, line by line
using the cursor up/down.

Reveal

Press e to reveal/conceal the hidden information, such as
solutions to riddles and puzzles.

To select

pages

For future use

Cursor to

select pages

27

CONNECTING PERIPHERAL EQUIPMENT

You can connect a wide range of video and audio equipment to your TV
in various ways. This page and the next one provide an overview of sig­nal compatibilities and the types of equipment you can connect to the
sockets. Connection examples follow on subsequent pages. As necessary,
also refer to the handbook for peripheral equipment.

Overview : Standard Inputs/Outputs

1

ANTENNA IN 75Ω socket—compatible with the broadcast stan­dard in your area. Use to connect radio-frequency (RF) signals
from VHF/UHF antennas or a cable system.

2

YPbPr (component video input [CVI] sockets)—compatible
with 480i and 576i signals. Use to connect equipment having com­ponent video outputs, such as DVD players, laser-disc players,
video-game players, satellite receivers, or other equipment. Use the
INPUT-AV 1 L(eft) and R(ight) AUDIO sockets for sound connec­tions.

3

S-VIDEO (super video) sockets—compatible with 480i and 576i
signals. Use to connect peripherals having Super VHS (S-VHS)
outputs, such as VCRs, DVD players, laser-disc players, video­game players, satellite receivers, or other equipment.

4

VIDEO (composite) sockets
(INPUT-AV

1, INPUT-AV 2, and TV’s side socket panel

[AV3])—compatible with 480i and 576i signals. Use to connect

peripherals having composite video outputs, such as VCRs, video­game players, or other equipment.

5

AUDIO inputs (INPUT-AV 1, INPUT-AV 2, and TV’s side
socket panel [AV3])—use to connect from the audio output sock-

ets on VCRs, DVDs, or other peripherals.

6

MONITOR OUT (VIDEO/AUDIO)—use to connect to a VCR
to record programmes from the TV. Or use the AUDIO outputs to
connect to an audio hi-fi system.

7

n Headphone socket (stereo, 3.5 mm)—use to connect head-
phones for personal listening. The headphone impedance must be
between 8 and 4000 Ohms.

8

SUBWOOFER output—use to make an optional connection to
an external powered subwoofer.

REAR OF TV

AV5-RGB, 480p/1080i-60Hz, 576p-50Hz

1

ANTENNA IN 75Ω

4

5

VIDEO

INPUT-AV 1

L

AUDIO

R

4

7

6

SIDE OF TV

Note : The
side panel is
AV3.

AV4-480p/1080i-60Hz, 576p-50Hz

3

8

G/Y

R/Pr

B/Pb

AUDIO

AUDIO

V

SYNC

H

L

L

R

R

4

INPUT-AV 2 SUBWOOFERMONITOR

OUT

Y

Pb

Pr

2

AUDIO

R

VIDEO

L

S-VIDEO

5

L

3

G

5

28

CONNECTING PERIPHERAL EQUIPMENT

The AV4 and AV5 sockets allow you to connect digital equipment with
1080i/480p (60Hz) or 576p (50Hz) signal output.

Overview : High-definition Inputs

1

AV4—use to connect digital equipment with a 1080i/480p
(60Hz) or 576p (50Hz) signal output, such as digital set-top
boxes or DVD players with progressive-scan capability. You
can connect equipment with YPbPr component video or RGB
outputs to the AV4 sockets. H and V Sync connections may or
may not be required for RGB connections. Use the AV4 L(eft)
and R(ight) AUDIO sockets for sound connections.

See the handbook for the device you are connecting.

2

AV5—use to connect digital equipment with a 1080i/480p
(60Hz) or 576p (50Hz) signal output, such as digital set-top
boxes or DVD players. The AV5 socket accepts a DB15 con­nector. Note, however, that adaptors can also be used to connect
from component video output to this DB15 socket. Use the AV5
L(eft) and R(ight) sockets for sound connections.

See the handbook for the device you are connecting.

High-definition Inputs—Video Synchronizing Reference

Input

Video Description

Accepts Video Sync

according to :

AV4, AV5

480p (60Hz)
1080i (60Hz)
576p (50Hz)

EIA/CEA-770.2-C
EIA/CEA-770.3-C
ITU-R BT.1358

REAR OF TV

2

AV5-RGB, 480p/1080i-60Hz, 576p-50Hz

1

AV4-480p/1080i-60Hz, 576p-50Hz

G/Y

ANTENNA IN 75Ω

VIDEO

INPUT-AV 1

L

AUDIO

R

Y

Pb

Pr

INPUT-AV 2 SUBWOOFERMONITOR

OUT

VIDEO

S-VIDEO

L

L

AUDIO

R

R/Pr

B/Pb

V

L

SYNC

H

AUDIO

AUDIO

R

L

R

29

C

ONNECTING PERIPHERAL EQUIPMENT

Video Recorder : Playback

1

Connect the RF cable to the RF socket on your video recorder.

2

Connect

another RF cable from the output of your video

recorder to the ANTENNA IN 75Ω socket on your TV.

3

Better playback quality can be obtained if you also connect the
Video, Audio Left and Right (only for stereo equipment) cables
to the VIDEO and AUDIO L (mono) and R inputs of

INPUT-AV 2.
Note : In case of mono equipment, only the left loudspeaker

reproduces sound. Use a mono-to-stereo adaptor (not supplied)
for sound reproduction via the internal loudspeakers.

The MONITOR OUT connectors can be used for daisy chain­ing or recording programmes from your TV. See page 32.

S-VHS-Video quality with an S-VHS video recorder is obtained
by connecting the S-VHS-Video cable with the S-VIDEO input
instead of connecting the video recorder to the VIDEO input.
See the handbook for the video recorder.

If You Do Not Make the Video and Audio

Connections in Step 3 Above :

Search for and store the test signal of the video recorder.

1

Unplug the RF cable from the RF socket of your video recorder.

2

Switch on your TV and put the video recorder on the test signal or
play a prerecorded tape. See the handbook for your video
recorder.

3

Search for the test signal of your video recorder in the same way
you searched for and stored the TV signals. See pages 9 and 10.

4

Store the test signal under programme number 0 or between 90
and 99.

5

Replace the RF cable in the RF socket of your video recorder
after you have stored the test signal.

AV5-RGB, 480p/1080i-60Hz, 576p-50Hz

AV4-480p/1080i-60Hz, 576p-50Hz

G/Y

R/Pr

INPUT-AV 2 SUBWOOFERMONITOR

INPUT-AV 1

ANTENNA IN 75Ω

OUT

Y

B/Pb

VIDEO

VIDEO

S-VIDEO

L

Pb

V

L

L

L

L

SYNC

AUDIO

AUDIO

AUDIO

AUDIO

Pr

H

R

R

R

R

CABLE

REAR OF TV

AV5-RGB, 480p/1080i-60Hz, 576p-50Hz

AV4-480p/1080i-60Hz, 576p-50Hz

G/Y

ANTENNA IN 75Ω

INPUT-AV 1

OUT

Y

VIDEO

Pb

L

AUDIO

2

RF OUT

VIDEO RECORDER

3

A/V OUT

RF IN

AUDIO

Pr

R

R/Pr

INPUT-AV 2 SUBWOOFERMONITOR

B/Pb

VIDEO

S-VIDEO

L

V

L

R

L

SYNC

AUDIO

H

R

1

L

AUDIO

R

30

Video Recorder : Recording

To record S-VHS quality, connect an S-VHS peripheral directly to the
video recorder.

Recording a TV Programme

1

Select the channel number on your video recorder.

2

Set your video recorder to record.

See the handbook for your video recorder.

Switching channel numbers on your TV does not disturb recording.

Recording a Programme on Your Video Recorder Connected
to MONITOR OUT from Audio/Video Equipment Connected
to AV1,AV2, or to the Sockets on the Side of the TV (AV3)

1

Switch on the equipment.

2

Select the correct external source on your TV and on your
video recorder.

3

Set your video recorder to record.

You record what you are watching on the screen.

Do not switch channel numbers and do not switch off your TV
when you are recording.

CONNECTING PERIPHERAL EQUIPMENT

31

CONNECTING PERIPHERAL EQUIPMENT

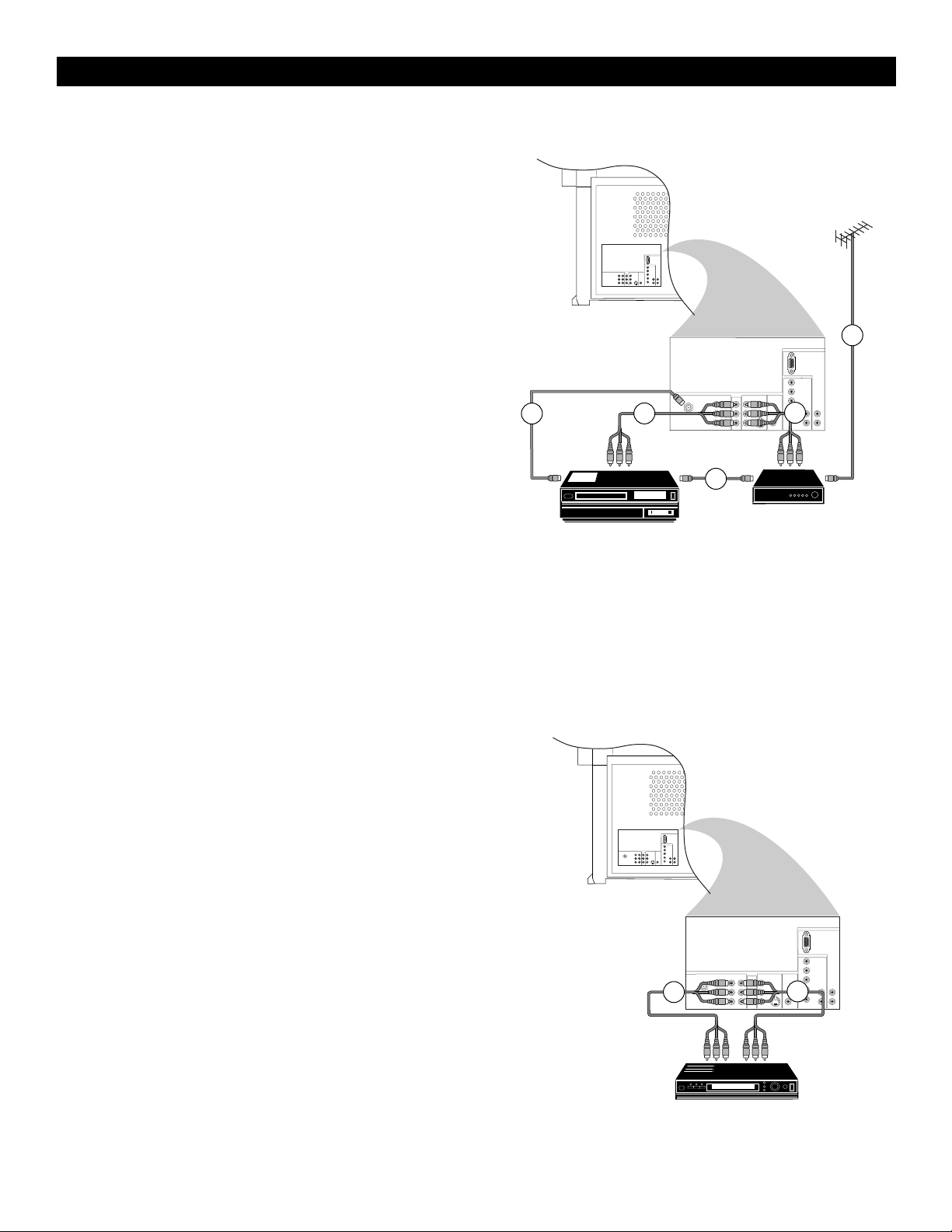

Video Recorder and Other A/V Peripherals

1

Connect the RF cable to the RF socket on your A/V peripheral
equipment.

2

To obtain better picture quality, also connect the Video and
Audio left and Audio right (only for stereo equipment) cables to
the VIDEO and AUDIO L (mono) and AUDIO R input of the

INPUT-AV 2 sockets.
Note :

In case of mono equipment, only the left loudspeaker
reproduces sound. Use a mono-to-stereo adaptor (not supplied)
for sound reproduction via the internal loudspeakers.

3

Connect the RF output of the A/V peripheral equipment to the
RF input on the video recorder.

4

When a video recorder is not connected to MONITOR OUT
on your TV, you can record a programme only from the aerial
or from the cable system.

Only when a video recorder is connected to MONITOR OUT
is it possible to record a programme from other equipment con­nected to the TV. See page 32.

Connect Video and Audio left (mono) and Audio right cables
from the video recorder A/V inputs to the VIDEO and

AUDIO L (mono) and AUDIO R sockets of the MONITOR
OUT on your TV.

5

Connect from the RF output on the video recorder to the
ANTENNA IN 75Ω socket on your TV.

DVD Player

Note : Progressive-scan DVD players can be connected to the AV 4 or
AV 5 inputs only.

1

Connect the cables of your DVD player with component video
output to the Y-Pb-Pr INPUT-AV 1 sockets on your TV.

2

Connect the cables from the Video and Audio (L and R) outputs
on the DVD player to the INPUT-AV 1 VIDEO and AUDIO L
(mono) and R inputs on your TV.

See the handbook for your DVD player.
Note : The names of the component video sockets may differ

depending on the DVD player or digital source equipment used.
For example, besides YPbPr, you may see R-Y/B-Y/Y or
CrCbY. Although abbreviations and terms may vary, the letters
B and R stand for the blue and red color component signal con­nectors, respectively. The Y indicates the luminance signal. If
necessary, see the handbook for the digital equipment for more
information.

INPUT-AV 1

VIDEO

S-VIDEO

L

L

AUDIO

R

REAR OF TV

AV5-RGB, 480p/1080i-60Hz, 576p-50Hz

AV4-480p/1080i-60Hz, 576p-50Hz

G/Y

R/Pr

INPUT-AV 2 SUBWOOFERMONITOR

OUT

Y

B/Pb

VIDEO

S-VIDEO

L

Pb

V

L

L

L

SYNC

AUDIO

AUDIO

AUDIO

Pr

H

R

R

R

REAR OF TV

AV5-RGB, 480p/1080i-60Hz, 576p-50Hz

CABLE

1

AV4-480p/1080i-60Hz, 576p-50Hz

G/Y

ANTENNA IN 75Ω

5

4

L

INPUT-AV 2 SUBWOOFERMONITOR

INPUT-AV 1

OUT

Y

VIDEO

VIDEO

Pb

L

L

AUDIO

AUDIO

Pr

R

R

R/Pr

B/Pb

S-VIDEO

L

AUDIO

AUDIO

V

L

L

SYNC

2

H

R

R

A/V IN A/V OUT

RF INRF OUT

RF OUT RF IN

3

A/V PERIPHERAL

VIDEO RECORDER

ANTENNA IN 75Ω

INPUT-AV 1

VIDEO

L

AUDIO

R

REAR OF TV

AV5-RGB, 480p/1080i-60Hz, 576p-50Hz

AV4-480p/1080i-60Hz, 576p-50Hz

G/Y

R/Pr

INPUT-AV 2 SUBWOOFERMONITOR

OUT

Y

B/Pb

VIDEO

S-VIDEO

AUDIO

AUDIO

L

Pb

V

L

L

L

SYNC

AUDIO

Pr

H

R

R

R

AV5-RGB, 480p/1080i-60Hz, 576p-50Hz

AV4-480p/1080i-60Hz, 576p-50Hz

G/Y

R/Pr

INPUT-AV 2 SUBWOOFERMONITOR

B/Pb

VIDEO

S-VIDEO

L

V

L

SYNC

1

H

R

COMPONENT VIDEO

OUT

AUDIO

AUDIO

L

L

R

R

2

A/V OUT

ANTENNA IN 75Ω

INPUT-AV 1

OUT

Y

VIDEO

Pb

L

AUDIO

AUDIO

Pr

R

DVD PLAYER

32

C

ONNECTING PERIPHERAL E

QUIPMENT

S-Video Equipment

Note : Progressive-scan DVD players can be connected to the AV 4 or
AV 5 inputs only.

1

Connect an S-VIDEO cable to the INPUT-AV 2 S-VIDEO
input.

2

Connect the audio cables to the equipment’s AUDIO L (mono)
and AUDIO R sockets and to the INPUT-AV 2 AUDIO L
(mono) and AUDIO R sockets on your TV.

AV4 and AV5 Digital High-definition Inputs

When you have digital equipment with 1080i or 480p signal output
(60Hz) or 576p signal output (50Hz), connect it to the AV 4 or AV 5
inputs on your TV. Examples of such equipment are digital set-top boxes
and progressive-scan DVD players.

Connecting to AV4

Connect digital equipment with component video output (usually labeled
Y-Pb-Pr) or with RGB output (phono-type connectors) to the AV 4
inputs for video and audio left and right. Also connect to the H and V

SYNC inputs on the TV if required for your digital equipment.

Note : The AV 4 sockets are compatible with some digital equipment hav-

ing RGB outputs with “sync on green” or RGB with “separate H and V
sync.” Output standards for digital equipment, however, may vary by
manufacturer. No industry standards have been established for HD televi­sion RGB signal systems, timing, synchronization, and signal strengths. If
the digital equipment you want to connect to your TV offers both compo­nent video and RGB outputs, component video is the suggested connec­tion to use. See the handbook for the digital equipment.

Connecting to AV5

Connect digital equipment with RGB or Y-Pb-Pr output to the AV 5
inputs for video and audio left and right. A DB15 cable or adaptor cable
with a DB15 connector is required.

Note : The AV 5 input cannot be used to connect a computer or any other
VGA device.

Notes regarding connecting to either AV4 or AV5 :

• For connections to either AV 4 or AV5, be sure the TV’s color-space
setting matches the output (Y-Pb-Pr or RGB) of the digital equipment
you have connected to the AV 4 or AV5 inputs. See instructions for
setting the TV’s color space on page 36.

• See the handbook for the high-definition equipment.

• If you notice scrolling images, wrong colors or no color, no picture or
even combinations of these on your screen, check to see if the connec­tions have been done properly.

AV5-RGB, 480p/1080i-60Hz, 576p-50Hz

AV4-480p/1080i-60Hz, 576p-50Hz

G/Y

R/Pr

ANTENNA IN 75Ω

INPUT-AV 2 SUBWOOFERMONITOR

INPUT-AV 1

OUT

Y

B/Pb

VIDEO

VIDEO

S-VIDEO

AUDIO

AUDIO

L

Pb

V

L

L

L

L

SYNC

AUDIO

AUDIO

Pr

H

R

R

R

R

REAR OF TV

ANTENNA IN 75Ω

2

INPUT-AV 1

VIDEO

L

AUDIO

R

DVD PLAYER

REAR OF TV

AV5-RGB, 480p/1080i-60Hz, 576p-50Hz

AV4-480p/1080i-60Hz, 576p-50Hz

G/Y

INPUT-AV 2 SUBWOOFERMONITOR

OUT

Y

Pb

AUDIO

Pr

R/Pr

B/Pb

VIDEO

S-VIDEO

L

L

R

AUDIO

AUDIO

V

L

L

SYNC

H

R

R

1

S-VIDEO OUTAUDIO OUT

AV4-480p/1080i-60Hz, 576p-50Hz

G/Y

R/Pr

B/Pb

V

L

SYNC

AUDIO

H

R

AV5-RGB, 480p/1080i-60Hz, 576p-50Hz

AUDIO

REAR OF TV

AV5-RGB, 480p/1080i-60Hz, 576p-50Hz

AV4-480p/1080i-60Hz, 576p-50Hz

G/Y

ANTENNA IN 75Ω

INPUT-AV 1

VIDEO

L

AUDIO

R

INPUT-AV 2 SUBWOOFERMONITOR

OUT

Y

VIDEO

S-VIDEO

Pb

L

L

AUDIO

Pr

R

R/Pr

B/Pb

AUDIO

AUDIO

V

L

L

SYNC

H

R

R

REAR OF TV

AV5-RGB, 480p/1080i-60Hz, 576p-50Hz

AV4-480p/1080i-60Hz, 576p-50Hz

G/Y

ANTENNA IN 75Ω

INPUT-AV 1

VIDEO

L

AUDIO

L

R

R

INPUT-AV 2 SUBWOOFERMONITOR

OUT

Y

VIDEO

S-VIDEO

L

Pb

L

AUDIO

Pr

R

R/Pr

B/Pb

AUDIO

AUDIO

V

L

L

SYNC

H

R

R

33

Additional Audio Connections : External Hi-fi

If you would like to hear TV programmes through your audio hi-fi
system, your TV offers this capability.

1

Connect the audio cables to the AUDIO L and R input sockets
of your amplifier and to the AUDIO L (mono) and R
MONITOR OUT sockets of the TV.

2

Turn the TV and audio system on.

3

Control the volume of the hi-fi system at the hi-system’s ampli­fier.

Volume adjustments made to the TV do not affect the volume
of the hi-fi system.

CONNECTING PERIPHERAL EQUIPMENT

Camera and Camcorder

Connect your camera or camcorder to sockets at the side of your TV.

1

Connect the equipment to the VIDEO or S-VIDEO socket.
Note : S-VHS quality with an S-VHS camcorder is obtained by

connecting an S-VIDEO cable with the S-VIDEO socket
instead of making a connection to the VIDEO socket.

2

Connect the equipment to the AUDIO L socket for mono or
both the AUDIO L and R for stereo.

Headphone

1

Insert the plug into the headphone socket ; at the right side of
the TV.

2

Press H on the remote control to switch off the internal loud­speakers of the TV.

Notes :

• The headphone impedance must be between 8 and 4000 Ohms.

• The headphone socket has a 3.5 mm socket.

• In the SOUND menu, select HEADPHONE to adjust the head­phone volume and balance.

TYPICAL

CAMCORDER

SIDE OF TV

S-VIDEO

or

1

1

2

VIDEO

L

AUDIO

R

G

SIDE OF TV

S-VIDEO

G

VIDEO

L

AUDIO

R

1

ANTENNA IN 75Ω

INPUT-AV 1

OUT

Y

VIDEO

Pb

L

AUDIO

Pr

R

REAR OF TV

HI-FI AMPLIFIER

AV5-RGB, 480p/1080i-60Hz, 576p-50Hz

AV4-480p/1080i-60Hz, 576p-50Hz

G/Y

R/Pr

INPUT-AV 2 SUBWOOFERMONITOR

B/Pb

VIDEO

S-VIDEO

AUDIO

AUDIO

L

V

L

L

L

SYNC

AUDIO

H

R

R

R

REAR OF TV

AV5-RGB, 480p/1080i-60Hz, 576p-50Hz

AV4-480p/1080i-60Hz, 576p-50Hz

G/Y

ANTENNA IN 75Ω

INPUT-AV 1

OUT

Y

VIDEO

Pb

L

AUDIO

1

AUDIO

Pr

R

R/Pr

INPUT-AV 2 SUBWOOFERMONITOR

B/Pb

VIDEO

S-VIDEO

L

L

R

AUDIO

AUDIO

V

L

L

SYNC

H

R

R

34

CONNECTING PERIPHERAL EQUIPMENT

Additional Audio Connections : Surround Sound

Your TV has extra sockets that allow you to connect to an external
audio amplifier system and powered subwoofer. This connection will
provide a surround-sound experience similar to a movie theatre or
concert hall.

1

Connect audio cables from the AUDIO L and R MONITOR
OUT sockets of the TV to the AUDIO L and R inputs sockets

on the surround-sound amplifier.

2

Connect speaker wires from the surround-sound amplifier’s
front and surround-sound speaker sockets to the front and sur­round-sound speakers.

3

Connect an audio cable from the SUBWOOFER output of the
TV to the Low Level Input sockets on the powered subwoofer.

4

Adjust volume for the surround-sound amplifier and powered
subwoofer at those pieces of equipment.

ANTENNA IN 75Ω

INPUT-AV 1

VIDEO

S-VIDEO

L

L

AUDIO

R

REAR OF TV

AV5-RGB, 480p/1080i-60Hz, 576p-50Hz

AV4-480p/1080i-60Hz, 576p-50Hz

G/Y

R/Pr

INPUT-AV 2 SUBWOOFERMONITOR

OUT

Y

B/Pb

VIDEO

S-VIDEO

L

Pb

V

L

L

L

SYNC

AUDIO

AUDIO

AUDIO

Pr

H

R

R

R

REAR OF TV

AV5-RGB, 480p/1080i-60Hz, 576p-50Hz

ANTENNA IN 75Ω

INPUT-AV 1

OUT

Y

VIDEO

Pb

1

2

L

AUDIO

Pr

R

2

AMPLIFIER

Note: The gray circle indicates the primar y viewing area.

TV

(Center Speakers)

Front

Speaker

AV4-480p/1080i-60Hz, 576p-50Hz

G/Y

R/Pr

INPUT-AV 2 SUBWOOFERMONITOR

B/Pb

VIDEO

S-VIDEO

L

L

AUDIO

R

AUDIO

AUDIO

V

L

L

SYNC

H

R

R

3

POWERED

SUBWOOFER

Front

Speaker

Powered

Subwoofer

Rear

Speaker

Rear

Speaker

35

CONNECTING PERIPHERAL EQUIPMENT

Setting the AV4 and AV5 Colour Space

The term colour space refers to how colours are defined and appear
on your TV. When making connections to the AV 4 or AV 5 sockets,
you will need to be sure the TV’s colour space is set to match the out­put of the peripheral you have connected.

1

Press the AV key on the remote control as many times as neces­sary to select the high-definition input you desire, AV 4 or AV5.

2

Press the MENU key to display the menu.

3

Select INSTALL with the cursor down.

4

Press the cursor right to enter the INSTALL menu.

5

Cursor down until the high-definition input (AV 4 or AV 5 ) is
selected.

6

The current colour-space setting appears to the right of AV 4 or
AV5. To change the setting, cursor left or right.

7

Press the m key to switch the menu off.

AV4

OR

AV5

PICTURE LANGUAGE

•

SOUND AUTO STORE

•

FEATURES MANUAL STORE

•

‰

INSTALL SORT

•

For AV4:

INSTALL

•

AUTO STORE

•

MANUAL STORE

•

SORT

•

CHANNEL EDIT

•

G

AV4

G

For AV5:

INSTALL

•

•

•

•

•

G

G

OR

AV4

AUTO STORE

MANUAL STORE

SORT

CHANNEL EDIT

AV5

OR

AV5

CHANNEL EDIT

‰

YPbPr

•

‰

RGB

•

‰

RGB

•

‰

YPbPr

•

36

S

ELECTING CONNECTED EQUIPMENT FOR VIEWING

Equipment Connected with an Aerial Cable Only

Select the channel number under which you have stored the test signal
with the digit keys.

Equipment Connected to the back or to the side
of the TV (AV3)

Press the AV key repeatedly to select AV1, CVI, AV2, AV3, AV4, or
AV5, according to where you connected your equipment at the back or

the side of your TV.
Select CVI to view the playback of DVD discs if you used the compo-

nent video input sockets of INPUT-AV 1 (Y-Pb-Pr and AUDIO L
[mono] and R inputs).

TV Channels

Enter the channel number of the TV channel you want to watch with the
digit keys.

37

WARNING Concerning Stationary Images on the TV Screen :

Do not leave stationary or “letterbox” images on screen for extended periods of time.This can cause
uneven picture-tube aging.

Normal use of the TV should involve the showing of pictures that contain constantly moving and changing images that fill the
screen. Be careful not to leave nonmoving images on screen for extended periods of time or to display the same images on screen
too frequently, because subtle ghost images can be left on the picture tubes. Avoid showing the same stationary images more than
15 percent of your total viewing in any one week. Sources of stationary images may be DVD discs, laser discs, video games, CD-i
discs, videotapes, digital television boxes, broadcast channels, cable channels, satellite channels, and others. Here are some exam-

ples of stationary images (this is not an all-inclusive list; you may encounter others in your viewing) :

• DVD menus—listings of DVD disc content

•“Letterbox” black borders—black bars shown along the edges of the picture when a widescreen (16:9) movie is played on TV

• Video-game images and scoreboards

• Television station logos—present a problem if they are bright and stationary; moving or low-contrast graphics are less likely to

cause uneven aging of the picture tube

• Stock-market tickers—presented at the bottom of the TV screen

• Shopping channel logos and pricing displays—bright and shown constantly or repeatedly in the same location on the TV

screen.

All picture tubes age with use, with their light output diminishing over time. But by maintaining normal use—mixing television
picture types—you will create conditions for the tubes to age at an even rate. The result will be a TV picture that is evenly bright
over the entire screen.

P

LACEMENT OF THE TV

• See page 4.

C

LEANING

• To avoid possible shock hazard, be sure the TV is unplugged from the electrical outlet before cleaning.

• Regularly dust the TV with a dry, nonscratching duster to keep the TV clean.

• When cleaning the TV, take care not to scratch or damage the screen surface. Avoid wearing jewelry or using anything abrasive.
Do not use household cleaners. Wipe the front screen with a clean cloth dampened with water. Use even, easy, vertical strokes
when cleaning.

• Gently wipe the cabinet surfaces with a clean cloth or sponge dampened in a solution of cool, clear water and a mild soap or
detergent. Use a clean, dry cloth to dry the wiped surfaces.

• Occasionally vacuum the ventilation holes or slots in the back cover of the set.

• Never use thinners, insecticide sprays, or other chemicals on or near the cabinet, as they might cause permanent marring of the
cabinet finish.

T

IPS

• Do not shift or move the set around when it is switched on. Unevenness in colour in some parts of the screen may occur.

E

ND-OF-LIFE DISPOSAL OF THE TV

Philips is paying much attention to making its products environmentally friendly. Your new TV contains materials that can be recy­cled and reused. Specialised companies can dismantle your discarded TV at the end of its life, concentrating on the reusable materi­als and minimising the amount of materials to be disposed. Please be sure to dispose of your old TV according to local regulations.

D

ISPOSAL OF EXHAUSTED BATTERIES

The batteries supplied do not contain the heavy metals mercury and cadmium. Nevertheless, in many countries exhausted batteries
may not be disposed of with your household waste. Please ensure you dispose of exhausted batteries according to local regulations.

CARE,CLEANING, AND TIPS

38

BEFORE CALLING SERVICE

TV remote control does not
work

• Check that the batteries are installed correctly.

• Replace the batteries, if necessary.

• Clean the remote control and the remote-sensor window on the TV.

• Be no farther than 6 meters from the TV when using the remote control and aim the remote
toward the TV’s remote-sensor window.

• If the remote still will not work, use the keys on the TV.

No power

• Check that the TV’s power cord is plugged into the mains socket. If there is still no power, discon­nect the plug. Wait for 60 seconds and reinsert the plug and then switch on the TV again.

• See if the outlet is controlled by a wall switch.

• If you are using an AC power strip, be sure the fuse on the power strip is not blown.

No picture

• Check the antenna connection at the rear of the TV to see if it is properly connected to the TV
input terminal.

• The broadcast station may be experiencing difficulty. Try another channel.

• Adjust the contrast and brightness settings or select another picture setting with the Smart Picture
key on the remote control.

• If using peripheral equipment through the A/V inputs, be sure it is properly connected.

• Be sure you have selected the correct signal source for viewing.

• If you are attempting to view a picture from a progressive-scan-capable DVD player connected to
the AV4 or AV5 sockets, be sure you have switched the DVD player to progressive-scan mode.

• If you are using an HD receiver, be sure its output is set correctly (to HD or SD), based on the
connection to the TV you have made.

Snowish picture and noise

• Check the antenna connection.

Colour patch (unevenness)

• Switch off the TV by the mains power key. Wait for 20 minutes before switching on again.

• Be sure you have made connections correctly.

• If you have connected digital equipment to the AV4 or AV5 sockets, check the colour-space setting
on the equipment or TV and change the setting on either if necessary.

• Check to be sure the TV is not placed too near speakers or magnetic objects.

• Adjust the TV’s convergence.

Horizontal dotted lines

• This may be caused by electrical interference from appliances such as hair dryers or vacuum
cleaners or other sources such as neon lights. Turn off the appliance or move the TV.

One white line across the screen

• Switch the TV off immediately and consult a qualified service person.

Good picture but no sound

• Increase the volume.

• Check that the TV is not muted; press the H key on the remote control.

• When no signal is detected, the TV automatically switches off the sound. This is proper operation
and does not indicate a malfunction.

• Check the transmission system’s sound settings on the set.

Good sound but poor colour or
no picture

• Adjust the contrast and brightness setting or select another picture setting with the Smart Picture
key on the remote control.

• Check the transmission system’s colour settings on this set.

Poor picture

• Poor picture quality sometimes occurs when an S-VHS camera or camcorder has been connected
to the side panel (AV3) of the TV when another peripheral is connected to AV1 or AV2 simultane­ously. In this case, switch off one of the other peripherals.

Double images or “ghost” images

• High-rise building or hills may be obstructing reception. Try using a highly directional antenna to
improve the picture.

NICAM sound distortion
(crackling noise)

• This could be due to antenna siting or reflected signal.

• Switch over to “MONO” by pressing the I-II key on the remote control.

If your problem is not solved, switch the TV off and then back on again once. Never attempt to repair a defective TV yourself. Check with
your dealer or call a TV technician.

motpmyS odottahW

39

INDEX

*Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

a active control, 7, 22

automatic tuning of channels, 9

b bilingual broadcast (I-II key), 7

blue mute, 22

c camcorder, 34

child lock, 21

d dolby* virtual, 6

dual window, 25
DVD, 32–33
dynamic contrast, 14

e editing channels, 12

f freeze, 7, 25

frequency, 10

h headphone, 34

hue, 14

i information on screen (i+ key), 6

interrupt the sound (mute key), 7

m manual installation, 9–10

menu language, 8

n naming channels, 13

p picture adjustments, 14

r recording, 31–32

s screen format, 22

smart picture and smart sound, 24
sorting channels, 11
sound adjustments, 18
stereo (I-II key), 7
storing TV channels, 9–10
S-VHS, 31, 34
Switching the TV on, 4

t teletext, 26–27

troubleshooting (before calling service), 38

v video recorder, 30–32

volume, 6

40

SPECIFICATIONS

These technical specifications are subject to change without notice.

*The options of Auto, Progressive, Digital Scan, or 100Hz can be selected in the TV’s onscreen Picture menu through the Digital Options item.

**Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

Picture/Display

• Aspect Ratio: 16:9

• Display Technology: Projection TV, CRT, 7" liquid cooled

• Picture Enhancement: Acclearium Digital Optics, Active Control, APAC,

Auto Intellisense, Black Stretch, Blue Stretch,

Digital Comb Filter, Color Temperature, Digital Crystal Clear, Digital Noise

Reduction, Dynamic Contrast, Progressive Scan, 100Hz Digital Scan

• Screen Enhancements: Saphlon Screen, Anti- Aging Circuit, Anti-Reflection,

High Brightness, High Contrast

• Size: 46PP8745, 46”; 55PP8745, 55”

Supported Display Resolution

• Computer Formats: 640 x 480, 60Hz

• Video Formats: 480i 60Hz, 480p 60Hz, 576i 50Hz, 576p 50Hz, 1080i 60Hz

Sound

• Bass Enhancement: Bass Boost

• Output Power (RMS): 30 watt RMS

(50Hz-10kHz at 5% THD)

• Sound Enhancement: Automatic

Volume Leveler

• Speaker Size: 4"x6"

• Speaker Number: 2

• Speaker Type: full range oval

Tuner/Reception

• Aerial Input: 75 Ohm IEC-Type

• Auto Store: Yes

• Standards: NTSC M (3.58-4.5), NTSC (4.43-5.5), PAL B/G, PAL D/K, PAL I,

SECAM B/G, SECAM D/K, SECAM K1

Connectivity

• AV1: 480i 60Hz, 576i 50Hz, CVBS in, YPbPr, Audio L/R in

• AV2: 480i 60Hz, 576i 50Hz, CVBS in, S-Video Y/C, Audio L/R in

• AV3: Side, 480i 60Hz, 576i 50Hz, CVBS in,

S-Video Y/C, Audio L/R in, Headphone out

• AV4: 1080i 60Hz, 480p 60Hz, 576p 50Hz,

YPbPr, RGB+H/V

• AV5: 1080i 60Hz, 480p 60Hz, 576p 50Hz, DB15, RGB+H/V

• Output Rear: subwoofer out, CVBS out, Audio L/R out

Convenience

• Child Protection: Child Lock, Parental Control

• Clock Functions: Clock, Sleep Timer

• Convenience Enhancements: Auto Program, Auto Picture Modes, Auto

Sound Modes

• Menu Languages: /93 Chinese-Simplified, English

/69 and /79: Chinese-Simplified, English, Malay

• Picture Functions: Freeze

• Teletext: 100 page Easytext (Not available on /93.)

• Picture Functions: Freeze

• Remote Control: RCS82D, Batteries

Dimensions

46PP8745

• Product Dimensions (WxHxD): 113 cm x

134 cm x 60 cm

• Product Weight: 80 kg

• Carton Dimensions: 125 cm x 140 cm x

71 cm

• Weight incl Packaging: 91 kg

55PP8745

• Product Dimensions (WxHxD): 134 cm x

145 cm x 65 cm

• Product Weight: 85 kg

• Carton Dimensions: 146 cm x 151 cm x

82 cm

• Weight incl Packaging: 100 kg

Power

• Complies with Energy Star, less than

1 watt standby

• Mains Power /69, /79: 90-276V, 50-60 Hz

/93: 160-276V, 50-60Hz

• Power Consumption: 180 watts average

41

INTERNATIONAL GUARANTEE

42

I

NTERNATIONAL GUARANTEE

43

CONSUMER INFORMATION CENTRES

44

CONSUMER INFORMATION CENTRES
