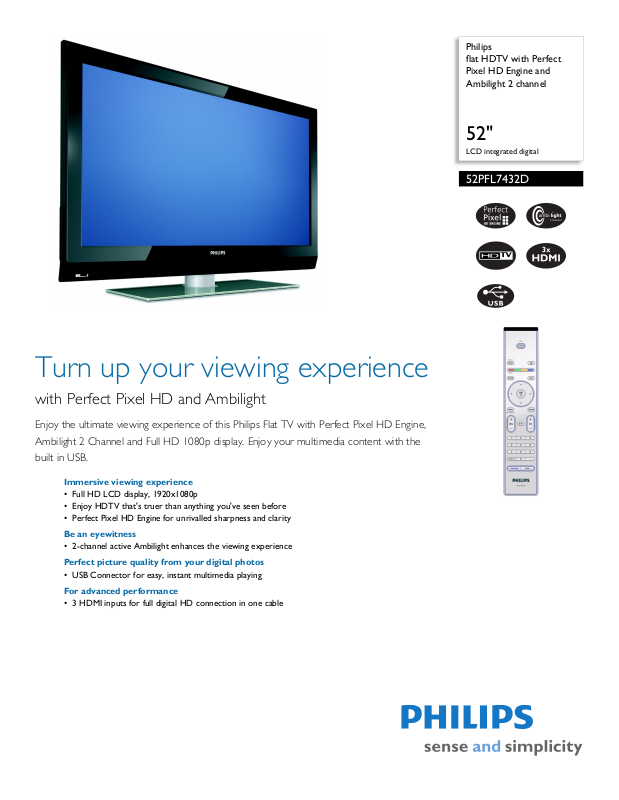

Philips 52PFL7432D User Manual

Philips
flat HDTV with Perfect
Pixel HD Engine and
Ambilight 2 channel

52"

LCD integrated digital

52PFL7432D

Turn up your viewing experience

with Perfect Pixel HD and Ambilight

Enjoy the ultimate viewing experience of this Philips Flat TV with Perfect Pixel HD Engine,
Ambilight 2 Channel and Full HD 1080p display. Enjoy your multimedia content with the
built in USB.

Immersive viewing experience

• Full HD LCD display, 1920x1080p

• Enjoy HDTV that's truer than anything you've seen before

• Perfect Pixel HD Engine for unrivalled sharpness and clarity

Be an eyewitness

• 2-channel active Ambilight enhances the viewing experience

Perfect picture quality from your digital photos

• USB Connector for easy, instant multimedia playing

For advanced performance

• 3 HDMI inputs for full digital HD connection in one cable

Flat HDTV with Perfect Pixel HD Engine and Ambilight 2 channel

52" LCD integrated digital

Specifications

52PFL7432D/37

Picture/Display

• Aspect ratio: 16:9

• Brightness: 500 cd/m²

• Contrast ratio (typical): 2000:1

• Dynamic screen contrast: 10000:1

• Response time (typical): 6 (BEW equiv.) ms

• Viewing angle: 176º (H) / 176º (V)

• Diagonal screen size (inch): 52 inch

• Display screen type: LCD Full HD W-UXGA Act.
matrix

• Panel resolution: 1920x1080p

• Picture enhancement: Perfect Pixel HD Engine,
Digital Natural Motion, Dynamic contrast
enhancement, 1080p 50/60Hz processing, 3/2 - 2/2
motion pull down, 3D Combfilter, Active Control +
Light sensor, Jagged Line Suppression, Progressive
Scan, Widescreen Plus

• Screen enhancement: Anti-Reflection coated
screen

Ambilight

• Ambilight Features: Ambilight 2 Channel, Auto
adaptive to video content

• Ambilight light system: LED wide color

• Color Settings: Full Multi Color

• Dimming Function: Manual and via Light Sensor

• Preset modes: 4 Active Adaptive modes

Supported Display Resolution

• Computer formats
Resolution Refresh rate
640 x 480 60Hz
800 x 600 60Hz
1024 x 768 60Hz
1280 x 768 60Hz
1360 x 768 60Hz
1920 x 1080i 60Hz
1920 x 1080p 60Hz

• Video formats
Resolution Refresh rate
480i 60Hz
480p 60Hz
576i 50Hz
576p 50Hz
720p 50, 60Hz
1080i 50, 60Hz
1080p 24Hz, 25Hz, 30 Hz
1080p 50Hz, 60Hz

Convenience

• Child Protection: Child Lock+Parental Control

• Clock: Smart Clock

• Ease of Installation: Auto Program Naming,
Automatic Tuning System (ATS), Autostore, PLL
Digital Tuning, Plug & Play

• Ease of Use: Auto Volume Leveller (AVL), Channel
list, Delta Volume per preset, Graphical User
Interface, On Screen Display, Side Control, Smart
Picture Control, Smart Sound Control

• Remote Control: TV

• Remote control type: RC4451

• Screen Format Adjustments: 4:3, 6 Widescreen
Modes, Auto Format, Full screen, Movie expand
14:9, Movie expand 16:9, Super Zoom

• Teletext: Closed Captioning Full Text

Multimedia Applications

• Multimedia connections: USB

• Playback Formats: MP3, Slideshow files (.alb), JPEG
Still pictures

Tuner/Reception/Transmission

• Aerial Input: 75 ohm F-type

• TV system: ATSC, NTSC

• Video Playback: NTSC

• Cable: Unscrambled Digital Cable -QAM

Connectivity

• AV 1: (1 , 2, 3 Fh au tora ngin g), A udio L/R i n, CVB S in ,
S-Video, YPbPr

• AV 2: Audio L/R in, CVBS

• AV 3: (1, 2, 3Fh autoranging), Audio L/R in, YPbPr

• AV 4: HDMI, Audio L/R in

• AV 5: HDMI

• AV 6: HDMI

• Front / Side connections: Audio L/R in, CVBS in,
Headphone out, S-video in, USB

• Other connections: Monitor out L/R (Cinch), S/
PDIF in (coaxial), S/PDIF out (coaxial)

Power

• Ambient temperature: 5 °C to 35 °C

• Mains power: AC 110 +/- 10%

• Power consumption: 310 W

• Standby power consumption: 0.67 W

Accessories

• Included Accessories: Tabletop swivel stand

• Weight incl. Packaging (lb): 127.4 lb

• VESA wall mount compatible: 600 x 400 mm

•

Sound

• Output power (RMS): 2x8W

• Sound Enhancement: Digital Signal Processing,
Graphic Equaliser, Dynamic Bass Enhancement

• Sound System: Virtual Dolby Digital

Loudspeakers

• Built-in speakers: 2

• Loudspeaker types: Front Speakers, Dome tweeter

Rear connectors

ANALOG AUDIO IN

AUDIO OUT DIGITAL AUDIO

DISPLAY
SYNCHRONIZED

HDMI 1 / HDMI 2 / HDMI 3

IN

R

AUDIO

DISPLAY
SYNC.

OUTRL

L

SERVICE

UART

Dimensions

• Color cabinet: High Gloss Black

• Set dimensions in inch (W x H x D):

50.8

x 32.9 x 4.6 inch

• Set dimensions with stand in inch (H x D):

35.6

x 12.8 inch

• Product weight (lb): 89.5 lb

• Product weight (+stand) (lb): 110.7 lb

• Box dimensions in inch (W x H x D):

54.4

x 36.5 x 10.9 inch

YPbPr

AUDIOLR

Pb Pr

Y

Side

AV 3

L

AUDIO

VIDEO L RAUDIO

R

AV 2

VIDEO

S VIDEO

AV 1
