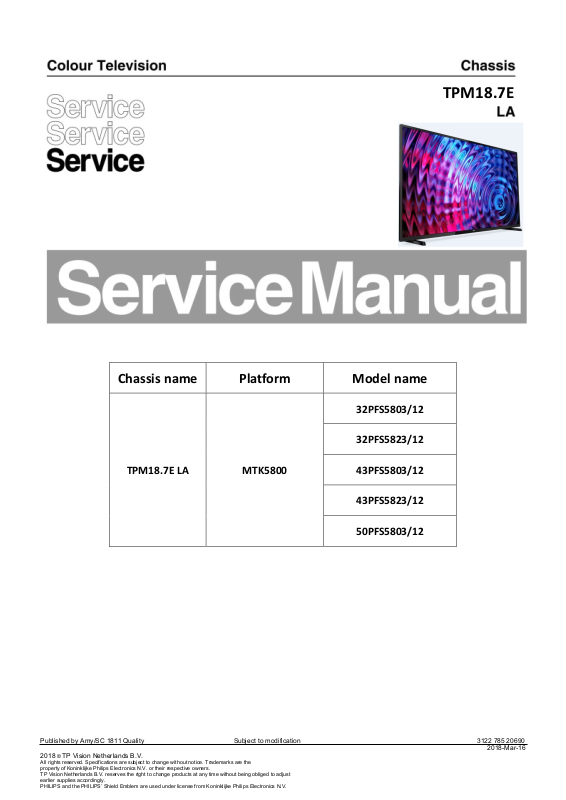

TPM18.7E
Chassis name
Platform Model name
32PFS5803/12
32PFS5823/12
TPM18.7E LA MTK5800
43PFS5803/12
43PFS5823/12
50PFS5803/12
Published by Amy/SC 1811 Quality Subject to modification 3122 785 20690
2018 © TP Vision Netherlands B.V.
All rights reserved. Specifications are subject to change without notice. Trademarks are the
property of Koninklijke Philips Electronics N.V. or their respective owners.
TP Vision Netherlands B.V. reserves the right to change products at any time without being obliged to adjust
earlier supplies accordingly.
PHILIPS and the PHILIPS’ Shield Emblem are used under license from Koninklijke Philips Electronics N.V.
2018-Mar-16
Page 2
1. Product information……….…………………………………………………………………………………3
2. Precautions, Notes, and Abbreviation List…………….………………………………………………5
3. Mechanical Instructions………………….………………………………………………………………….11
Cable dressing (32" 5803/5823 series)………………………………………………………………………11
Cable dressing (43" 5803/5823, 50” 5803 series)…………………………………………………………12
Assembly/Panel Removal ……………………………………………………………………………………13
4. Service Modes…………….……………….……………….…………………………………………….….17
5. Software upgrading, Error Code and Panel Code………...………………………………………..21
6. Trouble Shooting……………………………………………...……………………………………………..26
7. Electrical Diagram…..………………….………………………………………………………………29
8. IC Data Sheet……...……………………………………………………………………………….…..32
9. Circuit Diagrams……………...…………………………………………………………………………….37

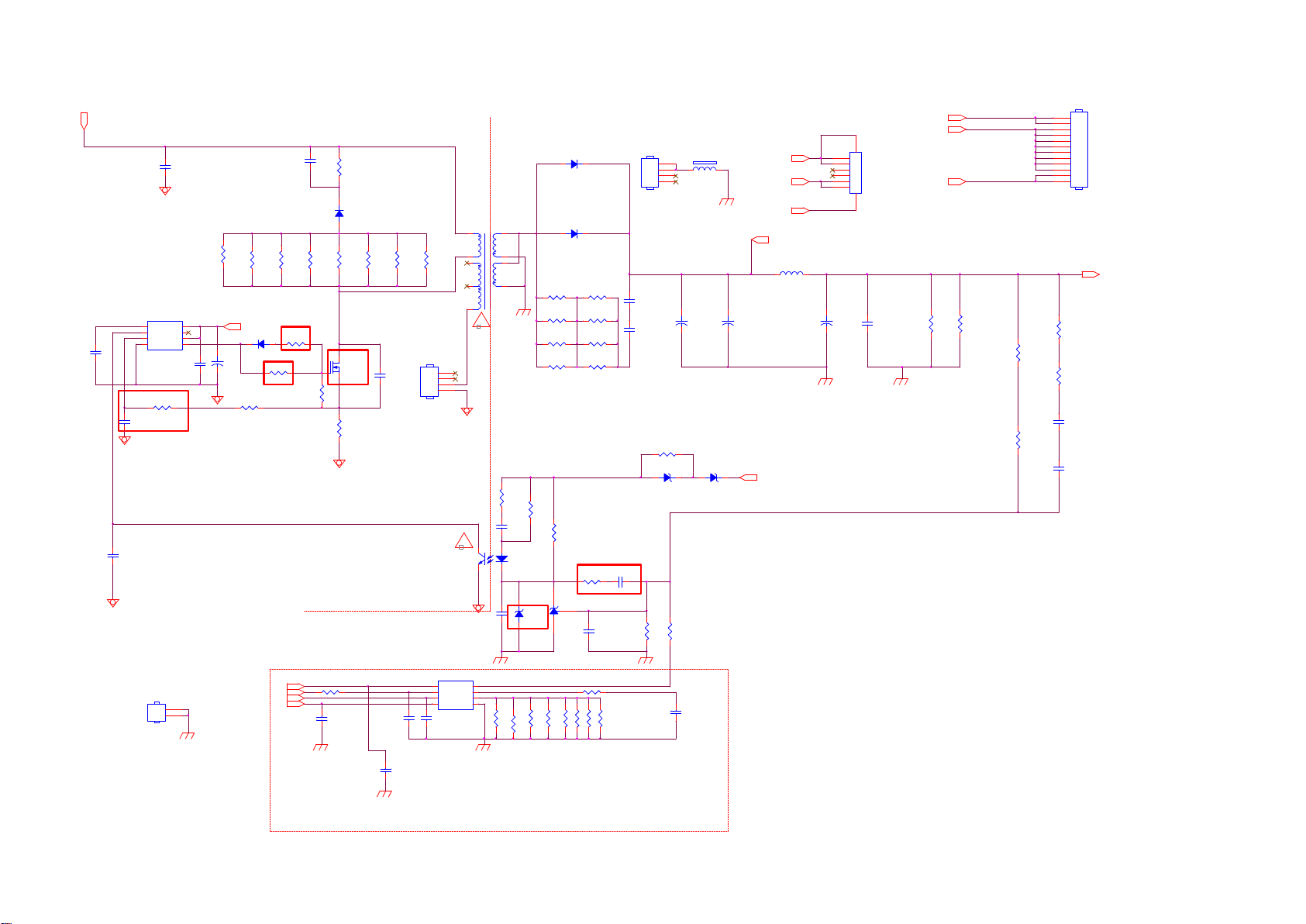

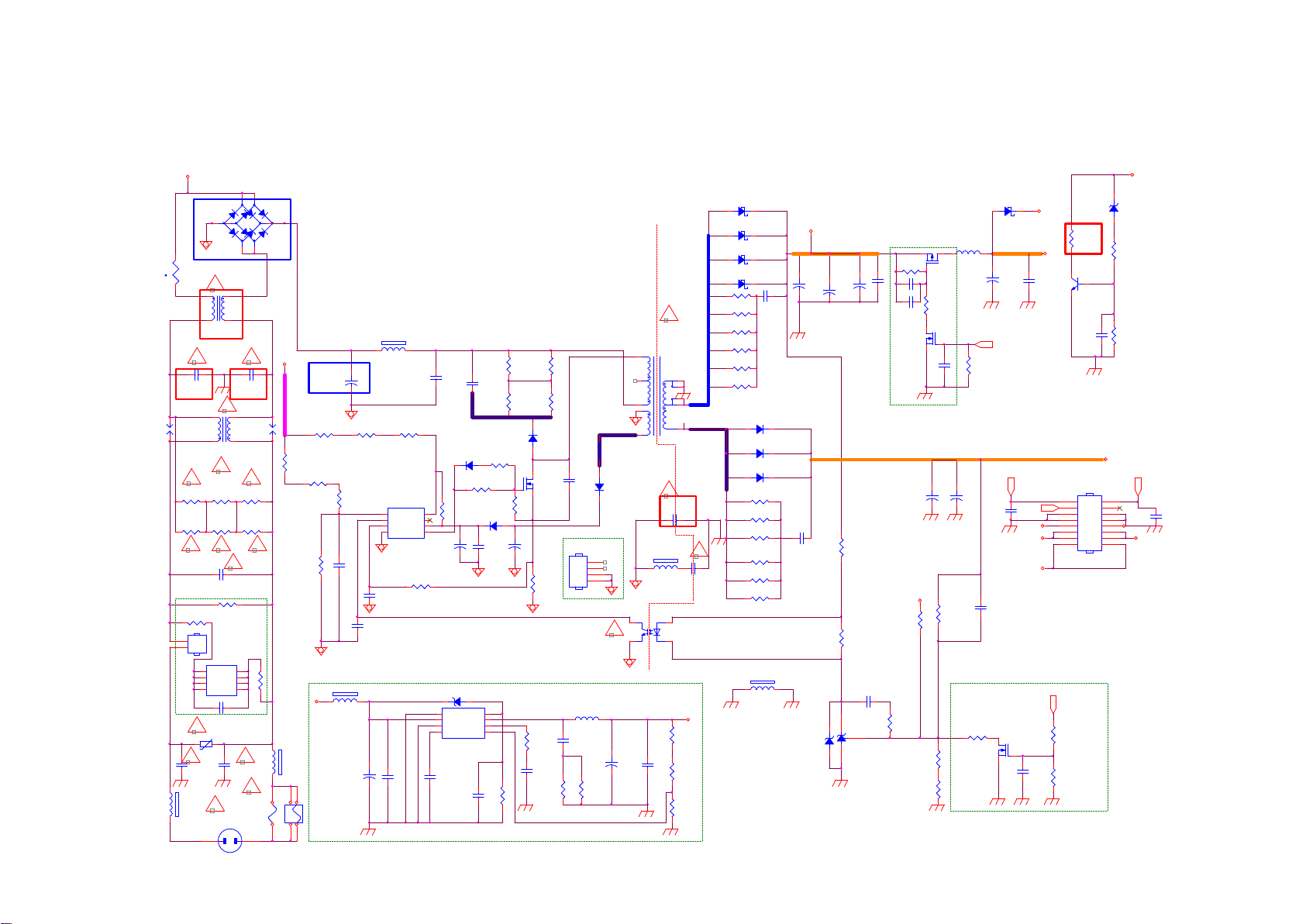

9.1 715G7734 PSU…………………………………………………………………..……………………37

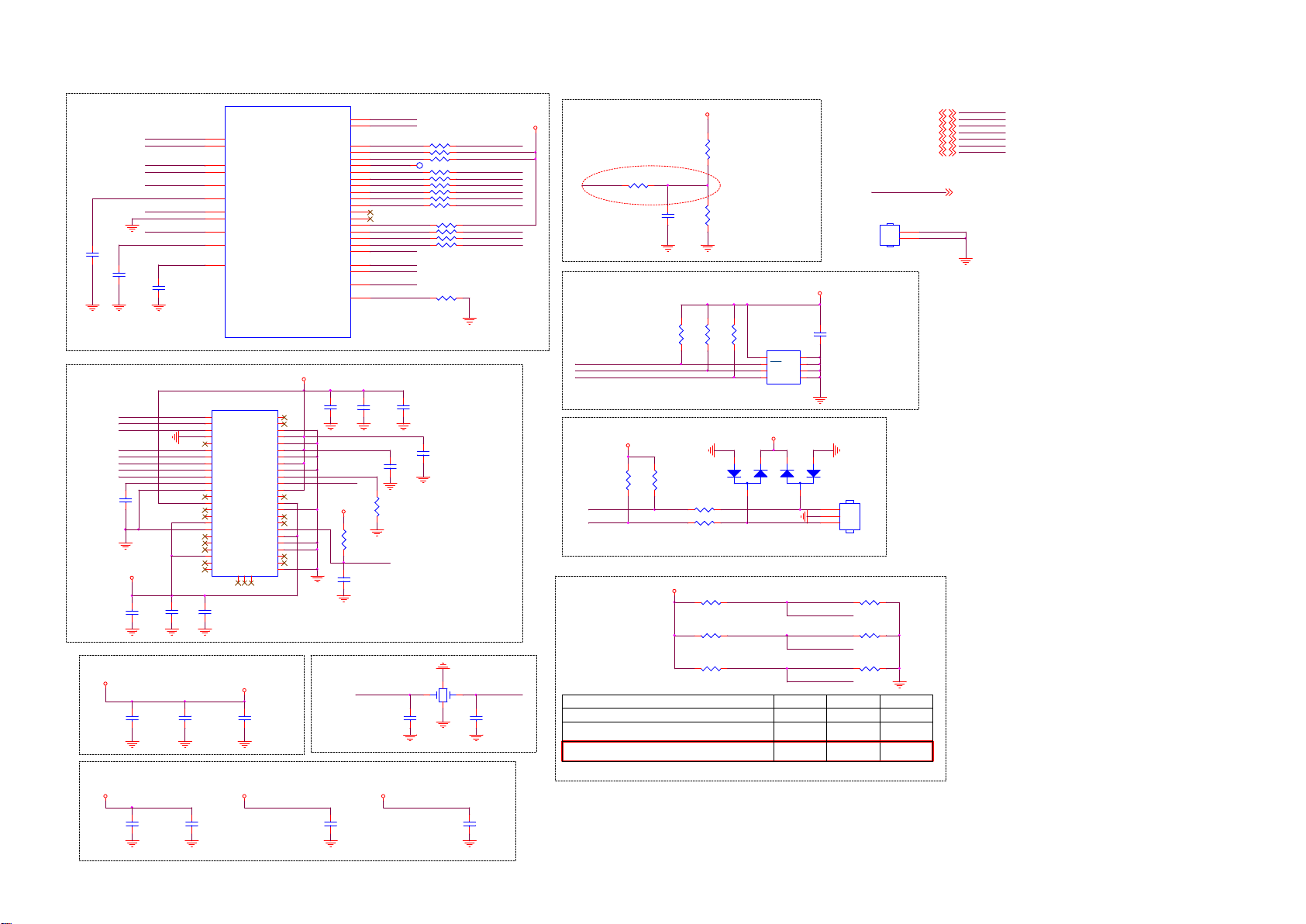

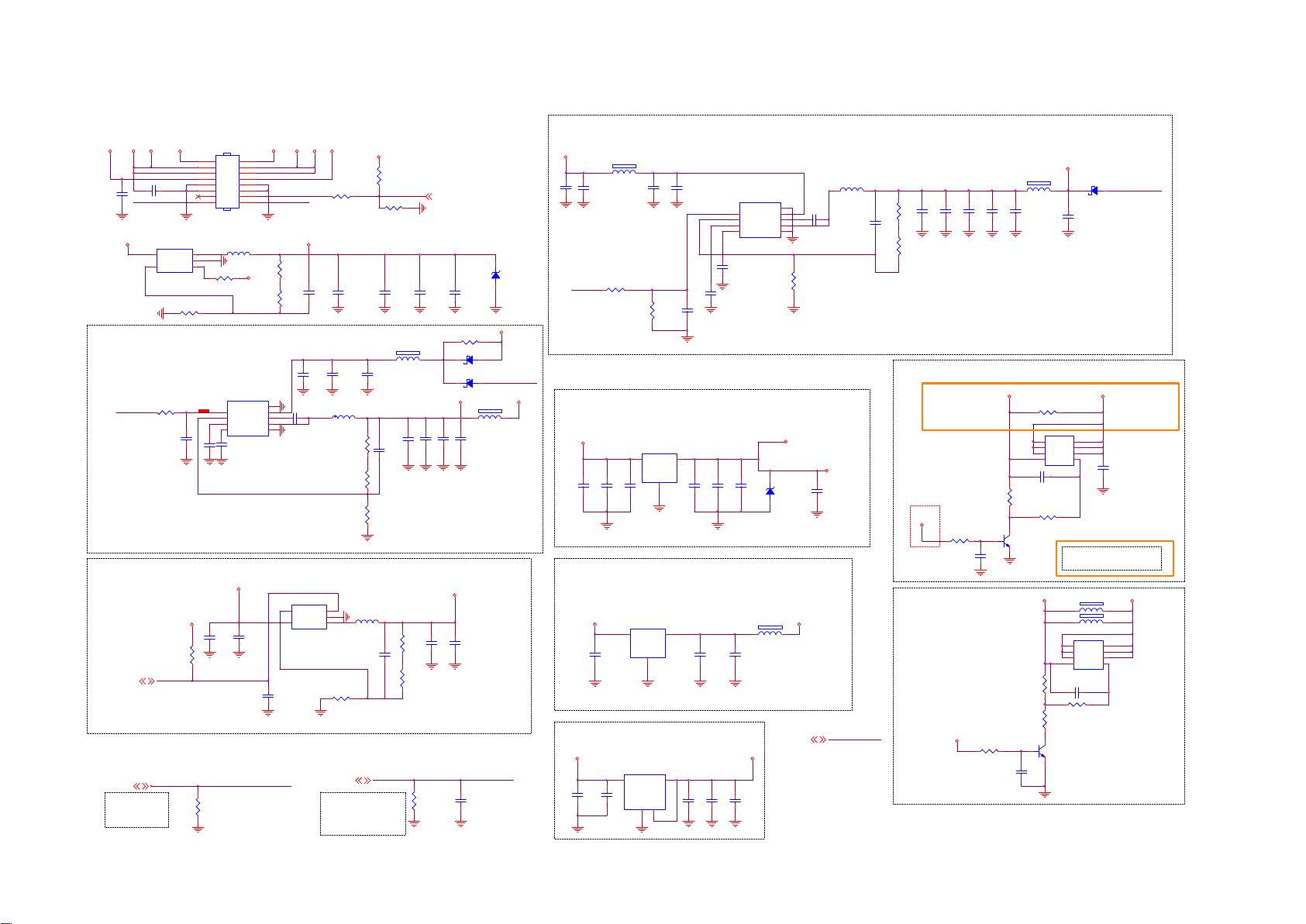

9.2 715G8962 PSU…………………………………………………………………..……………………39

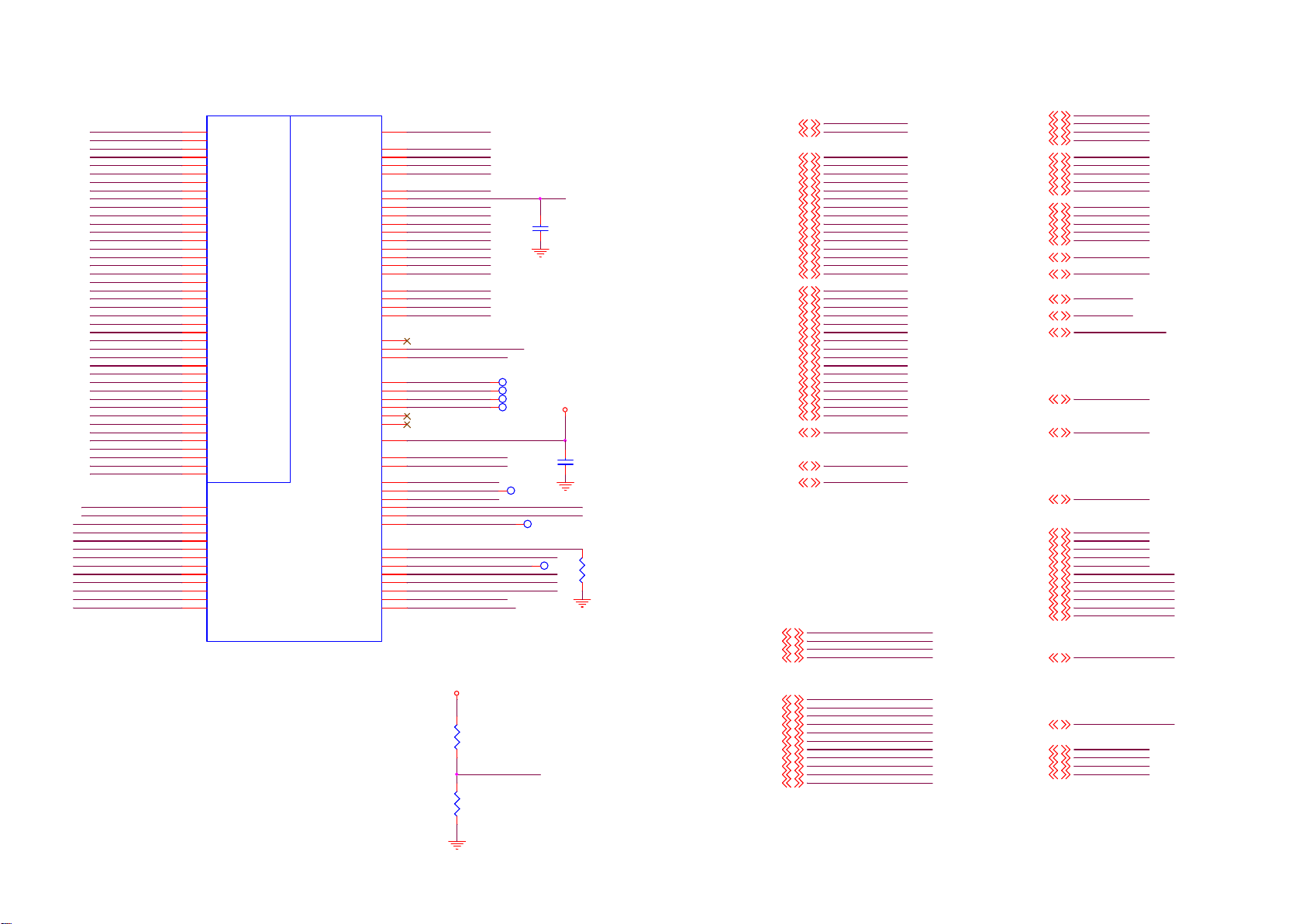

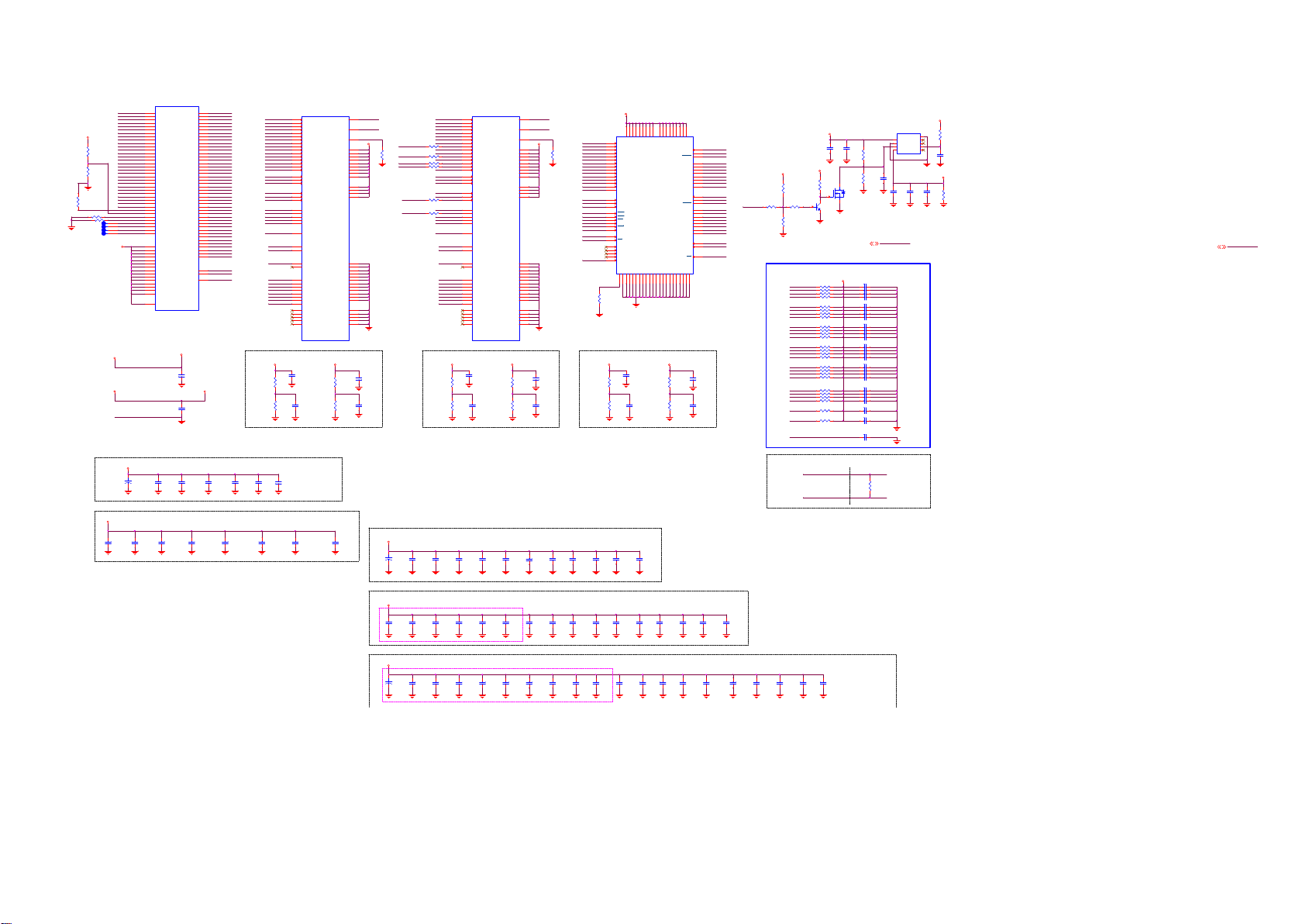

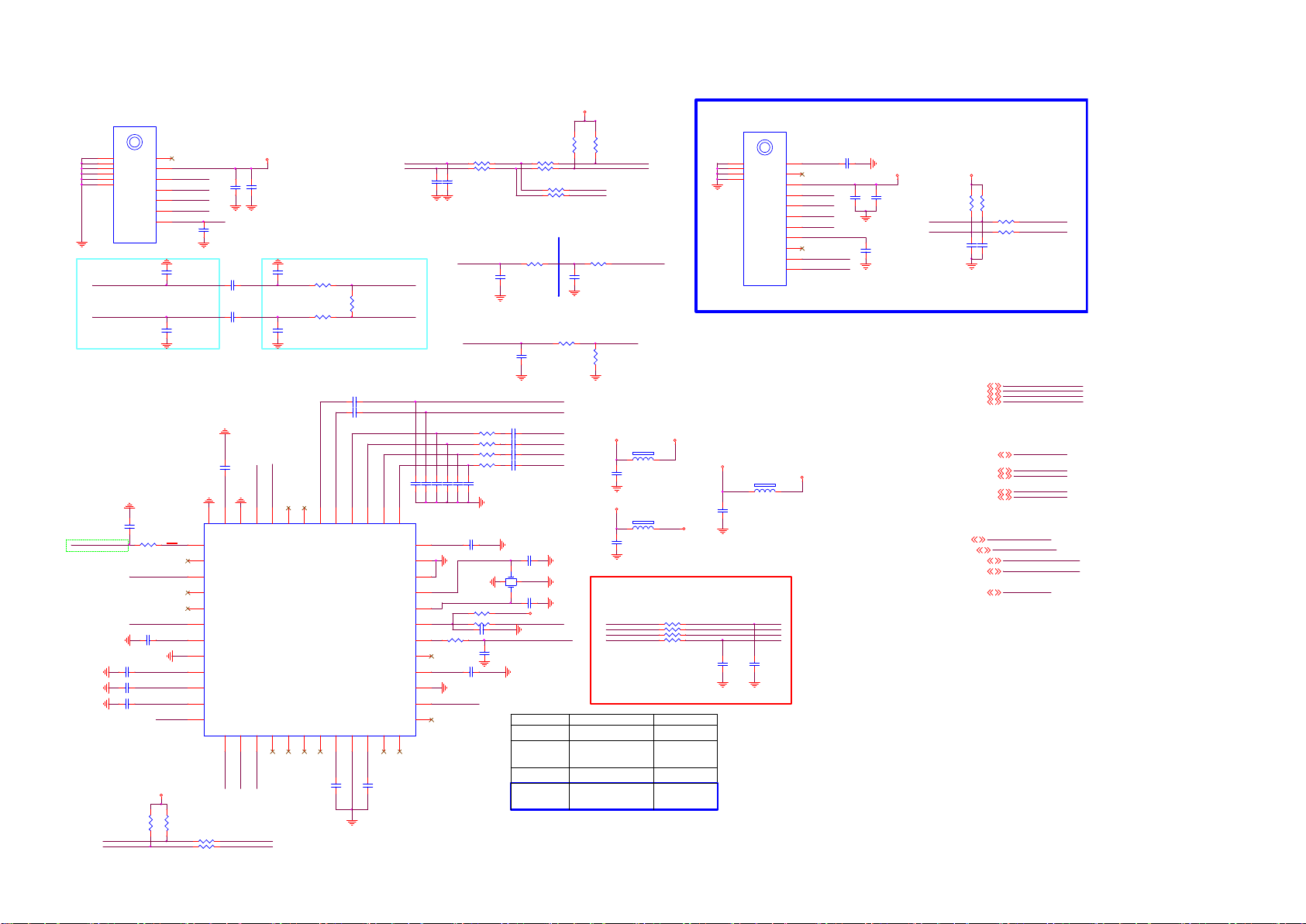

9.3 715G9237 SSB………………………………………………………………………………………..43
9.4 715G8623 IR/LED Panel…………………………………………..…………………………………57
9.5 715G9740 Keyboard control panel…………………………………………………………………….58
10. Styling Sheet……………….…………………….…………………………………………………………..59
5803/5823 series 32"……………………………………………………………………………………….59
5803/5823 series 43", 5803 series 50”………………………………………………………………….60
Published by Amy/SC 1811 Quality Subject to modification 3122 785 20690
2018 © TP Vision Netherlands B.V.
All rights reserved. Specifications are subject to change without notice. Trademarks are the
property of Koninklijke Philips Electronics N.V. or their respective owners.
TP Vision Netherlands B.V. reserves the right to change products at any time without being obliged to adjust
earlier supplies accordingly.
PHILIPS and the PHILIPS’ Shield Emblem are used under license from Koninklijke Philips Electronics N.V.
2018-Mar-16
Page 3
1. Product information
Product specifications are subject to change without notice.
For more specification details of this product, see
www.philips.com/TVsupport
Display Resolution
Diagonal screen size
• 32PFS58x3 : 80 cm / 32 inch
• 43PFS58x3 : 108 cm / 43 inch
• 50PFS58x3 : 126 cm / 50 inch
Display resolution
• 1920 x 1080
Reception
• Aerial input : 75 ohm coaxial (IEC75)
• Tuner bands : Hyperband, S-Channel, UHF, VHF
• DVB : DVB-T2, DVB-C (cable) QAM
• Analogue video playback : SECAM, PAL
• Digital video playback : MPEG2 SD/HD (ISO/IEC
13818-2), MPEG4 SD/HD (ISO/IEC 14496-10), HEVC*
• Digital audio playback (ISO/IEC 13818-3)
• Satellite aerial input : 75 ohm F-type
• Input frequency range : 950 to 2150MHz
• Input level range : 25 to 65 dBm
• DVB-S/S2 QPSK, symbol rate 2 to 45M symbols, SCPC
and MCPC
• LNB : DiSEqC 1.0, 1 to 4 LNBs supported, Polarity
selection 14/18V, Band selection 22kHz, Tone burst mode,
LNB current 300mA max
* Only for DVB-T2, DVB-S2
Supported Input Resolution – Video
Support Timing
Video support timing also includes field/frame rate
23.976Hz, 29.97Hz and 59.94Hz.
HDMI
• 480i - 24Hz, 25Hz, 30Hz, 50Hz, 60Hz
• 480p - 24Hz, 25Hz, 30Hz, 50Hz, 60Hz
• 576i - 24Hz, 25Hz, 30Hz, 50Hz, 60Hz
• 576p - 24Hz, 25Hz, 30Hz, 50Hz, 60Hz
• 720p - 24Hz, 25Hz, 30Hz, 50Hz, 60Hz
• 1080i - 24Hz, 25Hz, 30Hz, 50Hz, 60Hz
• 1080p - 24Hz, 25Hz, 30Hz, 50Hz, 60Hz
Component, Composite
Composite
• PAL, NTSC, SECAM
Component
• 480i - 24Hz, 25Hz, 30Hz, 50Hz, 60Hz
• 480p - 24Hz, 25Hz, 30Hz, 50Hz, 60Hz
• 576i - 24Hz, 25Hz, 30Hz, 50Hz, 60Hz
• 576p - 24Hz, 25Hz, 30Hz, 50Hz, 60Hz
• 720p - 24Hz, 25Hz, 30Hz, 50Hz, 60Hz
• 1080i - 24Hz, 25Hz, 30Hz, 50Hz, 60Hz
• 1080p - 24Hz, 25Hz, 30Hz, 50Hz, 60Hz
Supported Input Resolution –
Computer
• 640 x 480 - 60Hz
• 800 x 600 - 60Hz
• 1024 x 768 - 60Hz
• 1280 x 800 - 60Hz
• 1280 x 960 - 60Hz
• 1280 x 1024 - 60Hz
• 1366 x 768 - 60Hz
• 1440 x 900 - 60Hz
• 1920 x 1080 - 60Hz
Sound
• Dynamic Surround
• Clear Dialogue
• Smart Sound
• 5 Band Equalizer
• Output power (RMS) : 16W (32") / 20W
• Dolby® Audio
• DTS-HD (M6)
Multimedia
Connections
• USB 2.0
• Ethernet LAN RJ-45
• Wi-Fi 802.11n (built-in)
Supported USB file systems
Page 4
• FAT, NTFS
Playback formats
• Video Codec : AVI, MKV, HEVC, H.264/MPEG-4
AVC, MPEG1, MPEG2, MPEG4, HEVC
• Audio Codec : MP3, WAV, AAC, WMA (v2 up to
v9.2), WMA-PRO (v9 and v10)
• Subtitles :
- Format: SRT, SMI, SSA, SUB, ASS, TXT
- Character encodings : UTF-8, Central Europe and
Eastern Europe (Windows-1250), Cyrillic
(Windows-1251), Greek (Windows-1253), Turkish
(Windows-1254), Western Europe (Windows-1252)
• Image Codec : JPEG, GIF, PNG, BMP
Wi-Fi Certified
This TV supports Miracast certified devices.
Performance may vary, depending on the capabilities of the
mobile device and the software used.
TV Side
• Common Interface slot: CI+/CAM
• USB 1/2 - USB 2.0
• HDMI 1 in - MHL
TV Rear
• YPbPr : Y Pb Pr, Audio L/R
• CVBS : CVBS, Audio L/R (Shared with YPbPr)
• Audio out - Optical Toslink
• Headphones - Stereo mini-jack 3.5mm
• Network LAN - RJ45
• Satellite tuner
• Antenna (75 ohm)
• HDMI 2 in - ARC -
Power
• Mains power : AC 220-240V +/-10%
• Ambient temperature : 5°C to 35°C
Connectivity
Page 5
2. Precautions, Notes, and Abbreviation List
tools. This will prevent any short circuits and the danger
of a circuit becoming unstable.
2.1 Safety Instructions
Safety regulations require the following during a repair:
• Connect the set to the Mains/AC Power via an isolation
transformer (> 800 VA).
• Replace safety components, indicated by the symbol △!,
only by components identical to the original ones. Any
other component substitution (other than original type)
may increase risk of fire or electrical shock hazard.
Safety regulations require that after a repair, the set must
be returned in its original condition. Pay in particular
attention to the following points:
• Route the wire trees correctly and fix them with the
mounted cable clamps.
• Check the insulation of the Mains/AC Power lead for
external damage.
• Check the strain relief of the Mains/AC Power cord for
proper function.
• Check the electrical DC resistance between the
Mains/AC Power plug and the secondary side (only for
sets that have a Mains/AC Power isolated power supply):
1. Unplug the Mains/AC Power cord and connect a wire
between the two pins of the Mains/AC Power plug.
2. Set the Mains/AC Power switch to the “on” position
(keep the Mains/AC Power cord unplugged!).
3. Measure the resistance value between the pins of the
Mains/AC Power plug and the metal shielding of the
tuner or the aerial connection on the set. The reading
should be between 4.5 MΩ and 12 MΩ.
4. Switch “off” the set, and remove the wire between the
two pins of the Mains/AC Power plug.
• Check the cabinet for defects, to prevent touching of any
inner parts by the customer.
!
2.2 Warnings
• All ICs and many other semiconductors are susceptible
to electrostatic discharges (ESD ). Careless handling
during repair can reduce life drastically. Make sure that,
during repair, you are connected with the same potential
as the mass of the set by a wristband with resistance.
Keep components and tools also at this same potential.
• Be careful during measurements in the high voltage
section.
• Never replace modules or other components while the
unit is switched “on”.
• When you align the set, use plastic rather than metal
2.3 Notes
2.3.1 General
• Measure the voltages and waveforms with regard to the
chassis (= tuner) ground ( ), or hot ground ( ),
depending on the tested area of circuitry. The voltages
and waveforms shown in the diagrams are indicative.
Measure them in the Service Default Mode with a colour
bar signal and stereo sound (L: 3 kHz, R: 1 kHz unless
stated otherwise) and picture carrier at 475.25 MHz for
PAL, or 61.25 MHz for NTSC (channel 3).
• Where necessary, measure the waveforms and voltages
with ( ) and without ( ) aerial signal. Measure the
voltages in the power supply section both in normal
operation ( ) and in stand-by ( ). These values are
indicated by means of the appropriate symbols.
2.3.2 Schematic Notes
• All resistor values are in ohms, and the value multiplier is
often used to indicate the decimal point location (e.g.
2K2 indicates 2.2 kΩ).
• Resistor values with no multiplier may be indicated with
either an “E” or an “R” (e.g. 220E or 220R indicates 220
Ω).
• All capacitor values are given in micro-farads (µ = x10-6),
nano-farads (n = x10-9), or pico-farads (p = x10
• Capacitor values may also use the value multiplier as the
decimal point indication (e.g. 2p2 indicates 2.2 pF).
• An “asterisk” (*) indicates component usage varies.
Refer to the diversity tables for the correct values.
• The correct component values are listed on the Philips
Spare Parts Web Portal.
2.3.3 Spare parts
For the latest spare part overview, consult your Philips
Spare Part web portal.
2.3.4 BGA (Ball Grid Array) ICs
Introduction
For more information on how to handle BGA devices, visit
this URL: http://www.atyourservice-magazine.com. Select
“Magazine”, then go to “Repair downloads”. Here you will
find Information on how to deal with BGA-ICs.
BGA Temperature Profiles
For BGA-ICs, you must use the correct temperature-profile.
Where applicable and available, this profile is added to the
-12
).
Page 6
IC Data Sheet information section in this manual.
2.3.5 Lead-free Soldering
Due to lead-free technology some rules have to be
respected by the workshop during a repair:
• Use only lead-free soldering tin. If lead-free solder paste
is required, please contact the manufacturer of your
soldering equipment. In general, use of solder paste
within workshops should be avoided because paste is
not easy to store and to handle.
• Use only adequate solder tools applicable for lead-free
soldering tin. The solder tool must be able:
– To reach a solder-tip temperature of at least 400°C.
– To stabilize the adjusted temperature at the solder-tip.
– To exchange solder-tips for different applications.
• Adjust your solder tool so that a temperature of around
360°C - 380°C is reached and stabilized at the solder
joint. Heating time of the solder-joint should not exceed ~
4 sec. Avoid temperatures above 400°C, otherwise
wear-out of tips will increase drastically and flux-fluid will
be destroyed. To avoid wear-out of tips, switch “off”
unused equipment or reduce heat.
• Mix of lead-free soldering tin/parts with leaded soldering
tin/parts is possible but PHILIPS recommends strongly to
avoid mixed regimes. If this cannot be avoided, carefully
clear the solder-joint from old tin and re-solder with new
tin.
For the third digit, the numbers 1...9 and the characters
A...Z can be used, so in total: 9 plus 26= 35 different
B.O.M.s can be indicated by the third digit of the serial
number.
Identification: The bottom line of a type plate gives a
14-digit serial number. Digits 1 and 2 refer to the production
centre (e.g. SN is Lysomice, RJ is Kobierzyce), digit 3
refers to the B.O.M. code, digit 4 refers to the Service
version change code, digits 5 and 6 refer to the production
year, and digits 7 and 8 refer to production week (in
example below it is 2010 week 10 / 2010 week 17). The 6
last digits contain the serial number.
2.3.6 Alternative BOM identification
It should be noted that on the European Service website,
“Alternative BOM” is referred to as “Design variant”.
The third digit in the serial number (example:
AG2B0335000001) indicates the number of the alternative
B.O.M. (Bill Of Materials) that has been used for producing
the specific TV set. In general, it is possible that the same
TV model on the market is produced with e.g. two different
types of displays, coming from two different suppliers. This
will then result in sets which have the same CTN
(Commercial Type Number; e.g. 28PW9515/12) but which
have a different B.O.M. number.
By looking at the third digit of the serial number, one can
identify which B.O.M. is used for the TV set he is working
with. If the third digit of the serial number contains the
number “1” (example: AG1B033500001), then the TV set
has been manufactured according to B.O.M. number 1. If
the third digit is a “2” (example: AG2B0335000001), then
the set has been produced according to B.O.M. no. 2. This
is important for ordering the correct spare parts!
Figure 3-1 Serial number (example)
2.3.7 Board Level Repair (BLR) or Component Level
Repair (CLR)
If a board is defective, consult your repair procedure to
decide if the board has to be exchanged or if it should be
repaired on component level.
If your repair procedure says the board should be
exchanged completely, do not solder on the defective board.
Otherwise, it cannot be returned to the O.E.M. supplier for
back charging!
2.3.8 Practical Service Precautions
• It makes sense to avoid exposure to electrical shock.
While some sources are expected to have a possible
dangerous impact, others of quite high potential are of
limited current and are sometimes held in less regard.
Page 7
• Always respect voltages. While some may not be
dangerous in themselves, they can cause unexpected
reactions that are best avoided. Before reaching into a
powered TV set, it is best to test the high voltage
insulation. It is easy to do, and is a good service
precaution.
2.4 Abbreviation List
0/6/12 SCART switch control signal on A/V board.
0 = loop through (AUX to TV),6 = play 16 :
9 format, 12 = play 4 : 3 format
DNR Digital Noise Reduction: noise reduction
feature of the set
AARA Automatic Aspect Ratio Adaptation:
algorithm that adapts aspect ratio to
remove horizontal black bars; keeps the
original aspect ratio
ACI Automatic Channel Installation: algorithm
that installs TV channels directly from a
cable network by means of a predefined
TXT page
ADC Analogue to Digital Converter
AFC Automatic Frequency Control: control
signal used to tune to the correct
frequency
AGC Automatic Gain Control: algorithm that
ontrols the video input of the feature box
AM Amplitude Modulation
AP Asia Pacific
AR Aspect Ratio: 4 by 3 or 16 by 9
ASF Auto Screen Fit: algorithm that adapts
aspect ratio to remove horizontal black
bars without discarding video information
ATSC Advanced Television Systems Committee,
the digital TV standard in the USA
ATV See Auto TV
Auto TV A hardware and software control system
that measures picture content, and adapts
image parameters in a dynamic way
AV External Audio Video
AVC Audio Video Controller
AVIP Audio Video Input Processor
B/G Monochrome TV system. Sound carrier
distance is 5.5 MHz
BDS Business Display Solutions (iTV)
BLR Board-Level Repair
BTSC Broadcast Television Standard Committee.
Multiplex FM stereo sound system,
originating from the USA and used e.g. in
LATAM and AP-NTSC countries
B-TXT Blue TeleteXT
C Centre channel (audio)
CEC Consumer Electronics Control bus: remote
control bus on HDMI connections
CL Constant Level: audio output to connect
with an external amplifier
CLR Component Level Repair
ComPair Computer aided rePair
CP Connected Planet / Copy Protection
CSM Customer Service Mode
CTI Color Transient Improvement: manipulates
steepness of chroma transients
CVBS Composite Video Blanking and
Synchronization
DAC Digital to Analogue Converter
DBE Dynamic Bass Enhancement: extra low
frequency amplification
DCM Data Communication Module. Also
referred to as System Card or Smartcard
(for iTV).
DDC See “E-DDC”
D/K Monochrome TV system. Sound carrier
distance is 6.5 MHz
DFI Dynamic Frame Insertion
DFU Directions For Use: owner's manual
DMR Digital Media Reader: card reader
DMSD Digital Multi Standard Decoding
DNM Digital Natural Motion
DRAM Dynamic RAM
DRM Digital Rights Management
DSP Digital Signal Processing
DST Dealer Service Tool: special remote control
designed for service technicians
DTCP Digital Transmission Content Protection; A
protocol for protecting digital audio/video
content that is traversing a high speed
serial bus, such as IEEE-1394
DVB-C Digital Video Broadcast - Cable
DVB-T Digital Video Broadcast - Terrestrial
DVD Digital Versatile Disc
DVI(-d) Digital Visual Interface (d= digital only)
E-DDC Enhanced Display Data Channel (VESA
standard for communication channel and
display). Using E-DDC, the video source
can read the EDID information form the
display.
Page 8
EDID Extended Display Identification Data
(VESA standard)
EEPROM Electrically Erasable and Programmable
Read Only Memory
EMI Electro Magnetic Interference
EPG Electronic Program Guide
EPLD Erasable Programmable Logic Device
EU Europe
EXT EXTernal (source), entering the set by
SCART or by cinches (jacks)
FDS Full Dual Screen (same as FDW)
FDW Full Dual Window (same as FDS)
FLASH FLASH memory
FM Field Memory or Frequency Modulation
FPGA Field-Programmable Gate Array
FTV Flat TeleVision
Gb/s Giga bits per second
G-TXT Green TeleteXT
H H_sync to the module
HD High Definition
HDD Hard Disk Drive
HDCP High-bandwidth Digital Content Protection:
A “key” encoded into the HDMI/DVI signal
that prevents video data piracy. If a source
is HDCP coded and connected via
HDMI/DVI without the proper HDCP
decoding, the picture is put into a “snow
vision” mode or changed to a low
resolution. For normal content distribution
the source and the display device must be
enabled for HDCP “software key”
decoding.
HDMI High Definition Multimedia Interface
HP HeadPhone
I Monochrome TV system. Sound carrier
distance is 6.0 MHz
I2C Inter IC bus
I2D Inter IC Data bus
I2S Inter IC Sound bus
IF Intermediate Frequency
IR Infra Red
IRQ Interrupt Request
ITU-656 The ITU Radio communication Sector
(ITU-R) is a standards body subcommittee
of the International Telecommunication
Union relating to radio communication.
ITU-656 (a.k.a. SDI), is a digitized video
format used for broadcast grade video.
Uncompressed digital component or digital
composite signals can be used. The SDI
signal is self-synchronizing, uses 8 bit or
10 bit data words, and has a maximum
data rate of 270 Mbit/s, with a minimum
bandwidth of 135 MHz.
iTV Institutional TeleVision; TV sets for hotels,
hospitals etc.
LS Last Status; The settings last chosen by
the customer and read and stored in RAM
or in the NVM. They are called at start-up
of the set to configure it according to the
customer's preferences
LATAM Latin America
LCD Liquid Crystal Display
LED Light Emitting Diode
L/L' Monochrome TV system. Sound carrier
distance is 6.5 MHz. L' is Band I, L is all
bands except for Band I
LPL LG.Philips LCD (supplier)
LS Loudspeaker
LVDS Low Voltage Differential Signalling
Mbps Mega bits per second
M/N Monochrome TV system. Sound carrier
distance is 4.5 MHz
MHEG Part of a set of international standards
related to the presentation of multimedia
information, standardised by the
Multimedia and Hypermedia Experts
Group. It is commonly used as a language
to describe interactive television services
MIPS Microprocessor without Interlocked
Pipeline-Stages; A RISC-based
microprocessor
MOP Matrix Output Processor
MOSFET Metal Oxide Silicon Field Effect Transistor,
switching device
MPEG Motion Pictures Experts Group
MPIF Multi Platform InterFace
MUTE MUTE Line
MTV Mainstream TV: TV-mode with Consumer
TV features enabled (iTV)
NC Not Connected
NICAM Near Instantaneous Compounded Audio
Multiplexing. This is a digital sound system,
mainly used in Europe.
NTC Negative Temperature Coefficient,
non-linear resistor
Page 9
NTSC National Television Standard Committee.
Color system mainly used in North
America and Japan. Color carrier NTSC
M/N= 3.579545 MHz, NTSC 4.43=
4.433619 MHz (this is a VCR norm, it is
not transmitted off-air)
NVM Non-Volatile Memory: IC containing TV
related data such as alignments
O/C Open Circuit
OSD On Screen Display
OAD Over the Air Download. Method of
software upgrade via RF transmission.
Upgrade software is broadcasted in TS
with TV channels.
OTC On screen display Teletext and Control;
also called Artistic (SAA5800)
P50 Project 50: communication protocol
between TV and peripherals
PAL Phase Alternating Line. Color system
mainly used in West Europe (colour carrier
= 4.433619 MHz) and South America
(colour carrier PAL M = 3.575612 MHz and
PAL N = 3.582056 MHz)
PCB Printed Circuit Board (same as “PWB”)
PCM Pulse Code Modulation
PDP Plasma Display Panel
PFC Power Factor Corrector (or
Pre-conditioner)
PIP Picture In Picture
PLL Phase Locked Loop. Used for e.g. FST
tuning systems. The customer can give
directly the desired frequency
POD Point Of Deployment: a removable CAM
module, implementing the CA system for a
host (e.g. a TV-set)
POR Power On Reset, signal to reset the uP
PSDL Power Supply for Direct view LED
backlight with 2D-dimming
PSL Power Supply with integrated LED drivers
PSLS Power Supply with integrated LED drivers
with added Scanning functionality
PTC Positive Temperature Coefficient,
non-linear resistor
PWB Printed Wiring Board (same as “PCB”)
PWM Pulse Width Modulation
QRC Quasi Resonant Converter
QTNR Quality Temporal Noise Reduction
QVCP Quality Video Composition Processor
RAM Random Access Memory
RGB Red, Green, and Blue. The primary color
signals for TV. By mixing levels of R, G,
and B, all colors (Y/C) are reproduced.
RC Remote Control
RC5 / RC6 Signal protocol from the remote control
receiver
RESET RESET signal
ROM Read Only Memory
RSDS Reduced Swing Differential Signalling data
interface
R-TXT Red TeleteXT
SAM Service Alignment Mode
S/C Short Circuit
SCART Syndicat des Constructeurs d'Appareils
Radiorécepteurs et Téléviseurs
SCL Serial Clock I2C
SCL-F CLock Signal on Fast I2C bus
SD Standard Definition
SDA Serial Data I2C
SDA-F DAta Signal on Fast I2C bus
SDI Serial Digital Interface, see “ITU-656”
SDRAM Synchronous DRAM
SECAM SEequence Couleur Avec Mémoire.
Colour system mainly used in France and
East Europe. Colour carriers = 4.406250
MHz and 4.250000 MHz
SIF Sound Intermediate Frequency
SMPS Switched Mode Power Supply
SoC System on Chip
SOG Sync On Green
SOPS Self Oscillating Power Supply
SPI Serial Peripheral Interface bus; a 4-wire
synchronous serial data link standard
S/PDIF Sony Philips Digital InterFace
SRAM Static RAM
SRP Service Reference Protocol
SSB Small Signal Board
SSC Spread Spectrum Clocking, used to
reduce the effects of EMI
STB Set Top Box
STBY STand-BY
SVGA 800 × 600 (4:3)
SVHS Super Video Home System
SW Software
SWAN Spatial temporal Weighted Averaging
Noise reduction
SXGA 1280 × 1024
Page 10
TFT Thin Film Transistor
THD Total Harmonic Distortion
TMDS Transmission Minimized Differential
Signalling
TS Transport Stream
TXT TeleteXT
TXT-DW Dual Window with TeleteXT
UI User Interface
uP Microprocessor
UXGA 1600 × 1200 (4:3)
V V-sync to the module
VESA Video Electronics Standards Association
VGA 640 × 480 (4:3)
VL Variable Level out: processed audio output
toward external amplifier
VSB Vestigial Side Band; modulation method
WYSIWYR What You See Is What You Record: record
selection that follows main picture and
sound
WXGA 1280 × 768 (15:9)
XTAL Quartz crystal
XGA 1024 × 768 (4:3)
Y Luminance signal
Y/C Luminance (Y) and Chrominance (C)
signal
YPbPr Component video. Luminance and scaled
color difference signals (B-Y and R-Y)
YUV Component video
Page 11
3. Mechanical Instructions
LOUDSPEAKER
701
LOUDSPEAKER
408
164
9101
J
(1054)
W
ECN
408
ECN
701
ECN
605
E
ECN
167 to key&IR
ECN
164
3.1 Cable Dressing
MAIN POWER SUPPLY
A
CN8602
CN
Cable dressing (32" 5803/5823 series)
CN
CN
CN167
CN605
CN
B
SSB (1053)
(1184)
WIFI MODULE
(Wifi02)

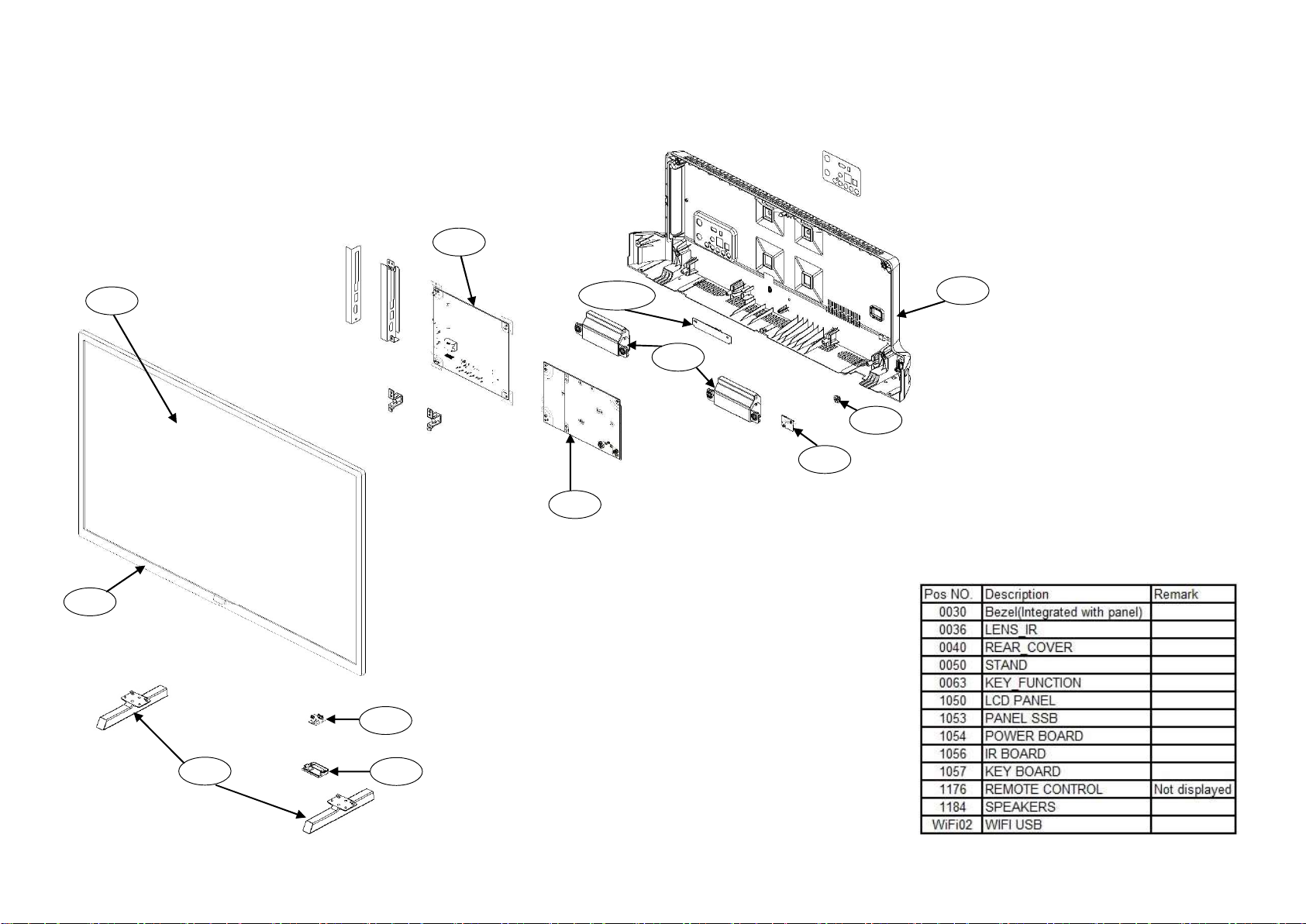

Back cover overview (32” 5803/5823 series)
(1184)
IR/LED BOARD
(1056)
KEY BOARD
(1057)
Page 12
701
408
67
8602CN9102
(1054)
ECN
408
ECN
701
LOUDSPEAKER
(1184)
LOUDSPEAKER
J
W
ECN
605
E
ECN
167 to key&IR
ECN
164
ECN
605
CN
MAIN POWER SUPPLY
A
CN
B
CN
Cable dressing (43" 5803/5823, 50” 5803 series)
CN1
CN605
CN164
SSB (1053)
WIFI MODULE
(Wifi02)
Back cover overview (43” 5803/5823, 50” 5803 series)
(1184)
IR/LED BOARD
(1056)
KEY BOARD
(1057)
Page 13
3.2 Assembly/Panel Removal
1
2
3.2.1 Stand removal
1. Remove the fixation screws [1] that secure the stand.
2. Take the stand bracket out from the set.
1
1
3.2.2 IR board Control Unit
1. Unplug the connector from the SSB.
Caution: be careful, as these are very fragile connectors!
2. Remove fixation screws [1] and connector [2] from the IR board control unit.
3. Remove the IR lens, IR board from the DECO_REAR_COVER.
When defective, replace the whole unit.
1
1
Page 14
2
2
3.2.3 Rear Cover
Warning: Disconnect the mains power cord before removing the rear cover.
1. Remove fixation screws [2] and [3] that secure the Rear Cover.
2. Unplug the connector [4].
3. Gently lift the rear cover from the TV. Make sure that wires and cables are not damaged while lifting the rear cover from the set.
2
3
33
2
2
2
2
2
2
2
2
4
Page 15
3
3.2.4 Keyboard Control Unit
1. Release the connector [2] from the SSB Board.
Caution: be careful, the Keyboard is catch on the Back cover, please be careful to avoid damage the fragile connectors!
2. Remove all the fixation screws from the keyboard control panel [1] and take it out from the Back cover
When defective, replace the whole unit.
2
1
1
3.2.5 Small Signal Board (SSB)
Caution: it is mandatory to remount all different screws at their original position during re-assembly. Failure to do so may result in damaging the
SSB.
1. Release the clips from the LVDS connector that connect with the SSB[1].
Caution: be careful, as these are very fragile connectors!
2. Unplug connector [2] .
3. Remove all the fixation screws from the SSB [3].
4. The SSB can now be shifted from side connector cover, then lifted and taken out of the I/O bracket.
3
3
2
1
3
3
Page 16
3.2.6 Power Supply Unit (PSU)
Caution: it is mandatory to remount all different screws at their original position during re-assembly. Failure to do so may result in damaging the
PSU.
1. Gently unplug all connectors from the PSU.
2. Remove all fixation screws from the PSU.
3. The PSU can be taken out of the set now.
3.2.7 Speakers
1. Gently release the tapes that secure the speaker cables.
2. Unplug the speaker connector from the SSB.
3. Take the speakers out.
When defective, replace the both units.
3.2.8 WIFI module
1. Unplug the connector from the SSB..
2. Remove fixation screw that secure the WIFI module.
When defective, replace the whole unit.
3.2.9 LCD Panel
1. Remove the SSB as described earlier.
2. Remove the PSU as described earlier.
3. Remove the keyboard control panel as described earlier.
4. Remove the stand bracket as described earlier.
5. Remove the IR/LED as described earlier.
6. Remove the fixations screws that fix the metal clamps to the front bezel. Take out those clamps.
7. Remove all other metal parts not belonging to the panel.
8. Lift the LCD Panel from the bezel.
When defective, replace the whole unit.
Page 17
4. Service Modes
4.1 Service Modes
The Service Mode feature is split into following parts:
Service Alignment Mode (SAM).
Factory Mode.
Customer Service Mode (CSM).SAM and the Factory mode offer features, which can be used by the Service engineer to repair/align a TV set.
SAM and the Factory mode offer features, which can be used by the Service engineer to repair/align a TV set. Some features are:
Make alignments (e.g. White Tone), reset the error buffer(SAM and Factory Mode).
Display information (“SAM” indication in upper right corner of screen, error buffer, software version, operating hours, options and option codes,
sub menus).
The CSM is a Service Mode that can be enabled by the consumer. The CSM displays diagnosis information, which the customer can forward to the
dealer or call centre. In CSM mode, “CSM”, is displayed in the top right corner of the screen. The information provided in CSM and the purpose of
CSM is to:
Increase the home repair hit rate.
Decrease the number of nuisance calls.
Solved customers’ problem without home visit.
Note: For the new model range, a new remote control (RC) is used with some renamed buttons. This has an impact on the activation of the Service
modes. For instance the old “MENU” button is now called “HOME” (or is indicated by a “house” icon).
4.2 Service Alignment Mode (SAM)
Purpose
To modify the NVM.
To display/clear the error code buffer.
To perform alignments.
Specifications
Operation hours counter (maximum five digits displayed).
Software version, error codes, and option settings display.
Error buffer clearing.
Option settings.
Software alignments (White Tone).
NVM Editor.
Set screen mode to full screen (all content is visible).
How to Activate SAM
To activate SAM, use one of the following methods:
Press the following key sequence on the remote control transmitter: “062596”, directly followed by the “INFO/OK” button. Do not allow the
display to time out between entries while keying the sequence.
Or via ComPair.
After entering SAM, the following items are displayed,
with “SAM” in the upper right corner of the screen to indicate that the television is in Service Alignment Mode.
How to Navigate
In the SAM menu, select menu items with the UP/DOWN keys on the remote control transmitter. The selected item will be indicated. When not
all menu items fit on the screen, use the UP/DOWN keys to display the next/previous menu items.
Page 18
With the “LEFT/RIGHT” keys, it is possible to:
– (De) activate the selected menu item.
– (De) activate the selected sub menu.
– Change the value of the selected menu item.
When you press the MENU button once while in top level SAM, the set will switch to the normal user menu (with the SAM mode still active in the
background).
How to Store SAM Settings
To store the settings changed in SAM mode (except the RGB Align settings), leave the top level SAM menu by using the POWER button on the
remote control transmitter or the television set. The mentioned exceptions must be stored separately via the STORE button.
How to Exit SAM
Use one of the following methods:
Switch the set to STANDBY by pressing the mains button on the remote control transmitter or the television set.
Via a standard RC-transmitter, key in “00” sequence.
Note: When the TV is switched “off” by a power interrupt while in SAM, the TV will show up in “normal operation mode” as soon as the power is
supplied again. The error buffer will not be cleared.
SAM mode overview
Remark: Under main menu “NVM editor”, choose “Service Data”, you can use the UP/DOWN keys to view and change the set Type number, the
set Production Number or the 18AC of a part.(The NVM-editor still has the same function as before, alpha-numeric entry.)
4.3 Factory mode:
Purpose
To perform extended alignments.
Page 19
Specifications
Displaying and or changing Panel ID information.
Displaying and or changing Tuner ID information.
Error buffer clearing.
Various software alignment settings.
Testpattern displaying.
Public Broadcasting Service password Reset.
etc.
How to Activate the Factory mode
To activate the Factory mode, use the following method:
Press the following key sequence on the remote control transmitter: from the “menu/home” press “1999”, directly followed by the
“Back/Return” button. Do not allow the display to time out between entries while keying the sequence.

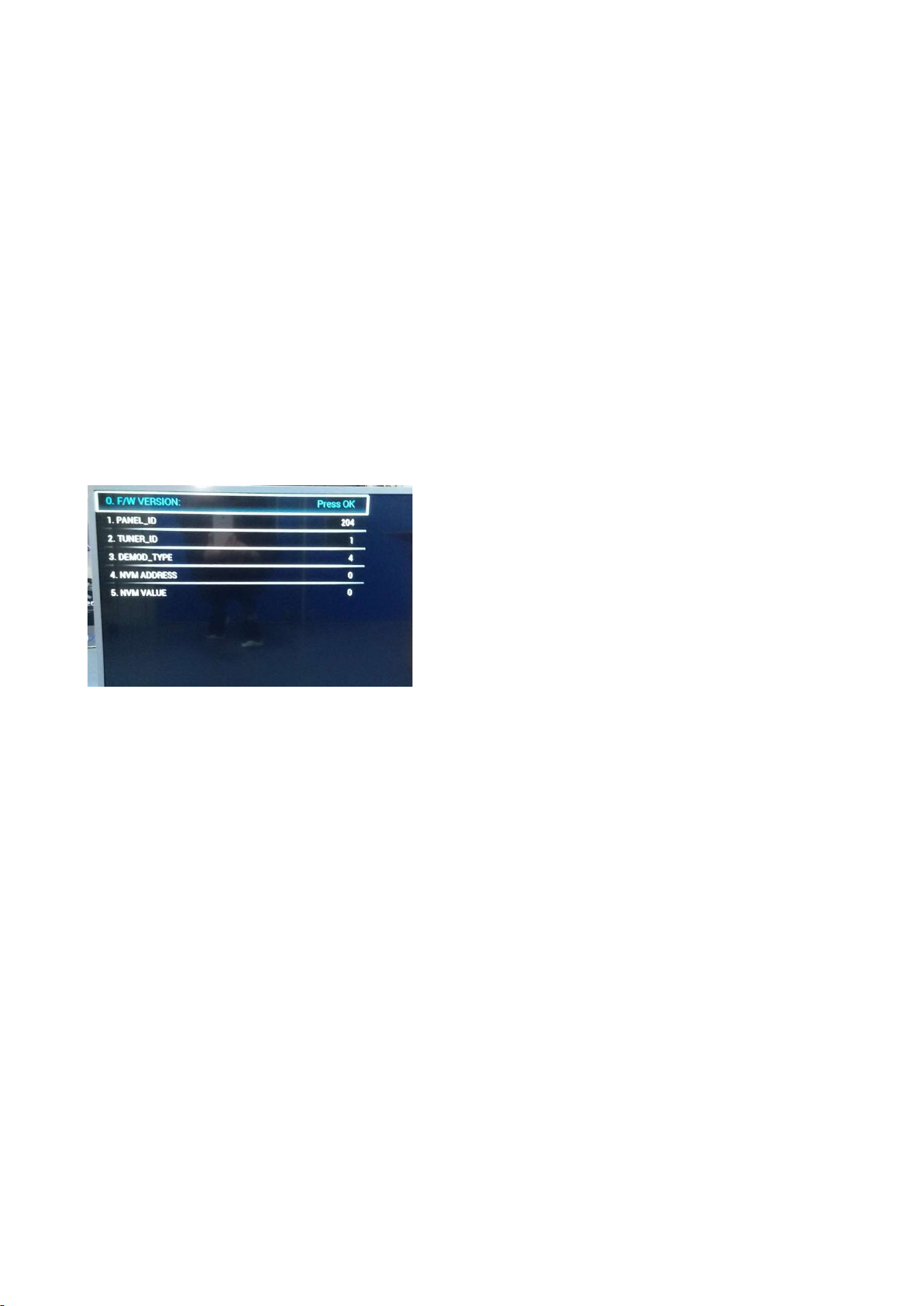

After entering the Factory mode, we can see many items displayed, use the UP/DOWN keys to display the next/previous menu items
Factory mode overview
How to Exit the Factory mode
Use one of the following methods:
Select EXIT_FACTORY from the menu and press the “OK” button.
Note: When the TV is switched “off” by a power interrupt, or normal switch to “stand-by” while in the factory mode, the TV will show up in “normal
operation mode” as soon as the power is supplied again. The error buffer will not be cleared.
4.4 Customer Service Mode (CSM)
Purpose
The Customer Service Mode shows error codes and information on the TVs operation settings.The call centre can instruct the customer (by
telephone) to enter CSM in order to identify the status of the set.This helps the call centre to diagnose problems and failures in the TV set before
making a service call.
The CSM is a read-only mode; therefore, modifications are not possible in this mode.
Specifications
Ignore “Service unfriendly modes”.
Line number for every
line (to make CSM language independent).
Set the screen mode to full
screen (all contents on screen is visible).
After leaving the Customer Service Mode, the original settings are restored.
Possibility to use “CH+” or “CH-” for channel surfing, or enter the specific channel number on the RC.
Page 20

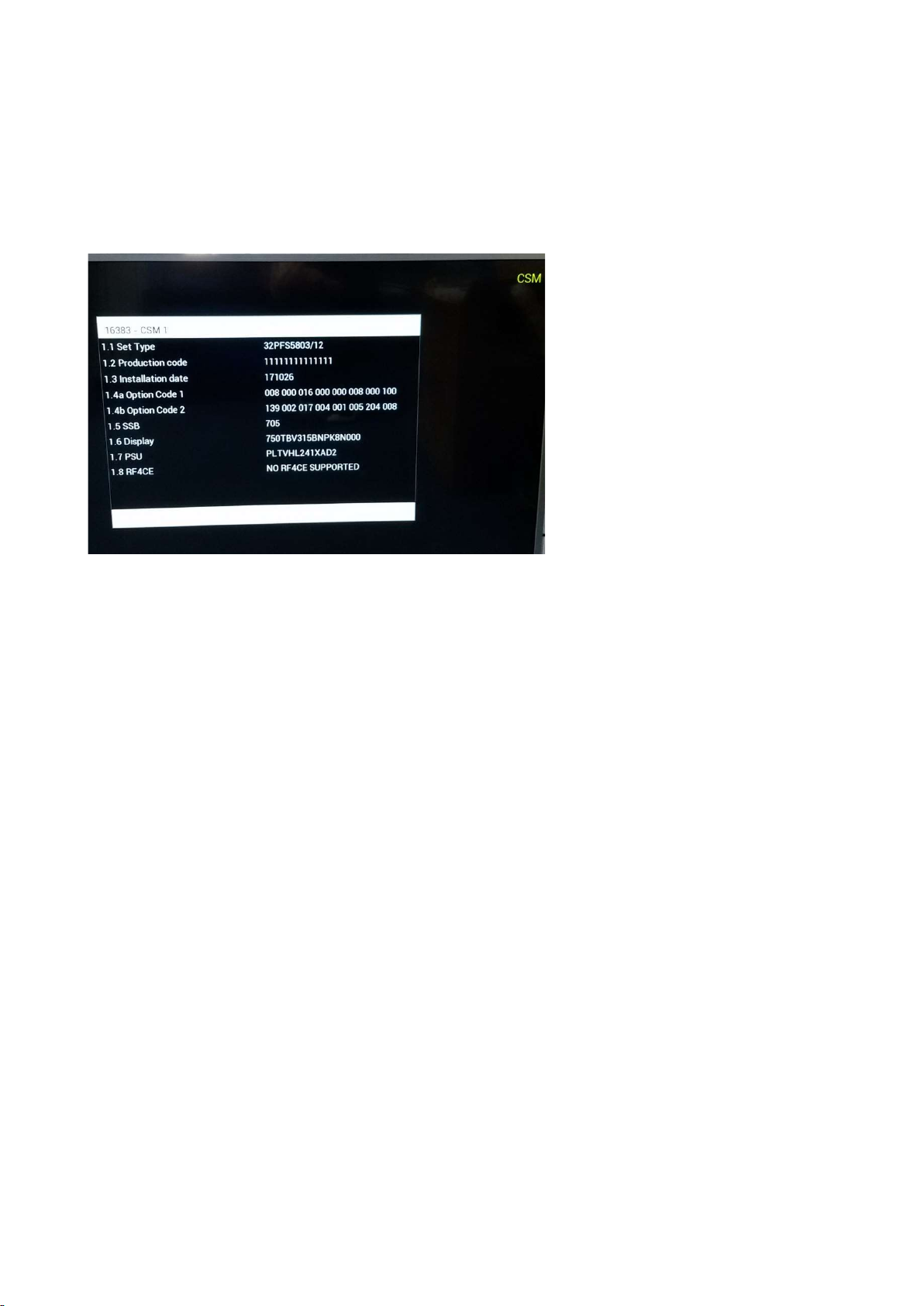

How to Activate CSM
To activate CSM, press the following key sequence on a standard remote control transmitter: “123654” (do not allow the display to time out
between entries while keying the sequence). After entering the Customer Service Mode, the following items are displayed. use the Right/Left keys
to display the next/previous menu items
Note: Activation of the CSM is only possible if there is no (user) menu on the screen!
CSM Overview
How to Navigate
By means of the “CURSOR-DOWN/UP” knob (or the scroll wheel) on the RC-transmitter, can be navigated through the menus.
How to Exit CSM
To exit CSM, use one of the following methods.
Press the MENU/HOME button on the remote control transmitter.
Press the POWER button on the remote control transmitter.
Press the POWER button on the television set.
Page 21
5. Software Upgrading, Error code and Panel Code
5.1 Software Upgrading
Step 1: Ready for F/W Upgrade
1. Rename the software as “autorun.upg”.
2. Prepare a USB memory (File format: FLAT, Size: 1G~8G).
3. Copy the software to USB flash disk (root directory).
Note the version of this F/W before you change the software file name.
Step 2: F/W Upgrade

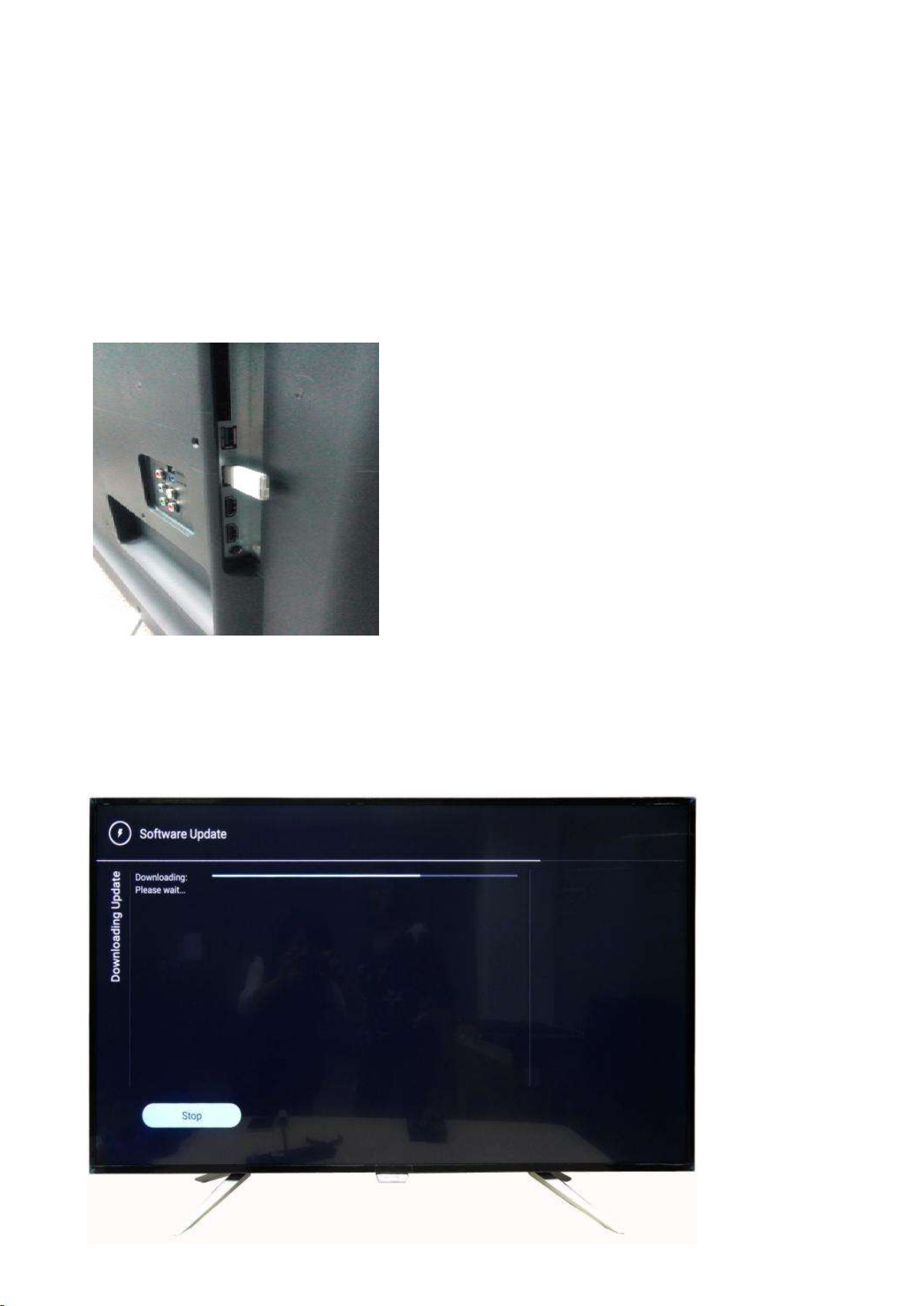

1. Plug the USB memory on the USB port on the side I/O port of TV (Please connect to USB 2.0 port, not recommend USB3.0 port)
2. AC on (Power plug)
3. TV will upgrade automatically as detect the software
Page 22

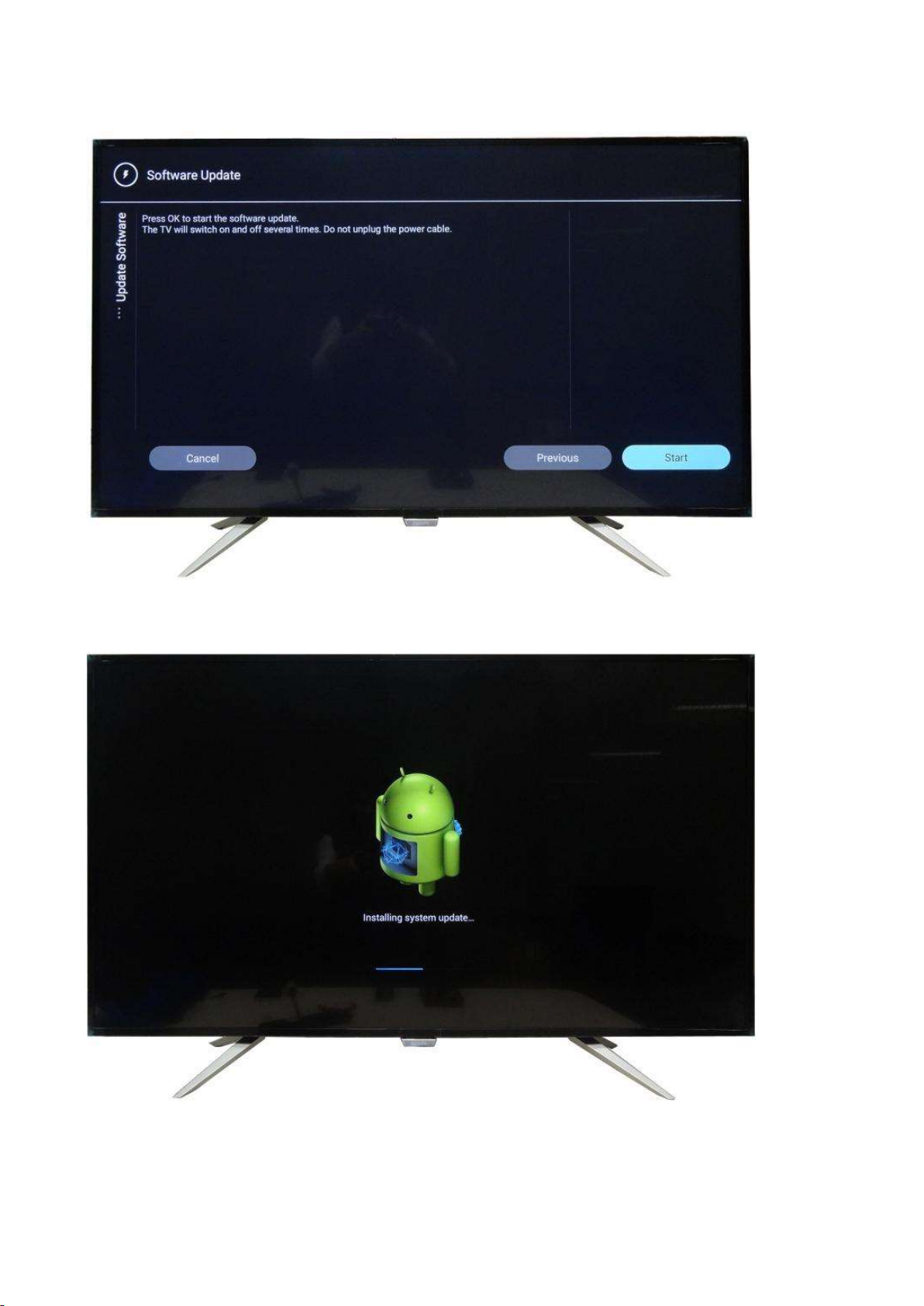

4. Press OK to start software upgrade
5. Upgrade in progress
Page 23
Step 3: Check the SW version
1. After burning software, TV will restart.

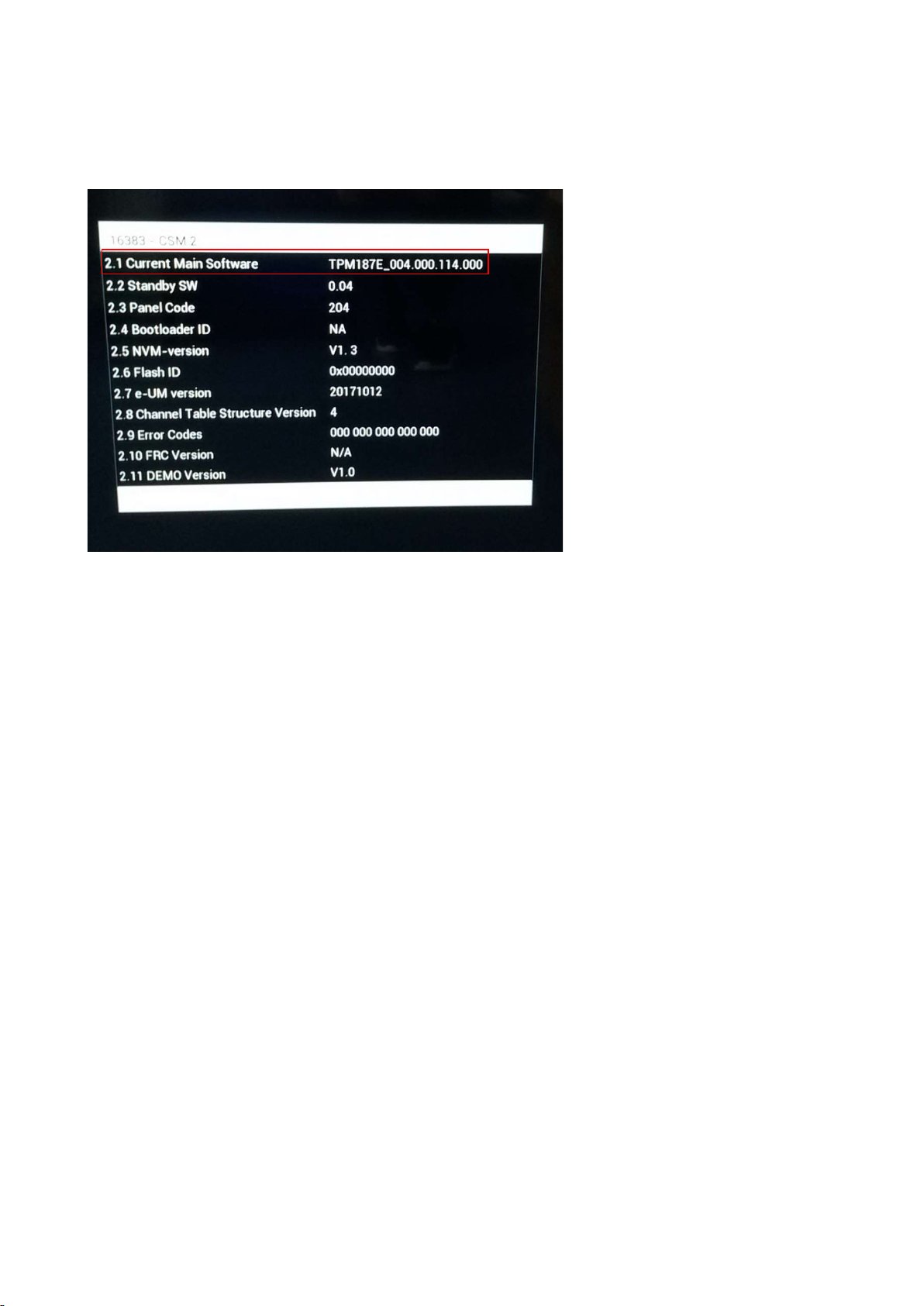

2. Press “123654”, enter Customer Service Mode to check if the software version is correct
Caution: Please make sure that software upgrade is finished before unplug the USB and AC power!
5.2 Error Code
5.2.1 Introduction

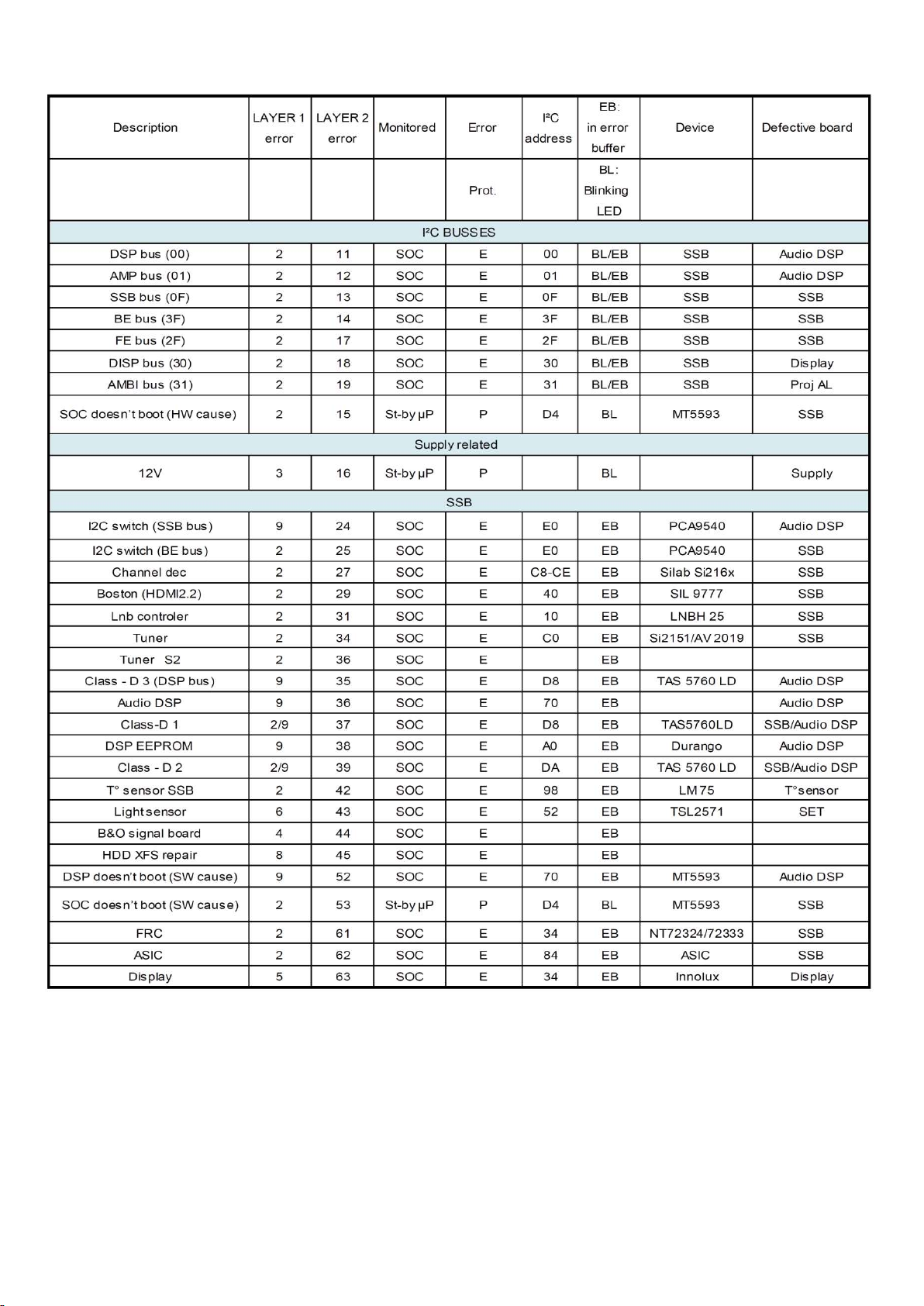

Error codes are required to indicate failures in the TV set. In principle a unique error code is available for every:
• Activated (SW) protection.
• Failing I2C device.
• General I2C error.
The last five errors, stored in the NVM, are shown in the Service menu’s. This is called the error buffer.
The error code buffer contains all errors detected since the last time the buffer was erased. The buffer is written from left to right. When an error occurs that
is not yet in the error code buffer, it is displayed at the left side and all other errors shift one position to the right.
An error will be added to the buffer if this error differs from any error in the buffer. The last found error is displayed on the left.
An error with a designated error code never leads to a deadlock situation. It must always be diagnosable (e.g. error buffer via OSD or blinking LED).
In case a failure identified by an error code automatically results in other error codes (cause and effect), only the error code of the MAIN failure is displayed.
5.2.2 How to Read the Error Buffer
You can read the error buffer in three ways:
• On screen via the SAM/CSM (if you have a picture).
Example:
– ERROR: 000 000 000 000 000: No errors detected
– ERROR: 013 000 000 000 000: Error code 13 is the last and only detected error
– ERROR: 034 013 000 000 000: Error code 13 was detected first and error code 34 is the last detected (newest) error
• Via the blinking LED procedure (when you have no picture).
5.2.3 Error codes overview
In this chassis only “layer 2” error codes are available and point to problems on the SSB. They are triggered by LED blinking
when CSM is activated. Only the following layer 2 errors are defined:
Page 24
5.2.4 How to Clear the Error Buffer
The error code buffer is cleared in the following cases:
• By using the CLEAR command in the SAM menu
• By using the CLEAR command in the Factory mode:
• By using the following key sequence on the remote control transmitter: “062599” directly followed by the OK button.
• If the contents of the error buffer have not changed for 50 hours, the error buffer resets automatically.
Note: If you exit SAM by disconnecting the mains from the television set, the error buffer is not reset.
Page 25
5.3 Panel Code
Press the following key sequence on a standard RC transmitter: “062598” directly followed by MENU and “xxx”, where “xxx” is a 3 digit decimal value
of the panel type: see column “Display Code” in below tab. After resetting the Display Code, restart the set immediately.
CTN_ALT BOM# Panel Type Display Code
32PFS5803/12 TPT315B5-FHBN0.K S49P0K 204
32PFS5823/12 TPT315B5-FHBN0.K S49P0P 204
43PFS5803/12 TPT430H3-DUYSHA.G S1CZ 203
43PFS5823/12 TPT430H3-DUYSHA.G S1CAM 203
50PFS5803/12 SDL500F0(AD0-000) SN SKYWORTH 205
Page 26
Trouble shooting
Picture-related
2016年12月10日
2016/4/8
Ask Photo
SW
issue
N
Intermittent
problem ?
Y
Y
SW latest ?
N
Update SW
N
Problem
solved ?
Y
Finish
Y
Picture ?
N
Backlight?
N
LED working ?
Y
Sound ?
SW+SSB
Y
N
PSU/SSB
Y
PSU+ Panel
Menu Smarkt
function?
N
SSB+LVDS+Panel
RAM
Y
Signal
issue
Page 27
Trouble shooting
Audio/Sound-
related
2016年12月10日
2016/4/8
HW
issue
N
Intermittent
problem ?
Y
SW
Y
SW latest ?
N
Update SW
N
Problem
solved ?
Y
Finish
Y
Sound ?
N
Mute ?
N
Extra device
connect?
N
Factory
setting
Sound back ? Setting issue
N
Y
Y
Check extra
Y
device
Setting
issue
SSB+SPK
Page 28
Trouble shooting system
Smart
N
function
issue ?
N
Intermittent
problem ?
Remark2:
Y
Y
2016年4月11日
2016/12/11
System related
Remark1:
Y
TV start
up ?
N
Network
connect ?
N
Connect network
Y
SW latest ?
N
Update SW
Problem
solved ?
Y
Y
N
SW issue
Commerce way
SCC
available ?
Y
Execute
SCC
Problem
solved ?
Y
N
N
SW update
available ?
Y
SW update
N
Problem
Y
solved ?
N
HW repair
Remark1 : What is System related issue ?
1.Permanent reboots
2.Intermittent reboots
3.No function, no standby LED (set dead)
4.No function, blinking LED
5.Set freezes, intermittently
6.Slow response to user interaction
7.Switches ON by itself
8.Switches Off by itself
9.Stuck in standby mode / unable to start up
10.Stuck on PHILIPS / ANDROID logo
11.CAM not recognized by TV
12.CAM authentication issue
13.Misc CAM issue
14.IP-EPG issues
15.BC-EPG issues
16.PVR issues w/ BC-EPG
17.PVR issues w/ IP-EPG
18.PVR issues / generic
19.EDFU-related issue
20.Features not available in UI / cannot be activated
Remark2 : How to judge intermittent issue ?
1.When the problem happened can be solved by:
1)AC off AC on
2)DC off DC on
3)RC switch different source
2.The problem intermittent happened
Finish
Page 29
7. Electrical Diagram
AUDIO
AMP
Main filter
12V
7.1 Block diagram
U406,U408,U409
DDR3
CN603
HP
U601
SPEAKER AMP
AD87588
CN605
SPEAKER OUT
CI
USB_P0
CI
CN159
USB 2.0
CN163,CN165
MT5800
U401
CN408
LVDS A Port
LVDS A Port
Embedded
DEMOD
CN116
YPbPr/AV
I2S
U402
eMMC
Embedded
RMII PHY
NAND INTERFACE
MII/RMII
CN401
UART0
CN166
Ethernet
HDMI
Tuner IF+/IF-
Tuner IP/QP
HDMIx2
CN501(MHL)/CN503
Tuner IF+/IF-
Tuner I/Q(Single-end)
TUNER
7.2 Power Supply
Power architecture of this platform.
Display power
CN8602
PFC
Platform power
DIM
ON/OFF
PS_ON
12V
12V_A
AC-input +
AC IN
LVDS
12V
Platform
MT5800
CN701
Page 30

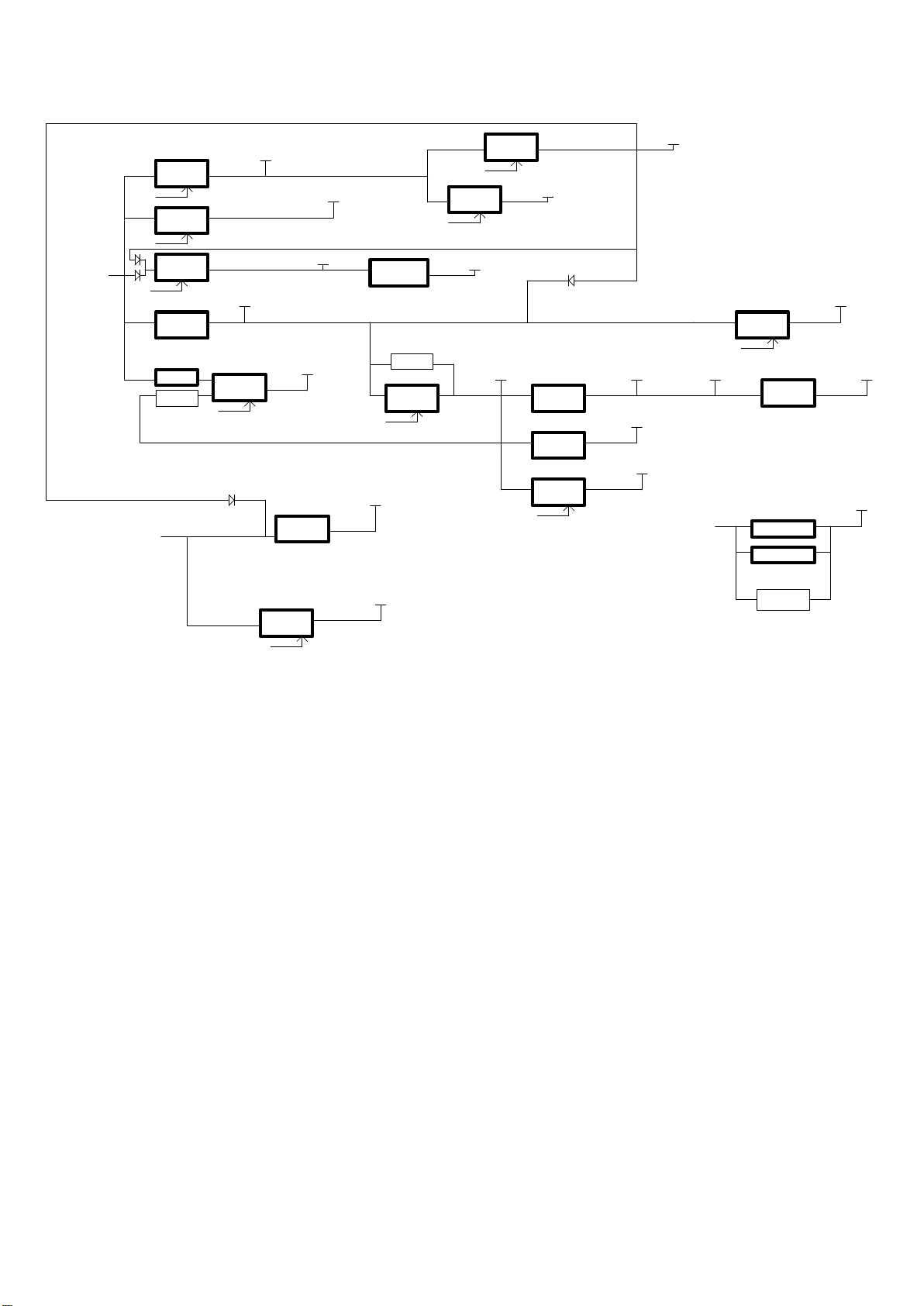

7.3 Power tree
D709
+12V
D708
U713
OPWRSB
U202
LNB_EN
U704
OPWRSB
+5V_USB
+5V_STB
TUNER_LNB
Vcck
FB708
U716
USB_EN_P1
U717
USB_EN_P2
AVDD1V2
USB_PORT1_5V
USB_PORT2_5V
D710
DDRV
U701
FB714
FB713
Q702
LVDS_PWR_EN
D710
+5V_STB
PANEL_VCC
U720
U714
Wi-Fi_PWR_EN
R781
Q706
VCCK
3V3SB
Wi-Fi_Vcc
+5V_SW AVDD3V3
U705
Tuner3.3V
U702
CI_VCC
U102
CI_PWR_EN
12V_AUDIO
DVDD3V3
U719
FB_PWR_EN
+1.8V
U707
PVDD
FB603
FB604
Q710
Page 31

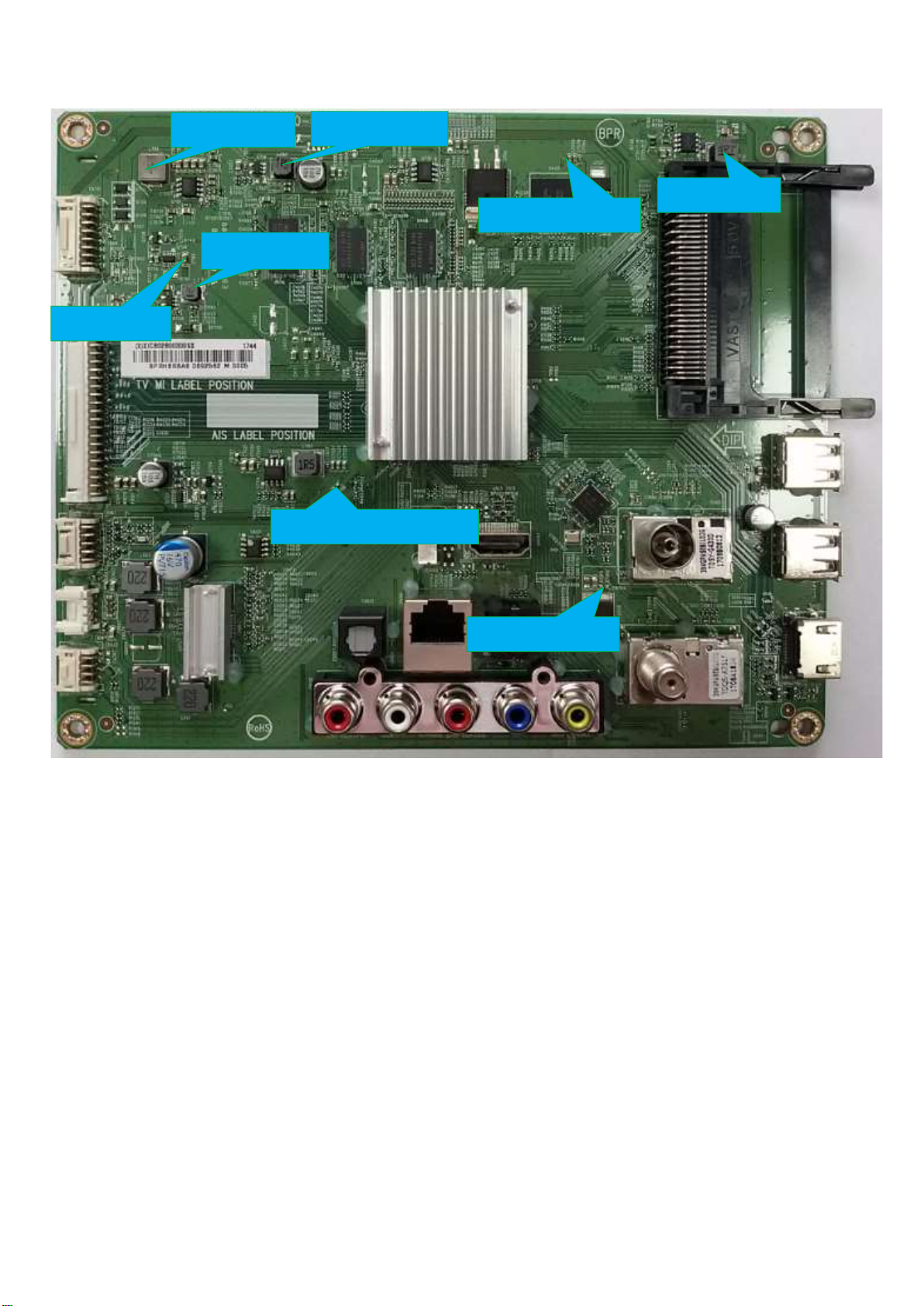

7.4 Power layout SSB
C786 +5V_SW
L701 +5V_STB
L732 +3.3V_SB
L702 +1.5V_DDR
L731 +5V_USB
C7043 +1.8V_EMMC
FB708 +1.2V_CORD POWER
FB705 +3.3V_TUN
Power SSB Top View
Page 32
8. IC Data Sheets

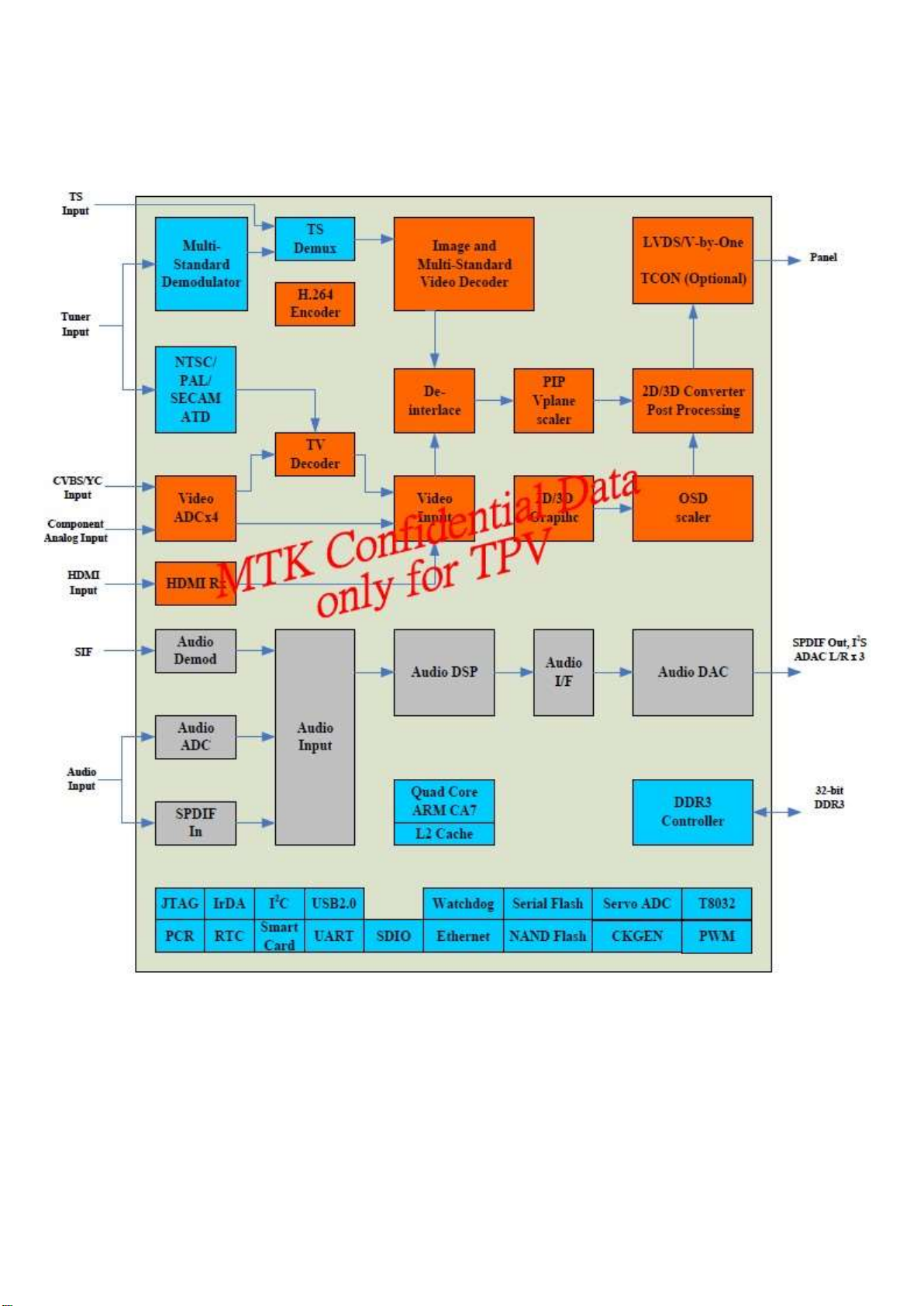

8.1 MT5800VHEJ (IC U401--Scaler)
Page 33

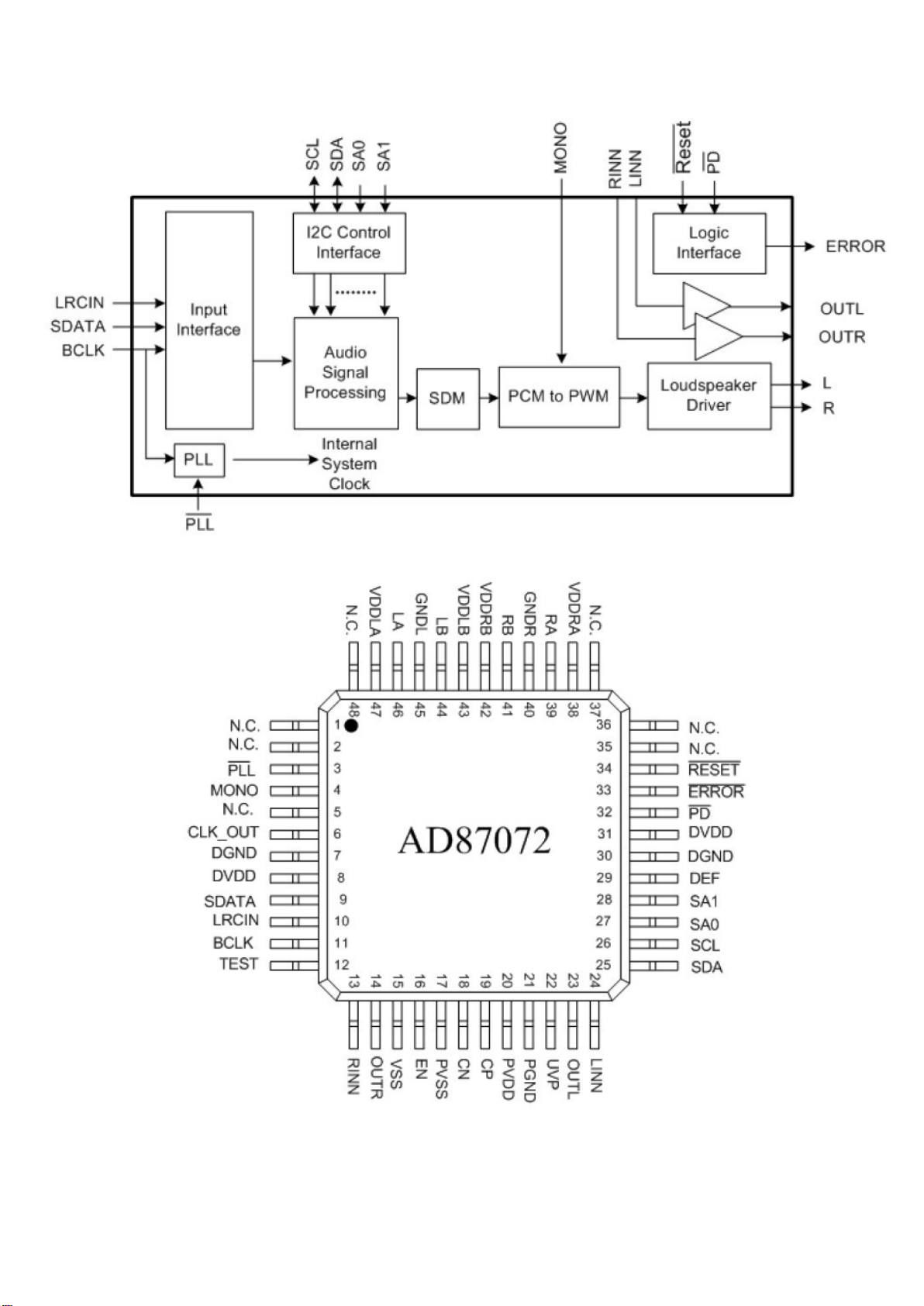

8.2 AD87072-LG48NRY (IC U601--Audio)
Page 34

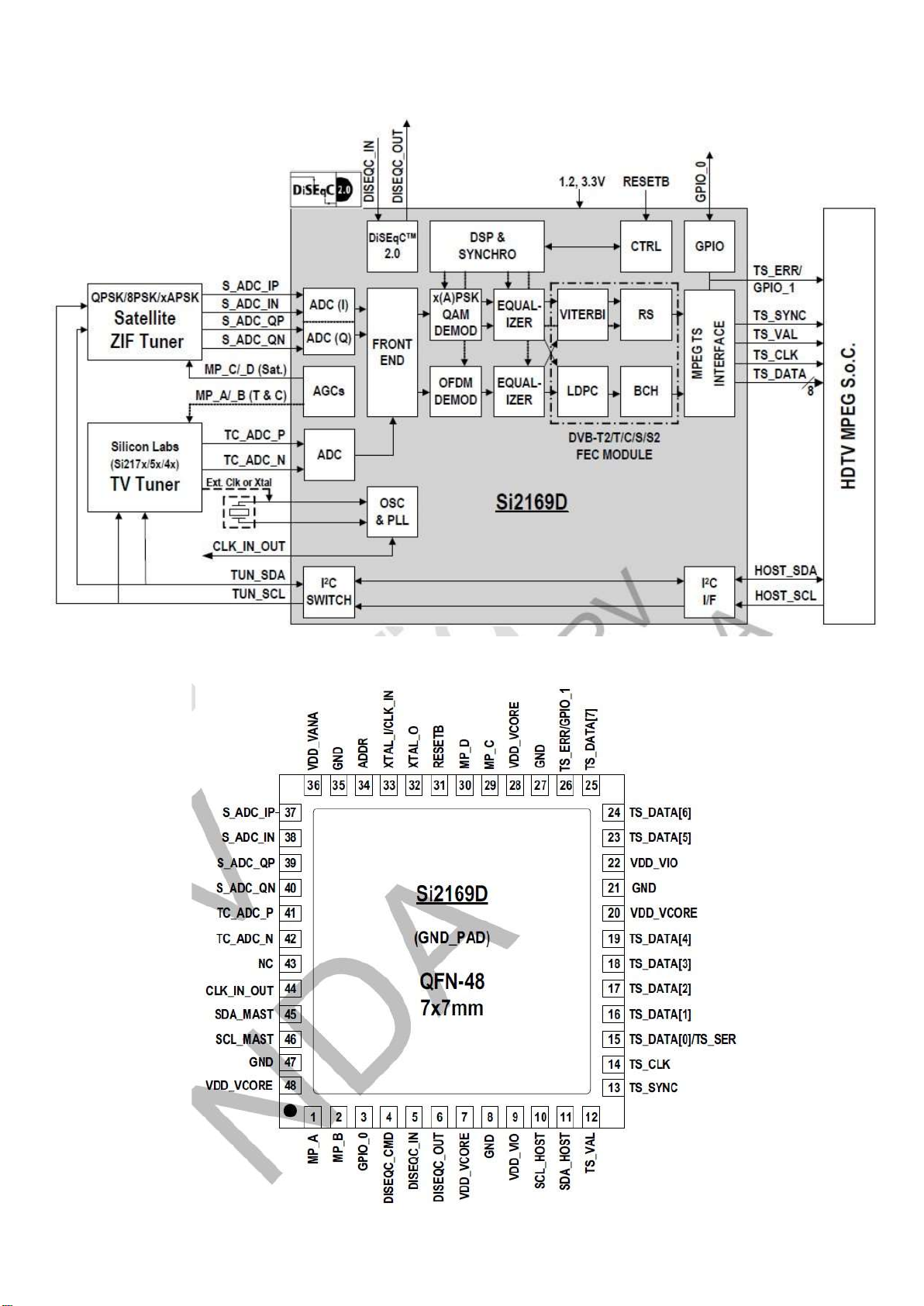

8.3 SI2169-D60-GMR (IC U101--Demodulator)
Page 35

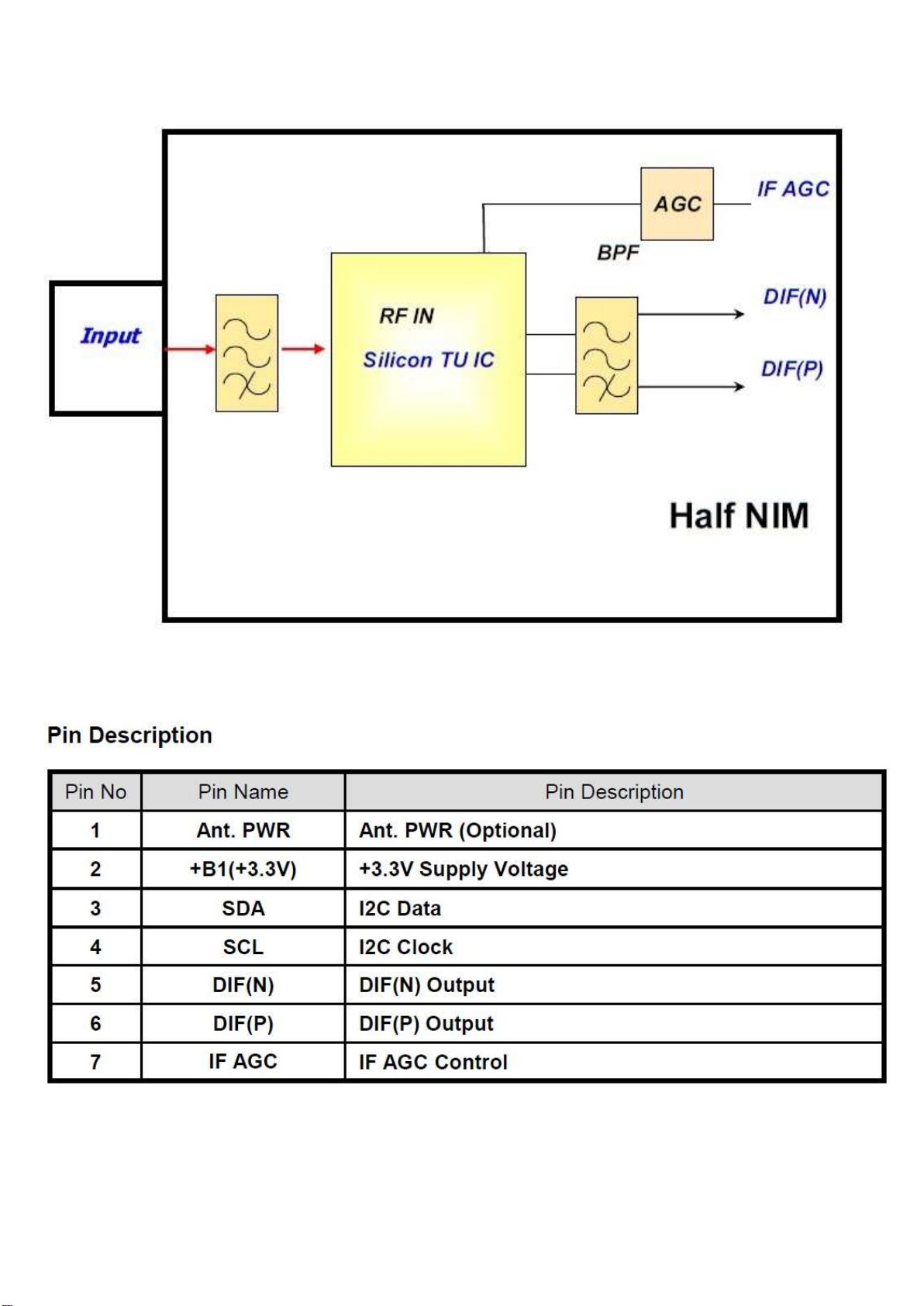

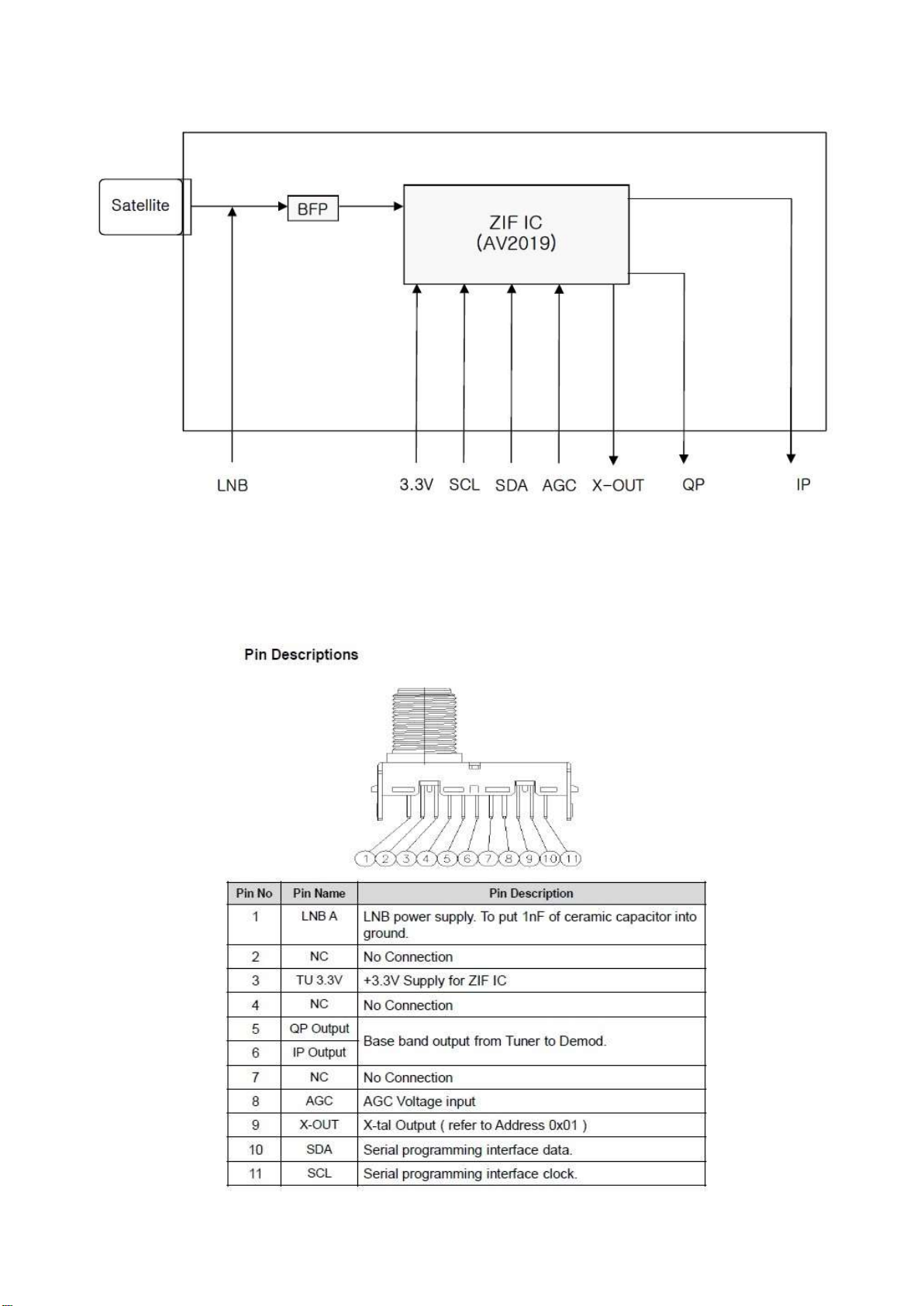

8.4 TDSY-G430D--EUROPE (TU101)
Page 36
8.5 TDQS-A751F--EUROPE (TU102)
Page 37

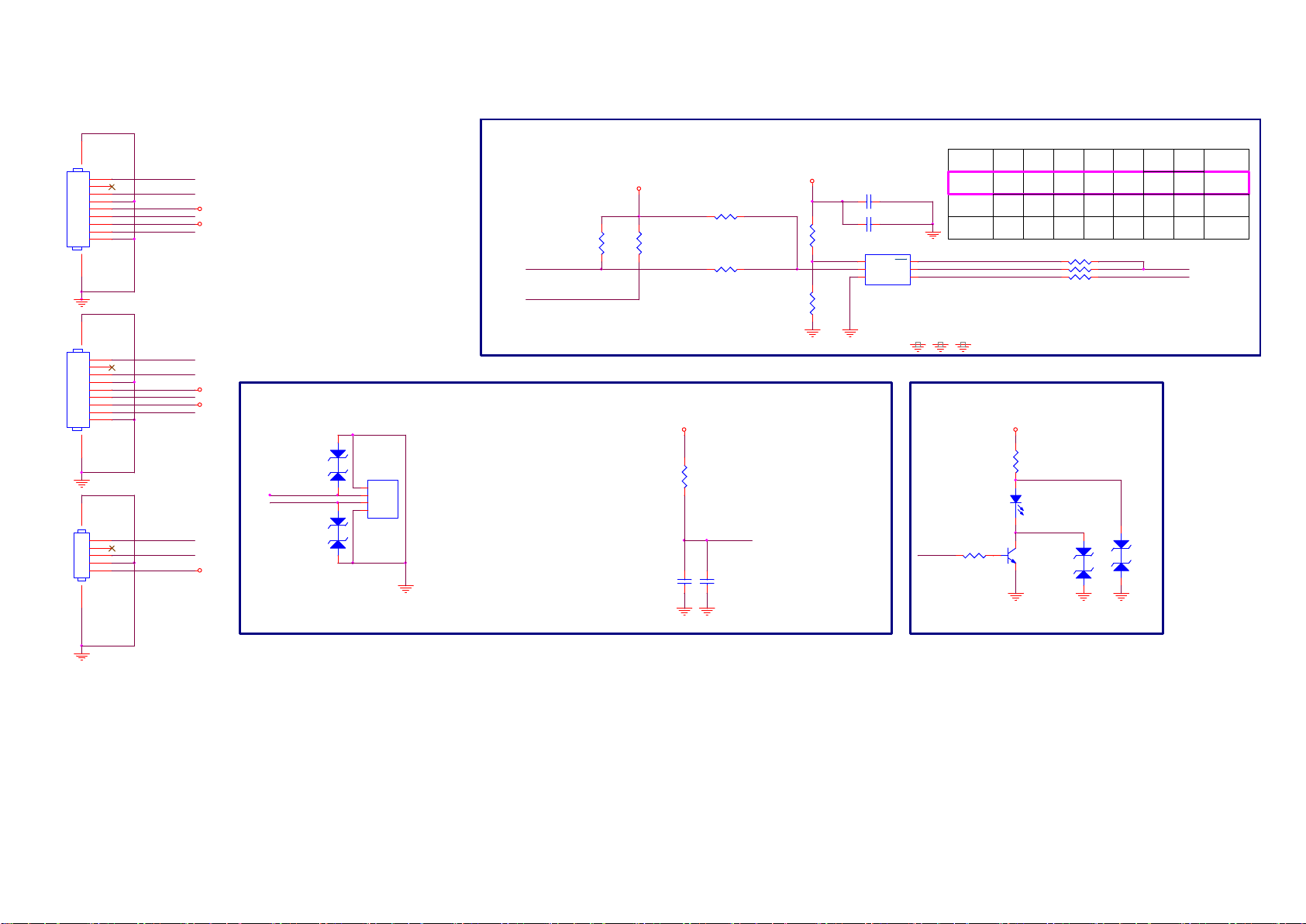

9. Circuit Diagrams

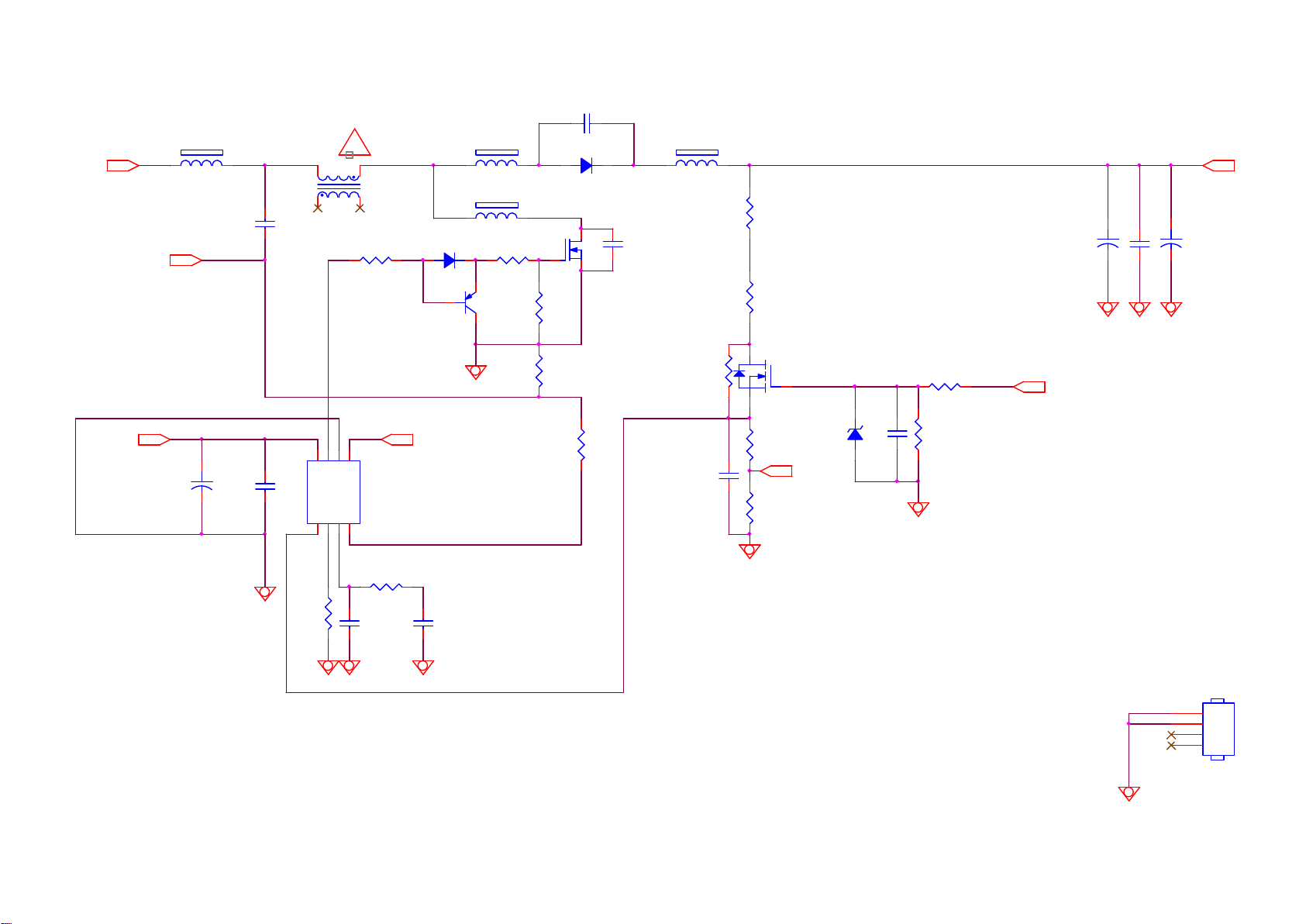

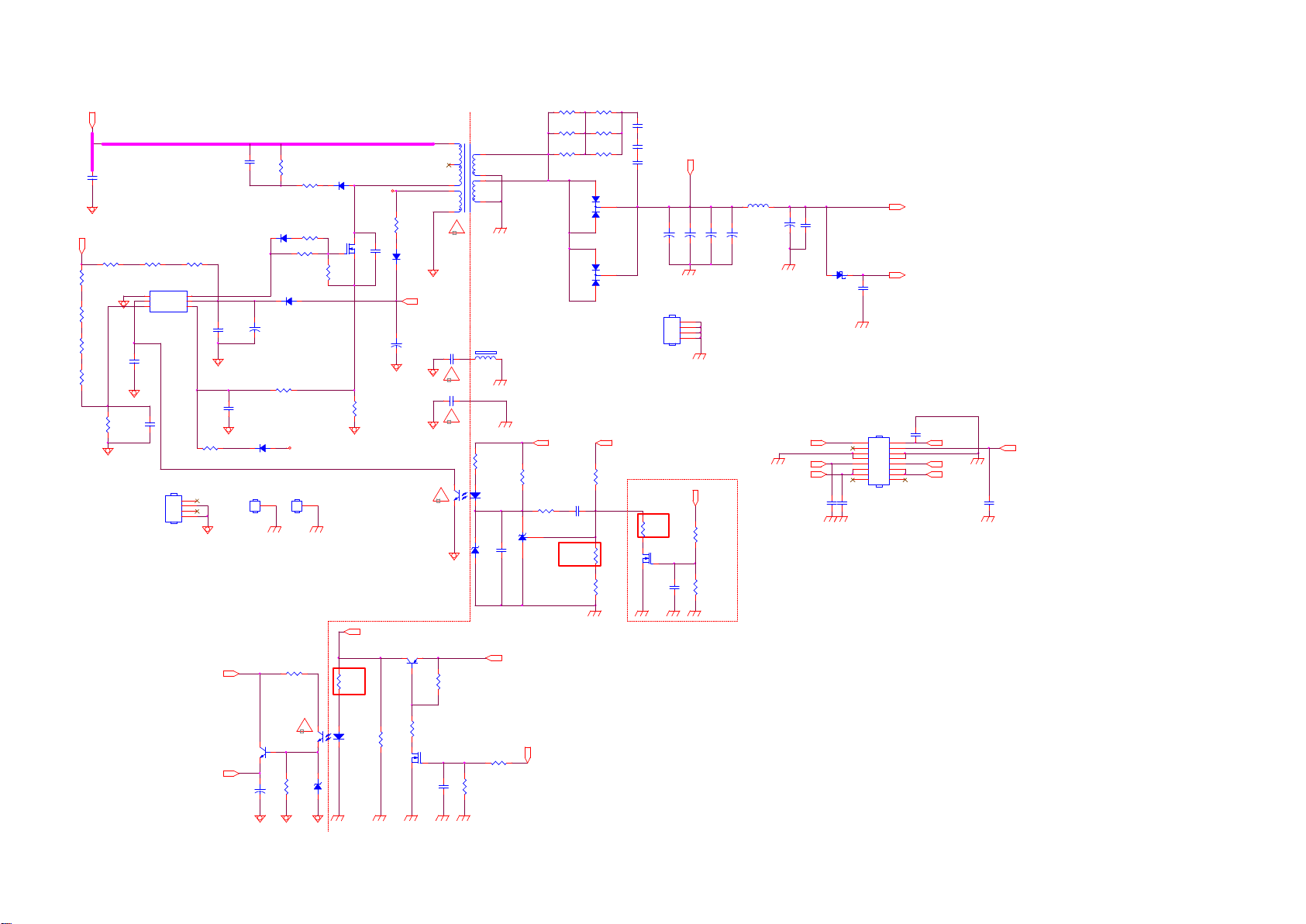

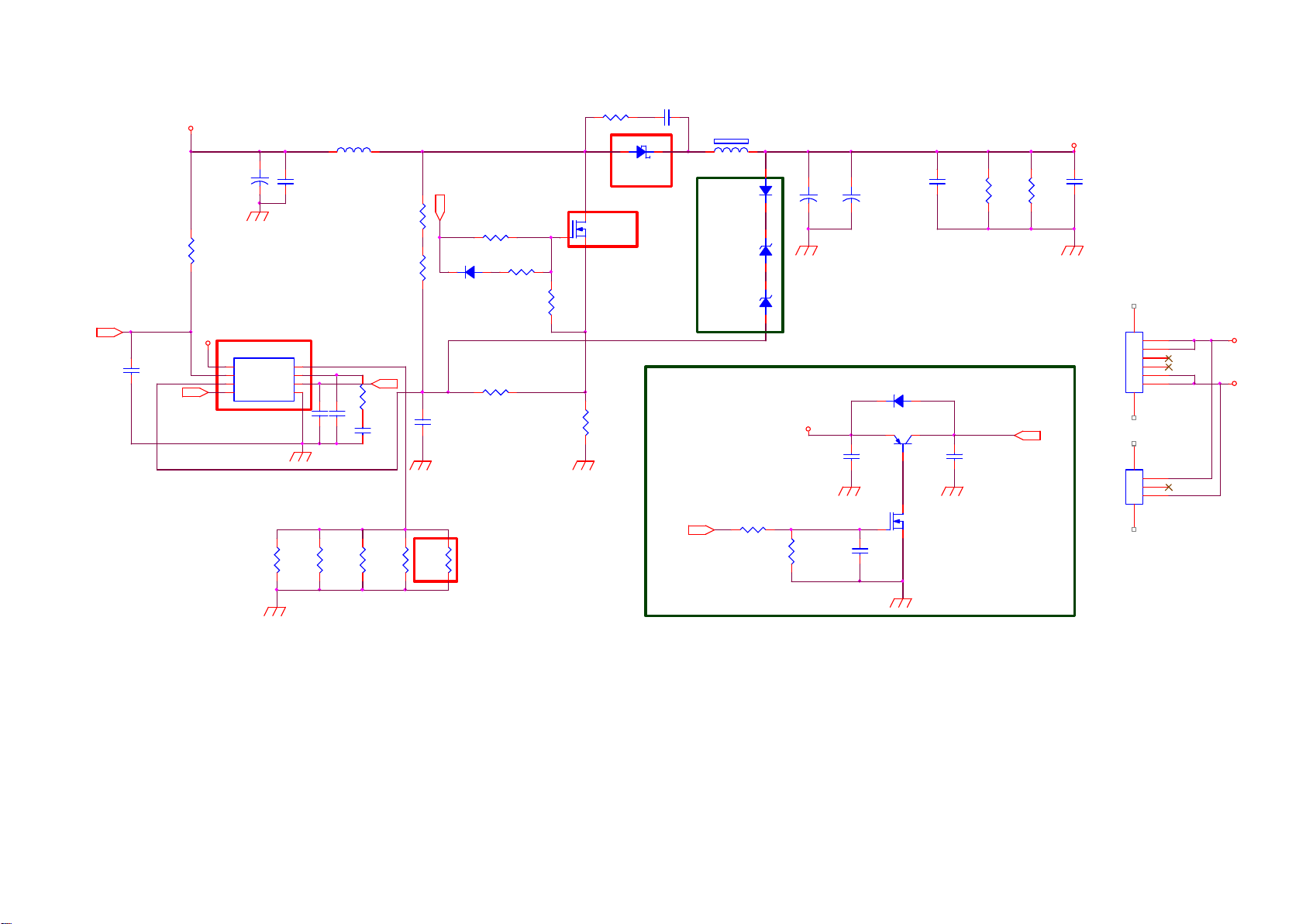

9.1 A 715G7734 PSU (For 32” 5803/5823 Series)

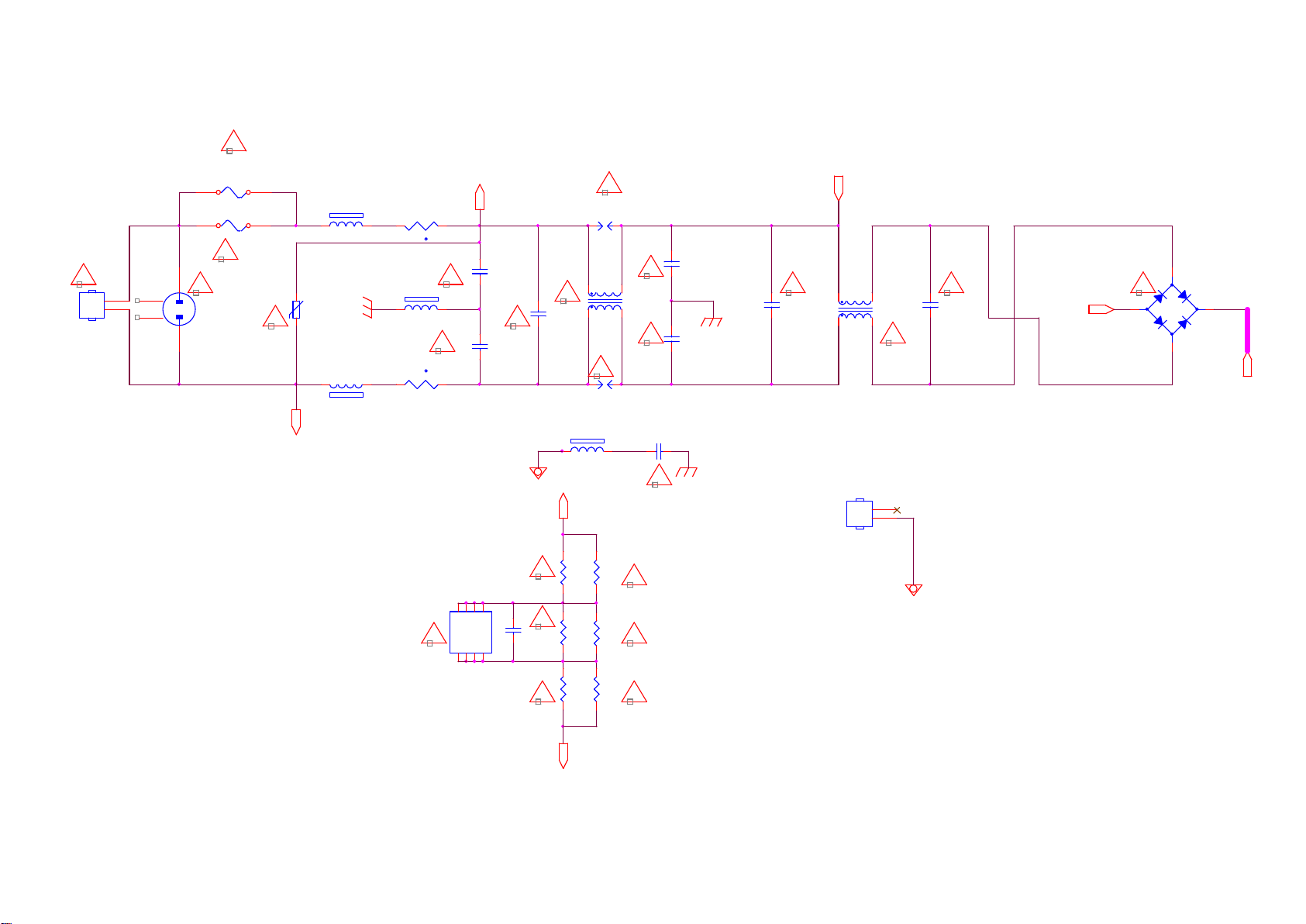

9-1-1 AC Input
A
BD9901
NC/KBJ608G-F UC
4
12
NR9901
2.5R
t
!
3
L9903
4mH
! !
C9903
1000PF 250V
3
SG9902 SG9901
NC NC
L9901
18MH
!
R9903
620K +-1% 1/4W
R9905
620K +-1% 1/4W
R9904
620K +-1% 1/4W
R9906
620K +-1% 1/4W
! !!
C9901
470nF 275V
R9909
CN9902
2
NC/C ONN
N
1
JUMPER
L
U9901
1
NC
2
D1
3
D1
NC4NC
NC/C AP004DG-TL
C9906
NC/47pF
!
RV9901 680V
C9907
100PF 250V
FB9901
!
127R
CN9901
AC 2P
4
-
124
1000PF 250V
!
124
!
R9907
NC
D2
D2
C9910
100PF 250V
BD9902
3
3
GBL408-C
+
2
2
C9902
!!
R9901
620K +-1% 1/4W
R9902
620K +-1% 1/4W
8
7
6
5
R9908
!!
!
F9901
NC/T4AL 250V
12
1
+
12
NC
1
FB9902
127R
3 4
F9902
A
需破孔!!
100uF 450V
R9112
510K 1/4W
R9127
3.3M 1/4W
R9128
3.3M 1/4W
R9114
110K
+12V锣+5.2V(NC)
+12VS
1 2
C9801
R9142
3.3M 1/4W
C9125
1NF
FB9301
1 2
NC/BEAD
C9331
NC/470UF 25V
+
R9102
510K 1/4W
FB9908
BEAD
1 2
1
BNO
2
FB
3
CS
GND4OUT
C9106
330PF 50V
C9124
1NF
+
R9103
510K 1/4W
U9101
PF6005AS
C9336
NC/220N 50V
C9113
2.2NF
D9104
IN4148W
47R 1%
R9146
8
0 OHM +-5% 1/8W
VCC
7
NC
6
VCC
5
+
C9102
2.2UF 50V
R9113
1K 1/4W
note:Q9101
Vac:90~264/Q9101
Vac:108~132/Q9101
Vac:198(176)~264/Q9101
ZD9301
1
PGND
2
VIN
3
AGND
COMP
VCC4FB
U9301
NC/AOZ 3015AI
C9334
NC/100N 50V
C9330
NC/1N 50V
C9103
2.2NF
R9109
10R 1/8W 5%
R9110
D9106
IN4148W
C9104
0.1uF 50V
匡ノ
匡ノ
NC/BZ T52-B5V1
12
8
EN
7
LX
6
5
NC/3K OHM 1%
R9344
R9104
R9106
82K OHM 1%
82K OHM 1%
R9105
R9107
82K OHM 1%
82K OHM 1%
D9103
FR107G-A0
C9126
NC/100PF
Q9101
TK6A65D(STA4,X,M)
R9111
10K OHM +-5% 1/8W
For Q9101
R9101
0.27R 2W
TK6A65D
R9345
NC/20K 1%
C9333
NC/2N 2 50V
R9358
NC/30R 1/4W
HS9101
HEAT SINK
L9301
C9335
NC/2N 2 50V
+
C9105
10UF50V
TK11A65D or 24NM65N
STF8NM50N
匡ノ
1
2
3
4
R9361
NC/30R
R9108
4R7 1/4W 5%
D9105
PR1007G
!
U9102
EL817M(X)
+
+18V
L9101
3UH
R9307
NC/270K +-1% 1/8W
330UF 35V
C9116
+
R9144
NC/8. 2K 1/8W
C9127
1nF 50V
C9129
D9109
SR34H
1 2
+
C9111
470UF 25V
PS_ON
DIM
NC
Standby
筿 溃
Q9106
NC/2N 7002K
PS_ON
+12V_A
+12V
+5.2V
C9140
NC/1N 50V
+12V_A
+12V
C9112
0.1uF 50V
(NC)
PS_ON
R9130
1K OHM
Q9102
2N3904
C9119
0.1uF 50V
CN9101
CONN
1
3
5
7
9
11
13
15
R9143
NC/100K 1/ 8W 1%
R9145
NC/100K 1/ 8W 1%
+18V
ZD9101
BZT52-B22
1 2
470OHM +-5% 1/ 8W
R9129
R9131
1K 1/8W
ON/OFF
2
4
6
8
C9128
10
1nF 50V
12
+12V_A
14
16
+12V
D9110
SR510-22
1 2
D9111
SR510-22
1 2
D9112
SR510-22
1 2
D9101
SR510-22
1 2
R9115
22 OHM 1/4W
R9116
22 OHM 1/4W
R9148
22 OHM 1/4W
R9149
22 OHM 1/4W
R9117
8
NC
9
R9150
6
NC
7
10
D9102
SR515
D9107
SR515
D9108
SR515
5
3
4
2
1
COLDHOT
!
T9101
POWER X'FMR
!
C9904
1NF 250V
1 2
FB9906
NC
1
4
23
+5.2V
NC/10. 5K
C9323
NC/220N 50V
C9332
NC470UF 25V
NC/200R
NC/2K
R9348
R9342
R9347
C9908
NC
R9120
22 OHM 1/4W
R9140
22 OHM 1/4W
R9138
22 OHM 1/4W
!
R9118
NC
R9119
NC
R9139
NC
1 2
C9107
3.3NF 500V
FB9302
BEAD
+12VS
C9121
470uF 25V
+
C9108
470pF 1KV
ZD9104
BZT52-B16G
NC/470uF 25V
C9109
470uF 25V
+
1 2
C9101
C9110
0.1uF 50V
+
R9121
2K4 1/8W 5 %
R9122
9.1K OHM
C9117
220nF50V
U9103
TL431G-AE2-R
R9302
NC/100K 1/8W
C9307
NC/1uF
C9308
NC/1uF
NC/100N 50V
R9123
43K 1/8W 1 %
10K OHM +-5% 1/8W
R9124
9.31K +-1% 1/8W
680R 1/8W 1%
Q9306
NC/P1604ED
C9306
+12VS
R9126
R9141
JUMPER
R9304
NC/100K 1/ 8W
Q9305
NC/2N 7002K
NC
330UF 35V
C9122
+
R9125
620K 1/8W 1%
Page 38
9-1-2 LED DRIVER
Vcc2
C8602
220nF50V
OUT
+18V
330UF 35V
R8602
NC
C8601
U8601
PF7708BS
1
LED
2
VCC
3
CS/OVP
OUT4GND
R8615
22K 1/4W
L8602
47uH
+
C8605
FB
GM
DIM
C8606
1NF
0.1uF 50V
8
7
6
5
0 OHM +-5% 1/ 8W
C8607
220pF 50V
62K 1/8W 1%
R8603
33K 1/8W 5%
C8603
47nF 50V
R8616
R8617
DIM
OUT
Q8601: 357G0763100601 or
357G0763100605
R8604
33R 1/ 8W 5%
D8603
IN4148W RHG
C8610
22pF 50V
R8609
10R 1/ 8W 5%
R8608
4.7KOH M +-1% 1/8W
Q8601
AOD2922
R8647
10K OHM +-5% 1/ 8W
R8601
0R05
C8617
100PF 500V
1 2
D8601
SR506
Add ON/OFF Function
FB8605
BEAD
1 2
D8602
1N4148
ZD8601
BZT52-B18
ZD8602
BZT52-B18
+
1 2
Add OVP Function
1 2
+12V
VLED+
NC/ 220uF 50V
220uF 50V
C8612
+
C8616
D8604
IN4148W RHG
C8604
0.47UF 50V
C8621
0.1uF 50V
Q8603
DTA144WN3/S
R8612
100K
C8611
0.47UF 50V
R8611
NC
C8623
NC
Vcc2
78
45
CN8602
CONN
1
2
3
4
5
6
CN8601
NC/ CONN
1
2
3
VLED+LED-
LED-
Q8602
R8652
1.2R 1%
R8653
1.2R 1%
R8654
1.2R 1%
R8655
1.2R 1%
R8656
1.5R 1%
R8656:
惠璶跑
BOM1.5R
ON/OF F
R8605
1K 1/8W
R8606
330K 1/8W 5%
C8609
0.1uF 50V
2N7002K
Page 39
9.2 A 715G8962 PSU (For 43” 5803/5823, 50” 5803 Series)
9-2-1 AC Input
!
T5AH/250V
!
NC
CN9905
F9903
NC
F9901
T5AL/250V
5A 250V
!
12
3
1
2
4
AC 2P
CN9901
!
FB9901
BEAD
1 2
RV9901
680V
1 2
N
FB9902
BEAD
NR9902
1 2
1R5
FB9905
1 2
127R
NR9901
1R5
1 2
L
t
!
!
t
C9911
22pF 5% 250V
!
C9912
22pF 5% 250V
!
C9901
470NF 275V
FB9903
NC
1 2
!
SG9901
DSPL-501N-A21F
1
2
L9901
17mH
4
3
!
SG9902
DSPL-501N-A21F
!
!
C9923
NC
C9913
220PF 250V
C9914
220PF 250V
!
C9902
470NF 275V
BR
2
1
2
L9902
17mH
4
3
C9903
220NF 30 5V
Rsen-
!! !
4
!
BD9901
TS10K80-01
+
-
1
3
Vsin
N
R9906
510K
U9901
NC
1
4
3
D12D1
NC
!
NC
NC5D26D27NC
8
!
!
C9908
NC/ 47 PF
R9904
510K
R9902
510K
!
R9905
510K
HS9901
HEAT SIN K
1
2
!
R9903
510K
!
R9901
510K
!!
L
Page 40
9-2-2 PFC with LD7592GS
Vsin
1 2
FB9801
127R
Rse n-
C9801
47PF
FB9802
EQ32
C9804
MPP 0.47F 10%
31
!
4
L9801
300uH
5
R9803
51 OHM 1/ 4W
D9804
SS1060FL
Q9803
MMBT2907A
BEAD
1 2
FB9805
BEAD
1 2
STF24NM60N
R9802
51 OHM +-5% 1/ 8W
R9805
10KOHM
D9801
FMNS-1106S
Q9801
R9808
0.082R
1:50K
C9817
220PF
FB9803
BEAD
1 2
1.5M 1%
1.5M 1%
R9818
NC/ 0R05 1/4W
R9804
R9806
HV
56UF 450V
+
C9803
3
Q9802
BSS127
1
2
R9817
10K 1/4W
VCC_ON
+
C9805 56UF 450V
C9802 10NF 1KV
VCC_ON PFC_OV P
C9806
10uF/50V
+
C9809
100N 50V
6
8
5
OVP
OUT7VCC
GND
INV1RAMP2COMP3CS
4
R9813
24K OHM 1% 1/8W
47N 50V
U9801
LD7592
10K 1/8W
R9814
C9812
C9813
0.47UF 50V
R9800
1K5 1% 1/ 8W
C9810
470PF 50V
R9812
1K +-1% 1/8W
PFC_OV P
R9811
18K +-1% 1/8W
C9814
ZD9801
NC
100N 50V
1 2
R9816
100K 1/8W
HS9801
1
2
3
4
HEAT SIN K
For Q9801, D9802
Page 41
9-2-3 Main Power
HV
C9113
1NF
BR
From AC L
R9113
4.7M 1%
R9114
3.6M 1%
R9105
200K 1%
R9127
200K 1%
R9141
120K OHM 1% 1/8W
ON/1.05V
OFF/0.8V
V/1.414
1.5M 1%
R9156
1M +-1% 1/4W
C9144
1NF 50V
R9157
U9101
1
GND
2
COMP
BNO3CS
LD5537
C9103
2.2nF 50V
20K +-1% 1/4W
OUT
VCC
HS9101
1
2
3
4
HEAT SINK
For Q9101
R9158
6
5
4
R9117
NC/75 KOHM +-1% 1/8W
C9111
1.5NF
C9139
100N 50V
C9102
470PF 50V
GND1
GND
R91 47
82K 2W
SS1060FL
C9147
+
4.7uF 50V
200 OHM 1/4W
D9106
NC/BAV21W-G
1
R91 42
22R 5%
R9104
D9103
22 1/8W 5%
R9106
100OHM
10K OHM +-5% 1/8W
D9105
1N4148W
R9103
CS_OVP
GND2
GND
new part(ER31)
380GL32P141J03
D9102
SARS01-V1
Q9101
STF24NM65N
R9107
1
CS_OVP
R9101
0.24R 2W
C9115
100PF
R9112
3.3 OHM 1/4W
D9104
FR107G-A0
+VCC1
C9145
47UF 50V
+
5
4
3
2
1
C9922
470PF 250V
!
C9920
470PF 250V
!
!
T9102
POWER X'FMR
!
1 2
12
43
1 2
COLDHOT
10
6
9
7
FB9904
BEAD
R9119
1K5 1% 1/8W
U9102
EL817M(X)
ZD9106
BZT52-B15
C9143
1uF
27 OHM 1/4W
27 OHM 1/4W
27 OHM 1/4W
12VS
R9118
1K OHM +-5% 1/8W
R9121
1K 1/8W 1%
U9103
AS431AN-E1
1K5 1% 1/8W
R9108
R9109
R9110
C9118
470NF 50V
2K2 1/8W 1%
R9115
R9116
R9132
27 OHM 1/4W
R9133
27 OHM 1/4W
R9134
27 OHM 1/4W
D9107
3
FCH20E10
2
1
D9108
3
FCH20E10
2
1
12VS
R9120
9.1K 1%
C9136
2N2 50V
C9137
2N2 50V
C9138
12VS
2N2 50V
+
C9106 470UF 25V
HS9102
HEAT SINK
For D9107
R9129
6.2K OHM +-1% 1/8W
Q9106
2N7002K
1
2
3
4
C9140
DV5
1N 50V
R9130
100K 1%
R9131
100K 1/8W 1%
L9105
3UH
C9110
+
BL_ON/OFF
+12V_A
+12V
C9134
2N2 50V
1 2
D9109
SR34H-NC
C9141
1uF
C9142
1uF 50V
150UF 25V
+
C9109 470UF 25V+C9108 470UF 25V+C9107 470UF 25V
+12V
+12V_A
C9135
2N2 50V
CN9102
15
13
11
9
7
5
3
1
CONN
C9119
1N 50V
16
14
12
10
8
6
4
2
DIM
+12V_A
+12V
C9146
100NF 50V
PS_ON
+VCC1
Q9401
BTC4672M3
VCC_ON
C9401
+
10uF/50V
R9402
20K 1/8W 1%
R9401
3K
!
U9401
EL817M(X)
ぃ筿溃,э
R9407
100 OHM 1/4W
R9408
510K 1% 1/8W
Standby
12VS
PS_ON
DV5
R9403
1K 1/4W
12
43
ZD9401
BZT52-B16
1 2
R9404
10K 1/4W
Q9402
MMBT3906
1
R9405
10K OHM
23
R9406
1K5 1% 1/8W
Q9403
L2N7002KSLT1G
C9402
100N 50V
120R
Standby
筿溃
.
Page 42
9-2-4 LED
HV
C8610
470NF 50V
C8601
1N 50V
1
2
3
C8637
470P 50V
C8617
1NF
U8601
CT
FB
CS
GND4OUT
PF6002AS
R8603
470 OHM 1/4W
VCC
VCC
NC
C8602
100N 50V
CN8601
R8616
47K 1/8W 1%
R8612
36K 1/8W 1%
1
2
3
4
5
6
7
8
9
10
11
12
CONN
+VLED
R8628
NC
R8629
NC
C8635
NC
C8636
NC
+VLED
HOT
C8620
1.5NF
160R 1%
D8606
R8602
47OHM +-5% 1/8W
R8657
R8601
22R
160R 1%
R8604
10K OHM 5% 1/8W
R8655
160R 1%
R8654
160R 1%
+
C8640
10uF/50V
VCC_ON
JR8601
0R05 1/4W
SS1060FL
8
7
6
5
R86 06
82K 2 W
D8603
SARS01-V1
R8658
R8659
200 OHM 1 /4W
R8660
200 OHM 1 /4W
R8662
200 OHM 1 /4W
R8663
200 OHM 1 /4W
C8603
NC/47PF
HS8603
For Q8601
HEAT SINK
1
2
3
4
Q8601
STF24NM65N
R8617
0R18 5%
COLD
new part(EQ33)
T8601
POWER X'FMR
1
11
8
4
122
5
7
6
!
R8615
1K OHM +-5% 1/8W
C8633
4N7 50V
!
12
43
U8603
EL817M(X)
C8625
NC
1 2
ZD8603
BZT52-B27
D8601
FMXA-1104S
D8602
FMXA-1104S
R8620
300 OHM 1/4W
R8621
300 OHM 1/4W
R8637
300 OHM 1/4W
R8639
300 OHM 1/4W
R8609
1K OHM +-5% 1/8W
R8610
3K9 1/8W 5%
20K 1/4W
U8604
AS431AN-E1
C8624
100P 50V
12
12
R8622
300 OHM 1/4W
R8623
300 OHM 1/4W
R8638
300 OHM 1/4W
R8640
300 OHM 1/4W
R8611
C8638
0.1uF 50V
R8613
9K1 1/8W 1%
HS8604
HEAT SINK
For
D8601/D8602
C8611
100PF 500V
C8612
100PF 500V
NC/0R 05 1/4W
1 2
FB8601
BEAD
1
2
1 2
3
4
+
C8605
120uF 100V
R8635
ZD8605
ZD8606
1 2
BZT52-B4V7
BZT52-B4V7
VLED
R8613+R8616+R8612=9.1K+36K+47K=25~38.7V
R8614
13K 1/8W 1%
+
C8606
120uF 100V
VLED
+VLED
-VLED-1
+VLED
VLED
L8601
3UH
+
C8609
220uF 50V
78
1
CN8602
2
CONN
3
4
5
6
C8626
2.2NF
-VLED-1
+VLED
R8651
100K
For LPB fu nction
+24V for PSU function
R8652
100K
HS8601
For U8605
HEAT SINK
1
2
BL_ON/OFF
12VS
-VLED-1
DIM
C8634
NC
10K 1/4W
R8618
C8618
NC
C8622
NC
1
2
3
C8613
100N 50V
U8605
DIM
COMP
EN
VCC
LED4GND
TPV101AD
8
7
GM
6
R8624 1.2R 1%
ISET
R8625 1.2R 1%
5
One channel 1.94A:1.2Rx8
R8619
0 OHM +-5% 1/8W
R8630 1.2R 1%
R8631 1.2R 1%
R8632 1.2R 1%
R8626 1.2R 1%
R8627 1.2R 1%
R8633 1.2R 1%
C8614
1uF
Page 43
9.3 B 715G9237 SSB
9-3-1 System Power 1
DC POWER INPUT
12V_AUDIO 12V_AL 12V_AL 12V_AU DIO+12V
C7072
C7068
100nF 16V
12V to Core Power
DRAM Power
11,15
OPCTRL10
1NF 50V
INVERTER_ON _OFF
+5V_STB
U720
4
5
FB
SY8088AAC
R7013
OPWRSB
100R 1/16W 5%
C7026
NC/100N 16V
Vout=0.765x (1+6.8K/12 K) =1.198V
Synchronous buck for 5.5A output Current
FB_PWR_EN
OPCTRL1211
BL_ON/OFF
BL_ ON/OFF:
Inverter o n: Low
Inverter o ff: High
CN701
STB_PWR+12V
2
1
4
3
6
5
8
7
10
9
12
11
14
13
16
15
CONN
L732
LX3IN
2
GND
1
EN
R748
10K 1/16W 5 %
R742
18K OHM 1%
U704
1
EN
2
FB
3
VREG5
SS4GND
C7031
RT6206BHGSP
1UF 10% 1 6V
C7032
8.2NF 50V
+5V_STB
3V3SB
C7023
10UF 10V
100nF 16V
R7008
4K7 1/16W 5 %
Vout = 0.6x(1+R1/R2)
Vout = 0.6*(1+(15K+330)/10K)=1.5198V
INVERTER ON/OFF
INVERTER_ON_OFF
R1074
4K7 1/16W 5%
C7022
2.2uH
+5V_STB
GND
VIN
BOOT
SW
STB_PWR
PS_ON/OFF
BRIGHT_ADJ
9
8
7
6
5
C7071
NC/10U F 10V
3V3SB
R746
75K 1/16W 1 %
R751
6K2 1/10W 1 %
100nF 16V
C7024
100nF 16V
U719
5
FB
4
IN
SY8089AAAC
8,11
R7003
100R 1/16W 5%
3V3SB
R7002
4K7 1/16W 5 %
R7004
NC/22K 1 /16W 5%
OPWRSB
OPWRSB:
Normal: High
Stand_by: Low
OPWRSB
Vout=0.6x (1+(75K+6K2)/18 K) = 3.3V
C7045
C7019
GND
EN
C7083
68P 50V
L703
1.5uH
(650KHz)
0R05 1/16W
1
2
3
LX
R7011
10UF 6. 3V 20%
C7020
6K8 1%
R7101
R7015
12K 1%
10UF 16V
R7014
L702
1.5UH
10K 1% 1/16W
1 2
C7021
10UF 16V
C7033
22PF 50V
C7034
NC/100N 16V
C7073
0.1uF 25V
FB707
120R 3A
C7027
R7010
15K 1%
R7108
330R 1%
100nF 16V
C7074
NC/1N F 50V
R787 NC/0R05
10UF 6. 3V 20%
C7028
C7029
DDRV
C7017
10UF 6. 3V 20%
C7075
NC/1N F 50V
D708 FB340M
D709 FB340M
VCCK
10UF 6. 3V 20%
C7030
C7018
10UF 6. 3V 20%
BRIGHT ADJUST
BL_DIMMING
BL_ DIMMING(PWM for
BRIGH T_ADJ):
Max: 0V
Min: +3 V3
BL_DIMMING
R1081
4K7 1/16W 5 %
4,5
1 2
12
12
FB708
1 2
120R 3A
10UF 6. 3V 20%
BRIGHT_ADJ
C1054
NC/10U F 16V
ZD705
BZT52-B3V6
+12V
USB_PORT1_5V
AVDD1V2
+12V to +5V_ST B
+12V
C7078
1NF 50V
Add by 2016-0304
Near CN701 For EMI
+5V_SW to AVDD3V3
+5V_SW to +3V3_TUNER
Emmc
DVDD3V3
+12V
+5V_SW
C7067
100nF 16V
C7041
C7040
10UF 6.3V 20%
NC/10U F 10V
C7009
1UF 10V
FB701
1 2
120R 6A
10UF 16V
R7001
33K 1/16W 5 %
C7062
10UF 10V
U707
AZ1117CH-1.8TRG1
3
VIN
C7048
100nF 16V
C7001
R7007
33K 1/16W 5 %
U705
AZ1084CS2-3.3TRE1
VIN3VOUT
C7063
1
10UF 10V
U702
AZ1117D- 33
VI3VO
GND
1
VOUT
ADJ(GND)
4
1
4
C7013
100nF 16V
2
GND
2
2
C7016
1UF 10% 16V
10UF 6.3V 20%
C7064
C7010
10UF 10V
10UF 6.3V 20%
C7039
L701
1
2
3
C7014
8.2NF 50V
C7015
1UF 10% 1 6V
U701
EN
FB
BOOT
VREG5
SS4GND
RT6206BHGSP
22K 1%
9
GND
8
VIN
7
6
SW
5
R7006
C7007
100nF 16V
3.3UH
C7008
22PF 50V
R7005
124K 1%
R7009
3.6K +-1% 1/16W
Synchronous buck for 5.5A output Cur rent
Vout=0.765x (1+(124K+3K6)/22 K) = 5.202V
+5V_STB TO +5V_SW BY VCCK
AVDD3V3
C7066
ZD704
100nF 16V
10UF 6.3V 20%
C7065
BZT52-B3V6
1 2
DVDD3V3
C7077
1NF 50V
12V_AUDIO to PVDD
+3V3_TUNER+5V_SW
FB705
1 2
120R 3A
C7011
NC/10UF 10V
14
USB_PORT1_5V
+1.8V
C7044
100nF 16V
10UF 6.3V 20%
C7043
USB_PORT1_5V
VCCK
C7002
100nF 16V
C7003
10UF 10V
R740
2K7 1/16W 5 %
C7079
100nF 16V
VCCK
C7004
C7005
10UF 10V
10UF 10V
NC/5.1KOH M +-5% 1/10W
R7783
NC/2K7 1 /16W 5%
FB702
120R 6A
C7006
10UF 10V
C716
R733
33K 1/10W 5%
22KOHM 1/10W
Q708
MMBT3904
R7780
NC/10K 1/ 10W 5%
R7781
C7082
NC/100nF 16V
+5V_STB
D710 FB340M
C7076
1NF 50V
R781
NC/0R 05
Q706
1
8
D
D
2
7
D
D
3
6
D
D
5
G4S
AON4421
1UF 10% 1 6V
R738
+5V_S TB TO +5 V_SW BY VCCK
FB603 120R 3A
FB604 120R 3A
Q710
8
D
7
D
6
D
5
NC/AON4421
C7080 NC/ 1UF 10% 16V
R7782
NC/10K 1/ 10W 5%
Q709
NC/BC8 47C
+5V_SW+5V_STB
10UF 10V
D
D
D
G4S
12
12
12
1
2
3
USB_PORT1_5V
MAX=2.0A
C786
PVDD12V_AUDIO
Page 44

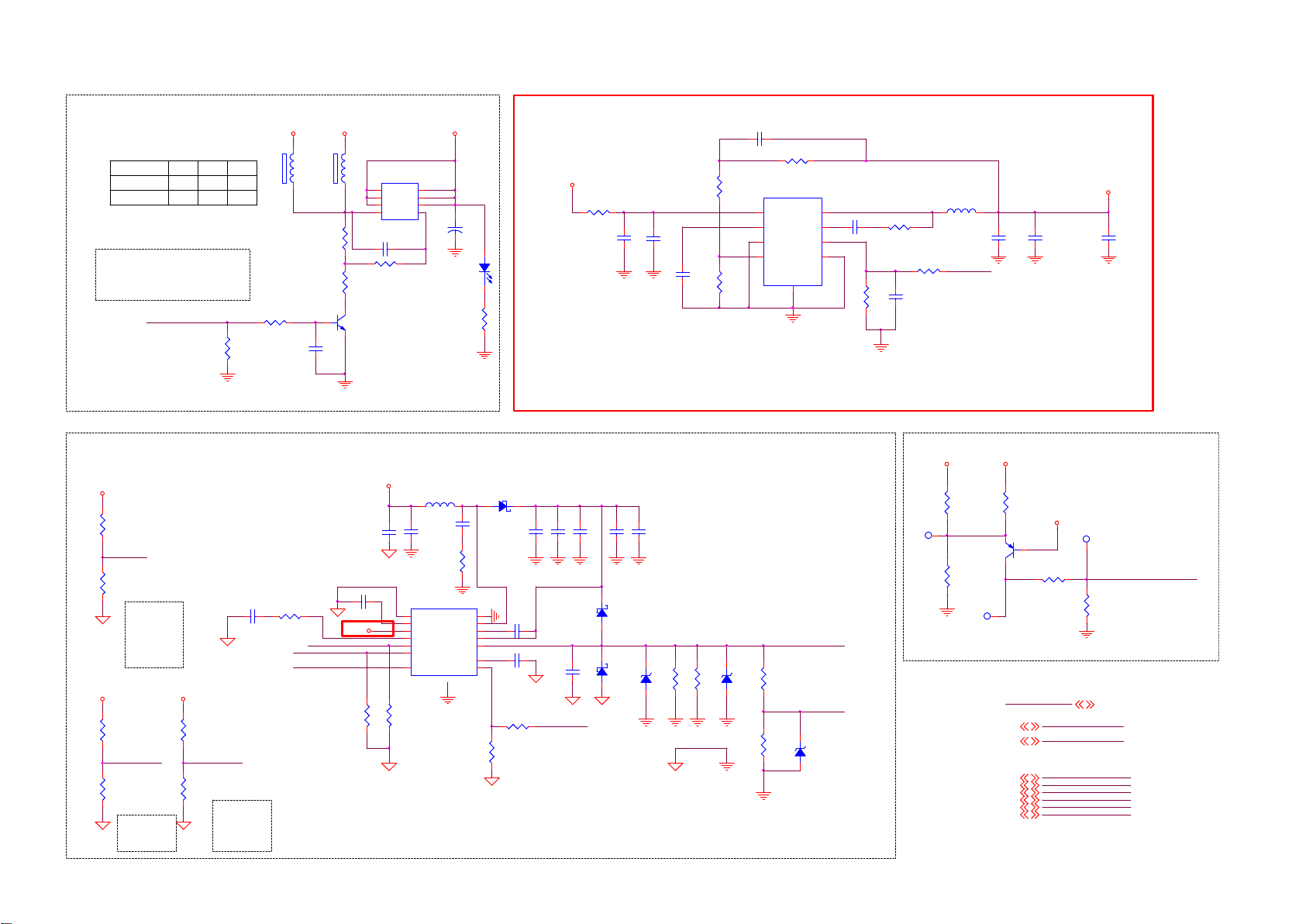

9-3-2 System Power 2
Panel VCC=12V or 5V
PANEL VCC
+12V
+5V
LVDS_PWR_EN:(Tcon8)
Normal:High
Stand_By:Low
LVDS_PWR_EN
FB714FB713
NCNCYes
Yes 0R
R7029
10K 1/16W 5%
LNB POWER SUPPLY
3V3SB
R718
10K 1/16W 5%
LNB_EN
R719
NC/100K 1/16W 5%
LNB_EN:
Low: di s ab le
High: ena bl e
MP81 26
Ena ble
Sel ection
DVDD3V3D VDD3V3
R720
10K 1/16W 5%
LINEDR OP
R721
NC/100K 1/16W 5%
LINEDROP:
Low: 13 .3/18.3V
High : 14.3/19 .3V
Compe nsa tion
Sel ection
R774
10K 1/16W 5%
13V/18V_SW
R756
NC/10 0K 1/16W 5%
R7024
5.1K
R7027 10K 1/ 16W 5%
C701
3.3NF 50V
13/18V_SW:
Hig h: 18V
Low: 13 V
FB713
1 2
NC/120R 3A
R7022
10K 1/10W 5%
R701
60.4K 1%
R7024
C7049
NC/4. 7UF 10V
5.1KOHM +-5% 1/10W
FB714
120R 3A
1 2
Q704
BC847C
C702 220nF 16V
+12V
LNB_EN
LINED ROP
13V/18V_SW
Q702
8
D
D
7
D
D
6
D
D
5
G4S
AON4421
C7047 1UF 10% 16V
R7023
10K 1/10W 5%
GPTS06033GC1-PB
100K OHM 5% 1/ 8W
+12V
L704 10uH
C704
C703
10UF 16V
0.1uF 25V
U202
8
AGND
11
BYPASS
12
VDD
10
COMP
2
EN
1
LINEDR OP
13V/18V14EXTM
MP8124GD Z
R703
R702
NC/10 0K 1/16W 5%
NC/10 0K 1/16W 5%
1
2
3
PANEL_VCC+12V+5V_SW
+
C7046
100UF 16V
LED701
R7030
C787
NC/10N F 50V
R788
NC/10R 1/16W 5%
PGND
SW
BST
VBOOST
VOUT
TCAP
USB POWER
12
D703
1 2
FB340M
4
C708
3
5
6
7
0.1uF 25V
9
C709 2 2NF 25V
13
R704
33R 1/1 6W 5%
R705
100K 1%
+12V
R758
0R05
Vout = 0.6V (1+( R1/R2
))
Vout = 0.6V (1+( 100/13.3
))=5.111V
C707
C705
C706
10uF 25V
10uF 25V
10uF 25V
1 2
C710
1 2
0.1uF 25V
DISEQC_OU T
C751
10UF 16V
⊙
⊙
C711
10uF 25V
D704
FB340M
D705
FB340M
C755
100nF 50V
C712
10uF 25V
ESD & Surge
Protect
ZD701
NC/PJ SD24CW
1 2
R706
3K
C752
0.1uF 25V
R707
3K
R764
0R05 1/16W
R757
13.3K 1%
ZD702
PJSD24CW
1 2
C754
47PF 50V
8
IN
7
SS
6
SGND
5
FB
R708
33K 1%
R709
5.1K 1%
R759
100K 1%
U713
SY8234FC C
PGND
9
TUNER_LNB
ZD703
1 2
LX
BS
EN
NC
TUN_LNB
NC/ PJSD24CW
3.3A
R763
10K 1/16W 5%
C758
10NF 50V
L731
4.7uH
OPWRSB
C756
10UF 16V
C757
10UF 16V
1
C753
100nF 50V
R762
100K 1/16W 5%
R760
2.2 OH M 1/10W
2
3
4
+5V_USB
C759
0.1uF 25V
12V drop detect
R7050
22K 1%
R7052
15K 1%
TP702
TP
LVDS_PWR_EN
12V-DETECT
13V/18V_SW
DISEQC_OU T
LINED ROP
LNB_EN
TUNER_LNB
TUN_LNB
+12V
R7051
NC/22K 1%
Q707
BTA1576S3
OPWRSB
R7054
22K 1%
3V3SB
LVDS_PWR_EN
12V-DETECT
13V/18V_SW
DISEQC_OU T
LINED ROP
LNB_EN
TUNER_LNB
TUN_LNB
TP701
TP
R7053
100K 1/16W 5%
OPWRSB
12V-DETECT
3,5
TP703
TP
12V_AUDIO
8
11
13
13
13
11
13
11
Page 45

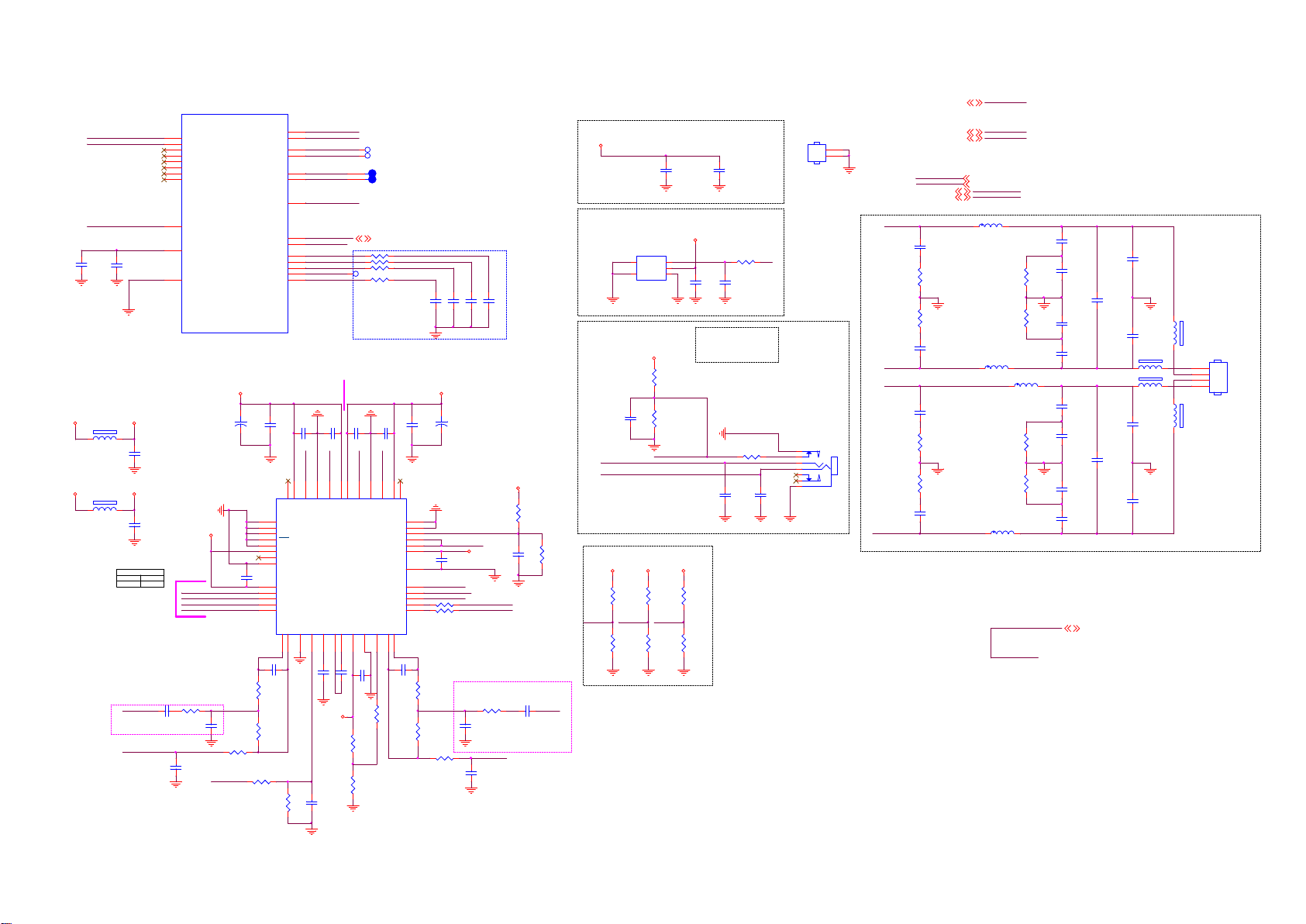

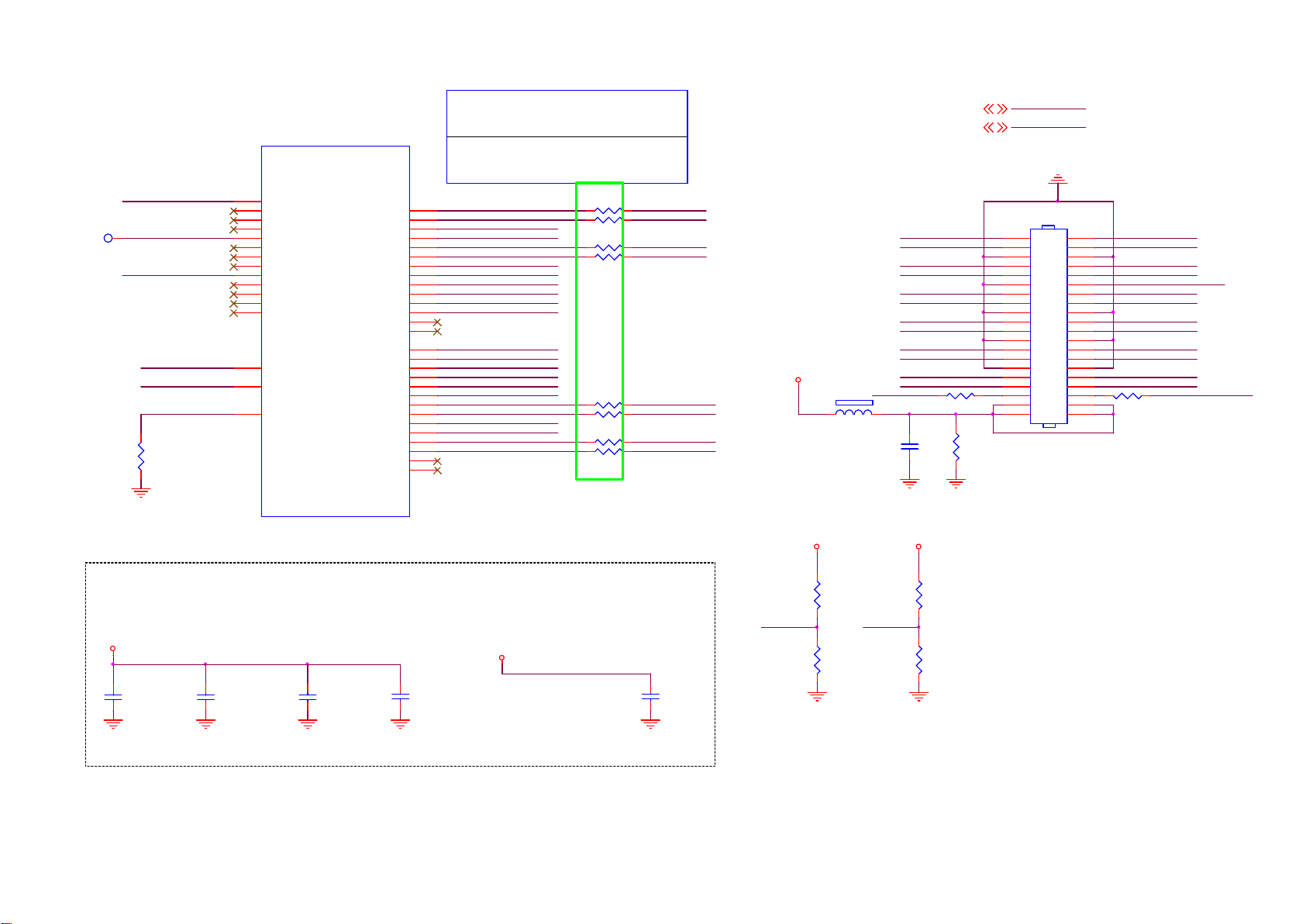

9-3-3 Peripheral
U401-6
AE26
OSDA0
AH26
OSCL0
B28
XTALI
B27
XTALO
J22
AVDD33_REG_STB
J1
VCC3IO_EMMC
H24
AVDD33_RGB_STB
K21
AVSS33_RGB
J23
AVDD33_PLL_STB
C4009
4.7UF 6.3V
U25
Y26
AVDD10_LDO
AVDD10_ELDO
EMMC_CLK
EMMC_RST
FSRC_W R
AVDD10_LDO EMMC_CLK
AVDD10_ELDO
C4007
1UF 10V
OSDA0
OSCL0
XTA LI
XTA LO
AVDD33_REG_STB
VCC3IO_EMMC+1.8V
AVDD33_RGB_STB
AVSS33_RGB
AVDD33_PLL_STB
C4008
4.7UF 6.3V
close to main chip
MT5800VHEJ
EMMC 4GB
PAALE_E
PACLE_E
PDD2_E
PDD3_E
PDD4_E
PDD5_E
PDD6_E
PDD7_E
VDDI
C4001
1UF 10V
DVDD3V3
C4017
10UF 6. 3V 20%
3V3 IO Power
DVDD3V3
Close to Ma in Chip
C4021
4U7 10V
C4018
100nF 16V
U402
EMMC04G-M627-H02
A3
DAT0
A4
DAT1
A5
DAT2
A6
VSS
A7
NC
B2
DAT3
B3
DAT4
B4
DAT5
B5
DAT6
B6
DAT7
C2
VDDI
C4
Vssq
C5
NC
C6
Vccq
D4
A1 index
E5
NC
E6
Vcc
E7
Vss
E8
NC
E9
NC
E10
NC
F5
Vcc
F10
NC
G3
NC
C4019
100nF 16V
C4022
100nF 16V
NCB1NCC1NC
N1
VCC3IO_AB
P10
NC
P7
NC
P6
Vssq
P5
Vccq
P4
Vssq
P3
Vccq
N5
Vssq
N4
Vccq
N2
Vssq
M6
CLK
M5
CMD
M4
Vccq
K10
NC
K9
Vcc
K8
Vss
K7
NC
K6
NC
K5
RSTN
J10
Vcc
J5
VSS
H10
Vss
H5
DS
G10
NC
G5
Vss
C4023
NC/100NF 16V
+1.8V
24M Hz CRYST AL
Analog Power
3V3SB 3V3SB
C4024
10UF 6.3V 20%
C4025
100nF 16V
3V3SB
AVDD33_RGB_STBAVDD33_REG_STB
U0TX
U0RX
POWE#
POOE#
POCE1#
POCE0#
PDD7
PDD6
PDD5
PDD4
PDD3
PDD2
PDD1
PDD0
PARB#
PACLE
PAALE
OPWRSB
ORESET#
OIRI
C4011
100nF 16V
EMMC_CLK_E
POWE__B_E
DVDD3V3
C4026
100nF 16V
T25
T24
J2
N7
M7
L7
P3
N1
N2
N4
M3
L1
N6
P6
N5
L3
K3
P4
P7
R26
L25
L26
AH27
C4012
10UF 6. 3V 20%
R4037
4K7 1/16W 5%
EMMC_RST
C4016
100nF 50V
XTALI
U0TX
U0RX
POWE__B
POOE__B
POCE1__B
TP50 TP
PDD7
PDD6
PDD5
PDD4
PDD3
PDD2
PARB__B
PACLE
PAALE
EMMC_RST
OPWRSB
ORESETB
OIRI
FSRC_W R
C4013
100nF 16V
C4015
100nF 16V
R4036
10K 1/16W 5%
R4002 47R 1/16W 5%
R4009 NC /4K7 1/16W 5%
R4011 NC /4K7 1/16W 5%
R4003 47R 1/16W 5%
R4004 47R 1/16W 5%
R4005 47R 1/16W 5%
R4006 47R 1/16W 5%
R4008 47R 1/16W 5%
R4010 47R 1/16W 5%
R4007 NC/ 4K7 1/16W 5%
R4012 47R 1/16W 5%
R4013 47R 1/16W 5%
R4014 47R 1/16W 5%
E-Fuse
R4017 4K7 1/16W 5%
C4014
100nF 16V
X401
1
3
24MHz
2 4
C4002
30PF
AVDD33_PLL_STB
POWE__B_E
PDD7_E
PDD6_E
PDD5_E
PDD4_E
PDD3_E
PDD2_E
PACLE_E
PAALE_E
EMMC_CLK_E
XTA LO
C4003
30PF
C4027
100nF 16V
DVDD3V3
Reset
R4019
ORESETB
1K 1/16W 5%
SYST EM EEPROM
SYS_EEPROM_WP
OSCL0
OSDA0
UART
3V3SB
R4042
U0TX
U0RX
STRAPPING
ICE mode + 24M + serial boot
ICE moce + 24M + ROM to 60bit ECC Nand boot
ICE moce + 24M + ROM to eMMC boot from
eMMC pins(share pins w/s NAND)
3V3SB
C4010
10NF 50V
R4039
R4038
4K7 1/16W 5%
R4043
LBAV99LT1G
D401
4K7 1/16W 5%
4K7 1/16W 5%
R4044 100R 1/16W 5%
R4045 100R 1/16W 5%
3V3SB
R4024
NC/10K 1/16W 5%
R4029
NC/10K 1/16W 5%
R4033
NC/10K 1/16W 5%
R4016
16K 1%
R4021
22K 1%
4K7 1/16W 5%
R4040
1
4K7 1/16W 5%
3
DVDD3V3
C4020
1UF 10% 16V
U405
1
8
E0
VCC
7
2
E1
WC
3
6
E2
SCL
5
VSS4SDA
M24128-BRMN6TP
3V3SB
2
2
---><---|>
1
3
---><---|>
LED_PWM0
LED_PWM1
OPCTRL3
LED_PWM0 LED_PWM1 OPCTRL3STRAPPING
0
0
0 0
3,4
OPWRSB
11
SYS_EEPROM_WP
6
6
11
11,15
11,15
OIRI
HS401
HEAT SINK
I2C Address "A0"
Pin7 WP
HI = > Disabl e w rite
LO = > Enable Writ e
LBAV99LT1G
D402
CN401
1
2
3
CONN
R4025
10K 1/16W 5%
R4030
10K 1/16W 5%
R4034
10K 1/16W 5%
0 1
1
0
OSCL0
OSDA0
OPCTRL3
LED_PWM1
LED_PWM0
1
2
0
OPWRSB
SYS_EEPROM_WP
OSCL0
OSDA0
OPCTRL3
LED_PWM1
LED_PWM0
OIRI
15
Page 46
9-3-4 Audio Interface
AIN_R0
AIN_L0
AVDD33_AADC
VMID_AADC
C6003
100nF 16V
DVDD3V3
FB602
1 2
120R 3A
DVDD3V3
FB601
1 2
120R 3A
Independet
Gnd shielding
C22
C24
B23
E23
D23
A22
B22
C23
E21
D22
C6004
1UF 10% 16V
K19
AVSS33_CLN
AUD_V33
C6012
4.7UF 10% 10V
AUD_V33HP
C6011
4.7UF 10% 10V
Srereo
CFG1
CFG0
HL
Close to MT5800
C6045
AR0_ADAC
1UF 10V
HPOUTR
C6046
1UF 10V
U401-3
AIN_R0
AIN_L0
AIN_R1
AIN_L1
AIN_R2
AIN_L2
AIN_R3
AIN_L3
AVDD33_AADC
VMID_AADC
AVSS33_CLN
MT5800VHEJ
AUD_V33
SDI
LRCLKI
BICKI
MCLK
R6039
16K 1%
C6041
330PF 50V
R6064
10R 1/16W 5%
PWRDN -HP
AR0_ADAC
AL0_ADAC
AR1_ADAC
AL1_ADAC
AR2_ADAC
AL2_ADAC
AVDD33_ADAC
ASPDIFI
ASPDIFO0
AOBCK
AOLRCK
AOMCLK
AOSDATA1
AOSDATA0
PVDD
C6056
+
NC/220U F 16V
Close to U601
49
C6029
1UF 10V
10
11
12
C6032
68PF 50V
R6011
43K 1/16W
R6063
16K 1%
R6025
22R 1/16W 5%
A25
AR0_ADAC
C25
AL0_ADAC
B26
A27
B25
A26
F21
AG27
AH28
AF27
AD26
AG28
AE27
AF28
C6031
C6014
10UF 16V
0.1uF 25V
LA
46
48
47
LA
NC
VDDLA
THERMALPAD
1
NC
2
NC
3
PLL
4
MONO
5
NC
6
CLK_OUT
7
DGND
8
DVDD
9
SDATA0
LRCIN
BCLK
TEST
RINN13OUTR14VSS15EN16PVSS17CN18CP19PVDD20PGND21UVP22OUTL23LINN
AUD_V33HP
R6037
10K 1/16W 5%
AR2_ADAC
AL2_ADAC
AVDD33_ADAC
ARC
ASPDIFO0
AOBCK
AOLRCK
AOMCLK
AOSDATA1
AOSDATA0
Spearate
VCC trace
C6015
0.1uF 25V
LB
44
45
43
LB
GNDL
U601
AD87072-LG48NRY
C6035 1U F 10V
C6048
1UF 10V
VDDLB
C6036 1U F 10V
42
VDDRB
1
1
C6027
0.1uF 25V
RB
41
C6039
1UF 10V
TP55 TP
TP56 TP
TP402
DDR_D EBUG_PAD
TP403
DDR_D EBUG_PAD
ARC
R6001 22R 1/16W 5%
R6002 22R 1/16W 5%
R6003 22R 1/16W 5%
TP3 TP
R6004
22R 1/16W 5%
Close to main chip
C6023
C6026
10UF 16V
0.1uF 25V
RA
39
37
40
38
RA
RB
NC
GNDR
36
VDDRA
NC
35
NC
34
RESET#
33
ERROR#
32
PD#
31
DVDD
30
DGND
29
DEF
28
SA1
27
SA0
26
SCL
25
SDA
24
C6040
68PF 50V
R6038
30Kohm 1/16W +/-5%
R6026
1K5 1/16W 5%
R6027
1K 1/16W 5%
12
BICKI
LRCLKI
MCLK
SDI
C6005
C6006
10PF 50V
10PF 50V
PVDD
+
C6055
470uF 16V
Close to U601
C6025
1UF 10V
AMP_DEF
AMP_SA1
AMP_SA0
R6041 0R05 1/10W
R6042 0R05 1/10W
R6029
43K 1/16W
R6024
16K 1%
R6031
10R 1/16W 5%
C6007
C6008
10PF 50V
10PF 50V
AMP_PWRDN
AUD_V33
Close to MT5800
R6040
16K 1%
C6042
330PF 50V
HPOUTL
C6049
1UF 10V
OSCL0
OSDA0
AUD_V33
R6028
NC/1MOHM 1/16W +/-5%
AMP_RESET
R6043
C6024
1UF 10V
C6047
AL0_ADAC
1UF 10V
Analog Power
AVDD3V3
AVDD33_ADAC
Headphone
HPOUTL H POUTL_ISO
HPOUTR HPOUTR_ISO
HP isolution
I2C Address =0x60 default mode mute
10K 1/16W 5%
AUD_V33 AUD_V33AUD_V33
NC/10K 1/16W 5%
R6030
AMP_SA0 AMP_DEFAMP_SA1
10K 1/16W 5%
R6034
AVDD33_AADC
C6001
100nF 16V
Cost down by 11/30
OPT ICAL SPDIF OUT
CN601
4
5
TH2
FIBER-OPTIC V/T 3P
C6010
100nF 16V
3V3SB
NC/10K 1/16W 5%
10K 1/16W 5%
VCC
GND
R6032
R6036
VIN3TH1
2
1
R6006
10K 1/16W 5%
R6008
100K 1/16W 5%
HPDET#
+5V_SW
NC/10K 1/16W 5%
R6033
10K 1/16W 5%
R6035
C6009
100nF 16V
HPDET#
Low: normal
High: HP detect
C6002
10UF 6. 3V 20%
ASPDIFO0
R6005
33R 1/16W 5%
C6057
120pF 50V
R6061 0R05 1/16W
C6016
C6013
100nF 16V
100nF 16V
HS601
HEAT SINK
CN603
5
4
2
3
6
7
1
PHONE JAC K
OSDA0
OSCL0
AIN_R0
AIN_L0
HPDET#
AMP_RESET
L603
22uH
L604
22uH
L602
22uH
PWRDN -HP
5
5
L601
22uH
AMP_PWRDN
R612
10 OHM
R614
10 OHM
R623
10 OHM
R628
10 OHM
PWRDN
C615
100nF 50V
C618
0.22uF 50V
C621
0.22uF 50V
C624
100nF 50V
C629
100nF 50V
C634
0.22uF 50V
C640
0.22uF 50V
C643
100nF 50V
PWRDN
C6021
0.1uF 50V
C6034
0.1uF 50V
C6033
10N 50V
C6038
10N 50V
FB606 300R
1 2
FB607 300R
1 2
C6022
10N 50V
C6028
10N 50V
14
12
FB605
300R
RR+
LL+
12
FB608
300R
CN605
1
2
3
4
CONN(1. 2MM)
R
RR+
LL+
L
14
PWRDN- HP
7
AIN_R0
7
1
2
AIN_L0
OSDA0
OSCL0
11
OPCTRL9
11
AMP_RESET
RA
C616
470pF 50V
R611
10 OHM
R613
10 OHM
C623
470pF 50V
RB
LA
C630
470pF 50V
R622
10 OHM
R627
10 OHM
C642
LB
470pF 50V
Page 47

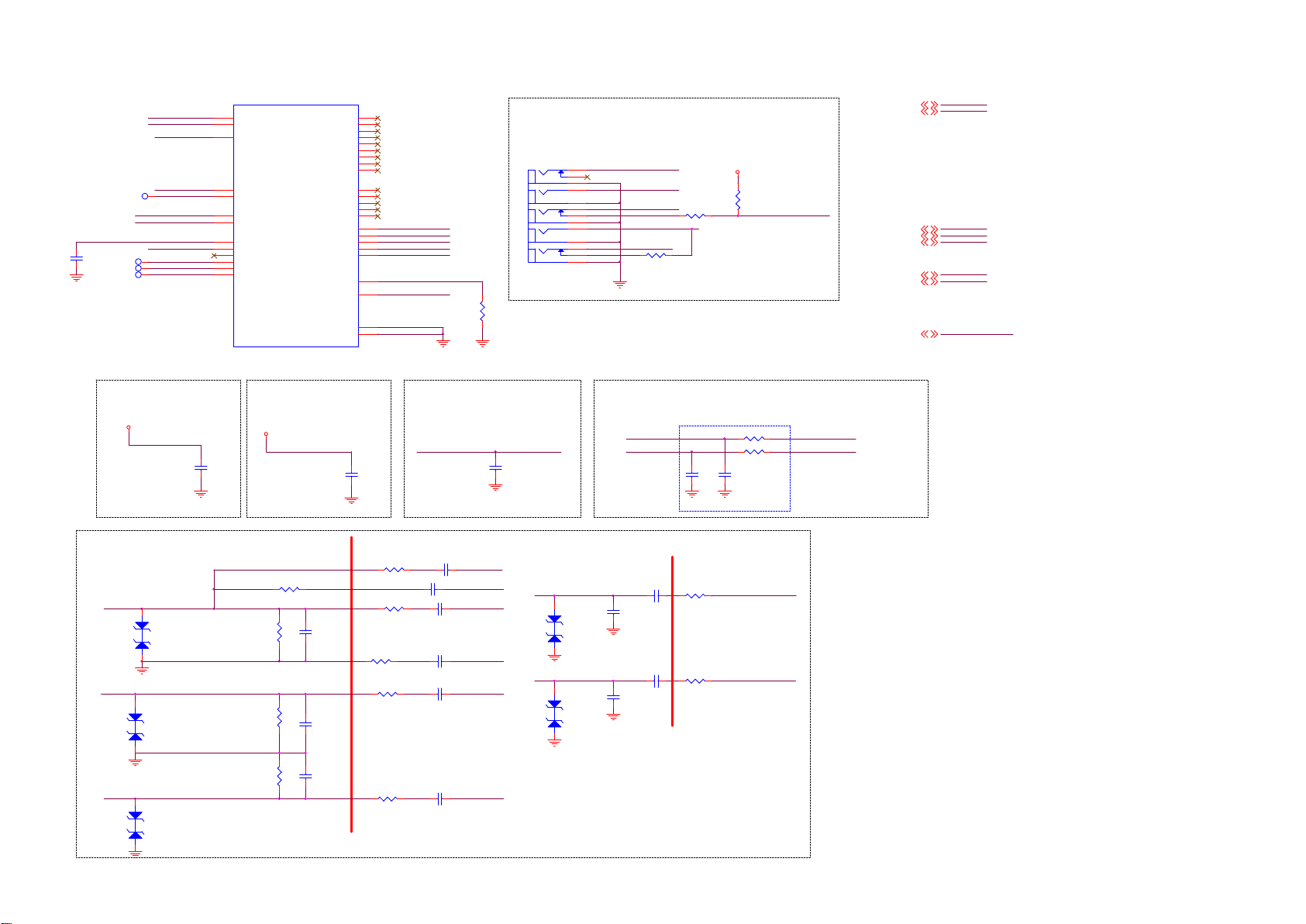

9-3-5 Video Interface/YPbPr/CVBS
U401-4
D27
D28
E27
F15
E14
E15
D15
H27
H28
J25
G28
G26
G25
MT5800VHEJ
ADCIN P_DEMOD
ADCIN N_DEMOD
AVDD12_DEMOD
IF_AGC
RF_AGC
OSCL1
OSDA1
CVBS_COM
CVBS3P
CVBS2P
CVBS1P
CVBS0P
SIF_COM
C1002
1UF 10V
TP98 TP
CVBS_COM
TP97 TP
TP96 TP
TP95 TP
ADCIN P_DEMOD
ADCIN N_DEMOD
AVDD12_DEMOD
IF_AGC
RF_AGC
OSCL1
OSDA1
CVBS3P
CVBS1P
CVBS0P
SIF_COM
HSYN C
VSYNC
COM
SOG
VGA_SDA
VGA_SCL
COM1
PB1P
PR1P
Y1P
SOY1
COM0
PB0P
PR0P
Y0P
SOY0
VDACX_OUT
AVDD33_VIDEO_STB
AVSS33_XTAL
AVSS33_DEMOD
RP
GP
BP
R27
R28
N26
N28
P28
N27
P27
T28
T27
M25
L28
L27
M26
N25
K26
K25
J26
K27
K28
G27
H23
AVDD33_VID EO_STB
J20
AVSS33_XTAL
K20
AVSS33_DEMOD
COM0
PB0P
PR0P
Y0P
SOY0
R105
75 OHM +-5% 1/16W
YPbPr & Audio IN
CN116
13
12
E
11
10
D
9
8
7
C
6
5
B
4
3
2
A
1
RCA J ACK 13P
Y_IN _0
PB_IN_0
PR_IN_0
R1300
YBRL_I N0
YBRR _IN0
R1302 NC /0R05 1/16W
R1301
10K 1/10W 5%
100R 1/16W 5%
3V3SB
DETECT_YPBPRn
13
OSCL1
13
OSDA1
6
AIN_R0
6
AIN_L0
13
IF_AGCT
13
TU_FAT_IN2+
13
TU_FAT_IN2-
11
OPCTRL7
OSCL1
OSDA1
AIN_R0
AIN_L0
IF_AGCT
TU_FAT_IN2+
TU_FAT_IN2-
DETECT_YPBPRnOPC TRL7
Analog Power 1V2
AVDD1V2
AVDD12_DEMOD
YPBPR IN
Y_IN _0
12
ZD120
AZ2225-01L
PB_IN_0
12
ZD121
AZ2225-01L
PR_IN_0
12
ZD122
AZ2225-01L
Analog Power 3V3
3V3SB
C1003
100nF 16V
NEAR YPBPR CONNECTOR
R1003 10R 1/16W 5%
-------><-------
-------><-------
-------><-------
R1007
75 OHM +-5% 1/16W
R1014
75 OHM +-5% 1/16W
R1016
75 OHM +-5% 1/16W
C1010
10PF 50V
C1015
10PF 50V
C1018
10PF 50V
C1001
100nF 16V
Y1
R1009 100R 1/16W 5%
PB1
PR1
Close to Ma in Chip
NEAR MT5800
R1002 100R 1/16W 5%
R1006 100R 1/16W 5%
R1012 100R 1/16W 5%
R1018 100R 1/16W 5%
C1006 1.5NF 50V
C1004 47NF 16V
C1008
10NF 50V
C1011
10NF 50V
C1013
10NF 50V
C1019
10NF 50V
CVBS3P
SOY0
Y0P
COM0
PB0P
PR0P
IF_AGCTIF_AGCAVDD33_VID EO_STB
C1005
NC/47PF 50V
YBRR _IN0
12
YBRL_I N0
12
ZD123
AZ2225-01L
ZD124
AZ2225-01L
IF BPF (Reserved , default is on demod daughter card )
Close to Ma in Chip
51OHM 1/16W +/ -5%
51OHM 1/16W +/ -5%
ADCIN P_DEMOD
ADCIN N_DEMOD
---><---|>
---><---|>
TU_FAT_IN2+
TU_FAT_IN2-
C1007
1UF 10% 16V
C1009
10NF 50V
C1012 1UF 10% 16V
C1014
10NF 50V
R1013
R1015
C1016
47PF 50V
R1004
30Kohm 1/16W +/-5%
R1010
30Kohm 1/16W +/-5%
C1017
47PF 50V
AIN_R0
AIN_L0
NEAR YPBPR CONNECTOR
Page 48
9-3-6 LVDS
TP51 TP
LVDS_SEL
TCON4
LVDS_PWR_ENTCON8
AVDD12_LVDS
AVDD33_LVDSA
REXT_VPLL
R1067
24K 1%
AE18
AF18
AD17
AE15
AD15
AC19
AD18
AD19
AC17
AD16
AC15
AC18
AB17
AG14
G22
AF14
U401-2
TCON0
TCON1
TCON2
TCON3
TCON4
TCON5
TCON6
TCON7
TCON8
TCON9
TCON10
TCON11
TCON12
AVDD12_LVDS
AVDD33_LVDSA
REXT_VPLL
AE0P
AE0N
AE1P
AE1N
AE2P
AE2N
AECKP
AECKN
AE3P
AE3N
AE4P
AE4N
AE5P
AE5N
AO0P
AO0N
AO1P
AO1N
AO2P
AO2N
AOCKP
AOCKN
AO3P
AO3N
AO4P
AO4N
AO5P
AO5N
LVDS
R1056~R1068 mount 0 ohm.
VB1
R1056~R1068 mount 100NF.
AF19
AE0P
AE19
AE0N
AH19
AG19
AH18
AG18
AF17
AE17
AF16
AE16
AH16
AG16
AG15
AH15
AF24
AE24
AF23
AE23
AH23
AG23
AF22
AE22
AF21
AE21
AH21
AG21
AF20
AE20
AE2P
AE2N
AOCKP
AOCKN
AO4P
AO4N
LVDSTX_AE1PAE1P
LVDSTX_AE1NAE1N
LVDSTX_AEC KPAECKP
LVDSTX_AEC KNAECKN
LVDSTX_AE3PAE3P
LVDSTX_AE3NAE3N
LVDSTX_AE4PAE4P
LVDSTX_AE4NAE4N
LVDSTX_AO0PAO0P
LVDSTX_AO0NAO0N
LVDSTX_AO1PAO1P
LVDSTX_AO1NAO1N
LVDSTX_AO2PAO2P
LVDSTX_AO2NAO2N
LVDSTX_AO3PAO3P
LVDSTX_AO3NAO3N
R1056 0R05 1/16W
R1057 0R05 1/16W
R1060 0R05 1/16W
R1061 0R05 1/16W
R1064 0R05 1/16W
R1065 0R05 1/16W
R1066 0R05 1/16W
R1068 0R05 1/16W
LVDSTX_AE0P
LVDSTX_AE0N
LVDSTX_AE2P
LVDSTX_AE2N
LVDSTX_AOC KP
LVDSTX_AOC KN
LVDSTX_AO4P
LVDSTX_AO4N
Close to Main Chip
PANEL_VCC
LVDS
FB101
1 2
120R 6A
LVDS_PWR_EN4
3,11
BL_DIMMING
LVDSTX_AEC KP
LVDSTX_AOC KP
LVDSTX_AO1P LVDSTX_AO1N
BL_DIMMING
R262 N C/0R05 1/16W
10UF 16V
C1047
LVDS_PWR_EN
BL_DIMMING
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
R1070
10K OHM 5% 1/ 8W
CONN
CN408
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
31
33
35
R263 N C/0R05 1/ 16W
37
39
LVDSTX_AE4NLVDSTX_AE4P
LVDSTX_AE3NLVDSTX_AE3P
LVDSTX_AEC KN
LVDSTX_AE2NLVDSTX_AE2P
BIT_SEL
LVDSTX_AE1NLVDSTX_AE1P
LVDSTX_AE0NLVDSTX_AE0P
LVDSTX_AO4NLVDSTX_AO4P
LVDSTX_AO3NLVDSTX_AO3P
LVDSTX_AOC KN
LVDSTX_AO2NLVDSTX_AO2P
LVDSTX_AO0NLVDSTX_AO0P
LVDS_SEL
MT5800VH EJ
Analog Power
AVDD1V2
AVDD12_LVDS
C1048
NC/ 1uF 10V
C1049
NC/ 1uF 10V
C1050
1UF 10V
C1051
100nF 16V
AVDD3V3
AVDD33_LVDSA
C1052
100nF 16V
AVDD3V3 AVDD 3V3
R259
NC/ 100R 1/ 16W 5%
BIT_SEL LVDS_SEL
R258
NC/ 0R05 1/ 16W
R261
NC/ 100R 1/ 16W 5%
R260
NC/ 0R05 1/16W
Page 49
9-3-7 DRAM
RWE
RA4
RBA2
For MCM Dram Reserve
RBA1
RA9
RA15
RA11
RBA0
DDRV
RA6
RA3
RA5
RA13
R4047
RA8
NC/1K
RA0
RA7
RA14
RA2
RA1
R4049
RA12
NC/1K
RCS
RCSD
RRAS
RCAS
RA10
RODT
RCKE
RRESET
R4073
RCLK0
NC/240R 1%
RCLK0B
DDRVREF_A1
DDRVREF_A2
ARTP
R4050 120 OHM 1/ 16W
ARTN
R4051 47R 1/ 16W 5%
1
MEMTP
TP1DD R_DEBUG_PAD
1
MEMTN
TP2DD R_DEBUG_PAD
1
TP_HPCPLL
TP94DD R_DEBUG_PAD
1
TN_HPCPLL
TP93DD R_DEBUG_PAD
DDRV
DVDD3V3
AVSS12_DDR
DDRV
+
Main Chip Bottom Side
DDRV
C4071
NC/10UF 10V
U401-1
RA0
RA1
RA2
RA3
RA4
RA5
RA6
RA7
RA8
RA9
RA10
RA11
RA12
RA13
RA14
RA15
RBA0
RBA1
RBA2
RCS#
RCSD#
RRAS#
RCAS#
RWE#
RODT
RCKE
RRESET
RCLK0
RCLK0#
DDRVREF_A1
DDRVREF_A2
ARTP
ARTN
MEMTP
MEMTN
TP_HPCPLL
TN_HPCPLL
DDRV
DDRV
DDRV
DDRV
DDRV
DDRV
DDRV
DDRV
DDRV
DDRV
DDRV
DDRV
DDRV
DDRV
DDRV
DDRVA
MT5800VHEJ
AVDD33_DDR
AVDD12_DDR
AVSS12_DDR
AVDD33_DDR
RDQM0
RDQS0#
RDQM1
RDQS1#
RDQM2
RDQS2#
RDQM3
RDQS3#
C4033
100nF 16V
RDQS0
RDQS1
RDQ10
RDQ11
RDQ12
RDQ13
RDQ14
RDQ15
RDQS2
RDQ16
RDQ17
RDQ18
RDQ19
RDQ20
RDQ21
RDQ22
RDQ23
RDQS3
RDQ24
RDQ25
RDQ26
RDQ27
RDQ28
RDQ29
RDQ30
RDQ31
C4028
1UF 10V
AA3
RDQM0RDQM0
Y2
RDQS0RDQS0
Y1
RDQS0B
U3
RDQ0RDQ0
RDQ0
AE2
RDQ7
RDQ1
T3
RDQ2
RDQ2
AE1
RDQ1
RDQ3
R2
RDQ4RDQ4
RDQ4
AF2
RDQ5RDQ5
RDQ5
R1
RDQ6
RDQ6
AF1
RDQ3
RDQ7
W2
RDQM1RDQM1
AB3
RDQS1
AB2
RDQS1B
AD2
RDQ8
RDQ8
U1
RDQ15
RDQ9
AD3
RDQ10
U2
RDQ11RD Q11
AC3
RDQ12RD Q12
V1
RDQ13
AC1
RDQ14RD Q14
V2
RDQ9
AF8
RDQM2RDQM2
AG7
RDQS2RDQS2
AH7
RDQS2B
AG3
RDQ16
AG12
RDQ17
AF3
RDQ18
AH12
RDQ19
AG2
RDQ20
AG13
RDQ21
AH2
RDQ22
AH13
RDQ23
AG6
RDQM3
AF9
RDQS3
AG9
RDQS3B
AF12
RDQ24
AH4
RDQ25
AF11
RDQ26
AG4
RDQ27
AG10
RDQ28
AF5
RDQ29
AH10
RDQ30
AF6
RDQ31
U4
AVDD33_DDR
Y15
AVDD12_DDR
W15
AVSS12_DDR
AVDD12_DDRVCCK
AB4
AC9
AE3
AE6
AD9
AE4
AC11
AD5
AE9
AE5
AE7
AD11
AE12
AC5
AE10
AE11
AD7
AE8
AC7
V4
W4
AA5
AA6
AC4
W5
W6
U6
AA4
Y4
U5
AE13
W9
W8
Y8
Y9
AC20
AD20
R4
T4
R5
T5
R6
T6
R7
T7
R8
V8
R9
T9
U9
V9
AB12
T8
DDRVA
AVDD33_DDR
AVDD12_DDR
CAPs for DRAM IO Power ( Close to MT5800 )
C4074
NC/100NF 1 6V
C4041
100nF 16V
C4075
NC/100NF 16V
C4042
100nF 16V
100UF 16V
C4038
C4039
22UF 20% 6.3V
C4040
4.7UF 10% 10V
Close to Main Chip
C4072
C4073
NC/1UF 10V
NC/100NF 16V
RA0
RA1
RA2
RA3
RA4
RA5
RA6
RA7
RA8
RA9
RA10
RA11
RA12
RA13
RA14
RA15
RBA0
RBA1
RBA2
RCLK0
RCLK0B
RCKE
RCS
RODT
RRAS
RCAS
RWE
RRESET
RDQS0
RDQS0B
RDQM1
RDQ0
RDQ15
RDQ2
RDQ13
RDQ4
RDQ9
RDQ6
RDQ11
DDR3 X8 #1 Ref Volt.
DDRV
R4074
1K 1/16W 1%
RVREFCA0
R4075
1K 1/16W 1%
Close to DRAM
C4079
C4081
100nF 16V
10NF 50V
C4076
NC/1UF 10V
U408
K3
A0
L7
A1
L3
A2
K2
A3
L8
A4
L2
A5
M8
A6
M2
A7
N8
A8
M3
A9
H7
A10
M7
A11
K7
A12
N3
A13
N7
A14
J7
A15
J2
BA0
K8
BA1
J3
BA2
F7
CK
G7
/CK
G9
CKE
H2
/CS
G1
ODT
F3
/RAS
G3
/CAS
H3
/WE
N2
/RESET
C3
DQS
D3
/DQS
B7
DM/TDQS
A7
NC
B3
DQ0
C7
DQ1
C2
DQ2
C8
DQ3
E3
DQ4
E8
DQ5
D2
DQ6
E7
DQ7
A3
NC1
F1
NC2
F9
NC3
H1
NC4
H9
NC5
K4B4G0846E-BCMA
C4095
100nF 16V
C4096
100nF 16V
C4077
NC/100NF 16V
1K 1/16W 1%
R4077
1K 1/16W 1%
DDR3#2DDR3#1
J8
RVREFCA0
VREFCA
E1
RVREFDQ0
VREFDQ
H8
A_ZQ0
ZQ
DDRV
RA8
A2
VDD_1
A9
VDD_2
D7
VDD_3
G2
VDD_4
G8
VDD_5
K1
VDD_6
K9
VDD_7
M1
VDD_8
M9
VDD_9
B9
VDDQ1
C1
VDDQ2
E2
VDDQ3
E9
VDDQ4
A1
VSS1
A8
VSS2
B1
VSS3
D8
VSS4
F2
VSS5
F8
VSS6
J1
VSS7
J9
VSS8
L1
VSS9
L9
VSS10
N1
VSS11
N9
VSS12
B2
VSSQ1
B8
VSSQ2
C9
VSSQ3
D1
VSSQ4
D9
VSSQ5
DDRV
R4076
C4097
100nF 16V
RVREFDQ0
C4098
100nF 16V
C4078
NC/10UF 6.3V 20%
cost down by 11/27
R7790 100R 1/16W 5%
R7777
RA11
240R 1%
R7791 100R 1/16W 5%
RA13
R7792 100R 1/16W 5%
RA14
R7793 100R 1/16W 5%
RCKE
R7794 100R 1/16W 5%
RODT
R7795 100R 1/16W 5%
CAPs for DRAM IO Power ( Close to DDR3 x8 #1 )
DDRV
+
C4043
C4044
NC/100UF 1 6V
22UF 20% 6.3V
CAPs for DRAM IO Power ( Close to DDR3 x8 #2 )
DDRV
Close to Main Chip
C4093
C4045
1UF 10V
10UF 10V
K3
RA0
L7
RA1
L3
RA2
K2
RA3
L8
RA4
L2
RA5
M8
RA6
M2
RA7
N8
M3
RA9
H7
RA10
M7
K7
RA12
N3
N7
J7
RA15
J2
RBA0
K8
RBA1
J3
RBA2
F7
RCLK0
G7
RCLK0B
G9
H2
RCS
G1
F3
RRAS
G3
RCAS
H3
RWE
N2
RRESET
C3
RDQS1
D3
RDQS1B
B7
RDQM0
A7
B3
RDQ8
C7
RDQ1
C2
RDQ10
C8
RDQ3
E3
RDQ12
E8
RDQ5
D2
RDQ14
E7
RDQ7
A3
F1
F9
H1
H9
DDR3 x8 #2 Ref Volt.
DDRV
R4078
1K 1/16W 1%
RVREFCA1
R4079
1K 1/16W 1%
Close to DRAM
C4086
C4046
100nF 16V
100nF 16V
C4084
C4085
100nF 16V
100nF 16V
U409
A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
BA0
BA1
BA2
CK
/CK
CKE
/CS
ODT
/RAS
/CAS
/WE
/RESET
DQS
/DQS
DM/TDQS
NC
DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
NC1
NC2
NC3
NC4
NC5
K4B4G0846E-BCMA
C4099
100nF 16V
C4100
100nF 16V
C4055
100nF 16V
C4087
100nF 16V
1K 1/16W 1%
J8
RVREFCA1
VREFCA
E1
RVREFDQ1
VREFDQ
H8
A_ZQ1
ZQ
DDRV
A2
VDD_1
A9
D7
G2
G8
K1
K9
M1
M9
B9
C1
E2
E9
A1
A8
B1
D8
F2
F8
J1
J9
L1
L9
N1
N9
B2
B8
C9
D1
D9
RVREFDQ1
R4081
1K 1/16W 1%
C4047
100nF 16V
C4327
10UF 10V
C4101
100nF 16V
C4102
100nF 16V
R7779
240R 1%
C4048
100nF 16V
C4328
1UF 10V
C4329
100nF 16V
VDD_2
VDD_3
VDD_4
VDD_5
VDD_6
VDD_7
VDD_8
VDD_9
VDDQ1
VDDQ2
VDDQ3
VDDQ4
VSS1
VSS2
VSS3
VSS4
VSS5
VSS6
VSS7
VSS8
VSS9
VSS10
VSS11
VSS12
VSSQ1
VSSQ2
VSSQ3
VSSQ4
VSSQ5
DDRV
R4080
C4054
100nF 16V
C4326
100nF 16V
N3
RA0
P7
RA1
P3
RA2
N2
RA3
P8
RA4
P2
RA5
R8
RA6
R2
RA7
T8
RA8
R3
RA9
L7
RA10
R7
RA11
N7
RA12
T3
RA13
T7
RA14
M2
RBA0
N8
RBA1
M3
RBA2
J3
RRAS
K3
RCAS
L3
RWE
K1
RODT
T2
RRESET
K9
RCKE
J7
RCLK0
K7
RCLK0B
J1
J9
L1
L9
M7
RA15
A_ZQ2
R7776
240R 1%
DDR3 x16 #3 Ref Volt.
DDRV
R4061
1K 1/16W 1%
RVREFCA2
R4062
1K 1/16W 1%
Close to DRAM
C4049
C4051
1UF 10V
100nF 16V
C4330
100nF 16V
DDRV
DDR3#3
B2
A0
VDDR9VDDR1VDDN9VDDN1VDDK8VDDK2VDDG7VDDD9VDD
VDDQH9VDDQH2VDDQF1VDDQE9VDDQD2VDDQC9VDDQC1VDDQA1VDDQ
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
BA0
BA1
BA2
RAS
CAS
WE
ODT
RST
CKE
CK
CK
NC1
NC2
NC3
NC4
NC5
ZQL8VSST9VSST1VSSP9VSSP1VSSM9VSSM1VSSJ8VSSJ2VSSG8VSSE1VSSA9VSSQG9VSSQG1VSSQF9VSSQE8VSSQE2VSSQD8VSSQD1VSSQB9VSSQ
VSS
B3
DDRV
R4060
C4029
100nF 16V
1K 1/16W 1%
RVREFDQ2
R4065
C4034
100nF 16V
1K 1/16W 1%
C4052
C4053
100nF 16V
1UF 10V
C4331
C4332
C4333
100nF 16V
100nF 16V
100nF 16V
VREFDQ
VREFCA
A8
DMU
DQSU
DQSU
DQU0
DQU1
DQU2
DQU3
DQU4
DQU5
DQU6
DQU7
DML
DQSL
DQSL
DQL0
DQL1
DQL2
DQL3
DQL4
DQL5
DQL6
DQL7
CS
C4334
100nF 16V
U406
K4B4G1646E-BCMA
D3
C7
B7
D7
C3
C8
C2
A7
A2
B8
A3
E7
F3
G3
E3
F7
F2
F8
H3
H8
G2
H7
H1
M8
L2
B1
C4031
100nF 16V
C4036
100nF 16V
RDQM3
RDQS3
RDQS3B
RDQ24
RDQ25
RDQ26
RDQ27
RDQ28
RDQ29
RDQ30
RDQ31
RDQM2
RDQS2
RDQS2B
RDQ16
RDQ17
RDQ18
RDQ19
RDQ20
RDQ21
RDQ22
RDQ23
RVREFDQ2
RVREFCA2
RCSD
C4335
100nF 16V
C4336
100nF 16V
DVDD3V3
R7786
10K 1/16W 5%
R7789
0R05 1/16W
OPCTRL4
1K 1/16W 5%
R7787
100K 1/16W 5%
Teminatio n for ADDR /CMD
Differential Clock
DDRV
C4109
10UF 10V
3V3SB
R4130
10K 1/16W 5%
Q401
3
R7788
RRESET
RA0
RA1
RA2
RA3
RA4
RA5
RA6
RA7
RA8
RA9
RA10
RA11
RA12
RA13
RA14
RA15
RBA0
RBA1
RBA2
RCKE
RODT
RRAS
RCAS
RWE
RCS
RCSD
Q402
2
MMBT3904
1
R4100 47R 1/16W 5%
R4101 47R 1/16W 5%
R4102 47R 1/16W 5%
R4103 47R 1/16W 5%
R4104 47R 1/16W 5%
R4105 47R 1/16W 5%
R4106 47R 1/16W 5%
R4107 47R 1/16W 5%
R4108 47R 1/16W 5%
R4109 47R 1/16W 5%
R4110 47R 1/16W 5%
R4111 47R 1/16W 5%
R4112 47R 1/16W 5%
R4113 47R 1/16W 5%
R4114 47R 1/16W 5%
R4115 47R 1/16W 5%
R4116 47R 1/16W 5%
R4117 47R 1/16W 5%
R4118 47R 1/16W 5%
R4119 47R 1/16W 5%
R4120 47R 1/16W 5%
R4121 47R 1/16W 5%
R4122 47R 1/16W 5%
R4123 47R 1/16W 5%
R4124 47R 1/16W 5%
R4125 47R 1/16W 5%
AO3414
5
OPCTRL4
VTT
NEAR Main Chip
RCLK0B RCLK0B
C4113
100nF 16V
R4127
100K 1%
C4300 100nF 16V
C4301 100nF 16V
C4302 100nF 16V
C4303 100nF 16V
C4304 100nF 16V
C4305 100nF 16V
C4306 100nF 16V
C4307 100nF 16V
C4308 100nF 16V
C4309 100nF 16V
C4310 100nF 16V
C4311 100nF 16V
C4312 100nF 16V
C4313 100nF 16V
C4314 100nF 16V
C4315 100nF 16V
C4316 100nF 16V
C4317 100nF 16V
C4318 100nF 16V
C4319 100nF 16V
C4320 100nF 16V
C4321 100nF 16V
C4322 100nF 16V
C4323 100nF 16V
C4324 100nF 16V
C4325 100nF 16V
C4070 100nF 16V
NEAR DRAM
R4126
100K 1%
RCLK0RCLK0
R4064
100R 1/16W 5%
OPCTRL4
C4114
10NF 50V
1
2
3
C4115
100nF 16V
U718
VIN
GND
VREF
VOUT4NC
RT9045GSP
+5V_STB
R4128
9
2R2 1/16W 5%
GND
8
NC
7
NC
6
VCNTL
5
C4110
1UF 10V
VTT
R4129
C4112
C4111
1K 1/16W 5%
10UF 10V
10UF 10V
OPCTRL4
OPCTRL4
5
DDRV
CAPs for DRAM IO Power ( Close to DDR3 x16 #3 )
Close to Main Chip
+
C4061
NC/100UF 1 6V
C4062
22UF 20% 6.3V
C4094
22UF 20% 6.3V
C4103
22UF 20% 6.3V
C4067
100nF 16V
C4104
4.7UF 10% 10V
C4105
4.7UF 10% 10V
C4068
100nF 16V
C4069
100nF 16V
C4089
100nF 16V
C4063
10UF 10V
C4066
1UF 10V
C4092
100nF 16V
C4106
100nF 16V
100nF 16V
C4091
C4108
100nF 16V
C4107
100nF 16V
100nF 16V
C4064
100nF 16V
C4065
100nF 16V
C4090
Page 50

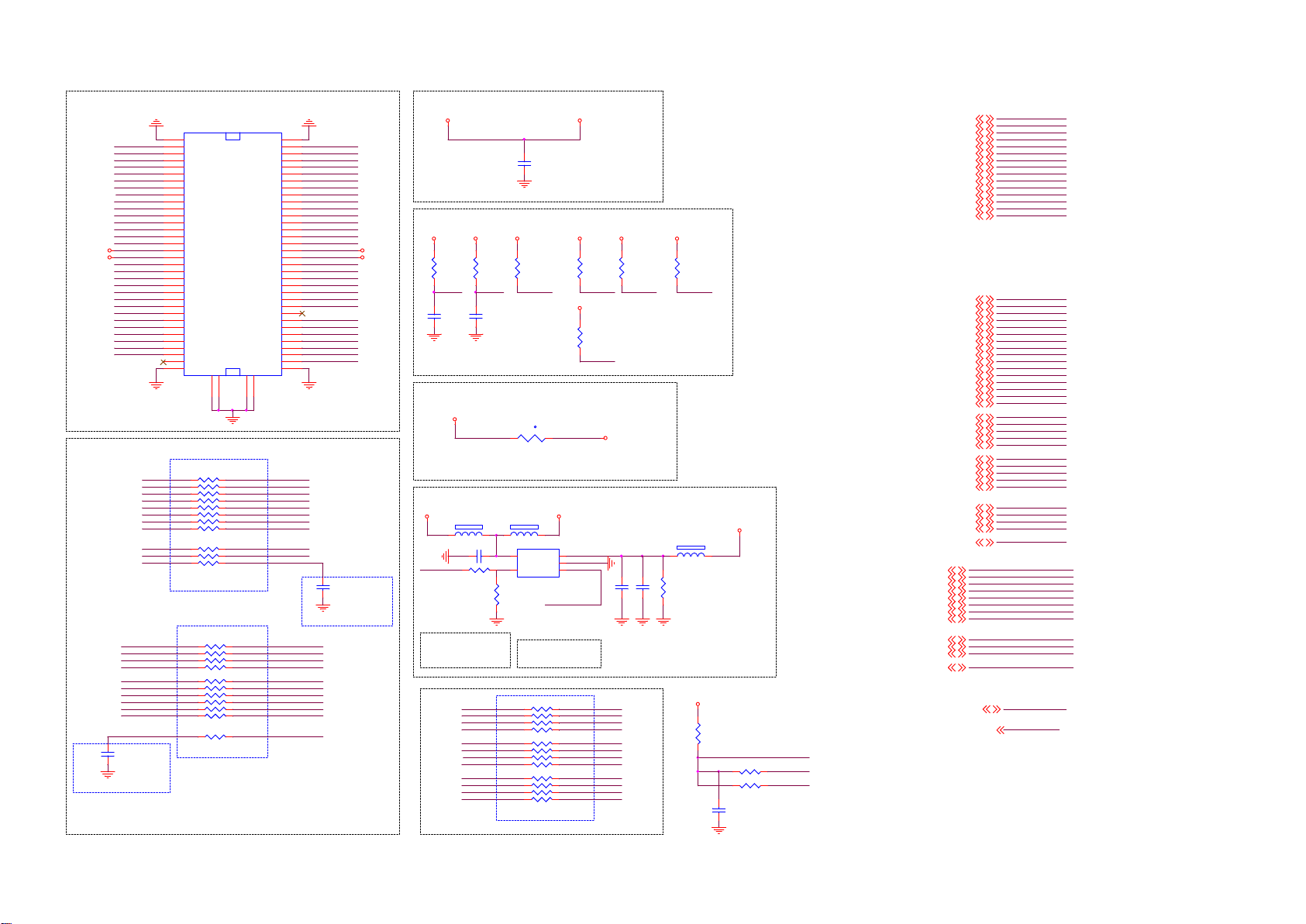

9-3-8 CI Card
CI_D3
CI_D4
CI_D5
CI_D6
CI_D7
CI_CE1#
CI_A10
CI_OE#
CI_A11
CI_A9
CI_A8
CI_A13
CI_A14
CI_WE#
CI_IR EQ#
CI_VCC
CI_VCC
CI_MIVAL_R
CI_MCLKI_R
CI_A12
CI_A7
CI_A6
CI_A5
CI_A4
CI_A3
CI_A2
CI_A1
CI_A0
CI_D0
CI_D1
CI_D2
PVR_TSCLK
CI_TSDATA0
CI_MDO0
CI_MDO1
CI_MDO2 CI_MDO2_R
CI_MDO3
CI_MDO4
CI_MDO5
CI_MDO6
CI_MDO7
PVR_TSSYNC CI_MCLKO_R
C1062
10PF 50V
Closed to Ma in Chip
CN159
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
PCMCIA C ARD
CI_MDI7
R1126 47R 1/16W 5%
CI_MDI6
R1128 47R 1/16W 5%
CI_MDI5
R1130 47R 1/16W 5%
CI_MDI4
R1132 47R 1/16W 5%
CI_MDI3
R1134 47R 1/16W 5%
CI_MDI2
R1136 47R 1/16W 5%
CI_MDI1
R1138 47R 1/16W 5%
CI_MDI0
R1140 47R 1/16W 5%
CI_MISTRT
R1142 47R 1/16W 5%
CI_MIVAL
R1144 47R 1/16W 5%
CI_MCLKI
R1146 47R 1/16W 5%
Closed to M ai n Chi p
Closed to CI SLO T
CI Slot
GND
D3
D4
D5
D6
D7
CE1#
A10
OE#
A11
A9
A8
A13
A14
WE#
READY #:IREQ#
VCC
PCMCIA
VPP1
A16
A15
A12
A7
A6
A5
A4
A3
A2
A1
A0
D0
D1
D2
WP#
GND
69697070717172
R1100 47R 1/16W 5%
R1101 47R 1/16W 5%
R1102 47R 1/16W 5%
R1103 47R 1/16W 5%
R1104 47R 1/16W 5%
R1105 47R 1/16W 5%
R1106 47R 1/16W 5%
R1107 47R 1/16W 5%
R1108 47R 1/16W 5%
R1109 47R 1/16W 5%
R1110 47R 1/16W 5%
GND
CD1#
CE2#
VS1#
IORD#
IOWR#
VCC
VPP2
VS2#
RESET
WAIT#
INPAC K
REG#
BVD2#:SPKR
BVD1#:STSCHG
CD2#
GND
72
35
36
37
D11
38
D12
39
D13
40
D14
41
D15
42
43
44
45
46
A17
47
A18
48
A19
49
A20
50
A21
51
52
53
A22
54
A23
55
A24
56
A25
57
58
59
60
61
62
63
64
D8
65
D9
66
D10
67
68
CI_MDI7 _R
CI_MDI6 _R
CI_MDI5 _R
CI_MDI4 _R
CI_MDI3 _R
CI_MDI2 _R
CI_MDI1 _R
CI_MDI0 _R
CI_MISTRT_R
CI_MIVAL_R
CI_MCLKI_R
CI_MOVAL_R
CI_MOSTRT_R
CI_MDO0_R
CI_MDO1_R
CI_MDO3_R
CI_MDO4_R
CI_MDO5_R
CI_MDO6_R
CI_MDO7_R
CI_CD 1#
CI_MDO3_R
CI_MDO4_R
CI_MDO5_R
CI_MDO6_R
CI_MDO7_R
CI_CE2#
CI_VS1#
CI_IOR D#
CI_IOW R#
CI_MISTRT_R
CI_MDI0_R
CI_MDI1_R
CI_MDI2_R
CI_MDI3_R
CI_MDI4_R
CI_MDI5_R
CI_MDI6_R
CI_MDI7_R
CI_MCLKO_R
CI_RESET
CI_WAI T#
CI_REG#
CI_MOVAL_R
CI_MOSTRT_R
CI_MDO0_R
CI_MDO1_R
CI_MDO2_R
CI_CD 2#
C1061
10PF 50V
CI_VCC
CI_VCC
Closed to CI SLO T
CI 3V3 POWER
DVDD3V3
Closed to CI Conne ctor
+5V_SW
CI_PWR _EN
CI_DVD D3V3
R1083
R1084
10K 1/16W 5%
10K 1/16W 5%
CI_CD 2# CI_MCLKO_R
CI_CD 1# CI _VS1# C I_WAIT# CI_CE 2#
C1056100nF 16V
C1057100nF 16V
+5V_SW
1 2
CI Bus Power Control
FB1051
120R 3A
1 2
R1255 22R 1/16W 5%
4K7 1/16W 5%
CI_PWR_EN :
Enable : High
Disable : Low
C1059
1UF 10% 16V
R1062
CI_CD 1#
CI_CD 2#
CI_IO RD#
CI_IO WR#
CI_REG#
CI_CE1#
CI_OE#
CI_WE#
CI_IR EQ#
CI_WAI T#
CI_VS1#
CI_RESET
1 2
5
4
Clos ed t o CI SLOT
CI_DVD D3V3
C1055
100nF 16V
CI_VCC
R1085
10K 1/16W 5%
TH1
10K 1/16W 5%
CI_VCC
10K 1/16W 5%
CI_IR EQ#
t
NC/ PTC R
CLOSE TO CI CONNECTOR
+5V_USB
FB1052
NC/ 120R 3A
U102
APL3511CBI-TRG
1
VOUT
VIN
2
GND
3
OCB
EN
CI_OCP
CI_OCP :
Disable : Low
R1112 47R 1/16W 5%
R1114 47R 1/16W 5%
R1115 47R 1/16W 5%
R1116 47R 1/16W 5%
R1117 47R 1/16W 5%
R1118 47R 1/16W 5%
R1120 47R 1/16W 5%
R1121 47R 1/16W 5%
R1122 47R 1/16W 5%
R1123 47R 1/16W 5%
R1124 47R 1/16W 5%
R1125 47R 1/16W 5%
CI_VCCCI_DVD D3V3 CI_VCCCI_DVD D3V3
R1086
R1087
NC/10K 1/16W 5%
R1089
CI_VCC
FB1050 120R 3A
C1119100nF 16V
C105810UF 10V
Regulator for 300mA output Current
SPI_CLK
SPI_CLK1
SPI_DATA
SPI_CLE
CI_I NT
CI_TSCLK
CI_TSVAL
CI_TSSYN C
PVR_TSDATA0
PVR_TSDATA1
PVR_TSVAL
CI_R ST
R1088
10K 1/16W 5%
1 2
R1063
10K 1/16W 5%
3V3SB
R1111
3K3 1/16W 5%
CI_VCC
R1119
R1164
4K7 1/16W 5%
C1132
10PF 50V
MHL_CI_OC
MHL_OC
CI_OCP
8.2K 1/16W
11
CI_MDI7
11
CI_MDI6
11
CI_MDI5
11
CI_MDI4
11
CI_MDI3
11
CI_MDI2
11
CI_MDI1
11
CI_MDI0
11
CI_MISTRT
11
CI_MIVAL
11
CI_MCLKI
11
11
CI_A0
11
CI_A1
11
CI_A2
11
CI_A3
11
CI_A4
11
CI_A5
11
CI_A6
11
CI_A7
11
CI_A8
11
CI_A9
11
CI_A10
11
CI_A11
11
CI_A12
11
CI_A13
11
CI_A14
11
CI_D0
11
CI_D1
11
CI_D2
11
CI_D3
11
CI_D4
11
CI_D5
11
CI_D6
11
CI_D7
11
CI_MDO0
11
CI_MDO1
11
CI_MDO2
11
CI_MDO3
11
CI_MDO4
11
CI_MDO5
11
CI_MDO6
11
CI_MDO7
11
CI_IN T
11
CI_TSCLK
11
CI_TSVAL
11
CI_TSSYN C
11
CI_TSDATA0
11
PVR_TSCLK
11
PVR_TSVAL
11
PVR_TSSYNC
11
PVR_TSDATA0
11
PVR_TSDATA1
11
SPI_CLK1
11
SPI_CLK
11
SPI_DATA
11
SPI_CLE
11
CI_RST
CI_PWR _EN
11
MHL_CI_OC
CI_A0
CI_A1
CI_A2
CI_A3
CI_A4
CI_A5
CI_A6
CI_A7
CI_A8
CI_A9
CI_A10
CI_A11
CI_A12
CI_A13
CI_A14
CI_D1
CI_D2
CI_D3
CI_D4
CI_D5
CI_D6
CI_D7
CI_MDO0
CI_MDO1
CI_MDO2
CI_MDO3
CI_MDO4
CI_MDO5
CI_MDO6
CI_MDO7
CI_IN T
CI_TSCLK
CI_TSVAL
CI_TSSYN C
CI_TSDATA0
PVR_TSCLK
PVR_TSVAL
PVR_TSSYNC
PVR_TSDATA0
PVR_TSDATA1
SPI_CLK1
SPI_CLK
SPI_DATA
SPI_CLE
CI_RST
CI_MDI7
CI_MDI6
CI_MDI5
CI_MDI4
CI_MDI3
CI_MDI2
CI_MDI1
CI_MDI0
CI_MISTRT
CI_MIVAL
CI_MCLKI
CI_PWR _EN
MHL_CI_OC
12
MHL_OC
MHL_OC
Page 51
9-3-9 MII/GPIO/ServAD2
CI_A0
CI_A1
CI_A2
CI_A3
CI_A4
CI_A5
CI_A6
CI_A7
CI_A8
CI_A9
CI_A10
CI_A11
CI_A12
CI_A13
CI_A14
CI_MCLKI
CI_MIVAL
CI_MISTRT
CI_MDI0
CI_MDI1
CI_MDI2
CI_MDI3
CI_MDI4
CI_MDI5
CI_MDI6
CI_MDI7
CI_D0
CI_D1
CI_D2
CI_D3
CI_D4
CI_D5
CI_D7
CI_MDO0
CI_MDO1
CI_MDO2
CI_MDO3
CI_MDO4
CI_MDO5
CI_MDO6
CI_MDO7
USB_EN_P1 OPC TR L0
WOL_ON/ OF F OPC TR L8
BL_ON/OF F OPCTRL10
OPCTRL1USB_EN _P2
OPCTRL2W i-Fi_PWR_EN
OPCTRL3
OPCTRL4
OPCTRL5W IFI_IR Qn
OPCTRL6W i-Fi-Reset
OPCTRL7D ETEC T_Y PBPRn
OPCTRL9H PDET#
OPCTRL11MHL_PWR_EN
OPCTRL12FB_PWR _EN
P26
P25
P24
N24
M24
M23
M22
K23
L23
E20
D20
G18
F18
D2
D1
C3
C1
C2
B1
A1
A2
C5
B5
D6
A5
A3
D5
E4
B4
H5
D4
D3
E5
F5
H6
H4
A4
B3
C4
E1
E2
G3
D9
B9
B8
B7
D7
E3
F3
G2
A9
A8
A7
C7
C6
U401-7
CI_A0
CI_A1
CI_A2
CI_A3
CI_A4
CI_A5
CI_A6
CI_A7
CI_A8
CI_A9
CI_A10
CI_A11
CI_A12
CI_A13
CI_A14
CI_MCLKI
CI_MIVAL
CI_MISTRT
CI_MDI0
CI_MDI1
CI_MDI2
CI_MDI3
CI_MDI4
CI_MDI5
CI_MDI6
CI_MDI7
CI_D 0
CI_D 1
CI_D 2
CI_D 3
CI_D 4
CI_D 5
CI_D 6
CI_D 7
CI_MDO0
CI_MDO1
CI_MDO2
CI_MDO3
CI_MDO4
CI_MDO5
CI_MDO6
CI_MDO7
OPCTRL0
OPCTRL1
OPCTRL2
OPCTRL3
OPCTRL4
OPCTRL5
OPCTRL6
OPCTRL7
OPCTRL8
OPCTRL9
OPCTRL10
OPCTRL11
OPCTRL12
MT5800VHEJ
GPIO0
GPIO1
GPIO2
GPIO3
GPIO4
GPIO5
GPIO6
GPIO7
GPIO8
GPIO9
GPIO10
GPIO11
GPIO12
GPIO13
GPIO14
GPIO15
GPIO16
GPIO17
GPIO18
GPIO19
GPIO20
GPIO21
GPIO22
GPIO23
GPIO24
GPIO25
GPIO26
GPIO27
GPIO28
GPIO29
GPIO30
GPIO31
GPIO32
GPIO33
GPIO34
GPIO35
GPIO36
GPIO37
GPIO38
GPIO39
GPIO40
GPIO41
DEMOD_RST
DEMOD_TSCLK
DEMOD_TSDATA0
DEMOD_TSSYNC
DEMOD_TSVAL
CI_I NT
CI_TSCLK
CI_TSDATA0
CI_TSSY NC
CI_TSVAL
CI_RST
PVR_TSCLK
PVR_TSVAL
PVR_TSSYNC
PVR_TSDATA0
PVR_TSDATA1
SPI_CLK1
SPI_CLK
SPI_DATA
SPI_CLE
OPWM2
OPWM1
OPWM0
SD_D0
SD_D1
SD_D2
SD_D3
SD_CMD
SD_CLK
VCC3I O_SD
LED_PWM0
LED_PWM1
GPIO42
GPIO43
GPIO44
GPIO45
GPIO46
GPIO47
ADIN 0_SRV
ADIN 1_SRV
ADIN 2_SRV
ADIN 3_SRV
ADIN 4_SRV
ADIN 5_SRV
ADIN 6_SRV
ADIN 7_SRV
E13
DEMOD_RESET
F13
DEMOD_TSCLK
F12
DEMOD_TS0
F11
DEMOD_TSSYNC
G13
DEMOD_TSVALID
D10
CI_I NT
D12
E11
CI_TSDATA0
F4
CI_TSSY NC
E12
CI_TSVAL
B2
CI_R ST
E10
PVR_TSCLK
A11
PVR_TSVAL
F10
PVR_TSSYN C
B11
PVR_TSDATA0
C9
PVR_TSDATA1
G1
SPI_CLK1
C11
SPI_CLK
D11
SPI_DATA
C10
SPI_CLE
AE25
AG26
AF26
CI_PW R_EN
K4
SD_D0
L5
SD_D1
L4
SD_D2CI_D6
L6
SD_D3
K5
H1
H2
R22
LED_PWM0
R24
LED_PWM1
J6
J7
G11
H11
H12
G12
K24
L24
ADIN 1_SRV KEY_PAD0
J24
ADIN 2_SRV
E28
ADIN 3_SRV LNB_EN
F25
ADIN 4_SRV MHL_CI_OC
F26
AMP_RESET
H25
H26
CI_TSCLK
C1131
10PF 50V
BL_DIMMINGOPWM1
TP59 TP
TP44 TP
TP60 TP
TP45 TP
Strapping
Strapping
12V-DETECT
SYS_EEPR OM_W P
HDMID ET1 USB_OCP_P1
HDMID ET2 USB_OCP_P2
TUN_LNB
DIVER SITY 3
DVDD 3V3
TP57 TP
TP54 TP
TP58 TP
C1400
NC/ 100nF 16V
R1026
10K 1/16W 5%
5,6
OSDA0
5,6
OSCL0
10
CI_A0
10
CI_A1
10
CI_A2
10
CI_A3
10
CI_A4
10
CI_A5
10
CI_A6
10
CI_A7
10
CI_A8
10
CI_A9
10
CI_A10
10
CI_A11
10
CI_A12
10
CI_A13
10
CI_A14
10
CI_D0
10
CI_D1
10
CI_D2
10
CI_D3
10
CI_D4
10
CI_D5
10
CI_D6
10
CI_D7
10
CI_MDO0
10
CI_MDO1
10
CI_MDO2
10
CI_MDO3
10
CI_MDO4
10
CI_MDO5
10
CI_MDO6
10
CI_MDO7
10
CI_RST
TUN_LNB
4
10
13
DEMOD_TS0
13
DEMOD_TSSYNC
13
DEMOD_TSVALID
13
DEMOD_TSCLK
CI_PW R_EN
OSDA0
OSCL0
CI_A0
CI_A1
CI_A2
CI_A3
CI_A4
CI_A5
CI_A6
CI_A7
CI_A8
CI_A9
CI_A10
CI_A11
CI_A12
CI_A13
CI_A14
CI_D0
CI_D1
CI_D2
CI_D3
CI_D4
CI_D5
CI_D6
CI_D7
CI_MDO0
CI_MDO1
CI_MDO2
CI_MDO3
CI_MDO4
CI_MDO5
CI_MDO6
CI_MDO7
CI_RST
TUN_LNB
CI_PW R_EN
DEMOD_TS0
DEMOD_TSSYNC
DEMOD_TSVALID
DEMOD_TSCLK
10
CI_TSCLK
10
CI_TSVAL
10
CI_TSSY NC
10
CI_TSDATA0
10
PVR_TSCLK
10
PVR_TSVAL
10
PVR_TSSYN C
10
PVR_TSDATA0
10
PVR_TSDATA1
10
SPI_CLK1
10
SPI_CLK
10
SPI_DATA
10
SPI_CLE
10
CI_I NT
3,8
BL_DIMMING
5
SYS_EEPR OM_W P
5,15
LED_PWM0
5,15
LED_PWM1
4
12V-DETECT
15
KEY_PAD 0
10
MHL_CI_OC
4
LNB_EN
14
OPCTRL2
5
OPCTRL3
5
OPCTRL4
14
OPCTRL5
14
OPCTRL6
7
OPCTRL7
14
OPCTRL8
6
OPCTRL9
3,15
OPCTRL10
12
OPCTRL11
3
OPCTRL12
DEMOD_RESET13
CI_TSCLK
CI_TSVAL
CI_TSSYN C
CI_TSDATA0
PVR_TSCLK
PVR_TSVAL
PVR_TSSYNC
PVR_TSDATA0
PVR_TSDATA1
SPI_CLK1
SPI_CLK
SPI_DATA
SPI_CLE
CI_INT
BL_DIMMING
SYS_EEPR OM_WP
LED_PWM0
LED_PWM1
12V-DETECT
KEY_PAD0
MHL_CI_OC
LNB_EN
OPCTRL2 Wi-Fi_PWR _EN
OPCTRL3
OPCTRL4
OPCTRL5 WI FI_IRQn
OPCTRL6 Wi-Fi-Res et
DETECT_YPBPRnOPCTRL7
WOL_ON/ OF FOPCTRL8
HPDET#OPCTRL9
BL_ON/OFFOPCTRL10
MHL_PWR_ENOPCTRL11
FB_PWR _ENOPCTRL12
DEMOD_RESET
3V3SB
R1381
NC/ 10K 1/10W 5%
DIVER SITY3
R1384
NC/ 10K 1/10W 5%
10
CI_MDI7
10
CI_MDI6
10
CI_MDI5
10
CI_MDI4
10
CI_MDI3
10
CI_MDI2
10
CI_MDI1
10
CI_MDI0
10
CI_MISTRT
10
CI_MIVAL
10
CI_MCLKI
CI_MDI 7
CI_MDI 6
CI_MDI 5
CI_MDI 4
CI_MDI 3
CI_MDI 2
CI_MDI 1
CI_MDI 0
CI_MISTRT
CI_MIVAL
CI_MCLKI
6
14
14
14
14
AMP_RESET
USB_EN_P1
USB_OCP_P1
USB_EN_P2
USB_OCP_P2
AMP_RESET
USB_EN_P1
USB_OCP_P1
USB_EN_P2
USB_OCP_P2
Page 52

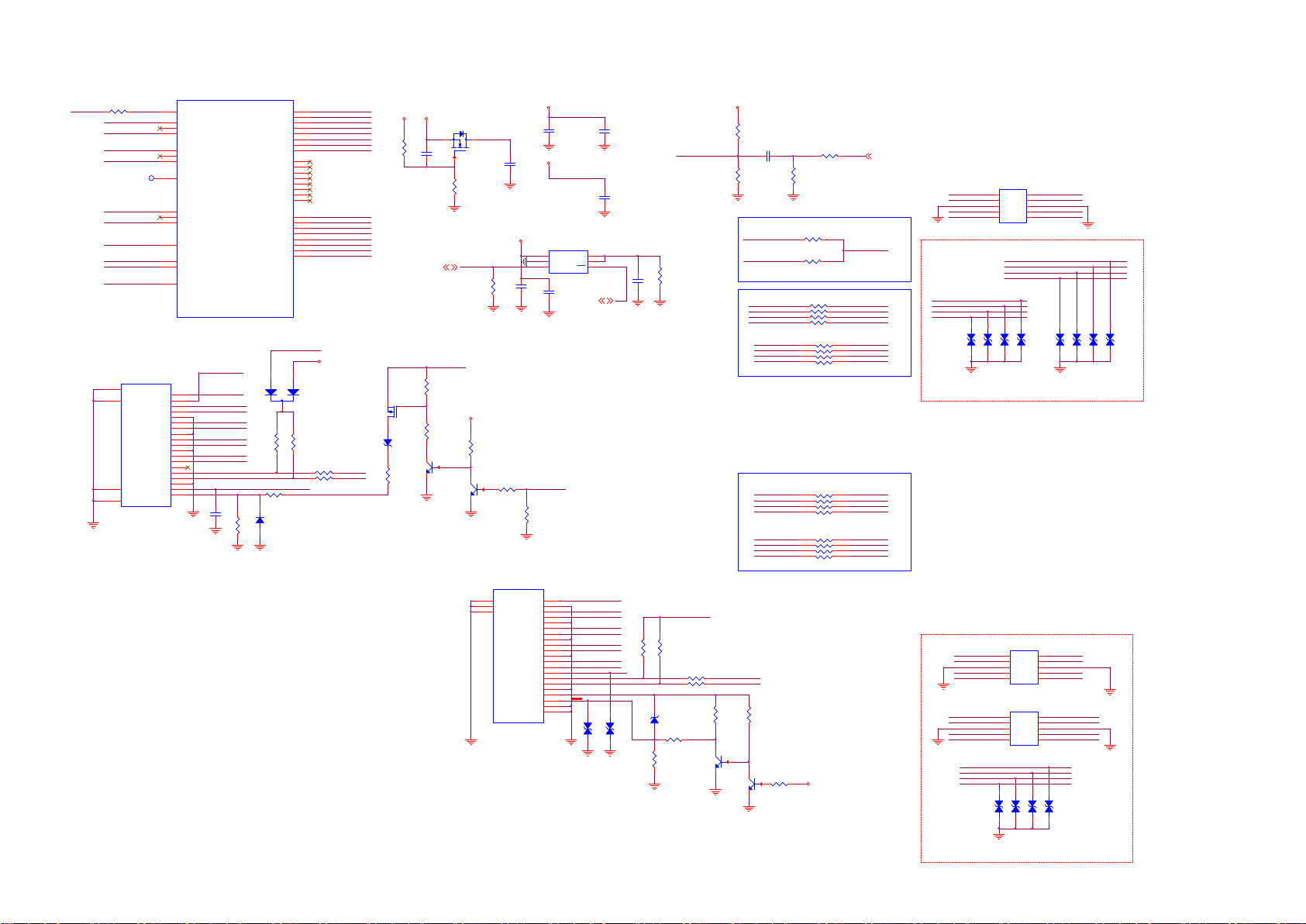

9-3-10 HDMI
U401-5
HDMI_CEC
R5002 100R 1 /16W 5%
HDMI_0_SCL
HDMI_2_SCL
HDMI_0_SDA
HDMI_2_SDA
HDMI_0_HPD_C BUS
HDMI_2_HPD
MHL_SENSE
AVDD12_HDMI1
AVDD12_HDMI2
AVDD33_HDMI
C19
CEC
HDMI_CEC
C16
HDMI_0_SCL
D19
HDMI_1_SCL
U23
HDMI_2_SCL
D16
HDMI_0_SDA
G19
HDMI_1_SDA
U24
HDMI_2_SDA
E18
TP49TP
HDMI_0_PWR5V
E17
HDMI_0_HPD _CBUS
F19
HDMI_1_HPD
T22
HDMI_2_HPD
E16
MHL_SENSE
A14
AVDD12_HD MI
U26
AVDD12_HD MI
G20
AVDD33_HD MI
MT5800VHEJ
HDMI 0 INPUT (MHL) side
MHL_SENSE
1
RX_0_2
2
3
RX_0_2B
4
RX_0_1
5
6
RX_0_1B
7
RX_0_0
8
9
RX_0_0B
10
RX_0_C
11
12
RX_0_CB
13
CEC_1
14
NC
15
16
17
18
19
C5011
------><-------
20
22
23
21
CN501
TH1
TH3
TH4
TH2
HDMI 19P
NEW
D2 Shield
D1 Shield
D0 Shield
CK Shield
CE Rem ote
DDC CLK
DDC DATA
HP DET
D2+
D2-
D1+
D1-
D0+
D0-
CK+
CK-
GND
+5V
100R 1/16W 5%
100R 1/16W 5%
HDMI_2_HPD
+5V_SW
Audio Return Channel (ARC)
R5006
47K 1/16W 5%
C5010
3
1
R5057
910R
Q514
MMBT3904
2
Q515
MMBT3904
R5011
47K 1/16W 5%
CEC_1
CEC_3
HDMI_2_SCL
HDMI_2_SDA
3
1
1UF 10V
RX_0_CB
RX_0_C
RX_0_0B
RX_0_0
RX_0_1B
RX_0_1
RX_0_2B
RX_0_2
RX_2_CB
RX_2_C
RX_2_0B
RX_2_0
RX_2_1B
RX_2_1
RX_2_2B
RX_2_2
R5062
20K 1/16W
2
47K 1/16W 5%
ARC_I
R5010
82R
R7784
0R05 1/10W
R7785
0R05 1/10W
R501 5.1R 1/16W
R502 5.1R 1/ 16W
R503 5.1R 1/ 16W
R504 5.1R 1/ 16W
RP503
RP507 5R1
RP508 5R1
R5065
R5064
180 OHM 5% 1/16W
Modify by 12/4
5R1
4
5
3
6
2
7
1
8
4
5
3
6
2
7
1
8
4
5
3
6
2
7
1
8
3V3SB
ARC
HDMI-CEC
HDMI_CEC
HDMI_0_RX_CB
HDMI_0_RX_C
HDMI_0_RX_0B
HDMI_0_RX_0
HDMI_0_RX_1B
HDMI_0_RX_1
HDMI_0_RX_2B
HDMI_0_RX_2
HDMI_2_RX_CB
HDMI_2_RX_C
HDMI_2_RX_0B
HDMI_2_RX_0
HDMI_2_RX_1B
HDMI_2_RX_1
HDMI_2_RX_2B
HDMI_2_RX_2
cost down by
6
11/30
CEC_1
SCL_0
SDA_0
PWR5V_1
GND
GND
HDMI_0_RX_2
HDMI_0_RX_2B
GND
HDMI_0_RX_1B
ZD503
1 2
HDMI_2_RX_0
HDMI_2_RX_0B
HDMI_2_RX_CHEAC+_PORT1
HDMI_2_RX_CB
HDMI_2_RX_2
HDMI_2_RX_2B
HDMI_2_RX_1
HDMI_2_RX_1B
CEC_3
SCL_2
SDA_2
PWR5V_3
NC/EGA10603V05A1-B
1 2
U506
1
CH1
2
CH2
3
VN
4
CH3
CH45NC
NC/TVU1240R1A
ZD509
ZD508
NC/EGA10603V05A1-B
1 2
1
2
3
4
1
2
3
4
ZD515
1 2
NC
NC
VN
NC
HDMI_0_RX_0
HDMI_0_RX_0B
HDMI_0_RX_C
HDMI_0_RX_CB
ZD510
NC/EGA10603V05A1-B
NC/EGA10603V05A1-B
1 2
U513
CH1
NC
CH2
NC
VN
VN
CH3
NC
CH45NC
NC/TVU1240R1A
U512
CH1
NC
CH2
NC
VN
VN
CH3
NC
CH45NC
NC/TVU1240R1A
ZD516
NC/EGA10603V05A1-B
NC/EGA10603V05A1-B
1 2
10
HDMI_0_RX_2
9
HDMI_0_RX_2B
8
7
HDMI_0_RX_1H DMI_0_RX_1
6
HDMI_0_RX_1B
10
9
8
7
6
10
9
8
7
6
ZD517
NC/EGA10603V05A1-B
1 2
1 2
ZD519
NC/EGA10603V05A1-B
1 2
HDMI_2_RX_0
HDMI_2_RX_0B
HDMI_2_RX_C
HDMI_2_RX_CB
HDMI_2_RX_2
HDMI_2_RX_2B
HDMI_2_RX_1
HDMI_2_RX_1B
ZD518
NC/EGA10603V05A1-B
1 2
ZD520
ZD521
ZD522
NC/EGA10603V05A1-B
NC/EGA10603V05A1-B
NC/EGA10603V05A1-B
1 2
1 2
A17
HDMI_0_RX_0
HDMI_0_RX_0B
HDMI_0_RX_1
HDMI_0_RX_1B
HDMI_0_RX_2
HDMI_0_RX_2B
HDMI_0_RX_C
HDMI_0_RX_CB
HDMI_1_RX_0
HDMI_1_RX_0B
HDMI_1_RX_1
HDMI_1_RX_1B
HDMI_1_RX_2
HDMI_1_RX_2B
HDMI_1_RX_C
HDMI_1_RX_CB
HDMI_2_RX_0
HDMI_2_RX_0B
HDMI_2_RX_1
HDMI_2_RX_1B
HDMI_2_RX_2
HDMI_2_RX_2B
HDMI_2_RX_C
HDMI_2_RX_CB
2
SCL_0
SDA_0
2
D503
R5026
100nF 16V
NC/470K 1/16W 5%
K
A
1
BAS316WS
HDMI_0_RX_0
B17
HDMI_0_RX_0B
A16
HDMI_0_RX_1
B16
HDMI_0_RX_1B
A15
HDMI_0_RX_2
B15
HDMI_0_RX_2B
C17
HDMI_0_RX_C
D17
HDMI_0_RX_CB
A20
B20
A19
B19
C18
D18
C21
B21
W26
HDMI_2_RX_0
W25
HDMI_2_RX_0B
V26
HDMI_2_RX_1
V25
HDMI_2_RX_1B
V28
HDMI_2_RX_2
V27
HDMI_2_RX_2B
Y28
HDMI_2_RX_C
Y27
HDMI_2_RX_CB
MHL--> PORT 1 , CN501
ARC--> PORT 3 , CN503
PWR5V_1
PWR5V_1
1
3
R5017
R5025
33R 1/16W 5%
D502
LBAT54CLT1G
R5018
47K 1/16W 5%
47K 1/16W 5%
100R 1/16W 5%
100R 1/16W 5%
R5021
R5022
HDMI_0_HPD _CBUS
+5V_SW
HDMI_0_SCL
HDMI_0_SDA
Analog Po wer
+5V_SW AVD D3V3
R5001
1K 1/16W 5%
MHL POWER
11
OPCTRL11
MHL_CD_SENSE:
HDMI Mode: Low
MHL Mode: High
PWR5V_1
Q503
AO3401A
13
D501
BAT54
3
R5015
820R
1
Q501
AO3414
AVDD33_HD MI
C5002
NC/10N F 50V
R5003
100K 1/16W 5%
R5012
10K 1/16W 5%
3V3SB
R5013
100R 1/16W 5%
Q504
MMBT3904
R5014
20K 1/16W
2
3
2
Q505
MMBT3904
47K 1/16W 5%
1
HDMI 2 INPUT (ARC ) Back
CN503
22
SHELL3
23
SHELL4
24
SHELL5
HDMI C ONN
R5007
20K 1/16W
R5016
C5006
100nF 16V
+5V_SW
D2 Shield
D1 Shield
D0 Shield
CK Shield
CE Remot e
DDC C LK
DDC D ATA
C5007
10UF 10V
D2+
D1+
D0+
CK+
CK-
GND
+5V
HP DET
SHELL1
SHELL2
AVDD1V2
AVDD1V2
U501
2
1
G529A1TB1U
C5012
1NF 50V
MHL_SENSE
R5019
300K
1
2
3
D2-
4
5
6
D1-
7
8
9
D0-
10
11
12
13
14
NC
15
16
17
18
19
20
21
AVDD12_HDMI1
C5003
100nF 16V
IN3OUT
GND
EN
MHL_OC10
AVDD12_HDMI2
4
5
OUT
6
OC
RX_2_2
RX_2_2B
RX_2_1
RX_2_1B
RX_2_0
RX_2_0B
RX_2_C
RX_2_CB
CEC_3
SCL_2
SDA_2
PWR5V_3
ZD504
NC/EGA10603V05A1-B
1 2
C5004
NC/4. 7UF 6.3V
C5005
100nF 16V
MHL_OCMHL_PWR_ENOPCTRL11
ZD505
NC/EGA10603V05A1-B
1 2
PWR5V_1
C5008
10UF 10V
R5050
R5051
ZD507
NC/PD Z24B
1 2
R5058
100K 1/16W 5%
HEAC+_PORT1
R5100
10K 1/16W 5%
PWR5V_3
47K 1/16W 5%
47K 1/16W 5%
R5053
R5054
R5060
75R 1/16W 1%
Page 53
9-3-11 Tuner/Demod
T2 TUNER
TU101
8
9
10
11
12
13
1
ANT
TH1
TH2
2
3.3V
TH3
TH4
3
TUN_SDA
SDA
TH5
TH6
4
TUN_SCL
SCL
5
TUN_DIF- #T2
IF_N
6
TUN_DIF+#T2
IF_P
7
IF_AGC_T
IF_AGC
ST42CS-2-E
C1070
TUN_DIF-#T2
TUN_DIF+#T2
CLOSE TO TUNER
10PF 50V
C
C
C1073
10PF 50V
Demod
C1100
100nF 16V
IF_AGC_S2_TUNER
T2 DEMOD I2C
S2T2_DEMOD_SCL
S2T2_DEMOD_SDA
R1181
4K7 1/16W 5%
13V/18V_SW
DISEQC_OUT
C1105
+1.2V_T2
100nF 16V
+3.3V_T2 +1.2V_T2
C1107
100nF 16V
S2T2_DEMOD_SCL
C1109
82pF 50V
S2T2_DEMOD_SDA
C1110
82pF 50V
TS_T2_VAL
DVDD3V3
R1155
R1154
4K7 1/16W 5%
4K7 1/16W 5%
+3V3_TUNER
C1066
100nF 16V
C1072
10UF 6.3V 20%
C1067
NC/1N F 50V
C1250
TUN_DIF- _DEMOD
C1251
TUN_DIF+_DE MOD
C1092
100nF 16V
+1.2V_T2
49
48
EPad
1
MP_A
VDD_Vcore
2
MP_B
3
GPIO_0
4
DISEQC_CMD
5
DISEQC_IN
6
DISEQC_OUT
7
VDD_Vcore
8
GND
9
VDD_VIO
10
SCL_Host
11
SDA_Host
12
TS_VLD
TS_SYNC13TS_CLK14TS_D0/SER15TS_D116TS_D217TS_D318TS_D419VDD_Vcore20GND21VDD_VIO22TSD523TSD6
TS_T2_SYNC
R1157
33R 1/16W 5%
33R 1/16W 5%
R1158
C1071
100nF 16V
NC/10PF 50V
100nF 16V
C1074
NC/10PF 50V
S2T2_TUN_SC L
S2T2_TUN_SD A
47
46
GND
TS_T2_CLK
T_OSCL
T_OSDA
43
45
44
NC
SCL_T
SDA_T
CLK_IN_OUT
U101
SI2169-D60-GMR
TS_T2_DQ0
R1162
820R
R1165
820R
Close to Scaler (U401)
C1086 100nF 16V
C1087 100nF 16V
41
42
TC_ADC _P
RC_ADC_N
+1.2V_T2
C1111
100nF 16V
R1161
620R 1/16W 5%
40
S_ADC_QN
38
39
S_ADC_QP
XTAL_I/CLK_IN
TS_ERR/GPIO_1
+3.3V_T2
C1112
100nF 16V
TUNER I2C
TU_FAT_IN2-
TU_FAT_IN2+
37
VDD_Vana
S_ADC_IP
S_ADC_IN
GND
ADDR
XTAL_O
RESETB
MP_D
MP_C
VDD_Vcore
GND
TSD7
24
TUN_SCL
TUN_SDA
C1068
22PF 50V
Write:0xC0
Read:0xC1
C1094NC/10PF 50V
C1095100nF 16V
C1093NC/10PF 50V
C1096NC/10PF 50V
36
+3.3VA_T2
35
34
33
32
31
30
R1186 4K7 1/16W 5%
29
28
27
26
LINEDROP
25
+3V3_TUNER
R1151
0R05 1/10W
0R05 1/10W
R1156
R1159
NC/0R 05 1/10W
NC/0R 05 1/10W
C1075
10NF 50V
+3.3V_T2
4K7 1/16W 5%
QN
QP
IN
IP
R1150
4K7 1/16W 5%
4K7 1/16W 5%
S2T2_TUN_SCL
S2T2_TUN_SDA
T_OSCL
T_OSDA
From MT5582
From MT5800
CLOSE TO MT5800
R1168
10K 1/16W 5%
C1077
47NF 16V
From T 2 demod
R1166
R1169
NC/22K 1/ 16W 5%
DEMOD POWER
+1.2V_T2
+3.3V_T2
TS_T2_DQ0
TS_T2_SYNC
TS_T2_VAL
TS_T2_CLK
Demod
NC
T2 Si 2168
356G0 5750486 10
Si216 6
Si216 9
356G0 5750486 13
FB107
120R 3A
1 2
C1084
10UF 6.3V 20%
FB108
120R 3A
1 2
C1085
10UF 6.3V 20%
From T2 Demod
R1152 100R 1/16W 5%
R1153 100R 1/16W 5%
C1069
22PF 50V
CLOSE TO Tuner
IF_AGC_T IF_AGCT
C1076
10NF 50V
R1256
R1257
R1167
4K7 1/16W 5%
CLOSE TO Tuner
IF_AGC_T T2_IF_AGC_TUNER
TUN_DIF+_DEMOD
TUN_DIF-_D EMOD
R1174 NC/51R
R1176 NC/51R
C1097100nF 16V
C1098NC/10PF 50V
R1184 4K7 1/16W 5%
R1185 22R 1/16W 5%
C1104 100nF 16V
C1108
100nF 16V
R1175
R1177
51OHM 1/16W +/-5%
51OHM 1/16W +/-5%
C1101
100nF 16V
2 4
C1106
100nF 16V
C1088
NC/100N 16V
C1089
100nF 16V
C1090
NC/100N 16V
C1091
100nF 16V
C1102 3.9PF 50V
1
X101
16MHz
C1103 3.9PF 50V
3
DEMOD_RESET
T2_IF_AGC_TUNER
Model
H (T/C )
T (T2)
K (S2)
S (T2/ S2)
AVDD1V2
DVDD3V3
R103 22R 1/16W 5%
R1178 22R 1/16W 5%
R1179 22R 1/16W 5%
R1180 22R 1/16W 5%
Tuner
TU101
TU101
TU101/ TU102
TU101/ TU102
S2 TUNER
TU102
12
TH1
13
TH2
14
TH3
15
TH4
+3.3VA_T2
FB150
120R 3A
1 2
C1200
10UF 6.3V 20%
DEMOD_TS0
DEMOD_TSSYNC
DEMOD_TSVALID
DEMOD_TSCLK
C103
10PF 50V
LGTuner with DVB-S/S2
1
TUNER_LNB
LNB A
2
NC
3
+3V3_VCC_S2
TU3.3V
4
NC
5
QP Output
6
IP Output
7
NC
8
IF_AGC_S2_TUNER
AGC
9
X-OUT
10
S2_TUNER_SDA
SDA
11
S2_TUNER_SCL
SCL
DVDD3V3
C104
10PF 50V
K model : Samsung DNBU02112IH2
C1078
1NF 50V
+3V3_TUNER
QN
C1079
QP
100nF 16V
IP
IN
C1080
10UF 6.3V 20%
C1083
1NF 50V
CLOSE TO TUNER
4
4
2K7 1/16W 5%
S2_TUNER_SDA
S2_TUNER_SCL
C1081
33pF 50V
DEMOD_TSSYNC11
DEMOD_TSVALID11
DEMOD_TSCLK11
DEMOD_TS011
7
IF_AGCT
7
TU_FAT_IN2+
7
TU_FAT_IN2-
7
OSCL1
7
OSDA1
LINEDROP
13V/18V_SW
4
4
DEMOD_RESET11
+3V3_TUNER
R1170
TUNER_LNB
DISEQC_OUT
R1171
2K7 1/16W 5%
R1172
22R 1/16W 5%
R1173
22R 1/16W 5%
C1082
33pF 50V
S2T2_TUN_SDA
S2T2_TUN_SCL
IF_AGCT
TU_FAT_IN2+
TU_FAT_IN2-
OSCL1 T_OSCL
OSDA1 T_OSDA
LINEDROP
13V/18V_SW
TUNER_LNB
DISEQC_OUT
DEMOD_RESET
DEMOD_TSSYNC
DEMOD_TSVALID
DEMOD_TSCLK
DEMOD_TS0
Page 54

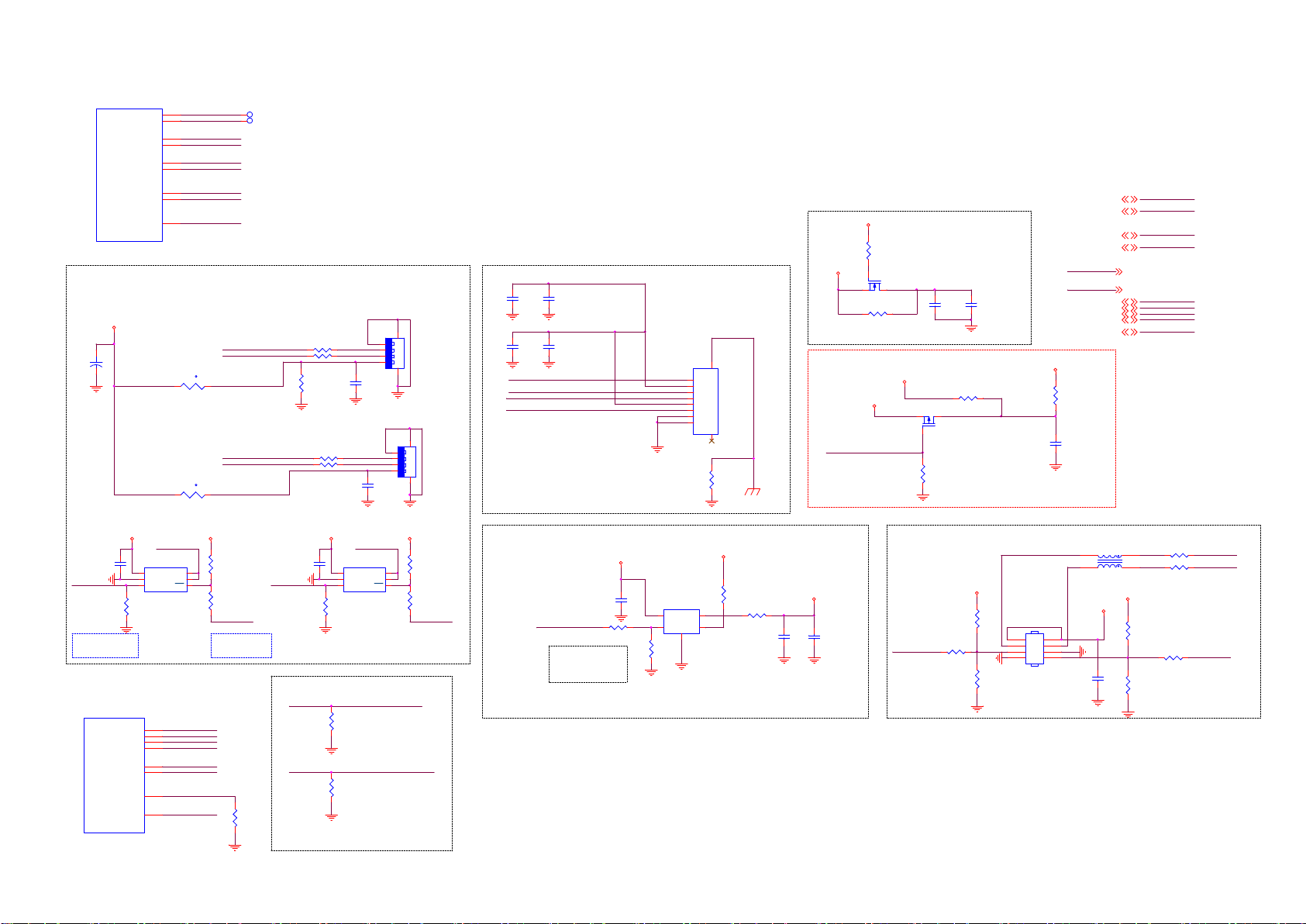

9-3-12 USB/WIFI/RJ45
U401-8
MT5800VHEJ
+5V_USB
+
C1121
100UF 16V
USB_DP_P0
USB_DM_P0
USB_DP_P1
USB_DM_P1
USB_DP_P2
USB_DM_P2
USB_DP_P3
USB_DM_P3
AVDD33_USB
USB PORT 1
B12
A12
C13
USB_DP_P1
D13
USB_DM_P1
D14
USB_DP_P2
C14
USB_DM_P2
AD28
USB_DP_P3
AD27
USB_DM_P3
F23
AVDD33_USB
1 2
TH101 N C/PTCR
USB PORT 2
1 2
TH102 N C/PTCR
EQUAL LENGTH and
DIFFERENTIAL
IMPEDANCE 90ohm
USB_DP_P1
USB_DM_P1
t
USB_PORT1_5V
EQUAL LENGTH and
DIFFERENTIAL
IMPEDANCE 90ohm
USB_DP_P2
USB_DM_P2
t
TP52 TP
TP53 TP
USB_PORT2_5V
R1197 2.2R 1%
R1198 2.2R 1%
R1052
10K 1/10W 5%
R1202 2. 2R 1%
R1204 2. 2R 1%
10UF 10V
10UF 10V
C101
C102
11
OPCTRL2
11
3V3SB
11
11
11
11
11
11
3
OPCTRL8
OPCTRL5
OPCTRL6
PWRDN -HP
PWRDN
USB_EN_P1
USB_OCP_P1
USB_EN_P2
USB_OCP_P2
USB_PORT1_5V
R104
NC/0R 05 1/16W
C1117
100nF 16V
+5V_SW
R1193
10K 1/10W 5 %
AVDD3V3
C1125
C1124
10NF 50V
0.1uF 25V
65
4
CN163
3
USB CON N
2
1234
1
65
4
CN165
3
USB CONN
2
1234
1
C1126
0.1uF 25V
TXVP_0
TXVN_0
RXVP_1
RXVN_1
C1127
10NF 50V
SEPARATE GROUND
RJ45_388G342KEF 4VGN
H=16.9_2016-030 8
RJ45
9
CN166
1
RJ45 C ONN
TH1
P1
2
P2
3
P3
4
P4
5
P5
6
P6
7
P7 NC
8
P8
TH2
10
R1199
NC/0R 05 1/16W
WOL_ON/OF F
Q107
AO3414
R1195
NC/0R 05 1/16W
AVDD3V3
3V3SB
AVDD33_USB
R1196
Q108
AO3401A
R1208
10K 1/16W 5%
C1116
1UF 10% 1 6V
NC/0R 05 1/16W
C1115
100nF 16V
AVDD33_ETH
OPCTRL2 Wi-Fi_PWR_ EN
OPCTRL8 WOL_ON/OFF
OPCTRL5 WIFI _IRQn
OPCTRL6 Wi-Fi-Res et
PWRDN -HP
PWRDN
USB_EN_P1
USB_OCP_P1
USB_EN_P2
USB_OCP_P2
USB_PORT1_5V
6
6
+5V_USB
40mil
U716
C112
G529A1TB1U
1UF 10V
IN3OUT
2
GND
USB_EN_P1
HI = > PO WER ON
LO = > POWER OFF
1
EN
R1046
4K7 1/16W 5 %
ETHERNET PHY
U401-9
MT5800VHEJ
TXVP_0
TXVN_0
RXVP_1
RXVN_1
PHYLED1
PHYLED0
REXT
AVDD33_ETH
AB27
AB26
AC25
AC26
AA25
AA26
AB28
AB25
DVDD3V3
USB_PORT1_5V
R1047
4
10K 1/16W 5%
5
OUT
6
OC
R1048
1K 1/16W 5%
USB_OCP_P1
H=> NORM AL
L =>OCP
TXVP_0
TXVN_0
RXVP_1
RXVN_1
PHYLED1
PHYLED0 PWRDN
REXT
AVDD33_ETH
R1209
24K 1%
USB_EN_P2
C113
1UF 10V
PHYLED1
PHYLED0
+5V_USB
40mil
2
1
R1049
4K7 1/16W 5%
R1350
NC/10K 1/16W 5%
R1351
10K 1/16W 5%
USB_PORT2_5V
U717
G529A1TB1U
IN3OUT
GND
EN
4
5
OUT
6
OC
DVDD3V3
PWRDN -HP
R1050
10K 1/16W 5%
R1051
1K 1/16W 5%
USB_OCP_P2
Wi-Fi Power Control
Wi-Fi_PWR _EN
R404
Wi-Fi_PWR_EN :
Enable : High
Disable : Low
+5V_STB
C4297
10UF 10V
100R 1/16W 5%
U714
G524D3T11U
5
IN
4
EN
2
R1386
10K 1/16W 5%
VOUT
GND
Wi-Fi_VCC
R1385
10K 1/16W 5 %
1
R171 0 OHM 1/ 8W
3
FLG
10UF 10V
Wi-Fi_VCC
C4265
C4266
100nF 16V
Wi-Fi CONNECTOR
3V3SB
R1241
Wi-Fi-Reset
100R 1/16W 5%
R1148
NC/10K 1/10W 5%
2
4
6
8
R1149
NC/10K 1/10W 5%
CN164
CONN
1
3
5
7
311GW200C08AAL
L103
2
3
90OHM
Wi-Fi_VCC
Wi-Fi_VCC
C4267
NC/10UF 6.3V 20%
1
4
3V3SB
R1210
NC/10K 1/16W 5%
R1212
R1201
R1218
NC/10K 1/16W 5%
R1221
100R 1/16W 5%
2R2 1/16W 5%
2R2 1/16W 5%
USB_DM_P3
WIFI _IRQn
USB_DP_P3
Page 55

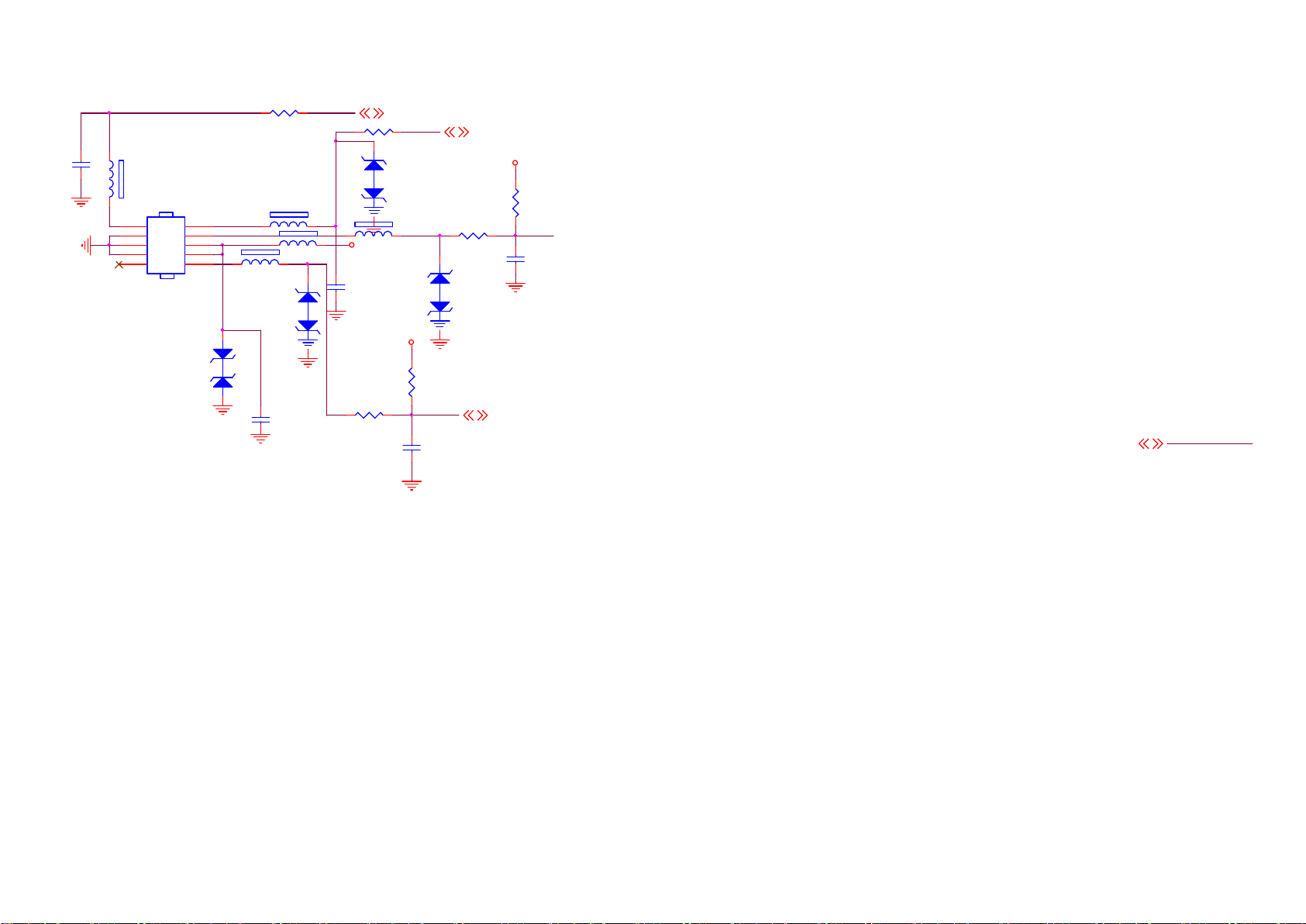

9-3-13 IR/Keypad Conector
LED_W/B/G
LED_W/B/G
12
C1302
100nF 16V
FB152
300R
CN167
2
4
6
8
10
CONN
1
3
5
7
9
R1224 NC/ 100R 1/ 16W 5%
FB151 300R
1 2
LED_R
1 2
1 2
FB154 300R
12
NC/ AZ5123-01H
FB155 120R
ZD128
AZ5123-01H. R7G
ZD131
C1155
1NF 50V
R1216 100R 1/ 16W 5%
FB153 300R
1 2
12
C1303
100nF 16V
R1228
100nF 16V
LED_PWM1
12
ZD129
AZ5123-01H. R7G
3V3SB
3V3SB
100R 1/16W 5%
C1133
12
R1226
6K8 1%
KEY_PAD0
5,11
LED_PWM0
3V3SB
R1215
10K 1/16W 5%
R1217
100R 1/16W 5%
C1130
100pF 50V
ZD130
AZ5123-01H. R7G
KEY_PAD 0
OIRI
5,11
11,15
5
OIRI
OIRI
Page 56

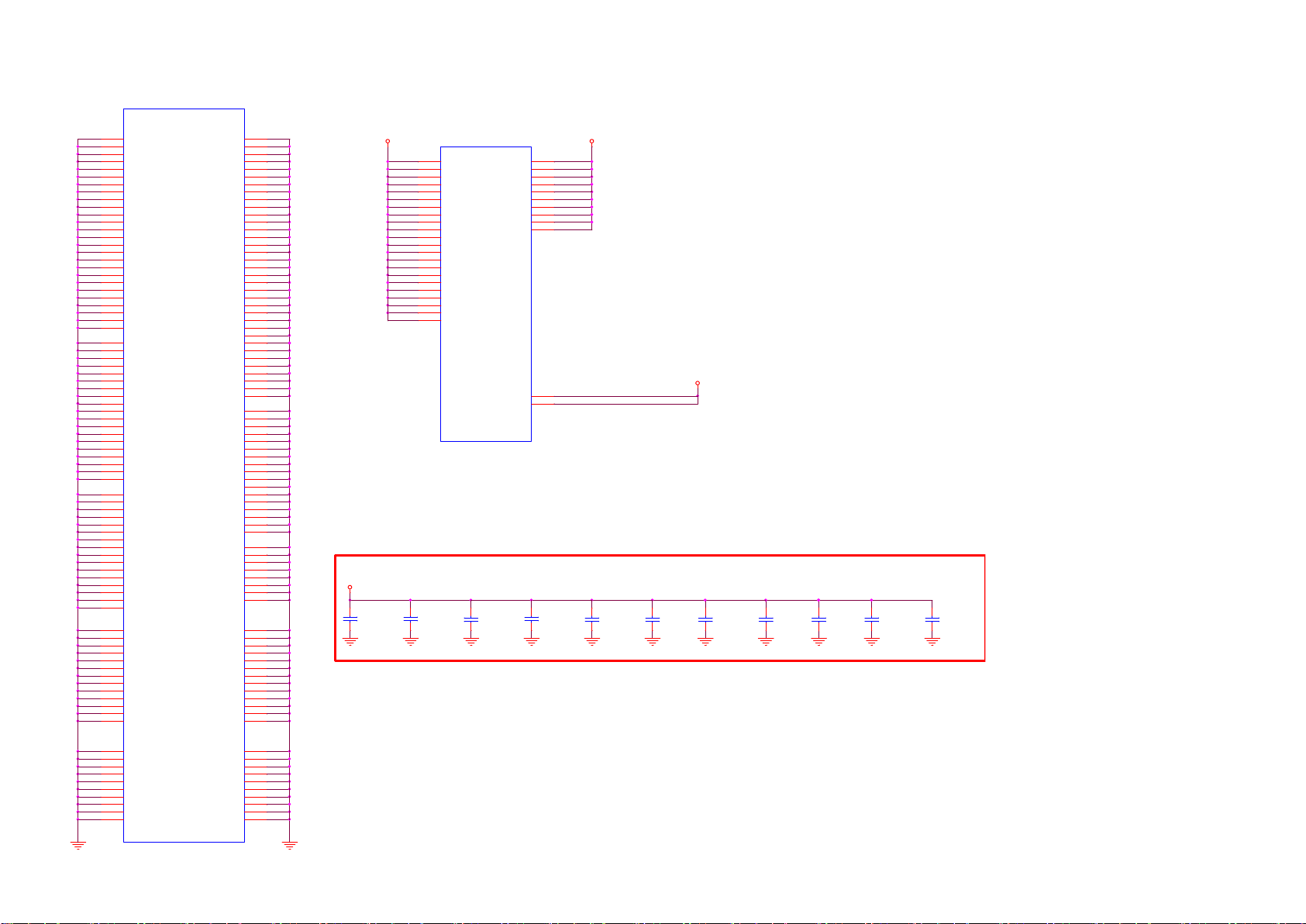

9-3-14 VCCK&DVSS
U401-11
AB1
AG1
AC2
AD4
AF4
AB5
AH6
AF7
AA8
AB9
AH9
M10
N10
AF10
M11
N11
R11
U11
W11
AB11
C12
C15
M17
N17
R17
U17
M20
N20
AB20
AC22
AC23
AC24
D24
DVSS
DVSS
L2
DVSS
DVSS
H3
DVSS
J3
DVSS
N3
DVSS
R3
DVSS
V3
DVSS
Y3
DVSS
M4
DVSS
DVSS
DVSS
J5
DVSS
P5
DVSS
DVSS
E6
DVSS
F6
DVSS
G6
DVSS
K6
DVSS
DVSS
E7
DVSS
F7
DVSS
G7
DVSS
H7
DVSS
U7
DVSS
W7
DVSS
DVSS
E8
DVSS
F8
DVSS
G8
DVSS
H8
DVSS
U8
DVSS
DVSS
E9
DVSS
F9
DVSS
G9
DVSS
K9
DVSS
L9
DVSS
M9
DVSS
N9
DVSS
DVSS
DVSS
K10
DVSS
L10
DVSS
DVSS
DVSS
DVSS
K11
DVSS
L11
DVSS
DVSS
DVSS
P11
DVSS
DVSS
T11
DVSS
DVSS
V11
DVSS
DVSS
DVSS
DVSS
DVSS
J17
DVSS
K17
DVSS
L17
DVSS
DVSS
DVSS
P17
DVSS
DVSS
T17
DVSS
DVSS
V17
DVSS
J18
DVSS
K18
DVSS
L18
DVSS
DVSS
DVSS
DVSS
E22
DVSS
P22
DVSS
DVSS
T23
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
K12
L12
M12
N12
P12
R12
T12
U12
V12
W12
K13
L13
M13
N13
P13
R13
T13
U13
V13
W13
AB13
AC13
AD13
AF13
G14
J14
K14
L14
M14
N14
P14
R14
T14
U14
V14
W14
AD14
AE14
J15
K15
L15
M15
N15
P15
R15
T15
U15
V15
J16
K16
L16
M16
N16
P16
R16
T16
U16
V16
W16
AB16
M18
N18
P18
R18
T18
U18
V18
AB18
L19
M19
N19
AB19
L20
Y25
AD25
AF25
C26
D26
E26
T26
C27
A28
C28
VCCK POWER
Bottom Side Capacitors
VCCK
C1134
22UF 20% 6.3V
U401-10
Y16
VCCK
W17
VCCK
Y17
VCCK
W18
VCCK
Y18
VCCK
P19
VCCK
R19
VCCK
T19
VCCK
U19
VCCK
V19
VCCK
W19
VCCK
Y19
VCCK
P20
VCCK
R20
VCCK
T20
VCCK
U20
VCCK
V20
VCCK
W20
VCCK
Y20
VCCK
U21
VCCK
V21
VCCK
W21
VCCK
MT5800VHEJ
C1135
10UF 6.3V 20%
VCC3I O_A
VCC3I O_B
C1136
4.7UF 6.3V
VCCK
VCCK
VCCK
VCCK
VCCK
VCCK
VCCK
VCCK
VCCK
VCCK
Y21
W22
Y22
AA22
AB22
Y23
AA23
AB23
AA24
AB24
G21
F22
C1137
10UF 6.3V 20%
VCCKVCCK
VCC3IO_A
VCC3IO_B
C1138
100nF 16V
C1139
100nF 16V
VCC3IO_AB
C1140
100nF 16V
C1141
100nF 16V
C1142
100nF 16V
C1143
100nF 16V
C1144
100nF 16V
MT5800VHEJ
Page 57
9.4 J 715G8623 IR/LED Panel
9-4-1 IR
CN201
10 11
10 11
67
1
2
3
4
5
6
7
8
9
NC/C ONN
CN202
1
2
3
4
5
6
7
8
9
NC/C ONN
CN203
1
2
3
4
5
CONN
LED_R
RC-I R
LS_SCL
LS_SDA
LED_R
RC-I R
LS_SCL
LS_SDA
LED_R
RC-I R
3V3SB
DVD3V3
3V3SB
DVD3V3
ZD200 ZD201 near U212 pin
3V3SB
IR_power
RC-I R
ZD200
AZ5123-01H
ZD201
AZ5123-01H
12
1 2
U212
1
GND
2
VCC
3
Vout
4
GND
TSOP75436TR
Light Sensor
LS_SCL
LS_SDA
DVD3V3
R225 0R05 1/16W
R222
R221
R226 NC/ 0R05 1/16W
10K 1/16W 5%
10K 1/16W 5%
DVD3V3
R223
R224
0R05 1/16W
NC/ 0R05 1/16W
C222 1uF 10V
C221 100N 16V
U221
JSA-1130
1
ADDR
INT
2
VDD
SDA
GND3SCL
6
5
4
R223
NC 0x44
JSA-1130
JSA-1130 0RNC0R
TSL25715
Digital Light Sensor
R225R224 R227R226
NCNC0R0R
0R0RNCNC0R
R227 NC/ 0R05 1/16W
R228 0R05 1/16W
R229 0R05 1/16W
R228
NC
LS_SDA
LS_SCL
R229
0R0R
0R0R
NC
I2C ADDR
0x45NCNC
0x29
Standby LED
C211
1UF 6.3V
3V3SB
R211
100R 1/16W 5%
IR Receiver
IR_power
C212
NC/ 1UF 6.3V
LED_R
1K 1/16W 5%
LED201
GPSS008RC4
Red
R202
3V3SB
R201
10K 1/16W 5%
12
Q201
BC847BW
ZD203 NC/ AZ5123-01H
ZD202 NA/AZ51 23-01H
1 2
1 2
ZD202 ZD203 near LED201
Page 58

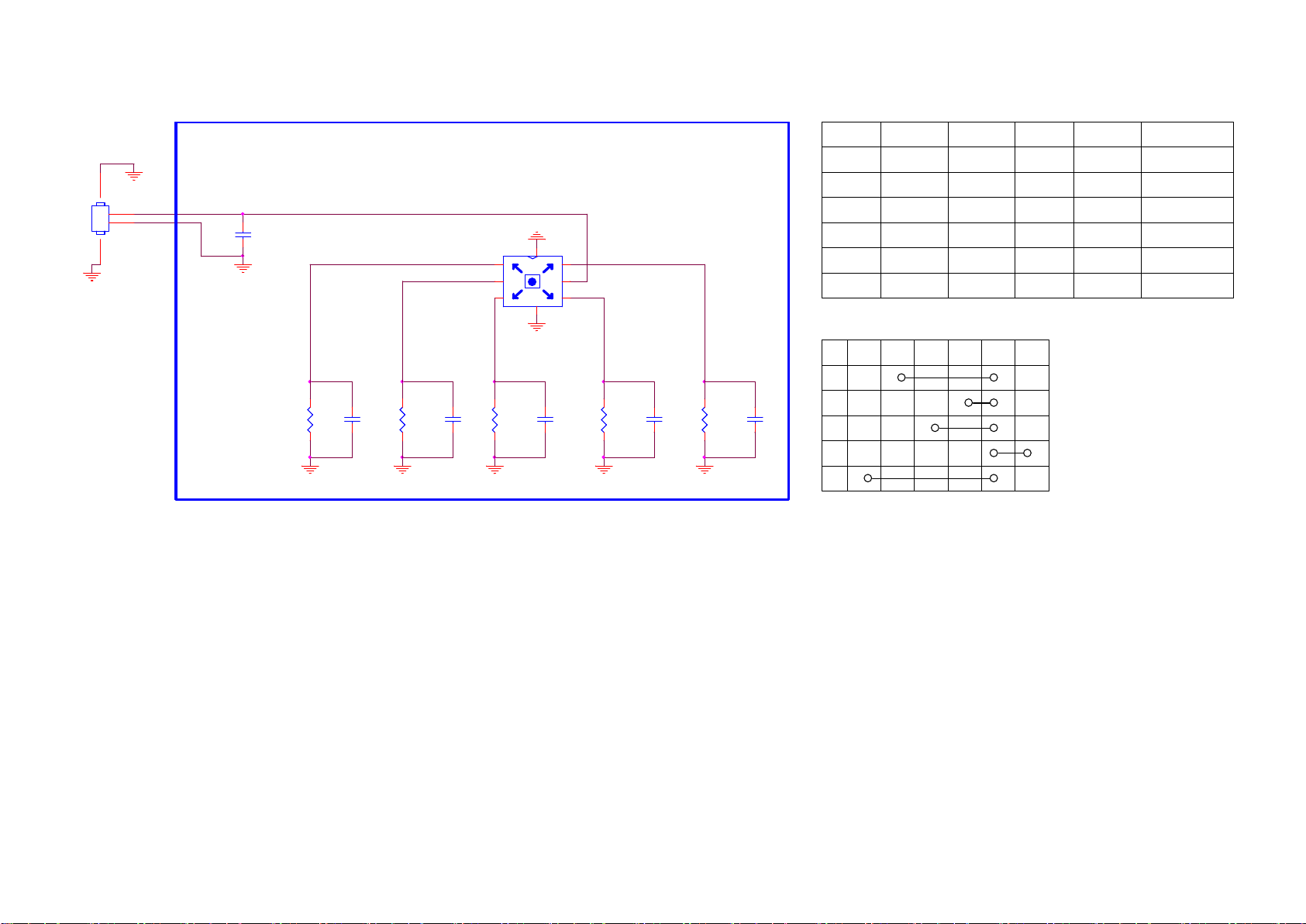

9.5 E 715G9740 Keyboard control panel
9-5-1 Key
CN01
CONN
Direction switch
JOYSTICK
34
1
2
KEY1
C06
0.1uF 50 V
Right
----><----|
Center
----><----|
7
1 6
F5
2
F1
3 4
F3
SW01
F4
F2
8
TACT SW 6P
Down
----><----|
5
Left
----><----|
Up
----><----|
Center
Right
Left
Down
Up
2-5 short
1-5 short
4-5 short
3-5 short
6-5 short
Menu
CH+ 1K2
CH-
VOL-
VOL+
No function
Joystick circuit diagram
pin1
pin2
pin3
pin4
F1
ResistanceKey function
pin5 pin6
0R
2K2
6K8
15K
Voltage
0V
0.5V
0.81V
1.65V
2.27V
3.3V
Range
0 to 0.22V
0.39 to 0.60 V
0.67 to 0.95 V
1.41 to 1.87 V
1.93 to 2.58 V
3.135 to 3.465 V
F2
R01
1K2 1/10W 1%
R02
C01
NC/ 100N 50V
0R05 1/10W
R03
C02
NC/ 100N 50V
C03
6K8 1/10W 1%
R04
NC/ 100N 50V
2K2 1/10W 1%
R05
C04
NC/ 100N 50V
C05
15K 1/10W 1%
NC/ 100N 50V
F3
F4
F5
Page 59
10. Styling Sheets
50
1050
40
1053
1054
1056
1057
1184
WIFI02
36
63
30
10.1 5803/5823 series 32"
Page 60

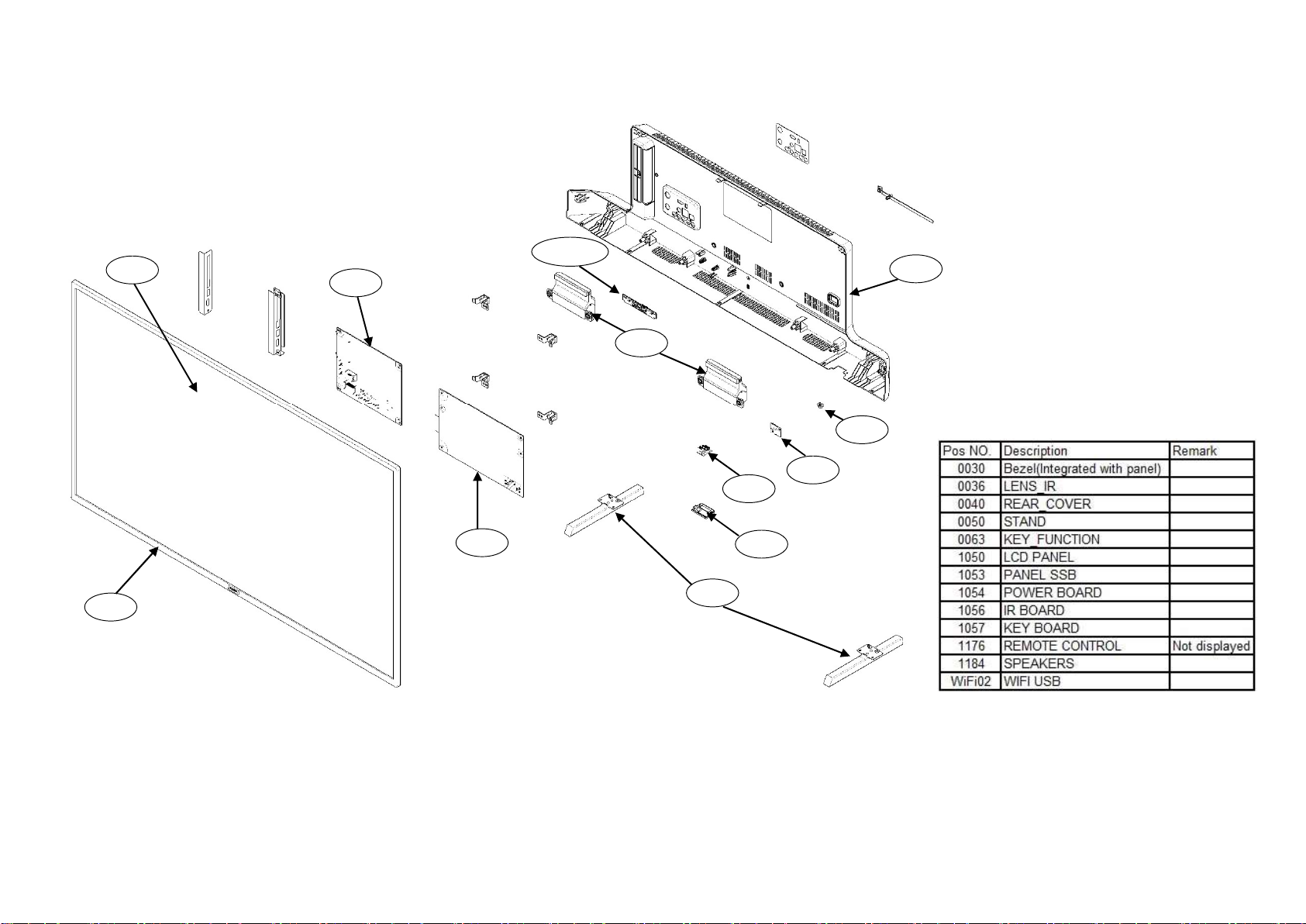

10.2 5803/5823 series 43", 5803 series 50”
50
1050
40
1053
1054
1056
1057
1184
WIFI02
36
63
30
Loading...
