Philips 50PF7220A/37 Specifications

Download

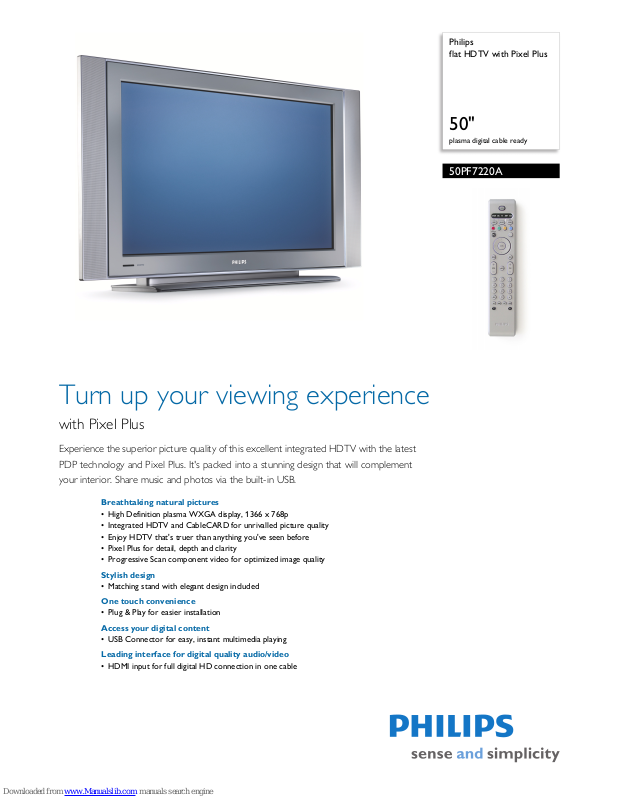

Page 1

Philips flat HDTV with Pixel Plus

50"

plasma digital cable ready

50PF7220A

Turn up your viewing experience

with Pixel Plus

Experience the superior picture quality of this excellent integrated HDTV with the latest PDP technology and Pixel Plus. It's packed into a stunning design that will complement your interior. Share music and photos via the built-in USB.

Breathtaking natural pictures

• High Definition plasma WXGA display, 1366 x 768p

• Integrated HDTV and CableCARD for unrivalled picture quality

• Enjoy HDTV that's truer than anything you've seen before

• Pixel Plus for detail, depth and clarity

• Progressive Scan component video for optimized image quality

Stylish design

• Matching stand with elegant design included

One touch convenience

• Plug & Play for easier installation

Access your digital content

• USB Connector for easy, instant multimedia playing

Leading interface for digital quality audio/video

• HDMI input for full digital HD connection in one cable

Page 2

50PF7220A/37

Highlights

Flat HDTV with Pixel Plus

50" plasma digital cable ready

Plasma WXGA panel, 1366 x 768p

This state-of-the-art plasma screen technology gi

ves you widescreen HD resolution of up to 1366 x 768p pixels. It produces brilliant flickerfree progressive scan pictures in with optimum brightness and superb colors. This vibrant and sharp image will provide you with an enhanced viewing experience.

Digital Cable Ready

The CableCARD is a removable card dist

ributed by the cable providers that is inserted in the TV. This enables the “Plug-andPlay DTV” functionality as agreed between cable operators and consumer electronics manufacturers. It allows the decoding of encrypted or scrambled content delivered from the cable system. CableCARD functionality includes conditional access and copy protection. A CableCARD-enabled television without a CableCARD inserted receives high-definition standard TV broadcasts. When a CableCARD is inserted, the television receives high-value highdefinition, cable programming.

HDTV

HDTV delivers exceptional picture quality and real mo

vie-viewing experience that makes

television more dynamic, truer than anything

you've seen before. It is the latest and best television signal available. It features picture quality more than twice that of traditional analog broadcasts. In order to effectively maximize the HDTV signal, a television must incorporate advanced signal input connectivity and circuitry design.

Pixel Plus

Pixel Plus is a digital picture processing te

chnology that increases the number of lines and the number of pixels. The result is razor sharp pictures with incredible detail and depth, every time from any source.

Progressive Scan

Progressive Scan doubles the vertical resoluti

on of the image resulting in a noticeably sharper picture. Instead of sending a field comprising the odd lines to the screen first, followed by the field with the even lines, both fields are written at one time. A full image is created instantaneously, using the maximum resolution. At such a speed, your eye perceives a sharper picture with no line structure.

Bypacked tabletop stand

A table-top stand with matching design is pac

ked with the set.

Plug & Play

Plug & Play gives you the ability to install or add a

new component and have it work without having to perform any complex installation procedure or technical analysis.

USB Multimedia Connector

The USB connector allows access to m

ultimedia jpg, mp3 and alb files of most USBsticks and most digital cameras (USB 1.1 memory-class device). Plug the USB into the slot at the side of the TV and access your photos or music files. This makes you easily viewing and sharing your photos and music.

HDMI input

HDMI makes an uncompressed digital RGB c

onnection from the source to the screen. By eliminating conversion to an analog signal, it delivers an unblemished image. The nondegraded signal reduces flicker and leads to a clearer picture. HDMI intelligently communicates the highest output resolution with the source device. The HDMI input is fully backward compatible with DVI sources but includes digital audio. HDMI uses HDCP copy protection.

Page 3

Issue date 2010-12-17

Version: 2.0.4

12 NC: 8670 000 24012 UPC: 6 09585 11129 5

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.

www.philips.com

50PF7220A/37

Specifications

Flat HDTV with Pixel Plus

50" plasma digital cable ready

Picture/Display

• Aspect ratio: 16:9

• Brightness: 1500 cd/m²

• Diagonal screen size: 50 inch / 127 cm

• Display screen type: Plasma HD panel

• Picture enhancement: Pixel

Plu

s, Progressive scan, Active Control + Light sensor, 3/2 - 2/2 motion pull down, Widescreen Plus, 3D Combfilter, Contrast Plus

• Screen enhancement: Anti ageing circuit, AntiReflectio

coated screen

• Panel resolution: 1366 x 768p

• Color cabinet: Digital Silver

• Contrast ratio (typical): 10000:1

• Viewing angle: 160º (H) / 160º (V)

Supported Display Resolution

• Computer formats Resolution Refresh rate 640 x 480 60Hz 800 x 600 60Hz 1024 x 768 60Hz 1366 x 768 60Hz

• Vi

deo Formats

Res

olution Refresh rate 640 x 480i 1Fh 640 x 480p 2Fh 720 x 576i 1Fh 720 x 576p 2Fh 1280 x 720p 3Fh 1920 x 1080i 2Fh

Sound

• Sound Enhancement: Digital Signal Processing, Dynamic Bass Enhancement, Graphic Equaliser

• Output power (RMS): 2 x 15W

• Sound System: Virtual Dolby Digital

Loudspeakers

• Built-in speakers: 2

Convenience

• Ease of Installation: Autostore, PLL Digital Tuning, Plug & Play, Automatic Tuning System (ATS)

• Ease of Use: On Screen Display, Side Control, Smart Pict

ure, Channel list, Smart Sound, Delta

Volume per preset

• Remote control type: RC4345/01

• Picture in Picture: HDMI-Component PIP

• Remote Control: Amp, DVD-R, M

lti-functional,

Sat, VCR, DVD

• Screen Format Adjustments:

7 Widescreen Modes,

Auto Format, Subtitle and Heading Shift

• Child Protection: Child Lock+Parental Control

• Clock: Smart Clock

• Teletext: Closed Captioning Full Text

Multimedia Applications

• Digital Content Management: Digital Media Reader

• Multimedia connections: USB memory class device

• Playback Formats: JPEG Still pictures, MP3, Slid

eshow files (.alb)

Tuner/Reception/Transmission

• TV system: ATSC, NTSC

•Video Playback: NTSC

• Aerial Input: 75 ohm F-type

• Cable: Digital Cable Ready CableCARD, Unsc

rambled Digital

Cable -QAM

Connectivity

• Other connections: Cable Card Interface, Monitor out, CVBS, L/R (cinch), S/PDIF in (coaxial), S/PDIF out (coaxial)

• AV 1: Audio L/R in, CVBS in, RGB+H/V, S-Video Y/ C,

YPbPr, Co

mponent Video in, (1, 2, 3Fh

autoranging), Y/C

• AV 2: Audio L/R in, CVBS, S-Video

• AV 3: S/PDIF digital coaxial, YPbPr, (1, 2, 3Fh autor

anging)

•A

V 4: HDMI

•AV 5: HDMI

•Front / Side connections: Audio

L/R

in, CVBS in,

Headphone out, S-video in, USB 1.1

Power

• Power consumption: 470 W

• Standby power consumption: < 2 W

• Mains power: AC 110 - 240 V, 50/60 Hz

• Ambient temperature: 5 °C to 40 °C

Dimensions

• Product dimension (WxDxH) inch: 4.1x30.7x55.7 inch

• Product weight: 50 kg

• Product weight (lb): 132.3

• Weight incl. Packaging: 64 kg

•Set dimensions (W x H x D): 14

x 780 x 104 mm

• VESA wall mount compatible: 800 x 400 mm

Accessories

• Included accessories: Table top stand

•
