Philips 49PUH4900 Schematic

Colour Television Chassis

TPN15.2E

LA

Contents Page Contents Page

1. Revision List 2

2. Technical Specs, Diversity, and Connections 2

3. Precautions, Notes, and Abbreviation List 5

4. Mechanical Instructions 9 Cable dressing (43" 4900 series) 9 Cable dressing (49" 4900 series) 10 Cable dressing (55" 4900 series) 10

5. Service Modes and Fault Finding 14

6. Alignments 22

7. Circuit Descriptions 24

8. IC Data Sheets 30

9. Block Diagrams Block diagram 4900 series 35

10. Circuit Diagrams and PWB Layouts Drawing PWB A 715G6677 PSU A 715G6973 PSU 42 46-47 B 715G7673 SSB 48 63-64 J 715G7459 IR/LED Panel 65 66 E 715G7088 Keyboard control panel 67 68

11. Styling Sheets 4900 series 43" 69 4900 series 49" 70 4900 series 55" 71

36 40-41

Published by CQZ/SC 1548 Quality Printed in the Netherlands Subject to modification EN 3122 785 19972

2015-Nov-27

2015 ©

TP Vision Netherlands B.V.

All rights reserved. Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners. TP Vision Netherlands B.V. reserves the right to change products at any time without being obliged to adjust earlier supplies accordingly. PHILIPS and the PHILIPS’ Shield Emblem are used under license from Koninklijke Phili ps Electronics N.V.

EN 2 TPN15.2E LA1.

1. Revision List

Manual xxxx xxx xxxx.0

• First release.

Revision List

• Chapter 6: Updated tables 6-2 White tone default settings and 6-3 Display code overview

.

Manual xxxx xxx xxxx.1

• Chapter 2: Updated table 2.1 Technical Specifications

• Chapter 5: Updated table 5-2 Factory mode overview

.

Manual xxxx xxx xxxx.2

• Chapter 2: Updated table 2.1 Technical Specifications

• Chapter 6: Updated tables 6-2 White tone default settings and 6-3 Display code overview

2. Technical Specs, Diversity, and Connections

Index of this chapter:

2.1 Technical Specifications

2.2 Directions for Use

2.3 Connections

2.4 Chassis Overview

Notes:

• Figures can deviate due to the different set executions.

Table 2-1 Described Model Numbers and Diversity

24 910 11

Mechanics

• Specifications are indicative (subject to change).

2.1 Technical Specifications

For on-line product support please use the links in Table 2-1. Here is product information available, as well as getting started, user manuals, frequently asked questions and software & drivers.

Schematics

.

CTN

43PUH4900/88 2-1 4-1 4-4 4-5 4-6 4-7 & 4-8 9.1 10.1 10.3 10.4 10.5 11.1 43PUT4900/12 2-1 4-1 4-4 4-5 4-6 4-7 & 4-8 9.1 10.1 10.3 10.4 10.5 11.1 43PUK4900/12 2-1 4-1 4-4 4-5 4-6 4-7 & 4-8 9.1 10.1 10.3 10.4 10.5 11.1 43PUT4900/60 2-1 4-1 4-4 4-5 4-6 4-7 & 4-8 9.1 10.1 10.3 10.4 10.5 11.1 49PUH4900/88 2-1 4-2 4-4 4-5 4-6 4-7 & 4-8 9.1 10.1 10.3 10.4 10.5 11.2 49PUT4900/12 2-1 4-2 4-4 4-5 4-6 4-7 & 4-8 9.1 10.1 10.3 10.4 10.5 11.2 49PUK4900/12 2-1 4-2 4-4 4-5 4-6 4-7 & 4-8 9.1 10.1 10.3 10.4 10.5 11.2 49PUT4900/60 2-1 4-2 4-4 4-5 4-6 4-7 & 4-8 9.1 10.1 10.3 10.4 10.5 11.2 55PUH4900/88 2-1 4-3 4-4 4-5 4-6 4-7 & 4-8 9.1 10.2 10.3 10.4 10.5 11.3 55PUT4900/12 2-1 4-3 4-4 4-5 4-6 4-7 & 4-8 9.1 10.2 10.3 10.4 10.5 11.3 55PUK4900/12 2-1 4-3 4-4 4-5 4-6 4-7 & 4-8 9.1 10.2 10.3 10.4 10.5 11.3 55PUT4900/60 2-1 4-3 4-4 4-5 4-6 4-7 & 4-8 9.1 10.2 10.3 10.4 10.5 11.3

Connection Overview

Wire Dressing

Stand Removal

Rear Cover Removal

SSB Removal

IR/LED Board Removal

Block Diagram

Power Supply

SSB

2.2 Directions for Use

Directions for use can be downloaded from the following websites:

http://www.philips.com/support http://www.p4c.philips.com

J (IR/LED )

E (Keyboard/Leading Edge)

Styling

2015-Nov-27

back to

div. table

2.3 Connections

TV ANTENNA

VGA / DVI

AUDIO IN

DIGITAL

AUDIO OUT

SE

RV.U

HDMI 1

ARC

HDM

HDMI3

CI

USB2

I2

L R

CVBS/Y Pb

Pr

USB1

19970_001.eps

1

2

3

4

57

8

9

10

11

12

Side ConnectorsRear Connectors

6

10000_017_090121.eps

090428

19

1

18 2

1 2 3 4

10000_022_090121.eps

090121

10000_017_090121.eps

090428

19

1

18 2

Technical Specs, Diversity, and Connections

EN 3TPN15.2E LA 2.

2.3.1 Side Connections

Figure 2-1 Connection overview

Note: The following connector colour abbreviations are used

(acc. to DIN/IEC 757): Bk= Black, Bu= Blue, Gn= Green, Gy= Grey, Rd= Red, Wh= White, Ye= Yellow.

1 - Common Interface

68p- See figure 10-7-6

jk

2 - HDMI 3: Digital Video - In, Digital Audio with ARC In/Out

Figure 2-2 HDMI (type A) connector

1 -D2+ Data channel j 2-Shield Gnd H 3 -D2- Data channel j 4 -D1+ Data channel j 5-Shield Gnd H 6 -D1- Data channel j 7 -D0+ Data channel j 8-Shield Gnd H 9 -D0- Data channel j 10 - CLK+ Data channel j 11 - Shield Gnd H 12 - CLK- Data channel j 13 - Easylink/CEC Control channel jk 14 - ARC Audio Return Channel k 15 - DDC_SCL DDC clock j 16 - DDC_SDA DDC data jk 17 - Ground Gnd H 18 - +5V j 19 - HPD Hot Plug Detect j

div. table

20 - Ground Gnd H

3 - USB 2.0

1-+5V k 2 -Data (-) jk 3 -Data (+) jk 4 -Ground Gnd H

4 - Head phone (Output)

Bk -Head phone 80 - 600  / 10 mW

2.3.2 Rear Connections

5- TV ANTENNA - In

Signal input from an antenna, cable or satellite.

6 - HDMI 2: Digital Video - In, Digital Audio with ARC In/Out

1 -D2+ Data channel j 2 -Shield Gnd H

back to

Figure 2-3 USB (type A)

ot

Figure 2-4 HDMI (type A) connector

2015-Nov-27

EN 4 TPN15.2E LA2.

10000_017_090121.eps

090428

19

1

18 2

1 2 3 4

10000_022_090121.eps

090121

Technical Specs, Diversity, and Connections

3 -D2- Data channel j 4 -D1+ Data channel j 5-Shield Gnd H 6 -D1- Data channel j 7 -D0+ Data channel j 8-Shield Gnd H 9 -D0- Data channel j 10 - CLK+ Data channel j 11 - Shield Gnd H 12 - CLK- Data channel j 13 - Easylink/CEC Control channel jk 14 - ARC Audio Return Channel k 15 - DDC_SCL DDC clock j 16 - DDC_SDA DDC data jk 17 - Ground Gnd H 18 - +5V j 19 - HPD Hot Plug Detect j 20 - Ground Gnd H

7 - HDMI 1 ARC: Digital Video - In, Digital Audio with ARC In/Out

Figure 2-5 HDMI (type A) connector

1 -D2+ Data channel j 2-Shield Gnd H 3 -D2- Data channel j 4 -D1+ Data channel j 5-Shield Gnd H 6 -D1- Data channel j 7 -D0+ Data channel j 8-Shield Gnd H 9 -D0- Data channel j 10 - CLK+ Data channel j 11 - Shield Gnd H 12 - CLK- Data channel j 13 - Easylink/CEC Control channel jk 14 - ARC Audio Return Channel k 15 - DDC_SCL DDC clock j 16 - DDC_SDA DDC data jk 17 - Ground Gnd H 18 - +5V j 19 - HPD Hot Plug Detect j 20 - Ground Gnd H

8 - Service / UART

1 -Ground Gnd H 2 -UART_TX Transmit k 3 -UART_RX Receive j

9 - Cinch: Digital Audio - Out

BK - Coaxial 0.4 - 0.6V

/ 75 W kq

PP

10 - USB1 2.0

Figure 2-6 USB (type A)

1-+5V k 2 -Data (-) jk 3 -Data (+) jk 4 -Ground Gnd H

11 - Audio - In: Left / Right, VGA

Bu -Audio L/R in 0.5 V

/ 10 kW jq

RMS

12 - EXT1: Video RGB/YC - In, CVBS - In/Out, Audio - In/Out

20

21

10000_001_090121.eps

2

1

090121

Figure 2-7 SCART connector

1 -Audio R 0.5 V 2 -Audio R 0.5 V 3 -Audio L 0.5 V 4 -Ground Audio Gnd H

/ 1 k k

RMS

/ 10 k j

RMS

/ 1 k k

RMS

5 -Ground Blue Gnd H 6 -Audio L 0.5 V 7 -Video Blue/C-out 0.7 V

/ 10 k j

RMS

/ 75  jk

PP

8 -Function Select 0 - 2 V: INT

4.5 - 7 V: EXT 16:9

9.5 - 12 V: EXT 4:3 j 9 -Ground Green Gnd H 10 - n.c. 11 - Video Green 0.7 V

/ 75  j

PP

12 - n.c. 13 - Ground Red Gnd H 14 - Ground P50 Gnd H 15 - Video Red/C 0.7 V 16 - Status/FBL 0 - 0.4 V: INT

/ 75  j

PP

1 - 3 V: EXT / 75  j 17 - Ground Video Gnd H 18 - Ground FBL Gnd H 19 - Video CVBS 1 V 20 - Video CVBS/Y 1 V 21 - Shield Gnd H

/ 75  k

PP

/ 75  j

PP

2.4 Chassis Overview

Refer to 9. Block Diagrams for PWB/CBA locations.

2015-Nov-27

back to

div. table

Precautions, Notes, and Abbreviation List

3. Precautions, Notes, and Abbreviation List

Index of this chapter:

3.1 Safety Instructions

3.2 Warnings

3.3 Notes

3.4 Abbreviation List

3.1 Safety Instructions

Safety regulations require the following during a repair:

• Connect the set to the Mains/AC Power via an isolation transformer (> 800 VA).

• Replace safety components, indicated by the symbol h, only by components identical to the original ones. Any other component substitution (other than original type) may increase risk of fire or electrical shock hazard.

Safety regulations require that after a repair, the set must be returned in its original condition. Pay in particular attention to the following points:

• Route the wire trees correctly and fix them with the mounted cable clamps.

• Check the insulation of the Mains/AC Power lead for external damage.

• Check the strain relief of the Mains/AC Power cord for proper function.

• Check the electrical DC resistance between the Mains/AC Power plug and the secondary side (only for sets that have a Mains/AC Power isolated power supply):

1. Unplug the Mains/AC Power cord and connect a wire

between the two pins of the Mains/AC Power plug.

2. Set the Mains/AC Power switch to the “on” position

(keep the Mains/AC Power cord unplugged!).

3. Measure the resistance value between the pins of the

Mains/AC Power plug and the metal shielding of the tuner or the aerial connection on the set. The reading should be between 4.5 M and 12 M.

4. Switch “off” the set, and remove the wire between the

two pins of the Mains/AC Power plug.

• Check the cabinet for defects, to prevent touching of any inner parts by the customer.

3.2 Warnings

• All ICs and many other semiconductors are susceptible to electrostatic discharges (ESD w). Careless handling during repair can reduce life drastically. Make sure that, during repair, you are connected with the same potential as the mass of the set by a wristband with resistance. Keep components and tools also at this same potential.

• Be careful during measurements in the high voltage section.

• Never replace modules or other components while the unit is switched “on”.

• When you align the set, use plastic rather than metal tools. This will prevent any short circuits and the danger of a circuit becoming unstable.

3.3 Notes

3.3.1 General

• Measure the voltages and waveforms with regard to the chassis (= tuner) ground (H), or hot ground (I), depending on the tested area of circuitry. The voltages and waveforms shown in the diagrams are indicative. Measure them in the Service Default Mode with a colour bar signal and stereo sound (L: 3 kHz, R: 1 kHz unless stated otherwise) and picture carrier at 475.25 MHz for PAL, or 61.25 MHz for NTSC (channel 3).

• Where necessary, measure the waveforms and voltages with (D) and without (E) aerial signal. Measure the voltages in the power supply section both in normal operation (G) and in stand-by (F). These values are indicated by means of the appropriate symbols.

3.3.2 Schematic Notes

• All resistor values are in ohms, and the value multiplier is often used to indicate the decimal point location (e.g. 2K2 indicates 2.2 k).

• Resistor values with no multiplier may be indicated with either an “E” or an “R” (e.g. 220E or 220R indicates 220 ).

• All capacitor values are given in micro-farads (10 nano-farads (n 10

• Capacitor values may also use the value multiplier as the decimal point indication (e.g. 2p2 indicates 2.2 pF).

• An “asterisk” (*) indicates component usage varies. Refer to the diversity tables for the correct values.

• The correct component values are listed on the Philips Spare Parts Web Portal.

3.3.3 Spare Parts

For the latest spare part overview, consult your Philips Spare Part web portal.

3.3.4 BGA (Ball Grid Array) ICs

Introduction

For more information on how to handle BGA devices, visit this URL: http://www.atyourservice-magazine.com “Magazine”, then go to “Repair downloads”. Here you will find Information on how to deal with BGA-ICs.

BGA Temperature Profiles

For BGA-ICs, you must use the correct temperature-profile. Where applicable and available, this profile is added to the IC Data Sheet information section in this manual.

3.3.5 Lead-free Soldering

Due to lead-free technology some rules have to be respected by the workshop during a repair:

• Use only lead-free soldering tin. If lead-free solder paste is required, please contact the manufacturer of your soldering equipment. In general, use of solder paste within workshops should be avoided because paste is not easy to store and to handle.

• Use only adequate solder tools applicable for lead-free soldering tin. The solder tool must be able: – To reach a solder-tip temperature of at least 400°C. – To stabilize the adjusted temperature at the solder-tip. – To exchange solder-tips for different applications.

• Adjust your solder tool so that a temperature of around 360°C - 380°C is reached and stabilized at the solder joint. Heating time of the solder-joint should not exceed ~ 4 sec. Avoid temperatures above 400°C, otherwise wear-out of tips will increase drastically and flux-fluid will be destroyed. To avoid wear-out of tips, switch “off” unused equipment or reduce heat.

• Mix of lead-free soldering tin/parts with leaded soldering tin/parts is possible but PHILIPS recommends strongly to avoid mixed regimes. If this cannot be avoided, carefully clear the solder-joint from old tin and re-solder with new tin.

3.3.6 Alternative BOM identification

It should be noted that on the European Service website, “Alternative BOM” is referred to as “Design variant”.

The third digit in the serial number (example: AG2B0335000001) indicates the number of the alternative B.O.M. (Bill Of Materials) that has been used for producing the specific TV set. In general, it is possible that the same TV model on the market is produced with e.g. two different types of displays, coming from two different suppliers. This will then

back to

div. table

-9

), or pico-farads (p 10

. Select

EN 5TPN15.2E LA 3.

-6

),

-12

).

2015-Nov-27

EN 6 TPN15.2E LA3.

10000_053_110228.eps

110228

Precautions, Notes, and Abbreviation List

result in sets which have the same CTN (Commercial Type Number; e.g. 28PW9515/12) but which have a different B.O.M. number. By looking at the third digit of the serial number, one can identify which B.O.M. is used for the TV set he is working with. If the third digit of the serial number contains the number “1” (example: AG1B033500001), then the TV set has been manufactured according to B.O.M. number 1. If the third digit is a “2” (example: AG2B0335000001), then the set has been produced according to B.O.M. no. 2. This is important for ordering the correct spare parts! For the third digit, the numbers 1...9 and the characters A...Z can be used, so in total: 9 plus 26= 35 different B.O.M.s can be indicated by the third digit of the serial number.

Identification: The bottom line of a type plate gives a 14-digit serial number. Digits 1 and 2 refer to the production centre (e.g. SN is Lysomice, RJ is Kobierzyce), digit 3 refers to the B.O.M. code, digit 4 refers to the Service version change code, digits 5 and 6 refer to the production year, and digits 7 and 8 refer to production week (in example below it is 2010 week 10 / 2010 week 17). The 6 last digits contain the serial number.

Figure 3-1 Serial number (example)

3.3.7 Board Level Repair (BLR) or Component Level Repair (CLR)

If a board is defective, consult your repair procedure to decide if the board has to be exchanged or if it should be repaired on component level. If your repair procedure says the board should be exchanged completely, do not solder on the defective board. Otherwise, it cannot be returned to the O.E.M. supplier for back charging!

3.3.8 Practical Service Precautions

• It makes sense to avoid exposure to electrical shock.

While some sources are expected to have a possible dangerous impact, others of quite high potential are of limited current and are sometimes held in less regard.

• Always respect voltages. While some may not be

dangerous in themselves, they can cause unexpected reactions that are best avoided. Before reaching into a powered TV set, it is best to test the high voltage insulation. It is easy to do, and is a good service precaution.

3.4 Abbreviation List

0/6/12 SCART switch control signal on A/V

board. 0 = loop through (AUX to TV),

6 = play 16 : 9 format, 12 = play 4 : 3 format

AARA Automatic Aspect Ratio Adaptation:

algorithm that adapts aspect ratio to remove horizontal black bars; keeps the original aspect ratio

ACI Automatic Channel Installation:

algorithm that installs TV channels directly from a cable network by

means of a predefined TXT page ADC Analogue to Digital Converter AFC Automatic Frequency Control: control

signal used to tune to the correct

frequency AGC Automatic Gain Control: algorithm that

controls the video input of the feature

box AM Amplitude Modulation AP Asia Pacific AR Aspect Ratio: 4 by 3 or 16 by 9 ASF Auto Screen Fit: algorithm that adapts

aspect ratio to remove horizontal black

bars without discarding video

information ATSC Advanced Television Systems

Committee, the digital TV standard in

the USA ATV See Auto TV Auto TV A hardware and software control

system that measures picture content,

and adapts image parameters in a

dynamic way AV External Audio Video AVC Audio Video Controller AVIP Audio Video Input Processor B/G Monochrome TV system. Sound

carrier distance is 5.5 MHz BDS Business Display Solutions (iTV) BLR Board-Level Repair BTSC Broadcast Television Standard

Committee. Multiplex FM stereo sound

system, originating from the USA and

used e.g. in LATAM and AP-NTSC

countries B-TXT Blue TeleteXT C Centre channel (audio) CEC Consumer Electronics Control bus:

remote control bus on HDMI

connections CL Constant Level: audio output to

connect with an external amplifier CLR Component Level Repair ComPair Computer aided rePair CP Connected Planet / Copy Protection CSM Customer Service Mode CTI Color Transient Improvement:

manipulates steepness of chroma

transients CVBS Composite Video Blanking and

Synchronization DAC Digital to Analogue Converter DBE Dynamic Bass Enhancement: extra

low frequency amplification DCM Data Communication Module. Also

referred to as System Card or

Smartcard (for iTV). DDC See “E-DDC” D/K Monochrome TV system. Sound

carrier distance is 6.5 MHz DFI Dynamic Frame Insertion DFU Directions For Use: owner's manual DMR Digital Media Reader: card reader DMSD Digital Multi Standard Decoding DNM Digital Natural Motion

2015-Nov-27

back to

div. table

Precautions, Notes, and Abbreviation List

EN 7TPN15.2E LA 3.

DNR Digital Noise Reduction: noise

reduction feature of the set DRAM Dynamic RAM DRM Digital Rights Management DSP Digital Signal Processing DST Dealer Service Tool: special remote

control designed for service

technicians DTCP Digital Transmission Content

Protection; A protocol for protecting

digital audio/video content that is

traversing a high speed serial bus,

such as IEEE-1394 DVB-C Digital Video Broadcast - Cable DVB-T Digital Video Broadcast - Terrestrial DVD Digital Versatile Disc DVI(-d) Digital Visual Interface (d= digital only) E-DDC Enhanced Display Data Channel

(VESA standard for communication

channel and display). Using E-DDC,

the video source can read the EDID

information form the display. EDID Extended Display Identification Data

(VESA standard) EEPROM Electrically Erasable and

Programmable Read Only Memory EMI Electro Magnetic Interference EPG Electronic Program Guide EPLD Erasable Programmable Logic Device EU Europe EXT EXTernal (source), entering the set by

SCART or by cinches (jacks) FDS Full Dual Screen (same as FDW) FDW Full Dual Window (same as FDS) FLASH FLASH memory FM Field Memory or Frequency

Modulation FPGA Field-Programmable Gate Array FTV Flat TeleVision Gb/s Giga bits per second G-TXT Green TeleteXT H H_sync to the module HD High Definition HDD Hard Disk Drive HDCP High-bandwidth Digital Content

Protection: A “key” encoded into the

HDMI/DVI signal that prevents video

data piracy. If a source is HDCP coded

and connected via HDMI/DVI without

the proper HDCP decoding, the

picture is put into a “snow vision” mode

or changed to a low resolution. For

normal content distribution the source

and the display device must be

enabled for HDCP “software key”

decoding. HDMI High Definition Multimedia Interface HP HeadPhone I Monochrome TV system. Sound

2

C Inter IC bus

I

2

I

D Inter IC Data bus

2

S Inter IC Sound bus

I

carrier distance is 6.0 MHz

IF Intermediate Frequency IR Infra Red IRQ Interrupt Request ITU-656 The ITU Radio communication Sector

(ITU-R) is a standards body

subcommittee of the International

Telecommunication Union relating to

radio communication. ITU-656 (a.k.a.

SDI), is a digitized video format used

for broadcast grade video.

Uncompressed digital component or

digital composite signals can be used.

back to

div. table

The SDI signal is self-synchronizing, uses 8 bit or 10 bit data words, and has a maximum data rate of 270 Mbit/s, with a minimum bandwidth of 135 MHz.

iTV Institutional TeleVision; TV sets for

hotels, hospitals etc.

LS Last Status; The settings last chosen

by the customer and read and stored in RAM or in the NVM. They are called at start-up of the set to configure it according to the customer's

preferences LATAM Latin America LCD Liquid Crystal Display LED Light Emitting Diode L/L' Monochrome TV system. Sound

carrier distance is 6.5 MHz. L' is Band

I, L is all bands except for Band I LPL LG.Philips LCD (supplier) LS Loudspeaker LVDS Low Voltage Differential Signalling Mbps Mega bits per second M/N Monochrome TV system. Sound

carrier distance is 4.5 MHz MHEG Part of a set of international standards

4. Mechanical Instructions

19970_100.eps

CN601

CN401 CN701

CN8101

CN9303

CN403

MAIN POWER SUPPLY

(1054)

A

IR/LED BOARD

(1056)

J

SSB

(1053)

B

ECN701

ECN403

ECN601

ECN401

ECN601

LOUDSPEAKER

(1184)

LOUDSPEAKER

(1184)

CN201

KEYBOARD CONTROL

(1057)

E

CN01

Index of this chapter:

4.1 Cable Dressing

4.2 Service Positions

4.3 Assembly/Panel Removal (for 43"/49"/55"Pxx4x00)

4.4 Set Re-assembly

4.1 Cable Dressing

Mechanical Instructions

Notes:

• Figures below can deviate slightly from the actual situation, due to the different set executions.

EN 9TPN15.2E LA 4.

Figure 4-1 Cable dressing (43" 4900 series)

div. table

back to

2015-Nov-27

EN 10 TPN15.2E LA4.

19970_101.eps

CN601

CN401 CN701

CN8101

CN9303

CN403

MAIN POWER SUPPLY

(1054)

A

IR/LED BOARD

(1056)

J

SSB

(1053)

B

ECN701

ECN403

ECN401

ECN601

ECN401

ECN601

LOUDSPEAKER

(1184)

LOUDSPEAKER

(1184)

CN201

KEYBOARD CONTROL

(1057)

E

CN01

19970_102.eps

CN601

CN401 CN701

CN8101

CN9101

CN403

MAIN POWER SUPPLY

(1054)

A

IR/LED BOARD

(1056)

J

SSB

(1053)

B

ECN701

ECN403

ECN601

ECN401

ECN601

ECN401

LOUDSPEAKER

(1184)

LOUDSPEAKER

(1184)

CN201

KEYBOARD CONTROL

(1057)

E

CN01

Mechanical Instructions

2015-Nov-27

Figure 4-2 Cable dressing (49" 4900 series)

back to

div. table

Figure 4-3 Cable dressing (55" 4900 series)

Mechanical Instructions

19970_103.eps

1

M4 × 16

EN 11TPN15.2E LA 4.

4.2 Service Positions

For easy servicing of a TV set, the set should be put face down on a soft flat surface, foam buffers or other specific workshop tools. Ensure that a stable situation is created to perform measurements and alignments. When using foam bars take care that these always support the cabinet and never only the display. Caution: Failure to follow these guidelines can seriously damage the display! Ensure that ESD safe measures are taken.

4.3 Assembly/Panel Removal (for 43"/49"/55"Pxx4x00)

Instructions below apply to the 49PUH4900/88, but will be similar for other 43"/49"/55"PUx4900 series models.

4.3.1 Stand

Refer to Figure 4-4

1. Remove the fixation screws [1] that secure the stand

bracket. Refer to Figure 4-4

2. Take the stand bracket out from the set.

for details.

Figure 4-4 Stand removal

back to

div. table

2015-Nov-27

EN 12 TPN15.2E LA4.

19970_104.eps

M3 × 8

2

2 2

2

M3 × 6

3

19970_105.eps

2

1

3

Mechanical Instructions

4.3.2 Rear Cover

Refer to Figure 4-5 Warning: Disconnect the mains power cord before removing the rear cover.

for details.

1. Remove the fixation screws [2] and [3] that secure the rear cover. Refer to Figure 4-5

2. Gently lift the rear cover from the TV. Make sure that wires and cables are not damaged while lifting the rear cover from the set.

for details.

4.3.3 Keyboard Control unit

1. Unplug the connector from the keyboard control panel.

2. Remove the fixation screw that secure the keyboard

3. Gently take the keyboard out. When defective, replace the whole unit.

4.3.4 Small Signal Board (SSB)

Refer to Figure 4-6 Caution: it is mandatory to remount all different screws at their original position during re-assembly. Failure to do so may result in damaging the SSB.

1. Release the clips from the LVDS connector that connect with the SSB[1]. Caution: be careful, as these are very fragile connectors!

2. Unplug all other connectors [2] .

3. Remove all the fixation screws from the SSB [3].

4. The SSB can now be shifted from side connector cover, then lifted and taken out of the I/O bracket. Refer to

Figure 4-6

for details.

Figure 4-5 Rear cover removal

Figure 4-6 SSB removal

2015-Nov-27

back to

div. table

Mechanical Instructions

19791_107.eps

1

19791_109.eps

2

EN 13TPN15.2E LA 4.

4.3.5 IR/LED Board

Refer to Figure 4-7

1. Remove the fixation screws [1] from the stand bracket, pull out the assy from the set. Refer to Figure 4-7

2. Carefully Releas the cover secured by clips, then unplug the connector [2] from the IR/LED board. The IR/LED Board can now be lifted and taken out from the cover. Refer to Figure 4-8

and Figure 4-8 for details.

for details.

3. Take the speakers out. When defective, replace the both units.

4.3.8 LCD Panel

1. Remove the SSB as described earlier.

2. Remove the PSU as described earlier.

3. Remove the keyboard control panel as described earlier.

4. Remove the stand bracket as described earlier.

5. Remove the IR/LED as described earlier.

6. Remove the fixations screws that fix the metal clamps to the front bezel. Take out those clamps.

7. Remove all other metal parts not belonging to the panel.

8. Lift the LCD Panel from the bezel.

When defective, replace the whole unit.

4.4 Set Re-assembly

To re-assemble the whole set, execute all processes in reverse order.

Notes:

• While re-assembling, make sure that all cables are placed and connected in their original position. See Figure 4-1

Figure 4-3

• Pay special attention not to damage the EMC foams on the SSB shields. Ensure that EMC foams are mounted correctly.

.

to

Figure 4-7 IR/LED Board removal[1]

Figure 4-8 IR/LED Board removal[2]

4.3.6 Power Supply Unit (PSU)

Caution: it is mandatory to remount all different screws at their

original position during re-assembly. Failure to do so may result in damaging the PSU.

1. Gently unplug all connectors from the PSU.

2. Remove all fixation screws from the PSU.

3. The PSU can be taken out of the set now.

4.3.7 Speakers

1. Gently release the tapes that secure the speaker cables.

2. Unplug the speaker connector from the SSB.

back to

div. table

2015-Nov-27

EN 14 TPN15.2E LA5.

Service Modes and Fault Finding

5. Service Modes and Fault Finding

Index of this chapter:

5.1 Test Points

5.2 Service Modes

5.3 Stepwise Start-up

5.4 Service Tools

5.5 Software Upgrading

5.6 The Blinking LED Procedure

5.7 Fault Finding and Repair Tips

5.1 Test Points

As most signals are digital, it will be difficult to measure waveforms with a standard oscilloscope. However, several key ICs are capable of generating test patterns, which can be controlled via ComPair. In this way it is possible to determine which part is defective.

Perform measurements under the following conditions:

• Service Default Mode.

• Video: Colour bar signal.

• Audio: 3 kHz left, 1 kHz right.

5.2 Service Modes

The Service Mode feature is split into five parts:

• Service Default Mode (SDM).

• Service Alignment Mode (SAM).

• Factory Mode.

• Customer Service Mode (CSM).

• Computer Aided Repair Mode (ComPair).

SDM, SAM and the Factory mode offer features, which can be used by the Service engineer to repair/align a TV set. Some features are:

• A pre-defined situation to ensure measurements can be made under uniform conditions (SDM).

• Activates the blinking LED procedure for error identification when no picture is available (SDM).

• Make alignments (e.g. White Tone), reset the error buffer (SAM and Factory Mode).

• Display information (“SDM” or “SAM” indication in upper right corner of screen, error buffer, software version, operating hours, options and option codes, sub menus).

The CSM is a Service Mode that can be enabled by the consumer. The CSM displays diagnosis information, which the customer can forward to the dealer or call centre. In CSM mode, “CSM”, is displayed in the top right corner of the screen. The information provided in CSM and the purpose of CSM is to:

• Increase the home repair hit rate.

• Decrease the number of nuisance calls.

• Solved customers’ problem without home visit.

ComPair Mode is used for communication between a computer and a TV on I engineer to quickly diagnose the TV set by reading and write in NVMs, communicate with ICs and the micro processor (PWM, registers, etc.), and by making use of a fault finding database. It will also be possible to up and download the software of the TV set via I be connected to the TV set via the ComPair connector, which will be accessible through the rear of the set (without removing the rear cover).

Note: For the new model range, a new remote control (RC) is used with some renamed buttons. This has an impact on the activation of the Service modes. For instance the old “MENU” button is now called “HOME” (or is indicated by a “house” icon).

5.2.1 General

Next items are applicable to all Service Modes or are general.

2

C /UART level and can be used by a Service

2

C with help of ComPair. To do this, ComPair has to

Life Timer

During the life time cycle of the TV set, a timer is kept (called “Op. Hour”). It counts the normal operation hours (not the Stand-by hours). The actual value of the timer is displayed in SDM and SAM in a decimal value. Every two soft-resets increase the hour by + 1. Stand-by hours are not counted.

Software Identification, Version, and Cluster

The software ID, version, and cluster will be shown in the main menu display of SDM, SAM and CSM. The screen will show: “AAAAB-X.YYY”, where:

• AAAA is the chassis name: TPN152E x.yy.

• B is the region indication: E = Europe, A = AP/China, U = NAFTA, L = LATAM.

• X is the main version number: this is updated with a major change of specification (incompatible with the previous software version). Numbering will go from 1 - 99 and AA - ZZ.

- If the main version number changes, the new version number is written in the NVM.

- If the main version number changes, the default settings are loaded.

• YYY is the sub version number: this is updated with a minor change (backwards compatible with the previous versions). Numbering will go from 000 - 999.

- If the sub version number changes, the new version number is written in the NVM.

- If the NVM is refreshed, the software identification, version, and cluster will also be written to NVM.

Display Option Code Selection

When after an SSB or display exchange, the display option code is not set properly, it will result in a TV with “no display”. Therefore, it is required to set this display option code after such a repair. To do so, press the following key sequence on a standard RC transmitter: “062598” directly followed by MENU and “xxx”, where “xxx” is a 3 digit decimal value of the panel type: see column “Display Code” in Table 6-3 accepted and stored in NVM, the set will switch to Stand-by, to indicate that the process has been completed. During this algorithm, the NVM-content must be filtered, because several items in the NVM are TV-related and not SSB related (e.g. Model and Prod. S/N). Therefore, “Model” and “Prod. S/N” data is changed into “See Type Plate”. In case a call centre or consumer reads “See Type Plate” in CSM mode.

5.2.2 Service Default Mode (SDM)

Purpose

Set the TV in SDM mode in order to be able to create a predefined setting for measurements to be made. In this platform, a simplified SDM is introduced (without protection override and without tuning to a predefined frequency).

Specifications

• Set linear video and audio settings to 50%, but volume to 25%. Stored user settings are not affected.

• All service-unfriendly modes (if present) are disabled, since they interfere with diagnosing/repairing a set. These service unfriendly modes are: – (Sleep) timer. – Blue mute/Wall paper. – Auto switch “off” (when there is no “ident” signal). – Hotel or hospital mode. – Child lock or parental lock (manual or via V-chip). – Skipping, blanking of “Not favourite”, “Skipped” or

“Locked” presets/channels.

– Automatic storing of Personal Preset or Last Status

settings.

. When the value is

2015-Nov-27

back to

div. table

Service Modes and Fault Finding

EN 15TPN15.2E LA 5.

– Automatic user menu time-out (menu switches

back/OFF automatically.

– Auto Volume levelling (AVL).

How to Activate SDM

To activate SDM, use the following methods:

• Press the following key sequence on the RC transmitter: “062596”, directly followed by the “Home/Menu” button.

After activating this mode, “SDM” will appear in the upper left corner of the screen.

On Screen Menu

After activating SDM, the following items are displayed, with SDM in the upper right corner of the screen to indicate that the television is in Service Default Mode. Menu items and explanation:

• xxxxx Operating hours (in decimal).

• AAAAB-X.YYY See Software Identification, Version, and

Cluster for the software name definition.

• ERR Shows all errors detected since the last time the buffer was erased in format <xxx> <xxx> <xxx> <xxx> <xxx> (five errors possible).

• OP Used to read-out the option bytes. In this chassis two times eight option codes are used.

How to Navigate

As this mode is read only, there is nothing to navigate. To switch to other modes, use one of the following methods:

• Command MENU from the user remote will exit SDM.

• To prevent the OSD from interfering with measurements in SDM, use the command “Adjust” or “Options” (“STATUS” or “INFO” for NAFTA and LATAM) from the user remote. This will switch the OSD “off” while remaining in the SDM mode. The “SDM” OSD is remains visible in the upper right corner of the screen. To exit SDM switch to “Stand-by” mode.

• Press the following key sequence on the remote control transmitter: “062596” directly followed by the OK button to switch to SAM (do not allow the display to time out between entries while keying the sequence). Remarks: new remote

controls will not have I+ button, but an “INFO” button instead.

How to Exit SDM

• Switch the set to Stand-by, by pressing the standby button on the remote control transmitter or on the television set.

• Via a standard customer RC-transmitter: key in “00”-sequence. Note: If the TV is switched “off” by a power interrupt while in SDM, the TV will show up in the last status of SDM menu as soon as the power is supplied again. The error buffer will not be cleared.

5.2.3 Service Alignment Mode (SAM)

Purpose

• To modify the NVM.

• To perform alignments.

Specifications

• Operation hours counter (maximum five digits displayed).

• Software version and option settings display.

• Error buffer clearing.

• Option settings.

• Software alignments (White Tone).

• NVM Editor.

• Set screen mode to full screen (all content is visible).

How to Activate SAM

To activate SAM, use one of the following methods:

• Press the following key sequence on the remote control transmitter: “062596”, directly followed by the “INFO/OK” button. Do not allow the display to time out between entries while keying the sequence.

• Or via ComPair.

After entering SAM, the following items are displayed, with “SAM” in the upper right corner of the screen to indicate that the television is in Service Alignment Mode.

Table 5-1 SAM mode overview

Main Menu Sub-menu 1 Sub-menu 2 Description

System Information Op Hour e.g. 00082 This represents the life timer. The timer counts no rmal ope ration hou rs, but does no t

Clear Press [OK] to clean the Error Codes

RGB Align Warm R Gain To align the White Tone. See paragraph 6.3 Software Alignments

Upload to USB C opy Channel List to USB To upload several settings from the TV to an USB stick Download from USB Copy Channel List from USB To download several settings from the USB stick to the TV

immediately

G Gain B Gain

Normal R Gain

G Gain B Gain

Cool R Gain

G Gain B Gain

Store Store the RGB value

How to Navigate

• In the SAM menu, select menu items with the UP/DOWN keys on the remote control transmitter. The selected item will be indicated. When not all menu items fit on the screen,

count Stand-by hours. Erases the contents of the error buffer. Select this menu item and press the MENU

RIGHT key on the remote control. The content of the error buffer is cleared.

section for a detailed description

in the Alignments

• Press the following key sequence on the remote control transmitter: “062596” directly followed by the “Home/Menu” button to switch to SDM (do not allow the display to time out between entries while keying the sequence).

use the UP/DOWN keys to display the next/previous menu items.

• With the “LEFT/RIGHT” keys, it is possible to: – (De) activate the selected menu item. – (De) activate the selected sub menu. – Change the value of the selected menu item.

• When you press the MENU button once while in top level SAM, the set will switch to the normal user menu (with the

How to Store SAM Settings

To store the settings changed in SAM mode (except the RGB Align settings), leave the top level SAM menu by using the POWER button on the remote control transmitter or the television set. The mentioned exceptions must be stored separately via the STORE button.

SAM mode still active in the background).

back to

div. table

2015-Nov-27

EN 16 TPN15.2E LA5.

Service Modes and Fault Finding

How to Exit SAM

Use one of the following methods:

• Switch the set to STANDBY by pressing the mains button on the remote control transmitter or the television set.

• Via a standard RC-transmitter, key in “00” sequence.

Note: When the TV is switched “off” by a power interrupt while in SAM, the TV will show up in “normal operation mode” as soon as the power is supplied again. The error buffer will not be cleared.

5.2.4 Contents of the Factory mode:

Purpose

• To perform extended alignments.

Specifications

• Displaying and or changing Panel ID information.

Table 5-2 Factory mode overview

Default value

Item Item value

0 F/W VERSION Press OK Displays the software versions of the supplier, Flash PQ, Smart Picture, BL Dimming,

1 Board ID 715G6079-3in1 Dispaly the Board ID; be careful changing this, it can result in not correct displaying the screen! 2 PANEL_ID 5 4 2 Displays and changes the Panel ID wi th th e l ef t and ri g ht cu rso r ; be ca r efu l ch an gi ng this , it can

3 DB COPY TV to USB Press OK DB COPY TV to USB 4 DB READ USB to TV Press OK DB READ USB to TV 5 CLR_TEMP_R 115 128 73 Red colour temperature setting 6 CLR_TEMP_G 114 128 89 Green colour temperature setting 7 CLR_TEMP_B 128 128 128 Blue colour temperature setting 8 AUTO_COLOR Press OK PC: any pattern that has black and white, YPbPr: SMPTE bar (colour bar), any timing. 9 ADC_GAIN_R 0 Red ADC gain 10 ADC_GAIN_G 0 Green ADC gain 11 ADC_GAIN_B 0 Blue ADC gain 12 ADC_OFFSET_R 0 Red ADC offset 13 ADC_OFFSET_G 0 Green ADC offset 14 ADC_OFFSET_B 0 Blue ADC offset 15 VIRGING_MODE off Use this to return the set to virgin mode. Depends whether the set has been used already. 16 E_Fuse on E-fuse mode 17 ORT_MODE off ORT mode 18 AGEING MODE off Use this for aging a new LCD panel 19 AUD_LIMITE_MODE 1 Three modes,0: off, 1: adaptive mode, 2: fixed mode 20 AUD_THRESHOLD_BYTE1 100 Limit threshold 21 AUD_THRESHOLD_BYTE2 200 Limit threshold 22 AUD_THRESHOLD_BYTE3 100 Limit threshold 23 AUD_GAIN_LINEIN -9 -10 0 Line-in audio gain 24 AUD_GAIN_HDMI -10 -10 0 HDMI audio gain 25 AUD_GAIN_ATV -10 -10 10 Analogue TV audio gain 26 AUD_GAIN_DTV -10 -10 10 Digital TV audio gain 27 AUD_GAIN_USB 0 USB audio gain 28 TUNER_ID 0 Displays and changes the Tuner ID with the left and right cursor. Not to be changed when the

29 CIPLUS QUERY Press OK Shows the Validity of the CI+ key and the supplier information 30 CIPLUS UPDATE Press OK Used to enter a new CI+ code into the NVM. This can only be used when no CI+ code exists in

31 CI Key Type Selection ProductKey CI Key Type Selection 32 AQ_TABLE_INDEX 1 2 1 Audio Quality index 33 EDID UPDATE Press OK Used to enter a new EDID codes into the NVM 34 Vx1 SSC Ratio 0.4% LVDS SSC ratio 35 Vx1 SSC Freq 30KHz 30KHz off SSC LVDS SSC frequency 36 DDR MIU0 SSC Ratio 2% 2% 0% DDR MIU0 SSC ratio 37 DDR MIU0 SSC Freq 30KHz 30KHz off SSC DDR MIU0 SSC frequency 38 DDR MIU1 SSC Ratio 2% 2% 0% DDR MIU1 SSC ratio 39 DDR MIU1 SSC Freq 30KHz 30KHz off SSC DDR MIU1 SSC frequency 40 Panel H.Flip off off off Flip panel 41 Panel V.Flip off off off Flip panel 42 Panel ABSwap off off off ABSwap panel 43 Watchdog 5sec 5sec off Watchdog 44 Backlight PWM freq.(Hz) 150 150 150 Backlight PWM frequency 45 Backlight PWM Limit 2 2 20 Backlight PWM Limit 46 VGA_TxRx_Mode off off off VGA_TxRx_Mode 47 LVDS Driving 3 3 1 LVDS Driving

• Displaying and or changing Tuner ID information.

• Error buffer clearing.

• Various software alignment settings.

• Testpattern displaying.

• Public Broadcasting Service password Reset.

•etc.

How to Activate the Factory mode

To activate the Factory mode, use the following method:

• Press the following key sequence on the remote control transmitter: from the “menu/home” press “1999”, directly followed by the “Back/Return” button. Do not allow the display to time out between entries while keying the sequence.

After entering the Factory mode, the following items are displayed,

Description43" 49" 55"

Source Meter, the Picture Quality checksum, the Dimming library, the Source meter library, the Flash AQ, MCU and OAD software versions.

result in not correct displaying the screen!

tuner is replaced with the correct service part.

the NVM

2015-Nov-27

back to

div. table

Service Modes and Fault Finding

Default value

Item Item value

48 LVDS For mat VESA 8bit LVDS Format 49 Ziggo Aging Press OK Ziggo Aging 50 SPDIF On Enable/Disable SPDIF source 51 Standard PWM Gain 100 100 100 Standard PWM Gain 52 ECO PWM Gain 108 108 100 ECO PWM Gain 53 VGA port off off on Enable/Disable VGA port 54 Zero Detect Enable on on off Zero Detect Enable 55 Copy PQ table to TV Press OK Copy PQ table to TV 56 Copy AQ table to TV Press OK Copy AQ table to TV 57 Headphone on on on Enable/Disable Headphone source 58 EnhancedH/88 on on On EnhancedH/88 59 Joysticker Enable On On Off Joysticker Enable 60 Ambilight Enable Off Off Off Ambilight Enable 61 Lounge Light Enable Off Off Off Lounge Light Enable 62 FRC F/W Upgrade Press OK FRC F/W Upgrade 63 Satellite Tuner Slave Address Auto Auto 0xC6 TUNER Address 64 912_SSC_LVDS_PERCENT 0 Percent of 912_SSC_LVDS 65 912_SSC_LVDS_FREQ 0 912_SSC_LVDS_FREQ 66 912_LVDS_DRIVING 0 912_LVDS_DRIVING 67 912_LVDS_FORMAT JEDIA 8bit The format for 912_LVDS 68 EXIF_FACTORY Press OK Exits the Factory mode

Description43" 49" 55"

EN 17TPN15.2E LA 5.

How to Exit the Factory mode

Use one of the following methods:

• Select EXIT_FACTORY from the menu and press the “OK” button.

Note: When the TV is switched “off” by a power interrupt, or normal switch to “stand-by” while in the factory mode, the TV will show up in “normal operation mode” as soon as the power is supplied again. The error buffer will not be cleared.

5.2.5 Customer Service Mode (CSM)

Purpose

The Customer Service Mode shows information on the TVs operation settings.The call centre can instruct the customer (by telephone) to enter CSM in order to identify the status of the set.This helps the call centre to diagnose problems and failures in the TV set before making a service call. The CSM is a read-only mode; therefore, modifications are not possible in this mode.

Specifications

• Ignore “Service unfriendly modes”.

• Line number for every line (to make CSM language independent).

• Set the screen mode to full screen (all contents on screen is visible).

• After leaving the Customer Service Mode, the original settings are restored.

• Possibility to use “CH+” or “CH-” for channel surfing, or enter the specific channel number on the RC.

• 1.2 Production code Displays the production code (the serial number) of the TV. Note that if an NVM is replaced or is initialized after corruption, this production code has to be re-written to NVM.

• 1.3 Installation date Indicates the date of the first installation of the TV. This date is acquired via time extraction.

• 1.4 SSB Gives an identification of the SSB as stored in NVM. Note that if an NVM is replaced or is initialized after corruption, this identification number has to be re-written to NVM. This identification number is the 12NC number of the SSB.

• 1.5 Display 12NC NVM read/write.

• 1.6 PSU 12NC NVM read/write.

• 2.1 Current Main SW Displays the built-in main software version. In case of field problems related to software, software can be upgraded. As this software is consumer upgradeable, it will also be published on the internet.

• 2.2 Standby SW Displays the built-in stand-by processor software version. Upgrading this software will be possible via USB.

• 2.3 Panel Code Displays the Display Code number.

•

2.4 NVM version D

etects and displays NVM version.

• 3.1 Signal Quality Analog/digital signal strength.

• 3.2 Child lock Not active / active. This is a combined item for locks. If any lock (channel lock, parental lock) is active, it is indicated as “active”.

• 3.3 HDCP keys Indicates the validity of the HDMI keys (or HDCP keys). In case these keys are not valid and the customer wants to make use of the HDMI functionality, the SSB has to be replaced.

How to Activate CSM

To activate CSM, press the following key sequence on a standard remote control transmitter: “123654” (do not allow the display to time out between entries while keying the sequence). After entering the Customer Service Mode, the following items are displayed.

Note: Activation of the CSM is only possible if there is no (user) menu on the screen!

Contents of CSM

• 1.1 Set Type This information is very helpful for a helpdesk/workshop as reference for further diagnosis. In this way, it is not necessary for the customer to look at the rear of the TV-set. Note that if an NVM is replaced or is initialized after corruption, this set type has to be re-written to NVM.

back to

div. table

How to Navigate

By means of the “CURSOR-DOWN/UP” knob (or the scroll wheel) on the RC-transmitter, can be navigated through the menus.

How to Exit CSM

To exit CSM, use one of the following methods.

• Press the MENU/HOME button on the remote control transmitter.

• Press the POWER button on the remote control transmitter.

• Press the POWER button on the television set.

2015-Nov-27

EN 18 TPN15.2E LA5.

19080_206_110323.eps

120224

Power Off

Standby Soft Mode

Power On

Semi- Standby

Standby

Switch

Off(Mains Power Plug)

Standby Soft Mode Command Received, previously in Standby

Soft Mode (Power tact switch)

TV Wakeup commands Received (TV Wakeup keys)

Digital background tasks started

Digital background tasks completed

Swith On, previously in

Standby/Semi- Standby (Mains Power Plug)

Standby Soft Mode

Command Received (Power tact

switch)

Switch Off (Mains Power Plug)

Switch Off

(Mains Power Plug)

Swith On, previously in Standby Soft Mode (Mains Power Plug)

Standby commands

Received (RC

Standby key)

Standby Soft Mode

Command Received, previously in Standby Soft Mode (Power tact switch)

TV Wakeup commands Received (TV Wakeup keys)

Switch On, previously in Power On Mode (Power tact switch)

Standby Soft Mode Command Received, (Power tact switch)

Switch Off (Mains Power Plug)

Switch On,previously in TV Operation Mode (Mains Power Plug)

5.3 Stepwise Start-up

Service Modes and Fault Finding

2015-Nov-27

Figure 5-1 Stepwise Start-up

back to

div. table

Service Modes and Fault Finding

10000_036_090121.eps

091118

TO

UART SERVICE

CONNECTOR

TO

UART SERVICE

CONNECTOR

TO

I2C SERVICE

CONNECTOR

TO TV

PC

HDMI I

2

C only

Optional power

5V DC

ComPair II Developed by Philips Brugge

RC out

RC in

Optional

Switch

Power ModeLink/

Activity

I

2

C

ComPair II

Multi

function

RS232 /UART

EN 19TPN15.2E LA 5.

5.4 Service Tools

5.4.1 ComPair

Introduction

ComPair (Computer Aided Repair) is a Service tool for Philips Consumer Electronics products. and offers the following:

1. ComPair helps to quickly get an understanding on how to repair the chassis in a short and effective way.

2. ComPair allows very detailed diagnostics and is therefore capable of accurately indicating problem areas. No knowledge on I because ComPair takes care of this.

3. ComPair speeds up the repair time since it can automatically communicate with the chassis (when the micro processor is working) and all repair information is directly available.

4. ComPair features TV software up possibilities.

Specifications

ComPair consists of a Windows based fault finding program and an interface box between PC and the (defective) product. The ComPair II interface box is connected to the PC via an USB cable. For the TV chassis, the ComPair interface box and the TV communicate via a bi-directional cable via the service connector(s). The ComPair fault finding program is able to determine the problem of the defective television, by a combination of automatic diagnostics and an interactive question/answer procedure.

How to Connect

This is described in the chassis fault finding database in ComPair.

2

C or UART commands is necessary,

5.5 Software Upgrading

5.5.1 Description

It is possible for the user to upgrade the main software via the USB port. This allows replacement of a software image in a stand alone set. A description on how to upgrade the main software can be found in the DFU or on the Philips website.

5.5.2 Introduction

Philips continuously tries to improve its products, and it’s recommend that the TV software is updated when updates are available. Software update files can be obtained from the dealer or can be downloaded from the following websites:

http://www.philips.com/support

Preparing a portable memory for software upgrade

The following requirements have to be met:

1. A personal computer connected to the internet.

2. An archive utility that supports the ZIP-format (e.g. WinZip for Windows or Stufflt for Mac OS).

3. A FAT formatted USB memory stick (preferably empty).

Note:

1. Only FAT/DOS-formatted memory sticks are supported.

2. Only use software update files that can be found on the

http://www.philips.com/support

5.5.3 Check the current TV software version

Before starting the software upgrade procedure, it is advised to check that what the current TV software:

1. Press the “1 2 3 6 5 4” button on the remote control to enter the CSM mode.

2. Use the up/down cursor keys to select “Current Main Software”.

If the current software version of the TV is the same as the latest update file found on http://www.philips.com/support not necessary to update the TV software.

web site.

, it is

Figure 5-2 ComPair II interface connection

Caution: It is compulsory to connect the TV to the PC as

shown in the picture above (with the ComPair interface in between), as the ComPair interface acts as a level shifter. If one connects the TV directly to the PC (via UART), ICs can be blown!

How to Order

ComPair II order codes:

• ComPair II interface: 3122 785 91020.

• Software is available via the Philips Service web portal.

• ComPair UART interface cable for TPM10.1x xx. (using DB9 to 2mm pitch JST connector): 3122 785 90630.

Note: When you encounter problems, contact your local support desk.

5.5.4 Download the latest software

1. Open the internet page http://www.philips.com/support

2. Find information and software related to the TV.

3. Select the latest software update file and download it to the PC.

4. Insert the USB memory stick into one of the USB ports of the PC.

5. Decompress the downloaded ZIP file and copy it to the root directory of the USB flash drive.

5.5.5 Update the TV software

1. Turn the TV on and wait for it to boot completely.

2. Insert the USB memory stick that contains the software update files in one of the TV’s USB ports.

3. The TV will detect the USB memory stick automatically. Then a window jumps out as Figure 5-3 Note: If the USB flash drive is not detected after power up, disconnect it and re-insert it.

4. Select [Update] and press OK. See Figure 5-3

5. To proceed, In next menu select [Start] and press OK to start software updates. See Figure 5-4

6. Upgrading will now begins and the status of the updating progress will be displayed.

7. When the TV software is updated. Remove your USB flash drive, then select [Restart] and press OK to restart the TV.See Figure 5-5

back to

div. table

.

2015-Nov-27

EN 20 TPN15.2E LA5.

19080_207_110324.eps

110324

Figure 5-3 Update the TV software [1/3]

Figure 5-4 Update the TV software [2/3]

Service Modes and Fault Finding

• FUS_clustername_version.zip: Contains the file

• NVM_clustername_version.zip: Default NVM content.

5.5.7 How to Copy NVM Data to/from USB

When copying data to and from a USB memory stick, the folder “repair” is used. When inserting an empty USB memory stick, and downloading data to the stick, the TV will create this folder. When sending data from a USB memory stick to a TV, the intended data must be available in the “repair” folder. Note that when copying EDID data to the TV, all necessary EDID files must be in this folder. Service mode overview for your reference.

Table 5-3 Service mode overview

Service Modes Description

SAM Service alignment mode Factory Mode Used for extended alignments SDM Service default Mode CSM 3-page compact CSM pages. There will be CSM dump

USB SW upgradeable SW-upgrading of flash memories N T72666 can be done

NVM-Editor in SAM NVM-editor will function as in the past: Address and

Service Data New Service data in SAM for CTN, Prod. no., 12NC

19080_208_110324.eps

110324

USB copy/paste in SAM Channel list, NVM data, Readable info, EDID UART logging There will be printout available in UART. No

Blind SAM RC sequence “062598” + “Menu” + “Panel code” Clear Buffer RC sequence “062599” + “OK” or via SAM

downloaded which is needed to upgrade the TV main software and the software download application.

Must be programmed via ComPair.

to USB-stick upon entering CSM-mode

via USB. The main SW can be upgr aded via th e ZIP file downloaded.

Value field is a decimal value via digit entry

programming with virtual keyboard

specifications of the printout, per MTK provision/definition.

19080_209_110324.eps

Figure 5-5 Update the TV software [3/3]

Note:

• Do not remove the USB flash drive during the software update.

• If a power failure occurs during the update, do not remove the USB flash drive from the TV. The TV will continue the software update as soon as the power comes up again.

• If an error occurs during the update retry the procedure or contact the dealer.

• We do not recommend downgrading to an older version.

• Once the upgrade is finished, use the PC to remove the TV software from the USB portable memory.

5.5.6 Content and Usage of the One-Zip Software File

110324

5.6 The Blinking LED Procedure

5.6.1 Introduction

The software is capable of identifying different kinds of errors. These errors can be displayed by the blinking LED procedure. It is a useful fuction if the OSD is not working properly. The method is to repeatedly let the front LED pulse with as many pulses as the error code number, followed by a period of

1.5 seconds in which the LED is “off”. Then this sequence is repeated. Example (1): error code 4 will result in four times the sequence LED “on” for 0.25 seconds / LED “off” for 0.25 seconds. After this sequence, the LED will be “off” for 1.5 seconds. Any RC command terminates the sequence. Error code LED blinking is in red color.

Below you find a content explanation of the One-Zip file, and instructions on how and when to use it. Only files that are relevant for Service are mentioned here.

• EDID_clustername.zip: Contains the EDID content of the different EDID NVMs. See ComPair for further instructions.

2015-Nov-27

back to

div. table

Service Modes and Fault Finding

EN 21TPN15.2E LA 5.

5.7 Fault Finding and Repair Tips

Note:

• It is assumed that the components are mounted correctly with correct values and no bad solder joints.

• Before any fault finding actions, check if the correct options are set.

5.7.1 NVM Editor

In some cases, it can be convenient if one directly can change the NVM contents. This can be done with the “NVM Editor” in SAM mode. With this option, single bytes can be changed.

Caution:

• Do not change these, without understanding the function of each setting, because incorrect NVM settings may seriously hamper the correct functioning of the TV set!

• Always write down the existing NVM settings, before changing the settings. This will enable you to return to the original settings, if the new settings turn out to be incorrect.

5.7.2 Load Default NVM Values

It is possible to upload the default values to the NVM with ComPair in case the SW is changed, the NVM is replaced with a new (empty) one, or when the NVM content is corrupted. After replacing an EEPROM (or with a defective/no EEPROM), default settings should be used to enable the set to start-up and allow the Service Default Mode and Service Alignment Mode to be accessed.

5.7.10 Display option code

Attention: In case the SSB is replaced, always check the Panel Code in CSM, even when picture is available. Performance with the incorrect display option code can lead to unwanted side-effects for certain conditions.

5.7.3 No Picture

When you have no picture, first make sure you have entered the correct display code. See paragraph 6.4 Option Settings the instructions. See also Table 6-3

5.7.4 Unstable Picture via HDMI input

Check (via ComPair or factory mode) if HDMI EDID data is properly programmed.

5.7.5 No Picture via HDMI input

Check if HDCP key is valid. This can be done in CSM.

5.7.6 TV Will Not Start-up from Stand-by

Possible Stand-by Controller failure. Re-flash the software.

5.7.7 Audio Amplifier

The Class D-IC U606 has a powerpad for cooling. When the IC is replaced it must be ensured that the powerpad is very well pushed to the PWB while the solder is still liquid. This is needed to insure that the cooling is guaranteed, otherwise the Class D-IC could break down in short time.

.

for

5.7.8 CSM

When CSM is activated and there is a USB memory stick connected to the TV, the software will dump the complete CSM content to the USB memory stick. The file (Csm.txt) will be saved in the root of the USB memory stick.

5.7.9 Loudspeakers

Make sure that the volume is set to minimum during disconnecting the speakers in the ON-state of the TV. The audio amplifier can be damaged by disconnecting the speakers during ON-state of the set!

back to

div. table

2015-Nov-27

EN 22 TPN15.2E LA6.

6. Alignments

Index of this chapter:

6.1 General Alignment Conditions

6.2 Hardware Alignments

6.3 Software Alignments

6.4 Option Settings

6.5 Reset of Repaired SSB

6.1 General Alignment Conditions

Perform all electrical adjustments under the following conditions:

• Power supply voltage: 90 - 264 V

• Connect the set to the mains via an isolation transformer with low internal resistance.

• Allow the set to warm up for approximately 15 minutes.

• Measure voltages and waveforms in relation to correct ground (e.g. measure audio signals in relation to AUDIO_GND). Caution: It is not allowed to use heat sinks as ground.

• Test probe: R

> 10 MW, Ci < 20 pF.

i

• Use an isolated trimmer/screwdriver to perform alignments.

, 50/ 60 ± 3 Hz.

AC

Alignments

In case you have a colour analyser:

• Measure with a calibrated (phosphor- independent) color analyser (e.g. Minolta CA-210) in the centre of the screen. Consequently, the measurement needs to be done in a dark environment.

• Adjust the correct x, y coordinates (while holding one of the White point registers R, G or B on max. value) by means of decreasing the value of one or two other white points to the correct x, y coordinates (see Table 6-1 White D alignment

values). Tolerance: dx: ± 0.003, dy: ± 0.003.

• Repeat this step for the other colour Temperatures that need to be aligned.

• When finished return to the SAM root menu and press STANDBY on the RC to store the aligned values to the NVM.

Table 6-1 White D alignment values

Value Cool (11000 K) Normal (9000 K) Warm (6500 K)

x 0.276 0.287 0.313 y 0.282 0.296 0.329

6.2 Hardware Alignments

Not applicable.

6.3 Software Alignments

Put the set in SAM mode (see Chapter 5. Service Modes and

Fault Finding). The SAM menu will now appear on the screen.

Select RGB Align and go to one of the sub menus. The alignments are explained below. The following items can be aligned:

• White point.

To store the data:

• Press OK on the RC before the cursor is moved to the left.

• Select “Store” and press OK on the RC.

• Switch the set to stand-by mode.

For the next alignments, supply the following test signals via a video generator to the RF input:

• EU/AP-PAL models: a PAL B/G TV-signal with a signal strength of at least 1 mV and a frequency of 475.25 MHz

• US/AP-NTSC models: an NTSC M/N TV-signal with a signal strength of at least 1 mV and a frequency of

61.25 MHz (channel 3).

• LATAM models: an NTSC M TV-signal with a signal strength of at least 1 mV and a frequency of

61.25 MHz (channel 3).

6.3.1 RGB Alignment

Before alignment, set the picture as follows:

Picture Setting

Dynamic backlight Off Dynamic Contrast Off Color Enhancement Off Picture Format Unscaled Light Sensor Off Brightness 50 Color 0 Contrast 100

White Tone Alignment:

• Activate SAM.

• Select “RGB Align.” and choose a color temperature.

• Use a 100% white screen as input signal and set the following values: – “Red BL Offset” and “Green BL Offset” to “7” (if

present).

– All “White point” values initial to “128”.

If you do not have a colour analyser, you can use the default values. This is the next best solution. The default values are average values coming from production (statistics).

6.3.2 Display Adjustment

You can use the default values. The default values are average values coming from production.

• Enter SAM mode.

• Select a colour temperature (e.g. COOL, NORMAL, or WARM).

• Set the RED, GREEN and BLUE default values according to the values in Table 6-2

.

• When finished press OK on the RC, then press STORE to store the aligned values to the NVM.

• Restore the initial picture settings after the alignments.

Table 6-2 White tone default settings

Picture mode Screen size

Normal (9000K) 43PUH4900/88 128 122 124

43PUT4900/12 127 122 123 43PUK4900/12 128 121 122 43PUT4900/60 126 121 121 49PUH4900/88 128 113 115 49PUT4900/12 128 112 116 49PUK4900/12 126 111 116 49PUT4900/60 127 110 116 55PUH4900/88 91 99 128 55PUT4900/12 90 98 128 55PUK4900/12 92 97 125 55PUT4900/60 93 95 124

Cool (11000K) 43PUH4900/88 115 114 128

43PUT4900/12 116 115 127 43PUK4900/12 115 116 128 43PUT4900/60 116 116 127 49PUH4900/88 119 108 127 49PUT4900/12 118 106 125 49PUK4900/12 119 110 126 49PUT4900/60 117 110 127 55PUH4900/88 73 89 128 55PUT4900/12 74 90 127 55PUK4900/12 75 89 128 55PUT4900/60 76 90 126

Colour temperature

Red Green Blue

2015-Nov-27

back to

div. table

Alignments

EN 23TPN15.2E LA 6.

Colour temperature

Picture mode Screen size

Warm (6500K) 43PUH4900/88 128 107 84

43PUT4900/12 127 106 85 43PUK4900/12 126 108 86 43PUT4900/60 127 106 85 49PUH4900/88 128 102 73 49PUT4900/12 126 101 72 49PUK4900/12 128 100 75 49PUT4900/60 127 100 75 55PUH4900/88 127 121 120 55PUT4900/12 127 120 119 55PUK4900/12 125 122 120 55PUT4900/60 126 121 118

Red Green Blue

This group setting of colour temperature will be applied automatically to the TV / VGA / HDMI / AV sources.

6.4 Option Settings

6.4.1 Introduction

The microprocessor communicates with a large number of I ICs in the set. To ensure good communication and to make digital diagnosis possible, the microprocessor has to know which ICs to address. The presence / absence of these NT72567 ICs is made known by the option codes.

Notes:

• After changing the option(s), save them by pressing the OK button on the RC before the cursor is moved to the left, select STORE and press OK on the RC.

• The new option setting is only active after the TV is switched “off” / “stand-by” and “on” again with the mains switch (the NVM is then read again).

6.4.2 Option Code Overview

Also the virgin bit is to be set. To set all this, you can use the ComPair tool or use the “NVM editor” and “Dealer options” items in SAM (do not forget to “store”).

After a repaired SSB has been mounted in the set (set repair on board level), the type number (CTN) and production code of the TV has to be set according to the type plate of the set. For this, you can use the NVM editor in SAM. The loading of the CTN and production code can also be done via ComPair (Model number programming).

In case of a display replacement, reset the “Operation hours display” to “0”, or to the operation hours of the replacement display. Remark:

- After the NVM has been replaced, go to SAM and scroll to the <Reload MAC address> (see figure 1*).

- Select the item and press <OK> on the RC.

6.5.1 Reset of Repaired SSB

2

C

Instruction

After NVM replacement, reload MAC address via SAM menu.This ensures the correct MAC address to be available in CSM for future repair actions.

Way of working:

• After the NVM has been replaced, go to SAM and scroll to the <Reload MAC address> .

• Select the item and press <OK> on the RC.

Notes:

• Only applicable to all related models that are “Smart TV level 0”enabled (only YouTube access). For models

without internet connection feature, no action is needed.

• HDCP keys are located in the NVM. If you are loading NVM with the ComPair tool, there is warning message displayed.

Enter SAM mode to check the option codes. they could not be edited in the NVM.

6.4.3 Display Code Overview

Press the following key sequence on a standard RC transmitter: “062598” directly followed by MENU and “xxx”, where “xxx” is a 3 digit decimal value of the panel type: see column “Display Code” in Table 6-3

. After resetting the Display

Code, restart the set immediately.

Table 6-3 Display code overview

CTN_ALT BOM# Panel Type Display Code

43PUH4900/88 TPT430U3-EQYSHM.G S1C NH 005 43PUT4900/12 TPT430U3-EQYSHM.G S1C NH 005 43PUK4900/12 TPT430U3-EQYSHM.G S1C NH 005 43PUT4900/60 TPT430U3-EQYSHM.G S1C NH 005 49PUH4900/88 TPT490U2-EQYSHM.G SC1C XM 0 04 49PUT4900/12 TPT490U2-EQYSHM.G SC1C XM 004 49PUK4900/12 TPT490U2-EQYSHM.G SC1C XM 004 49PUT4900/60 TPT490U2-EQYSHM.G SC1C XM 004 55PUH4900/88 TPT550U2-EQYSHM.G S1E XM 002 55PUT4900/12 TPT550U2-EQYSHM.G S1E XM 002 55PUK4900/12 TPT550U2-EQYSHM.G S1E XM 002 55PUT4900/60 TPT550U2-EQYSHM.G S1E XM 002

New NVM EEPROMs are shipped with pre-loaded HDCP keys.

6.5.2 SSB Identification

SSB’s of this chassis are identified by a “715” code on the SSB. 715Axxxx-Nnn-MMM-OOOO

• 715 main category, Printed Wiring Board

• Axxxx sub category, sequential coding number

• Nnn Version code

• N Development number

• nn Production number

• MMM Mounting variation code

• OOOO Optional variation code

Make sure when replacing an SSB the SSB identification codes match the replacement panel.

6.5 Reset of Repaired SSB

A very important issue towards a repaired SSB from a Service repair shop (SSB repair on component level) implies the reset of the NVM on the SSB. A repaired SSB in Service should get the service Set type “00PF0000000000” and Production code “00000000000000”.

back to

div. table

2015-Nov-27

EN 24 TPN15.2E LA7.

7. Circuit Descriptions

Index of this chapter:

7.1 Introduction

7.2 Power Supply

7.3 DC/DC Converters

7.4 Front-End Analogue and DVB-T, DVB-C; ISDB-T reception

7.5 Front-End DVB-S(2) reception

7.6 HDMI

7.7 Video and Audio Processing - NT72666MBG-BA

Notes:

•Only new circuits (circuits that are not published recently) are described.

• Figures can deviate slightly from the actual situation, due to different set executions.

• For a good understanding of the following circuit descriptions, please use the wiring, block (see chapter

9. Block Diagrams

10. Circuit Diagrams and PWB Layouts

you will find a separate drawing for clarification.

) and circuit diagrams (see chapter

).Where necessary,

Circuit Descriptions

7.1 Introduction

The TPN15.2E LA is a new chassis launched in Europe in

2015. The whole range is covered by NT72666 platform. The major deltas versus its predecessor support DVB-TC; DVB-TC/T2; DVB-TC/S2 with also 4K, multi-media, USB3.0, ARC, CEC function.

The TPN15.2E LA chassis comes with the following stylings:

• series xxPxx4900

7.1.1 Implementation

Key components of this chassis are:

•Scaler NT72666BG-BA/D HS-PBGA-1135

• TUNER EU DTOS40CIL034B for T&H&K

• TUNER EUROPE TDQS-A751F for K

• DEMODULATOR NT78822QG/A QFN-48)

• NAND FLASH MX30LF2G18AC-TI 2Gb TSOP-48

• DRAM K4B2G1646Q-BCK0 2Gb FBGA-96

• AUDIO AD87588-LG48NAY 20W E-LQFP-48 150

7.1.2 TPN15.2E LA Architecture Overview

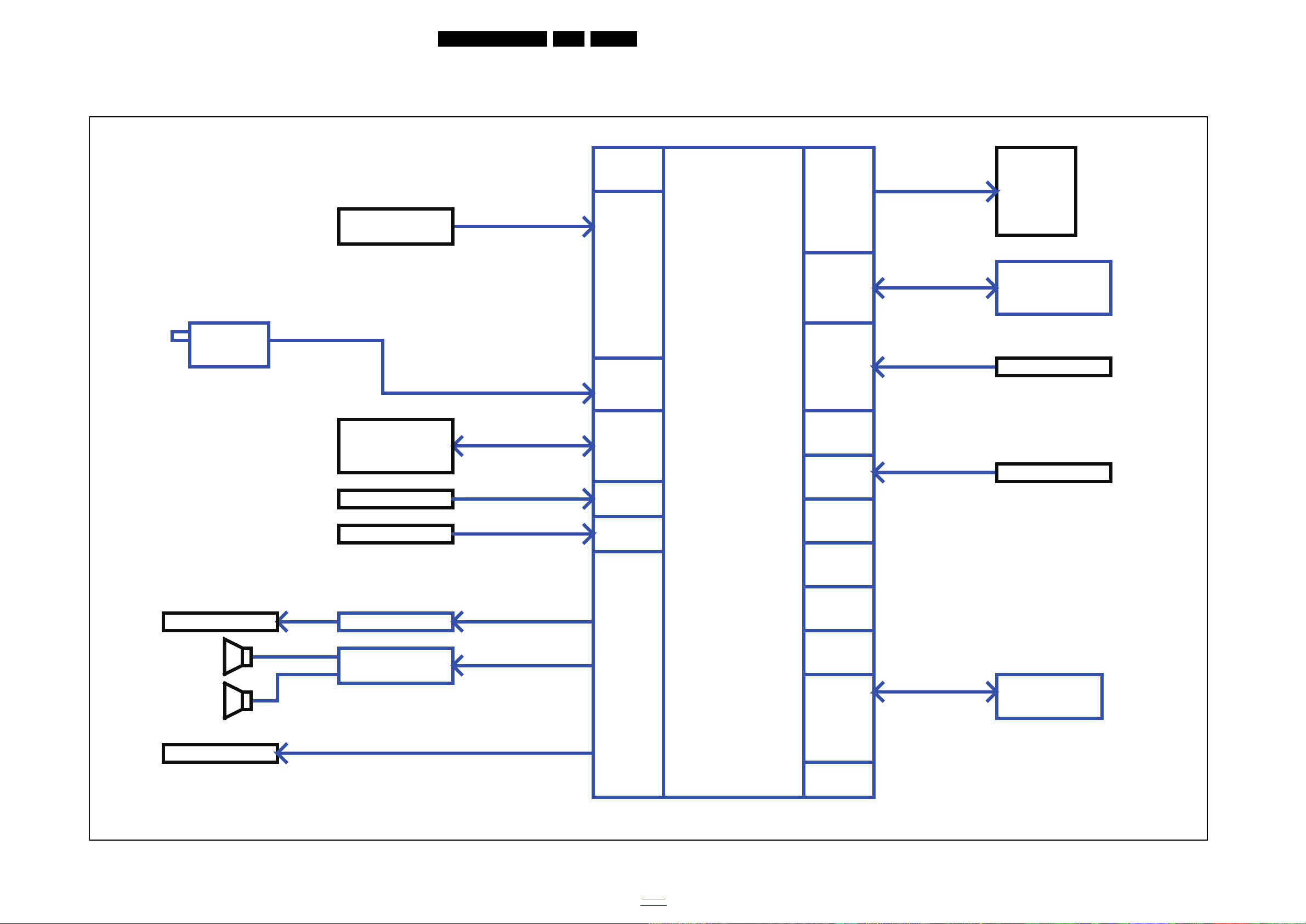

For details about the chassis block diagrams refer to 9. Block Diagrams

Figure 9.1

.

. An overview architecture can be found in

2015-Nov-27

back to

div. table

7.1.3 SSB Cell Layout

19970_200.eps

MT5580

DDR

HDMI

TUNER

DC/DC

SAT

COMMON INTERFACE

USB

Headphone

SERVICE

CONNECTOR

ANALOG I/O

SPDIF OUT

AUDIO IN

Circuit Descriptions

EN 25TPN15.2E LA 7.

Figure 7-1 SSB layout cells (top view)

back to

div. table

2015-Nov-27

EN 26 TPN15.2E LA7.

19970_201.eps

Display power

Platform NT72666

Platform power

1 power- PCB

LVDS AMP

Low stby power

Ac-input + Mains filter

BL-ON/OFF

PS-ON

AC IN

CN9901

CN8101(715G6677P) CN8101(715G6338P)

DIM

12V

12V_A

12V

CN701

AMP

12V

PFC

7.2 Power Supply

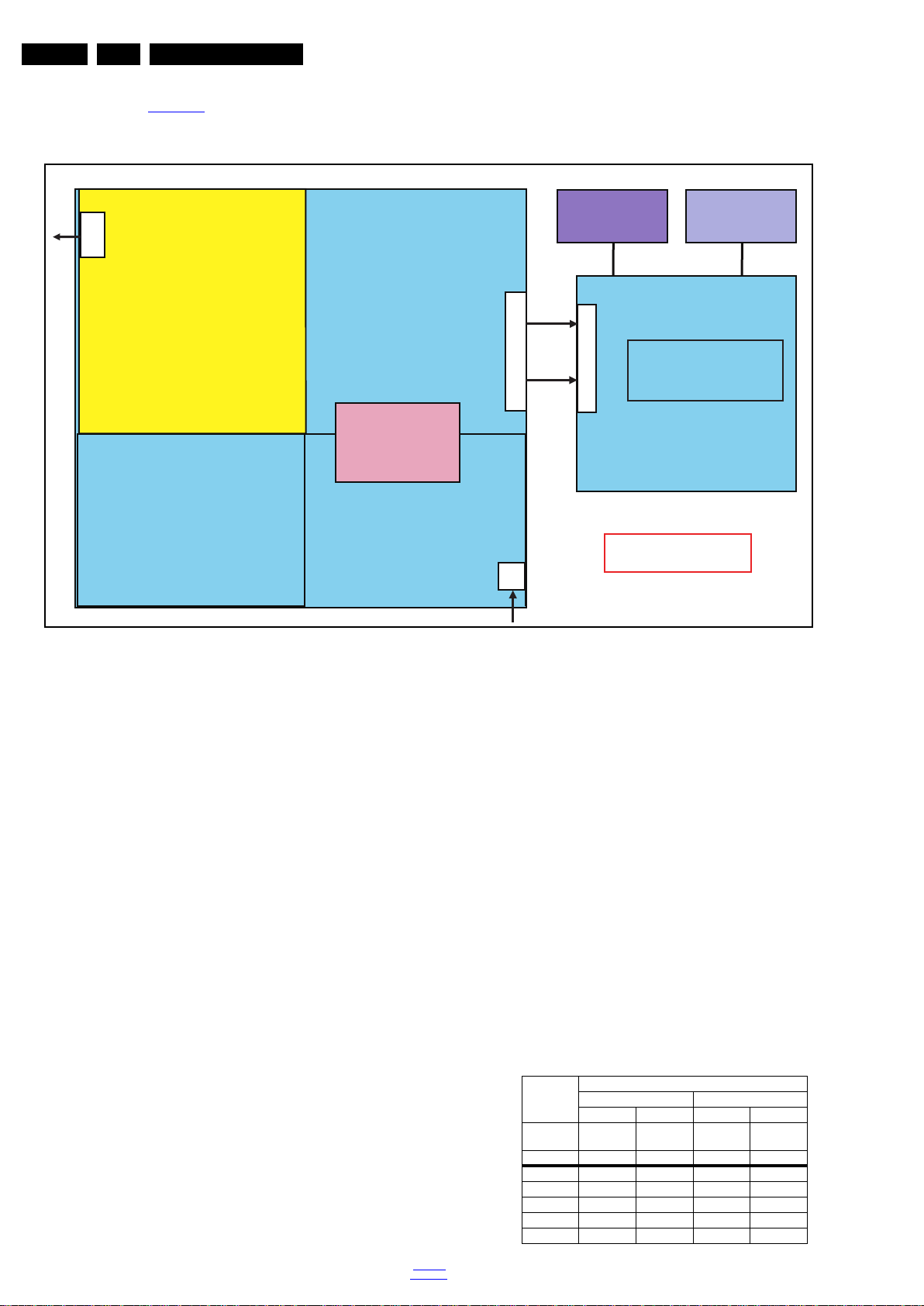

Refer to figure Figure 7-2 for the power architecture of this platform.

Circuit Descriptions

7.2.1 Power Supply Unit

All power supplies are a black box for Service. When defective, a new board must be ordered and the defective one must be returned, unless the main fuse of the board is broken. Always replace a defective fuse with one with the correct specifications! This part is available in the regular market. Consult the Philips Service web portal for the order codes of the boards.

Important delta’s with the TPN15.2E LA classis platform are:

• New power architecture for LED backlight

• “Boost”-signal is now a PWM-signal + continuous variable.

The control signals are:

•PS_ON

• Lamp “on/off”

• DIM (PWM) (not for PSDL)

In this manual, no detailed information is available because of design protection issues.

The output voltages to the chassis are:

• 8.5V(Stand-by mode for 715G6677)

• 3.5V(Stand-by mode for 715G6973)

• +12V (on-mode)

• +12V_audio (audio power)

• +35V VLED output(on-mode for 715G6677)

• +37.4V VLED output(on-mode for 715G6973)

• Output to the display; in case of

2015-Nov-27

- IPB: High voltage to the LCD panel

- PSL and PSLS (LED-driver outputs)

- PSDL (high frequent) AC-current.

Figure 7-2 Power Architecture

7.2.2 Diversity

7.2.3 Connector overview

back to

div. table

The diversity in power supply units is mainly determined by the diversity in displays.

The following displays can be distinguished:

• CCFL/EEFL backlight: power panel is conventional IPB

• LED backlight:

- side-view LED without scanning: PSL power panel

- side-view LED with scanning: PSLS power panel

- direct-view LED without 2D-dimming: PSL power panel

- direct-view LED with 2D-dimming: PSDL power panel.

PSL stands for Power Supply with integrated LED-drivers. PSLS stands for a Power Supply with integrated LED-drivers with added Scanning functionality (added microcontroller). PSDL stands for a Power Supply for Direct-view LED backlight

with 2D-dimming.

Table 7-1 Connector overview

Number

Descriptio n to SSB to panel to SSB to panel

Pin16121612

1 DIM +VLED DIM VLED 2 On/off n.c. On/off n.c. 3 PS_ON -VLED1 PS_ON LED1 4 3D_ON -VLED1 3D_ON LED1 5 GND -VLED1 GND LED1

Connector 43"&49" 55" CN9303 CN8101 CN9101 CN8601

Circuit Descriptions

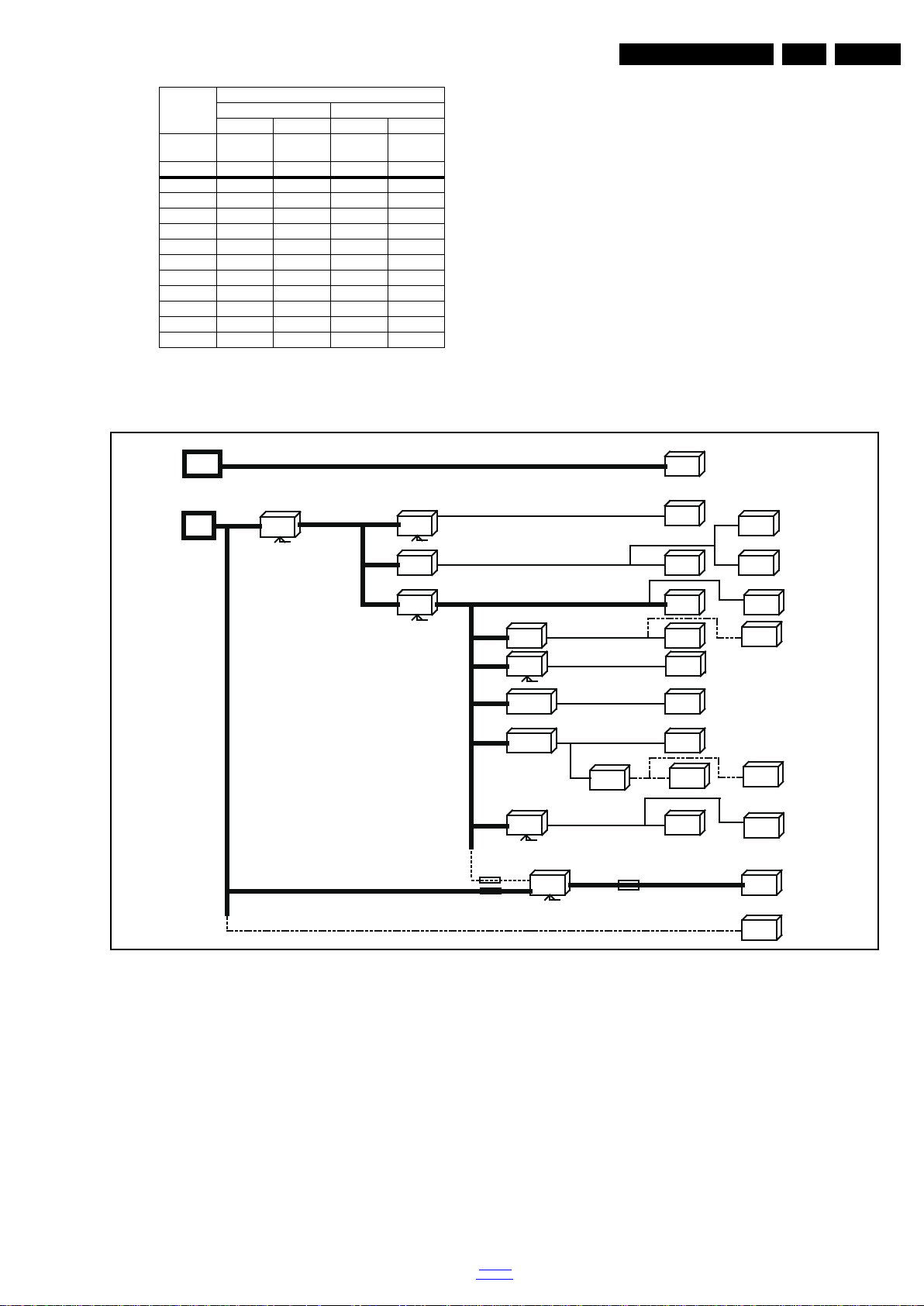

NT72666

+5V_SW

PWR_ON_2

460 mA

500 mA

MAIN CHIP

BUCK CONVERTER

TUNER

MAIN CHIP

640 mA

SI2166 U201

PANEL_T-CON

NT78822 U201

AO4449(7A) Q701

14mA

+5V_SW

DV15

+5V_STB

PWR_ON_2

455 mA

BUCK CONVERTER

TCL_Tuner DVB-C/T/T2

PWR_12V

PWR_ON_2

S2_DEMOD

CI CARD PWR

AVDD1V2

POWER protect

USB multi-media

DV11

Depend on panel

G5250M1T1U U102

NT72666BG

+5V_STB

PCMCIA CARD

3964 mA(5V)

FB751

MX30LF2G18AC-TI

1650mA

BUCK CONVERTER

1mA

FB411

PANEL_22"~55"

AD87588

FB750

80 mA

G5309QN1U(8A) U702

MAIN CHIP

+3V3_TUNER

12mA

+5V_SW

FB412

PANEL_VCC_ON/OFF

AP3417C(1A) U705

AUDIO AMP

6500mA

PANEL_VCC

POWER SWITCH

USB

MAIN3V3

80 mA

T2_DEMOD

AON4421 Q750

LVDS_VDD

LDO

1367 mA

200 mA

AZ1117CD U204

POWER SWITCH

+5V_SW

+12V_SW

AUDIO_12V

+5V_SW

VCC_CI

1367 mA

1mA

IR,LED

+5V_SW

AP2125N

-3.3TRG1 U707

TUNER

230 mA

PWR_ON_2

PWR_12V

1300mA

500 mA

MHL

14mA

STBC3V3

LDO

+5V_STB

455 mA

BUCK CONVERTER

DDR3 x4

600 mA

800 mA

900 mA

300 mA

MAIN CHIP

MAIN2V5

AP3417C(1A) U703

NT72666BG

+5V_SW

BUCK CONVERTER

2950 mA(5V)

1367 mA

NT72666

230 mA

BUCK CONVERTER

NAND FLASH

LG_Tuner DVB-S/S2

1.3A

LNB POWER

NT72666

TPS54428(4A) U706

CI_PWR_EN

MP8126 U202

+5V or +12V

AZ1117_1.35A U203_SOT-223

1700 mA

RT8079ZQW(3A) U709

1500 mA

19970_202.eps

EN 27TPN15.2E LA 7.

Connector 43"&49" 55"

Number

Descriptio n to SSB to panel to SSB to panel

CN9303 CN8101 CN9101 CN8601

Pin16121612

6 GND n.c. GND n.c. 7 GND n.c. GND n.c. 8 GND -VLED2 GND LED2 9 +12V-A -VLED2 +12V-A LED2 10 +12V-A -VLED2 +12V-A LED2 11 +12V n.c. +12V n.c. 12 +12V +VLED +12V VLED 13 +12V - +12V 14 +12V - +12V 15 +3.5V/5V - +3.5V 16 +3.5V/5V - +3.5V -

7.3 DC/DC Converters

The on-board DC/DC converters deliver the following voltages (depending on set execution):

• +5V-STANDBY, permanent voltage for the Stand-by controller, LED/IR receiver and controls.

• +12V, input from the power supply for the panel common(active mode)

• +12V, input from the power supply for the audio amplifier

• +1V5, from the power supply for the scaler IC NT72666

• +1V1, from the power supply for the scaler IC NT72666

• +3V3, from the power supply for the scaler IC NT72666

• +2V5, from the power supply for the scaler IC NT72666

• +1V5, supply voltage for DDR2 (diagram B03B)

• +5V, supply voltage for USB and CAM

• +3V3-TUN, supply voltage for tuner

• +5V_SW, input intermediate supply voltage for USB

• +1V2_T2, voltage for Tuner T2_Decoder

Figures gives a graphical representation of the DC/DC converters with its current consumptions :

7.4 Front-End Analogue and DVB-T, DVB-C; ISDB-T reception

7.4.1 Front-End Analogue and DVB-T/C part

The Front-End for DVB-T/C DTV part consist of the following key components:

• TUNER EU DTOS40CIL034B

• SCALER NT72666BG-BA/D HS-PBGA-1135

Below find a block diagram of the front-end application for DVB-T/C DTV part.

Figure 7-3 DC/DC converters

back to

div. table

2015-Nov-27

EN 28 TPN15.2E LA7.

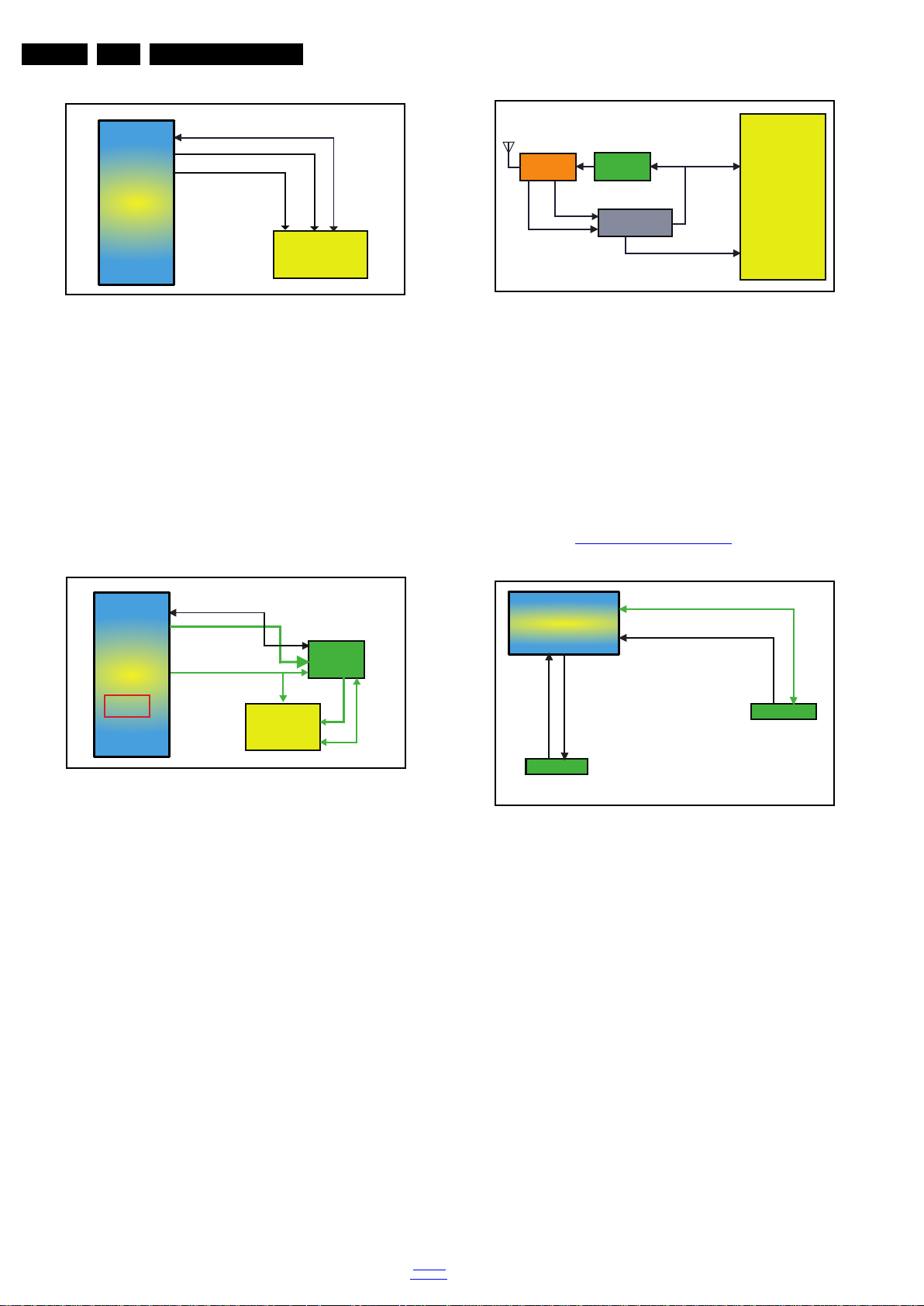

IF_AGC

IF

NT72666

IF_AGC

DTOS40CIL034B

I2C

19970_203.eps

TS DATA

IP/IN/OP/ON

Tuner I2C

System I2C

NT72466

LNB power

NT78822QG/A

S2 tuner

S2 function

19970_205.eps

19970_206.eps

NT72666

HDMI1

HDMI 2

CN501

CN502

RX

I2C

I

2

C

Circuit Descriptions

Figure 7-4 Front-End DVB-T/C DTV block diagram

7.4.2 DVB-T2 reception

The Front-End for DVB-T2 DTV part consist of the following key components:

• TUNER EUROPE DTOS40CIL034B

• SCALER NT72666BG-BA/D HS-PBGA-1135

• DEMODULATOR NT78822QG/A QFN-48 for DVB-T2 DTV part

Below find a block diagram of the front-end application for DVB-T2 DTV part.

DTOS40CIL034B

I2C

IF

IF-AGC

NT72666

IF_AGC

RF_AGC

2

C

I

Demod

NT78822

TS DATA

19970_204.eps

Figure 7-6 Front-End DVB-S2 DTV block diagram

The application supports the following protocols:

• Polarization selection via supply voltage ( 18V = horizontal, 13V = vertical)

• Band selection via “toneburst” (22kHz): tone “on” = “high” band, tone “off” = “low” band

• Satellite ( LNB) selection via DiSEqC 2.0 protocol

• Reception of DVB-S ( supporting QPSK encoded signals) and DVB-S2 ( supporting QPSK, 8PSK encoded signals)

7.6 HDMI

Refer to figure 7-7 HDMI input configuration for the application.

2

I

C

Figure 7-5 Front-End DVB-T2 DTV block diagram

7.5 Front-End DVB-S(2) reception

The Front-End for the DVB-S(2) application consist of the following key components:

• TUNER EUROPE TDQS-A751F for K

• SCALER NT78822QG/A QFN-48

• SCALER NT72666BG-BA/D HS-PBGA-1135

Below find a block diagram of the front-end application for DVB-S(2) reception.

2015-Nov-27

Figure 7-7 HDMI input configuration

The following HDMI connector can be used:

• HDMI 1: HDMI input ( TV digital interface support HDCP) with digital audio/PC DVI input/ARC

• HDMI 2: HDMI input ( TV digital interface support HDCP) with digital audio/PC DVI input

• +5V detection mechanism

• Stable clock detection mechanism

• HPD control

• Sync detection

• TMDS output control

• CEC control

7.7 Video and Audio Processing NT72666MBG-BA

The NT72666 is the main audio and video processor (or System-on-Chip) for this platform. It has the following features:

• Support pixel format YUV420 only for all video codec

except JPEG

• H.264 Constrained Baseline/Main/High Profiles @

4K2Kp30(Level 5.0 and Level 5.1 under limited bit-rate)

• MVC Stereo High Profile @ 1080p60

back to

div. table

• VP8 All Profiles @ 1080p30

• AVS (Optional)Jizhun Profile @ 1080p30 (Level

•6.0)

• VC-1 (Optional)Simple/Main/Advanced Profiles@ 1080p30 (Level 3.0)

• RealVideo (Optional)8/9/10 @ 1080p30

• MPEG-4 Simple/Advanced Simple Profiles @1080p30

• DivX1 3/4/5/6(Optional) @ 1080p30

• Support GMC with 1 warp point

• H.263 Profile 0 @ 1080p30

• Dedicated DSP to decode compressed audio

• 16KB instruction, 48KB data cache

• Supports digital audio format decoding

• MPEG-1/2 (Layer I/ II/ III), Dolby2,Digital (AC3) (Optional) , Dolby Digital Plus (EAC3) (Optional), AAC-LC, HE-AAC, WMA3 (Optional), WMA Pro(Optional), DTS4 (Optional), DTS-LBR(Optional)

• Supports Dolby Digital Plus(Optional) and MS10(Optional) multistream decoder, including Dolby Digital Encoder for transcoding streams to Dolby Digital 5.1

• Supports DTS Neo 2:5(Optional) to transcoding streams to DTS 5.1

• Advance sound processing: Automatic Volume Control, 5-band EQ, Automatic Gain Control, Virtual Surround

• Advance sound processing options available, for example: SRS5 (Optional)

Circuit Descriptions

EN 29TPN15.2E LA 7.

The NT72666 is an smart TV system-on-chip which compliants with variety ATV as NTSC, PAL and SECAM, and DTV standards as ISDB-T, DVB-T/-C, ITU-T J.83B, 8VSB integrates DTV and multi-media AV decoder, SIF demodulator, and support A/V post-processing. The integrated video ADC and video decoder support PC VGA port, YPbPr, SCART, CVBS and S-Video Input. The video decoder supports universal TV video format. The integrated audio ADC supports stereo audio input corresponding to video input sources. The integrated TV sound decoder supports universal TV sound format. The advanced picture quality and color engine create more vivid image impression than ever. The HDMI receiver v1.4a, supports deep color, CEC features. The USB high speed host supports updating firmware code, multi-media playback from the external USB flash devices. The standby controller can operate sololy from the main system, powered by the standby power source from power module, consumes as low current as

possible. It meets the requirement of Green appliance.

back to

div. table

2015-Nov-27

EN 30 TPN15.2E LA8.

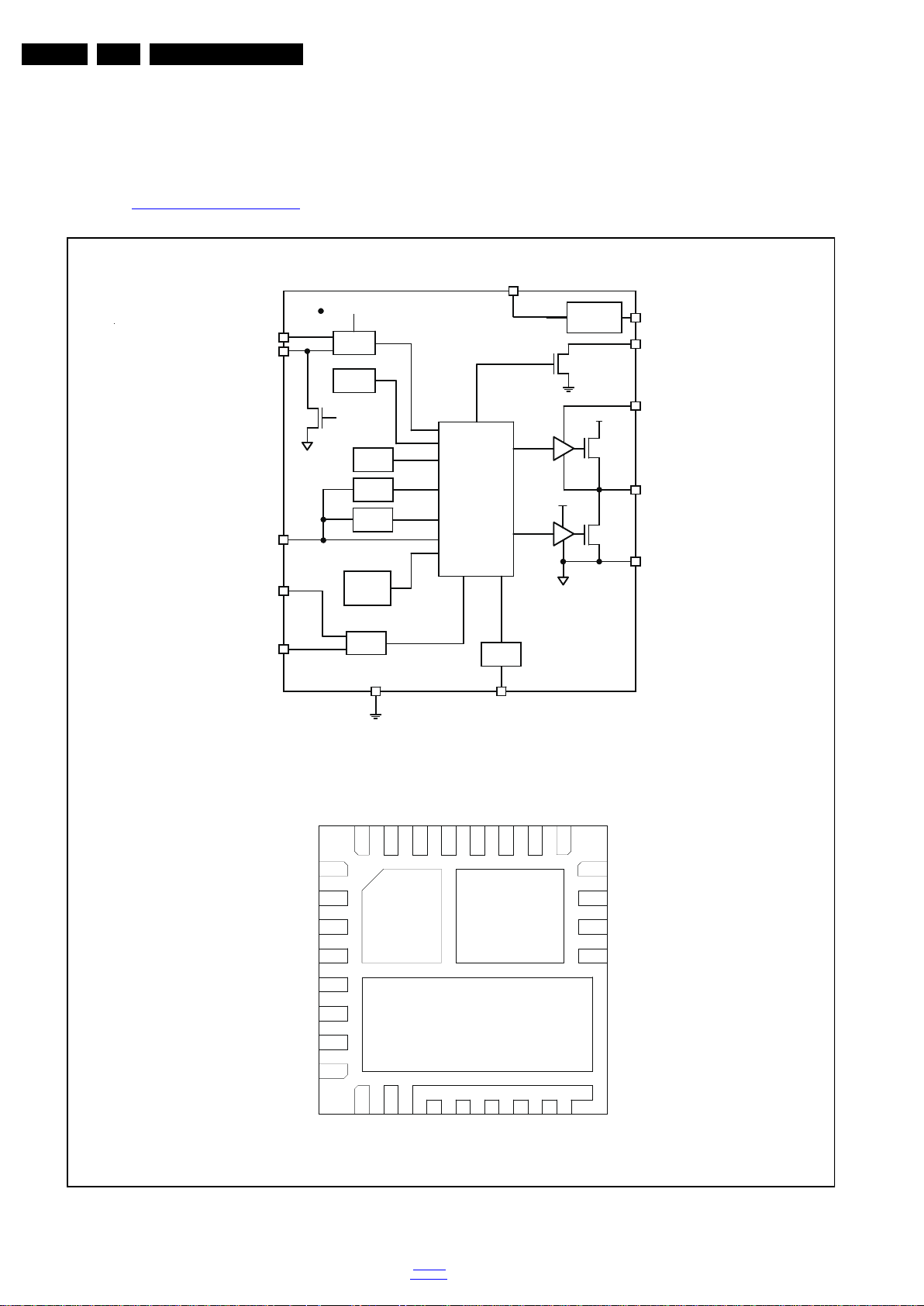

19970_300.eps

Block diagram

Pinning information

OUT

TON

FB

VCC

EN

BST

NC

9

8

7

6

5

4

3

2

1

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

PGOOD

ILIM

AGND

V5V

PGND

LX LX LX

LX

PGND

LX

PGND

V+ V+ V+ V+

AGND

V+

LX

OUT

TON

FB

VCC

EN

BST

NC

9

8

7

6

5

4

3

2

1

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

PGOOD

ILIM

AGND

V5V

PGND

LX LX LX

LX

PGND

LX

PGND

V+ V+ V+ V+

AGND

V+

LX

G5309QN1U

PWM

controller

0.75V

Reference

PGOOD

BST

LX

PGND

TON

OUT

FB

EN

ILIM

AGND

OCP

POR

On-Time

Off-Time

DISCHG

VCC

OT

OVP

UVP

KV+

5V

LDO

V5V

V+

V5V

V+

DH

DL

Q1

Q2

PWM

controller

0.75V

Reference

PGOOD

BST

LX

PGND

TON

OUT

FB

EN

ILIM

AGND

OCP

POR

On-Time

Off-Time

DISCHG

VCC

OT

OVP

UVP

KV+

5V

LDO

V5V

V+

V5V

V+

DH

DL

Q1

Q2

IC Data Sheets

8. IC Data Sheets

This chapter shows the internal block diagrams and pin configurations of ICs that are drawn as “black boxes” in the electrical diagrams (with the exception of “memory” and “logic” ICs).

8.1 Diagram 10-3-1 System Power 1, B01, G5309QN1U (IC U702)

2015-Nov-27

Figure 8-1 Internal block diagram and pin configuration

back to

div. table

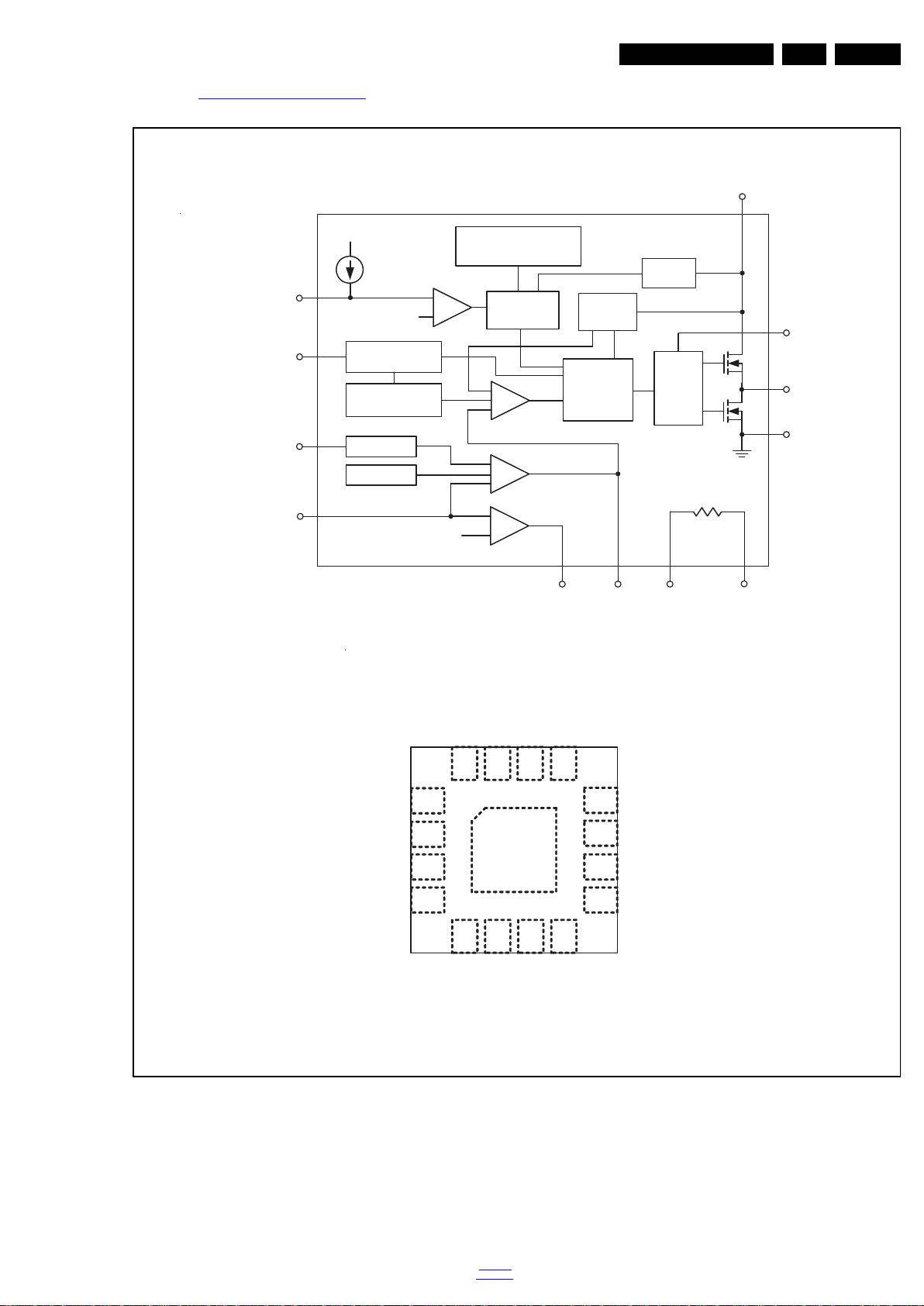

8.2 Diagram 10-3-2 System Power 2, B02, RT8079GQW (IC U709)

19970_301.eps

Block diagram

Pinning information

GND

VIN VIN

SW SW

SS/TR

SW

AGND

COMP

FB

RT/SYNC

VIN

EN

BOOT

PGOOD

12 11 10

9

13141516

1 2 3 4

8765

GND

17

RT8079GQW

EN

VIN

SW

FB

Slope

Compensation

Shutdown

Control

Over Temperature

Protection

Current

Sense

Driver

Control

Logic

PWM

Comparator

GND

BOOT

UVLO

Error

Amplifier

Oscillator

Soft-Start

V

REF

EN Threshold

PGOOD Threshold

GND

SS/TR

AGND

COMP

RT/SYNC

PGOOD

PGOOD Comparator

Internal pull up current

Enable Comparator

IC Data Sheets

EN 31TPN15.2E LA 8.

Figure 8-2 Internal block diagram and pin configuration

back to

div. table

2015-Nov-27

EN 32 TPN15.2E LA8.

19970_302.eps

Block diagram

Pinning information

Si2166B

(GND_PAD)

QFN-48 7x7mm

343536

21

22

23

24

3 4 5

33

20

6327

28293031 27

8 9 10 11 12

15

16

17

18

19

40

39

38

37

41

46

45

44

43

42

MP_A

S_ADC_IP

S_ADC_IN S_ADC_QP S_ADC_QN

SDA_MAST SCL_MAST

NC

NC NC

DISEQC_OUT

MP_B

SCL_HOST

DISEQC_CMD

GND

SDA_HOST

TS_VAL

DISEQC_IN

TS_DATA[1]

TS_DATA[5]

TS_DATA[4] TS_DATA[3]

GND

VDD_VIO

TS_DATA[2]

TS_DATA[0]/TS_SER TS_CLK

TS_SYNC

47

14

TS_DATA[7]

RESETB

XTAL_I/CLK_IN

XTAL_O

GND

VDD_VCORE

VDD_VANA

ADDR

GND

GPIO_0

48

13

21

26 25

TS_DATA[6]

TS_ERR/GPIO_1

CLK_IN_OUT

GND

VDD_VCORE

VDD_VIO

VDD_VCORE

MP_D

MP_C

Si2166

HDTV MPEG S.o.C.

Si2166B

HOST_SCL

HOST_SDA

FRONT

END

OSC

& PLL

QPSK 8PSK

DEMOD

S_ADC_IN

S_ADC_IP

S_ADC_QN

S_ADC_QP

ADC (I)

ADC (Q)

EQUAL-

IZER

I2C

SWITCH

TUN_SDA

TUN_SCL

GPIOCTRL

MPEG TS

INTERFACE

I2C I/F

MP_x

GPIO_0

RESETB1.2, 3.3V

DSP &

SYNCHRO

DVB-S/S2

FEC MODULE

DiSEqC

TM

2.0

DISEQC_IN

DISEQC_OUT

AGCs

Ext. Clk or Xtal

QPSK / 8PSK

Satellite

ZIF Tuner

CLK_IN_OUT

LDPC BCH

VITERBI RS

TS_ERR/ GPIO_1

TS_SYNC TS_VAL

8

TS_CLK TS_DATA

IC Data Sheets

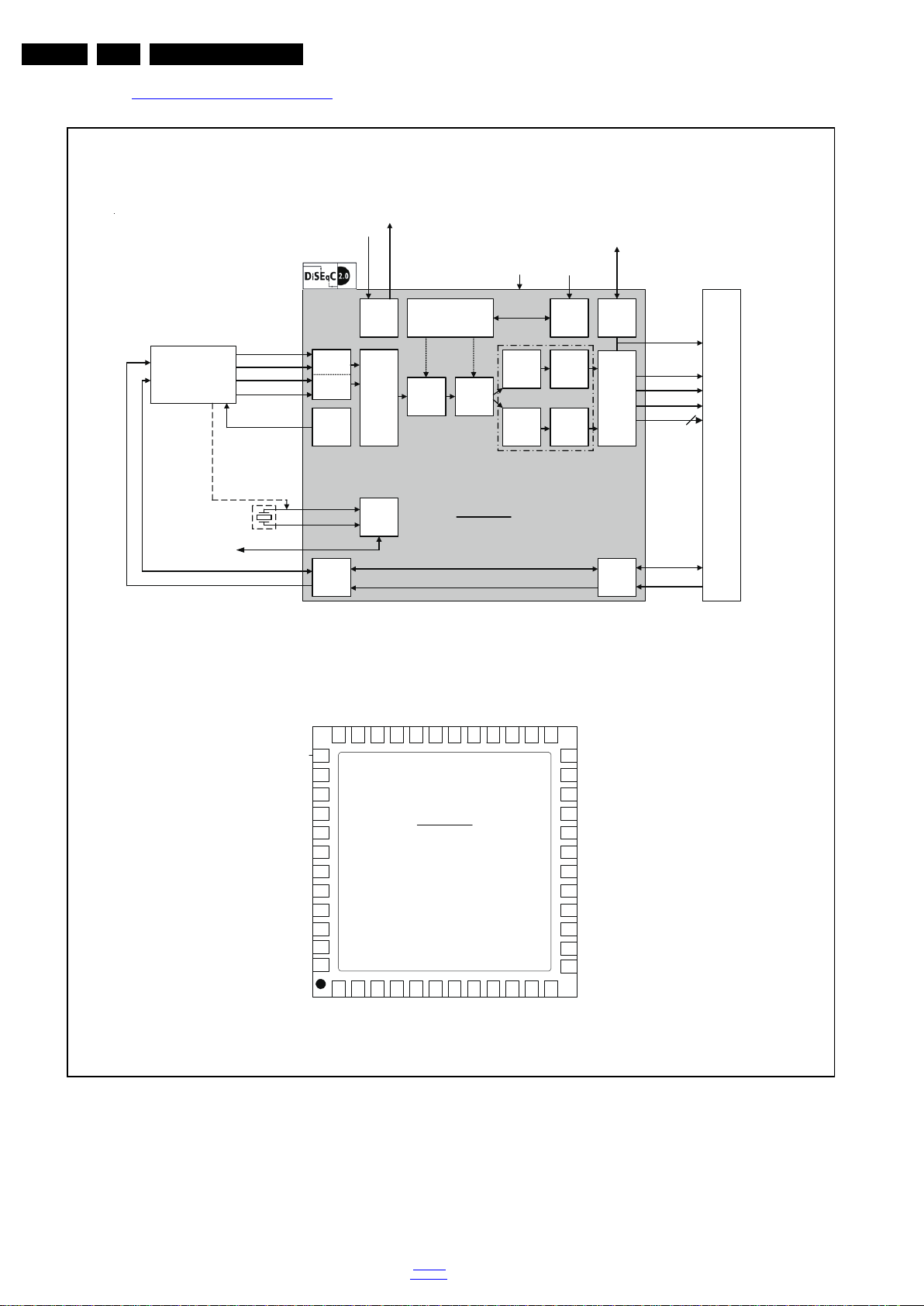

8.3 Diagram 10-3-10 Tuner/Demodulator, B10, Si2166 (IC U201)

2015-Nov-27

Figure 8-3 Internal block diagram and pin configuration

back to

div. table

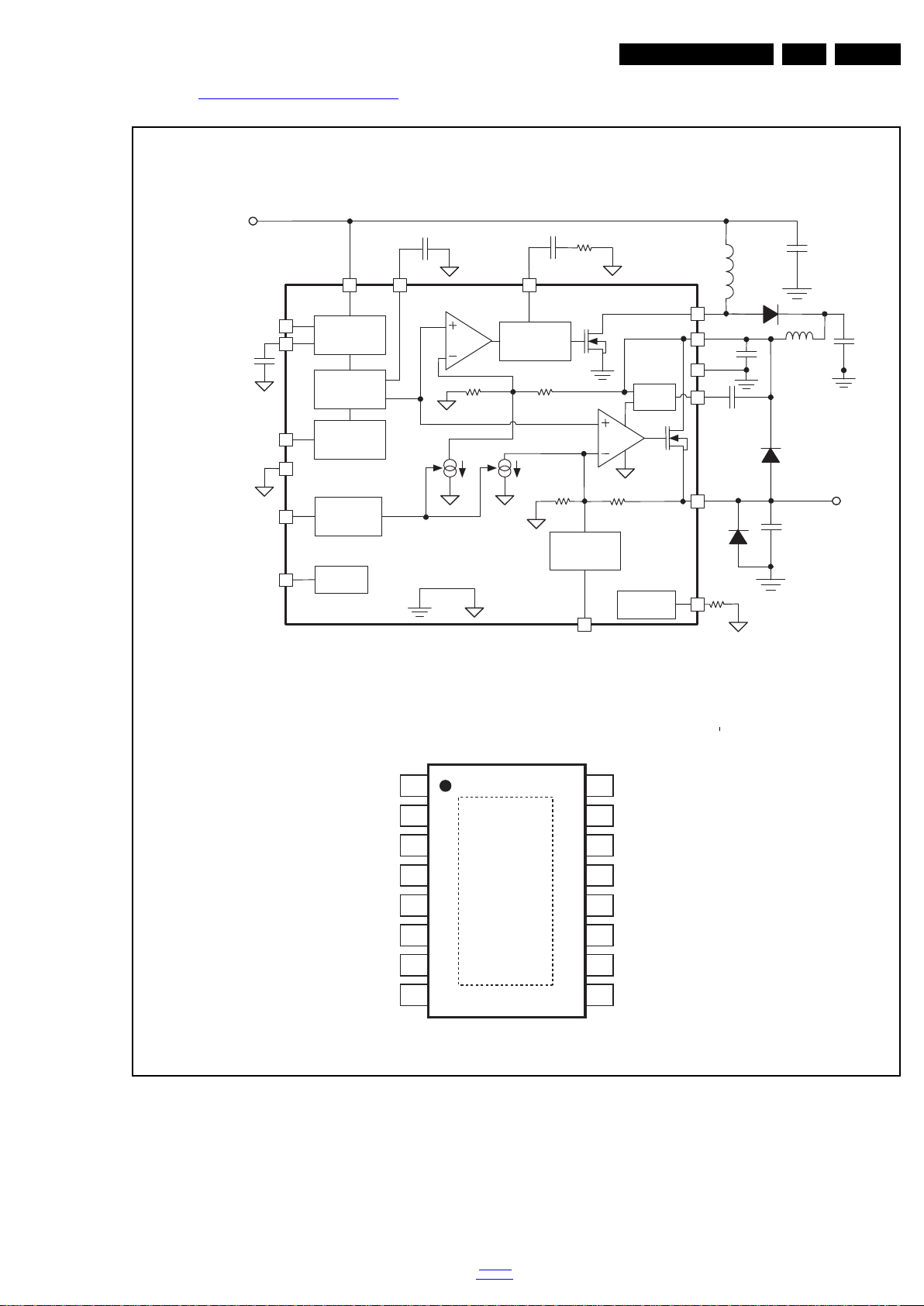

8.4 Diagram 10-3-10 Tuner/Demodulator, B1 0, MP8126DF (IC U202)

19790_304.eps

Block diagram

Pinning information

MP8126DF

SGND

BYPASS

VDD

COMP

EN

EP

LINEDROP

POK

13V/18V

1 2

3

4 5 6 7

8

16 15 14 13 12 11 10

9

PGND SW BST VBOOST VOUT ILIMIT TCAP EXTM

TOP VIEW

Vref

Boost Driver

22kHz

Shaper

13V / 18V

Switch

8~14V Vin

BYPASS

13V/18V

POK

VBOOST

COMP

BST

+1V Offset

Internal

Regulator

Charge

Pump

TCAP

EXTM

VDD

SGND

PGND

SW

POK

LINEDROP

13V/18V

VOUT

ILIMIT

EN

Current

Limit

IC Data Sheets

EN 33TPN15.2E LA 8.

back to

div. table

Figure 8-4 Internal block diagram and pin configuration

2015-Nov-27

EN 34 TPN15.2E LA8.

19790_301.eps

Block diagram

Pinning information

AD87588

IC Data Sheets

8.5 Diagram 10-3-11 SPK AMP/HP OUT, B11, AD87588 (IC U601)

Figure 8-5 Internal block diagram and pin configuration

2015-Nov-27

back to

div. table

9. Block Diagrams

19970_400.eps

IF(+/-)

PCMCIA CI CARD x 1

UART

PLL

AUDIO

Ethernet

DAC (MIX)

LVDS VBY1

POWER

STBC

NT72666-BG

STBC GPIO

ADC

DDR

USB

HDMI

SPDIF

USB-D+/-

USB x 2

HDMI x 3

TMDS/DDC-I2c

MIPS GPIO

CI

YPbPr/CVBS

RGB/CVBS

CVBS

DTV DEMOD

8 bit NAND FLASH.

Silicon Tuner

LOW IF+/-

R/L

AMP

I2s

PHONE-OUT OP-AMP

PANEL

ICE ARM AUDIO

DDR3 DRAM X 4

STBC UART

Debug

ARM UART

9.1 Block diagram 4900 series

Block Diagrams

EN 35TPN15.2E LA 9.

2015-Nov-27

back to

div.table

Circuit Diagrams and PWB Layouts

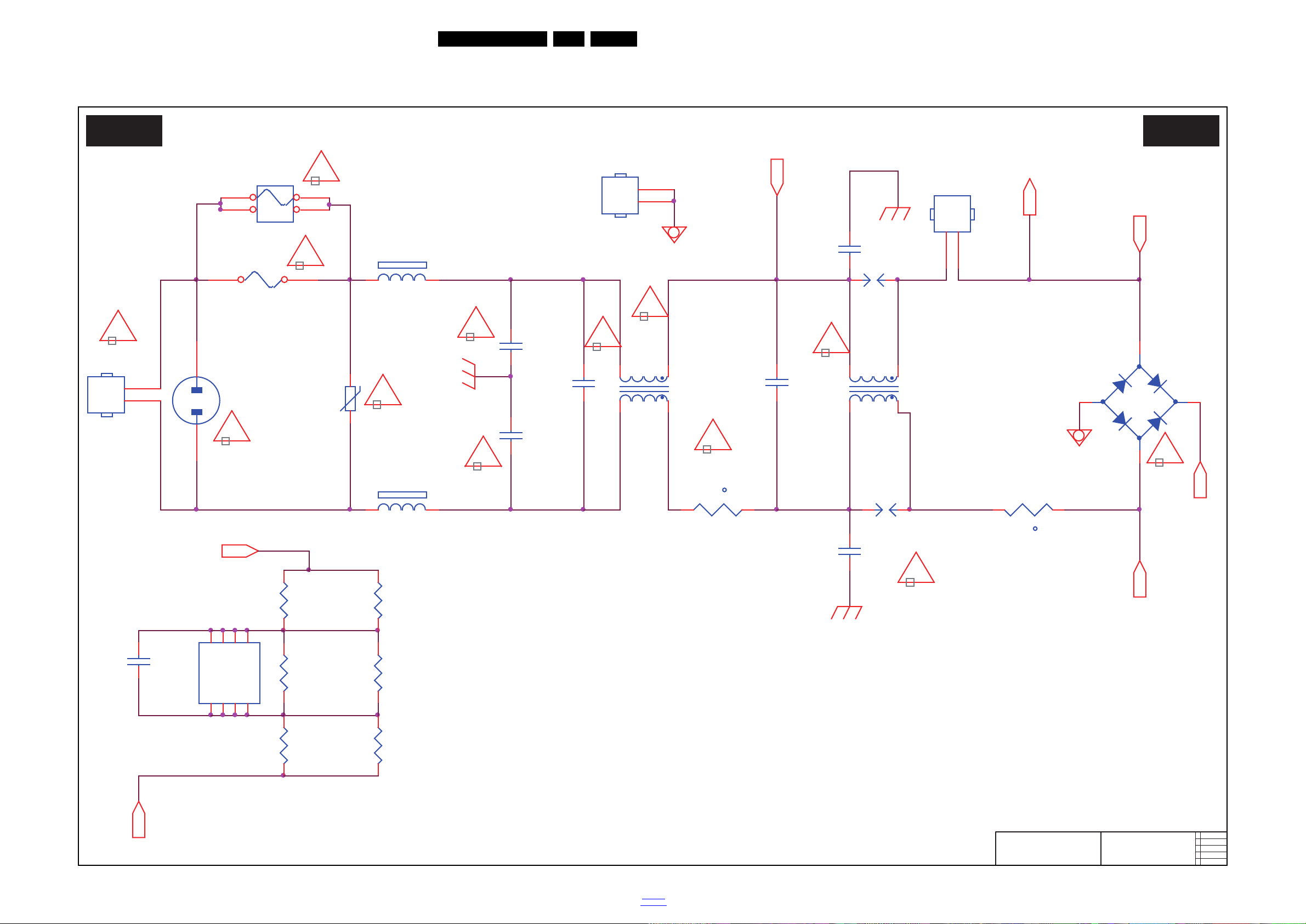

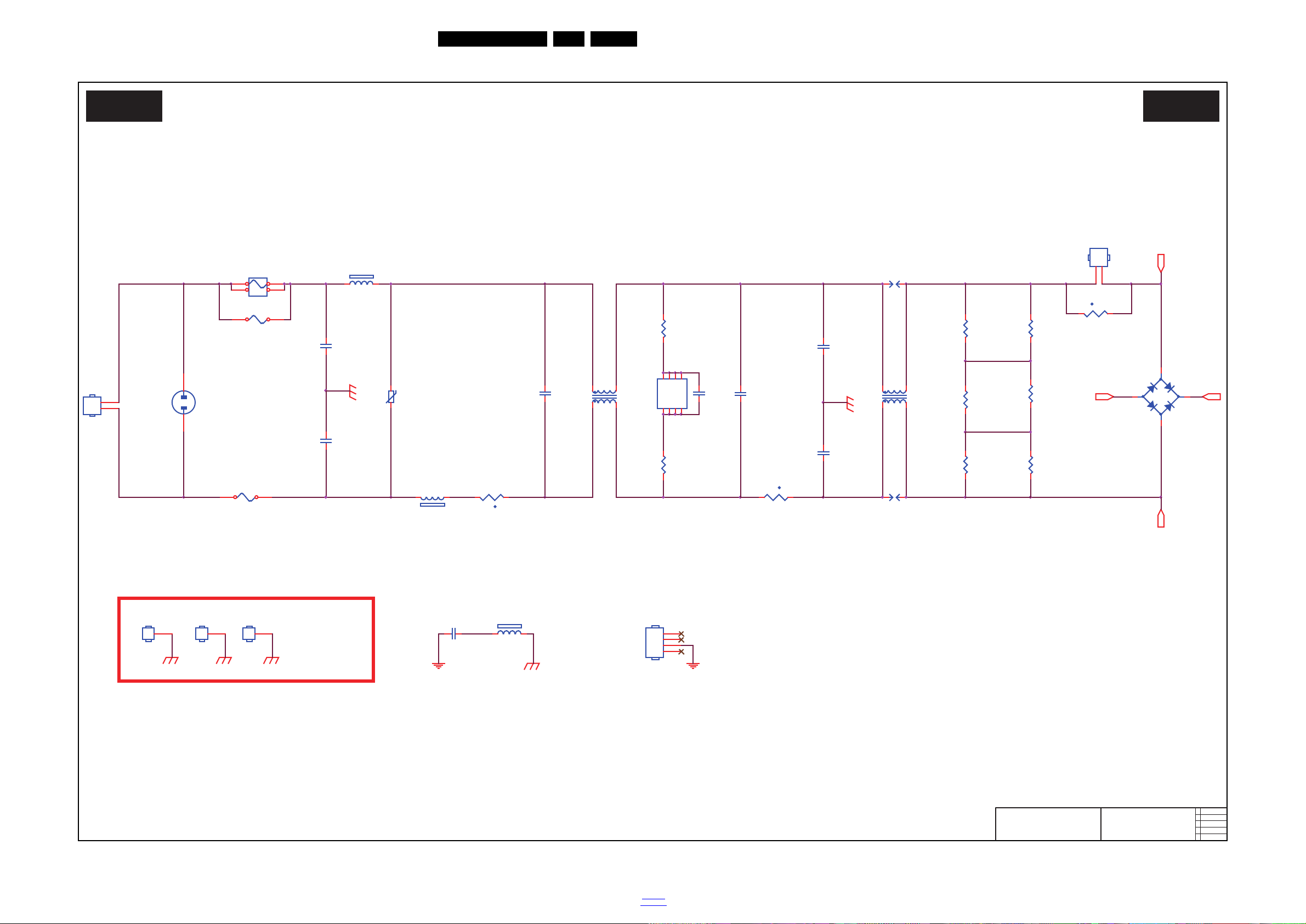

19970_519.eps

A01 A01

2014-11-11

3

715G6677

AC input

L9901

12mH

1

2

4

3

L9902

12mH

1

2

4

3

U9901

NC/CAP004DG-TL

NC

1

D12D1

3

NC

4

NC

5D26

D2

7

NC

8

HS9901 HEAT SINK

1 2

SG9901

NC/DSPL-501N-A21F

t

NR9902

2.5R

1 2

VXB

CN9901

AC SOKET

12

R9907 510K 1/4W

R9905 510K 1/4W

R9908 510K 1/4W

R9906 510K 1/4W

R9903 510K 1/4W

R9904 510K 1/4W

BR

VXC

VXA

VXB

C9907

NC/47PF

F9901

FUSE

1 2 3 4

C9904

220PF 250V

C9903

220PF 250V

-

+

BD9901

TS10K80-02

2

1

3

4

CN9903

NC/CONN

L1N

2

C9901

NC / 100PF 250V

C9905

470NF 275V

RV9901

680V

SG9902

NC/DSPL-501N-A21F

FB9901

BEAD

1 2

C9906

470NF 275V

CN9902

NC/CONN

1 2

C9902

NC/100PF 250V

Vsin

FB9902 BEAD

12

!

T5.0AH/250V

F9902

NC/250V

t

NR9901

2.5R

1 2

10. Circuit Diagrams and PWB Layouts

10.1 A 715G6677 PSU

10-1-1 AC input

EN 36TPN15.2E LA 10.

2015-Nov-27

back to

div.table

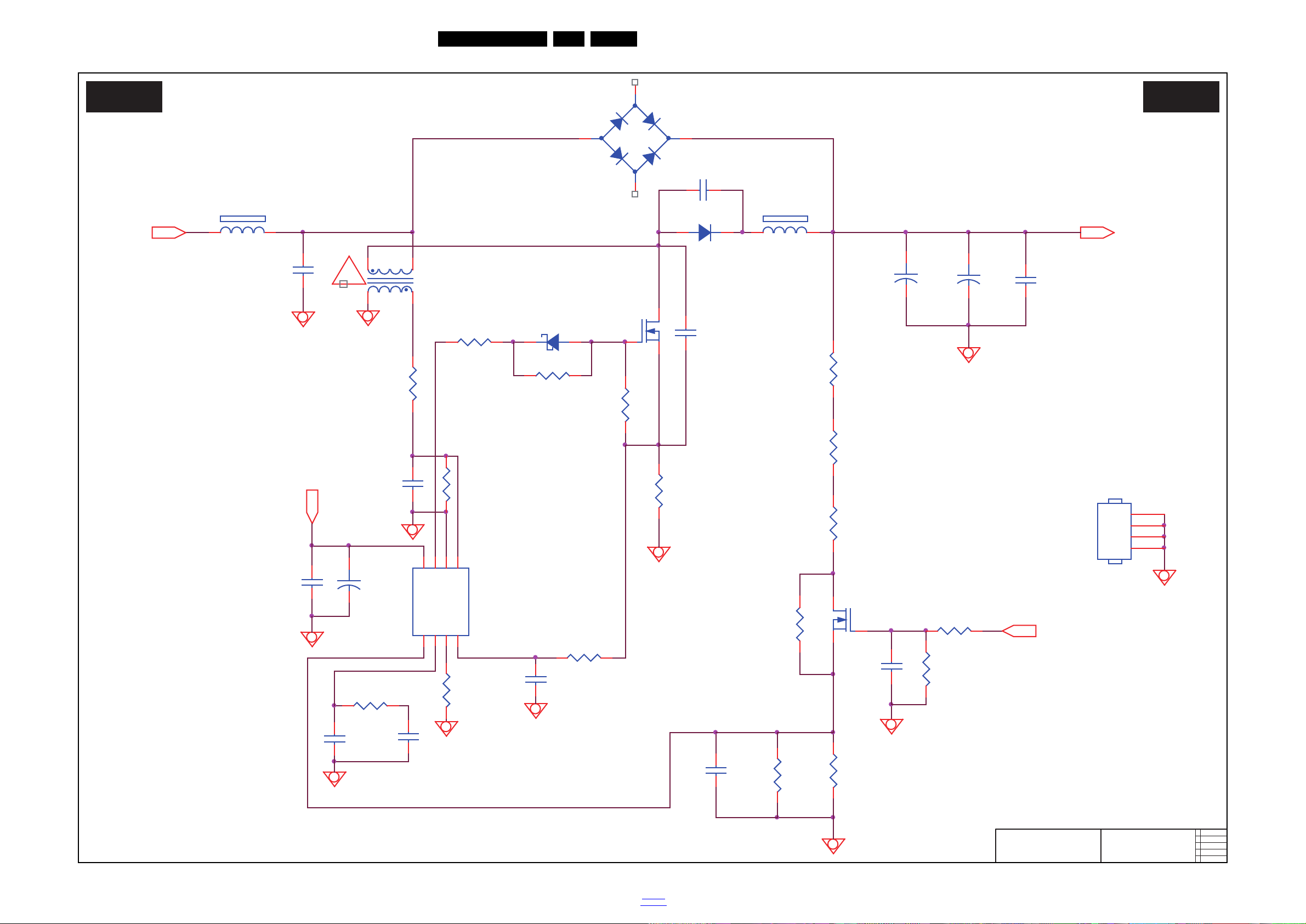

10-1-2 PFC

19820_541.eps

PFC

A02 A02

2014-11-11

715G6677

PFC

+

C9802

68UF 450V

+

C9803

68UF 450V

R9809 20K 1/4W

FB9802 BEAD

1 2

R9815

470 OHM 1/4W

C9813

100N 50V

C9814

100N 50V

C9812

470NF 50V

R9812 47OHM

D9803 SS1060FL

12

R9803 1M 1% 1/4W

+

C9809

10UF 50V

R9804

NC/0R05

R9813

10K 1/8W

R9816

10K 1/8W 1%

C9811

1nF 50V

Q9801

TK18A60V

C9808

10PF 50V

R9811

10 OHM

R9807

10K 1/8W

C9806

NC/100PF

C9810

100N 50V

D9802

FMNS-1106S

R9817

100K 1/8W 1%

R9806

680K 1%

R9810 2K 1/8W 1%

R9802

1M 1% 1/4W

FB9891 BEAD

1 2

R9814

0.1R

C9801 1UF 450V

R9801

1M 1% 1/4W

C9815

470P 50V

Q9802

AO3160

HS9801 HEAT SINK

1 2

3

4

C9805

NC/47PF

U9801 LD7591T

INV1COMP2RAMP3CS

4

ZCD

5

GND

6

OUT7VCC

8

R9895 20K 1/8W 1%

C9804

NC

HV

Vsin

VCC_ON

!

VCC_ON

R9808 27K 1/8W 1%

-

+

BD9801

KBP206G X0G

2

1

3

4

L9801

240uH

5

43

1

Circuit Diagrams and PWB Layouts

EN 37TPN15.2E LA 10.

2015-Nov-27

back to

div.table

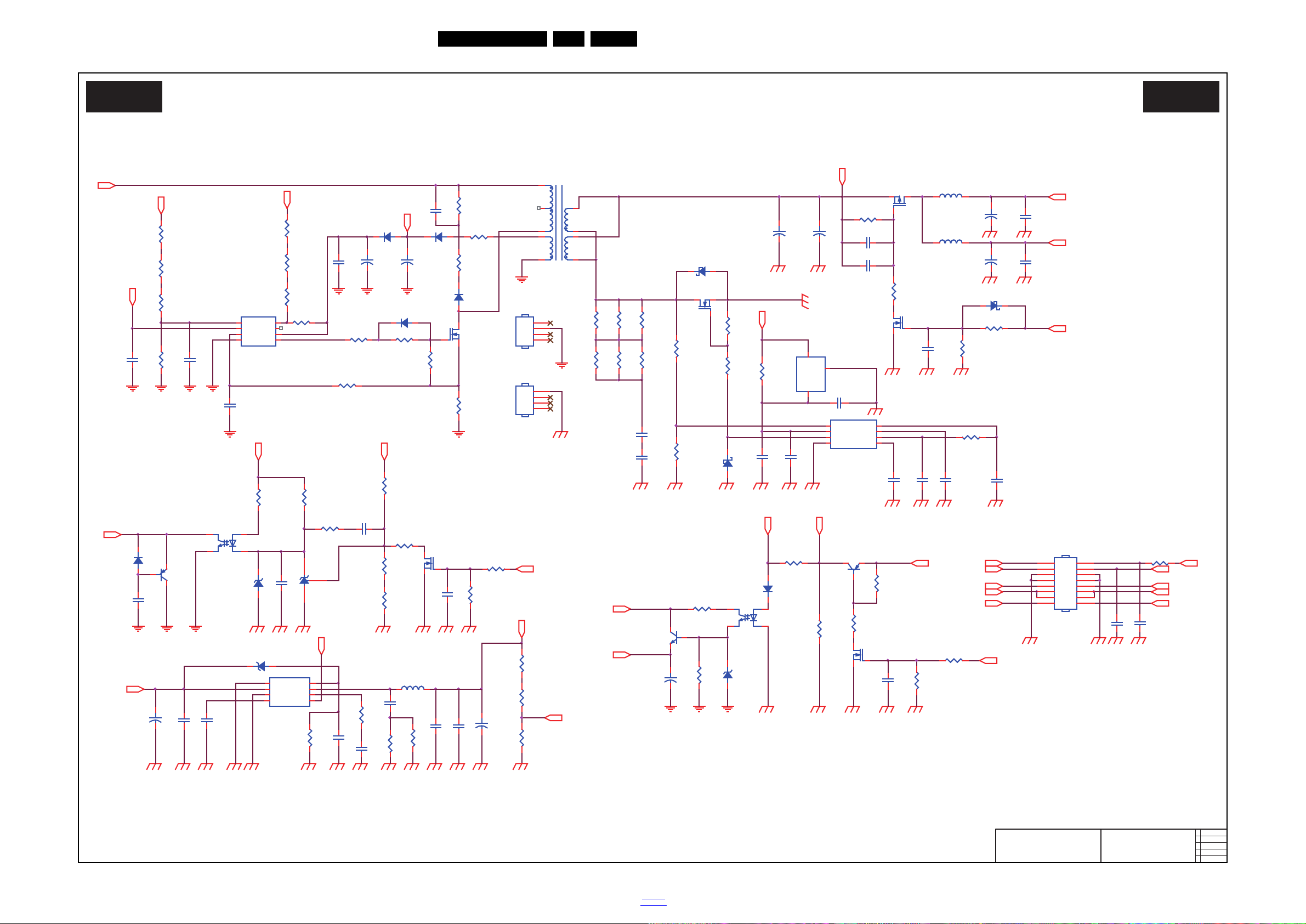

10-1-3 Standby

19820_542.eps

Standby

A03 A03

2014-11-11

715G6677

Standby

CN9302

NC/CONN

2

4

6

8

10

12

14

16

1

3

5

7

9

11

13

15

+

C9304 100UF 50V

R9328 5.1K 1/4W

R9334

27 OHM 1/4W

D9313

NC/SS1060FL

Q9309

NC/2N7002K

R9307

2.2 OHM 1/ 4W

C9818 1NF 250V

C9331

1N 50V

T9301

POWER X'FMR

1

2

3

5

6

7

9

10

4

R9360

100 OHM 1/4W

R9313

3.3M 1/4W

C9352

NC/100N 50V

C9330

1N 50V

R9315

3.3M 1/ 4W

C9355

NC/2N2 50V

R9321

4R7 1/4W 5%

ZD9302

BZT52-B15

1 2

C9341 1uF 50V

R9362

10K 1/8W 1%

L9304 NC/47uH

C9306

100N 50V

R9318

100K 1/8W 1%

FB9302

BEAD

12

D9302

FR107G-A0

R9333

27 OHM 1/4W

Q9307

2N7002K

R9322

NC/ 100KOH M 1/8W

R9363 100K

C9340 1uF

R9356

NC/620ohm 1/ 8W +/-1%

R9366 0R05

R9309

10R 1/8W 5%

L9302 3UH

C9315

220PF 250V

U9102

EL817M(X)

12

43

C9343 1N 50V

R9314

3.3M 1/4W

Q9304

NC/P1604ED

R9317 3K

R9353

NC/30R 1%

R9336

NC/ 0R 05 1/ 4W

C9333 100N 50V

C9358

NC/1uF

R9326

NC/ 510K 1/ 8W

C9353

NC/1N 50V

R9331

27 OHM 1/4W

R9324

5.1K 1/4W

C9328

NC/100N 50V

HS9302

HEAT SINK

1 2

3

4

R9354

NC/30R 1%

R9364

10K OHM +-5% 1/8W

C9342 1uF

C9308 330P 50V

C9303

NC/1NF

R9325

NC/ 100 OH M 1/4W

CN9303

CONN

2 4 6

8

10 12 14 16

1

3

5 7 9 11 13 15

R9340

NC/ 6. 2K OH M 1/8W

Q9306

BTC4672M3

R9330

27 OHM 1/4W

D9312

SS1060FL

R9327

NC/100K

C9302

2.2NF

L9303 3UH

D9314 1N4148W

HS9301 HEAT SINK

1 2

3

4

R9365 2K 1%

C9351

NC/1uF

R9357

NC/3K3 1/8W 1%

R9332

27 OHM 1/4W

C9338

NC/1N 50V

ZD9303

NC/BZT52-B5V1_R1_00001

12

C9357

NC/1uF

R9335

27 OHM 1/4W

Q9305

NC/2N7002K

C9301 1NF

C9332

100N 50V

R9339

NC/ 100K 1/ 8W

R9361 510K 1% 1/8W

ZD9301

BZT52-B16

1 2

R9338

NC/ 100K 1%

C9335

NC/ 100P 50V

R9337 0 OHM +-5% 1/8W

FB9301

BEAD

1 2

+

C9313

10UF 50V

R9355

NC/ 10. 5K OH M 1%

+

C9305 10UF 50V

C9324

NC/1uF

C9325

NC/1uF

U9305

NC/AOZ3015AI

PGND

1

VIN

2

AGND

3

VCC4FB

5

COMP

6

LX

7

EN

8

C9307

NC/47PF

R9345 1K 1/8W 1%

CN9301

NC/CONN

2 4 6

8

10 12 14

1

3

5 7

9 11 13

R9310

10K OHM 1/8W

R9329 8.2K 1/4W

C9329

100N 50V

R9352

NC/ 20K 1/ 8W 1%

R9320

33K +-1% 1/4W

FB9305

NC/127R

1 2

C9354

NC/2N2 50V

C9334

100P 50V

+12V_A +12V

+3.5V/+5V

BL_ON/OFF

+3.5V/+5V

SYNC

+12V_A

+12V

12VS

SYNC

DV5

+VCC1

+12V_A +12V

DIM

PS_ON

DV5

PS_ON

3D_ON

12VS

DIM

BL_ON/OFF

+VLED

HV

VCC_ON

+12V_A +12V

PS_ON

BL_ON/OFF

3D_ON

+12V

+VLED

3D_ON

!

+3.5V/+5V

+12V

+12V_A

!

COLDHOT

From AC N

Standby

.

D9304

SS1060FL

12

D9311 SK510C

12

Q9303

TK22A10N1

C9310

1NF

R9306

22R 5%

R9308

82 OHM

U9304

TL431G-AE2-R

BR

U9306

EL817M(X)

12

43

R9312 0R27 5%

R9311

750 OHM 1/4W

U9303

NC/AS78L12RTR-G1

IN

3

OUT

1

GND

2

R9346 2K7 1/8W 1%

R9323 10ohm 1/4W +/-1%

Q9302

NC/PMBT3906

1

23

C9312

NC/ 4. 7nF 50V

D9395

NC/1N4148W

R9302

750K +-5% 1/4W

R9303 750K +-5% 1/4W

R9305

82K 2W

R9304 0 OHM +-5% 1/8W

R9301

750K +-5% 1/4W

R9316

100K 1/8W 1%

C9339

470NF 50V

R9351

NC/3K 1/8W 5%

R9347

1K OHM +-5% 1/8W

R9343

0 OHM 1/8W

R9342

2K43 1/8W 1%

R9341

9.53K 1/8W

+

C9320 470uF 25V

+

C9321 470uF 25V

+

C9323

470uF 25V

U9302 SP6018ES8RGB

Timing

1

Pred

2

VR

3

Adj4GND

5

MOSG-C

6

Vdd

7

SYNC

8

+

C9322

470uF 25V

FB9803

127R

1 2

Q9308

MMBT3906

Q9301

TK11A65D

BR

D9301

SARS01-V1

+VCC1

U9301 LD5532

BNO

1

COMP

2

CS

3

GND4OUT

5

VCC

6

NC

7

NC

8

+

C9326

470uF 25V

D9393 1N4148W

+

C9327

470uF 25V

C9336

4.7UF

C9337

4.7UF

LED_OV

+

C9350

NC/470uF 25V

+

C9356

NC/470uF 25V

C9311

4.7nF 50V

Circuit Diagrams and PWB Layouts

EN 38TPN15.2E LA 10.

back to

div.table

2015-Nov-27

10-1-4 LED

19820_543.eps

LED

A04 A04

2014-11-11

715G6677

LED

U8102

EL817M(X)

1

23

4

ZD8107

0R05

1 2

R8107

10K OHM

R8157

1.5R 1%

Q8103

AO3160

R8156

1.5R 1%

R8106

NC/ 0R 05 1/ 4W

C8102

100N 50V

R8108

100K 1/8W 1%

VCC_ON

Q8102

TK10A50D

Q8101 TK10A50D

C8146

100N 50V

R8172

10K 1/4W

R8160

0R05 1/4W

C8156

100N 50V

R8170

0R05 1/4W

R8135

0R05 1/4W

R8152

1.5R 1%

U8106

TPV101D

DIM

1

EN

2

VCC

3

LED4GND

5

ISET

6

GM

7

COMP

8

R8151

1.5R 1%

C8135

1uF 50V

U8108

TPV101D

DIM

1

EN

2

VCC

3

LED4GND

5

ISET

6

GM

7

COMP

8

C8149

NC/100P 50V

C8160

NC/10N 50V

C8148

1uF

C8158

1uF

DIM

-VLED-1

IC_VCC

BL_ON/OFF

C8142

1uF 50V

D8106 FMXA-2202S

1

2

3

Q8107

MMBT3906

D8107 FMXA-2202S

1

2

3

R8101 0.1R 1W

R8159

1.2R 1%

U8104

TL431G-AE2-R

R8154

1.2R 1%

R8129

3K3 1/8W 5%

U8103

TL431G-AE2-R

R8113

10R 1/8W 5%

3D_ON

R8158

1.2R 1%

R8111

10R 1/8W 5%

R8153

1.2R 1%

R8150

75 K +-1% 1/8W

Q8106

MMBT3904

GND6

NC

1

GND7

GND

1

R8116

10R 1/8W 5%

C8133

470NF 50V

LED_OV

VLED

ZD8106

0R05

1 2

D8112

1N4148W

+

C8105

22UF 50V

C8141

100N 50V

C8151

100N 50V

R8128 13K 1/8W 1%

R8171

10K 1/4W

R8155

0R05 1/4W

R8166 3R6 1%

R8165

0R05 1/4W

HS8105

HEAT SINK/NC

1 2

U8105

TPV101D

DIM

1

EN

2

VCC

3

LED4GND

5

ISET

6

GM

7

COMP

8

C8147

1uF 50V

U8107

TPV101D

DIM

1

EN

2

VCC

3

LED4GND

5

ISET

6

GM

7

COMP

8

C8143

1uF

C8154

NC/10N 50V

C8153

1uF

DIM

-VLED-2

IC_VCC

BL_ON/OFF

C8152

1uF 50V

R8167 3R6 1%

C8140

NC/ 1N F 500V

C8111 5PF

D8108

1N4148W

C8136

1uF

+12V

C8157

1uF

+VLED

R8126

43K +-1% 1/4W

R8127

43K 1/8W 1%

R8168 3R6 1%

Q8105

2N7002K

R8169 3R6 1%

R8123 1M 1/8W 5%

R8124 510K +-5% 1/8W

IC_VCC

R8175

10K 1/8W

U8101

SSC9522S

Vsen

1

Vcc

2

FB

3

GND

4

Css

5

OC

6

RC

7

Reg

8

RV9COM

10

VGL

11

NC

12

NC

13

VB

14

VS

15

VGH

16

NC

17

NC

18

ZD8101

BZT52-B15

1 2

C8137

NC

HS8102 HEAT SINK

1 2

3

4

C8116

100PF1KV

C8126

100N 50V

C8108

0.47UF 50V

C8113 560P 50V

D8101

SS1060FL

+

C8120

82uF 100V

D8103

UF4007

+

C8121

82uF 100V

+

C8122

82uF 100V

R8149 100K

ZD8109

NC/BZT52-B30

1 2

C8115

NC/100PF

D8102 SS1060FL

C8106 10NF 50V

C8125

100N 50V

R8161 3R6 1%

R8162 3R6 1%

R8163 3R6 1%

C8103

100N 50V

R8164 3R6 1%

C8128

4N7 50V

T8101 EE39

1

4

5 6

7

8

9

10

2

3

C8112 1uF

R8102 1M5 1/4W 1%

C8124

NC/ 1N F 500V

C8107

4.7uF 10V

L8101 3UH

HS8106

HEAT SINK/NC

1 2

C8127 100P 50V

C8109

1UF

R8105

18K 1/8W 1%

D8111

NC/SS1060FL

R8112 47 +-5% 1/8W

R8114

10K 1/8W 1%

R8117

10K 1/8W 1%

C8104

100N 50V

C8131

100N 50V

C8110 47P 50V

R8115

47 +-5% 1/8W

R8120

NC

R8110 47K +-1% 1/4W

R8145

330K 1% 1/8W

C8101 1NF

VBoot

+VLED

HV

VCC_ON

VLED

+12V

R8109

470 OHM 1/ 4W

!

R8103

1M5 1/4W 1%

R8140

300K 1% 1/8W

!

+VLED

CN8101

CONN

1 2

3

4 5 6 7

8

9 10 11 12

-VLED-1

+VLED

-VLED-2

+

C8123

82uF 100V

HS8107

HEAT SINK/NC

1 2

C8145

NC/ 1N F 500V

GND1

NC

1

R8104

1M5 1/4W 1%

ZD8104 BZT52-B16

1 2

ZD8105 BZT52-B16

1

2

R8132

1K 1/8W 1%

D8109

SS1060FL

R8133

NC/0R05 1/4W

R8131

5.1KR 1%

R8136 2K 1/8W 1%

C8132 100N 50V

R8134 1K 1/8W 1%

+12V

VLED

DV5

HS8108

HEAT SINK/NC

1 2

R8137

1K 1/8W 1%

R8174

NC/ 0R 05 1/ 4W

R8139

1K 1/8W 1%

R8121

0R05 1/4W

R8122 0R05 1/4W

R8173 NC/ 0R 05 1/ 4W

R8130

510OHM +-5% 1/8W

R8142 82K +-1% 1/8W

D8110

1N4148W

C8129

NC

R8141

390K 1/8W 1%

R8138

1.5K OHM

R8119

470OHM +-5% 1/8W

ZD8108 BZT52-B16

1 2

R8118

390 OHM

C8114 220P 50V

R8125

36K 1/8W 1%

C8134

1uF

ZD8102 BZT52-B16

1

2

GND3

NC

1

GND2 GND

1

GND5 GND

1

GND4

NC

1

Q8104

MMBT3906

C8117 47NF

Circuit Diagrams and PWB Layouts

EN 39TPN15.2E LA 10.

2015-Nov-27

back to

div.table

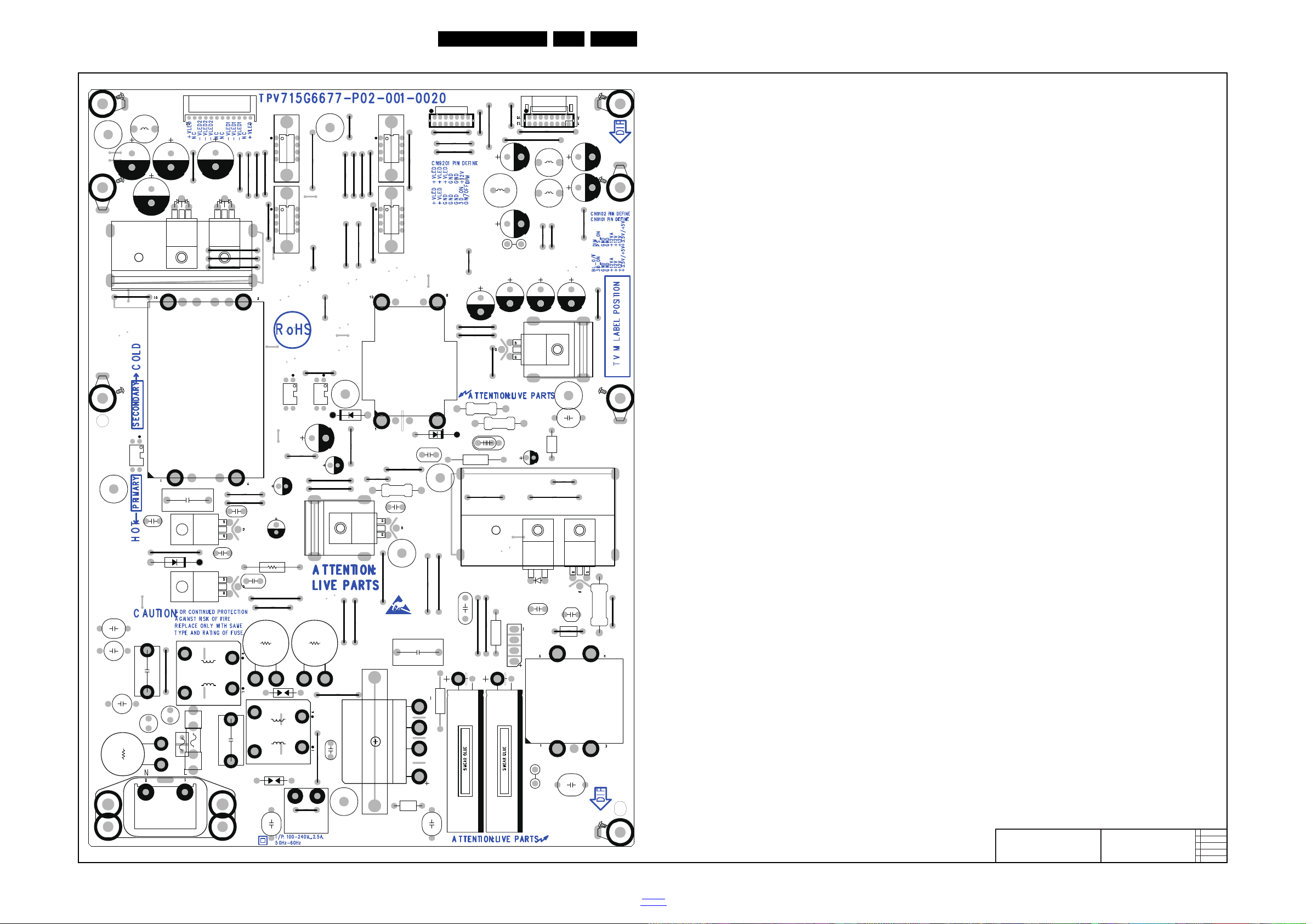

10-1-5 Power layout top

19850_504.eps

2014-11-06

715G6677

LAYOUT TOP

C8105

C9307

C9313

C9805

C9907

D9302

U8102

U9102

U9306

R9312

R9306

R9305

T9301

J968

J966

J912

J902

J952

J955

J931

J906

J935

SU1

SU2

SU4

J950

J924

J942

J923

J928

J925

J908

J904

SU6

J945

SU3

J913

J964

J958

J938

J932

J937

J936

J943

J918

J920

J919

J917

J927

J915

J914

J916

J930

J909

J907

J901

J934

J903

J929

J911

C8120

J905

C9305

J939

J944

J947

C9803

C9806

C9809

J926

J933

C8101

J956

J960

J946

J957

J963

J959

J951

SU7

J962

J961

J910

F9902

J922

J921

SU5

J949

C8111

J967

J948

D9301

J941

J969

SU8

J970

T8101

H1

S6

J940

J965

MH8

C8116

C8115

C9303

C9301

C9901

C9902

C9903

C9904

C9315

CN9902

CN9903

D8106D8107

D9802

FB9803

FB9302

HS9301

HS9302

L8101

L9302

L9303

L9304

NR9901 NR9902

R9814

CN9301

CN9303

C9302

MH3

SG9901

SG9902

D8103

MH2

MH1

C9905

C9906

RV9901

F9901

FB9305

HS8107

U8106

U8108

U8105

U8107

MH4

HS8105

HS8106HS8108

MH5

C9818

CN9302

Q9301

Q9801

HS8102

C8121

C8122

R8101

C9801

C9802

C9350

C9304

C9321 C9322

C9323

C9326

C9327

C9356

C9320

MH6

MH7

C9804

FB9802

FB9891

FB9301

HS9901

HS9801

BD9901

FB9901

FB9902

Q8102

Q8101

C8123

CN8101

GND1

GND2

GND3

GND4

GND5

GND6

GND7

Q9303

C9920

FB9903

L9801

BD9801

FB9801

CN9901

L9901

L9902

C8117

Circuit Diagrams and PWB Layouts

EN 40TPN15.2E LA 10.

2015-Nov-27

back to

div.table

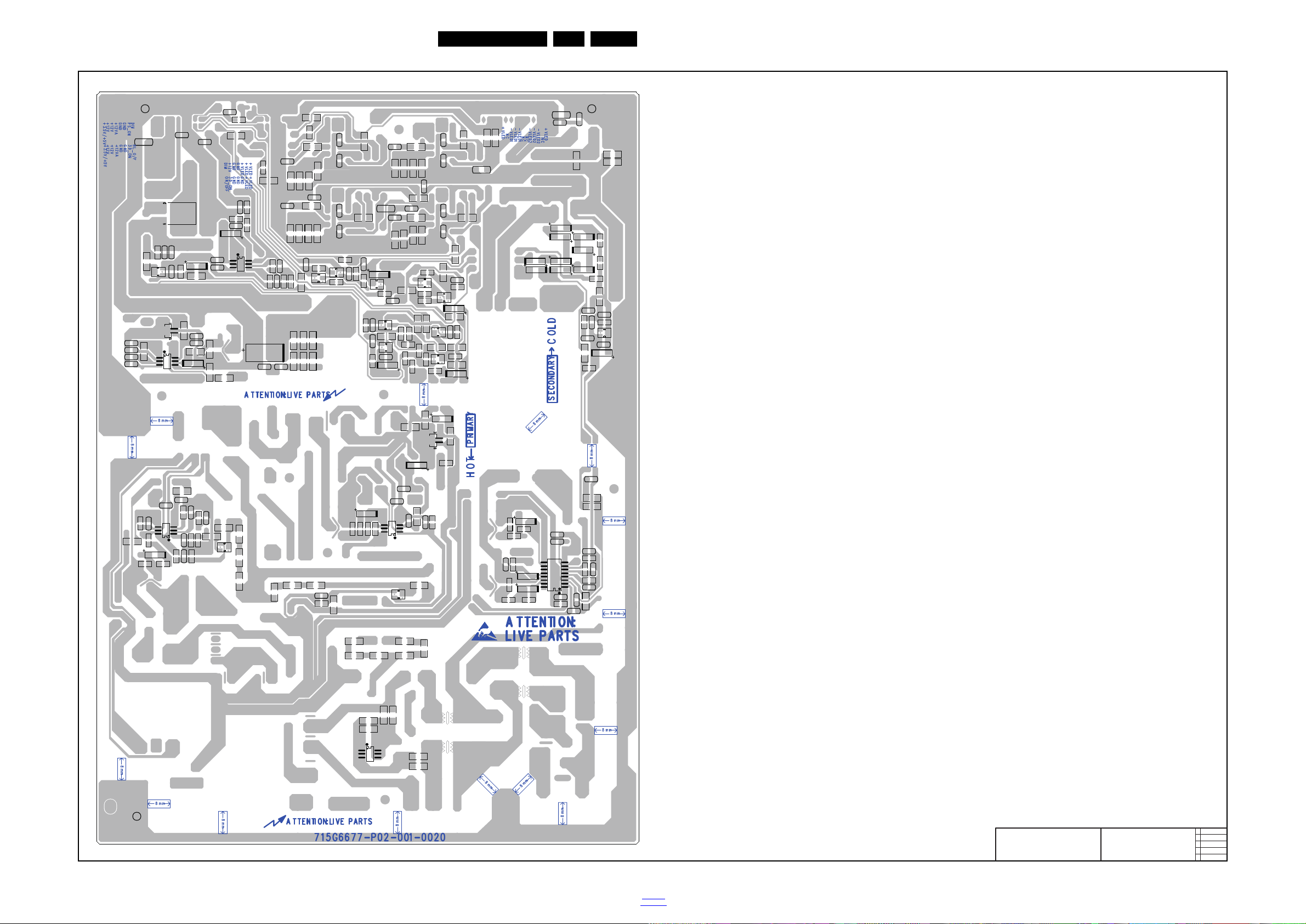

10-1-6 Power layout bottom

19850_505.eps

2014-11-06

715G6677

LAYOUT BOTTOM

C8103

C8109

C8112

C8104

C8108

C8113

C8114

C8106

C8107

C8125

C8126

C8124

C8110

C8132

C9308

C9311

C9340

C9343

C9325

C9324

C9339

C9329

C9337

C9358

C9357

C9354

C9351 C9352

C9353

C9332 C9334 C9333 C9335

C9336

C9355

C9330C9331

C9306

C9338

C9342

C9310

C9810

C9808

C9812

C9811

C9814

U9901

R8102

R8103

R8113

R8111

R8112

R8104

R8114

R8105

R8115

R8116

R8117

R8119

R8120

R8118

R8109

R8136 R8134

R9813

R9311

R9309

R9308

R9310

R9307

R9313

R9314

R9342

R9343

R9324

R9345

R9328

R9321

R9315

R9337

R9338

R9339

R9334

R9333

R9335

R9352

R9356

R9351

R9357

R9355

R9322

R9325

R9326

R9317

R9318

R9362

R9361

R9801

R9806

R9802

R8121

R9809

R9810

R9895

R9816

R9817

R9904

R9903

R9905

R9906

R9907

R9908

RJ910

R8110

R9316

R9803

R9364

R9340

R9365

R9360

RJ912

FID7

FID6

C9341

R8132

R9327

R9320

R9366

C8127

C8128

C8148

C8146C8135

C8137

C8149

C8158

C8151C8142

C8147

C8131

C8145

C8141C8152 C8156

C8153

C8143

R8149

R8154

R8138

R8141

R8172

R8145

R8152

R8151

R8153

R8142

R8164

R8161

R8162

R8163

R8171

R8159

R8158

R8156

R8157

R8166

R8168

R8167

R8169

R8130

R8129

RJ908

FID5

R8160

R8170

R8155

R8165

R8128

C8102

C8136

C8157

C8134

C8133

C8160

C8154

C9813

R8108

R8125

R8123

R8124

R9808

R9807

R8106

RJ904

RJ903

R8139

RJ909

R9812

R8137

R8107

C8140

R9329

R9347

R9346

R9341

R9363

R9323

R8173R8174

RJ905

R9336

RJ906

R8135

R8133

R8175

R9353

R9354

R8127

R8126

R9304

R9301R9302

R9303

C9815

R8122

R9804

R9815

R9811

Q8104

Q8106

Q8107

Q9308

Q8103

Q8105

Q9305

Q9309

Q9307

Q9802

RJ907

U9801

U9301

U9302

U9305

RJ911

R8131

R9330

R9331

R9332

C9328

RJ901 RJ902

U8103

U8104

U9304

R8150

R8140

C8129

S2

S1

S4

S3

U8101

Q9304

D9311

Q9306

U9303

D8101

D8102

D8108

D8109

D8110 D8111

D8112

D9304

D9312

D9313

D9314

D9393

D9803

ZD8101

ZD8102 ZD8104

ZD8105

ZD8106

ZD8107

ZD8108

ZD8109

ZD9301

ZD9302

ZD9303

Circuit Diagrams and PWB Layouts

EN 41TPN15.2E LA 10.

2015-Nov-27

back to

div.table

10.2 A 715G6973 PSU

19820_544.eps

AC input

A01 A01

2014-12-08

715G6973

AC input

CN9901 CONN

1 2

CN9902 AC SOKET

12

F9901 FUSE

1 2 3 4

RV9901 620V

FB9902 BEAD

1 2

FB9901 BEAD

12

C9901

470NF 275V

C9902

470NF 275V

L9901 12mH

1

2

4

3

R-

-

+

BD9901 TS10P06G-04

2

1

3

4

BO

C9911 47pF 250V

N

Vsin

C9916 220PF 250V

U9901

NC / C AP004D G-T L

NC

1

D12D1

3

NC

4

NC5D26D27NC

8

C9907 NC / 47PF

R9901 NC / 510K

R9902 NC / 510K

GND4 GND

1

CN9903 NC / CONN

L1N

2

GND2 GND

1

GND1 GND

1

C9913

220PF 250V

C9912 47pF 250V

t

NR9903 1R

12

C9914

220PF 250V

t

NR9902 1R

1 2

L9902 12mH

1

2

4

3

SG9901 NC/DSPL-501N-A21F

SG9902

NC/DSPL-501N-A21F

F9902 5A 250V

R9903 510K 1/4W

R9904 510K 1/4W

R9905 510K 1/4W

F9903 5A 250V

R9906 510K 1/4W

R9907 510K 1/4W

R9908 510K 1/4W

t

NR9901 1R

1 2

FB9903 BEAD

1 2

HS9901 HEAT SINK

1 2

3

4

10-2-1 AC input

Circuit Diagrams and PWB Layouts

EN 42TPN15.2E LA 10.

2015-Nov-27

back to

div.table

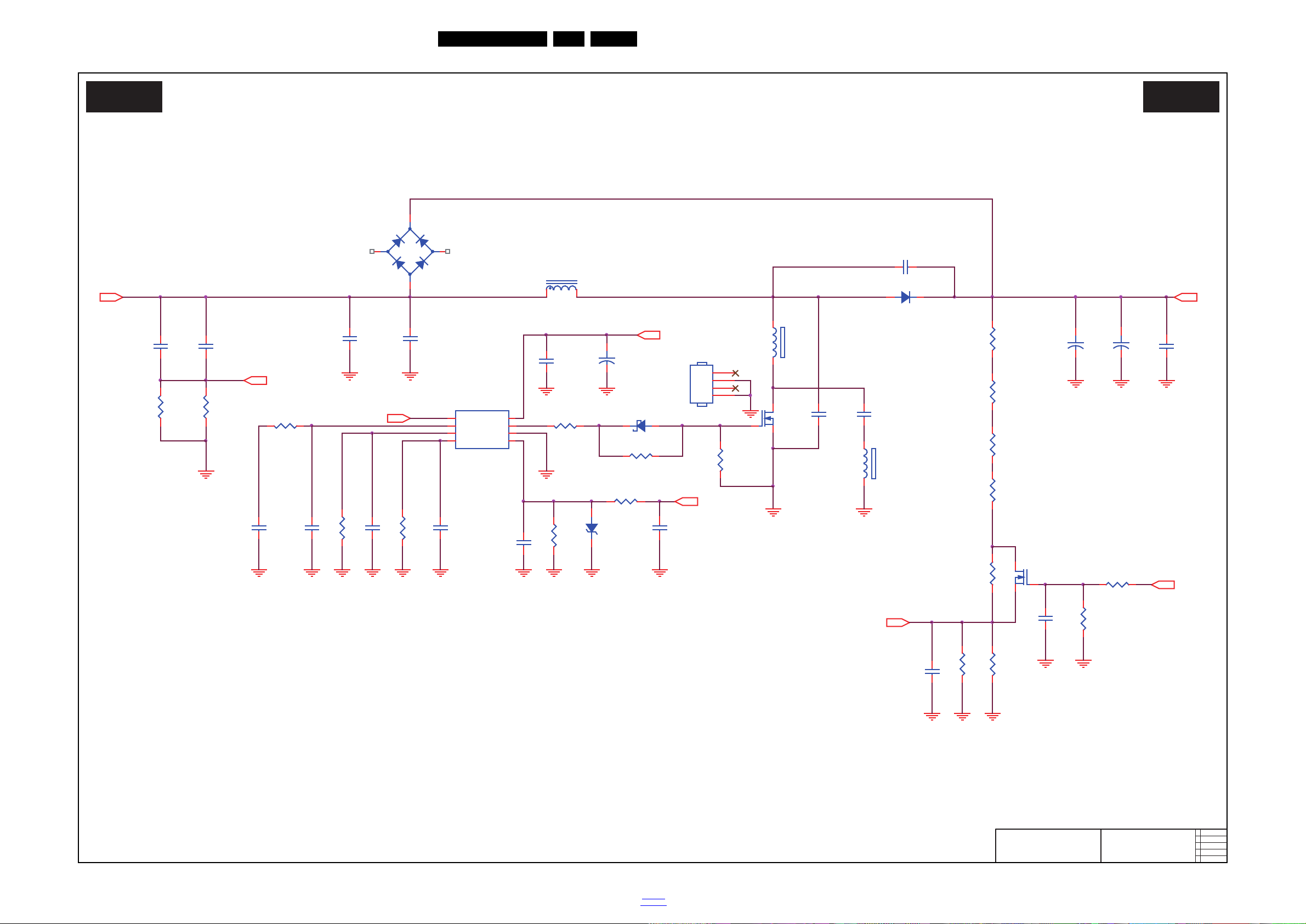

10-2-2 PFC

19820_545.eps

PFC

A02 A02

2014-12-08

715G6973

PFC

-

+

BD9801 KBP206G X0G

2

1

3

4

Q9801

TK18A60V

R9816 10K 1/8W 1%

C9815 47PF

D9802 SS1060

12

R9815 33R 1%

R9814 10R 1/ 8W 5%

R9818

100K 1/8W 1%

C9813

3.3nF 50V

R9813

NC / 24K 1/8W 1%

ZD9801

BZT52-B3V6

12

R9817 10K 1/8W 1%

R9812 47R 1%

C9812 47PF 50V

HS9801 HEAT SINK

1 2

3

4

R-

+VCC2

+

C9810 10UF 50V

C9811 100N 50V

C9805

1NF 50V

R9808

16K +-1% 1/8W

R9807 470K 1%

C9807

0.47uF 50V

R9809 27K 1/8W 1%

C9806

1uF

R9810

22K 1/8W 1%

C9808

10NF 50V

L9801 220uH

6

4

R9811

33K 1/8W 1%

C9809

10NF 50V

C9817

100N 50V

C9816 1NF

C9814 NC / 47PF

D9801 FMNS-1106S

+

C9801

68uF 450V

+

C9802

68uF 450V

Vbus

R9803 1MOHM +-1% 1/4W

R9805 680K OHM +-1% 1/4W

R9806 100K 1%

R9804 680K OHM +-1% 1/4W

FB_PFC

C9818 470PF

FB9904

BEAD

12

FB_PFC

+VCC2

U9801 SSC-2005S

FB

1

COMP

2

RT

3

RDLY4CS

5

GND

6

OUT

7

VCC

8

C9819 470PF

C9820 1NF

R9819

NC/0R05

Q9802

AO3160

FB9801 BEAD

12

Vsin

C9803 1UF 450V

C9804 1UF 450V

R-

R9801

0.07R 3W

R9802

0.07R 3W

Circuit Diagrams and PWB Layouts

EN 43TPN15.2E LA 10.

2015-Nov-27

back to

div.table

10-2-3 Main power

19820_546.eps

Main power

A03 A03

2014-12-08

715G6973

Main power

C9303

0.1uF 50V

R9122

1K5 +-1% 1/8W

R9109

10K 1/8W 1%

R9146 0R05

12VS

R9123

4.7K 1/8W

C9118

1uF

U9103 AS431AN-E1

+VCC1

R9131

3K

D9108 1N4148

Q9106 BTC4672M3

C9304

1nF 50V

+

C9121 10UF 50V

R9301

3K 1/8W +/-1%

R9124 1K 1/8W 1%

+

C9132

10UF 50V

+3.5V

C9119 220N 50V

C9106

2.2NF

L9301 47uH

+VCC2

+12V

R9126

2K2 1/8W 1%

R9127

1K5 +-1% 1/8W

Q9109

NC/MMBT3906

12VS

R9132

100KOHM +-1% 1/4W

+12V_A

R9125

9K1 1/8W 1%

R9150 22R 5%

DV5

D9107

NC/1N4148W

12VS

R9128

6.2K 1%

Q9105 2N7002K

Q9102 AOTF298L

ZD9105 BZT52-B15

1 2

Vbus

C9120

0.1uF 50V

U9105

SP6018ES8RGB

Timing

1

Pred

2

VR

3

Adj

4

GND

5

MOSG-C

6

Vdd

7

SYNC

8

R9129 10K OHM +-5% 1/8W

R9130

330K 1/8W 5%

C9130

NC/4.7NF 50V

U9106 NC/AS78L12RTR-G1

IN

3

OUT

1

GND

2

D9104 SK510C

12

DV5

+

C9109

1500UF 35V

+

C9110

1500UF 35V

+

C9105

100UF 50V

R9111 82K 2W

R9302

20K 1/8W 1%

C9305

2.2nF 50V

FB_SB

C9306

2.2nF 50V

D9106

1N4148W

R9133 2K 1/8W 1%

R9303

30 OHM 1/ 4W

R9304

30 OHM 1/ 4W

R9134

10K 1/8W 1%

D9103 SARS01-V1

BO BO

Q9107 MMBT3906

R9135 10K 1/8W 1%

R9136 10K 1/8W 1%

R9118

NC / 100K 1/ 8W 1%

D9101 1N4148W

R9142

10ohm +/-1% 1/8W

Q9103 NC / AOD4185

Q9108 2N7002K

R9106 82 OHM

T9101 POWER X'FMR

1

2

4

5

6

7

8

10

11

C9307

1uF

C9308

1uF

+

C9309

470UF 25V

C9122

0.1uF 50V

R9105

10ohm +/-1% 1/8W

C9112 NC / 1uF

C9111 NC / 1uF

R9137 10K OHM

R9138

510K 1% 1/8W

PS_ON

R9101

0.22R 1%

12VS

R9305

10.5K OHM 1%

DV5LED_OVP

R9306 620ohm 1/8W +/-1%

Q9104 NC / 2N7002K

R9107 1Kohm +-1% 1/4W

R9307 3K3 1/8W 1%

R9119 NC / 100K 1/ 8W 1%

R9112

27 OHM

R9113

27 OHM

R9114

27 OHM

R9115

27 OHM

C9103 330P 50V

R9116

27 OHM

R9117

27 OHM

C9117

NC / 0.1uF 50V

C9104

0.1uF 50V

R9121

NC / 510K 1% 1/ 8W

U9301

AOZ3015AI

PGND

1

VIN

2

AGND

3

VCC4FB

5

COMP

6

LX

7

EN

8

R9120

NC / 100 OH M 1%

ZD9103 NC / RB160M

1 2

+3.5V

C9107

2.2nF 50V

C9108

2.2nF 50V

R9110

2R2 +-5% 1/4W

R9139

8.2K 1/4W

R9140

5K1 1/8W 1%

U9101 LD5532

BNO

1

COMP

2

CS

3

GND4OUT

5

VCC

6

NC

7

NC

8

+12V

HS9101 HEAT SINK

1 2

3

4

D9102

FR107G-A0

+12V_A

PS_ON

HS9102 HEAT SINK

1 2

3

4

+3.5V

C9114

1uF

C9116

1uF

Q9101 TK11A65D

FB_SB

BL_ON/OFF DIM

3D_ON

R9141

5K1 1/8W 1%

R9145 0R05 1/4W

CN9101 CONN

2 4 6

8

10 12 14 16

1

3

5 7 9 11 13 15

R9143

4R7 1/4W 5%

L9101 3UH

L9102 3UH

C9124

1uF

C9123

1uF

+

C9113

470UF 25V

+

C9115

470UF 25V

U9102 EL817M(X)

1

23

4

C9102

1000pF 50V

D9105

SS1060

1 2

C9101

4.7NF 50V

C9133

1uF

C9125

NC / 100PF 50V

12VS

FB_12V

C9126

0.1uF 50V

+

C9301

470UF 25V

C9127

100PF 50V

12VS

C9128

0.1uF 50V

R9144 47K +-1% 1/4W

+12V

+12V_A

R9104

100K 1/8W 1%

ZD9301 BZT52-B5V1_R1_00001

12

+VCC1

C9131 NC/100N 50V

U9104 EL817M(X)

1

23

4

C9302

1uF

C9129

1NF 500V

R9147 750K 1%

R9149 750K 1%

ZD9104

BZT52-B15

1 2

R9148 750K 1%

R9103

3.3M 1/4W

R9102

3.3M 1/4W

R9108

3.3M 1/4W

Circuit Diagrams and PWB Layouts

EN 44TPN15.2E LA 10.

2015-Nov-27

back to

div.table

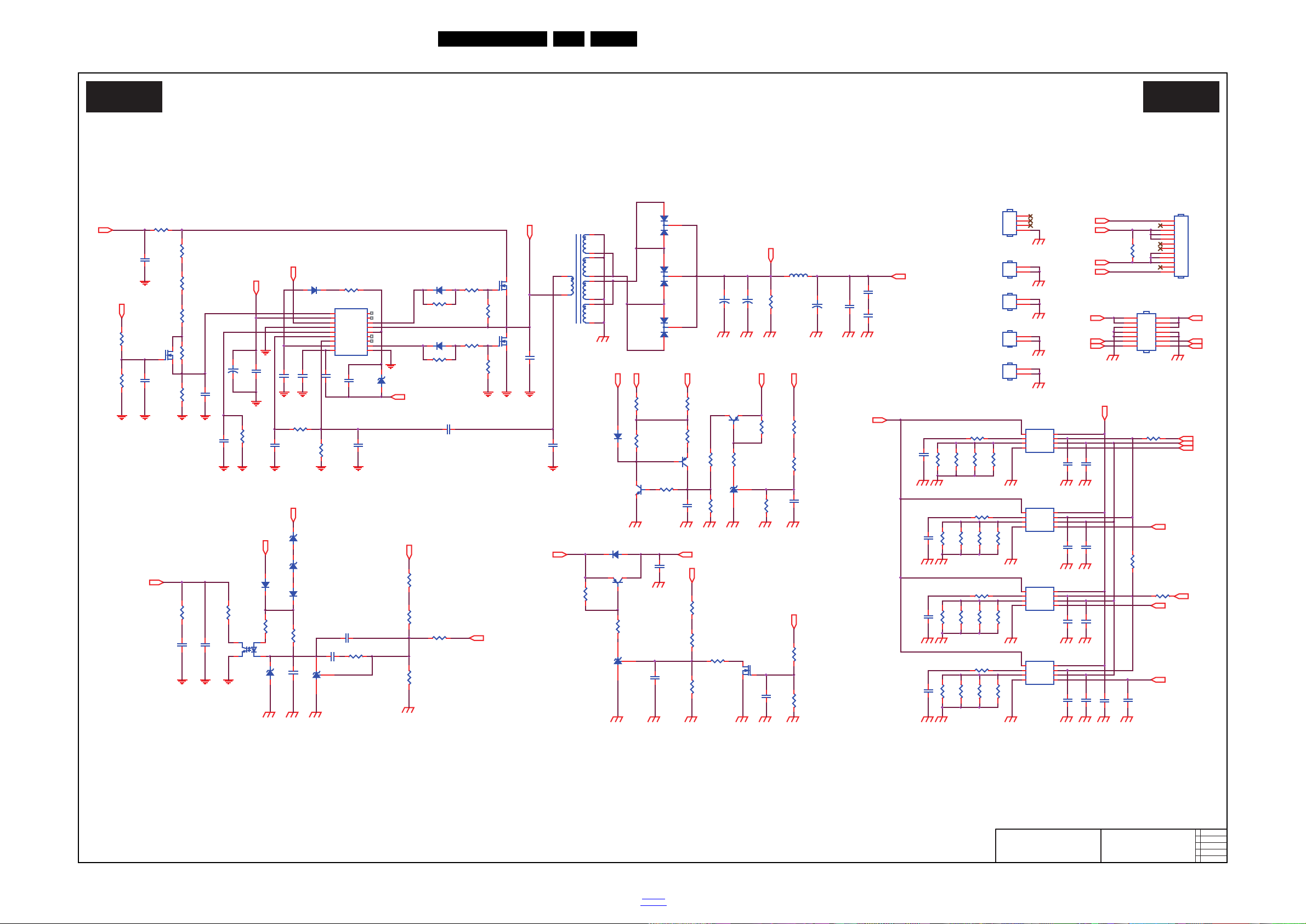

10-2-4 LED Driver

19820_547.eps

LED Driver

A04 A04

2014-12-08

715G6973

LED Driver

+VLED

U8105 TPV101D

DIM

1

EN

2

VCC

3

LED

4

GND

5

ISET

6

GM

7

COMP

8

LED_OVP +12VDV5

U8106 TPV101D

DIM

1

EN

2

VCC

3

LED

4

GND

5

ISET

6

GM

7

COMP

8

D8108

SS1060FL

+VCC2

Q8103 MMBT3904

R8126 0 OHM +-5% 1/8W

R8124 82K OHM 1%

R8129

NC / 0 OHM +-5% 1/8W

HS8101 HEAT SINK

1 2

3

4

R8127 2K 1/8W 1%

R8130

1K 1/8W 1%

R8128

1K 1/8W 1%

-VLED1

R8135

2R4 1/4W

R8136

2R4 1/4W

R8137

2R4 1/4W

R8142

2R4 1/4W

R8141

2R4 1/4W

R8140

2R4 1/4W

R8138

2R4 1/4W

R8139

2R4 1/4W

C8105

0.47UF 50V

Q8104

MMBT3906

R8106

NC

R8151 0 OHM +-5% 1/8W

C8136

1uF

+VCC2

R8107

470R 1/8W 1%

C8106 560PF 50V

R8108 180R 1%

-VLED1

-VLED2

-VLED1

-VLED2

C8107 1nF 50V

C8110

1uF

C8125

0.1uF 50V

C8111

47P 50V

+12V

R8159

5K1 1/8W 1%

Q8105 MMBT3906

R8152 0 OHM +-5% 1/8W

C8137

1uF

R8131

1K 1/8W 1%

+12V

R8132 5K1 1/8W 1%

U8104 AS431AN-E1

TPV101_VCC

3D_ON

R8160

62K 1/8W 1%

R8133

30K 1/8W 1%

DIM

R8134

2K4 +/-1% 1/8W

C8126

0.1uF 50V

BL_ON/OFF

C8133

1uF

C8112

5PF

VLED1

C8109 27NF

VLED1

HS8102 HEAT SINK

1 2

HS8103 HEAT SINK

1 2

ZD8101

BZT52-B15

1 2

D8106

NC/SS1060FL

VS

D8107

SS1060FL

R8119

5K6 +-1% 1/8W

ZD8103

BZT52-B24G

1 2

ZD8102

BZT52-B24G

1 2

VLED1

R8153 0 OHM +-5% 1/8W

U8107 TPV101D

DIM

1

EN

2

VCC

3

LED

4

GND

5

ISET

6

GM

7

COMP

8

C8132

1uF

C8131

0.1uF 50V

C8138

1uF

R8145

2R4 1/4W

R8144

2R4 1/4W

R8146

2R4 1/4W

R8143

2R4 1/4W

R8154 0 OHM +-5% 1/8W

U8108 TPV101D

DIM

1

EN

2

VCC

3

LED

4

GND

5

ISET

6

GM

7

COMP

8

C8135

1uF

C8113

220PF

C8134

0.1uF 50V

D8101 UF4007

R8164

1K 1/8W 1%

R8109 10ohm +/-1% 1/8W

C8139

1uF

FB_LED

R8149

2R4 1/4W

R8148

2R4 1/4W

R8150

2R4 1/4W

C8141

100PF 50V

R8147

2R4 1/4W

D8102 SS1060FL

D8103

SS1060FL

R8110 10ohm +/-1% 1/8W

R8113 10ohm +/-1% 1/8W

ZD8104

BZT52-B30

1 2

R8111 47R 1%

R8114 47R 1%

R8112

10K 1/8W 1%

R8115

10K 1/8W 1%

U8103 AS431AN-E1

C8124

NC/0.47UF 50V

FB_LED

FB_LLC

R8120

1K OHM +-5% 1/8W

VS

R8166

3K3 1/8W 1%

Q8107

LMBT3906LT1G

1

2 3

+12V

TPV101_VCC

R8165

510 OHM +-1% 1/8W

D8110

1N4148W

TPV101_VCC

U8109 AS431AN-E1

R8172 510K 1% 1/8W

Q8108

2N7002K

C8143

0.47UF 50V

R8171 1 MOHM +-1% 1/8W

C8108 100PF1KV

BL_ON/OFF

DIM

R8167

47K 1/8W 1%

R8155 10K 1/4W

R8168 43K 1/8W 1%

R8169 4K7 1/8W 1%

R8157 10K 1/4W

3D_ON

C8122 NC

C8145 1uF

R8170

22K 1/8W 1%

C8123 10NF 50V

12VS

C8127

0.1uF 50V

HS8105 HEAT SINK

1 2

HS8104 HEAT SINK

1 2

C8128

1uF

R8125 470K 1%

CN9102 CONN

2 4 6

8

10 12 14

1

3

5 7 9 11 13

C8101 1NF

Vbus

R8101

0.1R

C8144 1uF

D8104 FMX-23S

1

2

3

D8105 FMX-23S

1

2

3

T8101 POWER X'FMR

1

5

6

8

9

10

11

12

7

4

U8101 SSC9522S

Vsen

1

Vcc

2

FB

3

GND

4

Css

5

OC

6

RC

7

Reg

8

RV9COM

10

VGL

11

NC

12

NC

13

VB

14

VS

15

VGH

16

NC

17

NC

18

+VLED

C8129

0.1uF 50V

C8130

1uF

+VLED

Q8101

TK10A50D

+VLED

Q8102

TK10A50D

+

C8116

220UF 100V

+

C8117

220UF 100V

R8103

1M5 1/4W 1%

R8104

1M5 1/4W 1%

R8102

1M5 1/4W 1%

R8118

5.1K 1/4W

C8140

1NF 500V

D8109

FMX-23S

1

2

3

R8161

NC/0R05

C8142

100N 50V

For Power Saving

Q8106

AO3160

R8162

10K 1/8W 1%

R8163

100K 1/8W 1%

CN8101 CONN

1 2

3

4 5 6 7

8

9 10 11 12

L8101 3UH

R8105

18K 1/8W 1%

+

C8118

47UF 100V

C8102

0.1uF 50V

R8123 68K 1/8W 1%

-VLED2

C8104

0.1uF 50V

R8158

0R05 1/4W

+

C8103

22UF 50V

C8119

1NF 500V

R8156

NC/0 OHM +-5% 1/8W

C8120

0.1uF 50V

C8121

0.1uF 50V

VLED1

U8102 EL817M(X)

1

23

4

R8117

470R 1%

C8115

10NF 50V

R8116

2K43 1/8W 1%

R8121

680K 1%

R8122

750K 1%

VLED1

C8114

4.7uF 10V

Circuit Diagrams and PWB Layouts

EN 45TPN15.2E LA 10.

2015-Nov-27

back to

div.table

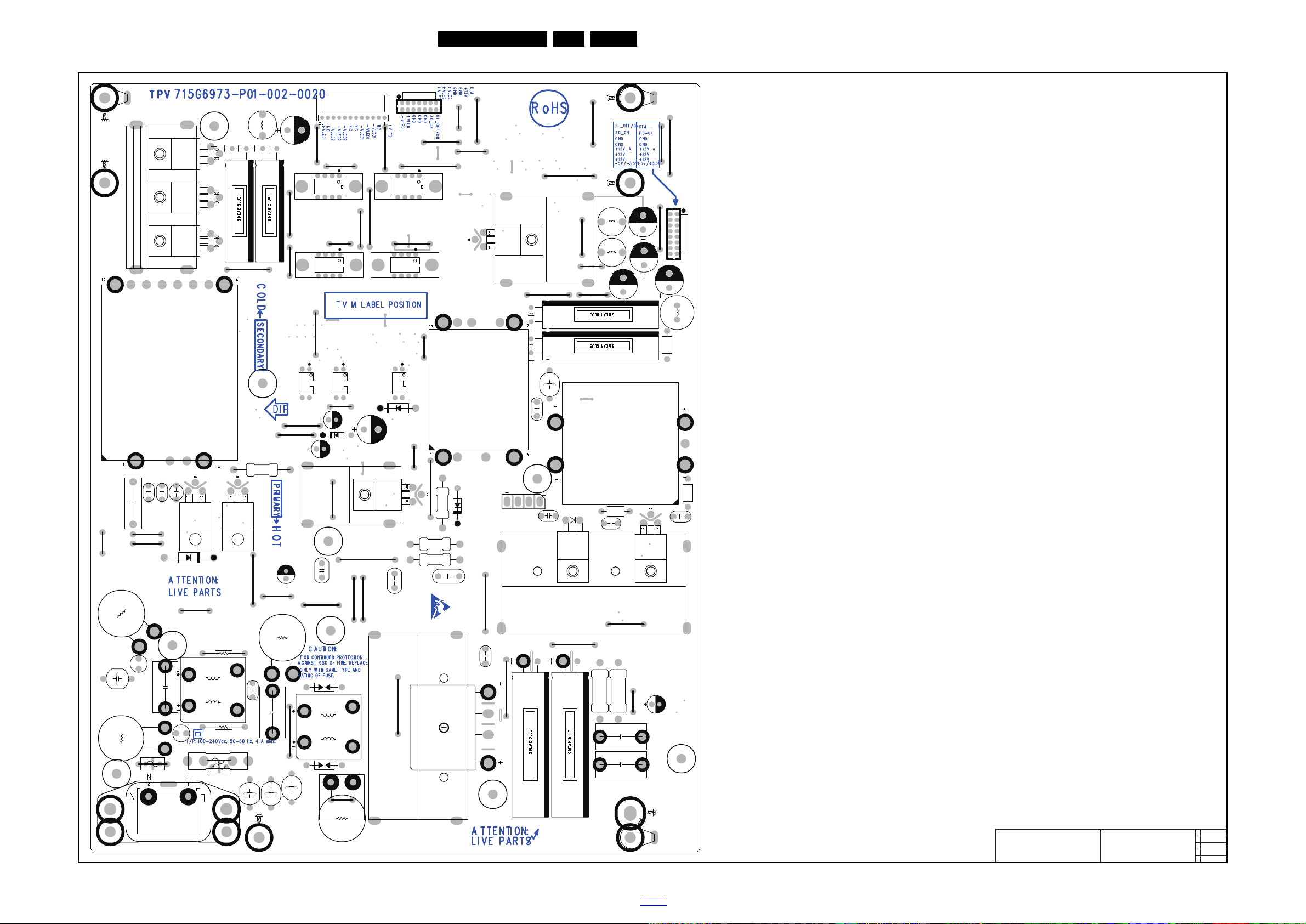

10-2-5 Power layout top

19820_548.eps

2014-12-02

715G6973

LAYOUT TOP

C9121

C8103

C9810

C9814

C9815

C9907

D9102

U8102

U9104

R9111

T8101

J9901

J9902

J9801

J9103

J9105

J9111

J9101

J8105

J8104

J9108

J9802

J8120

J9104

J9116

J9803

J9804

J8101

J9117

J9118

J8107

J9903

J8111

J9114

J9106

J9109

J9115

J9301

F9902

F9903

J9113

C9132

J9107

D9108

R9150

J8114

J8116

J8119

J8122

J8124

J8113

J9112

J9904

J9102

J8123

J8103

J8102

J8117

J8115

J8112

J8108

J8106

J8121

J9805

J9905

C9105

SU2

SU3

SU4

SU9

SU1

SU8

SU7

SU6

SU5

C9818

C9819

C9820

J8109

J9119

C9106

C9109

C9110

C9309

D9103

F9901

R9901

R9902

U9102

C9301

R9101

T9101

DR1

DR2

DE4

DR7

DR6DR5

DR8

DR3

C8112

C8108

C8118

C9113

C9115

C8101

C9802

C9801

C9816

C9803

C9804

C9901

C9902

C9913

CN8101

CN9901

CN9903

D9801

FB9901

FB9902

HS8102

HS8103

U8105

U8106

L8101

L9101

L9102

L9301

R9801

R9802

RV9901

SG9901

SG9902

D8105

D8104

HS8101

HS9901

BD9901

D8101

CN9102

GND1

GND2

GND4

C8116

C8117

MH7

MH2

MH4

MH3

MH1

MH6

MH5

CN9101

C9914

HS9801

HS9101

HS9102

HS8104

HS8105

U8107 U8108

C9916

D8109

NR9901

NR9902

NR9903

L9801

C8109

R8101

CN9902

FB9904

FB9903

BD9801

FB9801

C9911

C9912

C8113

L9901

L9902

Q8102 Q8101

Q9101

Q9102

Q9801

Circuit Diagrams and PWB Layouts

EN 46TPN15.2E LA 10.

2015-Nov-27

back to

div.table

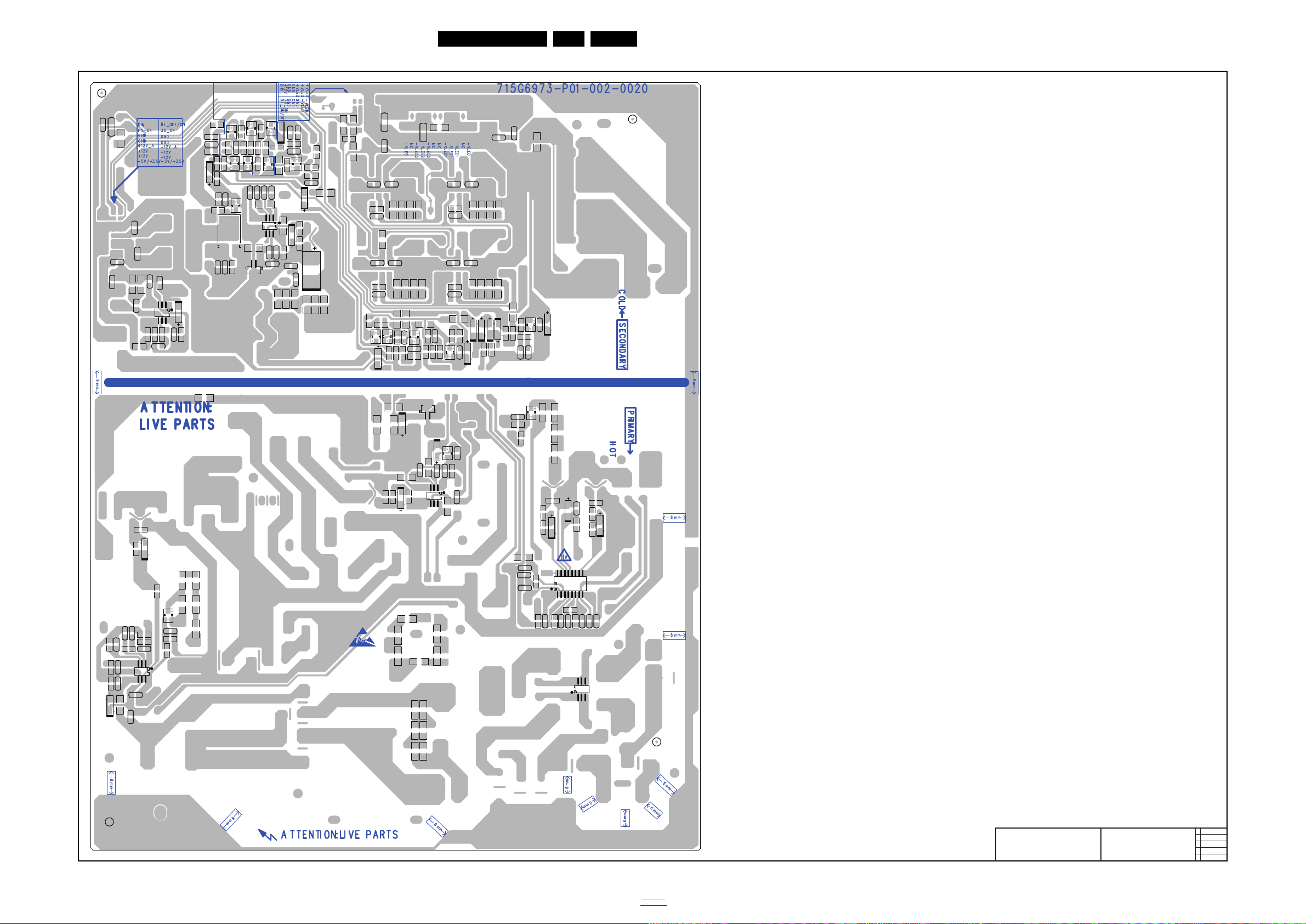

Circuit Diagrams and PWB Layouts

19820_549.eps

2014-12-02

715G6973

LAYOUT BOTTOM

C8102

C8110

C8133

C8104

C8105

C8106

C8107

C8115

C8122

C8114

C8123

C8136

C8127 C8128

C8124

C8141

C8137

C8129 C8130

C8120

C8121

C8140

C8119

C8111

C8125

C8126

C9103

C9101

C9118

C9112

C9111

C9119

C9117

C9124

C9308

C9307

C9305

C9302

C9303

C9304

C9128

C9127

C9126

C9125

C9123

C9306

C9107

C9108

C9104

C9120

C9114

C9116

C9122

C9102

C9809

C9808

C9811

C9813

C9812

C9807

C9806

C9805

U9901

R8103 R8104

R8110

R8102

R8112

R8118

R8105

R8113

R8115

R8107

R8106

R8108

R8117

R8116

R8151

R8125

R8138

R8137

R8135

R8136

R8152

R8139

R8140

R8141

R8142

R8155

R8157

R8156

R8129

R8127

R8130

R8131

R8134

R9146

R9109

R9113

R9114

R9112

R9110

R9126

R9127

R9123

R9122

R9125

R9124

R9139

R9144

R9143

R9130

R9115

R9117

R9116

R9302

R9306

R9301

R9307

R9305

R9118

R9119

R9121

R9303

R9304

R9131

R9136

R9138

R9103R9102

R9108

R9815

R9803

R9814

R9816

R9804

R9808

R9805

R9812

R9813

R9810

R9809

R9811

R9806

R9807

R9908

R9905

R9904

R9907

R9903

R9906

SM9

R9132

R8114

SM12

SM13

U9105

U9801

U9301

R9104

R8111

R9106

JR9101

R8109

R8147

R8148

R8149

R8150

C8139

R8154

R8146

R8145

R8143

R8144

C8138

R8153

C8132C8131C8135C8134

R9140

R9142R9141

R8159

R8133

R8160

R9135

R9133

R9134

R9129

R9145

R8128

JR8101

R9137

JR9102

R8123

R8119

R8120

R8121

R8122

R8158

C8142

C9817

R8162

R8163

R9817

R9818

R8161

R9819

U9101

C9130

R8164

R9147 R9148

R9149

R9107

R9105

C9131

C9129

U8103

U8104

U9103

Q8106

Q9104

Q9105

Q9108

Q9802

R8165

R8166

R8168

R8169

R8172

C8143

C8144

C8145

Q8108

U8109

R8132

R8171

R8167

R8126

R8170

JR9103

JR9104

R9120

R9128

JR9105

R8124

JR8102

JR9106

C9133

SM2

U8101

Q9103

Q9106

Q8103

Q8104

Q8105

Q9107

Q9109

U9106

Q8107

D8102

D8103

D8106

D8107

D8108

D8110

D9101

D9105

D9106

D9107

D9802

ZD8101

ZD8102

ZD8103

ZD8104

ZD9103

ZD9104

ZD9105

ZD9301

ZD9801

D9104

EN 47TPN15.2E LA 10.

10-2-6 Power layout bottom

2015-Nov-27

back to

div.table

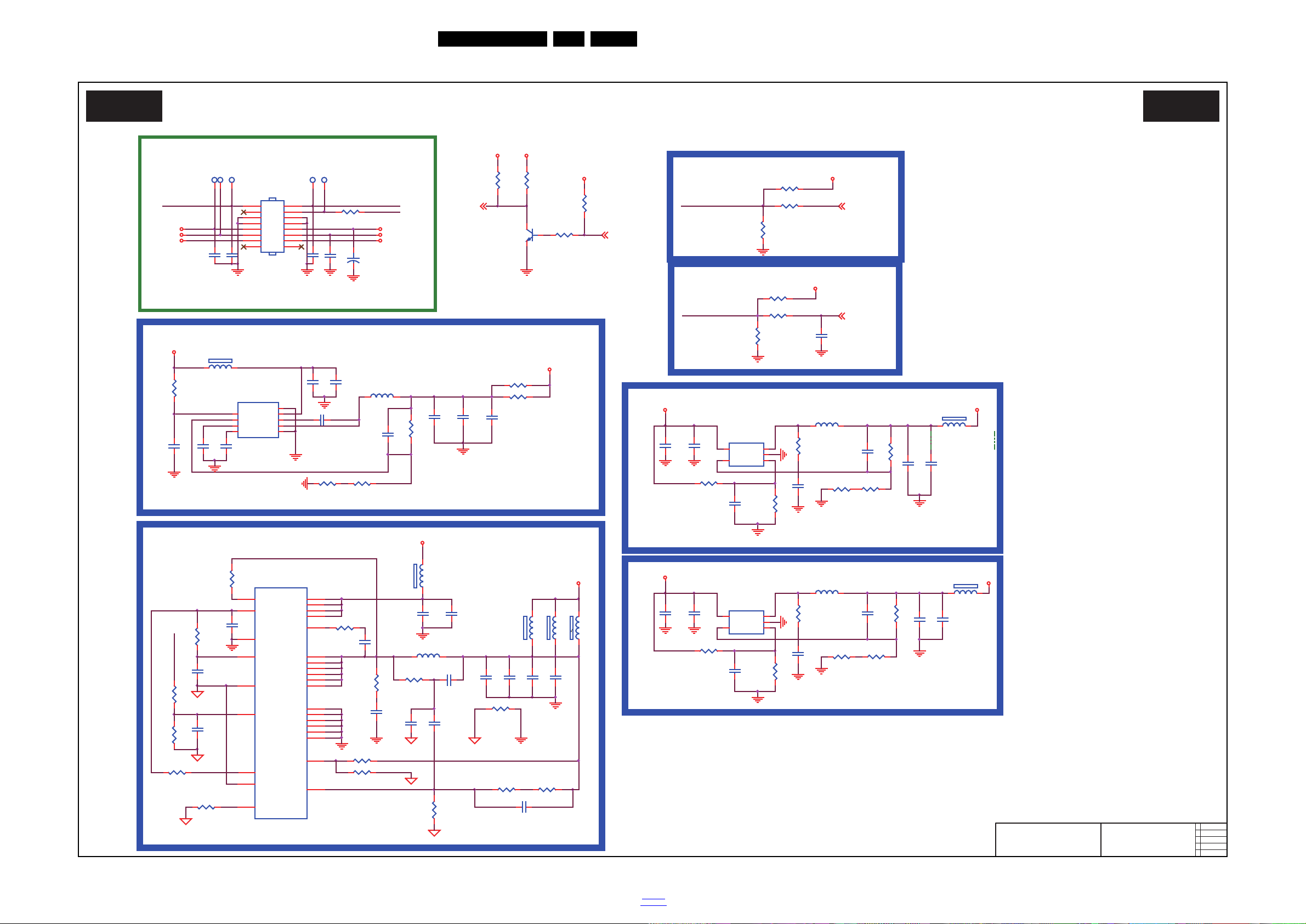

10.3 B 715G7673 SSB

19970_500.eps

System POWER-1

B01 B01

2015-06-25

3

715G7673

System POWER-1

C721 100N 16V

FB701

120R

1 2

C714 1nF 50V

C722 22UF 10V

FB724

42OHM

1 2

R724

100OHM

FB725

42OHM

1 2

R740

NC/10K

R708 100K1/16W

MAIN3V3

R779

0R05

R770

100R 1/16W 1%

PWR_ON_2

C727 100N 16V

C718

NC/1N 50V

C741

10UF 25V

EN_U702

C739

10UF 25V

PGNDAGND1

R738 NC / 0R 05 OH M

R713 150KOHM +-1% 1/16W

C747

10UF 25V

R742

100K1/16W

R707

10R 1/16W 5%

C715 1UF 25V

R721

12.4K 1%

C732

1N 50V

C738

NC/ 1N 50V

C731

100P 50V

BL_ON/OFF 10

R733

2.2R 1%

R731

NC/1K

C748

10UF 25V

C749

10UF 25V

R705

4K7 1/16W 5%

R734

NC/ 15K 1%

R768

1.3K 1%

R739

4.7K 1/16W

C729

NC/1N 50V

C725

10UF 25V

C726

10UF 25V

U702 G5309QN1U

TON

24

V5V

3

PGND

4

VCC

26

VN

20

VN

19

VN

18

VN

17

AGND

2

BST

22

LX

5

LX

6

LX

7

LX

8

LX

9

LX

10

PGND

11

PGND

12

PGND

13

PGND

14

PGND

15

PGND

16

OUT

25

FB

27

PGOOD

28

ILIM

1

EN

23

AGND

29

VIN_U702

L721 1uH

Backlight ON/OFF Control

R735

5.1K 1/16W 1%

PGOOD_U702

C730

10N 50V

R737 0R05 1/ 16W

+12V

R2

FB721

120R

12

R711 0R05

C723

10uF 16V

C707

NC/10UF 10V

R728 100K1/16W

MAIN2V5

BRIGHT_ADJ

R712

3K3 1/16W 5%

C716

100N 16V

C706

NC/100N 16V

L705 2.2uH

R718

30K 1%

+5V_SW

R706

1K5 1%

C719 10uF 16V

R710

100K 1%

C736

NC/ 10N F 50V

R703

NC/100OHM

Backlight Brightness Control

R719 4K7 1/16W 5%

R736

20K 1%

PWR_ON_2

R732

1K5 1%

C704

10uF 16V

C717

NC/10UF 10V

R723

100K1/16W

MAIN3V3

R717

3K3 1/16W 5%

+

C705

100UF 16V

C711

100N 16V

C733

NC/100N 16V

L707 2.2uH

+5V_SW

R729

22K 1%

U705 SY8088AAC

EN

1

GND

2

LX

3

IN

4

FB

5

R704

0R05 1/16W

C734 10uF 16V

R709

100K 1%

C735

NC/10NF 50V

R702

NC/100OHM

BL_DIMMING 12

"PWR_ON" Normal:Low Standby:High

C742

100N 16V

PWR_12V

FB709

120R

1 2

MAIN3V3

R727

10K

U703 SY8088AAC

EN

1

GND

2

LX

3

IN

4

FB

5

C702

10UF 25V

C703

NC/ 100N F 16V

BRIGHT_ADJ

TP703

TP701

AUDIO_12V

TP704

PWR_12V PWR_12V

R701

100OHM

PWR_ON_25

PWR_12V_AL

TP702

PWR_ON_2

C701

100N 16V

PWR_12V_AL

AUDIO_12V

TP710

C708

2N2 50V

R725

100OHM

CORE0V9

FB723

42OHM

1 2

C720

22P 50V

PWR_12V

Q703

LMBT3904LT1G

1

3

2

U706

TPS54528DDAR

EN

1

VFB

2

VREG5

3

SS4GND

5

SW

6

VBST

7

VIN

8

E-Pad

9

C737

22P 50V

INVERTER_ON_OFF

C744

1UF 25V

R714 100K1/16W

R720

124K 1%

C743 100N 16V

+5V_STB

C724

22pF 50V

C728

8.2NF 50V

C745 1UF 25V

L703

3.3uH C746

22UF 10V

R722 0R05

12V TO 5VSTB

R726

10K

PWR_ON 10,15,16

C740 10uF 16V

INVERTER_ON_OFF

DC POW ER INPUT

INVERTER_ON_OFF Normal:High Standby:Low

R730

NC/1K

FB702

120R

1 2

R715

NC/ 10K 1/ 16W 5%

R716 4K7 1/16W 5%

STBC3V3

STBC3V3 +5V_STB

CN701

CONN

2

4

6

8

10

12

14

16

1

3

5

7

9

11

13

15

10-3-1 System Power 1

Circuit Diagrams and PWB Layouts

EN 48TPN15.2E LA 10.

2015-Nov-27

back to

div.table

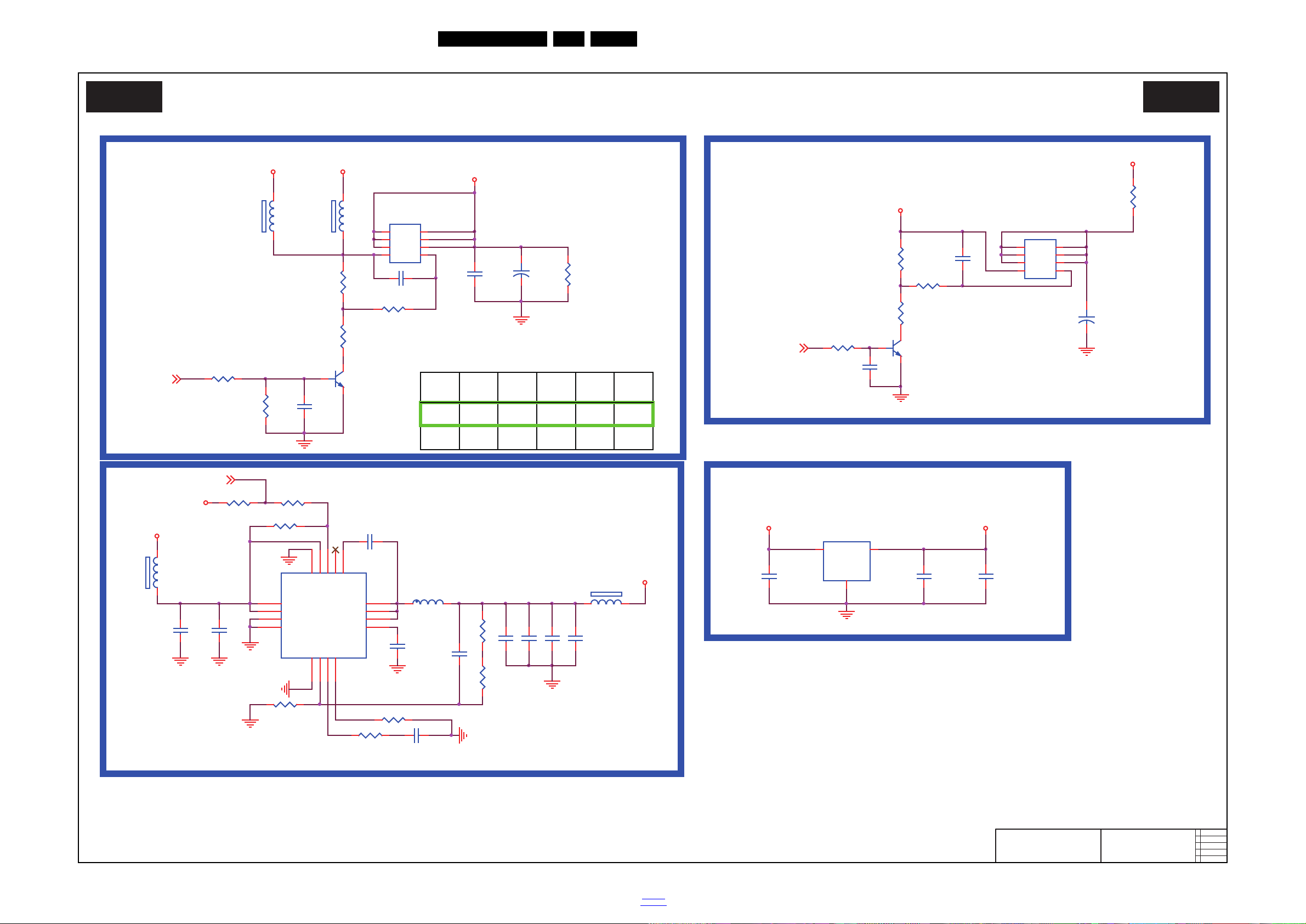

10-3-2 System Power 2

19970_501.eps

System POWER-2

B02 B02

2014-06-25

4

715G7673

System POWER-2

R775 10KR743

4K7 1/16W 5%

DRAM1V5_EN10

STBC3V3

C759

22UF 10V

R764

10K 1%

Q752 LMBT3904LT1G

1

3

2

R777

100K

R746

7K5 1/10W 5%

C761

3.3N F 50V

R749

180K

C751

470NF 10% 10V

+5V_STB

C765

10UF 16V

FB726

42OHM

1 2

+

C754

100UF 16V

+5V_STB

+5V_SW

R751

22K 1/16W 5%

R771

51K 1/16W 5%

Q702 LMBT3904LT1G

C753 NC / 4. 7U F 10% 10V

R752

5K6 1/16W 5%

R772 0R05 4A 1/ 4W

+5V_STB to +5V_SW

+

C752

100UF 16V

C769

100N 16V

C760

NC/ 390pF 50V

FB714

120R

1 2

Q701 AON4421

D

1

D

2

D

3

G

4

S

5

D

6

D

7

D

8

STBC3V3

C766

1UF 25V

U707

AP2125N-3.3TRG1

GND

1

VOUT

2

VIN

3

+5V_STB to DV33SB

+5V_STB

DRAM1V5

R774

3.3K 1/ 16W

R778

0R05 1/ 16W

PANEL_ON12

R765

0R33K

R767R768PANEL

VCC

7K55K1

+5V

10K

2K2NC

FB751FB750

+12V

High

NC

FB751

NC/120R/3000mA

1 2

+5V_STB

C755 1UF 25V

R773

10K

PANEL_VCC

C756

NC/4. 7U F 6. 3V

FB750

120R

1 2

PWR_12V

Q753

AON4421

D

1

D

2

D

3

G

4

S

5

D

6

D

7

D

8

C767 10uF 16V

PA NEL_VCC

R766

10K

R769

5K1 1/16W 5%

R767

27K 1/16W 5%

PWR_ON_24

R744

NC/ 100K 1/ 16W 5%

L706

1.5uH

U709

RT8079ZQW

VIN

1

VIN

2

GND

3

GND

4

AGND5FB6COMP7RT/SYNC

8

SS/TR

9

SW

10

SW

11

SW

12

BOOT

13

PGOOD

14

EN

15

VIN

16

GND

17

C774

100N 16V

R747

240R 1%

R765

8.2K 1%

C775 10N 50V

C757

100N 16V

C758

22UF

C762

22UF

C764

NC/22UF

C763

100N 16V

+5V_SW to DRAM1V5

Circuit Diagrams and PWB Layouts

EN 49TPN15.2E LA 10.

2015-Nov-27

back to

div.table

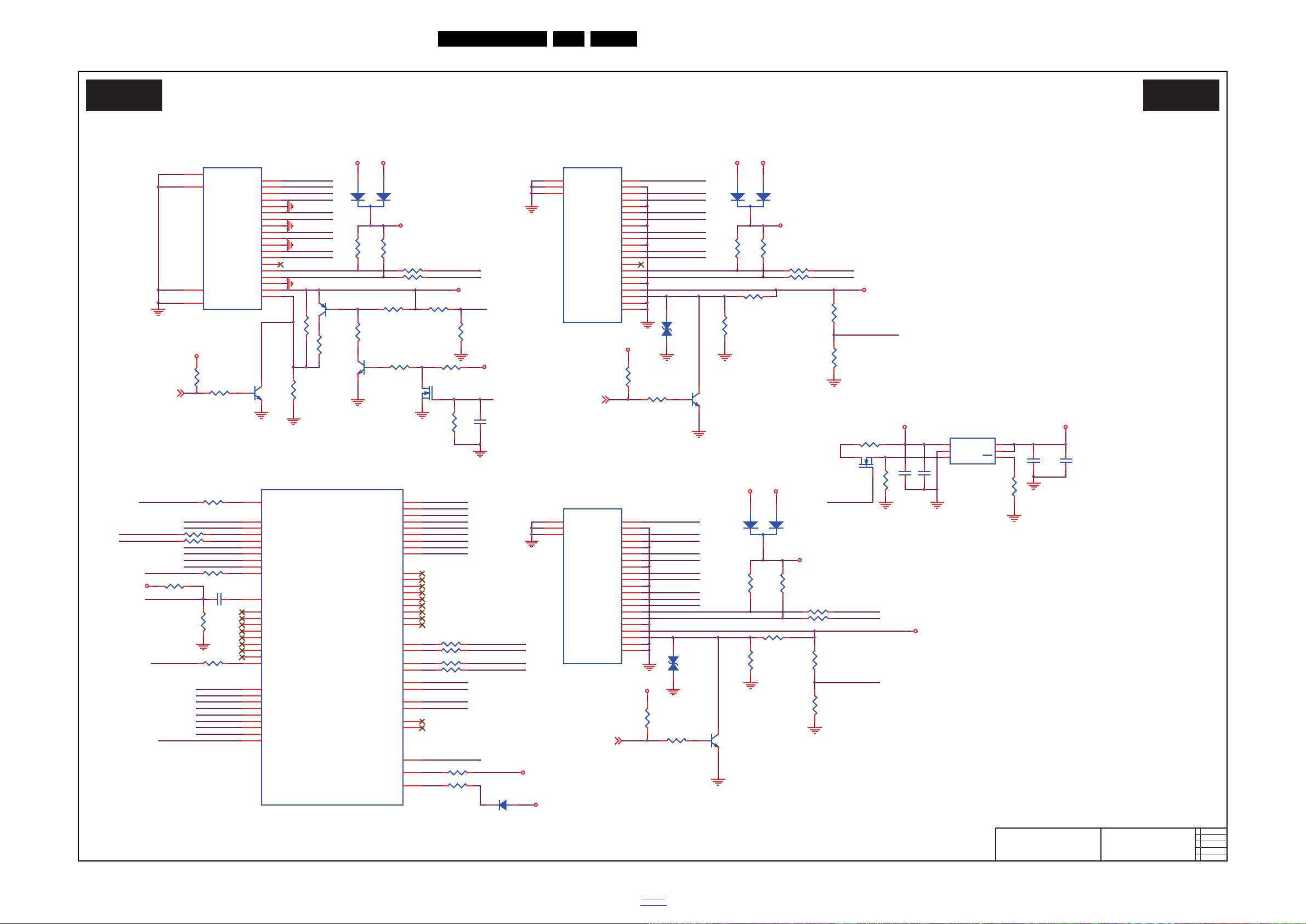

10-3-3 NT72866 HDMI

19970_502.eps

NT72666 HDMI

B03 B03

2015-06-25

4

715G7673

NT72666 HDMI

R503

27K 1/16W 5%

STBC3V3

RXD1-

RXD0+

HDMID_DET12

HDMI_D

R542

1K

RXD2-

RXD2+

RXD1+

RXDC+

RXDC-

CEC

HDMIA_DET12

HDMIC

R523

NC/ 22R 1/ 16W 5%

MAIN3V3

MHL_CD_SENSE

PWR5V_D

HDMIA_SCL

R524

22R 1/16W 5%

HDMIA_SDA

HDMID_SCL

HDMID_SDA

HDMIC_SCL

HDMIC_SDA

R506 470R 1%

RXD0-

RXDC+

RXD1RXD1+ RXD2RXD2+

RXD0+

R501

22R 1/16W 5%

R505

47K

CEC

RXDC-

HDMIC

R504

4K7 1/16W 5%

PWR5V_A

RXD0-

HDMI_D

C502

1UF 6. 3V

R530

0R05 1/16W

R518

4K7 1/16W 5%

MHL_CD_SENSE RXA1+

RXAC+

RXA0+/MHL+

RXA0-/MHL-

RXA1-

RXA2-

RXA2+

CEC

RXAC-

R540

10K

R522

4K7 1/16W 5%

Q507 LMBT3904LT1G

1

3

2

R543

3.9K 1/16W

PWR5V_D

R510

1K 1/16W 5%

HDMIC

R531

0R05 1/16W

HDMIA

HDMI_A

Rear HDM I 3

R515

NC/ 1K 1/ 16W 5%

Q502

NC/2N7002K

Q501

NC/2N7002K

R507

47K

R550

0R05 1/16W

MHL_CBUS

R527

10K

Rear HDM I 2

R528

NC/1K

R529

NC/ 20K 1/ 16W

MHL_CBUS

R536

NC/20K 1/16W

MHL_CD_SENSE

R541

3.3K 1/16W

R525

NC/47K

ZD501

MLVG0402

1 2

R526

NC/47K

R538

NC/ 20K 1/ 16W

Q504

LMBT3904LT1G

1

3

2

R532

3.3K 1/16W

HDMID

RXA0+/MHL+

RXA0-/MHL-

HDMIA

R511

47K

R514

22R 1/16W 5%

R516

22R 1/16W 5%

D507

LBAT54CLT1G

1

2

3

+5V_STB

R517

4K7 1/16W 5%

HDMIA_SDA

SCL_1 HDMIA_SCL SDA_1

NT72666 MHL/HDMI

U401C

NT72666BG-BA/D

MHL_CBUS

AV33

NC

BA22

NC

AY23

NC

AV26

NC

AU25

NC

BA24

NC

BA21

NC

BB21

PWR5V_A

AV28

HDMI_ARC

AY25

RXA_CLK-

BA25

RXA_CLK+

AY26

RXA_0-/MHL-

BA26

RXA_0+/MHL+

AY27

RXA_1-

BA27

RXA_1+

BB27

RXA_2-

AY28

RXA_2+

BB28

STBC_GPI_17

AV29

RXC_CLK-

BA28

RXC_CLK+

AY29

RXC_0-

BA29

RXC_0+

AY30

RXC_1-

BA30

RXC_1+

BB30

RXC_2-

AY31

RXC_2+

BB31

PWR5V_C

AW30

RXD_CLK-

BA31

RXD_CLK+

AY32

RXD_0-

BA32

RXD_0+

AY33

RXD_1-

BA33

RXD_1+

BB33

RXD_2-

AY34

RXD_2+

BB34

PWR5V_D

AW31

STBC_GPF_1 / H D MIA_SD A

AU28

STBC_GPF_0 / H D MIA_SC L

AW27

STBC_GPF_3

AU29

STBC_GPF_2

AW28

STBC_GPF_5 / H D MIC _SD A

AV30

STBC_GPF_4 / H D MIC _SC L

AU30

STBC_GPI_1 / H D MID _SD A

AV31

STBC_GPI_0 / H D MID _SC L

AU31

STBC_GPG_24 / MHL_CD _SEN SE

AU27

HDMI_EXT_RES

BB25

STBC_GPG_31 / HD MI_C EC

AU26

NC

BB24

NC

BA34

NC

AY35

NC

BA35

NC

AY36

NC

BA36

NC

BB36

NC

AY37

NC

BB37

NC

AU33

STBC_GPI_19

AV32

STBC_GPI_18

AU32

HDMID_SCL

R521

4K7 1/16W 5%

HDMIA_SDA HDMIA_SCL

R551

NC/ 0R 05 1/ 16W

R552

NC/ 0R 05 1/ 16W

R545 4R7 1/ 16W 5%

R533

1K

R519

NC/47K

HDMI_ARC

C501

NC/ 47N F 16V

R535

10K

R502

22R 1/16W 5%

R512

22R 1/16W 5%

HDMID_SDA

D501

BAS316WS

R546 4R7 1/ 16W 5%

C504

NC/100N 16V

R544

NC/10K

+5V_SW

C503

NC/100N 16V

HDMIA

U515

NC/G529A1TB1U

EN

1

GND

2

IN3OUT

4

OUT

5

OC

6

C505

NC/ 10U F 16V

R547

1K

R513

22R 1/16W 5%

CN501

SHELL1

20

SHELL2

21

D2+

1

D2 Shield

2

D2-

3

D1+

4

D1 Shield

5

D1-

6

D0+

7

D0 Shield

8

D0-

9

CK+

10

CK Shield

11

CK-

12

CE Remote

13

NC

14

DDC CLK

15

DDC DATA

16

GND

17

+5V

18

HP DET

19

SHELL4

23

SHELL3

22

SHELL5

24

R549

0R05 1/16W

Q503

NC /LMBT3904LT1G

1

3

2

D506

LBAT54CLT1G

1

2

3

PWR5V_C

Q508

NC/BC857C

1

23

HDMI_ARC

HDMID

C506

NC/10uF 16V

HDMIC_DET12

R537

3.3K 1/16W

HDMI_C

Q506 LMBT3904LT1G

1

3

2

R539

1K

PWR5V_A

RXAC-

RXA1-

PWR5V_C

RXA2+

RXAC+

RXA2-

RXA1+

R509

1K 1/16W 5%

RXC2-

RXC0+

RXC0-

R548

NC/ 0R 05 1/ 16W

RXC1+

RXC1-

RXCC+

RXCC-

RXC2+

+5V_STB

R534

1K

R520

NC/47K

MHL_CD_SENSE

HDMI_C

ZD502

MLVG0402

1 2

CN502

SHELL1

20

SHELL2

21

D2+

1

D2 Shield

2

D2-

3

D1+

4

D1 Shield

5

D1-

6

D0+

7

D0 Shield

8

D0-

9

CK+

10

CK Shield

11

CK-

12

CE Remote

13

NC

14

DDC CLK

15

DDC DATA

16

GND

17

+5V

18

HP DET

19

SHELL4

23

SHELL3

22

SHELL5

24

R508

4K7 1/16W 5%

D508

LBAT54CLT1G

1

2

3

HDMID

+5V_STB

RXC2RXC1+

RXCC-

RXCC+

RXC2+

RXC0+ RXC0-

RXC1-

HDMIC_SCL

CEC SCL_2

SDA_2 HDMIC_SDA

CN503

HDMI

SHLD0

20

SHLD1

21

TMDSD2+

1

DSHLD0

2

TMDSD2-

3

TMDSD1+

4

DSHLD1

5

TMDSD1-

6

TMDSD0+

7

DSHLD2

8

TMDSD0-

9

TMDSC+

10

CSHLD0

11

TMDSC-

12

CEC

13

NC

14

SCL

15

SDA

16

DDC_GND

17

VCC5

18

HPD

19

SHLD2

22

SHLD3

23

HDMI_A

Circuit Diagrams and PWB Layouts

EN 50TPN15.2E LA 10.

2015-Nov-27

back to

div.table

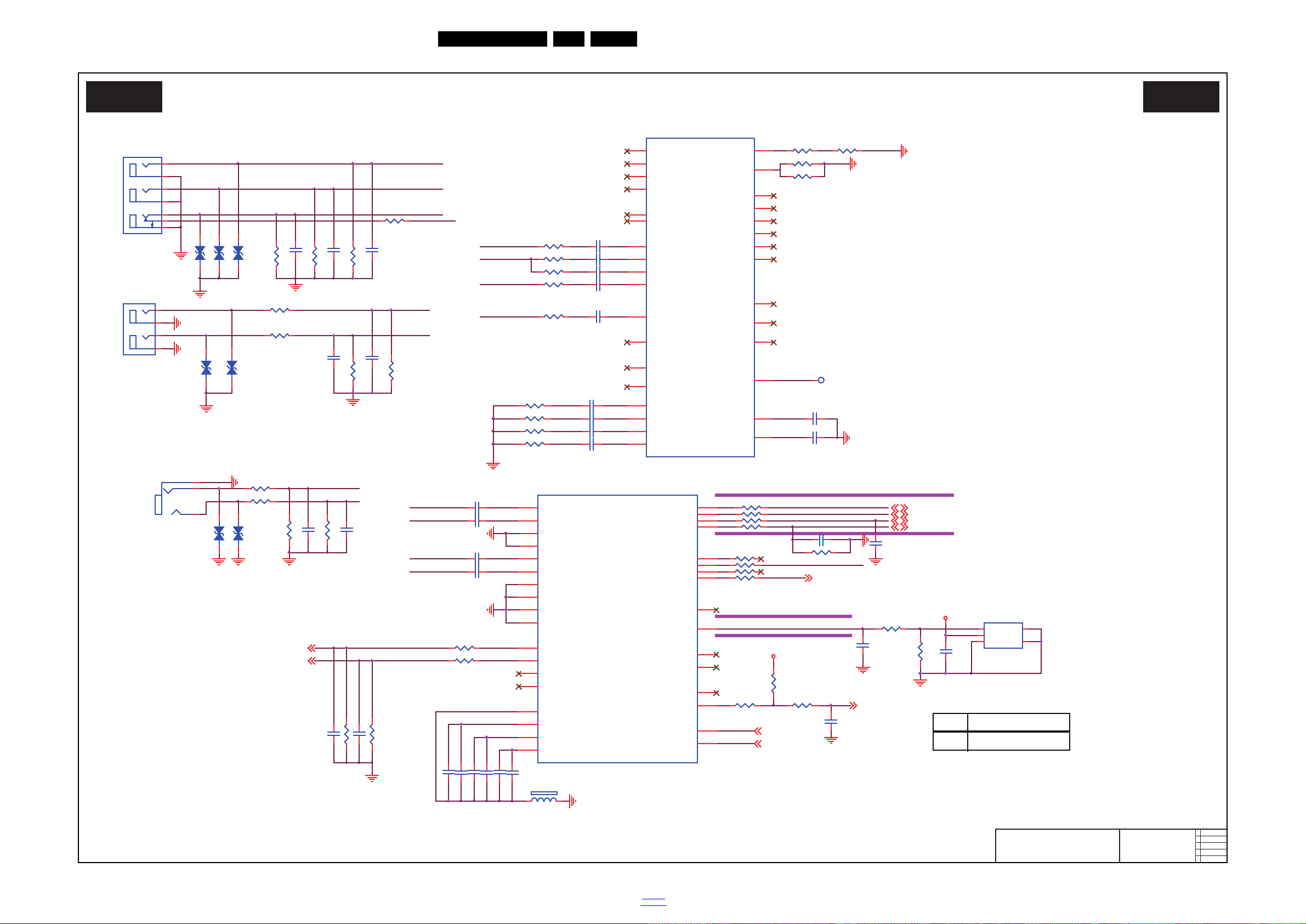

10-3-4 ADC/DAC/AUDIO/SIF

19970_503.eps

ADC/DAC/AUDIO/SIF

B04 B04

2015-06-25

4

715G7673

ADC/DAC/AUDIO/SIF

HD_PB

NT72666 ADC / DAC

U401E

NT72666BG-BA/D

VGA_R

AC41

VGA_G

AC42

SOG_1

AD40

VGA_B

AD42

VGA_HS

AD38

VGA_VS

AD39

YPBPR0_PR

AE41

YPBPR0_Y

AF41

SOG_0

AF42

YPBPR0_PB

AG42

CVBS0

Y40

TUNER_CVBSIN

W41

S_Y

AA42

ADC0M

Y41

ADC1M

AE40

ADC2M

AF40

ADC3M

AG40

FSADJ

A23

TVDAC_OUT

C24

SCART1_R

AC40

SCART1_G

AB41

SOG_2

AC37

SCART1_B

AB40

SCART0_Y

Y42

SCART0_FB

AA40

S_C

AA41

CVBS_OUT

W40

ADC1VMID

AD41

ADC3VMID

AG41

SOG_3

AB38

SOG_4

AC38

SOG_5

AC39

R135 N C / 22R 1/ 16W 5%

R107 100OHM R108 100OHM R109 100OHM

C121 47NF 16V

C123 47NF 16V

C122 470pF 50V

R110 100OHM C124 47NF 16V

HD_Y_CVBS

C105 100N 16V

C104 100N 16V

R128

75R 1/16W 1%

Add TP

R111 1K5 1%

R129

75R 1/16W 1%

Grounding

AUOUT_R014

Grounding

C119

3.3NF 50V

R121 470R 1/16W 5%

R122 470R 1/16W 5%

C101

470pF 50V

IDENT_VIDEO

C138

NC/ 470pF 50V

C139

100N 16V

R139

22R 1/16W 5%

R138

NC/10K

CN118

3P

GND

1

VCC

2

VIN

3

GND

4

GND

5

SPDIF Out

1st

088G 78F112VCL

2nd 388G078F118VQS

C127

2.2UF 10V

C128

100N 16V

FB107

300R

1 2

C129

2.2UF 10V

C130

100N 16V

R112

100OHM

C120

3.3NF 50V

C109

12P 50V

HD_PB

C125 10UF 6. 3V 20%

HD_AV_L

C126 10UF 6. 3V 20%

HD_AV_R

C131

2.2UF 10V

C132

100N 16V

C102

470pF 50V

R143

NC/100OHM

TUN _DI F- 13

TUN _DI F+ 13

R104 100OHM

SPDIF_OUT

C141

470pF 50V

R105 100OHM

R144

4K7 1/16W 5%

C136 10UF 6. 3V 20%

VGA_LIN

C137 10UF 6. 3V 20%

VGA_RIN

R106 100OHM

R127 100OHM C135 47NF 16V

ZD112

NC/M LVG0402

1 2

VGA_RIN

VGA_LIN

R102 10K 1%

R101 10K 1%

CN605

PHONE J AC K

1 2

3

ZD111

NC/MLVG0402

1 2

ZD110

NC/MLVG0402

1 2

PC / DVI Audio in

R146

4K7 1/16W 5%

R147

4K7 1/16W 5%

C110

12P 50V

ZD113

NC/M LVG0402

1 2

HD_Y _CVBS

C111

12P 50V

HD_PR

ZD114

NC/M LVG0402

1 2

C

B

A

CN101

RCA JACK

1

2

3

4

5

6

7

IF_AGC

A

B

CN102

CONN

2 1 4 3

C108

NC/12P 50V

R130 NC/0R05 1/16W

I2SOUTC_WS

I2SOUTC_DATA

I2SOUTC_WS 14 I2SOUTC_BCLK 14 I2SOUTC_MCLK 14

R132 22R 1/ 16W 5%

I2SOUTC_DATA 14

R134

NC/10K 1/ 16W

R133 22R 1/ 16W 5%

I2SOUTC_MCLK

R131 22R 1/ 16W 5%

C103 NC/47pF 50V

I2SOUTC_BCLK

R140

2K2 1/16W 5%

C140

100N 16V

R142

100OHM

R141

10K 1%

MAIN3V3

C142

470pF 50V

ZD115

NC/MLVG0402

1 2

ZD116

NC/MLVG0402

1 2

R136 N C / 22R 1/ 16W 5%

NT72666 AUDIO / IF

U401G

NT72666BG-BA/D

ADIN_L0

R41

ADIN_R0

R42

ADIN_L1

R40

ADIN_R1

P42

ADIN_L2

P41

ADIN_L3

N41

ADIN_R2

P40

ADIN_R4

M42

ADIN_R3

N40

ADIN_L4

M41

DACOUT_L0

V40

DACOUT_R0

U42

DACOUT_L1

V41

DACOUT_R1

V42

AUD_VRM

T41

AUD_VRP

T40

AUD_VCM

U41

AUD_VCM_I

U40

GPA_10 / I2S_OU T_A_DATA

K41

GPA_11 / I2S_OU T_A_WS

K40

GPA_12 / I2S_OU T_A_BCLK

J42

GPA_13 / I2S_OU T_A_MCLK

J41

GPA_6 / I2S_IN_DATA / INT3

M40

GPA_7 / I2S_IN_WS / INT4

L42

GPA_8 / I2S_IN_BCLK / INT5

L41

GPA_9 / I2S_IN_MCLK / DEMOD_Debug_LED

L40

GPH_18 / SPD I F _I N / MPLL_TEST / SPDIF _OU T2

C2

GPH_19 / SPDIF_OUT

C1

SIF+

AJ40

SIF-

AJ41

GPA_15 / Tuner RF AGC/ DEMOD_Emergency

F41

GPA_14 / Tuner IF AGC

F42

DEMOD+

AH41

DEMOD-

AH40

R137 N C / 22R 1/ 16W 5%

HD_Y_CVBS

HD_AV_R

HD_AV_L

R145

4K7 1/16W 5%

R125 10K 1%

R113 75R 1/ 16W 1%

R171 N C / 22R 1/ 16W 5%

C107 47NF 16V C117 47NF 16V C118 47NF 16V

R126 10K 1%

C106 47NF 16V

TP408

R114 75R 1/ 16W 1%

IDENT_VIDEO

LNB_EN 13

MAIN3V3

R115

22K 1/16W 5%

HD_PR

R116

22K 1/16W 5%

IF_AGC 13

R103 100OHM

CVBS_OUT

R119

75R 1/16W 1%

AUOUT_L014

Circuit Diagrams and PWB Layouts

EN 51TPN15.2E LA 10.

2015-Nov-27

back to

div.table

Circuit Diagrams and PWB Layouts

19430_519_130114.eps

130114

Audio/Video IO/SPDIF

B05 B05

2012-12-15

C

715G5713

Audio/Video IO/SPDIF

Y1P

SOY0

ADCINP_DEMOD

ADCINN_DEMOD

IF BPF

VGA_R_IN

SCART1_R_IN SCART1_L_IN

GND

VGA_L_IN

AVDD33_ADAC

AOSDATA0_D

AOMCLK_D

AOBCLK_D

AR0O

AL0O

AOLRCK_D

AVDD33_HPAAVDD33_AADC

Analog Power

YPBPR0_L_IN

R1047

56R 1/16W 1%

MT5580MPOI

U401J

ADCINP_DEMOD

AD19

ADCINN_DEMOD

AE19

IF_AGC

M19

RF_AGC

M20

AVDD12_RGB

AC17

AVSS12_RGB

V13

AVDD33_DEMOD

AE18

AVSS33_DEMOD

V16

AVDD12_DEMOD

AD18

AVSS12_DEMOD

AC18

AVDD33_VIDEO

AD17

AVSS33_VDAC

V14

AVSS33_VDAC_BG

W15

AVSS33_CVBS_1

W17

AVSS33_CVBS_2

Y17

AVSS33_CPUPLL

G15

HSYNC

AC11

VSYNC

AC10

RP

AB13

GP

AE12

BP

AB12

COM

AD12

SOG

AC12

VGA_SCL

AE9

VGA_SDA

AD9

COM1

AD14

PB1P

AE14

PR1P

AC14

Y1P

AB14

SOY1

AC13

COM0

AC16

PB0P

AD16

PR0P

AE16

Y0P

AC15

SOY0

AB15

VDACX_OUT

AA14

VDACY_OUT

Y14

CVBS0P

W16

CVBS1P

AB16

CVBS2P

AA16

CVBS3P

Y16

OSCL2

M21

OSDA2

M22

CVBS_COM

AA15

C605

33pF 50V

R1043 100R 1/16W 5%

MT5580MPOI

U401C

AIN1_L_AADC

AB19

AIN1_R_AADC

AB21

AIN2_L_AADC

AB18

AIN2_R_AADC

AB22

AIN3_L_AADC

AB20

AIN3_R_AADC

AC22

AIN4_L_AADC

AC20

AIN4_R_AADC

AB23

MPXP

W14

AVDD33_AADC

AD22

AVSS33_AADC

Y18

AVDD33_ADAC

AE23

AVSS33_ADAC

W19

AVSS33_CLN

AA18

VMID_AADC

AD23

AL0_ADAC

AE24

AR0_ADAC

AD25

AL1_ADAC

AC24

AR1_ADAC

AE25

AL2_ADAC

AD24

AR2_ADAC

AC25

ALIN

AE6

ASPDIFO0

AB4

AOBCK

AC8

AOLRCK

AD7

AOMCLK

AD8

AOSDATA0

AD6

AOSDATA1

AC7

AVDD33_HPA

AE22

AVSS33_HPA

V17

R1048 100R 1/16W 5%

R1040

18R 1/16W 5%

C619 10NF 50V

C603 100NF 16V

C1034 10NF 50V

R600

240R 1/10W 5%

C1040

10UF 10V

C618

10PF 50V

R1045

56R 1/16W 1%

C620 10NF 50V

R1039 0R05 1/16W

C615 10UF 10V

C600 100NF 16V

C612 100NF 16V

R1073 75 OHM +-5% 1/16W

C601 100NF 16V

C1037

NC/10N 50V

C614 10UF 10V

C613 100NF 16V

C1036 47NF 16V

C1035

10PF 50V

C1033 1.5NF 50V

C617 10NF 50V

R1071 75 OHM +-5% 1/16W

R1050 100R 1/16W 5%

C607 1uF 10V

R1041 100R 1/16W 5%

R1042

18R 1/16W 5%

R604

51OHM 1/16W +/-5%

C606 1uF 10V

C602 100NF 16V

R1113 10R 1/16W 5%

R1088

30Kohm 1/16W +/-5%

R605 10K 1/16W 5%

R1049 100R 1/16W 5%

R601

100R 1/10W 5%

C609

10PF 50V

C622

47PF 50V

C604

100NF 16V

R603

51OHM 1/16W +/-5%

ABC

D

EF

CN112

RCA JACK

3

2

6

5

9

8

1

4

7

10

11 12

C623

47PF 50V

C611 100NF 16V

C610 100NF 16V

C1039

10UF 10V

C608 1uF 10V

C1038

NC/10N 50V

C616 10NF 50V

R1087

30Kohm 1/16W +/-5%

C621

47NF 16V

R1044

18R 1/16W 5%

YPBPR0_R_IN

R1046

56R 1/16W 1%

AVDD3V3

AVDD1V2 AVDD3V3

VGA_R_IN8 VGA_L_IN8

SCART1_L_IN8

GND2,3,4,5,7,8,9,10,11,12,13,14,15

AL0O7

SCART1_R_IN8

AR0O7

AOLRCK_D7

AOBCLK_D7 AOMCLK_D7

Y0P8

AOSDATA0_D7

PB0P8

COM08 PR0P8 VSYNC8

HSYNC8 RP8

SPDIFOUT

BP8

GP8 VGACOM8

SOG8 VGASCL8

VGASDA8 TU_FAT_IN2+14

PR1P

TU_FAT_IN2-14 OSCL212,14

CVBS3P8

OSDA212,14

IF_AGC12,14

AVDD1V2 2,9,12,13,14

SOY08

AVDD3V32,4,5,9,10,11,12,13 ARC13

Analog Power

AVDD12_DEMOD

AVDD12_RGB AVDD33_DEMOD

AVDD33_VIDEO

AVDD1V2

SPDIF_OUT

YPbPrL_INY_IN_1

YPbPrR_IN

SPDIFOUT

PB_IN_1

YPbPr & Audio IN

PR_IN_1

IF_AGC

YPbPrL_IN

---><---|>

YPBPR0_L_IN

YPBPR0_R_INYPbPrR_IN

IF_AGC

PB1P

TU_FAT_IN2+

AVDD3V3

PR_IN_1

PB_IN_1

-------><-------

YPBPR IN

PR1

PB1P

COM1

PR1P

SOY1

Y1PY1

-------><--------------><-------

PB1

Y_IN_1

CVBS1P

Video

TU_FAT_IN2-

---><---|>

SPDIF OUT

AOLRCK_D AOSDATA0_D

AOMCLK_D

AOBCLK_D

AL0O

AVSS33_HPA

AVDD33_HPA

AR0O

SPDIF_OUT

ARC

VGA_R_IN

SCART1_R_IN

SCART1_L_IN

AVDD33_AADC AVSS33_AADC

AVSS33_ADAC

AVDD33_ADAC

VGA_L_IN

VMID_AADC

AVSS33_CLN

ARC

OSDA2

OSCL2

SOG

Y0P COM0

VGASDA

CVBS_COM

PB0P

VGASCL

HSYNC

AVSS33_DEMOD

AVDD12_RGB AVSS12_RGB

VSYNC

AVSS33_VDAC_BG

AVSS33_VDAC

AVDD33_VIDEO

AVSS12_DEMOD

AVDD12_DEMOD

AVDD33_DEMOD

TU_FAT_IN2+

RP

PR0P

AVSS33_CVBS_1 AVSS33_CPUPLL

ADCINP_DEMOD ADCINN_DEMOD

TU_FAT_IN2-

GP

BP

GP

VSYNC

HSYNC

AVSS33_CVBS_2

BP

CVBS3P

VGASDA

VGASCL

VGACOM SOG

RP

VGACOM

COM0

SOY1

Y0P

PR0P

PB0P

SOY0

OSDA2

CVBS1P CVBS3P

OSCL2

Audio

COM1

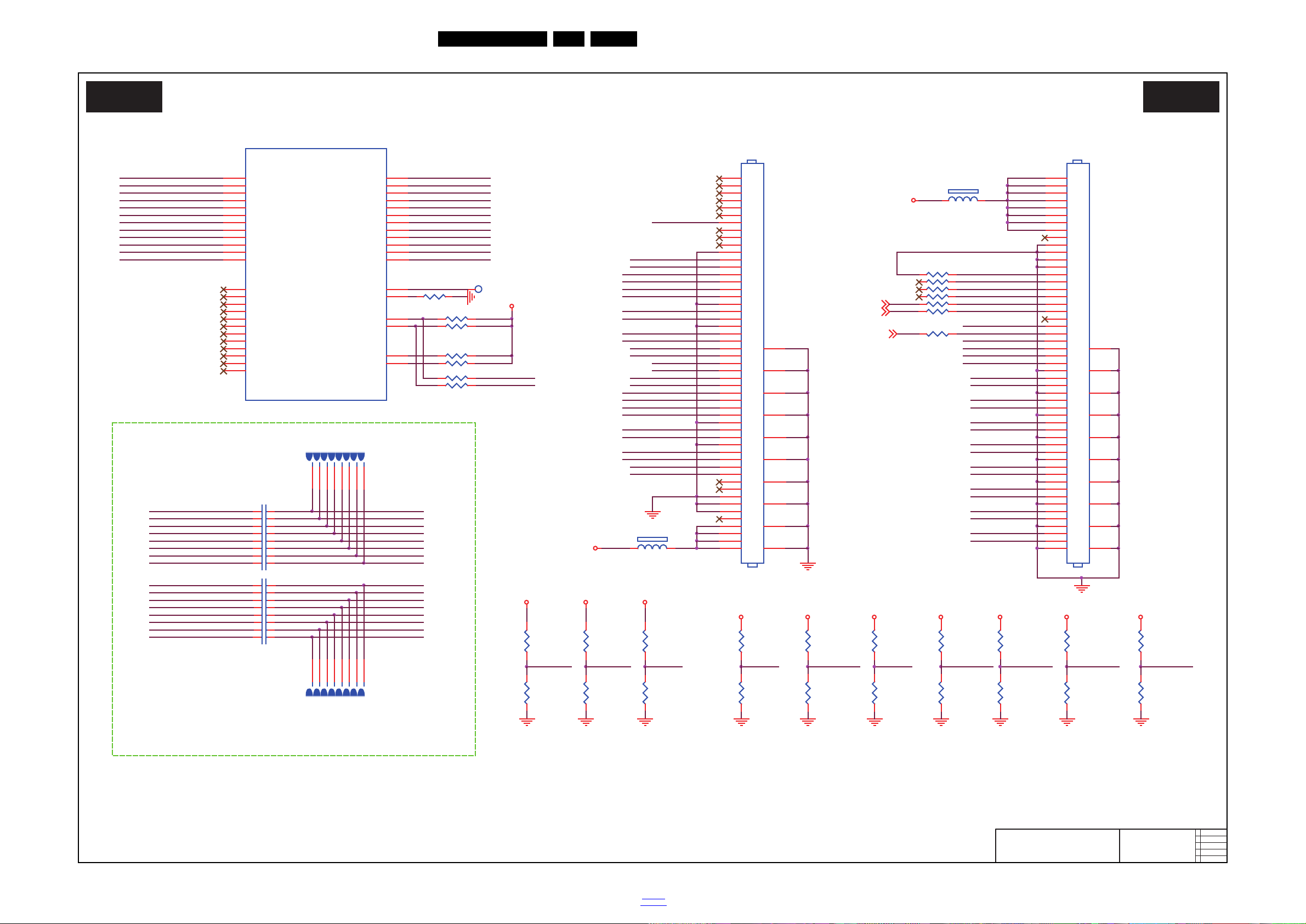

19970_504.eps

NT72666 _VB1 OUT

B05 B05

2015-06-25

4

715G7673

NT72666 _VB1 OUT

VB1_TX6N

VB1_TX5P

TP706

TP-0.1X0.6

1

LVO_2-/VBA2-

LVO_CLK+/VBB1+

LVO_1+/VBA1+

VB1_TX3NLVO_3-/VBB2-

VB1_TX2P

LVO_3+/VBB2+

LVO_2+/VBA2+

VB1_TX3P

LVO_1-/VBA1- VB1_TX0N

LVE_2-/VBC2-

LVE_0-

LVE_2+/VBC2+

LVE_0+

LVE_CLK+/VBD1+

LVE_1-/VBC1-

LVE_1+/VBC1+

LVE_CLK-/VBD1-

LVE_3-/VBD2-

VB1_TX0P

R156 10K

DATA_FORMAT

LVE_2-/VBC2-

MAIN3V3

LVE_1+/VBC1+

LVO_3+/VBB2+

LVO_4-

LVO_4+

LVE_1-/VBC1-

LVDS_Format

LVO_2-/VBA2-

LVO_2+/VBA2+

LVO_CLK-/VBB1-

LVO_CLK+/VBB1+

LVO_3-/VBB2-

MAIN3V3

LVO_1-/VBA1-

LVO_1+/VBA1+

AGP

LVO_0-

LVO_0+

R260

NC /0R 05 1/ 16W

RES_1

R261

NC / 100R 1/16W 5%

MAIN3V3

BITS_SEL

R283

10K

HTPDN_L1

LOCKN_L1

LVDS

LVO_CLK-/VBB1-

AGP

NT72666 LVDS / VB1_TX

U401D

NT72666BG-BA/D

LVO_4+

B14

LVO_4-

C14

LVO_3+ VBB2+

B13

LVO_3- VBB2-

C13

LVO_2+VBA2+

C12

LVO_CLK+ VBB1+

B12

LVO_CLK- VBB1-

A12

LVO_2- VBA2-

A11

LVO_1+ VBA1+

B11

LVO_1- VBA1-

C11

LVO_0+

B10

LVO_0-

C10

LVE_4+

B18

LVE_4-

A18

LVE_3+ VBD2+

C18

LVE_3- VBD2-

A17

LVE_CLK+ VBD1+

B17

LVE_CLK- VBD 1-

C17

LVE_2+ VBC2+

B16

LVE_2- VBC2-

C16

LVE_1+ VBC1+

B15

LVE_1- VBC1-

A15

LVE_0+

C15

LVE_0-

A14

LVC_4+

B23

LVC_4-

C23

LVC_3+ VBF2+

B22

LVC_3- VBF 2-

C22

LVC_CLK+ VBF1+

B21

LVC_CLK- VBF1-

A21

LVC_2+VBE2+

C21

LVC_2- VBE2-

A20

LVC_1+ VBE1+

B20

LVC_1- VBE1-

C20

LVC_0+

B19

LVC_0-

C19

TESTOUT_LVDS

F12

REXT_LVDS

D11

LOCKN_L

E12

HTPDN_L

D12

LOCKN_R

F13

HTPDN_R

E13

VB1_TX7N

VB1_TX5N

VB1_TX4P

VB1_TX6P

LVDS_Format

BIT_SEL

R159

NC/0R 05 1/ 16W

MAIN3V3

R158

NC/100R 1/ 16W 5%

R285

100OHM

LVE_3+/VBD2+

TP705

CN408 NC//CONN

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

R157 12K 1%

C144 100N 16V

C143 100N 16V

C146 100N 16V

C145 100N 16V C147 100N 16V

C148 100N 16V C149 100N 16V C150 100N 16V

C151 100N 16V C152 100N 16V C153 100N 16V C154 100N 16V C155 100N 16V C156 100N 16V C157 100N 16V C158 100N 16V

LVE_4LVE_4+

LVE_0+

R284

NC/10K

TCON_SCL12

R282

NC/10K

LVO_4LVO_4+

LVO_0LVO_0+

CN403 CONN

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

R167 NC/0R05 OHM

R165 NC/0R05 OHM

PCID_EN

Data_Format-1

R164 NC/0R05 OHM R166 NC/0R05 OHM

DATA_FORMAT

BITS_SEL-1

VB1_TX7P

VB1_TX5N

VB1_TX6N

VB1_TX3N

VB1_TX6P

VB1_TX4P

VB1_TX4N

VB1_TX5P

VB1_TX1N

VB1_TX0N

VB1_TX2P

VB1_TX0P

VB1_TX3P

VB1_TX1P

LOCKN_L1

HTPDN_L1

VB1_TX2N

R149 100OHM

PANEL_VCC

R150 100OHM

TCON_SDA12

PANEL_VCC

R258

NC/0R 05 1/ 16W

MAIN3V3

BIT_SEL

R259

NC/100R 1/16W 5%

LVE_3+/VBD2+

FB101

120R

1 2

R168 NC/0R05 OHM

VB1_TX1N

R169 NC/0R05 OHM

FB102

NC//120R

1 2

VB1_TX4P

VB1_TX6N

VB1_TX5N

VB1_TX7N

LVE_3-/VBD2-

VB1_TX1P

VB1_TX3P

VB1_TX0P

VB1_TX7P

VB1_TX5P

VB1_TX4N

VB1_TX0N VB1_TX1N

VB1_TX2N

VB1_TX6P

VB1_TX3N

R153 10K

LVE_CLK+/VBD1+

VB1_TX2P

LVE_CLK-/VBD1-

RES_1

R154 10K

LVE_0-

R155 10K

LVE_2+/VBC2+

LVE_4-

VB1_TX1P

TP707

TP-0.1X0.6

1

MAIN3V3

BITS_SEL

R317

NC/10K

R316

NC/10K

TP708

TP-0.1X0.6

1

TP709

TP-0.1X0.6

1

VB1_TX2N

LVE_4+

TP712

TP-0.1X0.6

1

TP713

TP-0.1X0.6

1

TP715

TP-0.1X0.6

1

TP716

TP-0.1X0.6

1

R4237

NC/100OHM

VB1_TX7P

TP717

TP-0.1X0.6

1

TP714

TP-0.1X0.6

1

TP719

TP-0.1X0.6

1

TP718

TP-0.1X0.6

1

TP720

TP-0.1X0.6

1

TP721

TP-0.1X0.6

1

TP722

TP-0.1X0.6

1

TP723

TP-0.1X0.6

1

VB1_TX7N

Data_Format-2

MAIN3V3 MAIN3V3

R307

NC/10K

PCID_EN

R309

NC/10K

R308

NC/10K

R310

NC/10K

LD_EN12

MAIN3V3MAIN3V3

BITS_SEL-1

R311

NC/10K

R312

NC/10K

R313

NC/10K

R314

NC/10K

Data_Format-1

Data_Format-2

VB1_TX4N

EN 52TPN15.2E LA 10.

10-3-5 NT7266_VB1 OUT

2015-Nov-27

back to

div.table

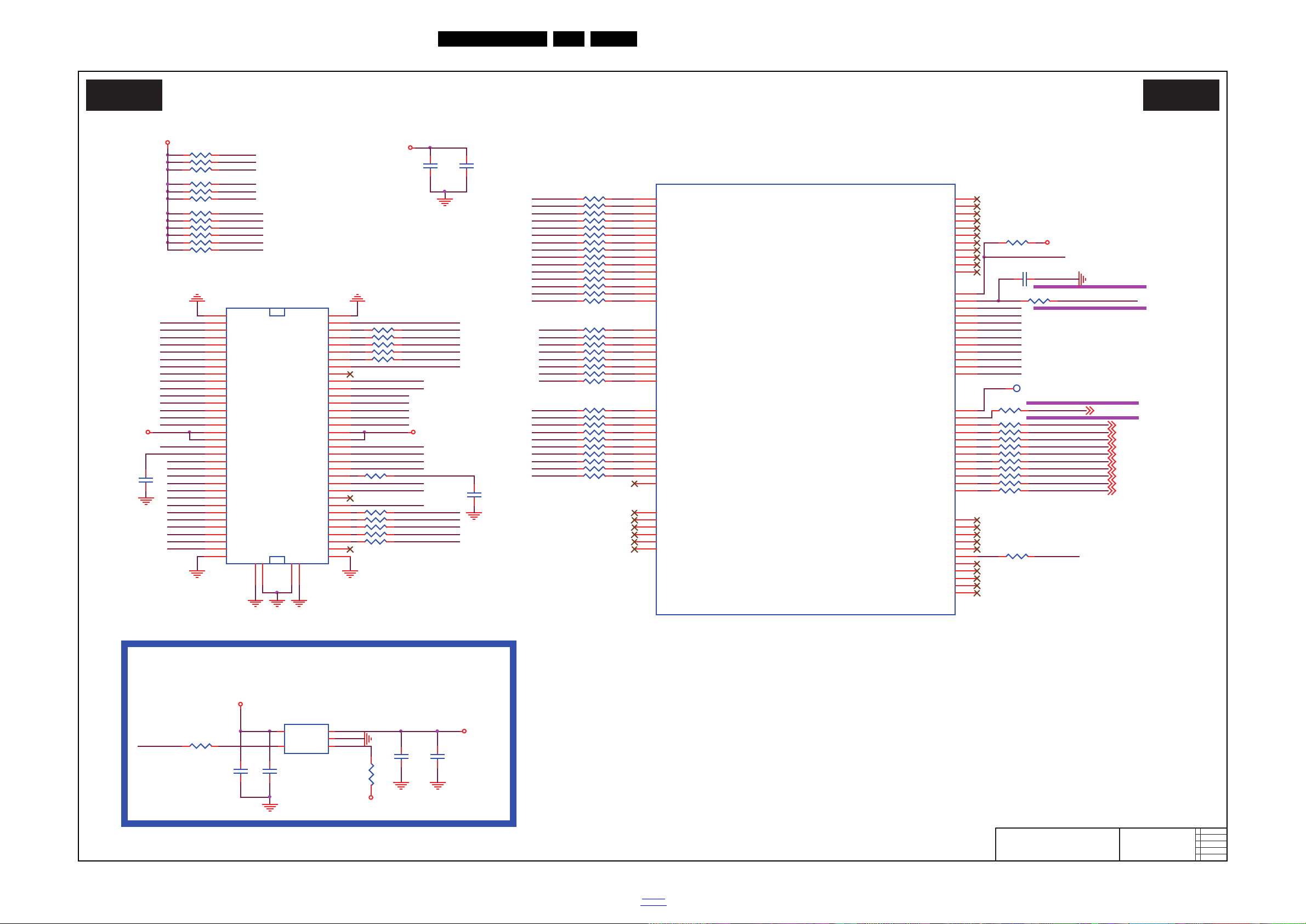

10-3-6 NT72666_CI

19970_505.eps

NT72666_CI

B06 B06

2015-06-25

4

715G7673

NT72666_CI

R196 22R 1/16W 5%

TSO_D3

TSO_D2

TSO_D1

TSO_D0

TSO_D7

TSO_D6

TSO_D5

TSO_D4

TSO_VALID

TSO_START

MAIN3V3

CI_VCC_EN

R197 22R 1/16W 5% R198 22R 1/16W 5%

R148 22R 1/16W 5%

R199 22R 1/16W 5%

R200 22R 1/16W 5%

Grounding

R201 22R 1/16W 5%

R151 22R 1/16W 5%

TSO_D3

R202 22R 1/16W 5%

R152 22R 1/16W 5%

R203 22R 1/16W 5%

R160 22R 1/16W 5% R161 22R 1/16W 5%

CH_DATA4

TSO_CLK

CI_REG#

CH_DATA7

CH_DATA5 CH_DATA6

CI_RESET CI_WAIT#

R162 22R 1/16W 5%

C177 100N 16V

R163 22R 1/16W 5%

R204 22R 1/16W 5%

R172 22R 1/16W 5%

TSO_D0 TSO_D1 TSO_D2

TSO_START

TSO_VALID

R205 22R 1/16W 5%

C178

NC/ 10PF 50V

R173 22R 1/16W 5%

R206 22R 1/16W 5%

C173 10uF 16V

R117 22R 1/16W 5%

R174 22R 1/16W 5%

R207 22R 1/16W 5%

R183 22R 1/16W 5%

R208 22R 1/16W 5%

R185 22R 1/16W 5%

TSO_D6 TSO_D7

CI_CE2#

TSO_D4 TSO_D5

R209 22R 1/16W 5%

R186 22R 1/16W 5%

C172 100N 16V

R187 22R 1/16W 5%

CI_OE#

CI_IORD# CI_IOWR#

CI_CE#

CI_REG#

CI_WE#

R188 22R 1/16W 5%

CH_DATA2

CH_DATA1

CI_IORD#

CH_START

CI_IOWR#

CH_DATA3

CH_DATA0

PCMCIA

CN159 PCMCIA CARD

A15

20

A16

19

CE1#

7

OE#

9

WE#

15

READY #:IREQ#

16

GND

1

GND

34

D0

30

D1

31

D2

32

D3

2

D4

3

D5

4

D6

5

D7

6

A0

29

A1

28

A2

27

A3

26

A4

25

A5

24

A6

23

A7

22

A8

12

A9

11

A10

8

A11

10

A12

21

A13

13

A14

14

WP#

33

VPP1

18

VCC

17

GND

68

CD2#

67

D10

66

D9

65

D8

64

BVD1#:STSCHG

63

BVD2#:SPKR

62

GND

35

CD1#

36

D11

37

D12

38

D13

39

D14

40

D15

41

CE2#

42

VS1#

43

IORD#

44

IOWR#

45

A17

46

A18

47

A19

48

A20

49

A21

50

VCC

51

VPP2

52

A22

53

A23

54

A24

55

A25

56

VS2#

57

RESET

58

WAIT#

59

INPACK

60

REG#

61

69697070717172

72

R182 10K

R178 10K

R181 10K

CI_WP#

R179 10K

CI_IRQ# CI_RESET

R180 10K

CI_CD1#

R177 10K

CI_WAIT#

VCC_CI

CI_CE2#

VCC_CIVCC_CI

VCC_CI

CH_START 13

CH_VALID 13

CH_START

CH_DATA2 13

CH_DATA1 13

CH_DATA0 13

CH_VALID

CH_DATA3 13

CH_DATA6

CH_DATA5

CH_DATA4

CH_DATA4 13

CH_DATA0

CH_DATA3

CH_DATA2

CH_DATA1

CH_DATA7

CH_DATA7 13

CH_DATA6 13

CH_DATA5 13

CI_CD1#

R251 22R 1/16W 5%

U102

G5250M1T1U

OUT

1

GND

2

OC

3

EN

4

IN

5

R175

4K7 1/16W 5%

+5V_SW

VCC_CI

CI_OCPCI_VCC_EN

C179

10uF 16V

R252 10K

R253 10K

R254 10K

C174 100N 16V

R240 22R 1/16W 5%

R210 22R 1/16W 5%

R256 10K R255 10K

PCMCIA Slo t

R257 10K

R247 22R 1/16W 5%

CI Bu s P ow er Con t rol

CH_CLK

R193 10K

R248 22R 1/16W 5%

NT72666 DUAL CI / TS

U401H

NT72666BG-BA/D

GPC_29 / CI_HA0/ CI_ALE0

C25

GPC_30 / CI_HA1/ CI_ALE8

E25

GPC_31 / CI_HA2

F25

GPD_0 / C I _H A3

A24

GPD_1 / C I _H A4

B24

GPD_2 / C I _H A5

D24

GPD_3 / C I _H A6

E24

GPD_4 / C I _H A7

F24

GPD_5 / C I _H A8

D23

GPD_6 / C I _H A9

E23

GPD_7 / C I _H A10/ Tensilic a_TCK

F23

GPD_8 / C I _H A11/ Tensilic a_TMS

E22

GPD_9 / C I _H A12/ Tensilic a_TDO

F22

GPD_10 / C I _H A13/ Tensilica_TDI

D21

GPD_11 / C I _H A14/ Tensilica_TRST

E21

GPD_12 / C I _H AD 0/I2S_OU T_B_MCLK

F21

GPD_13 / C I _H AD 1/I2S_OU T_B_BCLK

D20

GPD_14 / C I _H AD 2/I2S_OU T_B_WS

E20

GPD_15 / C I _H AD 3/I2S_OU T_B_DATA

F20

GPD_16 / C I _H AD 4/I2S_OU T_C_MCLK

E19

GPD_17 / C I _H AD 5/I2S_OU T_C_BC LK

F19

GPD_18 / C I _H AD 6/I2S_OU T_C_W S

D18

GPD_19 / C I _H AD 7/I2S_OU T_C_D ATA

E18

GPC_19 / CI_RST1#

F27

GPC_20 / CI_CD1#

A26

GPC_21 / CI_CE1#

C26

GPC_22 / CI_IOINT1#

F28

GPC_25 / CI_HRD1#

E26

GPC_26 / CI_HWR#

F26

GPC_23 / CI_IORD1#

B26

GPC_24 / CI_IOWR#

D26

GPC_27 / CI_REG

B25

GPC_28 / CI_HWAIT1

A27

GPB_14 / PTSIN0_C LK / STSIN 0_C LK

E35

GPB_15 / PTSIN0_VALI D / STSIN 0_VALI D

F35

GPB_16 / PTSIN0_START / STSIN 0_START

B34

GPB_17 / PTSIN0_D 0 / STSIN 0_D ATA

C34

GPB_18 / PTSIN1_ER R OR / STSIN0_ERR OR

F33

GPB_19 / PTSIN1_CLK / CCIR_IN_CLK / STSIN1_CLK

A32

GPB_20 / PTSIN1_VALI D / STSIN 1_VALI D

B32

GPB_21 / PTSIN1_START / STSIN 1_START

C32

GPB_22 / PTSIN1_D 0 / C C IR_I N _D 0 / STSIN 1_D ATA

D32

GPC_0 / PTSIN 1_D 1 / C CIR _I N _D 1

E32

GPC_1 / PTSIN 1_D 2 / C CIR _I N _D 2

F32

GPC_2 / PTSIN 1_D 3 / C CIR _I N _D 3

B31

GPC_3 / PTSIN 1_D 4 / C CIR _I N _D 4

C31

GPC_4 / PTSIN 1_D 5 / C CIR _I N _D 5

E31

GPC_5 / PTSIN 1_D 6 / C CIR _I N _D 6

F31

GPC_6 / PTSIN 1_D 7 / C CIR _I N _D 7

A30

GPC_7 / PTSIN2_ERROR / PTSIN1_ERROR

B30

GPC_8 / PTSOUT_CLK / PTSIN 2_C LK / PTSIN 1_C LK

C30

GPC_9 / PTSOUT_VALID / PTSIN2_VALID / PTSIN1_VALID

D30

GPC_10 / PTSOUT_START / PTSIN2_START / PTSIN 1_START

E30

GPC_11 / PTSOUT_D0 / PTSIN 2_D 0 / PTSIN 1_D 0

F30

GPC_12 / PTSOUT_D1 / PTSIN 2_D 1 / PTSIN 1_D 1

A29

GPC_13 / PTSOUT_D2 / PTSIN 2_D 2 / PTSIN 1_D 2

B29

GPC_14 / PTSOUT_D3 / PTSIN 2_D 3 / PTSIN 1_D 3

C29

GPC_15 / PTSOUT_D4 / PTSIN 2_D 4 / PTSIN 1_D 4

D29

GPC_16 / PTSOUT_D5 / PTSIN 2_D 5 / PTSIN 1_D 5

E29

GPC_17 / PTSOUT_D6 / PTSIN 2_D 6 / PTSIN 1_D 6

F29

GPC_18 / PTSOUT_D7 / PTSIN 2_D 7 / PTSIN 1_D 7

B28

GPB_1 / CI _C D 2#

C37

GPD_20 / CI_RST2#

B27

GPD_21 / CI_CE2#

C27

GPD_22 / CI_IOINT2#

C28

GPD_23 / CI_HWAIT2

E28

GPD_24 / CI_IORD2#

D27

GPD_25 / CI_HRD2#

E27

GPB_23 / PTSIN0_D 1

E34

GPB_24 / PTSIN0_D 2

F34

GPB_25 / PTSIN0_D 3

A33

GPB_26 / PTSIN0_D 4

B33

GPB_27 / PTSIN0_D 5

C33

GPB_28 / PTSIN0_D 6

D33

GPB_29 / PTSIN0_D 7

E33

GPJ0 / PTSIN0_CLK

D37

GPJ1 / PTSIN 0_VALI D

A36

GPJ_2 / PTSIN 0_START

B36

GPJ_3 / PTSIN 0_D 0

C36

GPJ_4 / PTSIN 0_D 1

D36

GPJ_5 / PTSIN 0_D 2

E36

GPJ_6 / PTSIN 0_D 3

F36

GPJ_7 / PTSIN 0_D 4

A35

GPJ_8 / PTSIN 0_D 5

B35

GPJ_9 / PTSIN 0_D 6

C35

GPJ_10 / PTSIN 0_D 7

D35

R249 22R 1/16W 5%

R176

4K7 1/16W 5%

C175

NC/ 10PF 50V

R250 22R 1/16W 5%

CH_CLK 13

TSO_CLK

R213 22R 1/16W 5% R230 22R 1/16W 5% R232 22R 1/16W 5%

R118 22R 1/16W 5%

R194 22R 1/16W 5%

R233 22R 1/16W 5%

Grounding

R234 22R 1/16W 5%

R120 22R 1/16W 5%

CI_D7

CI_A8

CI_D3

CI_A10

CI_A14

CI_A13

CI_CE#

CI_IRQ#

CI_D5

CI_A11

CI_D4

CI_OE#

CI_WE#

CI_D6

CI_A9

R184

47R 1/16W 5%

R236 22R 1/16W 5%

C171 100N 16V

R123 22R 1/16W 5%

R237 22R 1/16W 5%

TP711

R238 22R 1/16W 5%

R124 22R 1/16W 5%

R239 22R 1/16W 5%

R189 22R 1/16W 5%

CH_VALID

CI_A2

CI_D1

CI_D0

CI_A7

CI_A12 CI_A6

CI_A5

CI_A0

CI_D2

CI_A3 CI_A1

CI_WP#

CH_CLK

CI_A4

R190 22R 1/16W 5%

CI_REG#

CI_IRQ#

CI_CE#

CI_CD1#

CI_RESET

CI_D0

CI_IOWR#

CI_WAIT#

CI_OE# CI_WE#

CI_IORD#

CI_D5

CI_D4

CI_D3

CI_D2

CI_D1

CI_A2

CI_A1

CI_A0

CI_D7

CI_D6

CI_A8

CI_A7

CI_A6

CI_A5

CI_A4

CI_A3

CI_A13

CI_A12

CI_A11

CI_A10

CI_A9

CI_A14

R191 22R 1/16W 5%

R195 22R 1/16W 5%

CI_OCP

C176 NC/10PF 50V

R192 22R 1/16W 5%

Circuit Diagrams and PWB Layouts

EN 53TPN15.2E LA 10.

2015-Nov-27

back to

div.table

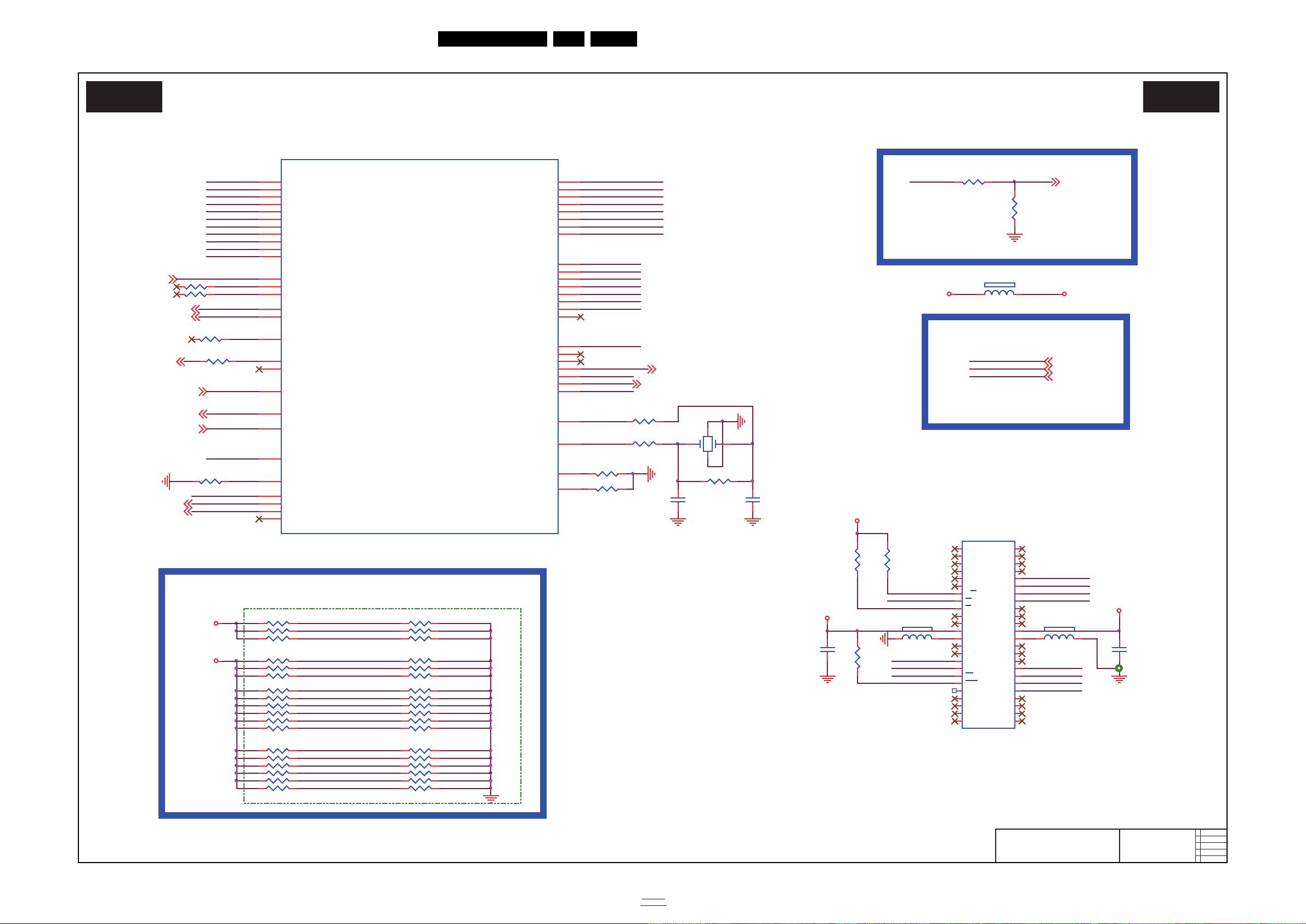

10-3-7 STBC/FLASH

19970_506.eps

STBC/FLASH

B07 B07

2015-06-25

4

715G7673

STBC/FLASH

LED_R

BS18

NAND_ALE#

STBC_RSTn

HP_EN

BL_ON/OFF

DDR_RST_F

R4131 NC / 10K 1/ 16W 5%

DDR_RST_F

R4136 10K

BS16 BS18

BS9

BS3

BS7 BS8

BS5

BS4

BS2

BS10

BS6

BS1

BS0

BS14

BS11

BS15

BS13

BS12

Boot strap

AMP_PWRDN

R4135 NC/10K

R4157 NC/10K

FB402

120R

1 2

R4120 10K

R4126 10K

R4133 NC / 10K 1/ 16W 5%

R4153 NC/10K

R4137 10K

R4156 NC/10K

FB404 120R

1 2

R4117

10K

R4121 10K

R4116

10K

R4114

10K

R4139 10K

R4132 NC/10K

R4101 1M 1/16W

R4104

1K 1/16W 5%

R4122 NC/10K

C4106

15PF50V

R4144 NC/10K

X40 1

12.000 MHZ

1

24

3

R4151 NC/10K

U405 MX30LF2G18AC-TI

NC

1

NC

2

NC

3

NC

4

NC

5

NC

6

RB

7

R

8

E

9

NC

10

NC

11

VDD

12

VSS

13

NC

14

NC

15

CL

16

AL

17

W

18

WP

19

NC

20

NC

21

NC

22

NC

23

NC

24

NC

25

NC

26

NC

27

NC

28

I/O1

29

I/O2

30

I/O3

31

I/O4

32

NC

33

NC

34

NC

35

VSS

36

VDD

37

NC

38

NC

39

NC

40

I/O5

41

I/O6

42

I/O7

43

I/O8

44

NC

45

NC

46

NC

47

NC

48

R4155 NC/10K

R4123 NC/10K

R4119 NC/10K

R4143 10K

R4149 NC/10K

R4161

NC / 1K 1/ 16W 5%

R4103

0R05 1/ 16W

R4129 10K

R4142 10K

R4152 NC/10K

R4124 10K

R4110

22R 1/ 16W 5%

FB403 120R

1 2

R4127

1K 1/16W 5%

R4134 10K

R4115

10K

R4150 NC/10K

R4130 10K

NT72666 STBC / FLASH

U401F

NT72666BG-BA/D

STBC_GPIO_0(BS6)

AW38

STBC_GPIO_1(BS7)

AV37

STBC_GPIO_2(BS8)

AV38

STBC_GPIO_3(BS9)

AU37

STBC_GPIO_4(BS15)

AU38

STBC_GPIO_5 / TEST_MODE_2 (BS18)

AT37

STBC_GPIO_6(BS11)

AN37

STBC_GPIO_7(BS12)

AN38

STBC_GPIO_8(BS13)

AN39

STBC_GPIO_9(BS14)

AM37

STBC_GPIO_10 / TEST_MODE_1 (BS16)

AR39

STBC_GPG_8 / SAR _AD C _0

AM38

STBC_GPG_9 / SAR _AD C _1

AM39

STBC_GPG_10 / SAR _AD C _2

AL37

STBC_GPG_11 / D D R _F _R ST

AL38

STBC_GPG_12 / SAR _AD C _4 / SD _C LK

AK37

STBC_GPG_13 / SAR _AD C _5 / SD _C D #

AK38

STBC_GPG_22 / D D R _F _M_CKE

AK39

STBC_GPG_23 / D D R _F _S_C KE

AJ37

STBC_GPG_26 / SAR _AD C _8 / SD _C MD

AJ38

STBC_GPG_20 / VGA_SD A

AH37

STBC_GPG_21 / VGA_SC L

AJ39

STBC_GPF_12 / STBC_I R

AT38

STBC_RSTn

AT39

PW_EN

AW37

STBC_GPF_13 / STBC_R STout (BS_10)

AR37

TEST_EN

AR38

STBC_GPF20 / N AN D _D 0 / eMMC_D0

AV40

STBC_GPF21 / N AN D _D 1 / eMMC_D1

AU40

STBC_GPF22 / N AN D _D 2 / eMMC_D2

AT42

STBC_GPF23 / N AN D _D 3 / eMMC_D3

AV42

STBC_GPF24 / N AN D _D 4 / eMMC_D4

AV41

STBC_GPF25 / N AN D _D 5 / eMMC_D5

AU41

STBC_GPF26 / N AN D _D 6 / eMMC_D6

AT41

STBC_GPF27 / N AN D _D 7 / eMMC_D7

AT40

STBC_GPF28 / N AN D _R / B#

AR40

STBC_GPF29 / N AN D _C LE / eMMC_CLK

AR42

STBC_GPF30 / N AN D _W E#

AP41

STBC_GPF31 / N AN D _ALE / eMMC_CMD

AR41

STBC_GPG0 / N AN D _W P#

AP40

STBC_GPG1 / N AN D _R E#

AN42

STBC_GPG2 / N AN D _C E_0# / eMMC_RSTn

AN41

STBC_GPG3 / N AN D _C E_1#

AN40

STBC_GPF14 / SPI _C S (BS_3)

BB41

STBC_GPI3 / SPI _C S2

BA42

STBC_GPF15 / SPI _C LK

BA41

STBC_GPF16 / SPI _D I (D I O1)

AY41

STBC_GPF17 / SPI _D O(D I O0) (BS_4)

AW42

STBC_GPF18 / SPI _W P(D I O2)

AW41

STBC_GPF19 / SPI _H OLD (D I O3) (BS_5)

AW40

XTAL_IN

AJ42

XTAL_OUT

AK40

LDO_BYPASS

AP37

POREN

AP38

STBC_GPG_25 / D D R _F _PW _EN

AV27

R4148 NC/10K

R4160

NC / 1K 1/ 16W 5%

C4108 100N 16V

R4162

NC / 1K 1/ 16W 5%

C4109

100N 16V

R4125 10K

R4146 10K

R4102

0R05 1/ 16W

R4118

12K 1%

R4154 NC/10K

R4145 10K

R4140 10K

R4147 10K

C4105

15PF50V

R4105

1K 1/16W 5%

R4141 10K

SB3V3_NAND

BS6

STBC3V3

MAIN3V3

SB3V3_NAND

STBC3V3

BS2 12

BS12 BS13 BS14

BS11

PWR_ON4,15,16

BS0 12 BS1 12

DDRS_CKE_F16

DDRM_CKE_F15

DRAM_RST_F 15,16

LED_R 11

STBC_RSTn11

INT_IR11

BL_ON/OFF 4

AMP_PWRDN14

HP_EN14

KEY_ADC011

DRAM1V5_EN5

DRAM_RST_F

KEY_ADC0

ONENAND_D3

ONENAND_D2

ONENAND_D1

ONENAND_D6

ONENAND_D5

ONENAND_D4

ONENAND_D0

ONENAND_D7

NAND_R/Bn

NAND_WP# NAND_RE#

NAND_CLE

INT_IR

NAND_WE#

BS3

NAND_CE0#

BS5

BS4

ONENAND_D7 ONENAND_D6 ONENAND_D5 ONENAND_D4

BS0 BS1

ONENAND_D1 ONENAND_D0

ONENAND_D2

ONENAND_D3

NAND_R/Bn

NAND_ALE#

NAND_CLE

NAND_CE0#

NAND_WP#

BS2

BS10

NAND_RE#

NAND_WE#

DDRS_CKE_F

DDRM_CKE_F

BS7 BS8

BS16

BS9 BS15

Circuit Diagrams and PWB Layouts

EN 54TPN15.2E LA 10.

2015-Nov-27

back to

div.table

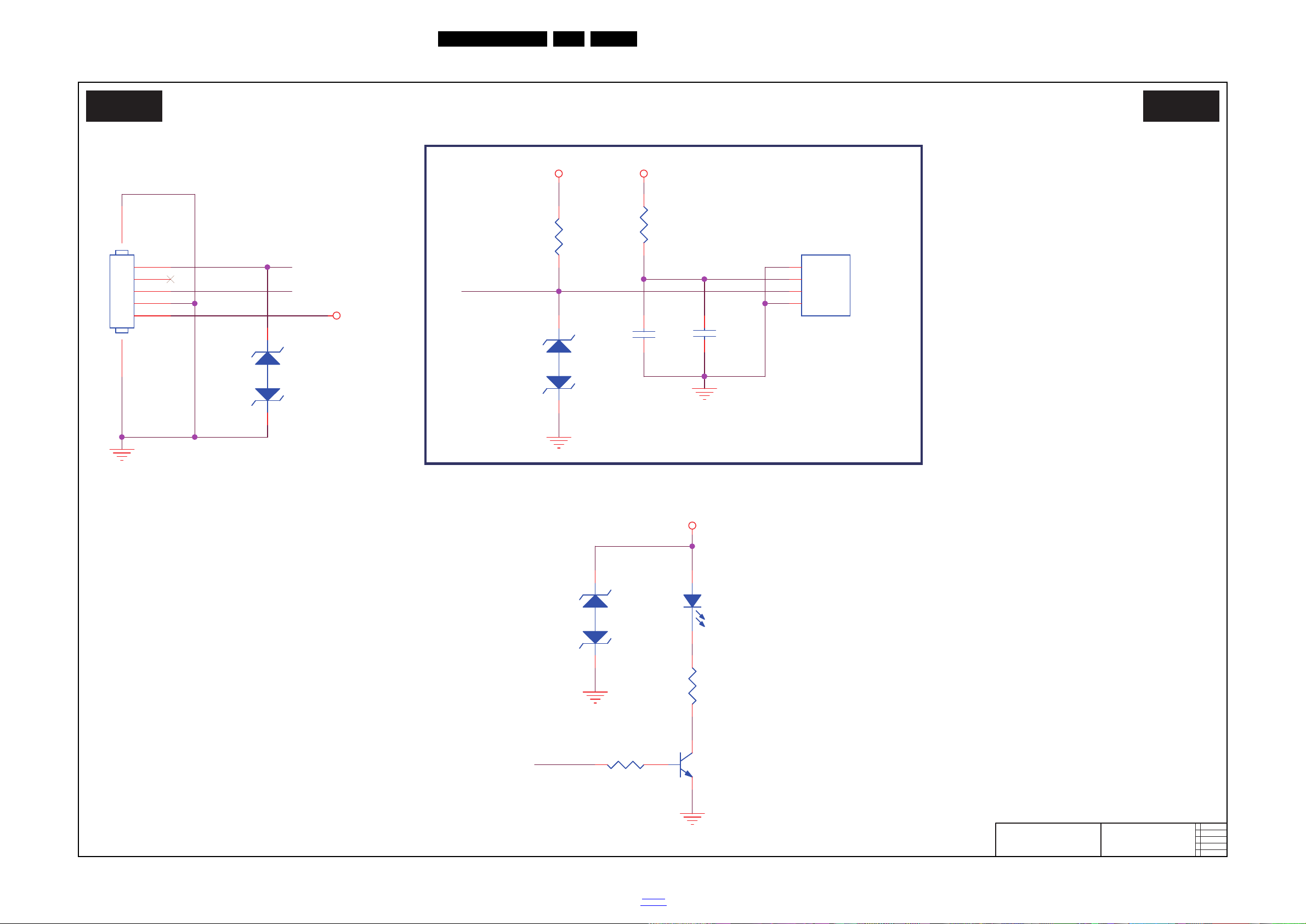

10-3-8 IR/KEY

19970_507.eps

IR/KEY

B08 B08

2015-06-25

4

715G7673

IR/KEY

R4159

3.9K 1%

STBC3V3

HS3

HEAT SINK

1 2

KEY_ADC010

R4109

100OHM

R4106 10K

R4108 NC/10K

PWM_LOGO 12

ZD401

NC/MLVG0402

1 2

IR / KEY BOAR D CONN.

INT_IR

C4104

1N 50V

CN401 CONN

2 4 6 8 10

1 3 5 7 9

ZD402

NC/MLVG0402

1 2

C4102

1UF 6. 3V

C4103

100N 16V

STBC3V3

C4101 100P 50V

R4107 30K 1%

PWM_LOGO

MAIN3V3

LED_R10

Reset I C

C4111

1UF 6. 3V

U410

AZ809ANSTR-E1

GND

1

RESET

2

Vcc

3

R4128

0R05 1/ 16W

R4138

100K 1%

STBC3V3

C4110

NC/100P 50V

C4107 2N2 50V

U401

R4113 0R 05 1/ 16W

R4111 0R 05 1/ 16W

R4112 N C / 0R 05 1/ 16W

STBC3V3

Key1

R4158

100OHM

C4112

100NF 25V

INT_IR10

STBC_RSTn 10

Circuit Diagrams and PWB Layouts

EN 55TPN15.2E LA 10.

2015-Nov-27

back to

div.table

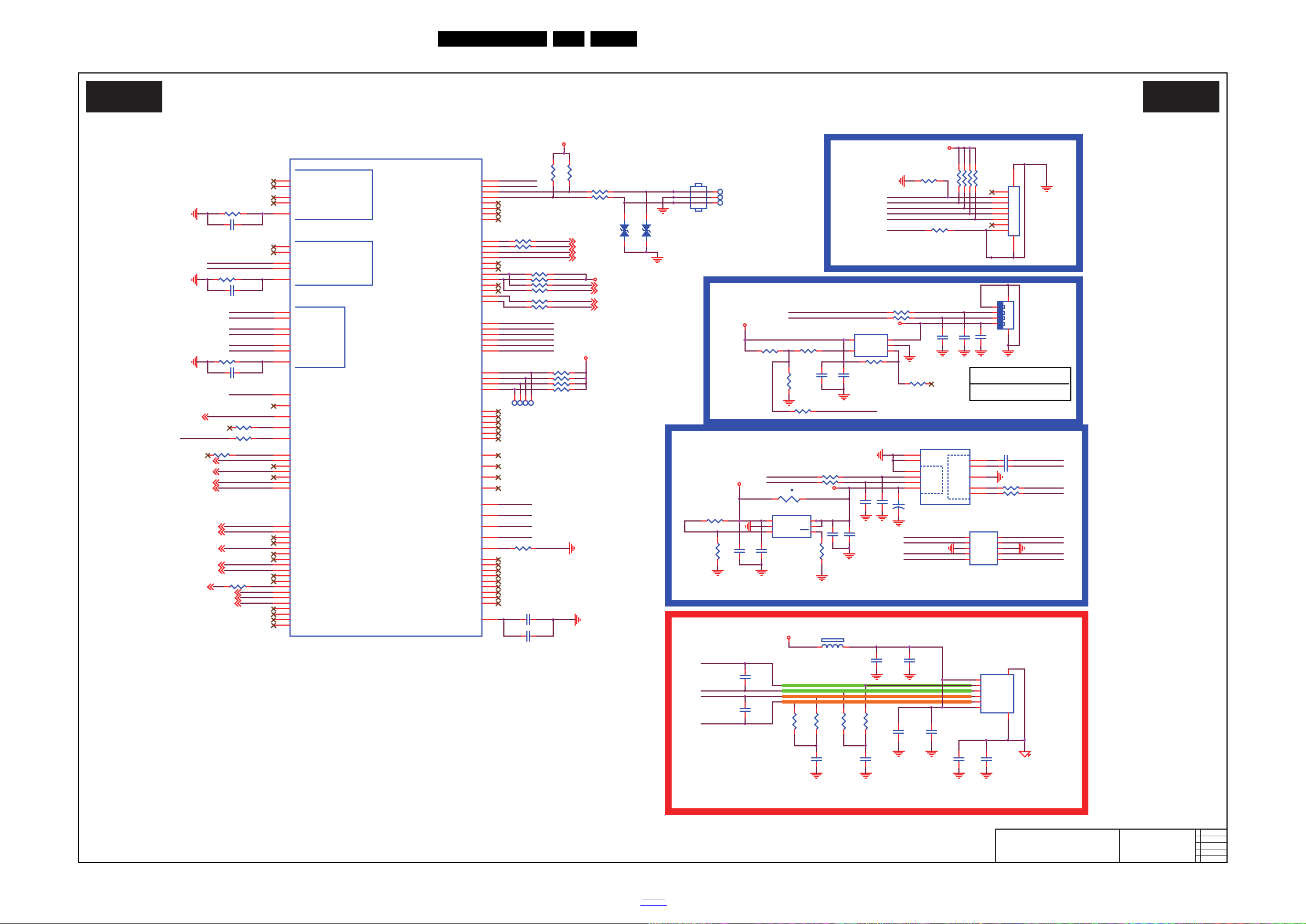

10-3-9 USB/GPIO/Ethernet

19970_508.eps

USB/GPIO/Ethernet

B09 B09

2015-06-25

4

715G7679

USB/GPIO/Ethernet

AMP_SDA 14

AMP_SCL 14

1234

CN103

USB CON N

1

2

3

4

65

R4203 12K 1%

R4208 NC / 22R 1/ 16W 5% R4209 NC / 22R 1/ 16W 5%

RXVN_1

STBC3V3

USB30_EN

HDMIA_DET

BS010

CI_EN

BS110

HP_MUTE

BS210

BL_DI MMING4

HDMID_DET

BS1

BL_DI MMING

BS0

HDMID_DET6

HDMIC_DET6

HDMIC_DET

HDMIA_DET6

BS2

PANEL_ON5

+5V_USB30

USB0_EN

PANEL_ON

PWM_LOGO

R4235 4K7 1/16W 5%

C4128 NC/ 12PF 50V

TXVN_0

TXVP_0

RXVP_1

R4246 22R 1/ 16W 5%

TCON_SDA 8

TCON_SCL 8

R4236 4K7 1/16W 5%

R4205 82R 1/ 16W 5%

TP406

R4238 4K7 1/16W 5%

HP_DET

R4247 22R 1/ 16W 5%

TP407

MIPS_RXA

MIPS_TXA

R4239 4K7 1/16W 5%

EJTAG_TRST

MIPS_TXA

C4121

100N 16V

C4122

100N 16V

U-ART

R4228

100OHM

CN410

1 2 3

TP401

EJTAG_TDO

TP403

R4211

4K7 1/16W 5%

R4229

100OHM

R4212

4K7 1/16W 5%

TP402

MAIN3V3

PWM_LOGO11

T2_DEMOD_RSTn13

R4227

0R05 1/16W

R4216

0R05 1/16W

+5V_SW

R4166

NC/49.9 OH M 1% 1/ 16W

R4165

NC/49.9 OH M 1% 1/ 16W

R4164

NC/49.9 OH M 1% 1/ 16W

R4163

NC/49.9 OH M 1% 1/ 16W

MIPS_RXA

U413

NC/AOZ8804DI

CH1

1

CH2

2

VN

3

CH3

4

CH45NC

6

NC

7

VN

8

NC

9

NC

10

USB2.0

USB3.0

CN104

USB CON N 9P

HAND1

10

HAND2

11

VCC

1

D+

3

GND

4

D-

2

RXN

5

RXP

6

GND

7

TXN

8

TXP

9

C4126 10uF 16V

C4131

NC/ 10N F 50V

USB3.0_RX_DM

USB3.0_RX_DP

USB3.0_TX_DM

USB3.0_TX_DP

C4132 NC/ 0. 1uF 25V

C4133 NC/ 0. 1uF 25V

R4230

100OHM

R4204 82R 1/ 16W 5%

R4242 NC / 4K7 1/ 16W 5%

MIPS_TXB MIPS_RXB

CN109

NC/CONN

1 2 3 4 5 6 7 8

910

TUNER_SCL 13 TUNER_SDA 13

RJ45

USB3.0_TX_DM

USB3.0_TX_DP

USB3.0_RX_DM

USB3.0_RX_DP

C4396

NC/33P 50V

CN402

NC/RJ45 CONN

TCT P 1

1

TD+ P 2

2

TD- P3

3

RD+ P4

4

RD- P5

5

RCT P6

6

TH1

7

TH2

8

EJTAG_TMS

R4243

0R05 1/16W

FB401

NC/60R

1 2

C4138

NC/ 0. 1uF 25V

C4139

NC/10NF 50V

C4134 NC/ 100N 16V

C4135 NC/ 10uF 16V

R4232

NC/10K

C4125

10UF 16V

R4233

NC/ 22R 1/ 16W 5%

For Panel Use

MIPS_EJTAG

R4223

4K7 1/16W 5%

USB3.0_DP

R4220

4K7 1/16W 5%

R4221

4K7 1/16W 5%

R4222

4K7 1/16W 5%

R4215

100R 1/16W 5%

MAIN3V3

USB0_EN

R4218

NC/ 43K 1/ 16W

R4217 NC/ 10K 1/ 16W 5%

U411 G5250M1T1U

OUT

1

GND

2

OC

3

EN

4

IN

5

C4119

100N 16V

R4225

NC/ 100R 1/ 16W 5%

R4224

43K 1/16W

C4114

3.9PF 50V

C4113

3.9PF 50V

EJTAG_TCK

2nd

USB 2.0 , REAR, VERTICAL

088G352G4B1VCL1st

USB3_D-

USB3_D+

R4213 0R05 1/ 16W

C4118

22UF 10V

R4214 0R05 1/ 16W

C4129 NC/ 12PF 50V

EJTAG_TDO

EJTAG_TDI EJTAG_TMS

EJTAG_TCK

USB3_D-

USB3_D+

R4226

0R05 1/16W

C4115

3.9PF 50V

C4116

3.9PF 50V

C4124

100N 16V

R4231

10K

C4123

100N 16V

U412

G529A1TB1U

EN

1

GND

2

IN3OUT

4

OUT

5

OC

6

R4219 47K

R4202 12K 1%

EJTAG_TRST

ZD413

MLVG0402

12

TP405

ZD412

MLVG0402

12

TP404

NT72666 USB / GPIO ETHERNET UART / I2C

FOR CODE BURNING

U401I

NT72666BG-BA/D

USB_DP_0

C38

USB_DM_0

B38

USB_DP_1

A38

USB_DM_1

C39

USB_REXT_1

A39

NC

AY20

NC

BA19

USB_DP_3

BB19

USB_DM_3

AY19

USB_REXT2

AV25

USB30_DP_1

BA20

USB30_DM_1

AY21

USB30_TX_DP

AY22

USB30_TX_DM

BB22

USB30_RX_DP

BA23

USB30_RX_DM

AY24

USB_REXT30

AW25

GPB_0 / DEMOD_Em ergenc y / R F AGC _VSY NC

B37

GPB_3

D17

GPB_2

F18

GPB_4

E17

GPB_5

F17

GPB_10

F15

GPB_11

D14

GPE_0 / PWM / LED _PW M_0 / H SC _SD A / LED _SPI _D I _1

A9

GPE_1 / LED_PW M_1 / H SC _SC L / LED _SPI _C SD _1

B9

GPE_2 / LED_PW M_2 / LED _SPI _C LK_1

A8

GPE_3 / LED_PW M_3 / LED _SPI _C SA_1

B8

GPE_4 / LED_PW M_4 / LED _SPI _D O_1

C8

GPE_5 / LED_PW M_5 / LED _SPI _C SB_1

B7

GPE_6 / LED_PW M_6 / LED _SPI _C SC _1

C7

GPE_7 / LED_PW M_7 / LED _VS_OU T

A6

GPE 8 / LED_PW M_8 / LED _SPI _STT_1

B6

GPE_9 / 3D_I R / 3D _BT / 3D _Ac t iv e / LED _VS_OU T

C6

GPE_10 / LR0_D ELAY / F R C _D im m ing1/ BT_SY N C _I N

A5

GPE_11 / LR1_D ELAY

B5

GPE_12 / I2S_OU T_A_DATA / LED _SPI _C S_2 / (BS_0)

C5

GPE_13 / I2S_OU T_A_WS (BS_1) / 3D _LR _OU T

B4

GPE_14 / I2S_OU T_A_BCLK (BS_2) / 3D _LR _OU T_OSD

C4

GPE_15 / I2S_OU T_A_MCLK / F R C _D im m ing2

A3

GPE_16 / LED_SPI _C LK_2

A2

GPE_17 / BT_SYN C _I N

B3

GPE_18 / LED_SPI _D O_2

B2

GPH_0 / U AR T_A_TX / INT8/ I2C _MD_SC L

D3

GPH_1 / U AR T_A_RX /IN T9 / I 2C _MD_SD A

D2

GPH_2 / U AR T_B_TX / INT6

B1

GPH_3 / U AR T_B_RX / IN T7

C3

GPH5 / UART_C_RX / INT2 / I2C_ME_SDA

F3

GPH_4 / U AR T_C_TX / INT1 / I 2C _ME_SCL

E3

GPH_6 / U AR T_D_TX / I2C_MF_SC L

D1

GPH_7 / U AR T_D_R X / I2C _MF_SD A

E2

GPA_1 / I2C _MA_SCL

H42

GPA_0 / I2C _MA_SDA

J40

GPA_3 / I2C _MB_SCL

H40

GPA_2 / I2C _MB_SDA

H41

GPA_5 / I2C _ME_SCL

G40

GPA_4 / I2C _ME_SDA

G41

GPA_17 / I2C _MC_SC L

E42

GPA_16 / I2C _MC_SD A

F40

GPA_19 / I2C _MD_SC L

E40

GPA_18 / I2C _MD_SD A

E41

GPA_20 / I2C _MF_SD A

D41

GPA_21 / I2C _MF_SC L

D40

GPB_6 / ARM_TCK

E16

GPB_7 / ARM_TMS

F16

GPB_8 / ARM_TDO

D15

GPB_9 / ARM_TDI / SPDIF_OUT

E15

GPB_12 / ARM_IN T

E14

GPB_13 / ARM_TRST

F14

STBC_GPG_29 / STBC_UAR T_0_TX

AG37

STBC_GPG_30 / STBC_UAR T_0_RX

AH38

STBC_GPG_27 / STBC_UAR T_1_TX / ARM_UART_B_TX

AG39

STBC_GPG_28 / STBC_UAR T_1_RX / ARM_UAR T_B_RX

AG38

STBC_GPG_15 / I2C _M0_SCL

AF38

STBC_GPG_14 / I2C _M0_SDA

AF37

STBC_GPG_17 / I2C _M1_SCL / SD _D AT1

AE37

STBC_GPG_16 / I2C _M1_SDA / SD _D AT0

AF39

STBC_GPG_19 / I2C _S_SC L / SD _D AT3

AD37

STBC_GPG_18 / I2C _S_SD A (opt ion) / SD _D AT2

AE38

ADC_INPT

AY40

ADC_INNT

BA40

VCM_MON

BB40

ADC_CLKT

AW39

MDI 0P

BA37

MDI 0N

AY38

MDI 1P

BA38

MDI 1N

AY39

ETH_REXT

BA39

GPH_20 / U SB0_PW EN

F2

GPH_21 / U SB1_PW EN

F1

GPH_22

G3

GPH_23 / U SB3_PW EN

G2

GPH_24 / U SB30_PW EN

G1

STBC_GPI6 / R MII _C R S

AW33

STBC_GPI7 / R MII _R X_D0

AU34

STBC_GPI8 / R MII _R X_D1

AV34

STBC_GPI9 / R MII _R EF _C LK

AW34

STBC_GPI10 / R MII _TX_D0

AU35

STBC_GPI11 / R MII _TX_D1

AV35

STBC_GPI12 / R MII _TXEN

AU36

STBC_GPI13 / R MII _MDC

AV36

STBC_GPI14 / R MII _MDI O

AW36

LDOUT

BB39

USB3.0_DM

R4244

0R05 1/16W

C4136

NC/10NF 50V

C4397

NC/33P 50V

SCL_DEMOD 13

+5V_SW

USB30_EN

EJTAG_INT

AMP_RESET14

R4245

0R05 1/16W

SDA_DEMOD 13

+5V_USB20

C4137

NC/10UF 16V

LD_EN8

USB 3.0

C4127

NC/0.1uF 25V

R4201 12K 1%

MAIN3V3

R4241 NC / 4K7 1/ 16W 5%

TXVP_0

C4395 NC / 33P 50V

TXVN_0

RXVP_1

RXVN_1

t

TH4103 NC/PTCR

1 2

IFAGC_SW13

EJTAG_TDI

R4210

22R 1/16W 5%

USB3.0_RX_DP

USB3.0_TX_DM

USB3.0_TX_DP

USB3.0_DM

USB3.0_DP

USB3.0_RX_DM

+

C4117

100UF 16V

R4167

NC/ 12K 1%

EJTAG_INT

R4240 0R05 1/ 16W

C4120

10UF 16V

R4234

NC/100OHM

HP_DET14

USB3.0_RX_DM

USB3.0_RX_DP

USB3.0_TX_DM

USB3.0_TX_DP

Circuit Diagrams and PWB Layouts

EN 56TPN15.2E LA 10.

2015-Nov-27

back to

div.table

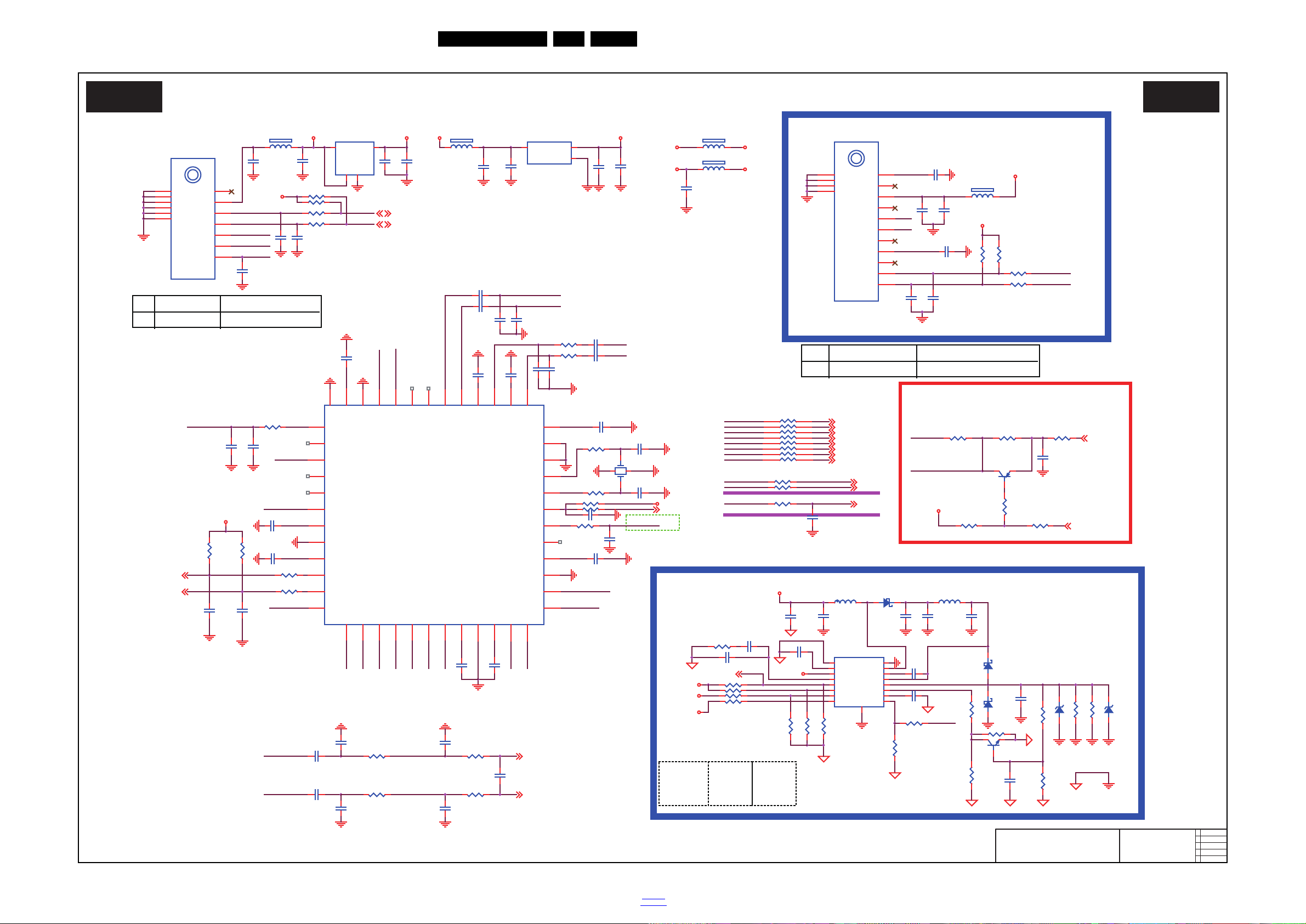

10-3-10 Tuner/Demodulator

19970_509.eps

Tuner/Demod

B10 B10

2015-06-25

4

715G7673

Tuner/Demod

FB203 120R

1 2

+3.3V_T2 MAIN3V3

C239

10uF 16V

MAIN3V3

C240

100N 16V

+1.2V_T2

C241

10uF 16V

U204

AZ1117CD-1.2TRG1

ADJ/GND

1

OUTPUT2INPUT

3

Deomd Power

+3.3VA_T2 MAIN3V3

FB204 120R

1 2

D202

FB340M

1 2

IFAGC SW ITCH

C235

120pF 50V

Q202 MMBT3906

R245

100OHM

IF_AGC_T

R246

10K

TUN_IF_AGC

R241

0R05 1/16W

MAIN3V3

C255

100N 16V

R244

100K 1%

D203

FB340M

1 2

TUN_DIF- 7

R231

22R 1/16W 5%

TUN_DIF+ 7

R228

1K5 1/16W 5%

LG TDQS-A751F394GPASEBIL05G

2nd 394GDVBSALL01A

1st

Samsung DNBU02112IH2

D201

FB340M

1 2

C202 NC/ 10PF 50V

IF_AGC 7

CH_START 9 CH_VALID 9

CH_DATA1 9

CH_CLK 9

CH_DATA0 9

CH_DATA4 9 CH_DATA3 9 CH_DATA2 9

CH_DATA7 9 CH_DATA6 9 CH_DATA5 9

C222 100N 16V

IP

C227 100N 16V

R323 51R R326 51R

QP

C205 NC/ 10PF 50V

TUN_D+_DEMOD

C242

100N 16V

C243

10uF 16V

IF_AGC_T

LNB_EN7

MAIN3V3

TU102

ANT

1

3.3V

2

SDA

3

SCL

4

IF_N

5

IF_P

6

IF_AGC

7

TH1

8

TH2

9

TH3

10

TH4

11

TH5

12

TH6

13

LNB_LINEDROP

R216 1K5 1/16W 5%

C211

68P 50V

R217 1K5 1/16W 5%

C203 NC/ 10PF 50V

C210

1N 50V

R229

1K5 1/16W 5%

T2_DEMOD_RSTn 12

QP

R303 22R 1/16W 5%

S2_TUN_SDA

R304

2K7

MAIN3V3

S2_TUN_SCL

R305 22R 1/16W 5%

C254

33P50V

R306

2K7

C256

33P50V

C217

100N 16V

+3V3_TUNER

C218

10UF 6. 3V

FB205

120R

1 2

S2 T UNE R

LGTuner wi t h DVB-S/S2

C219

1nF 50V

C221

1nF 50V

TU103

TDQS-A751F

TH1

12

TH2

13

TH3

14

TH4

15

LNB A

1

NC

2

TU3.3V

3

NC

4

QP Output

5

IP Output

6

NC

7

AGC

8

X-O U T

9

SDA

10

SCL

11

R219 22R 1/16W 5%

13/18V_SW

DISEQC_OUT

C231 100N 16V

TUNER_SDA 12

TUNER_LNB

TUNER_SCL 12

R242

0R05 1/16W

SCL_DEMOD12

SDA_DEMOD12

394GNPALALL35A

K

H/T

MAIN3V3

C228

NC/ 10PF 50V

C257

NC/ 10PF 50V

C201 NC/ 10PF 50V

R211

0R05 1/16W

394GPASEBIL02G

R315 4K7 1/16W 5%

C258

100N 16V

C259

NC\ 100N F 16V

IF_AGC_S2_TUNER

R243

NC/ 0R 05 1/ 16W

LG TDSY-G430D

FB201

120R

1 2

C204 NC/ 150pF 50V

C212

68P 50V

TUN_DIF-#T2 TUN _D IF+#T2

T/T2 TUNER

R214

0R05 1/16W

R215 0R05 1/16W

R212 0R05 1/16W

Grounding

C234 100N 16V

TUN _D IF+#T2

R218 22R 1/16W 5%

TUN_DIF-#T2

C208

100N 16V

C

R

ST42CS-2-E

IP

IFAGC_SW 12

TS_T2_DQ7

TS_T2_DQ6

TS_T2_DQ5

C215

100N 16V

X201

16MHz

1

2 4

3

R221 22R 1/16W 5%

R224

0R05 1/16W

R222

0R05 1/16W

+1.2V_T2

TUN_D-_DEMOD

U201

Si2166-B22-GM

MP_A

1

MP_B

2

GPIO_0

3

DISEQC_CMD

4

DISEQC_IN

5

DISEQC_OUT

6

VDD_Vcore

7

GND

8

VDD_VIO

9

SCL_Host

10

SDA_Host

11

TS_VLD

12

XTAL_O

32

RESETB

31

MP_D

30

MP_C

29

VDD_Vcore

28

GND

27

TS_ERR/GPIO_1

26

TSD7

25

TS_SYNC13TS_CLK14TS_D0/SER15TS_D116TS_D217TS_D318TS_D419VDD_Vcore20GND21VDD_VIO22TSD523TSD6

24

XTAL_I/CLK_IN

33

ADDR

34

GND

35

VDD_Vana

36

S_ADC_IP

37

S_ADC_IN

38

S_ADC_QP

39

S_ADC_QN

40

NC

41

NC

42NC43

CLK_IN_OUT

44

SDA_T

45

SCL_T

46

GND

47

VDD_Vcore

48

EPad

49

TUN_D+_DEMOD

C220

100N 16V

C213

100N 16V

+1.2V_T2

+3.3VA_T2

+3.3V_T2

C214 100N 16V

C216

100N 16V

C223 100N 16V

R220 NC/ 4K7 1/ 16W 5%

MAIN3V3

+1.2V_T2

SI2166 S_ADC_QP

SI2166 S_ADC_QN

SI2166 S_ADC_IP

SI2166 S_ADC_IN

C224 100N 16V

SI2166 DISEQC_OUT

DVB/T2 De modu lator

C233 5.6pF 50V

TUN_IF_AGC

C230 5.6pF 50V

CH_VALID

TS_T2_SYNC

CH_START

RP201 22R

1 2 3 4

8 7 6 5

TS_T2_CLK

IF_AGC_S2_TUNER

TS_T2_VAL

TS_T2_SYNC

TS_T2_DQ2 TS_T2_DQ0

TS_T2_DQ7 TS_T2_DQ6 TS_T2_DQ5 TS_T2_DQ4

R227 22R 1/16W 5%

TS_T2_DQ1

TS_T2_DQ3

C247

NC/ 10PF 50V

R225 22R 1/16W 5% R226 22R 1/16W 5%

RP202 22R

1 2 3 4

8 7 6 5

C237 100N 16V

TS_T2_CLK

TS_T2_DQ1

TS_T2_DQ0

C238 100N 16V

C226

NC/ 10PF 50V

C225

NC/ 10PF 50V

C207

100N 16V

+5V_SW

C206 10uF 16V

U203 AZ1117CH-3.3TRG1

ADJ(GND)

1

VOUT2VIN

3

4

C209

22UF 10V

TS_T2_VAL

R223 4K7 1/16W 5%

C229 100N 16V

TS_T2_DQ2

C232 100N 16V

TS_T2_DQ4

TS_T2_DQ3

TUN _SDA TUN _SCL

CH_CLK

C260

100N 16V

TUN_D-_DEMOD

SAM S UNG DTOS 40CIL034B

S2_TUN_SDA

S2_TUN_SCL

C236

120pF 50V

C261

100N 16V

C244 22uF 25V

C245

10UF 25V

13/18V_SW

C253 47NF 16V

R286 10K

R287

20K 1/16W 5%

L202 1uHL201

22uH

ZD202

NC/PJSD24CW

1 2

R288 100K 1%

U202 MP8126DF-LF-Z

SGND

1

BYPASS

2

VDD

3

COMP

4

EN

5

LINEDROP

6

POK7TCAP

10

ILIMIT

11

VOUT

12

VBOOST

13

BST

14

SW

15

PGND

16

13V/18V8EXTM

9

EP

17

R289

10K

DISEQC_OUT

R290

NC/ 0R 05 1/ 16W

ZD201

NC/PJSD24CW

1 2

R291

33K 1/16W 5%

C246 22NF 25V

R292 10K

R293

33 OHM 1/16W

Q201 MMBT3904

1

3 2

C296 100N 16V

TUNER_LNB

R294

2.2K 1/4W

R295

NC/ 100K 1/ 16W 5%

LNB_EN

R296

2.2K 1/4W

MAIN3V3

LNB_LINEDROP

R297 39K 1/16W 5%

R298

NC/ 100K 1/ 16W 5%

PWR_12V

R299 10K

C248

NC/470PF 50V

C249

220nF 16V

R300 100K 1%

R301

NC/ 100K 1/ 16W 5%

MAIN3V3

PWR_12V

R302 10K

PWR_12V

LNB POWER SUPPLY

13/18V_SW: Low: 13V High: 18V

LINEDROP: Low: 13/18V High: 14/19V

C250

100NF 25V

LNB_EN: Low: disable High: enable

C251

10UF 25V

1210 TYPE

C298 10UF 16V

C252

100NF 25V

C297

100NF 25V

+3V3_TUNER

FB202

120R

1 2

R235

22R 1/16W 5%

Circuit Diagrams and PWB Layouts

EN 57TPN15.2E LA 10.

2015-Nov-27

back to

div.table

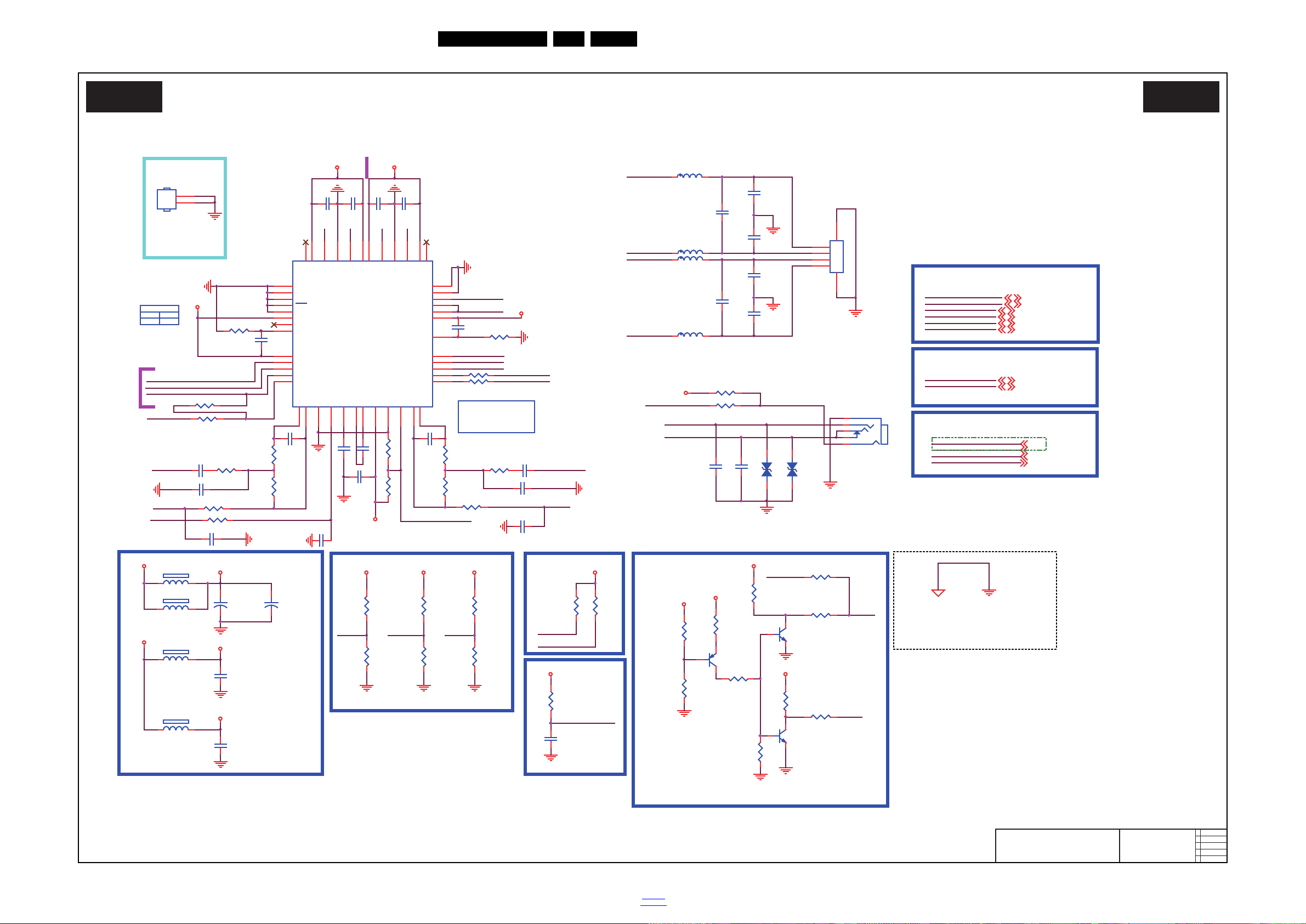

10-3-11 SPK AMP/HP OUT

19970_510.eps

SPK AMP/HP OUT

B11 B11

2015-06-25

4

715G7673

SPK AMP/HP OUT

L602 15uH

C603

100N 50V

L603 15uH

C604

100N 50V

Option

Anti-pop

L604 15uH

Ground in bottom si de need connector it togother, heat sink is also.

(10Wx2 ,6R)

Default :

R607

6.8K1/16W

C607

100N 50V

C608

100N 50V

R634

22R 1/16W 5%

Q602 LMBT3904LT1G

1

3

2

HP_EN

R611

47K

R635 22R 1/ 16W 5%

C621

10uF 16V

C610

100N 50V

R618

4K7 1/10W 5%

AMP_PWRDN

R636 22R 1/ 16W 5%

C632

NC/ 470pF 50V

+

C630

470uF 16V

C618

100N 16V

AMP_SCL 12

AMP_SDA 12

AMP_RESET 12

I2SOUTC_DATA 7 I2SOUTC_WS 7 I2SOUTC_BCLK 7 I2SOUTC_MCLK 7

AMP_SDA AMP_SCL

AMP_RESET

AUOUT_R0

AUOUT_L0

I2SOUTC_MCLK

I2SOUTC_DATA I2SOUTC_WS I2SOUTC_BCLK

R631 0R05 1/16W

GPIO

AUDIO /IF

MIPS/UART/I2C/ICE

HP_DET 12

HP_EN 10

HP_DET

HP_EN

HPOUTR

R619

4K7 1/10W 5%

CN601

CONN

1

2

3

4

5 6

10KOHM

Q603 NC/LMBT3904LT1G

1

3

2

HPOUTR

AMP_SCL

R658 NC\100R

C619

100N 16V

independent GND shielding

(AD87588 P2P AD82588B)

H

L: -( R611 / R608 )

Stereo

L

QFP48

HPOUTL

Separate VCC trace

R: -( R609 / R607 )

HP Gain

CFG1CFG0

C606

33nF 50V

RSPK-

HP_DET

AUOUT_L0 7

PWRDN-HP

CN602

PHONE J AC K

1 2 4 5 3

AUOUT_R0 7

R628 180K

PWRDN

MAIN3V3

L601 15uH

R630 0R05 1/ 16W

R633

10K

HS2

HEAT SINK

1 2

U601

ZD602

MLVG0402

12

AMP_SDA

AMP_SCL

ZD601

MLVG0402

12

R610

1K

R613

10R 1/16W 1%

R621

470K

MAIN3V3

PWRDN-HP

Q601

LMBT3906LT1G

1

23

R614

MAIN3V3

R620 0R05 1/16W

R629

NC\10K

R657

NC\ 0R 05 1/ 16W

MAIN3V3

R626

1K 1/16W 5%

AMP_PWRDN 10

R622 1K

Add AMP PWRDN Control

AMP_PWRDN

I2SOUTC_WS

I2SOUTC_DATA

C629 100N 16V

MAIN3V3

AMP_RESET

C624 330PF 50V

R627 NC/4K7 1/16W 5%

LSPK+

AMP_SDA

PVDD

R609

47K

C625

NC/ 100N F 16V

C617

100N 16V

R632 NC/10K

LSPK-

R601

0R05 1/16W

C622

330PF 50V

RSPK+

C612

100N 16V

AMP_SA0

C614 68P 50V

I2SOUTC_MCLK

LA

RA

R623

10K

RB

C627 100N 16V

R602 0R05 1/16W

R603

NC\ 10R 1/ 16W 1%

AMP_SA1

R624

10K

AMP_DEF

R608

6.8K1/16W

RB

LA

R604

43K 1/16W

RA

LB

AUD_V33

LB

AMP_SA1AMP_SA0

PVDD

MAIN3V3

R617

NC/10K

R625

10K

C628 100N 16V

C611

100N 16V

C631 NC / 470pF 50V

R616

NC/10K

R615

NC/10K

I2SOUTC_BCLK

PVDD

MAIN3V3

C623

100N 16V

AMP_DEF

R612

10R 1/16W 1%

AUOUT_L0

PWRDN

C615 68P 50V

AUD_V33HP

C620

10uF 16V

U601

AD87588-LG48NAY

SDATA1

1

MS

2

PLL

3

CFG0

4

CFG1

5

CLK_OUT

6

DGND

7

DVDD

8

SDATA0

9

LRCIN

10

BCLK

11

MCLK

12

RINN13OUTR14VSS15EN16PVSS17CN18CP19PVDD20PGND21UVP22OUTL23LINN

24

SDA

25

SCL

26

SA0

27

SA1

28

DEF

29

DGND

30

DVDD

31

PD#

32

ERROR#

33

RESET#

34

LREX

35

LINEIN

36

NC

37

VDDRA

38

RA

39

GNDR

40

RB

41

VDDRB

42

VDDLB

43

LB

44

GNDL

45

LA

46

VDDLA

47

NC

48

THERMALPAD

49

C601

100N 50V

MAIN3V3

R606

43K 1/16W

FB604

120R

1 2

AUD_V33

AUD_V33HP

FB603

120R

1 2

MAIN3V3

AUDIO_12V

PVDD

FB601

120R

1 2

FB602

120R

1 2

C616 100N 16V

AMP_RESET

R605

1K

AUOUT_R0

C602

100N 50V

C609

33nF 50V

+

C626

NC/470UF 16V

HPOUTL

C605

100N 50V

Circuit Diagrams and PWB Layouts

EN 58TPN15.2E LA 10.

back to

div.table

2015-Nov-27

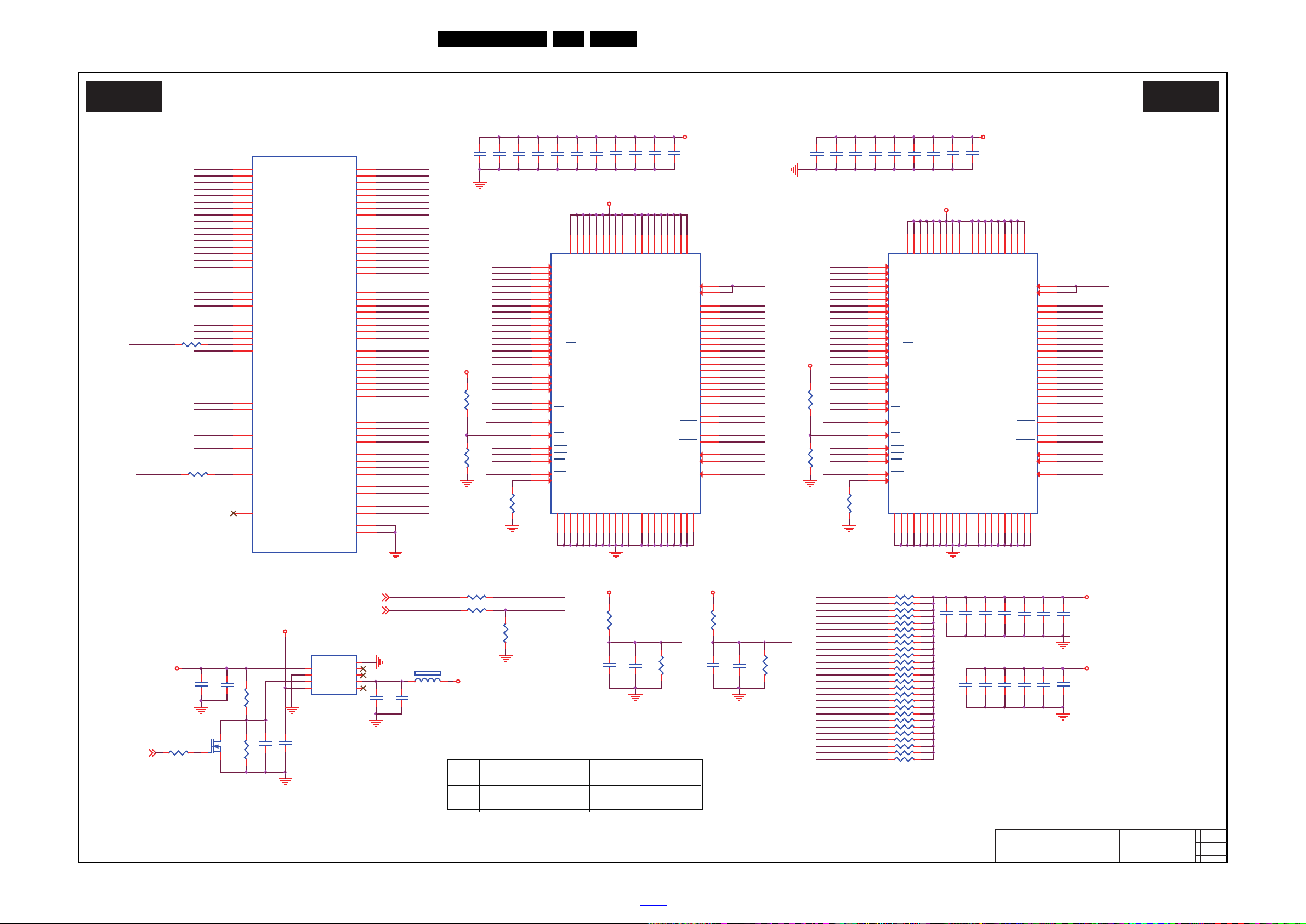

10-3-12 DDR3-M

19970_511.eps

B12 B12

2015-06-25

4

715G7673

DDR3-M

C4328

100N 16V

DDRM_ODT

DDRM_ADMU

DDRM_ADML

DDRM_A0 DDRM_A1

R4321 62 OH M

DDRM_A9

DDRM_A4 DDRM_A5 DDRM_A6

DDRM_A2 DDRM_A3

DDRM_A11

DDRM_A10 DDRM_A12

DDRM_A7 DDRM_A8

DDRM_A13 DDRM_A15

DDRM_A14

U435

G2992F1U

VIN

1

GND

2

VREF

3

VOUT4NC

5

VCNTL

6

NC

7

NC

8

E-PAD

9

DDRM_A2 DDRM_A3

DDRM_A0 DDRM_A1

DDRM_A8 DDRM_A9

DDRM_A4 DDRM_A5 DDRM_A6

C4317

100N 16V

DDRM_A10 DDRM_A12

DDRM_A15

DDRM_A14

DDRM_A13

DDRM_A7

C4319

100N 16V

C4318

100N 16V

DDRM_CASn

DDRM_BA2

DDRM_BA0 DDRM_BA1

DDRM_A11

C4321

100N 16V

C4320

100N 16V

DDRM_CLKn

DDRM_ACSn

DDRM_RASn

DDRM_WEn

C4323

100N 16V

C4322

100N 16V

DRAM_M_RSTn

DRAM_M_MCKE

DDRM_ODT

DDRM_BCSn

DDRM_CLK

C4343

22UF

C4342

22UF

R4322 62 OH M

DR AM_M_R STn

K4B2G1646Q-BCK0356G0615002600

DDRM_A3

DDRM_A0 DDRM_A1

DDRM_A9

DDRM_A4 DDRM_A5 DDRM_A6

DDRM_A2

DDRM_A12

DDRM_A7 DDRM_A8

DDRM_A11

DDRM_A10

R4306

1K 1/16W 1%

DRAM1V5

C4307

1N 50V

C4324

100N 16V

R4305

1K 1/16W 1%

R4323 62 OH M

DDRM_BDMU DDRM_ODTDRAM_M_RSTn

DDRM_BDML

R4310

100K 1%

DDRM_BCSn

R4343

240R 1%

R4344

300R 1%

DDRM_ACSn

DDRM_CASn

VREF_B

DDRM_RASn DDRM_WEn

DDRM_BA1

DDRM_BA0

DRAM_M_MCKE

DDRM_CLK

DDRM_BA2

DDRM_BDQSLn

DDRM_BDQSL

DDRM_CLKn

DDRM_BDQSUn

DDRM_BDQSU

DRAM1V5

C4326

100N 16V

C4344

22UF

R4324 62 OH M

C4310

100N 16V

2nd 356G0615002686

1st

C4327

100N 16V

R4325 62 OH M

C4304

1N 50V

R4342

240R 1%

R4301

0R05 1/16W

C4333

100N 16V

C4335

100N 16V

C4334

100N 16V

C4337

100N 16V

C4336

100N 16V

R4302

NC/0R

C4303

22UF

R4307

1K 1/16W 1%

DRAM1V5

C4308

1N 50V

C4325

100N 16V

VREF_B

R4308

1K 1/16W 1%

R4326 62 OH M

DDRM_ADQL4

DDRM_ADQL0 DDRM_ADQL1 DDRM_ADQL2

DDRM_ADQL5 DDRM_ADQL6 DDRM_ADQL7

DDRM_ADQL3

VTT_DDR_M

PWR_ON4,10,16

R4311

4K7 1/16W 5%

C4329 1UF 6. 3V

STBC3V3

R4327 62 OH M

DRAM1V5

C4330

1UF 6.3V

R4339 1K

DRAM1V5

R4341

300R 1%

VTT_D DR_M

R4328 62 OH M

DDRM_ADQU5

DDRM_ADQU1 DDRM_ADQU2

DDRM_ADQU0

DDRM_ADQU6 DDRM_ADQU7

DDRM_ADQU3 DDRM_ADQU4

R4329 62 OH M

R4309

100K 1%

DDRM_BDQL2

DDRM_BDQL7

DDRM_BDQL3 DDRM_BDQL4

DDRM_BDQL0 DDRM_BDQL1

DDRM_BDQU5

DDRM_BDQU1 DDRM_BDQU2

DDRM_BDQU0

DDRM_BDQL5 DDRM_BDQL6

DDRM_BDQU6 DDRM_BDQU7

DDRM_BDQU3 DDRM_BDQU4

R4330 62 OH M

C4311

100N 16V

DR AM_M_R STnDRAM_RST_F

DRAM_RST_F10,16

R4340 0R05 1/16W

DDRM_CKE_F10

DR AM_M_MC KE

R4338 1K

DDRM_CKE_F

C4312

100N 16V

R4331 62 OH M

C4345

22UF

C4313

100N 16V

C4314

100N 16V

DRAM1V5

R4346

NC/ 1K 1/ 16W 1%

C4315

100N 16V

C4305

1N 50V

R4332 62 OH M

R4313 62 OH M

C4316

100N 16V

C4331

100N 16V

C4338

22UF

R4333 62 OH M

NT72666 32BITS DDR MASTER

U401B

NT72666BG-BA/D

MBA0

AU10

MBA1

BA1

MBA2

AW10

MWEN

AY7

MCASN

BB6

MRASN

BA6

MCKE

AY3

MODT

AV11

MCLKP

BA5

MCLKN

AY5

MCSB

BA9

MCSA

AY10

MRESET

AY8

MVREF

AU11

ADQSLP

BA13

ADQSLN#

AY14

ADQSUP

AU14

ADQSUN#

AV15

BDQSLP

AR2

BDQSLN#

AT3

BDQSUP

AT5

BDQSUN#

AT4

ADML

AY15

ADMU

AY13

BDML

AT1

BDMU

AP2

MA0

AU7

MA1

BB4

MA2

AV8

MA3

AU9

MA4

BB2

MA5

AW9

MA6

BB3

MA7

BA8

MA8

AY4

MA9

AU8

MA10

AY1

MA11

AW6

MA12

BA2

MA13

BA7

MA14

AV6

MA15

AW7

ADQL0

BA12

ADQL1

BB15

ADQL2

AY12

ADQL3

AY16

ADQL4

BA10

ADQL5

AY17

ADQL6

AY11

ADQL7

BA16

ADQU0

AU16

ADQU1

AU12

ADQU2

AV17

ADQU3

AW12

ADQU4

AU15

ADQU5

AV13

ADQU6

AW16

ADQU7

AU13

BDQL0

AP3

BDQL1

AU1

BDQL2

AN1

BDQL3

AU2

BDQL4

AM2

BDQL5

AW3

BDQL6

AN3

BDQL7

AV2

BDQU0

AV5

BDQU1

AP4

BDQU2

AW4

BDQU3

AP6

BDQU4

AU4

BDQU5

AR6

BDQU6

AU5

BDQU7

AR5

GND_CLKM1

AY6

GND_CLKM2

BA4

R4314 62 OH M C4332

100N 16V

DDRM_BA0 DDRM_BA1

DDRM_CLKn DDRM_RASn DDRM_WEn

DDRM_CLK DRAM_M_MCKE DDRM_CASn

DDRM_A2 DDRM_A3

DDRM_A0 DDRM_A1

DDRM_BA2

DDRM_A7 DDRM_A8 DDRM_A9

DDRM_A4 DDRM_A5 DDRM_A6

DDRM_A11

DDRM_A10 DDRM_A12 DDRM_A14

DDRM_A13

C4302

10N 50V

DRAM_M_RSTn

R4334 62 OH M

Q431

2N7002K

VTT_D DR_M

DDRM_ODT

R4315 62 OH M

R4312 62 OH M

DDRM_CASn DDRM_WEn

DDRM_RASn

VREF_A

R4335 62 OH M

FB436

60R

1 2

R4316 62 OH M

U402

NC = J1,J9,L1,L9

K4B2G1646Q-BCK0

NC_A15

M7

VSSA9VSSB3VSSE1VSSG8VSSJ2VSSJ8VSSM1VSSM9VSSP1VSSP9VSST1VSST9VSSQB1VSSQB9VSSQD1VSSQD8VSSQE2VSSQE8VSSQF9VSSQG1VSSQ

G9

A13

T3

A12/BC

N7

A11

R7

A10/AP

L7

A9

R3

A8

T8

A7

R2

A6

R8

A5

P2

A4

P8

A3

N2

A2

P3

A1

P7

A0

N3

BA0

M2

BA1

N8

BA2

M3

CK

J7

CK

K7

CKE

K9

CS

L2

RAS

J3

CAS

K3

WE

L3

ODT

K1

RST

T2

ZQ

L8

LDM

E7

UDM

D3

A14

T7

VDDB2VDDD9VDDG7VDDK2VDDK8VDDN1VDDN9VDDR1VDD

R9

VDDQA1VDDQA8VDDQC1VDDQC9VDDQD2VDDQE9VDDQF1VDDQH2VDDQ

H9

DQU7

A3

DQU6

B8

DQU5

A2

DQU4

A7

DQU3

C2

DQU2

C8

DQU1

C3

DQU0

D7

DQL7

H7

DQL6

G2

DQL5

H8

DQL4

H3

DQL3

F8

DQL2

F2

DQL1

F7

DQL0

E3

LDQS

F3

LDQS

G3

UDQS

C7

UDQS

B7

VREF_DQ

H1

VREF_CA

M8

R4336 N C / 62 OH M

DDRM_CLK

DR AM_M_MC KE

DDRM_A14

DDRM_BA0 DDRM_BA1

DDRM_CLKn

DDRM_ADQSL DDRM_ADQSLn

DDRM_BA2

DDRM_A13 DDRM_A15

DDRM_ADQSU DDRM_ADQSUn

R4317 62 OH M

C4339

22UF

C4301

10N 50V

C4340

22UF

R4337 62 OH M

C4341

22UF

R4318 62 OH M

NT5CC128M16IP-DI

R4345

NC/ 1K 1/ 16W 1%

DRAM1V5

VREF_A

R4319 62 OH M

U403

NC = J1,J9,L1,L9

K4B2G1646Q-BCK0

NC_A15

M7

VSSA9VSSB3VSSE1VSSG8VSSJ2VSSJ8VSSM1VSSM9VSSP1VSSP9VSST1VSST9VSSQB1VSSQB9VSSQD1VSSQD8VSSQE2VSSQE8VSSQF9VSSQG1VSSQ

G9

A13

T3

A12/BC

N7

A11

R7

A10/AP

L7

A9

R3

A8

T8

A7

R2

A6

R8

A5

P2

A4

P8

A3

N2

A2

P3

A1

P7

A0

N3

BA0

M2

BA1

N8

BA2

M3

CK

J7

CK

K7

CKE

K9

CS

L2

RAS

J3

CAS

K3

WE

L3

ODT

K1

RST

T2

ZQ

L8

LDM

E7

UDM

D3

A14

T7

VDDB2VDDD9VDDG7VDDK2VDDK8VDDN1VDDN9VDDR1VDD

R9

VDDQA1VDDQA8VDDQC1VDDQC9VDDQD2VDDQE9VDDQF1VDDQH2VDDQ

H9

DQU7

A3

DQU6

B8

DQU5

A2

DQU4

A7

DQU3

C2

DQU2

C8

DQU1

C3

DQU0

D7

DQL7

H7

DQL6

G2

DQL5

H8

DQL4

H3

DQL3

F8

DQL2

F2

DQL1

F7

DQL0

E3

LDQS

F3

LDQS

G3

UDQS

C7

UDQS

B7

VREF_DQ

H1

VREF_CA

M8

DDRM_ADQU0

DDRM_ADQU7

DDRM_ADQU3 DDRM_ADQU4 DDRM_ADQU5

DDRM_ADQU1 DDRM_ADQU2

DDRM_BDQL4

DDRM_BDQL0 DDRM_BDQL1 DDRM_BDQL2

DDRM_ADQU6

DDRM_BDQU0

DDRM_BDQL5 DDRM_BDQL6 DDRM_BDQL7

DDRM_BDQL3

R4320 62 OH M

DDRM_BDQU7

DDRM_BDQU3 DDRM_BDQU4 DDRM_BDQU5

DDRM_BDQU1 DDRM_BDQU2

DDRM_ADQSU DDRM_ADQSUn

DDRM_ADQSL DDRM_ADQSLn

DDRM_BDQU6

DDRM_ADMU

DDRM_BDQSL DDRM_BDQSU

DDRM_BDQSUn

DDRM_BDQSLn

DDRM_ADQL2

DDRM_BDML DDRM_BDMU

DDRM_ADML

DRAM1V5

DDRM_ADQL7

DDRM_ADQL3 DDRM_ADQL4

DDRM_ADQL0 DDRM_ADQL1

DDRM_ADQL5 DDRM_ADQL6

DRAM1V5

Circuit Diagrams and PWB Layouts

EN 59TPN15.2E LA 10.

2015-Nov-27

back to

div.table

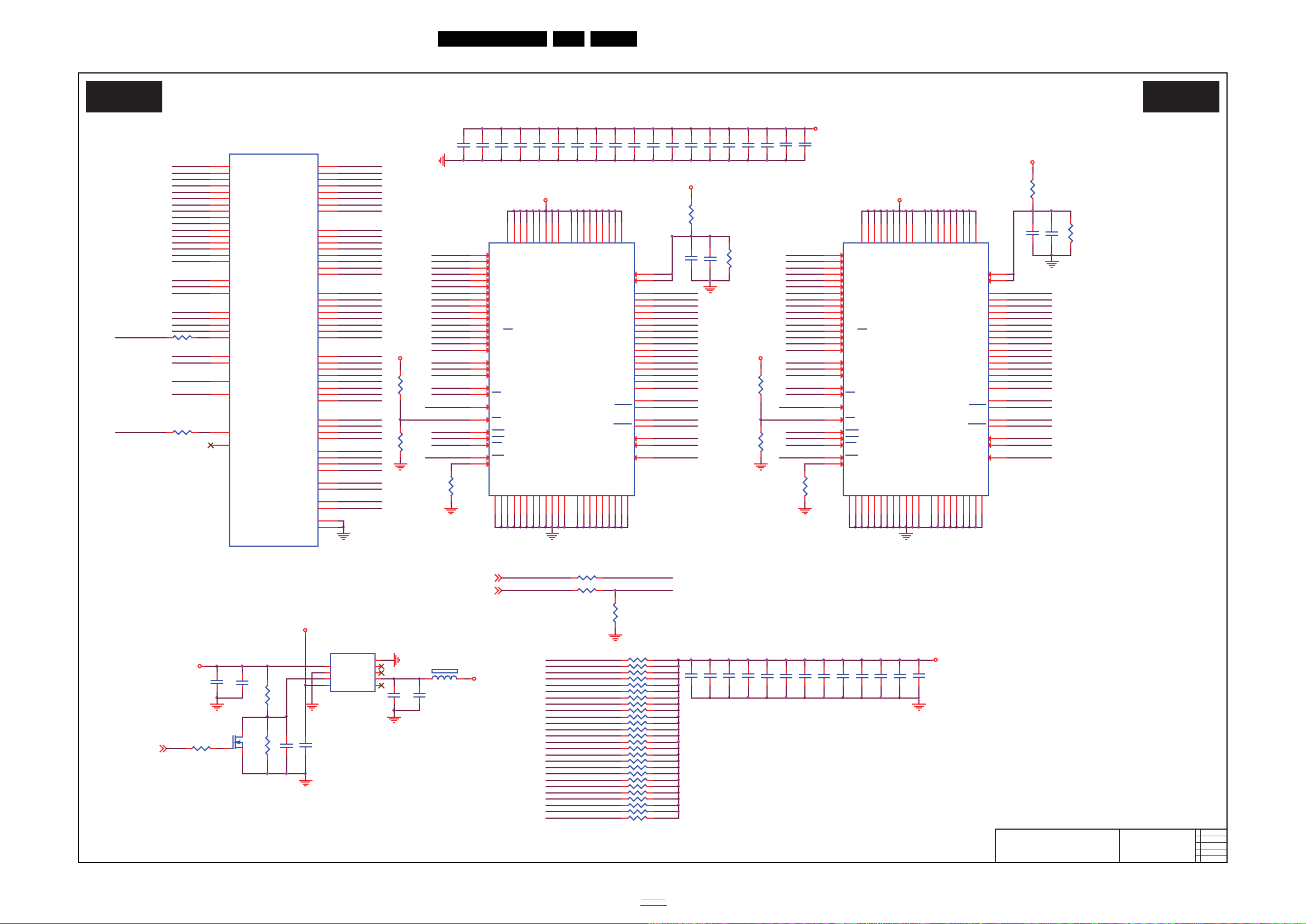

10-3-13 DDR3-S

19970_512.eps

DDR3-S

B13 B13

2015-06-25

4

715G7673

DDR3-S

R4359

1K 1/16W 1%

DRAM1V5

DDRS_DDQU1

DDRS_DDQU5

DDRS_DDQU4

DDRS_DDQU0

DDRS_DDQU3

DDRS_DDQU7

DDRS_DDQU6

DDRS_DDQU2

R4354

0R05 1/16W

DR AM_S_MCKE

U406

NC = J1,J9,L1,L9

K4B2G1646Q-BCK0

NC_A15

M7

VSSA9VSSB3VSSE1VSSG8VSSJ2VSSJ8VSSM1VSSM9VSSP1VSSP9VSST1VSST9VSSQB1VSSQB9VSSQD1VSSQD8VSSQE2VSSQE8VSSQF9VSSQG1VSSQ

G9

A13

T3

A12/BC

N7

A11

R7

A10/AP

L7

A9

R3

A8

T8

A7

R2

A6

R8

A5

P2

A4

P8

A3

N2

A2

P3

A1

P7

A0

N3

BA0

M2

BA1

N8

BA2

M3

CK

J7

CK

K7

CKE

K9

CS

L2

RAS

J3

CAS

K3

WE

L3

ODT

K1

RST

T2

ZQ

L8

LDM

E7

UDM

D3

A14

T7

VDDB2VDDD9VDDG7VDDK2VDDK8VDDN1VDDN9VDDR1VDD

R9

VDDQA1VDDQA8VDDQC1VDDQC9VDDQD2VDDQE9VDDQF1VDDQH2VDDQ

H9

DQU7

A3

DQU6

B8

DQU5

A2

DQU4

A7

DQU3

C2

DQU2

C8

DQU1

C3

DQU0

D7

DQL7

H7

DQL6

G2

DQL5

H8

DQL4

H3

DQL3

F8

DQL2

F2

DQL1

F7

DQL0

E3

LDQS

F3

LDQS

G3

UDQS

C7

UDQS

B7

VREF_DQ

H1

VREF_CA

M8

R4357

100K 1%

DDRS_CDQL2

DDRS_CDQL1

DDRS_CDQL0

DDRS_CDQL4

DDRS_CDQL3

DDRS_CDQL7

DDRS_CDQL6

DDRS_CDQU2

DDRS_CDQU5

DDRS_CDQU4

DDRS_CDQU0

DDRS_CDQL5

DDRS_DDQL2

DDRS_DDQL1

DDRS_CDQU3

DDRS_CDQU7

DDRS_CDQU6

DDRS_CDQU1

DDRS_DDQL7

DDRS_DDQL0

DDRS_DDQL4

DDRS_DDQL3

DDRS_DDQL6

DDRS_DDQU1

DDRS_DDQU5

DDRS_DDQU4

DDRS_DDQU0

DDRS_DDQL5

DDRS_CDQSUn

DDRS_CDQSU

DDRS_DDQU3

DDRS_DDQU7

DDRS_DDQU6

DDRS_DDQU2

DDRS_DDQSL

DDRS_DDQSUn

DDRS_DDQSU

DDRS_CDQSLn

DDRS_CDQSL

DDRS_DDMU

DDRS_DDML

DDRS_CDMU

DDRS_CDML

DDRS_DDQSLn

DDRS_A7

DDRS_A1

DDRS_A0

DDRS_A3

DDRS_A2

DDRS_A6

DDRS_A5

DDRS_A4

DDRS_A9

DDRS_A8

U407

NC = J1,J9,L1,L9

K4B2G1646Q-BCK0

NC_A15

M7

VSSA9VSSB3VSSE1VSSG8VSSJ2VSSJ8VSSM1VSSM9VSSP1VSSP9VSST1VSST9VSSQB1VSSQB9VSSQD1VSSQD8VSSQE2VSSQE8VSSQF9VSSQG1VSSQ

G9

A13

T3

A12/BC

N7

A11

R7

A10/AP

L7

A9

R3

A8

T8

A7

R2

A6

R8

A5

P2

A4

P8

A3

N2

A2

P3

A1

P7

A0

N3

BA0

M2

BA1

N8

BA2

M3

CK

J7

CK

K7

CKE

K9

CS

L2

RAS

J3

CAS

K3

WE

L3

ODT

K1

RST

T2

ZQ

L8

LDM

E7

UDM

D3

A14

T7

VDDB2VDDD9VDDG7VDDK2VDDK8VDDN1VDDN9VDDR1VDD

R9

VDDQA1VDDQA8VDDQC1VDDQC9VDDQD2VDDQE9VDDQF1VDDQH2VDDQ

H9

DQU7

A3

DQU6

B8

DQU5

A2

DQU4

A7

DQU3

C2

DQU2

C8

DQU1

C3

DQU0

D7

DQL7

H7

DQL6

G2

DQL5

H8

DQL4

H3

DQL3

F8

DQL2

F2

DQL1

F7

DQL0

E3

LDQS

F3

LDQS

G3

UDQS

C7

UDQS

B7

VREF_DQ

H1

VREF_CA

M8

DDRS_A11 DDRS_A12

DDRS_A10

DDRS_A15

DDRS_A14

DDRS_A13

DDRS_BA2

DDRS_BA1

DDRS_BA0

DDRS_CLKn

DDRS_BA1

DDRS_BA0

DDRS_CASn

DRAM_S_MCKE

DDRS_A2

DDRS_CLK

DDRS_WEn

DDRS_RASn

DDRS_BA2

DDRS_A8

DDRS_A7

DDRS_A1

DDRS_A0

DDRS_A3

DDRS_A14

DDRS_A13

DDRS_A6

DDRS_A5

DDRS_A4

DDRS_A9

DRAM_S_RSTn DDRS_ODT

DDRS_A11 DDRS_A12

DDRS_A10

R4347

NC/ 1K 1/ 16W 1%

DRAM1V5

DDRS_A3

DDRS_A2

DDRS_A9

DDRS_A8

DDRS_A7

DDRS_A1

DDRS_A0

DDRS_A14

DDRS_A13

DDRS_A6

DDRS_A5

DDRS_A4

DDRS_A11 DDRS_A12

DDRS_A10

DDRS_A15

C4377

100N 16V

DDRS_A3

DDRS_A2

DDRS_BA2

DDRS_BA1

DDRS_BA0

DDRS_A9

DDRS_A8

DDRS_A7

DDRS_A1

DDRS_A0

DDRS_A15

DDRS_A14

DDRS_A13

DDRS_A6

DDRS_A5

DDRS_A4

DDRS_RASn

DDRS_CASn

DDRS_A11 DDRS_A12

DDRS_A10

DDRS_ODT

DDRS_WEn

C4378

10N 50V

C4379

10N 50V

R4348

NC/ 1K 1/ 16W 1%

DRAM1V5

DRAM_S_RSTn

R4351

NC/0R

R4360

100K 1%

DDRS_CDQL7

DDRS_CDQL6

DDRS_CDQL1 DDRS_CDQL2

DDRS_BA1

DDRS_BA0

DDRS_CDQL5

DDRS_CDQU0

DDRS_CDQL0

DDRS_CDQL4

DDRS_CDQL3

DDRS_BA2

DDRS_CDQU7

DDRS_CDQU6

DDRS_CDQU2

DDRS_CDQU1

DDRS_CDQU5

DDRS_CDQU4

DDRS_CDQU3

NT72666 32BITS DDR SLAVE

U401A

NT72666BG-BA/D

SA0

W5

SA1

T1

SA2

Y6

SA3

AA4

SA4

U5

SA5

AA5

SA6

R1

SA7

Y2

SA8

T3

SA9

Y5

SA10

T6

SA11

V4

SA12

U6

SA13

W2

SA14

V5

SA15

W6

SBA0

AB5

SBA1

T5

SBA2

AB6

SWE#

W3

SCAS#

V1

SRAS#

V2

SODT

AC6

SCKE

R4

SCLKP

U2

SCLKN#

U3

SCSC

AB3

SRESET

Y3

SVREF

AC5

CDQL0

AD2

CDQL1

AG1

CDQL2

AD3

CDQL3

AH3

CDQL4

AB2

CDQL5

AJ3

CDQL6

AC3

CDQL7

AH2

CDQU0

AH5

CDQU1

AD4

CDQU2

AJ6

CDQU3

AD5

CDQU4

AG4

CDQU5

AE4

CDQU6

AH6

CDQU7

AE5

CDQSLP

AE2

CDQSLN#

AF3

CDQSUP

AF5

CDQSUN#

AG6

CDML

AG3

CDMU

AE3

DDQL0

K3

DDQL1

N1

DDQL2

J1

DDQL3

N2

DDQL4

H2

DDQL5

R3

DDQL6

J3

DDQL7

P2

DDQU0

P6

DDQU1

K6

DDQU2

P5

DDQU3

J4

DDQU4

N6

DDQU5

K5

DDQU6

N4

DDQU7

L6

DDQSLP

L2

DDQSLN#

M3

DDQSUP

M6

DDQSUN#

M5

DDML

M1

DDMU

K2

SCSD

AA2

GND_CLKS1

V3

GND_CLKS2

T2

C4367

100N 16V

R4361 62 OHM

U433

G2992F1U

VIN

1

GND

2

VREF

3

VOUT4NC

5

VCNTL

6

NC

7

NC

8

E-PAD

9

R4362 62 OHM R4363 62 OHM

C4380 100N 16V

C4393

22UF

R4364 62 OHM

C4381

100N 16V

R4365 62 OHM

C4352

1N 50V

R4366 62 OHM

VTT_DDR_S

PWR_ON4,10,15

C4382 1UF 6. 3V

R4367

4K7 1/16W 5%

STBC3V3

R4368 62 OHM

C4383

1UF 6. 3V

DRAM1V5

R4369 62 OHM

R4388 1K

R4370 62 OHM R4371 62 OHM

DRAM_RST_F10,15

DRAM_S_RSTnDRAM_RST_F

R4390 0R 05 1/ 16W

DDRS_CKE_F10

DRAM_S_MCKE

R4389 1K

DDRS_CKE_F

R4372 62 OHM

C4394

22UF

C4353

1N 50V

R4373 62 OHM

R4374 62 OHM

C4384

100N 16V

R4375 62 OHM

R4376 62 OHM C4385

100N 16V

C4351

10N 50V

R4377 62 OHM

Q432

2N7002K

VTT_D DR_S

R4378 62 OHM

R4379 62 OHM

C4386

100N 16V

FB437

60R

1 2

R4380 62 OHM

R4381 62 OHM

C4387

100N 16V

R4383 62 OHM

R4382 NC/ 62 OH M

C4388

100N 16V

C4354

10N 50V

R4384 62 OHM

R4385 62 OHM

C4389

100N 16V

R4386 62 OHM

C4355

22UF

C4390

100N 16V

R4387 62 OHM

DDRS_DDQL7

DDRS_DDQL6

DDRS_DDQL2

DDRS_DDQL1

DDRS_DDQL5

DDRS_DDQL0

DDRS_DDQL4

DDRS_DDQL3

DDRS_ODT

DDRS_CDMU

DDRS_CDML

C4361

100N 16V

C4360

100N 16V

C4363

100N 16V

C4362

100N 16V

R4355

1K 1/16W 1%

C4364

100N 16V

C4365

100N 16V

C4366

100N 16V

C4391

22UF

C4392

22UF

DRAM_S_RSTn

DDRS_CCSn

C4368

100N 16V

DRAM1V5

R4393

240R 1%

DRAM1V5

R4391

300R 1%

C4369

100N 16V

C4370

100N 16V

C4372

100N 16V

C4371

100N 16V

C4373

100N 16V

DDRS_DCSn

DDRS_CCSn

DDRS_CLK DDRS_CLKn

C4374

100N 16V

DDRS_DDML DDRS_DDMU

DDRS_ODT

DDRS_CASn DDRS_WEn

DDRS_RASn

R4356

1K 1/16W 1%

DRAM1V5

DDRS_DCSn

DRAM_S_RSTn

R4394

240R 1%

R4392

300R 1%

DDRS_CASn

DDRS_RASn DDRS_WEn

DDRS_CLKn

DDRS_CLK

DRAM_S_MCKE

DDRS_CDQSUn

DDRS_CDQSL DDRS_CDQSLn

C4357

1N 50V

VREF_C

DDRS_CDQSU

C4375

100N 16V

R4358

1K 1/16W 1%

DDRS_DDQSUn

DRAM_S_MCKE

DDRS_CLK DDRS_CLKn

C4358

1N 50V

DDRS_DDQSLn

DDRS_DDQSL

C4376

100N 16V

DDRS_DDQSU

VREF_D

Circuit Diagrams and PWB Layouts

EN 60TPN15.2E LA 10.

2015-Nov-27

back to

div.table

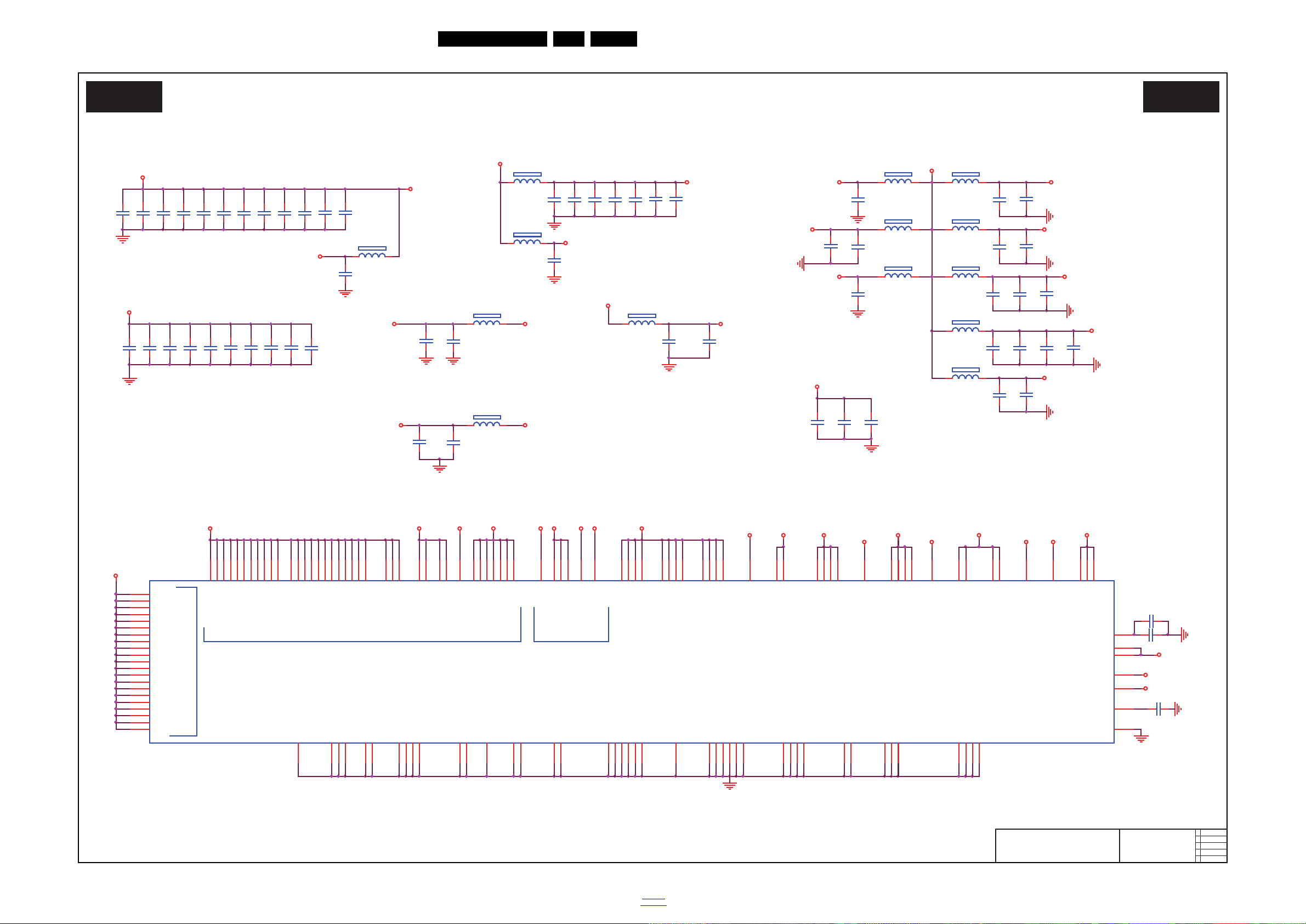

10-3-14 NT72666 POWER

19970_513.eps

NT72666 POWER

B14 B14

2015-06-25

4

715G7673

NT72666 POWER

C4207

FB434

60R

1 2

LVDS

TVAD C0

USB3.0_2V5

APLL_2V5 AUCODEC

C4252

2.2UF 10V

DEMOD_2V5

MAIN2V5

TVADC1

VDD25

C4208C4205

100N 16V

C4209

C4233

NC/100N 16V

C4201

22UF

FB424

60R

1 2

STBC3V3

FB435

60R

1 2

C4210

FB428

60R

1 2

C4234

NC/100N 16V

C4211

C4227

10UF 6. 3V 20%

C4221

100N 16V

C4235

100N 16V

C4242

100N 16V

C4230

100N 16V

C4212

C4249

22UF

C4220

100N 16V

C4222

100N 16V

C4241 1UF 6. 3V

C4259 100N 16V

FB423

60R

1 2

DRAM1V5

MPLL_1V5

C4236

100N 16V

FB429

60R

1 2

C4226

220nF 16V

C4213

C4223

100N 16V

C4237

100N 16V

FB422

60R

1 2

C4214

C4243

100N 16V

C4250

1UF 6.3V

FB425

60R

1 2

C4260

10UF 6. 3V 20%

C4238

100N 16V

FB430

60R

1 2

C4224

100N 16V

C4239

100N 16V

VDD25

USB3.0_0V9

USB3.0_2V5

DRAM1V5

VDD25

TVADC_3V3

VDD3V3

VDD25 CORE0V9 VDD3V3DRAM1V5

DEMOD_2V5 TVADC1

TVAD C_3V3

MPLL_1V5 AUCODEC LVDSTVADC0

APLL_2V5

C4254

NC/2.2U F 10V

C4202

22UF

FB431

60R

1 2

C4240

100N 16V

C4231

100N 16V

C4244

100N 16V

C4245

1UF 6.3V

C4246

1UF 6. 3V

DRAM1V5

C4225

10UF 6.3V 20%

C4232

100N 16V

DDR

CORE 0V9

USB

NT72666 POWER / GND

U401J

NT72666BG-BA/D

VDD_CORE1

D4

VDD_CORE2

D5

VDD_CORE3

D6

VDD_CORE4

D8

VDD_CORE5

E4

VDD_CORE6

E5

VDD_CORE7

E6

VDD_CORE8

E7

VDD_CORE9

E8

VDD_LDO1

AL8

VDD_CLKS

AJ8

VDD25_DLL

AV18

VDD33_USB2_1

AT20

VDD25_USB30

AU18

VDD09_USB30

AW18

VDD33_HDMI4

AW21

VDD33_HDMI1

AT21

VDD33_IO4

AW19

VDD33_IO1

AT19

VDD33_IO2

AU19

VDD33_IO3

AV19

VDD15_MPLL

AK42

VDD25_TVADC1_1

Y35

VDD25_TVADC1_2

Y36

VDD25_TVADC1_3

AA35

VDD25_BIAS

W36

VDD25_TVADC0_1

U36

VDD25_TVADC0_2

U37

PAD_EFUSE

AV39

VDD33_TVADC0

L38

VDD33_USB1

K38

VDD33_ETH_PHY1

AT22

VDD25_LVDS1

M35

GND_USB1_1

H38

GND_USB2_1

AT18

GND_USB2_2

AR18

GND_USB2_3

AR17

GND_HDMI1

AV24

GND_HDMI2

AV23

GND_ETH_ADC

AW24

GND_ETH_PHY1

AU24

GND_XTAL

AK41

GND_DEMOD2

AB33

GND_TVADC1_1

AA34

GND_TVADC1_2

AA33

GND_TVADC1_3

AA32

GND_TVADC1_4

Y34

GND_TVADC0_1

W34

GND_TVADC0_2

W33

GND_TVADC0_3

V34

GND_TVADC0_4

V33

GND_BIAS

W35

GND_AUD_A_1

T30

GND_APLL1

L37

GND_TVDAC2

P34

GND_LVDS1

K36

GND_LVDS2

K35

GND_LVDS3

L35

GND_DDR_APLL

AT17

VDD09_STBC

AM42

VDD33_STBC1

AL41

VDD33_XTAL

AL40

VDD_CORE10

F4

VDD_CORE11

F5

VDD_CORE12

F6

VDD_CORE13

F7

VDD_CORE14

F8

VDD_CORE15

G6

VDD_CORE16

G7

VDD_CORE17

G8

VDD33_HDMI2

AU21

VDD33_HDMI3

AV21

VDD25_DEMOD1

AB34

VDD25_DEMOD2

AC34

VDD25_TVADC1_4

AA36

VDD25_TVADC0_3

V35

VDD25_TVADC0_4

V36

VDD25_AUADC1

T32

VDD25_AUADC2

T33

VDD25_AUDAC1

U32

VDD25_AUDAC2

U33

VDD25_APLL

N37

VDD25_TVDAC

P36

GND_USB1_2

H37

GND_TVADC1_5

Y33

GND_TVADC1_6

Y32

GND_TVADC0_5

V32

GND_TVADC0_6

V31

GND_AUD_A_2

T31

GND_TVDAC1

P35

VDD33_STBC2

AM40

VDD_NAND

AM41

VDD_MMU_M1

AL1

VDD_MMU_M2

AL2

VDD_MMU_M3

AL3

VDD_MMU_M4

AL4

VDD_MMU_M5

AL5

VDD_MMU_M6

AM5

VDD_MMU_M7

AN5

VDD_MMU_M8

AN6

VDD_MMU_M9

AN7

VDD_MMU_M10

AM7

VDD_MMU_M11

AP7

VDD_MMU_S1

AK1

VDD_MMU_S2

AK2

VDD_MMU_S3

AK3

VDD_MMU_S4

AK4

VDD_MMU_S5

AK5

VDD_MMU_S6

AK6

VDD_MMU_S7

AK7

VDD_MMU_S8

AJ7

VDD_MMU_S9

AL6

VDD_MMU_S10

AL7

VDD_MMU_S11

AM6

VDD_LDO2

AL9

VDD_LDO3

AM8

VDD_CLKS

AH8

VDD_CLKM

AN8

VDD_DDR1G4VDD_DDR2G5VDD_DDR3H5VDD_DDR4H6VDD_DDR5J6VDD_DDR6J7VDD_DDR7

K7

VDD33_USB2_3

AV20

VDD33_USB2_2

AU20

VDD33_ETH_PHY2

AU22

VDD33_ETH_PHY3

AV22

VDD33_ETH_PHY4

AW22

VDD25_LVDS2

M36

VDD25_LVDS3

N36

VDD_CORE18

H7

VDD_CORE19

H8

VDD_CORE20

J8

VDD_CORE21

K8

GND_HDMI3

AU23

GND_HDMI4

AT23

GND_ETH_PHY2

AT24

GND_APLL2

L36

GND_DEMOD3

AB32

GND_AUD_D_2

U31

GND_AUD_D_1

U30

NC1

A42

NC2

BB42

NC3A1NC4

BB1

VDD_MMU_S12

AH7

VDD_CLKM

AP8

C4255

2.2UF 10V

C4253

NC/2.2UF 10V

FB427

60R

1 2

FB421

60R

1 2

CORE0V9

C4256

2.2UF 10V

FB432

60R

1 2

C4215

100N 16V

C4216

100N 16V

C4258

2.2UF 10V

C4257

2.2UF 10V

FB433

60R

1 2

C4217

100N 16V

C4203 4.7UF 6. 3V

C4247

22UF

USB3.0_0V9

DRAM1V5

C4251

2.2UF 10V

C4218

100N 16V

NAND_eMMC

STBC_VDD

C4204

100N 16V

C4206

CORE0V9

TVADC_3V3

VDD3V3

MAIN3V3

STBC3V3STBC_VDD

NAND_eMMC

C4228

100N 16V

C4229

100N 16V

C4248

22UF

C4219

100N 16V

Circuit Diagrams and PWB Layouts

EN 61TPN15.2E LA 10.

back to

div.table

2015-Nov-27

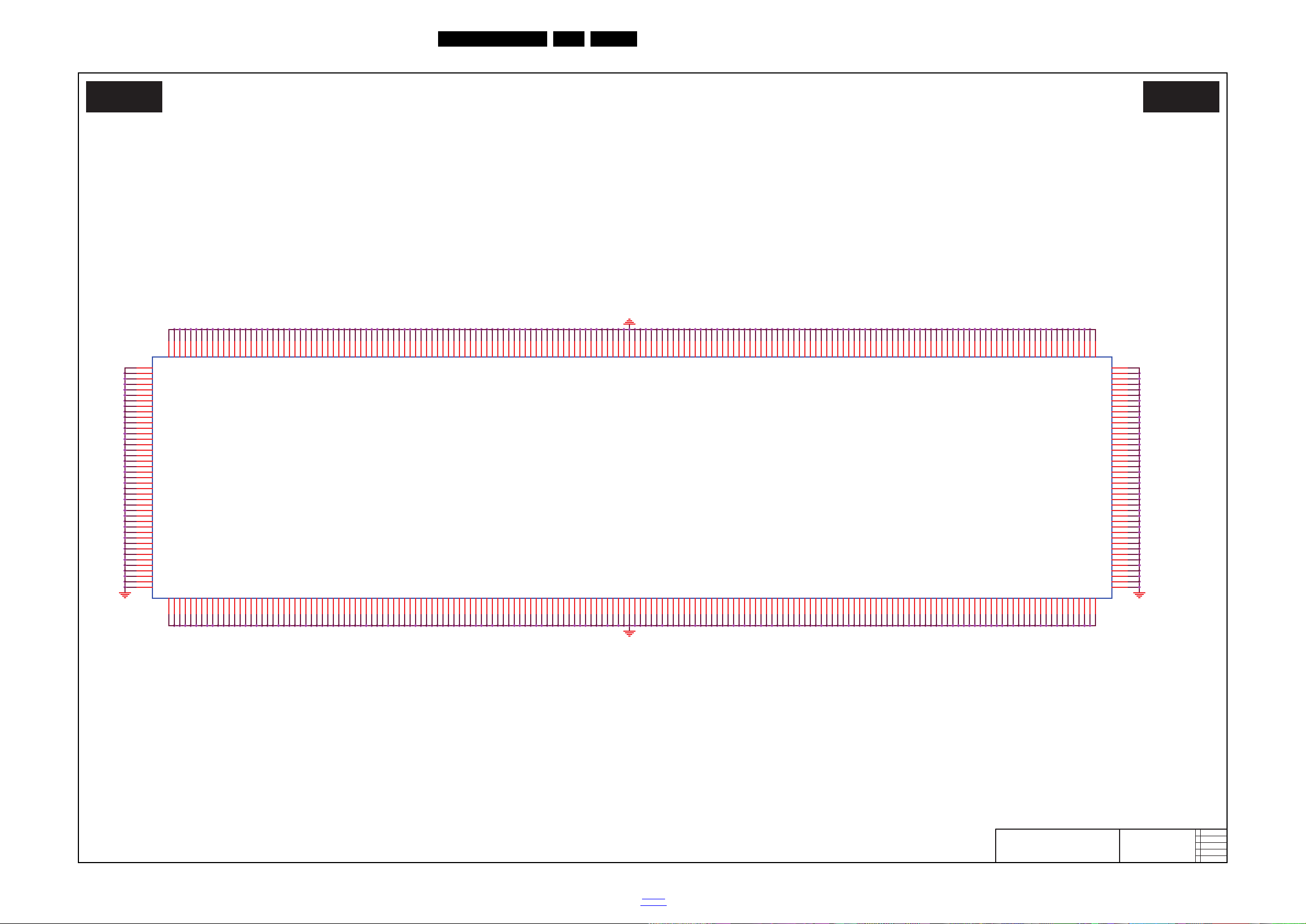

10-3-15 GROUND

19970_514.eps

GROUND

B15 B15

2015-06-25

4

715G7673

GROUND

NT72666 GND

U401K

NT72666BG-BA/D

GNDC9GNDD9GNDE9GNDF9GND

F10

GNDG9GND

G10

GND

G11

GNDH9GND

H10

GND

H11

GND

H12

GNDJ9GND

J10

GND

J11

GND

J12

GND

J13

GNDK9GND

K10

GND

K11

GND

K12

GND

K13

GNDL7GNDL8GNDL9GND

L10

GND

L11

GND

L12

GND

L13

GNDM7GNDM8GNDM9GND

M10

GND

M11

GND

M12

GND

M13

GNDN7GNDN8GNDN9GND

N10

GND

N11

GNDP7GNDP8GNDP9GND

P10

GND

P11

GND

P12

GNDR7GNDR8GNDR9GND

R10

GND

R11

GNDT7GNDT8GNDT9GND

T10

GND

T11

GND

T12

GNDU7GNDU8GNDU9GND

U10

GND

U11

GNDV7GNDV8GNDV9GND

V10

GNDW7GNDW8GNDW9GND

W10

GNDY7GNDY8GNDY9GND

Y10

GND

AA7

GND

AA8

GND

AA9

GND

AA10

GND

AB7

GND

AB8

GND

AB9

GND

AB10

GND

AB11

GND

AC7

GND

AC8

GND

AC9

GND

AC10

GND

AC11

GND

AD7

GND

AD8

GND

AD9

GND

AD10

GND

AD11

GND

AD12

GND

AE7

GND

AE8

GND

AE9

GND

AE10

GND

AE11

GND

AE12

GND

AF7

GND

AF8

GND

AF9

GND

AF10

GND

AF11

GND

AF12

GND

AG7

GND

AG8

GND

AG9

GND

AG10

GND

AG11

GND

AH9

GND

AH10

GND

AH11

GND

AJ9

GND

AJ10

GND

AJ11

GND

AK8

GND

AK9

GND

AK10

GND

AK11

GND

AM9

GND

AM10

GND

AM11

GND

AN9

GND

AN10

GND

AN11

GND

AT7

GND

AT8

GND

AT9

GND

AT10

GND

G15

GND

H16

GND

J17

GND

K18

GND

K19

GND

L19

GND

G24

GND

G25

GND

H23

GND

H24

GND

H25

GND

J23

GND

J24

GND

K23

GND

L23

GND

K27

GND

J28

GND

G35

GND

G36

GND

H34

GND

H35

GND

H36

GND

J33

GND

J34

GND

J35

GND

K31

GND

K32

GND

K33

GND

K34

GND

L29

GND

L30

GND

L31

GND

L32

GND

L33

GND

L34

GND

M29

GND

M30

GND

M31

GND

M32

GND

M33

GND

M34

GND

N30

GND

N31

GND

N32

GND

N33

GND

P30

GND

P31

GND

P32

GND

P33

GND

R30

GND

R31

GND

R32

GND

R33

GND

J36

GND

J37

GND

K37

GND

A41

GND

B39

GND

B40

GND

B41

GND

B42

GND

C40

GND

C41

GND

C42

GND

D38

GND

D39

GND

E37

GND

E38

GND

E39

GND

F37

GND

F38

GND

F39

GND

G37

GND

G38

GND

AK29

GND

AL29

GND

AM29

GND

AN29

GND

AP29

GND

AR29

GND

AC32

GND

AC33

GND

AD32

GND

AD33

GND

AD34

GND

AD35

GND

AD36

GND

AE32

GND

AE33

GND

AE34

GND

AE35

GND

AF32

GND

AF33

GND

AF34

GND

AF35

GND

AF36

GND

AG32

GND

AG33

GND

AG34

GND

AG35

GND

AG36

GND

AH32

GND

AH33

GND

AH34

GND

AH35

GND

AH36

GND

AJ33

GND

AJ34

GND

AJ35

GND

AJ36

GND

AK33

GND

AK34

GND

AK35

GND

AL33

GND

AL34

GND

AL35

GND

AM33

GND

AM34

GND

AM35

GND

AN33

GND

AN34

GND

AN35

GND

AP34

GND

U16

GND

U17

GND

U18

GND

U19

GND

V16

GND

V17

GND

V18

GND

V19

GND

V20

GND

W17

GND

W18

GND

W19

GND

W20

GND

W21

GND

W22

GND

W23

GND

W24

GND

W25

GND

W26

GND

W27

GND

Y17

GND

Y18

GND

Y19

GND

Y21

GND

Y22

GND

Y23

GND

Y24

GND

Y25

GND

Y26

GND

Y27

GND

AA17

GND

AA18

GND

AA19

GND

AA20

GND

AA21

GND

AA22

GND

AA23

GND

AA24

GND

AA25

GND

AA26

GND

AA27

GND

AB17

GND

AB18

GND

AB19

GND

AB20

GND

AB21

GND

AB22

GND

AB23

GND

AB24

GND

AB25

GND

AB26

GND

AC17

GND

AC18

GND

AC19

GND

AC20

GND

AC21

GND

AC22

GND

AC23

GND

AC24

GND

AC25

GND

AC26

GND

AC27

GND

AD17

GND

AD18

GND

AD19

GND

AD20

GND

AD21

GND

AD22

GND

AD23

GND

AD24

GND

AD25

GND

AD26

GND

AE17

GND

AE18

GND

AE19

GND

AE20

GND

AE21

GND

AE22

GND

AE23

GND

AE24

GND

AE25

GND

AE26

GND

AF17

GND

AF18

GND

AF19

GND

AF20

GND

AF21

GND

AF22

GND

AF23

GND

AF24

GND

AF25

GNDH3GNDJ2GNDJ5GNDK1GNDK4GNDL3GNDL5GNDM2GNDM4GNDN3GNDN5GNDP3GNDR2GNDR6GNDT4GNDV6GNDW1GNDW4GND

AA1

GND

AA3

GND

AA6

GND

AB1

GND

AB4

GND

AC2

GND

AD1

GND

AD6

GND

AE1

GND

AE6

GND

AF2

GND

AF6

GND

AG2

GND

AG5

GND

AH1

GND

AH4

GND

AJ2

GND

AJ5

GND

AM3

GND

AN2

GND

AN4

GND

AP1

GND

AP5

GND

AR3

GND

AT2

GND

AT6

GND

AU3

GND

AU6

GND

AV3

GND

AV4

GND

AW2

GND

AW5

GND

AY2

GND

BA3

GND

AV7

GND

BB7

GND

AV9

GND

AY9

GND

BB9

GND

AV10

GND

BB10

GND

BA11

GND

AV12

GND

BB12

GND

AW13

GND

BB13

GND

AV14

GND

BA14

GND

AW15

GND

BA15

GND

AV16

GND

BB16

GND

AU17

GNDR5GND

AW1

GND

Y20

GND

N34

GND

N35

Circuit Diagrams and PWB Layouts

EN 62TPN15.2E LA 10.

2015-Nov-27

back to

div.table

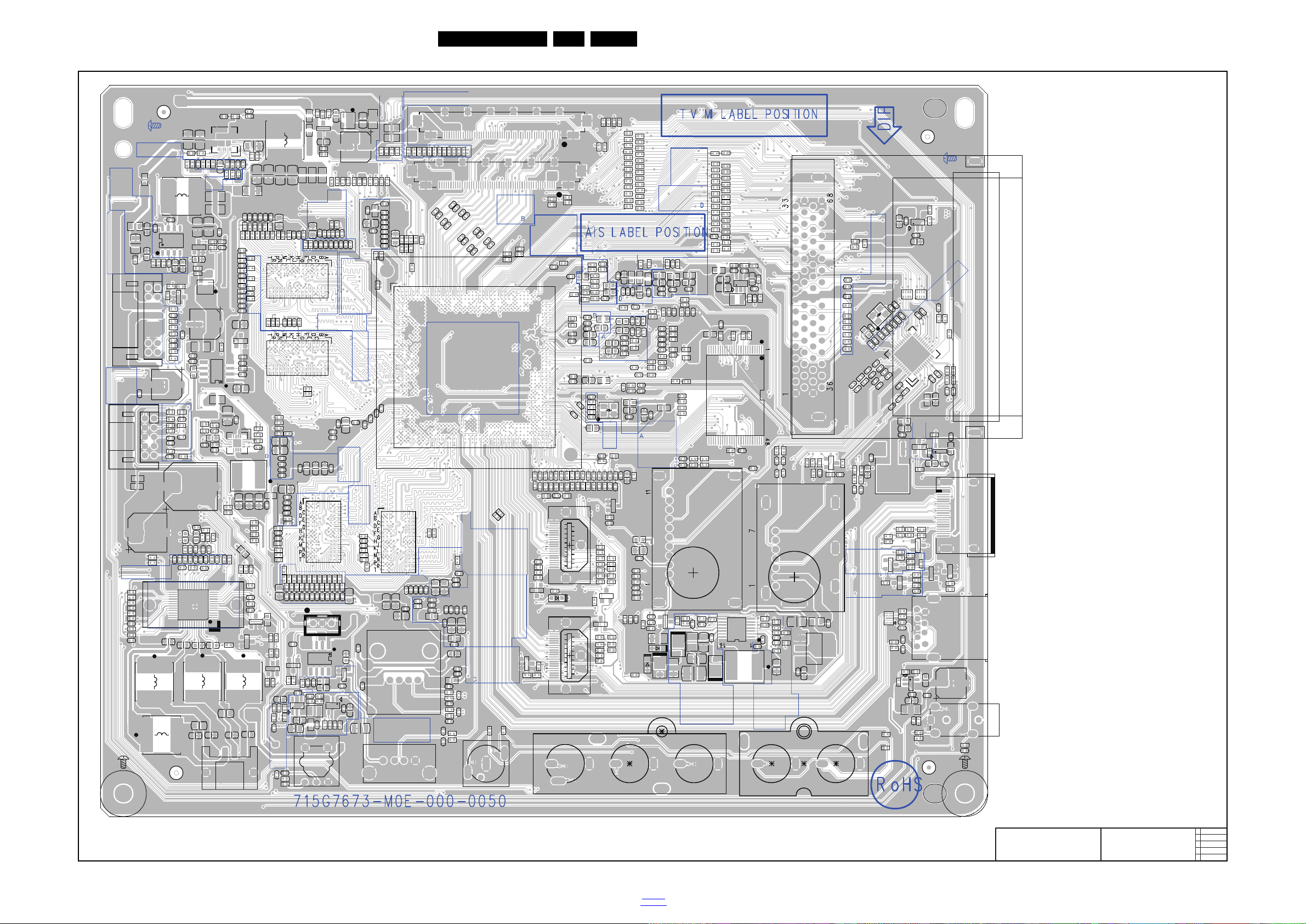

10-3-16 SSB layout top

19970_515.eps

2015-06-11

C

LAYOUT TOP

715G7673

FB604

FB603

C4125

U401

CN503

C4203

FB203

C239

X201

FB204

FB402

C173

C4344

C4303

C137

C136

C621

C753

FB429

C127

C131

C126

C125

C129

C4258

X401

FB424

C4227

CN403

FB102

FB101

R777

C767

C756

FB751

C755

FB750

C4341

C4340

C734

CN410

C766

C765

FB436

FB425

CN408

C4343

FB723

FB724

FB725

C4248

C4260

C723

FB702

C707

C719

ZD201

R294

R296

ZD202

C218

FB205

FB201

C209

FB423

C4257

D501

R619

R618

FB435

L202

C244

C749

C748

C741

C739

L721

FB721

L603

FB602

FB601

L604

C620

C4120

C4118

TH4103

FB202

C243

C241

C4202

C4201

C4225

FB428

FB430

C4251

C4252

C4253

C4254

C4255

C4256

C605

C607

C608

C610

C715

C728

C744

C745

C4247

C4249

C4338

C4339

C4342

C4345

C4355

C4391

C4392

C4393

C4394

C606

C609

C717

C758

C762

C764

C702

C722

C725

C726

C746

C747

C759

FB421

FB422

FB427

FB431

FB432

FB433

FB434

FB437

FB701

FB714

FB709

L601

L602

L703

R711

R722

R772

R779

C206

C505

C704

C740

C298

C245

C251

R746

FB726

CN605

C4117

C705

C752

C754

C601C602

C603

C604

C179

C4126

C506

C4135

C4137

FB401

R202

U3

U4

TP714

TP708

TP709

TP719

TP718

C6

TP402

C7

C8

C9

C10

C11

C12

C14

C15

C16

SCREW2

SCREW1

C1

TP720

TP706

TP707

TP722

TP721

TP712

TP713

TP715

TP723

TP716

TP717

R546

R545

C4204

C4131

C4132

R4163

R4165

R4164

C4133

R4166

C4129

C4128

U410

R504 R522

R143

R4149

C4113C4114

R4213

R4214

R614

R631

R193

R603

R630

C222

C261

C228

C220

C213

R601

C627

Q602

C227

C502 R543 R534

Q508

R4232

R4244

C4121

C4122

U413

C4116

R520

R295

L201

C154

CN104

R157

C202

C203

R211

R214

C260

Q202

R132

R4235

R4236

C4259

R4162 R4161

C103

R133

R4110

R4160

RP202

R326

C231

C257

R323

C234

C225

C226

C223

C258

C259

R315

C235

C236

R228

R229

R231

R235

R226

R225

C247

R227

C215

C216

C229

C175

RP201

CN159

C238

R223

C233

C230

R220

C214

R224

U201

R222

C232

R221

C237

R282

R158

U601

R4115

R4114

C4109

R4116

FB403

FB404

C4108

R4104

C4107 R4112

C177

C171

R176

R175

U102

R195

C176

C178

D506

ZD116

ZD115

R125

C121

C142 R145

ZD110

ZD111

R101

R146

C101

R136

R171

R4227

R551 R552

R181

C4124

R636 R635

R4237

R705

R716

Q703

R719

R752

R203

R251

R240

R248

R247

R249

R194

R213

C132

FB107

C128

C130

C4231

C105

C4106

R4101

C4105

R4103

R4102

C4228

C4238

R4215

R4224

R4218

R4226

R167

R165

R166

R159

R283

R311

R285

R284

R774

R773

Q752

Q753

R766

R767

R769

C4110

R4138

C4111

R4128

C4330

Q431

R4310

R4309

C711

R628

R657

R629

C612

R4343

R4344

R4308

R4346

R4158

R4159

C730

U707

C763

C4326

C4329

R4217

R4225

U411

R4222

R153

ZD502

R536

R509

R304

R261

R112

R111

R259 R258

R113 R114

C157

C158

C155

C156

C153

C152

C151

C150

C149

C148

C147

C144

C143

C146

C145

R164

C102

R147

R102

R508

R507

R521

C109

R119

ZD112

R128

C110

ZD113

R129

ZD114

C111

R531

R305

R303

C219

R241

R245

R246

R244

C4323

C4322

C4321

C4319

C4318

C4317

R4220

R4230

R154

R150

R149

R4223

R155

R156

R4221

C4206

C224

U204

Q502

R515

R533

R532

R4204

C211

R216

R219

R4205

C212

R217

R218

C254

C256 R306

C204

C201

C205

R212

R215

R4238

R4239

C4229

HS3

R109C123

R127

C122

R107

R108

R106

R105

C118

C117

R110

C124

C104 C107

R104

R103C106

R550

C4396 R4202

C119

R122

R115

R121

C120

R116

U703

R728

R718

R712

R710

R706

R703

L705

C737

C736

C716

C706

R179

R257

R239

R208

R201

R207

R232

R233

R124

R200

R204

R234

R123

R238

R237

R236

R210

R230 R120

R250

R118

R117

C135

R4127

R4105

C297

R292

R289 R290

R297

Q201

C296

R291

C221

C208

C217

R299

C249

R301

R300

R287

R286

C253

C248

R4145

R4151

R4140

R4154

R4141

R4155

R4133

R4137

R4120

R4150

R4119

R4125

R4142

R4143

R4156

R4157

R4129

R4134

R4144

R4146

R4152

C4241

C4220

R4153

R4147

R4136

R4135

R4132

R4131

R4130

R4126

C255

R243

R549

C172

C174

R177

R255

R252

C4237

R4201

R126

R144

C141

R135

R503

R537 R539

Q506

R632

C140

R4242

R4241

R4209

R4208

R141

R137

R169

R168

C4240

R4247

R180

R178

R254

R253

R620

R4246

R142

R130

R4233

C4395

R206

R148

R161

R160

R209

R205

R151

R184

R152

R162

R163

R199

R198

R197

R196

R192

R191

R190

R189

R188

R187

R186

R185

R183

R174

R173

R172

R293

R288

C250

C246

D203

D202

U202

R735

R770

R739

C738

C732

R658

R256

R182

ZD601

C618

C622

R727

R731

R724

C701

R730

C714

R725

C703

C4119

Q507

D508

R542R541

R535

R513

R512

R540R538

R510

ZD501

U412

R4231

R4243

C4123

C4115

R4216

R242

C210

C242

R4245

R505

R502

R501

R524 R523

C240

C4242

C4219

C4218

C4217

C4216

C4215

C108

R131

R139

R4117

R4139

R4118

R4113

U433

U435

C138

C139

C207

C4101

C4102

C4103

C4104

C4112

C4205

C4207

C4208

C4209

C4210

C4211

C4212

C4213

C4214

C4221

C4222

C4223

C4224

C4226

C4230

C4232

C4233

C4234

C4235 C4236

C4239

C4243

C4244

C4245

C4246

C4250

C4301

C4302

C4304

C4305

C4307

C4308

C4310

C4311

C4312

C4313

C4314

C4315

C4316

C4320

C4324

C4325

C4327

C4328

C4331

C4332

C4333

C4334

C4335

C4336

C4337

C4351

C4352

C4353

C4354

C4357

C4358

C4360

C4361

C4362

C4363

C4364

C4365

C4366

C4367

C4368

C4369

C4370

C4371

C4372

C4373

C4374

C4375

C4376

C4377

C4378

C4379

C4380

C4381

C4382

C4383

C4384

C4385

C4386

C4387

C4388

C4389

C4390

C501

C503

C504

C611

C614

C615

C616

C617

C619

C623

C624

C625

C628

C629

C631

C632

C708

C718

C720

C721

C724

C727

C729

C731

C733

C735

C742

C743

C751

C757

C760

C761

ZD401

ZD402

ZD412

ZD413

ZD602

L707

U702

R134

R138

R140

R4106

R4107

R4108

R4109

R4111

R4121R4122

R4123

R4124

R4148

R4203

R4210

R4211

R4212

R4219

R4228

R4229

R4234

R4240

R4301

R4302

R4305

R4306

R4307

R4311

R4312

R4313

R4314

R4315

R4316

R4317

R4318

R4319

R4320

R4321

R4322

R4323

R4324

R4325

R4326

R4327

R4328

R4329

R4330

R4331

R4332

R4333

R4334

R4335

R4336

R4337

R4338

R4339

R4340

R4341

R4342

R4345

R4347

R4348

R4351

R4354

R4355

R4356

R4357

R4358

R4359

R4360

R4361

R4362

R4363

R4364

R4365

R4366

R4367

R4368

R4369

R4370

R4371

R4372

R4373

R4374

R4375

R4376

R4377

R4378

R4379

R4380

R4381

R4382

R4383

R4384

R4385

R4386

R4387

R4388

R4389

R4390

R4391

R4392

R4393

R4394

R506

R511

R514

R516

R517

R518

R519

R525

R526

R527

R528

R529

R530

R544

R602

R604

R605

R606

R607

R608

R609

R610

R611

R612

R613

R615

R616

R617

R621

R622

R623

R624

R625

R626

R627

R633

R634

R701

R702

R704

R707

R708

R709

R713

R714

R715

R717

R720

R721

R723

R726

R729

R732

R733

R734

R736

R737

R738

R740

R742

R751

R764

R765

R768

R771

R775

R778

U706

U203

U705

U515

D507

Q503

Q504

Q601

Q603

Q702

Q432

Q501

H1

H2

C4397

R547

R548

R743

L706

D201

C252

C769

C774

C775

U709

R298

R302

R744

R747

R749

U402

U403

U406

U407

U1

U2

R260

CN701

CN401

CN601

CN118

CN103

CN101

CN102

TU103

TU102

CN602

CN502

CN501

HS2

C626

C630

U405

SCREW3

SCREW4

Q701

CN402

C4127

C4134

R4167

R307

R308

R309

R310

R312

R313

R314

R316

R317

C4136

C4138

C4139

Circuit Diagrams and PWB Layouts

EN 63TPN15.2E LA 10.

2015-Nov-27

back to

div.table

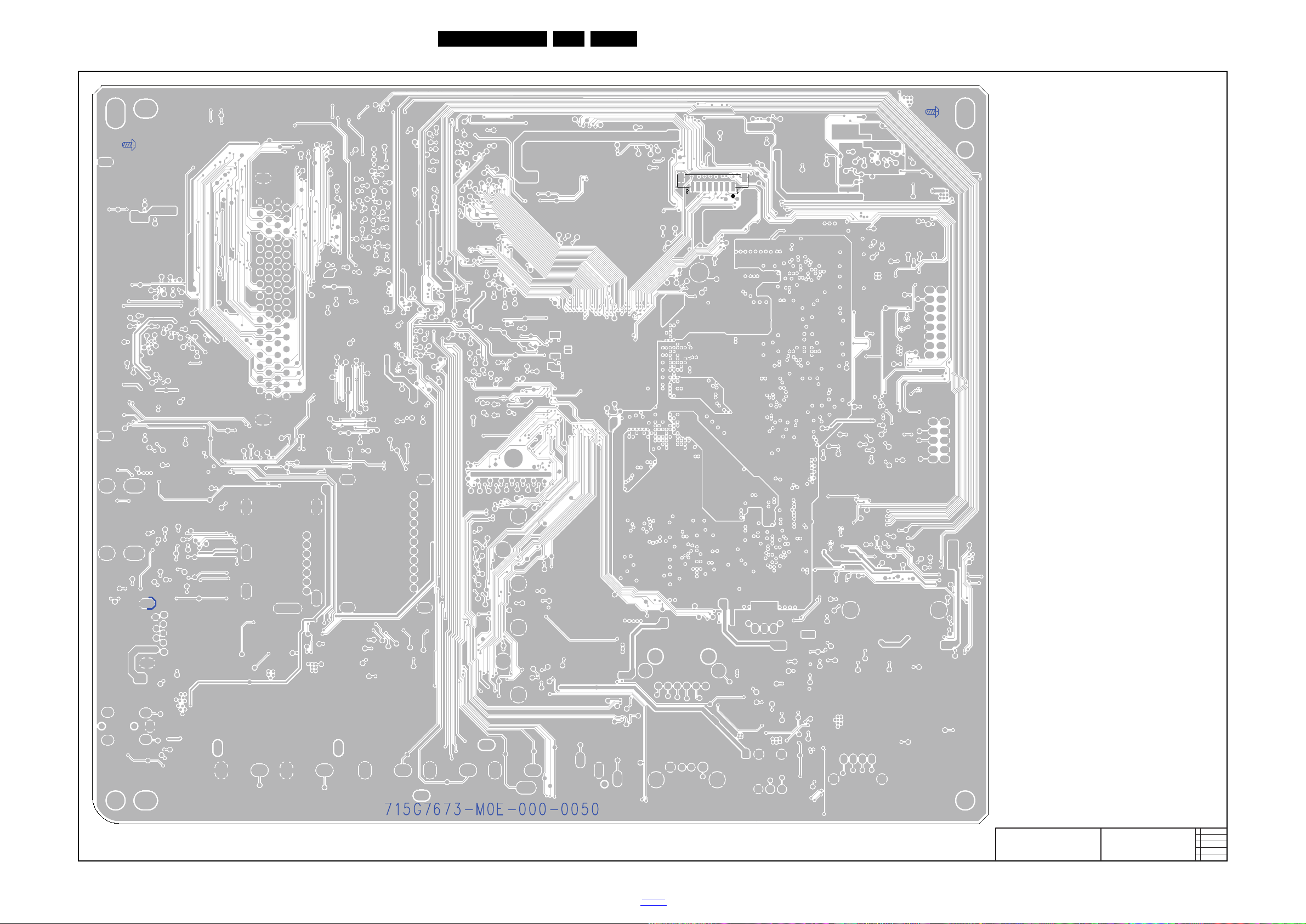

10-3-17 SSB layout bottom

19970_516.eps

2015-06-11

3

715G7673

Power layout bottom

TP711

TP405

TP408

TP401

TP403

TP406

TP407

TP404

TP705

TP703

TP702

TP701

TP704

TP710

CN109

Circuit Diagrams and PWB Layouts

EN 64TPN15.2E LA 10.

2015-Nov-27

back to

div.table

10.4 J 715G7459 IR/LED Panel

19970_517.eps

LED & IR & 3D & Light sensor

J J

2014-11-29

C

715G7495

LED&IR &3D&Light sensor

RC6RC6

LED_R

3V3SB 3V3SB

3V3SB

IR

stanby

ZD202

NC/AZ5125-01H.R7G

ZD202

NC/AZ5125-01H.R7G

12

R201 10K 1/16W 5%

R302 2K2 1/16W 5%

C304

1uF 10V

C304

1uF 10V

LED301

CHIP LED RED 19-21B/R6C-BL1M2VY/3T

LED301

CHIP LED RED 19-21B/R6C-BL1M2VY/3T

1

2

U201

IRM-H336M3/TR2

U201

IRM-H336M3/TR2

GND

1

VCC

2

Vout

3

GND

4

R301

1K 1/16W 5%

R301

1K 1/16W 5%

Q301 BC847BW

ZD203

NC/AZ5125-01H.R7G

ZD203

NC/AZ5125-01H.R7G

1

2

R202

100R 1/10W 5%

R202

100R 1/10W 5%

CN201

CONN

CN201

CONN

1 2 3 4 5

6

7

ZD201

NC/AZ5125-01H.R7G

ZD201

NC/AZ5125-01H.R7G

1

2

C305 1uF 10V

10-4-1 LED & IR & 3D & Light sensor

Circuit Diagrams and PWB Layouts

EN 65TPN15.2E LA 10.

2015-Nov-27

back to

div.table

10-4-2 IR/LED board layout

19970_518.eps

715G7495

IR/LED panel

layout top/bottom

CN201

C304

C305

R202

ZD202

ZD201

LED301

Q301

R201

R301

R302

U201

ZD203

Layout IR/LED panel (top side)

Layout IR/LED panel (bottom side)

Circuit Diagrams and PWB Layouts

EN 66TPN15.2E LA 10.

2015-Nov-27

back to

div.table

Circuit Diagrams and PWB Layouts

19791_502.eps

Key

E E

2014-05-28

1

715G7088

Keyboard control panel

KEY1

Left

Right

----><----|

Down

Up

Center

CN01

CONN

CN01

CONN

1 2

34

C04

NC/100N 50V

C04

NC/100N 50V

R03

6K8 1/10W 1%

R03

6K8 1/10W 1%

C01

NC/100N 50V

C01

NC/100N 50V

R05

15K 1/10W 1%

R05

15K 1/10W 1%

R01

1K2 1/10W 1%

R01

1K2 1/10W 1%

C06

0.1uF 50V

C06

0.1uF 50V

C03

NC/100N 50V

C03

NC/100N 50V

F5

F3

F1

F4

F2

SW01

TACT SW 6P

F5

F3

F1

F4

F2

SW01

TACT SW 6P

3

4

2

1

6 5

7

8

C02

NC/100N 50V

C02

NC/100N 50V

R04

2K2 1/10W 1%

R04

2K2 1/10W 1%

R02

0R05 1/10W

R02

0R05 1/10W

C05

NC/100N 50V

C05

NC/100N 50V

10.5 E 715G7088 Keyboard control panel

10-5-1 Key

EN 67TPN15.2E LA 10.

2015-Nov-27

back to

div.table

Circuit Diagrams and PWB Layouts

19791_503.eps

2014-06-06

1

715G7088

Keyboard control panel

layout top/bottom

C01

C02

C03

C04

C05 C06

R01

R02

R03

R04

R05

H1

H2

H3

H4

H5

H6

CN01

SW01

SW1

SW2

SW3

SW4

Layout Keyboard control panel (top side)

Layout Keyboard control panel (bottom side)

10-5-2 Key board layout

EN 68TPN15.2E LA 10.

2015-Nov-27

back to

div.table

11. Styling Sheets

19970_800.eps

4900 series 43"

Pos No. Description Remarks

0030 Bezel 0040 Rear cover 0050R Stand Assy-R 0050L Stand Assy-L 0095 V0 SHEET 1050 Display panel 1053 Panel SSB 1054 Power Supply Unit 1056 IR/LED panel 1057 Keyboard control panel 1176 Remote control Not displayed 1184 Speakers

FOR ELECTRICAL PARTS/ASSEMBLIES SEE WIRING DIAGRAM CHAPTER 9

1053

0030

1184

0040

0095

1054

0050L

1184

1056

1057

1050

0050R

11.1 4900 series 43"

Styling Sheets

EN 69TPN15.2E LA 11.

2015-Nov-27

back to

div.table

11.2 4900 series 49"

19970_801.eps

4900 series 49"

Pos No. Description Remarks

0030 Bezel 0040 Rear cover 0050R Stand Assy-R 0050L Stand Assy-L 0095 V0 SHEET 1050 Display panel 1053 Panel SSB 1054 Power Supply Unit 1056 IR/LED panel 1057 Keyboard control panel 1176 Remote control Not displayed 1184 Speakers

FOR ELECTRICAL PARTS/ASSEMBLIES SEE WIRING DIAGRAM CHAPTER 9

1053

0030

1184

0040

0095

1054

0050L

1184

1056

1050

0050R

1057

Styling Sheets

EN 70TPN15.2E LA 11.

2015-Nov-27

back to

div.table

11.3 4900 series 55"

19970_802.eps

4900 series 55"

Pos No. Description Remarks

0030 Bezel 0040 Rear cover 0050R Stand Assy-R 0050L Stand Assy-L 1050 Display panel 1053 Panel SSB 1054 Power Supply Unit 1056 IR/LED panel 1057 Keyboard control panel 1176 Remote control Not displayed 1184 Speakers

FOR ELECTRICAL PARTS/ASSEMBLIES SEE WIRING DIAGRAM CHAPTER 9

0030

0040

1053

1054

0050L

1184

1057

1056

1050

0050R

Styling Sheets

EN 71TPN15.2E LA 11.

2015-Nov-27

back to

div.table
