Philips 47PFL9703D/79 leaflet

Download

Page 1

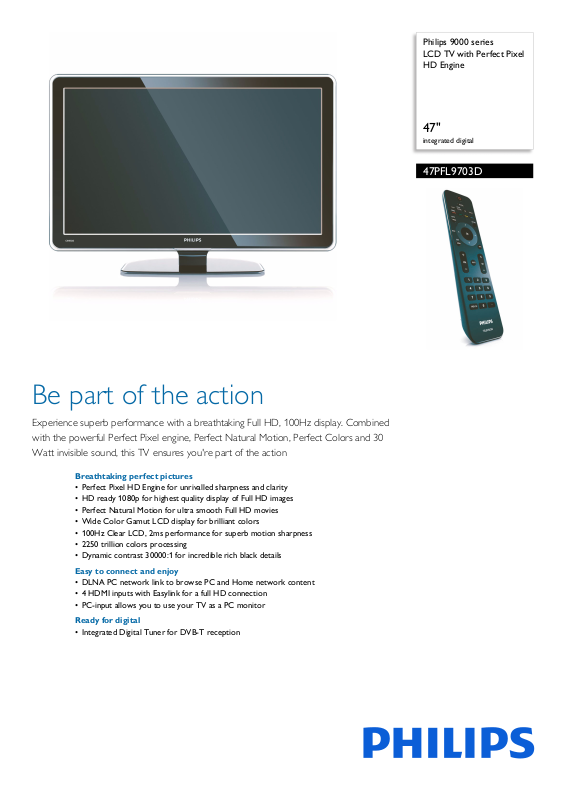

Philips 9000 series LCD TV with Perfect Pixel HD Engine

47"

integrated digital

47PFL9703D

Be part of the action

Experience superb performance with a breathtaking Full HD, 100Hz display. Combined with the powerful Perfect Pixel engine, Perfect Natural Motion, Perfect Colors and 30 Watt invisible sound, this TV ensures you're part of the action

Breathtaking perfect pictures

• Perfect Pixel HD Engine for unrivalled sharpness and clarity

• HD ready 1080p for highest quality display of Full HD images

• Perfect Natural Motion for ultra smooth Full HD movies

• Wide Color Gamut LCD display for brilliant colors

• 100Hz Clear LCD, 2ms performance for superb motion sharpness

• 2250 trillion colors processing

• Dynamic contrast 30000:1 for incredible rich black details

Easy to connect and enjoy

• DLNA PC network link to browse PC and Home network content

• 4 HDMI inputs with Easylink for a full HD connection

• PC-input allows you to use your TV as a PC monitor

Ready for digital

• Integrated Digital Tuner for DVB-T reception

Page 2

47PFL9703D/79

LCD TV

47" integrated digital

Highlights

Perfect Pixel HD Engine

Experience unrivalled sharpness and clarity w

ith Perfect Pixel HD Engine. Each pixel of the picture is enhanced to better match the surrounding pixels, resulting in a more natural picture. The result is a unique combination of sharpness, natural detail, vivid colors superior contrast and smooth natural motion whatever you are watching. Clean and razor sharp images result from artifact and noise detection and reduction in all content sources - from multimedia to standard TV.

Full HD LCD display 1920x1080p

Enjoy the exceptional picture quality of Full High De HDTV broadcast, or Blu-ray DVD. HD ready 1080p is a protected label that offers picture quality far beyond that of ordinairy HD Ready. It conforms to strict standards laid out by EICTA to offer a Full HD screen that displays the benefits of resolution and picture quality of a Full HD 1920x1080p High Definition TV signal. It has a universal connection for both analog YPbPr and uncompressed Digital connection of DVI or HDMI, supporting HDCP. It can display 1080p progressive signals at 24, 50 and 60Hz.

finition TV signals of HD sources like

Perfect Natural Motion

Enjoy the action without any judder. Perfect Nat

ural Motion estimates motion in the picture and corrects juddering movements in both broadcast and pre-recorded movie material (including 1080p movies and 24p True Cinema on Blu-ray and DVD). The result is even smoother and quieter pictures with excellent sharpness, regardless of how quick the action gets on-screen. Enjoy motion performance that surpasses cinema quality!

Wide Color Gamut LCD

Wide Color Gamut LCD display for brilliant co

lors

100Hz Clear LCD (2ms)

100Hz Clear LCD creates extreme motion sharpness for cle with fast on-screen motion. The Double Frame Rate Insertion works with a high 100Hz refresh rate. It increases the sharpness of motion reproduction to more than twice that of conventional LCD, resulting in a performance with a response time of 2 milliseconds (measured in Perceived BlurEdge-Width; BEW). This unique Philips technology brings motion sharpness of LCD displays to an unprecedented level.

ar and vibrant images even

Dynamic contrast ratio 30000:1

You want the LCD flat display with the highest c

ontrast and most vibrant images. Philips advanced video processing combined with unique extreme dimming and backlight boosting technology results in vibrant images. Dynamic Contrast will increase the contrast with excellent blacklevel and accurate rendition of dark shades and colors. It gives a bright, lifelike picture with high contrast and vibrant colors.

4 HDMI inputs with EasyLink

EasyLink uses the HDMI CEC industry standard proto between connected devices and the TV. With Easylink only one remote control is needed to operate main functionalities on your TV and connected devices. HDMI makes an uncompressed digital RGB connection from the source to the screen for the ultimate picture quality. HDMI uses HDCP copy protection. With 3 HDMI inputs on the back and 1 HDMI on the side of the TV you can connect multiple HD sources, for instance an HD settop box, a Blu-ray player, and Game Console or Digital Camcorder.

col to share functionality

Page 3

47PFL9703D/79

LCD TV

47" integrated digital

Specifications

Picture/Display

• Aspect ratio: Widescreen

• Brightness: 500 cd/m²

• Dynamic screen contrast: 30000:1

• Response time (typical): 2 (BEW equiv.) ms

• Viewing angle: 176º (H) / 176º (V)

• Diagonal screen size: 47 inch / 119 cm

• Display screen type: LCD Full HD W-UXGA Act. ix

mat

• Panel resolution: 1920x1080p

• Picture enhancement: Per

Perfect Natural Motion, Perfect Contrast, Perfect Colors, Wide Color Gamut display, 3/2 - 2/2 motion pull down, 3D Combfilter, Active Control + Light sensor, 100Hz Clear LCD, Jagged Line Suppression, Progressive Scan, 1080p 24/25/30Hz processing, 1080p 50/60Hz processing

• Screen enhancement: Anti-Reflection coated

• Color processing: 2250 trillion colors 17bit RGB

ect Pixel HD Engine,

Supported Display Resolution

• Computer formats

Res

olution Refresh rate 640 x 480 60Hz 800 x 600 60Hz 1024 x 768 60Hz 1280 x 768 60Hz 1360 x 768 60Hz 1920 x 1080i 60Hz 1920 x 1080p 60Hz

deo formats

• Vi Res

olution Refresh rate 480i 60Hz 480p 60Hz 576i 50Hz 576p 50Hz 720p 50, 60Hz 1080i 50, 60Hz 1080p 24, 50, 60Hz 1080p 24, 25, 30Hz

tweeter

Dome

Convenience

• Child Protection: Child Lock+Parental Control

• Ease of Installation: Auto Program Naming,

• Ease of Use: 4 favorite lists, Auto Volume Leveller

• Electronic Program Guide: Now + Next EPG

• Picture in Picture: Text dual screen

• Remote Control: Universal

• Remote control type: RC4492

• Screen Format Adjustments: 4:3, Auto Format,

• Teletext: 1200 page Hypertext

• Teletext enhancements: Habit Watch, Program

• Firmware upgradeable: Firmware auto upgrade

• Multimedia: Digital media reader (browser), USB

• Smart mode: Game, Movie, Personal, Energy

ic Channel Install(ACI), Automatic Tuning

Automat System (ATS), Autostore, Fine Tuning, PLL Digital Tuning, Plug & Play

), Delt

(AVL Interface, On Screen Display, Program List, Settings assistant Wizard, Side Control

Mo and Heading Shift, Super Zoom, Widescreen, unscaled (1080p dot by dot)

info

wizard

autobr

ving, Standard, Vivid

a Volume per preset, Graphical User

vie expand 14:9, Mo

rmat

ion Line

, Firmware upgradeable via USB

eak-in

vie expand 16:9, Subtitle

Multimedia Applications

• Multimedia connections: USB

• Playback Formats: MP3, Slideshow files (.alb), JPEG ures, MPEG1, MPEG2

Still pict

Tuner/Reception/Transmission

• Aerial Input: 75 ohm coaxial (IEC75)

• TV system: DVB COFDM 2K/8K

• Video Playback: NTSC, SECAM, PAL

• DVB: DVB Terrestrial *

• Tuner bands: Hyperband, S-Channel, UHF, VHF

adphone out, USB

BS in, Audio L/R in,

• PC network link: DLNA certified

• Other connections: Analog audio Left/Right out, S/ t (coaxial), Common Interface

PDIF ou

Power

• Ambient temperature: 5 °C to 35 °C

• Mains power: AC 220 - 240 V +/- 10%

• Power consumption: 278 W

• Power (Energy saving mode): 190 W

• Standby power consumption: 0,15 W

Dimensions

•Set dimensions (W x H x D):

1170 x 736 x 125 mm

• Set dimensions with stand (H x D): 801

• Stand width: 650 mm

• Weight incl. Packaging: 50 kg

• Product weight: 45 kg

• Product weight (+stand): 50 kg

•Box dimensions (W x H x D):

x 943 x 331 mm

• Color cabinet: Black glass decofront with black

ackcover

• VESA wall mount compatible: 400 x 400 mm

x 297 mm

Accessories

• Included Accessories: RF antenna cable, Power

cord, Quick start guide, User Manual, Warranty certificate, Remote Control

•

Sound

• Output power (RMS): 2 x 15W

• Sound Enhancement: Auto Vo Signal Processing, Dynamic Bass Enhancement, Graphic Equaliser, Smart Sound

• Sound System: Virtual Dolby Digital, BBE

lume Leveller, Digital

Loudspeakers

• Built-in speakers: 2

• Loudspeaker types: 2 integrated subwoofers,

Issue date 2019-06-28

Version: 2.0.8

12 NC: 8670 000 41408 EAN: 87 12581 43551 6

Connectivity

• Ext 1 Scart: Audio L/R, CVBS in/out, RGB

• Ext 2 Scart: Audio L/R, CVBS in/out, RGB

• Ext 3: YPbPr, Audio L/R in, VGA PC-in

• Ext 4: HDMI v1.3

• Ext 5: HDMI v1.3

• Ext 6: HDMI v1.3

• EasyLink (HDMI-CEC): One touch play, System ontrol, System standby

dio c

•Front / Side connections: HDMI v1.3, S-vi

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips N.V. or their respective owners.

www.philips.com

deo in,
