Philips 47PFL9632D/10B leaflet

Download

Page 1

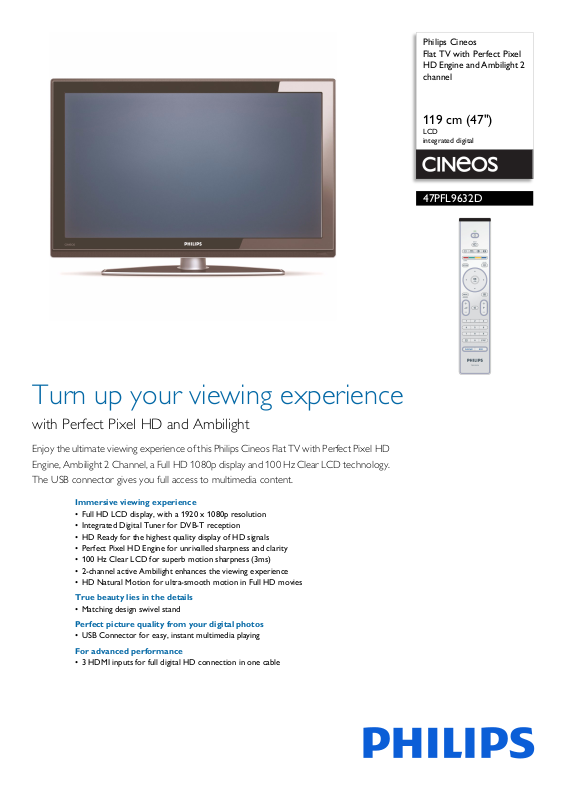

Philips Cineos Flat TV with Perfect Pixel HD Engine and Ambilight 2 channel

119 cm (47")

LCD integrated digital

47PFL9632D

Turn up your viewing experience

with Perfect Pixel HD and Ambilight

Enjoy the ultimate viewing experience of this Philips Cineos Flat TV with Perfect Pixel HD Engine, Ambilight 2 Channel, a Full HD 1080p display and 100 Hz Clear LCD technology. The USB connector gives you full access to multimedia content.

Immersive viewing experience

• Full HD LCD display, with a 1920 x 1080p resolution

• Integrated Digital Tuner for DVB-T reception

• HD Ready for the highest quality display of HD signals

• Perfect Pixel HD Engine for unrivalled sharpness and clarity

• 100 Hz Clear LCD for superb motion sharpness (3ms)

• 2-channel active Ambilight enhances the viewing experience

• HD Natural Motion for ultra-smooth motion in Full HD movies

True beauty lies in the details

• Matching design swivel stand

Perfect picture quality from your digital photos

• USB Connector for easy, instant multimedia playing

For advanced performance

• 3 HDMI inputs for full digital HD connection in one cable

Page 2

47PFL9632D/10

Flat TV

119 cm (47") LCD, integrated digital

Highlights

Full HD LCD display 1920 x 1080p

The Full HD screen has the widescreen resolutio resolution of HD sources for the best possible picture quality. It is fully future-proof as it supports 1080p signals from all sources, including the most recent sources such as Bluray and advanced HD game consoles. The signal processing is extensively upgraded to support this much higher signal quality and resolution. It produces brilliant flicker-free progressive scan pictures with superb brightness and colours.

Integrated Digital DVB-T tuner

The integrated Digital DVB-T tuner lets you receive additional set top box. Enjoy quality TV clutter free.

HD Ready

Enjoy the exceptional picture quality of High Definiti HD sources like HDTV set-top boxes and Bluray discs. HD Ready is a protected label that offers picture quality beyond that of progressive scan. It conforms to strict standards laid out by EICTA to offer an HD screen that displays the benefits of the resolution and picture quality of a High Definition signal. It has a universal connection for both analogue YPbPr and uncompressed Digital connection of DVI or HDMI, supporting HDCP. It can display 720p, and 1080i signals at 50 and 60 Hz.

n of 1920 x 1080p. This is the highest

digital terrestrial TV without an

on pictures and be fully prepared for

Perfect Pixel HD Engine

Experience unrivalled sharpness and clarity w

ith Perfect Pixel HD Engine. Each pixel of the picture is enhanced to match the surrounding pixels better, resulting in a more natural picture. The result is a unique combination of sharpness, natural detail, vivid colours, superior contrast and smooth natural motion whatever you are watching. Clean and razor sharp images result from artefact and noise detection and reduction in all content sources — from multimedia to standard TV.

100 Hz Clear LCD

100 Hz Clear LCD creates extreme motion sharpness for cle with fast on-screen motion. The Double Frame Rate Insertion works with a high 100 Hz refresh rate. It increases the sharpness of motion reproduction to more than twice that of conventional LCDs, resulting in a response time of 3 milliseconds (measured in Perceived Blur-Edge-Width; BEW). This unique Philips technology brings the motion sharpness of LCD displays to an unprecedented level.

Ambilight 2 channel

Ambilight makes an impressive contribution to th

e overall viewing experience by producing ambient light to complement the colours and light intensity of the on-screen image. It adds a new dimension to the viewing experience, completely immersing you into the content you are watching. It creates ambience, stimulates more relaxed viewing and improves perceived picture detail, contrast and colour. Ambilight automatically and independently

ar and vibrant images even

adapts its colours according to the changing content on the screen.

Pre-mounted swivel stand

For maximum freedom of placement, this highq

uality stand is designed specifically for this TV. The stand comes pre-mounted to the TV out of the box. It allows easy placement of your Flat TV without the hassle of building the stand to the TV first. Enjoy the best viewing angle by swivelling it to suit your personal preference.

USB Multimedia Connector

The USB connector allows access to m

ultimedia jpg, mp3 and alb files of most USB sticks and most digital cameras (USB 1.1 memory-class device). Plug the USB into the slot at the side of the TV and access your photos or music files. This makes it easy to view and share your photos and music.

3 HDMI inputs

HDMI makes an uncompressed digital RGB c

onnection from the source to the screen. By eliminating conversion to an analogue signal, it delivers an unblemished image. The nondegraded signal reduces flicker and leads to a clearer picture. HDMI intelligently communicates the highest output resolution with the source device. The HDMI input is fully backwards-compatible with DVI sources but includes digital audio. HDMI uses HDCP copy protection. With 3 HDMI inputs you can connect multiple HD sources, such as an HD set-top box and a Blu-ray player. Your TV is fully prepared for the HD future.

Page 3

47PFL9632D/10

Flat TV

119 cm (47") LCD, integrated digital

Specifications

Picture/Display

• Colour cabinet: Anthracite dark

• Aspect ratio: 16:9

• Brightness: 550 cd/m²

• Contrast ratio (typical): 1200:1

• Dynamic screen contrast: 8000:1

• Response time (typical): 3 (BEW equiv.) ms

• Viewing angle: 176º (H)/176º (V)

• Diagonal screen size: 47 inch / 119 cm

• Display screen type: LCD Full HD W-UXGA Act. ix

mat

• Panel resolution: 1920 x 1080p

• Colour processing: 4 trillion colours (14-bit RGB)

• Picture enhancement: Perfect Pixel HD Engine, HD

ral Mot

Natu 1080p 50/60 Hz processing, 1080p 24/25/30 Hz proc Combfilter, Active Control + Light sensor, Jagged Line Suppression, Progressive scan, Pulse Killer Chip, Widescreen Plus, 100 Hz Clear LCD, Double frame rate

• Screen enhancement: Anti-Reflection coated

ion, Dynamic contrast enhancement,

essing, 3/2 - 2/2 motion pull down, 3D

Ambilight

• Ambilight Features: Ambilight 2 Channel, Auto

adaptive to video content, Full operation in standby, Efficient low energy lamp

• Ambilight light system: LED-wide colour

• Dimming Function: Manual and via Light Sensor

Supported Display Resolution

mputer formats

• Co

Res

olution Refresh rate 640 x 480 60 Hz 800 x 600 60 Hz 1024 x 768 60 Hz 1280 x 768 60 Hz 1360 x 768 60 Hz 1920 x 1080i 60 Hz 1920 x 1080p 60 Hz

deo formats

• Vi Res

olution Refresh rate 480i 60 Hz 480p 60 Hz 576i 50 Hz 576p 50 Hz 720p 50, 60 Hz 1080i 50, 60 Hz 1080p 24, 25, 30 Hz 1080p 24, 50, 60 Hz

Sound

• Output power (RMS): 2 x 8 W

• Sound Enhancement: Digital Signal Processing,

• Sound System: Virtual Dolby Digital, BBE

Equalizer, Dynamic Bass Enhancement

Graphic

Loudspeakers

• Built-in speakers: 4

• Loudspeaker types: Integrated woofers with wOOx,

Dome tweeter

Convenience

• Child Protection: Child Lock+Parental Control

• Clock: Smart Clock

• Ease of Installation: Auto Programme Naming,

• Ease of Use: 4 favourite lists, Auto Volume Leveller

• Electronic Programme Guide: Now + Next EPG,

• Remote Control: TV

• Remote control type: RC4450

• Screen Format Adjustments: unscaled (1080p dot

• Picture in Picture: Text dual screen

• Teletext: 1200-page Hypertext

• Teletext enhancements: Habit Watch, Programme

• Firmware upgradeable: Firmware auto upgrade

• Multimedia: Digital media reader (browser), USB

tic Channel Install (ACI), Automatic

Automa Tuning System (ATS), Autostore, PLL Digital Tuning, Plug and Play

), Delt

(AVL Interface, On-Screen Display, Programme List, Settings assistant Wizard, Side Control

8-day

dot

by Movie expand 16:9, Super Zoom, Widescreen

info

wizard

autobr

a Volume per preset, Graphical User

Elec

tronic Programme Guide

), 4:3, Auto Format, Movie expand 14:9,

rmat

ion Line

, Firmware upgradeable via USB

eak-in

Multimedia Applications

• Multimedia connections: USB

• Playback Formats: MP3, Slideshow files (.alb), JPEG Still pict

ures

Tuner/Reception/Transmission

• Aerial Input: 75 ohm coaxial (IEC75)

• TV system: DVB COFDM 2K/8K

• Video Playback: NTSC, SECAM, PAL

• Digital TV: DVB Terrestrial*

• Tuner bands: Hyperband, S-Channel, UHF, VHF

Connectivity

• Ext 1 Scart: Audio L/R, CVBS in/out, RGB

• Ext 2 Scart: Audio L/R, CVBS in/out, RGB

• Ext 3: YPbPr, Audio L/R in

• Ext 4: HDMI v1.3

• Ext 5: HDMI v1.3

• Ext 6: HDMI v1.3

• HDMI features: Cable equalization, Category 1 and bles, Compressed audio, Multi-rate pref.

2 c format support, PC format support, Resolutions 720p, 1080i, 1080p

• Front/Side connections: Audio L/R in, CVBS in,

• Other connections: Analogue

Headph

S/PDIF out (coaxial), Common Interface

es Out, S-video in, USB

audio Left/Right out,

Power

• Ambient temperature: 5°C to 35°C

• Mains power: AC 220-240 V +/- 10%

• Power consumption: 275 W

• Standby power consumption: 0.8 W

Accessories

• Included accessories: Tabletop swivel stand, RF

antenna cable

Dimensions

•Set dimensions (W x H x D):

1170 x 736 x 125 mm

• Set dimensions with stand (H x D): 801 x 297 mm

• Product weight: 33.5 kg

• Product weight (+stand): 38.1 kg

•Box dimensions (W x H x D):

x 943 x 331 mm

• Weight incl. Packaging: 59 (tbc) kg

• VESA wall mount compatible: 600 x 400 mm

•

Issue date 2019-06-26

Version: 7.0.21

12 NC: 8670 000 29399 EAN: 87 12581 33151 1

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips N.V. or their respective owners.

www.philips.com

* DVB-T, supported in selected countries only
