Philips 47PFL9703D/10 Specification Sheet

Download

Page 1

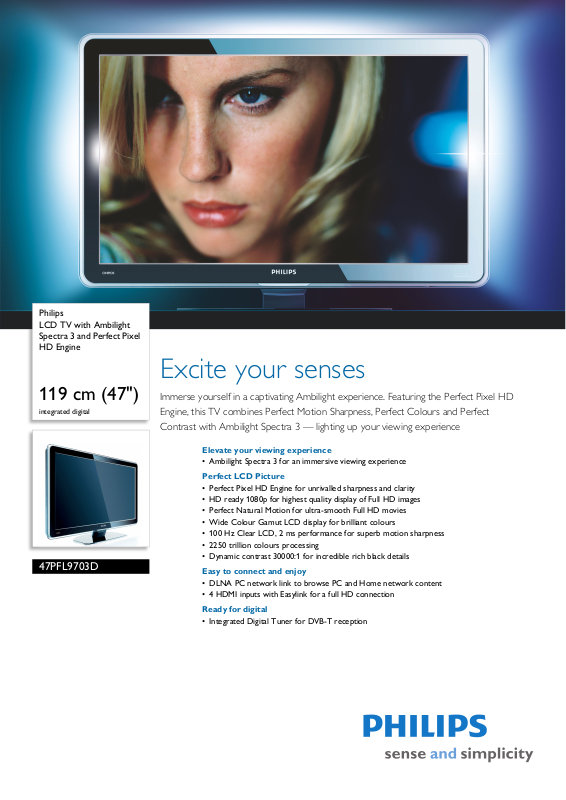

Philips LCD TV with Ambilight Spectra 3 and Perfect Pixel HD Engine

Excite your senses

119 cm (47")

integrated digital

47PFL9703D

Immerse yourself in a captivating Ambilight experience. Featuring the Perfect Pixel HD Engine, this TV combines Perfect Motion Sharpness, Perfect Colours and Perfect Contrast with Ambilight Spectra 3 — lighting up your viewing experience

Elevate your viewing experience

• Ambilight Spectra 3 for an immersive viewing experience

Perfect LCD Picture

• Perfect Pixel HD Engine for unrivalled sharpness and clarity

• HD ready 1080p for highest quality display of Full HD images

• Perfect Natural Motion for ultra-smooth Full HD movies

• Wide Colour Gamut LCD display for brilliant colours

• 100 Hz Clear LCD, 2 ms performance for superb motion sharpness

• 2250 trillion colours processing

• Dynamic contrast 30000:1 for incredible rich black details

Easy to connect and enjoy

• DLNA PC network link to browse PC and Home network content

• 4 HDMI inputs with Easylink for a full HD connection

Ready for digital

• Integrated Digital Tuner for DVB-T reception

Page 2

LCD TV with Ambilight Spectra 3 and Perfect Pixel HD Engine

119 cm (47") integrated digital

Highlights

47PFL9703D/10

Ambilight Spectra 3

Add a new dimension to your viewing e

xperience with Ambilight Spectra 3. This patented Philips technology enlarges the screen further by projecting a glow of light from the back of the screen onto the surrounding wall. Ambilight automatically adjusts the colour and brightness of the light surrounding the TV to match the picture, creating an immersive viewing experience. With Ambilight Spectra 3 movies truly come to life!

Perfect Pixel HD Engine

Experience unrivalled sharpness and clarity w

ith Perfect Pixel HD Engine. Each pixel of the picture is enhanced to match the surrounding pixels better, resulting in a more natural picture. The result is a unique combination of sharpness, natural detail, vivid colours, superior contrast and smooth natural motion whatever you are watching. Clean and razor sharp images result from artefact and noise detection and reduction in all content sources — from multimedia to standard TV.

Full HD LCD display 1920 x 1080p

Enjoy the exceptional picture quality of Full High De HDTV broadcast, or Blu-ray DVD. HD ready 1080p is a protected label that offers picture quality far beyond that of ordinary HD Ready. It conforms to strict standards laid out by EICTA to offer a Full HD screen that displays the benefits of resolution and picture quality of

finition TV signals of HD sources like

a Full HD 1920 x 1080p High Definition TV signal. It has a analogue YPbPr and uncompressed Digital connection of DVI or HDMI, supporting HDCP. It can display 1080p progressive signals at 24, 50 and 60 Hz.

Perfect Natural Motion

Enjoy the action without any judder. Perfect Nat

ural Motion estimates motion in the picture and corrects juddering movements in both broadcast and pre-recorded movie material (including 1080p movies and 24p True Cinema on Blu-ray and DVD). The result is even smoother and quieter pictures with excellent sharpness. Enjoy motion performance that surpasses cinema quality!

Wide Colour Gamut LCD

x.v.Colour ensures realistic colour reproduct hue and depth in order to offer a wide colour range that includes almost twice as many colours as sRGB colour space. x.v.Colour produces colour variations very close to what the human eye can recognise – it even enhances/improves the quality of High Definition video material. Televisions compliant with x.v.Colour will reproduce images in almost the same quality as when it was recorded.

100 Hz Clear LCD (2 ms)

100 Hz Clear LCD creates extreme motion sharpness. The Doub

universal connection for both

ion, accurately capturing every tint,

le Frame Rate Insertion

increases the sharpness of motion reproduction to more than twice that of conventional LCD, resulting in a performance with a response time of 2 milliseconds. Now you can enjoy clear images even with fast onscreen motion.

Dynamic contrast ratio 30000:1

You want the LCD flat display with the highest c

ontrast and most vibrant images. Philips advanced video processing combined with unique extreme dimming and backlightboosting technology results in vibrant images. Dynamic Contrast will increase the contrast with excellent black level and accurate rendition of dark shades and colours. It gives a bright, lifelike picture with high contrast and vibrant colours.

4 HDMI inputs with EasyLink

EasyLink uses the HDMI CEC industry standard proto between connected devices and the TV. With Easylink only one remote control is needed to operate main functionalities on your TV and connected devices. HDMI makes an uncompressed digital RGB connection from the source to the screen for the ultimate picture quality. HDMI uses HDCP copy protection. With 3 HDMI inputs on the back and 1 HDMI on the side of the TV you can connect multiple HD sources, for instance an HD set-top box, a Blu-ray player, and Game Console or Digital Camcorder.

col to share functionality

Page 3

LCD TV with Ambilight Spectra 3 and Perfect Pixel HD Engine

119 cm (47") integrated digital

Specifications

47PFL9703D/10

Picture/Display

• Aspect ratio: Widescreen

• Brightness: 500 cd/m²

• Dynamic screen contrast: 30000:1

• Response time (typical): 2 (BEW equiv.) ms

• Viewing angle: 176º (H)/176º (V)

• Diagonal screen size: 47 inch / 119 cm

• Display screen type: LCD Full HD W-UXGA Act. ix

mat

• Panel resolution: 1920 x 1080p

• Picture enhancement: Per

Perfect Natural Motion, Perfect Contrast, Perfect Colours, Wide Colour Gamut display, 3/2 - 2/2 motion pull down, 3D Combfilter, Active Control + Light sensor, 100 Hz Clear LCD, Jagged Line Suppression, Progressive scan, 1080p 24/25/30 Hz

essing, 1080p 50/60 Hz processing

pro

• Screen enhancement: Anti-Reflection coated

scre

• Colour processing: 2250 t

• Colour cabinet: Black glass

back cover

ect Pixel HD Engine,

rillion colours 17bit RGB

decofront with black

Ambilight

• Ambilight Features: Ambilight Spectra 3, Lounge

light mode

• Dimming Function: Manual and via Light Sensor

• Ambilight light system: LED-wide colour

Supported Display Resolution

• Computer formats

olution Refresh rate

Res 640 x 480 60 Hz 800 x 600 60 Hz 1024 x 768 60 Hz 1280 x 768 60 Hz 1360 x 768 60 Hz 1920 x 1080i 60 Hz 1920 x 1080p 60 Hz

deo formats

• Vi

Res

olution Refresh rate 480i 60 Hz 480p 60 Hz 576i 50 Hz 576p 50 Hz 720p 50, 60 Hz 1080i 50, 60 Hz 1080p 24, 50, 60 Hz 1080p 24, 25, 30 Hz

Sound

• Output power (RMS): 2 x 15 W

• Sound Enhancement: Auto Volume Leveller, Digital Signal Proc Graphic Equalizer, Smart Sound

• Sound System: Virtual Dolby Digital, BBE

essing, Dynamic Bass Enhancement,

Loudspeakers

• Built-in speakers: 2

• Loudspeaker types: 2 integrated subwoofers,

tweeter

Dome

Convenience

• Child Protection: Child Lock+Parental Control

• Ease of Installation: Auto Programme Naming,

• Ease of Use: 4 favourite lists, Auto Volume Leveller

• Electronic Programme Guide: Now + Next EPG,

• Picture in Picture: Text dual screen

• Remote Control: Universal

• Remote control type: RC4492

• Screen Format Adjustments: 4:3, Auto Format,

• Teletext: 1200-page Hypertext

• Teletext enhancements: Habit Watch, Programme

• Firmware upgradeable: Firmware auto upgrade

• Multimedia: Digital media reader (browser), USB

• Smart mode: Game, Movie, Personal, Energy

tic Channel Install (ACI), Automatic

Automa Tuning System (ATS), Autostore, Fine Tuning, PLL Digital Tuning, Plug and Play

), Delt

(AVL Interface, On-Screen Display, Programme List, Settings assistant Wizard, Side Control

8-day

Mo and Heading Shift, Super Zoom, Widescreen, unscaled (1080p dot by dot)

info

wizard

autobr

ving, Standard, Vivid

a Volume per preset, Graphical User

Elec

tronic Programme Guide

vie expand 14:9, Mo

rmat

ion Line

, Firmware upgradeable via USB

eak-in

vie expand 16:9, Subtitle

Multimedia Applications

• Multimedia connections: USB

• Playback Formats: MP3, Slideshow files (.alb), JPEG

ures, MPEG1, MPEG2

Still pict

Tuner/Reception/Transmission

• Aerial Input: 75 ohm coaxial (IEC75)

• TV system: DVB COFDM 2K/8K

• Video Playback: NTSC, SECAM, PAL

• Digital TV: DVB Terrestrial*

• Tuner bands: Hyperband, S-Channel, UHF, VHF

Connectivity

• Ext 1 Scart: Audio L/R, CVBS in, RGB

• Ext 2 Scart: Audio L/R, CVBS in, RGB

• Ext 3: YPbPr, Audio L/R in, VGA PC-in

• Ext 4: HDMI v1.3

• Ext 5: HDMI v1.3

• Ext 6: HDMI v1.3

• EasyLink (HDMI-CEC): One touch play, System audio control, System standby

• Front/Side connections: HDMI v1.3, S-video in,

BS in, Audio L

• PC network link: DLNA 1.0 certified

• Other connections: Analogue S/PDIF out (coaxial), Common Interface

/R in, Headphones Out, USB

audio Left/Right out,

Power

• Ambient temperature: 5°C to 35°C

• Mains power: AC 220-240 V +/- 10%

• Power consumption: 278 W

• Power (Energy-saving mode): 190 W

• Standby power consumption: 0.15 W

Dimensions

•Set dimensions (W x H x D): 1170 x 736 x 125 mm

• Set dimensions with stand (H x D): 801 x 297 mm

• Weight incl. Packaging: 50 kg

• Product weight: 45 kg

• Product weight (+stand): 50 kg

•Box dimensions (W x H x D):

x 943 x 331 mm

• VESA wall mount compatible: 400 x 400 mm

Accessories

• Included accessories: RF antenna cable, Power cord, Quick start guide, User Manual, Warranty certificate, Remote Control, Batteries for remote control

•

Issue date 2012-01-11

Version: 4.0.9

12 NC: 8670 000 34188 EAN: 87 12581 36566 0

NETWORK

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.

www.philips.com
